Essential Safety Equipment
SRS Air Bags
Do not remove interior air bag parts:
Should you sell your Mazda, we urge
Removing any components such as the
you to tell the new owner of its air
front seats, front dashboard, the
bag systems and that familiarization
steering wheel or parts on the front
with all instructions about them,
and rear window pillars and along the
from the Owner's Manual, is
roof edge, containing air bag parts or
important.
sensors is dangerous. These parts
This highly-visible label is displayed
contain essential air bag components.
which warns against the use of a
The air bag could accidentally activate
rear-facing child-restraint system on
and cause serious injuries. Always have
the front passenger seat.
an Authorized Mazda Dealer remove
these parts.
(Mexico)
Properly dispose of the air bag
system:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury could
result. Have an Authorized Mazda
(Except Mexico)
Dealer safely dispose of the air bag
system or scrap an air bag equipped
vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person
with certain medical conditions in
accordance with a certified
physician, contact an Authorized
Mazda Dealer, refer to “Customer
Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud
inflation noise can be heard and
some smoke will be released.
Neither is likely to cause injury,
however, the texture of the air bags
may cause light skin injuries on body
parts not covered with clothing
through friction.
2-57
Essential Safety Equipment
SRS Air Bags
Supplemental Restraint System Components
Supplemental Restraint System Components
(With Driver and Front Passenger Occupant Classification System)
1. Side and curtain inflators and air bags
2. Side crash sensors
3. Roll-over sensor, crash sensors, and diagnostic module (SAS unit)
4. Driver/Front passenger inflators and air bags
5. Air bag/front seat belt pretensioner system warning indication/warning light
(page 7-28)
6. Driver/Front passenger knee inflators and air bags
7. Front passenger air bag deactivation indicator light (page 2-67)
8. Front air bag sensors
9. Seat belt pretensioners (page 2-26)
10.Front passenger seat weight sensors (page 2-67)
11.Front passenger seat weight sensor control module
12.Driver and front passenger seat belt buckle switches (page 2-71)
13.Driver seat slide position sensor (page 2-66)
2-58
Essential Safety Equipment
SRS Air Bags
(Without Driver and Front Passenger Occupant Classification System)
1. Side and curtain inflators and air bags
2. Side crash sensors
3. Driver/Front passenger inflators and air bags
4. Air bag/
front seat belt pretensioner system warning indication
/warning light (page 7-28)
5. Driver knee inflator and air bag
6. Front air bag sensors
7. Seat belt pretensioners (page 2-26)
8. Crash sensors, and diagnostic module (SAS unit)
2-59
Essential Safety Equipment
SRS Air Bags
(With Front Passenger Occupant
How the SRS Air Bags
Classification System)
Work
The driver's dual-stage air bag controls
air bag inflation in two energy stages.
How the SRS Air Bags Work
During an impact of moderate severity,
the driver's air bag deploys with lesser
Your Mazda is equipped with the
energy, whereas during more severe
following types of SRS air bags. SRS air
impacts, it deploys with more energy.
bags are designed to work together
with the seat belts to help to reduce
injuries during an accident.
The SRS air bags are designed to
provide further protection for
passengers in addition to the seat belt
functions. Be sure to wear seat belts
properly.
Front Seat Belt Pretensioners
The front seat belt pretensioners are
designed to deploy in moderate or
severe frontal, near frontal collisions.
In addition, the pretensioners operate
Front Passenger Air Bag
when a side collision or a roll-over
accident is detected. The pretensioners
The front passenger air bag is mounted
operate differently depending on what
in the front passenger dashboard.
types of air bags are equipped. For
The inflation mechanism for the front
more details about seat belt
passenger air bag is the same as the
pretensioner operation, refer to the
driver's air bag.
SRS Air Bag Deployment Criteria (page
For more details about air bag
2-63).
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-63).
Driver Air Bag
The driver's air bag is mounted in the
steering wheel.
When air bag crash sensors detect a
frontal impact of greater than
moderate force, the driver's air bag
inflates quickly helping to reduce injury
mainly to the driver's head or chest
caused by directly hitting the steering
wheel.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-63).
2-60
Essential Safety Equipment
SRS Air Bags
(With Front Passenger Occupant
Side Air Bags
Classification System)
The side air bags are mounted in the
In addition, the front passenger air bag
outboard sides of the front seatbacks.
is designed to only deploy in
accordance with the total seated
When the air bag crash sensors detect
weight on the front passenger seat. For
a side impact of greater than moderate
details, refer to the front passenger
force, the system inflates the side air
occupant classification system (page
bag only on the side in which the
2-66).
vehicle was hit. The side air bag inflates
quickly to reduce injury to the driver or
front passenger's chest caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-63).
(With Driver and Front Passenger
Occupant Classification System)
In addition, the front passenger side air
Driver and Front Passenger Knee
bag is designed to only deploy in
Air Bags*
accordance with the total seated
The knee air bags are equipped under
weight on the front passenger seat. For
details, refer to the front passenger
the instrument panel.
If the air bag crash sensors receive a
occupant classification system (page
2-66).
frontal impact of greater than
moderate force, the knee air bags
deploy immediately to reduce impact
to the driver and front passenger's
legs.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-63).
*Some models.
2-61
Essential Safety Equipment
SRS Air Bags
Curtain Air Bags
(With Front Passenger Occupant
Classification System)
The curtain air bags are mounted in the
In a roll-over:
front and rear window pillars, and the
In response to a vehicle roll-over, both
roof edge along both sides.
curtain air bags inflate.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the curtain air bag inflates
quickly and helps to reduce injury
mainly to the driver and front and rear
outboard passengers' heads caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-63).
Both curtain air bags will deploy after
In a side impact:
the roll-over accident is detected.
Greater than moderate impact to one
side of the vehicle will cause the
Warning Light/Beep
curtain air bag on that side only to
A system malfunction or operation
inflate.
conditions are indicated by a warning.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning
Indication/Warning Light on page
7-28.
Only one side curtain air bag will
deploy on the side of the vehicle that
receives the force of an impact.
2-62
Essential Safety Equipment
SRS Air Bags
SRS Air Bag Deployment Criteria
SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the
type of collision.
(The illustrations are the representative cases of collisions.)
Types of collision
SRS equip-
A severe frontal/near frontal
A severe side col-
A roll-over/near
ment
A rear collision
collision
lision
roll-over*2
2-63
Essential Safety Equipment
SRS Air Bags
Types of collision
SRS equip-
A severe frontal/near frontal
A severe side col-
A roll-over/near
ment
A rear collision
collision
lision
roll-over*2
Front seat
belt preten-
X*1
X*1
X*1
sioner
Driver air
X
bag
No air bag and
Front pas-
front seat belt
senger air
X*1
pretensioner will
bag
be activated in a
Knee air
X*1
rear collision.
bag
X*1 (impact side
Side air bag
only)
Curtain air
X (impact side
X (both sides)
bag
only)
X: The SRS air bag equipment deploys in a collision.
:The SRS air bag equipment does not deploy in a collision.
*1
(With Front Passenger Occupant Classification System)
The front passenger front and side air bags, seat belt pretensioner and knee air bag are designed to
deploy depending on the condition of the total seated weight on the front passenger seat.
*2
(With Front Passenger Occupant Classification System)
In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
2-64
Essential Safety Equipment
SRS Air Bags
Rear-ending or running under a
Limitations to SRS Air Bag
truck's tail gate
Limitations to SRS Air Bag
In severe collisions such as those
described previously in "SRS Air Bag
Deployment Criteria", the applicable
SRS air bag equipment will deploy.
However, in some accidents, the
equipment may not deploy depending
Limitations to side collision detection:
on the type of collision and its severity.
The following illustrations are
examples of side collisions that may
Limitations to front/near front
not be detected as severe enough to
deploy the SRS air bag equipment.
collision detection:
The following illustrations are
examples of front/near front collisions
Side impacts involving trees or poles
that may not be detected as severe
enough to deploy the SRS air bag
equipment.
Impacts involving trees or poles
Side impacts with two-wheeled
vehicles
Frontal offset impact to the vehicle
Roll-over (Without Front Passenger
Occupant Classification System)
2-65
Essential Safety Equipment
SRS Air Bags
Limitations to roll-over detection
Driver and Front
(With Front Passenger Occupant
Classification System):
Passenger Occupant
The following illustration is an example
Classification System*
of an accident that may not be
detected as a roll-over accident.
Driver and Front Passenger
Therefore, the front seat belt
Occupant Classification System
pretensioners and curtain air bags may
First, please read "Supplemental
not deploy.
Restraint System (SRS) Precautions"
(page 2-52) carefully.
Pitch end over end
Driver Seat Slide Position Sensor
Your vehicle is equipped with a driver
seat slide position sensor as a part of
the supplemental restraint system. The
sensor is located under the driver seat.
The sensor determines whether the
driver seat is fore or aft of a reference
position and sends the seat position to
the diagnostic module (SAS unit).
The SAS unit is designed to control the
deployment of the driver air bag
depending on how close the driver
seat is to the steering wheel.
The air bag/front seat belt
pretensioner system warning light
flashes if the sensor has a possible
malfunction (page 2-62).
2-66
*Some models.
Essential Safety Equipment
SRS Air Bags
Front Passenger Seat Weight
The air bag/front seat belt
Sensors
pretensioner system warning light
flashes and the front passenger air bag
Your vehicle is equipped with a front
deactivation indicator light illuminates
passenger seat weight sensors as a part
if the sensors have a possible
of the supplemental restraint system.
malfunction. If this happens, the front
These sensors are located under both
passenger front and side air bags and
of the front passenger seat rails. These
knee air bags, and seat belt
sensors determine the total seated
pretensioner system will not deploy.
weight on the front passenger seat and
monitor the seat belt buckle for the
Front passenger air bag deactivation
front passenger seat. The SAS unit is
indicator light
designed to prevent the front
This indicator light illuminates to
passenger front and side air bags and
remind you that the front passenger
knee air bags, and seat belt
front and side air bags and knee air
pretensioner system from deploying if
bags, and seat belt pretensioners will
the front passenger air bag
not deploy during a collision.
deactivation indicator light illuminates.
To reduce the chance of injuries
caused by deployment of the front
passenger air bag, the system
deactivates the front passenger front
and side air bags and knee air bags,
and also the seat belt pretensioner
system when the front passenger air
bag deactivation indicator light
illuminates. Refer to the following
table for the front passenger air bag
deactivation indicator light
illumination conditions.
This system shuts off the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system, so make sure the
front passenger air bag deactivation
indicator light illuminates according to
the following table.
2-67
Essential Safety Equipment
SRS Air Bags
If the front passenger weight sensors
If the front passenger air bag
are normal, the indicator light
deactivation indicator light does not
illuminates when the ignition is
illuminate when the ignition is
switched ON. The light turns off after a
switched ON and does not illuminate
few seconds. Then, the indicator light
as indicated in the front passenger air
illuminates or is off under the following
bag deactivation indicator light on/off
conditions:
condition chart, do not allow a child to
sit in the front passenger seat and
Front passenger air bag deactivation
consult an Authorized Mazda Dealer
indicator light on/off condition chart
as soon as possible. The system may
Condition
not work properly in an accident.
detected
Front pas-
Front
by the
Front pas-
WARNING
senger
passen-
front pas-
senger air
front and
ger seat
senger oc-
bag deacti-
Do not decrease the total seated
side and
belt pre-
cupant
vation indi-
weight on the front passenger seat:
knee air
tensioner
classifica-
cator light
When an adult or large child sits on the
bags
system
tion sys-
front passenger seat, decreasing the
tem
total seated weight on the front
passenger seat required for air bag
Empty
Deactivat-
Deacti-
deployment is dangerous. The front
(Not occu-
On
ed
vated
passenger seat weight sensors will
pied)
detect the reduced total seated weight
Child or
condition and the front passenger front
child-re-
Deactivat-
Deacti-
On
and side air bags and knee air bags,
straint sys-
ed
vated
and the seat belt pretensioner system
tem*1
will not deploy during an accident. The
Adult*2
Off
Ready
Ready
front passenger will not have the
supplementary protection of the air
*1
If a larger child sits on the front passenger
bag, which could result in serious
seat, the sensors might detect the child as
injury. Decreasing the total seated
being an adult depending on the child's
weight on the front passenger seat
physique.
could result in an air bag not deploying
*2
If a smaller adult sits on the front passenger
under the following conditions, for
seat, the sensors might detect the person as
example:
being a child depending on the person's
physique.
The curtain air bag is ready for inflating
regardless of what the front passenger air bag
deactivation indicator light on/off condition
chart indicates.
2-68
Essential Safety Equipment
SRS Air Bags

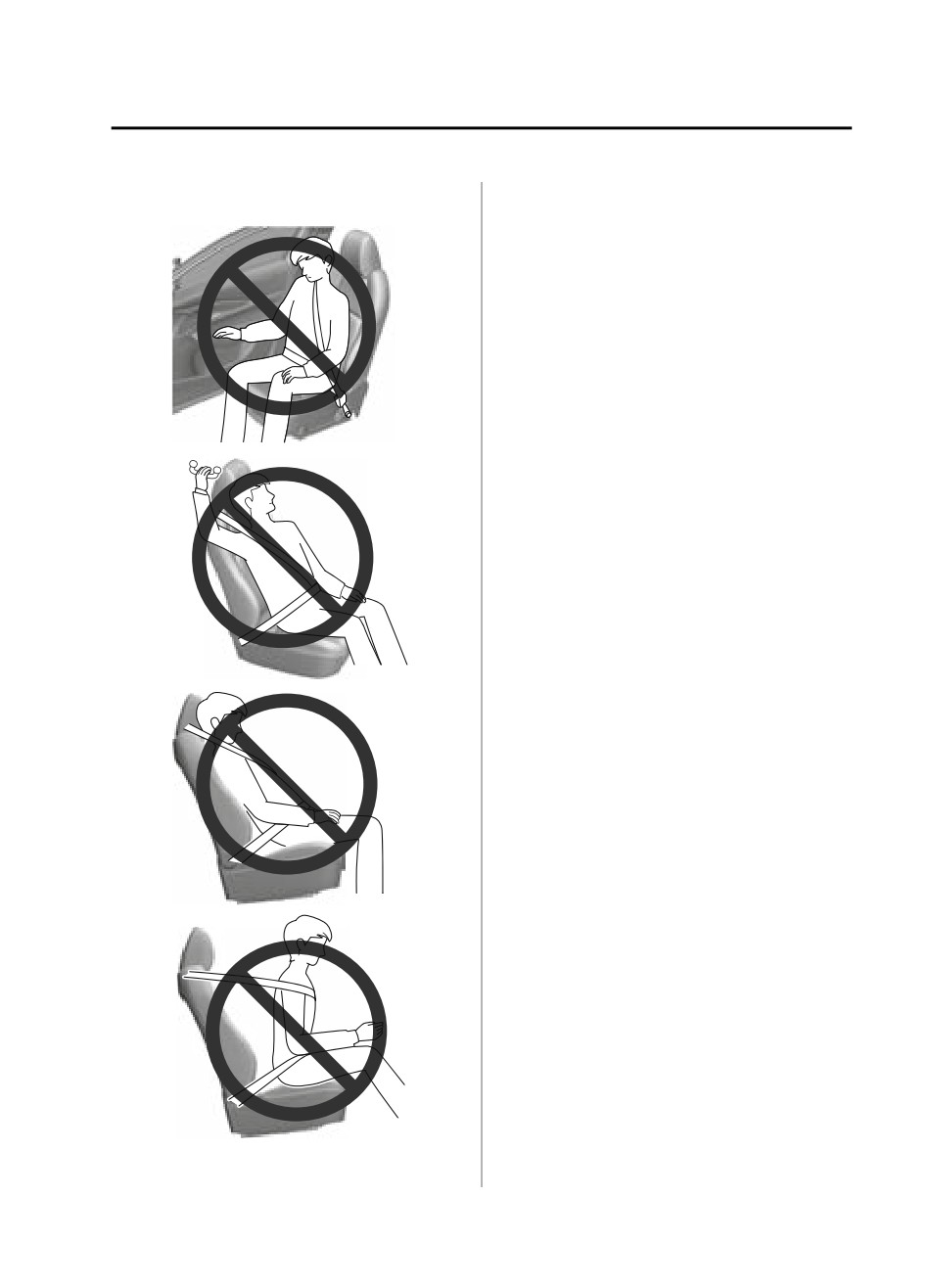

¾ A front passenger is seated as shown
¾ A rear passenger pushes up on the
in the following figure:
front passenger seat with their feet.
¾ Luggage or other items placed under
the front passenger seat or between
the front passenger seat and driver
seat that push up the front passenger
seat bottom.
¾ Any accessories which might
decrease the total seated weight on
the front passenger seat are attached
to the front passenger seat.
The front passenger front and side air
bags and knee air bags, and the seat
belt pretensioner system will
deactivate if the front passenger air
bag deactivation indicator light
illuminates.
Do not increase the total seated
weight on the front passenger seat:
When an infant or small child sits on
the front passenger seat, increasing the
total seated weight on the front
passenger seat is dangerous. The front
passenger seat weight sensors will
detect the increased total seated
weight, which could result in the
unexpected deployment of the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system in an accident and
may cause serious injury. Increasing the
total seated weight on the front
passenger seat could result in the front
passenger front and side air bags and
knee air bags, and seat belt
pretensioner system deployment in an
accident under the following
conditions, for example:
¾ Luggage or other items are placed on
the seat with the child in the
child-restraint system.
2-69
Essential Safety Equipment
SRS Air Bags
¾ A rear passenger or luggage push or
¾ If you place your child on the front
pull down on the front passenger
passenger seat, secure the
seatback.
child-restraint system properly and
¾ A rear passenger steps on the front
slide the front passenger seat as far
passenger seat rails with their feet.
back as possible (page 2-43).
¾ Luggage or other items are placed on
the seatback or hung on the head
NOTE
restraint.
The system requires about 10
¾ Heavy items are placed in the
seconds to alternate between turning
seatback map pocket.
the front passenger front and side air
¾ The seat is washed.
bags and knee air bags, and seat belt
¾ Liquids are spilled on the seat.
pretensioner system on or off.
¾ The front passenger seat is moved
The front passenger air bag
backward, pushing into luggage or
deactivation indicator light may
other items placed behind it.
illuminate repeatedly if luggage or
¾ The front passenger seatback
other items are put on the front
contacts the rear seat.
passenger seat, or if the temperature
¾ Luggage or other items are placed
of the vehicle's interior changes
between the front passenger seat
suddenly.
and driver seat.
The front passenger air bag
¾ Any accessories which might increase
deactivation indicator light may
the total seated weight on the front
illuminate for 10 seconds if the total
passenger seat are attached to the
seated weight on the front passenger
front passenger seat.
seat changes.
The air bag/front seat belt
pretensioner system warning light
CAUTION
might illuminate if the front
¾ To assure proper deployment of the
passenger seat receives a severe
front air bag and to prevent damage
impact.
to the sensors in the front seat
If the front passenger air bag
bottoms:
deactivation indicator light does not
illuminate after installing a
¾ Do not place sharp objects on the
child-restraint system on the front
front seat bottoms or leave heavy
passenger seat, first, re-install your
luggage on them.
child-restraint system according to
¾ Do not spill any liquids on the
the procedure in this owner's
front seats or under the front seats.
manual. Then, if the front passenger
¾ To allow the sensors to function
air bag deactivation indicator light
properly, always perform the
still does not illuminate, install the
following:
child-restraint system on the rear seat
and consult an Authorized Mazda
¾ Adjust the front seats as far back as
Dealer as soon as possible.
possible and always sit upright
against the seatbacks with seat
belts worn properly.
2-70
Essential Safety Equipment
SRS Air Bags
If the front passenger air bag
Constant Monitoring
deactivation indicator light
illuminates when an adult is seated
Constant Monitoring
in the front passenger seat, have the
passenger re-adjust their posture by
The following components of the air
sitting with their feet on the floor,
bag systems are monitored by a
and then re-fastening the seat belt. If
diagnostic system:
the front passenger air bag
deactivation indicator light still
Front air bag sensors
illuminates, move the passenger to
Crash sensors, and diagnostic
the rear seat. If sitting in the rear seat
module (SAS unit)
is not possible, slide the front
Side crash sensors
passenger seat as far back as
Air bag modules
possible. Consult an Authorized
Front seat belt pretensioners
Mazda Dealer as soon as possible.
Air bag/Front seat belt pretensioner
system warning light
Driver and Front Passenger Buckle
Related wiring
Switches
(With Driver and Front Passenger
The buckle switches on the front seat
Occupant Classification System)
belts detect whether or not the front
seat belts are securely fastened and
Driver seat slide position sensor*
further control the deployment of the
Front passenger occupant
air bags.
classification sensor
Front passenger occupant
classification module
Front passenger air bag deactivation
indicator light
Front passenger seat belt buckle
switch
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition is switched
ON and continues while the vehicle is
being driven.
*Some models.
2-71
Before Driving
3
Use of various features, including keys, doors, mirrors and
windows.
Keys
3-2
Security System
3-46
Keys
3-2
Modification and Add-
Keyless Entry System
3-4
On Equipment
3-46
Immobilizer System
3-46
Theft-Deterrent System*
3-48
Advanced Keyless Entry
System
3-10
Advanced Keyless Entry
Driving Tips
3-50
System*
3-10
Break-In Period
3-50
Operational Range
3-11
Saving Fuel and Protection of the
Environment
3-50
Hazardous Driving
3-51
Doors and Locks
3-12
Floor Mat
3-52
Door Locks
3-12
Rocking the Vehicle
3-53
Liftgate
3-21
Winter Driving
3-53
Driving In Flooded Area
3-55
Fuel and Emission
3-30
Overloading
3-56
Fuel and Engine Exhaust
Driving on Uneven Road
3-56
Precautions
3-30
Turbocharger Information
Fuel-Filler Lid and Cap
3-32
(SKYACTIV-G 2.5T)
3-57
Mirrors
3-35
Towing
3-58
Mirrors
3-35
Trailer Towing
3-58
Recreational Towing
3-58
Windows
3-39
Power Windows
3-39
Moonroof*
3-42
*Some models.
3-1
Before Driving
Keys
¾ To avoid damage to the key
Keys
(transmitter), DO NOT:
Keys
¾ Drop the key (transmitter).
¾ Get the key (transmitter) wet.
WARNING
¾ Disassemble the key (transmitter).
¾ Expose the key (transmitter) to
Do not leave the key in your vehicle
high temperatures on places such
as the dashboard, under direct
with children and keep them in a
place where your children will not
sunlight.
¾ Expose the key (transmitter) to any
find or play with them:
Leaving children in a vehicle with the
kind of magnetic field.
key is dangerous. This could result in
¾ Place heavy objects on the key
someone being badly injured or even
(transmitter).
killed. Children may find these keys to
¾ Put the key (transmitter) in an
be an interesting toy to play with and
ultrasonic cleaner.
could cause the power windows or
¾ Put any magnetized objects close
other controls to operate, or even
to the key (transmitter).
make the vehicle move.
NOTE
CAUTION
The driver must carry the key
(transmitter) to ensure the system
¾ Because the key (transmitter) uses
low-intensity radio waves, it may not
functions properly.
function correctly under the
Transmitter
following conditions:
¾ The key (transmitter) is carried with
communication devices such as
cellular phones.
¾ The key (transmitter) contacts or is
covered by a metal object.
¾ The key (transmitter) is near
electronic devices such as personal
computers.
¾ Non-Mazda genuine electronic
equipment is installed in the
vehicle.
¾ There is equipment which
1. Transmitter (page 3-5)
discharges radio waves near the
vehicle.
¾ The key (transmitter) may consume
battery power excessively if it
receives high-intensity radio waves.
Do not place the key (transmitter)
near electronic devices such as
televisions or personal computers.
3-2
Before Driving
Keys
Auxiliary key
2. Insert the tabs of the lower cover
into the slots of the transmitter and
There is a removable auxiliary key
install the lower cover.
inside the transmitter.
Removing the auxiliary key
1. Remove the lower cover while
sliding the knob in the direction of
the arrow.
Key code number plate
A code number is stamped on the
plate attached to the key set; detach
this plate and store it in a safe place
(not in the vehicle) for use if you need
2. Remove the auxiliary key.
to make a replacement key (auxiliary
key).
Also write down the code number and
keep it in a separate safe and
convenient place, but not in the
vehicle.
If your key (auxiliary key) is lost, consult
an Authorized Mazda Dealer and have
your code number ready.
Installing the auxiliary key
1. Key code number plate
1. Install the auxiliary key as the
illustration.
3-3
Before Driving
Keys
Keyless Entry System
CAUTION
Radio equipment like this is governed
Keyless Entry System
by laws in the United States.
This system uses the key buttons to
Changes or modifications not expressly
remotely lock and unlock the doors,
approved by the party responsible for
liftgate, and fuel-filler lid, and opens/
compliance could void the user's
closes the liftgate.
authority to operate the equipment.
The system can start the engine
without having to take the key out of
NOTE
your purse or pocket.
The keyless entry system operation
It can also help you signal for attention
may vary due to local conditions.
or help.
The keyless entry system is fully
Operating the theft-deterrent system is
operational when the ignition is
also possible on theft-deterrent
switched off. The system does not
system-equipped vehicles.
operate if the ignition is switched to
any position other than off.
System malfunctions or warnings are
If the key does not operate when
indicated by the following warning
pressing a button or the operational
lights or beeps.
range becomes too small, the battery
Check the displayed message for more
may be weak. To install a new
information and, if necessary, have the
battery, refer to Key Battery
vehicle inspected at an Authorized
Replacement (page 6-29).
Mazda Dealer, according to the
Battery life is about 1 year. Replace
indication.
the battery with a new one if the
KEY Warning Indication/Warning
messages are displayed in the
Light (Red)
instrument cluster. Replacing the
Refer to KEY Warning Indication/
battery about once a year is
Warning Light (Red) on page 7-29.
recommended because the KEY
Ignition Not Switched Off (STOP)
warning indication may not display
Warning Beep
depending on the rate of battery
Refer to Ignition Not Switched Off
depletion.
(STOP) Warning Beep on page
Additional keys can be obtained at
7-39.
an Authorized Mazda Dealer. Up to
Key Removed from Vehicle Warning
6 keys can be used with the keyless
Beep
functions per vehicle. Bring all keys
Refer to Key Removed from Vehicle
to an Authorized Mazda Dealer
Warning Beep on page 7-39.
when additional keys are required.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen key inoperative.
3-4
Before Driving
Keys
Transmitter
Lock button
To lock the doors, liftgate, and
fuel-filler lid, press the lock button and
the hazard warning lights will flash
once.
(With the advanced keyless function)
A beep sound will be heard once.
To confirm that all the doors, liftgate,
and fuel-filler lid have been locked,
press the lock button again within 5
seconds. If they are closed and locked,
the horn will sound.
1. Operation indicator light
2. Lock button (
)
3. Unlock button (
)
NOTE
4. Power liftgate button (
)*
The doors can be locked when the
5. Panic button (
)
lock button on the transmitter is
NOTE
pressed while any door is open.
To prevent the transmitter from being
The headlights turn on/off by
left in the vehicle, make sure that the
operating the transmitter. Refer to
driver carries the transmitter when
Leaving Home Light on page 4-57.
locking the doors with any door
(With theft-deterrent system)
open.
The hazard warning lights flash when
When any door or the liftgate is open
the theft-deterrent system is armed
and the lock button is pressed, the
or turned off.
closed doors can be locked. After
Refer to Theft-Deterrent System on
that, any other open door or the
page 3-48.
liftgate can be locked by closing
(With the advanced keyless
them.
function)
Confirm that all the doors, liftgate,
A beep sound can be heard for
and fuel-filler lid are locked visually
confirmation when the doors,
or audibly by use of the double click.
liftgate, and fuel-filler lid are locked/
Make sure all the doors, liftgate, and
unlocked using the key. If you prefer,
fuel-filler lid are locked after pressing
the beep sound can be turned off.
the button.
The volume of the beep sound can
(With theft-deterrent system)
also be changed.
If the lock button is pressed with all
Refer to the Settings section in the
the doors and liftgate closed, the
Mazda Connect Owner's Manual.
hazard warning lights will flash and
The operation indicator light flashes
the theft-deterrent system is armed.
when the buttons are pressed.
*Some models.
3-5
Before Driving
Keys
Unlock button
NOTE
To unlock the driver's door and the
The system can be set to unlock all
fuel-filler lid, press the unlock button
the doors, liftgate, and fuel-filler lid
and the hazard warning lights will flash
when pressing the unlock button
twice.
once.
(With the advanced keyless function)
Refer to the Settings section in the
A beep sound will be heard twice.
Mazda Connect Owner's Manual.
(Auto re-lock function)
To unlock the other doors and liftgate,
After unlocking with the key, all the
press the unlock button again within 5
doors, liftgate, and fuel-filler lid will
seconds and two more beep sounds
automatically lock if any of the
will be heard.
following operations are not
performed within about 60 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights will
flash for confirmation.
The time required for the doors to
lock automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
A door or the liftgate is opened.
The ignition is switched to any
position other than off.
(With theft-deterrent system)
When the doors are unlocked by
pressing the unlock button on the
key while the theft-deterrent system
is turned off, the hazard warning
lights will flash twice to indicate that
the system is turned off.
3-6
Before Driving
Keys
Power liftgate button*
(Turning off the alarm)
To open/close the liftgate, press the
The alarm stops by pressing any button
power liftgate button for one second
on the key.
or longer with the liftgate in the fully
Power saving function
closed/open position.
The hazard warning lights flash twice
By turning on the transmitter power
and the liftgate opens/closes after the
saving function, the advanced keyless
beep sounds.
entry*1 system functions turn off and
For details on the power liftgate
the battery power consumption of the
function, refer to Power Liftgate on
transmitter is restricted.
page 3-23.
The remote control function is
operational by operating the
transmitter switch even while the
power saving function is turned on.
However, the operation indicator light
of the transmitter does not turn on/
flash.
Panic button
Turning on the power saving function
If you witness from a distance
After you have turned on the power
someone attempting to break into or
saving function according to the
damage your vehicle, press and hold
following procedure, the hazard
the panic button to activate the
warning lights and sound operate*1
vehicle's alarm. Call emergency
one time.
services if necessary.
1. Press the lock button on the
transmitter 4 times within 3
seconds to turn on the operation
indicator light.
2. Press the lock button continuously
for 1.5 seconds or longer while the
operation indicator light turns on
NOTE
(for 5 seconds).
The panic button will work whether
3. Press any of the buttons on the
any door or the liftgate is open or
transmitter to make sure that the
closed.
operation indicator light does not
turn on/flash.
(Turning on the alarm)
Pressing the panic button for 1 second
or more will trigger the alarm for about
2 minutes and 30 seconds, and the
following will occur:
The horn sounds intermittently.
The hazard warning lights flash.
*Some models.
3-7
Before Driving
Keys
Turning off the power saving function
With the advanced keyless function
After you have turned off the power
saving function according to the
following procedure, the hazard
warning lights and sound operate*1
one time.
1. Press any of the buttons on the
transmitter to make sure that the
operation indicator light does not
turn on/flash.
2. Press the lock button on the
1. Interior antenna
transmitter 4 times within 3
2. Operational range
seconds to turn on the operation
indicator light.
Without the advanced keyless
3. Press the lock button continuously
function
for 1.5 seconds or longer while the
operation indicator light turns on
(for 5 seconds).
*1
With the advanced keyless function
Operational Range
The system operates only when the
driver is in the vehicle or within
operational range while the key is
being carried.
1. Interior antenna
Starting the engine
2. Operational range
NOTE
NOTE
Starting the engine may be possible
The engine may not start if the key is
even if the key is outside of the
placed in the following areas:
vehicle and extremely close to a door
Around the dashboard
and window, however, always start
In the storage compartments such as
the engine from the driver's seat.
the glove compartment or the center
If the vehicle is started and the key is
console
not in the vehicle, the vehicle will not
restart after it is shut off and the
ignition is switched off.
The luggage compartment is out of
the assured operational range,
however, if the key (transmitter) is
operable the engine will start.
3-8
Before Driving
Keys
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle
are temporarily suspended to prevent
theft of the vehicle.
To restore the functions, press the
unlock button on the
functions-suspended key in the
vehicle.
3-9
Before Driving
Advanced Keyless Entry System
NOTE
Advanced Keyless Entry
The advanced keyless entry system
System*
functions can be deactivated to
prevent any possible adverse effect on
Advanced Keyless Entry System
a user wearing a pacemaker or other
medical device. If the system is
deactivated, you will be unable to start
WARNING
the engine by carrying the key. Consult
an Authorized Mazda Dealer for
Radio waves from the key may affect
details. If the advanced keyless entry
medical devices such as pacemakers:
system has been deactivated, you can
Before using the key near people who
start the engine by following the
use medical devices, ask the medical
procedure indicated when the key
device manufacturer or your physician
battery goes dead.
if radio waves from the key will affect
Refer to Engine Start Function When
the device.
Key Battery is Dead on page 4-8.
The advanced keyless function allows
you to lock/unlock the door, liftgate,
and fuel-filler lid, or open the liftgate
while carrying the key.
System malfunctions or warnings are
indicated by the following warning
beeps.
Touch Sensor Inoperable Warning
Beep
Refer to Touch Sensor Inoperable
Warning Beep (With the advanced
keyless function) on page 7-40.
Liftgate Door-lock Switch Inoperable
Warning Beep
Refer to Liftgate Door-lock Switch
Inoperable Warning Beep (With the
advanced keyless function) on page
7-40.
Key Left-in-luggage Compartment
Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With
the advanced keyless function) on
page 7-40.
Key Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-40.
3-10
*Some models.
Before Driving
Advanced Keyless Entry System
NOTE
Operational Range
The system may not operate if you
Operational Range
are too close to the windows or door
handles.
The system operates only when the
If the key is left in the following areas
driver is in the vehicle or within
and you leave the vehicle, the doors
operational range while the key is
may be locked depending on the
being carried.
radio wave conditions even if the key
NOTE
is left in the vehicle.
When the battery power is low, or in
Around the dashboard
places where there are high-intensity
In the storage compartments such
radio waves or noise, the operational
as the glove compartment or the
range may become narrower or the
center console
system may not operate. For
Next to a communication device
determining battery replacement,
such as a mobile phone
Refer to Keyless Entry System on page
3-4.
Locking Using Door-Lock Switch/
Unlocking Using Electric Liftgate
Locking/Unlocking Using Touch
Opener
Sensor
1. Exterior antenna
1. Exterior antenna
2.
80 cm (31 in)
2.
80 cm (31 in)
3. Operational range
3. Operational range
3-11
Before Driving
Doors and Locks
After closing the doors and the
Door Locks
liftgate, always verify that they are
securely closed:
Door Locks
Doors and the liftgate not securely
closed are dangerous, if the vehicle is
WARNING
driven with a door and the liftgate not
securely closed, the door and the
Always take all children and pets with
liftgate could open unexpectedly
you or leave a responsible person
resulting in an accident.
with them:
Leaving a child or a pet unattended in
Always confirm the safety around the
a parked vehicle is dangerous. In hot
vehicle before opening a door and the
weather, temperatures inside a vehicle
liftgate:
can become high enough to cause
Suddenly opening a door and the
brain damage or even death.
liftgate is dangerous. A passing vehicle
or a pedestrian could be hit and cause
Do not leave the key in your vehicle
an accident.
with children and keep them in a
place where your children will not
CAUTION
find or play with them:
Leaving children in a vehicle with the
¾ Always confirm the conditions
key is dangerous. This could result in
around the vehicle before opening/
someone being badly injured or even
closing the doors and the liftgate and
killed.
use caution during strong winds or
when parked on an incline. Not
Keep all doors locked when driving:
being aware of the conditions
Unlocked doors in a moving vehicle
around the vehicle is dangerous
are dangerous. Passengers can fall out
because fingers could get caught in
if a door is accidentally opened and
the door and the liftgate or a passing
can more easily be thrown out in an
pedestrian could be hit, resulting in
accident.
an unexpected accident or injury.
Always close all the windows and
moonroof, lock the doors, fuel-filler
lid, and liftgate and take the key with
you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
3-12
Before Driving
Doors and Locks
NOTE
(With the advanced keyless
function)
Always stop the engine and lock the
The beep sound is heard for about
doors. In addition, to prevent theft of
10 seconds to notify the driver that
valuables, do not leave them inside
the key has been left in the vehicle.
the cabin.
(Without the advanced keyless
If the key is left in the following areas
function)
and you leave the vehicle, the doors
The horn sound is heard twice to
may be locked depending on the
notify the driver that the key has
radio wave conditions even if the key
been left in the vehicle.
is left in the vehicle.
(Door unlock (control) system with
Around the dashboard
collision detection)
In the storage compartments such
This system automatically unlocks the
as the glove compartment or the
doors, fuel-filler lid, and liftgate in
center console
the event the vehicle is involved in an
Next to a communication device
accident to allow passengers to get
such as a mobile phone
out of the vehicle immediately and
When the ignition is switched to
prevent being trapped inside. While
ACC or ON, the vehicle lock-out
the ignition is switched ON and in
prevention feature prevents you from
the event the vehicle receives an
locking yourself out of the vehicle.
impact strong enough to inflate the
All doors, fuel-filler lid, and liftgate
air bags, all the doors, fuel-filler lid,
will automatically unlock if they are
and liftgate are automatically
locked using the power door locks
unlocked after about 6 seconds have
with any door or the liftgate open.
elapsed from the time of the
The vehicle lock-out prevention
accident.
feature does not operate while the
The doors, fuel-filler lid, and liftgate
ignition is switched off.
may not unlock depending on how
When all doors, fuel-filler lid, and
an impact is applied, the force of the
liftgate are locked using the power
impact, and other conditions of the
door lock with any door or the
accident.
liftgate open, the closed doors,
If door-related systems or the battery
fuel-filler lid, and liftgate are locked.
is malfunctioning, the doors,
After that, when all doors and the
fuel-filler lid, and liftgate may not
liftgate are closed, all doors and the
unlock depending on your vehicle
liftgate are locked. However, if the
type.
key is inside the vehicle, all doors,
fuel-filler lid, and liftgate are
automatically unlocked.
3-13
Before Driving
Doors and Locks
Unlocking with Auxiliary Key
2. Sensing area of door release touch
sensor (Inner side of door handle)
Only the driver's door can be unlocked
using the auxiliary key.
NOTE
Refer to Keys on page 3-2.
When locking/unlocking with the
Insert the auxiliary key while the
transmitter carried, securely touch
driver's door handle is pulled and turn
the sensing area of the touch sensor
the key to the unlock side. Turn the
as follows.
auxiliary key back to its original
Locking
position before removing it.
Unlocking
NOTE
If you attempt to open the driver’s
door using an unauthorized auxiliary
key, the key cylinder will spin around
but the door will not unlock.
Locking, Unlocking with Touch
The system may not operate normally
Sensor, Door Handle (With the
under the following conditions.
advanced keyless function)
You touch the sensing area of the
By touching the sensing area of the
door lock touch sensor and the
touch sensor, various locking/
sensing area of the door release
unlocking operations can be done
touch sensor at the same time.
without taking the key out of a bag or
pocket.
There are two types of touch sensors
used for locking and unlocking, and
each sensor is built into the outer door
handle on the driver and front
passenger's doors.
You touch the sensing area of the
touch sensor while wearing gloves.
Foreign matter such as snow or dirt
1. Sensing area of door lock touch
is stuck on the sensing area of the
sensor (Depression on outer side of
touch sensor.
door handle)
3-14
Before Driving
Doors and Locks
You pull the door handle just after
(Unlocking from the driver's door)
touching the sensing area of the
The following locations are unlocked
touch sensor.
by touching the sensing area of the
The system may operate if the outer
door release touch sensor of the
side door handle of a front door is
driver's door.
splashed with water by a car wash or
Driver’s door
rain while the transmitter is in the
Fuel-filler lid
operation range.
If the system does not operate even
NOTE
though you touch the sensing area of
the touch sensor correctly, release
The location to be unlocked can be
the touch sensor once, and then
changed.
touch the sensing area of the touch
Refer to the Settings section in the
sensor again after waiting about 3
Mazda Connect Owner's Manual.
seconds.
When unlocking, the hazard warning
Locking
lights and sound operate two times.
When locking, touch the sensing area
(Unlocking from the front passenger’s
of the door lock touch sensor with all
door)
of the following conditions met.
The following locations are unlocked
The ignition is switched OFF.
by touching the sensing area of the
All the doors are closed.
door release touch sensor of the front
You are carrying the transmitter.
passenger's door.
The following locations are locked by
All doors
touching the sensing area of the door
Fuel-filler lid
lock touch sensor.
Liftgate
All doors
When unlocking, the hazard warning
Fuel-filler lid
lights and sound operate two times.
Liftgate
When locking, the hazard warning
lights and sound operate one time.
Unlocking
When unlocking, touch the sensing
area of the door release touch sensor
with all of the following conditions
met.
The ignition is switched OFF.
The driver’s door is locked.
Three seconds or longer have passed
since the doors were locked.
You are carrying the transmitter.
3-15
Before Driving
Doors and Locks
NOTE
(Walk-away auto lock function)
A beep sound is heard when all
Confirm that all the doors and
doors and the liftgate are closed
liftgate are securely locked.
while the transmitter is being carried.
For the liftgate, move it without
All the doors, fuel-filler lid, and
pressing the electric liftgate opener
liftgate are locked automatically
to verify that the liftgate has not been
when the transmitter is out of the
left ajar.
operational range. Also, the hazard
A beep sound is heard for
warning lights flash once. (Even if the
confirmation when the doors,
driver is in the operational range, all
fuel-filler lid, and liftgate are locked/
the doors, fuel-filler lid, and liftgate
unlocked using the touch sensor. If
are locked automatically after about
you prefer, the beep sound can be
30 seconds.) If you are out of the
turned off.
operational range before the doors
The volume of the beep sound can
and the liftgate are completely
also be changed. Refer to the
closed or another transmitter is left
Settings section in the Mazda
in the vehicle, the walk-away auto
Connect Owner's Manual.
lock function will not work. Always
(With theft-deterrent system)
make sure that all doors and the
The hazard warning lights flash when
liftgate are closed and locked before
the theft-deterrent system is armed
leaving the vehicle. The walk-away
or turned off.
auto lock function does not close the
Refer to Theft-Deterrent System on
power windows.
page 3-48.
(Auto re-lock function)
The setting can be changed so that
After unlocking with the touch
the doors, fuel-filler lid, and liftgate
sensor, all the doors , fuel-filler lid,
are locked automatically without
and liftgate will automatically lock if
touching the sensing area of the
any of the following operations are
touch sensor.
not performed within about 60
Refer to the Settings section in the
seconds.
Mazda Connect Owner's Manual.
Opening a door or the liftgate.
Switching the ignition to any
position other than off.
If your vehicle has a theft-deterrent
system, the hazard warning lights will
flash for confirmation.
The time required for the doors to
lock automatically can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
3-16
Before Driving
Doors and Locks
Locking, Unlocking with
Front passenger's door
Transmitter
The following locations can be locked/
unlocked by operating the keyless
entry system transmitter. Refer to
Keyless Entry System (page 3-4).
All doors
Fuel-filler lid
Liftgate
Locking, Unlocking with
Door-Lock Switch
1. Unlock
Door-lock switch on driver’s and front
2. Lock
passenger's door
NOTE
The following locations are locked/
To prevent the transmitter from being
unlocked by pressing the door-lock
left in the vehicle, make sure that you
switch.
carry the transmitter before locking.
All doors
After locking by pressing the
Fuel-filler lid
door-lock switch and when the
Liftgate
liftgate is closed last with the
transmitter left in the vehicle, only
Driver's door
the liftgate is unlocked.
Locking from the outside using the
door-lock switch
Doors can be locked from the outside
of the vehicle without using the
transmitter.
When locking from the outside using
the door-lock switch, press the lock
side of the door-lock switch with all of
the following conditions met and then
1.
Unlock
close all the doors.
2.
Lock
The ignition is switched OFF.
Any door is open.
NOTE
To prevent the transmitter from being
left in the vehicle, make sure that the
driver carries the transmitter when
locking the doors with any door
open.
3-17

















Content      ..     1      2      3      4      ..
