Pictorial Index
Interior Overview
Interior Equipment (View A)
Interior Equipment (View A-type A)
ᶃ High Beam Control System (HBC) switch
page 4-101
ᶄ Lighting control
page 4-53
ᶅ Turn and lane-change signals
page 4-58
ᶆ Audio remote control switches
page 5-23
ᶇ INFO switch
page 4-20
ᶈ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) switches
page 4-132
ᶉ TJA switches
page 4-144
ᶊ Cruise control switches
page 4-208
ᶋ Wiper and washer lever
page 4-59
1-2
The equipment and installation position varies by vehicle
Pictorial Index
Interior Overview
Interior Equipment (View A-type B)
ᶃ Door-lock knob
page 3-19
ᶄ Door-lock switch
page 3-17
ᶅ Outside mirror switches
page 3-35
ᶆ i-ACTIVSENSE OFF switch
page 4-98
ᶇ 360° view monitor switch
page 4-172
ᶈ Parking sensor OFF switch
page 4-231
ᶉ TCS OFF switch
page 4-86
ᶊ Off-Road Traction Assist switch
page 4-89
ᶋ Position memory buttons
page 2-10
ᶌ Power liftgate switch
page 3-23
ᶍ Power window switches
page 3-40
ᶎ Power window lock switch
page 3-40
The equipment and installation position varies by vehicle
1-3
Pictorial Index
Interior Overview
Interior Equipment (View B)
Interior Equipment (View B)
ᶃ Instrument cluster
page 4-18
ᶄ Active driving display
page 4-35
ᶅ Mazda Connect
page 5-15
ᶆ Climate control system
page 5-2
ᶇ Heated steering wheel switch
page 2-19
ᶈ Seat warmer switches
page 2-18
ᶉ Hazard warning flasher switch
page 4-66
ᶊ Rear window defogger switch
page 4-64
ᶋ Glove compartment
page 5-46
ᶌ Push button start
page 4-4
ᶍ Horn
page 4-65
ᶎ Lock release lever
page 2-4
ᶏ Hood release handle
page 6-12
ᶐ Storage pocket
page 5-46
1-4
The equipment and installation position varies by vehicle
Pictorial Index
Interior Overview
Interior Equipment (View C)
Interior Equipment (View C)
ᶃ Head restraint
page 2-16
ᶄ Front seat
page 2-4
ᶅ Seat belt
page 2-21
ᶆ Bottle holder
page 5-44
ᶇ Vanity mirror
page 5-39
ᶈ Sunvisor
page 5-39
ᶉ Overhead light (front)/Map lights
page 5-40
ᶊ Overhead console
page 5-46
ᶋ Moonroof switch
page 3-43
ᶌ Rearview mirror
page 3-37
ᶍ Vent
page 5-3
ᶎ Cup holder
page 5-43
ᶏ Selector lever
page 4-37
ᶐ Drive selection switch
page 4-90
ᶑ Commander switch
page 5-19
ᶒ Electric Parking Brake (EPB) switch
page 4-72
ᶓ AUTOHOLD switch
page 4-80
The equipment and installation position varies by vehicle
1-5
Pictorial Index
Interior Overview
Interior Equipment (View D)
Interior Equipment (View D)
ᶃ Push knob
page 2-13
ᶄ Head restraint
page 2-16
ᶅ Child safety lock
page 3-20
ᶆ Rear coat hook
page 5-45
ᶇ Overhead light (rear)
page 5-40
ᶈ Door-lock knob
page 3-19
ᶉ Power window switch
page 3-40
ᶊ Assist grip
page 5-45
ᶋ Center console
page 5-47
ᶌ Accessory socket
page 5-42
ᶍ External input terminal
page 5-15
ᶎ Bottle holder
page 5-44
ᶏ Rear seat
page 2-13
ᶐ Cup holder
page 5-43
ᶑ Armrest
page 2-15
ᶒ ISOFIX lower anchors (Mexico)/LATCH lower anchors (Except Mexico)
........................................................................................................page 2-47
ᶓ Seat belt
page 2-21
1-6
The equipment and installation position varies by vehicle
Pictorial Index
Interior Overview
Interior Equipment (View E)
Interior Equipment (View E)
ᶃ Luggage compartment cover
page 3-28
ᶄ Anchor brackets
page 2-40
ᶅ Luggage compartment light
page 5-40
The equipment and installation position varies by vehicle
1-7
Pictorial Index
Exterior Overview
ᶃ Windshield wiper blades
page 6-22
ᶄ Moonroof
page 3-42
ᶅ Door
page 3-12
ᶆ Window
page 3-39
ᶇ Touch sensor
page 3-14
ᶈ Fuel-filler lid
page 3-33
ᶉ Outside mirror
page 3-35
ᶊ Liftgate
page 3-21
ᶋ Electric liftgate opener
page 3-22
ᶌ Rear window wiper blade
page 6-25
1-8
The equipment and installation position varies by vehicle
Essential Safety Equipment
2
Important information about safety equipment, including seats,
seat belt system, child-restraint systems and SRS air bags.
Seats
2-2
Child-Restraint System
Seat Precautions
2-2
Installation
2-35
Front Seat
2-4
Child-Restraint System Suitability
Rear Seat
2-13
for Various Seat Positions
Head Restraints
2-16
Table
2-37
Installing Child-Restraint
Systems
2-40
Seat Warmer/Heated Steering
Wheel
2-18
Seat Warmer*
2-18
SRS Air Bags
2-52
Heated Steering Wheel*
2-19
Supplemental Restraint System
(SRS) Precautions
2-52
Supplemental Restraint System
Seat Belt Systems
2-21
Components
2-58
Seat Belt Precautions
2-21
How the SRS Air Bags
Seat Belt
2-24
Work
2-60
Seat Belt Warning Systems
2-25
SRS Air Bag Deployment
Front Seat Belt Pretensioner and
Criteria
2-63
Load Limiting Systems
2-26
Limitations to SRS Air Bag
2-65
Seat Belt Extender
2-28
Driver and Front Passenger
Occupant Classification
Child Restraint
2-30
System*
2-66
Child-Restraint Precautions
Constant Monitoring
2-71
.......................................... 2-30
*Some models.
2-1
Essential Safety Equipment
Seats
If the seat is adjusted while the vehicle
Seat Precautions
is being driven, the seating posture
may become unstable and the seat
Seat Precautions
could move unexpectedly resulting in
injury.
WARNING
Do not modify or replace the front
Make sure the adjustable components
seats:
of a seat are locked in place:
Modifying or replacing the front seats
Adjustable seats and seatbacks that are
such as replacing the upholstery or
not securely locked are dangerous. In a
loosening any bolts is dangerous. The
sudden stop or collision, the seat or
front seats contain air bag components
seatback could move, causing injury.
essential to the supplemental restraint
Make sure the adjustable components
system. Such modifications could
of the seat are locked in place by
damage the supplemental restraint
attempting to slide the seat forward
system and result in serious injury.
and backward and rocking the
Consult an Authorized Mazda Dealer if
seatback.
there is any need to remove or reinstall
the front seats.
Never allow children to adjust a seat:
Allowing children to adjust a seat is
Do not drive with damaged front
dangerous as it could result in serious
seats:
injury if a child's hands or feet become
Driving with damaged front seats, such
caught in the seat.
as seat cushions torn or damaged
down to the urethane, is dangerous. A
Do not drive with the seatback
collision, even one not strong enough
unlocked:
to inflate the air bags, could damage
All of the seatbacks play an important
the front seats which contain essential
role in your protection in a vehicle.
air bag components. If there was a
Leaving the seatback unlocked is
subsequent collision, an air bag may
dangerous as it can allow passengers
not deploy which could lead to
to be ejected or thrown around and
injuries. Always have an Authorized
baggage to strike occupants in a
Mazda Dealer inspect the front seats,
sudden stop or collision, resulting in
front seat belt pretensioners and air
severe injury. After adjusting the
bags after a collision.
seatback at any time, even when there
are no other passengers, rock the
Do not drive with either front seats
seatback to make sure it is locked in
reclined:
place.
Sitting in a reclined position while the
vehicle is moving is dangerous because
Adjust a seat only when the vehicle is
you do not get the full protection from
stopped:
seat belts. During sudden braking or a
collision, you can slide under the lap
belt and suffer serious internal injuries.
For maximum protection, sit well back
and upright.
2-2
Essential Safety Equipment
Seats
Do not place an object such as a
Driving with a passenger on the folded
cushion between the seatback and
seatback is dangerous. Allowing a child
your back:
to sit up on the folded seatback while
Putting an object such as a cushion
the vehicle is moving is particularly
between the seatback and your back is
dangerous. In a sudden stop or even a
dangerous because you will be unable
minor collision, a child not in a proper
to maintain a safe driving posture and
seat or child-restraint system and seat
the seat belt cannot function at its full
belt could be thrown forward, back or
capacity in a collision, which could
even out of the vehicle resulting in
result in a serious accident, injury or
serious injuries or death. The child in
death.
the baggage area could be thrown into
other occupants and cause serious
Do not place objects under the seat:
injury.
The object could get stuck and cause
the seat to not be fixed securely, and
CAUTION
result in an accident.
¾ When operating a seat, be careful
Do not stack cargo higher than the
not to put your hands or fingers near
seatbacks:
the moving parts of the seat or on
Stacking luggage or other cargo higher
the side trim to prevent injury.
than the seatbacks is dangerous.
¾ When moving the seats, make sure
During sudden braking or a collision,
there is no cargo in the surrounding
objects can fly around and become
area. If the cargo gets caught it could
projectiles that may hit and injure
damage the cargo.
passengers.
¾ (Manual Seat)
When moving the seats forward and
Make sure luggage and cargo is
rearward or returning a rear-reclined
secured before driving:
seatback to its upright position,
Not securing cargo while driving is
make sure you hold onto the
dangerous as it could move or be
seatback with your hand while
crushed during sudden braking or a
operating. If the seatback is not held,
collision and cause injury.
the seat will move suddenly and
Additionally, if the air bags deploy, the
could cause injury.
cargo may scatter which could result in
¾ When inserting your hand under the
serious injury or death.
seat to clean the cabin or pick up
something you dropped under the
Never allow a passenger to sit or
seat, be careful not to hurt yourself.
stand on the folded seatback while
If you contact the moving parts and
the vehicle is moving:
surrounding parts around the seat
rail, seat frame, and the bottom of
the seat, it could result in injury.
2-3
Essential Safety Equipment
Seats
NOTE
Front Seat
When returning a rear seat to its
original position, place the seat belt
Adjusting the Driver's Seat
in its normal position. Verify that the
Using the driving position set up
seat belt pulls out and retracts.
procedure recommended by Mazda
(Power Seat)
allows you to maintain a relaxed
The seat-bottom power adjustment
posture, drive the vehicle for longer
is operated by motors. Avoid
periods without feeling tired, and
extended operation because
make quick operations naturally.
excessive use can damage the
Also, you can be assured of a clear
motors.
view in the forward direction to help
you drive more safely and comfortably.
To prevent the battery from
The adjustments for the driving
running down, avoid using the
position recommended by Mazda are
power adjustment when the
done using the following procedures.
engine is stopped. The adjuster
1. Moving the steering wheel and seat
uses a large amount of electrical
to their default positions.
power.
2. Adjusting the seatback angle.
Do not use the switch to make
3. Adjusting the seat position forward
more than one adjustment at a
and back.
time.
4. Adjusting the seat height.
5. Adjusting the height on the front
edge of the seat bottom.
6. Adjusting the steering wheel
position.
7. Adjusting the head restraint
position.
2-4
Essential Safety Equipment
Seats

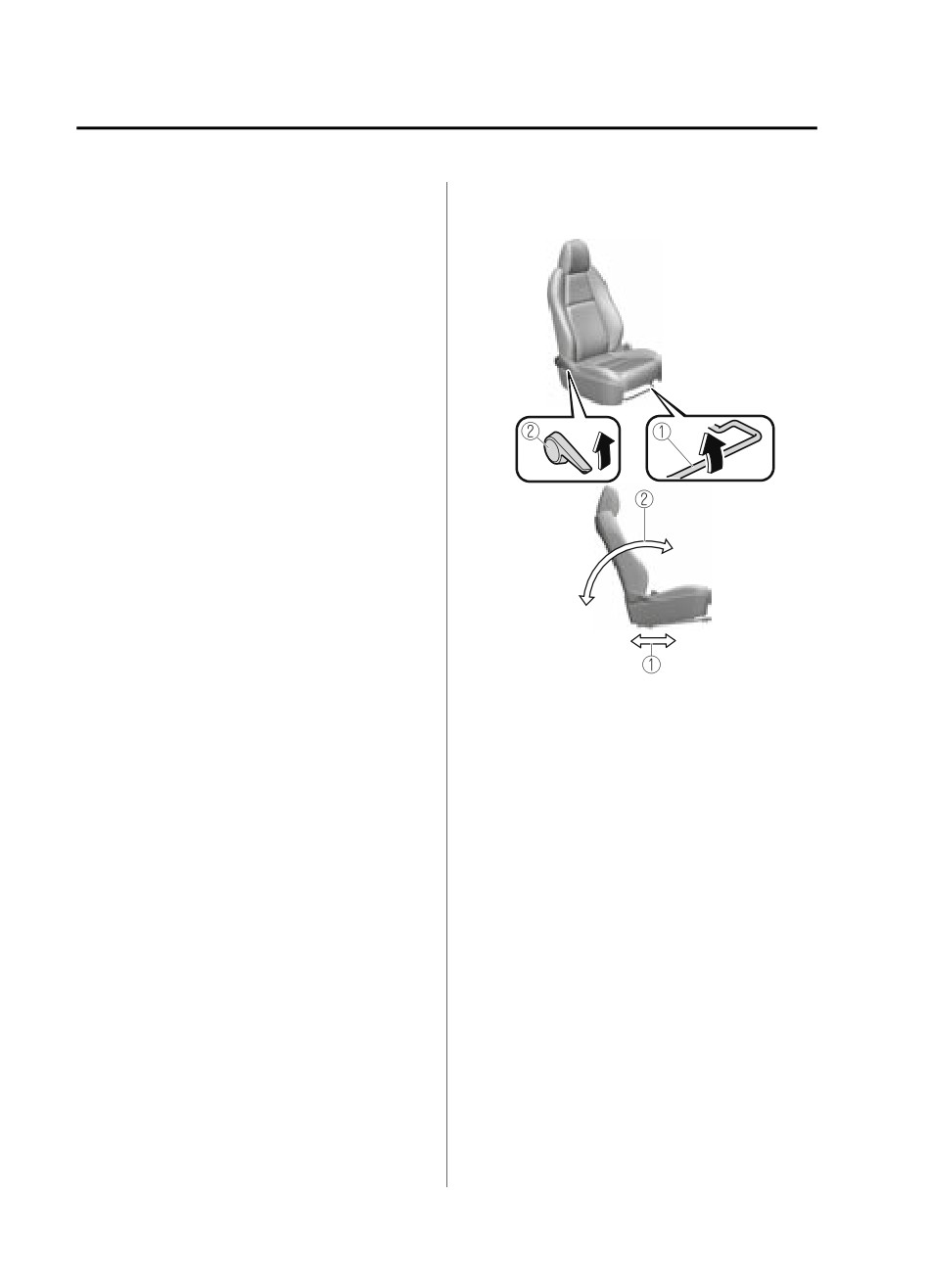

Manual seat
4. Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.

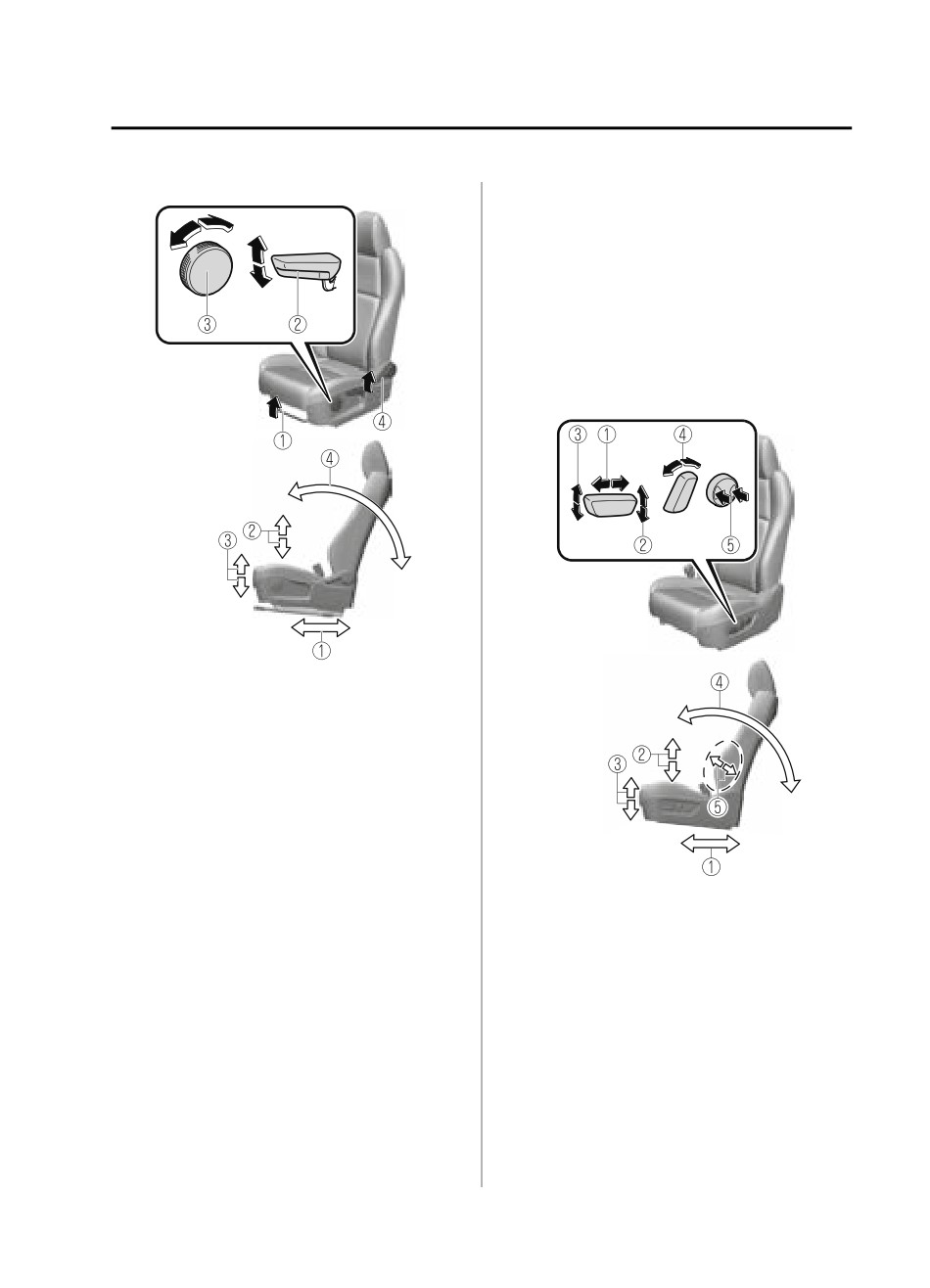

Power seat

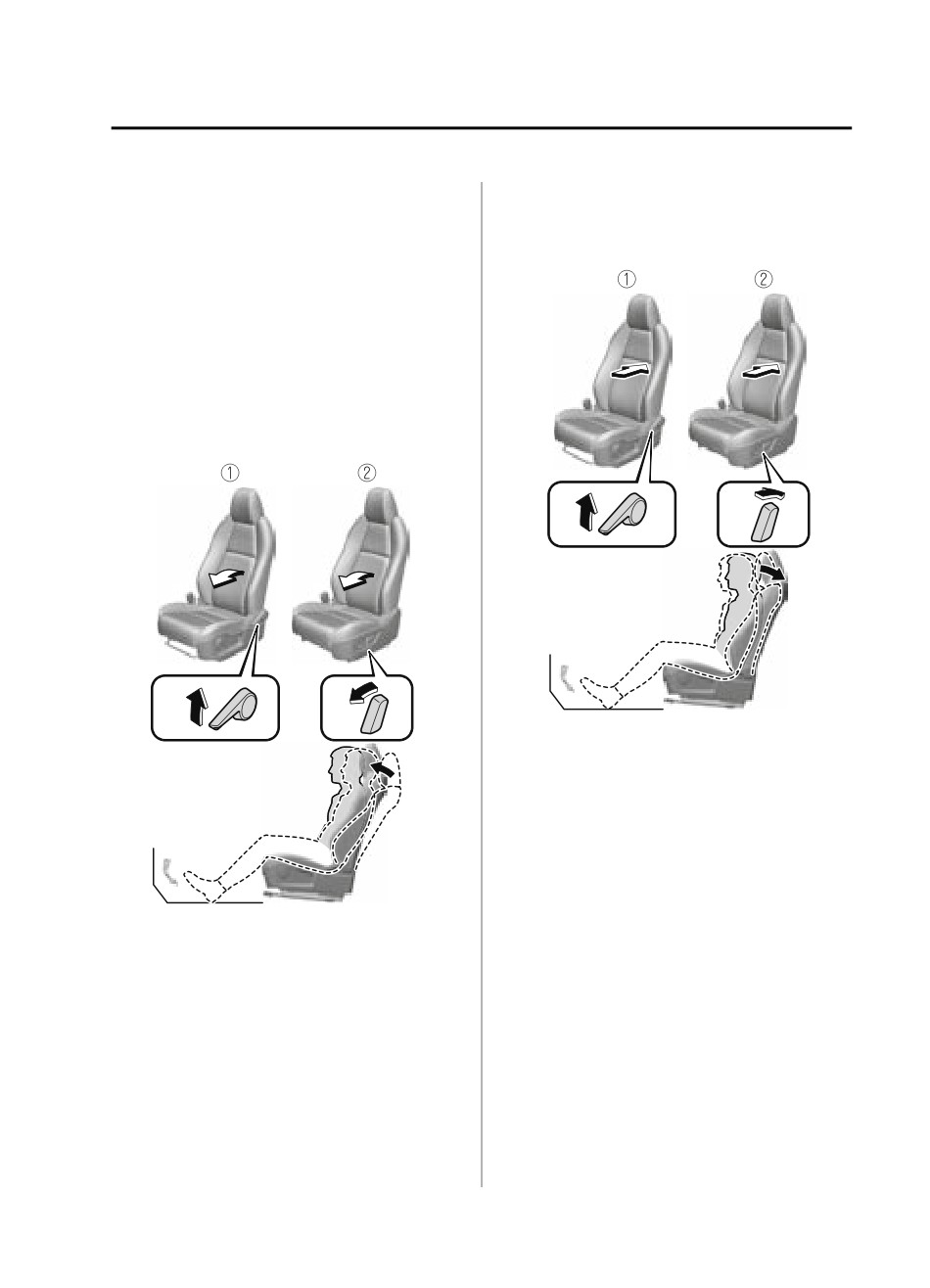

1. Seat Slide
To move a seat forward or
backward, raise the lever and slide
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.

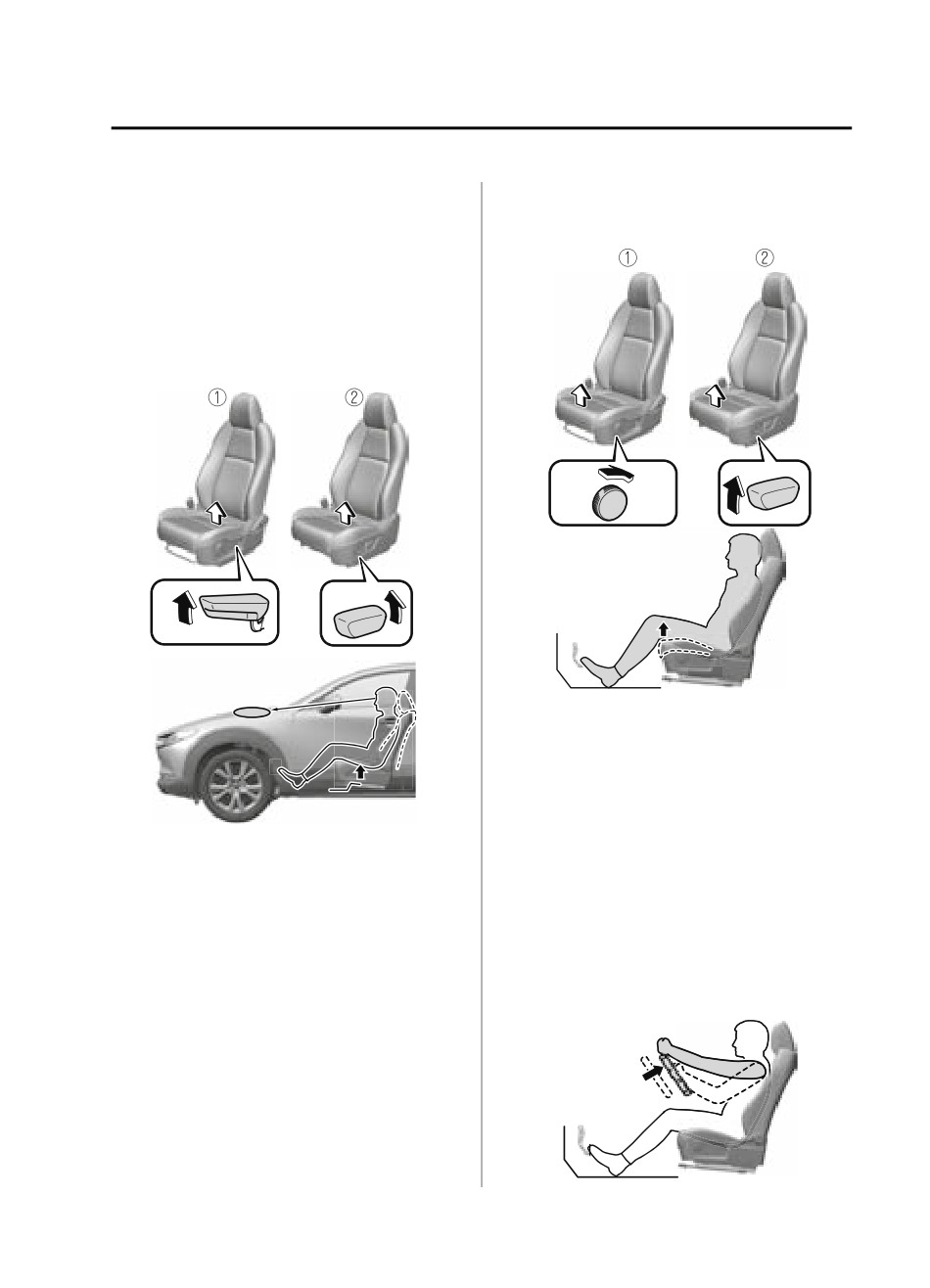

2. Height Adjustment
To adjust the seat height, move the
1. Seat Slide
lever up or down.
To slide the seat, move the slide
3. Height Adjustment for Front Edge
lifter switch on the outside of the
of Seat Bottom
seat to the front or back and hold
To adjust the height for front edge
it. Release the switch at the desired
of the seat bottom, rotate the dial
position.
to the desired position.
2. Height Adjustment
To adjust the seat height, move the
slide lifter switch up or down.
2-5
Essential Safety Equipment
Seats
3. Height Adjustment for Front Edge
After adjusting the steering wheel
of Seat Bottom
position, make sure it is securely
To adjust the front height of the
locked by trying to move it up and
seat bottom, raise or lower the
down:
front of the slide lifter switch.
Driving with the steering wheel not
4. Seat Recline
securely locked in position is
To change the seatback angle, press
dangerous. If the steering wheel moves
the front or rear side of the reclining
unexpectedly while driving, you could
switch. Release the switch at the
lose control of the steering resulting in
desired position.
an accident.
5. Lumbar Support Adjustment
Lower the lever, move the steering
To increase the seat firmness, press
wheel to the lowest position, and then
and hold the front part of the
push it down and all the way back.
switch to the desired position, then
release it.
Press the rear part of the switch to
decrease firmness.
Before making adjustments to the
driving position recommended by
Mazda
Before making adjustments, move the
steering wheel and seat to their default
How to move a driver’s seat to its
positions.
default position

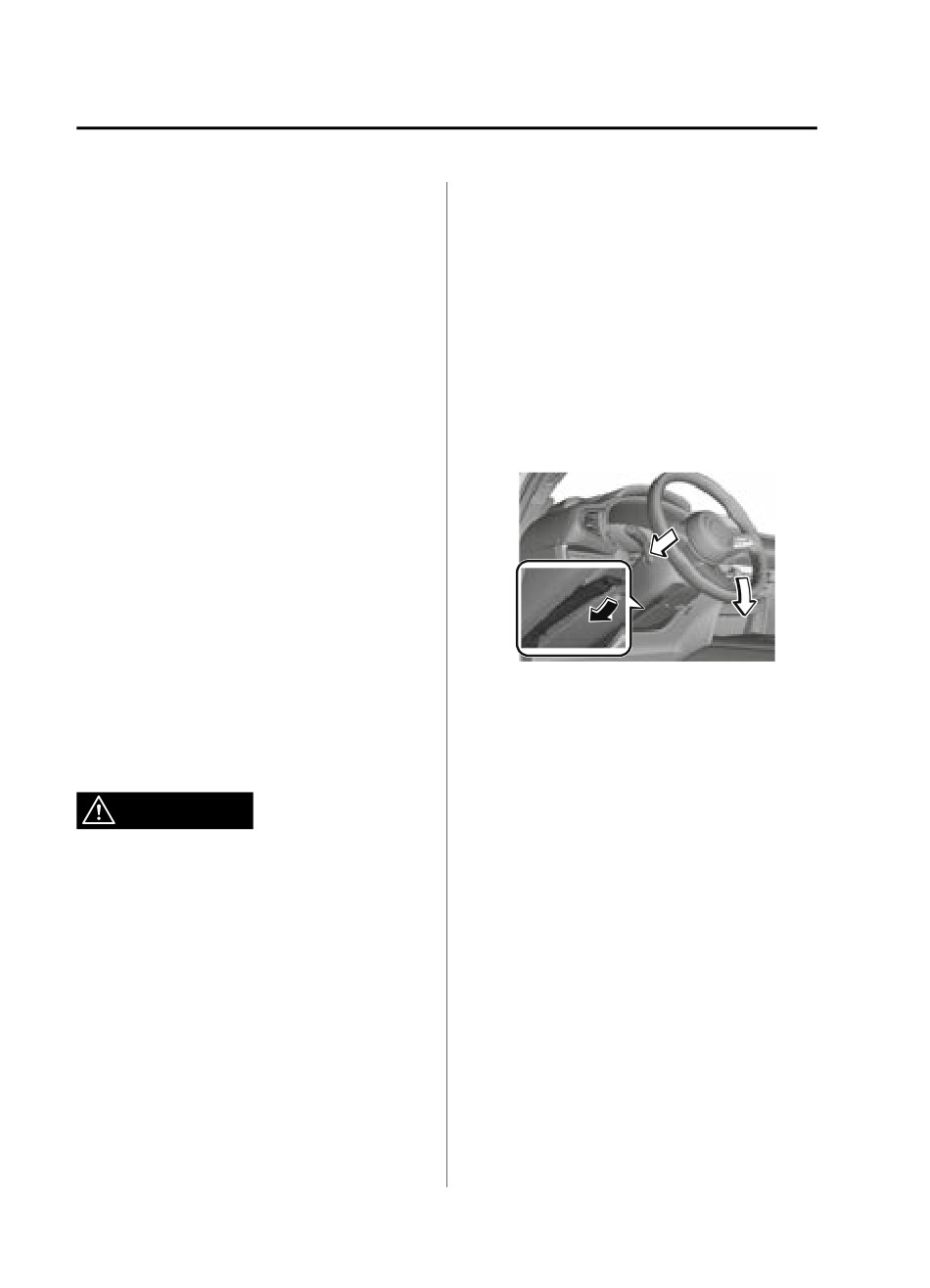

How to move the steering wheel to its
1. Slide the seat all the way back.
default position
2. Lower the seat to its lowest height.
3. Lower the front edge of the seat
bottom to its lowest height.
WARNING
4. Sit squarely in the seat and rest your
back against the seatback.
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving
it can very easily cause the driver to
abruptly turn to the left or right. This
can lead to loss of control or an
accident.
2-6
Essential Safety Equipment
Seats
Seat adjustment procedure for the

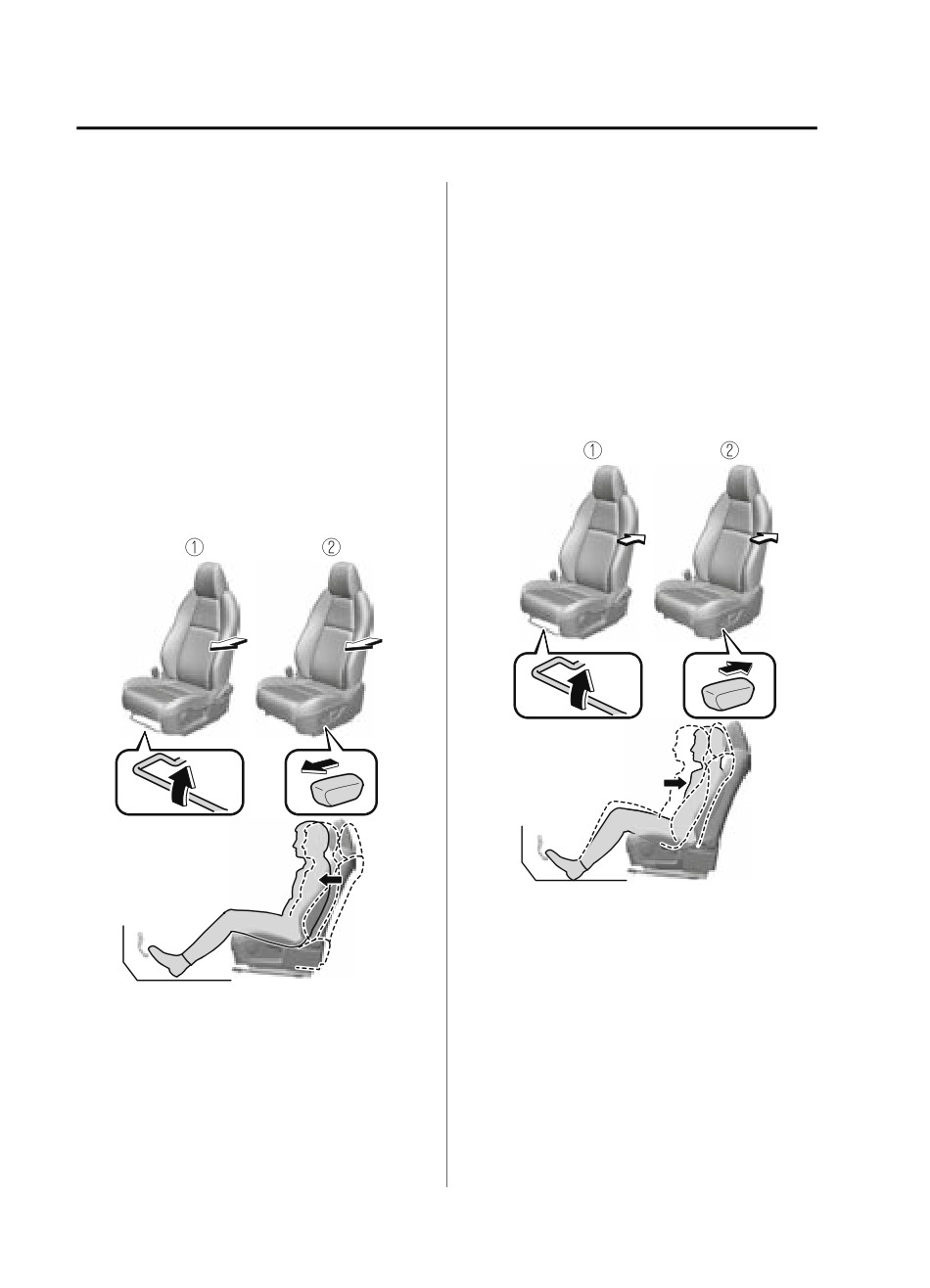

2. Move the seatback backward to a
driving position recommended by
comfortable seated posture without
Mazda
any feeling of cramping in your
waist.
Adjusting the seatback angle
(reclining)
Adjust the seatback to the angle
providing a comfortable seated
posture.
1. With your posture slightly slouched,
move the seatback forward to the
angle where your waist feels slightly
cramped.
1. Manual Seat
2. Power Seat
1. Manual Seat
2. Power Seat
2-7
Essential Safety Equipment
Seats
Adjusting the seat position forward
3. With your right foot set on the
and back (sliding)
brake pedal, move the seat back
until you no longer feel cramping in
Adjust the seat to the position best for
your ankle.
operating the accelerator and brake
4. With your heel set on the floor,
pedals.
make sure you can move your foot
1. Place your left foot on the footrest,
between the brake pedal and
your right foot between the
accelerator pedal smoothly.
accelerator and brake pedals, and
5. Depress the accelerator pedal
position your heel to the position
completely with your heel set on
allowing easy switching between
the floor and make sure that your
the pedals.
ankle does not feel over-stretched.
2. With your heel set on the floor, set
your right foot on the brake pedal
and move the seat forward as far as
possible until you feel a slight
cramping in your ankle.
1. Manual Seat
2. Power Seat
1. Manual Seat
2. Power Seat
2-8
Essential Safety Equipment
Seats
Adjusting the seat height
2. Depress the accelerator pedal and
make sure that you no longer feel
Adjust the seat height to a position
cramping in the back of your knees.
where you have a clear forward view
and you can drive the vehicle easily.
1. With your back resting against the
seatback, raise the seat to the
height where you can see the rear
edge area of the hood surface from
the windshield.
1. Manual Seat
2. Power Seat
Adjusting the steering wheel position
Adjust the steering wheel to the
1. Manual Seat
position where it can be operated
2. Power Seat
easily and the gauges can be viewed
easily.
1. With your back resting against the
Adjusting the height on the front edge
seatback, extend both arms, place
of the seat bottom
them on the top of the steering
wheel, and pull the steering wheel
Adjust the height on the front edge of
the seat bottom to the position where
towards you to the position of your
wrists.
the back of your knees contacts the
front edge of the seat bottom.
1. With your right foot set on the
accelerator pedal, adjust the height
on the front edge of the seat
bottom so that the back of your
knees lightly contacts the front edge
of the seat bottom.
2-9
Essential Safety Equipment
Seats
2. Adjust the steering wheel height so
Transmitter used for vehicle
that the gauges can be viewed
easily.
NOTE
3. Raise the lever to securely lock the
Lumbar support adjustment cannot
steering wheel.
be programmed.
Programming
1.
Make sure the parking brake is on.
2.
Make sure the selector lever is in
the P position.
3.
Switch the ignition ON.
4.
Adjust the following parts to the
desired conditions.

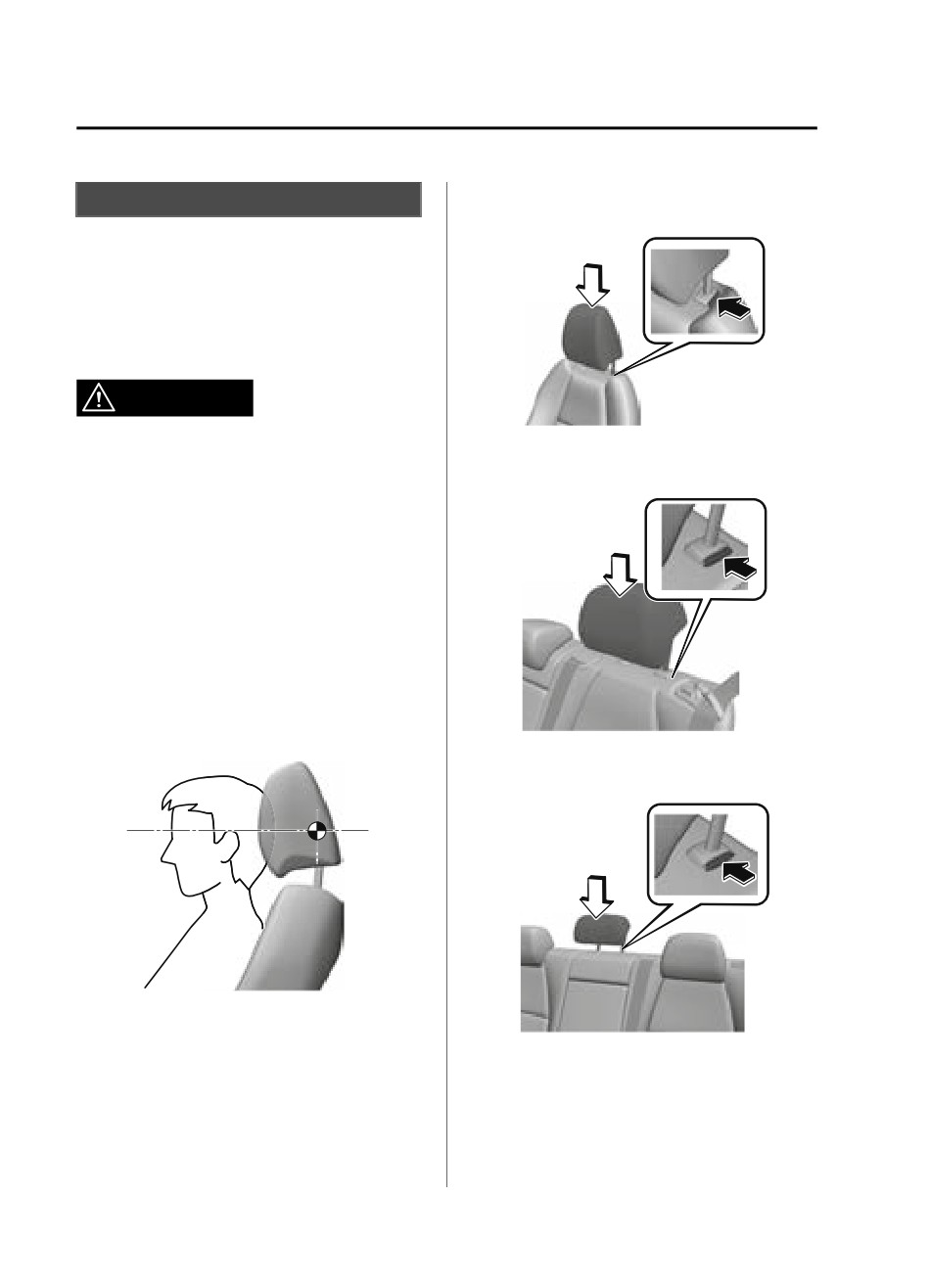

Adjusting the head restraint position
Driver's seat
To prevent shock to the head and
Active driving display
neck, adjust the head restraints to their
Outside mirrors
correct positions.
5.
Press the SET button continuously
Refer to Height Adjustment on page
until a sound is activated.
2-16.
Driving Position Memory (Power
Seat)*
The desired driving position can be
called up after programming the
position.
The following driving positions can be
programmed.
Driver’s seat position (seat slide,
1.
1 button
height adjustment, front edge of seat
2.
2 button
bottom, seat recline)
3. SET button
Refer to Adjusting the Driver's Seat
6.
Do the following operation within 5
on page 2-4.
seconds after the sound is activated
Active driving display (display
to program the driving position.
position, brightness level, display
Programming to a position
information)
memory button
Refer to Active Driving Display on
Press the button you want to
page 4-35.
program, either 1 or 2 button.
Outside mirror angle
Programming to the transmitter
Refer to Outside Mirrors on page
Press the unlock button on the
3-35.
transmitter.
A driving position can be programmed
A sound is activated when the
to the following parts.
operation is completed correctly.
Position memory button
2-10
*Some models.
Essential Safety Equipment
Seats
NOTE
The seat adjustment switch on the
driver's seat is operated.
If you do not perform the operation
The angle of the outer mirrors is
correctly, a sound indicating that the
adjusted.
programming has failed is activated.
The SET button is pressed.
If the angle of the outer mirrors only
Programming button 1 or 2 is
changes a little, the angle of the
pressed.
outer mirrors may not have been
The lock button or unlock button
programmed correctly.
on the transmitter is pressed.
If the angle of the outer mirrors is
The vehicle starts moving.
adjusted close to the limits of its
The active driving display is
range of motion, the driving position
adjusted.
can be successfully programmed, but
The selector lever is shifted to a
it may fail when calling up the
position other than P.
programmed driving position.
Using the transmitter
Calling up the programmed driving
position
1. Unlock the driver's door using one
of the following methods.
CAUTION
Touch the sensing area of the
door release touch sensor.
Do not place fingers or hands around
Press the unlock button on the
the bottom of the seat while the seat
transmitter.
memory function is operating. The seat
2. When you open the driver's door
moves automatically while the seat
within 90 seconds after unlocking
memory function is operating and
the doors, the adjustment of the
fingers or hands could get pinched and
following parts starts.
injured.
Driver's seat
Using the position memory button
Active driving display (When the
ignition is switched ON, the
1. Make sure the parking brake is on.
2. Make sure the selector lever is in
adjusted active driving display is
activated.)
the P position.
3. Switch the ignition ON.
Outside mirrors
4. Press the programming button for
A sound is activated when the
the driving position you want to call
adjustment is completed.
up (button 1 or 2).
5. A sound is activated when the
NOTE
adjustment to the programmed
When adjustment of the driving
driving position is completed.
position is not necessary, a sound is
NOTE
not activated.
The driving position adjustment is
When adjustment of the driving
canceled in the following cases:
position is not necessary, a sound is
The seat adjustment switch on the
not activated.
driver's seat is operated.
The driving position adjustment is
canceled in the following cases:
2-11
Essential Safety Equipment
Seats
The angle of the outer mirrors is
Adjusting the Front Passenger's
adjusted.
Seat
The SET button is pressed.
Programming button 1 or 2 is
pressed.
The lock button or unlock button
on the transmitter is pressed.
The vehicle starts moving.
The active driving display is
adjusted.
The selector lever is shifted to a
position other than P.
Erasing programmed driving positions
Erasing the driving positions
programmed to the key
1. Switch the ignition OFF.
2. Press the SET button continuously
until a sound is activated.
3. Press the lock button on the
transmitter within 5 seconds after
the sound is activated.
NOTE
1.
Seat Slide
If you do not perform the operation
To move a seat forward or
correctly, a sound indicating that the
backward, raise the lever and slide
programming has failed is activated.
the seat to the desired position and
release the lever.
Make sure the lever returns to its
original position and the seat is
locked in place by attempting to
push it forward and backward.
2.
Seat Recline
To change the seatback angle, lean
forward slightly while raising the
lever. Then lean back to the desired
position and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to
push it forward and backward.
2-12
Essential Safety Equipment
Seats
When transporting cargo, do not
Rear Seat
allow the cargo to exceed the height
of the seatbacks.
Split Folding the Seatbacks
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility
By lowering the rear seatbacks the
to the rear and sides of the vehicle is
luggage compartment space can be
reduced which could interfere with
expanded.
driving operations and lead to an
WARNING
accident.
Lowering the seatbacks
Do not drive the vehicle with
occupants on folded down seatbacks
CAUTION
or in the luggage compartment.
Putting occupants in the luggage
¾ When folding the seatback forward,
compartment is dangerous because
always support the seatback with
seat belts cannot be fastened which
your hand. If it is not supported by a
could lead to serious injury or death
hand, fingers or the hand pressing
during sudden braking or a collision.
the push knob could be injured.
¾ Check the position of a front seat
Do not allow children to play inside
before folding a rear seatback.
the vehicle with the seatbacks
Depending on the position of a front
lowered.
seat, it may not be possible to fold a
Allowing children to play in the vehicle
rear seatback all the way down
with the seatbacks folded down is
because it may hit the seatback of
dangerous. If a child enters the luggage
the front seat which could scratch or
compartment and the seatbacks were
damage the front seat or its pocket.
raised back up, the child may become
Lower or remove the head restraint
trapped in the luggage compartment
on the rear outboard seat if
which could lead to an accident.
necessary.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing cargo
and luggage is dangerous as it could
move and become an obstruction to
driving during emergency braking or a
collision resulting in an unexpected
accident.
2-13
Essential Safety Equipment
Seats

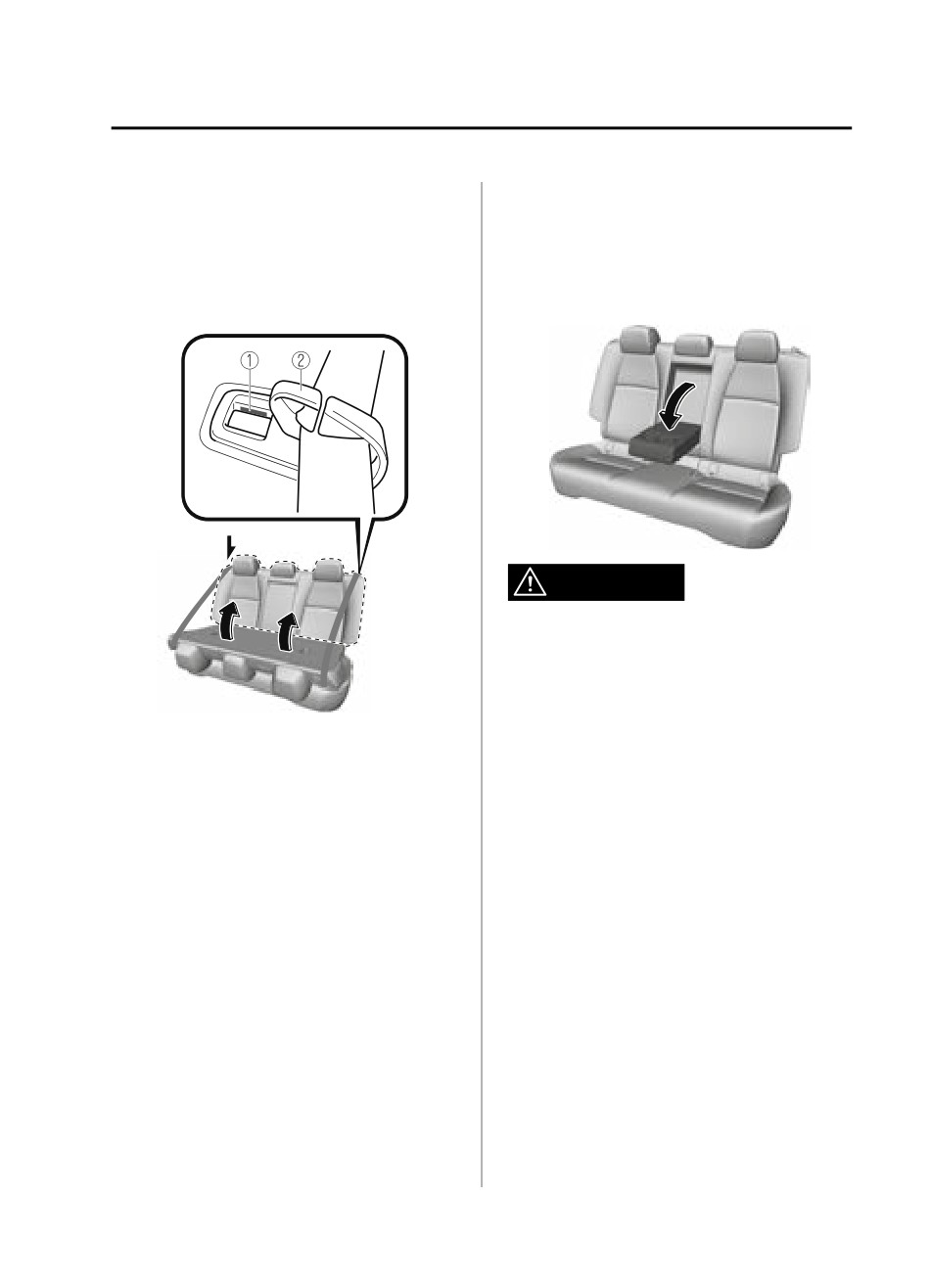

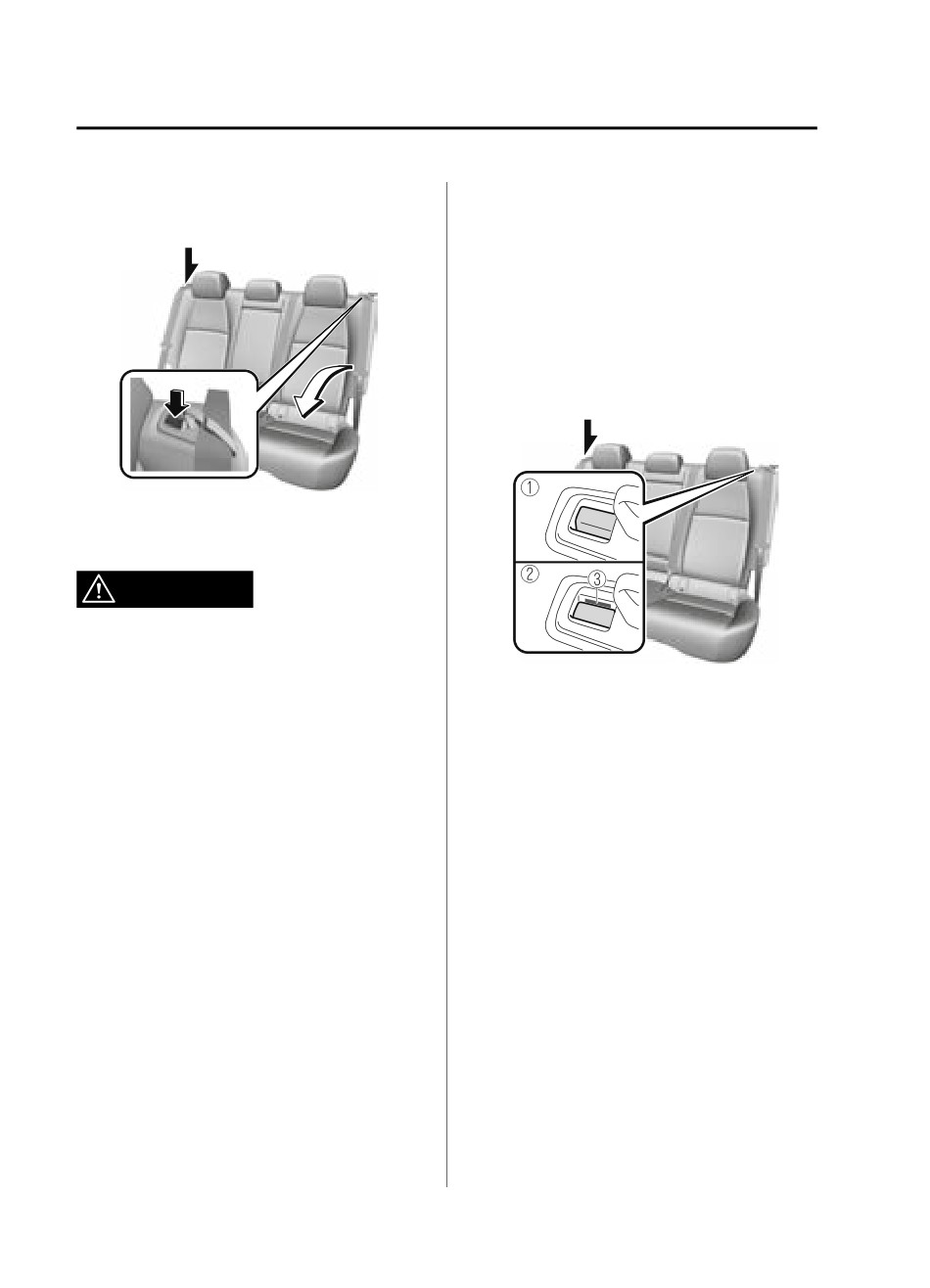

Press the push knob to fold down the
When returning a seatback to its
seatback.
upright position, make sure that it is
firmly locked and the red indication is
not visible.
If the red indication is visible behind
the push knob, it means the seatback
is not locked. If the vehicle is driven
without the seatback locked, it could
fold down suddenly and cause an
accident.
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the
3-point seat belt is not caught in the
1. Locked position
seatback and the 3-point seat belt is
2. Unlocked position
not twisted.
3. Red indication
If the seat belt is used while it is
twisted and caught in the seatback, the
seat belt cannot function at its full
capacity, which could cause serious
injury or death.
2-14
Essential Safety Equipment
Seats
1. Make sure that the seat belt passes
Armrest*
through the seat belt guide
The rear armrest in the center of the
correctly and it is not twisted, then
rear seatback can be used (no
raise the seatback while preventing
occupant in the center seat) or placed
the seat belt from being caught in
upright.
the seatback.
WARNING
Never put your hands and fingers
around the moving parts of the seat
and armrest:
Putting your hands and fingers around
the moving parts of the seat and
1. Red indication
armrest is dangerous as they could get
2. Seat belt guide
injured.
2. Press the seatback rearward and
lock it in place. After returning the
seatback to its upright position,
make sure it is securely locked.
*Some models.
2-15
Essential Safety Equipment
Seats
Front seats
Head Restraints
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
Rear outboard seats
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height Adjustment
Adjust the head restraint so that the
center is even with the top of the
passenger's ears.
Rear center seat
To raise a head restraint, pull it up to
the desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down.
2-16
Essential Safety Equipment
Seats
Removal/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the
legs into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
effectiveness of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
CAUTION
¾ When installing a head restraint,
make sure that it is installed correctly
with the front of the head restraint
facing forward. If the head restraint is
installed incorrectly, it could detach
from the seat during a collision and
result in injury.
¾ The head restraints on each of the
front and rear seats are specialized to
each seat. Do not switch around the
head restraint positions. If a head
restraint is not installed to its correct
seat position, the effectiveness of the
head restraint during a collision will
be compromised which could cause
injury.
2-17
Essential Safety Equipment

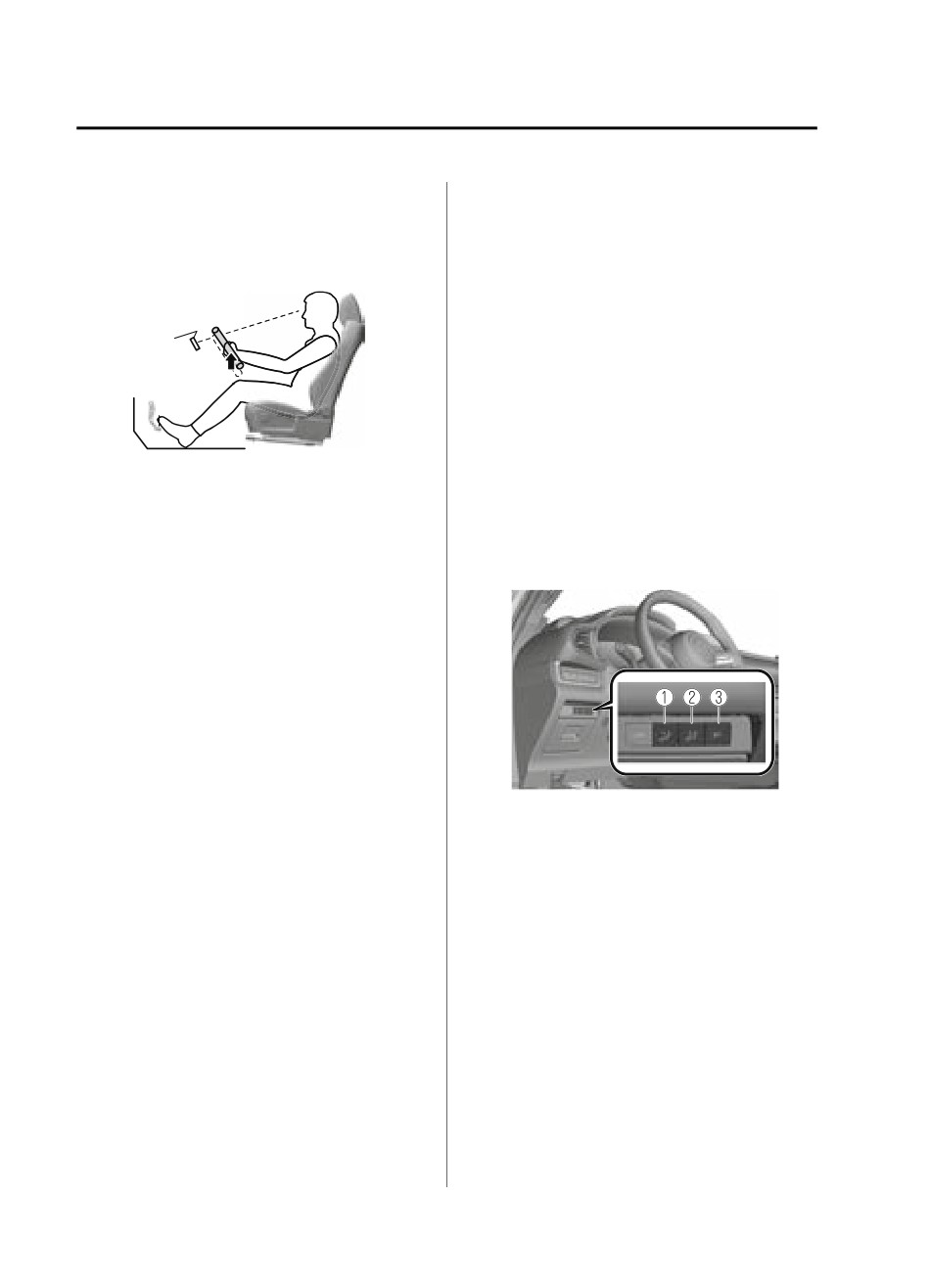

Seat Warmer/Heated Steering Wheel
Auto mode
Seat Warmer*
The driver and front passenger's seat
Seat Warmer
warmer can be operated in auto mode
using the following procedure.
The front seats can be warmed up
1. If “Occupant Comfort” has been
while the engine is running.
disabled, enable it using the
While the seat warmer is operating,
following procedure.
the indicator light in the seat warmer
a) Select “Settings” from the Mazda
switch turns on according to the set
Connect home screen.
temperature.
b) Select “Vehicle Settings”.
Manual mode
c) Enable “Occupant Comfort”.
2. Press the AUTO switch.
When the seat warmer switch is
While in auto mode, the seat
pressed, the seat warmer operates in
temperature is automatically controlled
manual mode.
in 4 levels (High, Mid, Low, and OFF)
The set temperature changes as shown
according to the conditions in the
in the figure each time the seat warmer
cabin.
switch is pressed.
NOTE
If the front passenger’s seat belt is
unfastened, the front passenger’s
seat warmer turns off.
If the seat warmer switch is pressed
during auto mode, the seat warmer
on the side where the switch was
pressed switches to manual mode.
To return to auto mode, press the
AUTO switch.
If the engine is turned off while the

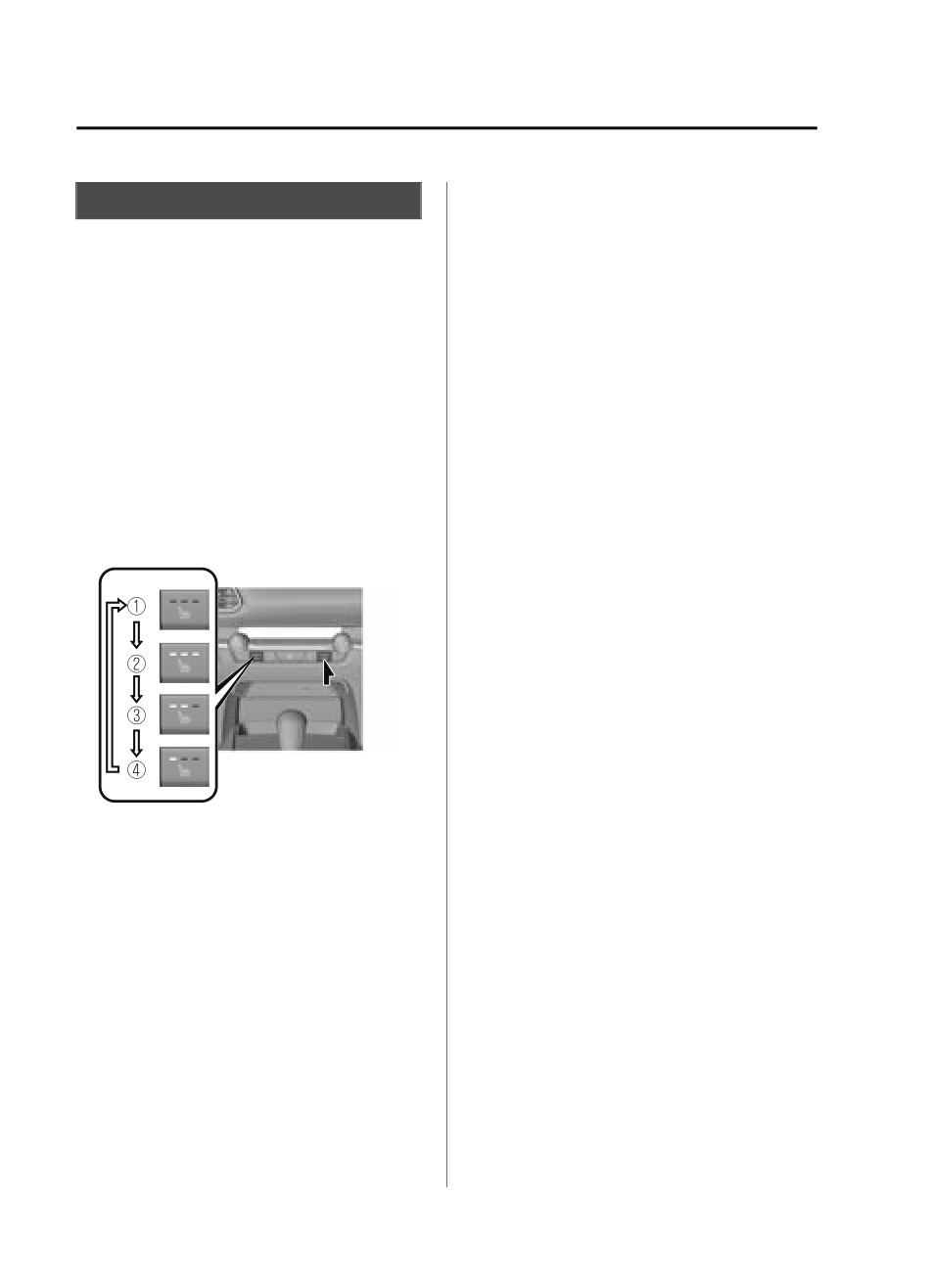

1. OFF
seat warmer is operating in auto
2. High
mode, the seat warmer operates in
3. Mid
auto mode again the next time the
4. Low
engine is turned on.
NOTE
If the engine is turned off while the
seat warmer is operating in manual
mode, the seat warmer does not turn
on automatically the next time the
engine is turned on. To turn the seat
warmer on, press the switch again.
2-18
*Some models.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
WARNING
Heated Steering Wheel*
Be careful when using the seat
Heated Steering Wheel
warmer:
The grips on the left and right of the
The heat from the seat warmer may be
steering wheel can be warmed up
too hot for the following people and
when the ignition is switched ON.
could cause a low-temperature burn.
While the heated steering wheel is
¾ Infants, small children, elderly
operating, the indicator light in the
people, and physically challenged
heated steering wheel switch turns on.
people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:

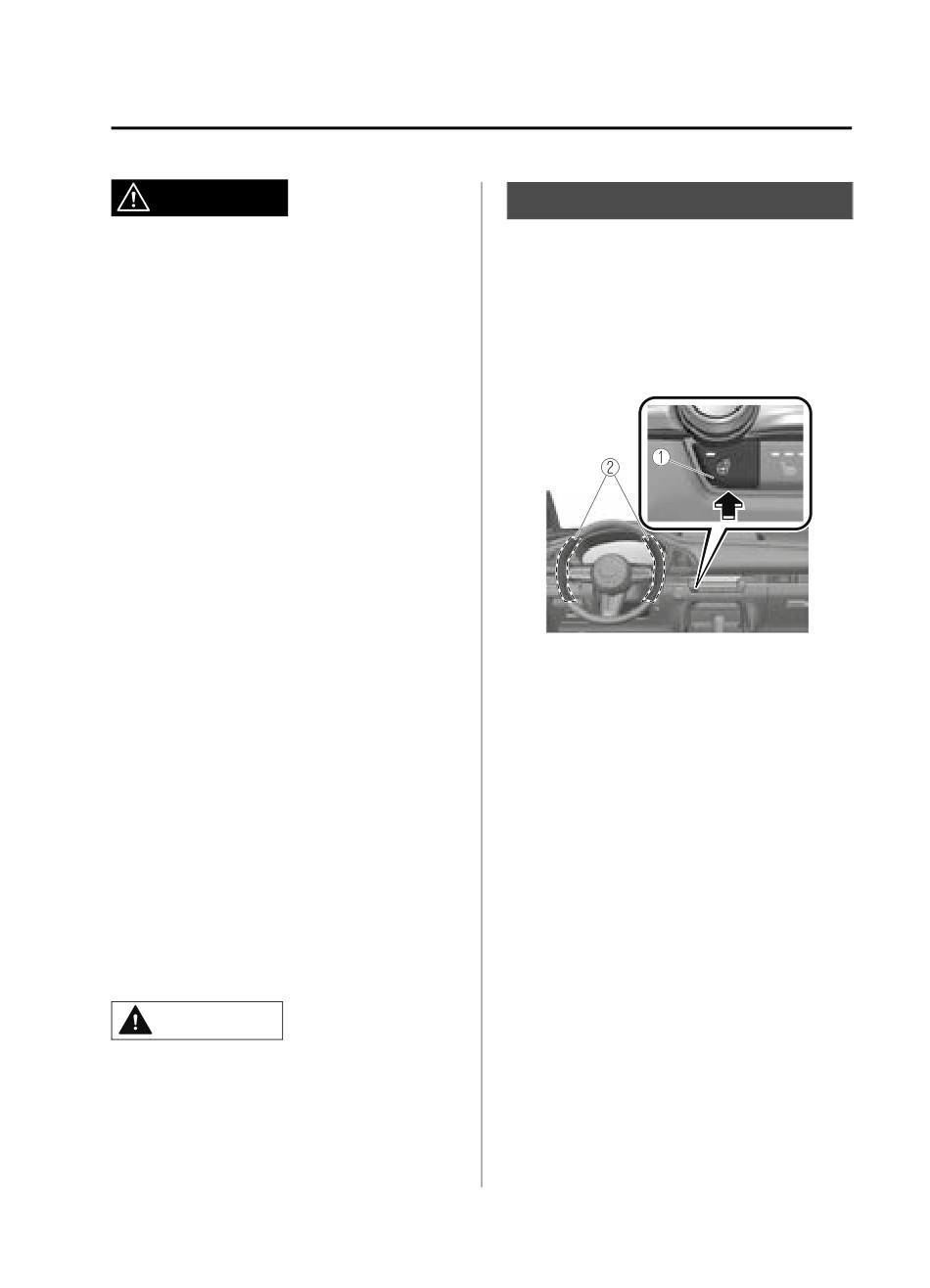

1. Heated steering wheel switch
The seat may be heated excessively
2. Heating area
and cause a low-temperature burn.
Manual mode
Do not use the seat warmer even
when taking a short nap in the
The heated steering wheel operates for
vehicle:
about 30 minutes when the heated
The seat may be heated excessively
steering wheel switch is pressed, and
and cause a low-temperature burn.
then automatically turns off.
To turn the heated steering wheel off
Do not place heavy objects with sharp
manually, press the switch again.
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
¾ Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
*Some models.
2-19
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
Auto mode
CAUTION
The heated steering wheel can be
The following types of persons should
operated in auto mode using the
be careful not to touch the steering
following procedure.
wheel. Otherwise, it could cause a
1. If “Occupant Comfort” has been
low-temperature burn.
disabled, enable it using the
following procedure.
¾ Infants, small children, elderly
a) Select “Settings” from the Mazda
people, and physically challenged
Connect home screen.
people
b) Select “Vehicle Settings”.
¾ People with delicate skin
c) Enable “Occupant Comfort”.
¾ People who are excessively fatigued
2. Press the AUTO switch.
¾ People who are intoxicated
While in auto mode, the heated
¾ People who have taken
steering wheel automatically operates/
sleep-inducing medicine such as
turns off according to the conditions in
sleeping pills or cold medicine
the cabin.
NOTE
If the heated steering wheel switch is
pressed during auto mode, the
heated steering wheel switches to
manual mode. To return to auto
mode, press the AUTO switch.
If the ignition is switched OFF while
the heated steering wheel is
operating in auto mode, the heated
steering wheel operates in auto
mode again the next time the
ignition is switched ON.
2-20
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
WARNING
Seat Belt Precautions
Always wear your seat belt and make
sure all occupants are properly
Seat belts help to decrease the
restrained:
possibility of severe injury during
Not wearing a seat belt is extremely
accidents and sudden stops. Mazda
dangerous. During a collision,
recommends that the driver and all
occupants not wearing seat belts could
passengers always wear seat belts.
hit someone or things inside the
(Mexico)
vehicle or even be thrown out of the
All the seats have lap/shoulder belts.
vehicle. They could be seriously injured
These belts have retractors with inertia
or even killed. In the same collision,
locks that keep them out of the way
occupants wearing seat belts would be
when not in use. The locks allow the
much safer.
belts to remain comfortable on users,
but they will lock in position during a
In a rollover crash, an unbelted person
collision.
is significantly more likely to die than a
person wearing a seat belt.
(Except Mexico)
All of the seat belt retractors are
designed to keep the lap/shoulder
belts out of the way when not in use.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a
The driver's seat belt has no provisions
for child-restraint systems and has only
collision, the full width of the belt is
not available to absorb the impact.
an emergency locking mode. The
driver may wear it comfortably, and it
This puts more force on the bones
beneath the belt, which could cause
will lock during a collision.
However, the front passenger's seat
serious injury or death. So, if your seat
belt is twisted, you must straighten the
and all rear lap/shoulder belt
retractors operate in two modes:
seat belt to remove any twists and to
allow the full width of the belt to be
emergency locking mode, and for
child-restraint systems, automatic
used.
locking mode. While we recommend
you put all children in the rear seats, if
Never use one seat belt on more than
you must use the front passenger seat
one person at a time:
for a child, slide the front passenger
Using one seat belt for more than one
seat as far back as possible and make
person at a time is dangerous. A seat
sure any child-restraint system is
belt used in this way cannot spread the
secured properly.
impact forces properly and the two
passengers could be crushed together
and seriously injured or even killed.
Never use one belt for more than one
person at a time and always operate
the vehicle with each occupant
properly restrained.
2-21
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a
Positioning the Lap Portion of the Seat
damaged seat belt:
Belt:
Using a damaged seat belt is
The lap portion of the seat belt worn
dangerous. An accident could damage
too high is dangerous. In a collision,
the belt webbing of the seat belt in
this would concentrate the impact
use. A damaged seat belt cannot
force directly on the abdominal area,
provide adequate protection in a
causing serious injury. Wear the lap
collision. Have an Authorized Mazda
portion of the belt snugly and as low as
Dealer inspect all seat belt systems in
possible.
use during an accident before they are
used again.
CAUTION
Have your seat belts changed
Belt retraction may become difficult if
immediately if the pretensioner or
the belts and rings are soiled, so try to
load limiter has been expended:
keep them clean. For more details
Always have an Authorized Mazda
about cleaning the seat belts, refer to
Dealer immediately inspect the seat
"Seat Belt Maintenance" (page
belt pretensioners and air bags after
6-49).
any collision. Like the air bags, the seat
belt pretensioners and load limiters
will only function once and must be
replaced after any collision that caused
them to deploy. A seat belt with an
expended pretensioner or load limiter
is still better than wearing no seat belt
at all; however, if the seat belt
pretensioners and load limiters are not
replaced, the risk of injury in a collision
will increase.

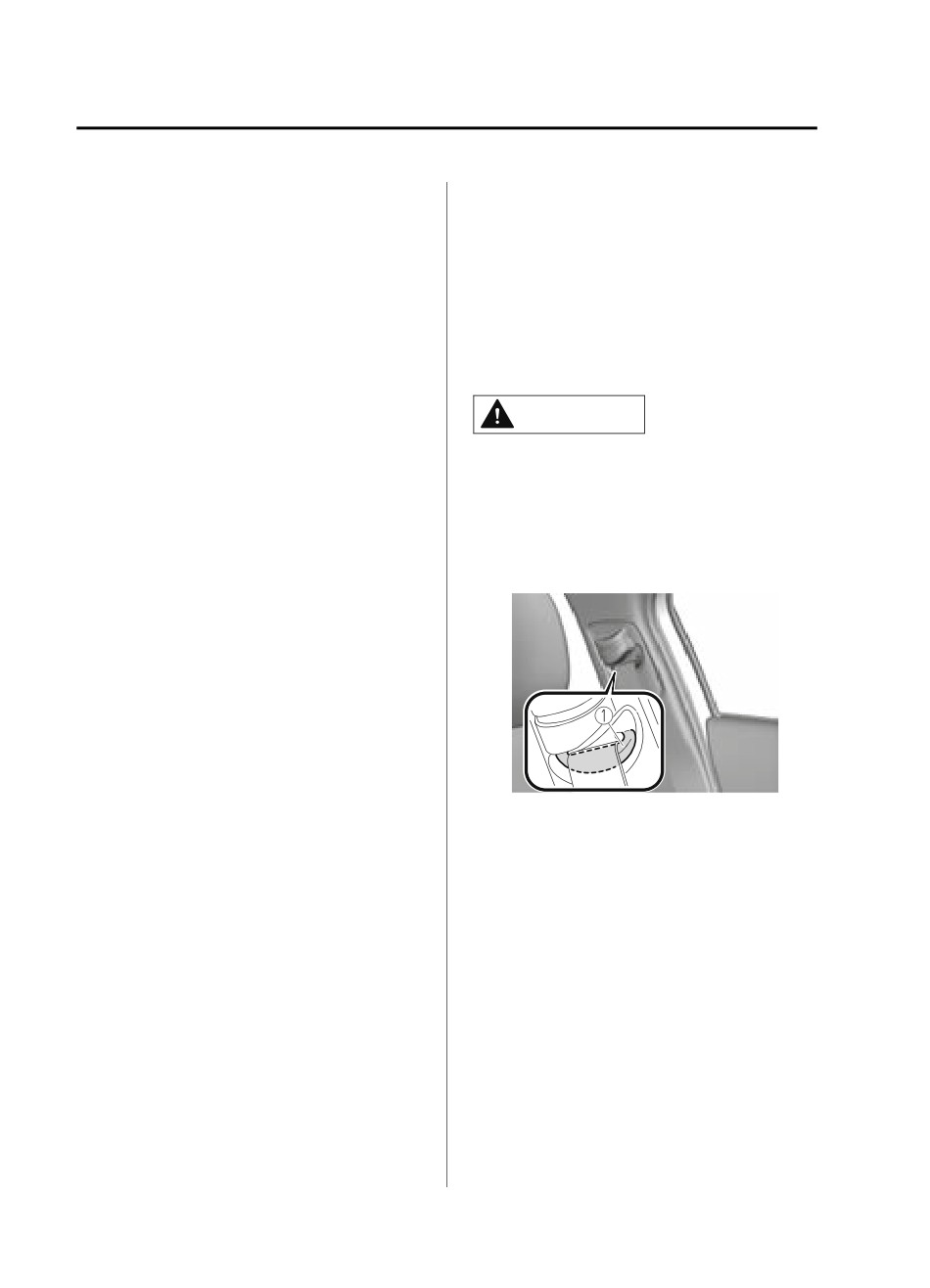

1. Ring
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder portion
of the seat belt is positioned across
your shoulder and near your neck, but
never under your arm, on your neck, or
on your upper arm.
2-22
Essential Safety Equipment
Seat Belt Systems

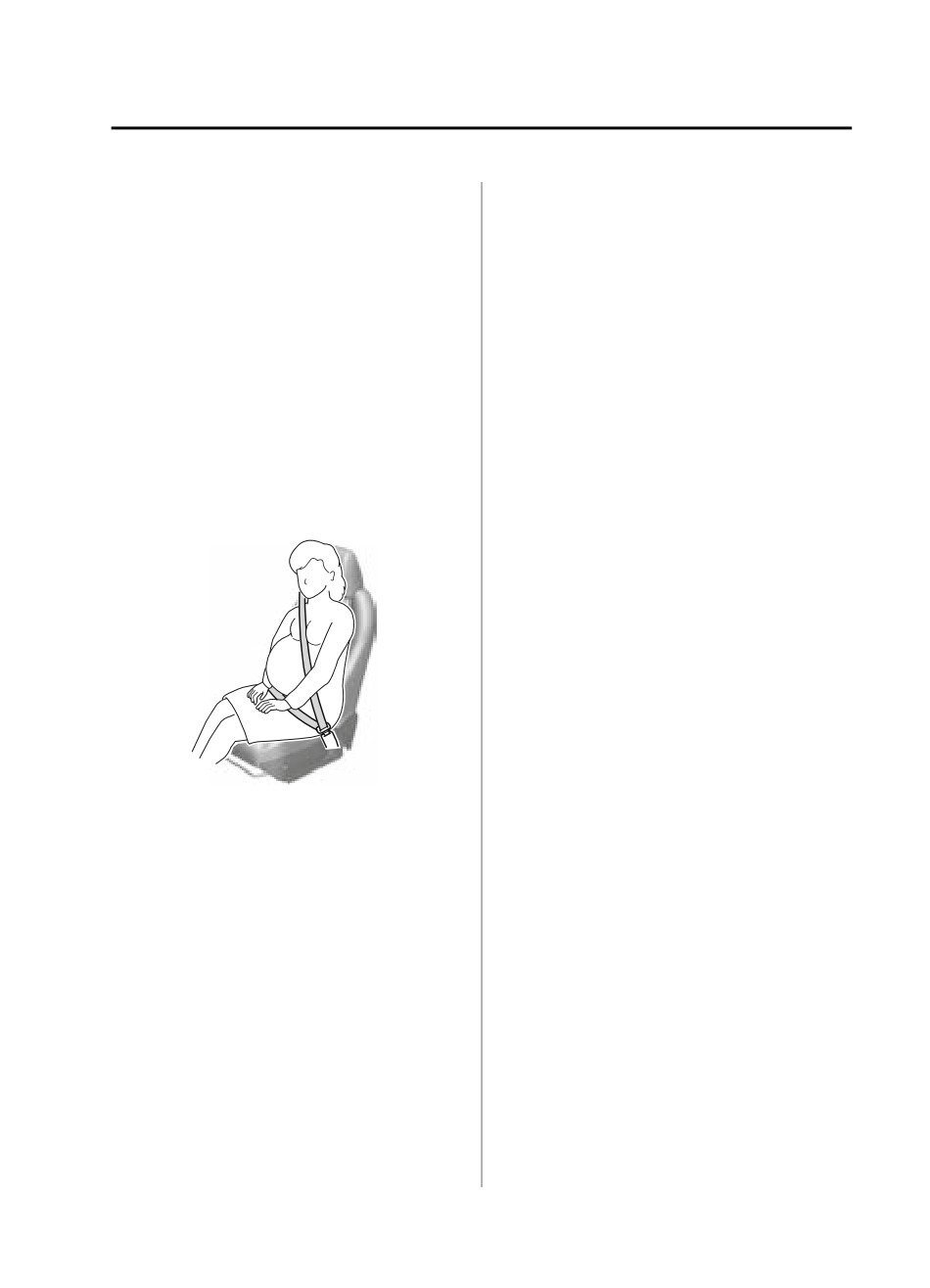

Pregnant Women and Persons with
(Seat Belt with Automatic Locking
Serious Medical Conditions
Mode)
When the seat belt is fastened, it will
Pregnant women should always wear
always be in the emergency locking
seat belts. Ask your doctor for specific
mode until it is switched to automatic
recommendations.
locking mode by pulling it all the way
The lap belt should be worn SNUGLY
out to its full length. If the belt feels
AND AS LOW AS POSSIBLE OVER THE
tight and hinders comfortable
HIPS.
movement while the vehicle is stopped
The shoulder belt should be worn
or in motion, it may be in the
across your shoulder properly, but
automatic locking mode because the
never across the stomach area.
belt has been pulled too far out. To
Persons with serious medical
return the belt to the more
conditions also should wear seat belts.
comfortable emergency locking mode,
Check with your doctor for any special
wait until the vehicle has stopped in a
instructions regarding specific medical
safe, level area, retract the belt fully to
conditions.
convert it back to emergency locking
mode and then extend it around you
again.
Automatic Locking Mode (Except
Mexico)
Always use the automatic locking
mode to keep the child-restraint
system from shifting to an unsafe
position in the event of an accident. To
enable seat belt automatic locking
mode, pull it all the way out and
connect it as instructed on the
Emergency Locking Mode
child-restraint system. It will retract
down to the child-restraint system and
When the seat belt is fastened, it will
stay locked on it. See the section on
always be in the emergency locking
child restraint (page 2-41).
mode.
In the emergency locking mode, the
belt remains comfortable on the
occupant and the retractor will lock in
position during a collision.
If the belt is locked and cannot be
pulled out, retract the belt once, and
then try pulling it out slowly. If this
fails, pull the belt strongly 1 time and
loosen, then pull it out again slowly.
2-23
Essential Safety Equipment
Seat Belt Systems
Before fastening the rear seat belt,
Seat Belt
make sure that the seat belt passes
through the seat belt guide correctly
Fastening the Seat Belt
and it is not twisted.
Insert the seat belt tongue into the
buckle.
Unfastening the Seat Belt
Depress the button on the seat belt
1. Seat belt tongue
buckle. If the belt does not fully retract,
2. Seat belt buckle
pull it out and check for kinks or twists.
Then make sure it remains untwisted as

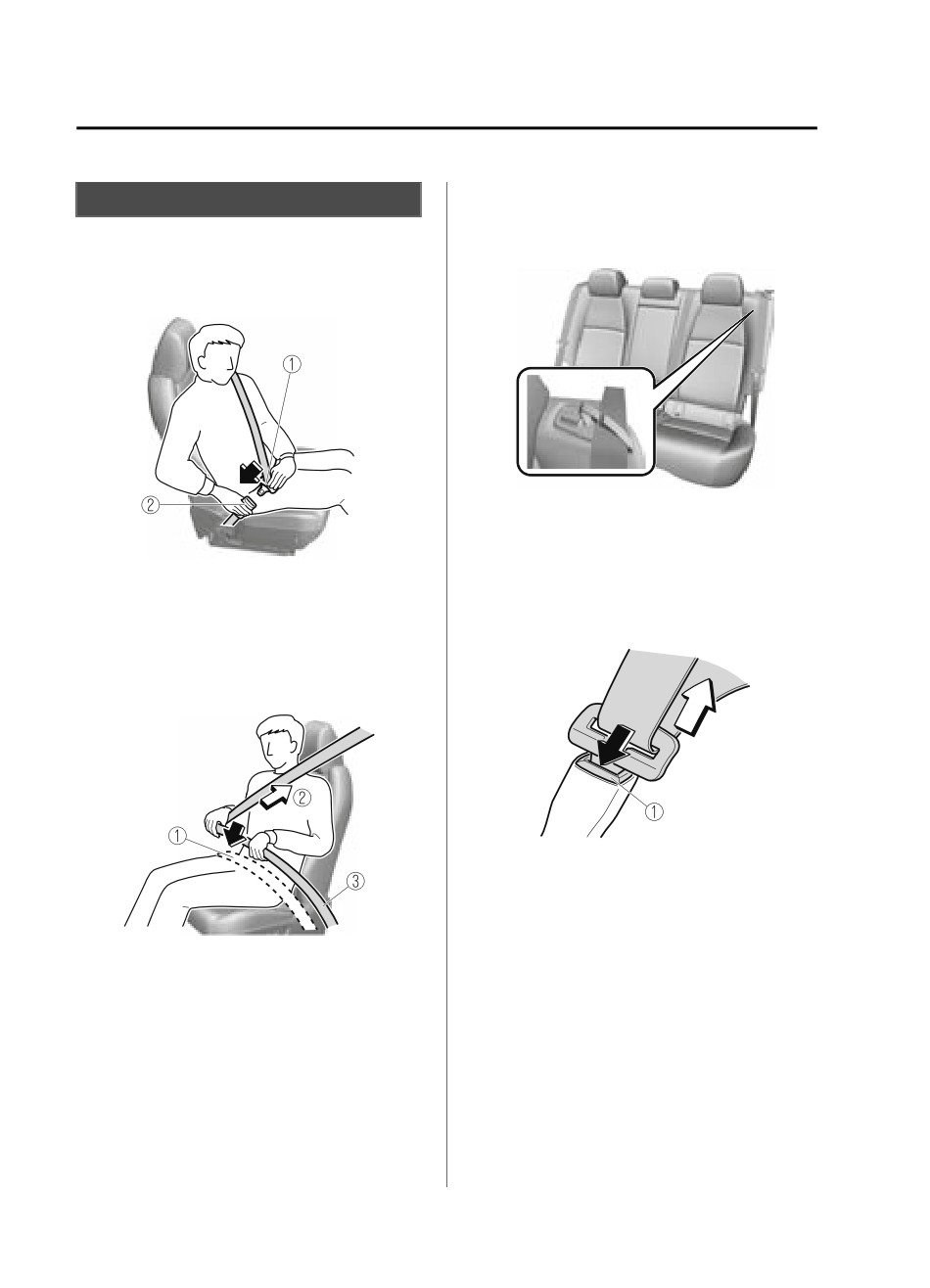

Position the lap belt as low as possible,
it retracts.
not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
1. Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
1. Keep low on hip bone
retracting properly, have it inspected at
2. Take up slack
an Authorized Mazda Dealer.
3. Too high
2-24

















Content      ..      1       2         ..





///////////////////////////////////////
