Mazda CX-9 (2022 year). Manual in english - page 7





When Driving
Instrument Cluster and Display
economy for either TRIP A or TRIP B is
miles) or shorter, a message is indicated
displayed.
when the ignition is switched ON.
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
The average fuel economy and trip meters
Refer to the Information section in the
can be reset by pressing the INFO switch
Mazda Connect Owner's Manual.
for 1.5 seconds or more while in each
Blind Spot Monitoring (BSM)
mode. After the data is cleared, the fuel
Display
consumption is recalculated and the - - -
km/L (- - - mpg) for the 1 minute prior to
Displays the system status.
it being displayed is indicated.
Current Fuel Economy
This displays the current fuel economy by
calculating the amount of fuel
consumption and the distance traveled.
Refer to Blind Spot Monitoring (BSM) on
page 4-109.
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display
NOTE
Indicates the 0 position when the vehicle
Displays the system status.
speed is about 5 km/h (3 mph) or slower.
Maintenance Monitor
The following maintenance period
notifications can be displayed by turning
the Maintenance Monitor on.
Scheduled Maintenance
Tire Rotation
Refer to Lane-keep Assist System (LAS)
Oil Change
& Lane Departure Warning System
When the remaining days to the
(LDWS) on page 4-146.
maintenance period is 15 days or less, or
the remaining distance is 1,000 km (600
4-36
*Some models.
When Driving
Instrument Cluster and Display
Mazda Radar Cruise Control with
Refer to Cruise Control on page 4-235.
Stop & Go function (MRCC with
Compass Display
Stop & Go function) Display*
The direction the vehicle is moving is
Displays the currently set system status.
displayed in one of eight directions while
the vehicle is being driven.
Display
Direction
N
North
S
South
Refer to Mazda Radar Cruise Control with
E
East
Stop & Go function (MRCC with Stop &
W
West
Go function) on page 4-131.
NE
Northeast
Distance Recognition Support
NW
Northwest
System (DRSS) Display*
SE
Southeast
SW
Southwest
Displays the distance between your
vehicle and the vehicle ahead.
Message Display
A message such as the system operation
status, a malfunction, or an abnormality is
indicated.
Warning/indicator light in instrument
cluster turns on/flashes or symbol is
indicated on display at same time as
message
Refer to Distance Recognition Support
Check the information regarding the
System (DRSS) on page 4-121.
warning/indicator light or indicated
Cruise Control Set Vehicle Speed
symbol.
Display*
Refer to If a Warning Indication/Warning
Lights on page 4-39.
The vehicle speed preset using the cruise
Refer to If a Indication/Indicator Lights on
control is displayed.
page 4-41.
Message only is indicated on display
Follow the instructions indicated on the
display. For the display content, refer to
the next page.
*Some models.
4-37
When Driving
Instrument Cluster and Display
Refer to If a Message Indicated on
Multi-information Display on page 7-43.
4-38
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster
Center of Dashboard
Warning lights will appear in any of the highlighted areas
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Warning
Page
Brake System Warning Indication/Warning Light*1*2
7-28
Electronic Brake
Force Distribu-
tion System
ABS Warning Light*1
Warning
7-28
ABS warning
7-31
Charging System Warning Indication/Warning Light*1
7-28
Engine Oil Warning Light*1
7-28
High Engine Coolant Temperature Warning Light*1
7-28
(Red)
Power Steering Malfunction Indication
7-28
4-39
When Driving
Instrument Cluster and Display
Signal
Warning
Page
Master Warning Indication
7-31
Electric Parking Brake (EPB) Warning Indication/Warning Light*1
7-31
Check Engine Light*1
7-31
Automatic Transaxle Warning Indication
7-31
*AWD Warning Indication
7-31
Air Bag/Front Seat Belt Pretensioner System Warning Light*1
7-31
Flashing
7-31
Tire Pressure Monitoring System Warning Light*1
Turns on
7-36
Amber
7-31
KEY Warning Indication
White
(Amber/White)
7-36
*High Beam Control System (HBC) Warning Indication/Warning Light*1
7-31
(Amber)
*Blind Spot Monitoring (BSM) Warning Indication
7-31
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
7-31
& Go function) Warning Indication
(Amber)
*Lane-keep Assist System (LAS) & Lane Departure Warning System
7-31
(LDWS) Warning Indication
LED Headlight Warning Light*1
7-31
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning In-
7-36
dication
(Amber)
Low Fuel Warning Indication
7-36
Check Fuel Cap Warning Indication/Warning Light*1
7-36
Engine Oil Level Warning Light*1
7-36
4-40
*Some models.
When Driving
Instrument Cluster and Display
Signal
Warning
Page
Seat Belt Warning Light (Front seat)
7-36
Seat Belt Warning Light (Rear seat)
7-36
*Low Washer Fluid Level Warning Indication
7-36
Door-Ajar Warning Indication
7-36
Liftgate-Ajar Warning Indication
7-36
*1
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2
The light turns on continuously when the parking brake is applied.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Indicator
Page
Seat Belt Indicator Light (Rear seat)
2-39
(Green)
*Front Passenger Air Bag Deactivation Indicator Light*1
2-85
Security Indicator Light*1
3-44
Wrench Indication
4-44
Low Engine Coolant Temperature Indicator Light
4-44
(Blue)
*Some models.
4-41
When Driving
Instrument Cluster and Display
Signal
Indicator
Page
Shift Position Indication
4-49
Lights-On Indication/Indicator Light
4-58
Headlight
High-Low Beam
4-62
Headlight High-Beam Indicator Light
Flashing the
Headlights
4-62
Turn and
Lane-Change
Signals
Turn Signal/Hazard Warning Indicator Lights
4-65
Hazard Warning
Flasher
4-72
AUTOHOLD Active Indicator Light*1
4-86
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
4-142
& Go function) indicator Light*1
Traction Control
System (TCS)
4-91
Dynamic Stabil-
TCS/DSC Indicator Light*1
ity Control
(DSC)
4-93
Turns on
7-31
TCS OFF Indicator Light (FWD) *1
4-92
Off-Road Traction Assist Indicator Light (AWD) *1
4-95
Select Mode Indication
4-97
*High Beam Control System (HBC) Indicator Light
4-107
(Green)
4-42
*Some models.
When Driving
Instrument Cluster and Display
Signal
Indicator
Page
Malfunction
7-31
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Except malfunc-
tion
4-113
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
4-136
& Go function) Main Indication
(White)
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
4-136
& Go function) Set Indication
(Green)
*Lane-keep Assist System (LAS) & Lane Departure Warning System
4-148
(LDWS) Indication
Advanced Smart
City Brake Sup-
port (Advanced
SCBS)
*Smart City Brake Support (SCBS) Indication
4-159
Smart City
Brake Support
(SCBS)
4-162
Advanced Smart
City Brake Sup-
port (Advanced
SCBS)
4-159
Smart City
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indica-
Brake Support
tor Light*1
(SCBS)
4-162
Smart Brake
Support (SBS)
System
4-168
*Cruise Main Indication
4-236
(White)
*Cruise Set Indication
4-236
(Green)
*Some models.
4-43
When Driving
Instrument Cluster and Display
1
The light turns on when the ignition is switched on for an operation check, and turns off
a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Wrench Indicator Light
The wrench indication is displayed under
the following conditions.
When the preset maintenance period has
arrived.
Refer to the Information section in the
Mazda Connect Owner's Manual.
When the engine oil replacement period
has arrived.
NOTE
The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.
Whenever the engine oil is replaced, a
reset of the vehicle engine control unit is
necessary.
Refer to the Information section in the
Mazda Connect Owner's Manual.
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
4-44
When Driving
Instrument Cluster and Display
Active Driving Display*
Optical receiver
Dust-proof sheet
WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as doing
so could distract your attention from the road ahead and lead to an accident.
CAUTION
¾ Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage.
¾ Do not place objects above the active driving display or apply stickers to the dust-proof
sheet/optical receiver as they will cause interference.
¾ A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display difficult to view.
¾ Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
NOTE
Wearing polarized sunglasses will reduce the visibility of the active driving display due to
the characteristics of the display.
If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.
The display may be difficult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.
If the audio system is removed, the active driving display cannot be operated.
The active driving display indicates the following information:
Blind Spot Monitoring (BSM) Operation Conditions and Warnings
*Some models.
4-45
When Driving
Instrument Cluster and Display
Refer to Blind Spot Monitoring (BSM) on page 4-109.
Traffic Sign Recognition System (TSR) traffic signs and Warnings
Refer to Traffic Sign Recognition System (TSR) on page 4-115.
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
Operation Conditions and Warnings
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) on page 4-131.
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Operation
Conditions and Warnings
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) on
page 4-146.
Advanced Smart City Brake Support (Advanced SCBS) Warnings
Refer to Advanced Smart City Brake Support (Advanced SCBS) on page 4-157.
Smart City Brake Support [Forward] (SCBS F) Warnings
Refer to Smart City Brake Support [Forward] (SCBS F) on page 4-160.
Smart Brake Support (SBS) Warnings
Refer to Smart Brake Support (SBS) on page 4-167.
Cruise Control Operation Conditions
Refer to Cruise Control on page 4-235.
Navigation Guidance (vehicles with navigation system)
Speed limit indicator (vehicles with navigation system)
Vehicle Speed
The active driving display settings can be changed or adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
NOTE
The desired driving position (display position, brightness level, display information) can
be called up after programming the position.
Refer to Driving Position Memory on page 2-10.
4-46
When Driving
Automatic Transaxle
Automatic Transaxle Controls
Lock-release button
Various Lockouts:
Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Indicates the selector lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift.
NOTE
The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each gear instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aware that you can inadvertently shift into manual shift mode
and an inappropriate gear may be retained as the vehicle speed increases. If you notice the
engine speed going higher or hear the engine racing, confirm you have not accidentally
slipped into manual shift mode (page 4-50).
4-47
When Driving
Automatic Transaxle
Shift-Lock System
Transaxle Ranges
The shift-lock system prevents shifting out
The shift position indication in the
of P unless the brake pedal is depressed.
instrument cluster illuminates.
Refer to Indication/Indicator Lights on
To shift from P:
page 4-25, 4-41.
1. Depress and hold the brake pedal.
The selector lever must be in P or N
2. Start the engine.
position to operate the starter.
3. Press and hold the lock-release button.
P (Park)
4. Move the selector lever.
P locks the transaxle and prevents the
NOTE
front wheels from rotating.
When the ignition is switched to ACC or
the ignition is switched off, the selector
WARNING
lever cannot be shifted from P position.
The ignition cannot be switched to OFF
Always set the selector lever to P position
if the selector lever is not in P position.
and set the parking brake:
Only setting the selector lever to the P
Shift-Lock Override
position without using the parking brake to
If the selector lever will not move from P
hold the vehicle is dangerous. If P fails to
using the proper shift procedure, continue
hold, the vehicle could move and cause an
to hold down the brake pedal.
accident.
1. Remove the shift-lock override cover
using a cloth-wrapped flat head
CAUTION
screwdriver.
2. Insert a screwdriver and push it down.
¾ Shifting into P, N or R while the vehicle is
moving can damage your transaxle.
¾ Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
Cover
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
3. Press and hold the lock-release button.
Rocking the Vehicle (page 3-49).
4. Move the selector lever.
NOTE
Take the vehicle to an Authorized Mazda
(With parking sensor system)
Dealer to have the system checked.
4-48
When Driving
Automatic Transaxle
When the selector lever is shifted to the R
D (Drive)
position with the ignition switched ON, the
D is the normal driving position. From a
parking sensor system is activated and a
stop, the transaxle will automatically shift
beep sound is heard.
through a 6-gear sequence.
Refer to Parking Sensor System on page
4-260.
M (Manual)
N (Neutral)
M is the manual shift mode position.
Gears can be shifted up or down by
In N, the wheels and transaxle are not
operating the selector lever. Refer to
locked. The vehicle will roll freely even
Manual Shift Mode on page 4-50.
on the slightest incline unless the parking
brake or brakes are on.
Shift Position Indication
Instrument Cluster (Type A)
WARNING
If the engine is running faster than idle, do
not shift from N or P into a driving gear:
It's dangerous to shift from N or P into a
driving gear when the engine is running
Instrument Cluster (Type B/C)
faster than idle. If this is done, the vehicle
could move suddenly, causing an accident
or serious injury.
Do not shift into N when driving the
The selector position is indicated when the
vehicle:
ignition is switched ON.
Shifting into N while driving is dangerous.
Engine braking cannot be applied when
Gear position indication
decelerating which could lead to an
In manual shift mode, the “M” of the shift
accident or serious injury.
position indication illuminates and the
numeral for the selected gear is displayed.
CAUTION
Active Adaptive Shift (AAS)
Do not shift into N when driving the
Active Adaptive Shift (AAS)
vehicle. Doing so can cause transaxle
automatically controls the transaxle shift
damage.
points to best suit the road conditions and
driver input. This improves driving feel.
NOTE
The transaxle may switch to AAS mode
Apply the parking brake or depress the
when driving up and down slopes,
brake pedal before moving the selector
cornering, driving at high elevations, or
lever from N position to prevent the
depressing the accelerator pedal quickly
vehicle from moving unexpectedly.
while the selector lever is in the D
4-49
When Driving
Automatic Transaxle
position. Depending on the road and
Manual Shift Mode
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
The manual shift mode gives you the feel
however, this does not indicate a problem
of driving a manual transaxle vehicle by
because the AAS mode will maintain the
allowing you to operate the selector lever
optimum gear position.
manually. This allows you to control
engine rpm and torque to the drive wheels
much like a manual transaxle when more
control is desired.
To change to manual shift mode, shift the
lever from D to M.
NOTE
Changing to manual shift mode while
driving will not damage the transaxle.
To return to automatic shift mode, shift the
lever from M to D.
NOTE
If you change to manual shift mode
when the vehicle is stopped, the gear
will shift to M1.
If you change to manual shift mode
without depressing the accelerator pedal
when driving in D range, 5th gear/6th
gear, the gear will shift to M4/M5.
Indicators
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
4-50
When Driving
Automatic Transaxle
Gear position indication
If the engine oil temperature becomes
too high, there is the possibility that the
The numeral for the selected gear
transaxle will switch to automatic shift
illuminates.
mode, canceling manual shift mode and
turning off the gear position indicator
Instrument Cluster (Type A)
illumination. After the engine oil
temperature has decreased, the gear
position indicator illumination turns
Manual shift mode
back on and driving in manual shift
indication
Gear position
mode is restored.
indication
Instrument Cluster (Type B/C)
Manually Shifting Up
You can shift gears up by operating the
selector lever or the steering shift
Manual shift mode
switches*.
indication
Gear position
M1 → M2 → M3 → M4 → M5 → M6
indication
Using selector lever
NOTE
To shift up to a higher gear, tap the
If the gears cannot be shifted down
selector lever back once.
when driving at higher speeds, the gear
position indication will flash twice to
signal that the gears cannot be shifted
down (to protect the transaxle).
If the automatic transaxle fluid (ATF)
temperature becomes too high, there is
the possibility that the transaxle will
switch to automatic shift mode,
canceling manual shift mode and
turning off the gear position indication
Using steering shift switch*
illumination. This is a normal function
to protect the AT. After the ATF
To shift up to a higher gear with the
temperature has decreased, the gear
steering shift switches, pull the UP switch
position indication illumination turns
back on and driving in manual shift
mode is restored.
(SKYACTIV-D 2.2 AWD vehicles)
*Some models.
4-51
When Driving
Automatic Transaxle
(
) toward you once with your
The steering shift switch can be used
fingers.
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
UP switch (+/OFF)
mode when the UP switch (
) is
pulled rearward for a sufficient amount
of time.
Manually Shifting Down
You can shift gears down by operating the
selector lever or the steering shift
switches*.
M6 → M5 → M4 → M3 → M2→ M1
WARNING
Using selector lever
To shift down to a lower gear, tap the
Keep your hands on the steering wheel rim
selector lever forward once.
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
When driving slowly, the gears may not
shift up.
Using steering shift switch*
Do not drive the vehicle with the
To shift down to a lower gear with the
tachometer needle in the RED ZONE
steering shift switches, pull the DOWN
while in manual shift mode. In addition,
manual shift mode switches to automatic
shift mode while the accelerator pedal is
completely depressed.
This function is canceled while the TCS
is turned off or the Off-Road Traction
Assist is turned on. However, if the
vehicle is continuously driven at a high
rpm, the gears may automatically shift
up to protect the engine.
4-52
*Some models.
When Driving
Automatic Transaxle
switch toward you once with your
When depressing the accelerator fully,
fingers.
the transaxle will shift to a lower gear,
depending on vehicle speed. However,
DOWN switch (-)
the gears do not kickdown while the TCS
is turned off or the Off-Road Traction
Assist is operating.
Second Gear Fixed Mode
When the selector lever is moved back
while the vehicle speed is about 10 km/h
(6.2 mph) or less, the transaxle is set in the
second gear fixed mode. The gear is fixed
in second while in this mode for easier
WARNING
acceleration from a stop and driving on
slippery roads such as snow-covered
Do not use engine braking on slippery road
roads.
surfaces or at high speeds:
If the selector lever is moved back or
Shifting down while driving on wet, snowy,
forward while in the second gear fixed
or frozen roads, or while driving at high
mode, the mode will be canceled.
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
When driving at high speeds, the gear
may not shift down.
During deceleration, the gear may
automatically shift down depending on
vehicle speed.
4-53
When Driving
Automatic Transaxle

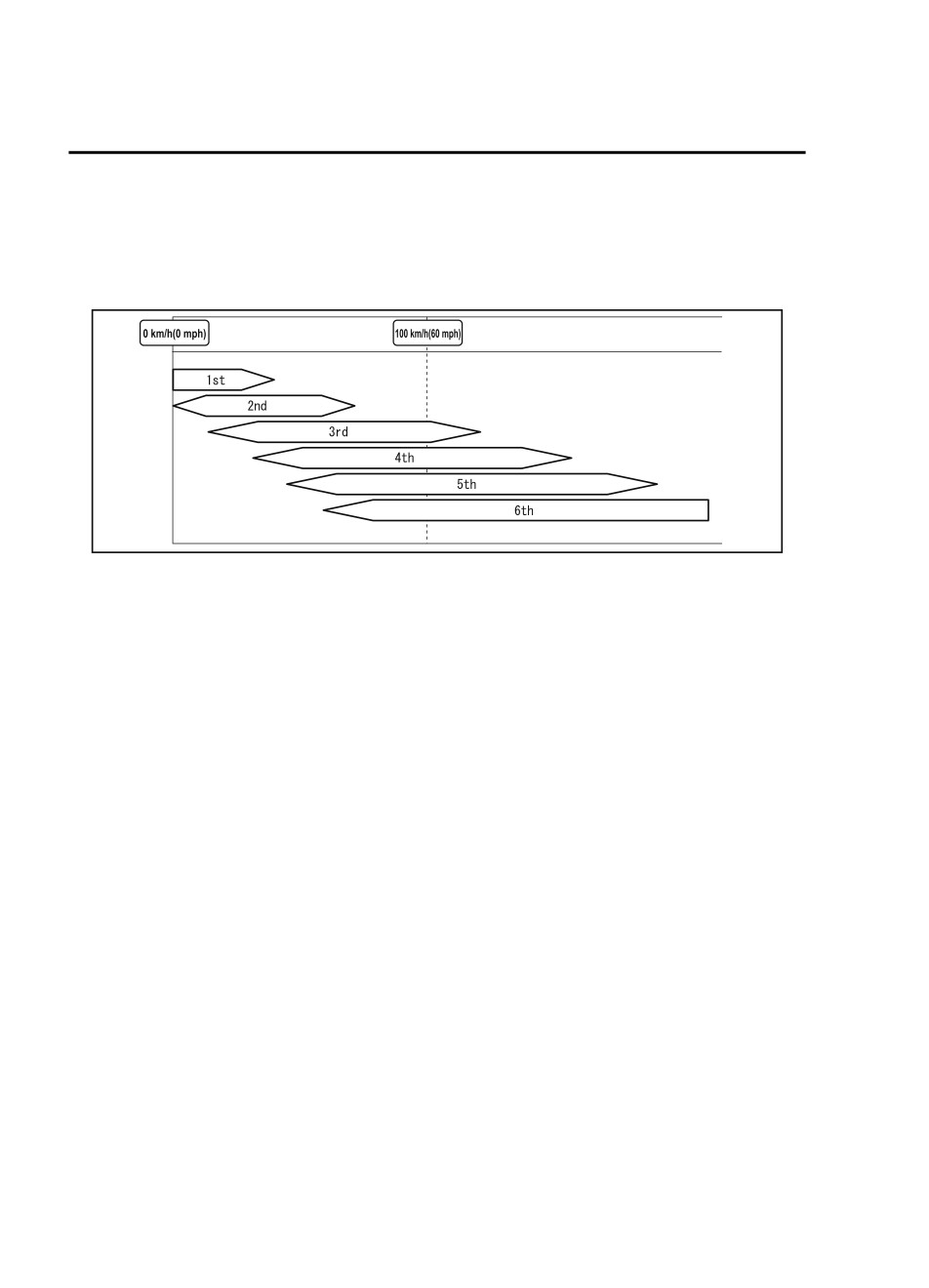

Shift Gear (Shifting) Speed Limit
For each gear position while in the manual mode, the speed limit is set as follows: When the
selector lever is operated within the range of the speed limit, the gear is shifted.
Shift up
The gear does not shift up while the vehicle speed is lower than the speed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed limit.
If the vehicle speed exceeds the speed limit and the gear does not shift down, the gear
position indication flashes 2 times to notify the driver that the gear cannot be shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear shifts down.
However, the gears do not kickdown while the TCS is turned off or the Off-Road Traction
Assist is operating.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during deceleration.
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains in
second.
4-54
When Driving
Automatic Transaxle
Recommendations for Shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these shift points:
Gear
Vehicle speed*1
M1 to M2
24 km/h (15 mph)
M2 to M3
40 km/h (25 mph)
M3 to M4
65 km/h (40 mph)
M4 to M5
73 km/h (45 mph)
M5 to M6
81 km/h (50 mph)
*1
Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before the
engine starts to overwork. This gives better acceleration when you need more speed.
On a steep downgrade, downshifting helps maintain safe speed and prolongs brake life.
4-55
When Driving
Automatic Transaxle
NOTE
Direct Mode*
Shifting up and down while in direct mode
Direct mode can be used for temporarily
may not be possible depending on the
switching gears by operating the steering
vehicle speed. In addition, because direct
shift switch while the vehicle is being
mode is canceled (released) depending on
driven with the selector lever in the D
the rate of acceleration or if the
position.
accelerator is fully depressed, use of the
While in direct mode, the D and M
manual shift mode is recommended if you
indication illuminate and the gear position
need to drive the vehicle in a particular
in use is illuminated.
gear for long periods.
Direct mode is canceled (released) under
the following conditions.
The UP switch (
) is pulled
rearward for a certain amount of time or
longer.
The vehicle is driven for a certain
amount of time or longer (time differs
depending on the driving conditions
while operating).
The vehicle is stopped or moving at a
slow speed.
Instrument Cluster (Type A)
Direct mode
Gear position
indication
indication
Instrument Cluster (Type B)
Direct mode
Gear position
indication
indication
4-56
*Some models.
When Driving
Automatic Transaxle
Climbing steep grades from a stop
Driving Tips
To climb a steep grade from a stopped
position:
WARNING
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
Do not let the vehicle move in a direction
load weight and grade steepness.
opposite to the direction selected by the
3. Release the brake pedal while
selector lever:
gradually accelerating.
Do not let the vehicle move backward with
Descending steep grades
the selector lever in a forward position, or
do not let the vehicle move forward with
When descending a steep grade, shift to
the selector lever in the reverse position.
lower gears, depending on load weight and
Otherwise, the engine may stop, causing
grade steepness. Descend slowly, using the
the loss of the power brake and power
brakes only occasionally to prevent them
steering functions, and make it difficult to
from overheating.
control the vehicle which could result in an
accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
NOTE
The accelerator pedal may initially feel
heavy as it is being depressed, then feel
lighter as it is depressed further. This
change in pedal force aids the engine
control system in determining how much
the accelerator pedal has been
depressed for performing kickdown, and
functions to control whether or not
kickdown should be performed.
While the selector lever is in the M
position and the TCS is turned off,
manual shift mode does not switch to
automatic shift mode even if the
accelerator pedal is completely
depressed. Operate the selector lever.
4-57
When Driving
Switches and Controls
Lighting Control
Headlights
Turn the headlight switch to turn the headlights and other exterior lights on or off.
When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.
NOTE
If the light switch is left on, the lights will automatically switch off approximately 30
seconds after switching the ignition off.
The time setting can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
To prevent discharging the battery, do not leave the lights on while the engine is off unless
safety requires them.
Without auto-light control
Switch Position
OFF
ACC or
ACC or
ACC or
Ignition Position
ON
ON
ON
OFF
OFF
OFF
Headlights
Off
Off
Off
Off
On
On*2
Daytime running lights
On*1
Off
On*1
Off
Off
Off
Taillights
Parking lights
Off
Off
On
On*2
On
On*2
License plate lights
Side-marker lights
*1
The lights are turned on while the vehicle is driven.
*2
The lights are turned on for the specified period by the auto headlight off function.
4-58
When Driving
Switches and Controls
With auto-light control
(Except Canada)
Switch Position
OFF
AUTO
ACC or
ACC or
ACC or
ACC or
Ignition Position
ON
ON
ON
ON
OFF
OFF
OFF
OFF
Headlights
Off
Off
Auto*2
Auto*4
Off
Off
On
On*5
Daytime running lights
On*1
Off
On*3
Off
On*1
Off
Off
Off
Taillights
Parking lights
Off
Off
Auto*2
Auto*4
On
On*5
On
On*5
License plate lights
Side-marker lights
*1
The lights are turned on while the vehicle is driven.
*2
The lights are turned on by the auto light function.
*3
The lights are turned on while the vehicle is driven, and turned off when the headlights are turned on by the
auto light function.
*4
The lights are turned on continuously if the ignition is switched from ON to any other position with the lights
turned on. The lights are turned on for the specified period by the auto headlight off function.
*5
The lights are turned on for the specified period by the auto headlight off function.
(Canada)
4-59
When Driving
Switches and Controls
Ignition Position
ACC or OFF
ON
Switch Position
OFF*1
AUTO
OFF*1
AUTO
Headlights
Off
Off
Off
Off
On
Daytime running
Off
Off
Off
Off
Off
lights
Taillights
Auto*2*4
Auto*3*4
Parking lights
Off
On*5
On
On*5
On
License plate lights
Side-marker lights
*1
The light switch returns to the AUTO position automatically.
*2
During the daytime, the daytime running lights turn on automatically. During the nighttime, the headlights,
parking lights, taillights, and the license plate lights turn on automatically.
*3
During the daytime, the daytime running lights, parking lights, taillights, and the license plate lights turn on
automatically. During the nighttime, the headlights, parking lights, taillights, and the license plate lights turn
on automatically.
*4
When the light switch is switched to the OFF position while the vehicle is stopped, all of the lights that are
turned on turn off. When the light switch is switched from a position other than
to the
position
while the vehicle is stopped, the daytime running lights or the headlights turn off. When starting to drive the
vehicle, the lights that are turned off turn on again.
*5
The lights are turned on continuously if the ignition is switched from ON to any other position with the lights
turned on. The lights are turned off when the driver's door is opened or 30 seconds have elapsed since the
lights turned on.
Auto-light control*
(Except Canada)
When the headlight switch is in the AUTO position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights and other exterior lights on or off.
(Canada)
When the headlight switch is in a position other than
and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights and other exterior lights on or off.
4-60
*Some models.
When Driving
Switches and Controls
CAUTION
¾ Do not shade the light sensor by adhering a sticker or a label on the windshield. Otherwise
the light sensor will not operate correctly.
¾ The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windshield when the wiper lever is in the AUTO position and the
ignition is switched ON as fingers could be pinched or the wipers and wiper blades could be
damaged when the wipers activate automatically. If you are going to clean the windshield,
be sure the wipers are turned off completely when it is particularly tempting to leave the
engine running. This is particularly important when clearing ice and snow.
NOTE
The headlights and other exterior lights may not turn off immediately even if the
surrounding area becomes well-lit because the light sensor determines that it is night time
if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the OFF position.
If the headlight switch and the windshield wiper switch are in AUTO, and the wipers are
operated at low or high speed by the auto wiper control for several seconds, bad weather
conditions are determined and the headlights may be turned on.
The sensitivity of the auto-light control may be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-61
When Driving
Switches and Controls
Headlight High-Low Beam
Coming Home Light
The headlights switch between high and
The coming home light turns on the
low beams by moving the lever forward or
headlights (low beams) when the lever is
backward.
operated.
To turn on the lights
High beam
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
Low beam
headlights turn on.
The headlights turn off after a certain
period of time has elapsed after all of the
When the headlight high-beams are on, the
doors are closed.
headlight high-beam indicator light is
turned on.
Flashing the Headlights
Can be used when the ignition is switched
NOTE
ON.
The time until the headlights turn off
To flash the headlights, pull the lever fully
after all of the doors are closed can be
towards you (the headlight switch does not
changed.
need to be on).
Refer to the Settings section in the
Mazda Connect Owner's Manual.
OFF
If no operations are done for 3 minutes
after the lever is pulled, the headlights
Headlight
turn off.
flashing
The headlights turn off if the lever is
pulled again while the headlights are
illuminated.
The headlight high-beam indicator light in
Leaving Home Light
the instrument cluster illuminates
The leaving home light turns on the lights
simultaneously. The lever will return to
when the transmitter unlock button is
the normal position when released.
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Parking lights, Taillights,
License plate lights.
4-62
When Driving
Switches and Controls
To turn on the lights
Headlight Leveling
When the ignition switch and the headlight
The number of passengers and weight of
switch are in the following conditions, the
cargo in the luggage compartment change
headlights will illuminate when the
the angle of the headlights.
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The angle of the headlights will be
The headlights turn off after a certain
automatically adjusted when turning on
period of time has elapsed (30 seconds).
the headlights.
Ignition switch: off
Daytime Running Lights
Headlight switch: AUTO,
, or
Some countries require moving vehicles to
have their lights on (daytime running
lights) during the daytime.
Lock button
Unlock
button
Except Canada
The daytime running lights turn on
automatically when the vehicle starts
moving.
They turn off when the parking brake is
operated or the selector lever is shifted to
NOTE
the P position.
Operation of the leaving home light can
NOTE
be turned on or off.
The daytime running lights can be
Refer to the Settings section in the
deactivated.
Mazda Connect Owner's Manual.
Refer to the Settings section in the Mazda
When the transmitter lock button is
Connect Owner's Manual.
pressed and the vehicle receives the
Canada
transmitter signal, the headlights turn
off.
The daytime running lights continuously
When the headlight switch is turned to
turn on when the ignition is switched ON.
the OFF position, the headlights turn
When the light switch is switched to the
off.
OFF or
position while the vehicle is
stopped, the daytime running lights turns
off. When you start driving the vehicle,
they turn on again.
4-63
When Driving
Switches and Controls
NOTE
Fog Lights
When the light switch is switched to the
position, the daytime running lights turn
The fog lights can be turned on with the
off. If you want to drive the vehicle with
ignition switched ON and the headlights
the daytime running lights turned on,
turned on.
switch the light switch to a position other
Use this switch to turn on the fog lights.
than
The fog lights will improve visibility at
night and during foggy conditions.
The fog lights turn on when the fog light
switch is turned to the position and turn
off when the switch is turned to the
position.
Fog light switch
NOTE
The fog lights will turn off when the
headlights are set at high beams.
4-64
*Some models.
When Driving
Switches and Controls
Refer to the Settings section in the
Turn and Lane-Change
Mazda Connect Owner's Manual.
Signals
Lane-Change Signals
The ignition must be switched ON to use
Move the lever halfway toward the
the turn and lane-change signals.
direction of the lane change―until the
Turn Signals
indicator flashes― and hold it there. It
will return to the off position when
Move the signal lever down (for a left
released.
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
Three-Flash Turn Signal
the turn is completed.
After releasing the turn signal lever, the
turn signal indicator flashes 3 times. The
If the indicator light continues to flash
operation can be canceled by moving the
after a turn, manually return the lever to its
lever in the direction opposite to which it
original position.
was operated.
Right turn
NOTE
Right lane change
The three-flash turn signal function can be
switched to operable/inoperable using the
personalization function.
OFF
Refer to the Settings section in the Mazda
Connect Owner's Manual.
Left lane change
Left turn
The turn signal indicators in the
instrument cluster flash according to the
operation of the turn signal lever to show
which signal is working.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
A personalized function is available to
change the turn indicator sound volume.
4-65
When Driving
Switches and Controls
¾ If the amount of washer fluid spray is
Windshield Wipers and
insufficient, do not use the washer
Washer
switch. If the washer switch continues to
be operated with no washer fluid being
The ignition must be switched ON to use
sprayed, it could lead to pump damage.
the wipers.
NOTE
WARNING
If the windshield wipers are operated
under cold weather conditions or during
Use only windshield washer fluid or plain
snowfall, they could stop due to
water in the reservoir:
accumulated snow on the windshield. If
Using radiator antifreeze as washer fluid is
the windshield wipers stop due to
dangerous. If sprayed on the windshield, it
accumulated snow on the windshield, park
will dirty the windshield, affect your
the vehicle in a safe place, turn the wiper
visibility, and could result in an accident.
switch off, and then remove the
accumulated snow. If the wiper switch is
Only use windshield washer fluid mixed
turned to another position other than OFF,
with anti-freeze protection in freezing
the wipers will operate. If the wipers do
weather conditions:
not operate even though the wiper switch
Using windshield washer fluid without
is turned to a position other than OFF,
anti-freeze protection in freezing weather
consult an Authorized Mazda Dealer as
conditions is dangerous as it could freeze
soon as possible.
on the windshield and block your vision
which could cause an accident. In addition,
Windshield Wipers
make sure the windshield is sufficiently
Turn the wipers on by pressing the lever
warmed using the defroster before
up or down.
spraying the washer fluid.
With intermittent wiper
CAUTION
¾ When the wipers are not used during
freezing temperatures or for a long time,
the wiper rubber may adhere to the
glass. If the wipers are operated while
adhered to the glass, it could damage
the wiper rubber and motor.
¾ If the wipers are operated while the glass
is dry, the glass could be scratched and
the wiper rubber damaged. When the
Switch Posi-
glass is dry, spray washer fluid before
Wiper operation
tion
operating the wipers.
MIST
Operation while pulling up lever
4-66
When Driving
Switches and Controls
Switch Posi-
Auto-wiper control*
Wiper operation
tion
When the wiper lever is in the AUTO
OFF
Stop
position, the rain sensor senses the amount
INT
Intermittent
of rainfall on the windshield and turns the
LO
Low speed
wipers on or off automatically
HI
High speed
(off―intermittent―low speed―high
speed).
Variable-speed intermittent wipers
Set the lever to the intermittent position
The sensitivity of the rain sensor can be
and choose the interval timing by rotating
adjusted by turning the switch on the
the ring.
wiper lever.
From the center position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Less sensitivity
Switch
INT ring
With auto-wiper control
Center
position
Higher sensitivity
Switch Posi-
Wiper operation
tion
MIST
Operation while pulling up lever
OFF
Stop
AUTO
Auto control
LO
Low speed
HI
High speed
*Some models.
4-67















Content      ..     5      6      7      8     ..
