Steps for Determining the Correct Load Limit

Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never

exceed XXX kg or XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be riding in your

vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For

example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400

－

 750 (5 × 150) = 650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That

weight may not safely exceed the available cargo and luggage load capacity calculated
in Step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your

vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-41

Vehicle Information

Labels

▼

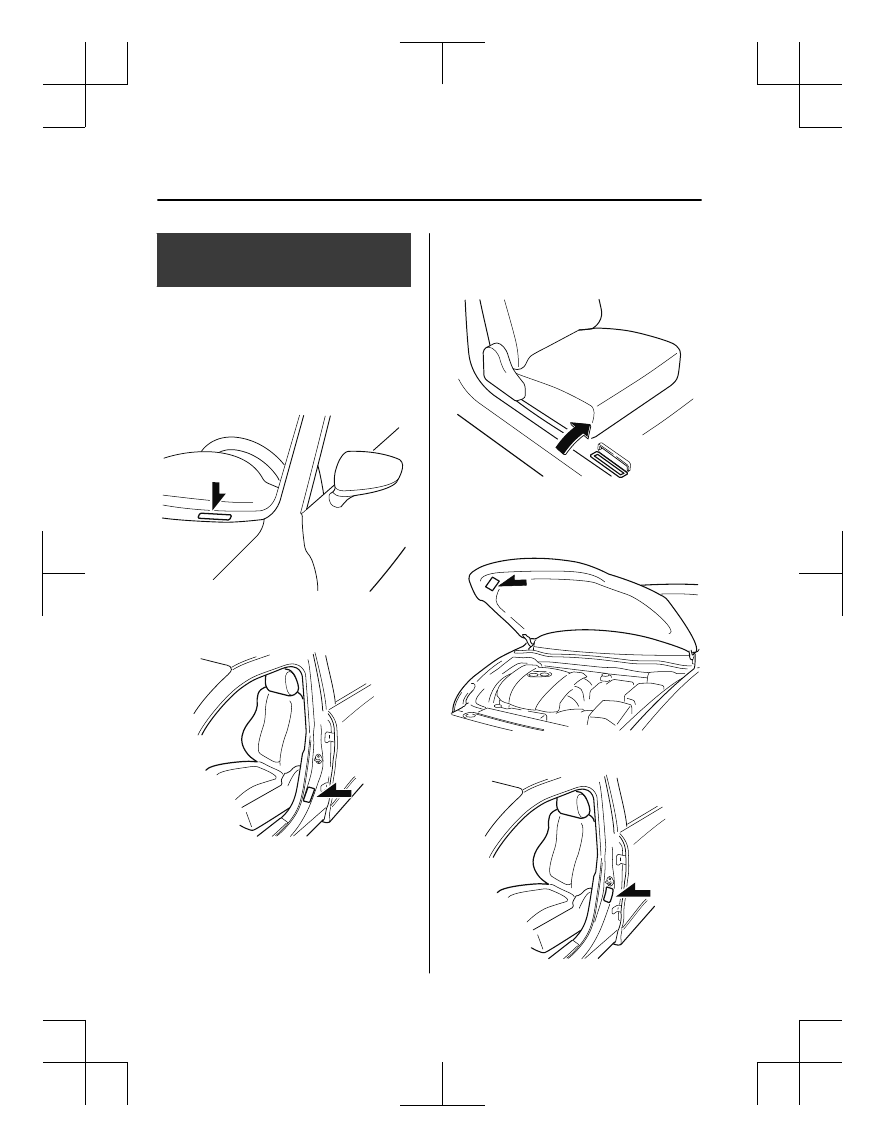

Vehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.

▼

Motor Vehicle Safety Standard
Label (U.S.A. and Canada)

▼

Chassis Number

Open the cover shown in the figure to
check the chassis number.

▼

Vehicle Emission Control
Information Label (U.S.A. and
Canada)

▼

Tire Pressure Label

Specifications

Identification Numbers

9-2

▼

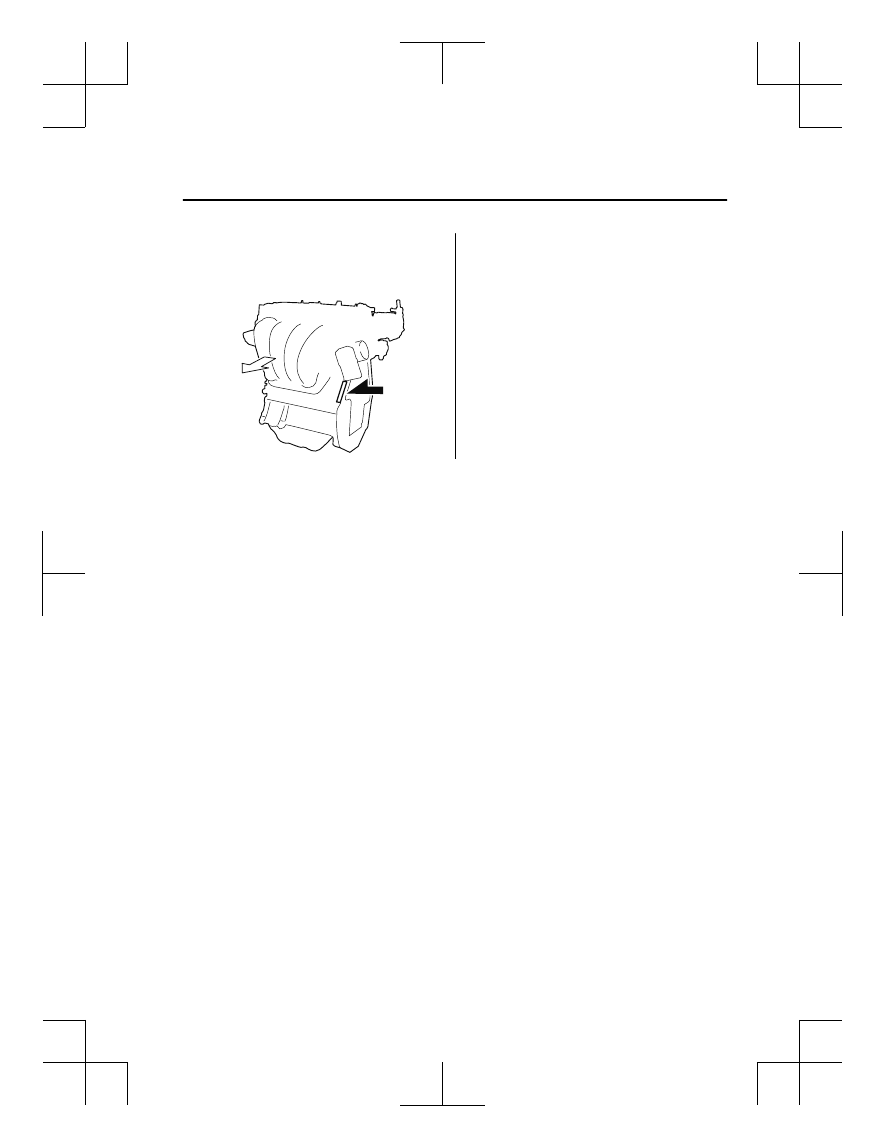

Engine Number

SKYACTIV-G 2.5, SKYACTIV-G 2.5T



Forward

Specifications

Identification Numbers

9-3

Specifications

▼

Engine

Gasoline engine

Item

Specification

SKYACTIV-G 2.5

SKYACTIV-G 2.5T

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

89.0 × 100 mm (3.50 × 3.94 in)

Displacement

2,488.5 ml (2,488.5 cc)

Compression ratio

13.0

10.5

▼

Electrical System

Battery

*1

Classification

Specification

SKYACTIV-G 2.5,
SKYACTIV-G 2.5T

12V-60Ah/20HR or 12V-65Ah/20HR

Spark-plug

Classification

Specification

SKYACTIV-G 2.5

Mazda Genuine spark plug

*2

PE5R-18-110-A or PE5S-18-110

SKYACTIV-G 2.5T

PY8V-18-110

*

1 Check the battery installed on the vehicle and use a battery with an equal or higher performance. However, the

performance of the battery may vary even among the same battery types, consult an Authorized Mazda Dealer
for replacement.

*

2 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer

for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.

▼

Lubricant Quality

Lubricant

Classification

Engine oil

Refer to Recommended Oil on page 6-20.

Coolant

FL-22 type

Automatic transaxle fluid

*1

Mazda Genuine ATF-FZ

Transfer case oil

*2

Mazda Long Life Hypoid Gear Oil SG1

Specifications

Specifications

9-4

Lubricant

Classification

Rear differential oil

*2

Mazda Long Life Hypoid Gear Oil SG1

Brake fluid

SAE J1703 or FMVSS116 DOT-3

*

1 Periodic replacement is unnecessary.

*

2 Replacement is necessary when the component is submerged in water.

NOTE

Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.

▼

Capacities

(Approximate Quantities)

Item

Capacity

Engine oil

SKYACTIV-G
2.5

With oil filter replacement

4.5 L (4.8 US qt, 4.0 Imp qt)

Without oil filter replace

‐

ment

4.3 L (4.5 US qt, 3.8 Imp qt)

SKYACTIV-G
2.5T

With oil filter replacement

4.8 L (5.1 US qt, 4.2 Imp qt)

Without oil filter replace

‐

ment

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

U.S.A. and Can

‐

ada

SKYACTIV-G 2.5

7.5 L (7.9 US qt, 6.6 Imp qt)

SKYACTIV-G 2.5T

8.5 L (9.0 US qt, 7.5 Imp qt)

Mexico

SKYACTIV-G 2.5

7.7 L (8.1 US qt, 6.8 Imp qt)

SKYACTIV-G 2.5T

8.5 L (9.0 US qt, 7.5 Imp qt)

Automatic transaxle
fluid

SKYACTIV-G 2.5

7.8 L (8.2 US qt, 6.9 Imp qt)/

8.0 L (8.5 US qt, 7.0 Imp qt)

SKYACTIV-G 2.5T

8.0 L (8.5 US qt, 7.0 Imp qt)

Transfer case oil

0.45 L (0.48 US qt, 0.40 Imp qt)

Rear differential oil

0.35 L (0.37 US qt, 0.31 Imp qt)

Fuel tank

FWD

56.0 L (14.8 US gal, 12.3 Imp gal)

AWD

58.0 L (15.3 US gal, 12.8 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

▼

Dimensions

Item

Vehicle specification

Overall length

4,575 mm (180.1 in)

Overall width

1,845 mm (72.6 in)

Overall height

1,675 mm (65.9 in)

Front tread

1,596 mm (62.8 in)

Rear tread

1,596 mm (62.8 in)

Wheelbase

2,698 mm (106.2 in)

Specifications

Specifications

9-5

▼

Weights

U.S.A. and Canada

SKYACTIV-G 2.5

Item

Weight

AWD

GVWR (Gross Vehicle Weight Rating)

2,143 kg (4,724 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,100 kg (2,425 lbs)

Rear

1,043 kg (2,299 lbs)

SKYACTIV-G 2.5T

Item

Weight

AWD

GVWR (Gross Vehicle Weight Rating)

2,190 kg (4,828 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,145 kg (2,524 lbs)

Rear

1045 kg (2,304 lbs)

Mexico

SKYACTIV-G 2.5

Item

Weight

Without moonroof

With moonroof

GVW (Gross Vehicle Weight)

Total

2,060 kg (4,542 lbs)

2,110 kg (4,652 lbs)

Front

1,035 kg (2,282 lbs)

1,045 kg (2,304 lbs)

Rear

1,025 kg (2,260 lbs)

1,065 kg (2,348 lbs)

GAW (Permissible axle load)

Front

1,055 kg (2,326 lbs)

1,065 kg (2,348 lbs)

Rear

1,105 kg (2,436 lbs)

1,145 kg (2,524 lbs)

SKYACTIV-G 2.5T

Item

Weight

GVW (Gross Vehicle Weight)

Total

2,115 kg (4,663 lbs)

Front

1,100 kg (2,425 lbs)

Rear

1,015 kg (2,238 lbs)

GAW (Permissible axle load)

Front

1,125 kg (2,480 lbs)

Rear

1,090 kg (2,403 lbs)

▼

Light Bulbs

Exterior light

All the light bulbs are the LED type.

Specifications

Specifications

9-6

The LED bulb cannot be replaced. Consult an Authorized Mazda Dealer when the
replacement is necessary.

Interior light

Light bulb

Category

Wattage

UN-R

*1

Overhead light (Front)/Map lights

LED type

LED

―

Bulb type

8

―

Rear map lights

LED type

LED

―

Bulb type

8

―

Vanity mirror lights

*

LED type

LED

―

Bulb type

2

―

Ambient lights

*

LED

―

Luggage compartment light

LED type

LED

―

Bulb type

8

―

*

1 UN-R stands for United Nations Regulation.

▼

Tires

NOTE

The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.
Refer to Tire Inflation Pressure on page 6-35.

Standard tire

(U.S.A. and Canada)

Tire size

Inflation pressure

Front

Rear

P225/65R17 100H

230 kPa (34 psi)

230 kPa (34 psi)

P225/55R19 99V

240 kPa (35 psi)

240 kPa (35 psi)

(Mexico)

Tire size

Inflation pressure

Up to 3 persons

―

Full load

225/65R17 102V

Front

230 kPa (2.3 bar, 33 psi)

260 kPa (2.6 bar, 38 psi)

Rear

230 kPa (2.3 bar, 33 psi)

280 kPa (2.8 bar, 41 psi)

Specifications

Specifications

*Some models.

9-7

Tire size

Inflation pressure

Up to 3 persons

―

Full load

225/55R19 99V

Front

250 kPa (2.5 bar, 36 psi)

260 kPa (2.6 bar, 38 psi)

Rear

250 kPa (2.5 bar, 36 psi)

290 kPa (2.9 bar, 42 psi)

1 person's weight: About 75 kg

Temporary spare tire

(U.S.A. and Canada)

Tire size

Inflation pressure

T145/90D16 106M

*

１

420 kPa (60 psi)

T155/90D17 101M

*2

420 kPa (60 psi)

*

1 SKYACTIV-G 2.5

*

2 SKYACTIV-G 2.5T

(Mexico)

Tire size

Inflation pressure

T155/80R17 100M

420 kPa (4.2 bar, 60 psi)

Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.
108

―

147 N

ꞏ

m (12

―

14 kgf

ꞏ

m, 80

―

108 ft

ꞏ

lbf)

▼

Fuses

Refer to Fuses on page 6-43.

Specifications

Specifications
