Tires

For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

WARNING

Using Different Tire Types:

Driving your vehicle with different types of
tires is dangerous. It could cause poor
handling and poor braking; leading to loss
of control.
Except for the limited use of the temporary
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all four
wheels.

Using Wrong-Sized Tires:

Using any other tire size than what is
specified for the vehicle (page 9-7) is
dangerous. It could seriously affect ride,
handling, ground clearance, tire clearance,
and speedometer calibration. This could
cause you to have an accident. Use only
tires that are the correct size specified for
the vehicle.

▼

Tire Inflation Pressure

WARNING

Always inflate the tires to the correct
pressure:

Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-7.

Use only a Mazda-genuine tire valve cap:

Use of a non-genuine part is dangerous as
the correct tire air pressure cannot be
maintained if the tire valve becomes
damaged. If the vehicle is driven under this
condition, the tire air pressure will decrease
which could result in a serious accident. Do
not use any part for the tire valve cap that
is not a Mazda-genuine part.

Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tire
wear.
Refer to the specification charts (page
9-7).

NOTE



Always check tire pressure when tires
are cold.



Warm tires normally exceed
recommended pressures. Do not release
air from warm tires to adjust the
pressure.



Underinflation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.



Overinflation can produce a harsh ride,
uneven and accelerated tire wear, and a
greater possibility of damage from road
hazards.
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
have it inspected.

Maintenance and Care

Owner Maintenance

6-35

▼

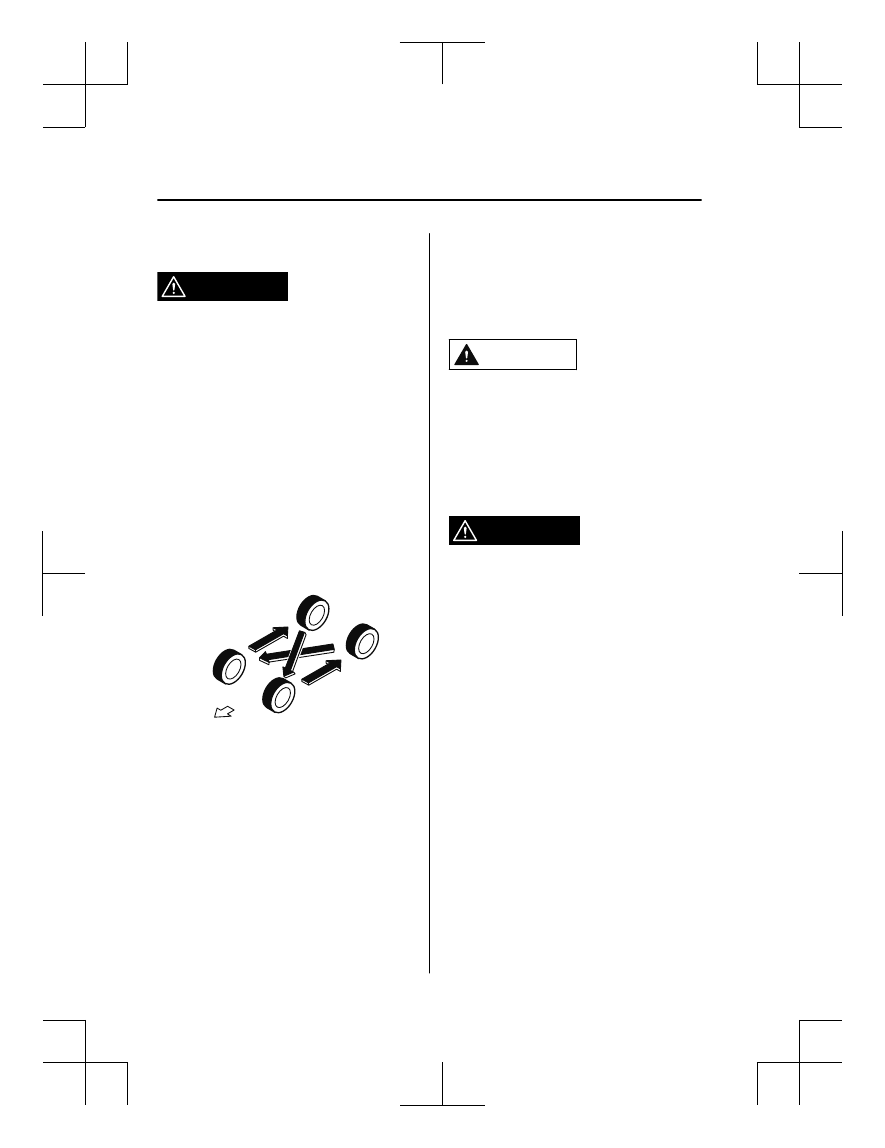

Tire Rotation

WARNING

Rotate tires periodically:

Irregular tire wear is dangerous. To
equalize tread wear for maintaining good
performance in handling and braking,
rotate the tires every 12,000 km (7,500
miles). However Mazda recommends to
rotate every 8,000 km (5,000 miles) to help
increase tire life and distribute wear more
evenly.
Refer to Scheduled Maintenance on page
6-4.

During rotation, inspect them for correct
balance.

Do not include (TEMPORARY USE
ONLY) spare tire in rotation.

Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:



Incorrect tire pressure



Improper wheel alignment



Out-of-balance wheel



Severe braking

After rotation, inflate all tire pressures to
specification (page 9-7) and inspect the
lug nuts for tightness.

CAUTION

Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be reduced if
rotated from side to side.

▼

Replacing a Tire

WARNING

Always use tires that are in good condition:

Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.

Replace all four tires at the same time:

Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tires at the same time.

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.

Maintenance and Care

Owner Maintenance

6-36

Replace the tire when this happens.

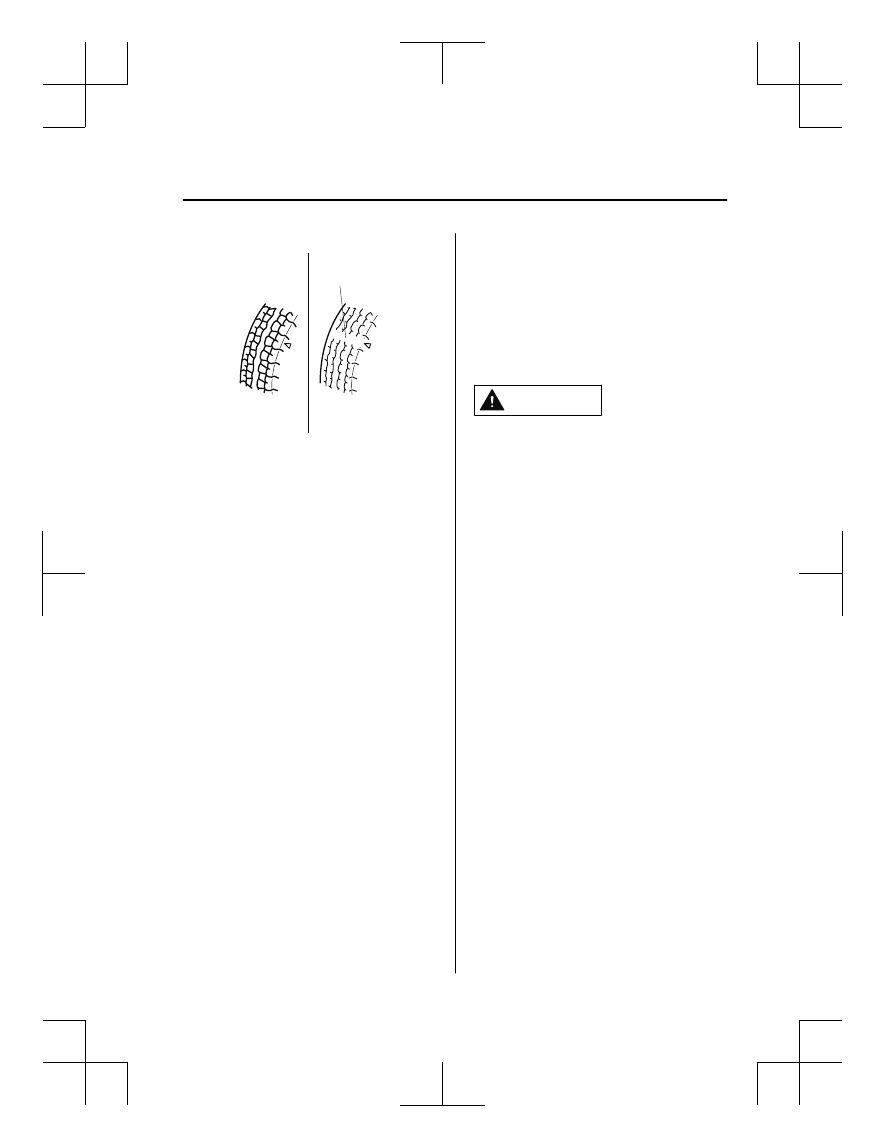

New tread

Tread wear
indicator

Worn tread

You should replace the tire before the band
crosses the entire tread.

NOTE

Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-25.

▼

Temporary Spare Tire

Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.

NOTE

The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional

tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.

CAUTION



Do not use your temporary spare tire rim
with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.



The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.



The temporary spare tire is for limited
use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-36).

NOTE

Maintenance and Care

Owner Maintenance

6-37

▼

Replacing a Wheel

WARNING

Always use wheels of the correct size on
your vehicle:

Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.

CAUTION

A wrong-sized wheel may adversely affect:



Tire fit



Wheel and bearing life



Ground clearance



Snow-chain clearance



Speedometer calibration



Headlight aim



Bumper height



Tire Pressure Monitoring System

NOTE



When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).



For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.

Maintenance and Care

Owner Maintenance

6-38

*Some models.

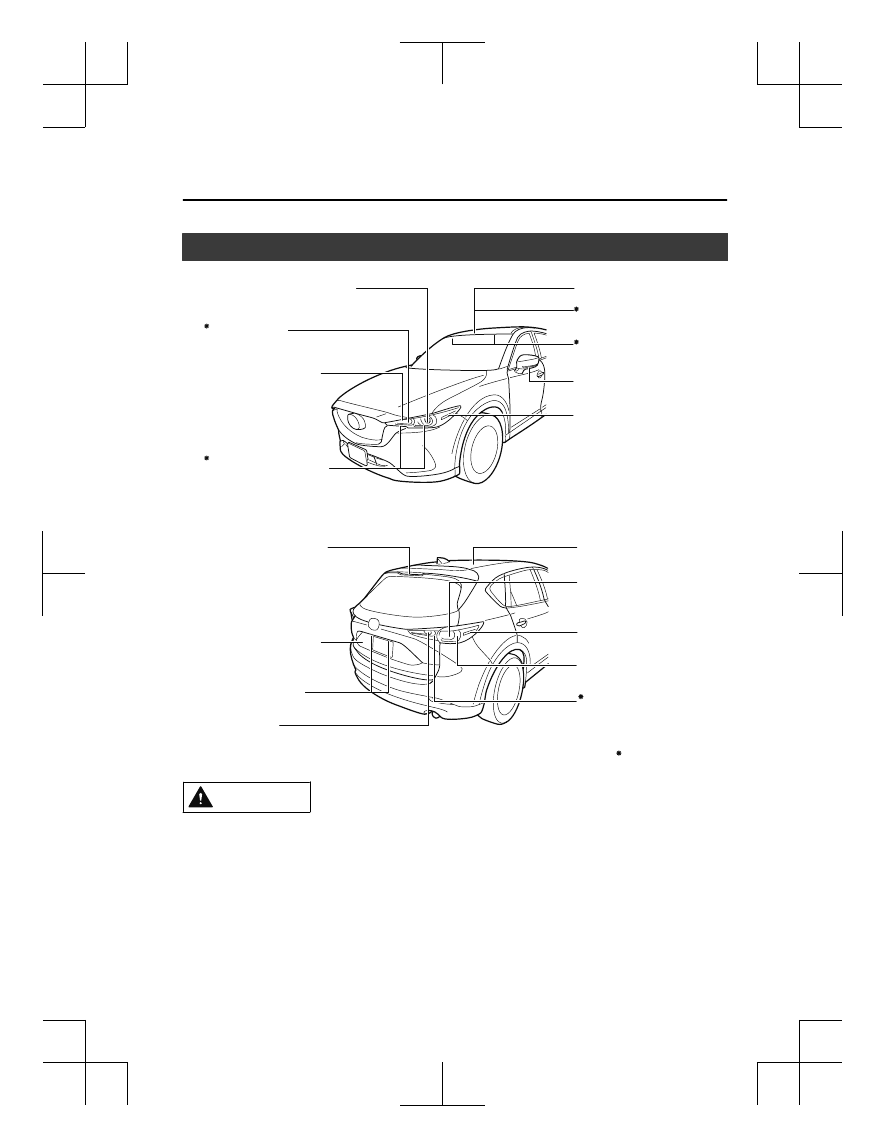

Light Bulbs

Headlights (High/Low beam)
/Daytime running lights

Parking lights

Front turn signal lights
/Parking lights

Daytime running lights
/Parking lights

Front side-marker lights

Side turn signal lights

Overhead lights
/Front map lights

Ambient lights

Vanity mirror lights

High-mount brake light

Rear map lights

Luggage compartment
light

License plate lights

Rear turn signal lights

Rear side-marker lights

Brake lights/Taillights

Taillights

Reverse lights

Some models.

CAUTION

When removing the lens or lamp unit using a flathead screwdriver, make sure that the
flathead screwdriver does not contact the interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may occur.

NOTE



To replace the bulb, contact an Authorized Mazda Dealer.

Maintenance and Care

Owner Maintenance

6-39



Use the protective cover and carton for the replacement bulb to dispose of the old bulb
promptly and out of the reach of children.

▼

Replacing Exterior Light Bulbs

All the exterior light bulbs are LED type.
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.

▼

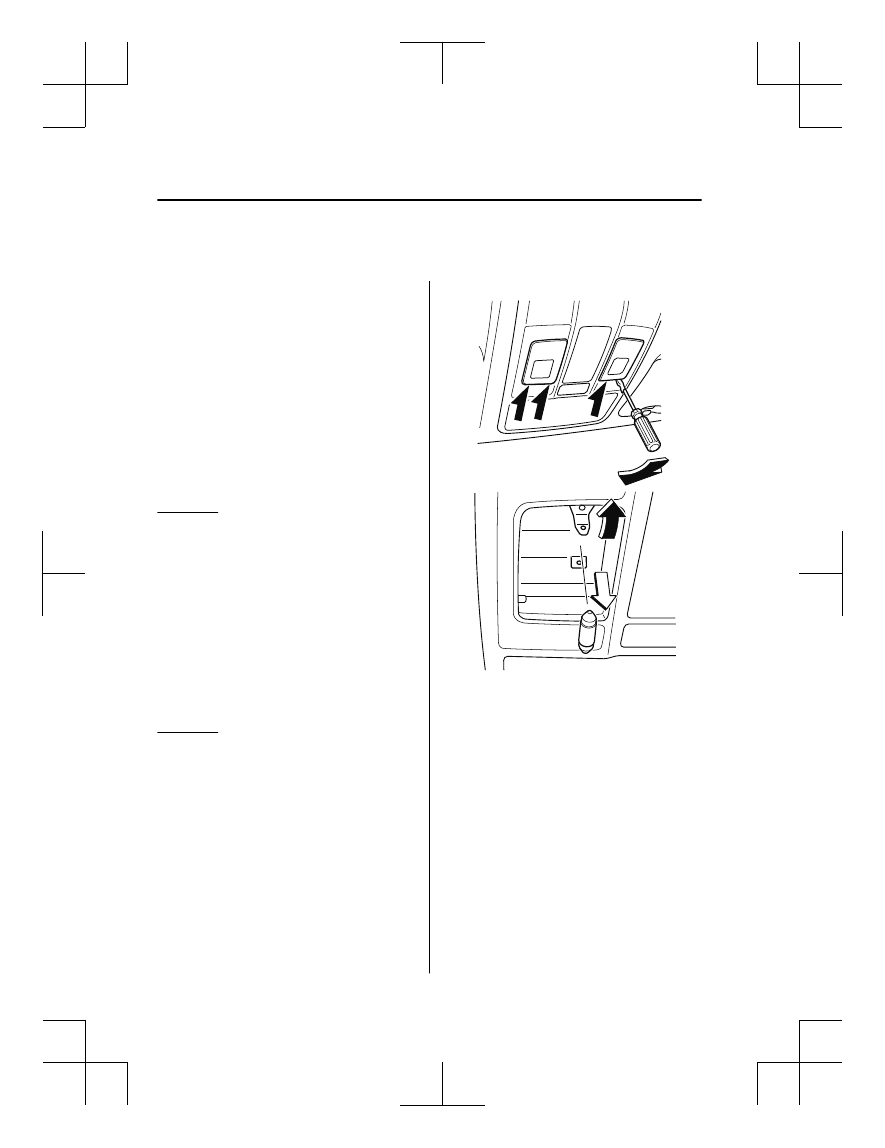

Replacing Interior Light Bulbs

The interior lights have either LEDs or
normal bulbs.

LED type



Overhead lights/Front map lights



Rear map lights



Vanity mirror lights



Luggage compartment light



Ambient lights

The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.

Bulb type

Overhead light/Front map lights, Rear
map lights, Vanity mirror lights

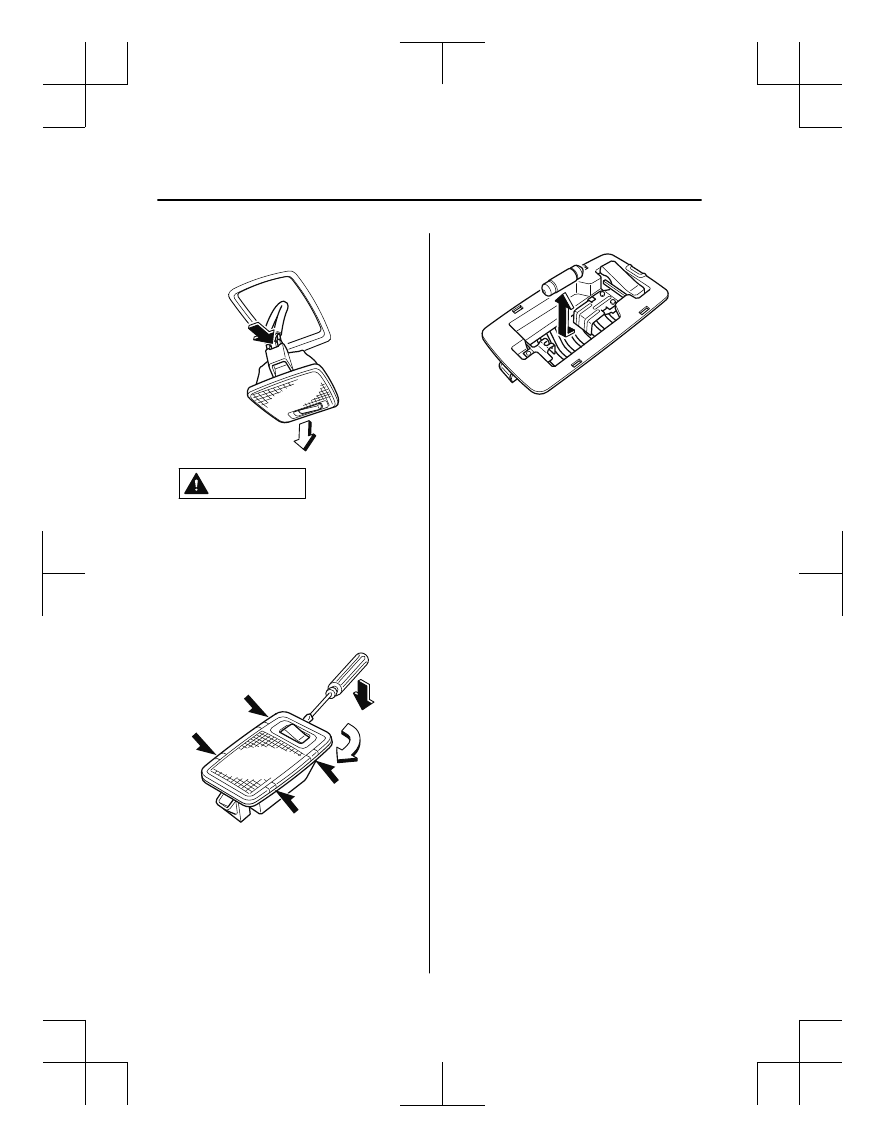

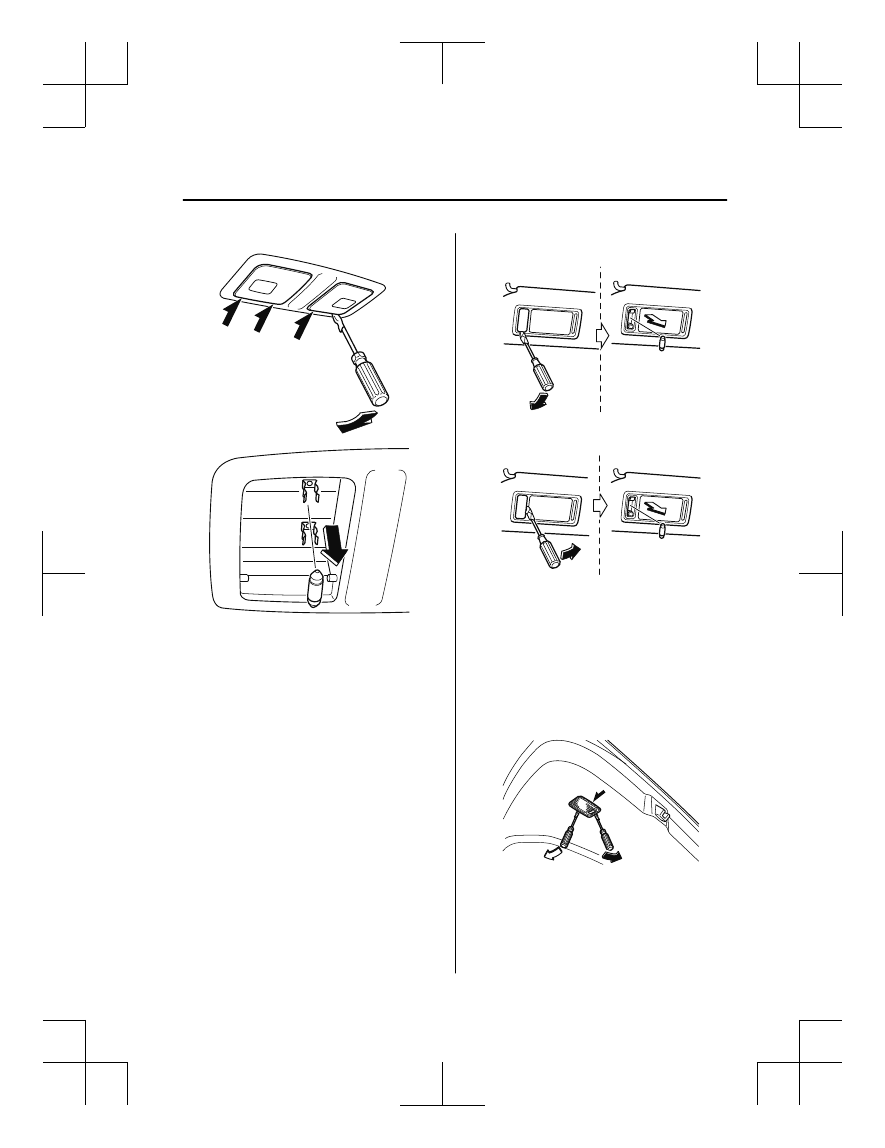

1. Wrap a flathead screwdriver with a

soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with a flathead screwdriver.

2. Disconnect the bulb by pulling it out.

Overhead light/Front map lights

Maintenance and Care

Owner Maintenance

6-40

*Some models.

Fuses

Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

▼

Fuse Replacement

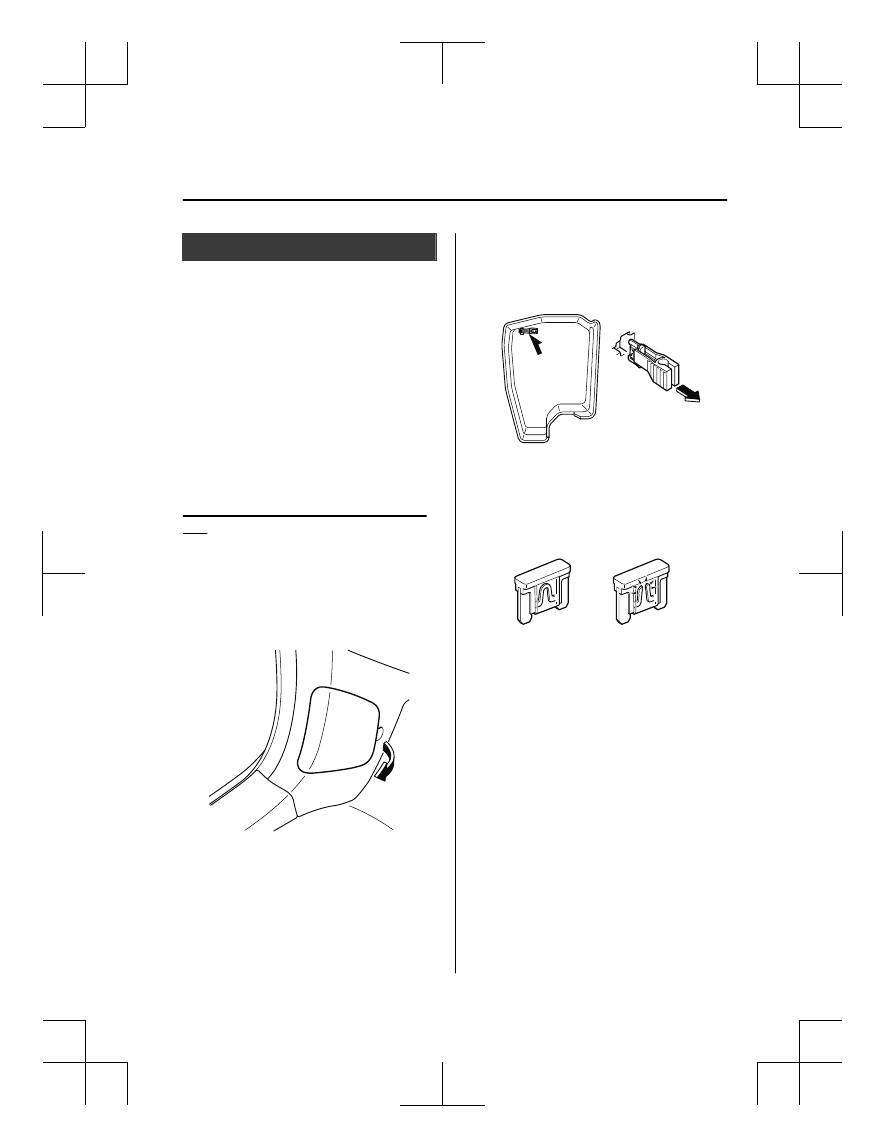

Replacing the fuses on the vehicle's left
side

If the electrical system does not work, first
inspect the fuses on the vehicle's left side.

1. Make sure the ignition is switched off,

and other switches are off.

2. Open the fuse panel cover.

3. Pull the fuse straight out with the fuse

puller provided on the fuse block
located in the engine compartment.

4. Inspect the fuse and replace it if it is

blown.

Normal

Blown

5. Insert a new fuse of the same

amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. Consult an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.

Maintenance and Care

Owner Maintenance

6-43

CAUTION

Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.

6. Reinstall the cover and make sure that

it is securely installed.

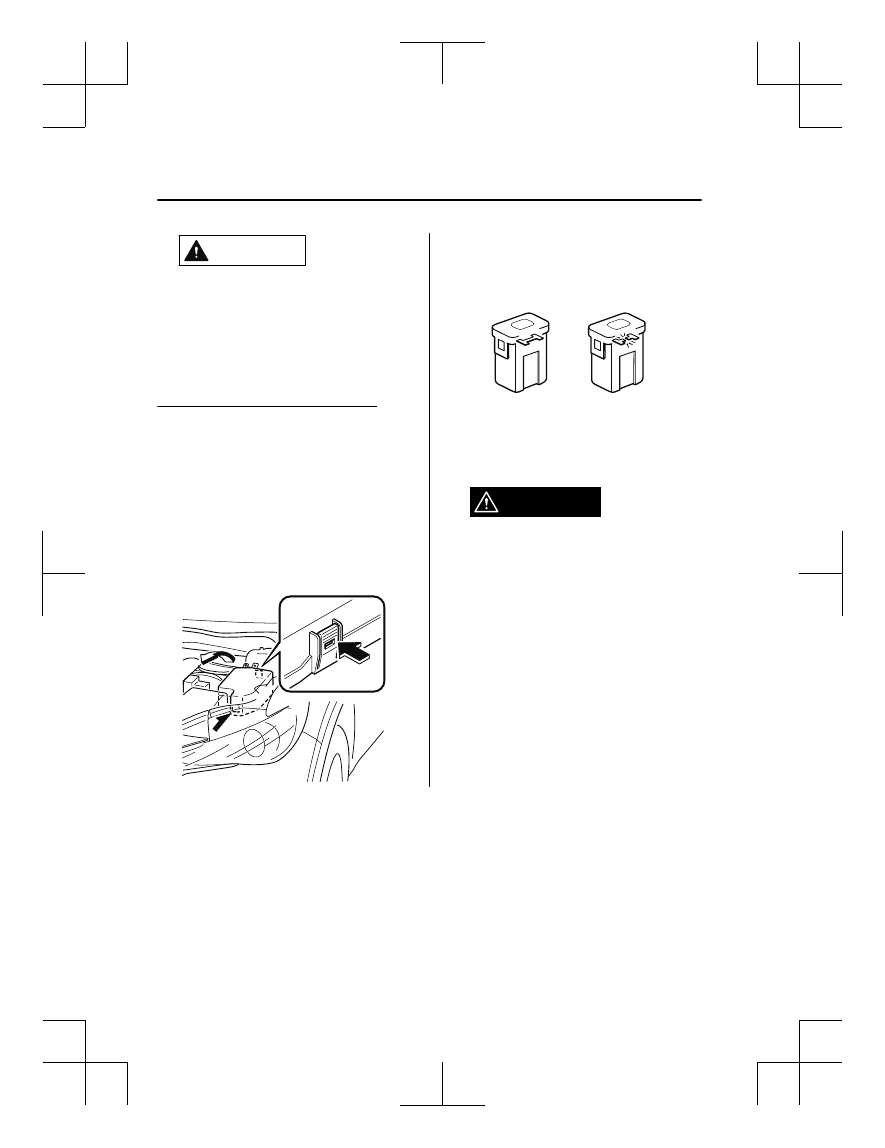

Replacing the fuses under the hood

If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:

1. Make sure the ignition is switched off,

and other switches are off.

2. Remove the fuse block cover.

3. If any fuse but the MAIN fuse is

blown, replace it with a new one

of the

same amperage rating

Normal

Blown

WARNING

Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:

Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.

4. Reinstall the cover and make sure that

it is securely installed.

Maintenance and Care

Owner Maintenance

6-44

▼

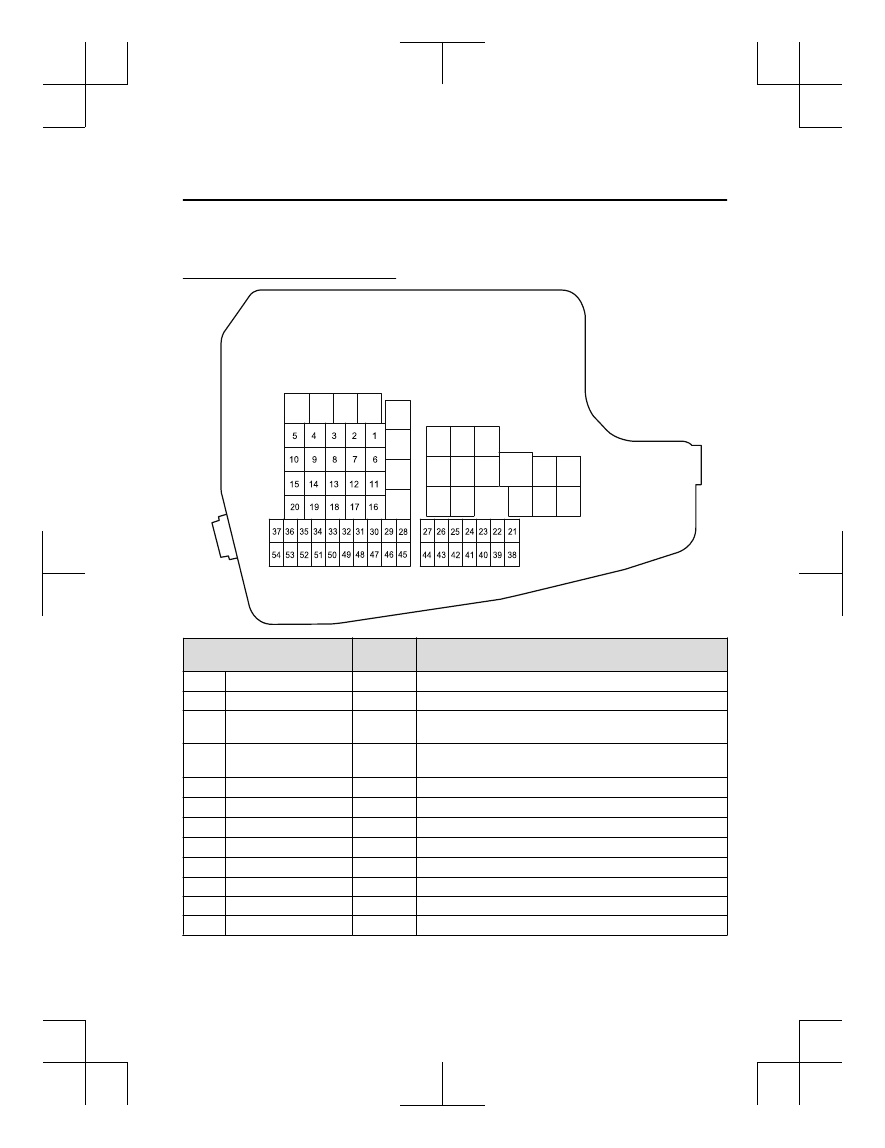

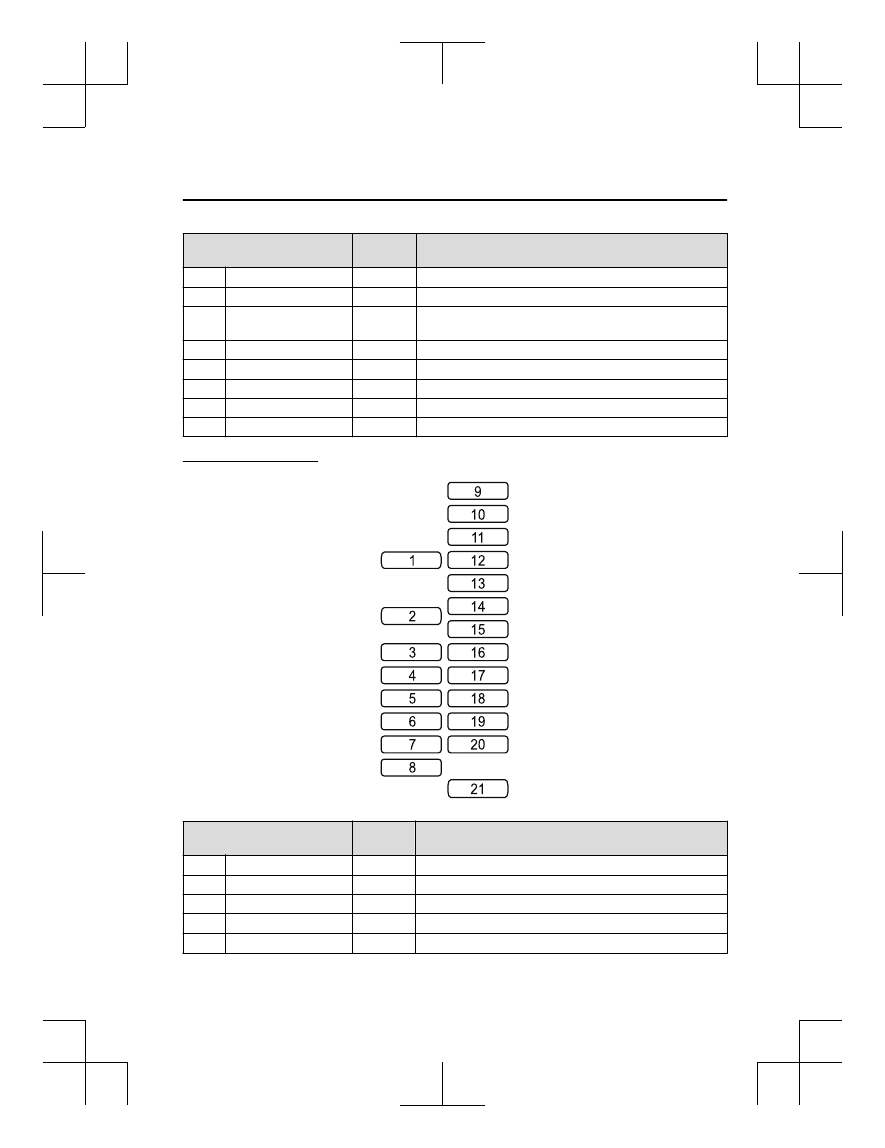

Fuse Panel Description

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

CABIN.+B

50 A

For protection of various circuits

IG2

30 A

For protection of various circuits

INJECTOR

ENG.SUB

30 A

Engine control system

SCR1

EVVT

20 A

Engine control system

P.WINDOW1

30 A

Power windows

R.HEATER

20 A

―

ADD FAN DE

40 A

Cooling fan

WIPER.DEI

20 A

Windshield wiper de-icer

DEFOG

30 A

Rear window defogger

DCDC DE

40 A

For protection of various circuits

EPB R

20 A

Electric parking brake (EPB) (RH)

EPB L

20 A

Electric parking brake (EPB) (LH)

Maintenance and Care

Owner Maintenance

*Some models.

6-45

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

AUDIO

DCDC REG

30 A

Audio system

FAN GE

30 A

Cooling fan

ENG.MAIN

40 A

Engine control system

ABS/DSC M

50 A

ABS, Dynamic stability control system

FAN DE

40 A

Cooling fan

WIPER

20 A

Front window wiper and washer

HEATER

40 A

Air conditioner

ADD FAN GE

30 A

Cooling fan

ENGINE.IG1

7.5 A

Engine control system

C/U IG1

15 A

For protection of various circuits

AUDIO2

7.5 A

Audio system

METER2

7.5 A

Instrument cluster

ENGINE3

15 A

Engine control system

ENGINE2

15 A

Engine control system

ENGINE1

15 A

Engine control system

15 A

Transaxle control system, Ignition switch

H/CLEAN

20 A

―

A/C

7.5 A

Air conditioner

AT PUMP

15 A

Transaxle control system

HORN

15 A

Horn

R.WIPER

15 A

Rear window wiper

H/L HI

20 A

Headlight high beam

ST.HEATER

15 A

Heated steering wheel

FOG

15 A

―

ENG.+B

7.5 A

Engine control system

H/L LOW L

15 A

Headlight low beam (LH)

ENGINE4

15 A

Engine control system

INTERIOR1

15 A

For protection of various circuits

METER1

10 A

Instrument cluster

SRS1

7.5 A

Air bag

AUDIO1

15 A

Audio system

BOSE

25 A

Bose Sound System-equipped model

ABS/DSC S

30 A

ABS, Dynamic stability control system

FUEL PUMP

15 A

Fuel system

Maintenance and Care

Owner Maintenance

6-46

*Some models.

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

FUEL WARM

25 A

Fuel warmer

TAIL

15 A

Taillights, License plate lights, Parking lights

SCR2

FUEL PUMP2

25 A

―

HAZARD

25 A

Hazard warning flashers, Turn signal lights, Parking lights

H/L LOW R

15 A

Headlight low beam (RH)

OUTLET

25 A

Accessory sockets

STOP

10 A

Brake lights

ROOM

25 A

For protection of various circuit

Fuse block (Left side)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

P.SEAT D

30 A

Power seat

P.WINDOW3

30 A

Power windows

R.OUTLET3

15 A

Accessory sockets

P.WINDOW2

25 A

Power windows

ESCL

15 A

Trailer hitch

Maintenance and Care

Owner Maintenance

*Some models.

6-47

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

D.LOCK

25 A

Power door locks

SEAT WARM

20 A

Seat warmer

SUNROOF

10 A

Moonroof

F.OUTLET

15 A

Accessory sockets

MIRROR

7.5 A

Power control mirror

R.OUTLET1

15 A

―

SCR3

15 A

―

SCR4

15 A

―

R.OUTLET2

15 A

Accessory sockets

USB

7.5 A

USB power outlet

PLG

20 A

Power liftgate

M.DEF

7.5 A

Mirror defogger

R.SEAT W

20 A

Rear seat warmer

INTERIOR2

15 A

For protection of various circuit

AT IND

7.5 A

AT shift indicator

P.SEAT P

30 A

Power seat

Maintenance and Care

Owner Maintenance

6-48

*Some models.

Exterior Care

The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.

Etching Caused by Acid Rain or
Industrial Fallout

Occurrence

Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.

Damage Caused by Bird Dropping,
Insects, or Tree Sap

Occurrence

Bird droppings contain acids. If these are
not removed they can eat away the clear

and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.

Prevention

It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.

Water Marks

Occurrence

Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the

Maintenance and Care

Appearance Care

6-49

Mazda CX-5 (2022 year). Manual in english - page 36
