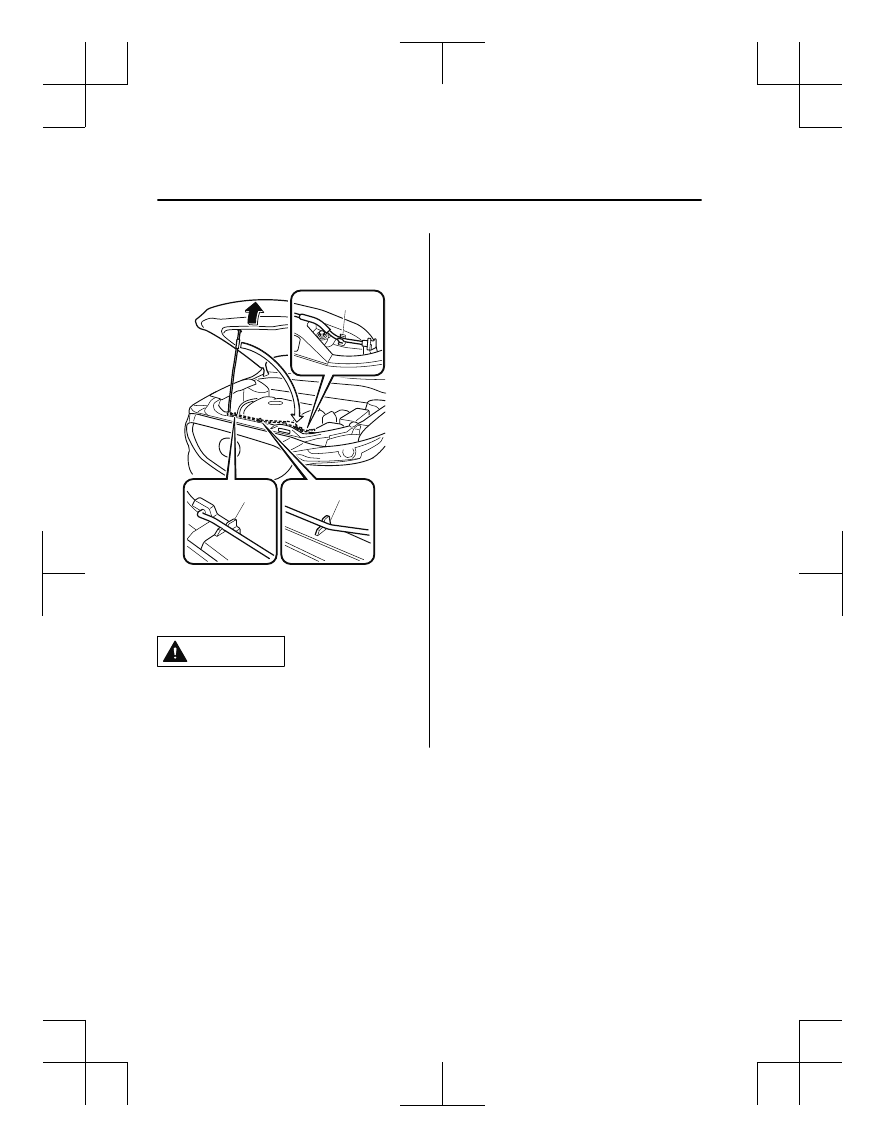

rod is secured in the clip before closing
the hood.

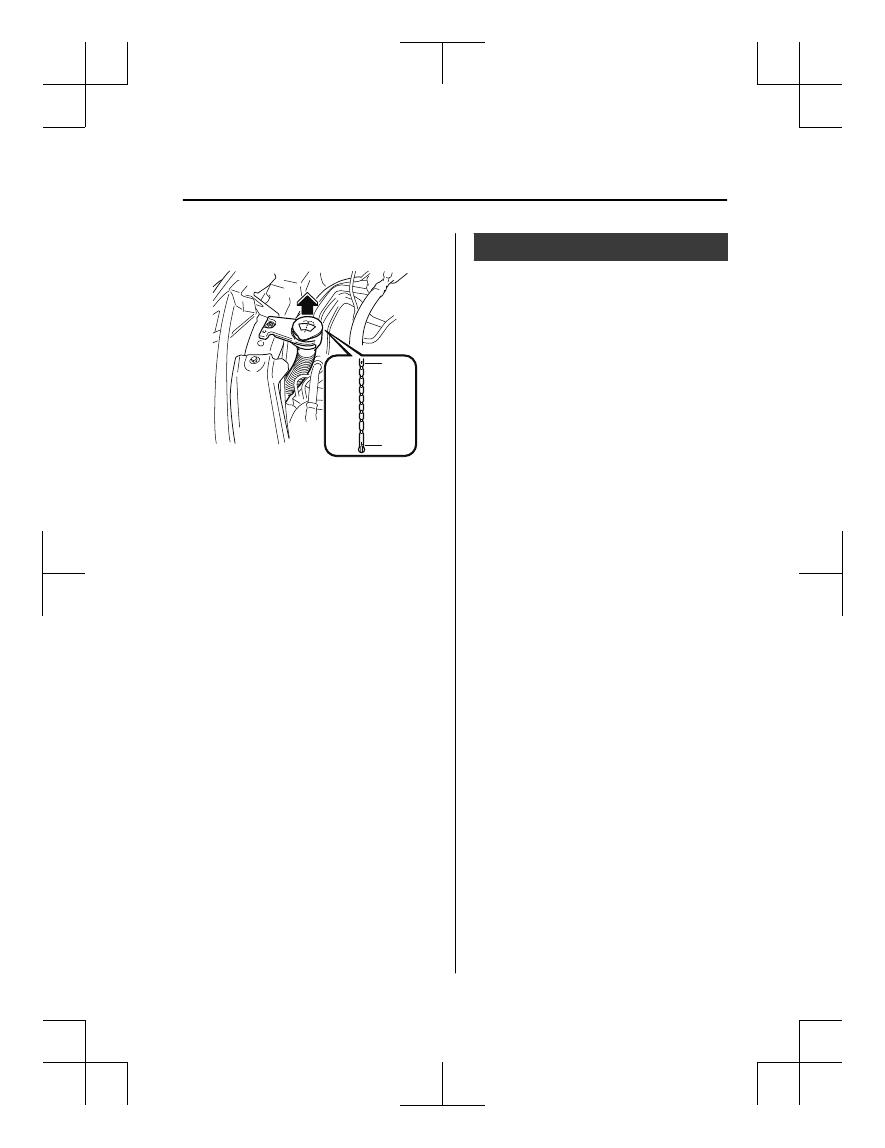

Clip

3. Lower the hood slowly to a height of

about 20 cm (7.9 in) above its closed
position and then let it drop.

CAUTION

When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.

Maintenance and Care

Owner Maintenance

6-18

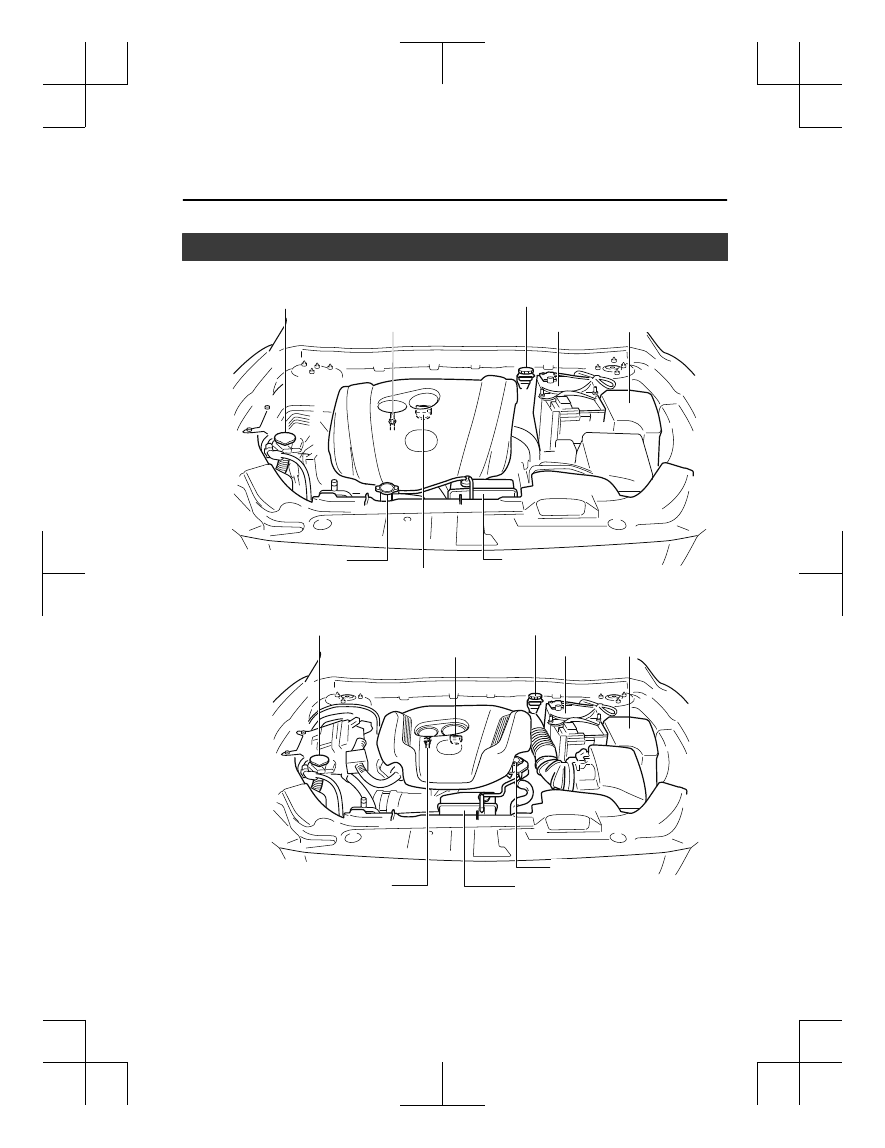

Engine Compartment Overview

Windshield washer fluid reservoir

Engine oil-filler cap

Brake fluid reservoir

Engine oil-dipstick

Battery

Fuse block

Cooling system cap

Engine coolant reservoir

SKYACTIV-G 2.5

Windshield washer fluid reservoir

Engine oil-filler cap

Engine oil dipstick

Battery

Fuse block

Cooling system cap

Engine coolant reservoir

SKYACTIV-G 2.5T

Brake fluid reservoir

Maintenance and Care

Owner Maintenance

6-19

Engine Oil

NOTE

Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.

▼

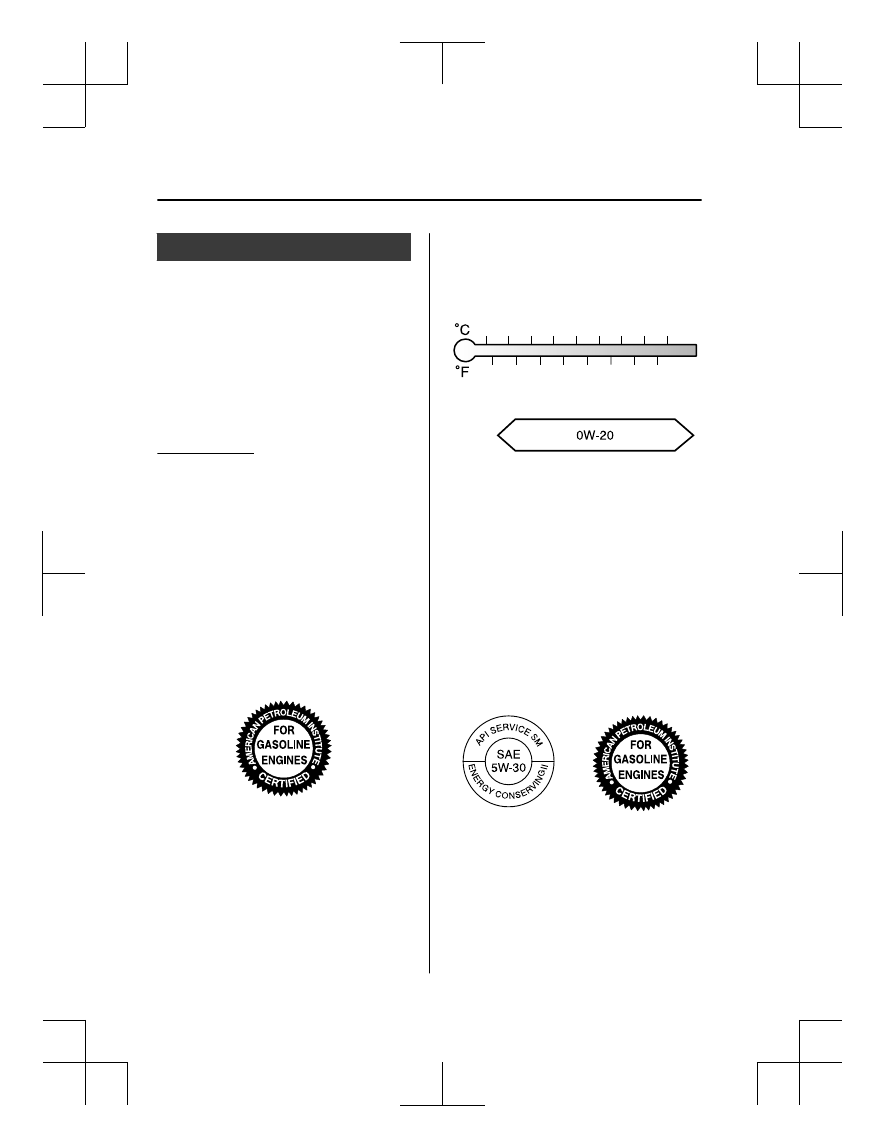

Recommended Oil

U.S.A., Canada

SKYACTIV-G 2.5

Use SAE 0W-20 engine oil.

Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts and
Genuine Mazda Premium Oil.

(ILSAC)

Only use SAE 0W-20 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy

requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

–40 –20

100

–10

–20

–30

–40

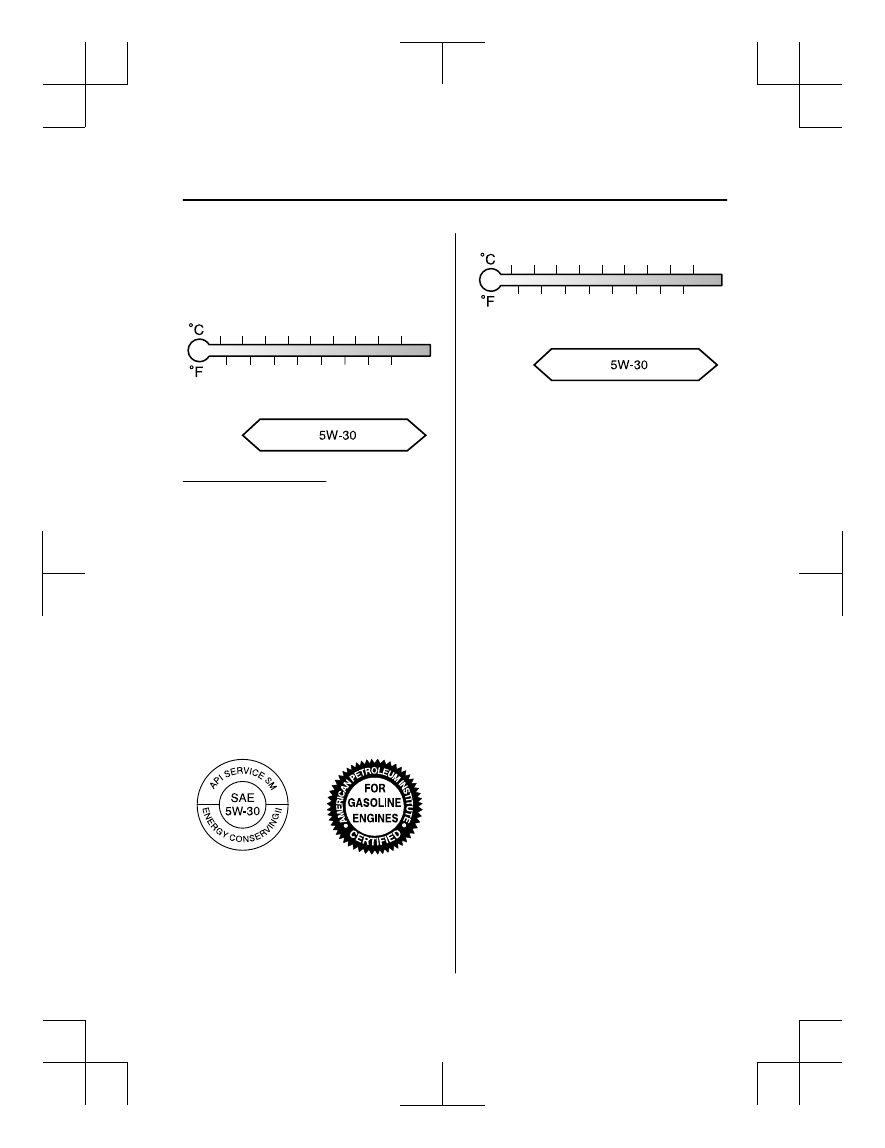

SKYACTIV-G 2.5T

Use SAE 5W-30 engine oil.

Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
economy.

For maintenance service, Mazda
recommends Genuine Mazda Parts and
Genuine Mazda Premium Oil.

(ILSAC)

Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy

Maintenance and Care

Owner Maintenance

6-20

requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

–40 –20

100

–10

–20

–30

–40

Except U.S.A., Canada

SKYACTIV-G 2.5

Use SAE 5W-30 engine oil.

Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.

For maintenance service, Mazda
recommends Mazda Genuine Parts.

(ILSAC)

(Mexico)

–40 –20

100

–10

–20

–30

–40

SKYACTIV-G 2.5

Use API SM or higher, or SAE 5W-30
engine oil. If SAE 5W-30 engine oil is not
available, use SAE 5W-20 engine oil.

The quality designation SM, SN or SP, or
ILSAC must be on the label.

SKYACTIV-G 2.5T

Use API SM or higher, or SAE 5W-30
engine oil. If SAE 5W-30 engine oil is not
available, use SAE 0W-30 or SAE
10W-30 engine oil.

The quality designation SM, SN or SP, or
ILSAC must be on the label.

▼

Inspecting Engine Oil Level

1. Be sure the vehicle is on a level

surface.

2. Warm up the engine to normal

operating temperature.

3. Turn it off and wait at least 5 minutes

for the oil to return to the oil pan.

Maintenance and Care

Owner Maintenance

6-21

4. Pull out the dipstick, wipe it clean, and

reinsert it fully.

MAX

MIN

5. Pull it out again and examine the level.

The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.

CAUTION

Do not overfill the engine oil. This may
cause engine damage.

6. Make sure the O-ring on the dipstick is

positioned properly before reinserting
the dipstick.

7. Reinsert the dipstick fully.

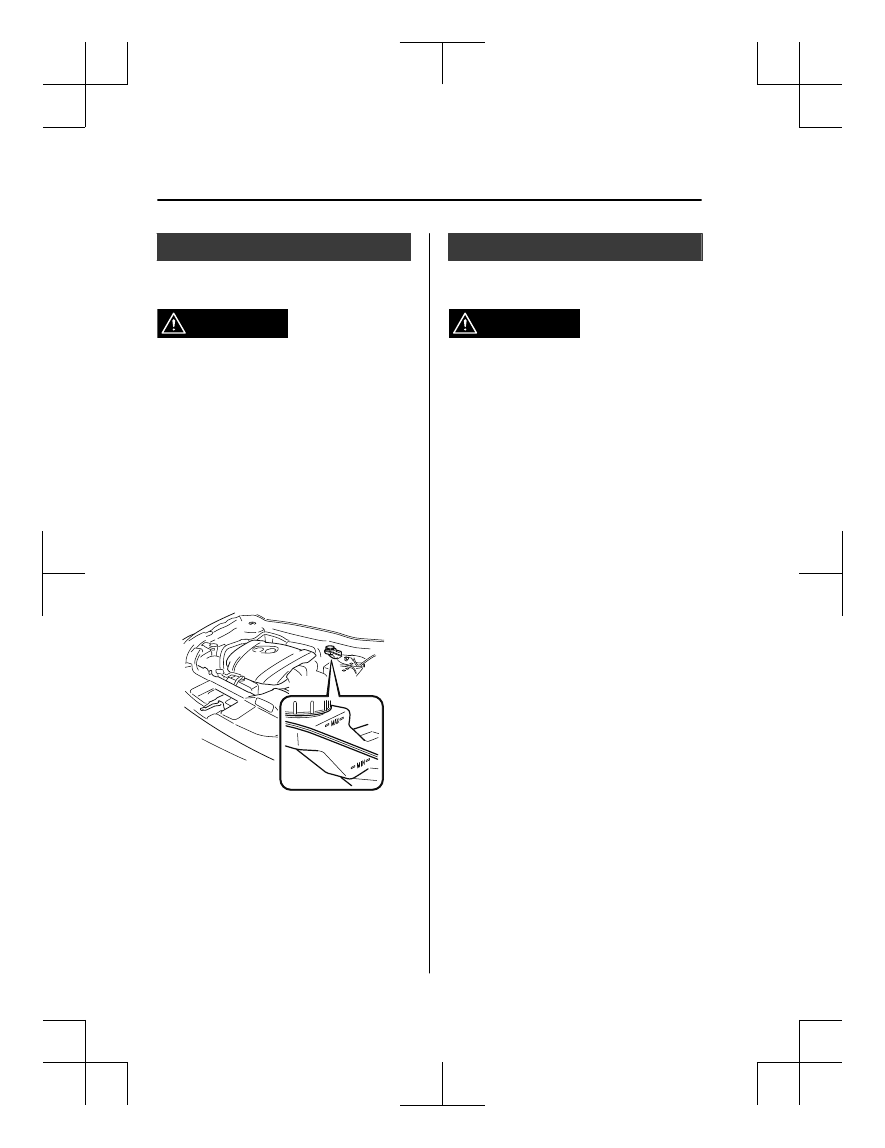

Engine Coolant

▼

Inspecting Coolant Level

WARNING

Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:

A hot engine is dangerous. If the engine has
been running, parts of the engine
compartment can become very hot. You
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
do not open it.

Pull over to a safe location, then switch

the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:

Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling

system cap when the engine and radiator
are hot:

When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.

Maintenance and Care

Owner Maintenance

6-22

NOTE

Changing the coolant should be done by
an Authorized Mazda Dealer.

Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year

―

at the beginning of the

winter season

―

and before traveling where

temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.

SKYACTIV-G 2.5

SKYACTIV-G 2.5T

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.

CAUTION



Radiator coolant will damage paint.
Rinse it off quickly if spilled.



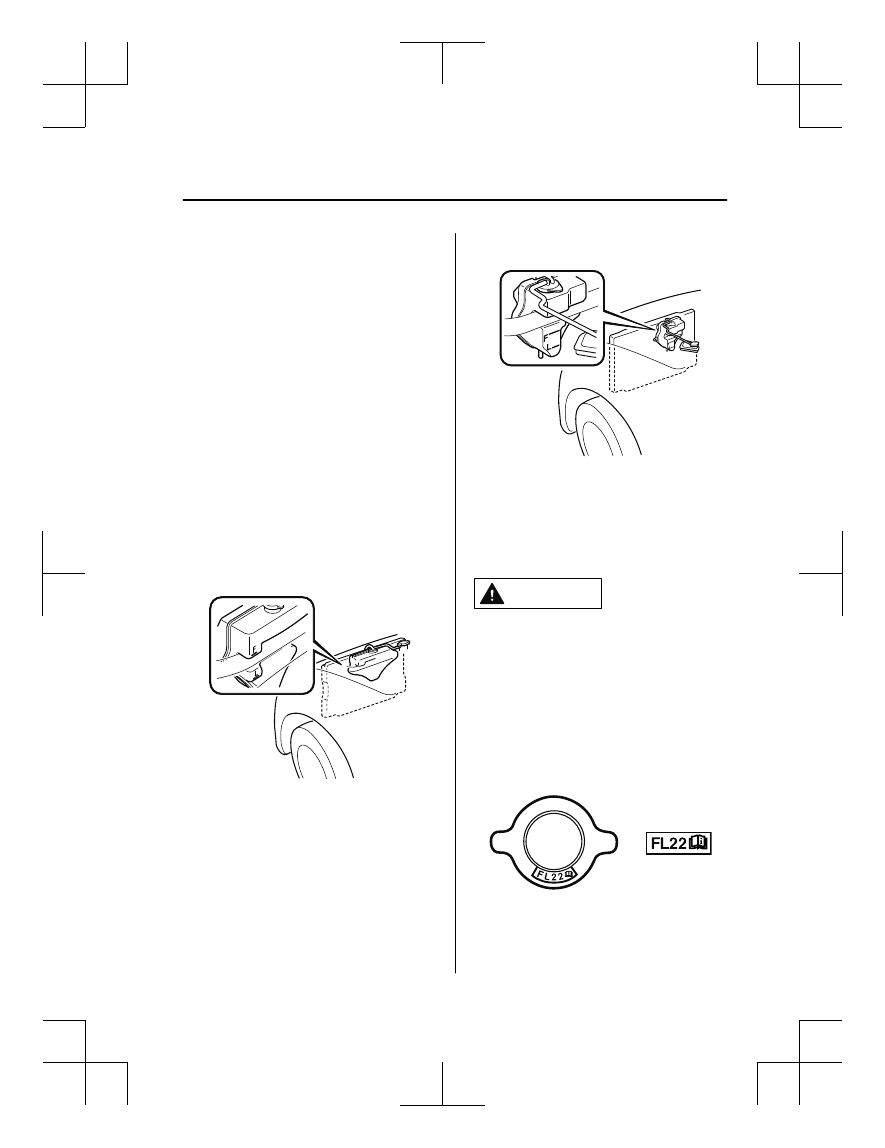

If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.

Maintenance and Care

Owner Maintenance

6-23

Brake Fluid

▼

Inspecting Brake Fluid Level

WARNING

If the brake fluid level is low, have the
brakes inspected:

A low brake fluid level is dangerous.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.

Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda Dealer.

Washer Fluid

▼

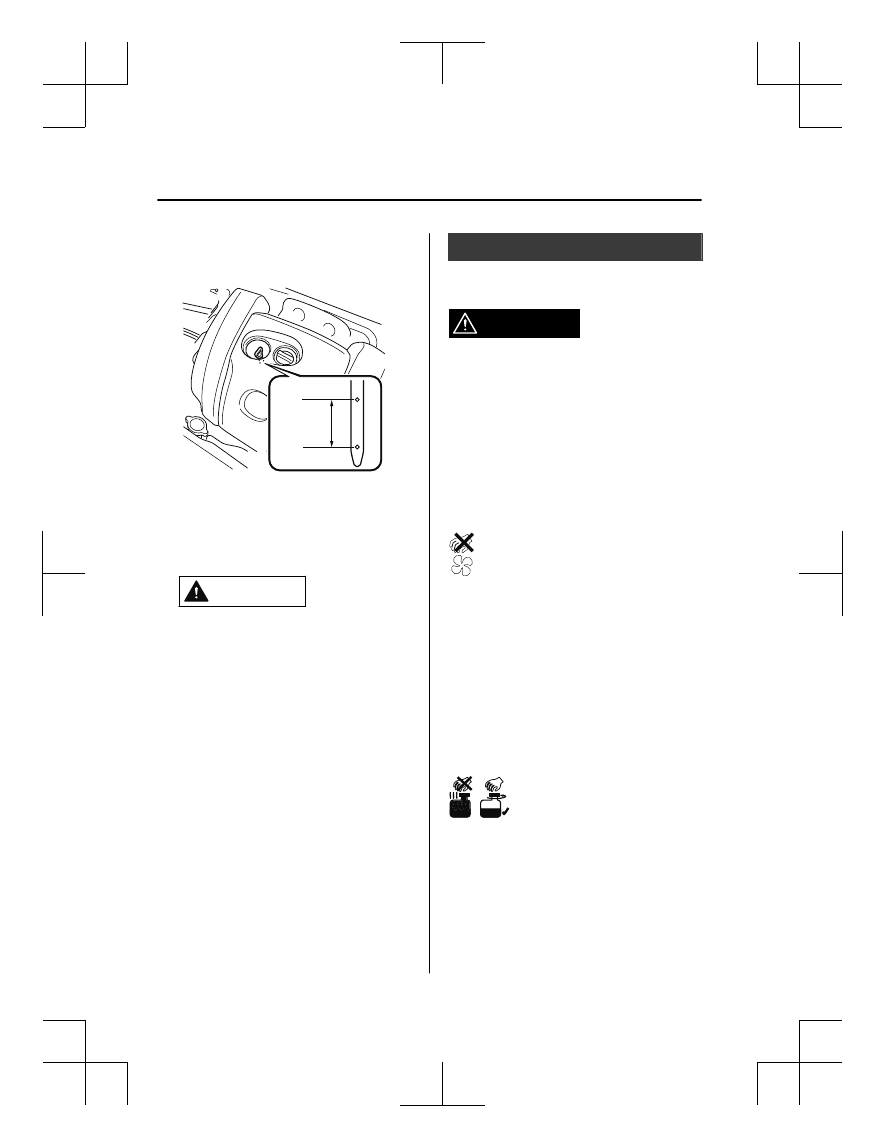

Inspecting Washer Fluid Level

WARNING

Use only windshield washer fluid or plain
water in the reservoir:

Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.

Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:

Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In cold
weather, always use washer fluid with
anti-freeze protection.

NOTE

State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.

Add washer fluid under any of the
following conditions.



The top of the fluid level is low.



The Low Washer Fluid Level Warning
Indication/Warning Light (if equipped)
turns on.

Maintenance and Care

Owner Maintenance

6-24



The top of the fluid level is lower than L
(if equipped).

Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.

NOTE

Front and rear washer fluid is supplied
from the same reservoir.

Body Lubrication

All moving points of the body, such as
door and hood hinges and locks, should be
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.

Maintenance and Care

Owner Maintenance

6-25

Wiper Blades

CAUTION



Hot waxes applied by automatic car
washers have been known to affect the
wiper's ability to clean windows.



To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.



When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:



If the windshield above the rain sensor
is touched.



If the windshield above the rain sensor
is wiped with a cloth.



If the windshield is struck with a hand
or other object.



If the rain sensor is struck with a hand
or other object from inside the vehicle.

Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.

Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

▼

Replacing Windshield Wiper Blades

When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.

CAUTION



To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.



Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windshield
wiper operation may be adversely
affected.

NOTE

When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.

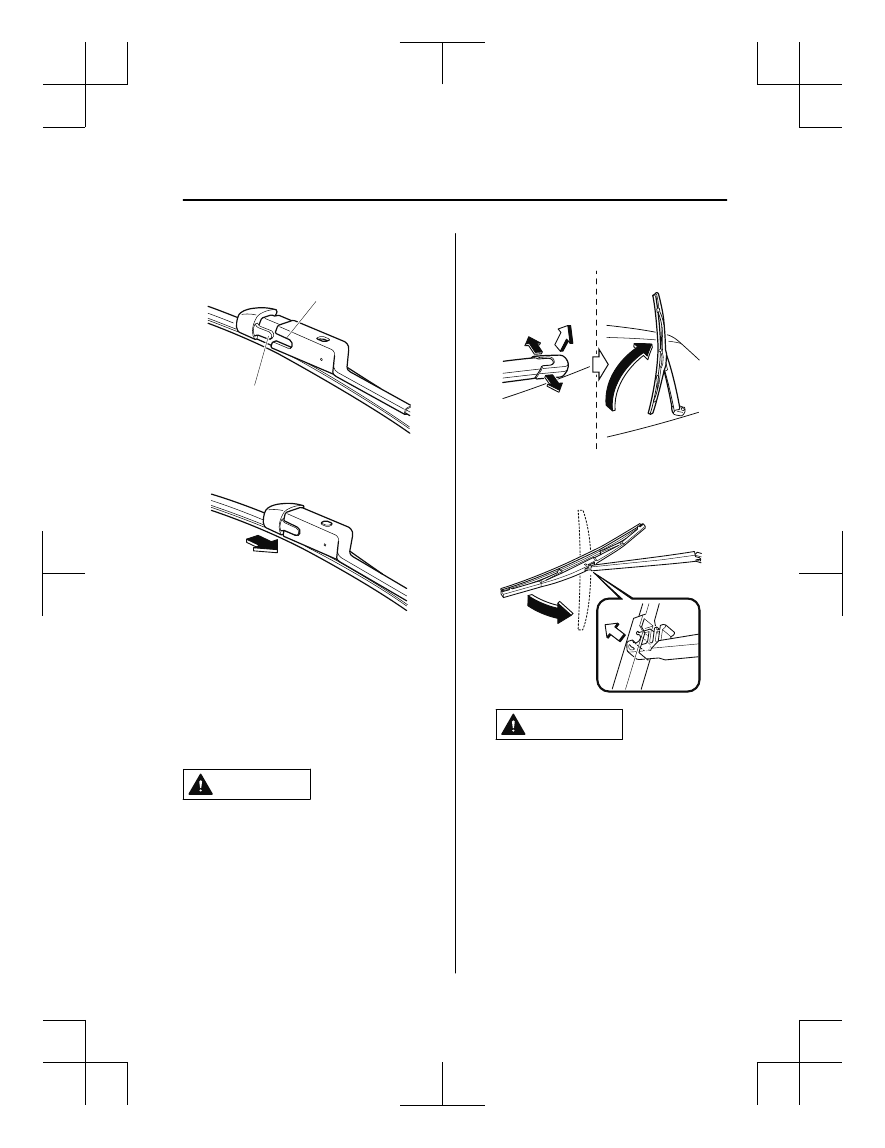

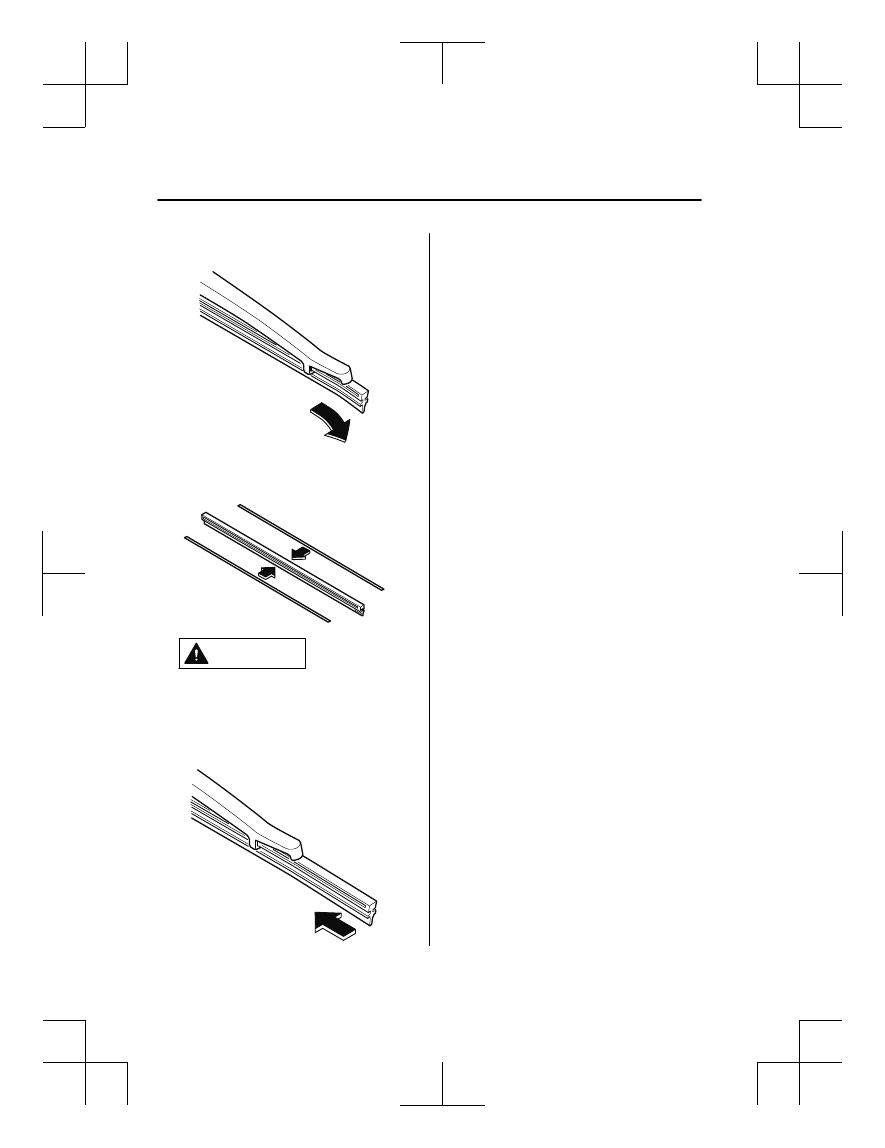

Replace the wiper blades using the
following procedure.
1. Raise the wiper arm.

CAUTION

To prevent damage to the windshield
let the wiper arm down easily, do not
let it slap down on the windshield.

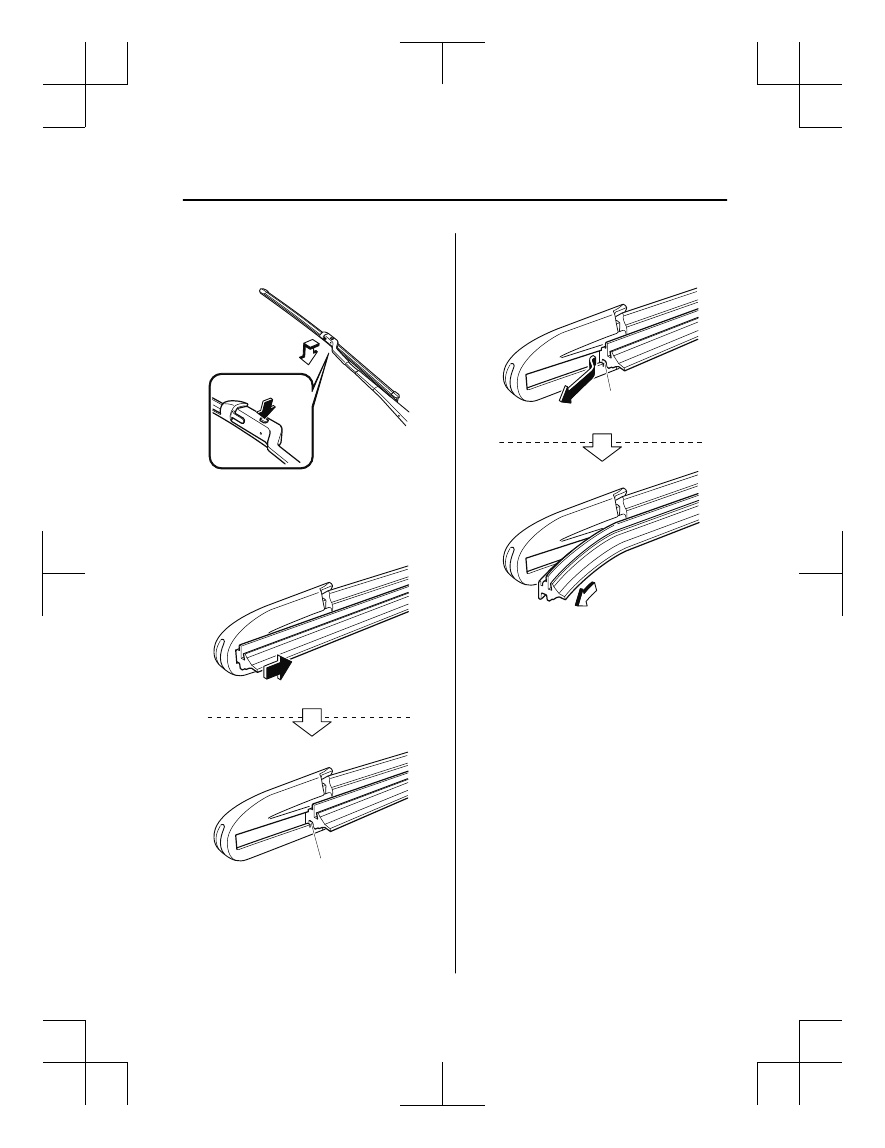

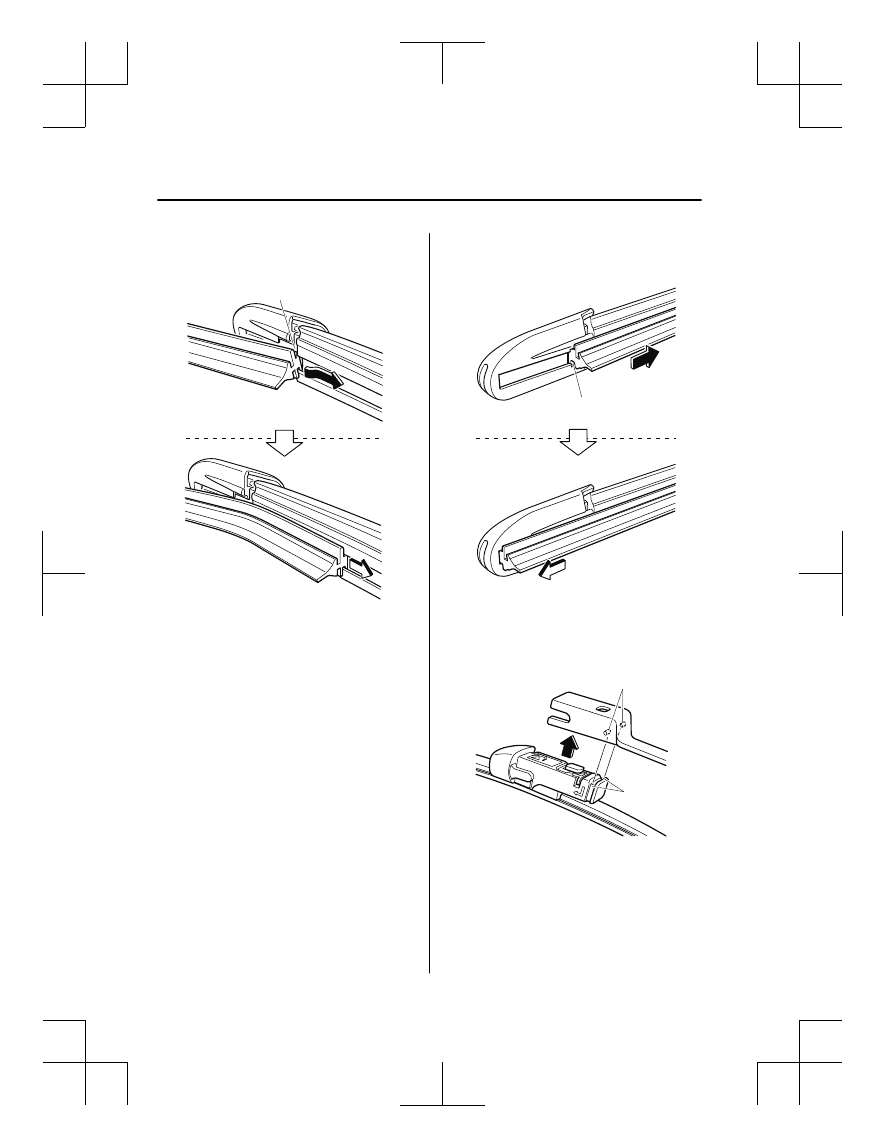

2. Slide the blade component in the

direction of the arrow while pressing

Maintenance and Care

Owner Maintenance

6-26

the wiper arm tab to remove the blade
component from the wiper arm.

3. Pull the blade rubber in the direction of

the arrow and slide it to a position
where the blade holder groove can be
checked.

Groove

4. Pull the end of the blade rubber from

the blade holder groove in the direction

of the arrow and remove the blade
rubber from the blade holder.

Groove

5. Insert the end of the new blade rubber

into the groove of the blade holder

Maintenance and Care

Owner Maintenance

6-27

until it contacts the end of the blade
holder.

Groove

6. After pulling the blade rubber in the

direction of the arrow and sliding the
blade rubber to a position to check the

blade holder groove, slide the blade
rubber end in the opposite direction.

Groove

7. Make sure that the blade rubber is

correctly installed to the blade holder.

8. Align the wiper arm tabs with the

blade component grooves.

Tabs

Grooves

Maintenance and Care

Owner Maintenance

6-28

9. Align the blade component projection

with the wiper arm notch.

Notch

Projection

10. Slide the blade component and install

it to the wiper arm.

11. Slowly lower the wiper arm onto the

windshield.

▼

Replacing Rear Window Wiper
Blade

When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.

CAUTION

To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.

1. Remove the cover and raise the wiper

arm.

2. Firmly rotate the wiper blade to the

right until it unlocks, then remove the
blade.

CAUTION

To prevent damage to the rear window,
do not let the wiper arm fall on it.

Maintenance and Care

Owner Maintenance

6-29

3. Pull down the blade rubber and slide it

out of the blade holder.

4. Remove the metal stiffeners from the

blade rubber and install them in the
new blade.

CAUTION

Do not bend or discard the stiffeners.
You need to use them again.

5. Carefully insert the new blade rubber.

Then install the blade assembly in the
reverse order of removal.

Maintenance and Care

Owner Maintenance

6-30

Battery

WARNING

Wash hands after handling the battery and related accessories:

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.

Read the following precautions carefully before using the battery or inspecting to

ensure safe and correct handling:

Always wear eye protection when working near the battery:

Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.

Wear eye protection and protective gloves to prevent contact with battery fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.

Always keep batteries out of the reach of children:

Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.

Keep flames and sparks away from open battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal
battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious
burns and injuries. Keep all flames including cigarettes and sparks away from open battery cells.

Maintenance and Care

Owner Maintenance

6-31

Keep all flames and sparks away from open battery cells because hydrogen gas is

produced from open battery cells while charging the battery or adding battery fluid:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

NOTE

Before performing battery maintenance, remove the battery cover.

▼

Battery Maintenance

To get the best service from a battery:



Keep it securely mounted.



Keep the top clean and dry.



Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.



Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.



If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every 6
weeks.

▼

Battery Replacement

Contact an Authorized Mazda Dealer for
battery replacement.

Maintenance and Care

Owner Maintenance

6-32

Key Battery Replacement

If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.

CAUTION



Make sure the battery is installed
correctly. Battery leakage could occur if it
is not installed correctly.



When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.



There is the danger of explosion if the
battery is not correctly replaced.



Dispose of used batteries according to
the following instructions.



Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.



Never disassemble.



Never throw the battery into fire or
water.



Never deform or crush.



Replace only with the same type battery
(CR2032 or equivalent).

The following conditions indicate that the
battery power is low:



The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A/type B
instrument cluster (page 4-12, 4-30),

messages are displayed in the instrument
cluster).



The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.



The system's operational range is
reduced.

Replacing the battery at an Authorized
Mazda Dealer, is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.

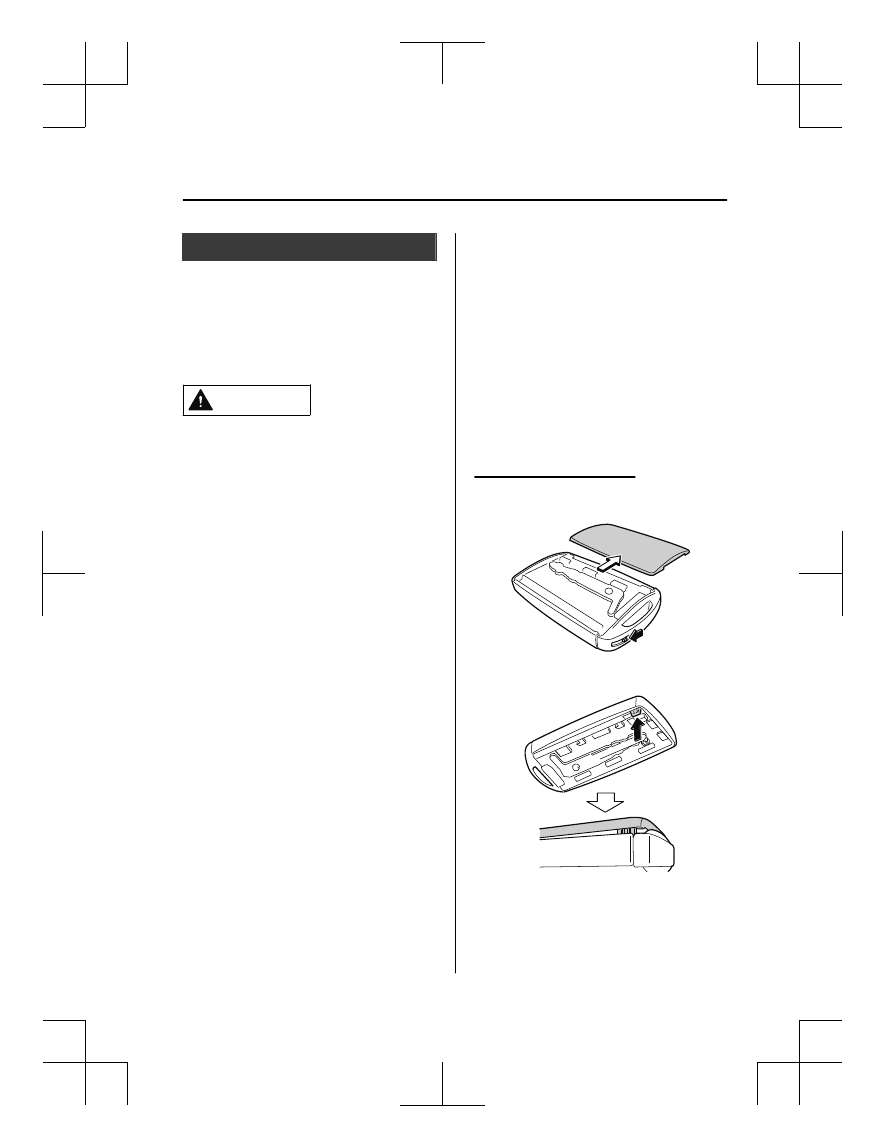

Replacing the key battery

1. Remove the lower cover while sliding

the knob in the direction of the arrow.

2. Press in the tab to unlock the upper

cover.

Maintenance and Care

Owner Maintenance

6-33

Content .. 33 34 35 36 ..
