NOTE

When installing a new tire pressure
sensor, the ID signal code for the tire
pressure sensor needs to be registered.
For details on purchasing a tire
pressure sensor and registering the ID
signal of the tire pressure sensor,
consult an Authorized Mazda Dealer.

When Driving

Tire Pressure Monitoring System (TPMS)

4-232

Rear View Monitor

*

Rear View Monitor

The rear view monitor provides visual
images of the rear of the vehicle when
reversing.

WARNING

Always drive carefully confirming the
safety of the rear and the surrounding
conditions by looking directly with
your eyes:

Reversing the vehicle by only looking at
the screen is dangerous as it may cause
an accident or a collision with an
object. The rear view monitor is only a
visual assist device when reversing the
vehicle. The images on the screen may
be different from the actual conditions.

CAUTION

¾

Do not use the rear view monitor
under the following conditions:
Using the rear view monitor under
the following conditions is
dangerous and could result in injury
or vehicle damage or both.

¾

Icy or snow-covered roads.

¾

Tire chains or a temporary spare
tire is installed.

¾

The vehicle is on a road incline.

¾

Bumpy roads.

¾

When the display is cold, images
may course across the monitor or the
screen and may be dimmer than
usual, which could cause difficulty in
confirming the surrounding
conditions of the vehicle. Always
drive carefully confirming the safety
of the rear and the surrounding
conditions by looking directly with
your eyes.

¾

Do not apply excessive force to the
camera. The camera position and
angle may deviate.

¾

Do not disassemble, modify, or
remove it as it may no longer be
waterproof.

¾

The camera cover is made of plastic.
Do not apply degreasing agents,
organic solvents, wax, or glass
coating agents to the camera cover.
If any are spilled on the cover, wipe
off with a soft cloth immediately.

¾

Do not rub the camera cover
forcefully with an abrasive or hard
brush. The camera cover or lens may
be scratched which might affect the
images.

¾

If a camera lens is severely damaged
by flying gravel, have the camera
replaced. For camera replacement,
consult an Authorized Mazda Dealer.

NOTE

x

If water, snow, or mud is stuck on
the camera lens, wipe it off using a
soft cloth. If it cannot be wiped off,
use a mild detergent.

x

If the camera temperature changes
rapidly (Hot to cold, cold to hot), the
rear view monitor may not operate
correctly.

x

When replacing the tires, consult an
Authorized Mazda Dealer. Replacing
the tires could result in deviation of
the guide lines which appear on the
display.

x

If the vehicle's front, side, or rear has
been involved in a collision, the
alignment of the rear view parking
camera (location, installation angle)
may have deviated. Always consult
an Authorized Mazda Dealer to have
the vehicle inspected.

When Driving

Rear View Monitor

*Some models.

4-233

x

If “No camera signal.” is indicated in
the display, there could be a
problem with the camera. Have your
vehicle inspected at an Authorized
Mazda Dealer.

x

(Predicted vehicle path assist lines
display type)

If force is applied to the steering
wheel, the guide lines may not
display. Loosen your grip on the
steering wheel to allow the guide
lines to display.

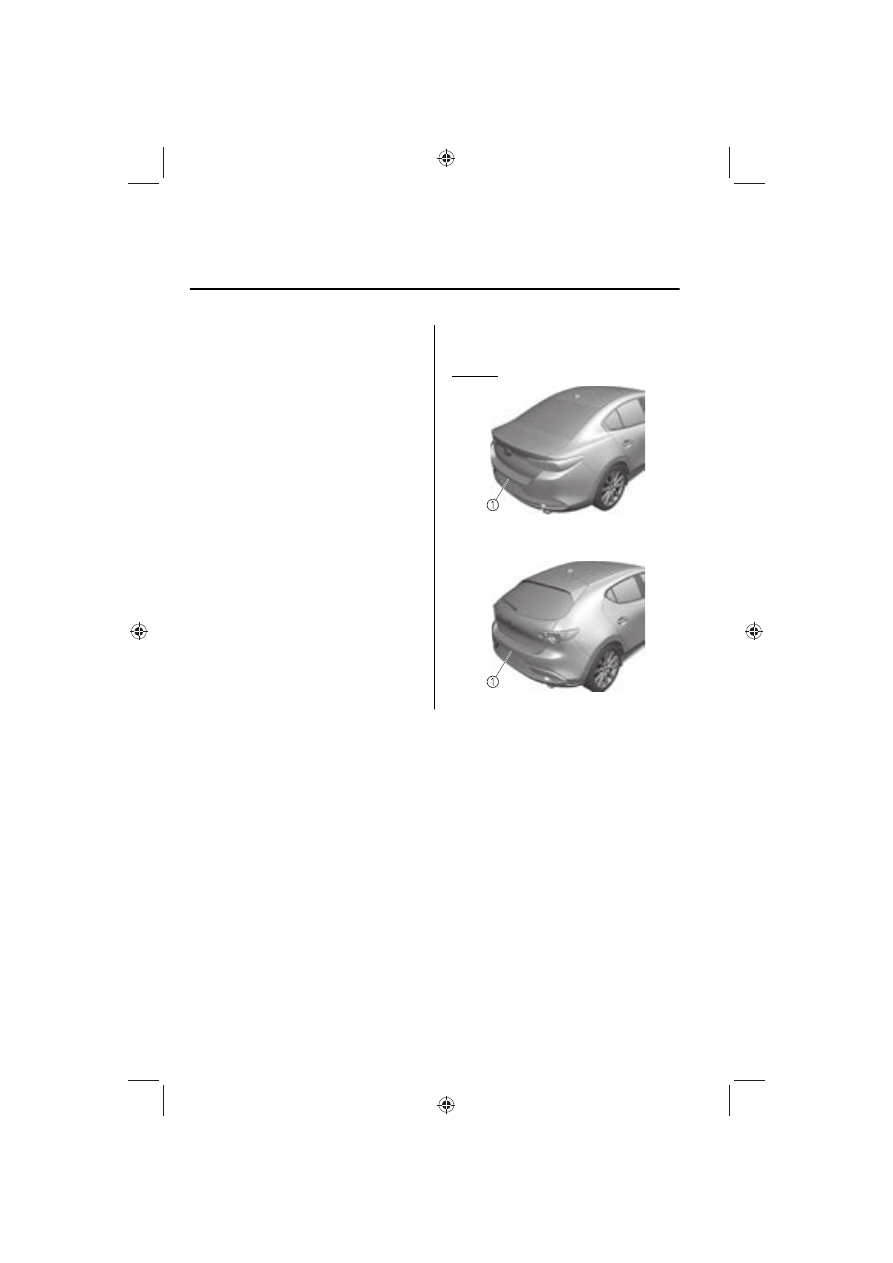

Rear View Parking Camera
Location

4–Door

1. Rear view parking camera

5–Door

1. Rear view parking camera

When Driving

Rear View Monitor

4-234

Switching to the Rear View Monitor Display

Shift the shift lever (manual transmission) or the selector lever (automatic
transmission) to reverse (R) position with the ignition switched ON to switch the
display to the rear view monitor display.

NOTE

When the shift lever (manual transmission) or the selector lever (automatic
transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.

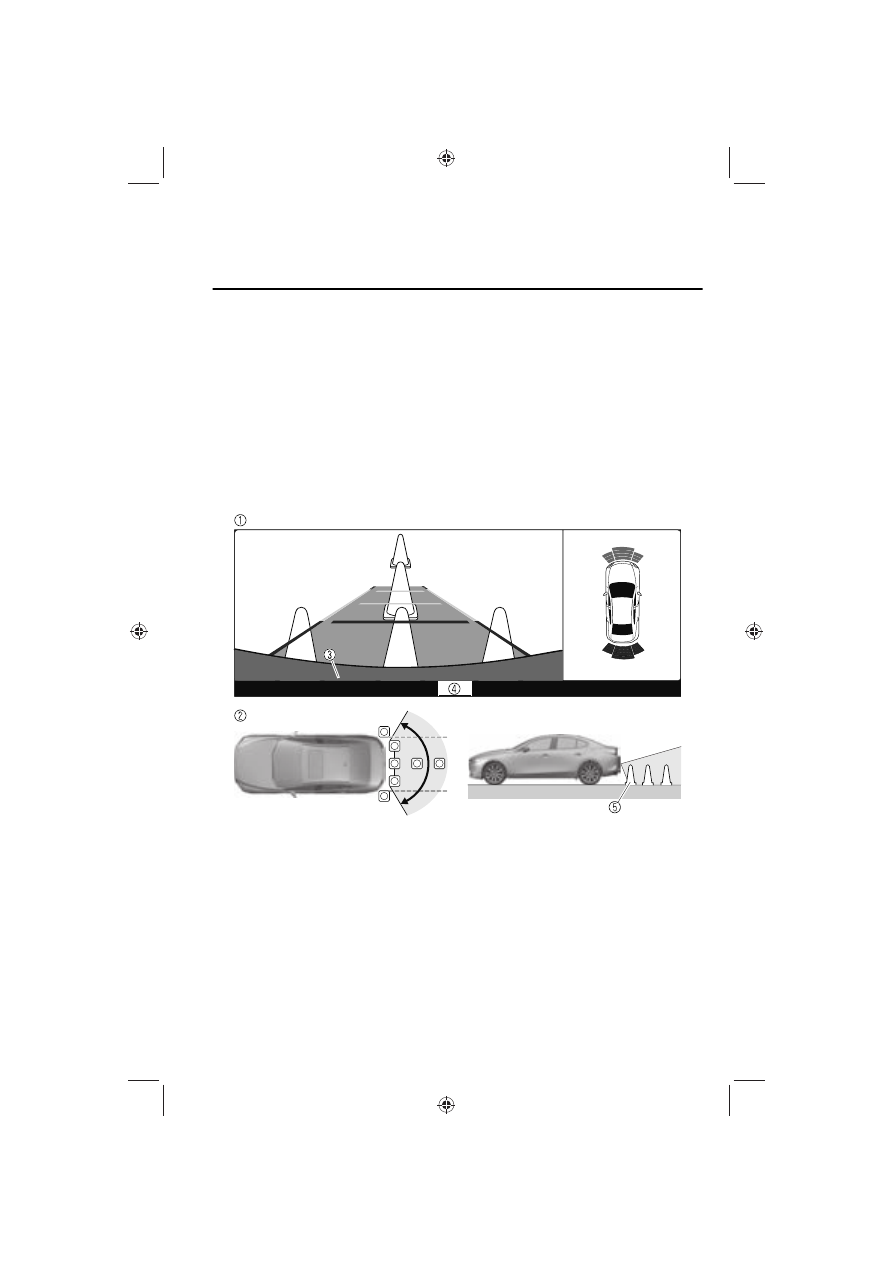

Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

1. (Screen display)
2. (Actual view)
3. Bumper
4. “Check surroundings for safety.” message is displayed
5. Object

NOTE

x

The displayable range varies depending on the vehicle and road conditions.

x

If the camera lens is touched or there is any dirt on it, it could affect the screen
image. Wipe the lens using a soft cloth.

x

The displayable range is limited. Objects under the bumper or around the bumper
ends cannot be displayed.

When Driving

Rear View Monitor

4-235

x

The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.

x

Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).

x

Some optionally installed vehicle accessories may be picked up by the camera. Do
not install any optional parts that can interfere with the camera view, such as
illuminating parts or parts made of reflective material.

x

It may be difficult to see the display under the following conditions, however, it
does not indicate a malfunction.

x

In darkened areas.

x

When the temperature around the lens is high/low.

x

When the camera is wet such as on a rainy day or during periods of high
humidity.

x

When foreign material such as mud is stuck around the camera.

x

When the camera lens reflects sunlight or headlight beams.

x

The surroundings are illuminated by vehicle lights, fluorescent lights, or LED
lights (display may flicker).

x

Extremely small dark or white dots appear on the screen (dots may flicker).

x

An object is close to a camera.

x

Image display may be delayed if the temperature around the camera is low.

Viewing the Display

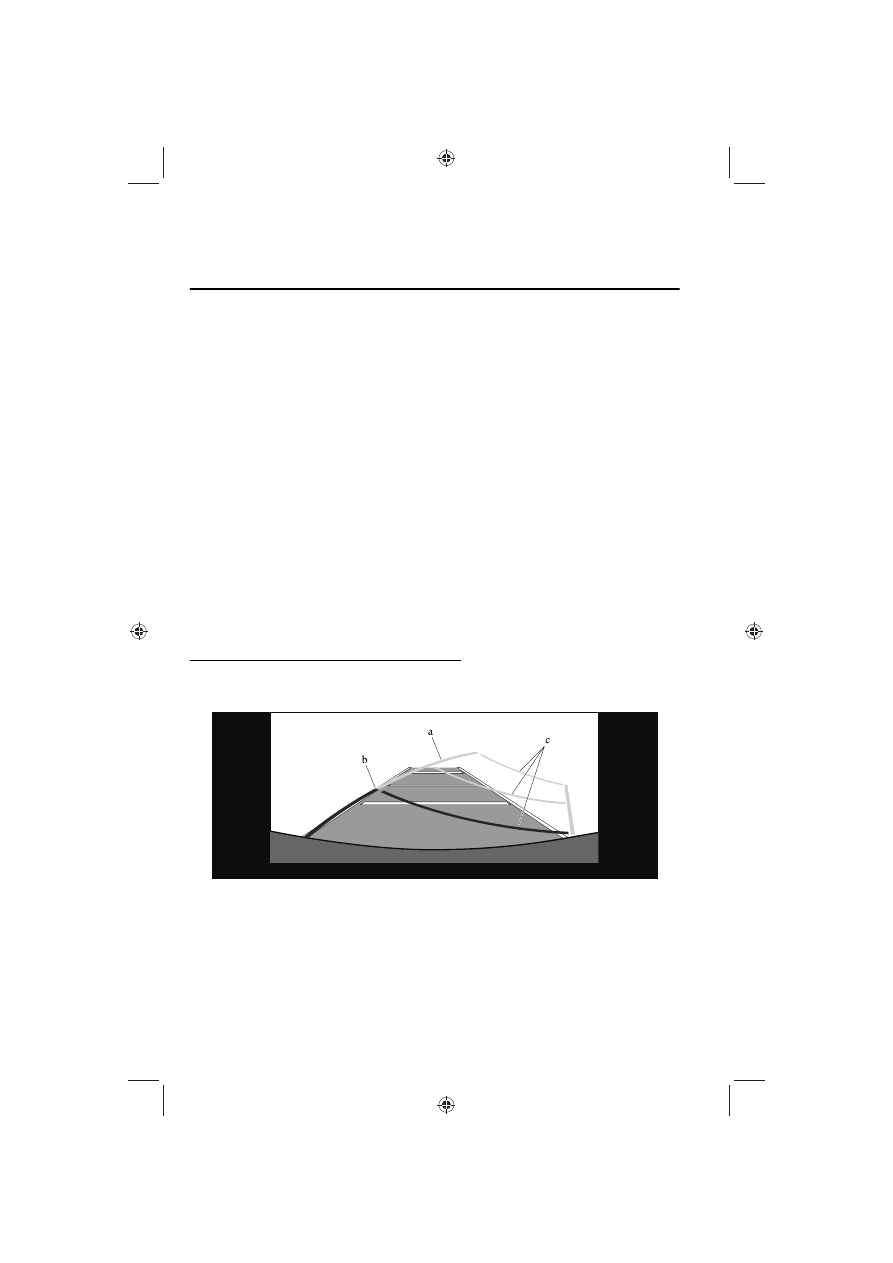

Predicted vehicle path assist lines display type

The projected path guidance mode displays the predicted path of the vehicle after
you turn the steering wheel.
Use this mode for parking your vehicle in a parking space or garage.

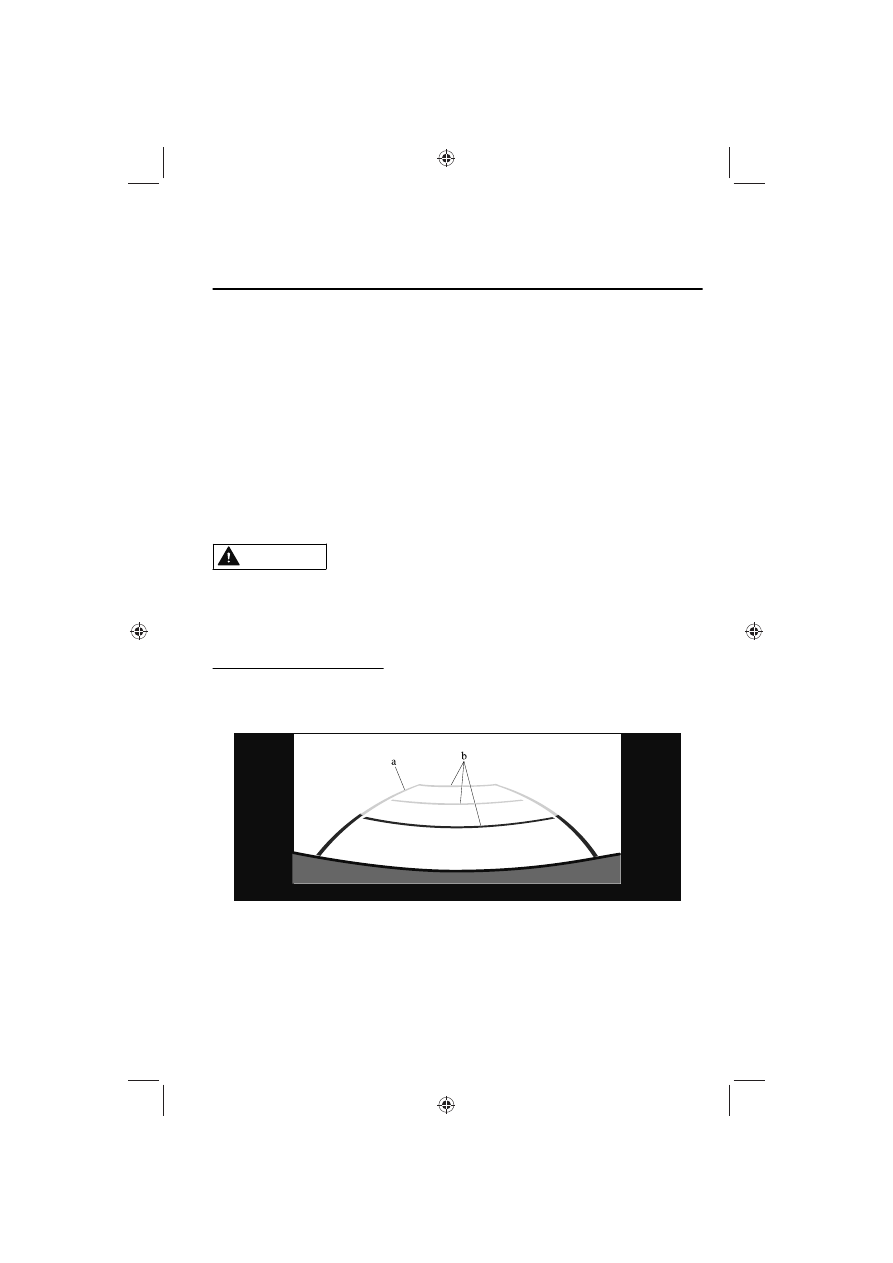

a) Projected vehicle path (yellow)

These lines are displayed as a reference for the projected path of the vehicle.
The lines displaying the projected vehicle path change after you turn the steering
wheel.

b) Extended vehicle width lines (blue)

These lines indicate the vehicle's extended width.

When Driving

Rear View Monitor

4-236

These lines are not displayed when the vehicle's wheels are in the straight-ahead
position.

c) Distance guide lines (red)

These lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The blue line indicates the point about 0.5 m (19 in) from the rear bumper.
The red and yellow lines, which change position after you turn the steering wheel,
indicate the points about 0.5 m (19 in) for the red line and 1.0 m (39 in) and 2.0
m (78 in) for the yellow lines from the rear bumper (at the center point of each of
the lines).
A degree of error occurs when the wheels are not in the straight-ahead position.
In the above illustration, the right side of the vehicle is in a position closer to the
actual distance displayed by the distance guide lines (red: about 0.5 m (19 in)
point, yellow: about 1.0 m (39 in), and yellow: about 2.0 m (78 in) point behind
the rear bumper), whereas the left side is in a position farther away.

CAUTION

The indicated position of the guide lines on the display changes depending on the
vehicle conditions (such as the number of occupants/cargo load) and the road
conditions (such as a steep gradient to the rear of the vehicle).
Always check the area to the vehicle's rear and the surrounding area directly with
your eyes while backing up.

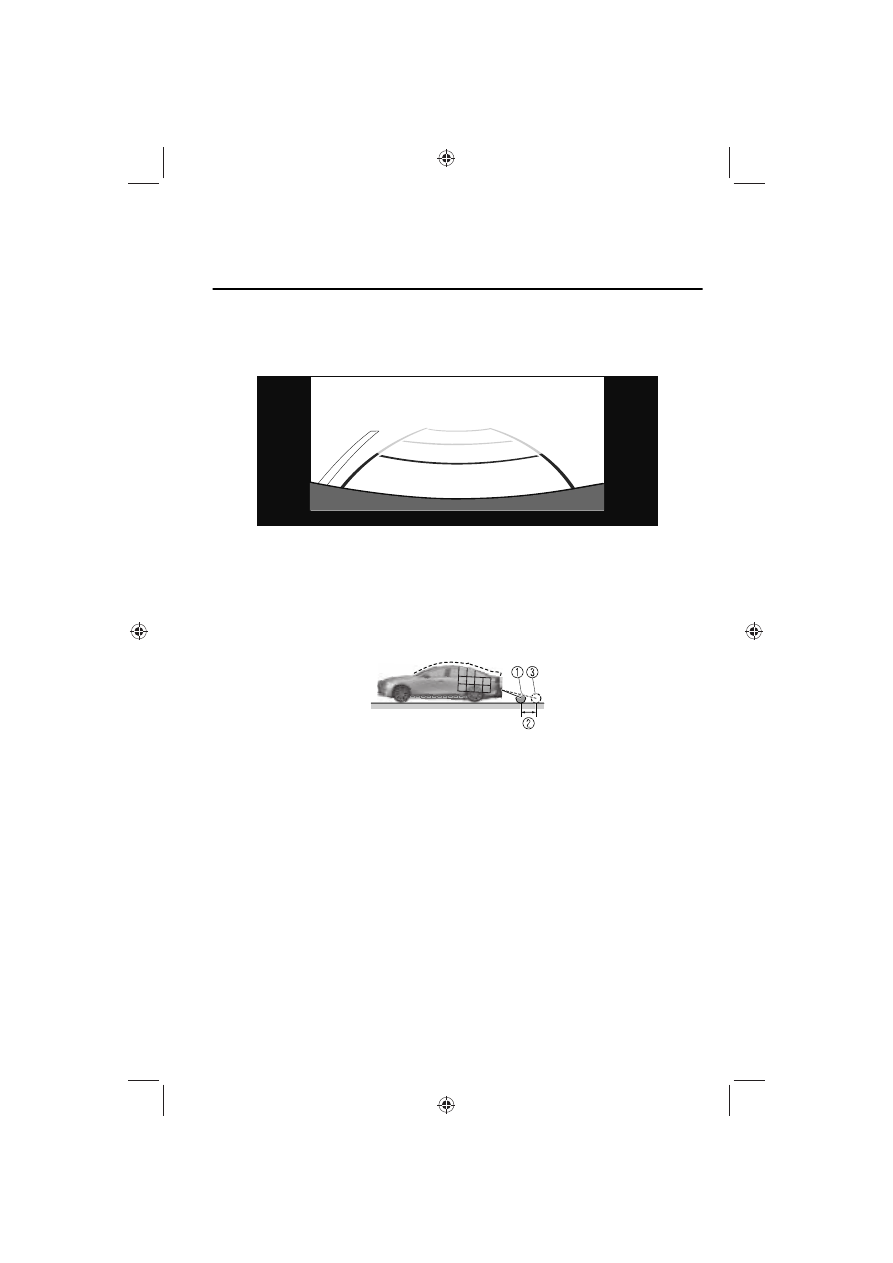

Fixed assist lines display type

Guide lines which indicate the width of the vehicle are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the
parking space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.

a) Vehicle width guide lines

Guide lines serve as a reference to the approximate width of the vehicle.

b) Distance guide lines

These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19 in) from the rear bumper.

When Driving

Rear View Monitor

4-237

The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from
the rear bumper.

CAUTION

The guide lines on the screen are fixed lines. They are not synced to the driver's
turning of the steering wheel. Always be careful and check the area to the vehicle's
rear and the surrounding area directly with your eyes while backing up.

Rear View Monitor Operation

The operation of the rear view monitor when reversing the vehicle varies depending
on the traffic, road, and vehicle conditions. The amount of steering and the timing
also varies depending on conditions, so confirm the surrounding conditions directly
with your eyes and steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.

Predicted vehicle path assist lines display type

NOTE

The following shows an example of vehicle parking in which the steering wheel is
turned to the right when backing up the vehicle. The operation is reversed when
backing up the vehicle from the opposite direction.

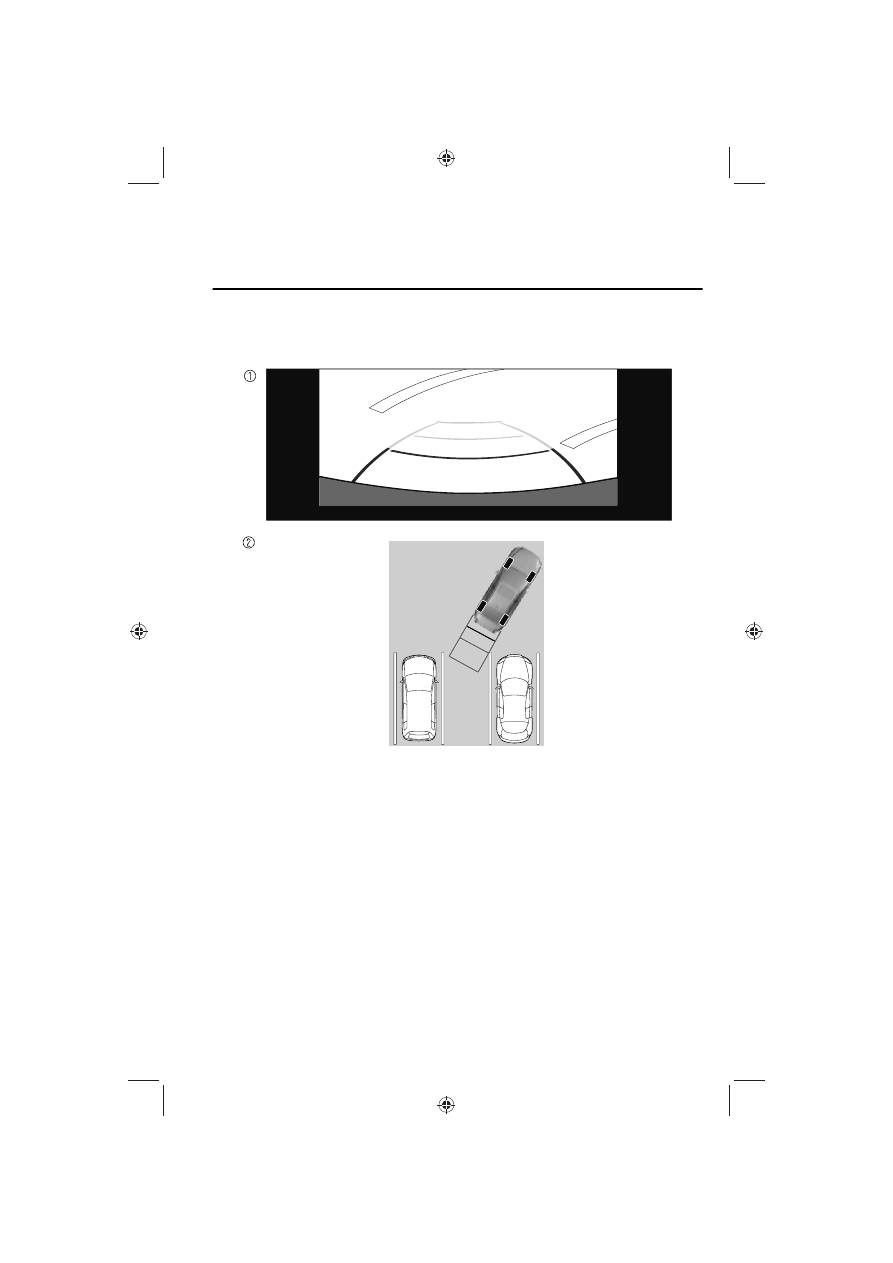

1. Shift the shift lever (manual transmission) or the selector lever (automatic

transmission) to reverse (R) position to switch the display to the rear view
monitor display.

When Driving

Rear View Monitor

4-238

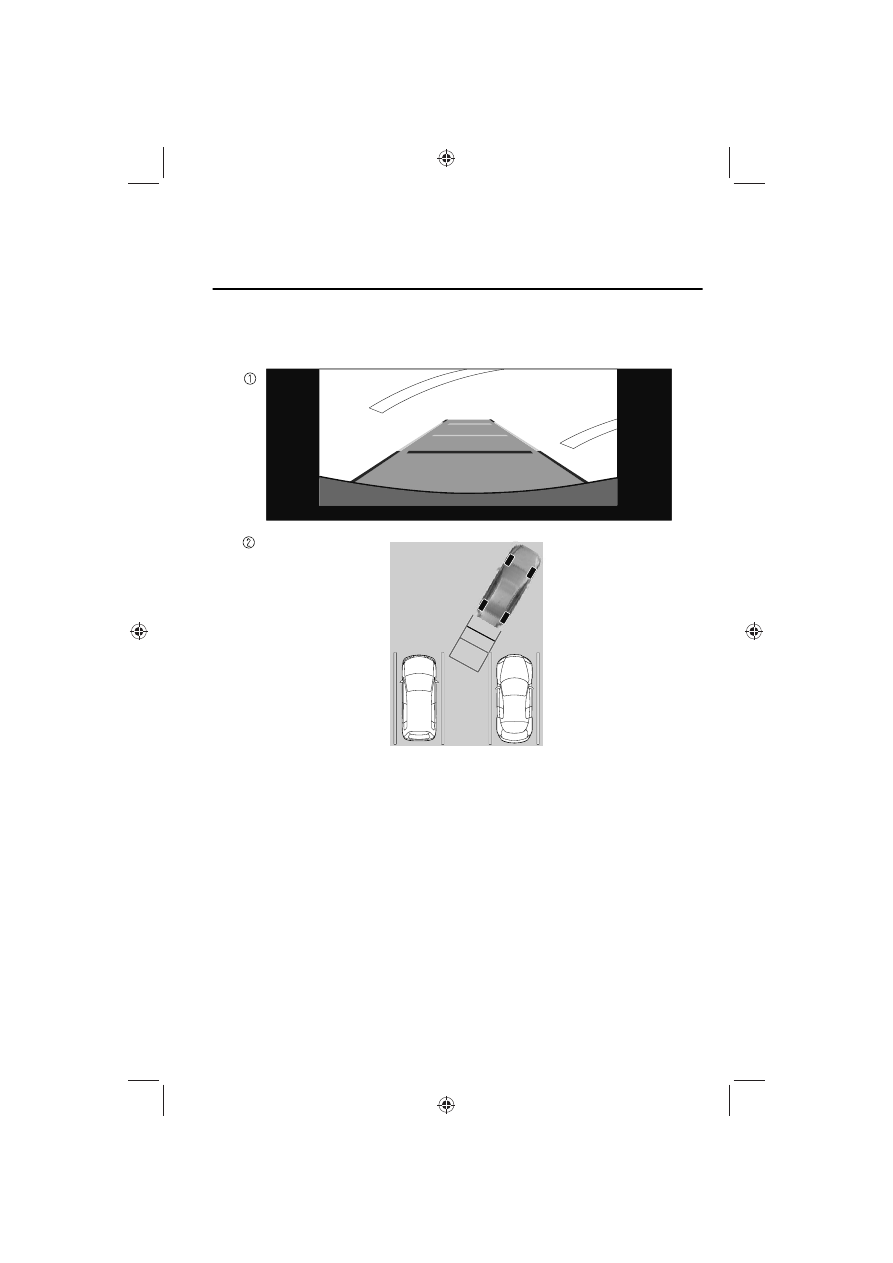

2. Before backing the vehicle into the parking space, turn the steering wheel while

referring to the projected vehicle path display so that the vehicle enters the
center of the parking space.

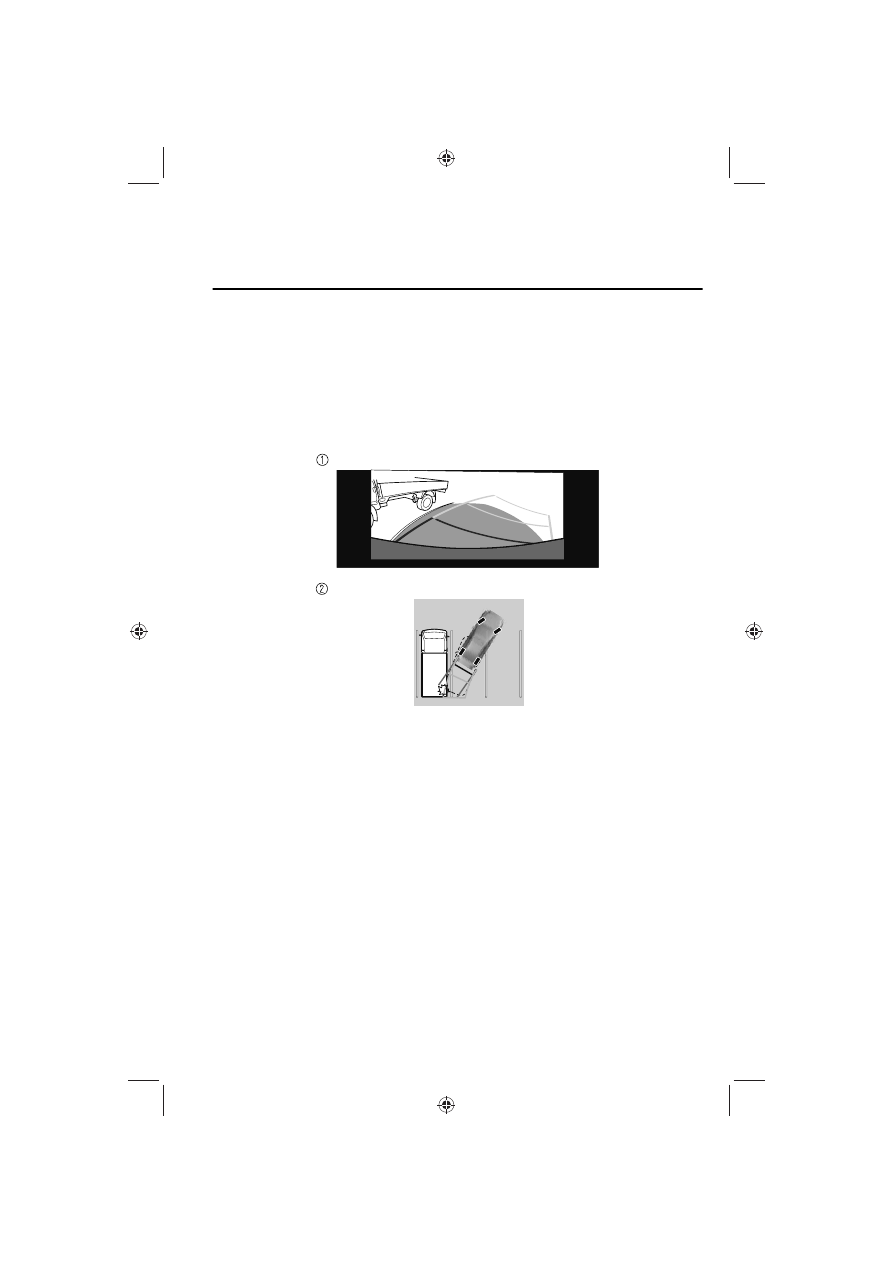

1. (Display condition)
2. (Vehicle condition)

When Driving

Rear View Monitor

4-239

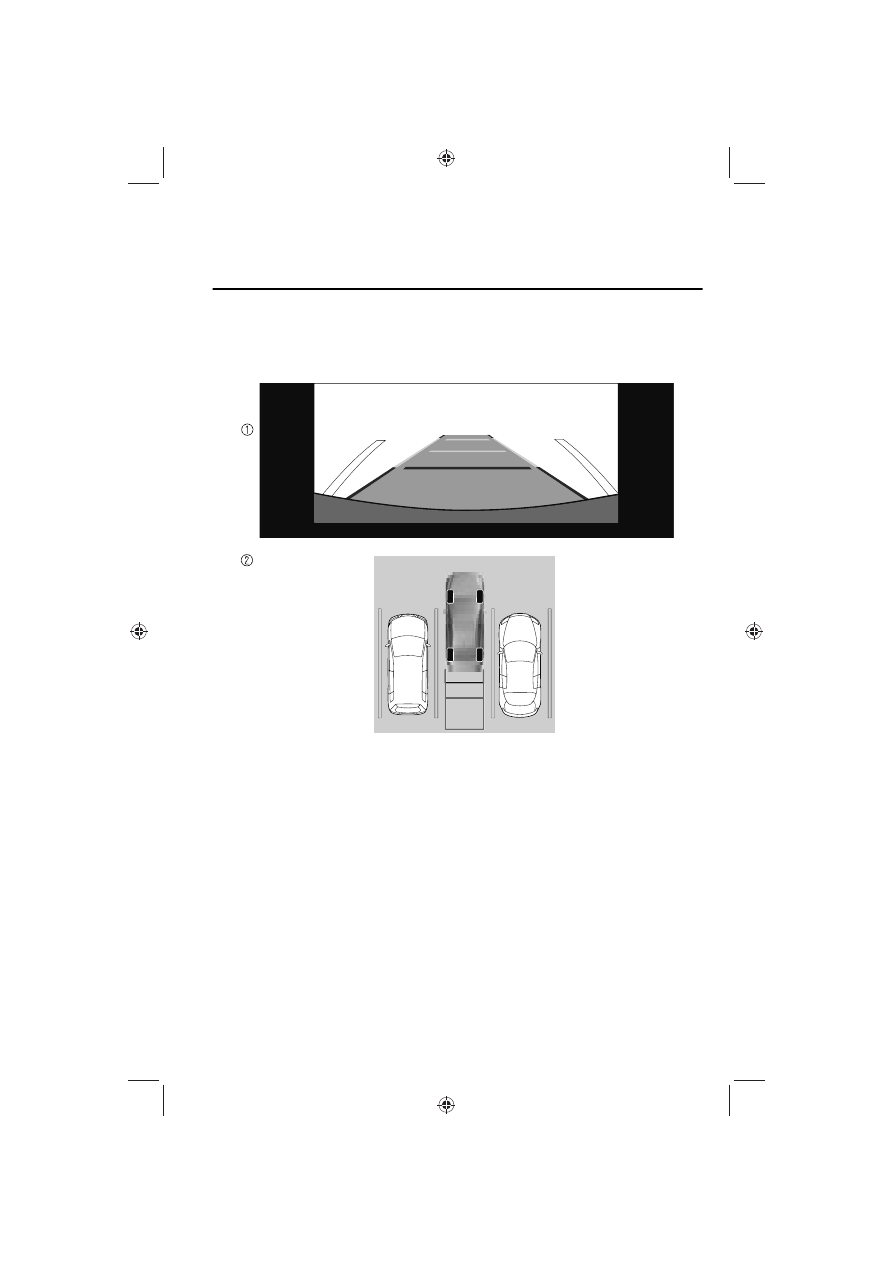

3. After your vehicle begins entering the parking space, continue backing up slowly

so that the distance between the vehicle width lines and the sides of the parking
space on the left and right are roughly equal.

1. (Display condition)
2. (Vehicle condition)

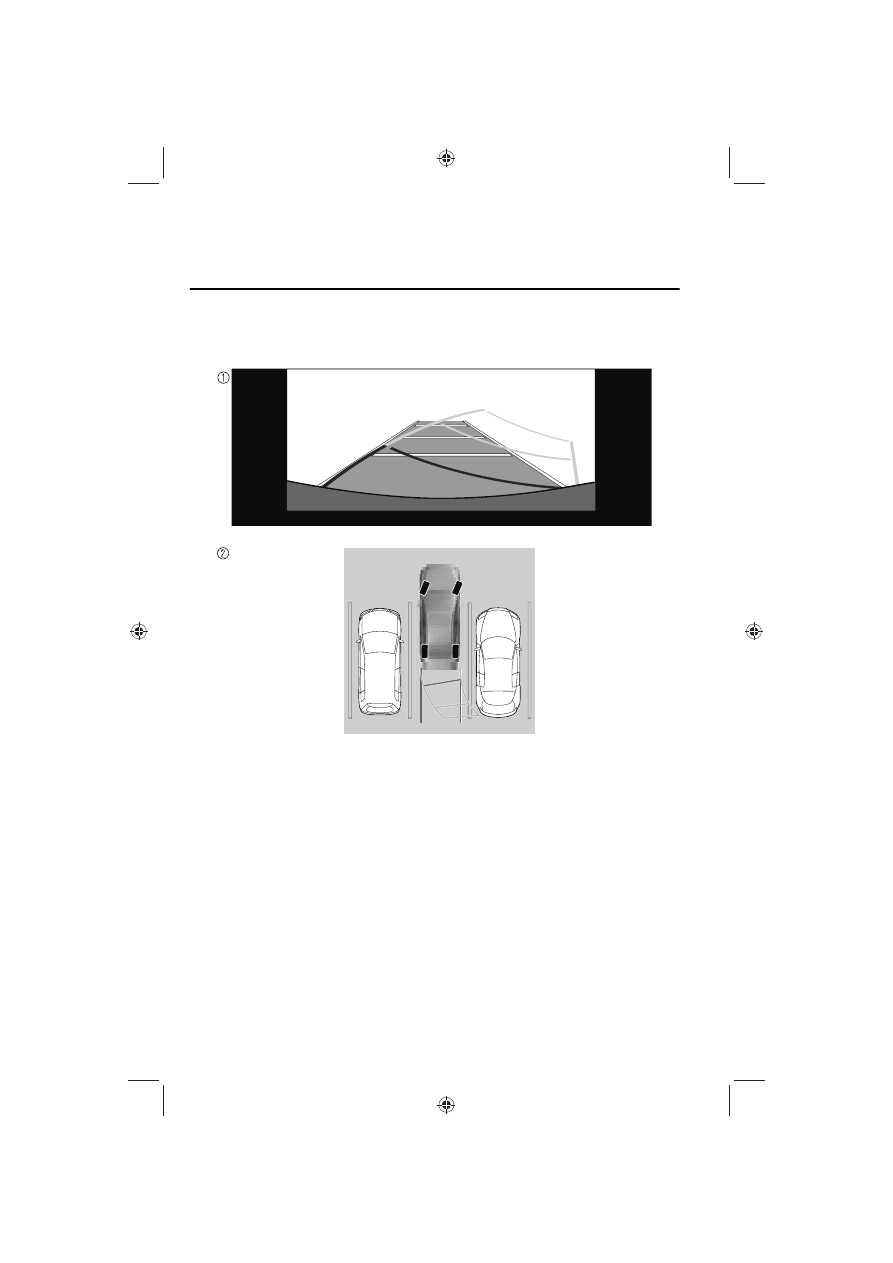

4. Continue to adjust the steering wheel until the vehicle width guide lines are

parallel to the left and right sides of the parking space.

When Driving

Rear View Monitor

4-240

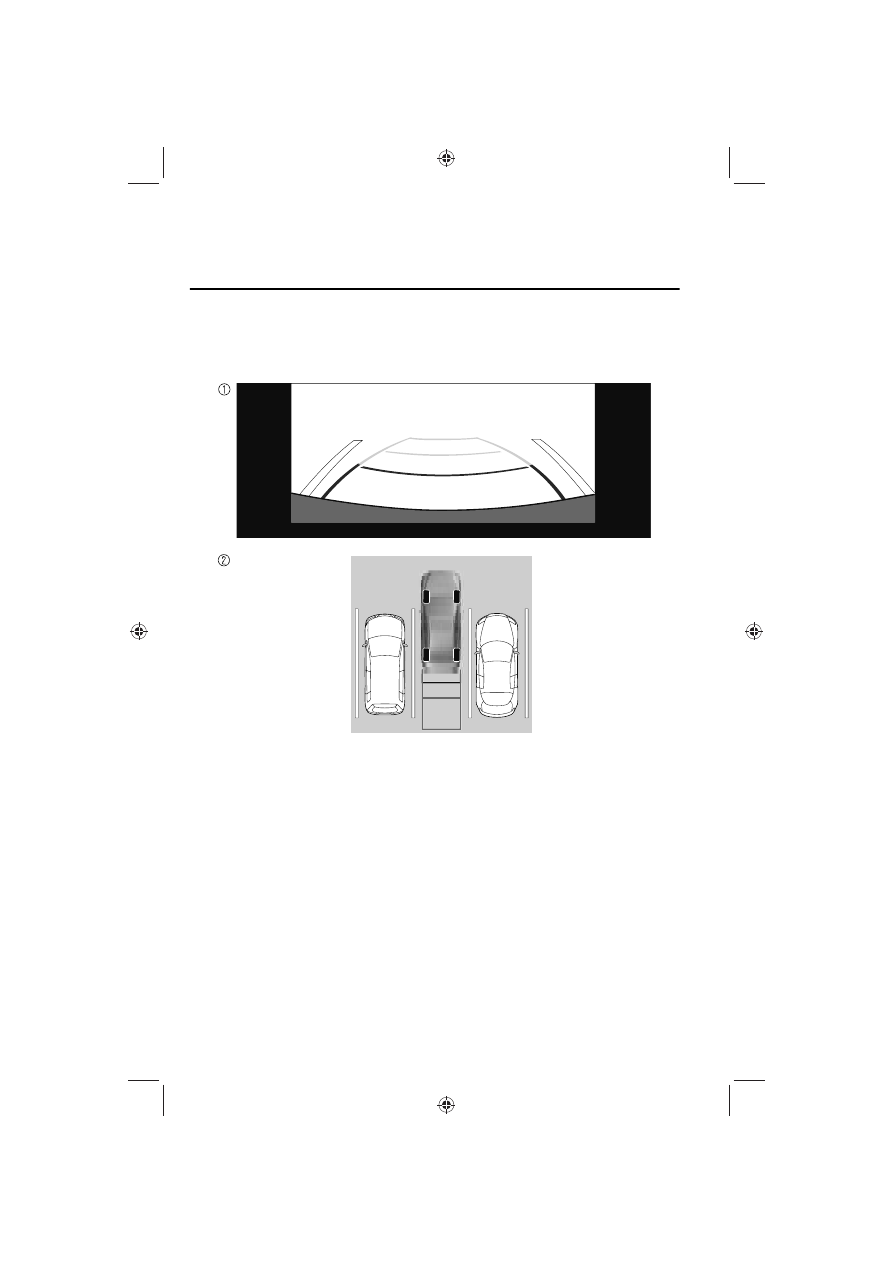

5. Once they are parallel, straighten the wheels and back your vehicle slowly into

the parking space. Continue checking the vehicle's surroundings and then stop
the vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)

1. (Display condition)
2. (Vehicle condition)

6. When the shift lever (manual transmission) or the selector lever (automatic

transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.

NOTE

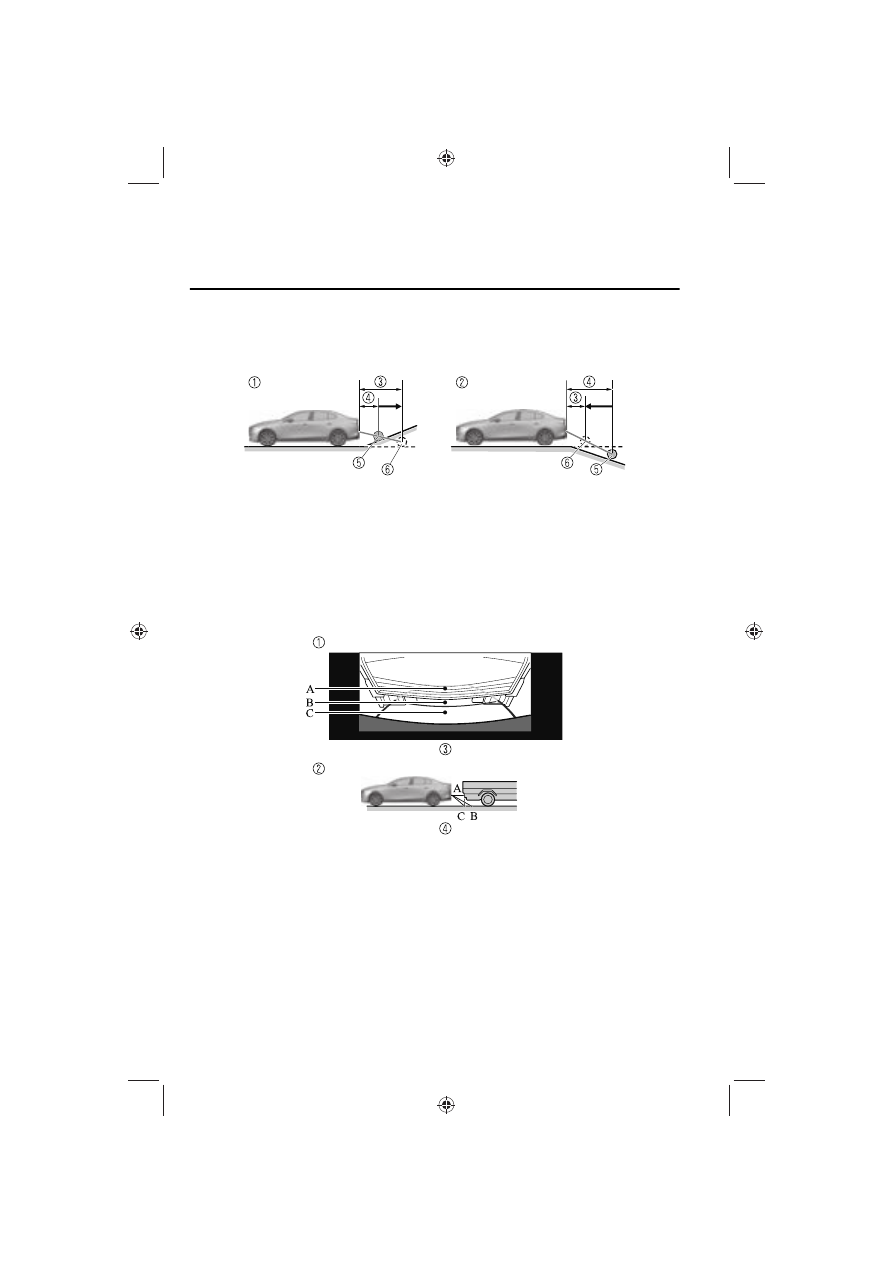

Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.

x

In the image of the parking space (or garage) displayed on the screen, the back
end and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.

When Driving

Rear View Monitor

4-241

x

When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor,
but they may not actually be aligned on the ground.

Fixed assist lines display type

NOTE

Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).

1. Shift the shift lever (manual transmission) or the selector lever (automatic

transmission) to reverse (R) position to switch the display to the rear view
monitor display.

2. Confirming the surrounding conditions, reverse the vehicle.

When Driving

Rear View Monitor

4-242

3. After your vehicle begins entering the parking space, continue backing up slowly

so that the distance between the vehicle width lines and the sides of the parking
space on the left and right are roughly equal.

1. (Display condition)
2. (Vehicle condition)

4. Continue to adjust the steering wheel until the vehicle width guide lines are

parallel to the left and right sides of the parking space.

When Driving

Rear View Monitor

4-243

5. Once they are parallel, straighten the wheels and back your vehicle slowly into

the parking space. Continue checking the vehicle's surroundings and then stop
the vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)

1. (Display condition)
2. (Vehicle condition)

6. When the shift lever (manual transmission) or the selector lever (automatic

transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.

NOTE

Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.

x

In the image of the parking space (or garage) displayed on the screen, the back
end and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.

When Driving

Rear View Monitor

4-244

x

When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor,
but they may not actually be aligned on the ground.

Variance Between Actual Road Conditions and Displayed Image

Some variance occurs between the actual road and the displayed road. Such
variance in distance perspective could lead to an accident. Note the following
conditions that may cause a variance in distance perspective.

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther
than the actual distance.

1. Object
2. Variance
3. Object on screen

When Driving

Rear View Monitor

4-245

When there is a steep grade behind the vehicle

When there is a steep upgrade (downgrade) behind the vehicle, the object displayed
on the screen appears farther (downgrade: closer) than the actual distance.

1. Appears farther than actual distance
2. Appears closer than actual distance
3. Distance between the vehicle and object displayed on the screen.
4. Actual distance between the vehicle and object.
5. Object at actual position
6. Object on screen

Three-dimensional object on vehicle rear

Because the distance guide lines are displayed based on a flat surface, the distance
to the three-dimensional object displayed on the screen is different from the actual
distance.

1. (Screen display)
2. (Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A

When Driving

Rear View Monitor

4-246

(Predicted vehicle path assist lines display type)

When reversing near a three-dimensional object

When reversing near an overhanging object, the vehicle may hit the object even if
the anticipated course line does not contact the object on the screen. The position
of the object displayed on the screen is different from the actual position because
the anticipated course lines on the screen are displayed based on a horizontal road
surface. When backing up near an overhanging object, confirm the rear and
surrounding conditions directly with your eyes.

1. (Screen display)
2. (Actual view)

When Driving

Rear View Monitor

4-247















Content      ..     22      23      24      25     ..
