If Trouble Arises
Flat Tire
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
7-16
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If
you feel unsure about jump-starting, we strongly recommend that you have a
competent service technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Keep flames and sparks away from open battery cells and do not allow
metal tools to contact the positive (+) or negative (-) terminal of the battery when
working near a battery. Do not allow the positive (+) terminal to contact the
vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen
gas is produced from open battery cells while charging the battery or adding
battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
7-17
If Trouble Arises
Battery Runs Out
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (-) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is
dangerous. The cable could get caught when the engine starts and cause serious
injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
1. Move the booster vehicle so that its battery is as close as possible to your
vehicle's battery.
2. Make sure that the power such as for the headlights and air conditioner is turned
off.

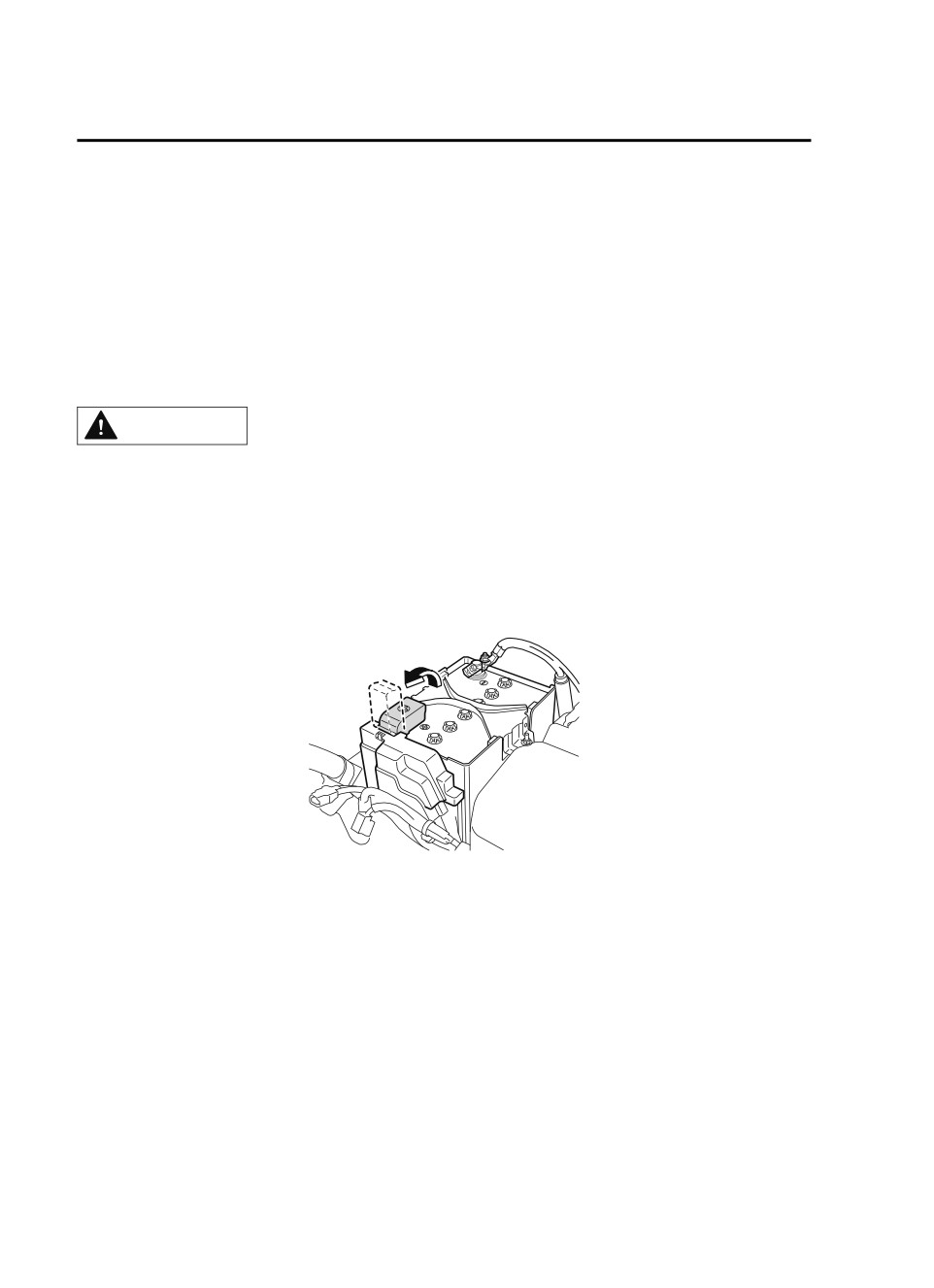

3. Remove the battery cover.
4. Turn off the booster vehicle's engine and connect the jumper cables in the
following order.
Make sure that the jumper cables are securely connected so that they do not
disconnect due to engine vibrations.
7-18
If Trouble Arises
Battery Runs Out

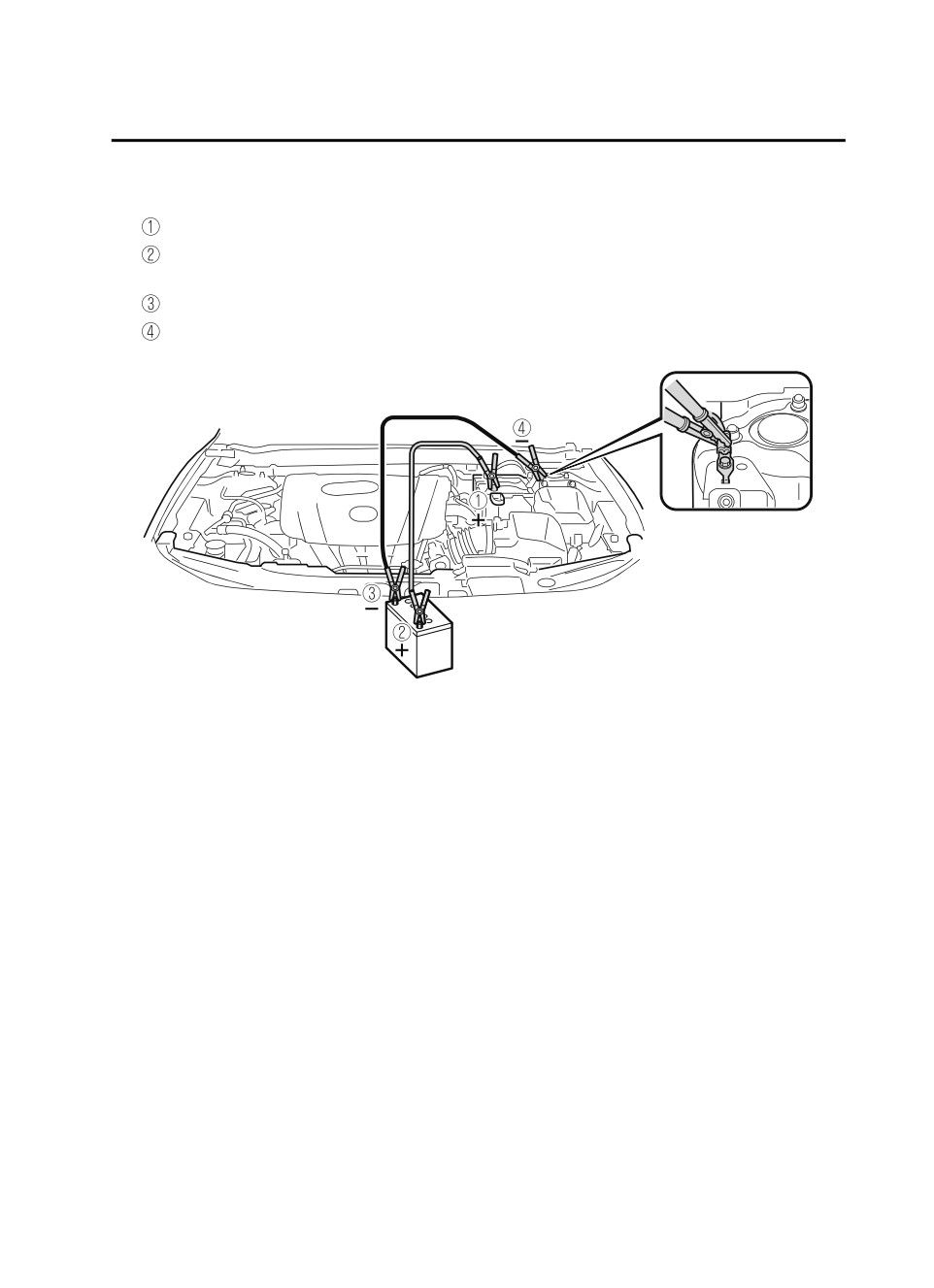

1st lead
Positive (+) terminal on the discharged battery
Positive (+) terminal on booster vehicle's battery
2nd lead
Negative (-) terminal on booster vehicle's battery
Location shown in the figure (do not connect to the negative (-) terminal of
the battery)
5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to
temporarily charge the battery of your vehicle.
7. Disconnect the jumper cables in the reverse order of their connection.
8. Install the battery cover.
9. Have your vehicle inspected by an Authorized Mazda Dealer as soon as possible.
7-19
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
Push-Starting
Starting a Flooded Engine
Push-Starting
If the engine fails to start, it may be
Do not push-start your Mazda.
flooded (excessive fuel in the engine).
WARNING
Follow this procedure:
Never tow a vehicle to start it:
1. If the engine does not start within 5
Towing a vehicle to start it is
seconds on the first try, wait 10
dangerous. The vehicle being towed
seconds and try again.
could surge forward when its engine
2. Make sure the parking brake is on.
starts, causing the 2 vehicles to collide.
3. Depress the accelerator all the way
The occupants could be injured.
and hold it there.
4. Depress the clutch pedal (manual
transmission) or the brake pedal
CAUTION
(automatic transmission), then
Do not push-start a vehicle that has a
press the push button start. If the
manual transmission. It can damage
engine starts, release the
the emission control system.
accelerator immediately because
the engine will suddenly rev up.
5. If the engine fails to start, crank it
NOTE
without depressing the accelerator.
You cannot start a vehicle with an
automatic transmission by pushing it.
If the engine still does not start using
the previous procedure, have your
vehicle inspected by an Authorized
Mazda Dealer.
7-20
If Trouble Arises
Overheating
Open the hood ONLY after steam is
Overheating
no longer escaping from the engine:
Steam from an overheated engine is
Overheating
dangerous. The escaping steam could
If the engine coolant temperature
seriously burn you.
gauge indicates overheating and the
If the engine coolant temperature
high engine coolant temperature
gauge indicates overheating and the
warning indication is displayed, the
high engine coolant temperature
vehicle loses power or you hear a loud
warning indication is displayed:
knocking or pinging noise, the engine
is probably too hot.
1.
Drive safely to the side of the road
WARNING
and park off the right-of-way.
2.
Put a vehicle with an automatic
transmission in park (P), a manual
transmission in neutral.
3.
Apply the parking brake.
Pull over to a safe location, then
4.
Turn off the air conditioner.
switch the ignition off and make sure
5.
Check whether coolant or steam is
the fan is not running before
escaping from the engine
attempting to work near the cooling
compartment.
fan:
Working near the cooling fan when it is
If steam is coming from the engine
running is dangerous. The fan could
compartment:
continue running indefinitely even if
Do not go near the front of the
the engine has stopped and the engine
vehicle. Stop the engine.
compartment temperature is high. You
Wait until the steam dissipates,
could be hit by the fan and seriously
then open the hood and start the
injured.
engine.
If neither coolant nor steam is
escaping:
Do not remove either
Open the hood and idle the engine
cooling system cap when the engine
until it cools.
and radiator are hot:
When the engine and radiator are hot,
CAUTION
scalding coolant and steam may shoot
out under pressure and cause serious
If the cooling fan does not operate
injury.
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
7-21
If Trouble Arises
Overheating
6. Make sure the cooling fan is
2. Cooling fan
operating, then turn off the engine
3. Cooling system cap
after the temperature has
decreased.
If you find no problems, the engine is
7. When cool, check the coolant level.
cool, and no leaks are obvious:
If it is low, look for coolant leaks
Carefully add coolant as required
from the radiator and hoses.
(page 6-19).
If you find a leak or other damage, or
CAUTION
if coolant is still leaking:
If the engine continues to overheat or
Stop the engine and call an Authorized
frequently overheats, have the cooling
Mazda Dealer.
system inspected. The engine could be
SKYACTIV-G 2.0 and SKYACTIV-G
seriously damaged unless repairs are
2.5
made. Consult an Authorized Mazda
Dealer.

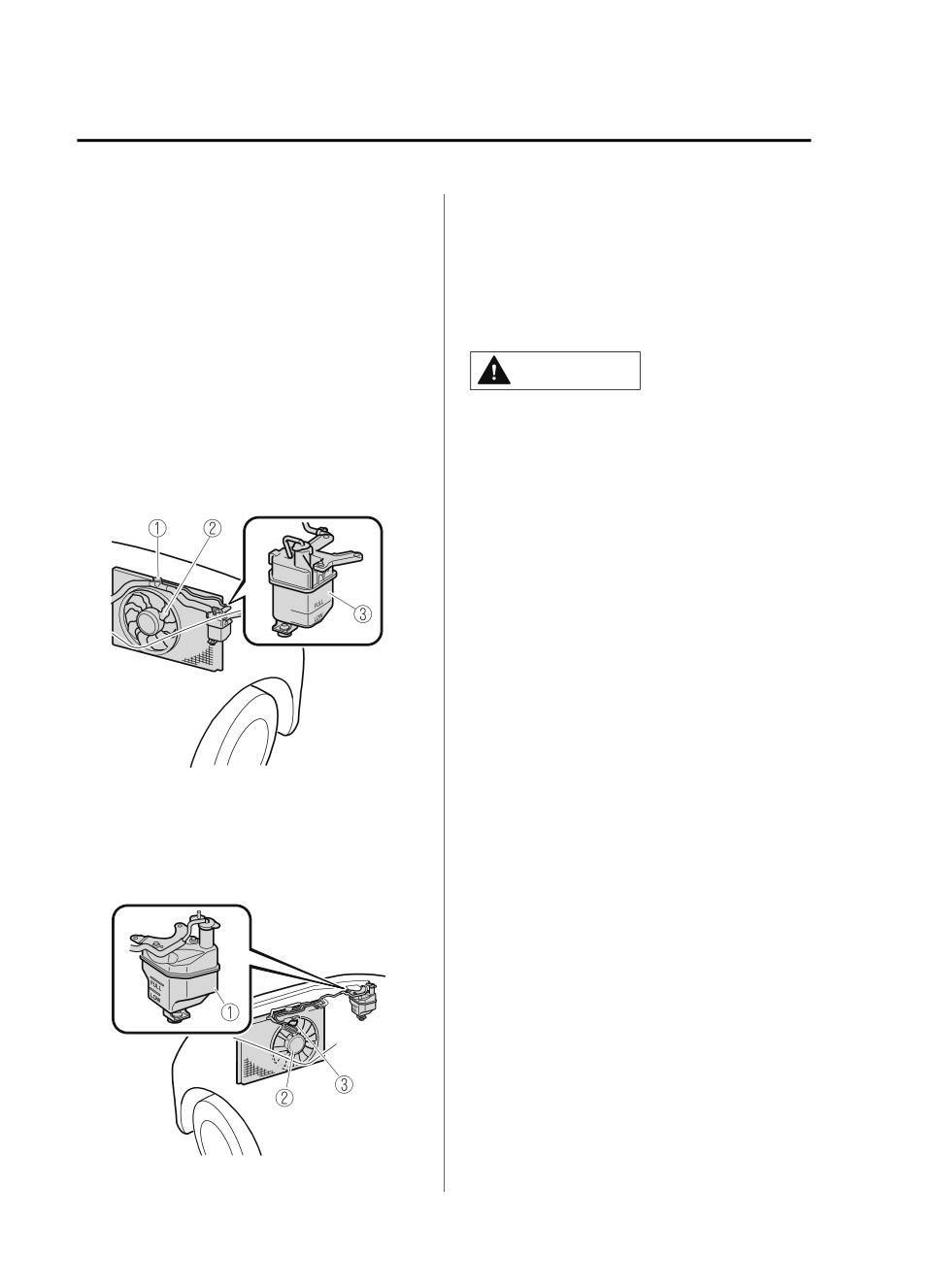

1. Cooling system cap
2. Cooling fan
3. Coolant reservoir
SKYACTIV-G 2.5T
1. Coolant reservoir
7-22
If Trouble Arises
Emergency Towing

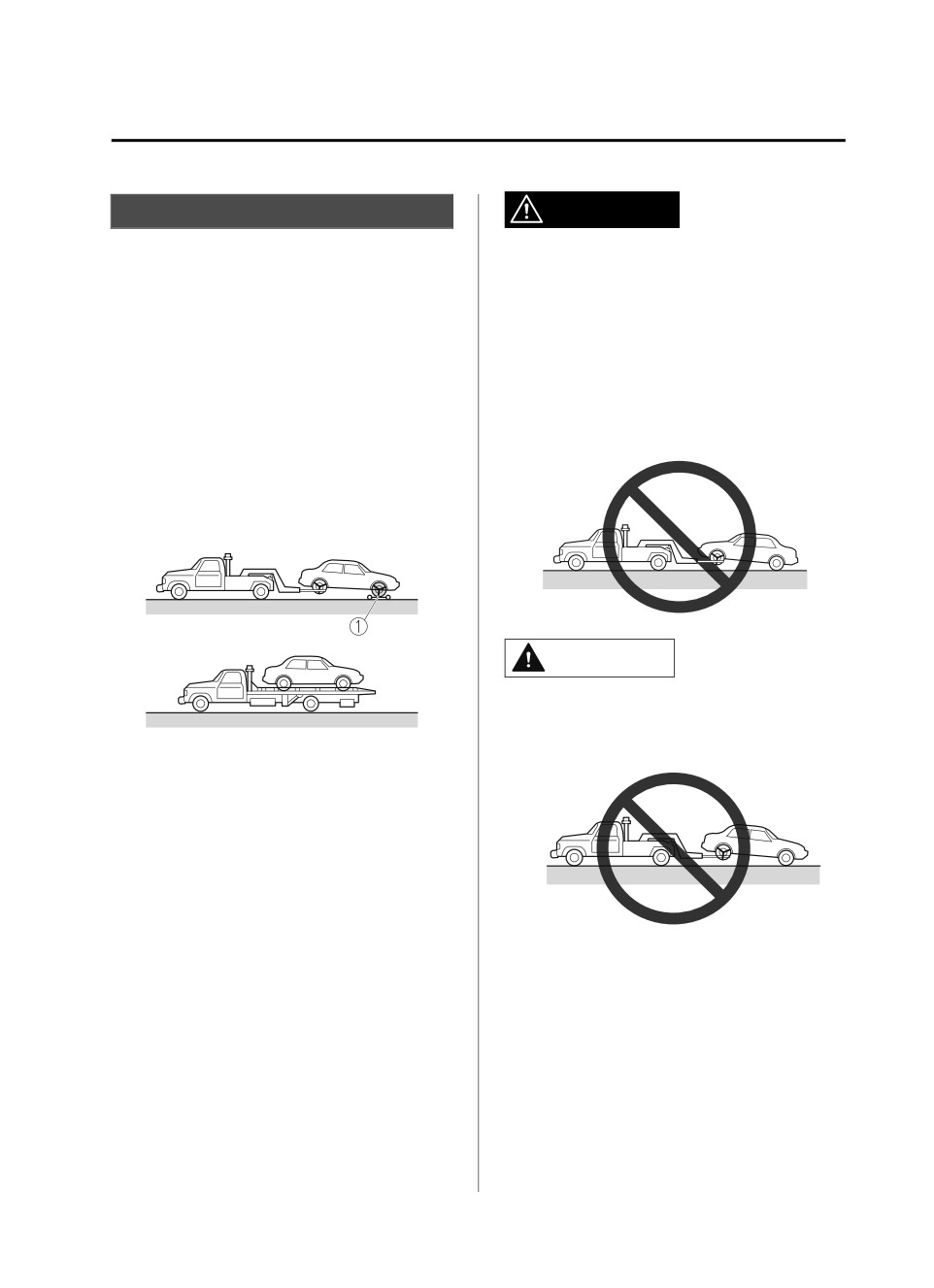

Towing Description
WARNING
Towing Description
Always tow an AWD vehicle with all
four wheels off the ground:
We recommend that towing be done
Towing an AWD vehicle with either the
only by an Authorized Mazda Dealer
front or rear wheels on the ground is
or a commercial tow-truck service.
dangerous as the drive train could be
damaged, or the vehicle could trail
Proper lifting and towing are necessary
away from the tow truck and cause an
to prevent damage to the vehicle.
accident. If the drive train has been
Particularly when towing an AWD
damaged, transport the vehicle on a
vehicle, where all the wheels are
flatbed truck.
connected to the drive train, proper
transporting of the vehicle is absolutely
essential to avoid damaging the drive
system. Government and local laws
must be followed.
CAUTION
¾ Do not tow the vehicle pointed
backward with driving wheels on the
1. Wheel dollies
ground. This may cause internal
damage to the transmission.
A towed FWD vehicle should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel
dollies.
When towing a FWD vehicle with the
rear wheels on the ground, release the
parking brake.
Refer to Electric Parking Brake (EPB) on
page 4-76.
A towed AWD vehicle must have all its
wheels off the ground.
7-23
If Trouble Arises
Emergency Towing

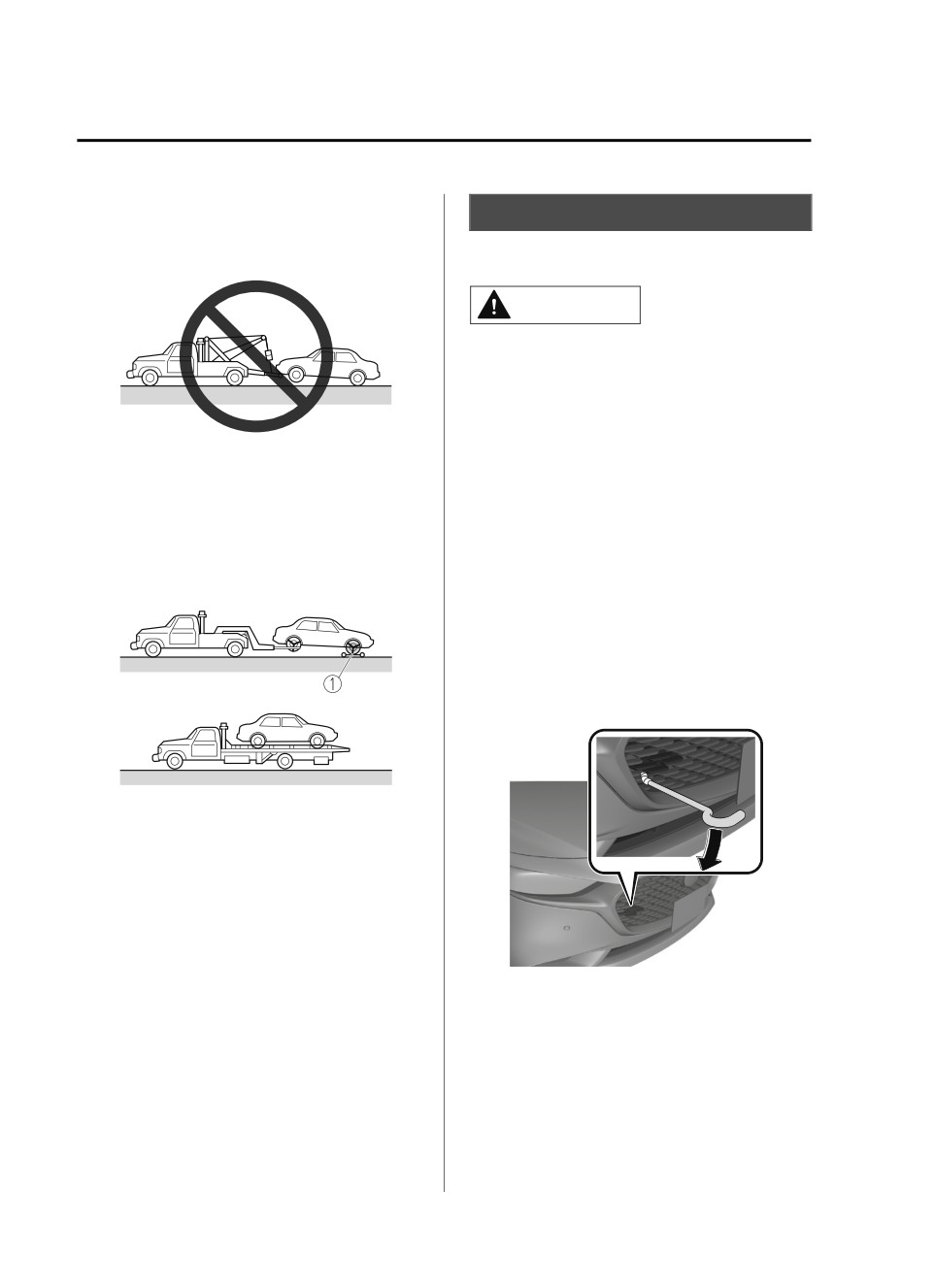

¾ Do not tow with sling-type
Tiedown Hooks
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
Tiedown Hooks
equipment.
CAUTION
Do not use the front and rear tiedown
eyelets for towing the vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
¾ If the parking brake cannot be
Using the eyelets for any other purpose
released when towing the vehicle,
could result in the vehicle being
transport the vehicle with all front
damaged.
and rear wheels raised off the ground

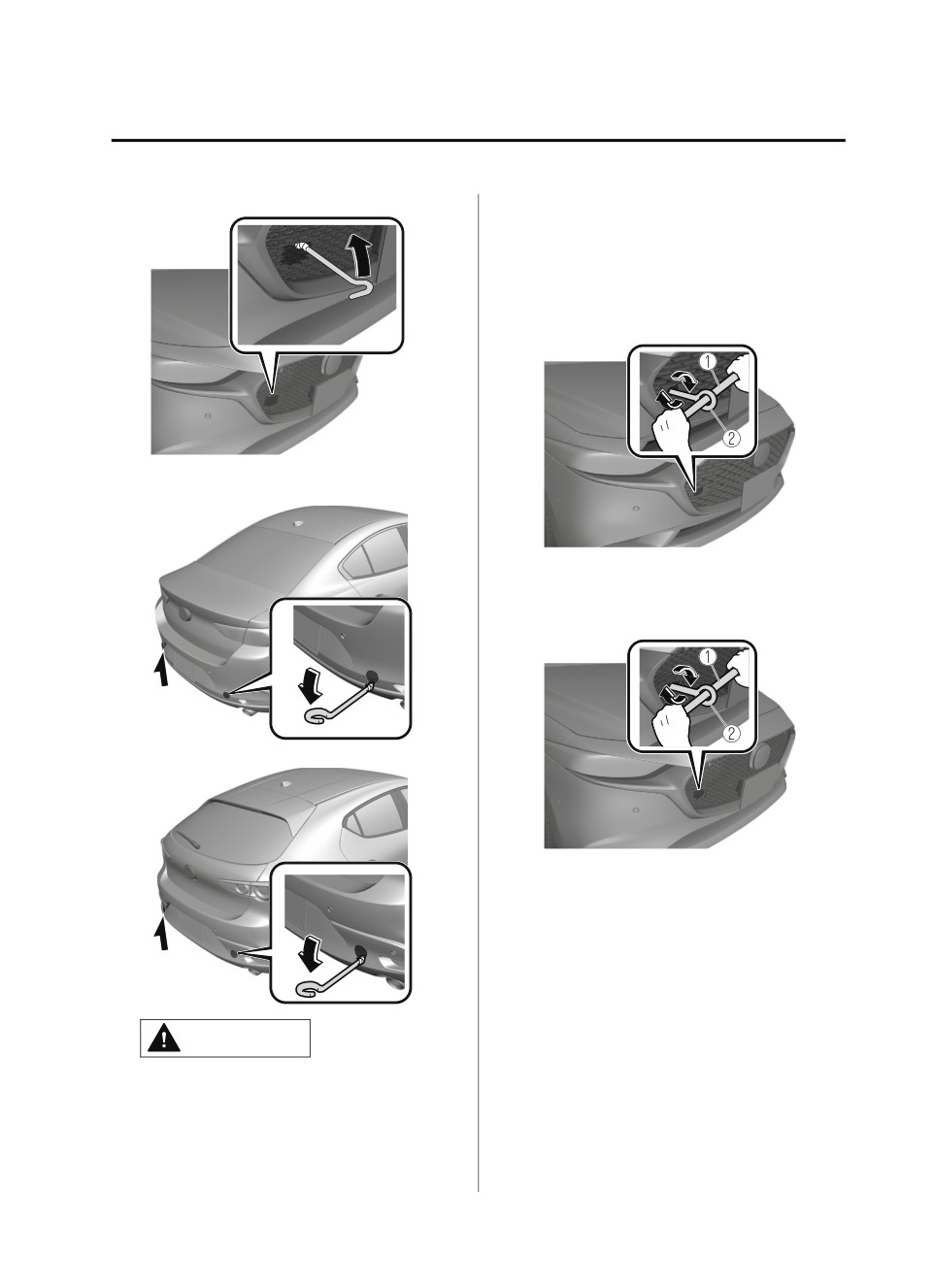

1. Remove the tiedown eyelet and the
as shown in the figure. If the vehicle
lug wrench from the luggage
is towed without raising the wheels
compartment (page 7-3).
off the ground, the brake system
2. Wrap a flathead screwdriver or
could be damaged.
similar tool with a soft cloth to
prevent damage to a painted
bumper, and open the cap located
on the front or rear bumper.
Front
(4-Door)
1. Wheel dollies
7-24
*Some models.
If Trouble Arises
Emergency Towing
(5-Door)
NOTE
Remove the cap completely and
store it so as not to lose it.
3. Securely install the tiedown eyelet
using the lug wrench.
Front
(4-Door)
Rear
(4-Door)

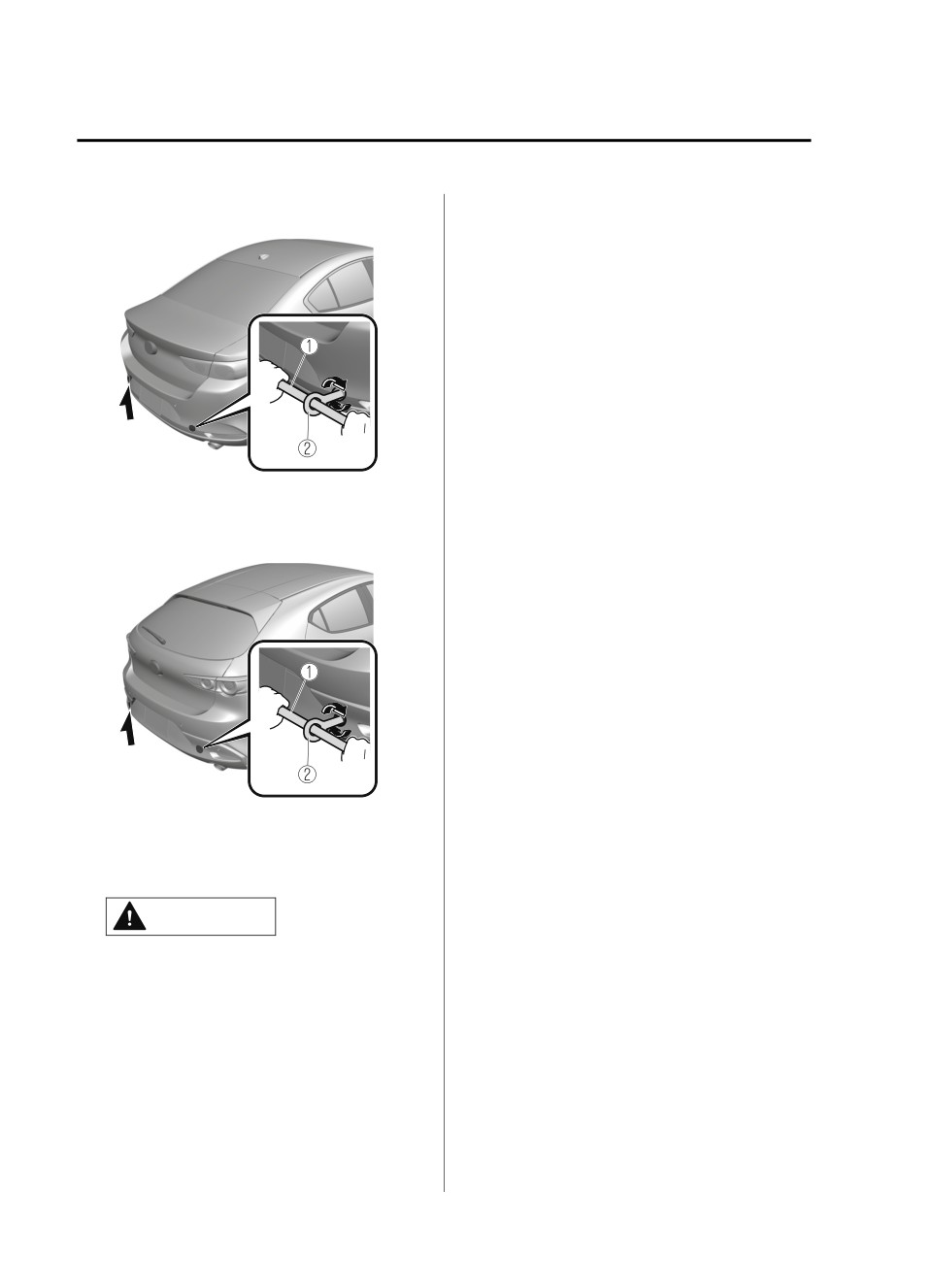

1. Lug wrench
2. Tiedown eyelet
(5-Door)
(5-Door)
1. Lug wrench
2. Tiedown eyelet
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
7-25
If Trouble Arises
Emergency Towing
Rear
(4-Door)
1. Lug wrench
2. Tiedown eyelet
(5-Door)
1. Lug wrench
2. Tiedown eyelet
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or
disengage from the bumper when
tying the vehicle. Make sure that
the tiedown eyelet is securely
tightened to the bumper.
7-26
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

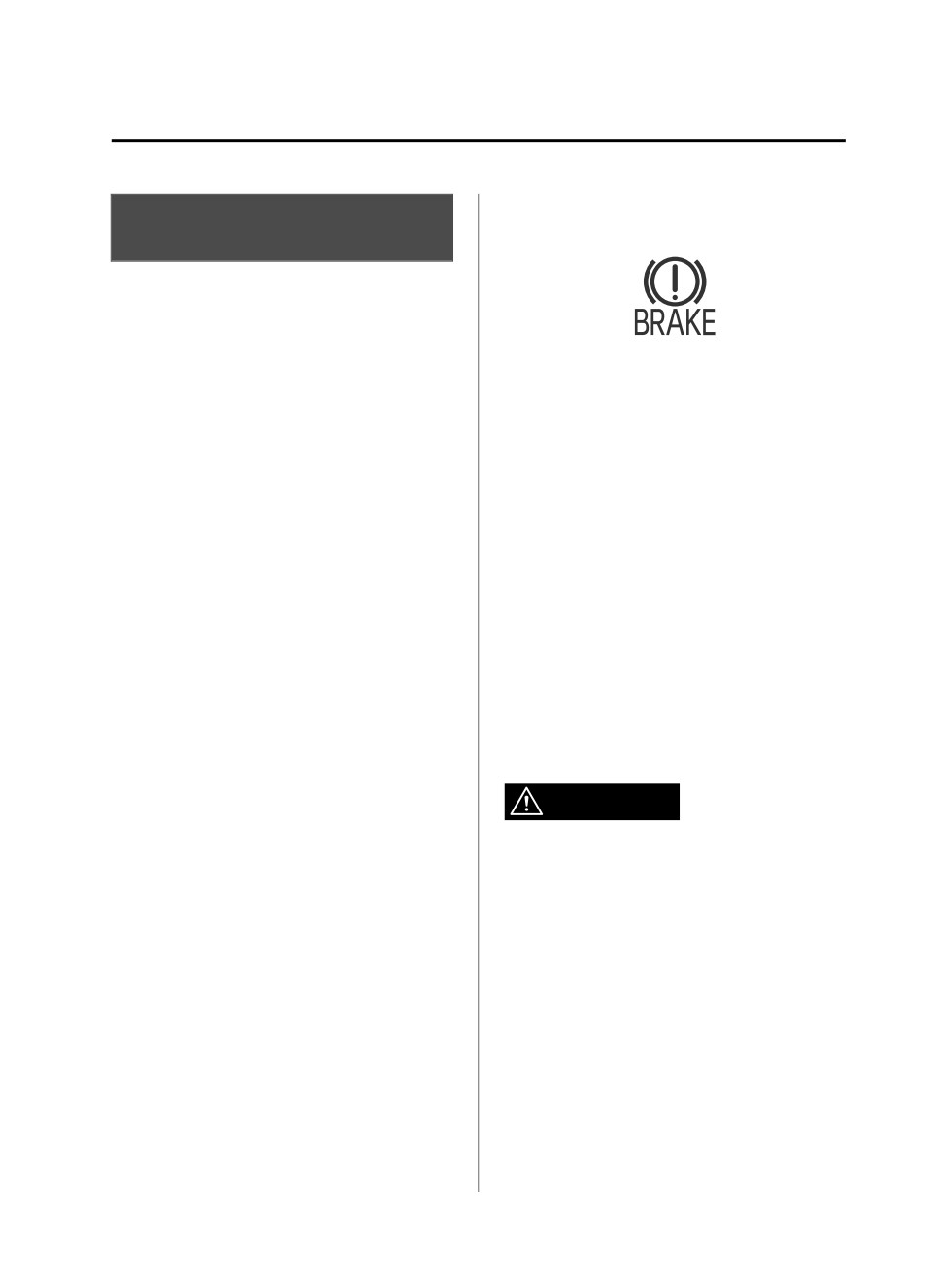

Brake System Warning Indication/
If a Warning Light Turns
Warning Light
On or Flashes
If a Warning Light Turns On or
Flashes
If any warning light turns on/flashes,
take appropriate action for each light.
This warning has the following
There is no problem if the light turns
functions:
off, however if the light does not turn
Warning light inspection
off or turns on/flashes again, consult
an Authorized Mazda Dealer.
For an operation check, make sure that
The details for some warnings can be
the light turns on when the ignition is
viewed on the center display or
switched on, and turns off a few
multi-information display in the
seconds later or when the engine is
instrument cluster.
started.
Center display
When the light turns on
1. Select “Information” on the home
If the brake system warning light
screen.
remains illuminated the brake fluid
2. Select “Vehicle Status Monitor”.
may be low or there could be a
3. Select the applicable warning to
problem with the brake system. Park
view the warning details.
the vehicle in a safe place immediately
and contact an Authorized Mazda
NOTE
Dealer.
You can also display the currently
Refer to Inspecting Brake/Clutch Fluid
occurring warning by sliding the
Level on page 6-20.
commander knob to the left while on
the home screen of the center display.
WARNING
Multi-information display
Do not drive with the brake system
1. Press the INFO switch on the
warning light illuminated. Contact an
steering switch to display the
Authorized Mazda Dealer to have the
warning indication screen.
brakes inspected as soon as possible:
Refer to Multi-information Display
Driving with the brake system warning
on page 4-20.
light illuminated is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this light
remains illuminated, after checking
that the parking brake is fully released,
have the brakes inspected
immediately.
7-27

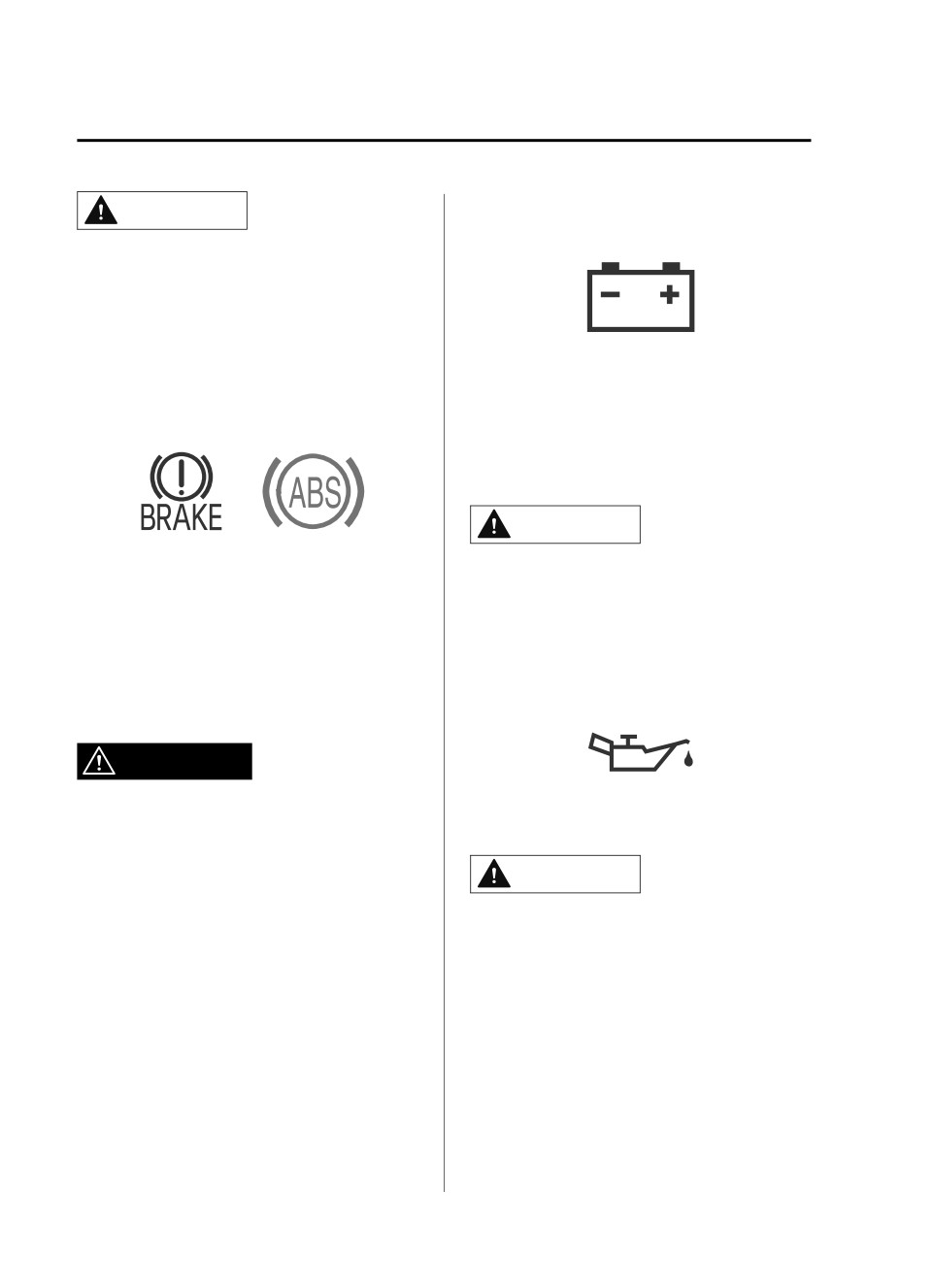

If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Charging System Warning
CAUTION
Indication/Warning Light
¾ In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal
more strongly than normal to stop
the vehicle.
If the warning light illuminates while
driving, it indicates a malfunction of
Electronic Brake Force Distribution
the alternator or of the charging
System Warning
system.
Drive to the side of the road and park
off the right-of-way. Consult an
Authorized Mazda Dealer.
CAUTION
If the electronic brake force
Do not continue driving when the
distribution control unit determines
charging system warning light is
that some components are operating
illuminated because the engine could
incorrectly, the control unit may
stop unexpectedly.
illuminate the brake system warning
light and the ABS warning light
Engine Oil Warning Indication/
simultaneously. The problem is likely to
Warning Light
be the electronic brake force
distribution system.
WARNING
Do not drive with both the brake
This warning light indicates low engine
system warning light and ABS warning
oil pressure.
light illuminated. Have the vehicle
towed to an Authorized Mazda
CAUTION
Dealer to have the brakes inspected as
soon as possible:
Do not run the engine if the oil
Driving when the brake system warning
pressure is low. Otherwise, it could
light and ABS warning light are
result in extensive engine damage.
illuminated simultaneously is
If the light illuminates or the warning
dangerous.
indication is displayed while driving:
When both lights are illuminated, the
1. Drive to the side of the road and
rear wheels could lock more quickly in
park off the right-of-way on level
an emergency stop than under normal
ground.
circumstances.
2. Turn off the engine and wait 5
minutes for the oil to drain back
into the oil pan.
7-28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
3. Inspect the engine oil level (page
CAUTION
6-18). If it's low, add the
appropriate amount of engine oil
Do not drive the vehicle with the high
while being careful not to overfill.
engine coolant temperature warning
light illuminated. Otherwise, it could
CAUTION
result in damage to the engine.
Do not run the engine if the oil
Power Steering Malfunction
level is low. Otherwise, it could
Indication/Indicator Light
result in extensive engine damage.
4. Start the engine and check the
warning light.
If the light remains illuminated even
though the oil level is normal or after
The message is displayed if the electric
adding oil, stop the engine
power steering has a malfunction.
immediately and have your vehicle
If the message is displayed, stop the
towed to an Authorized Mazda Dealer.
vehicle in a safe place and do not
operate the steering wheel. There is no

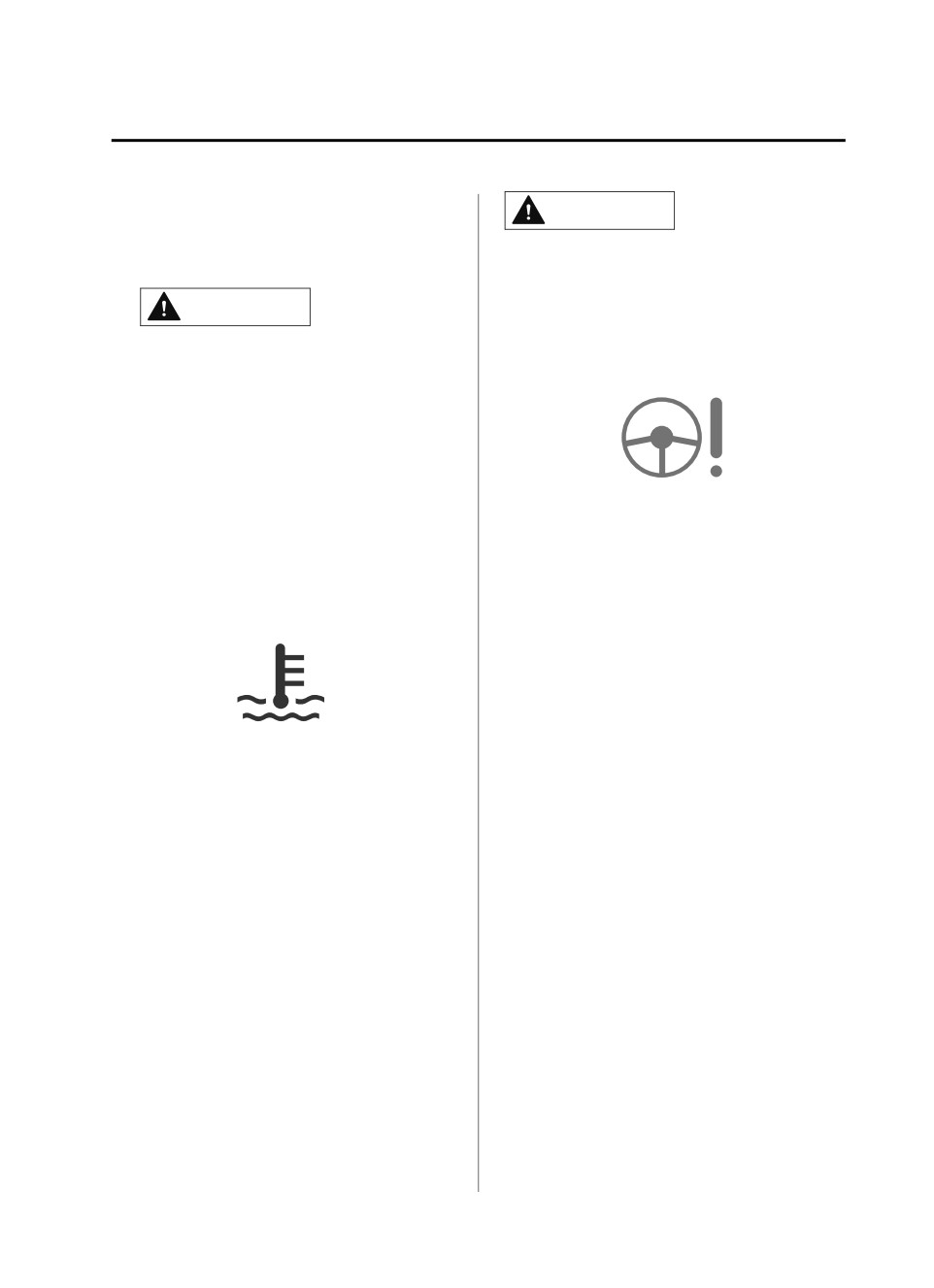

High Engine Coolant Temperature
problem if the indication turns off
Warning Indication
when the engine is restarted after
some time has passed. If the indication
displays even after the engine is
restarted, contact an Authorized
Mazda Dealer if the message is
displayed continuously.
Displays if the engine coolant
temperature has increased excessively.
NOTE
“Elevated Engine Coolant Temp. Drive
If the message is displayed, the
Slowly” displayed
power steering will not operate
normally. In this case, the steering
Drive slowly to reduce engine load
wheel can still be operated,
until you can find a safe place to stop
however, the operation may feel
the vehicle and wait for the engine to
heavy compared to normal, or the
cool down.
steering wheel could vibrate when
“Excessive Engine Coolant Temp. Stop
turning.
the Vehicle in a Safe Location”
Repeatedly jerking the steering
displayed
wheel left and right while the vehicle
is stopped or moving extremely
This indicates the possibility of
slowly will cause the power steering
overheating. Park the vehicle in a safe
system to go into protective mode
place immediately and stop the
which will make the steering feel
engine.
heavy, but this does not indicate a
Refer to Overheating on page 7-21.
problem. If this occurs, park the
vehicle safely and wait several
minutes for the system to return to
normal.
7-29
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

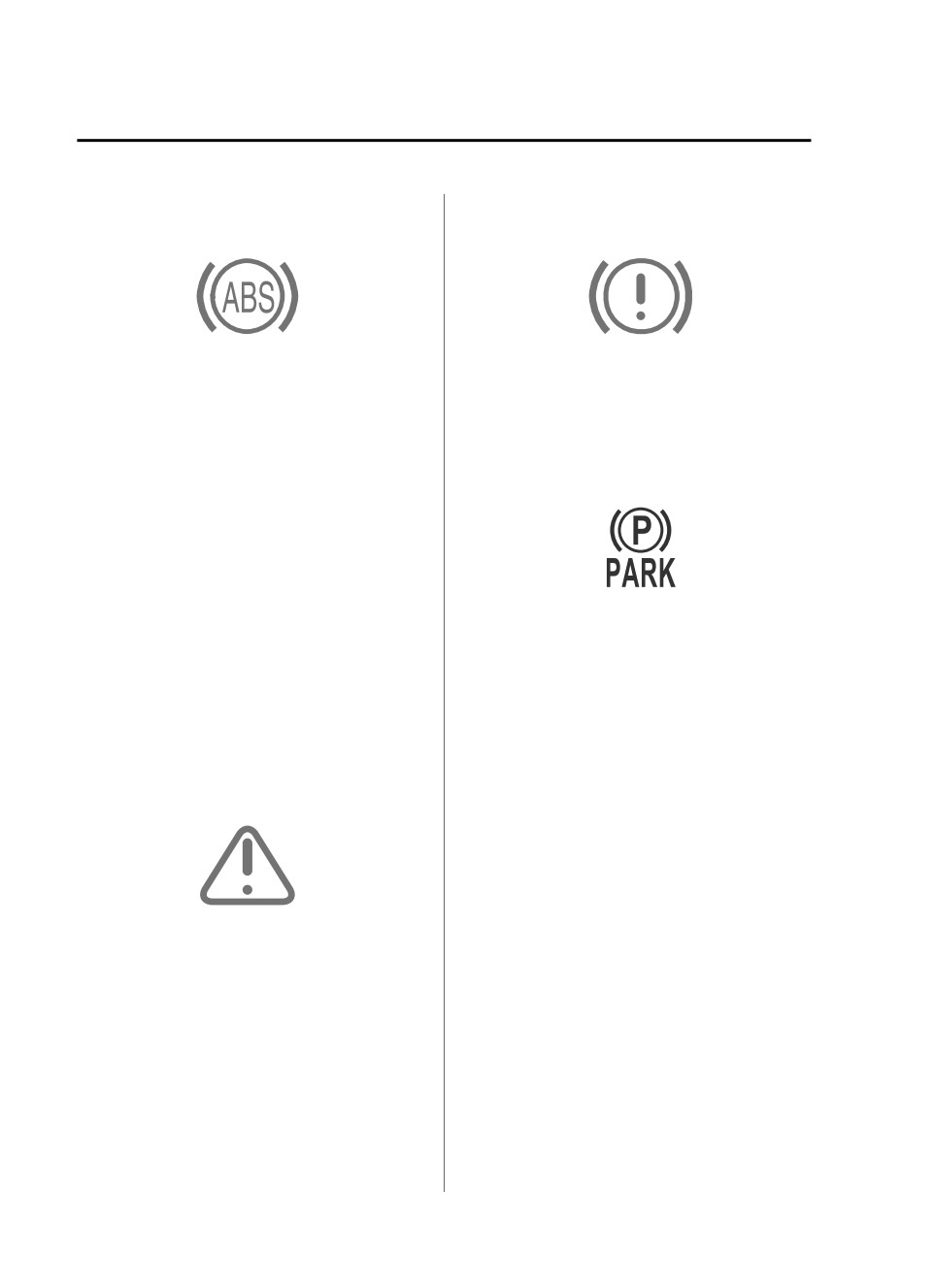

ABS Warning Indication/Warning
Brake Control System Warning
Light
Indication/Warning Light
If the ABS warning light stays on while
The warning light illuminates when the
you're driving, the ABS control unit has
system has a malfunction. Have your
detected a system malfunction. If this
vehicle inspected at an Authorized
occurs, your brakes will function
Mazda Dealer.
normally as if the vehicle had no ABS.
Electric Parking Brake (EPB)
Should this happen, consult an
Indication/Indicator Light
Authorized Mazda Dealer as soon as
possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm
occurs and the ABS warning light
This warning has the following
may illuminate. If this occurs, it is the
functions:
result of the weak battery and does
Parking brake warning/Indicator light
not indicate an ABS malfunction.
inspection
Recharge the battery.
The brake assist system does not
The light illuminates when the parking
operate while the ABS warning light
brake is applied with the ignition
is illuminated.
switched to START or ON. It turns off
when the parking brake is released.
Master Warning Indication
When the light is flashing
The light flashes if the Electric Parking
Brake (EPB) has a malfunction. If the
light remains flashing even if the
Electric Parking Brake (EPB) switch is
The indication displays if the system
operated, consult an Authorized
has a malfunction.
Mazda Dealer as soon as possible.
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-27.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

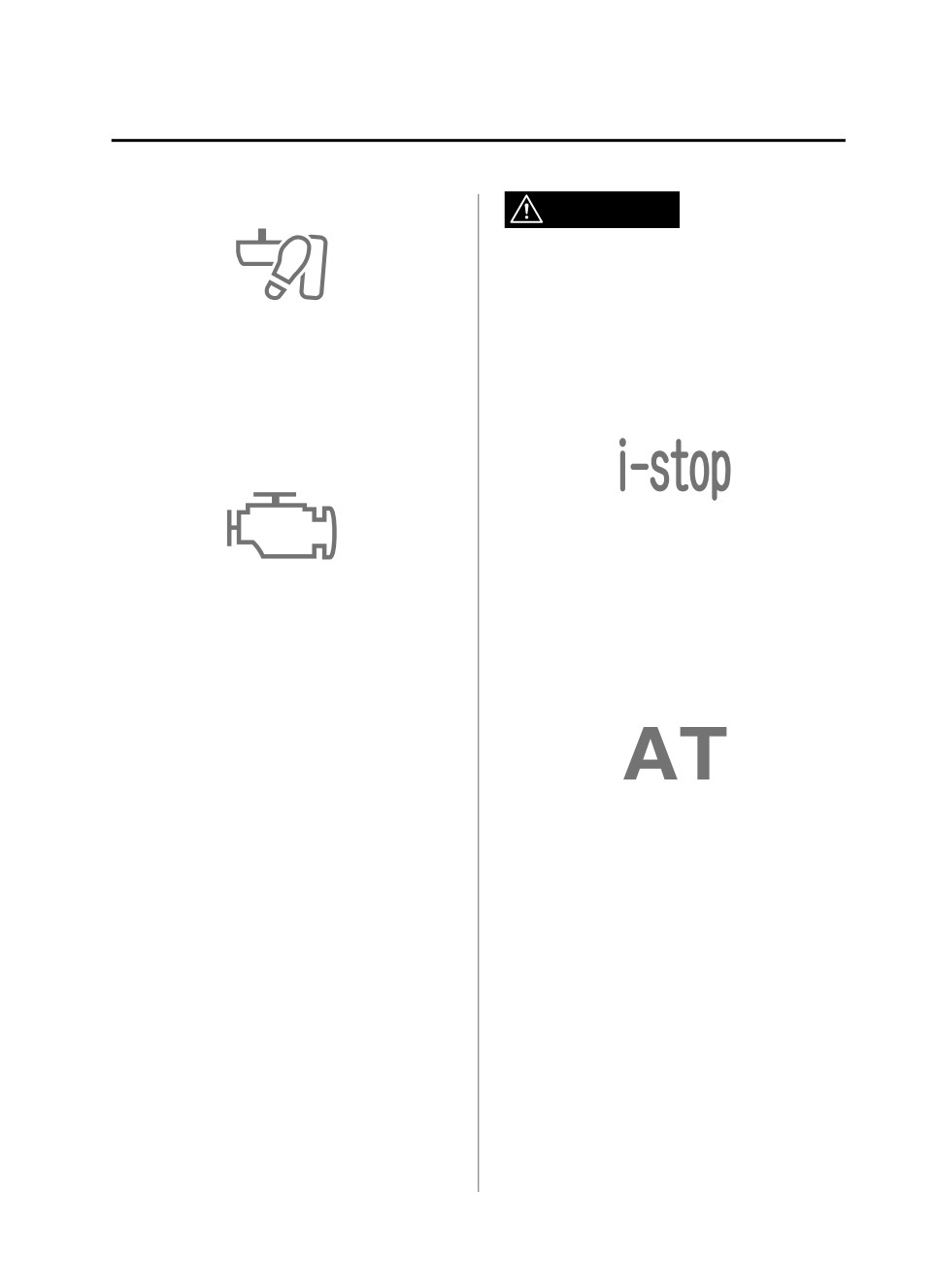

Brake Override Warning Indication
WARNING
If the check engine light turns on, do
not disconnect the battery cables.
If the battery cables are disconnected
This message is displayed when the
and then reconnected, the engine
accelerator pedal and brake pedal are
could be damaged and catch on fire.
depressed at the same time while
driving.
i-stop Warning Indication/
Release the accelerator pedal and
Warning Light (Amber)*
depress the brake pedal.
Check Engine Indication/Light
The light turns on/flashes
continuously if the system has a
If this light illuminates while driving,
problem.
the vehicle may have a problem. It is
Have the vehicle inspected by an
important to note the driving
Authorized Mazda Dealer.
conditions when the light illuminated
Automatic Transmission Warning
and consult an Authorized Mazda
Indication/Warning Light*
Dealer.
The check engine light may illuminate
in the following cases:
The engine's electrical system has a
problem.
The emission control system has a
The indication/light illuminates when
problem.
the transmission has a problem.
The fuel-filler cap is missing or not
tightened securely.
The fuel tank level being very low or
approaching empty.
If the check engine light remains on, or
it flashes continuously , do not drive at
high speeds and consult an Authorized
Mazda Dealer as soon as possible.
*Some models.
7-31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
When there is a large difference
CAUTION
between the front and rear wheel
If the automatic transmission warning
rotation, such as when trying to
indication/light illuminates, the
remove the vehicle from mud.
transmission has an electrical problem.
“Mismatched Tire Diameters. Vehicle
Continuing to drive your Mazda in this
Now in Front Wheel Drive” is
condition could cause damage to your
displayed/When the light is turned on
transmission. Consult an Authorized
Mazda Dealer as soon as possible.
The indication is displayed/the light
turns on under the following
AWD Warning Indication/
conditions. Inspect the tire sizes or tire
Warning Light*
pressures on all 4 wheels. Contact an
Authorized Mazda Dealer if the
indication remains on or the warning
light remains illuminated.
When any of the tire diameter is
different.
“AWD Malfunction. Front Wheel
When any of the tire pressure is
Drive Only. Have the Vehicle
incorrect.
Inspected” is displayed/When the
light is turned on
The indication is displayed/the light
turns on under the following
conditions. The system may have a
malfunction. Have the vehicle checked
at an Authorized Mazda Dealer.
When there is a malfunction in the
AWD system.
“Excessive AWD System Load. Drive
Slowly Until Warning Light Turns Off.
Vehicle Now in Front Wheel Drive” is
displayed/When the light is flashing
The indication is displayed/the light
flashes under the following conditions.
Park the vehicle in a safe place and
check that the warning indication light
turns off/ the warning light stops
flashing, and then drive the vehicle.
Contact an Authorized Mazda Dealer
if the indication is continuously
displayed.
When the differential oil temperature
is excessively high.
7-32
*Some models.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

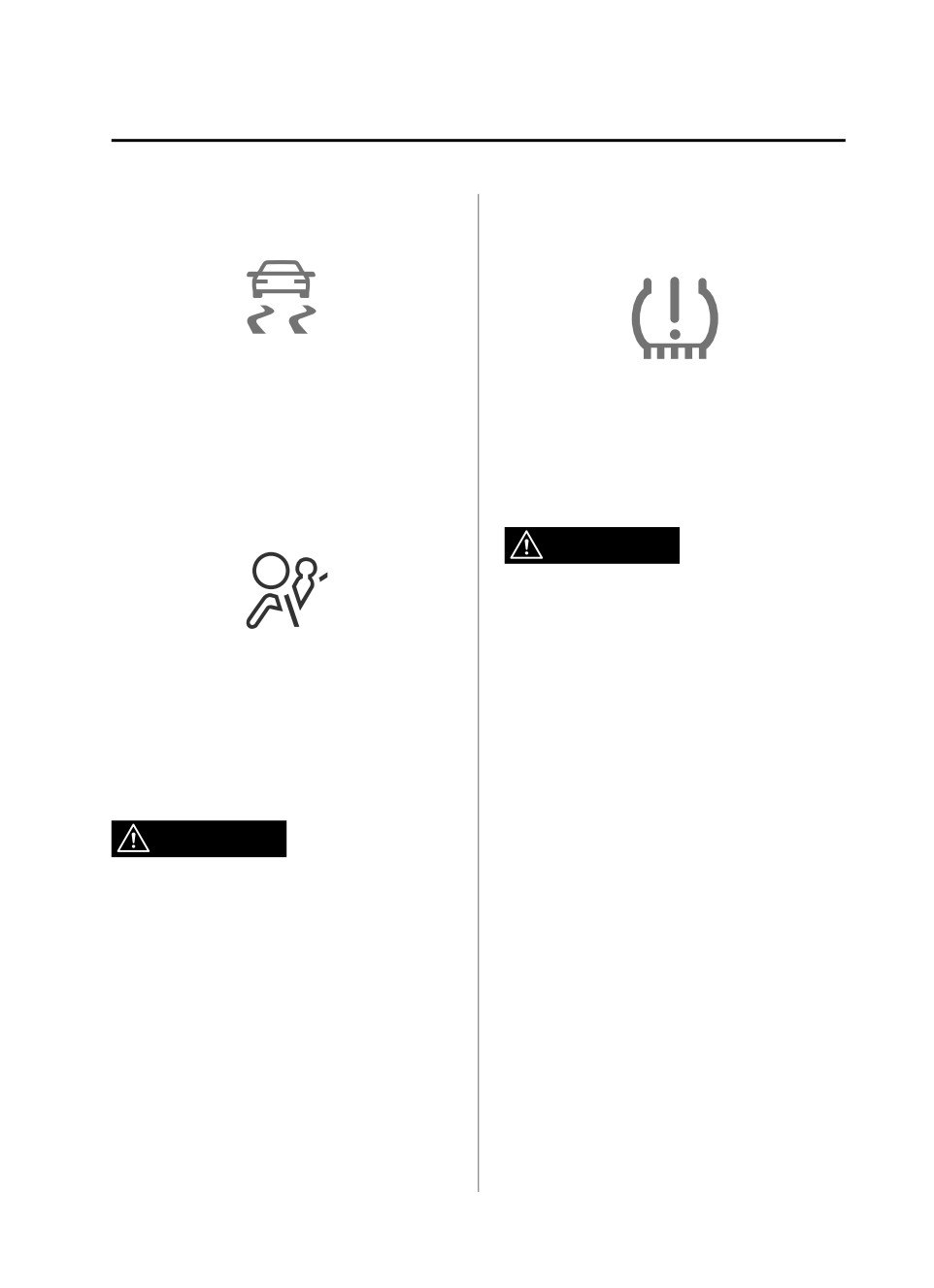

TCS/DSC Indication/Indicator
Tire Pressure Monitoring System
Light (Turns on)
(TPMS) Warning Indication/
Warning Light (Flashing)
If the light stays on, the TCS, DSC or
the brake assist system may have a
If there is a problem with the TPMS or
malfunction and they may not operate
the voltage of a tire pressure sensor
correctly. Take your vehicle to an
decreases, the TPMS warning light
Authorized Mazda Dealer.
flashes and a message is displayed on
the multi-information display. Have
Air Bag/Front Seat Belt
your vehicle inspected by an
Pretensioner System Warning
Authorized Mazda Dealer.
Indication/Warning Light
WARNING
Do not drive the vehicle at high
speeds if the TPMS warning light turns
on or flashes:
A system malfunction is indicated if the
Driving the vehicle at high speeds
warning light constantly flashes,
while the TPMS warning light is turned
constantly illuminates or does not
on or flashing is dangerous because
illuminate at all when the ignition is
the brake performance and the
switched ON. If any of these occur,
steering wheel operability will be
consult an Authorized Mazda Dealer
reduced. If the vehicle is driven at high
as soon as possible. The system may
speeds or the brakes are suddenly
not operate in an accident.
applied, it could lead to an accident.
Gradually apply the brakes to lower the
WARNING
vehicle's speed.
Never tamper with the air bag/
Do not ignore the TPMS warning light
pretensioner systems and always have
when it is turned on or flashing:
an Authorized Mazda Dealer perform
Continuing to drive the vehicle while
all servicing and repairs:
ignoring the illumination/flashing of
Self-servicing or tampering with the
the TPMS warning light is dangerous
systems is dangerous. An air bag/
because a tire may burst which could
pretensioner could accidentally
lead to an accident. Take appropriate
activate or become disabled causing
measures as soon as possible.
serious injury or death.
7-33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

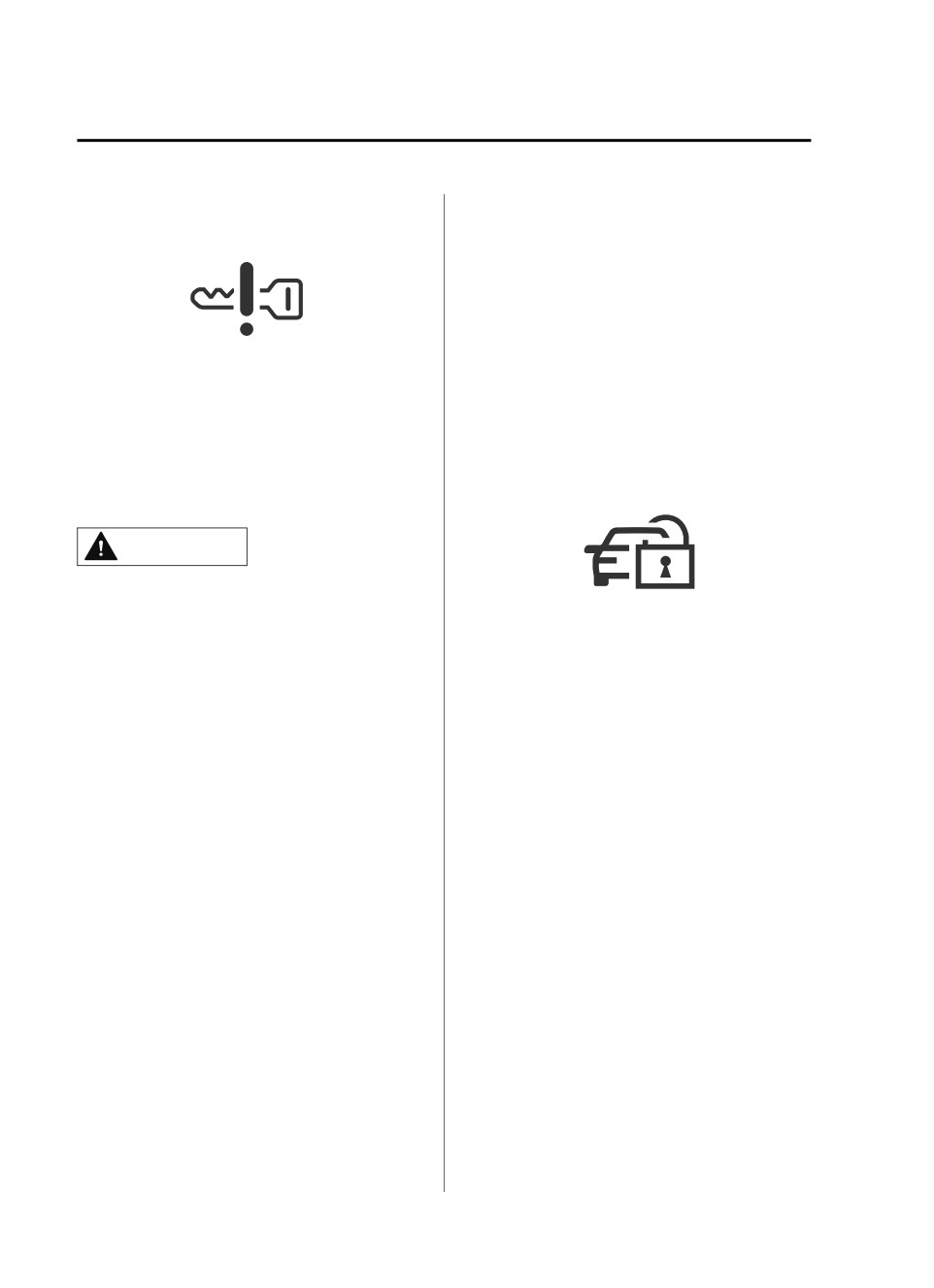

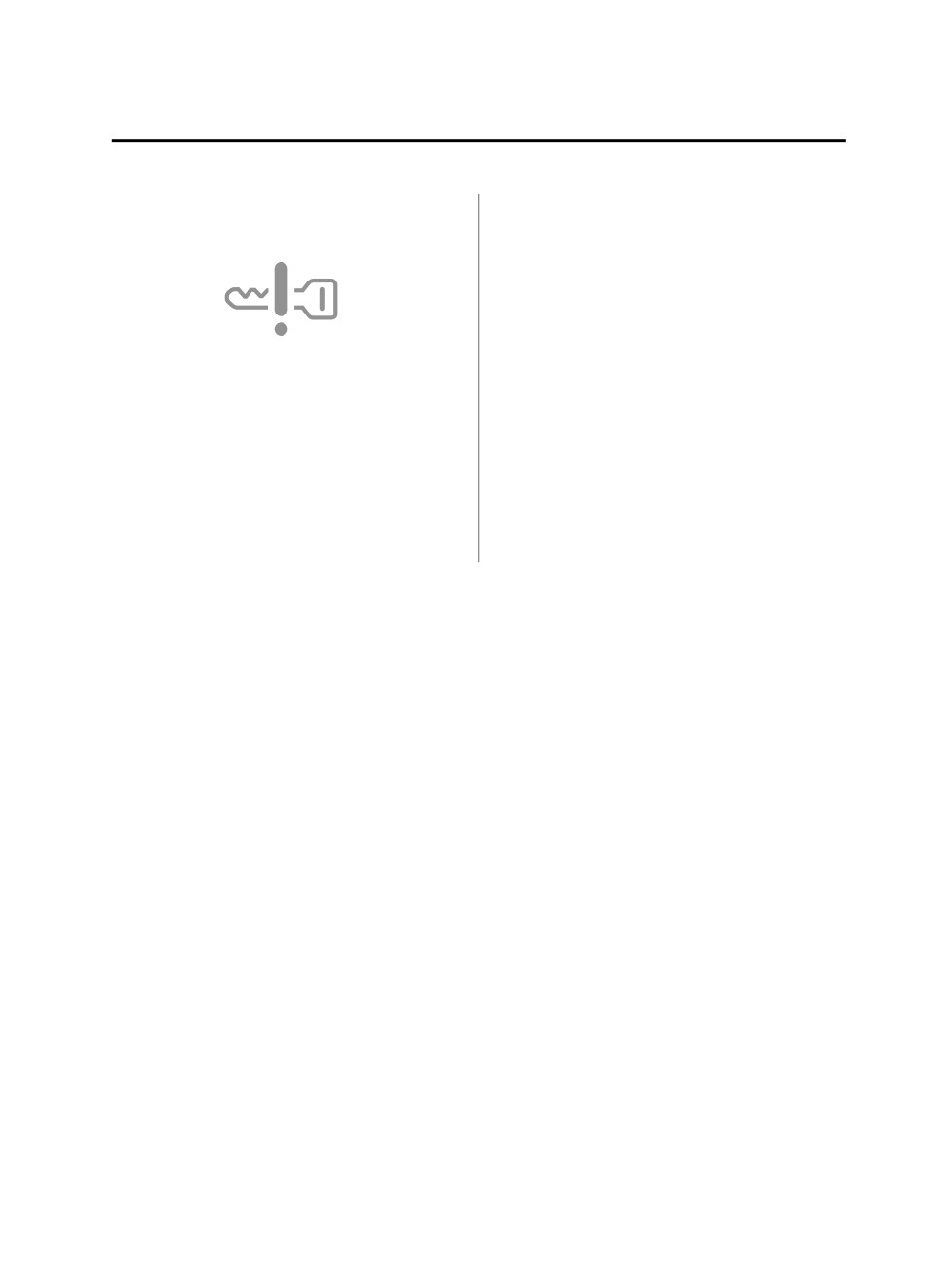

KEY Warning Indication/Warning
“Key Not Detected” is displayed
Light (Red)
If the presence of the key cannot be
detected (dead battery, battery
malfunction, no key), it is displayed
when the driver attempts to start the
engine (push button start operation,
brake pedal depression).
“Keyless Entry System Malfunction.
Displayed when it is determined that
a key that was in the vehicle has
Have the Vehicle Inspected” is
displayed
been removed from the vehicle. (Key
taken out warning. Other than
This message is displayed if the
IG-OFF).
advanced keyless entry & push button
start system has a problem.
Security Indicator Light
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push
button start indicator light (amber)
If the security indicator light flashes
flashes, the engine may not start. If the
continuously while you are driving, do
engine cannot be started, try starting it
not shut off the engine. Go to an
using the emergency operation for
Authorized Mazda Dealer and have it
starting the engine, and have the
checked. If the engine is shut off while
vehicle inspected at an Authorized
the indicator light is flashing, you will
Mazda Dealer as soon as possible.
not be able to restart it.
Refer to Emergency Operation for
Make sure the key is within the
Starting the Engine on page 4-9.
operational range for signal
transmission. Switch the ignition off,
and then restart the engine. If the
engine does not start after 3 or more
tries, contact an Authorized Mazda
Dealer.
NOTE
Because the electronic codes are reset
when the immobilizer system is
repaired, the keys are needed. Make
sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
7-34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

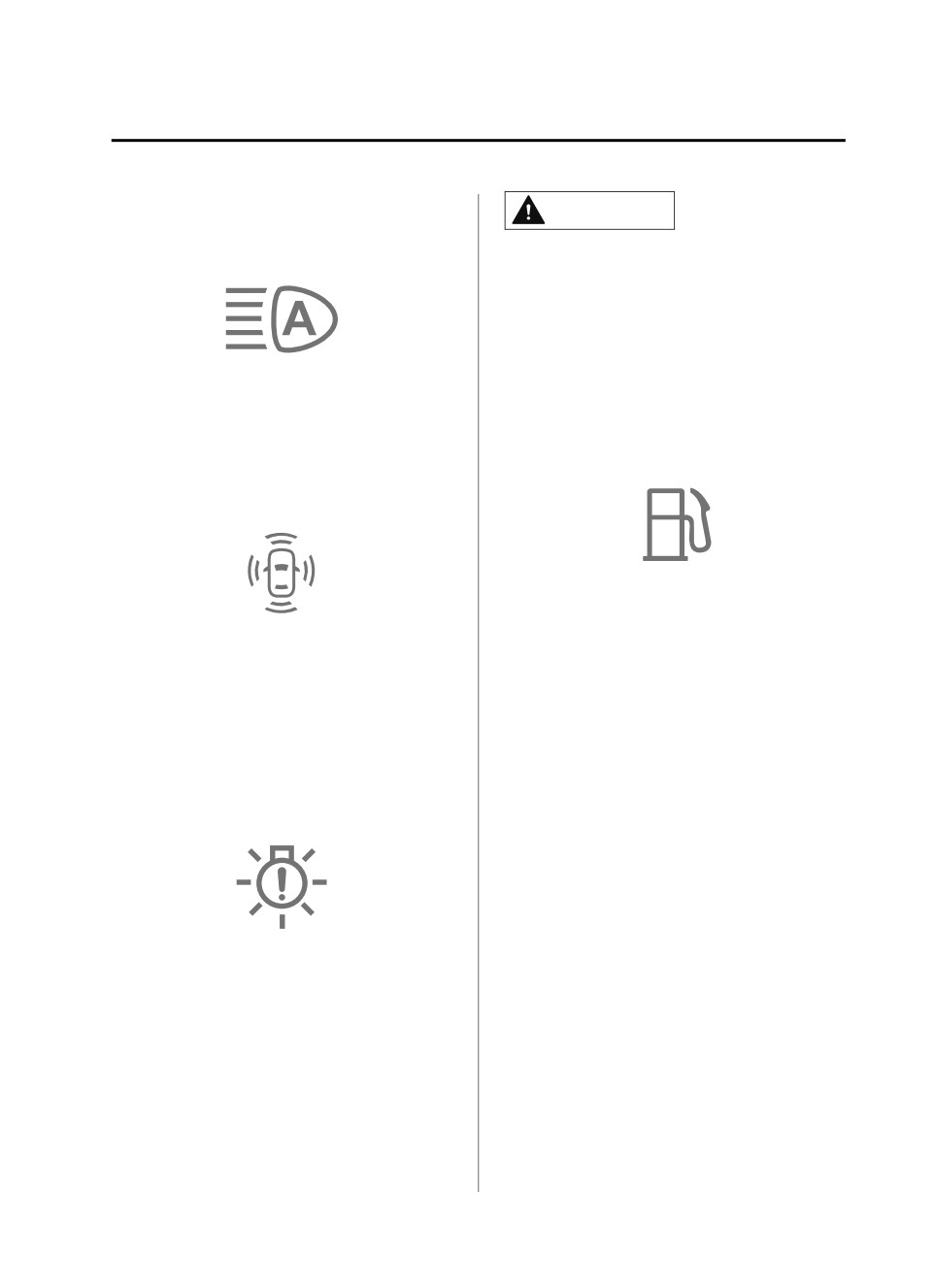

High Beam Control System (HBC)
CAUTION
Warning Indication/Warning Light
(Amber)*
Do not drive the vehicle while an
exterior light has a malfunction. Poor
visibility, and not being able to signal
braking and turns may cause an
accident. In addition, if the vehicle is
driven with the lights not turned on, it
The light remains turned on if there is a
may conflict with laws and regulations
due to poor maintenance.
problem with the system. Have your
vehicle inspected at an Authorized
Low Fuel Warning Indication/
Mazda Dealer.
Warning Light
i-ACTIVSENSE Warning
Indication/Warning Light*
The warning indication/warning light
displays/turns on when the ignition is
switched ON and the remaining fuel is
The indication displays if the system
about 9 L (2.3 US gal, 1.9 Imp gal) or
has a malfunction.
the remaining distance to empty is 50
Check the reason for the indication
km (31 miles) or shorter. The warning
displaying on the center display or
light flashes when the vehicle
multi-information display.
continues to be driven with the
Refer to If a Warning Light Turns On or
warning indication/warning light
Flashes on page 7-27.
displayed/turned on and the
Exterior Light Warning Indication/
remaining fuel in the tank is near
Warning Light
empty.
NOTE
The light illumination timing may vary
because fuel inside the fuel tank moves
around according to the driving
conditions and the vehicle posture.
This light illuminates if there is a
malfunction in the exterior lights
Action to be taken
(except license plate lights). Have your
Add fuel. If the light is flashing, refuel
vehicle inspected by an Authorized
as soon as possible.
Mazda Dealer.
*Some models.
7-35
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

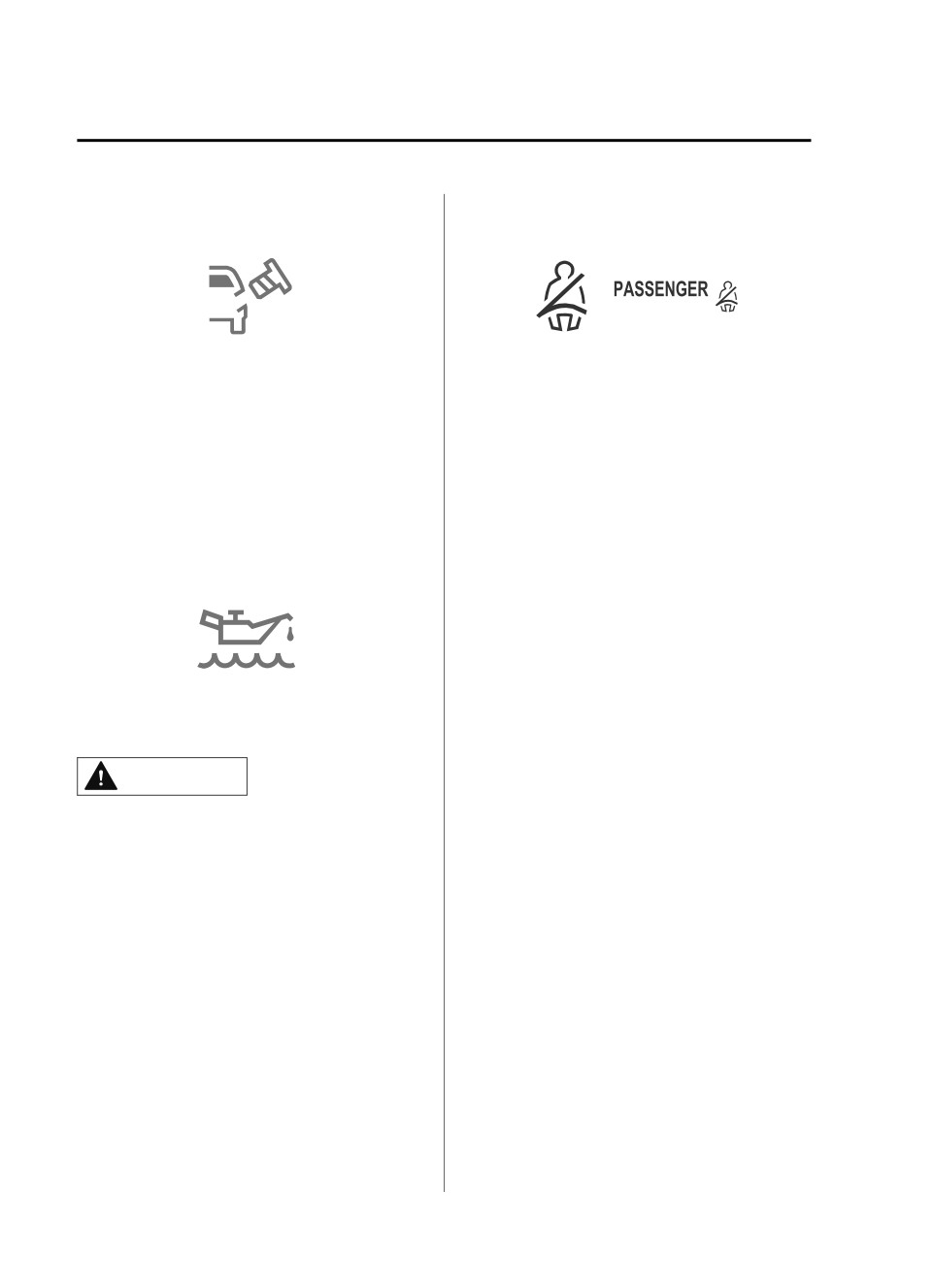

Check Fuel Cap Warning
Seat Belt Warning Indication/
Indication/Warning Light
Warning Light (Front seat)
If the check fuel cap warning light
The seat belt warning light turns on if
illuminates while driving, the fuel-filler
the driver or front passenger's seat is
cap may not be installed properly.
occupied and the seat belt is not
fastened with the ignition switched
Action to be taken
ON.
Stop the engine and reinstall the
If the driver or front passenger's seat
fuel-filler cap.
belt is unfastened (only when the front
Refer to Refueling on page 3-29.
passenger's seat is occupied) and if the
vehicle is driven at about 20 km/h (12
Engine Oil Level Warning
mph) or faster, or about 10 km/h (6
Indication/Warning Light
mph) or faster for a continuous 30
seconds, with the seat belt unfastened,
the warning light flashes for a certain
period. After a short time, the warning
light stops flashing, but remains
illuminated.
This warning light indicates that the
NOTE
engine oil level is around the MIN
mark (page 6-18).
The warning light flashes for about 6
seconds if the driver or front
CAUTION
passenger's seat is not fastened
when the ignition is switched ON.
Do not continue to drive the vehicle
(Except Mexico)
with the engine oil level warning
Placing heavy items on the front
indication/warning light displayed/
passenger's seat may cause the front
turned on. If the vehicle continues to
passenger's seat belt warning
be driven with an insufficient amount
function to operate depending on
of engine oil, it could cause damage to
the weight of the item.
the engine.
To allow the front passenger
Action to be taken
occupant classification sensor to
function properly, do not place and
Add 1 L (0.26 US gal, 0.22 Imp gal) of
sit on an additional seat cushion on
engine oil (page 6-16).
the front passenger's seat. The
sensor may not function properly
because the additional seat cushion
could cause sensor interference.
If a small child is seated on the front
passenger's seat, the warning light
may not operate.
7-36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Action to be taken
Door-Ajar/Trunk lid-Ajar/
Liftgate-Ajar Warning Indication/
Fasten the seat belts.
Warning Light

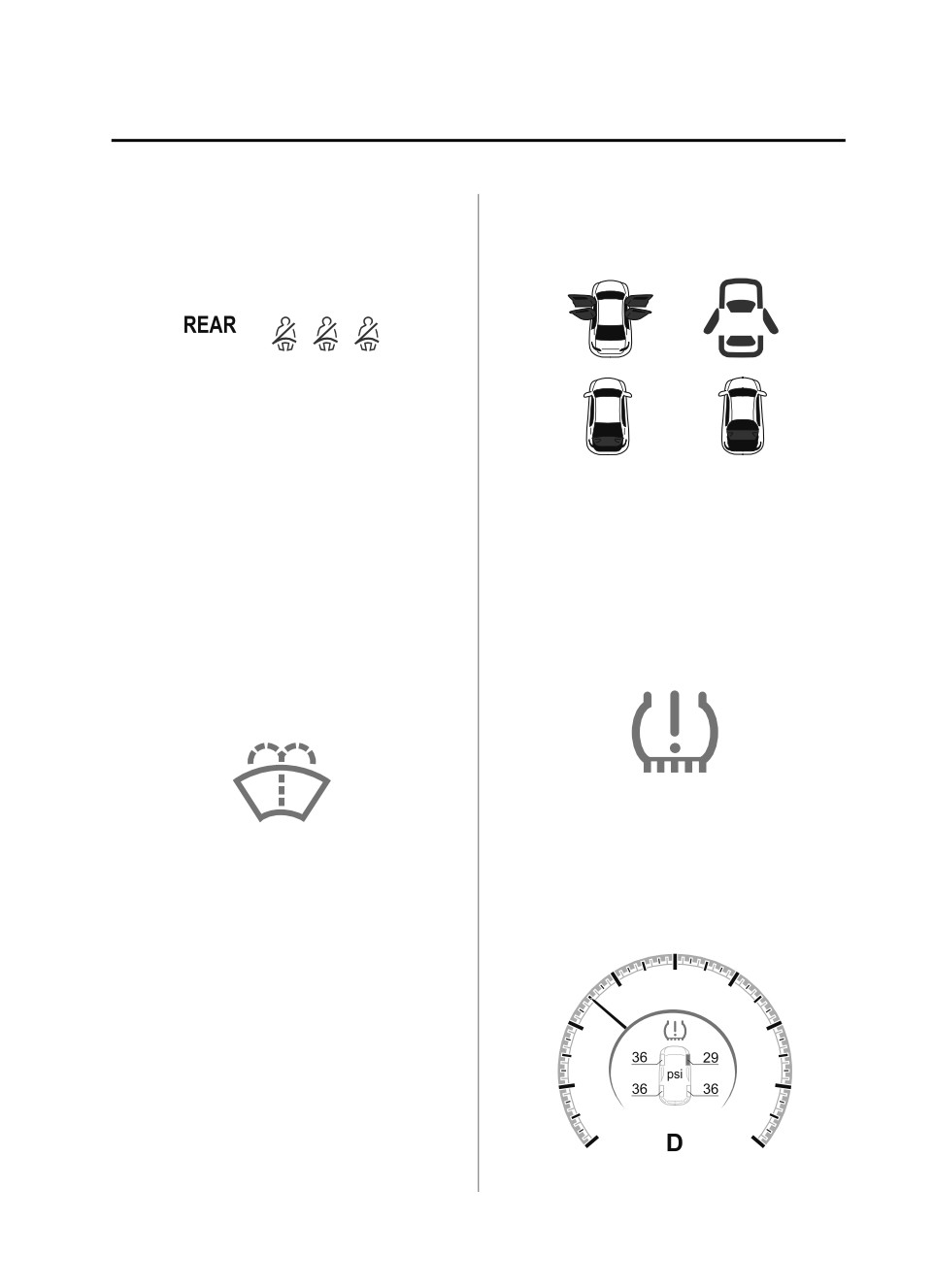

Seat Belt Warning Light (Rear seat)
(Red)
If the rear seat belts are not fastened
while the ignition is switched ON , the
driver and the passenger are alerted by
the warning light.
The warning light operates even if there
is no passenger on the rear seat.
The light turns on if any door/trunk
lid/liftgate is not closed securely.
NOTE
If a rear seat belt is not fastened by a
Action to be taken
certain period of time after the engine
Close the door/trunk lid/liftgate
has been started, the warning light
securely.
turns off.
Action to be taken
Tire Pressure Monitoring System
(TPMS) Warning Indication/
Fasten the seat belts.
Warning Light (Turns on)
Low Washer Fluid Level Warning
Indication/Warning Light*
If a tire pressure decreases below the
specified air pressure, the TPMS
warning light turns on.
This warning light indicates that little
At the same time, a message and the
washer fluid remains.
tire pressure of each tire are displayed
Action to be taken
on the multi-information display
alternately. In addition, the tire (s) with
Add washer fluid (page 6-21).
low air pressure is displayed in yellow.
*Some models.
7-37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
WARNING
CAUTION
¾ Adjust the tire pressures while the
Do not drive the vehicle at high
tires are cool. Because the air
speeds if the TPMS warning light turns
pressure in the tires fluctuates
on or flashes:
depending on the temperature,
Driving the vehicle at high speeds
before adjusting the tire pressures,
while the TPMS warning light is turned
let the vehicle sit for an hour or drive
on or flashing is dangerous because
it only within a 1.6 km (1 mile)
the brake performance and the
distance. If the tire pressures are
steering wheel operability will be
adjusted while the tires are warm,
reduced. If the vehicle is driven at high
the tire pressures may decrease
speeds or the brakes are suddenly
below the specified air pressure after
applied, it could lead to an accident.
cooling down which could turn on
Gradually apply the brakes to lower the
the warning light. In addition,
vehicle's speed.
because the air pressure in the tires
decreases when the ambient
Do not ignore the TPMS warning light
temperature is low, if the ambient
when it is turned on or flashing:
temperature increases, an
Continuing to drive the vehicle while
illuminated TPMS warning light may
ignoring the illumination/flashing of
turn off. Under any circumstances,
the TPMS warning light is dangerous
always adjust the tire pressures while
because a tire may burst which could
the tires are cool.
lead to an accident. Take appropriate
¾ After adjusting the tire pressures, the
measures as soon as possible.
TPMS warning light turns off. If the
TPMS warning light does not turn off,
NOTE
drive the vehicle at a speed of about
While the TPMS is learning the tire
25 km (16 mph) or faster for 3
positions, such as immediately after a
minutes or longer and make sure the
tire position has been changed, the tire
warning light turns off.
pressure at the tire position prior to it
being changed is displayed until the
If the TPMS warning light remains on
system completes the learning. For this
even after adjusting the tire pressures,
reason, the tire pressures displayed for
one of the tires may have a puncture.
the tire positions may be different from
the actual tire pressures at the tire
positions.
Action to be taken
Adjust the tire pressures to the
appropriate pressures.
Refer to Tire Inflation Pressure on page
6-33.
7-38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
KEY Indicator Light (Green)
(Flashing)
“Low Key Fob Battery. Replace
Battery” is displayed/When the light
is flashing
When the key battery is low, the
indication is displayed when the
ignition is switched OFF.
Action to be taken
Replace the key battery.
7-39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

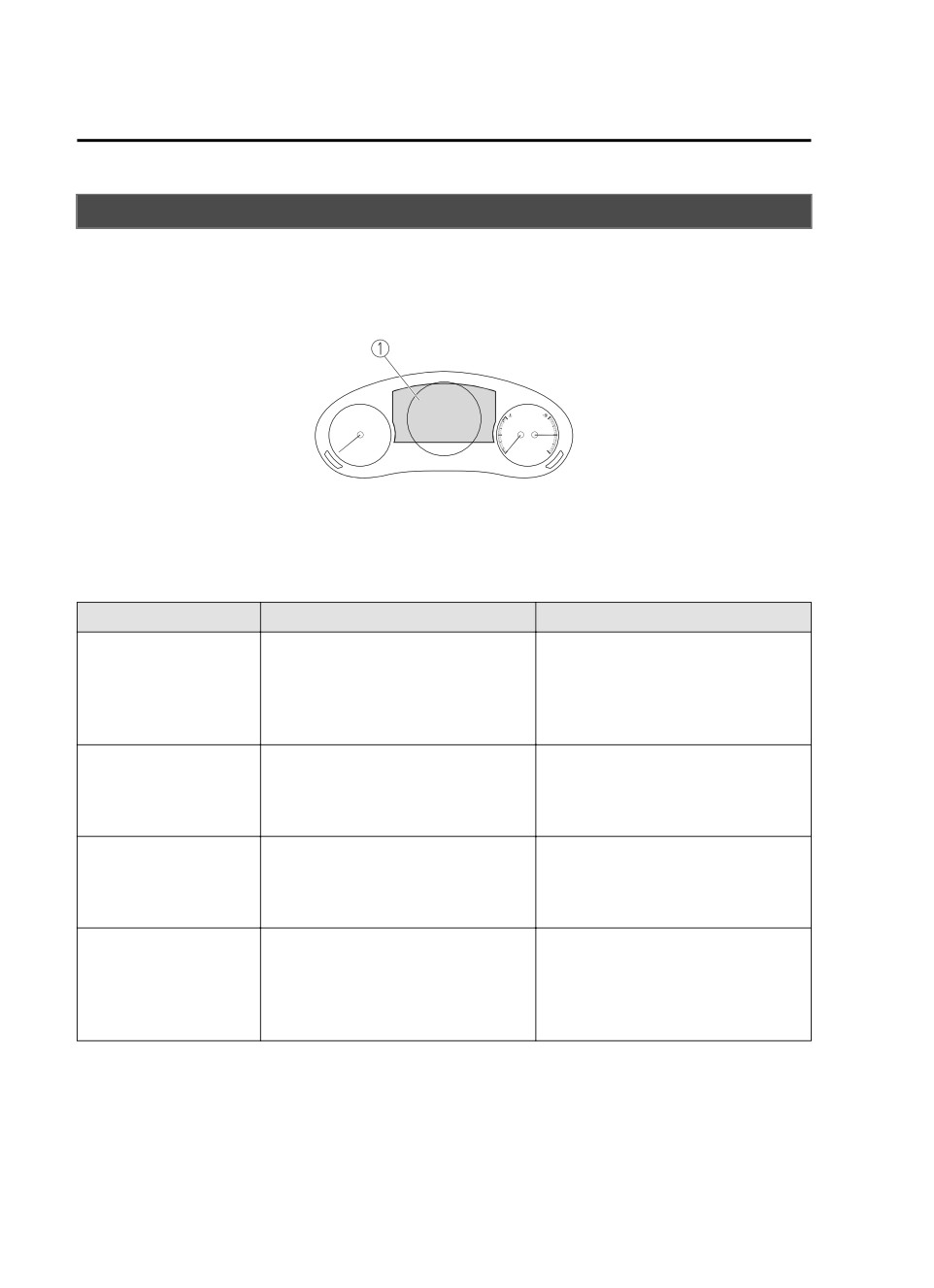

Message Indicated on Multi-information Display
Message Indicated on Multi-information Display
If there is a notification from the vehicle, a message is displayed on the
multi-information display. Check the information and take the necessary action.
1. Multi-information display
If the warning light turns on/flashes simultaneously or a symbol is indicated on the
display, check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-27.
Display*1*2*3
Content
Action to be taken
This message is indicated when there
Depress the brake pedal. Cancel the
is a problem with the brake related
Depress Brake Pedal.
AUTOHOLD function and have your
system while the vehicle is being held
Brake Hold Disabled
vehicle inspected at an Authorized
in a stop position by the AUTOHOLD
Mazda Dealer.
function.
This message indicates the possibility
Steep Slope. Continue
of the vehicle not being held in the
Depress and hold your foot on the
Pressing Brake Pedal to
stopped position by the AUTOHOLD
brake pedal.
Hold Stopped Position
function, such as on steep slopes.
This message is indicated when the
Depress Brake Pedal and
Operate the Electric Parking Brake
Electric Parking Brake (EPB) switch is
Operate Switch to Re-
(EPB) switch while depressing the
operated without depressing the
lease Elec. Parking Brake
brake pedal.
brake pedal.
This message is indicated when the
Depress Brake Pedal and
cancel operation is done without de-
Cancel the AUTOHOLD function stop
Operate Switch to Re-
pressing the brake pedal while the
hold control while depressing the
lease
vehicle is being held in the stopped
brake pedal.
position by the AUTOHOLD function.
7-40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Display*1*2*3
Content
Action to be taken
This message is indicated when the
Mazda Radar Cruise Control
Mazda Radar Cruise
(MRCC), Mazda Radar Cruise Con-
Have your vehicle inspected by an
Control Canceled. Drive
trol with Stop & Go function (MRCC
Authorized Mazda Dealer.
Safely
with Stop & Go function), and the
Traffic Jam Assist (TJA) have been can-
celed other than by the driver.
This message is indicated when the
Distance & Speed Alert
Distance & Speed Alert (DSA) have
Have your vehicle inspected by an
Operation Canceled
been canceled other than by the driv-
Authorized Mazda Dealer.
Drive Safely
er.
Cruise Control Opera-
This message is indicated when the
Have your vehicle inspected by an
tion Canceled. Drive
Cruise Control have been canceled
Authorized Mazda Dealer.
Safely
other than by the driver.
This message is indicated after the
Emergency Braking Acti-
Smart Brake Support (SBS) brakes op-
vated. Depress Brake
Depress the brake pedal.
erate and when the Smart Brake Sup-
Pedal to Hold Stop
port (SBS) is canceled.
Touch the key against push button
This message is indicated when the
Touch Key Fob to Push
start to start the engine.
key battery is weak (battery dead or
Button Start Switch
Refer to Engine Start Function When
damaged key).
Key Battery is Dead on page 4-8.
This message is indicated when the
When starting the engine, press the
Depress Brake Pedal to
push button start is pressed without
push button start with the brake ped-
Start Vehicle
depressing the brake pedal.
al depressed.
This message is indicated when the
Check Gear Selector
selector lever is shifted to the P or R
Check the selector lever position.
Lever Position
position while driving.
This message is indicated when AU-
Close Door and Fasten
TOHOLD is about to operate and a
When the AUTOHOLD is turned on,
Seat Belt
door is opened or a seat belt is unfas-
close the doors and fasten seat belts.
tened.
Wiper Blades Must Be
This message is indicated when the
Return the wiper arms to the initial
on Windshield Before
ignition is switched ON with the wip-
positions.
Operating
er arms at the service positions.
This message is indicated when there
Windshield Wiper Range
is snow or dirt accumulation on the
Remove foreign matter from the
of Motion Reduced. Re-
windshield and the wiper operation
windshield.
move Obstruction(s)
range is narrowed.
7-41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Display*1*2*3
Content
Action to be taken
This message is indicated when the
Vehicle Not Switched
Switch the ignition OFF before leaving
driver’s door is opened without
Off
the vehicle.
switching the ignition OFF.
Displays when the push button start
Gear Selector Lever Not
is pressed while the selector lever is
Shift the selector lever to the P posi-
in Park
in a position other than P, and the ig-
tion and then switch the ignition OFF.
nition is switched to ACC.
Excessive Transmission
This message is indicated when the
Drive slowly to reduce load on the
Temperature. Drive
internal temperature of the automatic
automatic transmission.
Slowly
transmission is high.
Excessive Transmission
This message is indicated when the
Park the vehicle in a safe place imme-
Temp. Stop Vehicle in a
automatic transmission fluid temper-
diately and contact an Authorized
Safe Location
ature is abnormally high.
Mazda Dealer.
This message is indicated when the
power consumption exceeds a cer-
There is no need to contact an Au-
tain amount such as by repeatedly
thorized Mazda Dealer. Drive the ve-
Battery Saving Mode.
opening/closing the doors or the lift-
hicle for 5 minutes or longer to
Drive Vehicle to Charge
gate when the ignition is switched
charge the battery. The warning mes-
Battery
OFF.
sage will clear just after starting the
Some of the functions are restricted
engine.
to reduce power consumption.
This message is indicated when the
Shift Into Park Before Ex-
driver’s door is opened with the shift
Close the driver’s door or shift the
iting Vehicle
lever in a position other than the P
shift lever to the P position.
position.
*1
A pop-up is displayed when a warning occurs.
*2
One screen displays four rows. If the entire message cannot be displayed on the screen, it switches to
another screen.
*3
The displayed content may differ from the actual vehicle.
7-42
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Warning Sound is
Front seat
Activated
Except Mexico
Lights-On Reminder
If the driver's seat belt is not fastened
The lights-on reminder is operable
when the ignition is switched ON, a
beep sound will be heard for about 6
when the time setting*1 of the auto
seconds. If the driver or the front
headlight off function is off.
passenger's seat belt is not fastened
If the ignition is switched OFF with the
and if the vehicle is driven at about 20
exterior lights turned on and the
km/h (12 mph) or faster, or about 10
driver’s door is opened, a sound is
km/h (6 mph) or faster for a
activated.
continuous 30 seconds, with the seat
Operate the headlight switch to turn
belt unfastened, a sound is activated
off the exterior lights.
continuously for a certain period.
*1
If the light switch is left on, the
Until a seat belt is fastened or a given
auto headlight off function
period of time has elapsed, the beep
automatically turns off the lights
sound will not stop even if the vehicle
about 30 seconds after switching
speed falls below 20 km/h (12 mph).
the ignition off. The time setting
can be changed.
NOTE
Refer to the Settings section in the
To allow the front passenger
Mazda Connect Owner's Manual.
occupant classification sensor to
NOTE
function properly, do not place and
sit on an additional seat cushion on
When the ignition is switched to
the front passenger's seat. The
ACC, the “Ignition Not Switched OFF
sensor may not function properly
(STOP) Warning Beep” (page 7-44)
because the additional seat cushion
overrides the lights-on reminder.
could cause sensor interference.
A personalized function is available
If a small child is seated on the front
to change the sound volume for the
passenger's seat, the warning beep
lights-on reminder.
may not operate.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
7-43
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mexico
Ignition Not Switched Off (STOP)
Warning Beep
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
If the driver's door is opened with the
passenger's seat belt unfastened, a
ignition switched to ACC, a beep will
warning beep sounds continuously. If
be heard continuously in the cabin to
the seat belt remains unfastened, the
notify the driver that the ignition has
beep sound stops once and then
not been switched OFF (STOP). Under
continues for about 90 seconds. The
this condition, the keyless entry system
beep stops after the driver or front
will not operate, the vehicle cannot be
passenger's seat belt is fastened.
locked, and the battery voltage will be
Until a seat belt is fastened or a given
depleted.
period of time has elapsed, the beep
sound will not stop even if the vehicle
Key Removed from Vehicle
Warning Beep
speed falls below 20 km/h (12 mph).
Vehicles with advanced keyless
NOTE
function
Placing heavy items on the front
passenger's seat may cause the front
If the key is taken out of the vehicle
passenger's seat belt warning
while the ignition is switched to ACC
function to operate depending on
or ON, and all the doors are closed, a
the weight of the item.
sound is activated 6 times outside of
To allow the front passenger seat
the vehicle and a sound is activated 1
weight sensor to function properly,
time in the vehicle.
do not place and sit on an additional
Vehicles without advanced keyless
seat cushion on the front passenger's
function
seat. The sensor may not function
properly because the additional seat
If the key is taken out of the vehicle
cushion could cause sensor
while the ignition is switched to ACC
interference.
or ON, and all the doors are closed, a
If a small child is seated on the front
sound is activated 1 time in the
passenger's seat, the warning beep
vehicle.
may not operate.
NOTE
Rear seat
Make sure that you leave the vehicle
while carrying the key, or switch the
The warning beep only sounds if a seat
ignition OFF.
belt is unfastened after being fastened.
7-44
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Touch Sensor Inoperable Warning
Key Left-in-luggage
Beep (With the advanced keyless
Compartment/Trunk Warning
function)
Beep (With the advanced keyless
function)
A warning beep is activated to notify
the driver that the doors are not locked
If the key is left in the luggage
when all of the following conditions
compartment/trunk with all the doors
are met:
locked and the liftgate/trunk lid
closed, a beep will be heard outside
The ignition is switched OFF.
for about 10 seconds to notify the
All the doors and liftgate are not fully
driver that the key is in the luggage
closed.
compartment/trunk. In this case, take
The lock is operated 3 times within 5
out the key by pressing the electric
seconds.
liftgate/trunk lid opener and opening
Check the ignition and whether the
the liftgate/trunk lid. The key taken out
doors and liftgate are open or closed,
of the luggage compartment/trunk
and then operate the lock again.
may not operate because its functions
have been temporarily stopped. To
Liftgate Door-lock Switch
restore the key's functions, perform
Inoperable Warning Beep*
the applicable procedure (page 3-8).
When the door-lock switch on the
Key Left-in-vehicle Warning Beep
liftgate is pressed under any of the
(With the advanced keyless
following conditions, a warning sound
function)
is activated.
If all the doors and luggage
The ignition is switched to a position
compartment/trunk are locked using
other than OFF.
another key while the key is left in the
Any door is open.
cabin, the beep which sounds outside
Make sure that none of the above
of the vehicle will be heard for about
conditions are present, and then press
10 seconds to notify the driver that the
the door-lock switch again.
key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this
method may not operate because its
functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure
(page 3-8).
*Some models.
7-45
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Low Fuel Warning Beep
that engine idling is stopped. It stops
when the driver's door is closed.
When the low fuel warning light
flashes, a warning beep is activated
Electric Parking Brake (EPB)
once at the same time.
Warning Beep
Brake System Warning Beep (With
The warning buzzer is activated under
M Hybrid)
the following conditions:
A warning beep is activated if a
The vehicle is driven with the parking
problem with the brake system occurs
brake applied.
and the brakes may not work as
The Electric Parking Brake (EPB)
intended. Decelerate the vehicle while
switch is pulled while the vehicle is
checking the safety of the surrounding
driven.
area, and park the vehicle in a safe
You attempt to start driving the
place. After stopping the vehicle,
vehicle while the conditions for
contact an Authorized Mazda Dealer.
releasing the Electric Parking Brake
(EPB) automatically have not been
Brake Override Warning Beep
met.
A warning beep is activated when the
accelerator pedal and brake pedal are
depressed at the same time while
driving. Only depress the brake pedal.
Shift Position Warning Beep
A sound is activated when the push
button start is pressed while the
selector lever is in a position other
than P, and the ignition is switched to
ACC. Check the selector lever
position.
Selector Lever Not In P or N
Reminder Warning Beep (With M
Hybrid)
A warning beep is activated
continuously if the driver's door is
opened with the selector lever in a
position other than the P or N position
when the engine is running. Shift the
selector lever to the P or N position, or
close the driver's door.
i-stop Warning Beep*
If the driver's door is opened while
engine idling is stopped, the warning
sound operates to notify the driver
7-46
*Some models.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
AUTOHOLD Warning Beep
Blind Spot Monitoring (BSM)
System Warning Beep*
Warning light flashes/message is
displayed and beep sound is activated
The Blind Spot Monitoring (BSM)
simultaneously for about 5 seconds
warning beep operates when the turn
when using AUTOHOLD function or
signal lever is operated to the side
when AUTOHOLD switch is operated.
where the Blind Spot Monitoring
Because a problem with AUTOHOLD
(BSM) warning light is illuminated.
function has occurred, AUTOHOLD
Front Cross Traffic Alert (FCTA)
function does not operate even if
Warning Beep*
AUTOHOLD switch is operated.
The Front Cross Traffic Alert (FCTA)
If the warning light flashes/message is
warning beep is activated if there is a
displayed and the beep sound is
possibility of collision with a vehicle
activated simultaneously, have your
approaching from the front on the left
vehicle inspected at an Authorized
and right sides of the vehicle.
Mazda Dealer.
Rear Cross Traffic Alert (RCTA)
Vehicle Problem Warning Beep
Warning Beep*
If any of the following problems occur,
The Rear Cross Traffic Alert (RCTA)
a warning beep is activated. Check the
warning beep is activated if there is a
information regarding the warning
possibility of collision with a vehicle
indication in the instrument cluster or
approaching from the rear on the left
on the center display.
and right sides of the vehicle.
Automatic transmission problem
Lane Departure Warning Sound*
Increase in automatic transmission
internal temperature
While the system is operating, if the
M Hybrid problem
system determines that the vehicle may
Brake fluid amount decrease
depart from the lane, it sounds a
Engine oil level sensor problem
warning sound.
Electric Parking Brake (EPB) problem
NOTE
Engine hydraulic pressure decrease
The volume of the Lane Departure
Engine coolant temperature increase
Warning System (LDWS) warning
Engine system problem
sound can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
*Some models.
7-47















Content      ..     15      16      17      18     ..
