Maintenance and Care
Scheduled Maintenance
T: Tighten
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2
If you drive your vehicle under any of the following conditions, replace the engine oil & filter every
8,000 km (5,000 miles) or 6 months, whichever comes first.
1. The vehicle is idled for long periods or driven at low speeds, such as with police cars, taxis, or
driver's education school vehicles.
2. Driving under dusty conditions.
3. Driving for long periods in cold temperatures or driving regularly for short distances only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
*3
Also inspect the air conditioner drive belts, if equipped.
If the vehicle is operated primarily under any of the following conditions, inspect the drive belts more
often than the recommended intervals.
a) Driving under dusty conditions.
b) The vehicle is idled for long periods or driven at low speeds.
c) Driving for long periods in cold temperatures or driving regularly for short distances only.
d) Driving under extremely high temperature conditions.
e) Driving continuously in mountainous regions.
f) Driving for long period in extremely wet or heavy rain condition.
*4
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22
may cause serious damage to the engine and cooling system.
*5
According to state/provincial and federal regulations, failure to perform maintenance on these items
will not void your emissions warranties. However, Mazda recommends that all maintenance services
be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
*6
Inspect a spare tire if equipped.
*7
Check the tire repair fluid expiration date every year when performing the periodic maintenance.
Replace the tire repair fluid bottle with a new one before the expiration date.
Scheduled Maintenance (Mexico)
Vehicles utilizing the vehicle status monitor feature:
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come on before reaching the maximum interval
of 10,000 km, or 6 months (after the previous maintenance).
If you drive your vehicle under any of the following conditions, follow the Severe
Driving Scheduled Maintenance and replace the engine oil and filter every 5,000 km
or 3 months, whichever comes first.
Otherwise, follow the Normal Driving Scheduled Maintenance intervals.
1. The vehicle is idled for long periods or driven at low speeds, such as with police
cars, taxis, or driver's education school car.
2. Driving under dusty conditions.
6-8
Maintenance and Care
Scheduled Maintenance
3. Driving for long periods in cold temperatures or driving regularly for short distan-
ces only.
4. Driving under extremely high temperature conditions.
5. Driving continuously in mountainous regions.
If you are following the Severe Driving Scheduled Maintenance (5,000 km or 3
months oil replacement interval), set the vehicle status monitor manually.
Refer to the Information section in the Mazda Connect Owner's Manual. Please
contact an Authorized Mazda Dealer if necessary.
Mexico Residents (Normal Driving Scheduled Maintenance):
Number of times, maintenance was performed.
Maintenance Item
1
2
3
4
5
6
7
8
Engine oil & filter*1
R
R
R
R
R
R
R
R
SKYACTIV-G
I
I
I
I
I
I
I
I
2.5T
Replace every 64,000 km
Spark plugs
Except SKY-
I
I
I
I
I
I
I
I
ACTIV-G
Replace every 120,000 km.
2.5T
Air filter
R
R
R
R
Drive belts
I
I
I
I
I
I
I
I
Engine coolant level
I
I
I
I
I
I
I
I
Replace at first 192,000 km or 120 months; after that,
Engine coolant*2
every 96,000 km or 60 months.
Fuel lines & hoses*3
I
I
Hoses and tubes for emission*3
I
I
Fuel filter
Replace every 60,000 km.
Brake lines, hoses and connections
I
I
I
I
Vacuum brake booster and
With vacuum
I
I
I
I
hose
booster
Brake and clutch fluid level
I
I
I
I
I
I
Brake fluid
R
R
Disc brakes
I
I
I
I
I
I
I
I

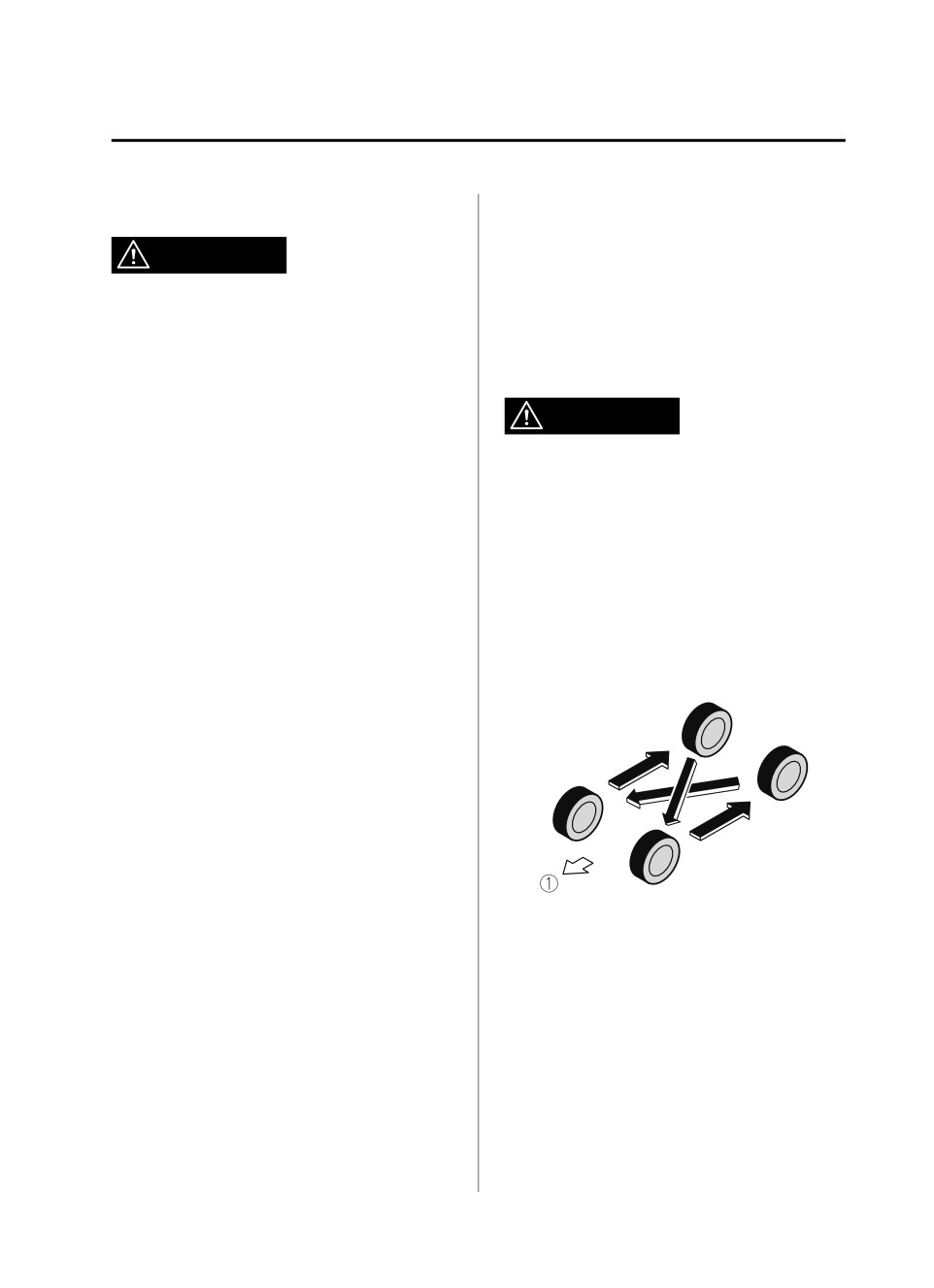

Tire rotation
Rotate every 10,000 km.
Tire inflation pressure and tire wear*4
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
I
I
Front and rear suspension, ball joints and
I
I
I
I
wheel bearing axial play
Driveshaft dust boot
I
I
I
I
6-9
Maintenance and Care
Scheduled Maintenance
Number of times, maintenance was performed.
Maintenance Item
1
2
3
4
5
6
7
8
Bolts and nuts on chassis and body
T
T
T
T
Exhaust system and heat shields
I
I
I
I
Emergency flat tire repair kit (if equipped)*5
Inspect annually.
Cabin air filter
Replace every 40,000 km or 24 months.
Function of all lights
I
I
I
I
I
I
I
I
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
T: Tighten
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22
may cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items
will not void your emissions warranties. However, Mazda recommends that all maintenance services
be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
*4
Inspect a spare tire if equipped.
*5
Check the tire repair fluid expiration date every year when performing the periodic maintenance.
Replace the tire repair fluid bottle with new one before the expiration date.
Mexico Residents (Severe Driving Scheduled Maintenance):
Number of months or kilometers , whichever comes first.
Months
3
6
9
12
15
18
21
24
× 1000 km
5
10
15
20
25
30
35
40
Engine oil & filter*1
R
R
R
R
R
R
R
R
Maintenance Interval (other than engine oil
1st
2nd
3rd
4th
& filter replacement)*2
Chart symbols:
R: Replace
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench
indicator light display.
*2
Follow Maintenance Interval listed in Normal Driving Scheduled Maintenance.
6-10
Maintenance and Care
Owner Maintenance
As explained in the Introduction (page
Owner Maintenance
6-2), several procedures can be done
Precautions
only by a qualified service technician
with special tools.
Owner Maintenance Precautions
Improper owner maintenance during
The owner or a qualified service
the warranty period may affect
technician should make these vehicle
warranty coverage. Refer to
inspections at the indicated intervals to
Introduction (page 6-2) for owner's
ensure safe and dependable
responsibility in protecting your
operation.
investment. For details, read the
separate Mazda Warranty statement
Bring any problem to the attention of
provided with the vehicle. If you are
an Authorized Mazda Dealer or
unsure about any servicing or
qualified service technician as soon as
maintenance procedure, have it done
possible.
by an Authorized Mazda Dealer.
When Refueling
There are strict environmental laws
Brake and clutch fluid level (page
regarding the disposal of waste oil and
6-20)
fluids. Please dispose of your waste
Engine coolant level (page 6-19)
properly and with due regard to the
Engine oil level (page 6-18)
environment.
Washer fluid level (page 6-21)
At Least Monthly
We recommend that you entrust the oil
and fluid changes of your vehicle to an
Tire inflation pressures (page 6-33)
Authorized Mazda Dealer.
At Least Twice a Year (For Example,
Every Spring and Fall)
WARNING
You can do the following scheduled
Do not perform maintenance work if
maintenance items if you have some
you lack sufficient knowledge and
mechanical ability and a few basic
experience or the proper tools and
tools and if you closely follow the
equipment to do the work. Have
directions in this manual.
maintenance work done by a
Engine coolant (page 6-19)
qualified technician:
Engine oil (page 6-18)
Performing maintenance work on a
vehicle is dangerous if not done
properly. You can be seriously injured
Improper or incomplete service may
while performing some maintenance
result in problems. This section gives
procedures.
instructions only for items that are easy
to perform.
6-11
Maintenance and Care
Owner Maintenance
If you must run the engine while

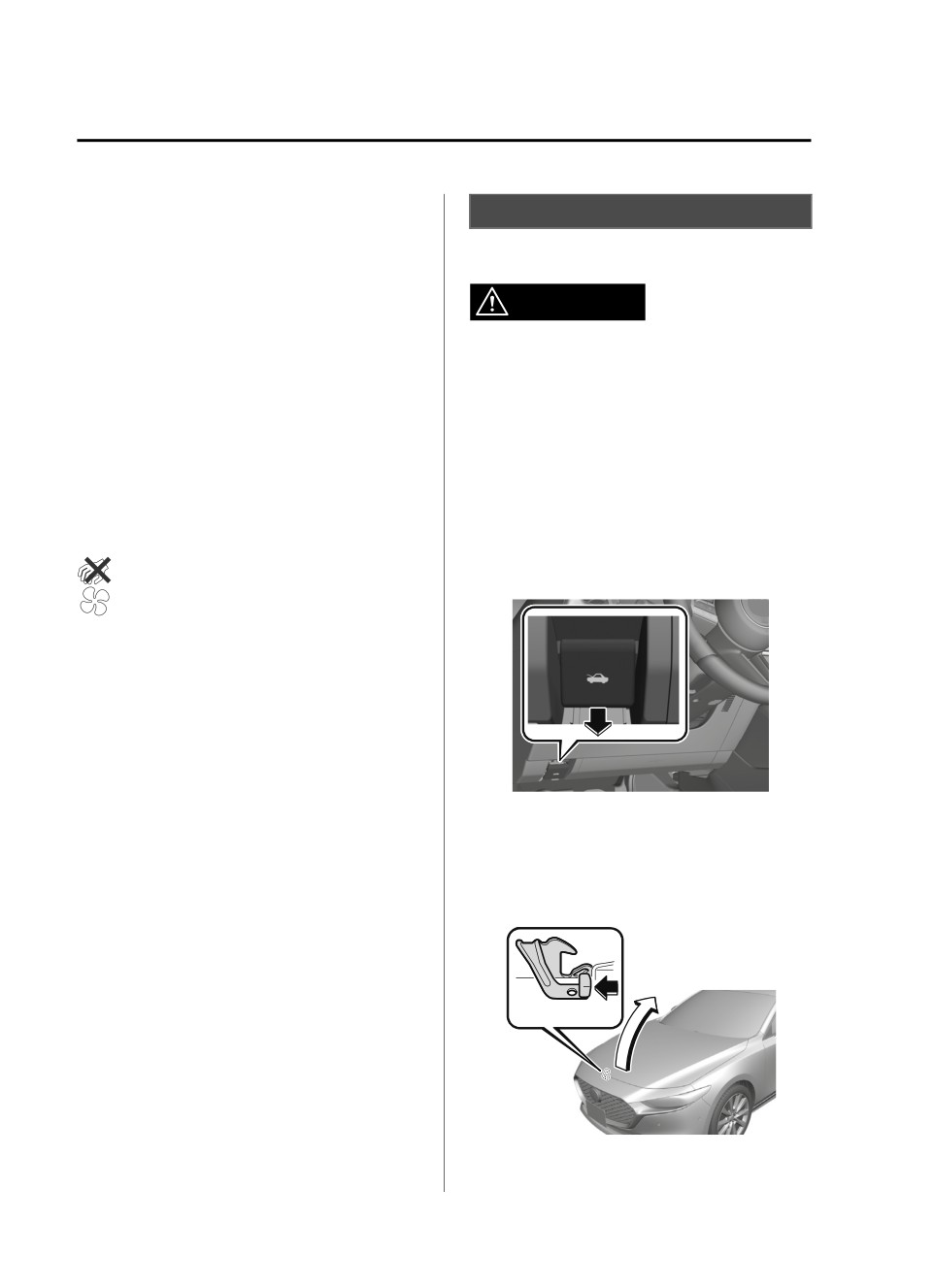

Hood
working under the hood, make
certain that you remove all jewelry
Hood
(especially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose clothing
WARNING
before getting near the engine or
cooling fan which may turn on
Always check that the hood is closed
unexpectedly:
and securely locked:
Working under the hood with the
A hood that is not closed and securely
engine running is dangerous. It
locked is dangerous as it could fly open
becomes even more dangerous when
while the vehicle is moving and block
you wear jewelry, loose clothing or
the driver's vision which could result in
have long hair or a long beard.
a serious accident.
Either can become entangled in

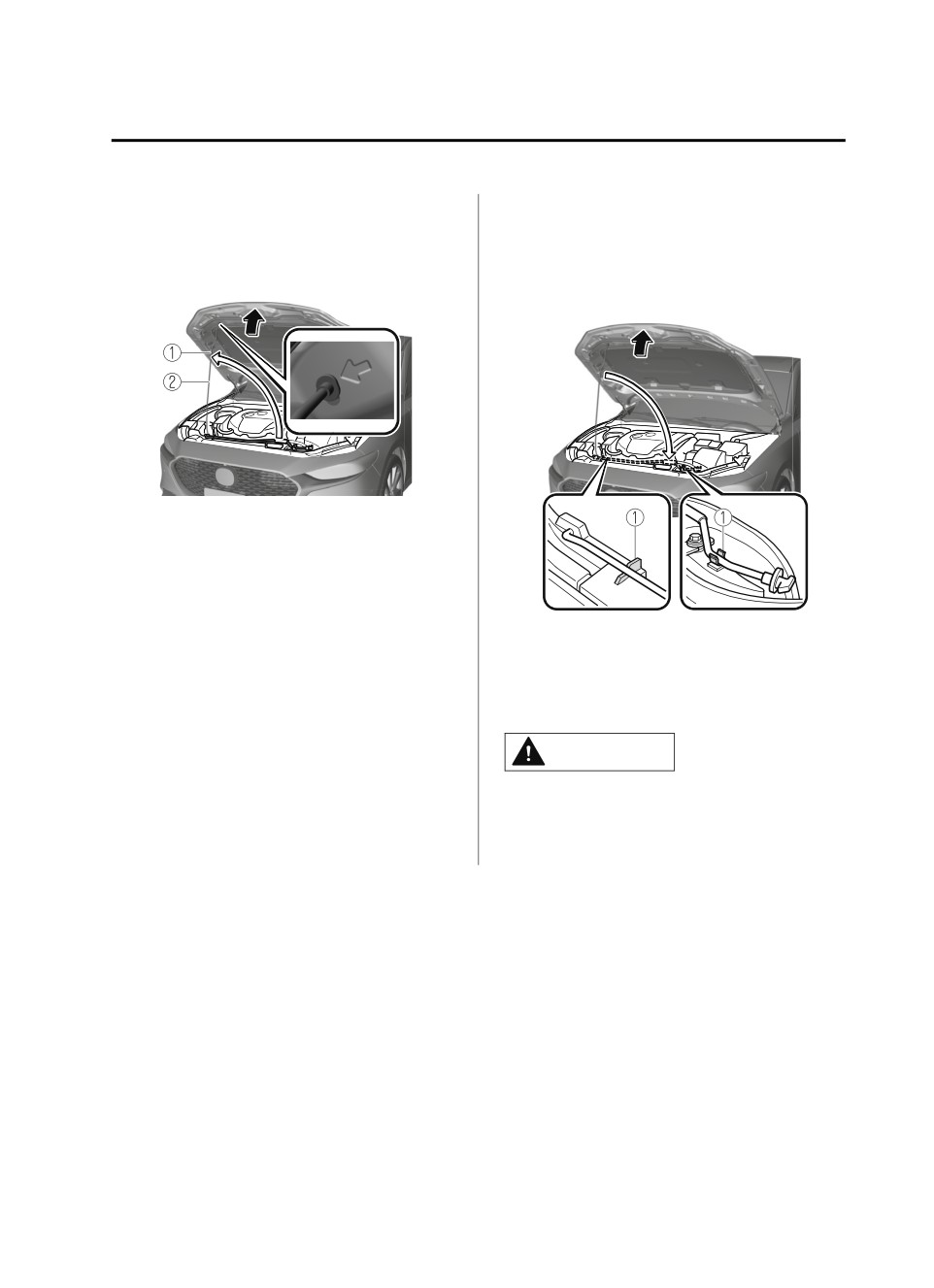

Opening the Hood
moving parts and result in injury.
1.
With the vehicle parked, pull the
release handle to unlock the hood.
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
2.
Insert your hand into the hood
could be hit by the fan and seriously
opening, slide the latch lever in the
injured.
direction of the arrow as shown in
the illustration, and lift up the
Do not leave items in the engine
hood.
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and leave
items such as tools or rags in the
engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
6-12
Maintenance and Care
Owner Maintenance
3. Grasp the support rod in the
2. Lift the hood, grasp the padded
padded area and secure it in the
area on the support rod, and secure
support rod hole indicated by the
the support rod in the clip. Verify
arrow to hold the hood open.
that the support rod is secured in
the clip before closing the hood.
1. Pad
2. Support rod
Closing the Hood
1. Check under the hood area to
make certain all filler caps are in
1. Clip
place and all loose items (e.g.
tools, oil containers, etc.) have
3. Lower the hood slowly to a height
been removed.
of about 20 cm (7.9 in) above its
closed position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
6-13
Maintenance and Care
Owner Maintenance

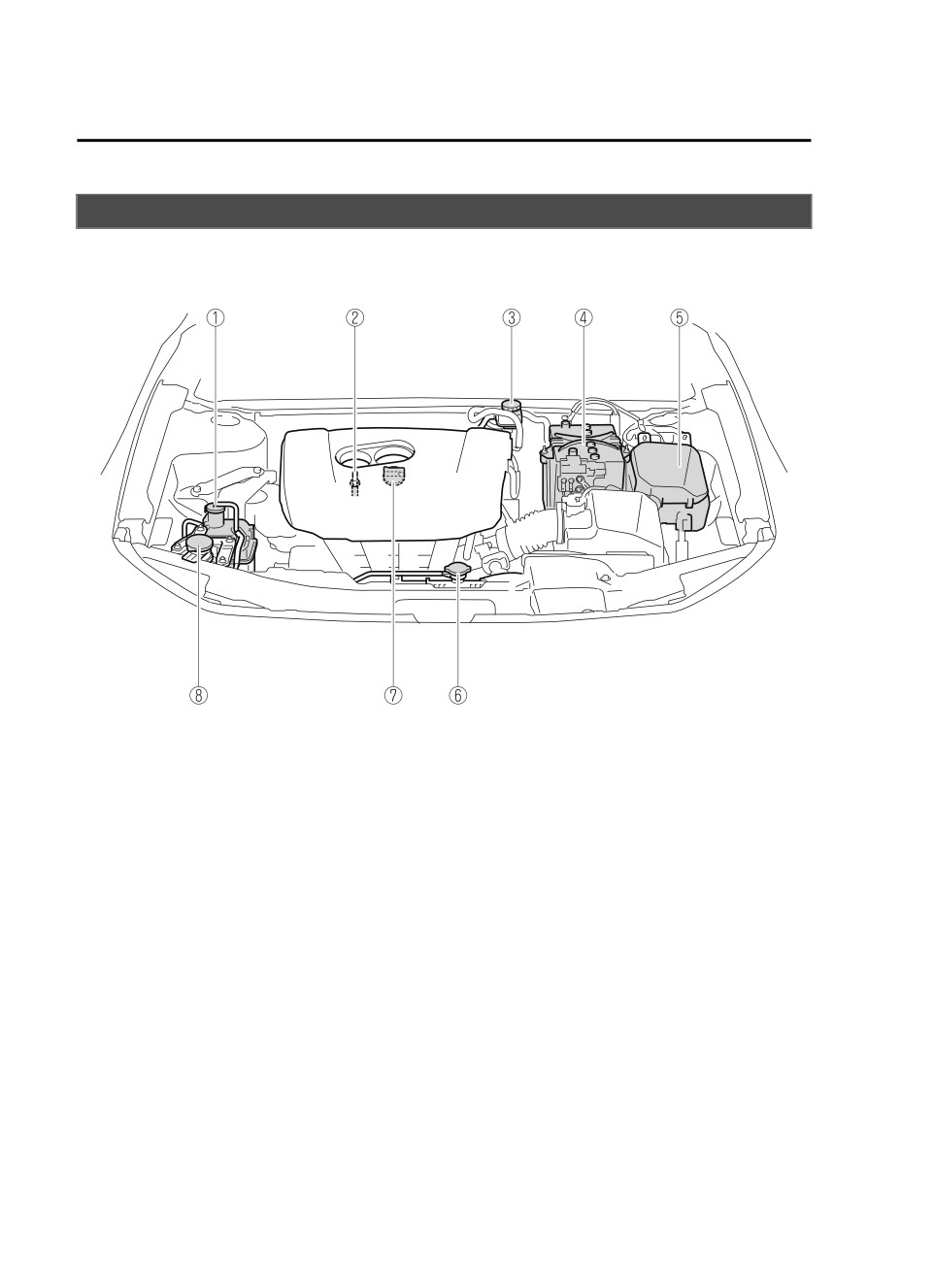

Engine Compartment Overview
Engine Compartment Overview
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake/Clutch fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
6-14
Maintenance and Care
Owner Maintenance

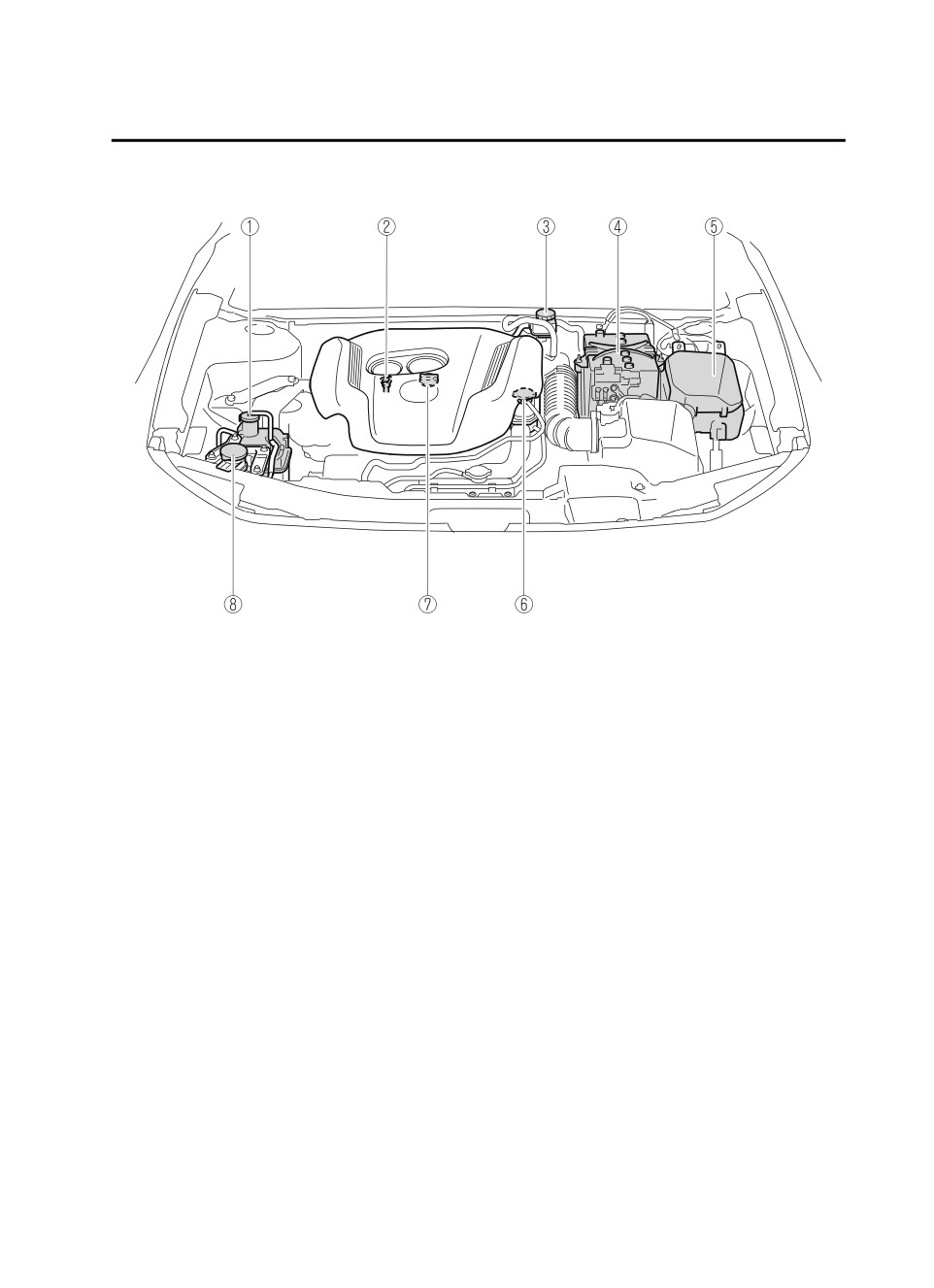

SKYACTIV-G 2.5T
1. Engine coolant reservoir
2. Engine oil dipstick
3. Brake fluid reservoir
4. Battery
5. Fuse block
6. Cooling system cap
7. Engine oil-filler cap
8. Windshield washer fluid reservoir
6-15
Maintenance and Care
Owner Maintenance

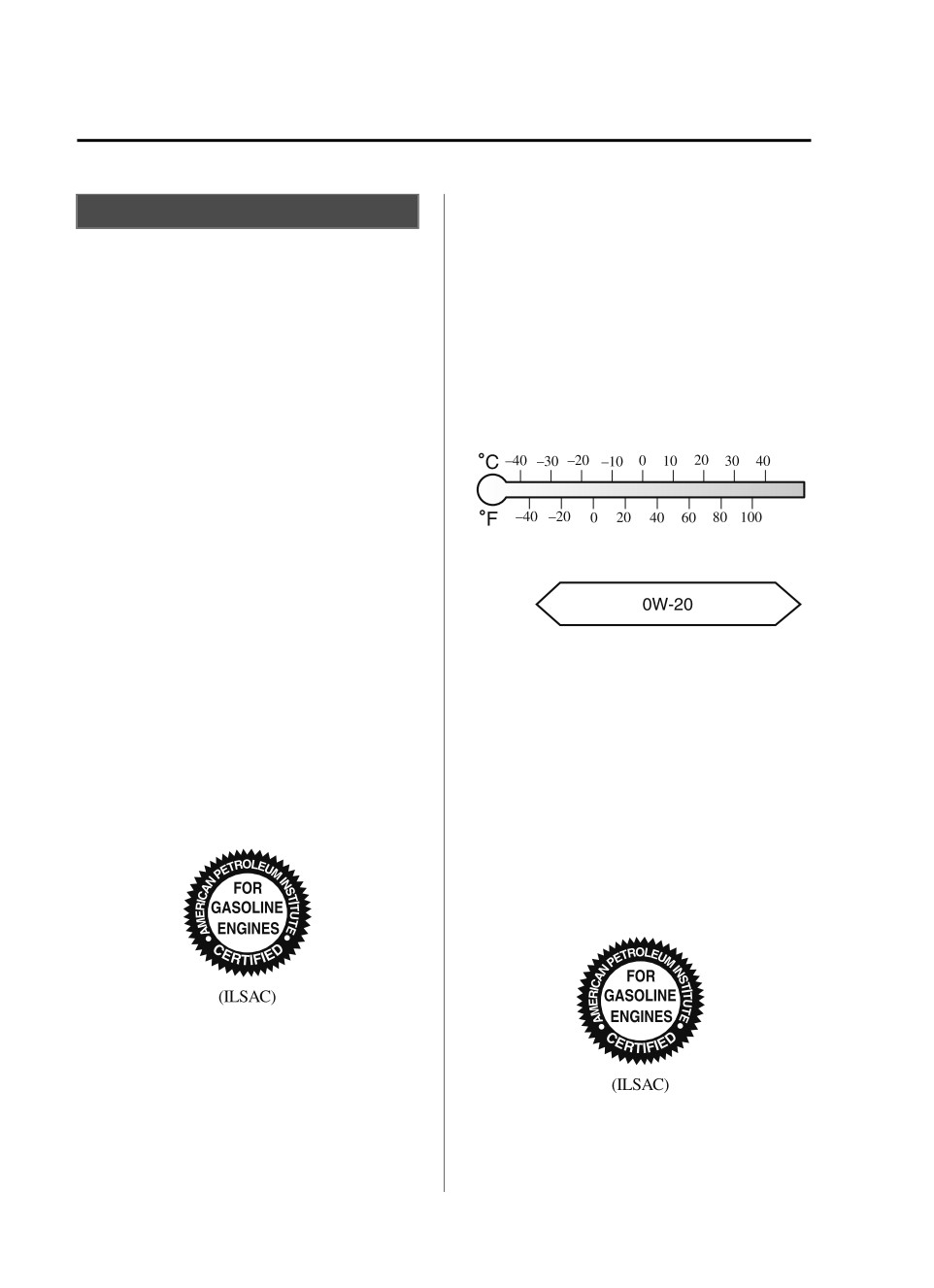

Only use SAE 0W-20 oil “Certified For
Engine Oil
Gasoline Engines” by the American
Petroleum Institute (API).
Engine Oil
Oil with this trademark symbol
conforms to the current engine and
NOTE
emission system protection standards
Changing the engine oil should be
and fuel economy requirements of the
performed by an Authorized Mazda
International Lubricant Standardization
Dealer.
and Approval Committee (ILSAC),
Refer to Introduction on page 6-2 for
comprised of U.S. and Japanese
owner's responsibility in protecting
automobile manufacturers.
your investment.
Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
Use ILSAC GF-V or higher/ SAE
0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine
SKYACTIV-G 2.5T
0W-20 Oil is required to achieve
optimum fuel economy.
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your
For maintenance service, Mazda
Mazda vehicle. Mazda Genuine
recommends Genuine Mazda Parts
5W-30 Oil is required to achieve
and Genuine Mazda Premium Oil.
optimum fuel economy.
For maintenance service, Mazda
recommends Genuine Mazda Parts
and Genuine Mazda Premium Oil.
6-16
Maintenance and Care
Owner Maintenance

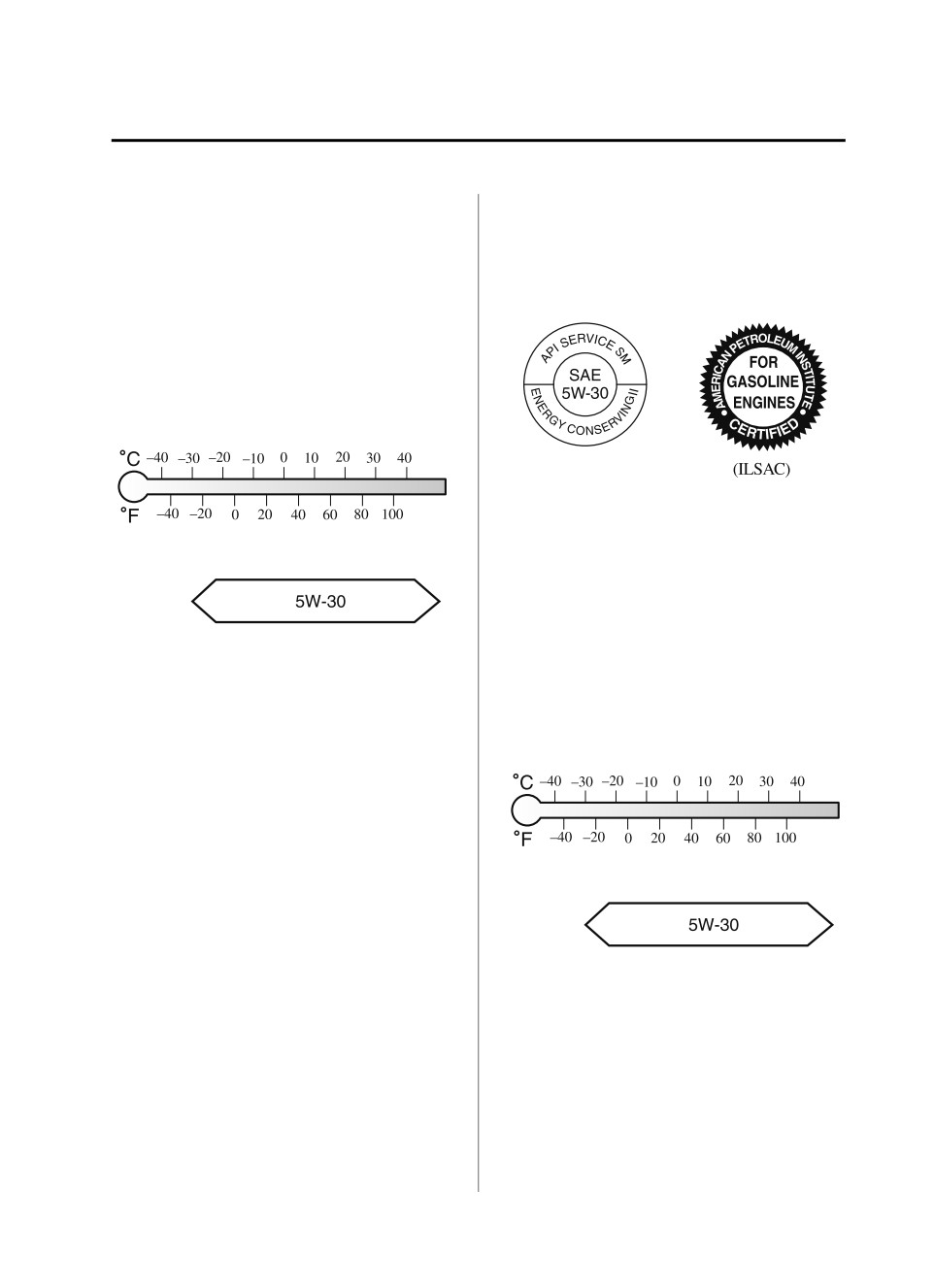

Only use SAE 5W-30 oil “Certified For
For maintenance service, Mazda
Gasoline Engines” by the American
recommends Mazda Genuine Parts.
Petroleum Institute (API).
Oil with this trademark symbol
conforms to the current engine and
emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.
(Mexico)
SKYACTIV-G 2.0 and SKYACTIV-G
2.5
Use API SM or higher, or ILSAC GF-IV
or higher/SAE 5W-30 engine oil. If SAE
Except U.S.A., Canada
5W-30 engine oil is not available, use
SAE 5W-20 engine oil.
Use SAE 5W-30 engine oil.
Oil container labels provide important
The quality designation SM, SN or SP,
information.
or ILSAC must be on the label.
A chief contribution this type of oil
makes to fuel economy is reducing the
amount of fuel necessary to overcome
engine friction.
SKYACTIV-G 2.5T
Use API SM or higher, or ILSAC GF-IV
or higher/SAE 5W-30 engine oil. If SAE
5W-30 engine oil is not available, use
SAE 0W-30 or SAE 10W-30 engine oil.
The quality designation SM, SN or SP,
or ILSAC must be on the label.
6-17
Maintenance and Care
Owner Maintenance

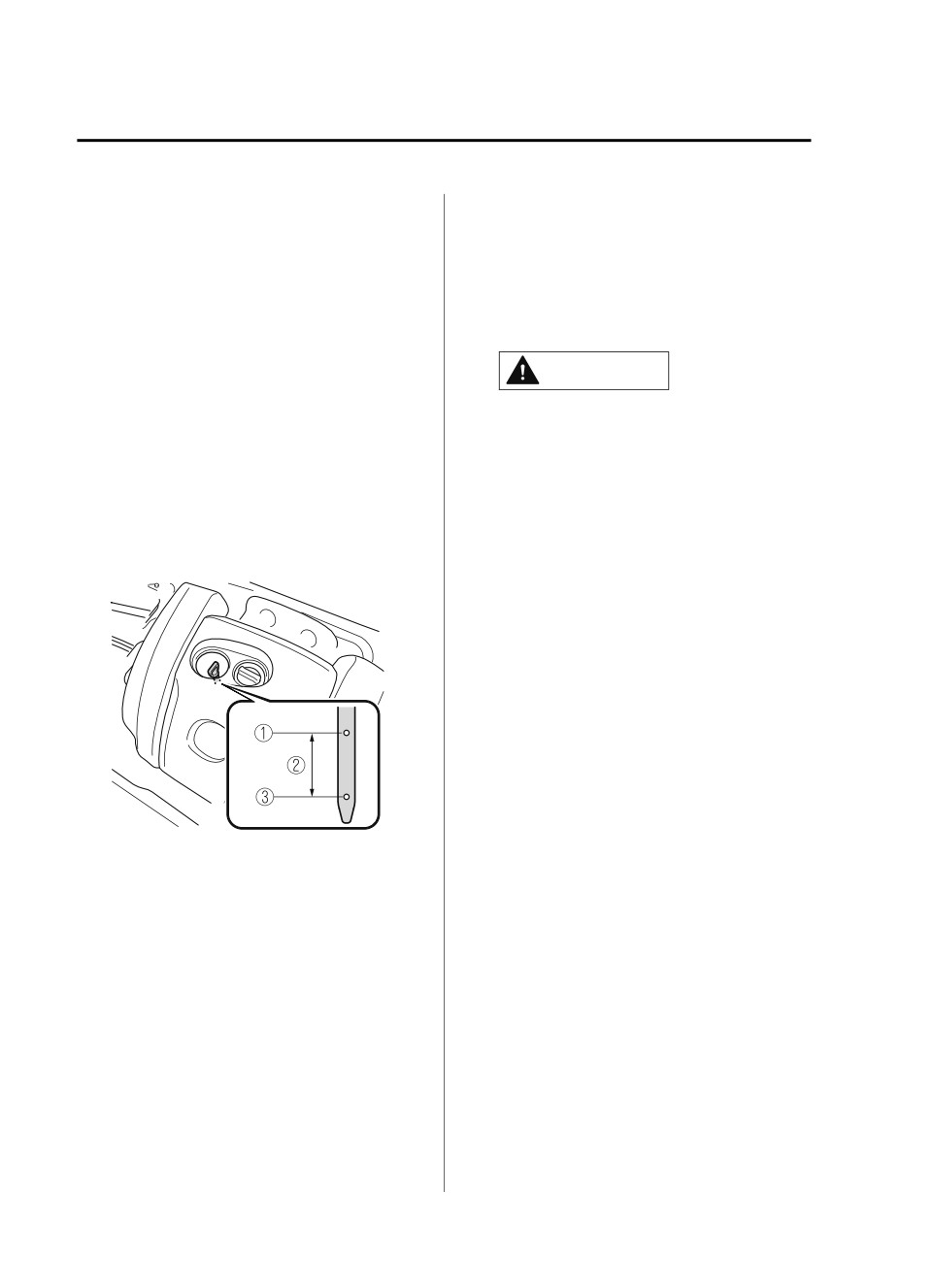

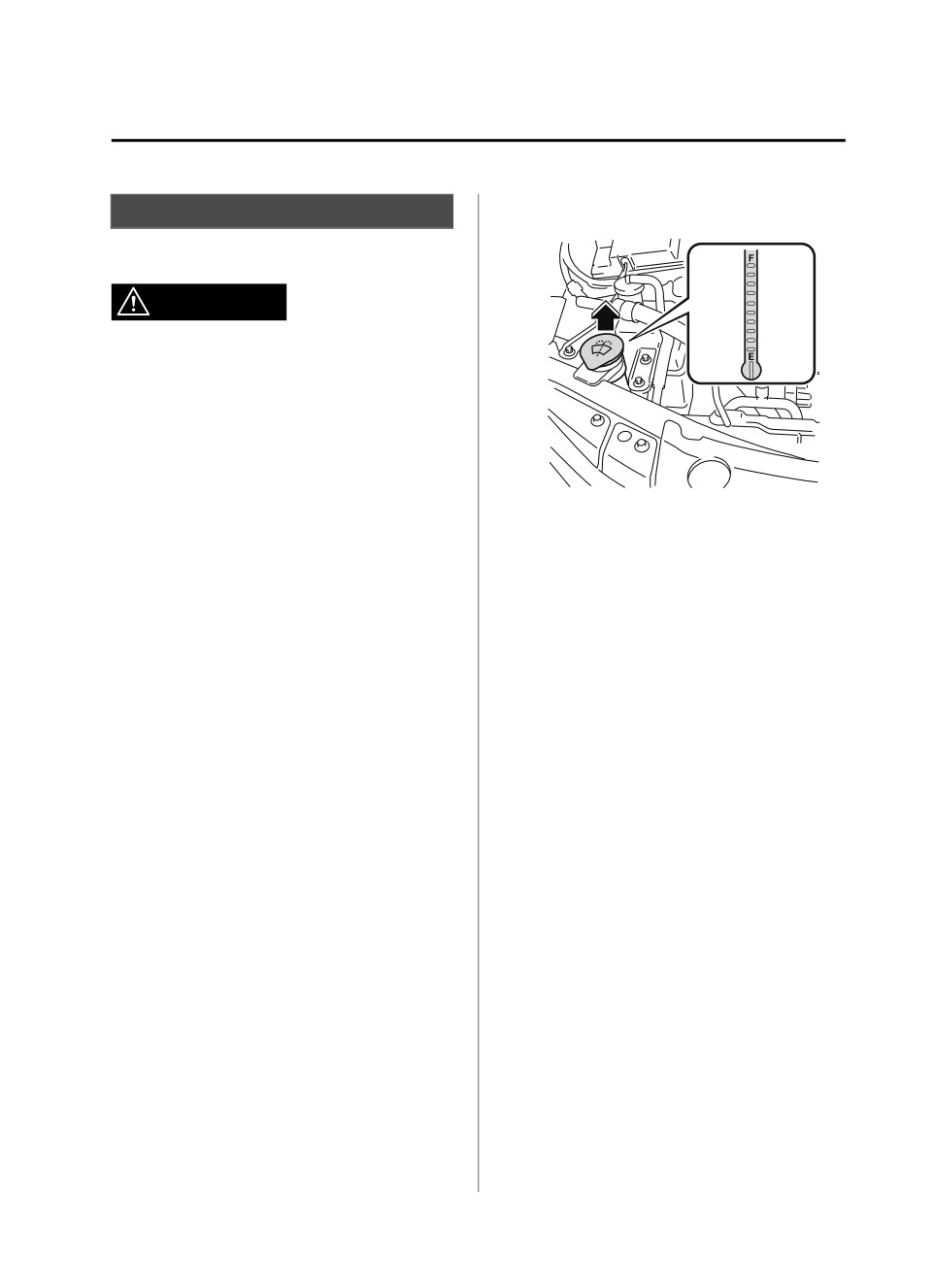

Inspecting Engine Oil Level
5. Pull it out again and examine the
level.
NOTE
The level is normal if it is between
the MIN and MAX marks.
If the engine oil level warning
If it is near or below MIN, add
indication/warning light turns on,
enough oil to bring the level to
add 1 L (0.26 US gal, 0.22 Imp gal)
MAX.
of engine oil.
1. Be sure the vehicle is on a level
CAUTION
surface.
Do not overfill the engine oil. This
2. Warm up the engine to normal
may cause engine damage.
operating temperature.
6. Make sure the O-ring on the
3. Turn it off and wait at least 5
dipstick is positioned properly
minutes for the oil to return to the
before reinserting the dipstick.
oil pan.
7. Reinsert the dipstick fully.
4. Pull out the dipstick, wipe it clean,
and reinsert it fully.
1. MAX
2. OK
3. MIN
6-18
Maintenance and Care
Owner Maintenance
NOTE
Engine Coolant
Changing the coolant should be done
by an Authorized Mazda Dealer.
Inspecting Coolant Level
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
WARNING
least once a yearat the beginning of
the winter seasonand before
Do not use a match or live flame in
traveling where temperatures may drop
the engine compartment. DO NOT
below freezing.
ADD COOLANT WHEN THE ENGINE
IS HOT:
Inspect the condition and connections
A hot engine is dangerous. If the
of all cooling system and heater hoses.
engine has been running, parts of the
Replace any that are swollen or
engine compartment can become very
deteriorated.
hot. You could be burned. Carefully
inspect the engine coolant in the
The coolant should be at full in the
coolant reservoir, but do not open it.
radiator and between the FULL and
LOW marks on the coolant reservoir
when the engine is cool.
SKYACTIV-G 2.0 and SKYACTIV-G
Pull over to a safe location, then
2.5
switch the ignition off and make sure
the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
6-19
Maintenance and Care
Owner Maintenance

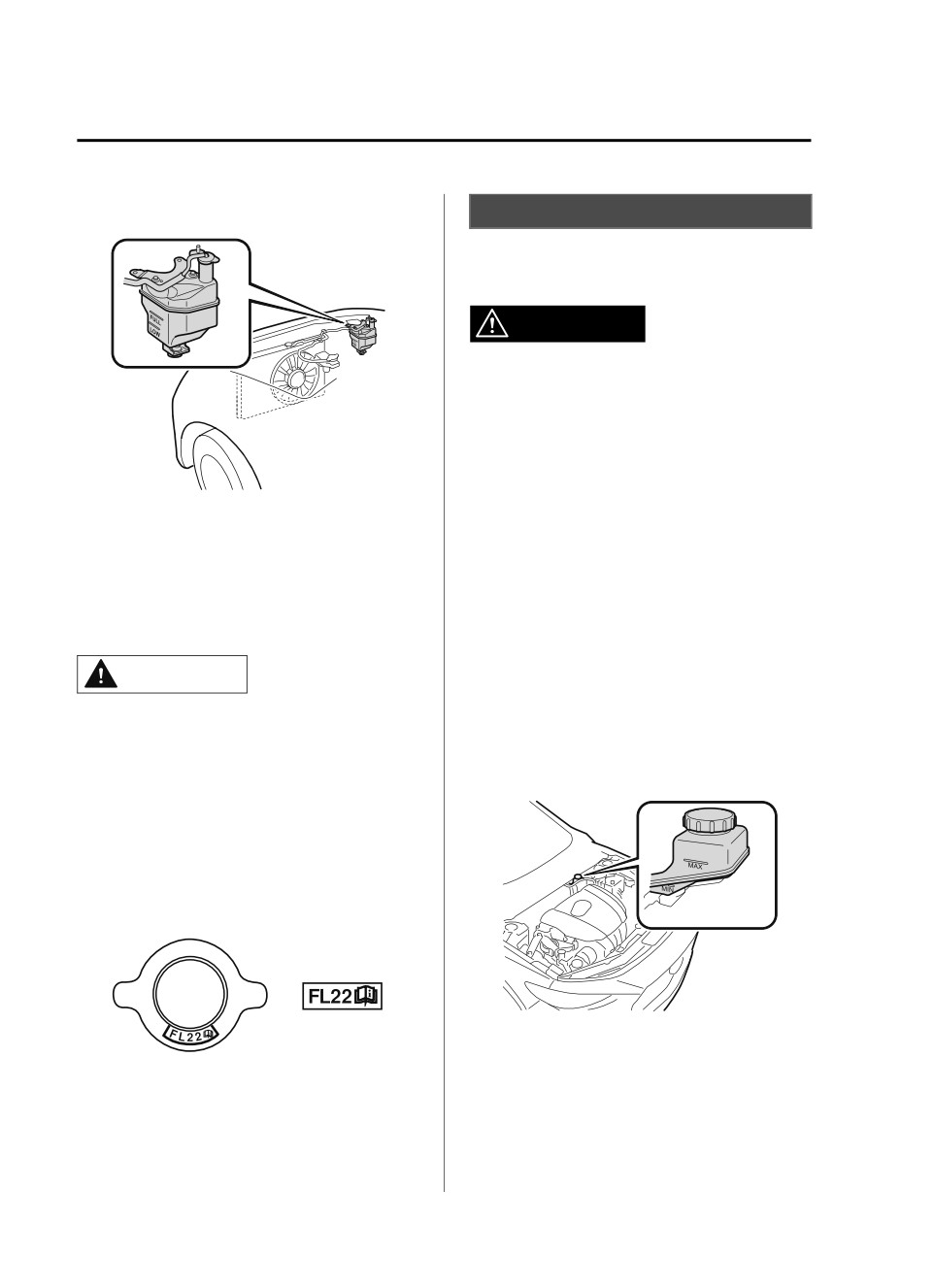

SKYACTIV-G 2.5T
Brake/Clutch Fluid
Inspecting Brake/Clutch Fluid
Level
WARNING
If the brake/clutch fluid level is low,
have the brakes inspected:
A low brake/clutch fluid level is
dangerous.
A low level could indicate brake lining
wear or a brake system leak which
could cause the brakes to fail and lead
If it is at or near LOW, add enough
to an accident.
coolant to the coolant reservoir to
provide freezing and corrosion
The brakes and clutch draw fluid from
protection and to bring the level to
the same reservoir.
FULL.
Inspect the fluid level in the reservoir
Securely tighten the coolant reservoir
regularly. It should be kept between
tank cap after adding coolant.
the MAX and MIN lines.
The level normally drops with
CAUTION
accumulated distance, a condition
associated with wear of brake and
¾ Radiator coolant will damage paint.
clutch linings. If it is excessively low,
Rinse it off quickly if spilled.
have the brake/clutch system
¾ If the “FL22” mark is shown on or
inspected by an Authorized Mazda
near the cooling system cap, use of
Dealer.
FL-22 is recommended when
replacing engine coolant. Using
engine coolant other than FL-22 may
cause serious damage to the engine
and cooling system.
If the coolant reservoir is empty or new
coolant is required frequently, consult
an Authorized Mazda Dealer.
6-20
Maintenance and Care
Owner Maintenance
The top of the fluid level is lower

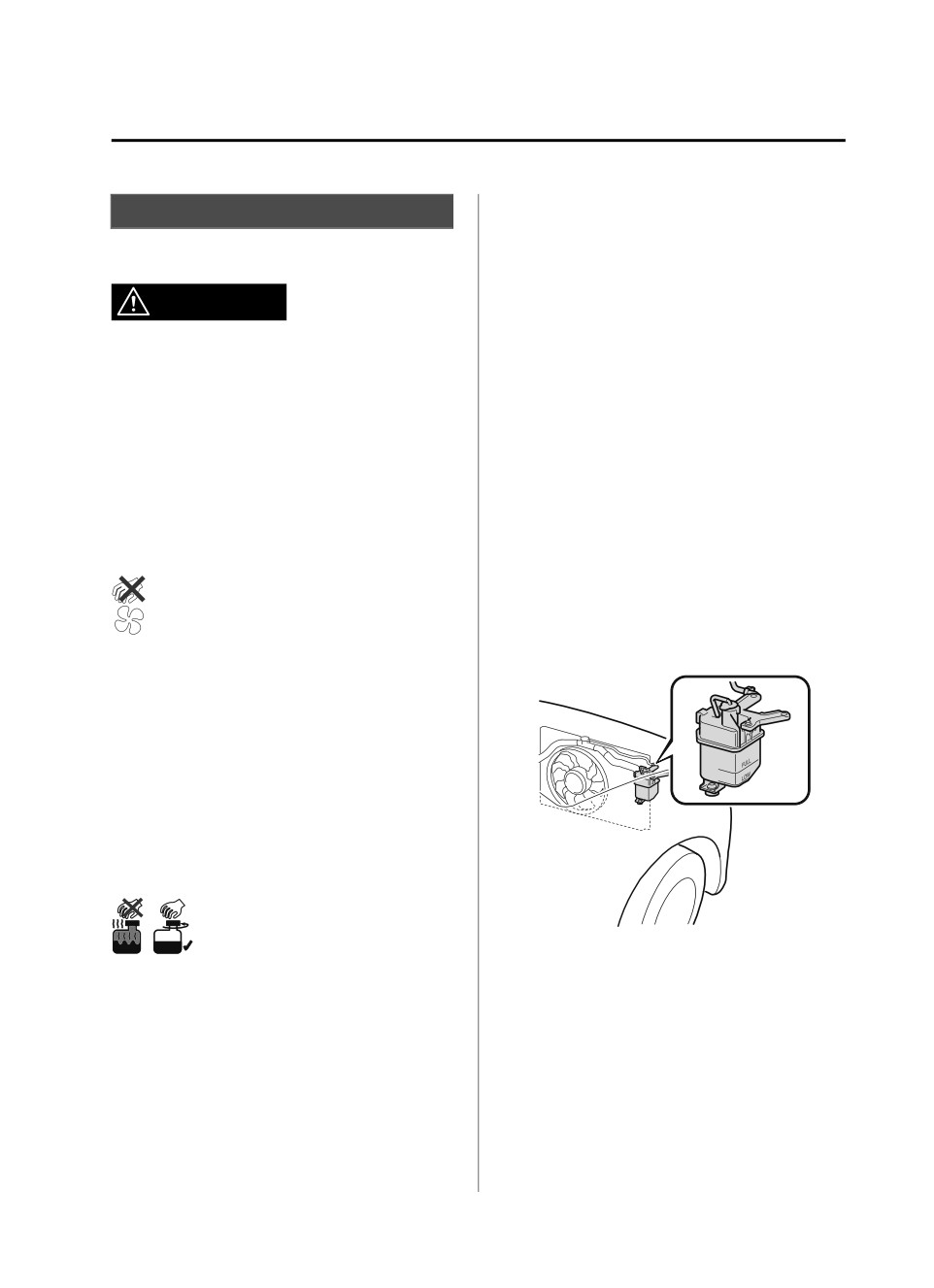

Washer Fluid
than E (if equipped).
Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result in
an accident.
Using Washer Fluid Without
Use plain water if washer fluid is
Anti-freeze Protection in Cold
unavailable.
Weather:
But use only washer fluid in cold
Operating your vehicle in temperatures
weather to prevent it from freezing.
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is
NOTE
dangerous as it could cause impaired
Front and rear washer fluid is supplied
windshield vision and result in an
from the same reservoir.
accident. In cold weather, always use
washer fluid with anti-freeze
protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.
The Low Washer Fluid Level Warning
Indication/Warning Light (if
equipped) turns on.
6-21
Maintenance and Care
Owner Maintenance
Body Lubrication
Wiper Blades
Body Lubrication
Wiper Blades
All moving points of the body, such as
door and hood hinges and locks,
CAUTION
should be lubricated each time the
¾ Hot waxes applied by automatic car
engine oil is changed. Use a
washers have been known to affect
non-freezing lubricant on locks during
the wiper's ability to clean windows.
cold weather.
¾ An operation malfunction may occur
or the wiper effectiveness may be
Make sure the hood's secondary latch
reduced if a water-repellent coating
keeps the hood from opening when
is used.
the primary latch is released.
¾ To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
¾ When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
¾ If the windshield above the rain
sensor is touched.
¾ If the windshield above the rain
sensor is wiped with a cloth.
¾ If the windshield is struck with a
hand or other object.
¾ If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing the vehicle, make sure
the wiper lever is in the OFF
position.
¾ Before lifting the windshield wiper
blades off the windshield, always
follow the procedure for moving the
windshield wiper blades. Otherwise,
a wiper blade, wiper arm, or the
hood could be damaged.
6-22
Maintenance and Care
Owner Maintenance
Refer to the Replacing Windshield

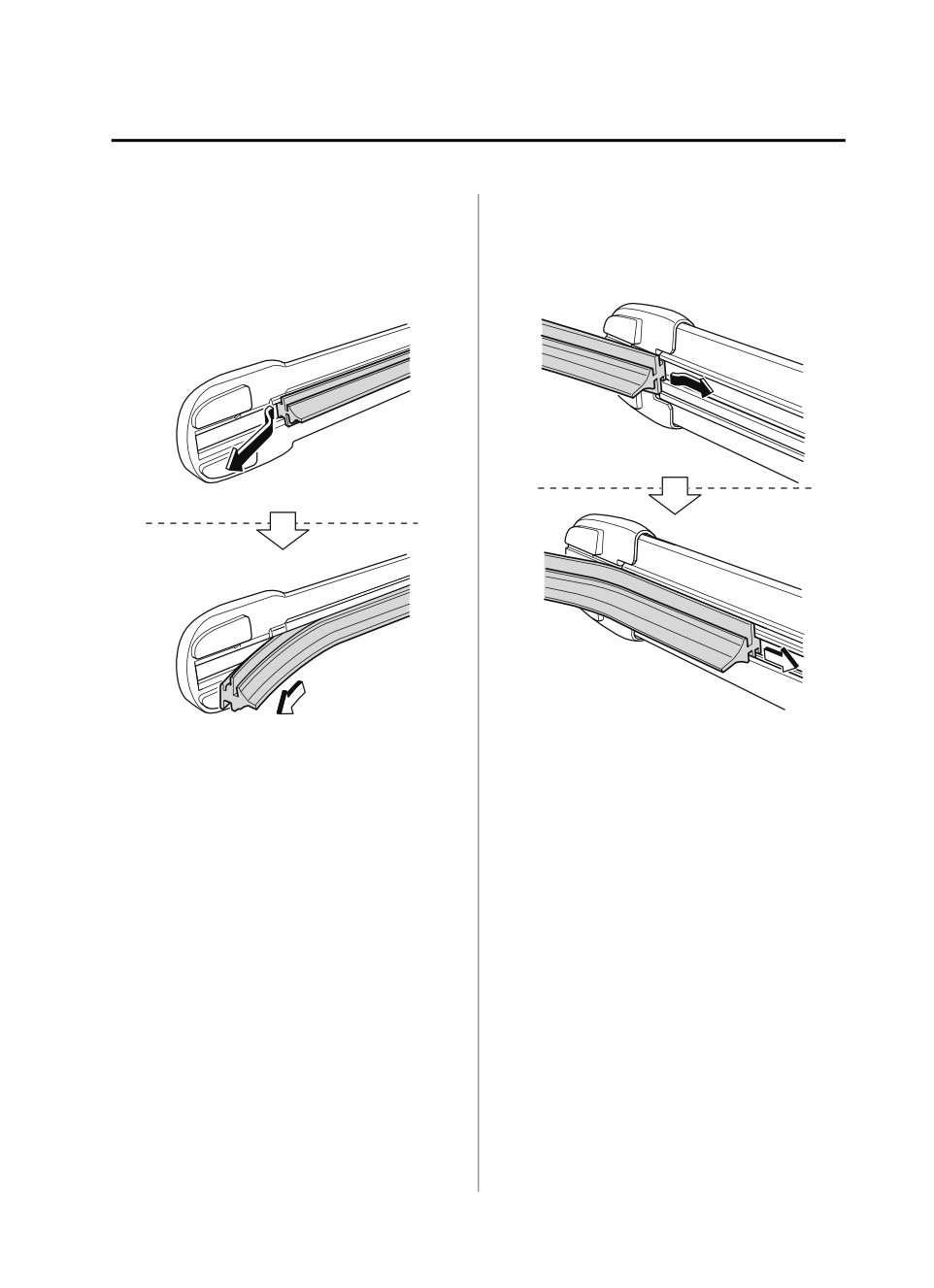

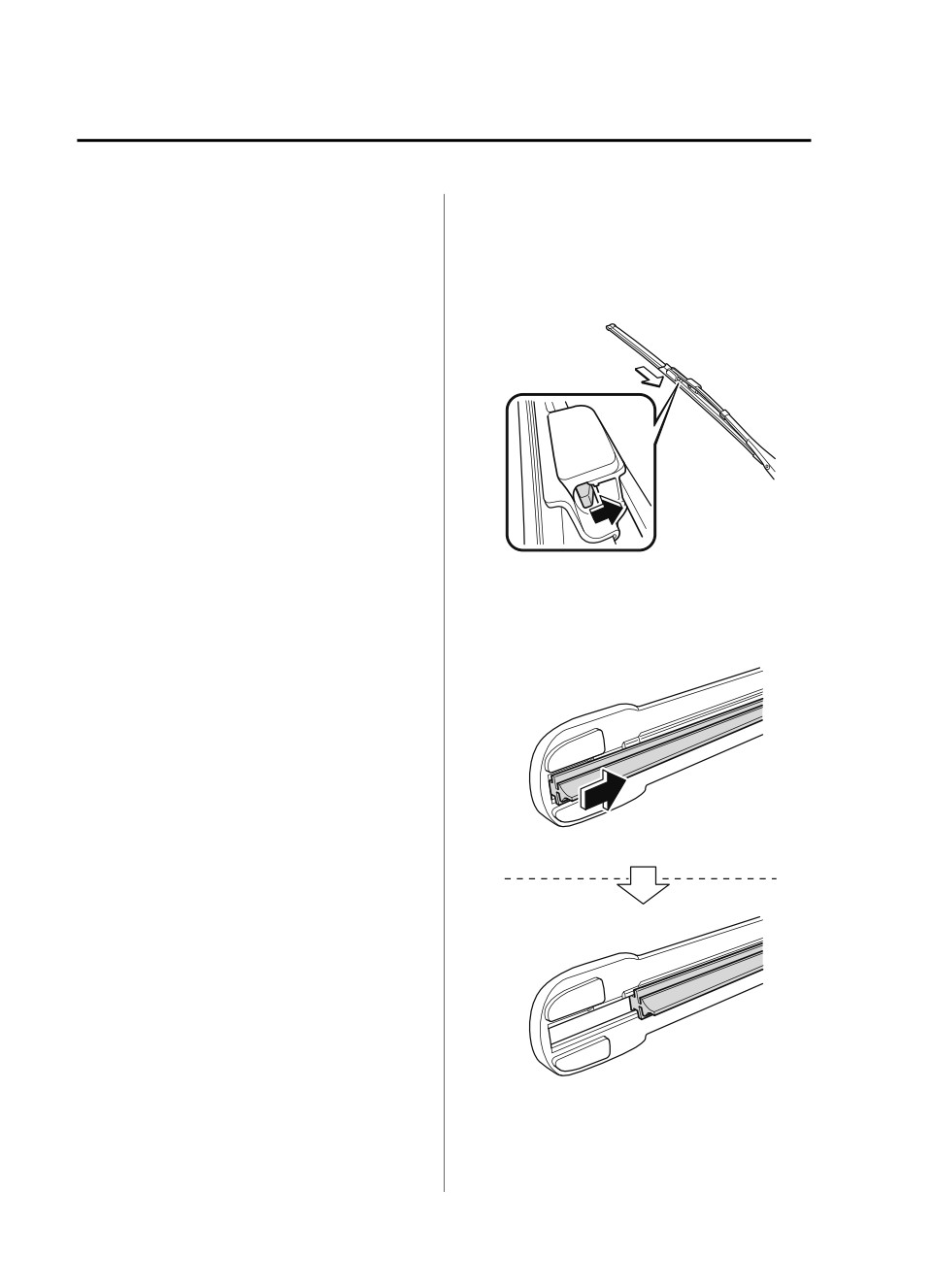

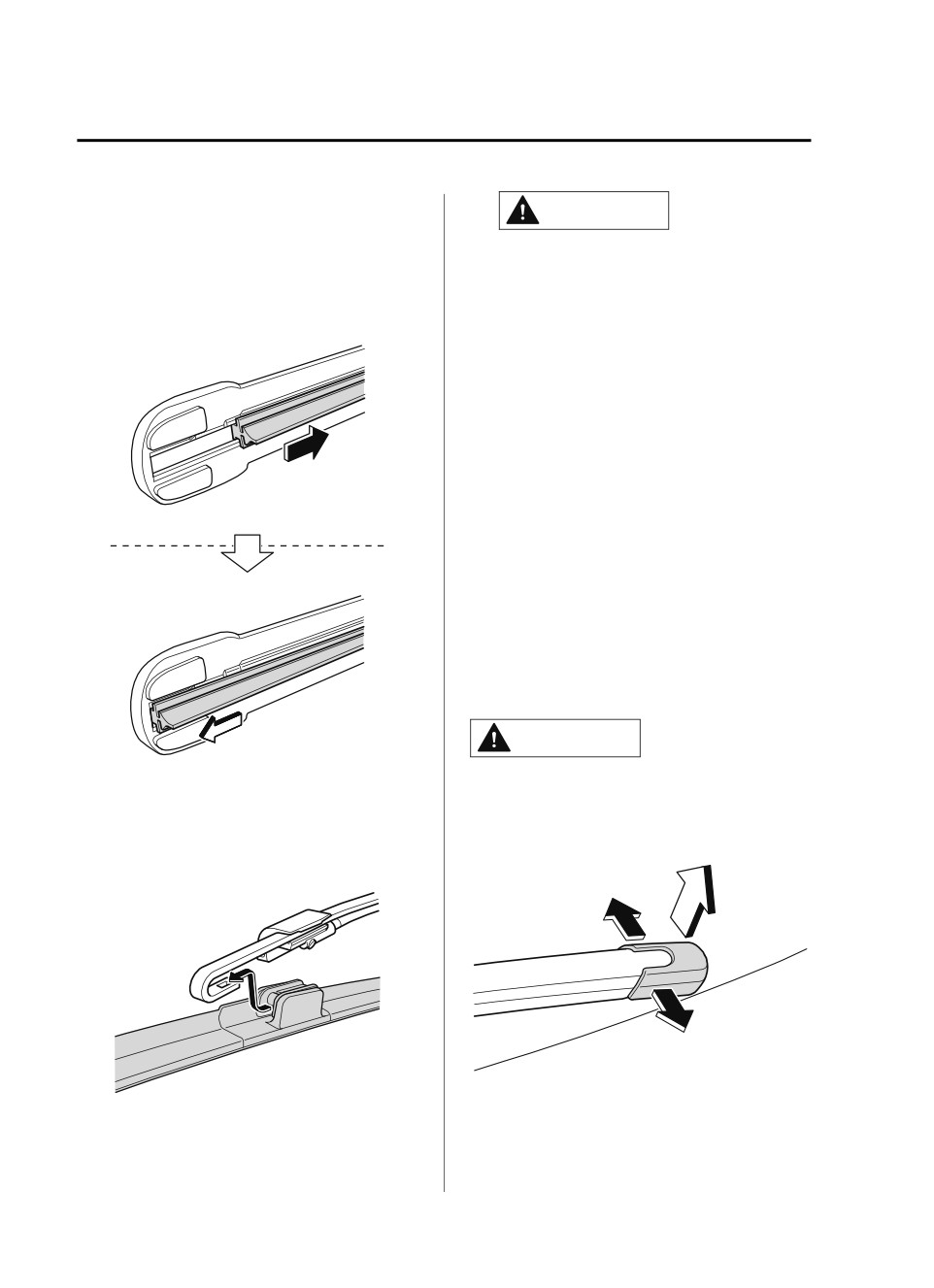

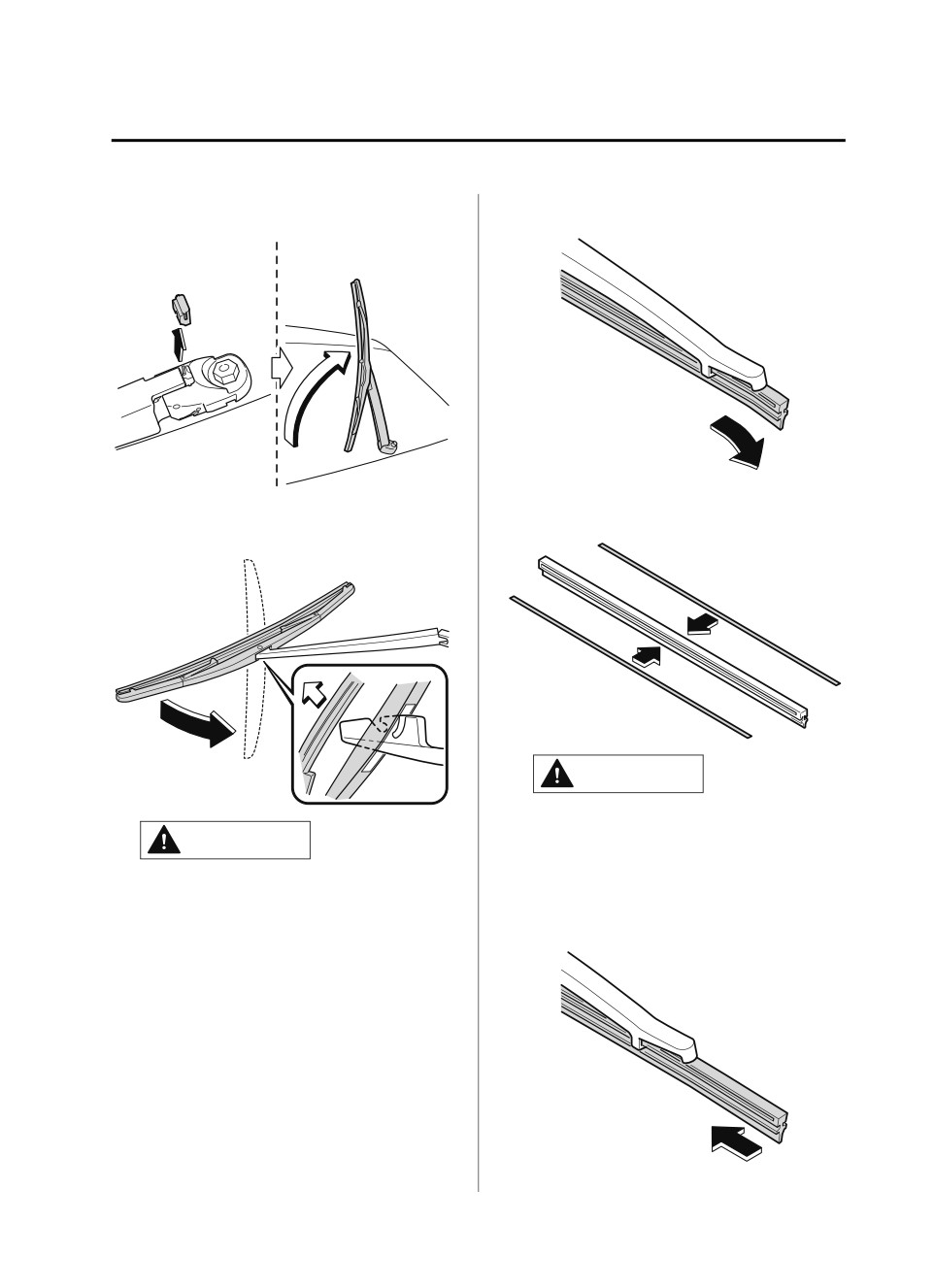

Replacing Windshield Wiper
Wiper Blades (page 6-23) section
Blades
for the procedure on how to move
When the wipers no longer clean well,
the windshield wiper blades to the
the blades are probably worn or
service position.
cracked.
Contamination of either the
Replace them.
windshield or the blades with foreign
matter can reduce wiper effectiveness.
CAUTION
Common sources are insects, tree sap,
¾ To prevent damaging a windshield
and hot wax treatments used by some
commercial car washes.
wiper blade, wiper arm, or the hood,
perform the following procedure.
If the blades are not wiping properly,
clean the window and blades with a
¾ Before lifting the windshield wiper
good cleaner or mild detergent; then
blades off the windshield, always
rinse thoroughly with clean water.
move them to the service position.
Repeat if necessary.
¾ When putting the windshield
wiper blades back on the
windshield, make sure that they
are in the service position before
switching the ignition ON and
operating the windshield wipers.
¾ Replace with Mazda genuine wiper
blades. If they are replaced with
wiper blades other than a Mazda
genuine product, they may not wipe
with the same efficiency as the
genuine product.
¾ To prevent damage to the wiper
arms and other components, do not
try to sweep the wiper arm by hand.
¾ Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the
windshield wiper operation may be
adversely affected.
¾ Do not hold a wiper blade by its end
when raising the wiper arm.
Otherwise, the part may deform and
the wiping performance may lower.
¾ Forcefully lowering the wiper arms
could damage the wiper arm and
blade, and may scratch or crack the
windshield.
6-23
Maintenance and Care
Owner Maintenance
NOTE
3.
Slide the blade component in the
You can replace the wiper blades
direction of the arrow while
yourself, however you cannot replace
pressing the wiper arm tab to
the wiper arms.
remove the blade component from
If you want to replace the wiper arms,
the wiper arm.
consult an Authorized Mazda Dealer.
Replace the wiper blades using the
following procedure.
1. Move the wipers to the service
positions using the following
procedure.
a) Switch the ignition ON.
b) Switch the ignition OFF.
c) Press up the wiper switch to the
MIST position 2 times within 30
seconds after switching the
ignition OFF.
4.
Pull the blade rubber in the
When the procedure is
direction of the arrow and slide it
completed, the wipers operate
to a position where the blade
and they stop at the service
holder groove can be checked.
positions.
2. Raise the wiper arms.
6-24
Maintenance and Care
Owner Maintenance
5. Pull the end of the blade rubber
6. Insert the end of the new blade
from the blade holder groove in the
rubber into the groove of the blade
direction of the arrow and remove
holder until it contacts the end of
the blade rubber from the blade
the blade holder.
holder.
6-25
Maintenance and Care
Owner Maintenance
7.
After pulling the blade rubber in the
CAUTION
direction of the arrow and sliding
the blade rubber to a position to
To prevent damage to the
check the blade holder groove,
windshield let the wiper arm down
slide the blade rubber end in the
easily, do not let it slap down on
opposite direction.
the windshield.
11.Move the wipers to their initial
positions using the following
procedure.
a) Make sure that the wipers are set
on the windshield.
b) Switch the ignition ON.
c) Press up the wiper switch to the
MIST position 1 time.
When the procedure is
completed, the wipers operate
and they stop at the initial
positions.
Replacing Rear Window Wiper
Blade (5-Door)
When the wiper no longer cleans well,
the blade is probably worn or cracked.
Replace it.
CAUTION
8.
Make sure that the blade rubber is
To prevent damage to the wiper arm
correctly installed to the blade
and other components, do not move
holder.
the wiper by hand.
9.
Slide the blade component and
1. Remove the cover.
install it to the wiper arm.
10.Slowly lower the wiper arms onto
the windshield.
6-26
Maintenance and Care
Owner Maintenance
2. Remove the stopper and raise the
4. Pull down the blade rubber and
wiper arm.
slide it out of the blade holder.
5. Remove the metal stiffeners from
3. Firmly rotate the wiper blade to the
the blade rubber and install them in
right until it unlocks, then remove
the new blade.
the blade.
CAUTION
Do not bend or discard the
stiffeners. You need to use them
CAUTION
again.
To prevent damage to the rear
6. Carefully insert the new blade
window, do not let the wiper arm
rubber.
fall on it.
Then install the blade assembly in
the reverse order of removal.
6-27
Maintenance and Care
Owner Maintenance
Battery
Wear eye protection and
Battery
protective gloves to prevent contact
with battery fluid:
WARNING
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID
Wash hands after handling the battery
which could cause serious injuries if it
and related accessories:
gets in eyes, or on the skin or clothing.
Battery posts, terminals and related
If this happens, immediately flush your
accessories contain lead and lead
eyes with water for 15 minutes or wash
compounds, chemicals known to the
your skin thoroughly and get medical
State of California to cause cancer and
attention.
reproductive harm.
Always keep batteries out of
Read the following precautions
the reach of children:
carefully before using the battery or
Allowing children to play near batteries
inspecting to ensure safe and correct
is dangerous. Battery fluid could cause
handling:
serious injuries if it gets in the eyes or
on the skin.
Always wear eye protection
when working near the battery:
Keep flames and sparks away
Working without eye protection is
from open battery cells and do not
dangerous. Battery fluid contains
allow metal tools to contact the
SULFURIC ACID which could cause
positive (+) or negative (-) terminal of
blindness if splashed into your eyes.
the battery when working near a
Also, hydrogen gas produced during
battery. Do not allow the positive (+)
normal battery operation, could ignite
terminal to contact the vehicle body:
and cause the battery to explode.
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames including
cigarettes and sparks away from open
battery cells.
6-28
Maintenance and Care
Owner Maintenance

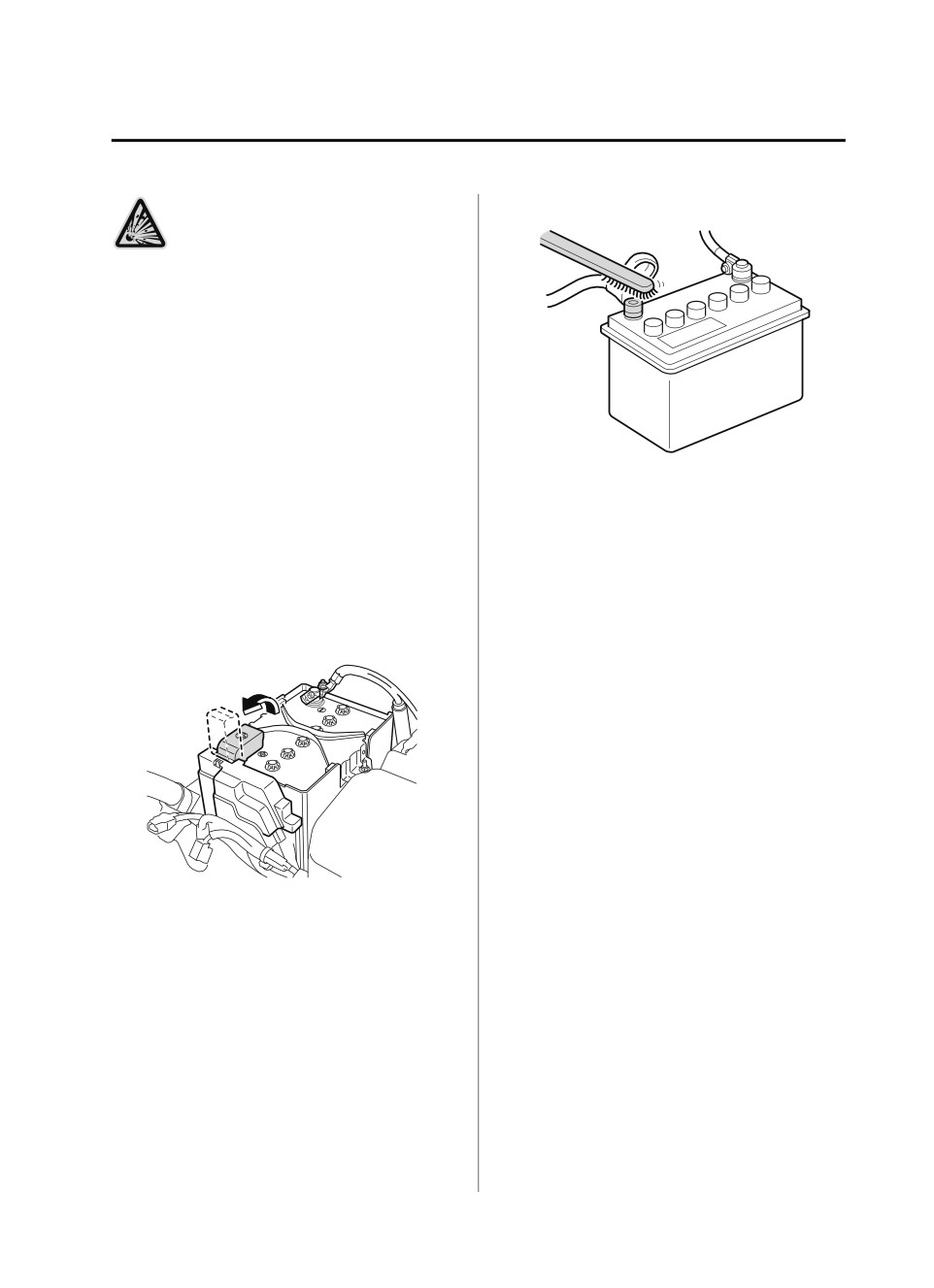

Battery Maintenance
Keep all flames and sparks
away from open battery cells because
hydrogen gas is produced from open
battery cells while charging the
battery or adding battery fluid:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
To get the best service from a battery:
injuries. Keep all flames including
cigarettes and sparks away from open
Keep it securely mounted.
battery cells.
Keep the top clean and dry.
Keep terminals and connections
NOTE
clean, tight, and coated with
Before performing battery
petroleum jelly or terminal grease.
maintenance, remove the battery
Rinse off spilled electrolyte
cover.
immediately with a solution of water
and baking soda.
If the vehicle will not be used for an
extended time, disconnect the
battery cables and charge the battery
every 6 weeks.
Battery Replacement
Contact an Authorized Mazda Dealer
for battery replacement.
6-29
Maintenance and Care
Owner Maintenance
The following conditions indicate that
Key Battery Replacement
the battery power is low:
Key Battery Replacement
A message, “Low Key Fob Battery.
Replace Battery” is displayed on the
If the buttons on the transmitter are
multi-information display when the
inoperable and the operation indicator
ignition is switched OFF.
light does not flash, the battery may be
The system does not operate and the
dead.
operation indicator light on the
Replace with a new battery before the
transmitter does not flash when the
transmitter becomes unusable.
buttons are pressed.
The system's operational range is
CAUTION
reduced.
¾ Make sure the battery is installed
Incorrect battery replacement
correctly. Battery leakage could occur
operation may damage the key.
if it is not installed correctly.
Replacing the battery at an Authorized
¾ When replacing the battery, be
Mazda Dealer is recommended. If
careful not to touch any of the
replacing the battery by yourself,
internal circuitry and electrical
follow the instruction.
terminals, bend the electrical
terminals, or get dirt in the

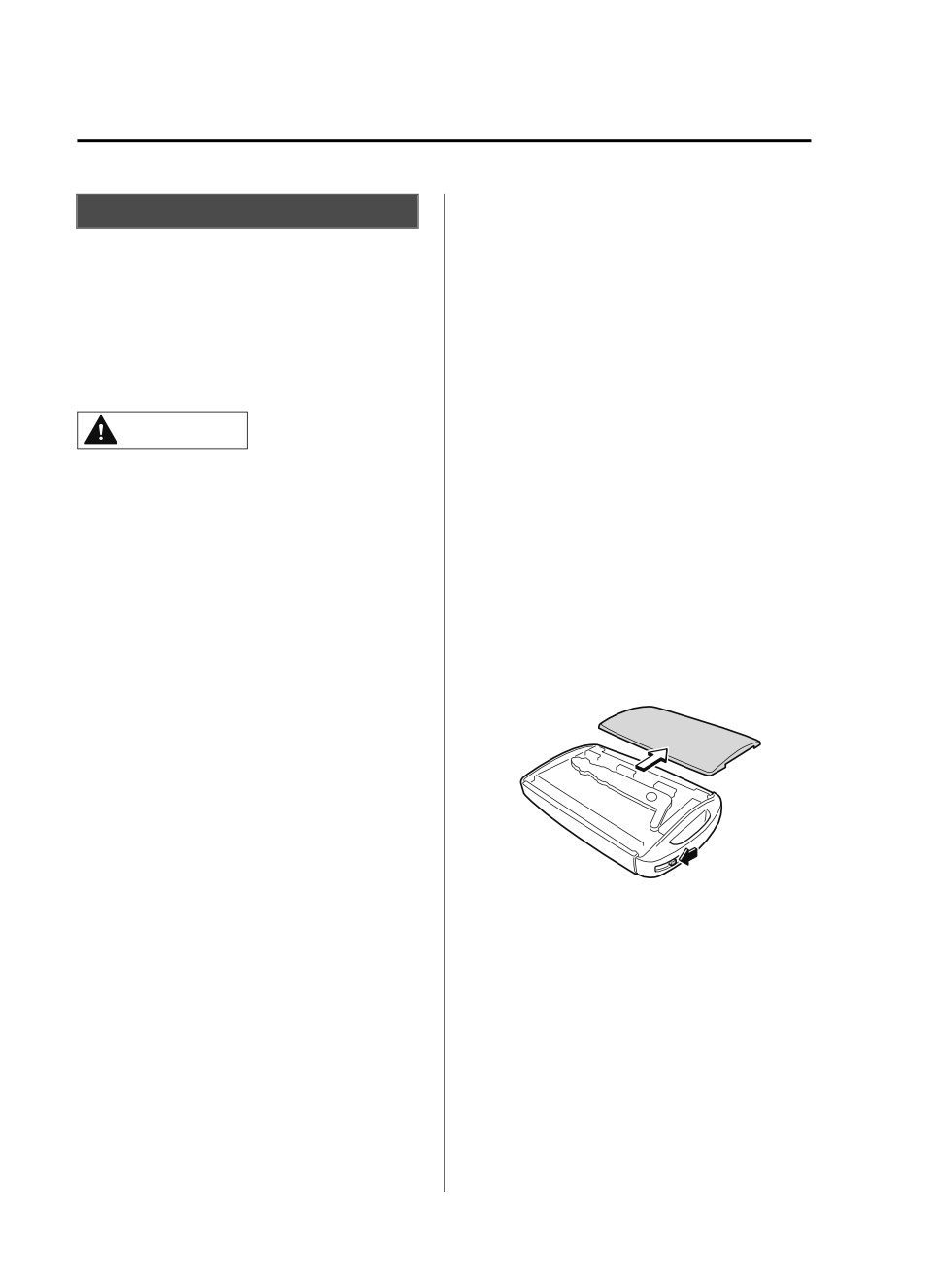

Replacing the key battery
transmitter as the transmitter could
1. Remove the lower cover while
be damaged.
sliding the knob in the direction of
¾ There is the danger of explosion if
the arrow.
the battery is not correctly replaced.
¾ Dispose of used batteries according
to the following instructions.
¾ Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
¾ Never disassemble.
¾ Never throw the battery into fire or
water.
¾ Never deform or crush.
¾ Replace only with the same type
battery (CR2032 or equivalent).
6-30
Maintenance and Care
Owner Maintenance

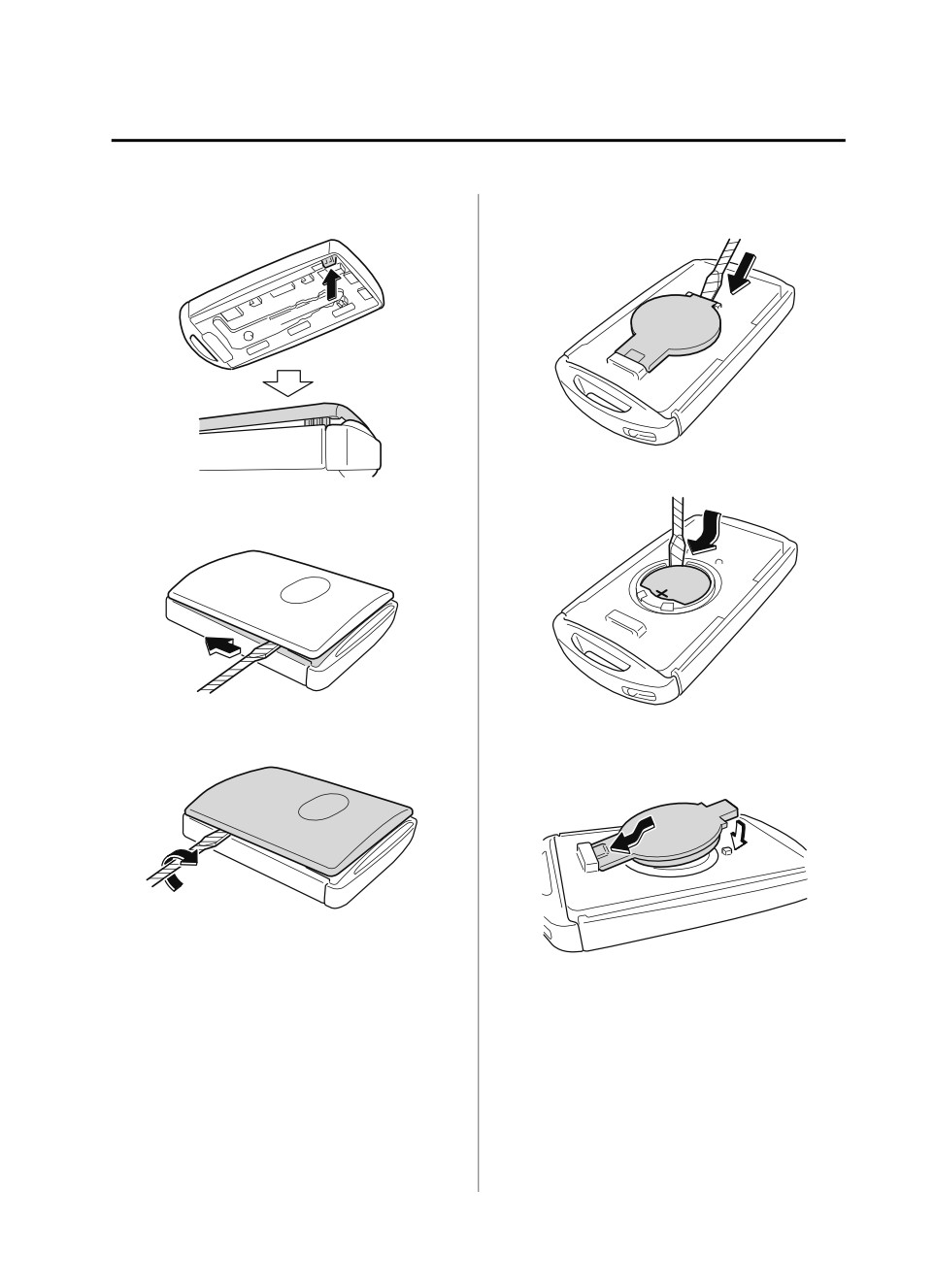

2. Press in the tab to unlock the upper
5. Remove the cap using the
cover.
tape-wrapped flathead screwdriver.
6. Remove the battery using
tape-wrapped flathead screwdriver.
3. Insert a tape-wrapped flathead
screwdriver into the gap and slide it
in the direction of the arrow.
4. Twist the flathead screwdriver in the
7. Insert a new battery into the
direction of the arrow and remove
transmitter so that the positive pole
the upper cover.
is facing up.
8. Install the cap.
6-31
Maintenance and Care
Owner Maintenance

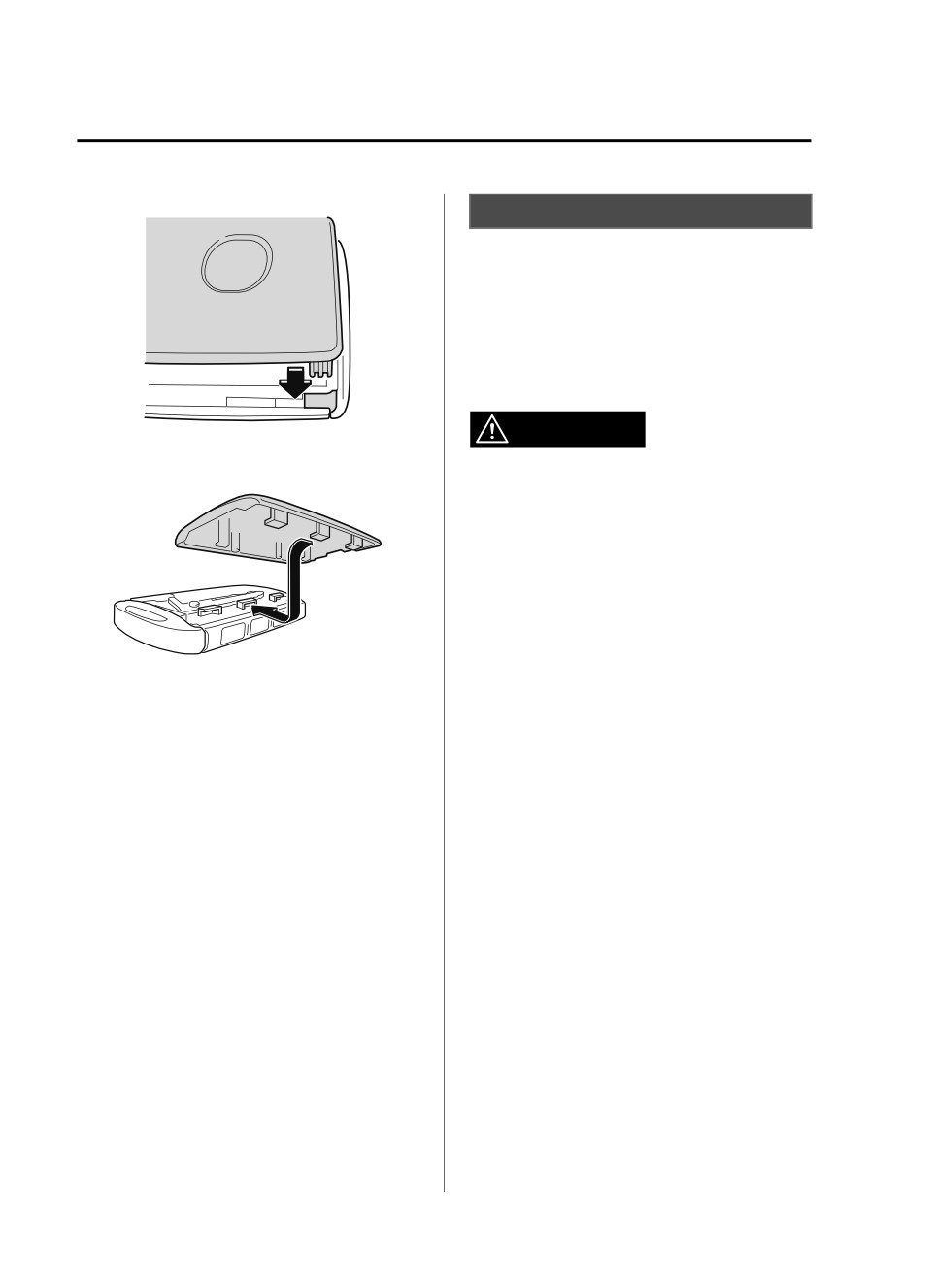

9. Install the upper cover.
Tires
Tires
For reasons of proper performance,
safety, and better fuel economy, always
maintain recommended tire inflation
pressures and stay within the
recommended load limits and weight
distribution.
WARNING
10.Insert the tabs of the lower cover
into the slots of the transmitter and
install the lower cover.
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor braking;
leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for the vehicle (page 9-10)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for the
vehicle.
6-32
Maintenance and Care
Owner Maintenance
Tire Inflation Pressure
Overinflation can produce a harsh
ride, uneven and accelerated tire
wear, and a greater possibility of
WARNING
damage from road hazards.
Keep your tire pressure at the correct
Always inflate the tires to the correct
levels. If one frequently needs
pressure:
inflating, have it inspected.
Overinflation or underinflation of tires
is dangerous. Adverse handling or
Tire Rotation
unexpected tire failure could result in a
serious accident.
WARNING
Refer to Tires on page 9-10.
Rotate tires periodically:
Use only a Mazda-genuine tire valve
Irregular tire wear is dangerous. To
cap:
equalize tread wear for maintaining
Use of a non-genuine part is
good performance in handling and
dangerous as the correct tire air
braking, rotate the tires periodically or
pressure cannot be maintained if the
sooner if irregular wear develops.
tire valve becomes damaged. If the
Please refer to Scheduled maintenance
vehicle is driven under this condition,
for your tire rotation interval.
the tire air pressure will decrease
which could result in a serious
During rotation, inspect them for
accident. Do not use any part for the
correct balance.
tire valve cap that is not a
Mazda-genuine part.
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended
pressures for the best ride, handling,
and minimum tire wear.
Refer to the specification charts (page
9-10).
NOTE
1. Forward
Always check tire pressure when tires
Do not include (TEMPORARY USE
are cold.
ONLY) spare tire in rotation.
Warm tires normally exceed
recommended pressures. Do not
release air from warm tires to adjust
the pressure.
Underinflation can cause reduced
fuel economy, uneven and
accelerated tire wear, and poor
sealing of the tire bead, which will
deform the wheel and cause
separation of tire from rim.
6-33
Maintenance and Care
Owner Maintenance
Also, inspect them for uneven wear
Replacing a Tire
and damage. Abnormal wear is usually
caused by one or a combination of the
WARNING
following:
Incorrect tire pressure
Always use tires that are in good
Improper wheel alignment
condition:
Out-of-balance wheel
Driving with worn tires is dangerous.
Severe braking
Reduced braking, steering, and
traction could result in an accident.
After rotation, inflate all tire pressures
Replace all four tires at the same
to specification on page 9-10 and
inspect the lug nuts for tightness.
time:
Replacing just one tire is dangerous. It
CAUTION
could cause poor handling and poor
braking resulting in loss of vehicle
Rotate unidirectional tires and radial
control. Mazda strongly recommends
tires that have an asymmetrical tread
that you replace all four tires at the
pattern or studs only from front to rear,
same time.
not from side to side. Tire performance
If a tire wears evenly, a wear indicator
will be reduced if rotated from side to
will appear as a solid band across the
side.
tread.
Replace the tire when this happens.

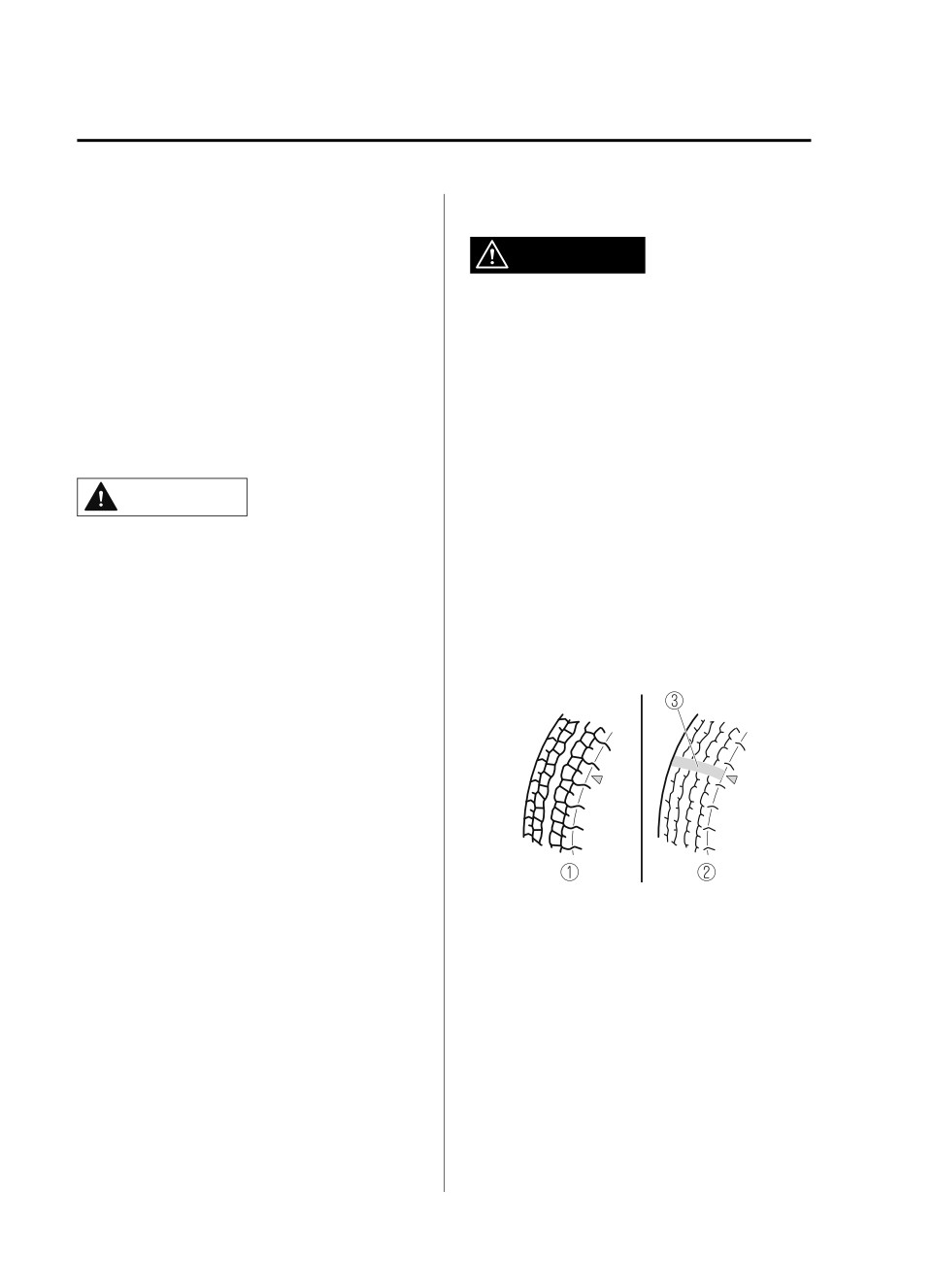

1. New tread
2. Worn tread
3. Tread wear indicator
You should replace the tire before the
band crosses the entire tread.
6-34
Maintenance and Care
Owner Maintenance
NOTE
CAUTION
Tires degrade over time, even when
they are not being used on the road. It
¾ Do not use your temporary spare tire
is recommended that tires generally be
rim with a snow tire or a
replaced when they are 6 years or
conventional tire. Neither will
older. Heat caused by hot climates or
properly fit and could damage both
frequent high loading conditions can
tire and rim.
accelerate the aging process. You
¾ The temporary spare tire has a tread
should replace the spare tire when you
life of less than 5,000 km (3,000
replace the other road tires due to the
miles). The tread life may be shorter
aging of the spare tire. The period in
depending on driving conditions.
which the tire was manufactured (both
¾ The temporary spare tire is for
week and year) is indicated by a 4-digit
limited use, however, if the tread
number.
wear solid-band indicator appears,
Refer to Tire Labeling on page 8-23.
replace the tire with the same type of
temporary spare (page 6-34).
Temporary Spare Tire
Inspect the temporary spare tire at
NOTE
least monthly to make sure it is
Tires degrade over time, even when
properly inflated and stored.
they are not being used on the road. It
is recommended that tires generally be
NOTE
replaced when they are 6 years or
The temporary spare tire condition
older. Heat caused by hot climates or
gradually deteriorates even if it has not
frequent high loading conditions can
been used.
accelerate the aging process. You
The temporary spare tire is easier to
should replace the spare tire when you
handle because of its construction
replace the other road tires due to the
which is lighter and smaller than a
aging of the spare tire. The period in
conventional tire. This tire should be
which the tire was manufactured (both
used only for an emergency and only
week and year) is indicated by a 4-digit
for a short distance.
number.
Refer to Tire Labeling on page 8-23.
Use the temporary spare tire only until
the conventional tire is repaired, which
should be as soon as possible.
Refer to Tires on page 9-10.
6-35
Maintenance and Care
Owner Maintenance
Replacing a Wheel

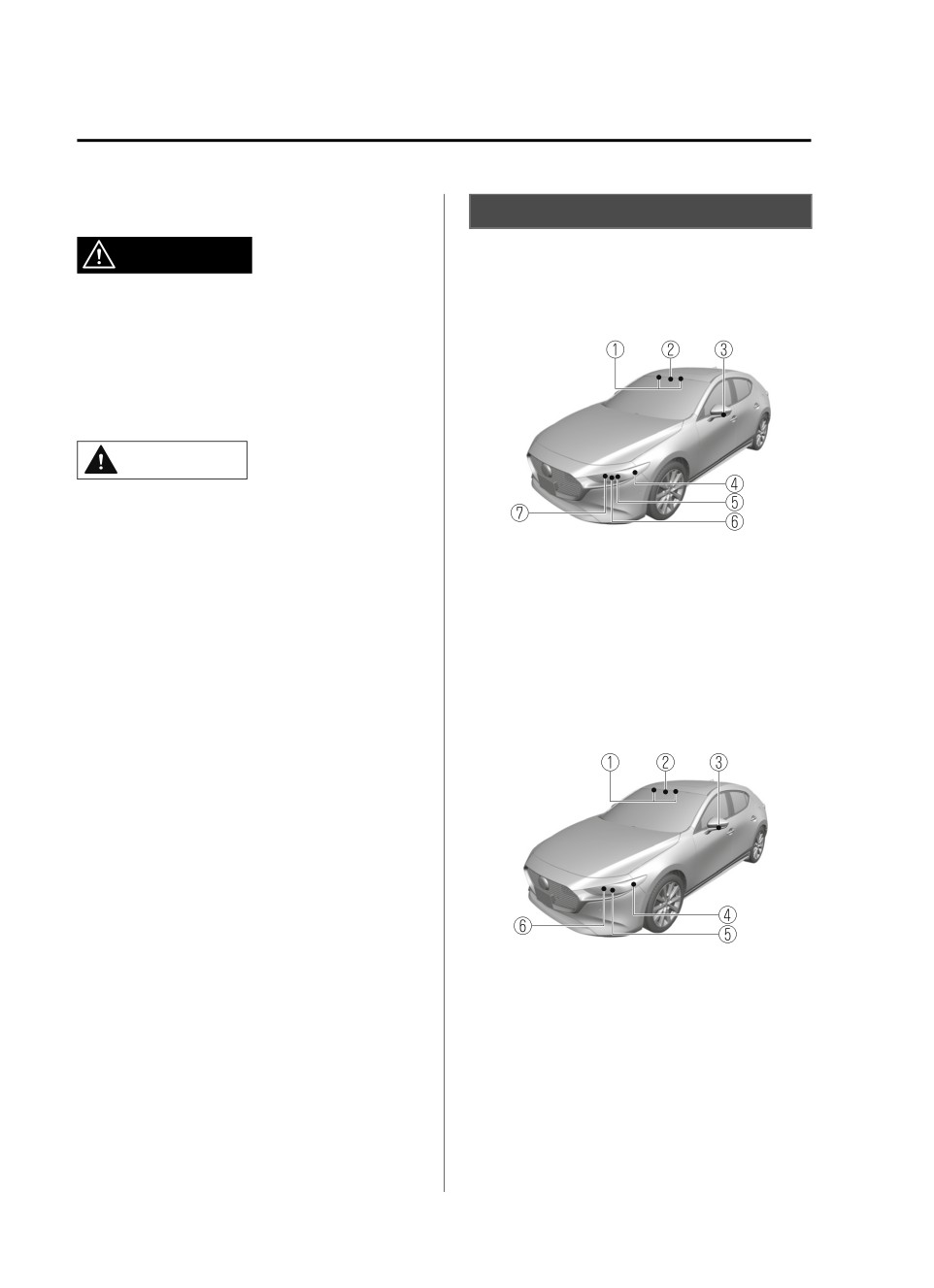

Light Bulbs
Light Bulbs
WARNING
Front
Always use wheels of the correct size
Type A
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling could
be affected, leading to loss of control
and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:
¾ Tire fit
1. Vanity mirror lights*
¾ Wheel and bearing life
2. Overhead lights/ Front map lights
¾ Ground clearance
3. Side turn signal lights*
¾ Snow-chain clearance
4. Front side-marker lights
5. Parking lights
¾ Speedometer calibration
6. Headlights (High/Low beam)/
¾ Headlight aim
Daytime running lights
¾ Bumper height
7. Front turn signal lights
¾ Tire Pressure Monitoring System
Type B
NOTE
When replacing a wheel, make sure
the new one is the same as the
original factory wheel in diameter,
rim width, and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.
Proper tire balancing provides the best
riding comfort and helps reduce tread
1. Vanity mirror lights*
wear. Out-of-balance tires can cause
2. Overhead lights/ Front map lights
vibration and uneven wear, such as
3. Side turn signal lights*
cupping and flat spots.
4. Parking lights/Front side-marker
lights
5. Headlights (High/Low beam)/
Daytime running lights
6. Front turn signal lights
6-36
*Some models.
Maintenance and Care
Owner Maintenance

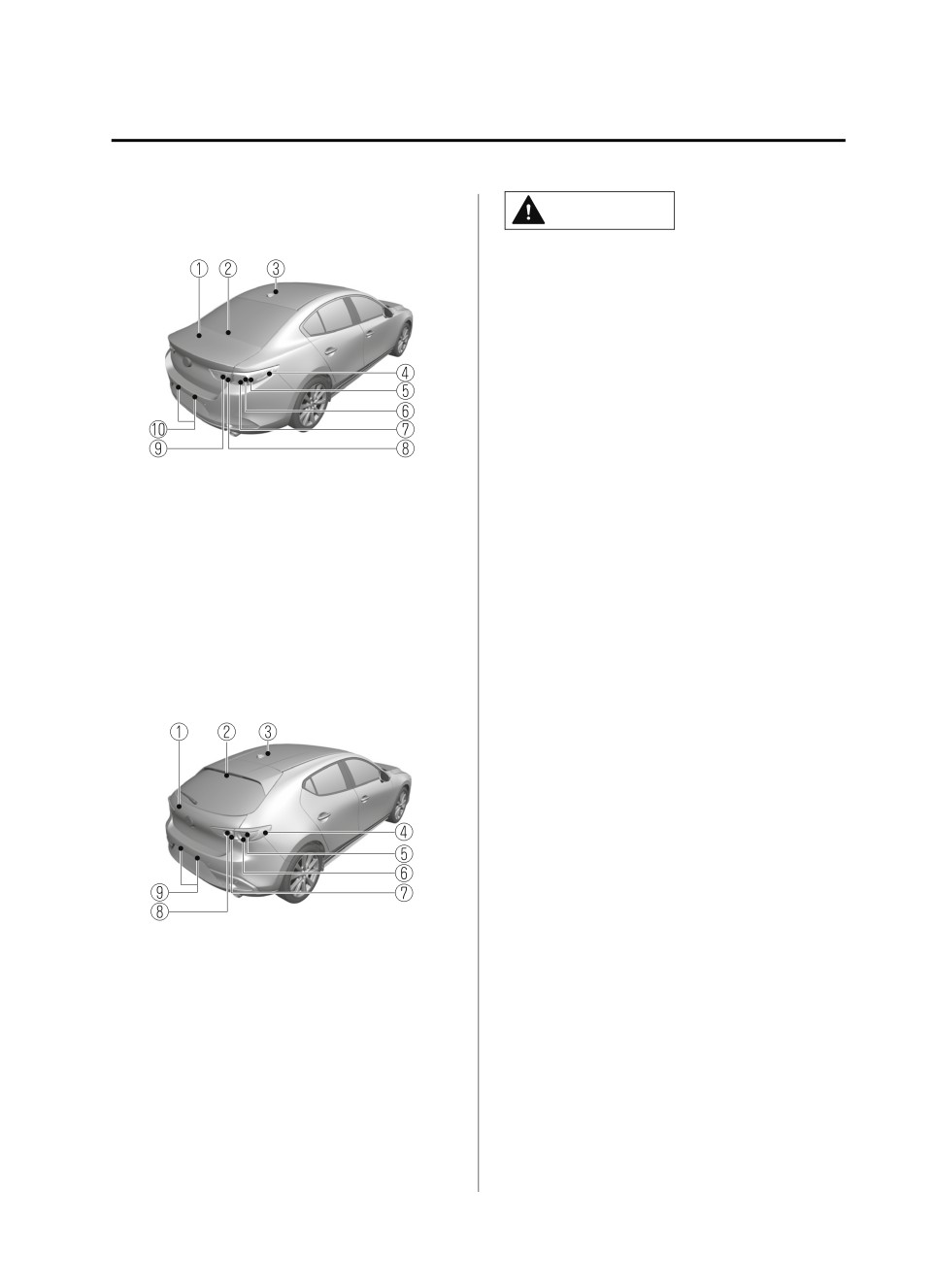

Rear
CAUTION
4-Door
When removing the lens or lamp unit
using a flathead screwdriver, make sure
that the flathead screwdriver does not
contact the interior terminal. If the
flathead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
When replacing a bulb, contact an
Authorized Mazda Dealer if
1. Trunk light
necessary.
2. High-mount brake light
Use the protective cover and carton
3. Overhead light (Rear)
for the replacement bulb to dispose
4. Rear side-marker lights
of the old bulb promptly and out of
5. Brake lights/Taillights*
the reach of children.
6. Rear turn signal lights
For details regarding the installation
7. Brake lights/Taillights
positions of the interior lights, refer
8. Taillights*
to the following:
9. Reverse lights
Vanity mirror lights
10.License plate lights
Refer to Vanity Mirrors on page
5-Door
5-39.
Overhead Lights/front map lights,
overhead light (rear), trunk light,
and luggage compartment light
Refer to Interior Lights on page
5-40.
Replacing Exterior Light Bulbs
The exterior lights have either LEDs or
normal bulbs.
Only the bulb for a parking lights/front
1. Luggage compartment light
side-marker lights (type B) can be
2. High-mount brake light
replaced.
3. Overhead light (Rear)
LED type
4. Rear side-marker lights
5. Rear turn signal lights
Headlights
6. Brake lights/Taillights
Daytime running lights
7. Taillights*
Parking lights (Type A)
8. Reverse lights
Front turn signal lights
9. License plate lights
Front side-marker lights (Type A)
Side turn signal lights*
High-mount brake light
Rear turn signal lights
*Some models.
6-37
Maintenance and Care
Owner Maintenance
Rear side-marker lights
4.
Pull the center of each plastic
Brake lights
retainer and remove the retainers.
Taillights
Reverse lights
License plate lights
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an
Authorized Mazda Dealer when the
replacement is necessary.
1. Removal
Bulb type
2. Installation

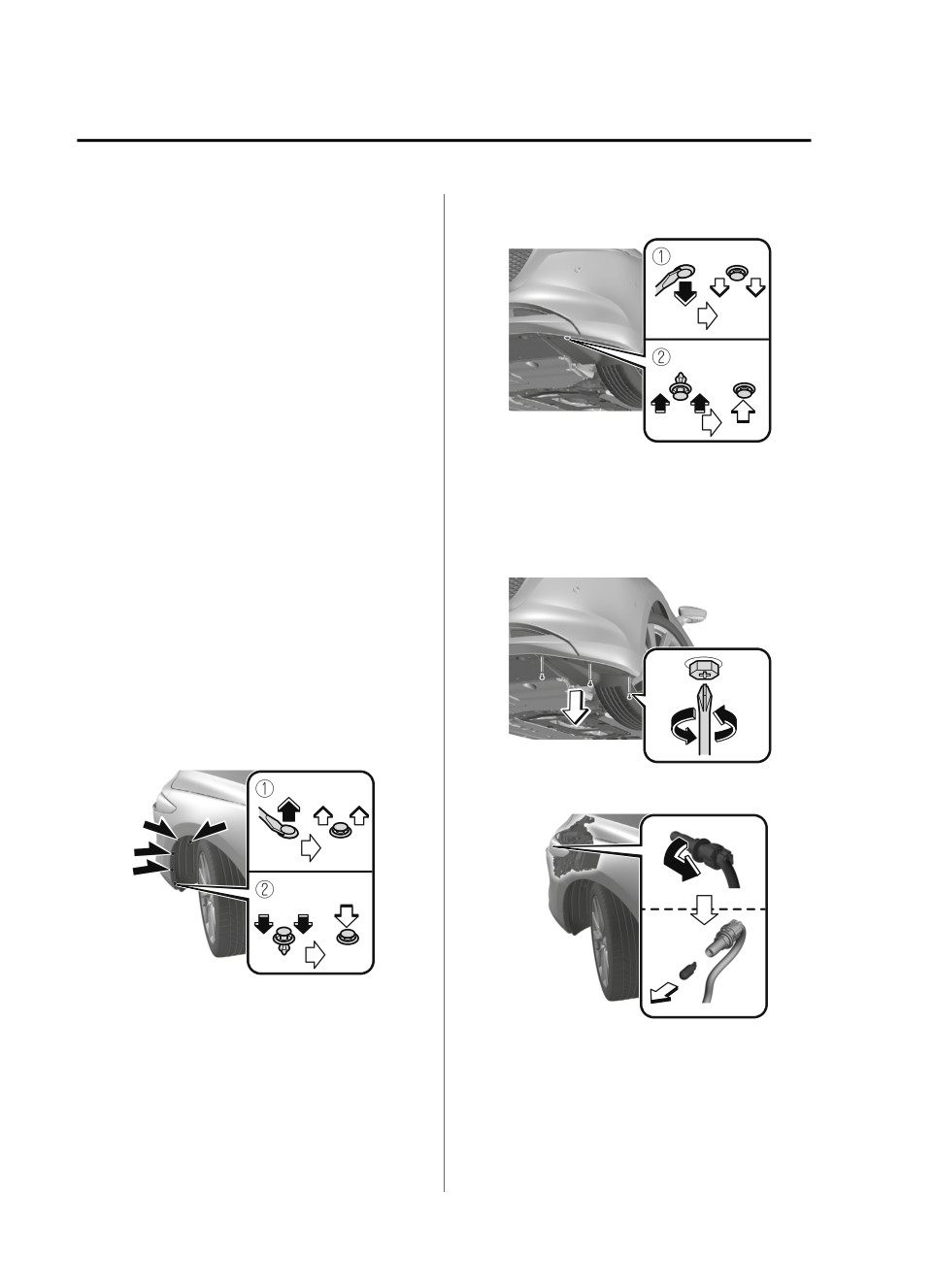

Parking lights/Front side-marker
5.
Turn the screw counterclockwise
lights (Type B)
and remove it, and then partially
1. Make sure the ignition is switched
peel back the mudguard.
off, and the headlight switch is off.
2. If you are changing the left bulb,
start the engine, turn the steering
wheel all the way to the right, and
turn off engine. If you are changing
the right bulb, turn the steering
wheel to the left.
3. Pull the center of each plastic
retainer and remove the retainers.
6.
Turn the socket and bulb assembly
counterclockwise and remove it.
1. Removal
2. Installation
7. Disconnect the bulb from the
socket.
8. Install the new bulb in the reverse
order of the removal procedure.
6-38
Maintenance and Care
Owner Maintenance
Replacing Interior Light Bulbs
Fuses
Overhead lights/Front map lights,
Fuses
Overhead light (Rear), Vanity mirror
lights*, Luggage compartment light
Your vehicle's electrical system is
(5-Door)
protected by fuses.
The LED bulb cannot be replaced as a
If any lights, accessories, or controls do
single unit because it is an integrated
not work, inspect the appropriate
unit.
circuit protector. If a fuse has blown,
The LED bulb has to be replaced with
the inside element will be melted.
the unit. We recommend an
Authorized Mazda Dealer when the
If the same fuse blows again, avoid
replacement is necessary.
using that system and consult an

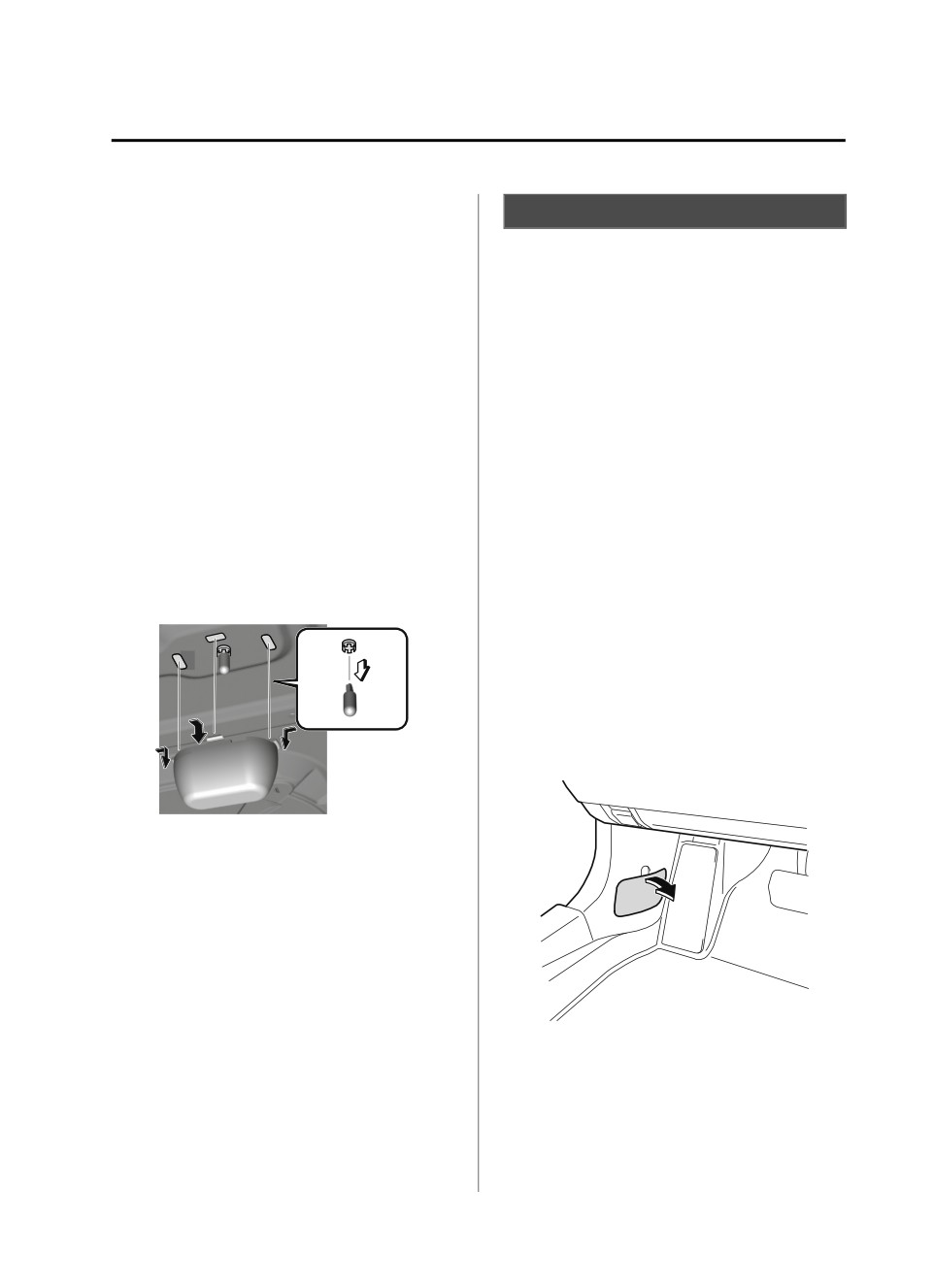

Trunk light (4-Door)
Authorized Mazda Dealer as soon as
possible.
1. Press both sides of the lens cap to
remove it.
Fuse Replacement
2. Disconnect the bulb by pulling it
out.
Replacing the fuses on the vehicle's
left side
If the electrical system does not work,
first inspect the fuses on the vehicle's
left side.
1. Make sure the ignition is switched
off, and other switches are off.
2. Open the fuse panel cover.
3. Install the new bulb in the reverse
order of the removal procedure.
*Some models.
6-39















Content      ..     13      14      15      16     ..
