When Driving
Rear View Monitor
(Predicted vehicle path assist lines
Rear View Parking Camera
display type)
Location
If force is applied to the steering
wheel, the guide lines may not
display. Loosen your grip on the
steering wheel to allow the guide
lines to display.

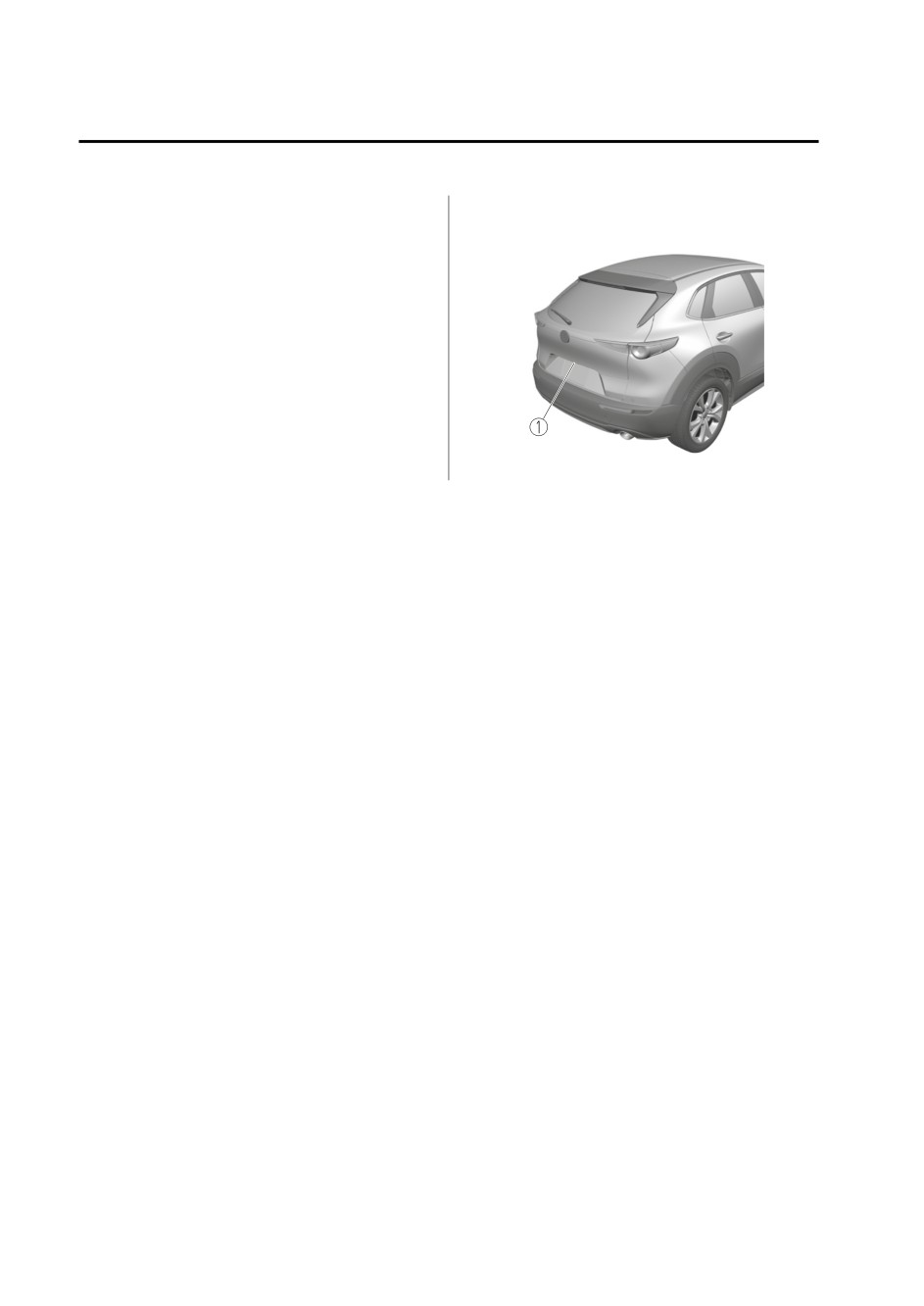

1. Rear view parking camera
4-218
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
Switching to the Rear View Monitor Display
Shift the shift lever (manual transmission) or the selector lever (automatic
transmission) to reverse (R) position with the ignition switched ON to switch the
display to the rear view monitor display.
NOTE
When the shift lever (manual transmission) or the selector lever (automatic
transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.

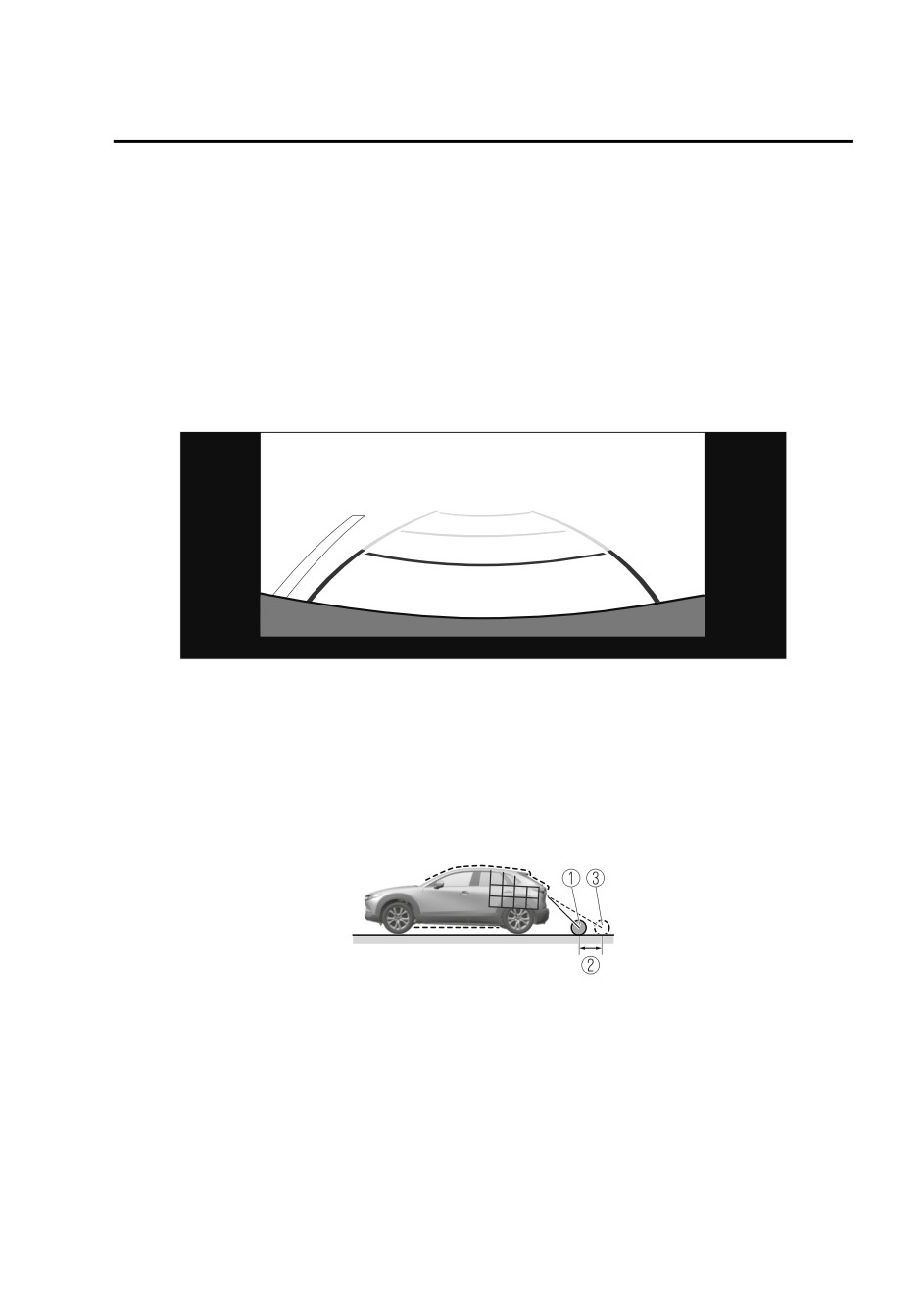

Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
1.
(Screen display)
2.
(Actual view)
3. Bumper
4.
“Check surroundings for safety.” message is displayed
5. Object
4-219
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
NOTE
The displayable range varies depending on the vehicle and road conditions.
If the camera lens is touched or there is any dirt on it, it could affect the screen
image. Wipe the lens using a soft cloth.
The displayable range is limited. Objects under the bumper or around the bumper
ends cannot be displayed.
The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).
Some optionally installed vehicle accessories may be picked up by the camera. Do
not install any optional parts that can interfere with the camera view, such as
illuminating parts or parts made of reflective material.
It may be difficult to see the display under the following conditions, however, it
does not indicate a malfunction.
In darkened areas.
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during periods of high
humidity.
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
The surroundings are illuminated by vehicle lights, fluorescent lights, or LED
lights (display may flicker).
Extremely small dark or white dots appear on the screen (dots may flicker).
Image display may be delayed if the temperature around the camera is low.
4-220
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
Viewing the Display
Predicted vehicle path assist lines display type
The projected path guidance mode displays the predicted path of the vehicle after
you turn the steering wheel.
Use this mode for parking your vehicle in a parking space or garage.

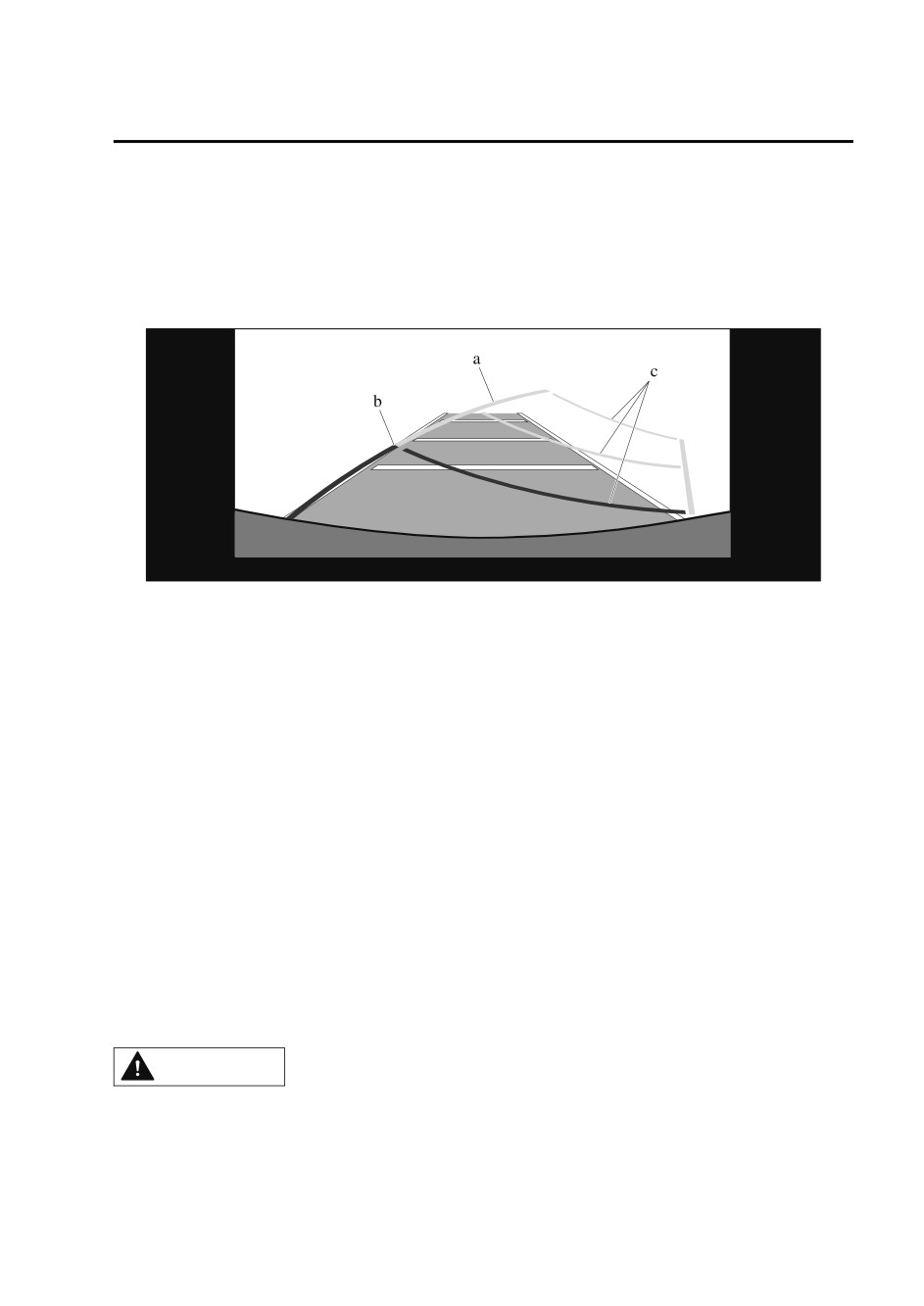

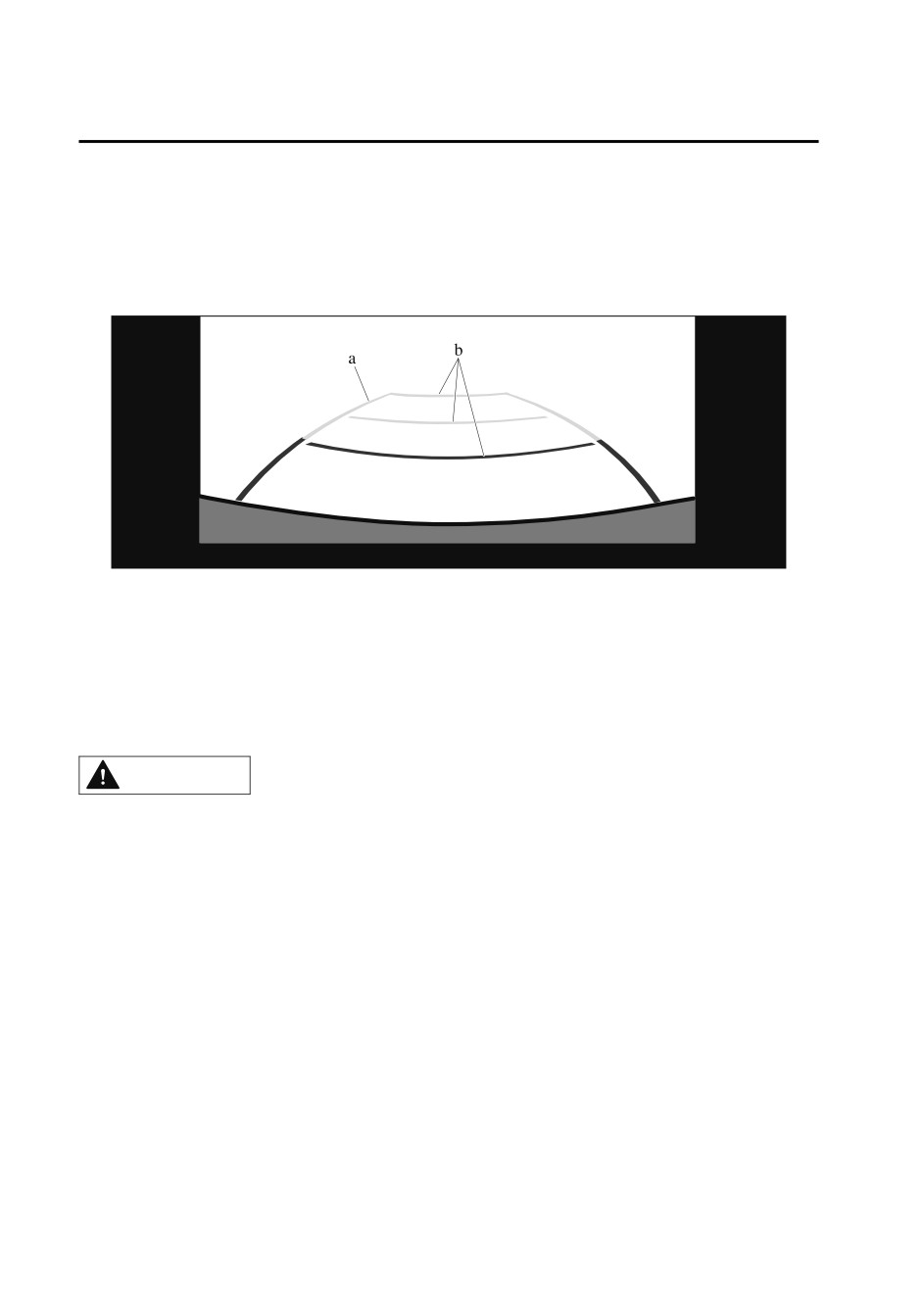

a) Projected vehicle path (yellow)
These lines are displayed as a reference for the projected path of the vehicle.
The lines displaying the projected vehicle path change after you turn the steering
wheel.
b) Extended vehicle width lines (blue)
These lines indicate the vehicle's extended width.
These lines are not displayed when the vehicle's wheels are in the straight-ahead
position.
c) Distance guide lines (red)
These lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The blue line indicates the point about 0.5 m (19 in) from the rear bumper.
The red and yellow lines, which change position after you turn the steering wheel,
indicate the points about 0.5 m (19 in) for the red line and 1.0 m (39 in) and 2.0
m (78 in) for the yellow lines from the rear bumper (at the center point of each of
the lines).
A degree of error occurs when the wheels are not in the straight-ahead position.
In the above illustration, the right side of the vehicle is in a position closer to the
actual distance displayed by the distance guide lines (red: about 0.5 m (19 in)
point, yellow: about 1.0 m (39 in), and yellow: about 2.0 m (78 in) point behind
the rear bumper), whereas the left side is in a position farther away.
CAUTION
The indicated position of the guide lines on the display changes depending on the
vehicle conditions (such as the number of occupants/cargo load) and the road
conditions (such as a steep gradient to the rear of the vehicle).
Always check the area to the vehicle's rear and the surrounding area directly with
your eyes while backing up.
4-221
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
Fixed assist lines display type

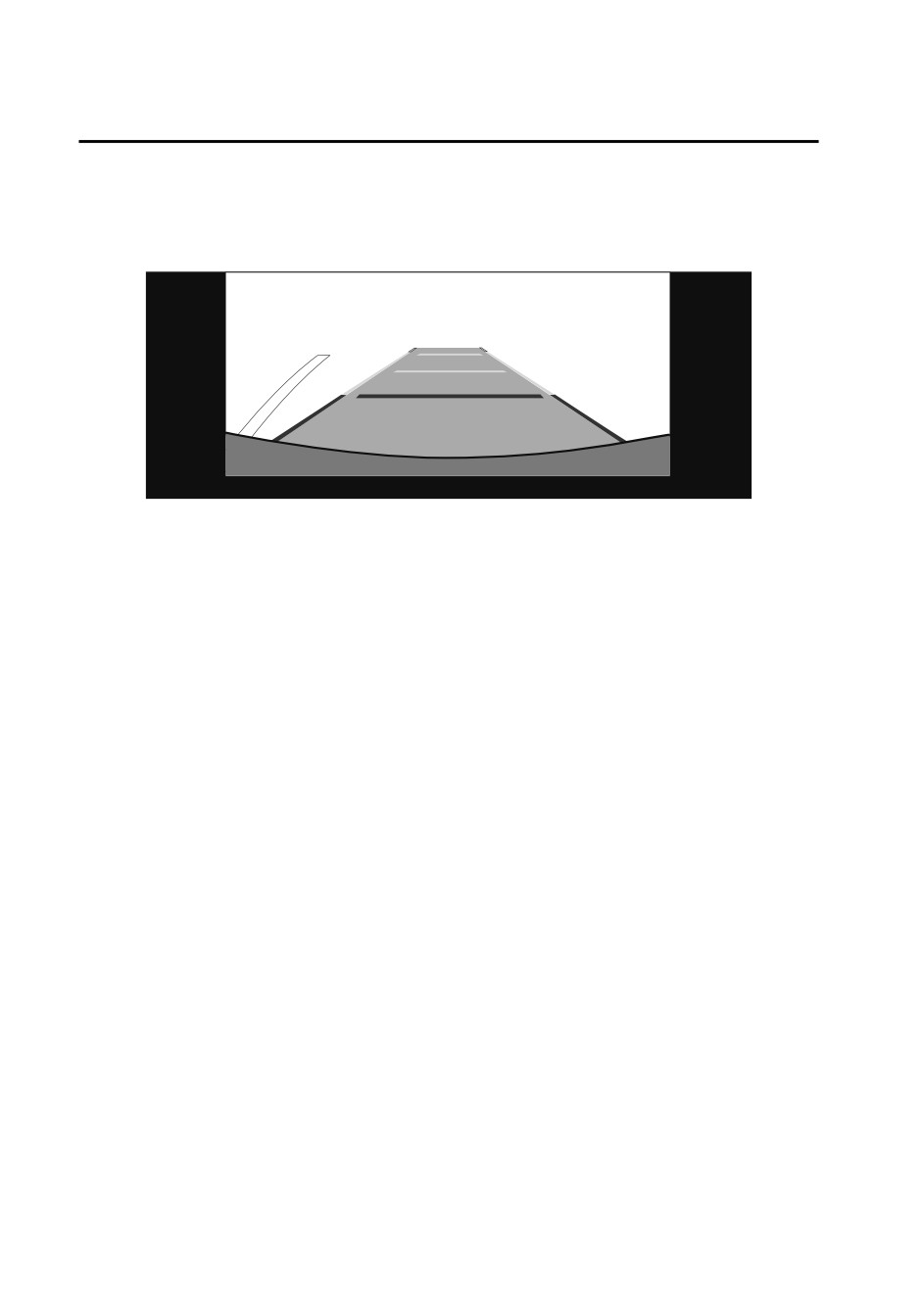

Guide lines which indicate the width of the vehicle are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the
parking space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
a) Vehicle width guide lines
Guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19 in) from the rear bumper.
The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from
the rear bumper.
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's
turning of the steering wheel. Always be careful and check the area to the vehicle's
rear and the surrounding area directly with your eyes while backing up.
Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending
on the traffic, road, and vehicle conditions. The amount of steering and the timing
also varies depending on conditions, so confirm the surrounding conditions directly
with your eyes and steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
4-222
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
Predicted vehicle path assist lines display type
NOTE
The following shows an example of vehicle parking in which the steering wheel is
turned to the right when backing up the vehicle. The operation is reversed when
backing up the vehicle from the opposite direction.
1. Shift the shift lever (manual transmission) or the selector lever (automatic
transmission) to reverse (R) position to switch the display to the rear view
monitor display.
2. Before backing the vehicle into the parking space, turn the steering wheel while
referring to the projected vehicle path display so that the vehicle enters the
center of the parking space.

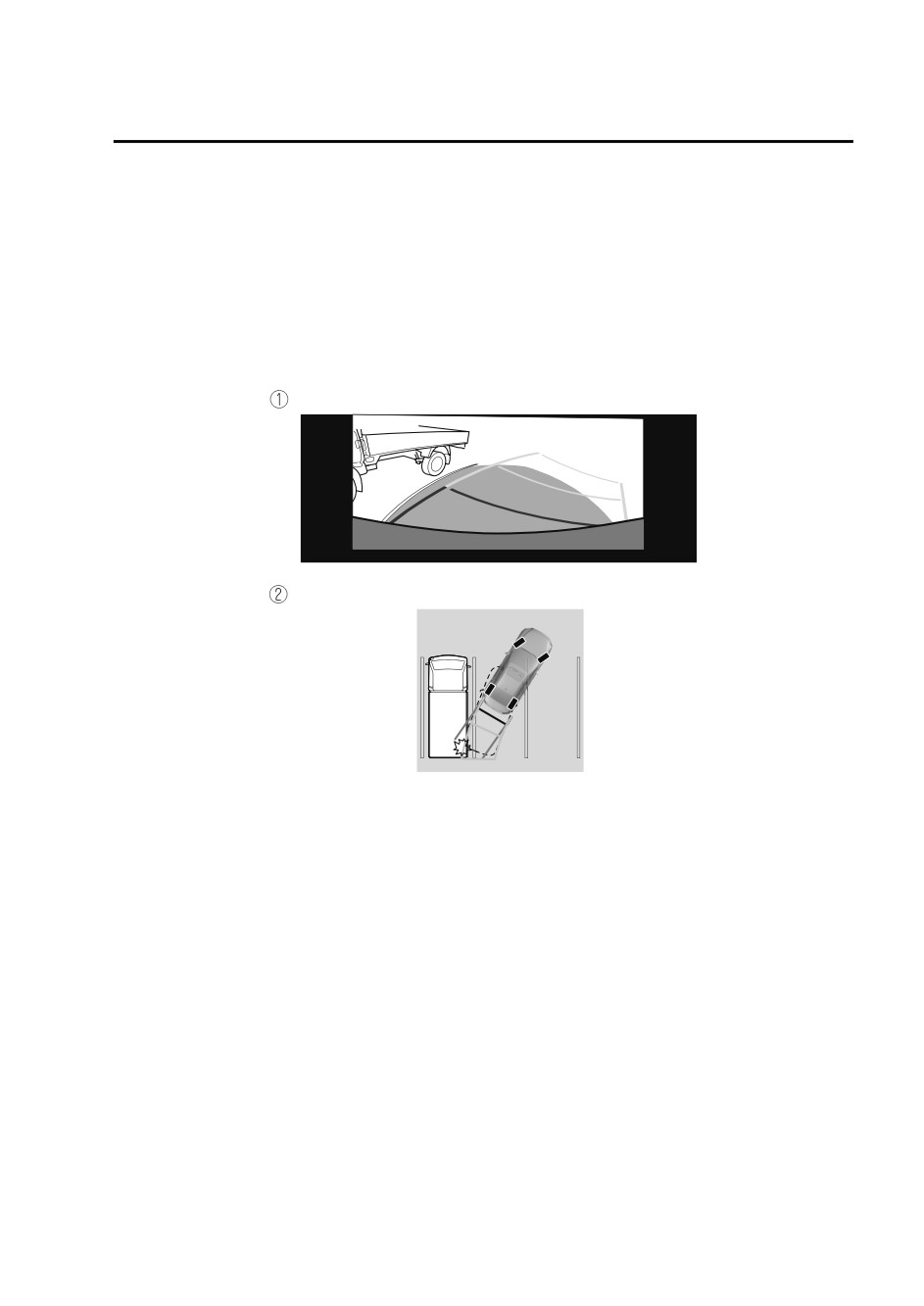

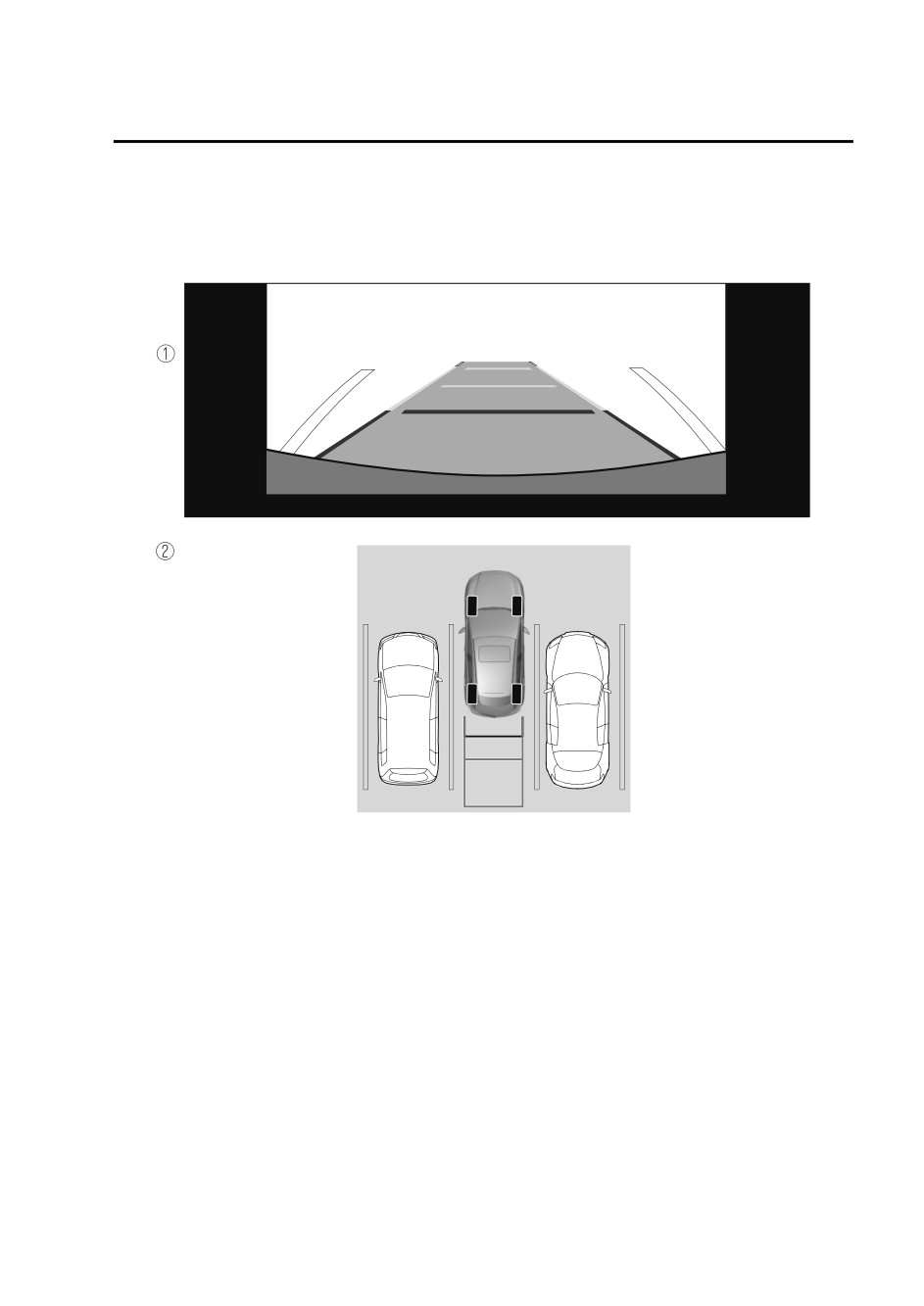

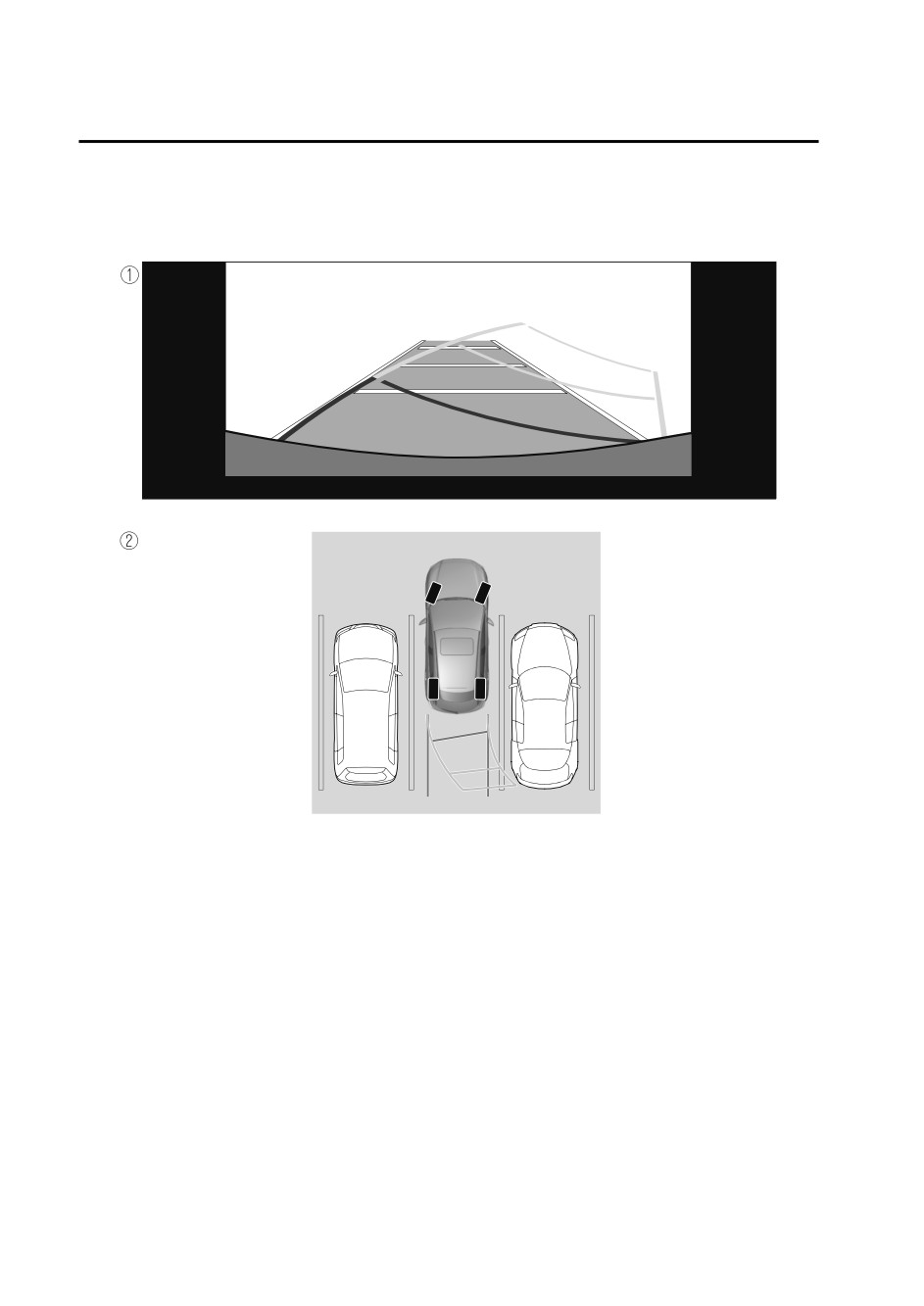

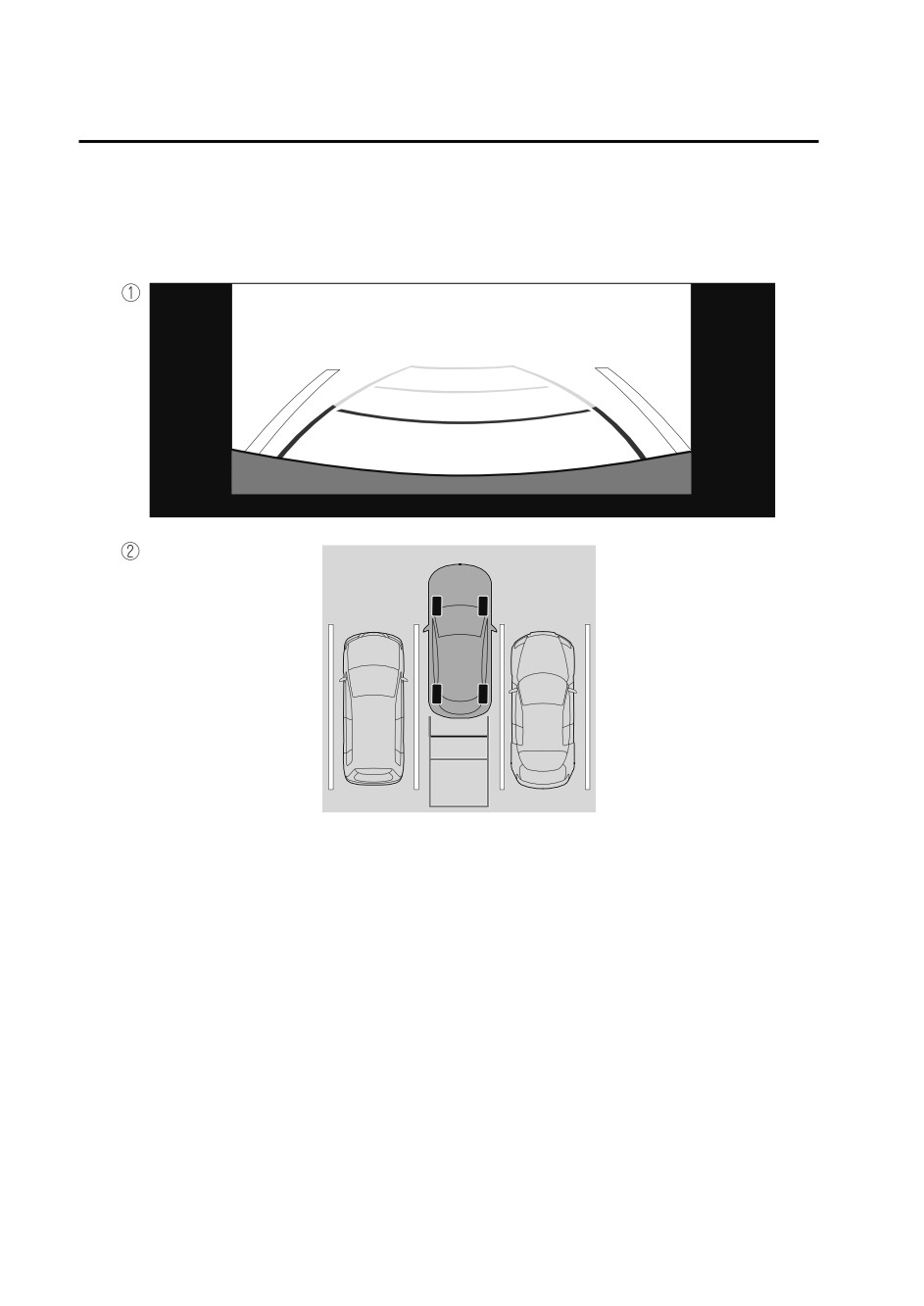

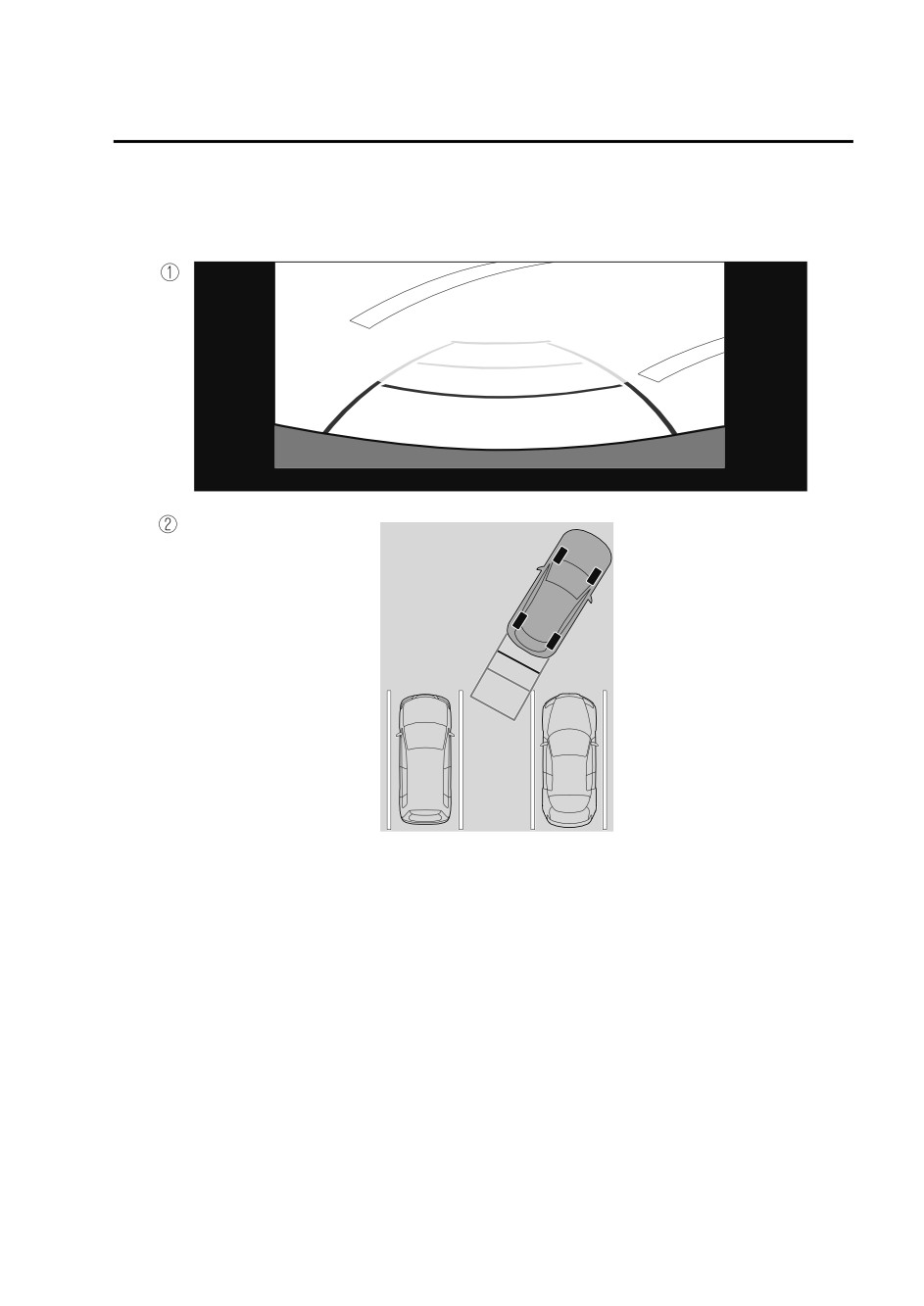

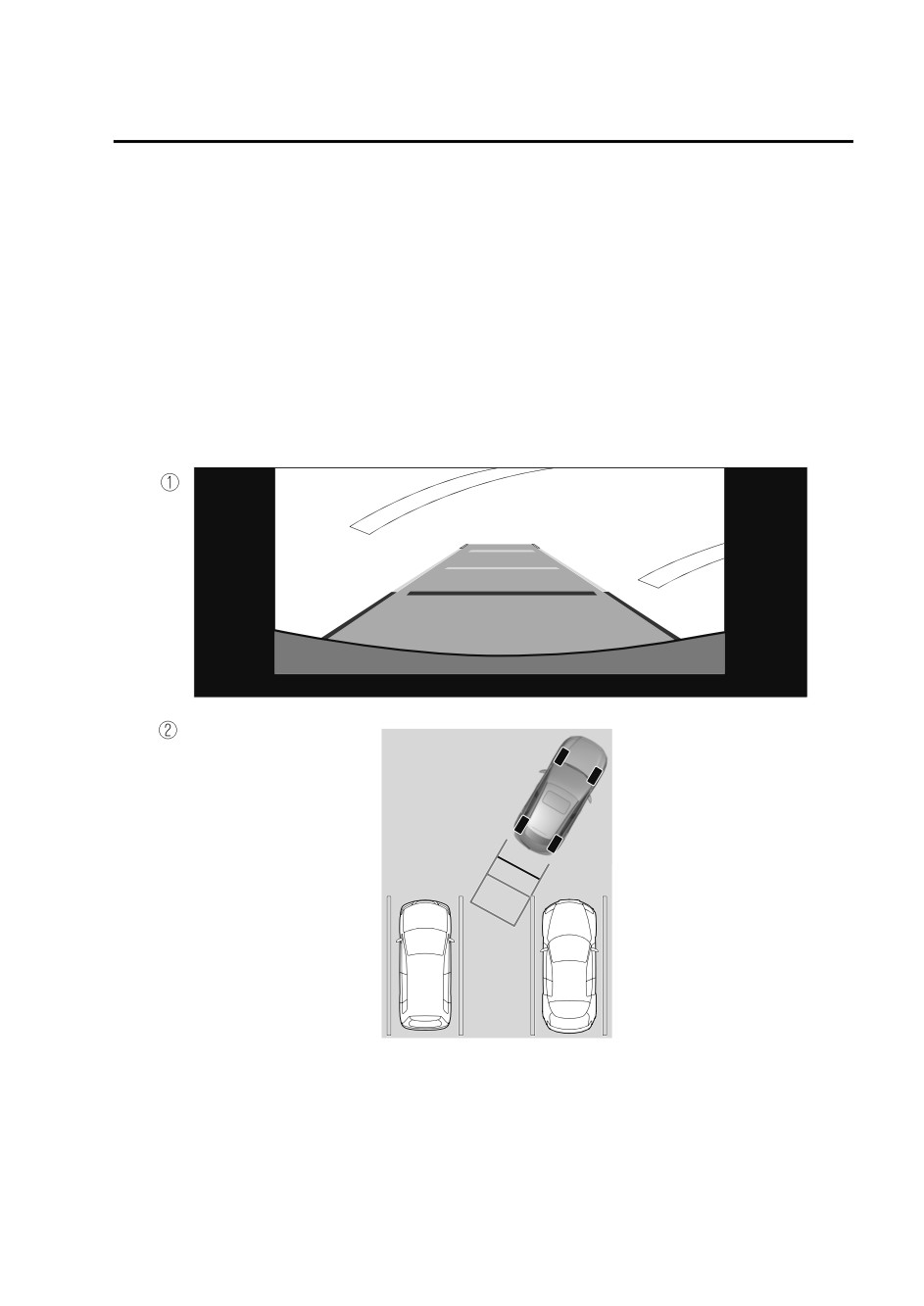

1.
(Display condition)
2.
(Vehicle condition)
4-223
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
3. After your vehicle begins entering the parking space, continue backing up slowly
so that the distance between the vehicle width lines and the sides of the parking
space on the left and right are roughly equal.
1.
(Display condition)
2.
(Vehicle condition)
4. Continue to adjust the steering wheel until the vehicle width guide lines are
parallel to the left and right sides of the parking space.
4-224
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
5. Once they are parallel, straighten the wheels and back your vehicle slowly into
the parking space. Continue checking the vehicle's surroundings and then stop
the vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)
1.
(Display condition)
2.
(Vehicle condition)
6. When the shift lever (manual transmission) or the selector lever (automatic
transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.
NOTE
Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back
end and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.
4-225
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor,
but they may not actually be aligned on the ground.
Fixed assist lines display type
NOTE
Images displayed on the monitor from the rear view parking camera are reversed
images (mirror images).
1. Shift the shift lever (manual transmission) or the selector lever (automatic
transmission) to reverse (R) position to switch the display to the rear view
monitor display.
2. Confirming the surrounding conditions, reverse the vehicle.
4-226
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
3. After your vehicle begins entering the parking space, continue backing up slowly
so that the distance between the vehicle width lines and the sides of the parking
space on the left and right are roughly equal.
1.
(Display condition)
2.
(Vehicle condition)
4. Continue to adjust the steering wheel until the vehicle width guide lines are
parallel to the left and right sides of the parking space.
4-227
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
5. Once they are parallel, straighten the wheels and back your vehicle slowly into
the parking space. Continue checking the vehicle's surroundings and then stop
the vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)
1.
(Display condition)
2.
(Vehicle condition)
6. When the shift lever (manual transmission) or the selector lever (automatic
transmission) is shifted from reverse (R) position to another shift lever (manual
transmission) or the selector lever (automatic transmission) position, the screen
returns to the previous display.
4-228
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
NOTE
Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back
end and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.
When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor,
but they may not actually be aligned on the ground.
Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such
variance in distance perspective could lead to an accident. Note the following
conditions that may cause a variance in distance perspective.

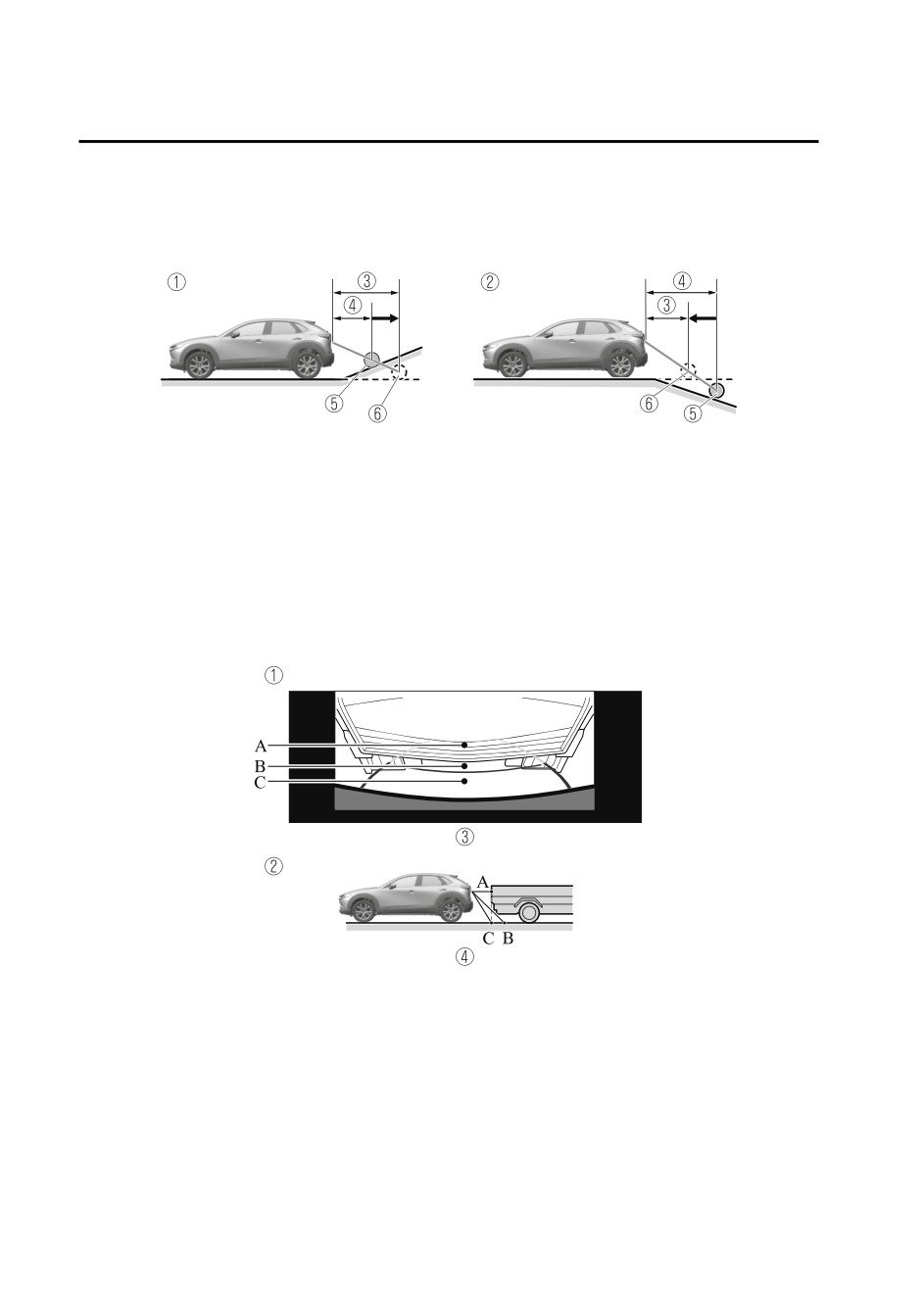

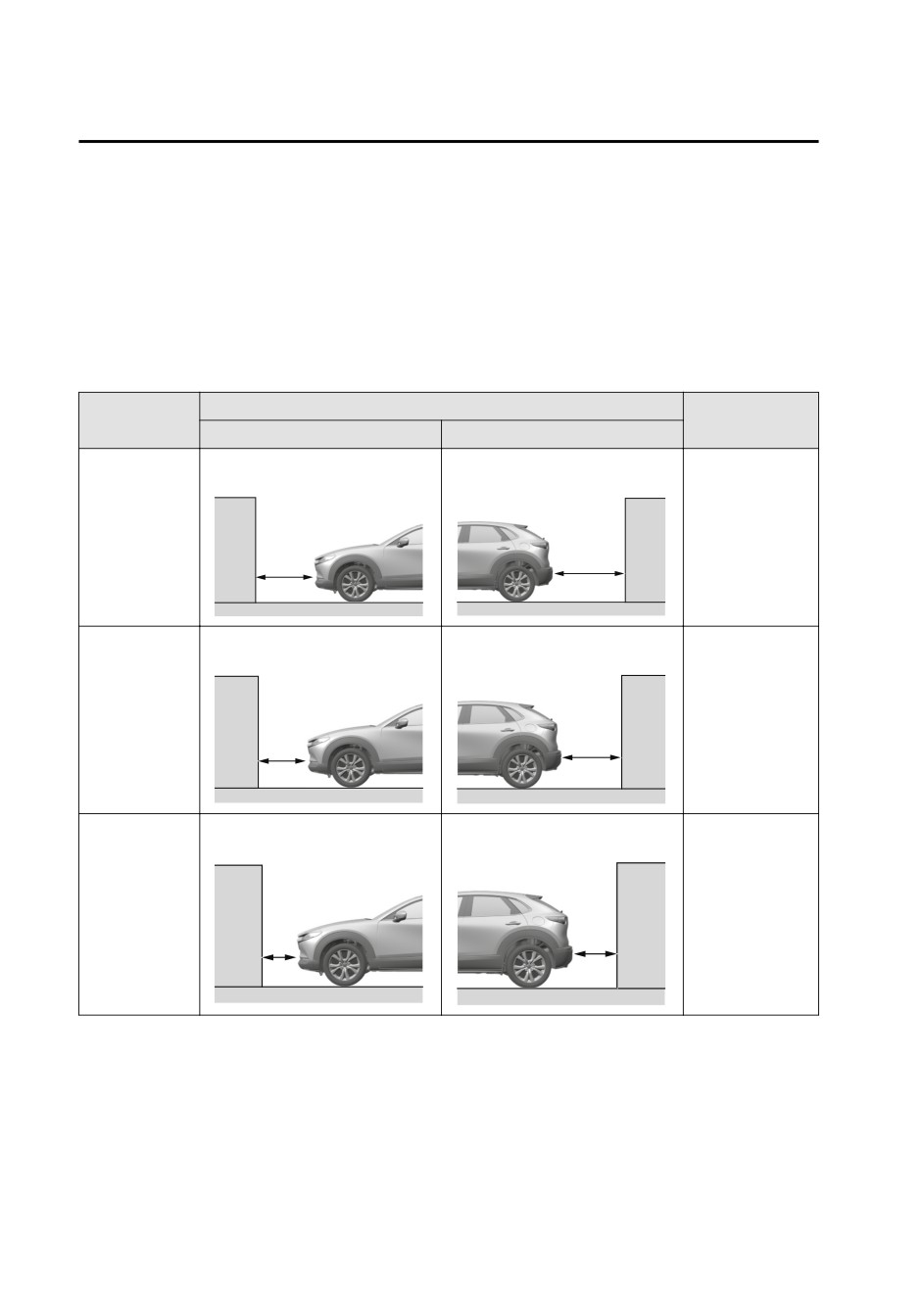

When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther
than the actual distance.
1. Object
2. Variance
3. Object on screen
4-229
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed
on the screen appears farther (downgrade: closer) than the actual distance.
1. Appears farther than actual distance
2. Appears closer than actual distance
3. Distance between the vehicle and object displayed on the screen.
4. Actual distance between the vehicle and object.
5. Object at actual position
6. Object on screen

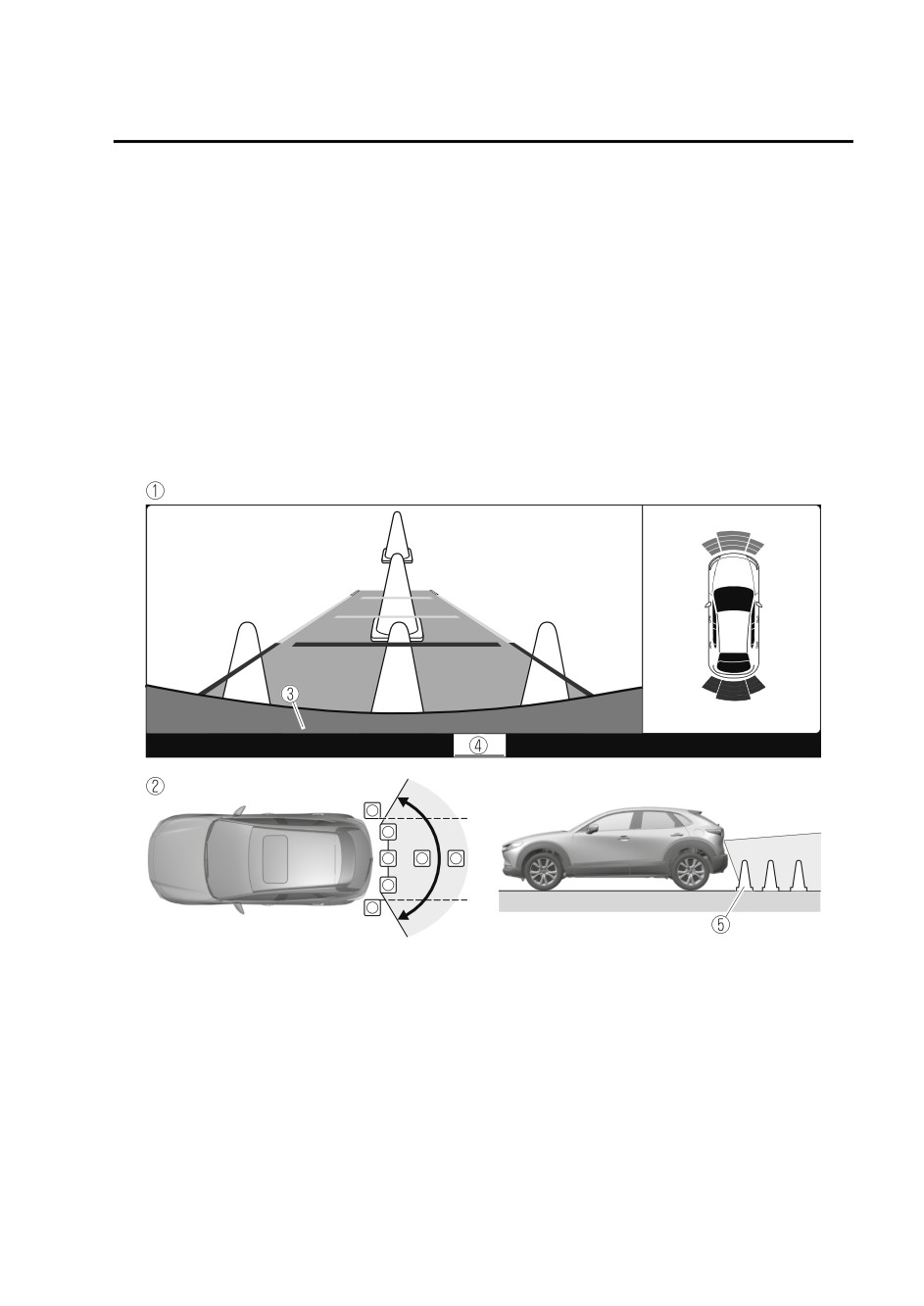

Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance
to the three-dimensional object displayed on the screen is different from the actual
distance.
1.
(Screen display)
2.
(Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A
4-230
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
(Predicted vehicle path assist lines display type)
When reversing near a three-dimensional object
When reversing near an overhanging object, the vehicle may hit the object even if
the anticipated course line does not contact the object on the screen. The position
of the object displayed on the screen is different from the actual position because
the anticipated course lines on the screen are displayed based on a horizontal road
surface. When backing up near an overhanging object, confirm the rear and
surrounding conditions directly with your eyes.
1.
(Screen display)
2.
(Actual view)
4-231
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
Parking Sensor System*
Parking Sensor System
The parking sensors use ultrasonic sensors which detect obstructions around the
vehicle when the vehicle is driven at low speeds, such as during garage or parallel
parking, and a buzzer sound and detection indicator notify the driver of the
approximate distance from the vehicle to the surrounding obstruction.

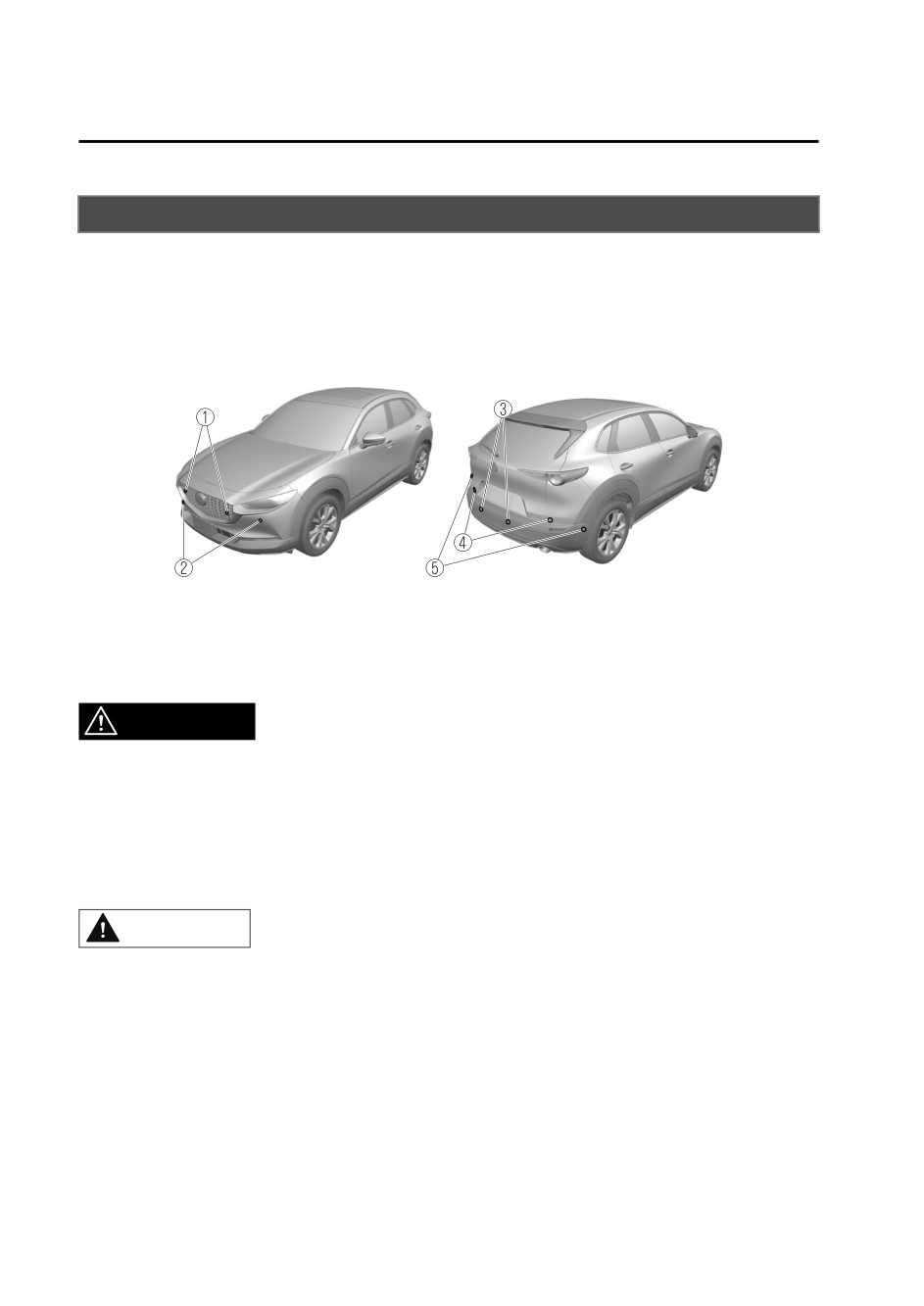

1. Front ultrasonic sensor*
2. Front corner ultrasonic sensor*
3. Rear ultrasonic sensor
4. Rear corner ultrasonic sensor
5. Rear side ultrasonic sensor*
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the
safety around your vehicle visually when driving:
This system can assist the driver in operating the vehicle in the forward and
backward directions while parking. The detection ranges of the sensors are limited,
therefore, driving the vehicle while relying only on the system may cause an
accident. Always confirm the safety around your vehicle visually when driving.
CAUTION
¾ Do not install any accessories within the detection ranges of the sensors. It may
affect the system operation.
¾ Depending on the type of obstruction and the surrounding conditions, the
detection range of a sensor may narrow, or the sensors may not be able to detect
obstructions.
4-232 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
NOTE
When the ignition is switched OFF, the system status before it was turned off is
maintained. For example, if the ignition is switched OFF while the parking sensor
is activated, the system will be activated when the ignition is switched ON the
next time.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation
when removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, grating, or grass covered roads.
Anything which generates ultrasonic waves such as another vehicle's horn, the
engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors approaches the vehicle.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is
installed to the vehicle.
The vehicle is moving towards a tall or square curbstone, or a steep grade.
An obstruction is too close to the sensor.
The vehicle is moving towards an uneven wall or stairs.
There are multiple obstructions.
The vehicle is driven in a place with low ceilings.
Obstructions under the bumper cannot be detected. Obstructions which are
lower than the sensor or thin may not be detected even though they were
detected once.
The following types of obstructions may not be detected:
Thin objects such as wire, rope or poles
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is
applied to the bumpers, even in a minor accident. If the sensors are deviated, they
cannot detect obstructions.
The system may have a malfunction if a sound is not activated or the detection
indication is not displayed even when the parking sensor OFF switch is pressed
and the parking sensor is operable. Have your vehicle inspected by an Authorized
Mazda Dealer.
The system may have a malfunction if the indicator light does not turn on even
when the parking sensor OFF switch is turned on. Have your vehicle inspected by
an Authorized Mazda Dealer.
4-233
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
The system may have a malfunction if a message indicating a system malfunction is
displayed. Have your vehicle inspected by an Authorized Mazda Dealer.
A message may be displayed even when the ambient temperature is extremely
cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter
from the sensor area.

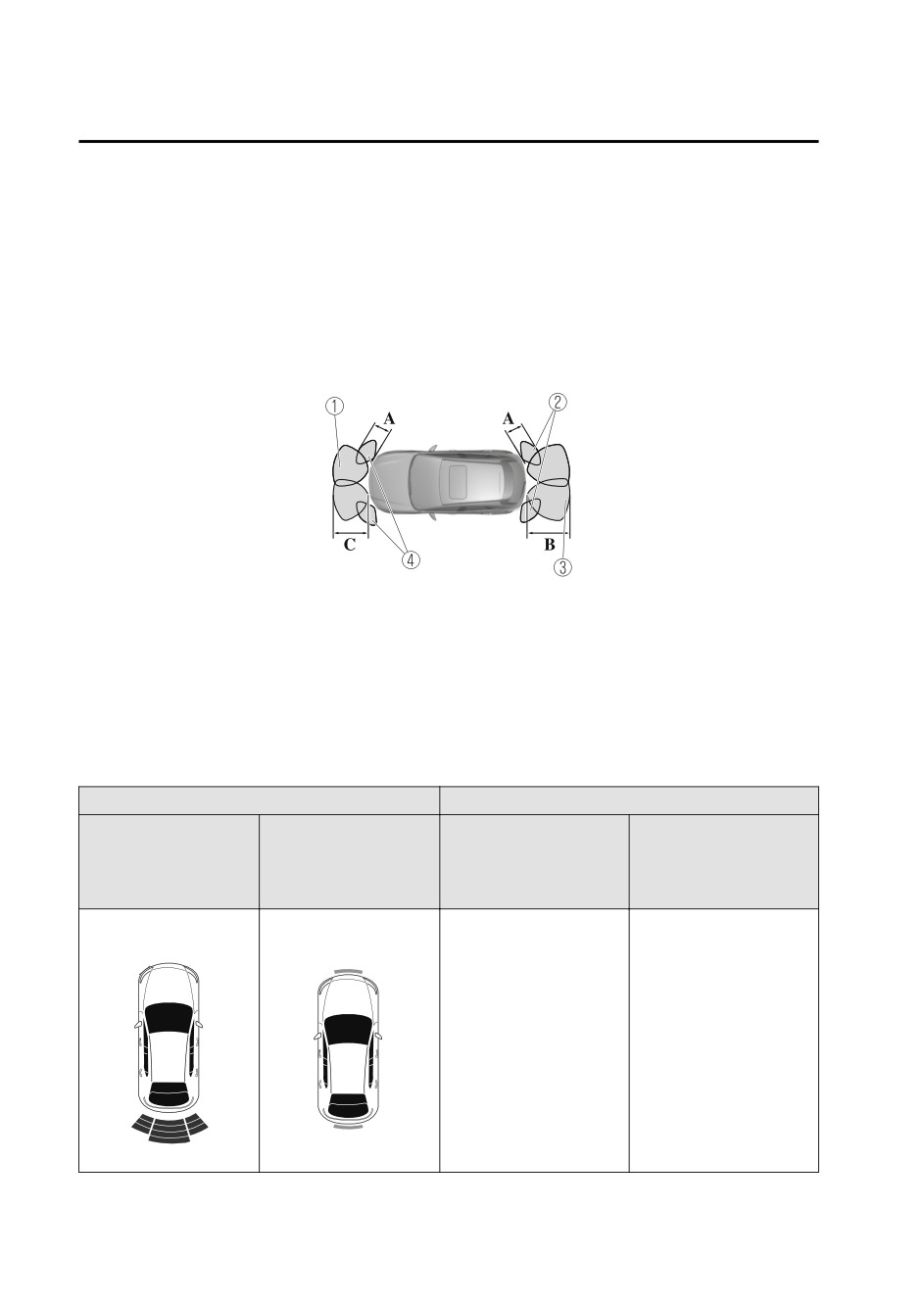

Sensor Detection Range
The sensors detect obstructions within the following range.
1. Front ultrasonic sensor detection range
2. Rear corner/Rear side ultrasonic sensor detection range
3. Rear ultrasonic sensor detection range
4. Front corner ultrasonic sensor detection range
A: About 55.0 cm (About 21.6 in)
B: About 150 cm (About 59.0 in)
C: About 100 cm (About 39.3 in)
Viewing distance display
Display
Distance between vehicle and obstruction
Rear ultrasonic sensor/
Front ultrasonic sensor*/
Without 360° view
With 360° view moni-
Rear corner ultrasonic
Front corner ultrasonic
monitor
tor
sensor/Rear side ultra-
sensor*
sonic sensor*
Green
Front ultrasonic sensor:
Rear ultrasonic sensor:
Approx. 10060.0 cm
Approx. 15060.0 cm
(39.323.6 in)
(59.023.6 in)
4-234 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
Display
Distance between vehicle and obstruction
Rear ultrasonic sensor/
Front ultrasonic sensor*/
Without 360° view
With 360° view moni-
Rear corner ultrasonic
Front corner ultrasonic
monitor
tor
sensor/Rear side ultra-
sensor*
sonic sensor*
Yellow
Rear ultrasonic sensor:
Front ultrasonic sensor:
Approx. 60.045.0 cm
Approx. 60.045.0 cm
(23.617.7 in)
(23.617.7 in)
Rear corner ultrasonic
Front corner ultrasonic
sensor/Rear side ultra-
sensor:
sonic sensor:
Approx. 55.038.0 cm
Approx. 55.038.0 cm
(21.614.9 in)
(21.614.9 in)
Amber
Rear ultrasonic sensor:
Front ultrasonic sensor:
Approx. 45.035.0 cm
Approx. 45.035.0 cm
(17.713.7 in)
(17.713.7 in)
Rear corner ultrasonic
Front corner ultrasonic
sensor/Rear side ultra-
sensor:
sonic sensor:
Approx. 38.025 cm
Approx. 38.025 cm
(14.99.8 in)
(14.99.8 in)
Red
Rear ultrasonic sensor:
Front ultrasonic sensor:
Within approx. 35.0 cm
Within approx. 35.0 cm
(13.7 in)
(13.7 in)
Rear corner ultrasonic
Front corner ultrasonic
sensor/Rear side ultra-
sensor:
sonic sensor:
Within approx. 25 cm
Within approx. 25 cm
(9.8 in)
(9.8 in)
*Some models.
4-235
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System

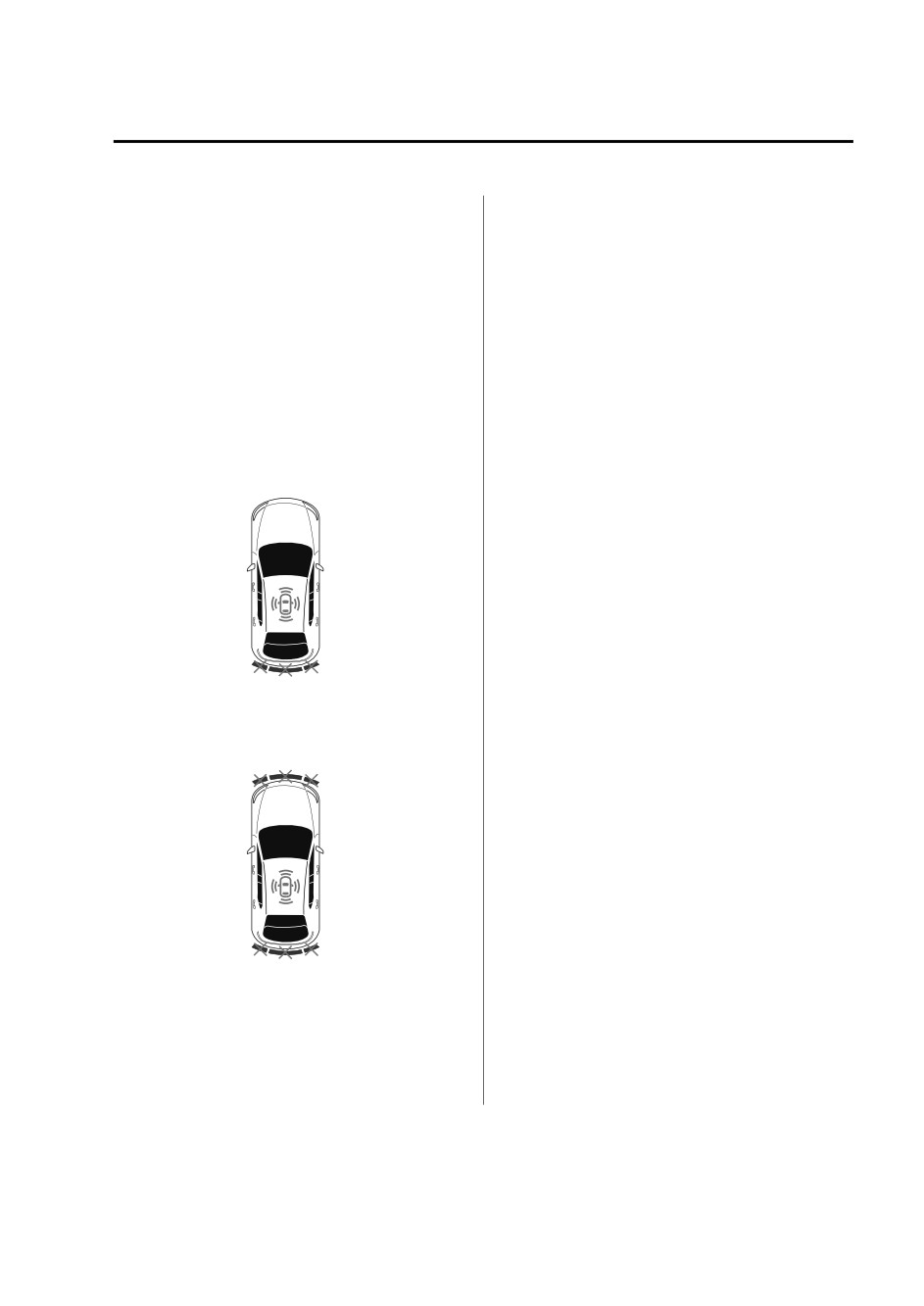

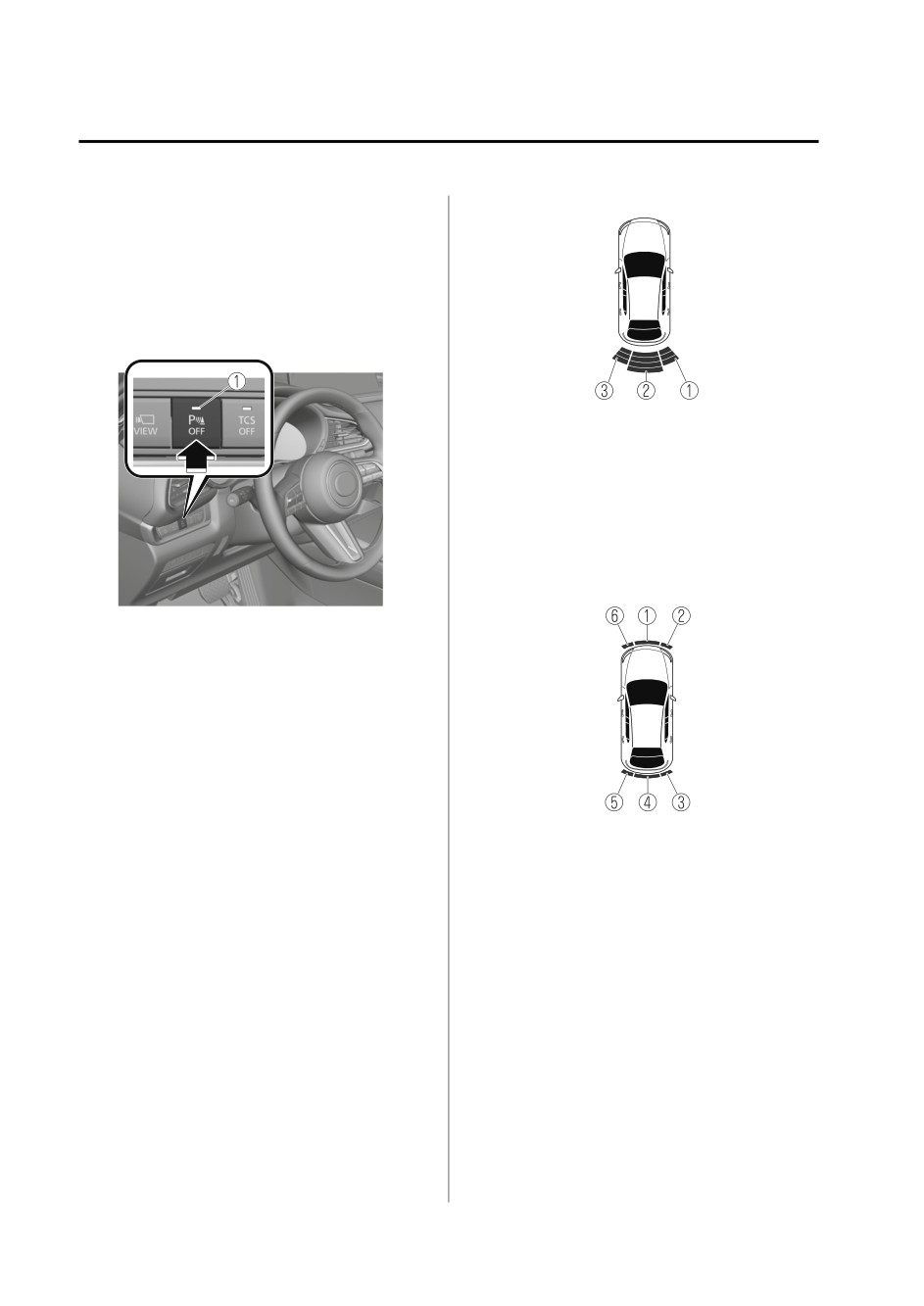

Parking Sensor OFF Switch
Without 360°view monitor
When the switch is pressed, the
parking sensor is stopped and the
indicator light turns on.
If the switch is pressed again, the
parking sensor becomes operational
and the indicator light turns off.
1. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic
sensor gauge*
2. Rear ultrasonic sensor gauge
3. Left rear corner ultrasonic sensor
gauge/Left rear side ultrasonic
sensor gauge*
With 360°view monitor
1. Indicator light
NOTE
(Automatic vehicle)
The detection indicator and buzzer
of the front ultrasonic sensors/front
corner ultrasonic sensors do not
operate when the selector lever is in
the P position.
The detection indicator and buzzer
sound do not activate when the
1.
Front ultrasonic sensor gauge
parking brake is applied.
2.
Right front corner ultrasonic sensor

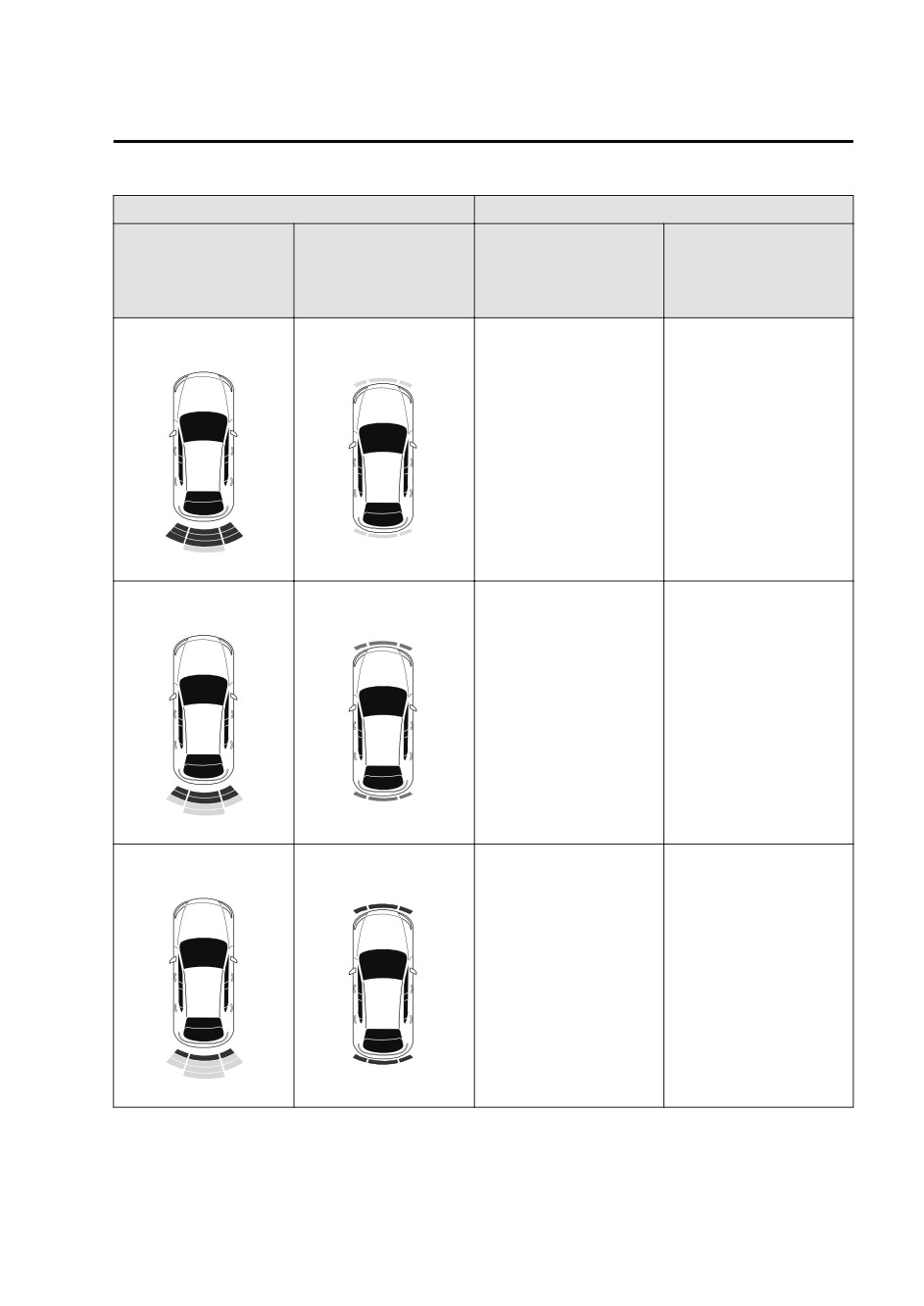

Obstruction Detection Indication
gauge
3.
Right rear corner ultrasonic sensor
The position of a sensor which has
gauge/Right rear side ultrasonic
detected an obstruction is indicated.
sensor gauge*
The gauge illuminates in different areas
4.
Rear ultrasonic sensor gauge
depending on the distance to an
5.
Left rear corner ultrasonic sensor
obstruction detected by the sensor.
gauge/Left rear side ultrasonic
As the vehicle approaches closer to an
sensor gauge*
obstruction, the zone in the gauge
6.
Left front corner ultrasonic sensor
closer to the vehicle illuminates.
gauge
4-236 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
NOTE
The detection indicator can be
switched between display and
non-display and the buzzer volume
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
System problem notification
The indication displays if the system
has a malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the center display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-22.
4-237
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle to the obstruction
using warning beeps depending on the distance. If multiple obstructions are
detected at the same time, warning beeps are activated according to the distance to
the nearest obstruction. The warning beeps are activated as follows while the system
is operating. However, the warning beeps are not activated while the seat belt
reminder is operating.
Front ultrasonic sensor*, Rear ultrasonic sensor
Distance De-
Distance between vehicle and obstruction
Beeper sound*1
tection area
Front ultrasonic sensor
Rear ultrasonic sensor
Approx. 10060.0 cm
Approx. 15060.0 cm
(39.323.6 in)
(59.023.6 in)
Farthest dis-
Slow intermittent
tance
sound
Approx. 60.045.0 cm
Approx. 60.045.0 cm
(23.617.7 in)
(23.617.7 in)
Medium intermit-
Far distance
tent sound
Approx. 45.035.0 cm
Approx. 45.035.0 cm
(17.713.7 in)
(17.713.7 in)
Middle dis-
Fast intermittent
tance
sound
4-238 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
Distance De-

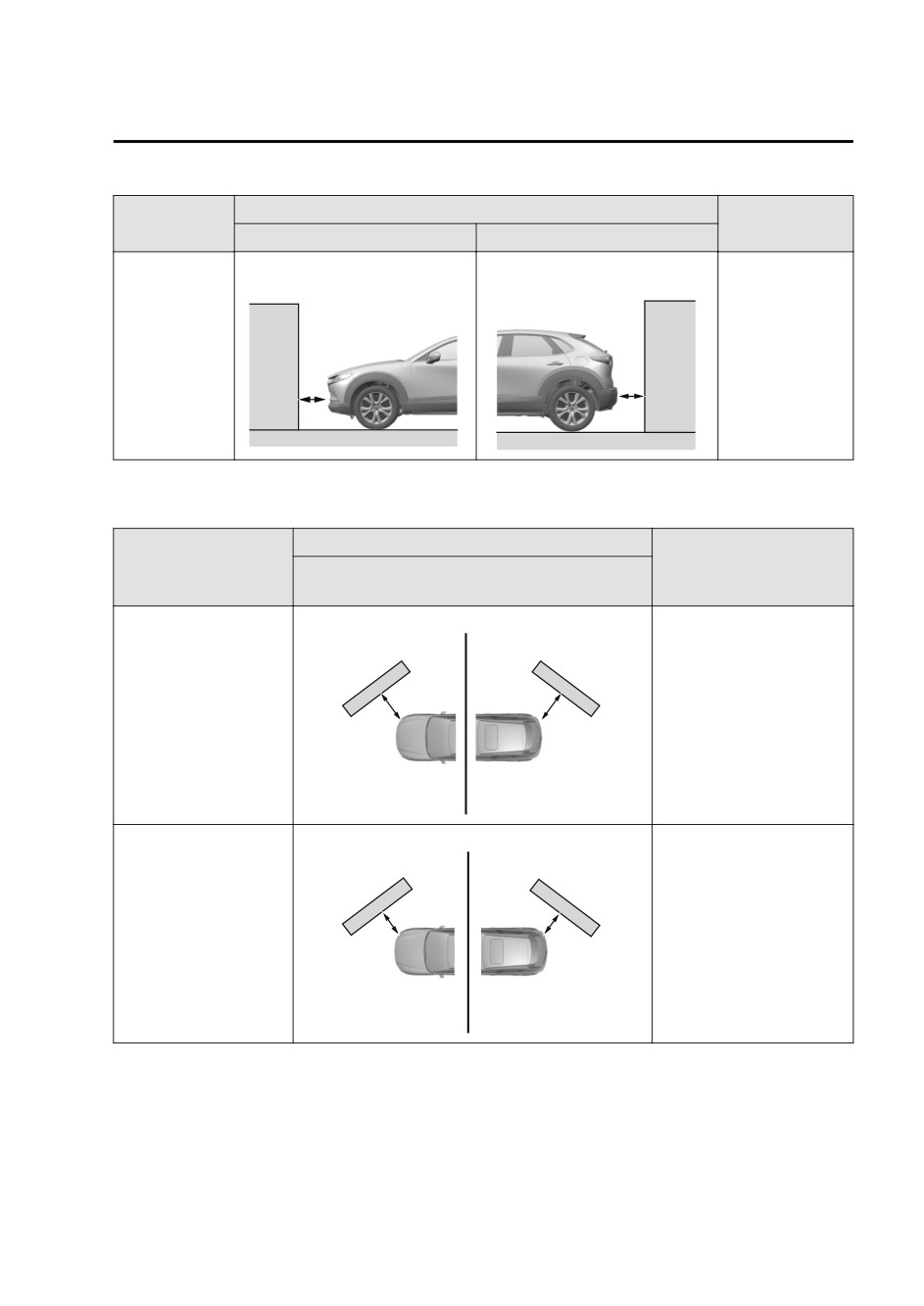

Distance between vehicle and obstruction
Beeper sound
*1
tection area
Front ultrasonic sensor
Rear ultrasonic sensor
Within approx. 35.0 cm (13.7
Within approx. 35.0 cm (13.7
in)
in)
Continuous
Close distance
sound
*1
The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Front corner ultrasonic sensor*, Rear corner/Rear side* ultrasonic sensor

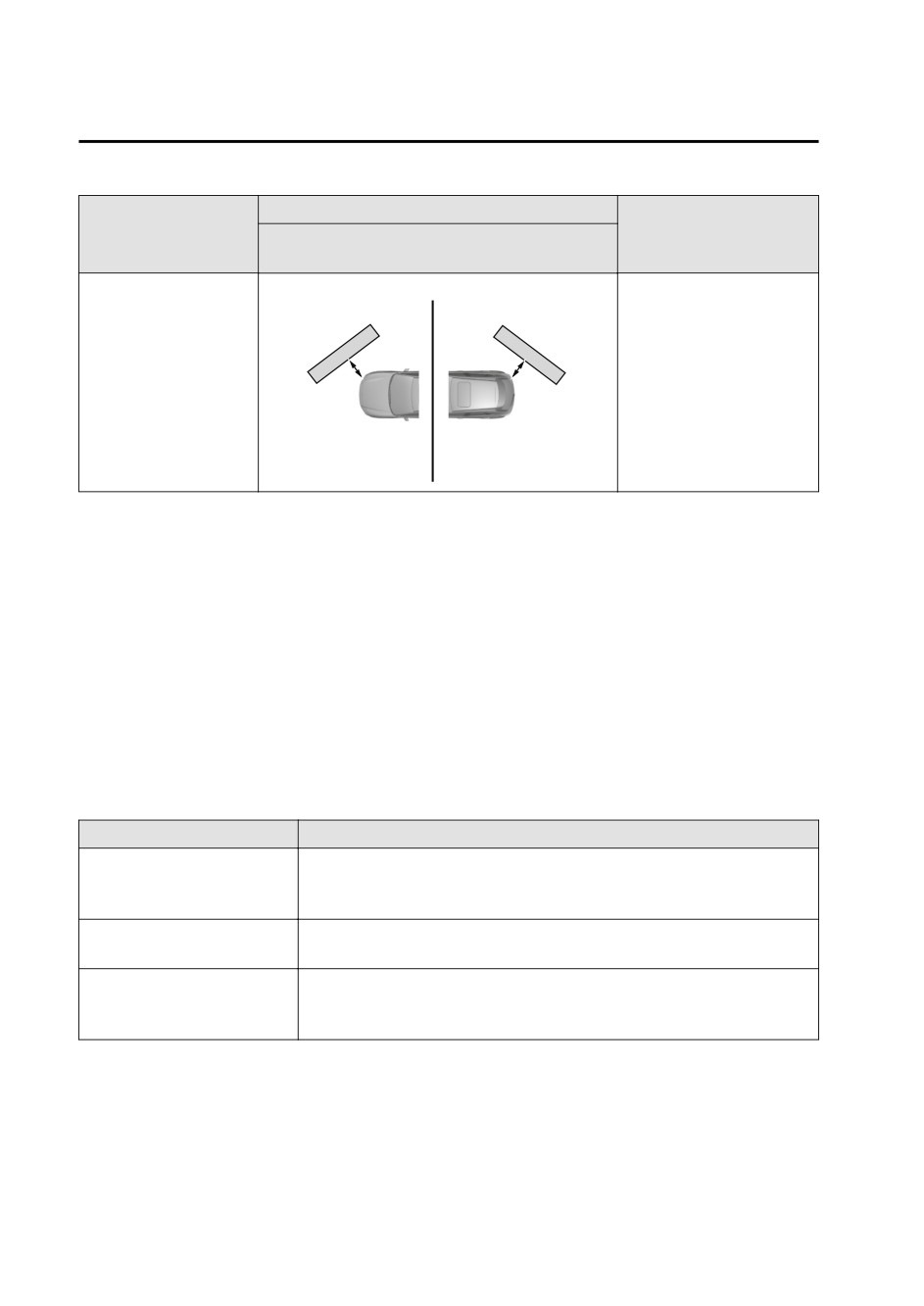

Distance between vehicle and obstruction
Distance Detection
Front corner ultrasonic sensor/Rear corner,
Beeper sound*1
area
Rear side ultrasonic sensor
Approx. 55.038.0 cm (21.614.9 in)
Medium intermittent
Far distance
sound
Approx. 38.025 cm (14.99.8 in)
Middle distance
Fast intermittent sound
*Some models.
4-239
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Parking Sensor System
Distance between vehicle and obstruction
Distance Detection
Front corner ultrasonic sensor/Rear corner,
Beeper sound*1
area
Rear side ultrasonic sensor
Within approx. 25 cm (9.8 in)
Close distance
Continuous sound
*1
The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
If an obstruction in the same area excluding the close area is detected
continuously for 6 seconds or longer, only the warning beeps stop activating.
(Detection is indicated) If the detection area changes to the close side, the
warning beeps resumes. (If the detection area changes to the far side, the warning
beeps remain off)
The sound volume (each of front and rear) can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When Warning Indicator/Beep is Activated
The system notifies the driver of an abnormality by activating the beep sound and
the indicator light.
Indicator/Beep
How to check
A message indicating a sys-
There may be a problem with the system. Have your vehicle inspected
tem malfunction or sensor
by an Authorized Mazda Dealer as soon as possible.
malfunction is displayed.
A message indicating that the
Remove any foreign matter from the sensor area. If the system does not
sensor is dirty is displayed.
recover, have the vehicle inspected by an Authorized Mazda Dealer.
A certain obstruction detec-
Foreign matter may have gotten on the sensor area corresponding to
tion indication is continuous-
the detection indicator. If the system does not recover, have the vehicle
ly displayed.
inspected by an Authorized Mazda Dealer.
4-240
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
5
Use of various features for ride comfort, including air-
conditioning system and audio system.
Climate Control System
5-2
Interior Equipment
5-36
Operating Tips
5-2
Sunvisors
5-36
Vent Operation
5-3
Interior Lights
5-37
Manual Type
5-6
Accessory Socket
5-39
Fully Automatic Type
5-10
Cup Holder
5-40
Bottle Holder
5-41
Assist Grips
5-42
Mazda Connect
5-14
Rear Coat Hooks
5-42
What is Mazda Connect ?
5-14
Storage Compartments
5-43
Mazda Connect Basic
Operations
5-18
Connected Service (U.S.A.
only)
5-35
5-1
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Have the air conditioner checked
Operating Tips
before the weather gets hot. Lack of
refrigerant may make the air
Operating Tips
conditioner less efficient.
Operate the climate control system
The refrigerant specifications are
with the engine running.
indicated on a label attached to the
To prevent the battery from being
inside of the engine compartment. If
discharged, do not leave the fan
the wrong type of refrigerant is used,
control switch on for a long period of
it could result in a serious
time with the ignition switched ON
malfunction of the air conditioner.
when the engine is not running.
Consult a professional, government
Clear all obstructions such as leaves,
certified repairer for the inspection
snow and ice from the hood and the
or repair because a special device is
air inlet in the cowl grille to improve
required for the air conditioner
the system efficiency.
maintenance.
Use the climate control system to
For details, consult an Authorized
defog the windows and dehumidify
Mazda Dealer.
the air.
The recirculate mode should be used
when driving through tunnels or
while in a traffic jam, or when you
would like to shut off outside air for
quick cooling of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in
direct sunlight during hot weather,
open the windows to let warm air

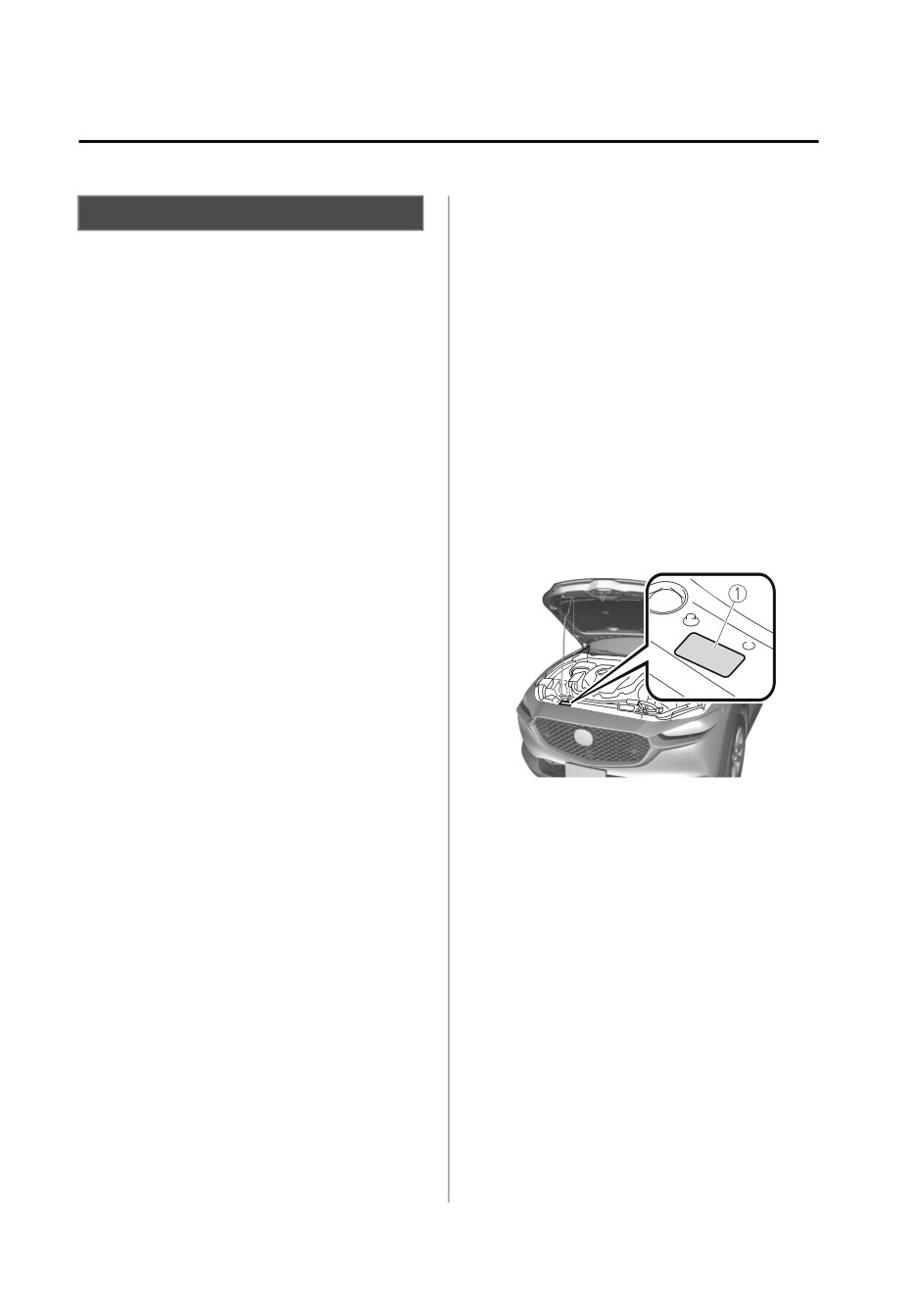

1. Label
escape, then run the climate control
system.
Run the air conditioner about 10
minutes at least once a month to
keep internal parts lubricated.
5-2
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Airflow direction adjustment
Vent Operation

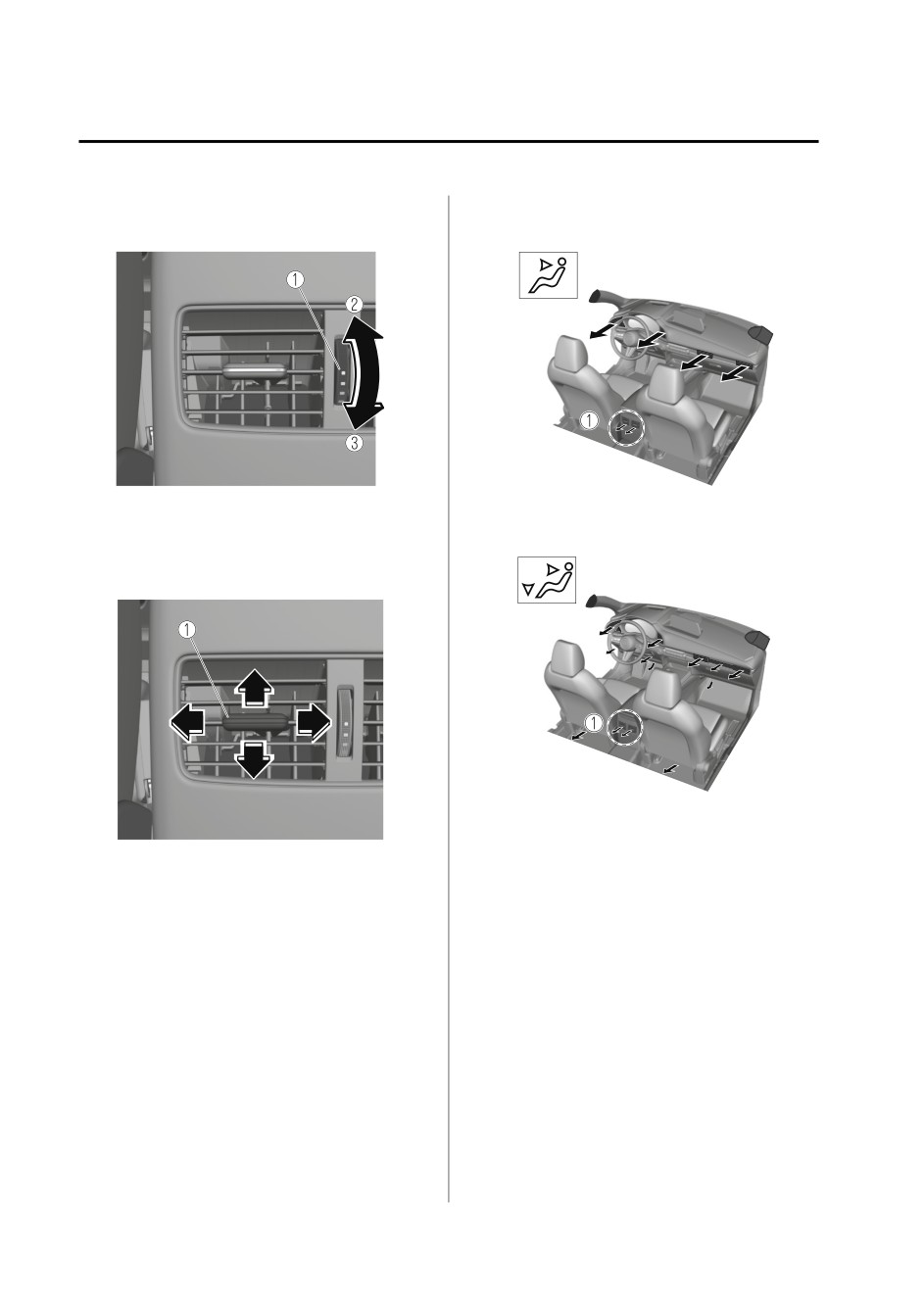

Adjusting the Vents
Directing airflow

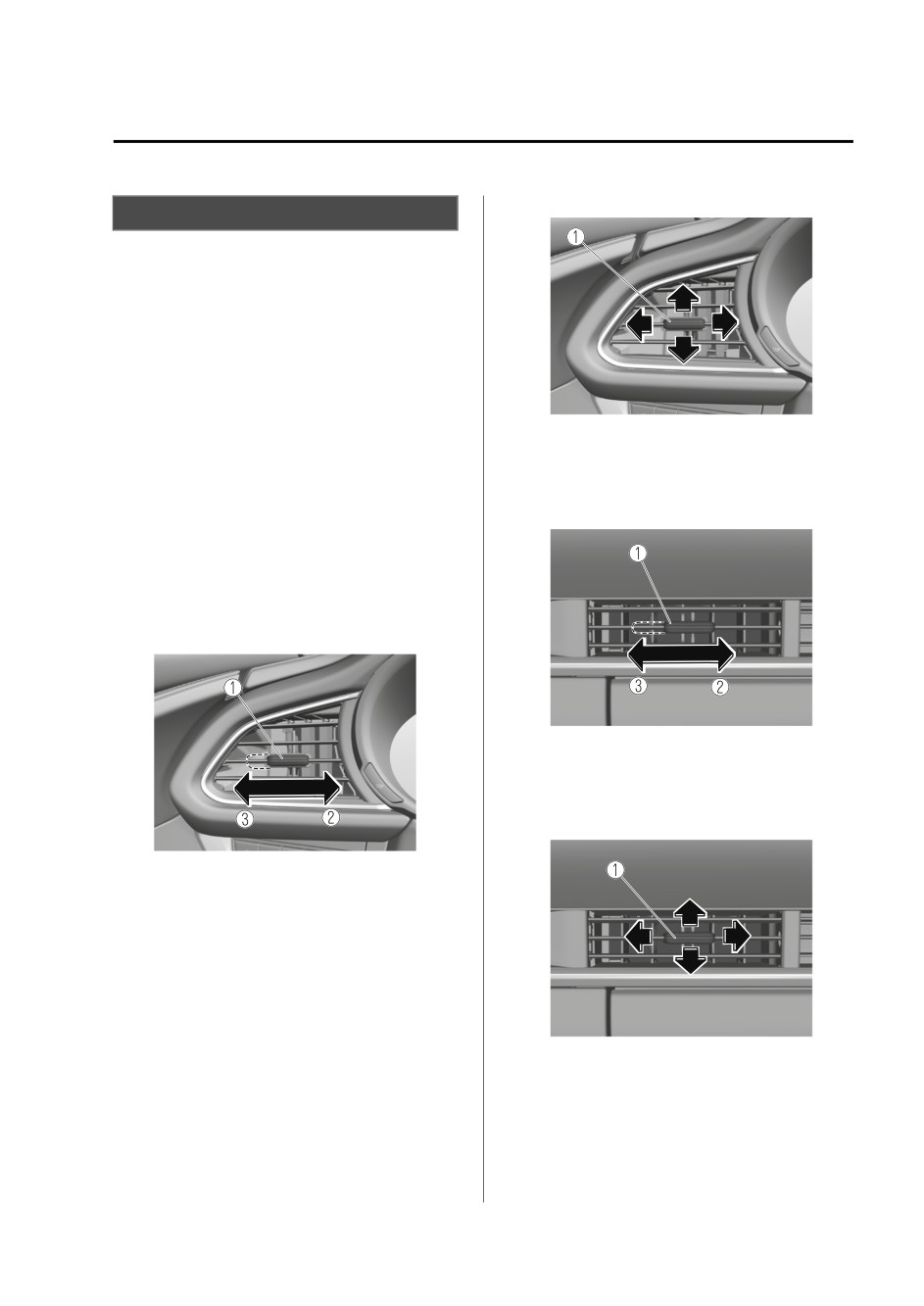

To adjust the direction of airflow, move
the adjustment knob.
NOTE
When using the air conditioner
1. Knob
under humid ambient temperature
conditions, the system may blow fog
from the vents. This is not a sign of
Passenger's Side Vents
trouble but a result of humid air
Air vent open/close
being suddenly cooled.
The air vents can be fully opened and
closed by operating the knob/dial.
Driver's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close
Airflow direction adjustment
1. Knob
2. Open
3. Close
NOTE
The figure indicates the air vent on the
left side of the instrument cluster. The
operation direction for the air vent on
the right side of the instrument cluster
is symmetrical with the air vent on the
1. Knob
left side.
5-3
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Rear Vents*
Selecting the Airflow Mode
Air vent open/close
Dashboard Vents
1. Dial
1. With rear vents
2. Open
3. Close
Dashboard and Floor Vents
Airflow direction adjustment
1. With rear vents
1. Knob
5-4
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System

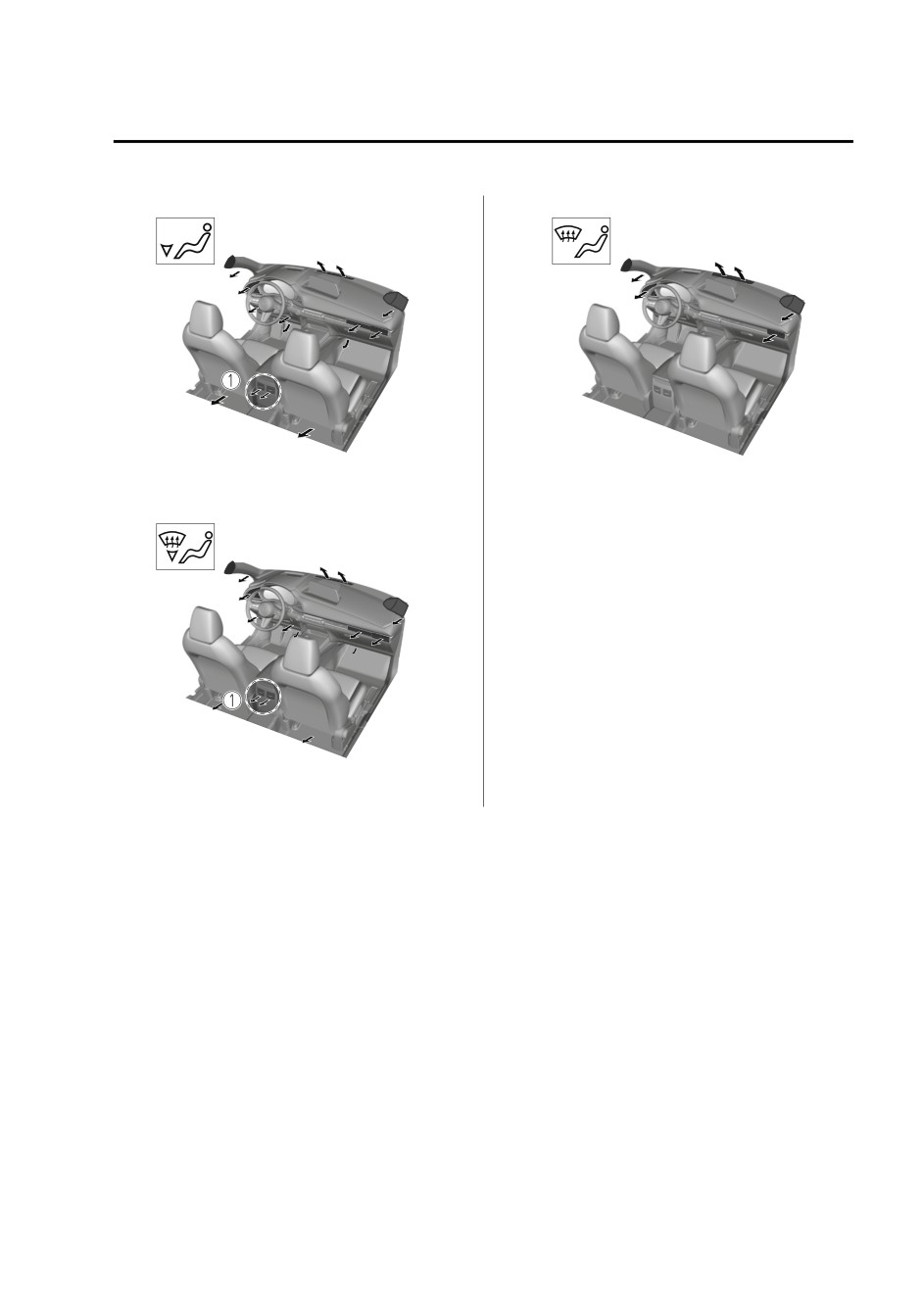

Floor Vents
Defroster Vents
1. With rear vents
NOTE
The location airflow exits the air vents
Defroster and Floor Vents
and the airflow amount may change
depending on the open or close status
of the air vents.
1. With rear vents
5-5
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Manual Type
Manual Type

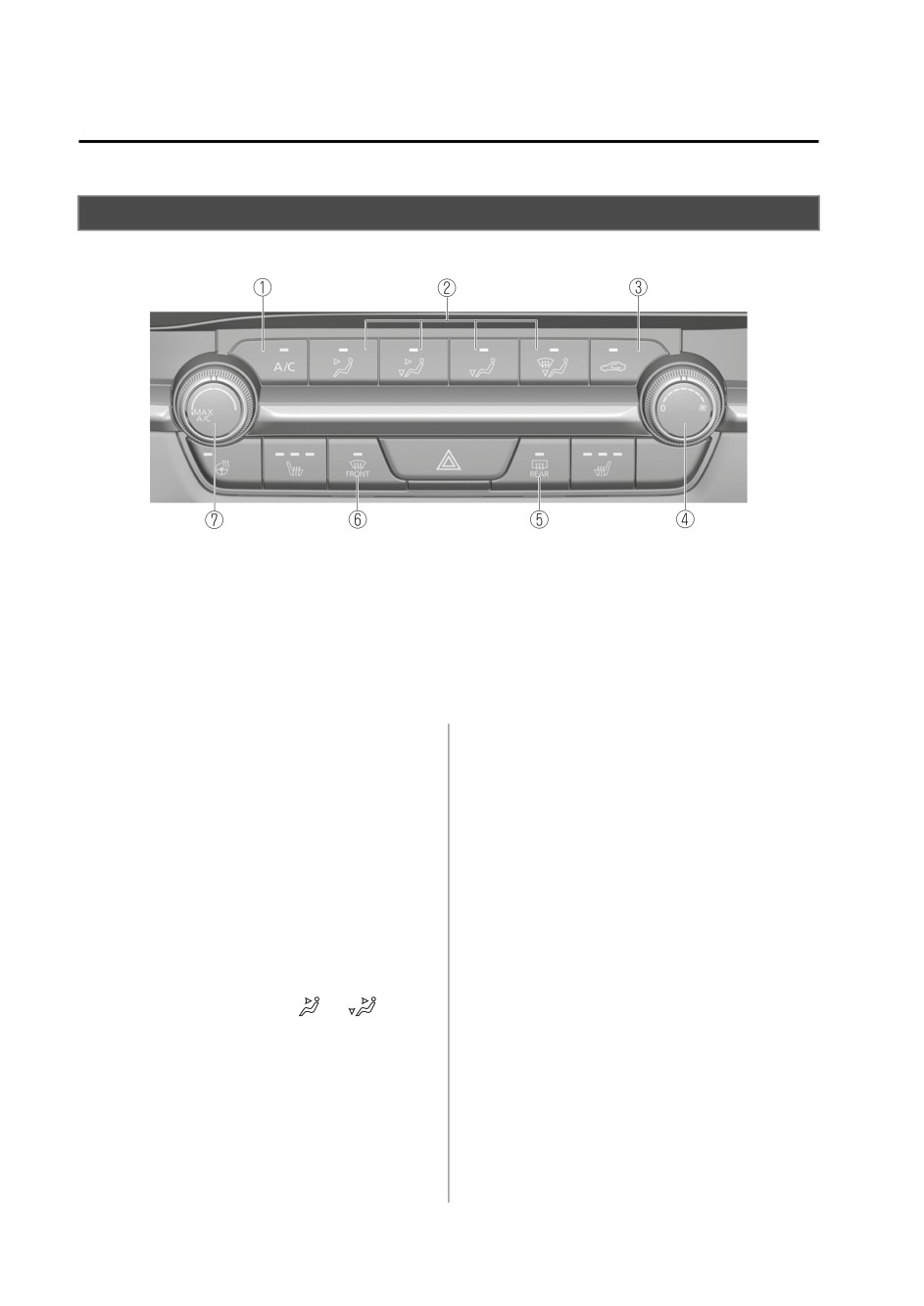

1. A/C switch
2. Mode selector switch
3. Air intake selector switch
4. Fan control dial
5. Rear window defogger switch
6. Windshield defroster switch
7. Temperature control dial
Control Switches
Fan control dial
Temperature control dial
This dial allows variable fan speeds.
The fan has seven speeds.
This dial controls temperature. Turn it
clockwise for hot and
Mode selector switches
counterclockwise for cold.
The desired airflow mode can be
MAX A/C
selected (page 5-4).
Fully turn the temperature control dial
A/C switch
counterclockwise for MAX A/C
Press the A/C switch to turn the air
(maximum cooling).
conditioner on. The indicator light on
NOTE
the switch will illuminate when the fan
control dial is in any position except
When the mode is set to or
with
OFF.
the fan control dial in a position other
than 0 and the temperature control
Press the switch once again to turn the
dial in the MAX A/C position, the air
air conditioner off.
intake selector switches to the
recirculated air position and the A/C
NOTE
turns on automatically.
The air conditioner may not function
If A/C is not desired, press the A/C
when the outside temperature
switch to turn it off.
approaches 0 °C (32 °F).
5-6
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Air intake selector switch
Heating
This switch controls the source of air
1. Press the
switch.
entering the vehicle.
2. Set the air intake selector to the
outside air position (indicator light
Outside or recirculated air positions
turns off).
can be selected. Press the switch to
3. Set the temperature control dial to
select outside/recirculated air
the hot position.
positions.
4. Set the fan control dial to the
desired speed.
Recirculated air position (indicator
light illuminated)
5. If dehumidified heating is desired,
turn on the air conditioner.
Outside air is shut off. Use this position
NOTE
when going through tunnels, driving in
congested traffic (high engine exhaust
If the windshield fogs up easily, press
areas) or when quick cooling is
the
switch.
desired.
If cooler air is desired at face level,
Outside air position (indicator light
press the
switch and adjust the
turned off)
temperature control dial to maintain
maximum comfort.
Outside air is allowed to enter the
The air to the floor is warmer than air
cabin. Use this mode for ventilation or
to the face (except when the
windshield defrosting.
temperature control dial is set at the
extreme hot or cold position).
WARNING
Cooling
Do not use the
position (indicator
light turns on) in cold or rainy
1. Press the switch.
weather:
2. Set the temperature control dial to
Using the
position (indicator light
the cold position.
turns on) in cold or rainy weather is
3. Set the fan control dial to the
dangerous as it will cause the windows
desired speed.
to fog up. Your vision will be
4. Turn on the air conditioner by
hampered, which could lead to a
pressing the A/C switch.
serious accident.
5. After cooling begins, adjust the fan
control dial and temperature
Windshield defroster switch
control dial as needed to maintain
Press the switch to defrost the
maximum comfort.
windshield and front door windows.
Refer to Windshield Defrosting and
Defogging on page 5-8.
Rear window defogger switch
Press the rear window defogger switch
to defrost the rear window.
Refer to Rear Window Defogger on
page 4-55.
5-7
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
Windshield Defrosting and
CAUTION
Defogging
If the air conditioner is used while
1. Press the
switch.
driving up long hills or in heavy traffic,
2. Set the temperature control dial to
monitor the high engine coolant
the desired position.
temperature warning indication to see
3. Set the fan control dial to the
if it is displayed (page 7-24).
desired speed.
The air conditioner may cause engine
4. If dehumidified heating is desired,
overheating. If the warning indication
turn on the air conditioner.
is displayed, turn the air conditioner
off (page 7-17).
WARNING
NOTE
Do not defog the windshield using the
When maximum cooling is desired,
switch with the temperature
set the temperature control dial to
control set to the cold position:
the extreme cold position and set
Using the
switch with the
the air intake selector to the
temperature control set to the cold
recirculated air position, then turn
position is dangerous as it will cause
the fan control dial fully clockwise.
the outside of the windshield to fog
If warmer air is desired at floor level,
up. Your vision will be hampered,
press the
switch and adjust the
which could lead to a serious accident.
temperature control dial to maintain
Set the temperature control to the hot
maximum comfort.
or warm position when using the
The air to the floor is warmer than air
switch.
to the face (except when the
temperature control dial is set at the
NOTE
extreme hot or cold position).
Fogging on the windows clears up
Ventilation
more easily while the air conditioner
1. Press the switch.
is on, but they will fog up more easily
if the air conditioner is turned off.
2. Set the air intake selector to the
outside air position (indicator light
Be careful that the windows do not
fog up when doing any of the
turns off).
3. Set the temperature control dial to
following:
the desired position.
Switching to recirculate mode
4. Set the fan control dial to the
Turning off the air conditioner
desired speed.
For maximum defrosting, turn on the
air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control
dial fully clockwise.
If warm air is desired at the floor,
press the
switch.
5-8
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Interior Features
Climate Control System
With the
or
*1 switch, the air
conditioner is automatically turned
on and the outside air position is
automatically selected to defrost the
windshield. In the
switch, the
outside air position cannot be
changed to the recirculated air
position.
*1
Depending on the market.
Dehumidifying
Operate the air conditioner in cool or
cold weather to help defog the
windshield and side windows.
1. Press the desired mode switch you
want to set.
2. Set the air intake selector to the
outside air position (indicator light
turns off).
3. Set the temperature control dial to
the desired position.
4. Set the fan control dial to the
desired speed.
5. Turn on the air conditioner by
pressing the A/C switch.
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the
temperature does not have to be set to
cold. Therefore, set the temperature
control dial to the desired position
(hot or cold) and turn on the air
conditioner when you want to
dehumidify the cabin air.
5-9
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09















Content      ..     10      11      12      13     ..
