When Driving
i-ACTIVSENSE
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.

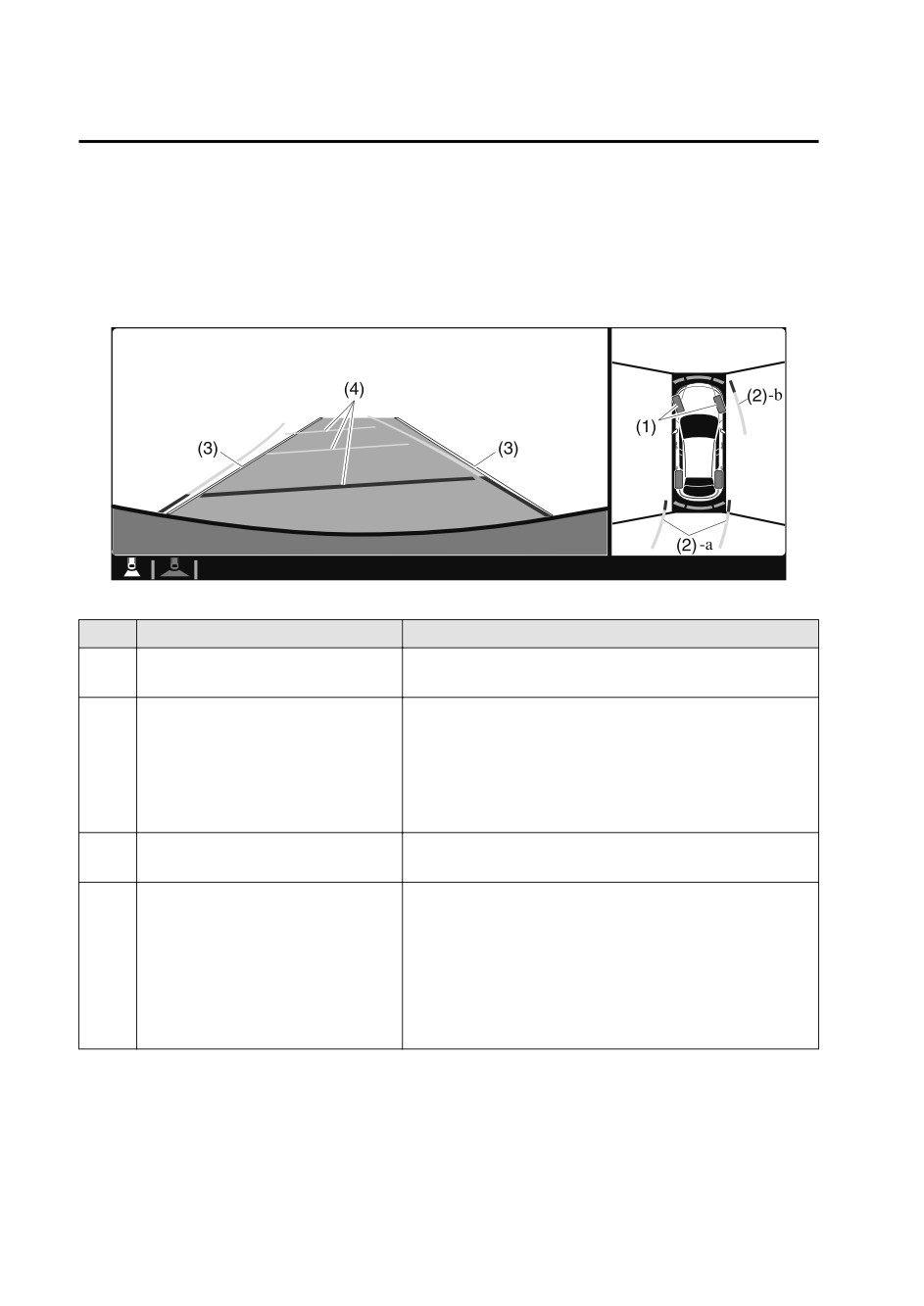

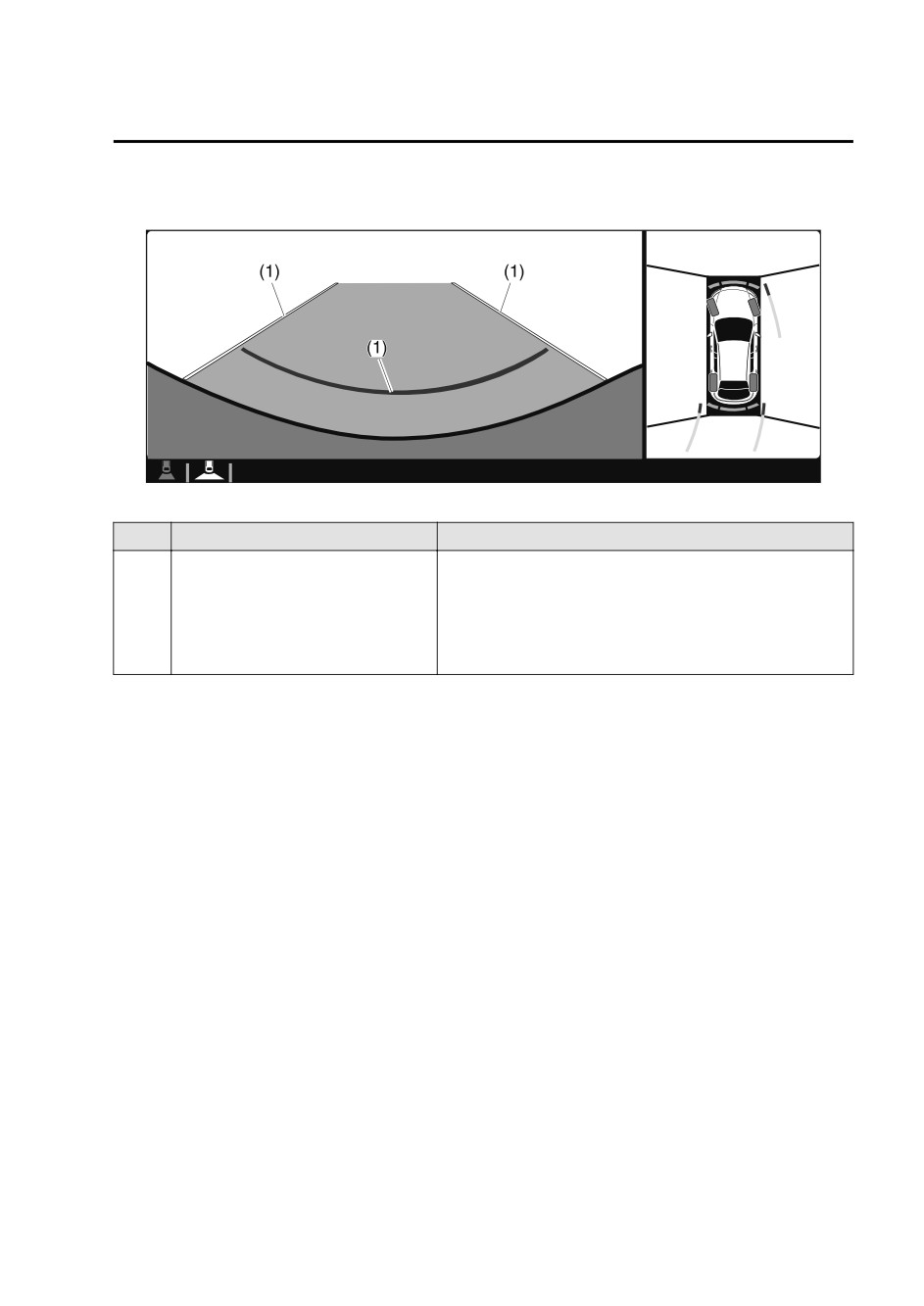

Viewing the screen
Display/Icon
Content
(1)
Tire icon
Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
(2)
Projected vehicle path lines (yellow
Indicates the approximate projected path of the vehicle.
& red)
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the rear bumper
is expected to travel.
b) Indicates the path where the outer side of the vehicle
is expected to travel.
(3)
Extended vehicle width lines (blue)
These guide lines indicate the approximate width of the
vehicle.
(4)
Projected vehicle path distance
These guide lines indicate the approximate distance to a
guide lines (yellow & red)
point measured from the rear of the vehicle (from the
end of the bumper).
The red line indicates the point about 0.5 m (19 in)
from the rear end of the bumper.
The yellow lines indicate the points about 1.0 m (39
in) and 2.0 m (78 in) from the rear end of the bumper.
NOTE
The setting can be changed so that the projected vehicle path lines are not
displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-186
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
How to use the projected vehicle path line function
CAUTION
¾ The front of the vehicle swings out wide when turning the steering wheel while
reversing. Maintain sufficient distance between the vehicle and an obstruction.
¾ The parking sensor detection range has limitations. For example, obstructions
closing in from the side and objects short in height may not be detected. Always
confirm the safety around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and
warning sound.
Refer to Parking Sensor System on page 4-232.
NOTE
Because there might be a difference between the image displayed on the screen,
such as indicated in the following, and the actual conditions when parking, always
check the safety at the rear of the vehicle and the surrounding area directly with
your eyes.
Even though the back end of the parking space (or garage) displayed on the
screen and distance guide lines appear parallel, they may not actually be
parallel.
When parking in a space with a division line on only one side of the parking
space, even though the division line and the vehicle width guide line appear
parallel, they may not actually be parallel.
The following shows an example of vehicle parking with the steering wheel turned
to the left while backing up the vehicle. When backing into a parking space from
the opposite direction, the steering operation is reversed.
4-187
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

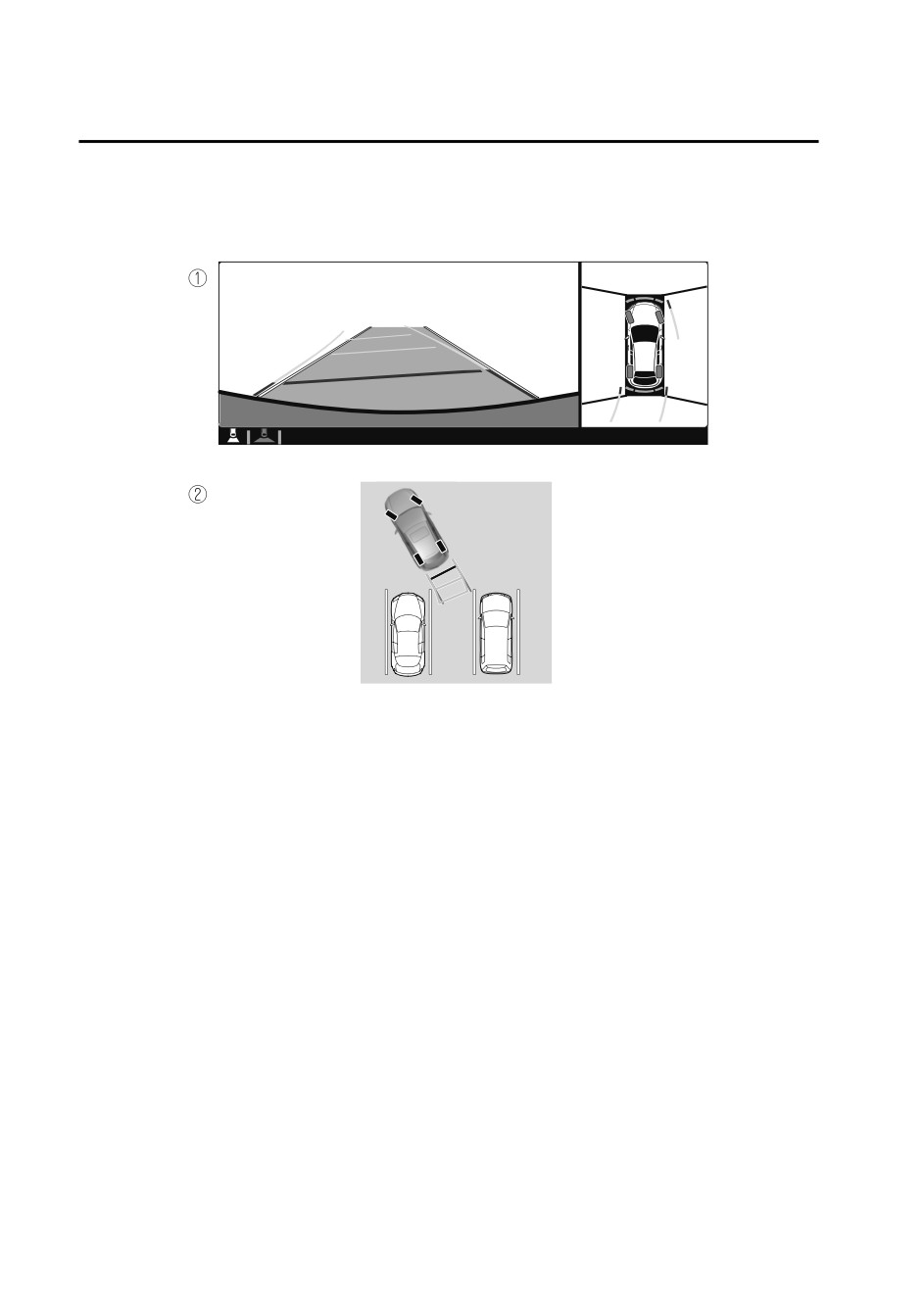

1. Back the vehicle into the parking space by turning the steering wheel so that the
vehicle enters the center of the parking space.
1.
(Screen display)
2.
(Actual condition)
2. After the vehicle starts entering the parking space, stop and adjust the steering
wheel so that the distance between the vehicle width lines and the sides of the
parking space on the left and right are roughly equal, and then continue backing
up slowly.
4-188
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

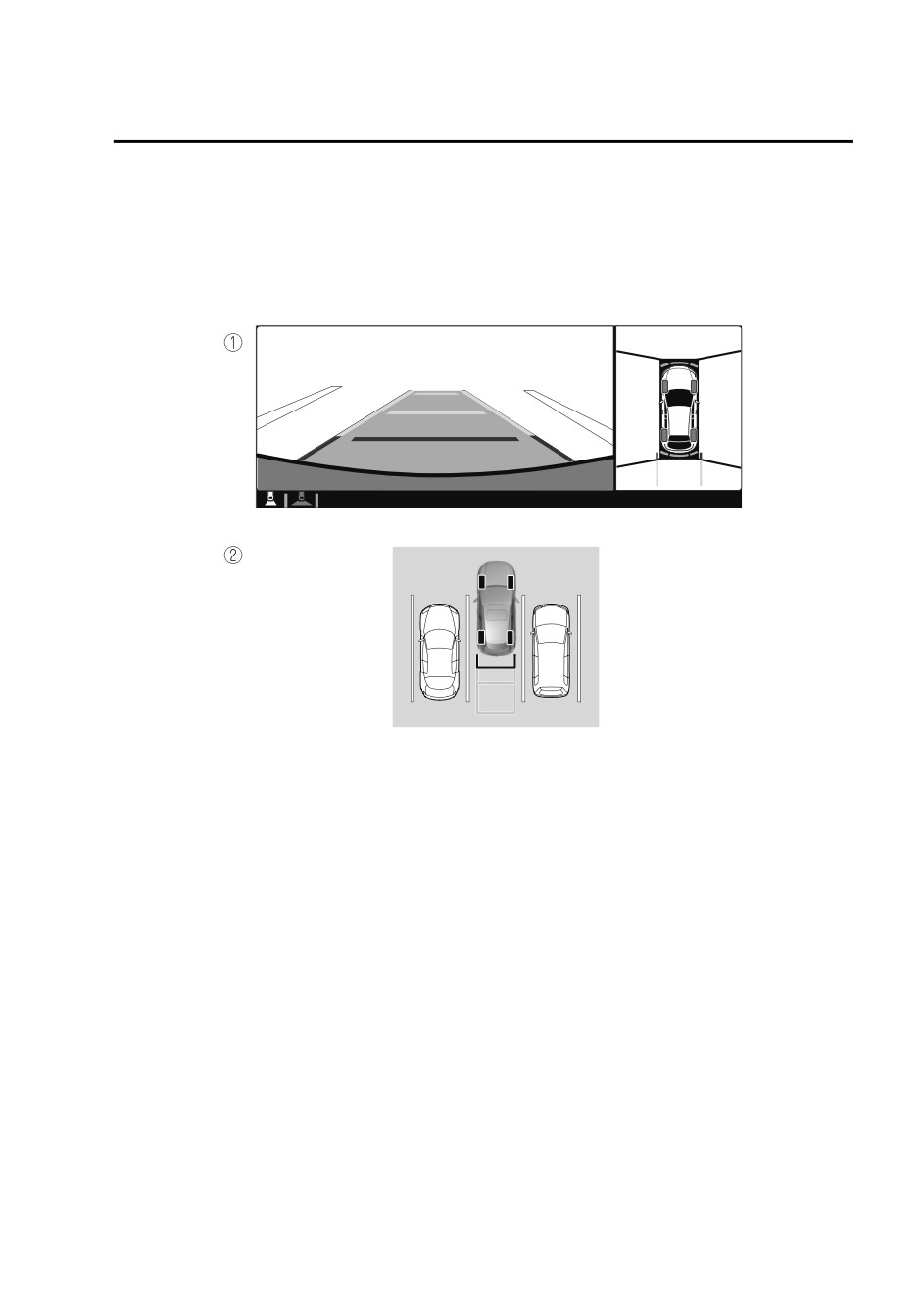

3. Once the vehicle width lines and the sides of the parking space on the left and
right are parallel, straighten the wheels and back the vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the
vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)
1.
(Screen display)
2.
(Actual condition)
4-189
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

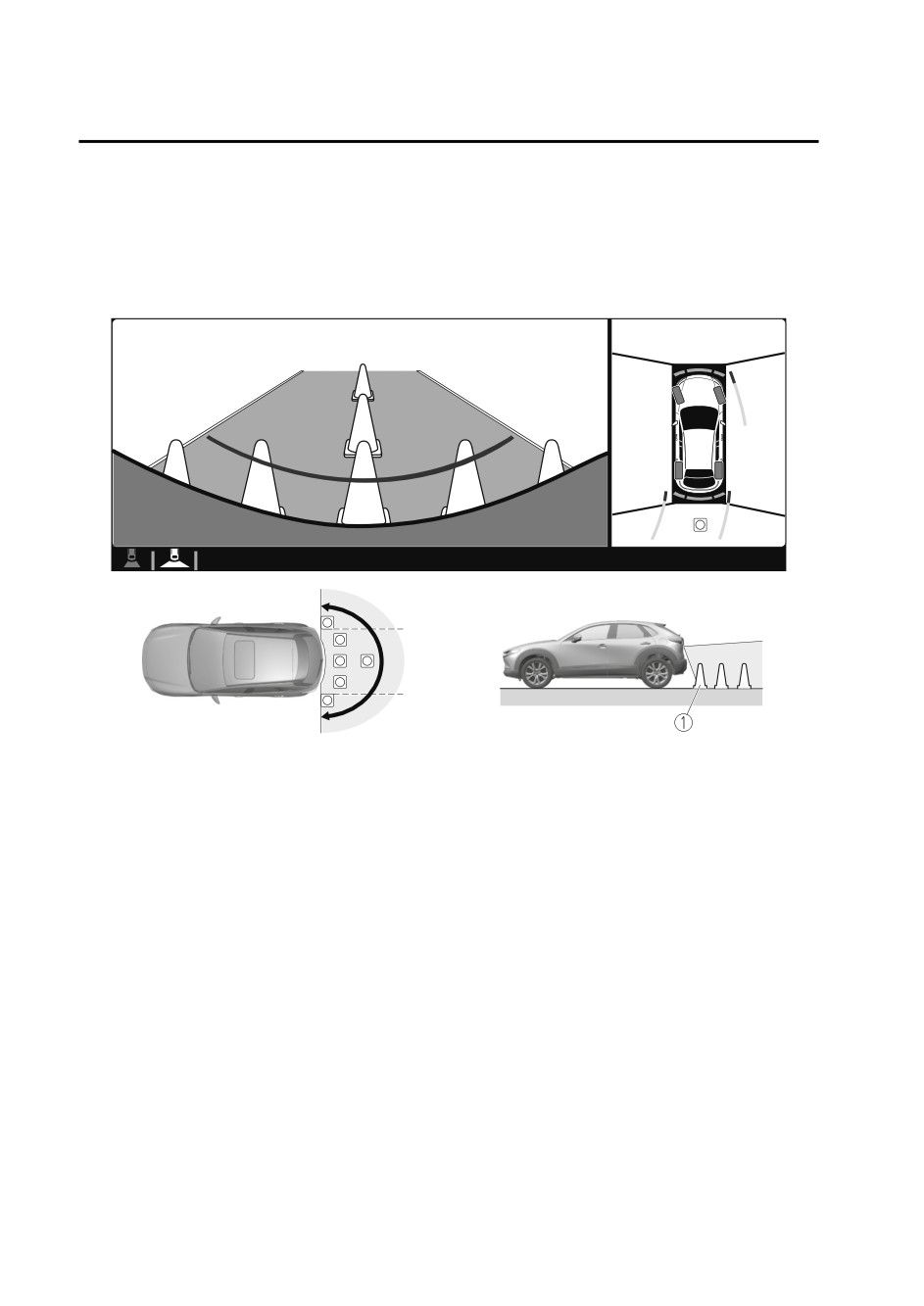

Top View/Rear Wide View
Use the top view/rear wide view to assist in checking the safety of the surrounding
area when accelerating from a stop, parking, or stopping the vehicle.
Range of displayed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
If an image containing an object with a conspicuous color is picked up by any of
the cameras, the screen area for each camera may be affected and it may display
in that color.
Obstructions displayed in the front view may not display on the top view screen.
If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
4-190
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
Viewing the screen
Display/Icon
Content
(1)
Extended vehicle width lines and
These guide lines indicate the approximate width of the
distance guide lines (blue & red)
vehicle and distance to a point measured from the rear
of the vehicle (from the end of the bumper).
The red lines indicate the points up to about 0.5 m
(19 in) from the rear end of the bumper.
NOTE
The top view/rear wide view screen displays the image at the rear of the vehicle at a
wide angle and corrects the image to help detect approaching obstructions from the
side. Therefore, it differs from the actual view.
4-191
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
Margin of Error Between Road Surface on Screen and Actual Road Surface
There might be some margin of error between the road surface appearing on the
screen and the actual road surface. A margin of error in the perceived distance could
lead to an accident, therefore be aware of the following conditions which can more
easily produce errors in the perceived distance.

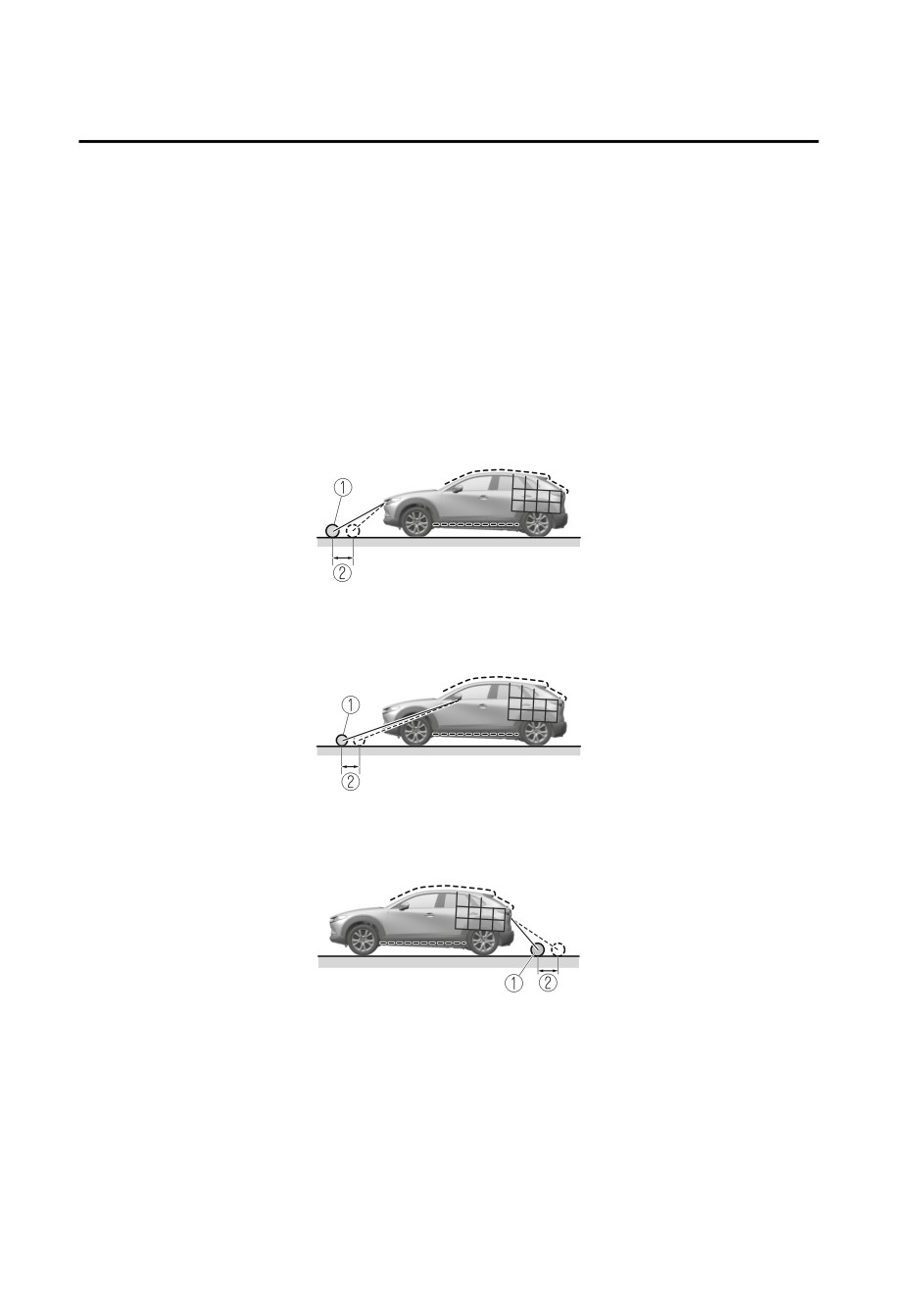

The vehicle tilts due to weight of passengers and cargo.
If the vehicle is tilted, obstructions picked up by a camera can appear farther or
closer than the actual distance from the vehicle.
Front camera
1. Obstruction
2. Margin of error
Side camera
1. Obstruction
2. Margin of error
Rear camera
1. Obstruction
2. Margin of error
4-192
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

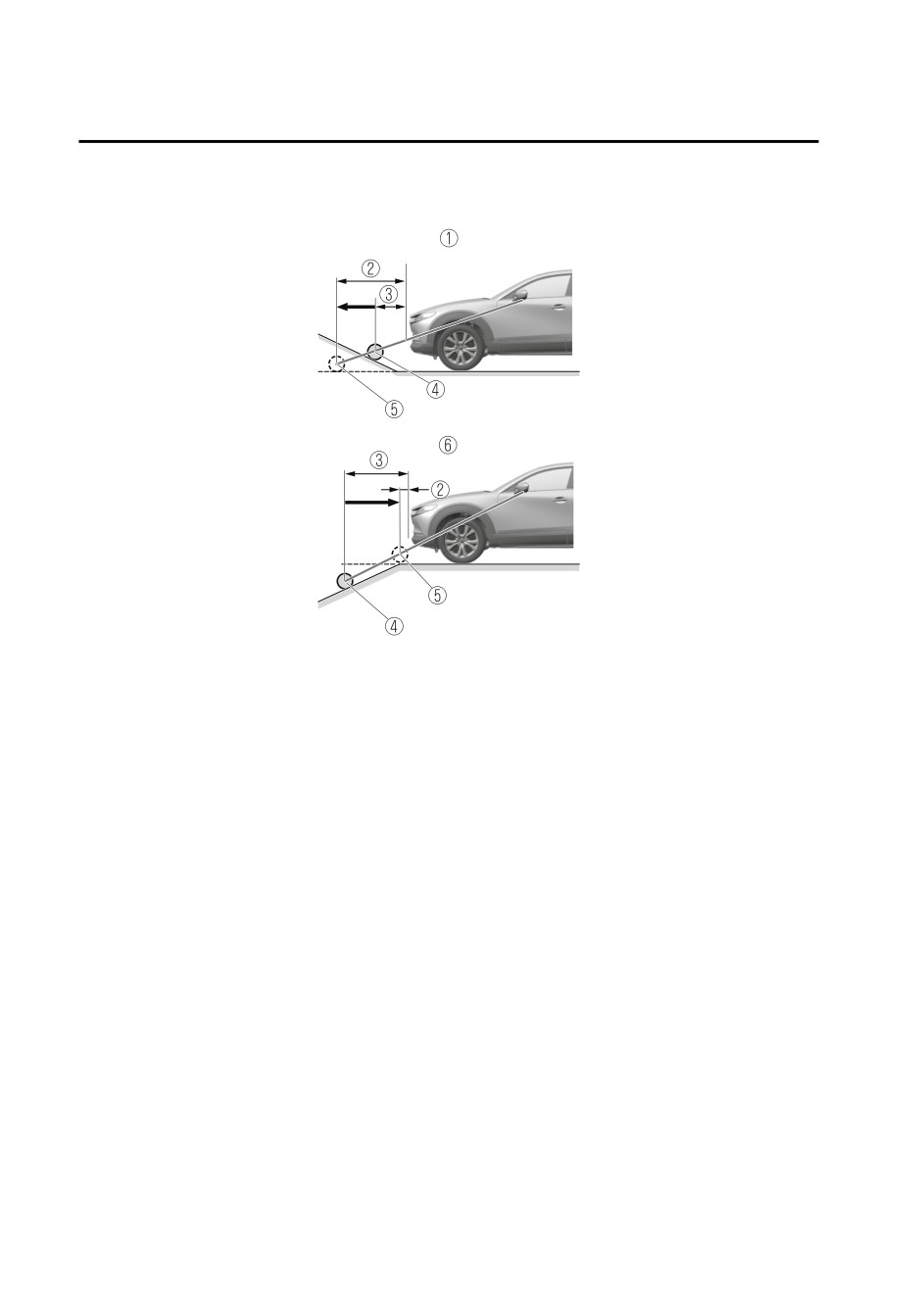

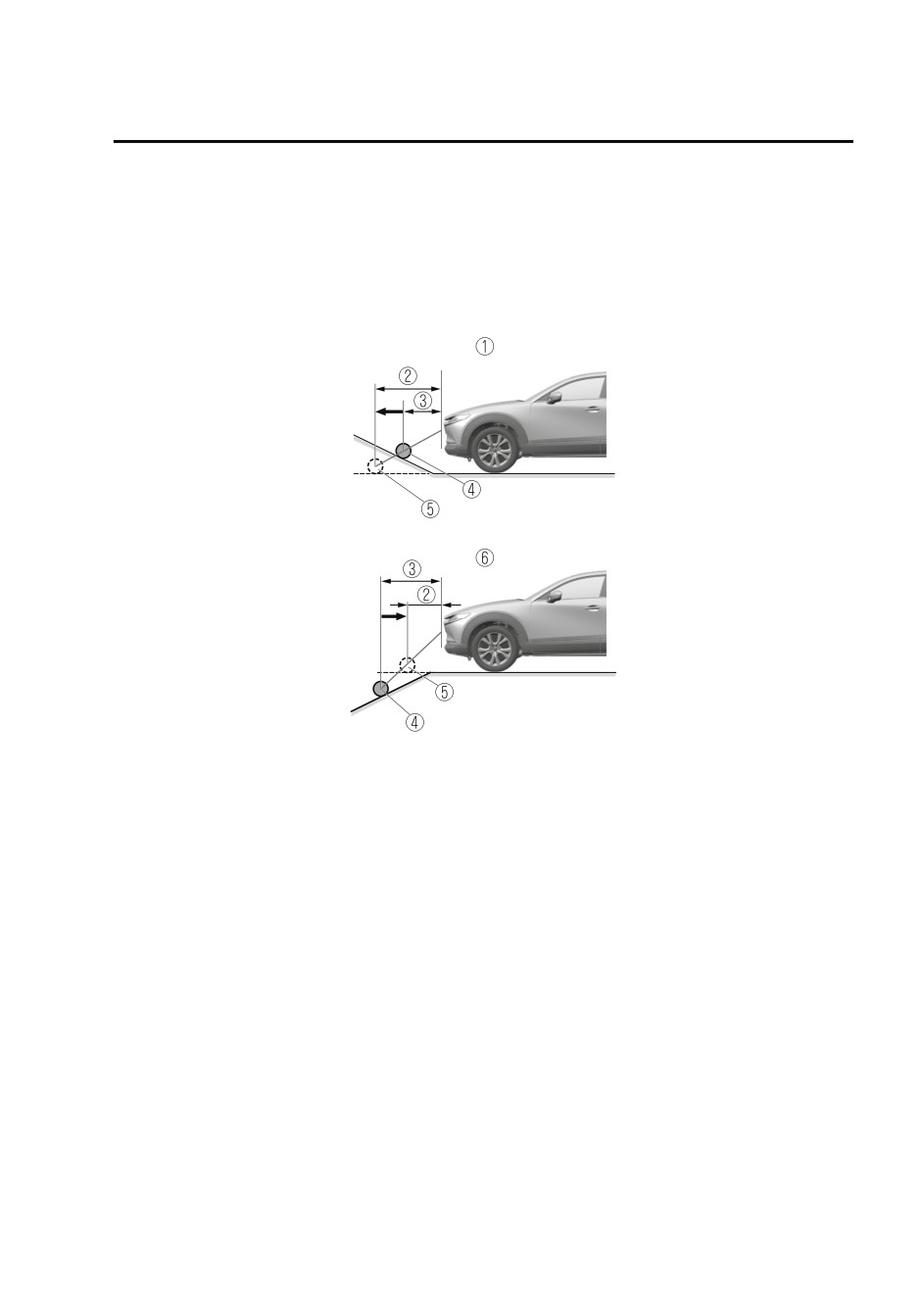

There is a steep up or down grade in the road at the front or rear of the vehicle
If there is a steep up or down grade in the road at the front or rear of the vehicle,
obstructions picked up by the camera can appear farther or closer than the actual
distance from the vehicle.
Front camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Actual obstruction
5. Obstruction appearing on screen
6. Appears closer than actual distance
4-193
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
Side camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Actual obstruction
5. Obstruction appearing on screen
6. Appears closer than actual distance
4-194
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

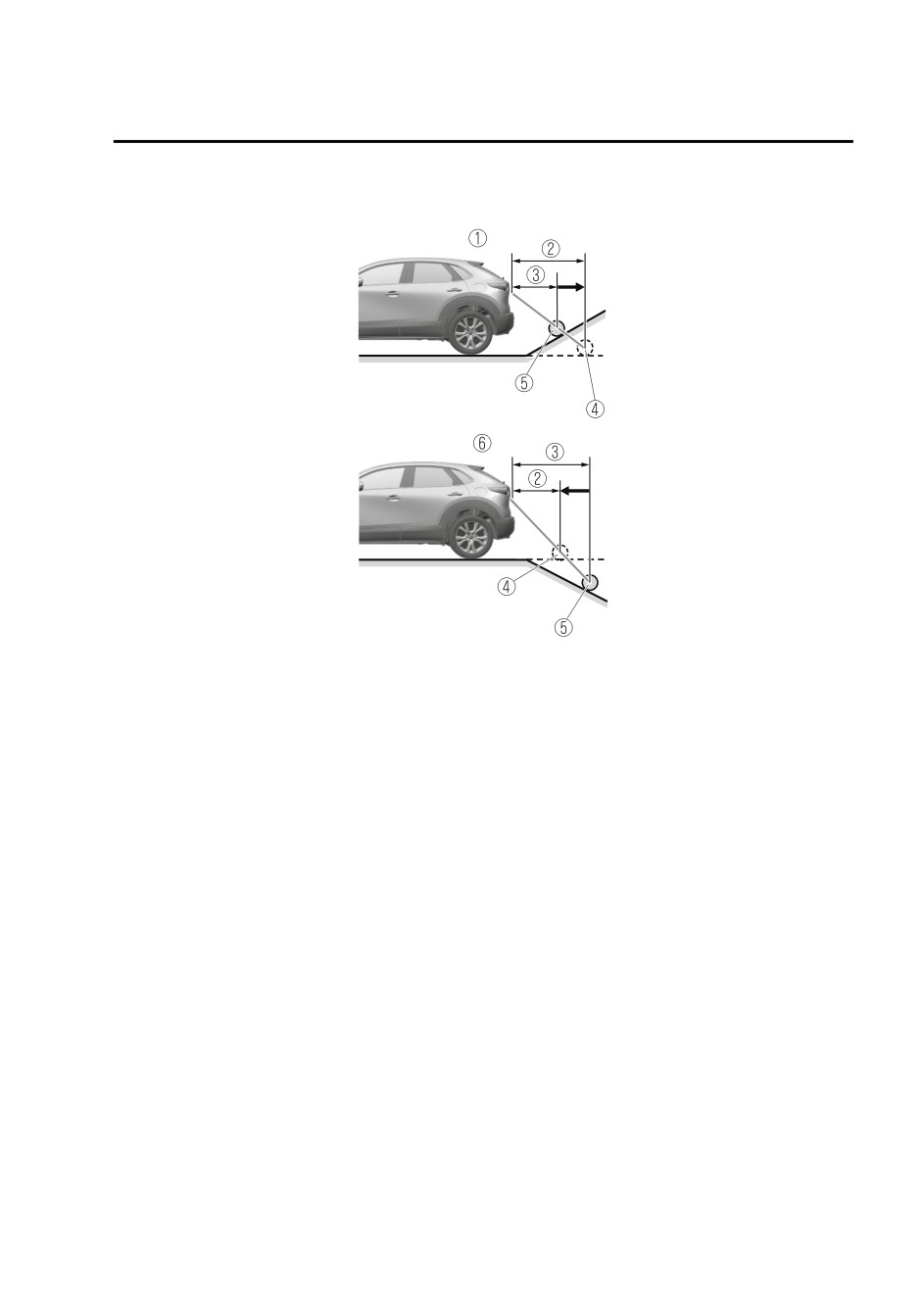

Rear camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Obstruction appearing on screen
5. Actual obstruction
6. Appears closer than actual distance
NOTE
If the vehicle is on a slope, obstructions taken by the camera can appear farther or
closer than the actual distance from the vehicle.
Three-dimensional object at vehicle front or rear
Because the vehicle front end guide lines (side camera) or the distance guide lines
(rear camera) are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual
distance.
4-195
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

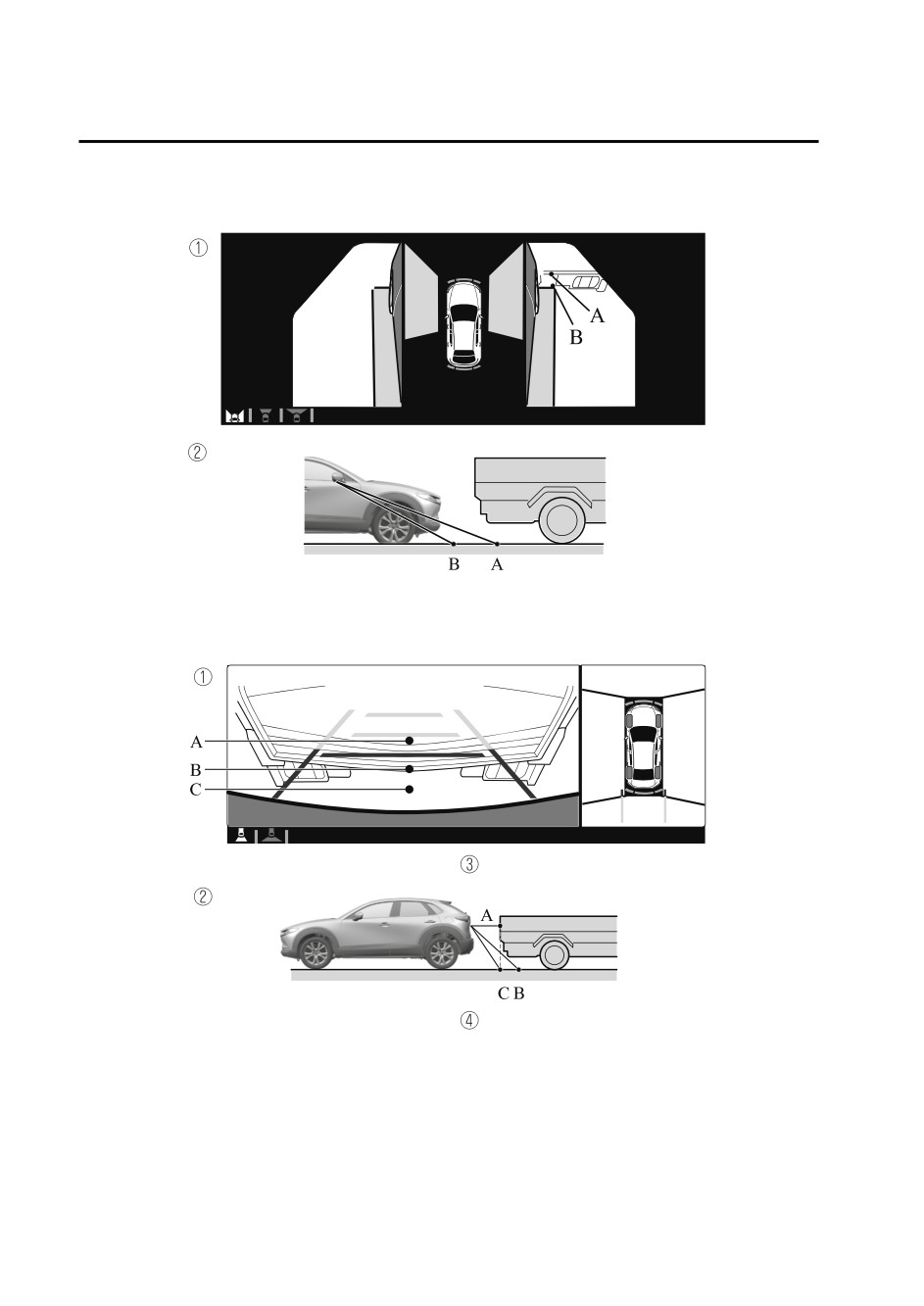

Side camera
1.
(Screen display)
2.
(Actual condition)
Rear camera
1.
(Screen display)
2.
(Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A
4-196
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
System Problem Indication
Center display indication
Cause
Action to be taken
“No camera signal.” is displayed
The control unit might be damaged.
Have your vehicle inspected
by an Authorized Mazda
Screen is pitch-black and blank
The camera might be damaged.
Dealer.
4-197
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE

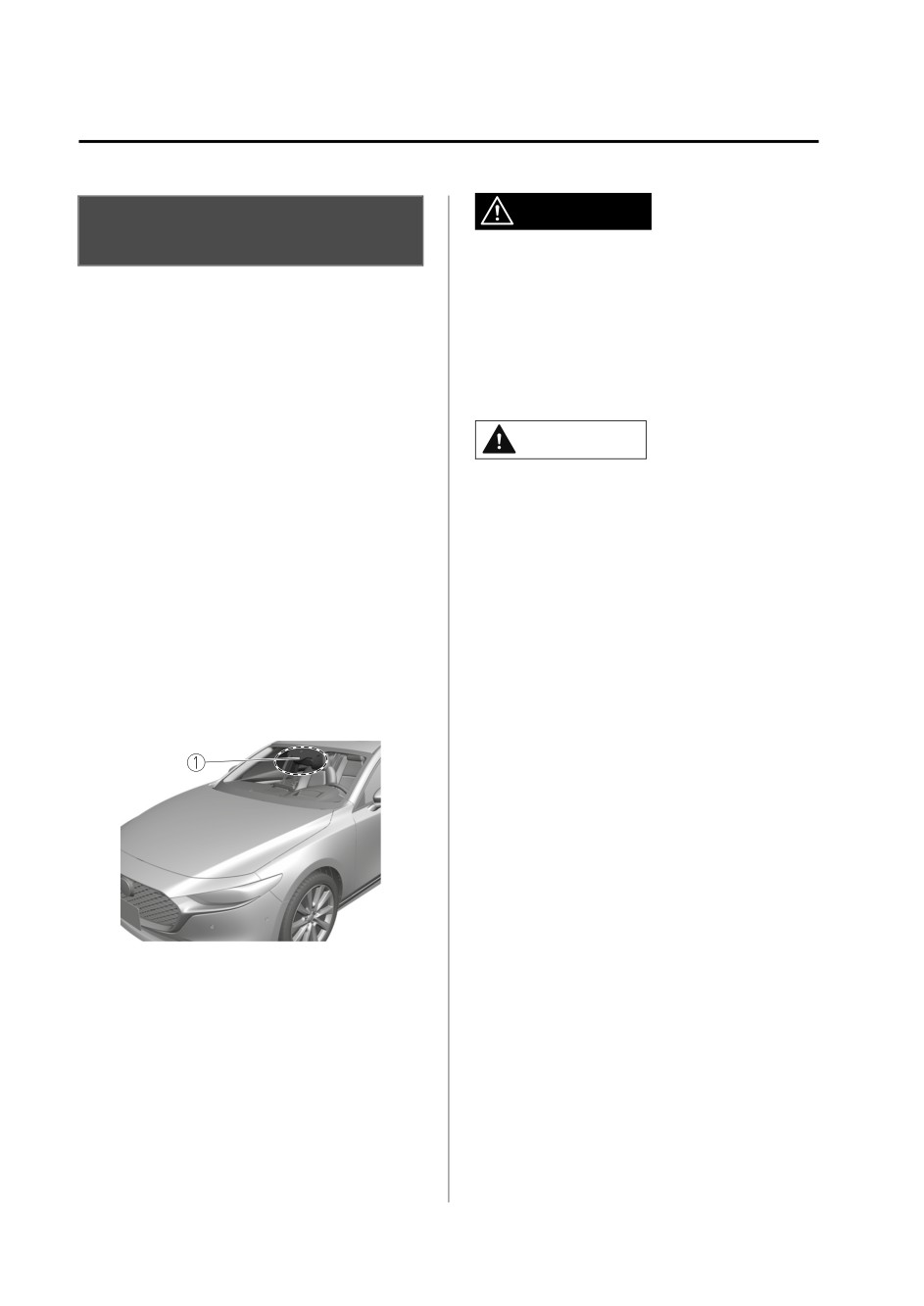

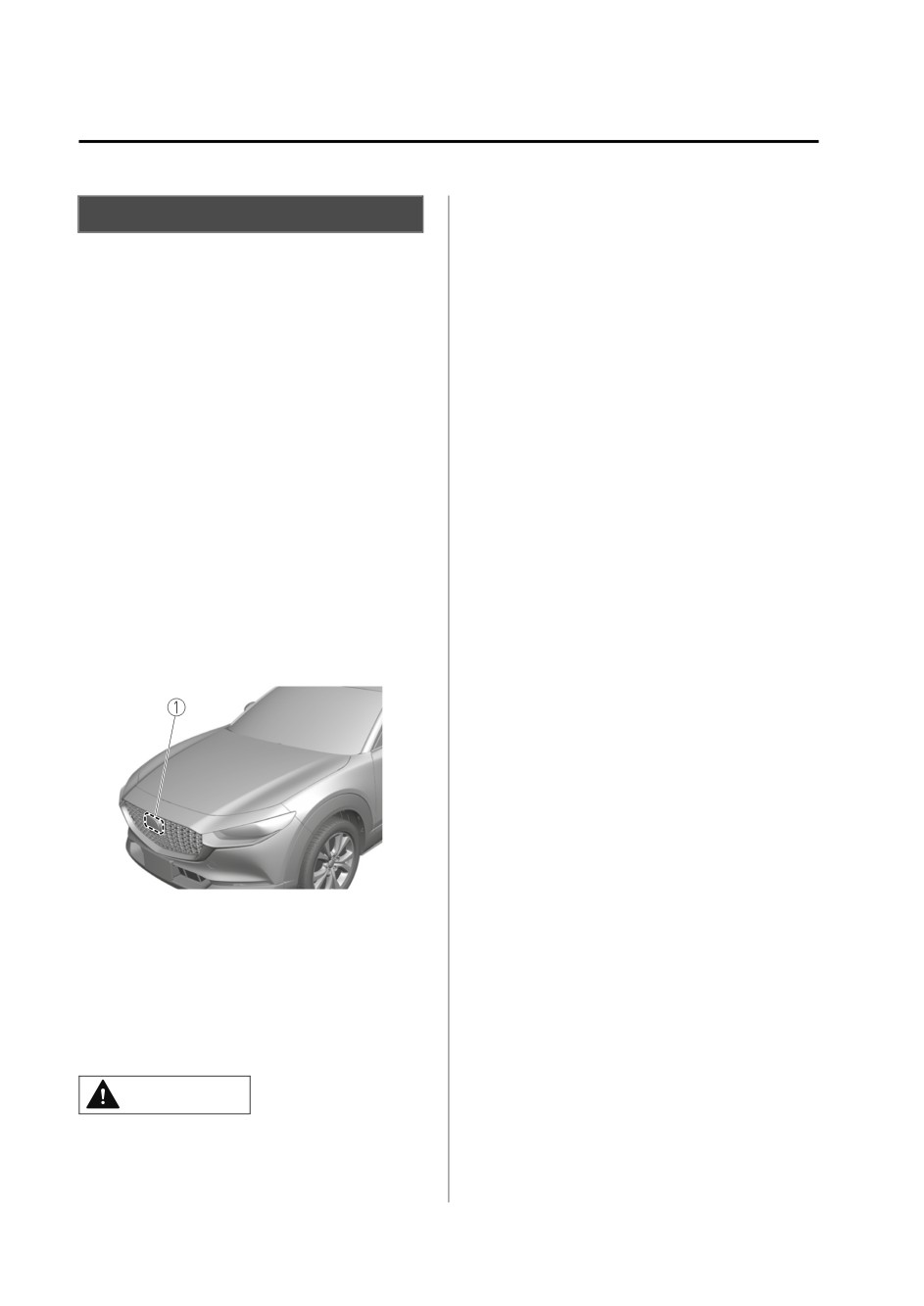

Forward Sensing Camera
WARNING
(FSC)*
Do not modify the suspension:
If the vehicle height or inclination is
Forward Sensing Camera (FSC)
changed, the system will not be able to
Your vehicle is equipped with a
correctly detect vehicles ahead. This
Forward Sensing Camera (FSC). The
will result in the system not operating
Forward Sensing Camera (FSC) is
normally or mistakenly operating,
positioned near the rearview mirror
which could cause a serious accident.
and used by the following systems.
High Beam Control System (HBC)
CAUTION
Lane Departure Warning System
(LDWS)
¾ Do not apply accessories, stickers or
Traffic Sign Recognition System (TSR)
film to the windshield near the
Distance & Speed Alert (DSA)
Forward Sensing Camera (FSC).
Driver Attention Alert (DAA)
If the area in front of the Forward
Mazda Radar Cruise Control
Sensing Camera (FSC) lens is
(MRCC)
obstructed, it will cause the system
Mazda Radar Cruise Control with
to not operate correctly.
Stop & Go function (MRCC with
Consequently, each system may not
Stop & Go function)
operate normally which could lead
Lane-keep Assist System (LAS)
to an unexpected accident.
Traffic Jam Assist (TJA)
¾ Do not disassemble or modify the
Smart Brake Support (SBS)
Forward Sensing Camera (FSC).
Disassembly or modification of the
Forward Sensing Camera (FSC) will
cause a malfunction or mistaken
operation. Consequently, each
system may not operate normally
which could lead to an unexpected
accident.
¾ Heed the following cautions to
assure the correct operation of the
Forward Sensing Camera (FSC).
1. Forward Sensing Camera (FSC)
¾ Be careful not to scratch the
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC)
lens or allow it to get dirty.
determines the conditions ahead of
¾ Do not remove the Forward
the vehicle while traveling at night and
Sensing Camera (FSC) cover.
detects traffic lanes. The distance in
¾ Do not place objects on the
which the Forward Sensing Camera
dashboard which reflect light.
(FSC) can detect objects varies
depending on the surrounding
conditions.
4-198 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
¾ Always keep the windshield glass
¾ Traffic Sign Recognition System
around the camera clean by
(TSR)
removing dirt or fogging. Use the
¾ Distance & Speed Alert (DSA)
windshield defroster to remove
¾ Driver Attention Alert (DAA)
fogging on the windshield.
¾ Mazda Radar Cruise Control
¾ Consult an Authorized Mazda
(MRCC)
Dealer regarding cleaning the
¾ Mazda Radar Cruise Control
interior side of the windshield
with Stop & Go function (MRCC
around the Forward Sensing
with Stop & Go function)
Camera (FSC).
¾ Lane-keep Assist System (LAS)
¾ Consult an Authorized Mazda
¾ Traffic Jam Assist (TJA)
Dealer before performing repairs
¾ Smart Brake Support (SBS)
around the Forward Sensing
¾ The direction in which the Forward
Camera (FSC).
Sensing Camera (FSC) is pointed
¾ The Forward Sensing Camera (FSC)
has been finely adjusted. Do not
is installed to the windshield.
change the installation position of
Consult an Authorized Mazda
the Forward Sensing Camera (FSC)
Dealer for windshield repair and
or remove it. Otherwise, it could
replacement.
result in damage or malfunction.
¾ When cleaning the windshield, do
¾ Always use tires for all wheels that
not allow glass cleaners or similar
are of the specified size, and the
cleaning fluids to get on the
same manufacturer, brand, and tread
Forward Sensing Camera (FSC)
pattern. In addition, do not use tires
lens. In addition, do not touch the
with significantly different wear
Forward Sensing Camera (FSC)
patterns on the same vehicle as the
lens.
system may not operate normally.
¾ When performing repairs around
¾ The Forward Sensing Camera (FSC)
the rearview mirror, consult an
includes a function for detecting a
Authorized Mazda Dealer.
soiled windshield and informing the
¾ Consult an Authorized Mazda
driver, however, depending on the
Dealer regarding cleaning of the
conditions, it may not detect plastic
camera lens.
shopping bags, ice or snow on the
¾ Do not hit or apply strong force to
windshield. In such cases, the system
the Forward Sensing Camera (FSC)
cannot accurately determine a
or the area around it. If the
vehicle ahead and may not be able
Forward Sensing Camera (FSC) is
to operate normally. Always drive
severely hit or if there are cracks or
carefully and pay attention to the
damage caused by flying gravel or
road ahead.
debris in the area around it, stop
using the following systems and
NOTE
consult an Authorized Mazda
In the following cases, the Forward
Dealer.
Sensing Camera (FSC) cannot detect
¾ High Beam Control System
target objects correctly, and each
(HBC)
system may be unable to operate
¾ Lane Departure Warning System
normally.
(LDWS)
4-199
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
The height of the vehicle ahead is
Elongated luggage or cargo is
low.
loaded onto installed roof rails and
You drive your vehicle at the same
covers the Forward Sensing
speed as the vehicle ahead.
Camera (FSC).
Headlights are not turned on
Exhaust gas from the vehicle in
during the night or when going
front, sand, snow, and water vapor
through a tunnel.
rising from manholes and grating,
In the following cases, the Forward
and water splashed into the air.
Sensing Camera (FSC) may not be
When towing a malfunctioning
able to detect target objects
vehicle.
correctly.
The vehicle is driven with tires
having significantly different wear.
Under bad weather condition,
The vehicle is driven on down
such as rain, fog and snow.
slopes or bumpy roads.
The window washer is being used
There are water puddles on the
or the windshield wipers are not
road.
used when it's raining.
The surroundings are dark such as
Ice, fog, snow, frost, rainfall, dirt,
during the night, early evening, or
or foreign matter such as a plastic
early morning, or in a tunnel or
bag is stuck on the windshield.
indoor parking lot.
Trucks with low loading platforms
The illumination brightness of the
and vehicles with an extremely low
headlights is reduced or the
or high profile.
headlight illumination is weakened
When driving next to walls with no
due to dirt or a deviated optical
patterning (including fences and
axis.
longitudinally striped walls).
The target object enters the blind
The taillights of the vehicle ahead
spot of the Forward Sensing
are turned off.
Camera (FSC).
A vehicle is outside the
A person or object bursts onto the
illumination range of the
road from the shoulder or cuts
headlights.
right in front of you.
The vehicle is making a sharp turn,
You change lanes and approach a
or ascending or descending a steep
vehicle ahead.
slope.
When driving extremely close to
Entering or exiting a tunnel.
the target object.
Heavy luggage is loaded causing
Tire chains or a temporary spare
the vehicle to tilt.
tire is installed.
Strong light is shone at the front of
The vehicle ahead has a special
the vehicle (back light or
shape. For example, a vehicle
high-beam light from on-coming
towing a trailer house or a boat, or
vehicles).
a vehicle carrier carrying a vehicle
There are many light emitters on
with its front pointed rearward.
the vehicle ahead.
When the vehicle ahead is not
equipped with taillights or the
taillights are turned off at
nighttime.
4-200
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
If the Forward Sensing Camera (FSC)
If there are recognizable cracks or
cannot operate normally due to rain,
damage caused by flying gravel or
backlight, or fog, the system
debris on the windshield, always
functions related to the Forward
have the windshield replaced.
Sensing Camera (FSC) are
Consult an Authorized Mazda Dealer
temporarily stopped and the
for replacement.
following warning lights turn on.
The Forward Sensing Camera (FSC)
However, this does not indicate a
recognizes pedestrians when all of
malfunction.
the following conditions are met:
High Beam Control System (HBC)
The height of a pedestrian is about
warning indication/warning light
1 to 2 meters.
(amber)
An outline such as the head, both
i-ACTIVSENSE warning indication/
shoulders, or the legs can be
warning light
determined.
If the Forward Sensing Camera (FSC)
In the following cases, the Forward
cannot operate normally due to high
Sensing Camera (FSC) may not be
temperatures, the system functions
able to detect target objects
related to the Forward Sensing
correctly:
Camera (FSC) are temporarily
Multiple pedestrians are walking,
stopped and the following warning
or there are groups of people.
lights turn on. However, this does
A pedestrian is close to a separate
not indicate a malfunction. Cool
object.
down the area around the Forward
A pedestrian is crouching, lying, or
Sensing Camera (FSC) such as by
slouching.
turning on the air conditioner.
A pedestrian suddenly jumps into
High Beam Control System (HBC)
the road right in front of the
warning indication/warning light
vehicle.
(amber)
A pedestrian opens an umbrella, or
i-ACTIVSENSE warning indication/
is carrying large baggage or
warning light
articles.
If the Forward Sensing Camera (FSC)
A pedestrian is in a dark location
detects that the windshield is dirty or
such as during the night, or blends
foggy, the system functions related to
into the background by wearing
the Forward Sensing Camera (FSC)
clothes matching the background
are temporarily stopped and the
color.
following warning lights turn on.
However, this does not indicate a
problem. Remove the dirt from the
windshield or press the defroster
switch and defog the windshield.
High Beam Control System (HBC)
warning indication/warning light
(amber)
i-ACTIVSENSE warning indication/
warning light
4-201
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
¾ Do not adhere stickers (including
Front Radar Sensor*
transparent stickers) to the surface of
the radiator grille and front emblem
Front Radar Sensor
in and around the front radar sensor,
Your vehicle is equipped with a front
and do not replace the radiator grille
radar sensor.
and front emblem with any product
The following systems also use the
that is not a genuine product
front radar sensor.
designed for use with the front radar
sensor.
Distance & Speed Alert (DSA)
¾ The front radar sensor includes a
Mazda Radar Cruise Control
function for detecting soiling of the
(MRCC)
radar sensor's front surface and
Mazda Radar Cruise Control with
informing the driver, however,
Stop & Go function (MRCC with
depending on the conditions, it may
Stop & Go function)
require time to detect or it may not
Traffic Jam Assist (TJA)
detect plastic shopping bags, ice or
Smart Brake Support (SBS)
snow. If this occurs, the system may
The front radar sensor functions by
not operate correctly, therefore
detecting the radio waves reflected off
always keep the front radar sensor
a vehicle ahead or an obstruction sent
clean.
from the radar sensor.
¾ Do not install a grille guard.
The front radar sensor is mounted
¾ If the front part of the vehicle has
behind the front emblem.
been damaged in a vehicle accident,
the position of the front radar sensor
may have moved. Stop the system
immediately and always have the
vehicle inspected at an Authorized
Mazda Dealer.
¾ Do not use the front bumper to push
other vehicles or obstructions such
as when pulling out of a parking
space. Otherwise, the front radar
sensor could be hit and its position

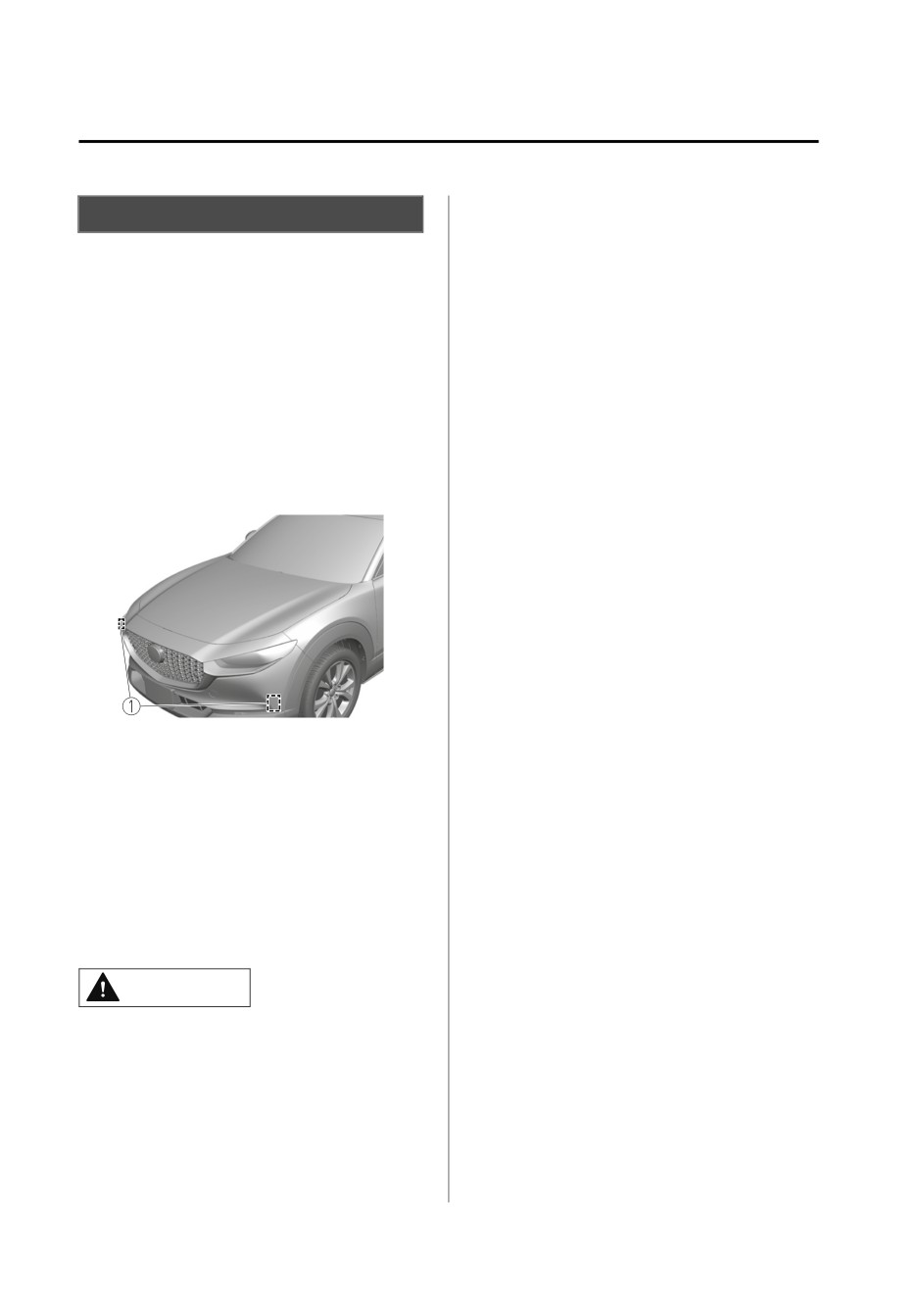

1. Front radar sensor
deviated.
¾ Do not remove, disassemble, or
If “Safety and Driver Support Systems
modify the front radar sensor.
Temporarily Disabled. Front Radar
¾ For repairs, replacement or paint
Obscured. Drive Safely” is displayed on
work around the front radar sensor,
the multi-information display of the
consult an Authorized Mazda Dealer.
instrument cluster, clean the area
¾ Do not modify the suspensions. If
around the front radar sensor.
the suspensions are modified, the
vehicle's posture could change and
CAUTION
the front radar sensor may not be
Heed the following precautions to
able to correctly detect a vehicle
assure correct operation of each
ahead or an obstruction.
system.
4-202 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
NOTE
The vehicle ahead enters the radar
sensor's blind spot.
When the vehicle is driven on roads
The vehicle ahead is running
in which there is an elevated road on
abnormally due to accident or
one side, the front radar sensor
vehicle damage.
function may be restricted
Roads with repeated up and down
temporarily.
slopes
Under the following conditions, the
Driving on poor roads or unpaved
front radar sensor may not be able to
roads.
detect vehicles ahead or obstructions
The distance between your vehicle
correctly and each system may not
and the vehicle ahead is extremely
operate normally.
short.
The rear surface of a vehicle ahead
A vehicle suddenly comes close,
does not reflect radio waves
such as by cutting into your lane.
effectively, such as an unloaded
To prevent incorrect operation of the
trailer or an automobile with a
system, use tires of the same
loading platform covered by a soft
specified size, manufacturer, brand,
top, vehicles with a hard plastic
and tread pattern on all four wheels.
tailgate, and round-shaped
In addition, do not use tires with
vehicles.
significantly different wear patterns
Vehicles ahead with low vehicle
or tire pressures on the same vehicle
height and thus less area for
(Including the temporary spare tire).
reflecting radio waves.
If the battery power is weak, the
Visibility is reduced due to a
system may not operate correctly.
vehicle ahead casting off water,
When driving on roads with little
snow, or sand from its tires and
traffic and few vehicles ahead or
onto your windshield.
obstructions for the front radar
The luggage compartment is
sensor to detect, “Safety and Driver
loaded with heavy objects or the
Support Systems Temporarily
rear passenger seats are occupied.
Disabled. Front Radar Obscured.
Ice, snow, or soiling is on the front
Drive Safely” may be temporarily
surface of the front emblem.
displayed, however, this does not
During inclement weather such as
indicate a problem.
rain, snow, or sand storms.
The radar sensors are regulated by
When driving near facilities or
the relevant radio wave laws of the
objects emitting strong radio
country in which the vehicle is
waves.
driven. If the vehicle is driven
Under the following conditions, the
abroad, authorization from the
front radar sensor may not be able to
country in which the vehicle is driven
detect vehicles ahead or
may be required.
obstructions.
The beginning and end of a curve.
Roads with continuous curves.
Narrow lane roads due to road
construction or lane closures.
4-203
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
NOTE
Front Side Radar Sensor*
The detection ability of the front side
Front Side Radar Sensor
radar sensor has limitations. In the
following cases, the detection ability
Your vehicle is equipped with front
may lower and the system may not
side radar sensor. The following
operate normally.
systems also use the front side radar
sensor.
The front bumper near the front
side radar sensor has become
Front Cross Traffic Alert (FCTA)
deformed.
The front side radar sensor function by
Snow, ice or mud adheres to the
detecting the radio waves reflected off
front side radar sensor on the front
a vehicle approaching from the front or
bumper.
an obstruction sent from the radar
Under bad weather conditions
sensor.
such as rain, snow and fog.
Under the following conditions, the
front side radar sensor cannot detect
target objects or it may be difficult to
detect them.
Small motorcycles, bicycles,
pedestrians, animals, shopping
carts, and stationary objects on a
road or a road side.
Vehicle shapes which do not
1. Front side radar sensor
reflect radar waves well such as
empty trailers with a low vehicle
The front side radar sensors are
height and sports cars.
installed inside the front bumper, one
Vehicles are shipped with the
on each side.
direction of the front side radar
Always keep the surface of the front
sensor adjusted for each vehicle to a
bumper near the front side radar
loaded vehicle condition so that the
sensors clean so that they operate
front side radar sensor detect
normally. Also, do not apply items such
approaching vehicles correctly. If the
as stickers.
direction of the front side radar
Refer to Exterior Care on page 6-43.
sensor has deviated for some reason,
have the vehicle inspected at an
CAUTION
Authorized Mazda Dealer.
For repairs or replacement of the
If the front bumper receives a severe
front side radar sensor, or bumper
impact, the system may no longer
repairs, paintwork, and replacement
operate normally. Stop the system
near the radar sensors, consult an
immediately and have the vehicle
Authorized Mazda Dealer.
inspected at an Authorized Mazda
Dealer.
4-204 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
The radar sensors are regulated by
Rear Side Radar Sensor*
the relevant radio wave laws of the
country in which the vehicle is
Rear Side Radar Sensor
driven. If the vehicle is driven
abroad, authorization from the
Your vehicle is equipped with rear side
country in which the vehicle is driven
radar sensor. The following systems
may be required.
also use the rear side radar sensor.
Blind Spot Monitoring (BSM)
Rear Cross Traffic Alert (RCTA)
Smart Brake Support [Rear Crossing]
(SBS-RC)
The rear side radar sensors emit radio
waves and detect the radio waves
reflected off a vehicle approaching
from the rear or an obstruction.

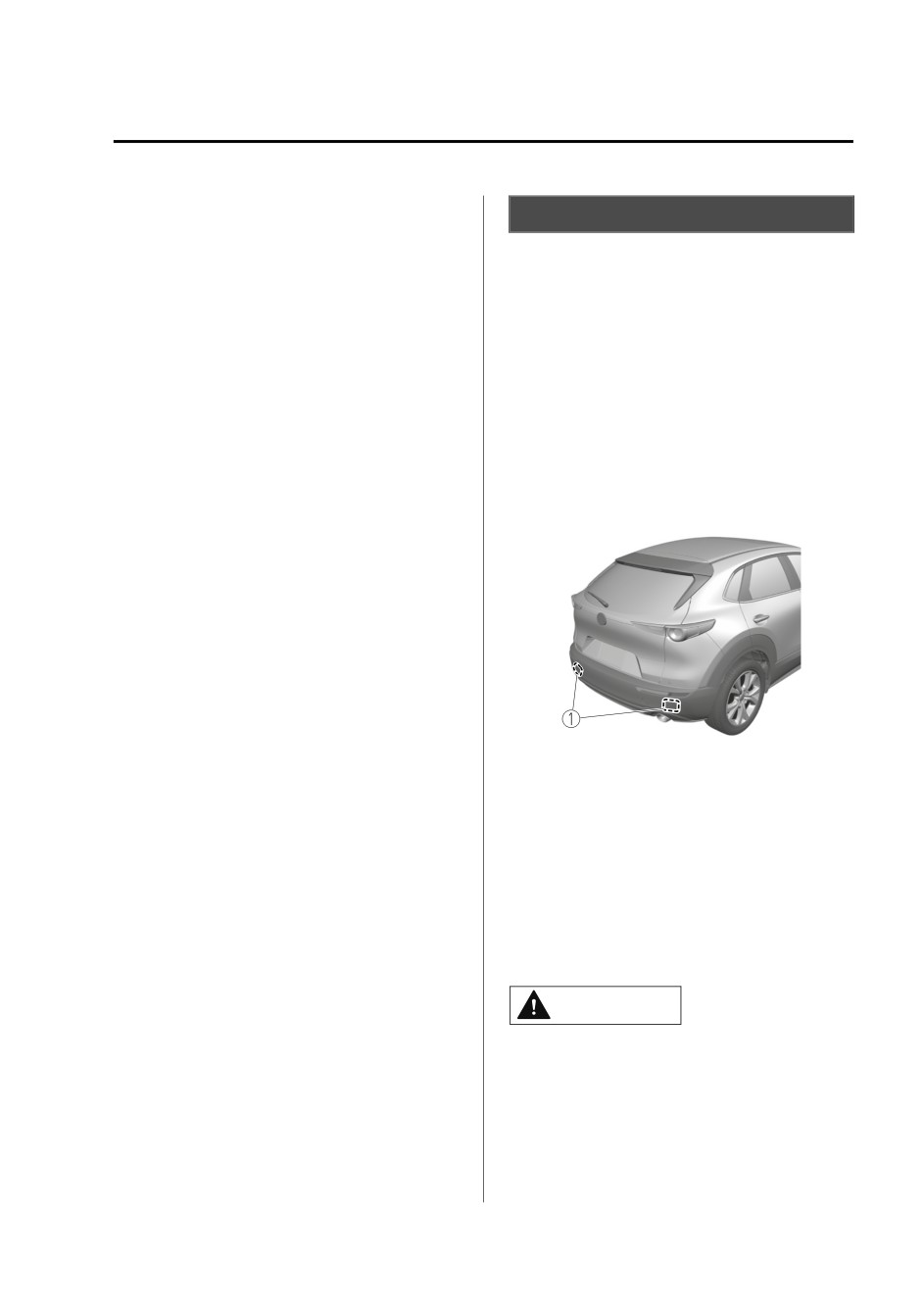

1. Rear side radar sensor
The rear side radar sensors are installed
inside the rear bumper, one on each
side.
Always keep the surface of the rear
bumper near the rear side radar
sensors clean so that they operate
normally. Also, do not apply items such
as stickers.
Refer to Exterior Care on page 6-43.
CAUTION
If the rear bumper receives a severe
impact, the system may no longer
operate normally. Stop the system
immediately and have the vehicle
inspected at an Authorized Mazda
Dealer.
*Some models.
4-205
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
NOTE
The radar sensors are regulated by
the relevant radio wave laws of the
The detection ability of the rear side
country in which the vehicle is
radar sensor has limitations. In the
driven. If the vehicle is driven
following cases, the detection ability
abroad, authorization from the
may lower and the system may not
country in which the vehicle is driven
operate normally.
may be required.
The rear bumper near the rear side
radar sensor has become
deformed.
Snow, ice or mud adheres to the
rear side radar sensor on the rear
bumper.
Under bad weather conditions
such as rain, snow and fog.
Under the following conditions, the
rear side radar sensor cannot detect
target objects or it may be difficult to
detect them.
Small motorcycles, bicycles,
pedestrians, animals, shopping
carts, and stationary objects on a
road or a road side.
Vehicle shapes which do not
reflect radar waves well such as
empty trailers with a low vehicle
height and sports cars.
Vehicles are shipped with the
direction of the rear side radar
sensor adjusted for each vehicle to a
loaded vehicle condition so that the
rear side radar sensor detect
approaching vehicles correctly. If the
direction of the rear side radar
sensor has deviated for some reason,
have the vehicle inspected at an
Authorized Mazda Dealer.
For repairs or replacement of the rear
side radar sensor, or bumper repairs,
paintwork, and replacement near the
radar sensors, consult an Authorized
Mazda Dealer.
4-206
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
Rear/Rear corner/Rear
Front Camera/Side
Side Ultrasonic Sensor*
Cameras/Rear Camera*
Rear/Rear corner/Rear Side
Front Camera/Side Cameras/Rear
Ultrasonic Sensor
Camera
The ultrasonic sensors function by
Your vehicle is equipped with a front
emitting ultrasonic waves which are
camera, side cameras, and a rear
reflected off obstructions at the rear
camera. The 360°View Monitor uses
and the returning ultrasonic waves are
each camera.
picked up by the ultrasonic sensors.
Refer to 360°View Monitor on page
4-165.
The front camera, side cameras, and
rear camera shoot images of the area
surrounding the vehicle.
Each camera is installed to the
following positions.

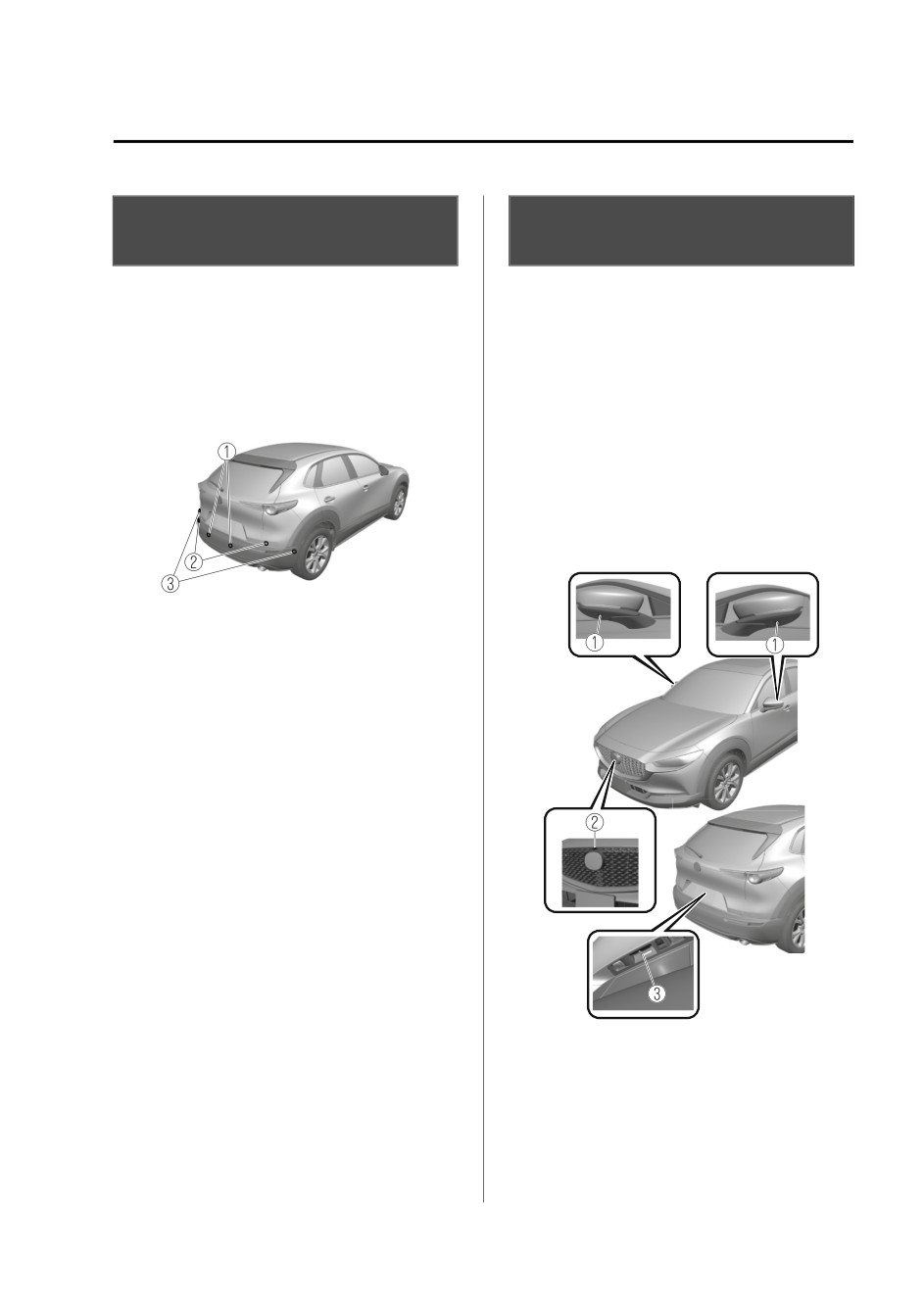

1. Rear ultrasonic sensor
2. Rear corner ultrasonic sensor
3. Rear side ultrasonic sensor
The ultrasonic sensors are mounted in
the rear bumper.
1. Side cameras
2. Front camera
3. Rear camera
*Some models.
4-207
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
i-ACTIVSENSE
You are driving the vehicle with
Driver Monitoring
your head excessively tilted to one
Camera*
side or the other.
You are moving around extensively.
Driver Monitoring Camera
Your face or your eyes frequently
turn in direction other than straight
The driver monitoring camera detects
ahead (direction of travel).
changes in the driver's facial features
Your line of sight moves or directly
and estimates the amount of
after it has moved.
accumulated fatigue and sleepiness of
There is a large difference between
the driver.
your line of sight and the direction
your face is pointed.
You are driving the vehicle with
your head largely tilted to one side.

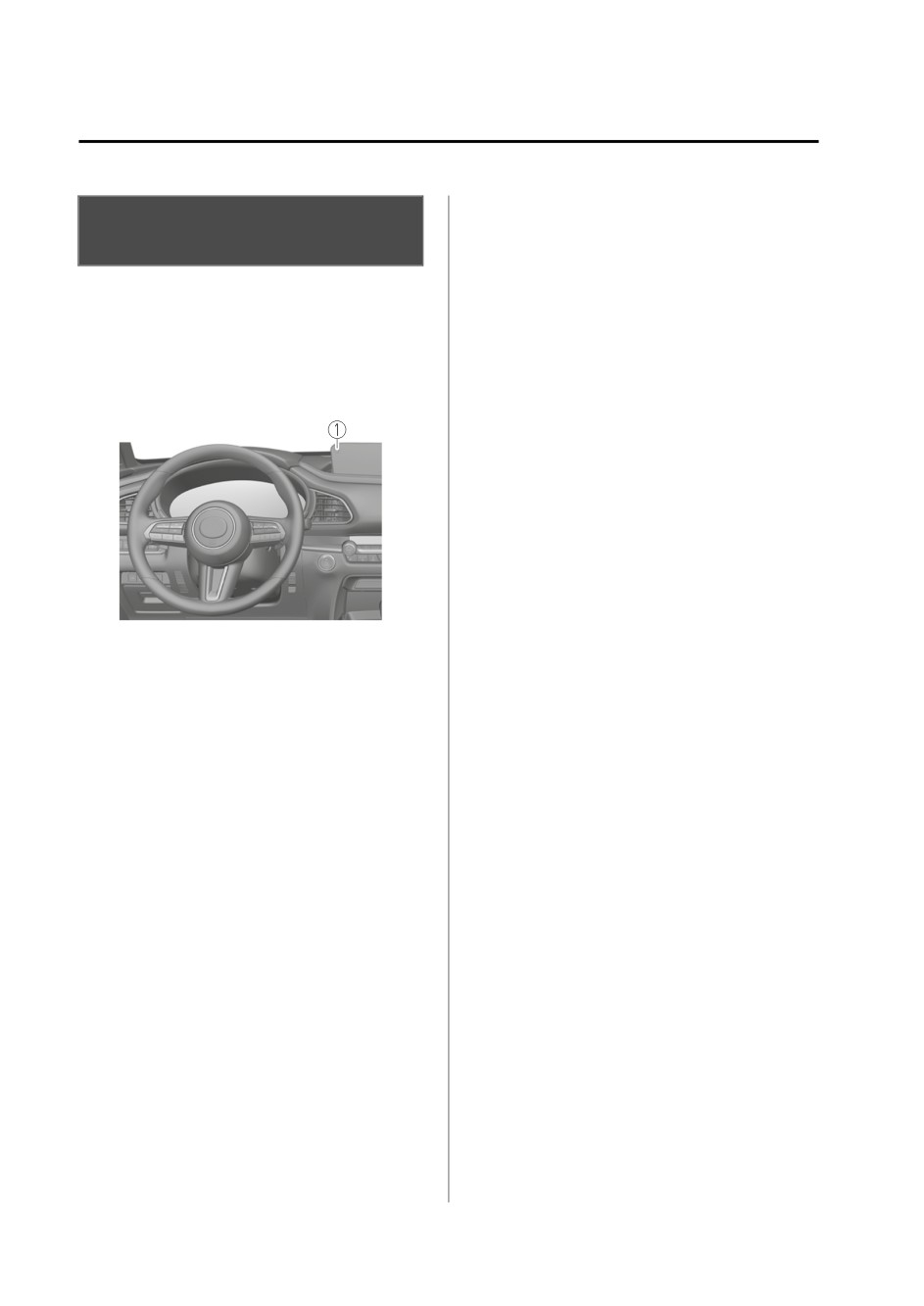

1. Driver monitoring camera
NOTE
Driver Monitoring (DM) and the
earlier collision warning may not
operate normally under the following
conditions.
The driver monitoring camera is
covered with something.
You are driving the vehicle while
leaning on the steering wheel.
You are wearing glasses or
sunglasses.
A cap or hat you are wearing
partially blocks the driver
monitoring camera's view of your
eyes, you have long bangs partially
covering your eyes, or a part of
your face is invisible due to a face
mask.
The lighting conditions change
significantly (such as backlight,
light from the side, or direct light
from the setting sun, and the
headlights of on-coming vehicles).
4-208 *Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Cruise Control
NOTE
Cruise Control*
If your Mazda has the following
steering switch, your Mazda is
Cruise Control
equipped with the Mazda Radar
Cruise Control (MRCC) system, the
With cruise control, you can set and
Mazda Radar Cruise Control with Stop
automatically maintain any speed of
& Go function (MRCC with Stop & Go
more than about 30 km/h (19 mph).
function) system.
WARNING
Do not use the cruise control under
the following conditions:
Using the cruise control under the
following conditions is dangerous and
could result in loss of vehicle control.
Refer to Mazda Radar Cruise Control
(MRCC) on page 4-119.
¾ Hilly terrain
Refer to Mazda Radar Cruise Control
¾ Steep inclines
with Stop & Go function (MRCC with
¾ Heavy or unsteady traffic
Stop & Go function) on page 4-127.
¾ Slippery or winding roads
If the Mazda Radar Cruise Control
¾ Similar restrictions that require
(MRCC) or Mazda Radar Cruise
inconsistent speed
Control with Stop & Go function

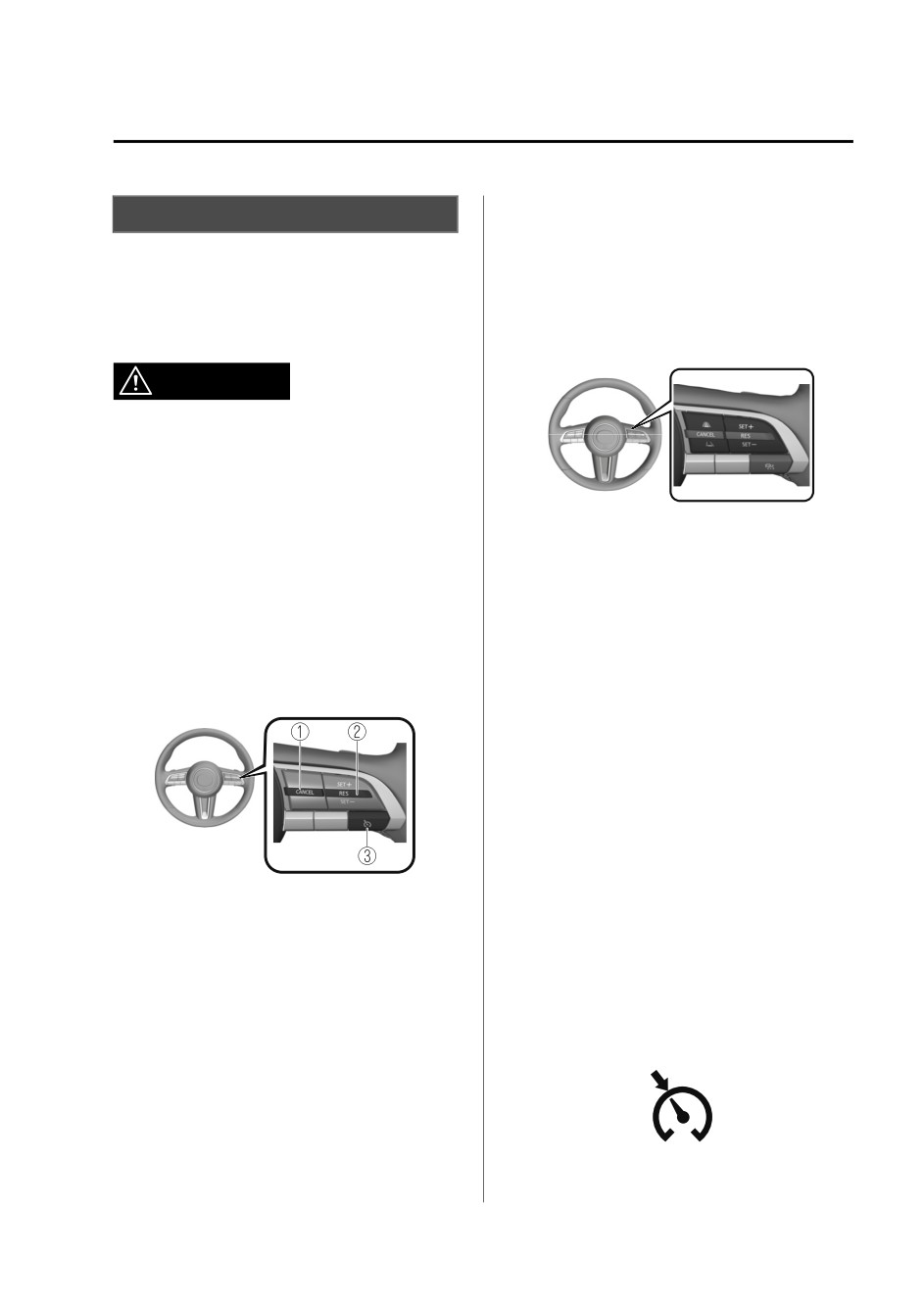

Cruise Control Switch
(MRCC with Stop & Go function) is set
to inoperable using the personalization
feature, the system switches to the
cruise control function. In this case, the
MRCC functions as the cruise switch.
In addition, this personalization
feature setting is initialized by
switching the ignition OFF, and it turns
back on when the ignition is switched
ON the next time.
1. CANCEL switch
2. RES switch
Cruise Standby Indication
3. Cruise switch
(White)/Cruise Set Indication
(Green)
Cruise standby Indication (White)
The indication turns on (white) when
the cruise control system is activated.
*Some models.
4-209
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Cruise Control
Cruise Set Indication (Green)
To Set Speed
The indication turns on (green) when a
1. Activate the cruise control system
cruising speed has been set.
by pressing the cruise switch. The
cruise standby indication (white)
turns on.
2. Accelerate to the desired speed,
which must be more than 25 km/h
(16 mph).
Activation/Deactivation
3. Adjust the system to the desired
vehicle speed using the accelerator
pedal. Press the RES switch up (SET
WARNING
+) or down (SET-) to start cruise
control. The cruise control
Always turn off the cruise control
indication (green) in the instrument
system when it is not in use:
cluster turns on at the same time.
Leaving the cruise control system in an
Quickly release the switch when the
activation-ready state while the cruise
cruise control indication (green)
control is not in use is dangerous as the
turns on.
cruise control could unexpectedly
activate if the activation button is
NOTE
accidentally pressed, and result in loss
If the RES switch is operated up (SET
of vehicle control and an accident.
+) or down (SET-) while the vehicle
speed is between 25 and 30 km/h
NOTE
(16 to 19 mph), the set speed is set
When the ignition is switched OFF, the
to 30 km/h (19 mph).
system status before it was turned off is
The cruise control speed setting
maintained. For example, if the
cannot be performed under the
ignition is switched OFF with the cruise
following conditions:
control system operable, the system
Any of the doors is opened.
will be operable when the ignition is
The driver's seat belt is unfastened.
switched ON the next time.
The brake pedal is depressed.
Activation
The parking brake is applied.
(Automatic transmission)
To activate the system, press the cruise
The selector lever is in the P, N, or
switch. The cruise standby indication
R position.
(white) turns on.
(Manual transmission)
Deactivation
The shift lever is in the neutral
position.
To deactivate the system, press the
On a steep grade, the vehicle may
cruise switch again.
momentarily slow down while
The cruise standby indication (white)
ascending or speed up while
turns off.
descending.
4-210
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Cruise Control
The cruise control will cancel if the
Changing the Set Vehicle Speed
vehicle speed decreases below 20
Follow either of these procedures.
km/h (12 mph) when the cruise
control is activated, such as when
To increase/decrease speed using
climbing a steep grade.
cruise control switch

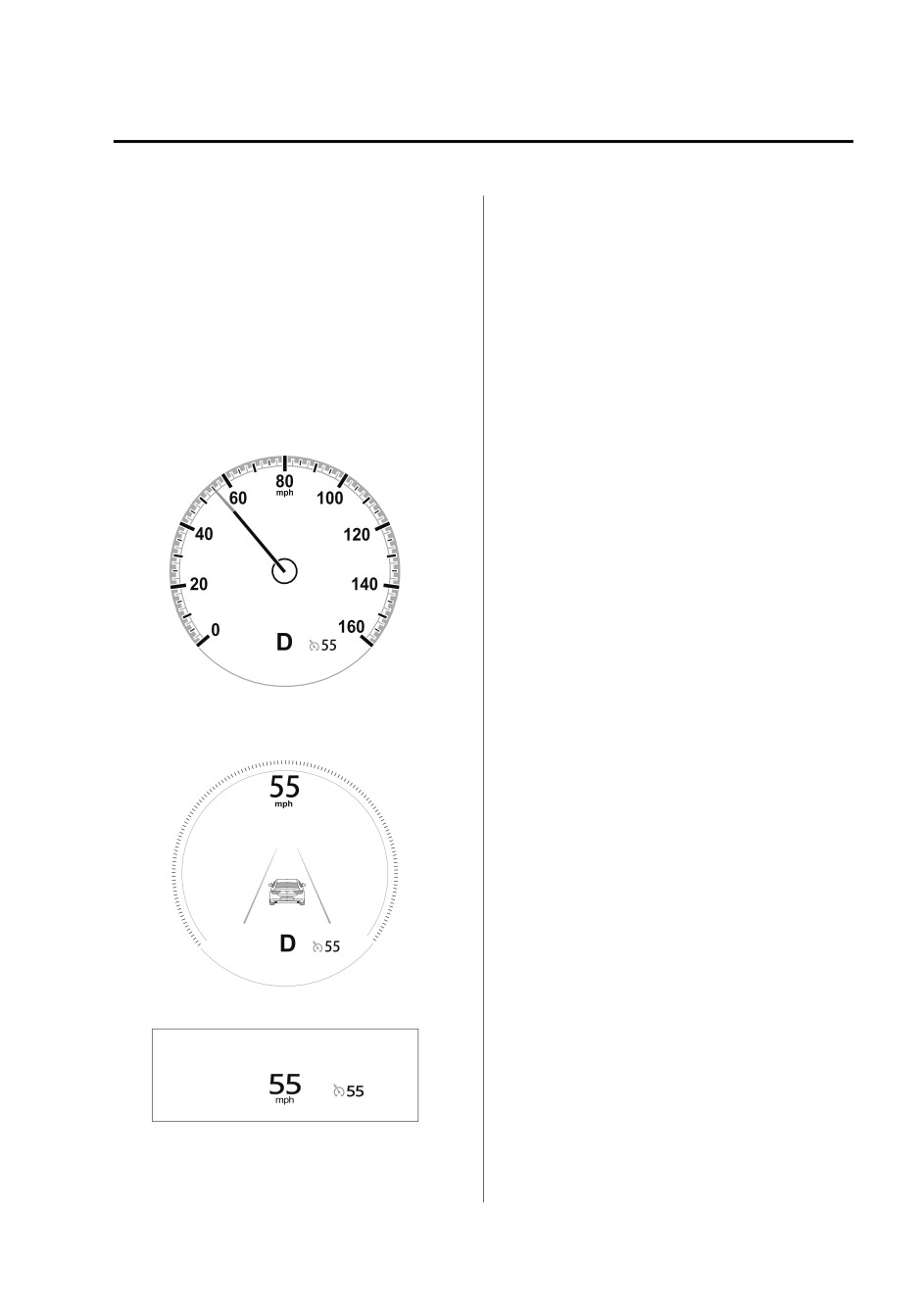

The vehicle speed preset using the
When the RES switch is pressed up
cruise control is displayed in the
(SET+), the vehicle accelerates and
instrument cluster and the active
when the RES switch is pressed down
driving display (vehicles with active
(SET-), it decelerates.
driving display).
Press and release immediately: 1
Instrument cluster (Basic display)
km/h (1 mph)
Press and hold: 10 km/h (5 mph)
NOTE
Even after releasing the RES switch, the
cruise control accelerates/decelerates
continuously until the set speed
displayed in the instrument cluster and
on the active driving display is reached.
If you want to stop accelerating/
decelerating, change the set speed or
cancel the system (such as by
depressing the brake pedal).
Instrument cluster (i-ACTIVSENSE
display)
To increase speed using accelerator
pedal
Depress the accelerator pedal and
press the RES switch up (SET+) or
down (SET-) at the desired speed. If
the switch is not operated, the system
returns to the set speed after you
release your foot from the accelerator
pedal.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is
Active driving display
on. Greater speed will not interfere
with or change the set speed. Take
your foot off the accelerator to return
to the set speed.
4-211
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Cruise Control
To Resume Cruising Speed at More
When the cruise control system is
Than 30 km/h (19 mph)
temporarily canceled by even one of
the applicable cancel conditions, the
If the cruise control system is
speed cannot be re-set.
temporarily canceled (such as by
(Automatic transmission)
applying the brake pedal) and the
The cruise control cannot be
system is still activated, the most
canceled while driving in manual
recent set speed will automatically
mode (selector lever shifted from D
resume when the RES switch is
to M position). Therefore, engine
pressed.
braking will not be applied even if
If vehicle speed is below 30 km/h (19
the transmission is shifted down to a
mph), increase the vehicle speed up to
lower gear. If deceleration is
30 km/h (19 mph) or more and press
required, lower the set speed or
the RES switch.
depress the brake pedal.
To Temporarily Cancel
To Deactivate
To temporarily cancel the system, use
Press the cruise switch again.
one of these methods:
Slightly depress the brake pedal.
Press the CANCEL switch.
(Manual transmission)
Depress the clutch pedal.
If the RES switch is pressed when the
vehicle speed is 30 km/h (19 mph) or
higher, the system reverts to the
previously set speed.
NOTE
If any of the following conditions
occur, the cruise control system is
temporarily canceled.
Even when the brake pedal is
slightly depressed.
The DSC is operating.
There is a problem in the system.
Any of the doors is opened.
The driver's seat belt is unfastened.
The parking brake is applied.
(Automatic transmission)
The selector lever is in the P, N, or
R position.
(Manual transmission)
The shift lever is in the neutral
position.
4-212
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Tire Pressure Monitoring System (TPMS)
Before driving, visually inspect the
Tire Pressure Monitoring
tires for abnormalities. Additionally,
System (TPMS)
inspect the tire pressures monthly. A
digital type air pressure gauge is
Tire Pressure Monitoring System
recommended for inspecting the tire
(TPMS)
pressures.
The TPMS monitors the air pressure of
The TPMS is not a substitute for your
each tire and if it decreases below the
own periodic inspection of the tires.
specified value, the system notifies the
Always inspect the tires yourself
driver by turning on the TPMS warning
periodically.
light in the instrument cluster and
indicating a message on the
CAUTION
multi-information display.
For the TPMS, the air pressure data
¾ Each tire, including the spare (if
sent from the tire pressure sensors
provided), should be checked
installed on each wheel via radio signal
monthly when cold and inflated to
is received by the receiver unit in the
the inflation pressure recommended
vehicle to monitor the tire pressures.
by the vehicle manufacturer on the
vehicle placard or tire inflation
pressure label. (If your vehicle has
tires of a different size than the size
indicated on the vehicle placard or
tire inflation pressure label, you
should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your
vehicle has been equipped with a
tire pressure monitoring system

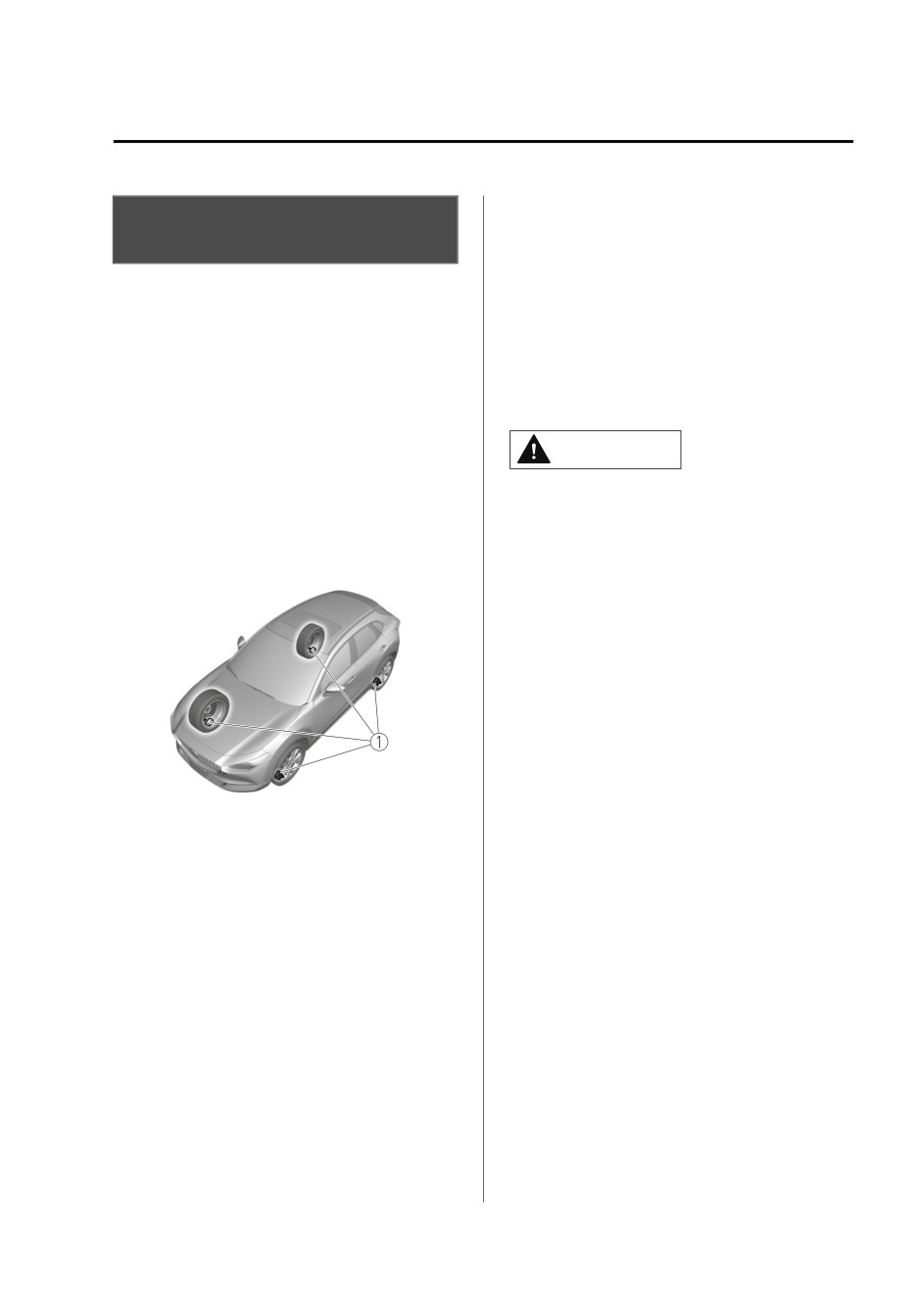

1. Tire pressure sensors
(TPMS) that illuminates a low tire
pressure telltale when one or more
In addition, the current tire pressures
of your tires is significantly
can be checked using the center
under-inflated. Accordingly, when
display.
the low tire pressure telltale
Refer to the Vehicle Status Monitor
illuminates, you should stop and
section in the Mazda Connect
check your tires as soon as possible,
Owner's Manual.
and inflate them to the proper
pressure. Driving on a significantly
NOTE
under-inflated tire causes the tire to
When the ambient temperature is
overheat and can lead to tire failure.
low, the tire temperatures also
Under-inflation also reduces fuel
decrease. If the tire temperatures
efficiency and tire tread life, and may
decrease, the air pressure in the tires
affect the vehicle's handling and
will also decrease which could turn
stopping ability.
on the TPMS warning light.
4-213
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Tire Pressure Monitoring System (TPMS)
Please note that the TPMS is not a
If there is a problem with the Tire
substitute for proper tire
Pressure Monitoring System
maintenance, and it is the driver's
(TPMS)
responsibility to maintain correct tire
If the TPMS warning light flashes, there
pressure, even if under-inflation has
may be a problem with the system.
not reached the level to trigger
Consult an Authorized Mazda Dealer
illumination of the TPMS low tire
to have the system inspected.
pressure telltale.
Refer to Tire Pressure Monitoring
Your vehicle has also been equipped
System (TPMS) Warning Indication/
with a TPMS malfunction indicator to
Warning Light (Flashing) on page
indicate when the system is not
7-28.
operating properly.
In the following cases, the system
The TPMS malfunction indicator is
cannot recognize the tire pressures
combined with the low tire pressure
correctly and the TPMS warning light
telltale. When the system detects a
may flash.
malfunction, the telltale will flash for
approximately one minute and then
There is equipment or a device
remain continuously illuminated.
nearby emitting radio signals the
This sequence will continue upon
same as a tire pressure sensor.
subsequent vehicle start-ups as long
A metallic object such as a
as the malfunction exists. When the
non-genuine electronic device is
malfunction indicator is illuminated,
installed near the center of the
the system may not be able to detect
dashboard (obstructs the radio
or signal low tire pressure as
signals from the tire pressure sensors
intended. TPMS malfunctions may
to the receiver).
occur for a variety of reasons,
A device such as one of the following
including the installation of
is used in the cabin.
replacement or alternate tires or
Electronic devices such as a
wheels on the vehicle that prevent
computer.
the TPMS from functioning properly.
Converter devices such as a
Always check the TPMS malfunction
DC-AC converter.
telltale after replacing one or more
There is a large accumulation of
tires or wheels on your vehicle to
snow or ice around the vehicle tires.
ensure that the replacement or
The battery in a tire pressure sensor
alternate tires and wheels allow the
is dead.
TPMS to continue to function
A wheel not equipped with a tire
properly.
pressure sensor is used.
¾ To avoid false readings, the system
Tires employing steel in the sidewall
samples for a little while before
of the tire are installed.
indicating a problem. As a result it
Tire chains are used.
will not instantaneously register a
rapid tire deflation or blow out.
4-214
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Tire Pressure Monitoring System (TPMS)
When a tire pressure decreases
1. Wait more than 19 minutes after
changing a tire or wheel.
If the TPMS warning light turns on, a
2. After more than 19 minutes have
tire pressure may be low. Inspect the
passed, drive the vehicle at a speed
tire pressures and adjust them to the
of about 25 km/h (16 mph) or
correct inflation pressure.
faster for 3 minutes or longer. While
Refer to Tire Pressure Monitoring
driving, the ID signal codes of the
System (TPMS) Warning Indication/
tire pressure sensors are
Warning Light (Turns on) on page
automatically registered.
7-32.
NOTE
Tires and Wheels
If you drive the vehicle within 19
minutes of changing a tire or wheel,
the TPMS warning light will flash
CAUTION
because the ID signal codes for the tire
When inspecting/adjusting the tire
pressure sensors were not registered.
pressures, do not apply excessive force
In this case, stop the vehicle and
to the air valve of the tire pressure
register the ID signal codes of the tire
sensor. Otherwise, the tire pressure
pressure sensors following the
sensor could be damaged.
procedure.
When changing tires and wheels
When replacing tires and wheels
When changing the tires or wheels
(such as installing winter tires), it will
CAUTION
be necessary to register the ID signal
code of the tire pressure sensor to the
¾ When replacing the tires and wheels,
TPMS.
consult an Authorized Mazda Dealer
Have an Authorized Mazda Dealer do
Otherwise, the tire pressure sensors
the registration or register the ID signal
could be damaged when replacing
codes of the tire pressure sensors using
them.
the following procedure.
¾ Do not install non-genuine wheels. If
wheels other than genuine ones are
NOTE
installed, it may not be possible to
The tire pressure sensors on each
install the tire pressure sensors.
wheel have a unique ID signal code.
For the TPMS to operate correctly, the
ID signal codes of the tire pressure
sensors need to be registered to the
system.
4-215
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Tire Pressure Monitoring System (TPMS)
When replacing a tire or wheel, always
install the tire pressure sensor. The
following combinations of tires,
wheels, or tires and wheels are
possible.
The tire pressure sensor from the old
wheel is removed and it is installed
to the new wheel.
Only a tire is replaced without
replacing the tire pressure sensor and
wheel.
A new tire pressure sensor is installed
to a new wheel.
NOTE
When installing a new tire pressure
sensor, the ID signal code for the tire
pressure sensor needs to be registered.
For details on purchasing a tire
pressure sensor and registering the ID
signal of the tire pressure sensor,
consult an Authorized Mazda Dealer.
4-216
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Rear View Monitor
¾ Do not apply excessive force to the
Rear View Monitor*
camera. The camera position and
angle may deviate.
Rear View Monitor
¾ Do not disassemble, modify, or
The rear view monitor provides visual
remove it as it may no longer be
images of the rear of the vehicle when
waterproof.
reversing.
¾ The camera cover is made of plastic.
Do not apply degreasing agents,
WARNING
organic solvents, wax, or glass
coating agents to the camera cover.
Always drive carefully confirming the
If any are spilled on the cover, wipe
safety of the rear and the surrounding
off with a soft cloth immediately.
conditions by looking directly with
¾ Do not rub the camera cover
your eyes:
forcefully with an abrasive or hard
Reversing the vehicle by only looking at
brush. The camera cover or lens may
the screen is dangerous as it may cause
be scratched which might affect the
an accident or a collision with an
images.
object. The rear view monitor is only a
visual assist device when reversing the
NOTE
vehicle. The images on the screen may
If water, snow, or mud is stuck on
be different from the actual conditions.
the camera lens, wipe it off using a
soft cloth. If it cannot be wiped off,
CAUTION
use a mild detergent.
If the camera temperature changes
¾ Do not use the rear view monitor
rapidly (Hot to cold, cold to hot), the
under the following conditions:
rear view monitor may not operate
Using the rear view monitor under
correctly.
the following conditions is
When replacing the tires, consult an
dangerous and could result in injury
Authorized Mazda Dealer. Replacing
or vehicle damage or both.
the tires could result in deviation of
¾ Icy or snow-covered roads.
the guide lines which appear on the
¾ Tire chains or a temporary spare
display.
tire is installed.
If the vehicle's front, side, or rear has
¾ The trunk lid is not fully closed.
been involved in a collision, the
¾ The vehicle is on a road incline.
alignment of the rear view parking
¾ When the display is cold, images
camera (location, installation angle)
may course across the monitor or the
may have deviated. Always consult
screen and may be dimmer than
an Authorized Mazda Dealer to have
usual, which could cause difficulty in
the vehicle inspected.
confirming the surrounding
If “No camera signal.” is indicated in
conditions of the vehicle. Always
the display, there could be a
drive carefully confirming the safety
problem with the camera. Have your
of the rear and the surrounding
vehicle inspected at an Authorized
conditions by looking directly with
Mazda Dealer.
your eyes.
*Some models.
4-217
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09















Content      ..     9      10      11      12     ..
