Mazda 6 (2021 year). Manual in english - page 5





Before Driving
Driving Tips
Hazardous Driving
Floor Mat
We recommend the use of Genuine
WARNING
Mazda floor mats.
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while driving
Make sure the floor mats are hooked on the
on slippery surfaces is dangerous. The
retention pins to prevent them from
sudden change in tire speed could cause
bunching up under the foot pedals:
the tires to skid. This could lead to loss of
Using a floor mat that is not secured is
vehicle control and an accident.
dangerous as it will interfere with the
accelerator and brake pedal operation,
When driving on ice or in water, snow,
which could result in an accident.
mud, sand, or similar hazards:
Be cautious and allow extra distance for
Do not install two floor mats, one on top of
braking.
the other, on the driver's side:
Avoid sudden braking and sudden
Installing two floor mats, one on top of the
maneuvering.
other, on the driver's side is dangerous as
Do not pump the brakes. Continue to
the retention pins can only keep one floor
press down on the brake pedal.
mat from sliding forward.
Refer to Antilock Brake System (ABS)
Loose floor mat(s) will interfere with the
on page 4-111.
foot pedals and could result in an accident.
If you get stuck, select a lower gear and
If using an all-weather mat for winter use
accelerate slowly. Do not spin the front
always remove the original floor mat.
wheels.
For more traction in starting on slippery
surfaces such as ice or packed snow, use
sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
When setting a floor mat, position the
floor mat so that its grommets are inserted
over the pointed end of the retention posts.
3-45
Before Driving
Driving Tips
Rocking the Vehicle
Winter Driving
Carry emergency gear, including tire
WARNING
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Do not spin the wheels at more than 56
Ask an Authorized Mazda Dealer to check
km/h (35 mph), and do not allow anyone
the following:
to stand behind a wheel when pushing the
vehicle:
Have the proper ratio of antifreeze in the
When the vehicle is stuck, spinning the
radiator.
wheels at high speed is dangerous. The
Refer to Engine Coolant on page 6-26.
spinning tire could overheat and explode.
Inspect the battery and its cables. Cold
This could cause serious injuries.
reduces battery capacity.
Use an engine oil appropriate for the
lowest ambient temperatures that the
CAUTION
vehicle will be driven in (page 6-22).
Inspect the ignition system for damage
Too much rocking may cause engine
and loose connections.
overheating, transaxle failure, and tire
Use washer fluid made with
damage.
antifreeze―but do not use engine
If you must rock the vehicle to free it from
coolant antifreeze for washer fluid (page
snow, sand or mud, depress the accelerator
6-29).
slightly and slowly move the selector lever
from D to R position.
NOTE
Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
3-46
Before Driving
Driving Tips
Drive slowly. Braking performance can
WARNING
be adversely affected if snow or ice
adheres to the brake components. If this
Use only the same size and type tires (snow,
situation occurs, drive the vehicle
radial, or non-radial) on all 4 wheels:
slowly, releasing the accelerator pedal
and lightly applying the brakes several
Using tires different in size or type is
times until the brake performance
dangerous. Your vehicle's handling could
be greatly affected and result in an
returns to normal.
accident.
Snow Tires
Use snow tires on all 4 wheels
CAUTION
Do not go faster than 120 km/h (75 mph)
Check local regulations before using
while driving with snow tires. Inflate snow
studded tires.
tires 30 kPa (0.3 kgf/cm2, 4.3 psi) more
than recommended on the tire pressure
NOTE
label (driver's door frame), but never more
The tire pressure monitoring system may
than the maximum cold-tire pressure
not function correctly when using tires
shown on the tires.
with steel wire reinforcement in the
sidewalls (page 4-233).
Mexico
Tire Chains
The vehicle is originally equipped with
Check local regulations before using tire
summer tires designed for optimum
chains.
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
CAUTION
covered roads, Mazda recommends that
you replace the tires originally equipped
¾ Chains may affect handling.
on your vehicle with snow tires during the
¾ Do not go faster than 50 km/h (30 mph)
winter months.
or the chain manufacturer's
Except Mexico
recommended limit, whichever is lower.
¾ Drive carefully and avoid bumps, holes,
The vehicle is originally equipped with all
and sharp turns.
season radials designed to be used all year
¾ Avoid locked-wheel braking.
around. In some extreme climates you
may find it necessary to replace them with
¾ Do not use chains on a temporary spare
tire; it may result in damage to the
snow tires during the winter months to
further improve traction on snow and ice
vehicle and to the tire.
covered roads.
¾ Do not use chains on roads that are free
of snow or ice. The tires and chains could
be damaged.
3-47
Before Driving
Driving Tips
¾ Chains may scratch or chip aluminum
Driving In Flooded Area
wheels.
NOTE
WARNING
The tire pressure monitoring system may
not function correctly when using tire
Dry off brakes that have become wet by
chains.
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
Install the chains on the front tires only.
several times until the brake performance
Do not use chains on the rear tires.
returns to normal:
Please consult an Authorized Mazda
Driving with wet brakes is dangerous.
Dealer.
Increased stopping distance or the vehicle
Installing the chains
pulling to one side when braking could
result in a serious accident. Light braking
1. Secure the chains on the front tires as
will indicate whether the brakes have been
tightly as possible.
affected.
Always follow the chain
manufacturer's instructions.
2. Retighten the chains after driving
CAUTION
1/2―1 km (1/4―1/2 mile).
Do not drive the vehicle on flooded roads
as it could cause short circuiting of
electrical/electronic parts, or engine
damage or stalling from water absorption.
If the vehicle has been immersed in water,
consult an Authorized Mazda Dealer.
3-48
Before Driving
Driving Tips
Overloading
WARNING
Be careful not to overload your vehicle:
The gross axle weight rating (GAWR) and
the gross vehicle weight rating (GVWR) of
the vehicle are on the Motor Vehicle Safety
Standard Label on the driver's door frame.
Exceeding these ratings can cause an
accident or vehicle damage. You can
estimate the weight of the load by
weighing the items (or people) before
putting them in the vehicle.
3-49
Before Driving
Driving Tips
Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when traveling on
rough/uneven roads or over speed bumps.
Use care not to damage the vehicle's underbody, bumpers or muffler(s) when driving under
the following conditions:
Ascending or descending a slope with a sharp transition angle
Ascending or descending a driveway or trailer ramp with a sharp transition angle
This vehicle is equipped with low profile tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and wheels can be
damaged if driven through potholes or on rough/uneven roads at excessive speeds. Use care
and reduce speed when traveling on rough/uneven roads or through potholes.
3-50
Before Driving
Driving Tips
Turbocharger Information (SKYACTIV-G 2.5T,
SKYACTIV-D 2.2)
CAUTION
¾ After driving at freeway speeds or up a long hill, idle the engine at least 30 seconds before
stopping it. Otherwise, the turbocharger could be damaged.
¾ Racing or over-revving the engine, particularly after it's just been started, can damage the
turbocharger.
¾ To protect the engine from damage, the engine is designed so that it cannot be raced just
after starting it in extremely cold weather.
The turbocharger greatly enhances engine power. Its advanced design provides improved
operation and requires minimum maintenance.
To get the most from it, observe the following.
1. Change engine oil and filter according to Scheduled Maintenance (page 6-4).
2. Use only recommended engine oil (page 6-22). Extra additives are NOT recommended.
3-51
Before Driving
Towing
Trailer Towing
Recreational Towing
Your Mazda is not designed for towing.
An example of "recreational towing" is
Never tow a trailer with your Mazda.
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
"Towing Description" (page 7-22) and
"Tiedown Hook" (page 7-23) and
carefully follow the instructions.
3-52
When Driving
4
Information concerning safe driving and stopping.
Start/Stop Engine
4-4
HomeLink Wireless Control System
Ignition Switch
4-4
(Type A)*
4-92
Starting the Engine
4-5
HomeLink Wireless Control System
Turning the Engine Off
4-11
(Type B)*
4-95
Cylinder Deactivation*
4-12
Brake
4-100
Instrument Cluster and Display
Brake System
4-100
........................................................... 4-13
AUTOHOLD
4-105
Instrument Cluster and
Hill Launch Assist (HLA)
4-109
Display
4-13
Instrument Cluster (Type A)
4-14
ABS/TCS/DSC
4-111
Instrument Cluster (Type B)
4-33
Antilock Brake System
Instrument Cluster (Type C)
4-51
(ABS)
4-111
Active Driving Display*
4-64
Traction Control System
(TCS)
4-112
Automatic Transaxle
4-67
Dynamic Stability Control
Automatic Transaxle
(DSC)
4-113
Controls
4-67
Shift-Lock System
4-68
Drive Selection
4-115
Transaxle Ranges
4-68
Drive Selection*
4-115
Manual Shift Mode
4-70
Direct Mode*
4-76
i-ACTIV AWD
4-117
Driving Tips
4-77
i-ACTIV AWD Operation*
4-117
Switches and Controls
4-78
Power Steering
4-118
Lighting Control
4-78
Power Steering
4-118
Turn and Lane-Change
Signals
4-84
Windshield Wipers and
i-ACTIVSENSE
4-119
Washer
4-85
i-ACTIVSENSE
4-119
Rear Window Defogger
4-89
Adaptive Front Lighting System
Horn
4-91
(AFS)*
4-122
Hazard Warning Flasher
4-91
High Beam Control System
(HBC)*
4-123
*Some models.
4-1
Blind Spot Monitoring
Ultrasonic Sensor (Rear)*
4-225
(BSM)
4-126
Front Camera/Side Cameras/Rear
Traffic Sign Recognition System
Camera*
4-226
(TSR)*
4-132
Distance Recognition Support
Cruise Control
4-227
System (DRSS)*
4-140
Cruise Control*
4-227
Driver Attention Alert (DAA)*
.................................................. 4-144
Tire Pressure Monitoring
Rear Cross Traffic Alert
System
4-232
(RCTA)
4-146
Tire Pressure Monitoring
Mazda Radar Cruise Control with
System
4-232
Stop & Go function (MRCC with
Stop & Go function)*
4-150
Lane-keep Assist System (LAS) &
Diesel Particulate Filter
4-236
Lane Departure Warning System
Diesel Particulate Filter
(SKYACTIV-D 2.2)
4-236
(LDWS)*
4-164
Advanced Smart City Brake Support
(Advanced SCBS)*
4-175
Selective Catalytic Reduction (SCR)
Smart City Brake Support [Forward]
System
4-237
(SCBS F)*
4-178
Selective Catalytic Reduction (SCR)
Smart City Brake Support [Reverse]
System (SKYACTIV-D 2.2)
4-237
(SCBS R)*
4-182
Smart Brake Support (SBS)*
4-186
Rear View Monitor
4-240
360° View Monitor*
4-188
Rear View Monitor*
4-240
Forward Sensing Camera (FSC)*
.................................................. 4-215
Parking Sensor System
4-248
Radar Sensor (Front)*
4-220
Parking Sensor System*
4-248
Radar Sensors (Rear)
4-223
4-2
*Some models.
MEMO
4-3
When Driving
Start/Stop Engine
Ignition Switch
WARNING
Push Button Start Positions
Before leaving the driver's seat, always
The system operates only when the key is
switch the ignition off, set the parking
within operational range.
brake, and make sure the selector lever is in
Each time the push button start is pressed,
P position:
the ignition switches in the order of off,
Leaving the driver's seat without switching
ACC, and ON. Pressing the push button
the ignition off, setting the parking brake,
start again from ON switches the ignition
and shifting the selector lever to P position
off.
is dangerous. Unexpected vehicle
movement could occur which could result
in an accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
Indicator light
important to switch the ignition off, as
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.
Push button start
ACC (Accessory)
NOTE
Some electrical accessories will operate
The engine starts by pressing the push
and the indicator light (amber) illuminates.
button start while depressing the brake
NOTE
pedal. To switch the ignition position,
The keyless entry system does not function
press the push button start without
while the push button start has been
depressing the pedal.
pressed to ACC, and the doors will not
Do not leave the ignition switched ON
lock/unlock even if they have been locked
while the engine is not running. Doing
manually.
so could result in the battery going
ON
dead. If the selector lever is in the P
position, and the ignition is in ACC, the
This is the normal running position after
ignition switches off automatically after
the engine is started. The indicator light
about 25 minutes.
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
Off
switched ON and the engine is not
The power supply to electrical devices
running.)
turns off and the push button start
Some indicator lights/warning lights
indicator light (amber) also turns off.
should be inspected before the engine is
started (page 4-13).
4-4
When Driving
Start/Stop Engine
NOTE
Starting the Engine
(SKYACTIV-G 2.5, SKYACTIV-G 2.5T)
When the push button start is pressed to
ON, the sound of the fuel pump motor
WARNING
operating near the fuel tank can be heard.
This does not indicate an abnormality.
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.
NOTE
The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
The engine can be started when the push
button start is pressed from off, ACC, or
ON.
The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-9.
After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
4-5
When Driving
Start/Stop Engine
This is for improved exhaust gas
6.
Verify that the KEY indicator light
purification and does not indicate any
(green) (if equipped) in the instrument
parts defect.
cluster and the push button start
Engine-starting is controlled by the
indicator light (green) illuminate.
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.
1.
Make sure you are carrying the key.
Indicator light
2.
Occupants should fasten their seat
belts.
3.
Make sure the parking brake is on.
4.
Continue to press the brake pedal
Push button start
firmly until the engine has completely
started.
NOTE
5.
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
If the push button start indicator
moving, shift into neutral (N).
light (green) flashes, make sure that
the key is being carried (for vehicles
NOTE
with a type A/type B instrument
The starter will not operate if the
cluster (page 7-25), messages are
selector lever is not in P or N position
displayed in the instrument cluster).
and the brake pedal is not depressed
If the push button start indicator
sufficiently.
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A/
type B instrument cluster (page
7-25), messages are displayed in
the instrument cluster). Refer to
Engine Start Function When Key
Battery is Dead on page 4-9.
4-6
When Driving
Start/Stop Engine
(Forced engine starting method)
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
If the KEY warning light (red)
indicator light (amber) flashes, this
illuminates, or the push button start
could indicate that the engine may
indicator light (amber) flashes, this
not start using the usual starting
could indicate a problem with the
method (for vehicles with a type A/
engine starting system. This may
type B instrument cluster (page
prevent the engine from starting or
7-25), messages are displayed in
from switching the ignition to ACC or
the instrument cluster). Have your
ON (for vehicles with a type A/type B
vehicle inspected at an Authorized
instrument cluster (page 7-25),
Mazda Dealer as soon as possible. If
messages are displayed in the
this occurs, the engine can be
instrument cluster). Have your vehicle
force-started. Press and hold the
inspected at an Authorized Mazda
push button start until the engine
Dealer as soon as possible.
starts. Other procedures necessary
for starting the engine, such as
NOTE
having the key in the cabin, and
Under the following conditions, the
depressing the brake pedal are
KEY warning light (red) flashes after
required.
the push button start is pressed. This
When the engine is force-started, the
informs the driver that the push
KEY warning light (red) (if
button start will not switch to ACC,
equipped) remains illuminated and
even if it is pressed from off (for
the push button start indicator light
vehicles with a type A/type B
(amber) remains flashing.
instrument cluster (page 7-25),
When the selector lever is in the
messages are displayed in the
neutral (N) position, the KEY
instrument cluster).
indicator light (green) (if equipped)
and the push button start indicator
The key battery is dead.
light (green) do not illuminate.
The key is out of operational
range.
7.
Press the push button start after both
the KEY indicator light (green) (if
The key is placed in areas where it
equipped) in the instrument cluster and
is difficult for the system to detect
the push button start indicator light
the signal (page 3-8).
A key from another manufacturer
(green) illuminate.
similar to the key is in the
operational range.
4-7
When Driving
Start/Stop Engine
NOTE
8.
After starting the engine, let it idle for
about 10 seconds.
After starting the engine, the push
button start indicator light (amber)
NOTE
turns off and the ignition switches to
Do not use high engine speeds until
the ON position.
reaching the operating temperature.
(SKYACTIV-G 2.5, SKYACTIV-G
2.5T)
(SKYACTIV-G 2.5, SKYACTIV-G
After pressing the push button start
2.5T)
and before the engine starts, the
Whether the engine is cold or
operation sound of the fuel pump
warm, it should be started without
motor from near the fuel tank can be
the use of the accelerator.
heard, however, this does not
If the engine does not start the first
indicate a malfunction.
time, refer to Starting a Flooded
(SKYACTIV-D 2.2)
Engine under Emergency Starting.
The starter does not rotate until
If the engine still does not start,
the glow indicator light turns off.
have your vehicle inspected by an
Authorized Mazda Dealer (page
7-18).
(SKYACTIV-D 2.2)
If the ignition is left switched ON
If the ambient temperature is lower
for a long period of time without
than about 10 °C (14 °F), the
the engine running after the glow
maximum engine speed may not be
plugs are warmed up, the glow
attained for about 3 minutes after
plugs may warm up again which
the engine starts to protect the
will illuminate the glow indicator
engine.
light.
When starting the engine, do not
release the brake pedal until the
glow indicator light in the
instrument cluster turns off and
the engine starts, after pressing
the push button start.
If the brake pedal is released
before the engine starts, depress
the brake pedal again and press
the push button start to start the
engine.
4-8
When Driving
Start/Stop Engine
Engine Start Function When Key
If the engine cannot be started due to a
Battery is Dead
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal
CAUTION
firmly until the engine has completely
started.
When starting the engine by holding the
2. Make sure that the push button start
transmitter over the push button start due
indication light (green) flashes.
to a dead key battery or a malfunctioning
3. Align the center area of the emblem on
key, be careful not to allow the following,
the transmitter with the center area of
otherwise the signal from the key will not
the push button start while the push
be received correctly and the engine may
button start indicator light (green)
not start.
flashes.
¾ Metal parts of other keys or metal objects
touch the key.
Indicator light
Emblem
¾ Spare keys or keys for other vehicles
Push
equipped with an immobilizer system
Key
button
start
touch or come near the key.
4. Make sure that the push button start
indicator light (green) turns on.
¾ Devices for electronic purchases, or
security passage touch or come near the
key.
4-9
When Driving
Start/Stop Engine
5.
Press the push button start to start the
Emergency Operation for Starting
engine.
the Engine
NOTE
If the KEY warning light (red) illuminates,
or the push button start indicator light
The engine cannot be started unless
(amber) flashes, this could indicate that
the brake pedal is fully depressed.
the engine may not start using the usual
If there is a malfunction with the
starting method (for vehicles with a type
push button start function, the push
A/type B instrument cluster (page 7-25),
button start indicator light (amber)
messages are displayed in the instrument
flashes. In this case, the engine may
cluster). Have your vehicle inspected at an
start, however, have the vehicle
Authorized Mazda Dealer as soon as
checked at an Authorized Mazda
possible. If this occurs, the engine can be
Dealer as soon as possible.
force-started. Press and hold the push
If the push button start indicator
button start until the engine starts. Other
light (green) does not illuminate,
procedures necessary for starting the
perform the operation from the
engine such as having the key in the cabin,
beginning again. If it does not
and depressing the brake pedal are
illuminate, have the vehicle checked
required.
at an Authorized Mazda Dealer.
To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the brake pedal.
2. Press the push button start to
switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.
4-10
When Driving
Start/Stop Engine
NOTE
Turning the Engine Off
(SKYACTIV-G 2.5)
The cooling fan in the engine
WARNING
compartment could turn on for a few
minutes after the ignition is switched
Do not stop the engine while the vehicle is
from ON to OFF, whether or not the A/C
moving:
is on or off, to cool the engine
Stopping the engine while the vehicle is
compartment quickly.
moving for any reason other than in an
If the system detects that the remaining
emergency is dangerous. Stopping the
battery power of the key is low when the
engine while the vehicle is moving will
ignition is switched from ON to ACC or
result in reduced braking ability due to the
OFF, the following is indicated.
loss of power braking, which could cause
Replace with a new battery before the
an accident and serious injury.
key becomes unusable.
Refer to Key Battery Replacement on
1. Stop the vehicle completely.
page 6-41.
2. Shift the selector lever to the P
(Vehicle equipped with Type A/B
position and set the parking brake.
instrument cluster)
3. Press the push button start to turn off
A message is indicated in the display of
the engine. The ignition position is off.
the instrument cluster.
(Vehicle equipped with Type C
CAUTION
instrument cluster)
The KEY indicator light (green) flashes
¾ When leaving the vehicle, make sure the
for approximately 30 seconds.
push button start is off.
Refer to Taking Action on page 7-35.
¾ (SKYACTIV-D 2.2)
If the engine is turned off while the
If the engine is started and stopped
selector lever is in a position other than
repeatedly before it warms up, the
P, the ignition switches to ACC.
engine may speed up while the vehicle is
stopped to clean the engine internally.
Emergency Engine Stop
Do not stop the engine until the engine
returns to running at its normal speed.
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
4-11
When Driving
Start/Stop Engine
Cylinder Deactivation*
The cylinder deactivation is a function
designed to reduce fuel consumption and
improve fuel economy by deactivating 2
out of the 4 cylinders while driving. The
function constantly determines which is
better for driving; 4 cylinders or 2
cylinders, regardless of the driver's
operations, and it performs the switching
automatically.
When the cylinder deactivation function
does not operate
The cylinder deactivation function does
not operate under the following
conditions.
The selector lever is in the P, N, or R
position, or 1st gear.
The engine oil temperature or engine
coolant temperature is low.
After disconnecting the battery
terminals for some reason, such as for
battery replacement.
4-12
*Some models.
When Driving
Instrument Cluster and Display
Instrument Cluster and Display
Instrument Cluster
Type A
Type B
Type C
Active Driving Display
Instrument Cluster (Type A)
page 4-14
Instrument Cluster (Type B)
page 4-33
Instrument Cluster (Type C)
page 4-51
Active Driving Display
page 4-64
4-13
When Driving
Instrument Cluster and Display
Instrument Cluster (Type A)
Speedometer
page 4-14
Tachometer
page 4-14
Multi-information Display (Type A)
page 4-15
Engine Coolant Temperature Gauge
page 4-19
Fuel Gauge
page 4-19
Dashboard Illumination
page 4-20
Speed Unit Selector
page 4-21
Speedometer
This may cause severe engine damage.
The speedometer indicates the speed of the
*1
*1
vehicle.
STRIPED ZONE RED ZONE
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the tachometer
*1 The range varies depending on the type
needle in the RED ZONE.
of gauge.
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
4-14
When Driving
Instrument Cluster and Display
Multi-information Display (Type A)
Dashboard illumination knob
Multi-information Display (Type A)
INFO switch
The multi-information display indicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor (Except SKYACTIV-D 2.2)
Remaining Diesel Exhaust Fluid (DEF) and Maximum Driving Distance Display
(SKYACTIV-D 2.2)
Blind Spot Monitoring (BSM) Display
Traffic Sign Recognition System (TSR) Display
Distance Recognition Support System (DRSS) Display
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
System Display
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
Cruise Control Display
Compass Display
Door-Ajar/Trunk lid-Ajar Warning Indication
Message Display
4-15
When Driving
Instrument Cluster and Display
The screen content changes each time the INFO switch is pressed.
Press the INFO switch
*1
*2
Basic display
Warning message
display
Press the INFO switch
Press the INFO switch
Trip Meter A display
Compass display
Press the INFO switch
Press the INFO switch
*3
Trip Meter B display
Maintenance Monitor
display
Press the INFO switch
*4
i-ACTIVSENSE display
Remaining Diesel Exhaust
Fluid (DEF) display
Press the INFO switch
*1: Displayed when opening/closing door/trunk lid.
*2: Displayed only when a warning occurs.
*3: Except SKYACTIV-D 2.2
*4: SKYACTIV-D 2.2
4-16
When Driving
Instrument Cluster and Display

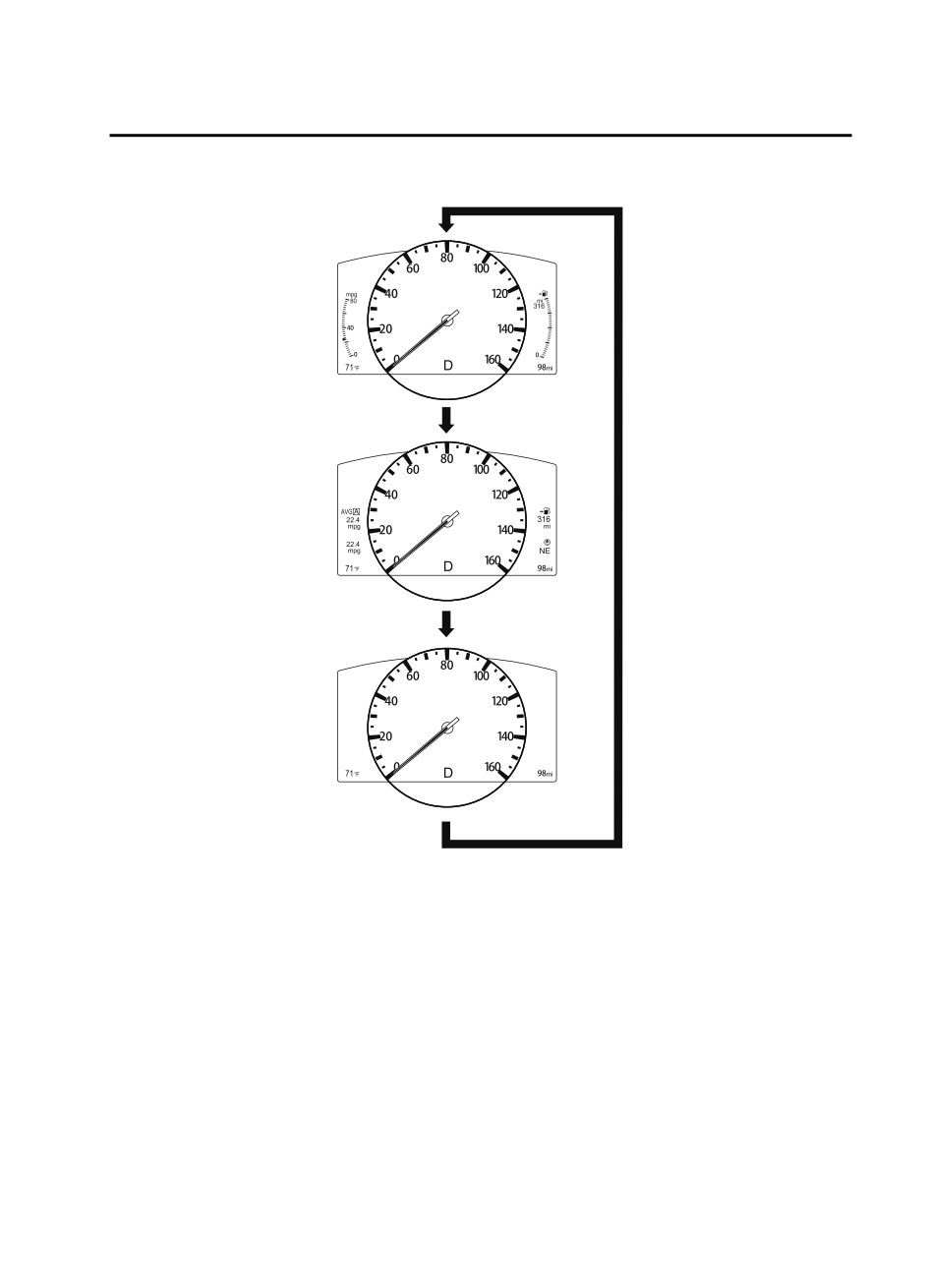

The screen content changes each time the dashboard illumination knob is pressed and held.
Gauge indication
Press and hold dashboard
illumination knob
Press and hold
Numerical indication
dashboard illumination
knob
Press and hold dashboard
illumination knob
Display off
4-17
When Driving
Instrument Cluster and Display
Odometer, Trip Meter and Trip
Trip meter
Meter Selector
The driving distance for a specified
The odometer is constantly displayed on
interval is indicated. Two types (TRIP A,
the screen when the ignition is switched
TRIP B) of interval distance and the
ON, and the TRIP A or TRIP B screen can
average fuel economy for each can be
be displayed by operating the INFO
measured.
switch.
For instance, trip meter A can record the
INFO switch
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
Trip Meter A
display
The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.
Press the INFO switch
NOTE
Only the trip meters record tenths of
Trip Meter B
kilometers (miles).
display
The trip record will be erased when:
The power supply is interrupted
Odometer
(blown fuse or the battery is
disconnected).
The odometer records the total distance
The vehicle is driven over 9999.9 km
the vehicle has been driven.
(mile).
4-18
When Driving
Instrument Cluster and Display
Engine Coolant Temperature Gauge
Fuel Gauge
Displays the engine coolant temperature.
The fuel gauge shows approximately how
The blue range of the gauge indicates that
much fuel is remaining in the tank when
the engine coolant temperature is low, and
the ignition is switched ON. We
the red range of the gauge indicates that
recommend keeping the tank over 1/4 full.
the engine coolant temperature is high and
overheating.
Full
1/4 Full
CAUTION
If the engine coolant temperature gauge
needle is in the red range, there is the
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
Empty
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-20.
NOTE
If the low fuel warning light illuminates or
(SKYACTIV-G 2.5T, SKYACTIV-D 2.2)
the fuel level is very low, refuel as soon as
If the engine coolant temperature is high
possible.
or the engine is hot, the engine output
If inconsistency in engine performance or
may be limited.
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-35.
NOTE
After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
4-19
When Driving
Instrument Cluster and Display
The direction of the arrow (
) indicates
The brightness of the instrument cluster
that the fuel-filler lid is on the left side
and dashboard illuminations can be
of the vehicle.
adjusted by rotating the knob.
Dashboard Illumination
The brightness decreases by rotating the
knob to the left. A beep sound will be
When the lights are turned on with the
heard when the knob has been rotated to
ignition switched ON, the brightness of
the maximum dim position.
the dashboard illumination is dimmed.
The brightness increases by rotating the
However, when the light sensor detects
knob to the right.
that the surrounding area is bright such as
when the lights are turned on in the
Dim
daytime, the dashboard illumination does
not dim.
NOTE
Bright
When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
Function for canceling illumination
brightness of the surrounding area,
dimmer
however, the dimming may cancel after
the brightness is detected.
The illumination dimmer can be canceled
When the lights are turned on, the
by rotating the dashboard illumination
lights-on indicator light in the
knob to the right until a beep sound is
instrument cluster turns on.
heard while the instrument cluster is
Refer to Headlights on page 4-78.
dimmed with the ignition switched ON. If
the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
NOTE
When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the lights are turned
on.
When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.
4-20
When Driving
Instrument Cluster and Display
Speed Unit Selector
Outside Temperature Display
In some countries, you may have to
When the ignition is switched ON, the
change the speed units between km/h and
outside temperature is displayed.
mph.
When pressing the dashboard illumination
knob, the speed units in the instrument
cluster will change.
NOTE
Dashboard illumination knob
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
Significantly cold or hot temperatures.
Sudden changes in outside
temperature.
The vehicle is parked.
The vehicle is driven at low speeds.
Changing the Temperature Unit of the
Outside Temperature Display
The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
4-21
When Driving
Instrument Cluster and Display
Distance-to-empty
Average Fuel Economy
This displays the approximate distance
The average fuel economy is calculated
you can travel on the remaining fuel based
every minute from the total traveled
on the fuel economy.
distance on the trip meter and the total fuel
The distance-to-empty will be calculated
consumption, and the average fuel
and displayed every second.
economy for either TRIP A or TRIP B is
displayed.
The average fuel economy and trip meters
can be reset by pressing the INFO switch
NOTE
for 1.5 seconds or more while in each
Even though the distance-to-empty
mode. After the data is cleared, the fuel
display may indicate a sufficient amount
consumption is recalculated and the - - -
of remaining driving distance before
km/L (- - - mpg) for the 1 minute prior to
refueling is required, refuel as soon as
it being displayed is indicated.
possible if the fuel level is very low or
Current Fuel Economy
the low fuel warning light illuminates.
The display will not change unless you
This displays the current fuel economy by
add more than approximately 9 L (2.3
calculating the amount of fuel
US gal, 1.9 Imp gal) of fuel.
consumption and the distance traveled.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
NOTE
distance-to empty/range may differ from
the amount indicated.
Indicates the 0 position when the vehicle
speed is about 5 km/h (3 mph) or slower.
The red arrow on the scale indicates the
average fuel economy.
4-22
When Driving
Instrument Cluster and Display
Maintenance Monitor (Except
If the remaining amount of DEF is low or
SKYACTIV-D 2.2)
there is a problem with the Selective
Catalytic Reduction (SCR) system and
The following maintenance period
there is less maximum remaining driving
notifications can be displayed by turning
distance, the remaining-distance-to-empty
the Maintenance Monitor on.
indication is continuously displayed.
Scheduled Maintenance
Tire Rotation
Oil Change
When the remaining days to the
maintenance period is 15 days or less, or
the remaining distance is 1,000 km (600
miles) or shorter, a message is indicated
when the ignition is switched ON.
If the remaining amount of DEF is low or
there is a problem with the SCR system,
the SCR warning light turns on/flashes and
a warning message is displayed.
Refer to Selective Catalytic Reduction
For the setting method and indications for
(SCR) System Indications on page 4-237.
the maintenance monitor, refer to the
Maintenance Monitor.
Blind Spot Monitoring (BSM)
Refer to the Information section in the
Display
Mazda Connect Owner's Manual.
Displays the system status.
Remaining Diesel Exhaust Fluid
(DEF) and Maximum Driving
Distance Display (SKYACTIV-D
2.2)
The remaining amount of DEF and the
remaining-distance-to-empty indications
are displayed when the ignition is
switched ON.
Refer to Blind Spot Monitoring (BSM) on
page 4-126.
4-23















Content      ..     3      4      5      6     ..
