Mazda MX-5 RF (2017 year). Instruction - part 37

8–20

Customer Information

Electromagnetic Compatibility

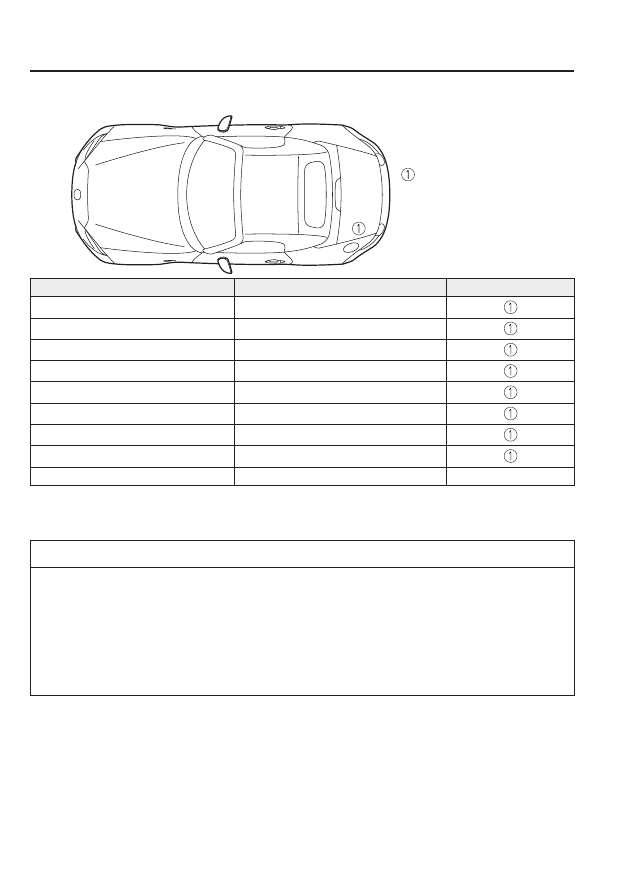

Aerial positions:

: left of boot lid

 Frequency Band (MHz)

 Maximum output power (Wattage)

 Aerial Positions

 50 — 54

 50

 68 — 87.5

 50

 142 — 176

 50

 380 — 470

 50

 806 — 940

 10

 1200 — 1300

 10

 1710 — 1885

 10

 1885 — 2025

 10

 2400 — 2500

 0.01

*1

 In a cabin

*1

     *1   Only  for  Bluetooth

®

 NOTE

 After the installation of RF transmitters, check for disturbances from and to all electrical
equipment in the vehicle, both in the standby and transmit modes.
 Check all electrical equipment:



  with the ignition ON



  with the engine running



  during a road test at various speeds.

/:A



8–21

Customer Information

Collection/Disposal of Old Equipment/Used Battery

      Information for Users on Collection and Disposal of Old
Equipment and Used Batteries

    When disposing your old battery, please refer to the information as follows.

 Information on Disposal in the European Union

  These crossed-out wheeled bin symbols on the products, packaging, and/or accompanying
documents mean that used electronic products and batteries should not be mixed with
general household waste. For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points, in accordance with your
national legislation and the Directives 2006/66/EC.

  By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the environment
which could otherwise arise from inappropriate waste handling.

  For more information about collection and recycling of old products and batteries, please
contact your local municipality, your waste disposal service or the point of sales where you
purchased the items.

 NOTE

 The bottom two letters might be used in combination with the crossed-out wheeled bin
symbol. In this case it complies with the requirement established by the Directive for the
chemical involved.
 “Pb” and “Cd” mean lead and cadmium respectively.

/:A



8–22

Customer Information

Collection/Disposal of Old Equipment/Used Battery

 Information on Disposal in Other Countries Outside the European Union

    The above symbols are only valid in the European Union. If you wish to discard old
products and used batteries, please contact your local authorities, your waste disposal
service or the point of sales where you purchased the items, and ask for the correct method
of disposal.

/:A



9–1

9–1

9

Speci

¿ cations

  Technical information about your Mazda.

   Identi

¿ cation Numbers ......................................................................  9-2

  Vehicle  Information  Labels ...........................................................  9-2

  Speci

¿ cations ......................................................................................  9-4

  Speci

¿ cations ................................................................................  9-4

  Personalisation  Features..................................................................  9-10

  Personalisation  Features ..............................................................  9-10

/:A



9–2

Speci

¿ cations

Identi

¿ cation Numbers

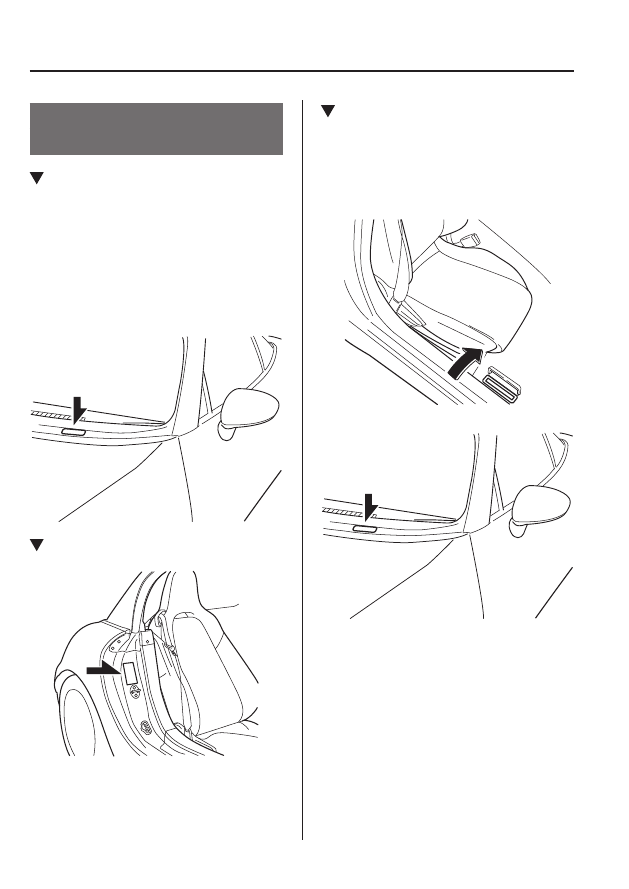

      Vehicle  Information
Labels

 Vehicle  Identi

¿ cation Number

(South Africa, Arab Gulf
Cooperation Council)

    The  vehicle  identi

¿ cation number legally

identi

¿ es your vehicle. The number is on

a plate attached to the cowl panel located
on the left corner of the instrument panel.
This plate can easily be seen through the
windscreen.

 Model  Plate

 Chassis  Number/Vehicle

Identi

¿ cation Number (Ireland,

U.K.)

Chassis Number
  Open the cover shown in the

¿ gure to

check the chassis number.

Vehicle Identi

¿ cation Number

/:A



9–3

Speci

¿ cations

Identi

¿ cation Numbers

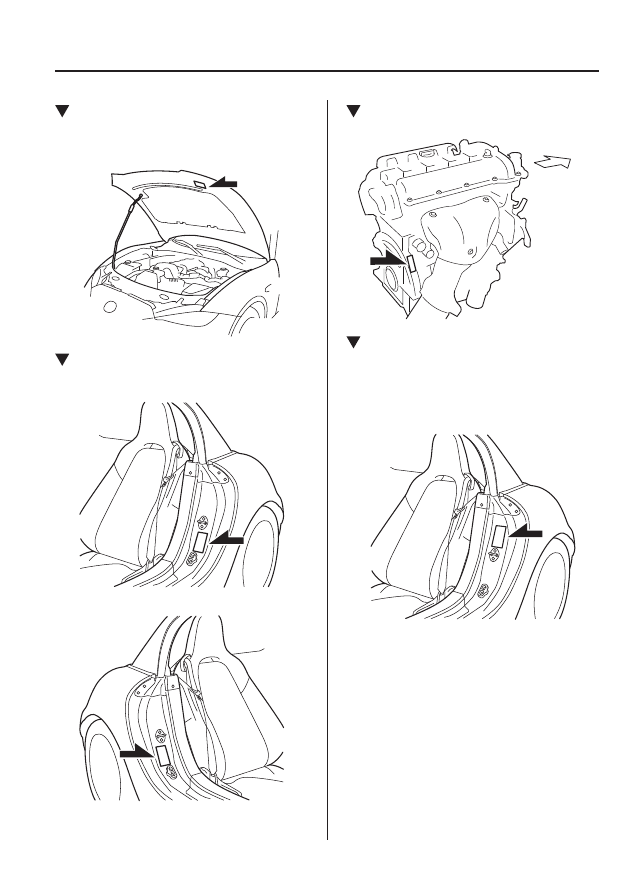

 Vehicle Emission Control

Information Label (The
Philippines)

 Tyre Pressure Label

Left-hand drive model

Right-hand drive model

 Engine  Number

Forward

 Conformity Plate (Arab Gulf

Cooperation Council)

    Production year and month are shown on
this plate.

/:A



9–4

Speci

¿ cations

Speci

¿ cations

      Speci

¿ cations

 Engine

 Item

 Speci

¿ cation

 SKYACTIV-G  1.5

 SKYACTIV-G  2.0

 Type

 DOHC-16V  in-line,  4-cylinder

 Bore × Stroke

 74.5 × 85.8 mm (2.93 × 3.38 in)

 83.5 × 91.2 mm (3.29 × 3.59 in)

 Displacement

 1,496 ml (1,496 cc)

 1,998 ml (1,998 cc)

 Compression  ratio

 13.0

    Arab  Gulf  Cooperation  Council

 Item

 Speci

¿ cation

 Soft top model

 Retractable fastback model

 Maximum engine power/revolution

 118 kW/6,000 rpm

 118 kW/6,000 rpm

 Maximum engine torque/revolution

 200 N·m/4,600 rpm

 200 N·m/4,600 rpm

 Maximum speed

 198 km/h (123 mph)

 194 km/h (121 mph)

 Electrical  System

 Item

 Classi

¿ cation

 Battery

 N-55 (S)

*1

 12V-45Ah/20HR

*2

 Spark-plug number

 Mazda Genuine spark plug

*3

 PE5R-18-110 or PE5S-18-110

     *1   N-55 (S) is designed for i-stop system (FOR STOP & START)/i-ELOOP system. Only N-55 (S) should be

used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult an expert
repairer, we recommend an Authorised Mazda Repairer for details.

   *2   Not  for  i-stop  system/i-ELOOP  system.
   *3   The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we

recommend an Authorised Mazda Repairer for details.

 CAUTION

 When cleaning the iridium plugs, do not use a wire brush. The

¿ ne particulate coating on

the iridium alloy and platinum tips could be damaged.

/:A



9–5

Speci

¿ cations

Speci

¿ cations

 Lubricant  Quality

 Lubricant

 Classi

¿ cation

 Europe

 Except  Europe

 Engine  oil

*1

 Recommended  Oils

*2

 Oil  Quality

 Mazda Original Oil Supra 0W-20

 API SG/SH/SJ/SL/SM/SN or

  ILSAC  GF-II/GF-III/GF-IV/GF-V

 Mazda Original Oil Ultra 5W-30

 Alternative Oil Quality

*3

 API SL/SM/SN or

ACEA A3/A5

 0W-20

 5W-30

 Coolant

 FL-22  type

 Manual transmission oil

 Mazda Original Long Life Gear Oil IS

*4

 Automatic  transmission

À uid

 JWS3309

 Rear differential oil

 Mazda Long Life Hypoid Gear Oil SG1

 Brake/Clutch

À uid

 SAE J1703 or FMVSS116 DOT-3 or DOT-4

     *1   Refer  to  Recommended  Oil  on  page   6-17 .


Do not use oils which do not meet the above speci

¿ cation or requirements. Use of unsuitable oil may lead to

engine damage which is not covered by the Mazda Warranty.

   *2   Mazda Original Oils are specially designed/tested for the respective engine. For optimum performance we

recommend to use Mazda Original Oils at all times.

   *3   If  you  are  unable  to

¿ nd a Mazda Original Oil, alternative oils meeting the listed speci¿ cation may also be used.

   *4   Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life

Gear Oil IS is recommended.



If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-
90)). However, shifting in very low temperatures may become dif

¿ cult.

/:A



9–6

Speci

¿ cations

Speci

¿ cations

 Capacities

(Approximate Quantities)

 Item

 Capacity

 Engine
oil

 With  oil

¿ lter replacement

 4.3 L (4.5 US qt, 3.8 Imp qt)

 Without  oil

¿ lter replacement

 4.1 L (4.3 US qt, 3.6 Imp qt)

 Coolant

 SKYACTIV-G  1.5

 Left-hand drive model

 5.6 L (5.9 US qt, 4.9 Imp qt)

 Right-hand drive model

 5.8 L (6.1 US qt, 5.1 Imp qt)

 SKYACTIV-G  2.0

 Manual
transmission

 Left-hand drive model

 6.0 L (6.3 US qt, 5.3 Imp qt)

 Right-hand drive model

 6.2 L (6.6 US qt, 5.5 Imp qt)

 Automatic
transmission

 Saudi Arabia

 6.2 L (6.6 US qt, 5.5 Imp qt)

 Right-hand drive model

 6.0 L (6.3 US qt, 5.3 Imp qt)

 Except above

 5.9 L (6.2 US qt, 5.2 Imp qt)

 Manual transmission oil

 2.0 L (2.1 US qt, 1.8 Imp qt)

 Automatic  transmission

À uid

 7.2 L (7.6 US qt, 6.3 Imp qt)

 Rear differential oil

 0.6 L (0.6 US qt, 0.5 Imp qt)

 Fuel tank

 45.0 L (11.9 US gal, 9.90 Imp gal)

    Check  oil  and

À uid levels with dipsticks or reservoir gauges.

 Dimensions

 Item

 Vehicle  speci

¿ cation

 Soft top model

 Retractable  fastback

model

 Overall length

 3,915 mm (154.1 in)

 3,915 mm (154.1 in)

 Overall width

 1,735 mm (68.3 in)

 1,735 mm (68.3 in)

 Overall  height

 16 inch wheel vehicle

 1,225 mm (48.2 in)

 1,230 mm (48.4 in)

 17 inch wheel vehicle

 1,230 mm (48.4 in)

 1,235 mm (48.6 in)

 Front tread

 1,495 mm (58.9 in)

 1,495 mm (58.9 in)

 Rear tread

 1,505 mm (59.3 in)

 1,505 mm (59.3 in)

 Wheelbase

 2,310 mm (90.9 in)

 2,310 mm (90.9 in)

/:A



9–7

Speci

¿ cations

Speci

¿ cations

*Some models.

 Light  Bulbs

              Exterior  light

 Light  bulb

 Category

 Wattage

  UNECE

*1

  (SAE)

 Headlights

 High  beam

 LED

*2

 —  (—)

 Low  beam

 LED

*2

 —  (—)

 Running  lights

 LED  type

 LED

*2

 —  (—)

 Bulb  type

 21

 W21W  (7440)

 Position  lights

 LED

*2

 —  (—)

 Front direction indicator lights

 21

 WY21W

(7443NA)

 Side direction indicator lights

 5

*3

 WY5W  (—)

 High-mount brake light

 LED

*2

 —  (—)

 Rear direction indicator lights

 21

 WY21W

(7443NA)

 Brake  lights

 LED

*2

 —  (—)

 Tail  lights

 LED

*2

 —  (—)

 Reverse  lights

 21

 W21W  (7440)

 Rear fog light

*

 21

 W21W  (7440)

 Number  plate  lights

 5

 W5W  (—)

     *1   UNECE stands for United Nations Economic Commission for Europe.
   *2   LED is the abbreviation for Light Emitting Diode.
   *3   Bulb replacement is not possible because it is built into the unit. Replace the unit.

    Interior  light

 Light  bulb

 Category

 Wattage

  UNECE

*1

 Overhead  light

 10

 —

 Boot  light

 5

 —

     *1   UNECE stands for United Nations Economic Commission for Europe.

/:A



9–8

Speci

¿ cations

Speci

¿ cations

 Tyres

Sample tyre mark and its meaning

Nominal section width
Nominal aspect ratio in %
Construction code

Mud and snow

Speed symbol

Load index (not on ZR tyres)

Nominal rim diameter in inches

    Tyre  mark  information

    Choose the proper tyres for your vehicle using the following tyre mark information.

 Speed symbol

 Maximum permissible speed

 Q

 Up to 160 km/h (99 mph)

 R

 Up to 170 km/h (105 mph)

 S

 Up to 180 km/h (111 mph)

 T

 Up to 190 km/h (118 mph)

 U

 Up to 200 km/h (124 mph)

 H

 Up to 210 km/h (130 mph)

 V

 Up to 240 km/h (149 mph)

 W

 Up to 270 km/h (167 mph)

 Y

 Up to 300 km/h (186 mph)

 ZR

 Over 240 km/h (149 mph)

  Tyre  and  in

À ation pressure

 NOTE

 The tyres have been optimally matched with the chassis of your vehicle.
 When replacing tyres, Mazda recommends that you replace tyres of the same type
originally

¿ tted to your vehicle. For details, contact an expert repairer, we recommend an

Authorised Mazda Repairer.

  Check the tyre pressure label for tyre size and in

À ation pressure (page  6-34 ).

  After adjusting the tyre pressure, initialization of the tyre pressure monitoring system is
necessary to make the system operate normally.
  Refer to Tyre Pressure Monitoring System Initialization on page  4-143 .

/:A



9–9

Speci

¿ cations

Speci

¿ cations

    Standard  tyre

(Except Arab Gulf Cooperation Council)

 Tyre  size

 In

À ation pressure

 Front

 Rear

 195/50R16 84V

 200 kPa (2.0 bar, 29 psi)

 200 kPa (2.0 bar, 29 psi)

 195/50RF16 84V

 200 kPa (2.0 bar, 29 psi)

 200 kPa (2.0 bar, 29 psi)

 205/45R17 84W

 200 kPa (2.0 bar, 29 psi)

 200 kPa (2.0 bar, 29 psi)

(Arab Gulf Cooperation Council)

 Tyre  size

 In

À ation pressure

 Front

 Rear

 195/50RF16 84V

 200 kPa (2.0 bar, 29 psi)

 200 kPa (2.0 bar, 29 psi)

    Winter  tyre

 Tyre  size

 In

À ation pressure

 Front

 Rear

 195/50R16

*1

   M

 S

 200 kPa (2.0 bar, 29 psi)

 220 kPa (2.2 bar, 32 psi)

 205/45R17

*2

   M

 S

 200 kPa (2.0 bar, 29 psi)

 220 kPa (2.2 bar, 32 psi)

     *1   Load  index  and  Speed  Symbol:  84Q/84S/84H/84V
   *2   Load index and Speed Symbol: 84Q/84S/84H/84V/84W

  Wheel nut tightening torque

    When installing a tyre, tighten the wheel nut to the following torque.
  108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)

 Fuses

    Refer  to  Fuses  on  page   6-47 .

 Brakes

    If you require information regarding the wear limit speci

¿ cation for the brake disc plates

and the measurement method, please contact an expert repairer, we recommend an
Authorised Mazda Repairer. The information is made freely available.

/:A



9–10

Speci

¿ cations

Personalisation Features

      Personalisation  Features

              The  following  personalisation  features  can  be  set  or  changed  by  the  customer  or  an
Authorised Mazda Repairer.
  Personalisation features which can be changed differ depending on the market and
speci

¿ cation.

  Settings  Change  Method

 Settings can be changed by operating the centre display screen.

  A: Refer to Settings on page  5-67 .
  B: Refer to Fuel Economy Monitor on page  4-93 .

 Settings can be changed by operating the vehicle switches.

  C: Refer to Auto Lock/Unlock Function on page  3-17 .
  D: Refer to Transmitter on page  3-5 .
  E:  Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)

on page  3-14 .

 Settings can be changed by an Authorised Mazda Repairer.

 Item

 Feature

 Factory

Setting

 Available

Settings

 Settings

Change
Method

Safety

 Lane  Departure
Warning System
(LDWS) (page
 4-106 )

 Distance by which the system uses
to determine the possibility of a lane
departure

 Adaptive

 Adaptive/

  Early/

  Medium/

  Late

 A

 —

 Warning sensitivity (likelihood of warning)

 Medium

 Often/Medium/

Rare

 A

 —

 Warning  beep  sound

 Rumbl.

 Beep/Rumbl.

 A

 —

 Warning beep volume

 Rumbl.

 Low

 High/Mid/Low

 A

 —

 Beep

 Low

 High/Low

 A

 —

 Blind  Spot
Monitoring (BSM)
system (page  4-112 )

 Warning beep volume

*1

 High

 High/

  Low/

  Off

 A

 —

/:A



9–11

Speci

¿ cations

Personalisation Features

 Item

 Feature

 Factory

Setting

 Available

Settings

 Settings

Change
Method

Vehicle

 Door locks (page
 3-17 )

 Operation condition of auto lock/unlock
function

 Lock:  When

Driving

Unlock: IGN

Off

 Lock:  When

Driving

Unlock: In

Park/

  Lock:  Out  of

Park Unlock: In

Park/

  Lock:  Shifting

Out of Park/
  Lock:  When

Driving

Unlock: IGN

Off/

  Lock:  When

Driving/

  Off

 A

 C

 Keyless entry system
(page   3-3 )

 Time for locking door automatically

 30 seconds

 90  seconds/
  60  seconds/

  30  seconds

 A

 —

 Advanced  keyless
entry system (page
 3-9 )

 Time for locking door automatically

 30 seconds

 90  seconds/
  60  seconds/

  30  seconds

 A

 —

 Auto-lock function operation/non-
operational

 Off

 On/Off

 A

 —

 Beep volume when locking/unlocking

 Off  or

Medium

 High/

  Medium/

  Low/

  Off

 A

 D,

  E

 Illuminated  entry
system (page  5-124 )

 Time until interior lights turn off after
closing door

 15  seconds

 60  seconds/
  30  seconds/
  15  seconds/
  7.5  seconds

 A

 —

 Time until interior lights turn off
automatically when any door is not closed
completely

 30  minutes

 60  minutes/
  30  minutes/

  10  minutes

 A

 —

 Auto-wiper  control
(page  4-72 )

 Operational/non-operational

 On

 On/Off

*2



 A   —

 Running lights (page
 4-70 )

 Operational/non-operational

 On

 On/Off

 —

 —

 Auto-light  control
(page  4-63 )

 Timing by which lights turn on

 Medium

 High/

  Med.  High/

  Medium/

  Med.  Low/

  Low

 A

 —

/:A



9–12

Speci

¿ cations

Personalisation Features

 Item

 Feature

 Factory

Setting

 Available

Settings

 Settings

Change
Method

 High Beam Control
System (HBC) (page
 4-103 )

 Operational/non-operational

*3

 On

 On/Off

 A

 —

 Adaptive  Front
Lighting System
(AFS) (page  4-102 )

 Operational/non-operational

*3

 On

 On/Off

 A

 —

 Lights-on  reminder
(page  7-49 )

 Warning beep volume

 High,  Low

or OFF

 High/Low/Off

 A

 —

 Coming home light
(page   4-68 )

 Time until headlights turn off

 30 seconds

 120  seconds/

  90  seconds/
  60  seconds/
  30  seconds/

  Off

 A

 —

 Leaving home light
(page   4-69 )

 Operational/non-operational

 On  or  Off

 On/Off

 A

 —

 Turn indicator (page
 4-71 )

 Beep  volume

 High

 High/Low

 A

 —

 Three-

À ash turn

signal (page  4-72 )

 Operational/non-operational

 On  or  Off

 On/Off

 A

 —

System

 Language

 Language indicated in display

 English

 Depends  on

market

*4

 A

 —

 Temperature

 Temperature  unit  indicated  in  display

 °C

 °F/°C

 A

 —

 Distance

 Distance unit indicated in display

 mi or km

 mi/km

 A   —

Fuel Economy Monitor   (page   4-93 )

 Ending  display

 On/off

 Off

 On/Off

 B

 —

 Fuel  economy
resetting procedure

 Linkage/non-linkage with fuel economy
reset and trip meter A reset

 Off

 On/Off

 B

 —

     *1   Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The

volume of the warning beep during Rear Cross Traf

¿ c Alert (RCTA) operation cannot be changed.

   *2   If the auto-wiper control is set to Off, the wiper lever

  position is set to intermittent operation.

   *3   Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends

that these systems remain On.

   *4   Available only in display from the centre display.

/:A
