Mazda MX-5 RF (2017 year). Instruction - part 11

4–26

When Driving

Instrument Cluster and Display

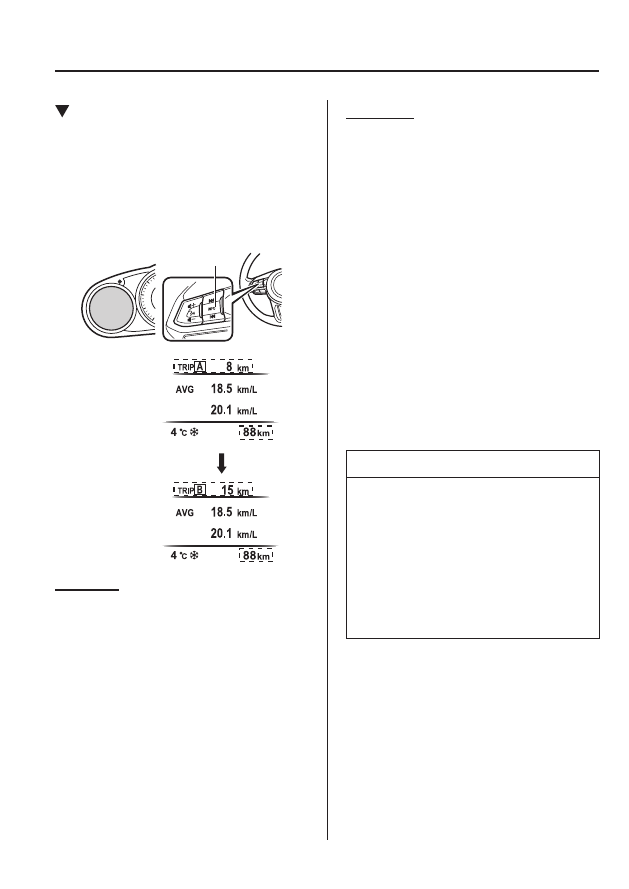

  The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption.

 NOTE



(Vehicles with type B/type C audio)



  If the fuel economy data is reset

using the fuel economy monitor,
or trip A is reset using the trip
meter when the function which
synchronizes the fuel economy
monitor and the trip meter is on, the
fuel economy data and trip A are
reset simultaneously.



  Refer to Fuel Economy Monitor on

page 4-93 .



  Only the trip meters record tenths of

kilometres (miles).



  The trip record will be erased when:



  The power supply is interrupted

(blown fuse or the battery is
disconnected).



  The vehicle is driven over 9999.9

km  (mile).

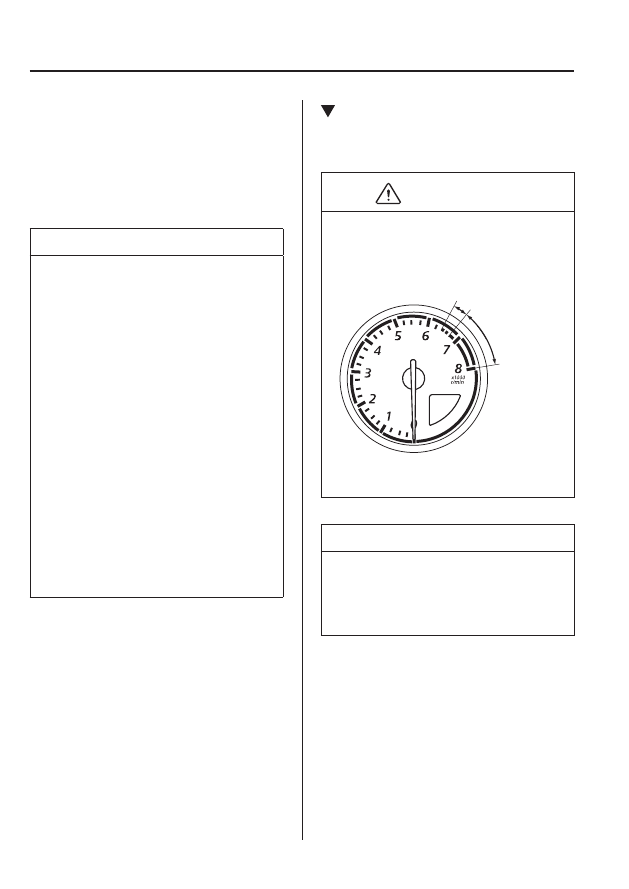

 Tachometer

            The  tachometer  shows  engine  speed  in
thousands of revolutions per minute (rpm).

 CAUTION

 Do not run the engine with the
tachometer needle in the RED ZONE.
 This may cause severe engine damage.

*

1

The range varies depending on the type
of gauge.

*

1

Striped zone

*

1

Red zone

 NOTE

 When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

/:A



4–27

When Driving

Instrument Cluster and Display

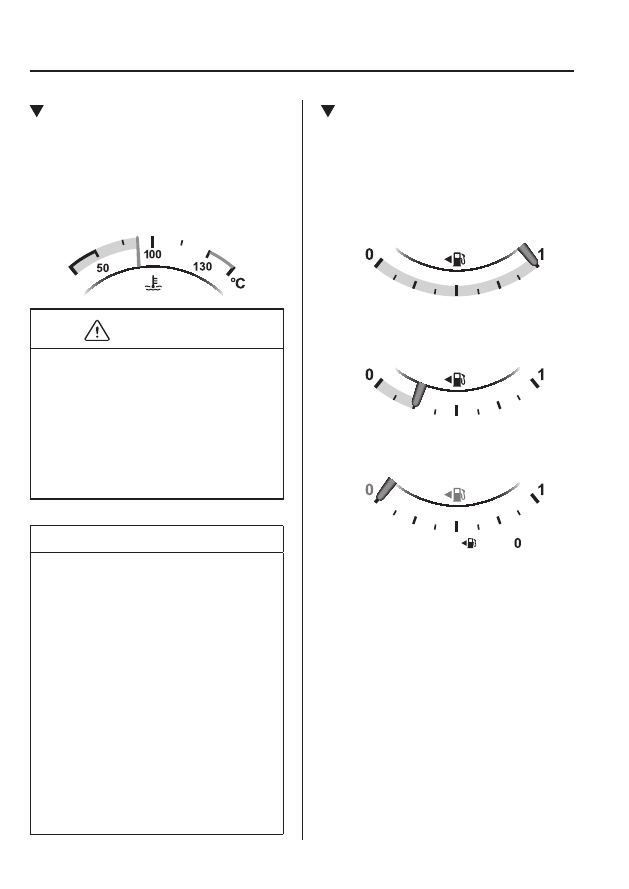

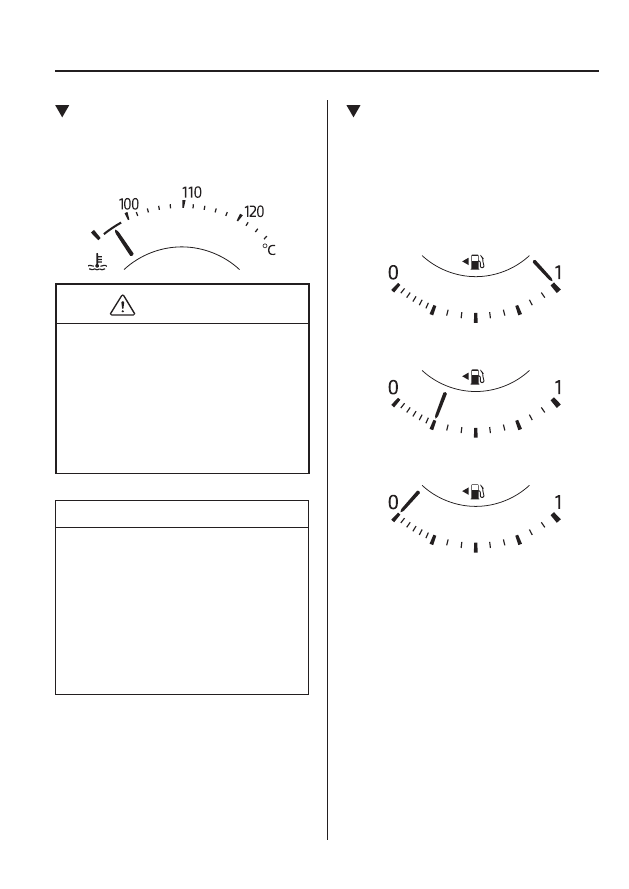

 Engine  Coolant  Temperature

Gauge (Without Multi-information
Display)

            Indicates  engine  coolant  temperature.

 CAUTION

 If the high engine coolant temperature
warning light (red) turns on, there is
a possibility of overheating. Park the
vehicle in a safe place immediately and
take appropriate measures. If the vehicle
continues to be driven, it could cause
damage to the engine.
 Refer to Overheating on page  7-24 .

 NOTE



  During normal driving, the engine

coolant temperature stabilizes at 100
°C (210 °F) or less, and the gauge
indicates a range lower than 100 °C
(210 °F).



  If the engine load increases and the

engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates
the engine coolant temperature.

 Fuel Gauge (Without Multi-

information Display)

            The  fuel  gauge  shows  approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full

1/4 Full

Empty

  If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
  Refer  to  Warning  Indication/Warning
Lights on page  4-42 .

/:A



4–28

When Driving

Instrument Cluster and Display

 NOTE



  After refuelling, it may require some

time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.



  The display indicating a quarter

or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.



  The direction of the arrow (   )

indicates that the fuel-

¿ ller À ap is on

the left side of the vehicle.

 Instrument Panel Illumination

            When  the  position  lights  are  turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.

 NOTE

 When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
 Refer to Headlights on page  4-63 .

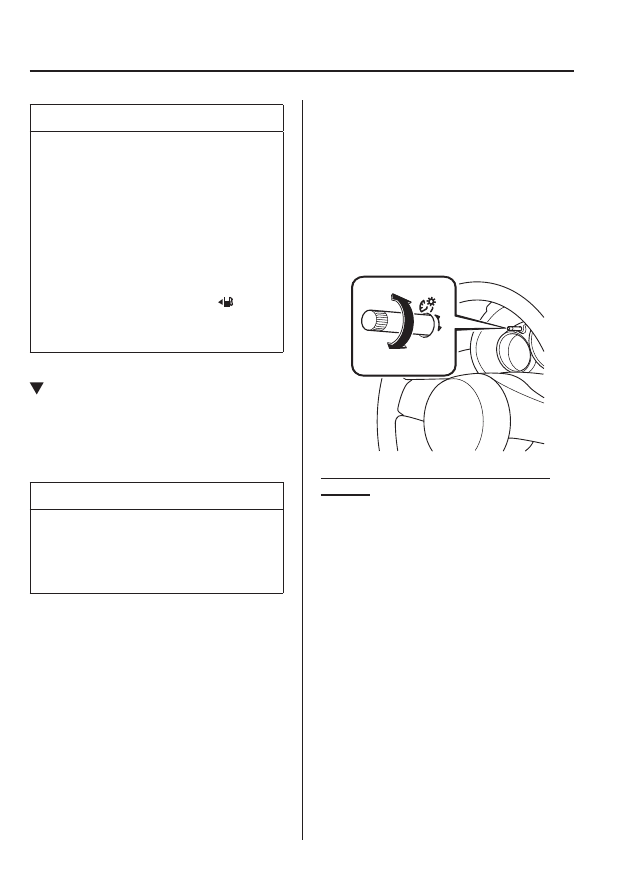

  The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.



 The brightness decreases by rotating the

knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



 The brightness increases by rotating the

knob to the right.

Dim

Bright

  Function for cancelling illumination
dimmer

    The  illumination  dimmer  can  be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.

/:A



4–29

When Driving

Instrument Cluster and Display

*Some models.

 NOTE



  When the illumination dimmer is

cancelled, the instrument cluster
cannot be dimmed even if the
position lights are turned on.



  When the illumination dimmer is

cancelled, the screen in the centre
display switches to constant display
of the daytime screen.

 Outside  Temperature  Display

(Without Multi-information
Display)

              When  the  ignition  is  switched  ON,  the
outside temperature is displayed.

 NOTE

   Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



 Signi

¿ cantly cold or hot

temperatures.



  Sudden changes in outside

temperature.



  The vehicle is parked.



  The vehicle is driven at low speeds.

  Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B/C)

    The outside temperature unit can be
switched between Celsius and Fahrenheit.
  Settings can be changed by operating the
centre display screen.
  Refer to Personalisation Features on page
 9-10 .

 NOTE

 When the temperature unit indicated
in the outside temperature display is
changed, the temperature unit indicated
in the engine coolant gauge display
changes in conjunction with it.

  Outside  Temperature  Warning

*

    When the outside temperature is low, the
indication

À ashes and a beep sound is

heard to warn the driver of the possibility
of icy roads.
  If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the

   mark

À ashes for about

ten seconds and a beep sound is heard
once.

 NOTE

 If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the      mark
illuminates.

/:A



4–30

When Driving

Instrument Cluster and Display

*Some models.

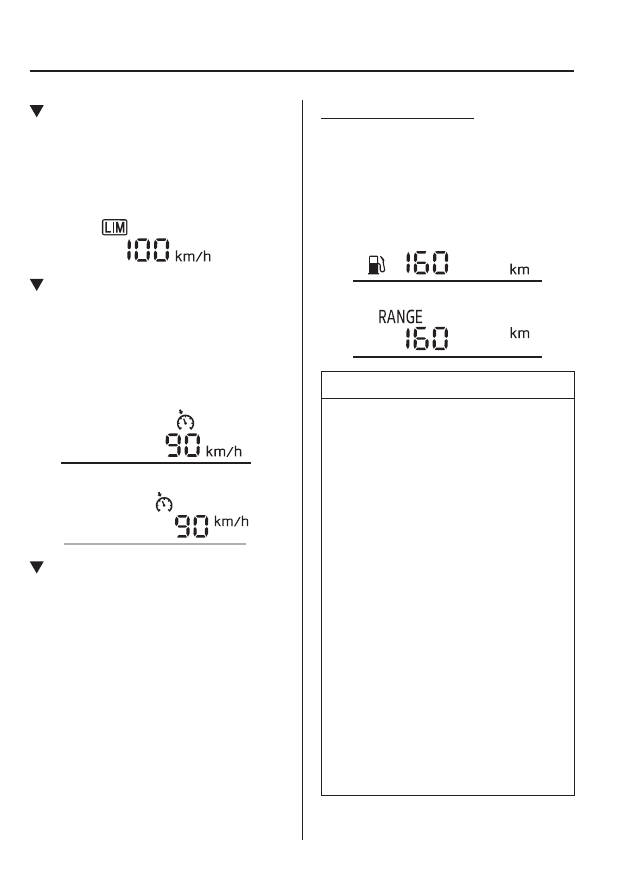

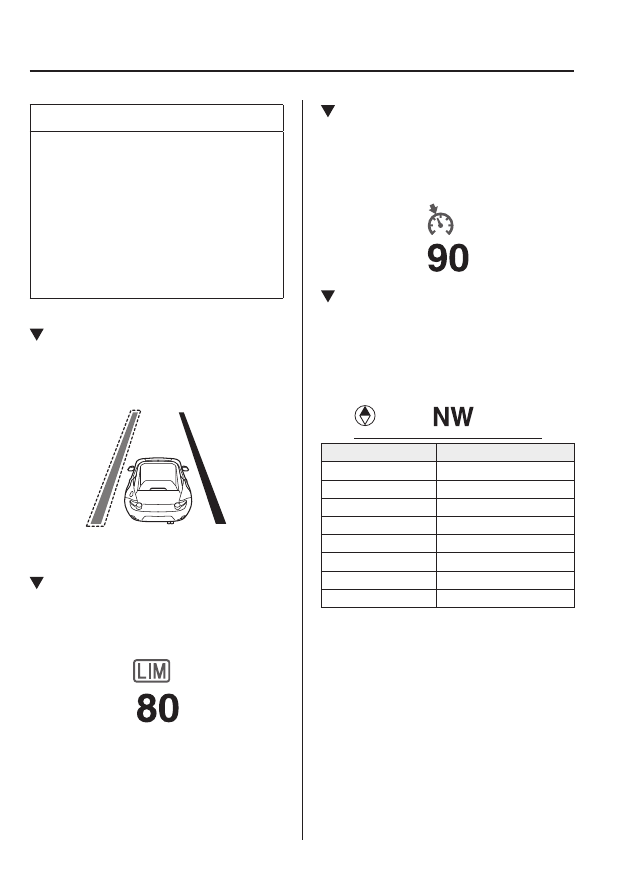

 Adjustable Speed Limiter Display

(Without Multi-information
Display)

*

            The  setting  status  of  the  adjustable  speed
limiter is displayed.

 Cruise Control Set Vehicle Speed

Display (Without Multi-
information Display)

*

            The  vehicle  speed  preset  using  the  cruise
control is displayed.

(European model)

(Except European model)

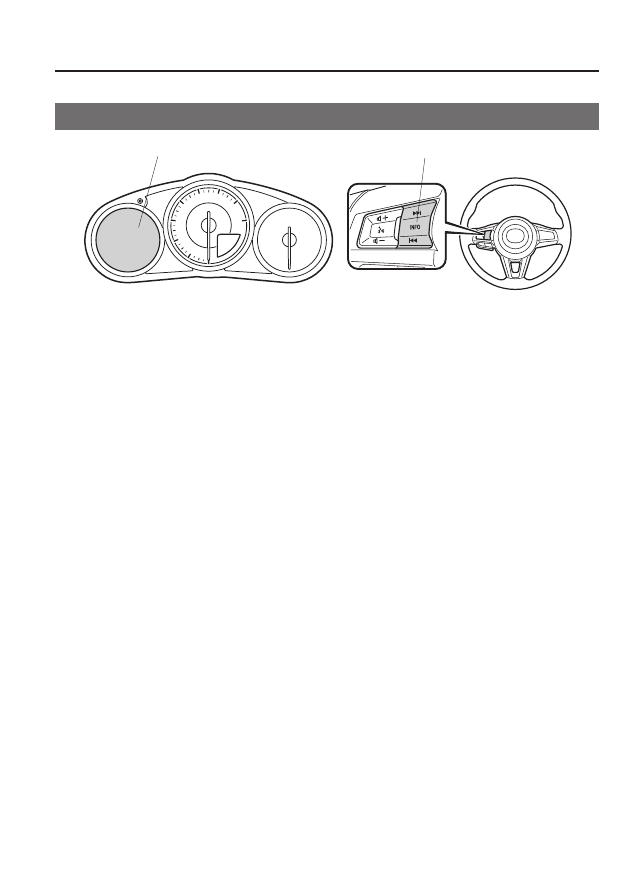

 Trip Computer and INFO Switch

(Without Multi-information
Display)

            The  following  information  can  be  selected
by pressing the  INFO  switch with the
ignition switched ON.



 Approximate distance you can travel on

the available fuel



 Average fuel economy



 Current fuel economy



 Average vehicle speed



 Vehicle speed alarm

*

If you have any problems with your trip
computer, consult an expert repairer, we
recommend an Authorised Mazda Repairer.

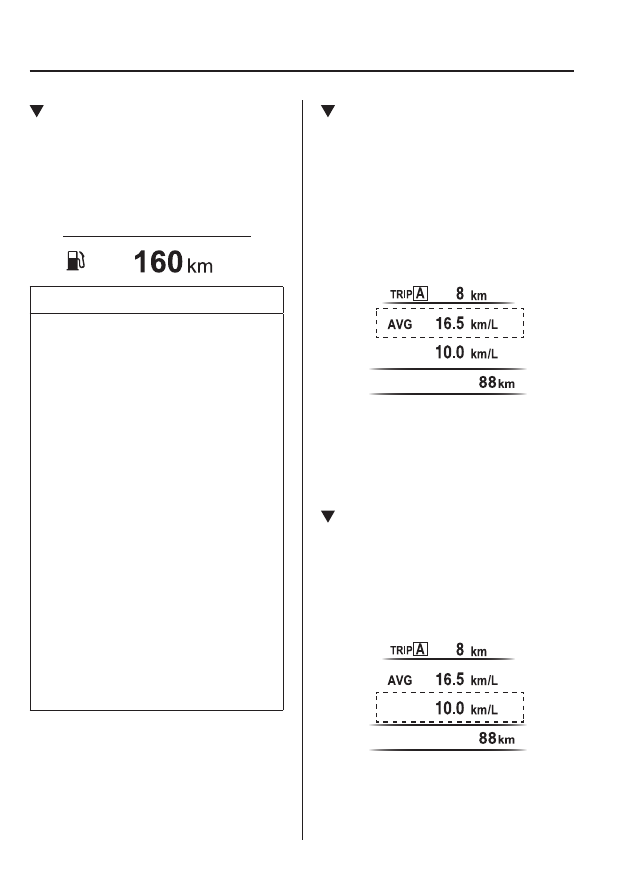

  Distance-to-empty  mode

    This  mode  displays  the  approximate
distance you can travel on the remaining
fuel based on the fuel economy.

  The distance-to-empty will be calculated
and displayed every second.
(European model)

(Except European model)

 NOTE



  Even though the distance-to-empty

display may indicate a suf

¿ cient

amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.



  The display may not change unless

you add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.



  The distance-to-empty is the

approximate remaining distance
the vehicle can be driven until all
the graduation marks in the fuel
gauge (indicating the remaining fuel
supply) disappear.



  If there is no past fuel economy

information such as after

¿ rst

purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.

/:A



4–31

When Driving

Instrument Cluster and Display

*Some models.

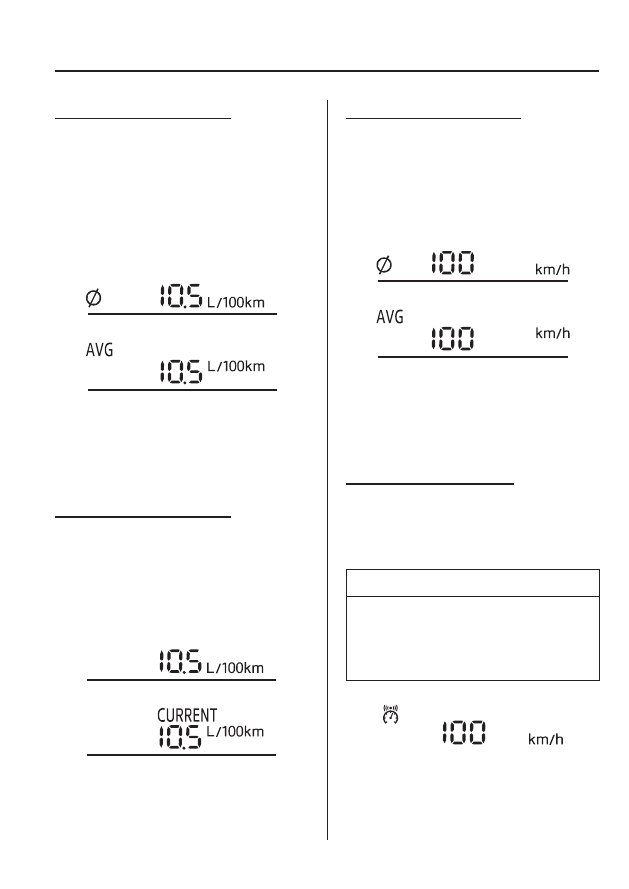

  Average fuel economy mode

    This mode displays the average fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.
(European model)

(Except European model)

  To clear the data being displayed, press the
 INFO  switch for more than 1.5 seconds.
  After pressing the  INFO  switch, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.

  Current fuel economy mode

    This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.

  Current fuel economy will be calculated
and displayed every 2 seconds.
(European model)

(Except European model)

  When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.

  Average vehicle speed mode

    This mode displays the average vehicle
speed by calculating the distance and the
time travelled since connecting the battery
or resetting the data.
  Average vehicle speed will be calculated
and displayed every 10 seconds.
(European model)

(Except European model)

  To clear the data being displayed, press the
 INFO  switch for more than 1.5 seconds.
After pressing the  INFO  switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.

  Vehicle speed alarm mode

*

    In this mode, the current setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.

 NOTE

 The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.

  The vehicle speed alarm can be set using
the   INFO   switch.

/:A



4–32

When Driving

Instrument Cluster and Display

 NOTE



  Always set the vehicle speed

according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.



  The vehicle speed alarm function can

be set between 30 and 250 km/h (20
and 150 mph).

  The vehicle speed alarm can be set using
the following procedure.

   1.   Press  the   INFO   switch  to  display  the

vehicle speed alarm mode.

   2.   Press  the   INFO   switch  continuously

until a beep sound is heard.



The set vehicle speed display

À ashes

the third digit (hundredths place).

   3.   Press the  INFO  switch and set the third

digit (hundredths place) to the desired
vehicle speed.



The numerical value changes each time
the  INFO  switch is pressed.

   4.   Press  the   INFO   switch  continuously

until a beep sound is heard.



The set vehicle speed display

À ashes

the lower two digits (tenths and ones
place).

   5.   Press the  INFO  switch and set the two

lower digits (tenths and ones place) to
the desired vehicle speed.



The numerical value changes each time
the  INFO  switch is pressed.

   6.   Press  the   INFO   switch  continuously

until a beep sound is heard.



The set vehicle speed is displayed on
the vehicle speed alarm screen.

/:A



4–33

When Driving

Instrument Cluster and Display

*Some models.

 Multi-information Display and INFO Switch

*

INFO switch

Multi-information Display

  The multi-information display indicates the following information.



 Odometer



 Trip meter



 Engine coolant temperature gauge



 Fuel gauge



 Outside temperature



 Distance-to-empty



 Average fuel economy



 Current fuel economy



 Maintenance Monitor



 Lane Departure Warning System (LDWS) Display



 Cruise Control Display



 Adjustable Speed Limiter Display



 Compass Display



 Vehicle Speed Alarm



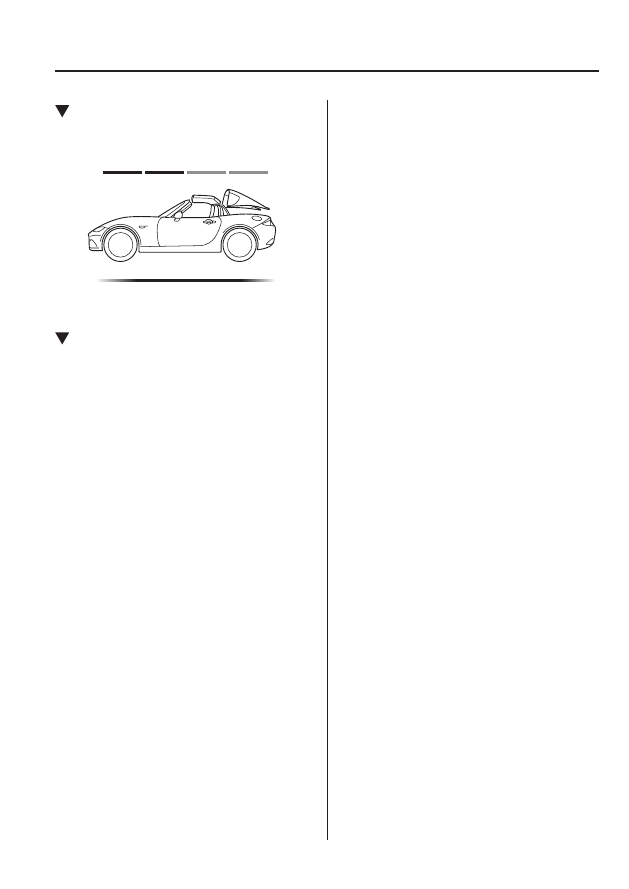

 Roof Operation Display



 Warning message

/:A



4–34

When Driving

Instrument Cluster and Display

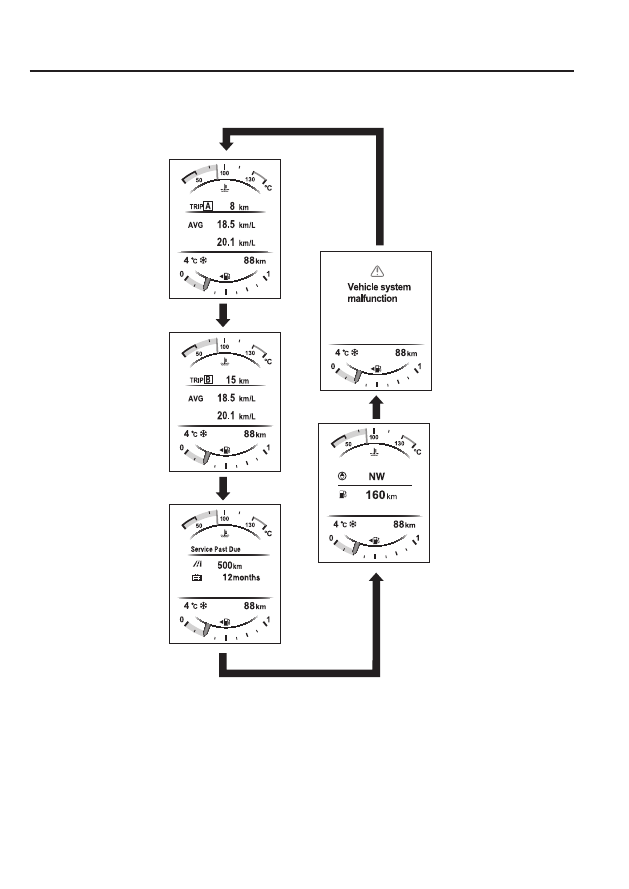

  The screen content changes each time the INFO switch is pressed.

Press the INFO switch

Press the INFO switch

Press the INFO switch

Press the INFO switch

Press the INFO switch

Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer, Fuel Gauge

Engine Coolant
Temperature Gauge,
Compass,
Distance-to-empty,
Outside Temperature,
Odometer, Fuel Gauge

Warning message,
Outside
Temperature,
Odometer, Fuel
Gauge

Engine Coolant
Temperature Gauge,
Trip Meter A, Average
Fuel Economy, Current
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge

Engine Coolant
Temperature Gauge,
Trip Meter B, Average
Fuel Economy, Current
Fuel Economy, Outside
Temperature,
Odometer, Fuel Gauge

*1

*2

*1: Displayed only when a warning occurs.
*2: Displayed only while vehicle is being driven.

/:A



4–35

When Driving

Instrument Cluster and Display

 Odometer, Trip Meter and Trip

Meter Selector

                The  odometer  is  constantly  displayed  on
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen
can be displayed by operating the INFO
switch.

Press the INFO switch

INFO switch

Trip meter A,
Odometer

Trip meter B,
Odometer

  Odometer

    The odometer records the total distance
the vehicle has been driven.

  Trip  meter

    The driving distance for a speci

¿ ed

interval is indicated. Two types (TRIP
A, TRIP B) of interval distance and the
average fuel economy for each can be
measured.

  For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is

¿ lled.

  When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

  The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 second or more while in each
mode.

 NOTE



  Only the trip meters record tenths of

kilometres (miles).



  The trip record will be erased when:



  The power supply is interrupted

(blown fuse or the battery is
disconnected).



  The vehicle is driven over 1999

km  (mile).

/:A



4–36

When Driving

Instrument Cluster and Display

 Engine  Coolant  Temperature

Gauge

              Displays  the  engine  coolant  temperature.
The blue gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.

 CAUTION

 If the high engine coolant temperature
warning light (red) turns on, there is
a possibility of overheating. Park the
vehicle in a safe place immediately and
take appropriate measures. If the vehicle
continues to be driven, it could cause
damage to the engine.
 Refer to Overheating on page  7-24 .

 NOTE



  The temperature unit (Centigrade/

Fahrenheit) of the engine coolant
gauge display changes in conjunction
with the temperature unit of the
outside temperature display.



  Refer to Personalisation Features on

page 9-10 .



  During normal driving, the engine

coolant temperature stabilizes at 100
°C (210 °F) or less, and the gauge
indicates a range lower than 100 °C
(210 °F).



  If the engine load increases and the

engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates
the engine coolant temperature.

 Fuel  Gauge

              The  fuel  gauge  shows  approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full

1/4 Full

Empty

  If the fuel level is low, (   ) and (   ) turn an
amber colour. Refuel as soon as possible.
  Refer to Taking Action on page  7-41  .

/:A



4–37

When Driving

Instrument Cluster and Display

*Some models.

 NOTE



  After refuelling, it may require some

time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.



  The display indicating a quarter

or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.



  The direction of the arrow (   )

indicates that the fuel-

¿ ller À ap is on

the left side of the vehicle.

 Outside  Temperature  Display

                When  the  ignition  is  switched  ON,  the
outside temperature is displayed.

 NOTE

   Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



 Signi

¿ cantly cold or hot

temperatures.



  Sudden changes in outside

temperature.



  The vehicle is parked.



  The vehicle is driven at low speeds.

  Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B/C)

    The outside temperature unit can be
switched between Celsius and Fahrenheit.
  Settings can be changed by operating the
centre display screen.
  Refer to Personalisation Features on page
 9-10 .

 NOTE

 When the temperature unit indicated
in the outside temperature display is
changed, the temperature unit indicated
in the engine coolant gauge display
changes in conjunction with it.

  Outside  Temperature  Warning

*

    When the outside temperature is low, the
indication

À ashes and a beep sound is

heard to warn the driver of the possibility
of icy roads.
  If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the

   mark

À ashes for about

ten seconds and a beep sound is heard
once.

 NOTE

 If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the      mark
illuminates.

/:A



4–38

When Driving

Instrument Cluster and Display

 Distance-to-empty

            This  displays  the  approximate  distance
you can travel on the remaining fuel based
on the fuel economy.
  The distance-to-empty will be calculated
and displayed every second.

 NOTE



  Even though the distance-to-empty

display may indicate a suf

¿ cient

amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.



  The display will not change unless

you add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.



  The distance-to-empty is the

approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.



  If there is no past fuel economy

information such as after

¿ rst

purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.

 Average Fuel Economy

            This  mode  displays  the  average  fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data.
  The average fuel economy is calculated
and displayed every minute.

  To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.

 Current Fuel Economy

            This  displays  the  current  fuel  economy
by calculating the amount of fuel
consumption and the distance travelled.
  Current fuel economy will be calculated
and displayed every two seconds.

  When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.

/:A



4–39

When Driving

Instrument Cluster and Display

*Some models.

 Maintenance  Monitor

            The  following  maintenance  period
noti

¿ cations can be displayed by turning

the Maintenance Monitor on.



 Scheduled Maintenance



 Tyre Rotation



 Oil Change

  For the setting method and indications
for the maintenance monitor, refer to the
Maintenance Monitor.
  Refer to Maintenance Monitor on page
 6-10 .
  The maintenance monitor displays the
information when the ignition is switched
ON.

 NOTE

 This function is inoperable while the
vehicle is being driven.

  Message  display

    When the remaining time or the distance
approaches 0, a message is displayed each
time the ignition is switched ON.

 NOTE



  If any of the INFO switch is pressed

while a message is displayed, it will
no longer be displayed the next time
the ignition is switched ON.



  After the vehicle is serviced and the

remaining time/distance is reset, the
message for the next maintenance
period will be displayed when the
remaining distance or time to the
next maintenance period approaches
0 (displays when engine is started).



  If there are multiple messages, they

are displayed according to their
order.



  If OFF is set for Messages, messages

are not displayed.

 Vehicle  Speed Alarm

*

            In  this  mode,  the  current  setting  for  the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.

 NOTE

 The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.

  The vehicle speed alarm can be set using
the centre display.

/:A



4–40

When Driving

Instrument Cluster and Display

*Some models.

 NOTE



  Always set the vehicle speed

according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.



  The vehicle speed alarm function can

be set between 30 and 250 km/h (20
and 150 mph).

 Lane Departure Warning System

(LDWS) Display

*

            Displays  the  system  status.

  Refer to Lane Departure Warning on page
 4-111 .

 Adjustable Speed Limiter Display

*

            The  setting  status  of  the  adjustable  speed
limiter is displayed.

 Cruise Control Set Vehicle Speed

Display

*

            The  vehicle  speed  preset  using  the  cruise
control is displayed.

 Compass  Display

            The  direction  the  vehicle  is  moving  is
displayed in one of the eight cardinal
directions while the vehicle is being
driven.

 Display

 Direction

 N

 North

 S

 South

 E

 East

 W

 West

 NE

 Northeast

 NW

Northwest

 SE

 Southeast

 SW

Southwest

/:A



4–41

When Driving

Instrument Cluster and Display

 Roof Operation Display

            Displays  the  roof  operation  status.

  Refer to Operation Indication on page
 3-48 .

 Warning (Display Indication)

            A  message  is  displayed  to  notify  the
user of the system operation status and
malfunctions or abnormalities.
  If the warning light turns on/

À ashes

simultaneously or a symbol is indicated
in the display, check the information
regarding the warning light or symbol.
(page   4-42 )
  When only a message is displayed, refer
to Message Indicated in Multi-information
Display. (page  7-46 )

/:A
