Before Driving

Driving Tips

 WARNING

 Never stop the engine when going
down a hill:
 Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.

 Hazardous  Driving

 WARNING

 Be extremely careful if it is necessary
to downshift on slippery surfaces:
 Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tyre
speed could cause the tyres to skid. This
could lead to loss of vehicle control and
an accident.

  When driving on ice or in water, snow,
mud, sand, or similar hazards:



 Be cautious and allow extra distance for

braking.



 Avoid sudden braking and sudden

manoeuvring.



 Do not pump the brakes. Continue to

press down on the brake pedal.



  Refer to Antilock Brake System (ABS)

on page  4-86 .



 If you get stuck, select a lower gear and

accelerate slowly. Do not spin the rear
wheels.



 For more traction in starting on slippery

surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting,
or other nonslip material under the rear
wheels.

 NOTE

 Use snow chains only on the rear
wheels.

/:A



3–61

Before Driving

Driving Tips

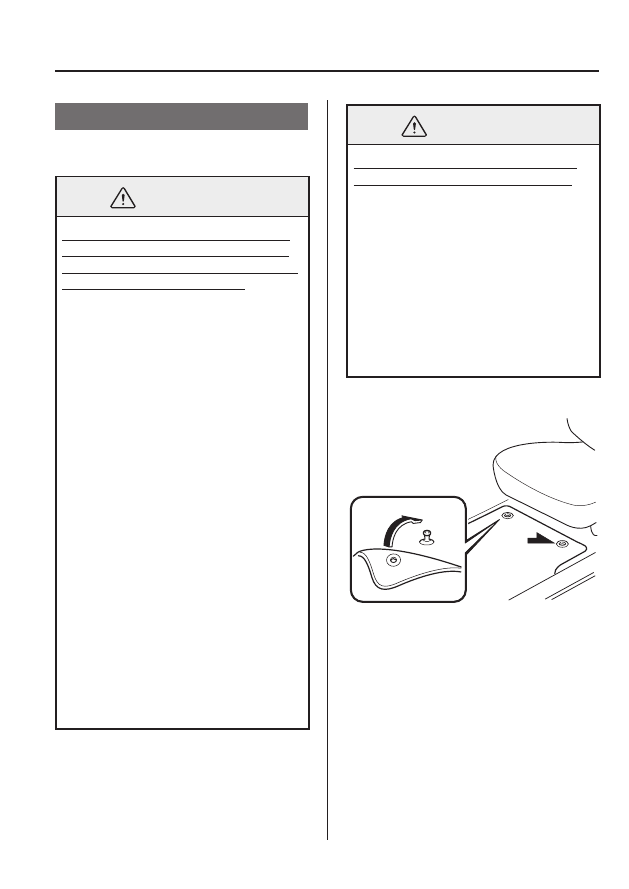

 Floor  Mat

We recommend the use of Genuine
Mazda

À oor mats.

 WARNING

 Make sure the

À oor mats are secured

with the grommets or the retainers to
prevent them from bunching up under
the foot pedals (Driver's side):
 Using  a

À oor mat that is not secured is

dangerous as it will interfere with the
accelerator and brake pedal operation
(driver's side), which could result in an
accident.
 Only use a

À oor mat which conforms

to the shape of the

À oor on the driver's

side and make sure it is oriented
correctly.
 Secure  the

À oor mat using the

grommets or retainers.
 There are various ways to secure

À oor

mats depending on the type used,
therefore secure the mat according to
the type.
 After installing the

À oor mat, make

sure that it does not slide from side
to side or back and forth, and that
there is suf

¿ cient clearance with the

accelerator and brake pedals on the
driver's side.
 After removing the

À oor mat for

cleaning or some other reason, always
securely reinstall it while paying
attention to the precautions just
mentioned.

 WARNING

 Do not install two

À oor mats, one on

top of the other, on the driver's side:
 Installing  two

À oor mats, one on top

of the other, on the driver's side is
dangerous as the retention pins can
only keep one

À oor mat from sliding

forward.
 Loose

À oor mat(s) will interfere with

the foot pedals and could result in an
accident.
 If using an all weather mat for winter
use always remove the original

À oor

mat.

  When  setting  a

À oor mat, position the

À oor mat so that its grommets or retainers
are inserted over the pointed end of the
retention posts.

/:A



3–62

Before Driving

Driving Tips

 Rocking  the  Vehicle

 WARNING

 Do not spin the wheels at high speed,
and do not allow anyone to stand
behind a wheel when pushing the
vehicle:
 When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tyre could overheat and
explode. This could cause serious
injuries.

 CAUTION

 Too much rocking may cause engine
overheating, transmission failure, and
tyre damage.

  If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.

 Winter  Driving

              Carry  emergency  gear,  including  tyre
chains, window scraper,

À ares, a small

shovel, jumper leads, and a small bag of
sand or salt.
  Ask an expert repairer, we recommend an
Authorised Mazda Repairer to check the
following:



 Have the proper ratio of antifreeze in the

radiator.



  Refer to Engine Coolant on page

 6-20 .



 Inspect the battery and its leads. Cold

reduces battery capacity.



 Use an engine oil appropriate for the

lowest ambient temperatures that the
vehicle will be driven in (page 6-17 ).



 Inspect the ignition system for damage

and loose connections.



 Use washer

À uid made with antifreeze—

but do not use engine coolant antifreeze
for washer

À uid (page  6-23 ).

/:A



3–63

Before Driving

Driving Tips

 NOTE



      Do not use the parking brake in

freezing weather as it may freeze.
Instead, shift to P with an automatic
transmission and to 1 or R with a
manual transmission. Block the rear
wheels.



  Remove snow before driving. Snow

left on the windscreen is dangerous
as it could obstruct vision. In
addition, if the vehicle is driven with
snow accumulated on the bonnet,
the active bonnet system may not
activate normally in an emergency.



  Do not open or close the soft top

when the temperature is 5 °C (41 °F)
or less. The material of the soft top
could be damaged by freezing.



  Do not apply excessive force to a

window scraper when removing ice
or frozen snow on the mirror glass
and windscreen.



  Never use warm or hot water for

removing snow or ice from windows
and mirrors as it could result in the
glass cracking.



  Drive slowly. Braking performance

can be adversely affected if
snow or ice adheres to the brake
components. If this situation occurs,
drive the vehicle slowly, releasing
the accelerator pedal and lightly
applying the brakes several times
until the brake performance returns
to normal.

 Snow  Tyres

 WARNING

 Use only the same size and type tyres
(snow, radial, or non-radial) on all four
wheels:
 Using tyres different in size or type is
dangerous. Your vehicle's handling
could be greatly affected and result in
an accident.

 CAUTION

 Check local regulations before using
studded tyres.

 NOTE

 If your vehicle is equipped with the tyre
pressure monitoring system (vehicle
with run-

À at tyres), the system may not

function correctly when using tyres with
steel wire reinforcement in the sidewalls
(page   4-146 ).

  Use snow tyres on all four wheels

    Do not exceed the maximum permissible
speed for your snow tyres or legal speed
limits.

  Europe

    When snow tyres are used, select the
speci

¿ ed size and pressure (page  9-8 ).

/:A



3–64

Before Driving

Driving Tips

 Tyre  Chains

            Check  local  regulations  before  using  tyre
chains.

 CAUTION



  Chains may affect handling.



  Do not go faster than 50 km/h (30

mph) or the chain manufacturer's
recommended limit, whichever is
lower.



  Drive carefully and avoid bumps,

holes, and sharp turns.



  Avoid locked-wheel braking.



  Do not use chains on roads that are

free of snow or ice. The tyres and
chains could be damaged.



  Chains may scratch or chip

aluminium wheels.

 NOTE

 If your vehicle is equipped with the tyre
pressure monitoring system, the system
may not function correctly when using
tyre chains.

  Install the chains on the rear tyres only.
  Do not use chains on the front tyres.

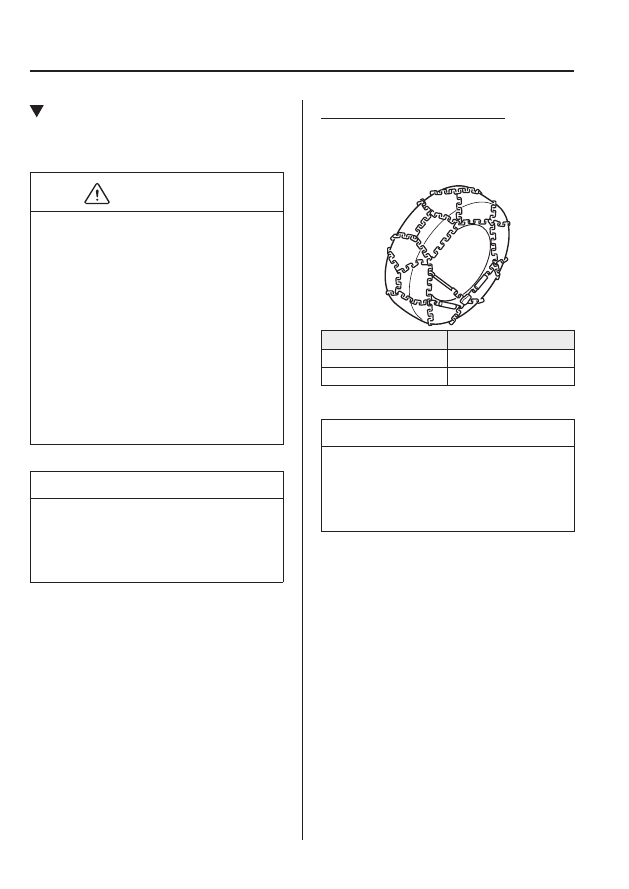

  Tyre chain selection (Europe)

    Mazda  recommends  hexagon  type
steel ring chains. Select the proper type
according to your tyre size.

 Tyre  size

 Tyre  chain

 195/50R16

 Hexagon  type

 205/45R17

 Hexagon  type

 NOTE

 Although Mazda recommends hexagon
type steel ring chains, all chains within
the installation speci

¿ cations may be

used.

/:A



3–65

Before Driving

Driving Tips

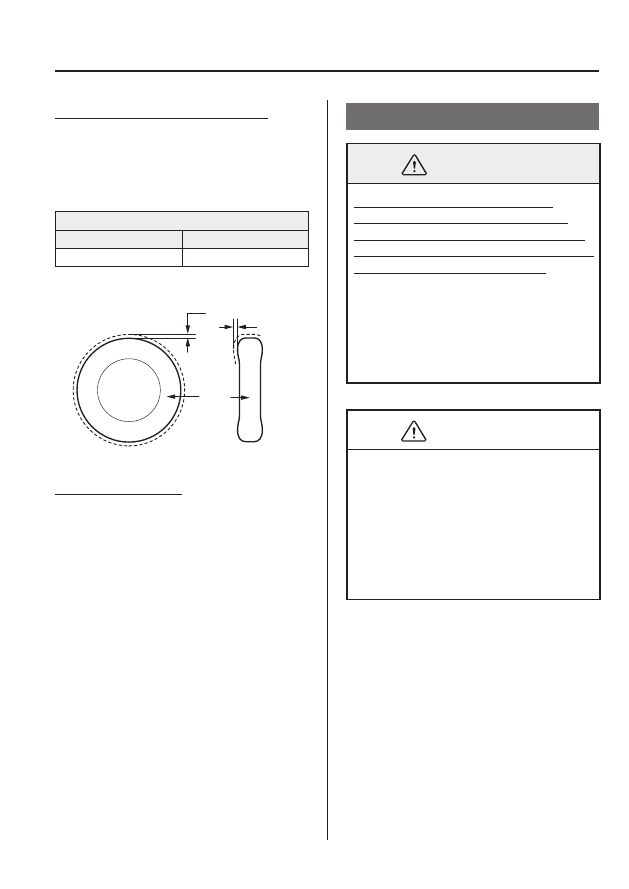

  Installation  speci

¿ cation (Europe)

    When installing tyre chains, the distance
between the tyre tread and the chain must
be within the prescribed limits in the
following table.

 Distance [Unit: mm (in)]

 A

 B

 MAX 11 (0.43)

 MAX 11 (0.43)

Side view

Cross section view

Tyre

A

B

  Installing  the  chains

     1.   Secure the chains on the rear tyres as

tightly as possible. Always follow the
chain manufacturer's instructions.

   2.   Retighten  the  chains  after  driving

1/2—1 km (1/4—1/2 mile).

 Driving In Flooded Area

 WARNING

 Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
 Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.

 CAUTION

 Do not drive the vehicle on

À ooded

roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from water
absorption. If the vehicle has been
immersed in water, consult an expert
repairer, we recommend an Authorised
Mazda Repairer.

/:A



3–66

Before Driving

Towing

      Towing  Caravans  and
Trailers

            Your  Mazda  is  not  designed  for  towing.
Never tow a trailer with your Mazda.

/:A



4–1

*Some models.

4–1

4

When Driving

     Information concerning safe driving and stopping.

   Start/Stop  Engine  ................................  4-4

  Ignition  Switch ...............................  4-4
  Starting  the  Engine .........................  4-5
  Turning the Engine Off ................  4-11
  i-stop

*

   ...........................................  4-13

  Instrument Cluster and Display ......  4-24

  Meters  and  Gauges .......................  4-24
  Multi-information Display and INFO
Switch

*

   .........................................  4-33

  Warning/Indicator  Lights  .............  4-42

  Transmission ......................................  4-48

  Manual  Transmission
Operation ......................................  4-48
  Automatic  Transmission
Controls ........................................  4-51

  Switches  and  Controls  ......................  4-63

  Lighting  Control ...........................  4-63
  Rear  Fog  Light

*

   ............................  4-70

  Turn and Lane-change Signals .....  4-71
  Windscreen  Wipers  and
Washer ..........................................  4-72
  Headlight  Washer

*

  ........................  4-77

  Rear  Window  Defogger  ...............  4-77
  Horn  .............................................  4-79
  Hazard  Warning  Flasher ...............  4-79

  Brake  ..................................................  4-81

  Brake  System  ...............................  4-81
  Emergency Stop Signal System ...  4-84
  Hill  Launch  Assist  (HLA)  ............  4-84

  ABS/TCS/DSC ...................................  4-86

  Antilock Brake System (ABS) .....  4-86
  Traction Control System (TCS) ...  4-87
  Dynamic  Stability  Control
(DSC) ...........................................  4-88

  i-ELOOP  ............................................  4-90

  i-ELOOP

*

   .....................................  4-90

  Fuel  Economy  Monitor .....................  4-93

  Fuel  Economy  Monitor

*

  ...............  4-93

  Drive  Selection ...................................  4-97

  Drive  Selection

*

   ...........................  4-97

  Power  Steering...................................  4-99

  Power  Steering  .............................  4-99

/:A



4–2

*Some models.

  i-ACTIVSENSE...............................  4-100

  i-ACTIVSENSE

*

........................  4-100

  Adaptive Front Lighting System
(AFS)

*

   ........................................  4-102

  High Beam Control System
(HBC)

*

........................................  4-103

  Lane  Departure  Warning  System
(LDWS)

*

   ....................................  4-106

  Blind Spot Monitoring (BSM)
System

*

  .......................................  4-112

  Rear  Cross  Traf

¿ c Alert

(RCTA)

*

   .....................................  4-119

  Adjustable  Speed  Limiter

*

   .........  4-122

  Forward  Sensing  Camera
(FSC)

*

  .........................................  4-129

  Radar  Sensors  (Rear)

*

   ................  4-132

  Cruise  Control  .................................  4-134

  Cruise  Control

*

  ...........................  4-134

  Tyre  Pressure  Monitoring
System ..............................................  4-140

  Tyre Pressure Monitoring System
(Vehicle with Conventional
Tyres)

*

   ........................................  4-140

  Tyre Pressure Monitoring System
(Vehicle with Run-

À at Tyres)

*

  ....  4-144

  Parking  Sensor  System  ...................  4-148

  Parking  Sensor  System

*

   .............  4-148

/:A



MEMO

4–3

/:A



4–4

When Driving

Start/Stop Engine

      Ignition  Switch

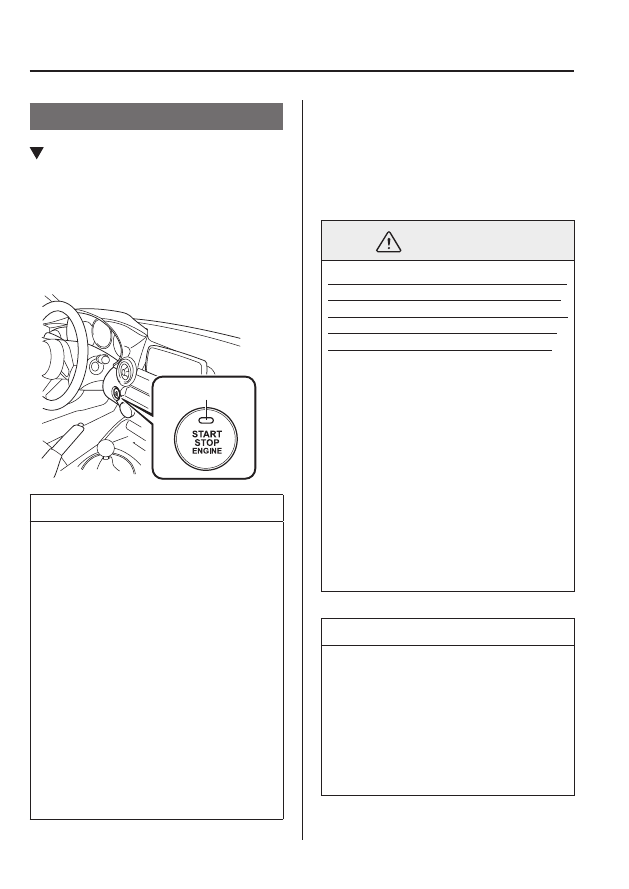

 Push Button Start Positions

    The system operates only when the key is
within operational range.
  Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.

Indicator light

 NOTE



  The engine starts by pressing

the push button start while
depressing the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission). To switch
the ignition position, press the push
button start without depressing the
pedal.



  Do not leave the ignition switched

ON while the engine is not running.
Doing so could result in the battery
going dead. If the ignition is left in
ACC (For automatic transmission,
the selector lever is in the P position,
and the ignition is in ACC), the
ignition switches off automatically
after about 25 minutes.

  Off

    The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
  In this position the steering wheel is
locked.

 WARNING

 Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever
is in P (automatic transmission) or in
1st gear or R (manual transmission):
 Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the selector
lever to P (automatic transmission) or
to 1st gear or R (manual transmission)
is dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
 In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.

 NOTE

(Locked steering wheel)
 If the push button start indicator light
(green) is

À ashing and the beep sound

is heard, this indicates that the steering
wheel is not unlocked. To unlock the
steering wheel, press the push button
start while moving the steering wheel
left and right.

/:A



4–5

When Driving

Start/Stop Engine

   ACC   (Accessory)

    Some  electrical  accessories  will  operate
and the indicator light (amber) illuminates.
  In this position the steering wheel is
unlocked.

 NOTE

 The keyless entry system does not
function while the push button start has
been pressed to ACC, and the doors will
not lock/unlock even if they have been
locked manually.

   ON

    This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition
is switched ON and the engine is not
running.)
  Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-42 ).

 NOTE

 When the push button start is pressed
to ON, the sound of the fuel pump
motor operating near the fuel tank can
be heard. This does not indicate an
abnormality.

 Starting the Engine

 WARNING

 Radio waves from the key may affect
medical devices such as pacemakers:
 Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.

/:A



4–6

When Driving

Start/Stop Engine

 NOTE



  The key must be carried because the

key carries an immobilizer chip that
must communicate with the engine
controls at short range.



  The engine can be started when the

push button start is pressed from off,
ACC, or ON.



  The push button start system

functions (function which can start
the engine by only carrying the
key) can be deactivated to prevent
any possible adverse effect on a
user wearing a pacemaker or other
medical device. If the system is
deactivated, you will be unable
to start the engine by carrying the
key. Consult an expert repairer, we
recommend an Authorised Mazda
Repairer for details. If the push
button start system functions have
been deactivated, you can start the
engine by following the procedure
indicated when the key battery goes
dead.



  Refer to Engine Start Function When

Key Battery is Dead on page  4-9 .



  After starting a cold engine, the

engine speed increases and a whining
sound from the engine compartment
can be heard.



  This is for improved exhaust gas

puri

¿ cation and does not indicate any

parts defect.

   1.   Make sure you are carrying the key.
   2.   Occupants  should  fasten  their  seat

belts.

   3.   Make sure the parking brake is on.
   4.   Continue to press the brake pedal

¿ rmly until the engine has completely
started.

   5.    (Manual transmission)


Continue to press the clutch pedal
¿ rmly until the engine has completely
started.



 (Automatic transmission)



Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).

 NOTE

(Manual transmission)
 The starter will not operate if the clutch
pedal is not depressed suf

¿ ciently.

(Automatic transmission)
 The starter will not operate if the
selector lever is not in P or N and the
brake pedal is not depressed suf

¿ ciently.

/:A



4–7

When Driving

Start/Stop Engine

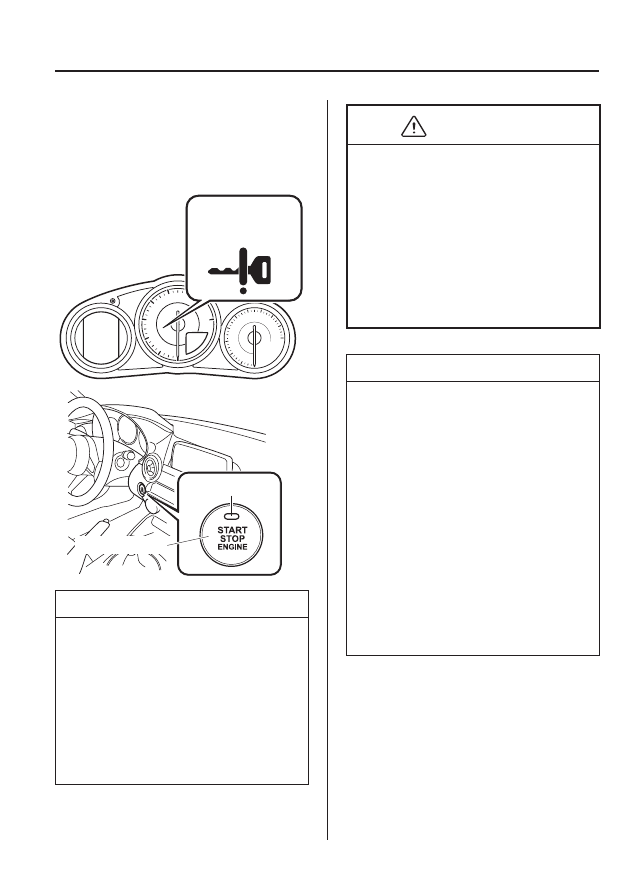

   6.   Verify that the KEY indicator light

(green) in the instrument cluster and the
push button start indicator light (green)
illuminate.

KEY indicator light
(green)/ KEY
warning light (red)

Indicator light

Push button start

 NOTE



  If the push button start indicator light

(green)

À ashes, make sure that the

key is being carried.



  If the push button start indicator light

(green)

À ashes with the key being

carried, touch the key to the push
button start and start the engine.
Refer to Engine Start Function When
Key Battery is Dead on page  4-9 .

 CAUTION

 If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber)

À ashes, this

could indicate a problem with the engine
starting system. This may prevent the
engine from starting or from switching
the ignition to ACC or ON. Have your
vehicle inspected at an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.

 NOTE



  Under the following conditions, the

KEY warning light (red)

À ashes

after the push button start is pressed.
This informs the driver that the push
button start will not switch to ACC
even if it is pressed from off.



  The key battery is dead.



  The key is out of operational

range.



  The key is placed in areas where it

is dif

¿ cult for the system to detect

the signal (page 3-8 ).



  A key from another manufacturer

similar to the key is in the
operational  range.

/:A



4–8

When Driving

Start/Stop Engine

 NOTE



(Forced engine starting method)



  If the KEY warning light (red)

illuminates, or the push button start
indicator light (amber)

À ashes, this

could indicate that the engine may
not start using the usual starting
method. Have your vehicle inspected
at an expert repairer, we recommend
an Authorised Mazda Repairer as
soon as possible. If this occurs, the
engine can be force-started. Press
and hold the push button start until
the engine starts. Other procedures
necessary for starting the engine,
such as having the key in the cabin,
and depressing the clutch pedal
(manual transmission) or the brake
pedal (automatic transmission) are
required.



  When the engine is force-started,

the KEY warning light (red) remains
illuminated and the push button
start indicator light (amber) remains
À ashing.



(Automatic transmission)



  When the selector lever is in the

neutral (N) position, the KEY
indicator light (green) and the push
button start indicator light (green) do
not illuminate.

   7.   Press the push button start after both

the KEY indicator light (green) in the
instrument cluster and the push button
start indicator light (green) illuminate.

 NOTE



  After starting the engine, the push

button start indicator light (amber)
turns off and the ignition switches to
the ON position.



  After pressing the push button start

and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not indicate
a malfunction.

/:A



4–9

When Driving

Start/Stop Engine

   8.   After starting the engine, let it idle

for about ten seconds (Prohibited in
Germany).

 NOTE



(Germany)



  Drive immediately after starting the

engine. However do not use high
engine speeds until reaching the
operating temperature.



  Whether the engine is cold or warm,

it should be started without the use of
the accelerator.



  If the engine does not start the

¿ rst

time, refer to Starting a Flooded
Engine under Emergency Starting.
If the engine still does not start,
have your vehicle inspected by an
Authorised Mazda Repairer (page
 7-23 ).



(Manual transmission vehicle with
i-stop function)



  If the engine has stopped due to

stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.



  The engine cannot be restarted even

if the clutch pedal is depressed under
the following conditions:



  The driver's door is open.



  The driver's seat belt is unfastened.



  The clutch pedal is not released

completely after the engine stalled.



  The clutch pedal is depressed with

the engine not stopped completely.

 Engine Start Function When Key

Battery is Dead

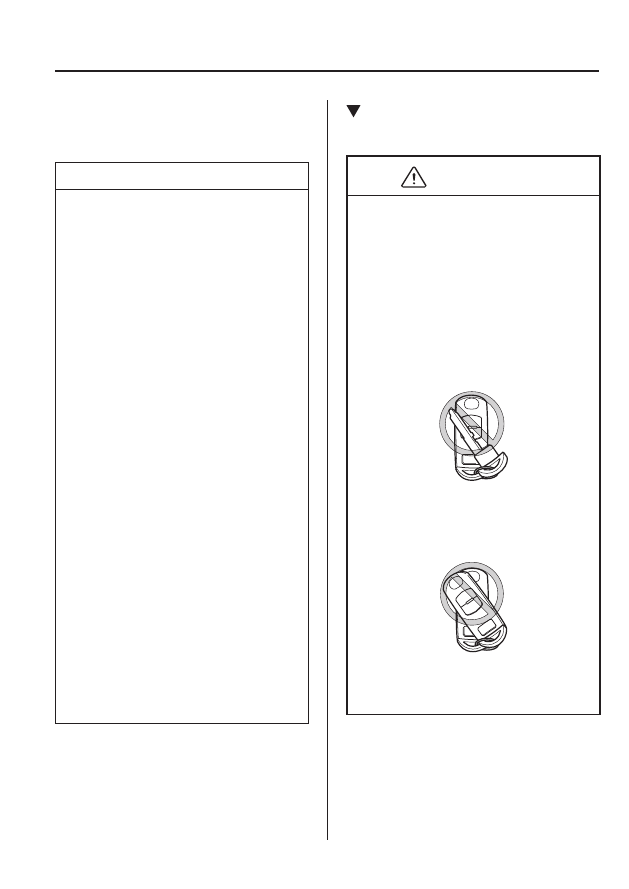

 CAUTION

 When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not
to allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.



  Metal parts of other keys or metal

objects touch the key.





  Spare keys or keys for other vehicles

equipped with an immobilizer system
touch or come near the key.





  Devices for electronic purchases, or

security passage touch or come near
the key.

/:A
