Uniform Tire Quality Grading System (UTQGS)

▼ Uniform Tire Quality Grading

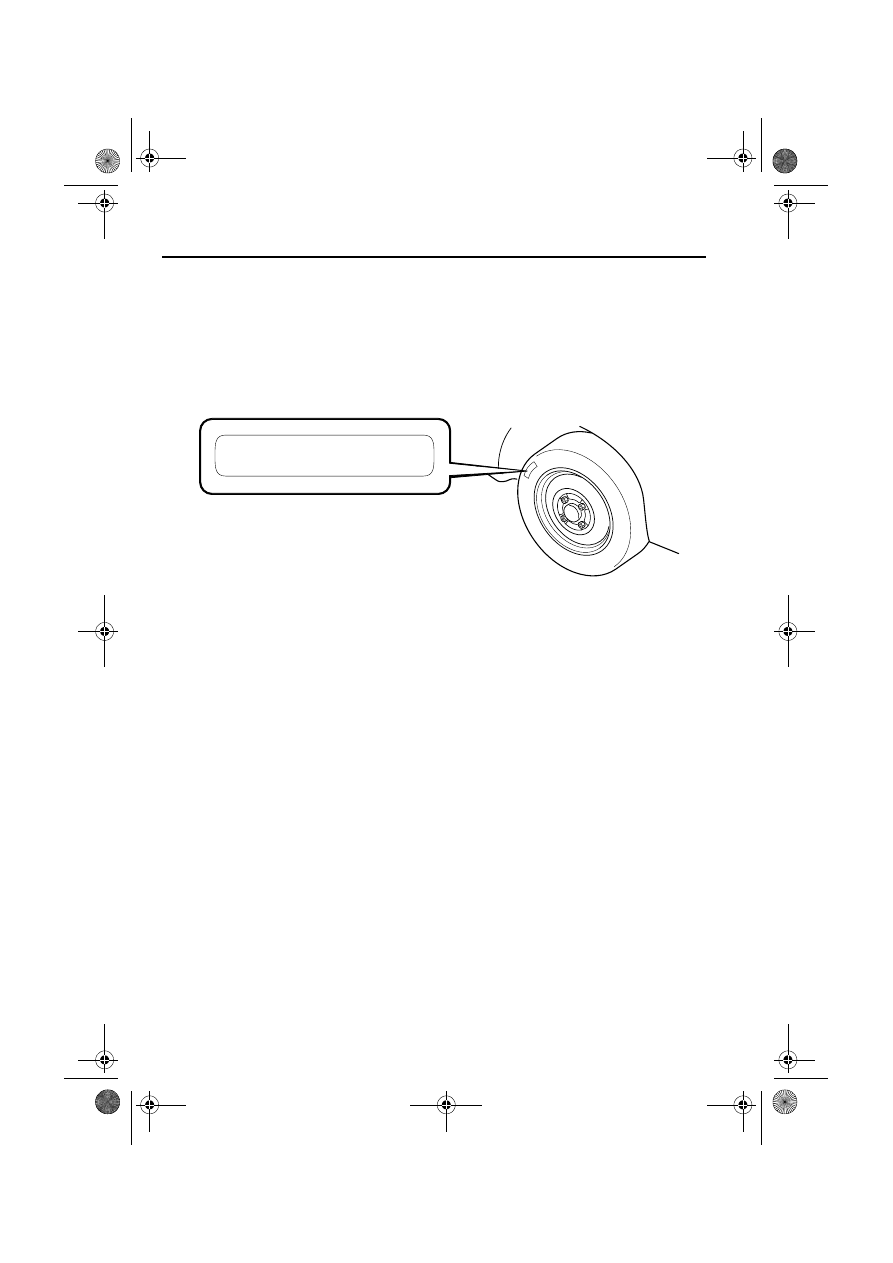

Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A

UTQGS MARK (example)

TREADWEAR 200 TRACTION AA

TEMPERATURE A

9-15

Customer Information

Reporting Safety Defects

If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Corporation (Your Mazda
Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distributor).

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1 (800) 424-
9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of
Transportation. Washington, D.C. 20590. You can also obtain other information about
motor vehicle safety from the Hotline.

Reporting Safety Defects

NOTE

If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:

Mazda North American Operations
7755, Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-7) in this booklet.

9-16

Customer Information

Service Publications

Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.

When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.

If they don’t have what you need in stock, they can order it for you.

▼ WORKSHOP MANUAL:

Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

▼ WIRING DIAGRAM:

Provides electrical schematics as well as component location for the entire electrical
system.

▼ OWNER’S MANUAL:

This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician’s manual.

Service Publications

PUBLICATION ORDER NUMBER

PUBLICATION DESCRIPTION

9999-95-044B-02

2002 WORKSHOP MANUAL (English)

9999-95-036G-02

2002 WIRING DIAGRAM (English)

9999-95-077C-02 (U.S.A. only)

2002 OWNER’S MANUAL

10-1

10

Specifications

Technical information about your Mazda.

Identification Numbers  ............................................................. 10- 2

Vehicle Information Labels  ................................................... 10- 2

Specifications  ............................................................................. 10- 4

Specifications ........................................................................ 10- 4

10-2

Identification Numbers

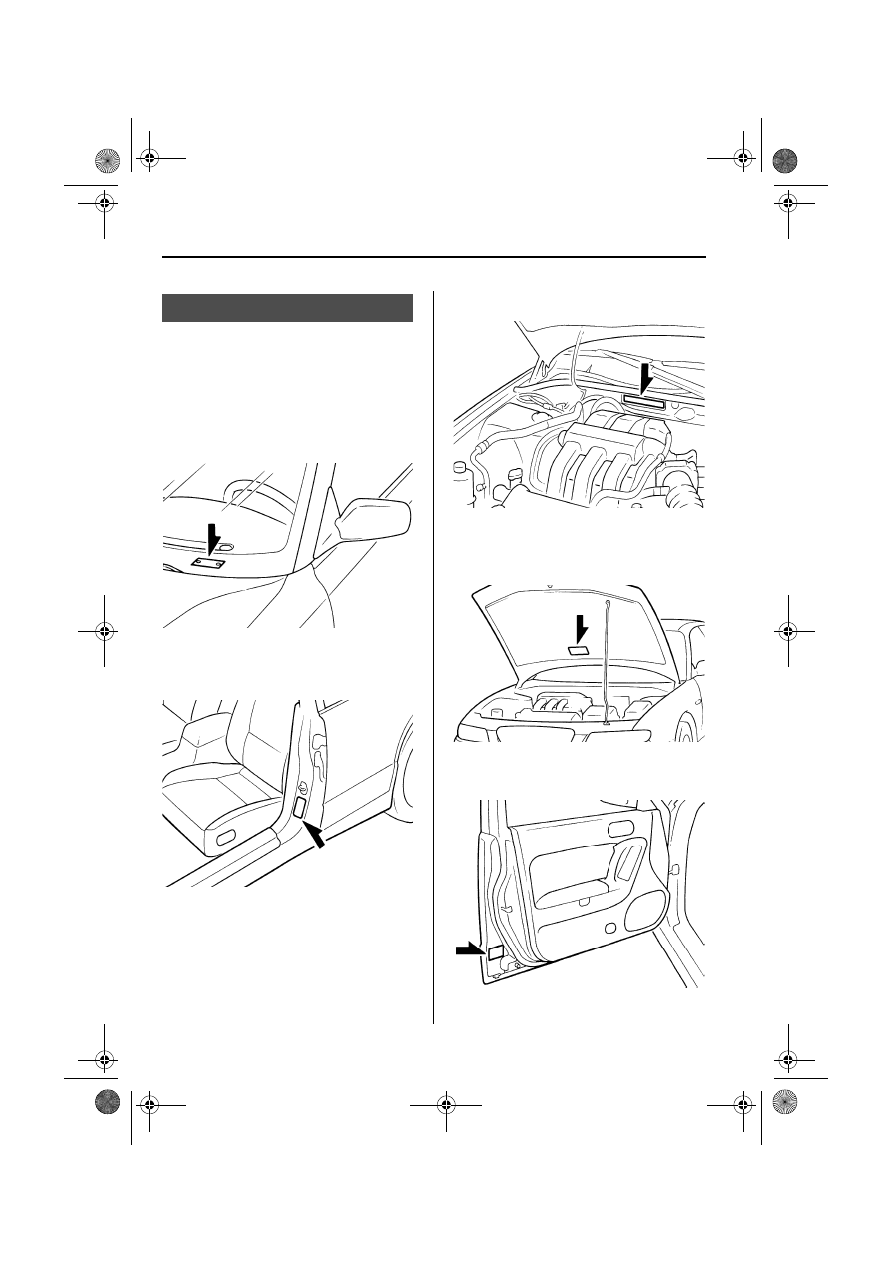

▼ Vehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

▼ Motor Vehicle Safety Standard

Label

▼ Chassis Number

▼ Vehicle Emission Control

Information Label

▼ Tire Pressure Label

Vehicle Information Labels

10-3

Identification Numbers

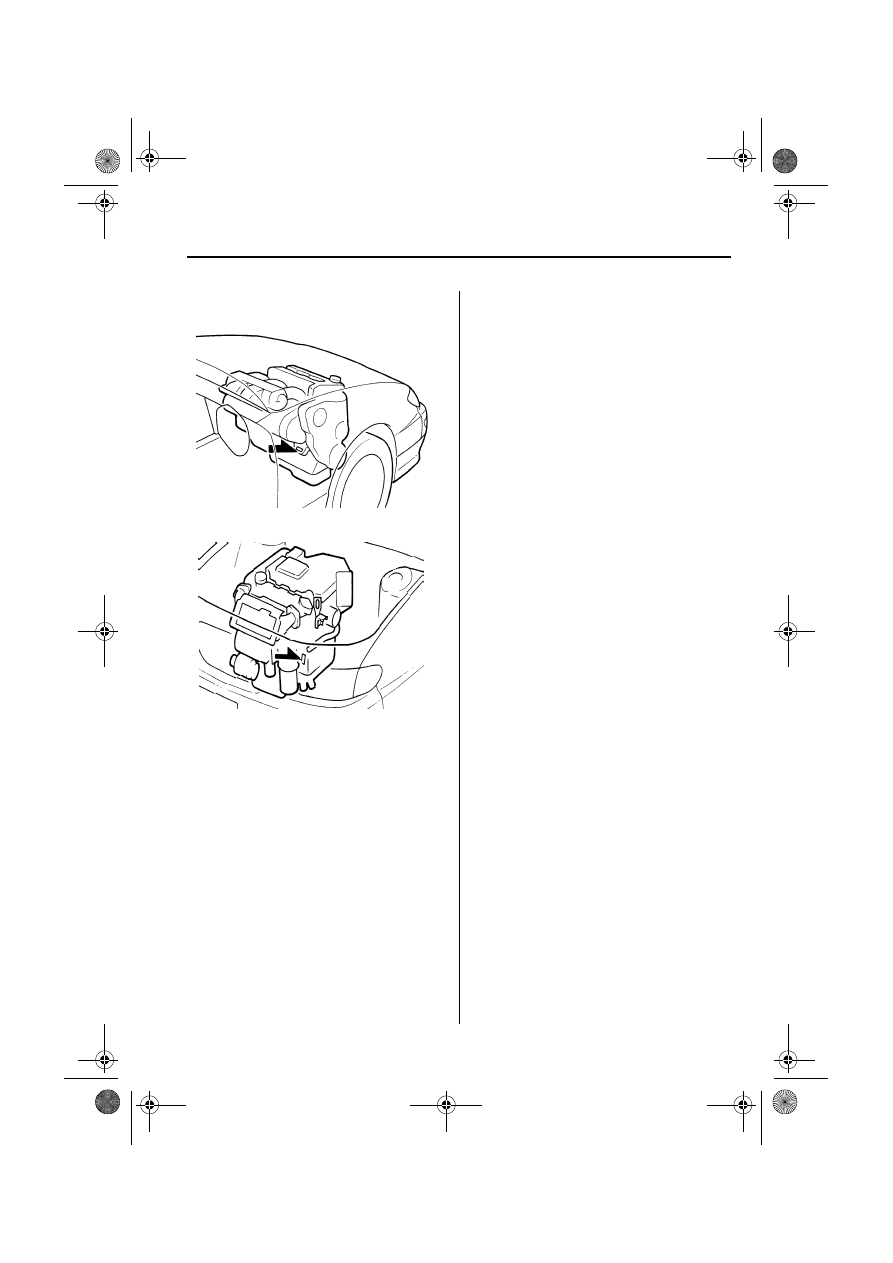

▼ Engine Number

2.5 liter V6 DOHC

Miller Cycle Engine V6 DOHC

10-4

Specifications

▼ Engine

▼ Electrical System

▼ Lubricant Quality

*

 Refer to the recommended SAE viscosity numbers on page 8-10.

Specifications

Item

Model

2.5 liter V6 DOHC

Miller Cycle Engine V6 DOHC

Bore×Stroke

84.5 × 74.2 mm (3.33 × 2.92 in)

80.3 × 74.2 mm (3.16 × 2.92 in)

Displacement

2,496 ml (2,496 cc, 152.3 cu in)

2,254 ml (2,254 cc, 137.5 cu in)

Compression ratio

9.2

10.0

Item

Model

2.5 liter V6 DOHC

Miller Cycle Engine V6 DOHC

Battery

Maintenance-free,

12V-48AH/5HR,

52AH/5HR (Cold areas)

Maintenance-free,

12V-52AH/5HR,

55AH/5HR (Cold areas)

Alternator

12V-110 A

Starter

12V-1.6 kW

12V-2.0 kW

Spark-plug
number

NGK

ZFR5F-11, ZFR6F-11

PZFR5F, PZFR6F

DENSO

—

PKJ16CR8, PKJ20CR8

CHAMPION

—

RC8PMPA, RC10PMPA

Spark-plug gap

1.0—1.1 mm (0.040—0.043 in)

0.7—0.8 mm (0.028—0.031 in)

Lubricant

Classification

API Service

ILSAC

Engine oil

*

SG (Energy Conserving II)

—

SH (Energy Conserving II)

GF-I

SJ

GF-II

SL

GF-III

Lubricant

Classification

Automatic transaxle fluid

ATF M-III or equivalent (e.g. Dexron

®

 III)

Power steering fluid

ATF M-III or equivalent (e.g. Dexron

®

 III)

Brake fluid

SAE J1703 or FMVSS116 DOT-3

10-5

Specifications

▼ Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.

▼ Dimensions

*

With license plate holder

▼ Weights

Item

Unit

L

US qt

Imp qt

Engine oil

2.5 liter V6 DOHC

With oil filter
replacement

4.0

4.2

3.5

Without oil filter
replacement

3.7

3.9

3.3

Miller Cycle
Engine V6 DOHC

With oil filter
replacement

4.1

4.3

3.6

Without oil filter
replacement

3.8

4.0

3.4

Coolant

7.5

7.9

6.6

Automatic transaxle
fluid

2.5 liter V6 DOHC

8.0

8.4

7.0

Miller Cycle Engine V6 DOHC

7.4

7.8

6.5

Fuel tank

68

18.0 (US gal)

15.0 (Imp gal)

Item

mm (in)

Overall length

4,860 (191.3), 4,870 (191.7)

*

Overall width

1,770 (69.7)

Overall height

1,395 (54.9)

Front tread

1,520 (59.8)

Rear tread

1,520 (59.8)

Wheelbase

2,750 (108.3)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

1,985 kg (4,376 lb)

GAWR (Gross Axle Weight Rating)

Front

1,116 kg (2,460 lb)

Rear

880 kg (1,940 lb)

10-6

Specifications

▼ Air Conditioner

▼ Light Bulbs

▼ Tires

Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-25.

Standard tire

Temporary spare tire

▼ Fuses

Refer to the fuse rating on page 8-34.

Gas complies with SAE J639

Maximum operating charge

R-134a

0.8 kg (28.2 oz)

Light bulb

Wattage

Headlights

High beam (HB3)

60

Low beam (HB4)

51

Front turn signal lights

27

Parking lights

5

Fog lights

55

Side-marker lights

3.8

High-mount brake lights

5

Rear turn signal lights

21

Brake lights/Taillights

21/5

Reverse lights

18

License plate lights

5

Trunk light

5

Overhead light

8

Map lights

Front 8
Rear

5

Courtesy lights

3.4

Tire size

Inflation pressure

Front

Rear

P215/55 R16 91V

220 kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

200 kPa (2.0 kgf/cm

2

, 29 psi or lb/po

2

)

215/50 R17 91V

230 kPa (2.3 kgf/cm

2

, 34 psi or lb/po

2

)

210 kPa (2.1 kgf/cm

2

, 31 psi or lb/po

2

)

Tire size

Inflation pressure

T135/70 D16

420 kPa (60 psi)
