Mazda Mazdaspeed 6 (2007 year). Instruction - part 4

Black plate (57,1)

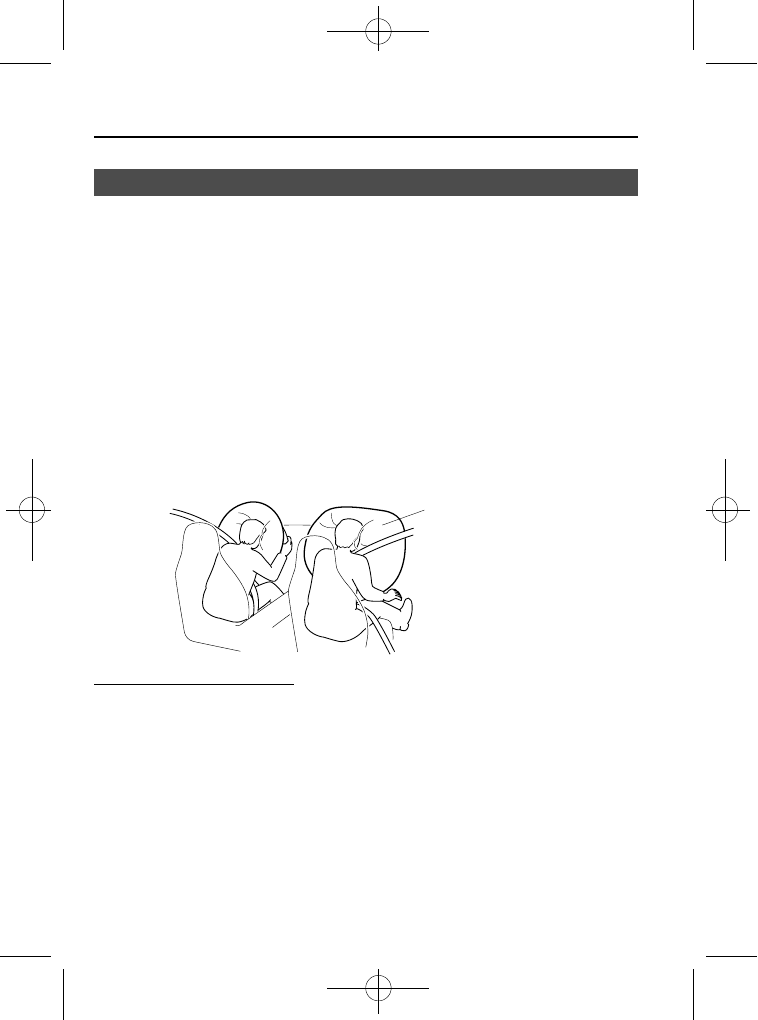

Supplemental Restraint System Components

The supplemental restraint systems (SRS) have two basic subsystems:

The air bag system with inflators and air bags.

The electrical system with crash sensors and diagnostic module.

The air bags are mounted in the following locations:

The steering wheel hub

The front passenger dashboard

The outboard sides of the front seatbacks

The front and rear window pillars, and the roof edge along both sides

The air bags are out of sight until activated.

SRS Air Bags

2-45

Mazdaspeed6_8V77-EA-06F_Edition1 Page57
Tuesday, May 9 2006 10:43 AM

Black plate (58,1)

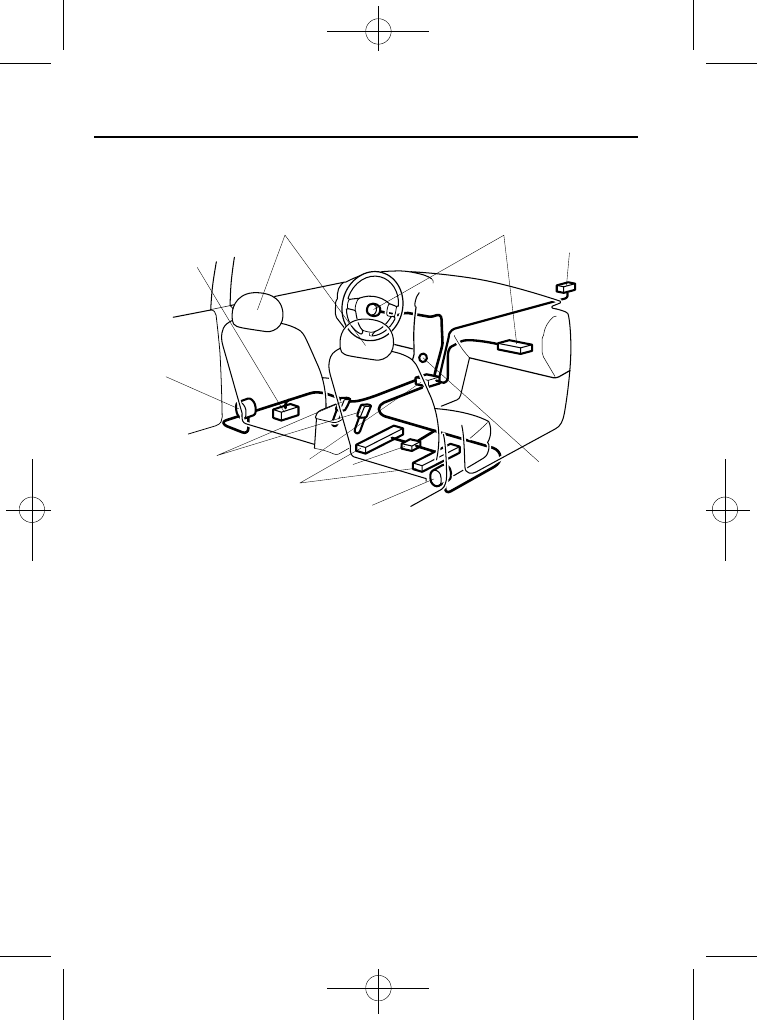

qFront Air Bag System Components

(1)

(6)

(10)

(7)

(6)

(9)

(5)

(4)

(3)

(2)

(8)

(1) Driver seat slide position sensor (page 2-48)
(2) Front seats
(3) Front dual stage inflators and air bags
(4) Front air bag sensor
(5) Front passenger air bag deactivation indicator light (page 2-48)
(6) Front seat belt pretensioner and load limiting systems (page 2-16)
(7) Front passenger seat weight sensors (page 2-48)
(8) Front passenger seat weight sensor control module
(9) Crash sensors and diagnostic module (SAS unit)
(10) Driver and front passenger seat belt buckle switches (page 2-48)

2-46

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page58
Tuesday, May 9 2006 10:43 AM

Black plate (59,1)

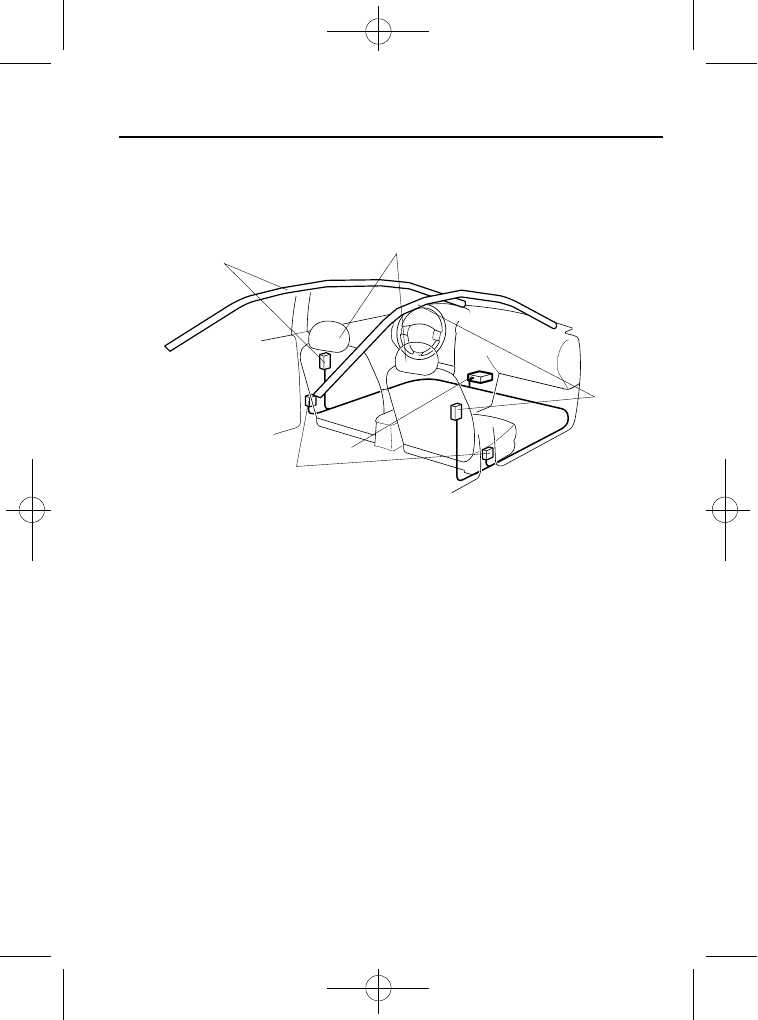

qSide and Curtain Air Bag System Components

(3)

(1)

(4)

(2)

(1) Side and curtain inflators and air bags
(2) Front seats
(3) Crash sensors and diagnostic module (SAS unit)
(4) Side crash sensor

SRS Air Bags

2-47

Mazdaspeed6_8V77-EA-06F_Edition1 Page59
Tuesday, May 9 2006 10:43 AM

Black plate (60,1)

How the Air Bags Work

qHow the Front Air Bags Work

When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the front air bags and after the inflation, the front air bags
quickly deflate.
The front air bags will function only once. After that, the front air bags will not work
again and must be replaced.
Only an Authorized Mazda Dealer can replace the system components.

The front, dual stage air bags control air bag inflation in two energy stages. During an
impact of moderate severity the front air bags deploy with lesser energy, whereas during
more severe impacts, they deploy with more energy. Deployment of the front air bags may
differ between the driver and the front passenger depending on the driver seat position,
front passenger weight and front seat belt usage, all of which provide data from each sensor
to the air bag system.

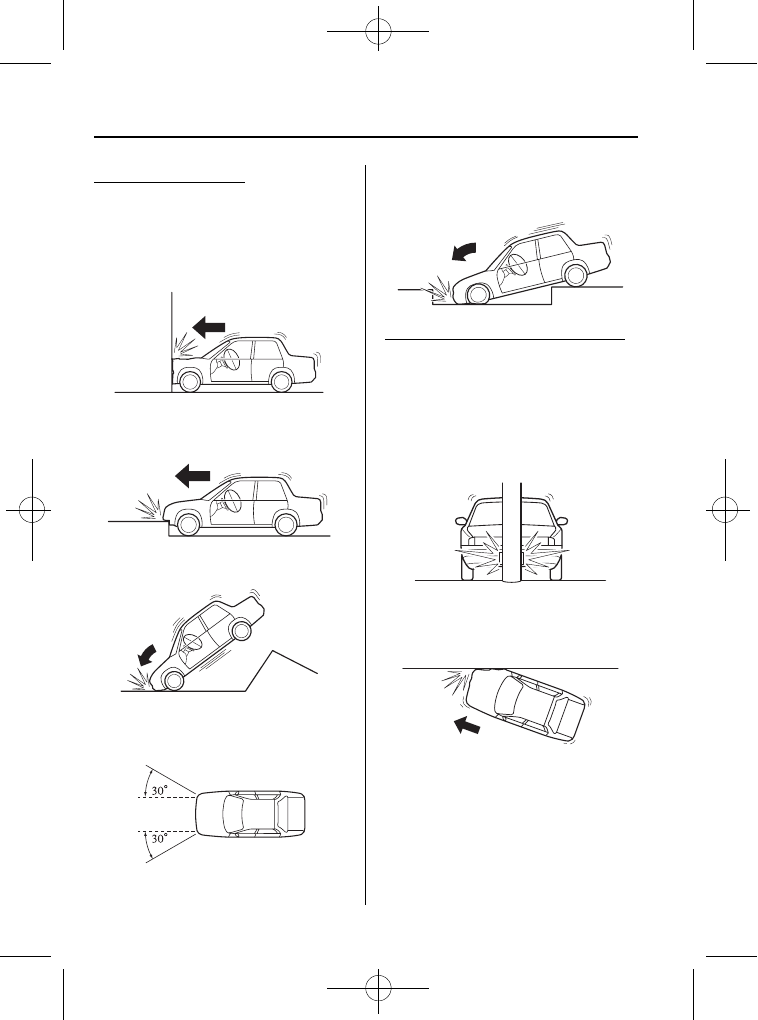

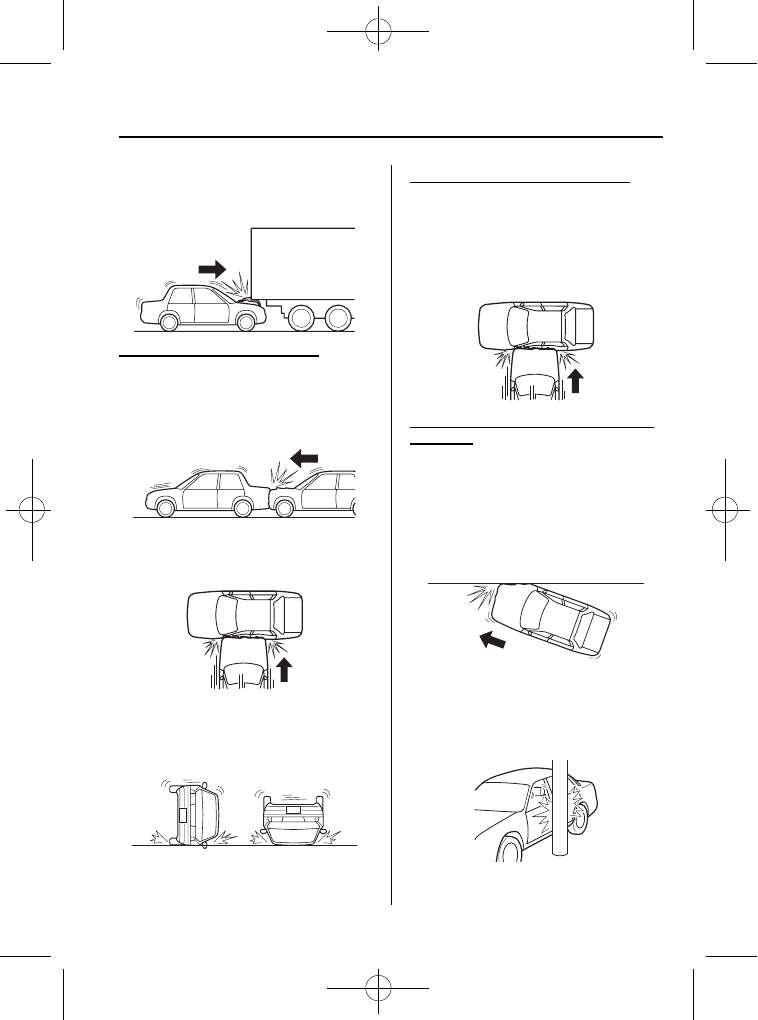

The front air bags will deploy only
in a frontal or frontal offset impact.

Driver seat slide position sensor

Your vehicle is equipped with a driver seat slide position sensor as a part of the
supplemental restraint system. The sensor is located under the driver seat. The sensor
determines whether the driver seat is fore or aft of a reference position and sends the seat
position to the diagnostic module (SAS unit). The sensor is also designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.

The air bag/front seat belt pretensioner system warning light flashes if the sensor has a
possible malfunction (page 2-56).

2-48

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page60
Tuesday, May 9 2006 10:43 AM

Black plate (61,1)

Front passenger seat weight sensors

Your vehicle is also equipped with the front passenger air bag deactivation indicator light
(page 2-33). These sensors are located under both of the front passenger seat rails. These
sensors determine the total seated weight on the front passenger seat. The sensors are also
designed to prevent the front passenger front and side air bags and seat belt pretensioner
system from deploying if the total seated weight is less than approximately 30 kg (66 lb).

To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when:

There is no passenger in the front passenger seat. (The front passenger air bag
deactivation indicator light does not illuminate.)

The total seated weight on the front passenger seat is less than approximately 30 kg (66
lb). (The front passenger air bag deactivation indicator light illuminates.)

This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the following table.

The air bag/front seat belt pretensioner system warning light flashes and the front
passenger air bag deactivation indicator light illuminates if the sensors have a possible
malfunction. If this happens, the front passenger front and side air bags and seat belt
pretensioner system will not deploy.

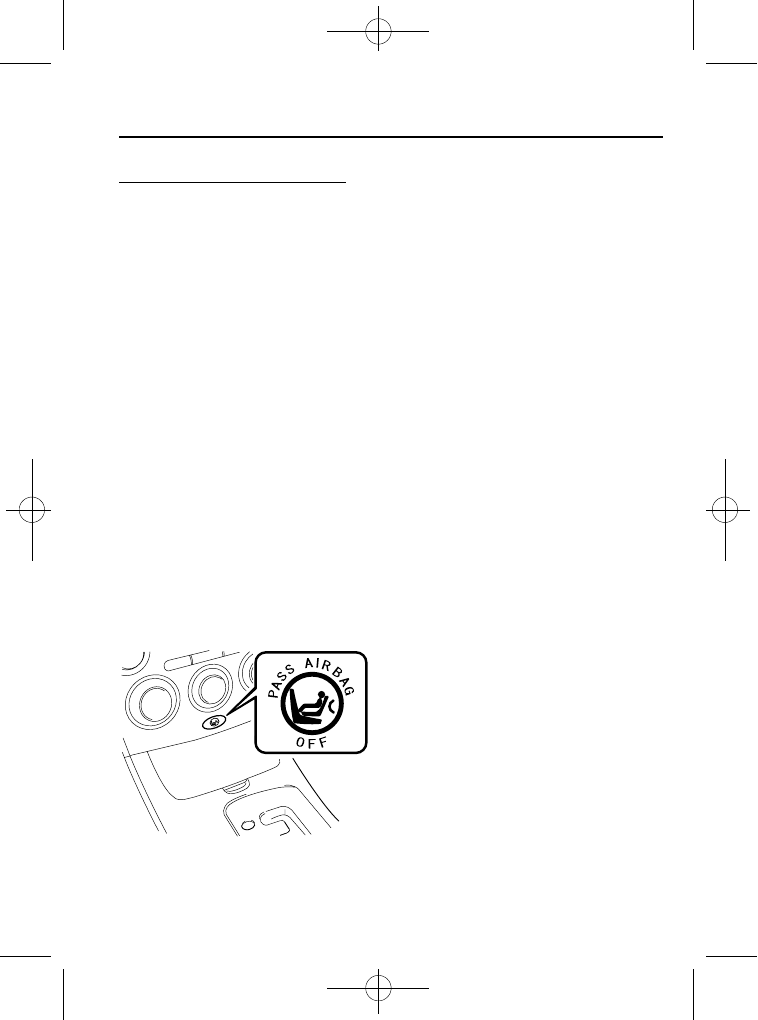

Front passenger air bag deactivation indicator light

This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.

If the front passenger weight sensors are working properly, the indicator light illuminates
when the ignition switch is turned to the ON position. After about 6 seconds it goes out.

SRS Air Bags

2-49

Mazdaspeed6_8V77-EA-06F_Edition1 Page61
Tuesday, May 9 2006 10:43 AM

Black plate (62,1)

The front passenger air bag deactivation indicator light illuminates or is off under the following conditions:

Total seated weight on the

front passenger seat

Front passenger air bag

deactivation indicator light

Front passenger front and

side air bags

Front passenger seat

belt pretensioner

system

Empty (Not occupied)

OFF

Less than approx. 30 kg
(66 lb)

OFF

Approx. 42 kg (93 lb) or
more

OFF

* If the front passenger seat belt is buckled, the front passenger air bag deactivation indicator light illuminates,

however this does not indicate a malfunction.

If the front passenger air bag deactivation indicator light does not illuminate when the
ignition switch is turned to the ON position and does not illuminate as indicated in the
above chart, do not allow a child to sit in the front passenger seat and consult an
Authorized Mazda Dealer as soon as possible. The system may not work properly in an
accident.

WARNING

Do not decrease the total seated weight on the front passenger seat:
When an adult or large child sits on the front passenger seat, decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) required for air bag deployment is dangerous. The front
passenger seat weight sensors will detect the reduced total seated weight condition and
the front passenger front and side air bags and seat belt pretensioner system will not
deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) could result in an air bag not deploying under the
following conditions, for example:

A rear passenger pushes up on the front passenger seat with the feet.

Luggage or other items placed under the front passenger seat or between the front
passenger seat and driver seat that push up the front passenger seat bottom.

The front passenger seat occupant sits in a manner that does not place the entire
weight of the occupant on the seat such as by sitting too close to the door, grasping
the assist grip or the rim of the moonroof and sitting with the seatback reclined too
far.

Any accessories which might decrease the total seated weight on the front
passenger seat are attached to the front passenger seat.

The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is close to 30 kg (66 lb)
and they will reactivate before the weight exceeds 42 kg (93 lb).

2-50

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page62
Tuesday, May 9 2006 10:43 AM

Black plate (63,1)

WARNING

Do not increase the total seated weight on the front passenger seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 30 kg (66 lb) is dangerous. The front passenger seat weight sensors will
detect the increased total seated weight, which could result in the unexpected
deployment of the front passenger front and side air bags and seat belt pretensioner
system in an accident and may cause serious injury. Increasing the total seated weight
on the front passenger seat beyond the total seated weight of approximately 30 kg (66
lb) could result in the front passenger front and side air bags and seat belt
pretensioner system deployment in an accident under the following conditions, for
example:

Luggage or other items are placed on the seat with the child in the child-restraint
system.

A rear passenger or luggage push or pull down on the front passenger seatback.

A rear passenger steps on the front passenger seat rails with the feet.

Luggage or other items are placed on the seatback or hung on the head restraint.

The seat is washed.

Liquids are spilled on the seat.

The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.

The front passenger seatback contacts the rear seat.

Luggage or other items are placed between the front passenger seat and driver seat.

Any accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.

The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is less than
approximately 30 kg (66 lb) and they will reactivate when the weight exceeds
approximately 42 kg (93 lb).

SRS Air Bags

2-51

Mazdaspeed6_8V77-EA-06F_Edition1 Page63
Tuesday, May 9 2006 10:43 AM

Black plate (64,1)

CAUTION

To assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:

Do not place sharp objects on the front seat bottoms or leave heavy luggage on
them.

Do not spill any liquids on the front seats or under the front seats.

To allow the sensors to function properly, always perform the following:

Adjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.

If you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-33).

NOTE

The system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.

The front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.

The front passenger air bag deactivation indicator light may illuminate for 10 seconds
if the total seated weight on the front passenger seat changes.

If the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, install the child-restraint
system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.

Driver and front passenger buckle switches

The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.

2-52

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page64
Tuesday, May 9 2006 10:43 AM

Black plate (65,1)

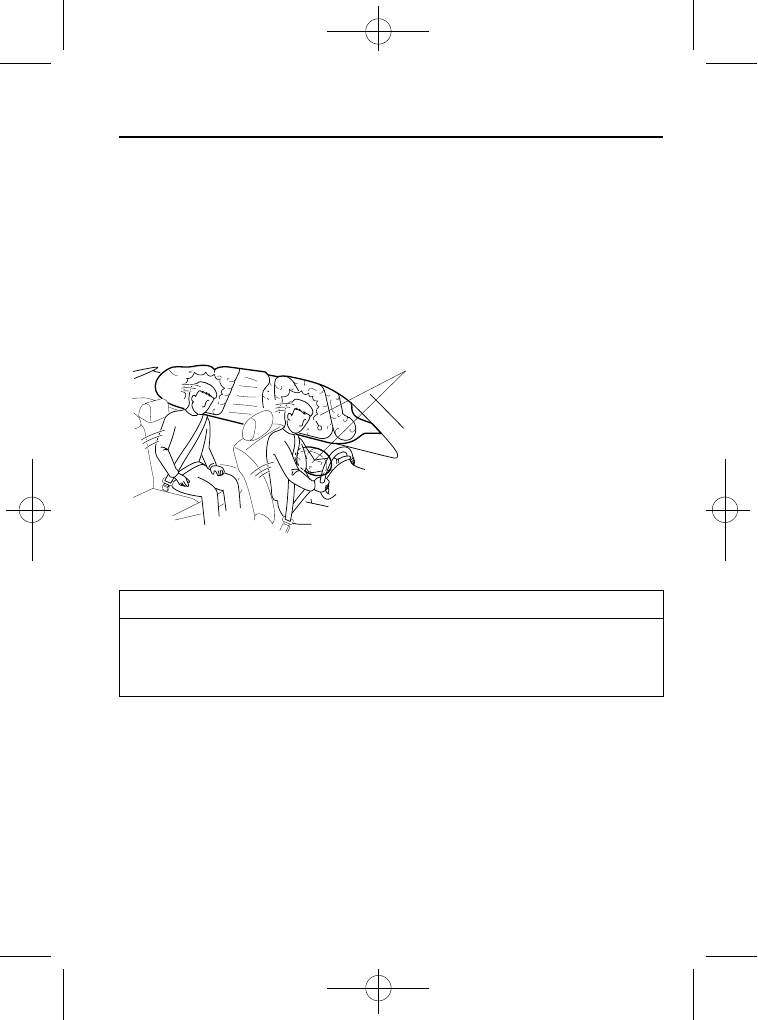

qHow the Side and Curtain Air Bags Work

When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the side and curtain air bags and after the inflation, the side
and curtain air bags quickly deflate. However, the side bag system for the front passenger
is designed to only deploy in accordance with the total seated weight on the front passenger
seat.
The side and curtain air bags will function only once. After that, the side and curtain air
bags will not work again and must be replaced. Only an Authorized Mazda Dealer can
replace the systems.

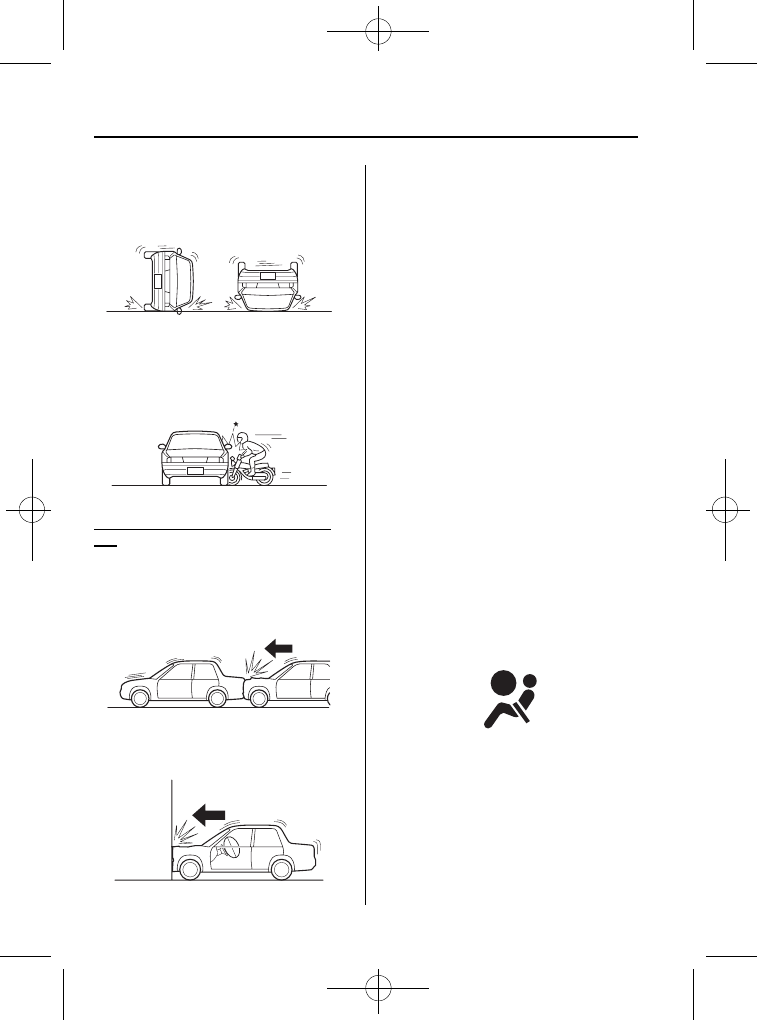

The side and curtain air bag will deploy only
on the side the vehicle receives the force of
the impact.

qAir Bag Activation/Deactivation

NOTE

If the front passenger seat weight sensors detect a total seated weight on the front
passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side
air bags and seat belt pretensioner may not deploy (page 2-48), but the curtain air bags
may deploy.

SRS Air Bags

2-53

Mazdaspeed6_8V77-EA-06F_Edition1 Page65
Tuesday, May 9 2006 10:43 AM

Black plate (66,1)

Front air bag activation

The front air bags will inflate if the
severity of impact is above the designed
threshold level.

Hitting a solid wall straight on at
greater than about 22 km/h (14 mph).

Hitting a curb, pavement edge or hard
object.

Landing hard or the vehicle falling.

Frontal impact within about a 30
degree range from head-on to the
vehicle.

Driving into a big hole or hitting the far
side of a hole.

Limitations to front air bag activation

Depending on the severity of impact, the
front air bags may not inflate in the
following cases:

Impacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.

Frontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.

2-54

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page66
Tuesday, May 9 2006 10:43 AM

Black plate (67,1)

Rear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.

Non-activation of front air bags

Front air bags will not normally inflate in
the following cases:

Collision from the rear.

Impact to the side, but it may deploy
the side and curtain air bags.

Vehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.

Side and curtain air bag activation

The severity of impact above the designed
threshold level to one side of the vehicle
(driver or passenger side areas) will cause
the side and curtain air bags on that side
to inflate, but it will not normally deploy
the front air bags.

Limitations to side and curtain air bag
activation

Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:

Frontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.

Side impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.

SRS Air Bags

2-55

Mazdaspeed6_8V77-EA-06F_Edition1 Page67
Tuesday, May 9 2006 10:43 AM

Black plate (68,1)

Vehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.

Side impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.

Non-activation of side and curtain air
bag

The side and curtain air bags will not
normally inflate in the following cases:

Collision from the rear.

Collision from the front, but it may
deploy the front air bags.

qConstant Monitoring

The following components of the air bag
systems are monitored by a diagnostic
system:

SAS unit

Front air bag sensor

Air bag modules

Side crash sensors

Front seat belt pretensioners

Related wiring

Driver seat slide position sensor

Front passenger seat weight sensors

Driver and front passenger seat belt
buckle switches

The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.

qAir Bag/Front Seat Belt

Pretensioner System Warning Light

If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.

2-56

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page68
Tuesday, May 9 2006 10:43 AM

Black plate (69,1)

A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If either of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.

WARNING

Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.

qMaintenance

The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:

The air bag system warning light
flashes.

The air bag system warning light
remains illuminated.

The air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.

The air bags have deployed.

Front passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to

“Front passenger

seat weight sensors

” (page 2-48).

WARNING

Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that they
will work in any subsequent accident.
Driving with an expended or damaged
air bag or pretensioner unit will not
afford you the necessary protection in
the event of any subsequent accident
which could result in serious injury or
death.

Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.

SRS Air Bags

2-57

Mazdaspeed6_8V77-EA-06F_Edition1 Page69
Tuesday, May 9 2006 10:43 AM

Black plate (70,1)

WARNING

Dispose of the air bag properly:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.

NOTE

If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to

“Customer Assistance (U.S.A.)”

(page 9-2).

2-58

SRS Air Bags

Mazdaspeed6_8V77-EA-06F_Edition1 Page70
Tuesday, May 9 2006 10:43 AM

Black plate (71,1)

Knowing Your Mazda

Explanation of basic operations and controls; opening/closing and adjustment
of various parts.

Advanced Keyless Entry and Start System ................................ 3-2

Advanced Keys

...................................................................... 3-2

Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-13
Warning and Beep Sounds ...................................................... 3-16
Setting Change (Function Customization) .............................. 3-18
When Warning Indicator/Beep is Activated ............................ 3-19

Doors and Locks ......................................................................... 3-20

............................................................................. 3-43

Security System ........................................................................... 3-46

Immobilizer System (with Advanced Key) ............................. 3-46
Immobilizer System (without Advanced Key) ........................ 3-49
Theft-Deterrent System ........................................................... 3-52

Steering Wheel and Mirrors ...................................................... 3-54

Steering Wheel ........................................................................ 3-54
Mirrors .................................................................................... 3-54

3-1

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page71
Tuesday, May 9 2006 10:43 AM

Black plate (72,1)

Advanced Keys

The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).

Locking/unlocking the doors and the trunk lid without operating the key.

Starting the engine without operating the key.

The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-13).

The following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Panic button):

Locking/unlocking the doors and the trunk lid.

Opening the power windows.

Turning on the alarm.

Locking/unlocking the doors and the trunk lid, or starting the engine using the auxiliary
key.

WARNING

Do not leave the keys in your vehicle with children and keep them in a place where
your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move.

Radio waves from the advanced key may affect medical equipment such as
pacemakers:
Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the advanced
key will affect the equipment.

NOTE

The driver must carry the advanced key to ensure the system functions properly.

Refer to Immobilizer System (page 3-46) for information regarding keys and engine
starting.

Refer to Theft-Deterrent System (page 3-52) for information regarding keys and the
prevention of vehicle and vehicle contents theft.

3-2

Knowing Your Mazda

Some models.

Advanced Keyless Entry and Start System

Mazdaspeed6_8V77-EA-06F_Edition1 Page72
Tuesday, May 9 2006 10:43 AM

Content .. 2 3 4 5 ..
