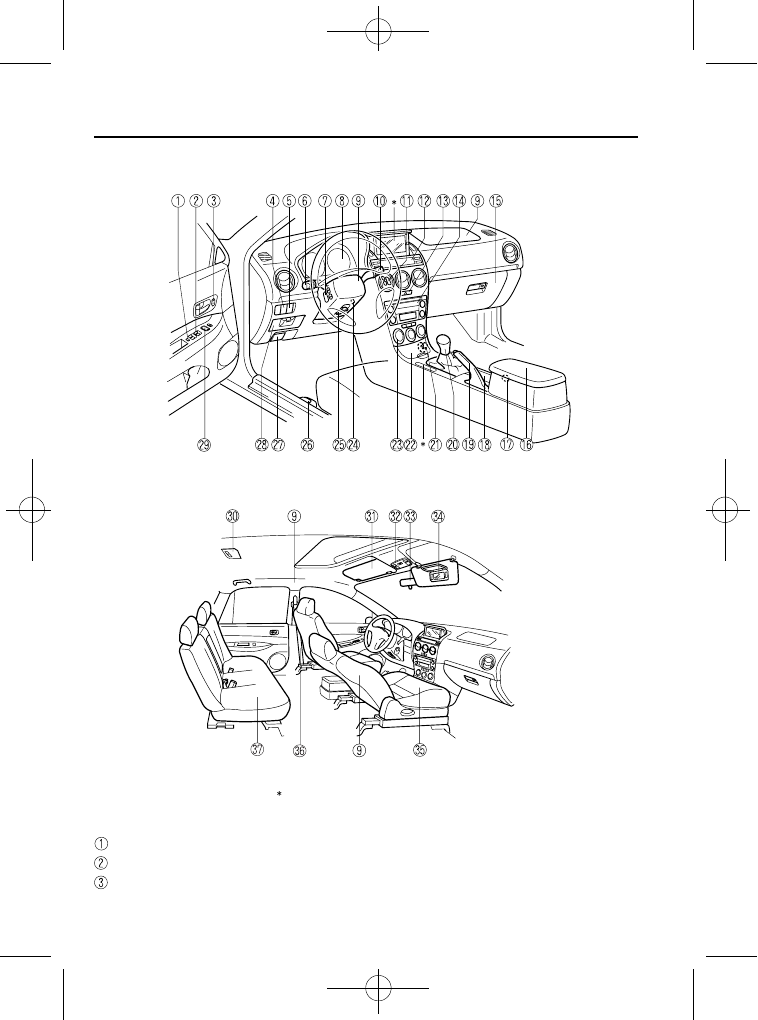

Your Vehicle at a Glance

Dashboard and Interior Overview

Mazdaspeed6_8V77-EA-06F_Edition1 Page8
Tuesday, May 9 2006 10:43 AM

Black plate (9,1)

Your Vehicle at a Glance

Dashboard and Interior Overview

1-3

Mazdaspeed6_8V77-EA-06F_Edition1 Page9
Tuesday, May 9 2006 10:43 AM

Black plate (10,1)

The equipment and installation position varies by vehicle.

Refer to Navigation System at the end of the manual (if equipped).

1-4

Your Vehicle at a Glance

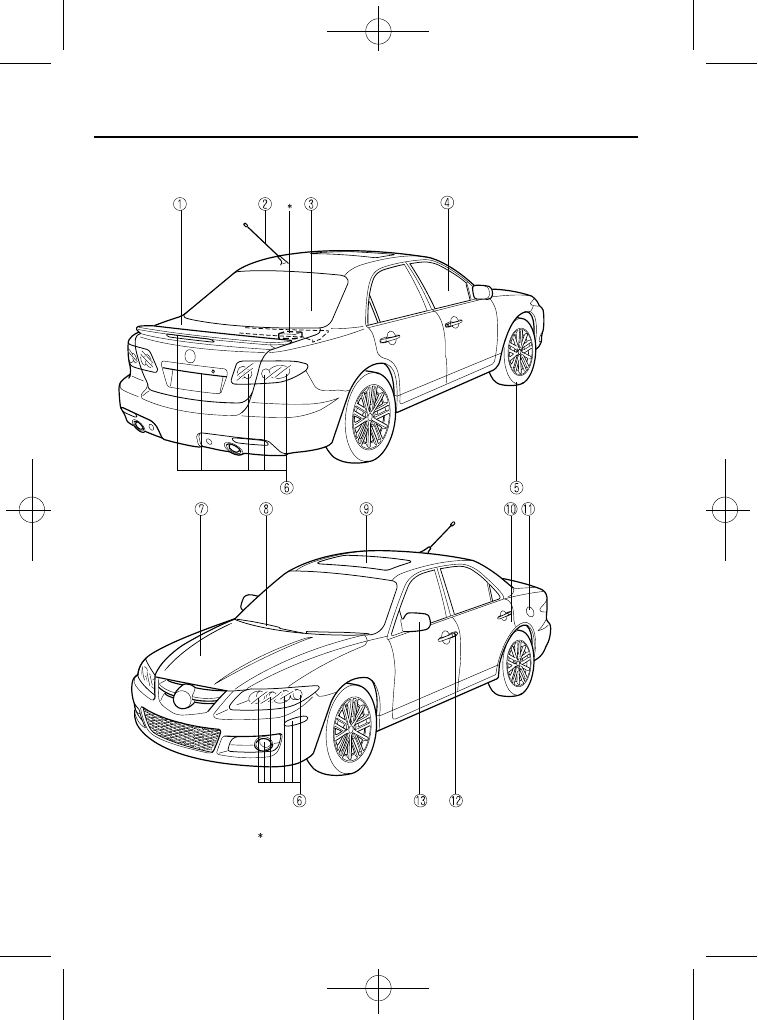

Exterior Overview

Mazdaspeed6_8V77-EA-06F_Edition1 Page10
Tuesday, May 9 2006 10:43 AM

Black plate (11,1)

Your Vehicle at a Glance

Exterior Overview

1-5

Mazdaspeed6_8V77-EA-06F_Edition1 Page11
Tuesday, May 9 2006 10:43 AM

Black plate (13,1)

Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.

Seats ............................................................................................... 2-2

Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-5
Rear Seat ................................................................................... 2-9

Seat Belt Systems ......................................................................... 2-11

Seat Belt Precautions ............................................................... 2-11
Seat Belt (Except Center-Rear Position) ................................. 2-14
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-16
Center-Rear Position Seat Belt ................................................ 2-18
Seat Belt Extender ................................................................... 2-21
Seat Belt Warning Light/Beep ................................................ 2-22

Child Restraint ............................................................................ 2-24

Child Restraint Precautions ..................................................... 2-24
Installing Child-Restraint Systems .......................................... 2-28
LATCH Child-Restraint Systems ............................................ 2-35

SRS Air Bags ............................................................................... 2-40

Supplemental Restraint Systems (SRS) Precautions ............... 2-40
Supplemental Restraint System Components ......................... 2-45
How the Air Bags Work .......................................................... 2-48

2-1

Mazdaspeed6_8V77-EA-06F_Edition1 Page13
Tuesday, May 9 2006 10:43 AM

Black plate (14,1)

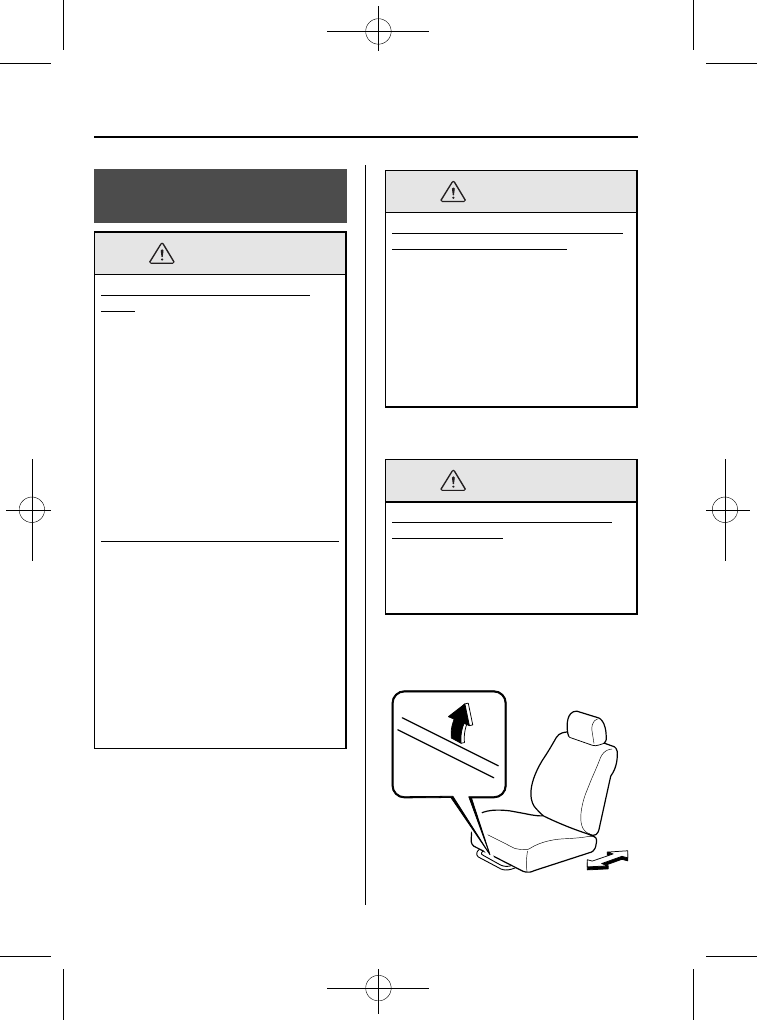

Front Seats (Manually
Operated Seats)

WARNING

Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.

Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.

WARNING

Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.

qSeat Slide

WARNING

Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.

To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.

2-2

Seats

Mazdaspeed6_8V77-EA-06F_Edition1 Page14
Tuesday, May 9 2006 10:43 AM

Black plate (15,1)

Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

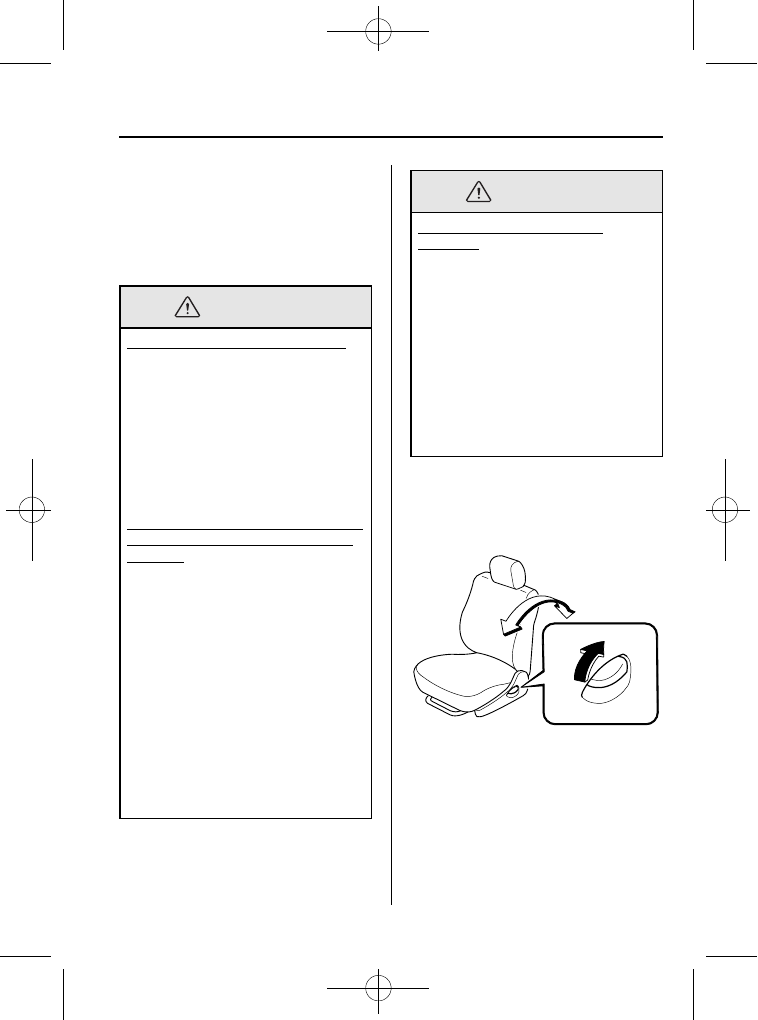

qSeat Recline

WARNING

Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.

Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.

WARNING

Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.

To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.

Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.

Seats

2-3

Mazdaspeed6_8V77-EA-06F_Edition1 Page15
Tuesday, May 9 2006 10:43 AM

Black plate (16,1)

CAUTION

When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.

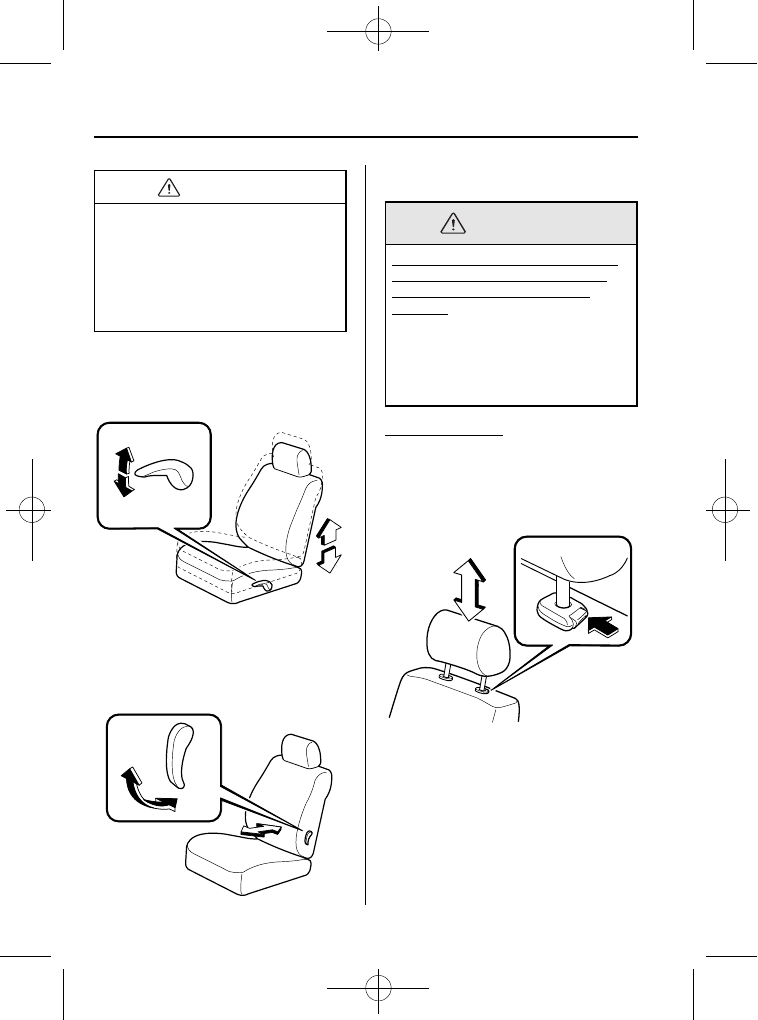

qHeight Adjustment (Driver's Seat)

By moving the seat lever up or down, the
seat bottom height can be adjusted.

Down

qLumbar Support Adjustment

(Driver's Seat)

To adjust the lumbar support, pull the
lever forward.

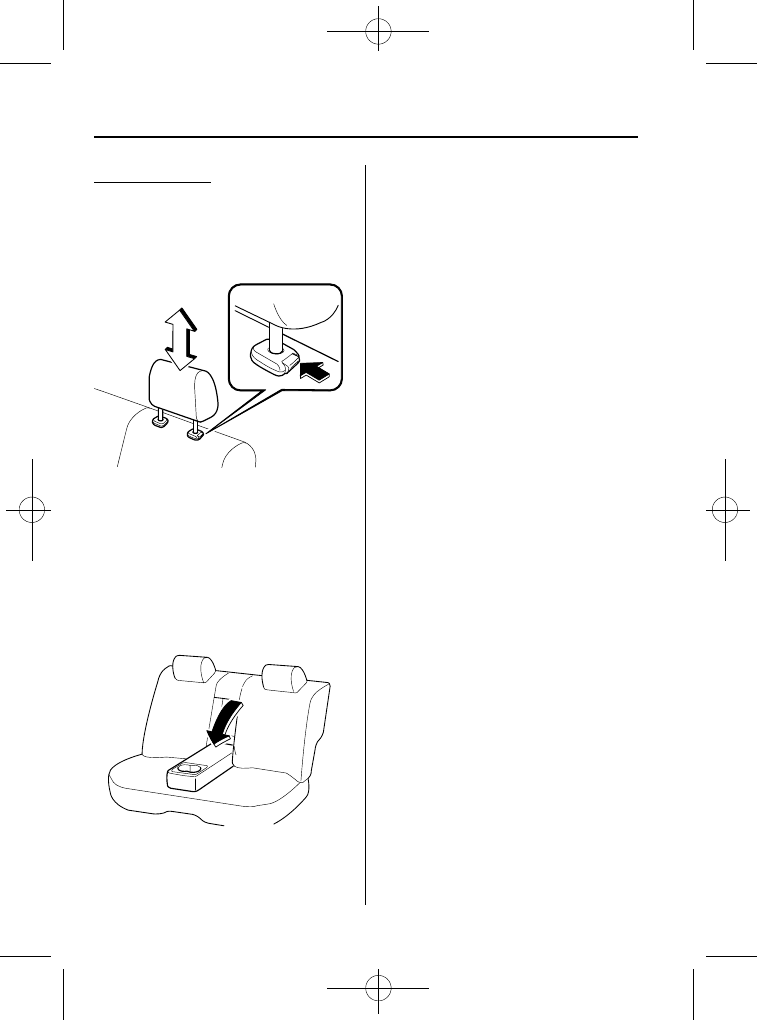

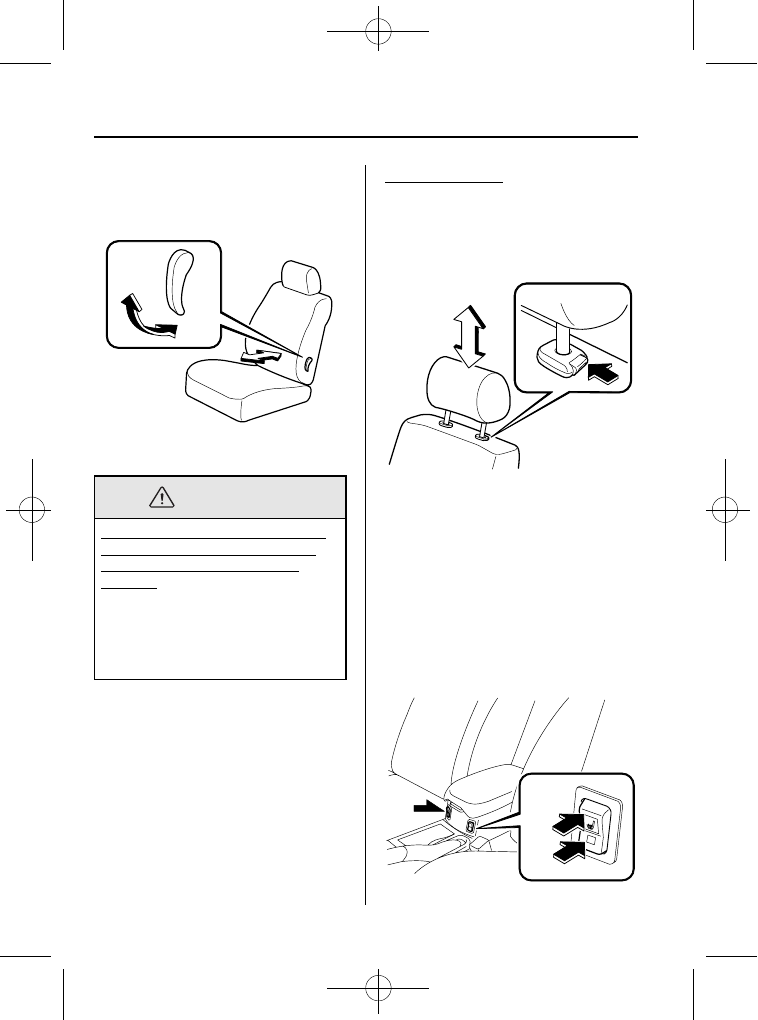

qHead Restraint

WARNING

Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.

2-4

Seats

Mazdaspeed6_8V77-EA-06F_Edition1 Page16
Tuesday, May 9 2006 10:43 AM

Black plate (17,1)

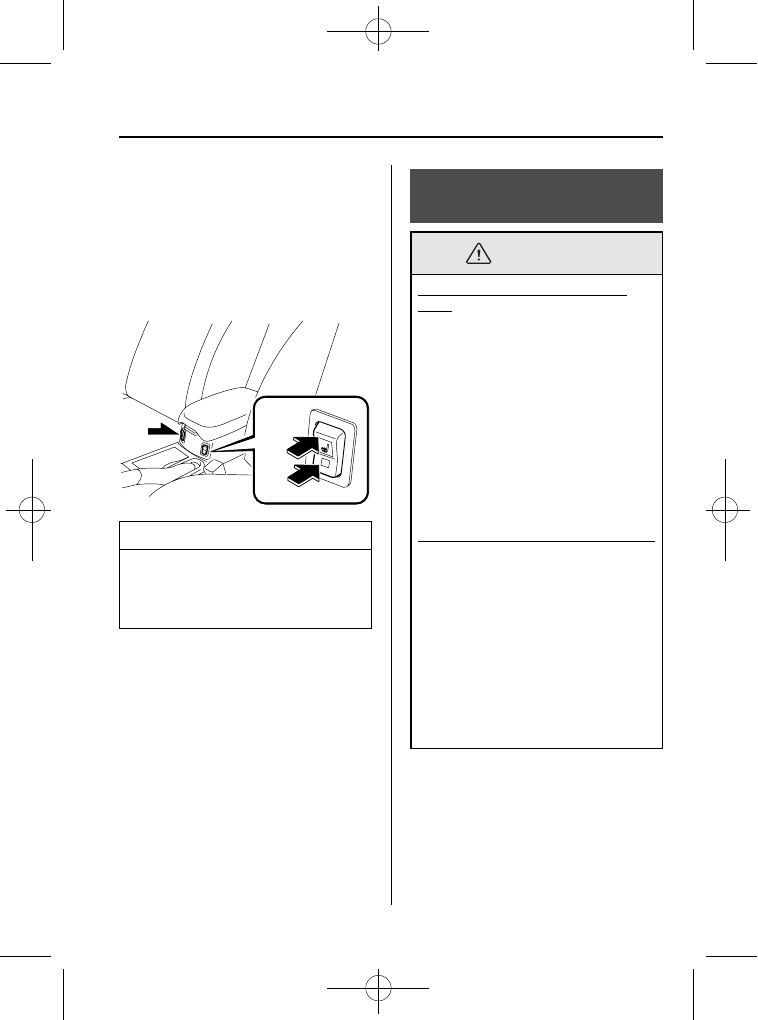

qSeat Warmer

The front seats are electrically heated. The
ignition switch must be in the ON
position.

Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.

OFF

NOTE

The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.

Front Seats (Electrically
Operated Seats)

WARNING

Seats

2-5

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page17
Tuesday, May 9 2006 10:43 AM

Black plate (18,1)

CAUTION

The seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.

To prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.

Don't use the switch to make more
than one adjustment at a time.

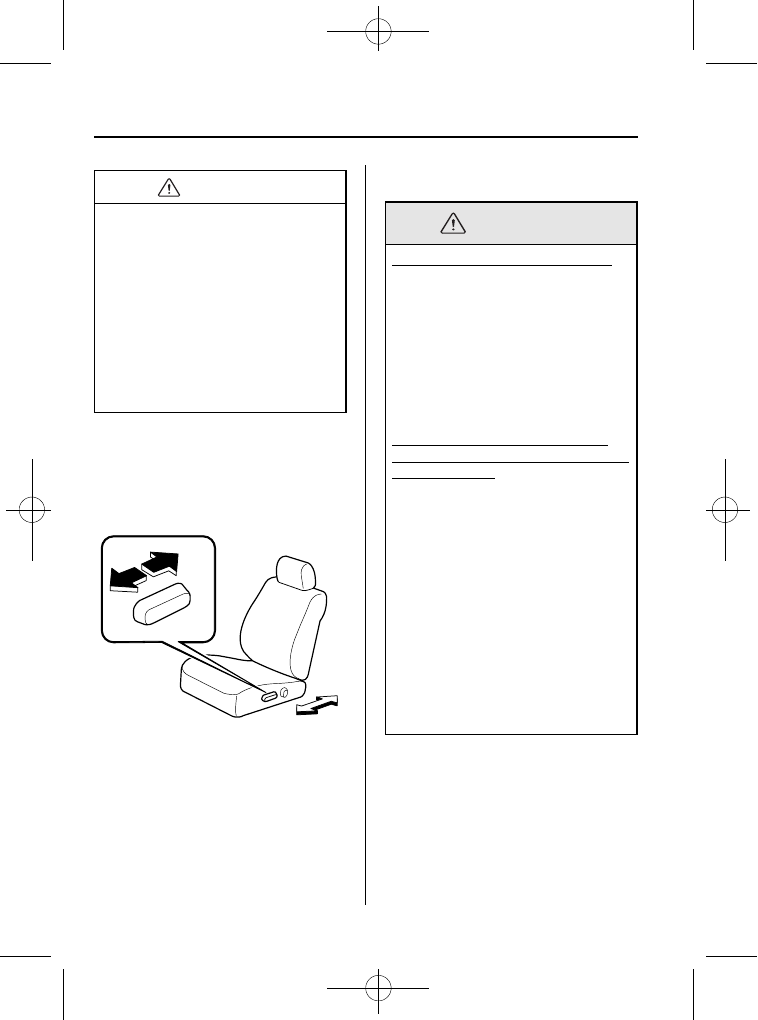

qSeat Slide

To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.

qSeat Recline

WARNING

Always sit in a front passenger seat
properly with the seatback upright and
feet on the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.

2-6

Seats

Mazdaspeed6_8V77-EA-06F_Edition1 Page18
Tuesday, May 9 2006 10:43 AM

Black plate (19,1)

Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.

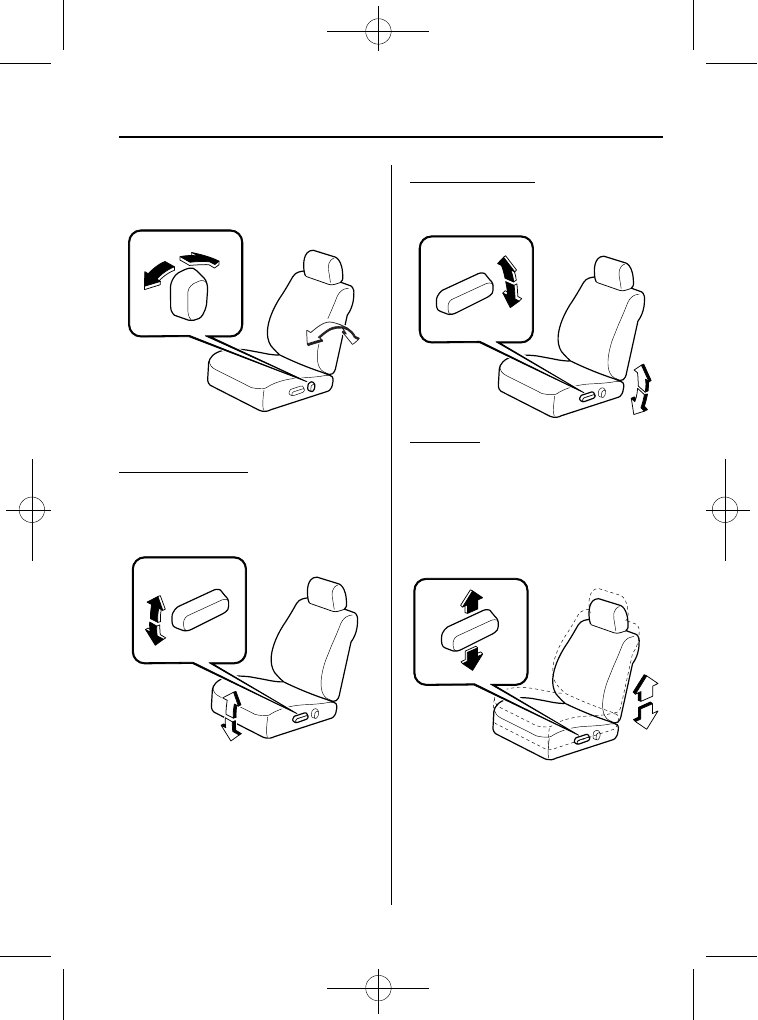

qHeight Adjustment

Front of seat bottom

To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.

Rear of seat bottom

Raise or lower the back of the switch to
adjust the rear height of the seat bottom.

Whole seat

Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.

Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.

Seats

2-7

Mazdaspeed6_8V77-EA-06F_Edition1 Page19
Tuesday, May 9 2006 10:43 AM

Black plate (20,1)

qLumbar Support Adjustment

To adjust the lumbar support, pull the
lever forward.

qHead Restraint

WARNING

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.

qSeat Warmer

The front seats are electrically heated. The
ignition switch must be in the ON
position.

Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.

OFF

2-8

Some models.

Seats

Mazdaspeed6_8V77-EA-06F_Edition1 Page20
Tuesday, May 9 2006 10:43 AM

Black plate (21,1)

NOTE

The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.

Rear Seat

WARNING

Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.

qHead Restraint

WARNING

Seats

2-9

Mazdaspeed6_8V77-EA-06F_Edition1 Page21
Tuesday, May 9 2006 10:43 AM

Black plate (22,1)

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.

qArmrest

The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright, pull on the
small fabric pull-tab to lower the armrest.

2-10

Seats

Mazdaspeed6_8V77-EA-06F_Edition1 Page22
Tuesday, May 9 2006 10:43 AM

Black plate (23,1)

Seat Belt Precautions

Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.

All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.

The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.

However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.

Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.

Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.

Seat Belt Systems

2-11

Mazdaspeed6_8V77-EA-06F_Edition1 Page23
Tuesday, May 9 2006 10:43 AM

Black plate (24,1)

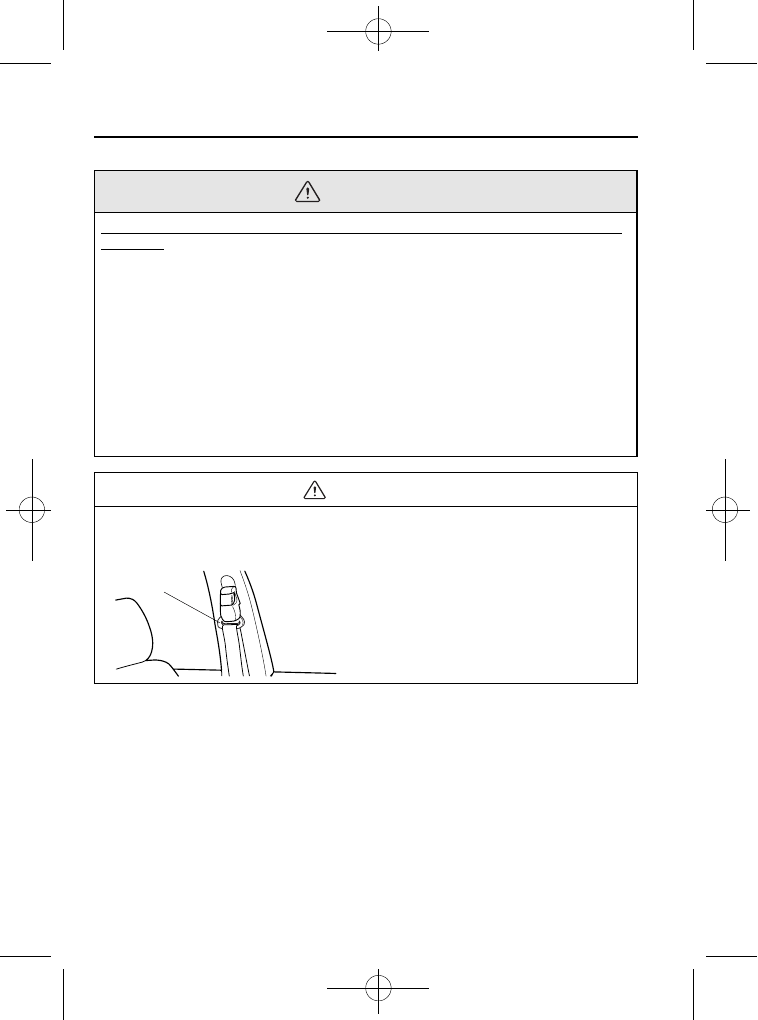

WARNING

Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. While it is safer to use a crash-used seat belt that was
used in an accident than no seat belt at all, using a seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. Like the air
bags, the seat belt pretensioners will only function once. After they are expended, they
will not function again and must be replaced immediately. If the seat belt
pretensioners are not replaced, the risk of injury in a collision will increase. Always
have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags
after any collision. Expended seat belt pretensioners and air bags must be replaced
after any collision which caused them to deploy. Additionally, the load limiter will only
limit loads on the chest once in a collision and this is another reason to have the front
seat belts inspected.

CAUTION

Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to

“Cleaning the Lap/Shoulder

Belt Webbing

” (page 8-44).

Ring

2-12

Seat Belt Systems

Mazdaspeed6_8V77-EA-06F_Edition1 Page24
Tuesday, May 9 2006 10:43 AM

Content .. 1 2 ..
