Mazda Mazdaspeed 3 (2013 year). Instruction

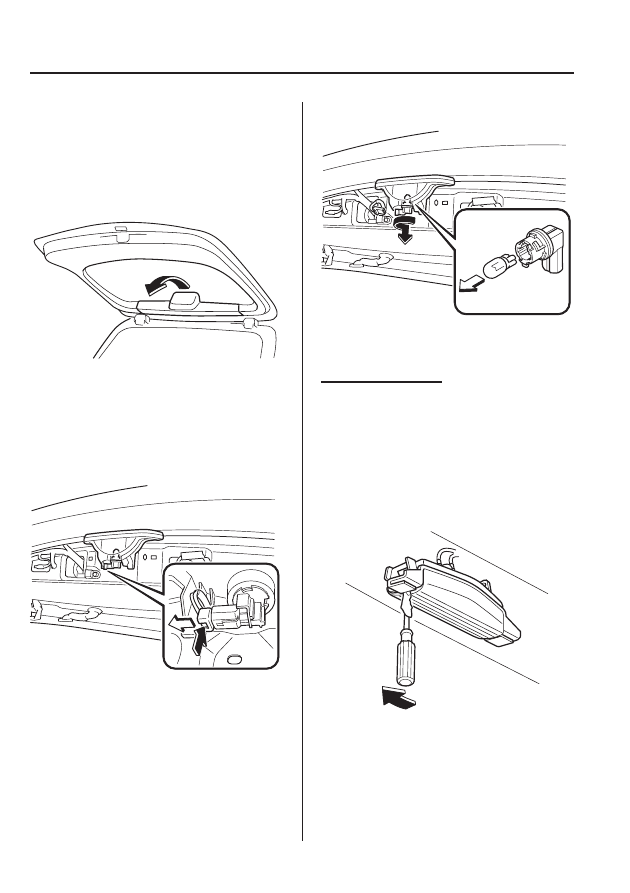

Bulb type

1. Make sure the ignition is switched off

and the headlight switch is off.

2. Remove the liftgate upper trim.

3. Disconnect the electrical connector

from the bulb by pressing the tab on
the connector with your finger and
pulling the connector sideward to the
left.

4. Turn the socket and bulb assembly

counterclockwise and remove it.

5. Disconnect the bulb from the socket.

6. Install the new bulb in the reverse order

of the removal procedure.

License plate lights

1. Make sure the ignition is switched off

and the headlight switch is off.

2. Wrap a flathead screwdriver with a soft

cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.

8-56

Maintenance and Care

Owner Maintenance

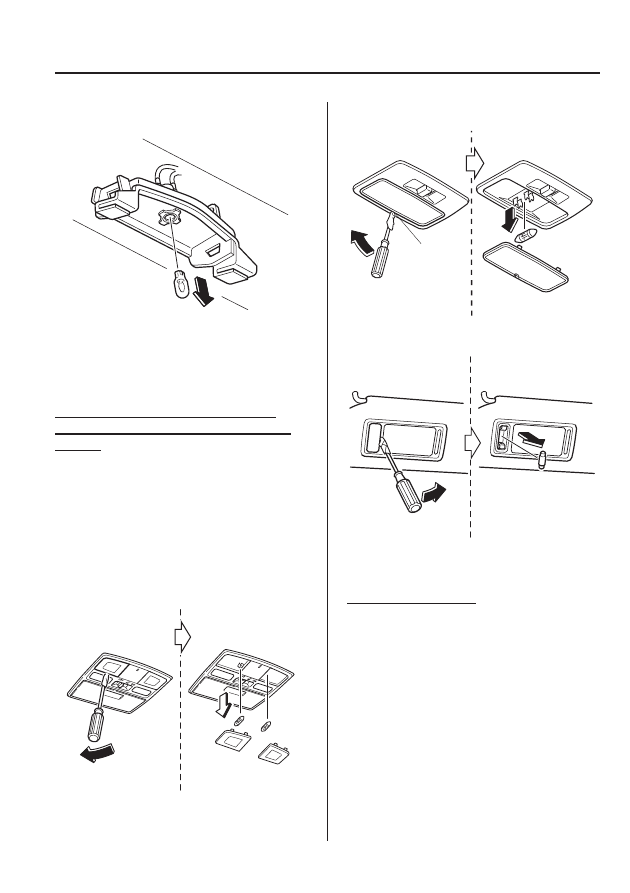

3. Disconnect the bulb by pulling it out.

4. Install the new bulb in the reverse order

of the removal procedure.

qReplacing Interior Light Bulbs

Overhead light (Front)/Map lights,
Overhead light (Rear), Vanity mirror
lights

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.

Overhead light (Front)/Map lights

Overhead light (Rear)

Edge

Vanity mirror lights

3. Install the new bulb in the reverse order

of the removal procedure.

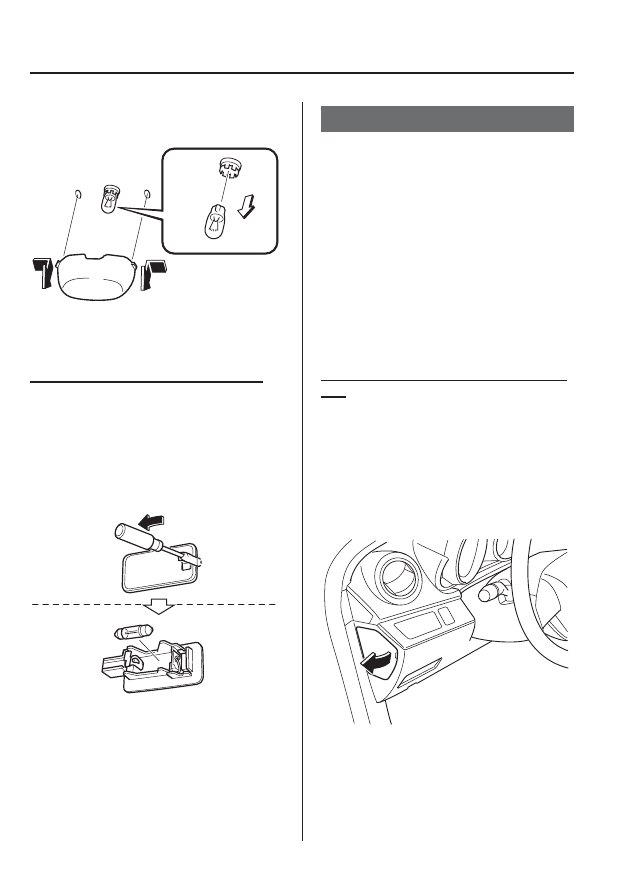

Trunk light (4 Door)

1. Press both sides of the lens cap to

remove it.

Maintenance and Care

Owner Maintenance

8-57

Some models.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of the removal procedure.

Luggage compartment light (5 Door)

1. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.

2. Disconnect the bulb by pulling it out.

3. Install the new bulb in the reverse order

of the removal procedure.

Fuses

Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

qFuse Replacement

Replacing the fuses on the vehicle's left
side

If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.

1. Make sure the ignition is switched off,

and other switches are off.

2. Remove the cover.

8-58

Maintenance and Care

Owner Maintenance

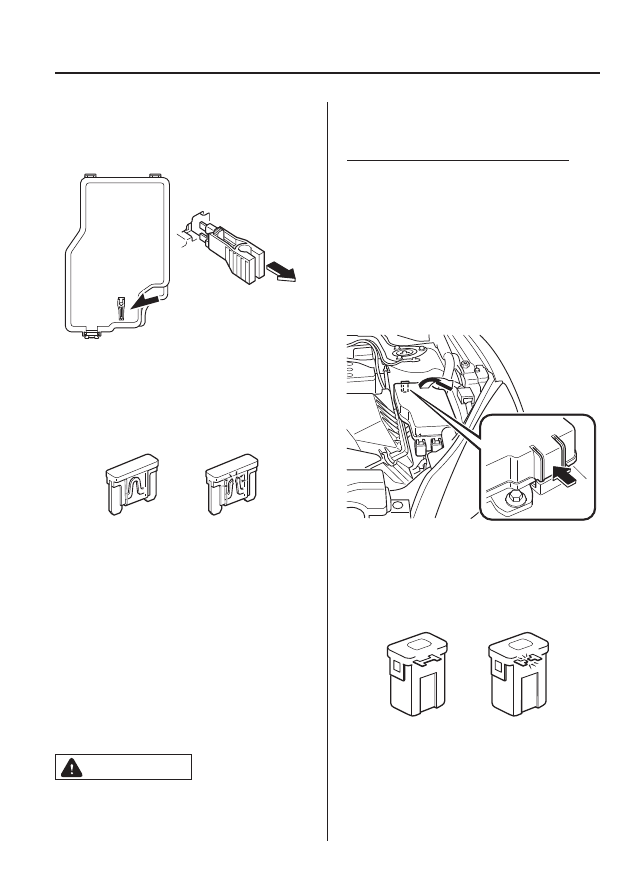

3. Pull the fuse straight out with the fuse

puller provided on the inside of the
engine compartment fuse block cover.

4. Inspect the fuse and replace it if it's

blown.

Normal

Blown

5. Insert a new fuse of the same amperage

rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.

CAUTION

Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.

6. Reinstall the cover and make sure that

it is securely installed.

Replacing the fuses under the hood

If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:

1. Make sure the ignition is switched off,

and other switches are off.

2. Remove the fuse block cover.

3. If any fuse but the MAIN fuse is

blown, replace it with a new one of the
same amperage rating.

Normal

Blown

Maintenance and Care

Owner Maintenance

8-59

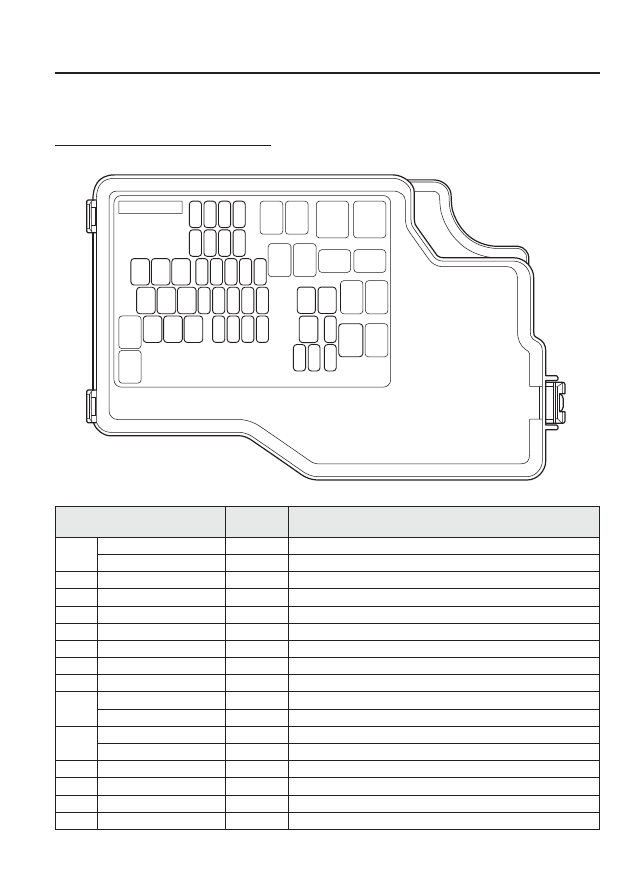

qFuse Panel Description

Fuse block (Engine compartment)

32 33 34 35

36 37 38 39

6 7 8

14 15 16

23 24 25

29 30 31

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

DCDC

―

FAN 2

40 A

Cooling fan

ENG MAIN

40 A

Engine control system

BTN 1

50 A

For protection of various circuits

A/C MAG

7.5 A

Air conditioner

H/L HI

20 A

Headlight high beam

FOG

15 A

Fog lights

H/L WASH

―

SUNROOF

15 A

Moonroof

HEATER

40 A

Air conditioner

F.DEF RH

―

EVVT

20 A

Engine control system

F.DEF LH

―

FAN 1

40 A

Cooling fan

ROOM

15 A

Overhead lights

TCM

15 A

Transaxle control system

DSC

20 A

Dynamic Stability Control system

Maintenance and Care

Owner Maintenance

8-61

Some models.

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

BTN 2

7.5 A

For protection of various circuits

AT PUMP

―

PTC

―

HEATER

40 A

Air conditioner

INJ

30 A

Engine control system

R.DEF

30 A

Rear window defroster

IGKEY 2

40 A

For protection of various circuits

IGKEY 1

40 A

For protection of various circuits

HORN

15 A

Horn

STOP

15 A

Brake lights

10A

Engine control system

FUEL PUMP

25 A

Fuel system

ABS

40 A

ABS

SEAT WARM

20 A

Seat warmer

EHPAS

80 A

Power assist steering

―

ABS IG

7.5 A

ABS

SWS

7.5 A

Air bag

H/L LO RH

15 A

Headlight low beam (RH)

H/L LO LH

15 A

Headlight low beam (LH)

ILLUM

7.5 A

Instrument panel illumination

TAIL

15 A

Taillights, Parking lights, License plate lights

ENG INJ

15 A

Engine control system

ENG BAR

15 A

Engine control system

ENG INJ2

15 A

Engine control system

ENG BAR 2

20 A

Engine control system

EHPAS IG

―

ETV

15 A

Engine control system

*1 SKYACTIV-G 2.0
*2 MZR 2.0, MZR 2.3 DISI Turbo and MZR 2.5

8-62

Maintenance and Care

Some models.

Owner Maintenance

Fuse block (Left side)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

BOSE

―

P SEAT

30 A

Power seat

P.WIND

30 A

Power window

D.LOCK

25 A

Power door lock

―

ESCL

―

SAS

15 A

Air bag

―

HAZARD

15 A

Hazard warning flashers, Turn signal lights

METER

15 A

Instrument cluster

OUTLET

15 A

Accessory sockets

R.WIPER

15 A

Rear window wiper and washer

CIGAR

15 A

Accessory sockets

ROOM2

―

HEATER

10 A

Air conditioner

MIRROR

10 A

Power control mirror

ST SIG

10 A

Engine control system

―

Maintenance and Care

Owner Maintenance

8-63

Some models.

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

AUDIO

7.5 A

Audio system

M.DEF

7.5 A

Mirror defroster

AFS

7.5 A

Adaptive Front-Lighting System

―

ENG

20 A

Engine control system

―

METER2

―

AUDIO2

―

P.WIND

25 A

Power window

―

F.WIPER

25 A

Front window wiper and washer

BOSE 2

25 A

Bose

Sound System-equipped model

―

8-64

Maintenance and Care

Some models.

Owner Maintenance

How to Minimize
Environmental Paint Damage

The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent
them.

qEtching Caused by Acid Rain or

Industrial Fallout

Occurrence

Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.

qDamage Caused by Bird

Dropping, Insects, or Tree Sap

Occurrence

Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.

Prevention

It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.

Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.

Maintenance and Care

Appearance Care

8-65

qWater Marks

Occurrence

Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.

qPaint Chipping

Occurrence

Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.

How to avoid paint chipping

Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.

NOTE

The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).

In low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.

Chipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.

8-66

Maintenance and Care

Appearance Care

Exterior Care

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.

qMaintaining the Finish

Washing

CAUTION

Ø When the wiper lever is in the

AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:

If the windshield above the rain
sensor is touched or wiped with
a cloth.

If the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.

Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely

―this is

particularly important when
clearing ice and snow

―when it is

most likely that the engine is left
running.

Ø Do not spray water in the engine

compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.

To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface
when:

The vehicle is washed without first
rinsing off dirt and other foreign
matter.

The vehicle is washed with a rough,
dry, or dirty cloth.

The vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.

Cleansers or wax containing abrasives
are used.

NOTE

Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.

Scratches are more noticeable on vehicles
with darker paint finishes.

To minimize scratches on the vehicle's
paint finish:

Rinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.

Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.

Rub gently when washing or drying the
vehicle.

Take your vehicle only to a car wash
that keeps its brushes well maintained.

Do not use abrasive cleansers or wax
that contain abrasives.

Maintenance and Care

Appearance Care

8-67

CAUTION

Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.

Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.

WARNING

Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:

Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.

When using a high water pressure car
wash

High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.

Waxing

Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives.

Waxes containing abrasive will remove
paint and could damage bright metal
parts.

8-68

Maintenance and Care

Appearance Care

2. Use a good grade of natural wax for

metallic, mica, and solid colors.

3. When waxing, coat evenly with the

sponge supplied or a soft cloth.

4. Wipe off the wax with a soft cloth.

NOTE

A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.

qRepairing Damage to the Finish

Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.

CAUTION

If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.

qBright-Metal Maintenance

Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.

To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.

During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.

CAUTION

Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.

qUnderbody Maintenance

Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.

Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.

The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.

Maintenance and Care

Appearance Care

8-69

WARNING

Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:

qAluminum Wheel Maintenance

A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

CAUTION

Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.

NOTE

Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.

Always use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.

Avoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.

If your aluminum wheels lose luster, wax
the wheels.

(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-35.

qPlastic Part Maintenance

When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.

If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.

8-70

Maintenance and Care

Some models.

Appearance Care

High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.

Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.

In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.

Interior Care

WARNING

Do not spray water in the cabin:

Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.

qDashboard Precautions

Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.

CAUTION

Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.

Front passenger's side instrument panel
top (soft pad)

Extremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean
towel dampened in a mild detergent to
remove soiling.

If the soft pad surface is rubbed
harshly, it could result in the surface
being damaged leaving white scratch
marks.

Maintenance and Care

Appearance Care

8-71

Mazda Mazdaspeed 3 (2013 year). Instruction - part 33
