Mazda B2300 Truck (2009 year). Instruction

Radio Display

Condition

Action Required

NO SIGNAL

Loss of signal from

the SIRIUS satellite

or SIRIUS tower to

the vehicle

antenna.

You are in a location that is

blocking the SIRIUS signal

(i.e., tunnel, under an

overpass, dense foliage, etc).

The system is working

properly. When you move

into an open area, the signal

should return.

UPDATING

Update of channel

programming in

progress.

No action required. The

process may take up to three

minutes.

CALL SIRIUS
1–888–539–7474

Satellite service has

been deactivated

by SIRIUS Satellite

Radio.

Call SIRIUS at

1–888–539–7474 to

re-activate or resolve

subscription issues.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

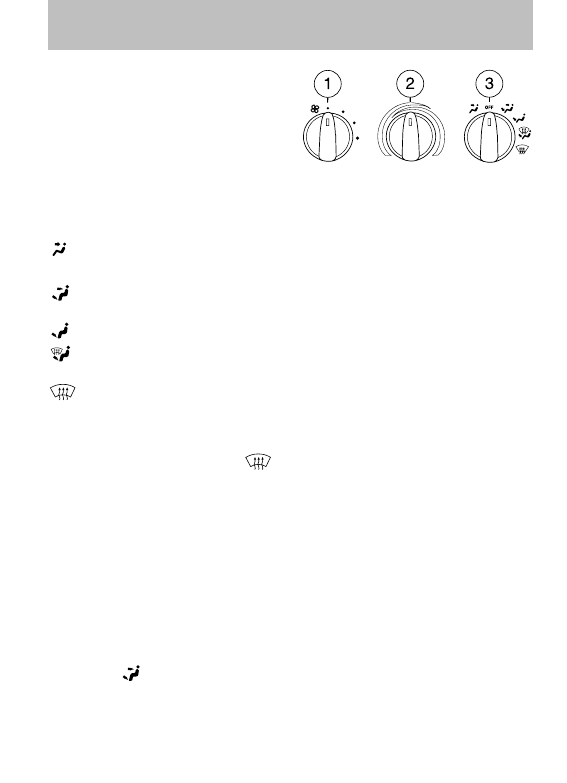

HEATER ONLY SYSTEM
(IF EQUIPPED)

1. Fan speed adjustment:

Controls the volume of air
circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the
airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

Distributes outside air through the instrument panel vents.

OFF:

Outside air is shut out and the fan will not operate.

Distributes outside air through the instrument panel vents and the

floor vents.

Distributes outside air through the floor vents.

Distributes outside air through the windshield defroster vents and

floor vents.

Distributes outside air through the windshield defroster vents.

Operating tips
• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

position.

• To reduce humidity build up inside the vehicle during cold or warm

weather, do not drive with the air flow selector in the OFF position.

• Under normal weather conditions, do not leave the air flow selector in

OFF when the vehicle is parked. This allows the vehicle to “breathe”
using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the air

flow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Adjust the temperature control to maintain comfort.

3. Set the fan speed to the highest setting.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Climate Controls

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

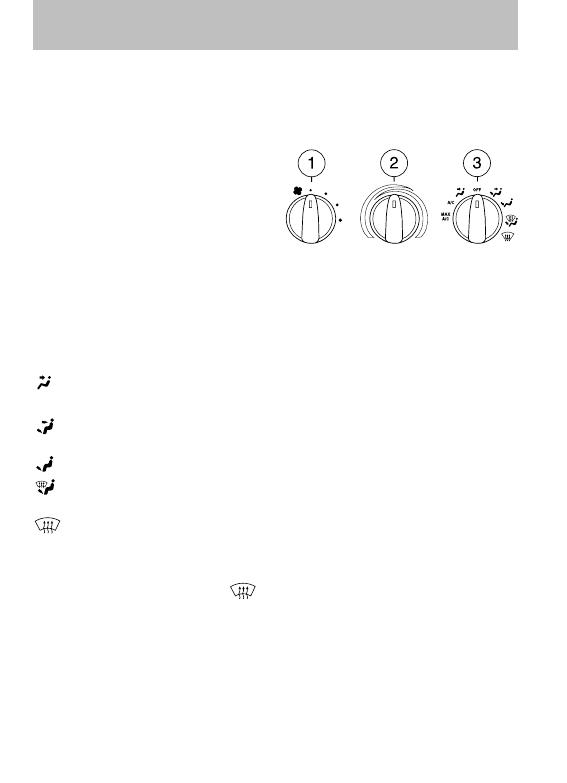

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)

1. Fan speed adjustment:

Controls the volume of air
circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the
airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

MAX A/C:

Uses recirculated air to cool the vehicle. Air flows from the

instrument panel vents only. Temperature of airflow not adjustable.

A/C:

Uses outside air to cool the vehicle. Air flows from the instrument

panel vents only.

Distributes outside air through the instrument panel vents.

OFF:

Outside air is shut out and the fan will not operate.

Distributes outside air through the instrument panel vents and the

floor vents.

Distributes outside air through the floor vents.

Distributes outside air through the windshield defroster vents and

floor vents.

Distributes outside air through the windshield defroster vents.

Operating tips
• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

position.

• To reduce humidity build up inside the vehicle: do not drive with the

air flow selector in the OFF position.

• Under normal weather conditions, do not leave the air flow selector in

MAX A/C or OFF when the vehicle is parked. This allows the vehicle
to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the

airflow to the back seats.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Climate Controls

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
the MAX A/C position, reduce blower fan speed from the highest setting
and put the vehicle’s transmission into the PARK gear position
(automatic transmission only) to continue to receive cool air from your
A/C system.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Adjust the temperature control to maintain comfort.

3. Set the highest fan speed.

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Climate Controls

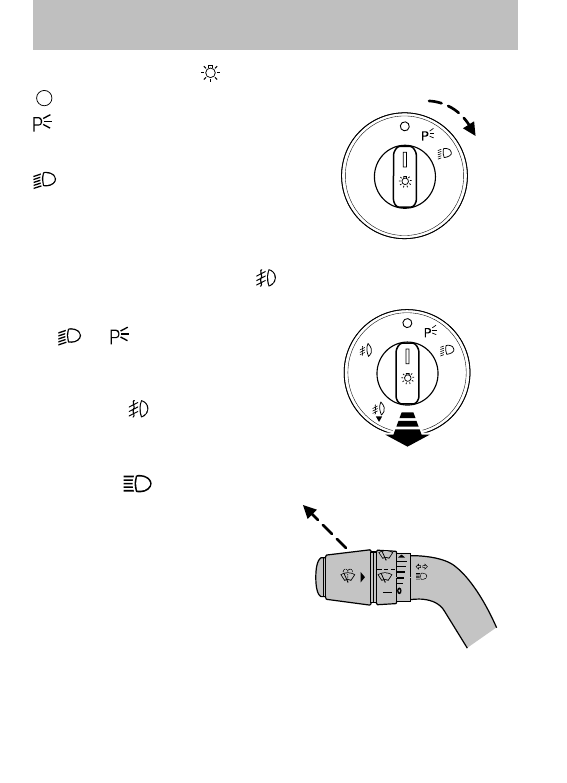

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps,

instrument panel lamps, license
plate lamps and tail lamps.

Turns the low beam headlamps

on.

Fog lamp control (if equipped)

The fog lamps can be turned on
when the headlamp control is in
the

position and the

high beams are not turned on.

Pull headlamp control towards you
to turn fog lamps on. The fog lamp
indicator light

on the headlamp

control and in the instrument
cluster will illuminate.

High beams

After turning the headlamps on,
push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

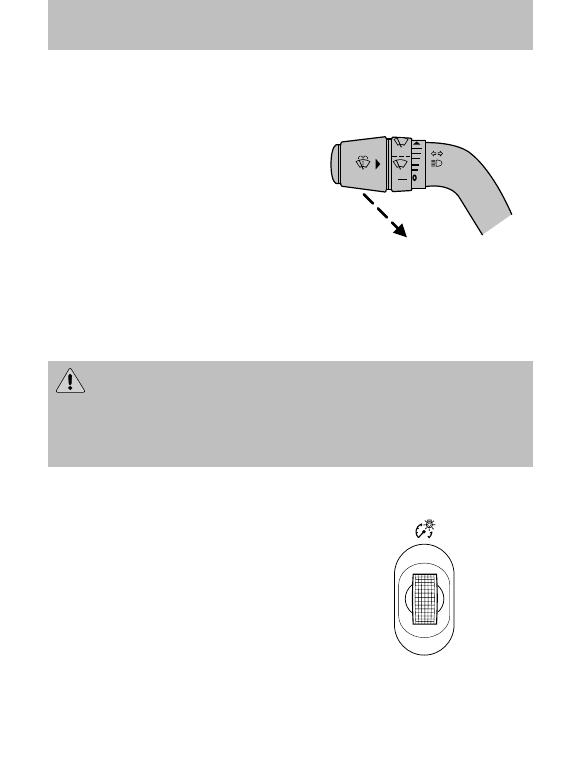

Flash to pass

Pull toward you slightly to activate
and release to deactivate.

Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
• the ignition must be in the on position and

• the headlamp control is in the off or parking lamp.

WARNING:

Always remember to turn on your headlamps at

dusk or during inclement weather. The Daytime Running Lamp

(DRL) (if equipped) system does not activate the parking lights or side
marker lights and generally may not provide adequate lighting during
these conditions. Failure to activate your headlamps under these
conditions may result in a collision.

PANEL DIMMER CONTROL

Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parking lamp
operation.

Move the control up or down to
adjust the intensity of the panel
lighting.

Move the control to the full upright
position, past detent, to turn on the
interior lamps.
Note:

If the battery is disconnected, discharged, or a new battery is

installed, the dimmer switch requires re-calibration. Rotate the dimmer

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

switch from the full dim position to the full dome/on position to reset.
This will ensure that your displays are visible under all lighting
conditions.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed before leaving the
assembly plant. If your vehicle is involved in an accident or if you have
problems fixing the alignment of your headlamps, have them checked by
a qualified service technician.

Headlamp aim adjustment

The headlamps are designed to be mechanically aimed, but can also be
aimed visually by doing the following:

1. Park your vehicle on a level surface about 25 feet (7.6 meters) away

from a vertical plain surface (3). Check your headlamp alignment at
night or in a dark area so that you can see the headlamp beam
pattern.

• (1) 8 feet (2.4 meters)
• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)
• (4) Horizontal reference line
• (5) Center of headlamps
• (6) Center line of the vehicle

2. The center of the headlamp is

marked either on the lens (a
circle or cross marker) or on the bulb shield, internal to the lamp
(mark or feature). Measure the height from the center of your
headlamp to the ground (2) and mark an 8 foot (2.4 meter) long
horizontal line on the wall or screen (1) at this height (masking tape
works well).

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

3. Turn on the low beam

headlamps and open the hood.

4. Locate the high intensity area of

the beam pattern and place the
top edge of the intensity zone
even with the horizontal
reference line (4). If the top
edge of the high intensity area
is not even with the horizontal
line, follow the next step to
adjust it.

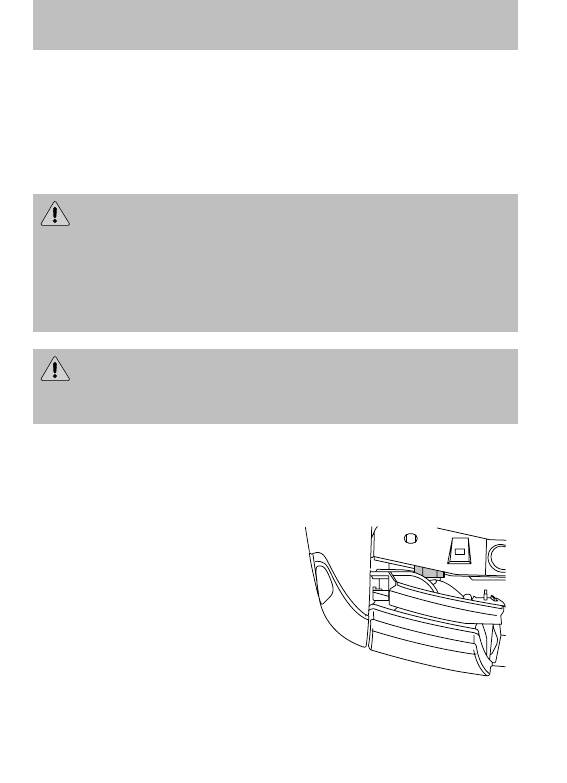

5. Locate the vertical adjuster for

each headlamp. Adjust the aim
by using a 4 mm wrench to turn
the adjuster control either
clockwise (to adjust down) or
counterclockwise (to adjust up).

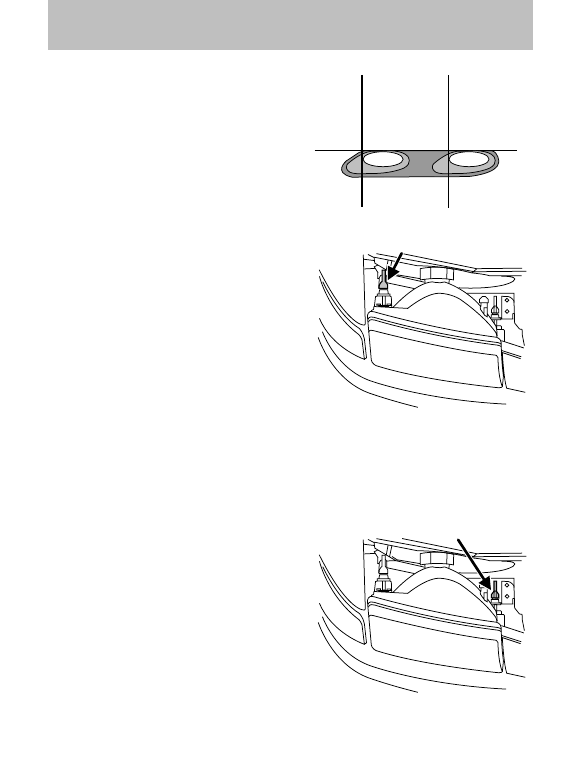

6. In addition to the horizontal line

marked in step 2, a pair of
vertical lines (5) must be
marked at the center line of the
headlamps on the wall or
screen.

7. On the wall or screen, locate the high intensity area of the beam

pattern. The left edge of the high intensity area should be even with
the vertical line corresponding to the headlamp under adjustment. If
the left edge of the high intensity area is not even with the vertical
line, follow the next step to adjust it.

8. Locate the horizontal adjuster

for each headlamp. Use a 4 mm
wrench, turning it clockwise or
counterclockwise, to place the
left edge of the high intensity
area even with the vertical line
corresponding to the headlamp
under adjustment.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

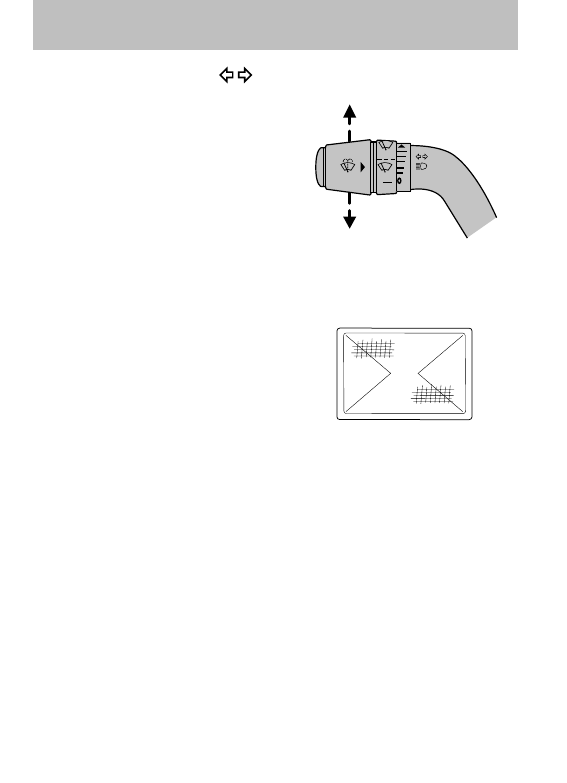

TURN SIGNAL CONTROL
• Push down to activate the left

turn signal.

• Push up to activate the right turn

signal.

INTERIOR LAMPS

Courtesy/reading lamps (if equipped)

The courtesy lamp lights when:
• any door is opened.
• the instrument panel dimmer

switch is held up until the
courtesy lamps come on.

• the remote entry controls are

pressed and the ignition is off.

BULB REPLACEMENT

Headlamp condensation

Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, condensation can occur
when the temperature is cold. When normal condensation occurs, a thin
film of mist can form on the interior of the lens. The thin mist eventually
clears and exits through the vents during normal operation. Clearing
time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:
• Presence of thin mist (no streaks, drip marks or droplets)
• Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
• Water puddle inside the lamp

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

• Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility.

NOTE:

The correct bulbs will not damage the lamp assembly or void the

lamp assembly warranty and will provide quality bulb burn time.

Function

Number of bulbs

Trade number

Park/turn/side marker
lamps (front)

3157 A (amber)

Headlamps

9007

Fog lamps (if
equipped)

9006

Hi-mount brake lamp

922

Rear stop/tail lamps

4157K or 3157K

Rear turn lamps

3156

Rear license plate
lamps

194

Backup lamps

3155

Dome lamp

912

Map/dome-SuperCab
(if equipped)

904

Map/dome-Regular
Cab (if equipped)

904

All replacement bulbs are clear in color except where noted.

To replace all instrument panel lights - see your authorized dealer.

Replacing interior bulbs

Check the operation of the following interior bulbs frequently:
• Courtesy/Reading lamp
For bulb replacement, see an authorized Mazda dealer.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Replacing headlamp bulbs

NOTE:

The procedure can be difficult. Your Mazda dealer has the proper

tools, training and parts to perform this task. If you have difficulty with
this, visit your local Mazda dealer.

WARNING:

Handling Halogen Bulbs: When a halogen bulb

breaks, it is dangerous. These bulbs contain pressurized gas. If

one is broken, it will explode and serious injuries could be caused by
the flying glass. If the glass portion of the bulb is touched with bare
hands, body oil could cause the bulb to overheat and explode when lit.
Never touch the glass portion of the bulb with your bare hands and
always wear eye protection when handling or working around halogen
bulbs.

WARNING:

Children and Halogen Bulbs: Playing with a halogen

bulb is dangerous. Serious injuries could be caused by dropping

a halogen bulb or breaking in some other way. Always keep halogen
bulbs out of the reach of children.

To remove the headlamp bulb:

1. Make sure headlamp switch is in the off position, then open the hood.

2. Reach behind the lamp assembly for access and disconnect the

electrical connector.

3. Locate the bulb retaining ring

behind the headlamp assembly.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

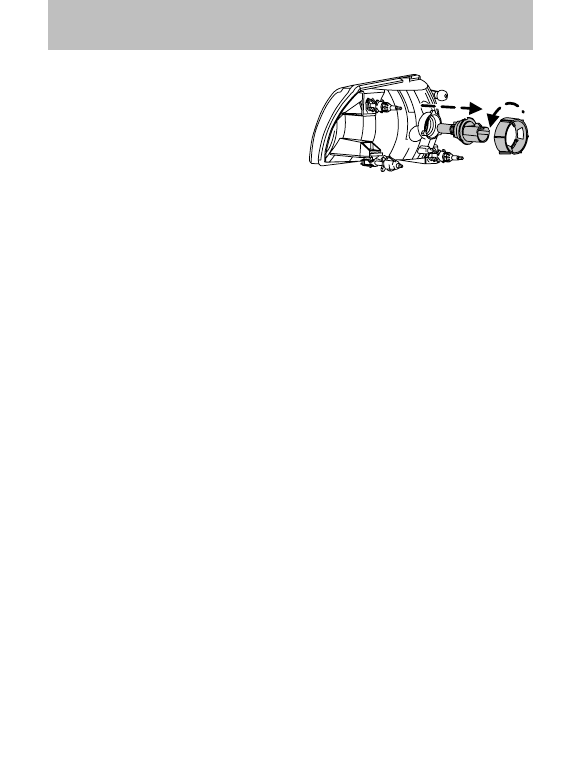

4. Remove the bulb retaining ring

by turning it counterclockwise
and remove the old bulb by
gently pulling it straight back
out of the lamp assembly. Keep
the retaining ring to retain the
new bulb.

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hands could cause the bulb
to break the next time the headlamps are operated. Always wear
safety glasses while handling bulbs.

NOTE

: If the bulb is accidentally touched, it should be cleaned with

rubbing alcohol before being used.

1. With the flat side of the bulb’s plastic base facing upward, insert the

glass end of the bulb into the lamp assembly. You may need to turn
the bulb left or right to align the grooves in the plastic base with the
tabs in the lamp assembly. When the grooves are aligned, push the
bulb into the lamp assembly until the plastic base contacts the rear
of the lamp assembly.

2. Install the bulb retaining ring over the plastic base until it contacts

the rear of the socket by rotating clockwise until you feel a “stop.”

3. Install the electrical connector into the plastic base until it snaps,

locking it into position.

4. Turn the headlamps on and make sure they work properly. If the

headlamp was correctly aligned before you changed the bulb, you
should not need to align it again.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

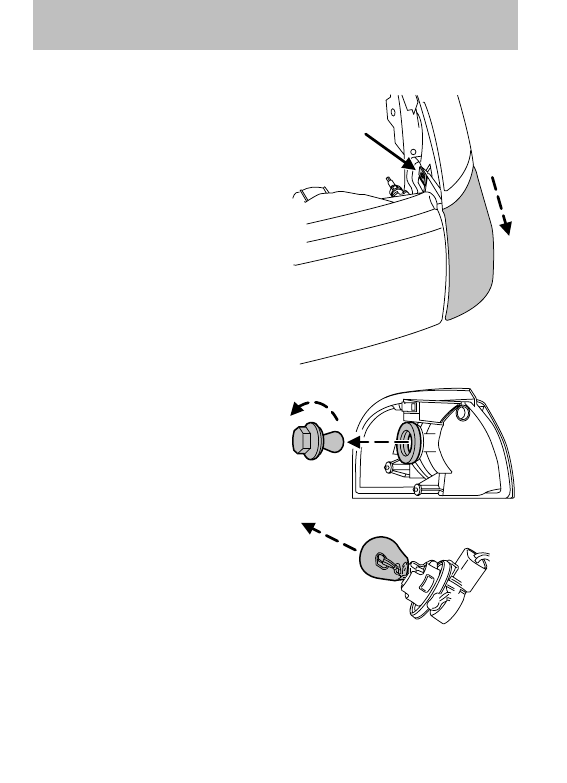

Replacing front park/turn side marker bulbs

1. Make sure headlamp switch is in

the off position, then open the
hood.

2. Remove the screw from lamp

assembly.

3. Disengage lamp assembly by

pulling it straight forward. It has
a snap fit.

4. Rotate bulb socket

counterclockwise and remove
from lamp assembly.

5. Carefully pull bulb straight out

of socket and push in the new
bulb.

6. Install the bulb socket in lamp

assembly by turning clockwise.

7. Align the lamp on the vehicle

and push to snap in place.

8. Install the screw on lamp assembly.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

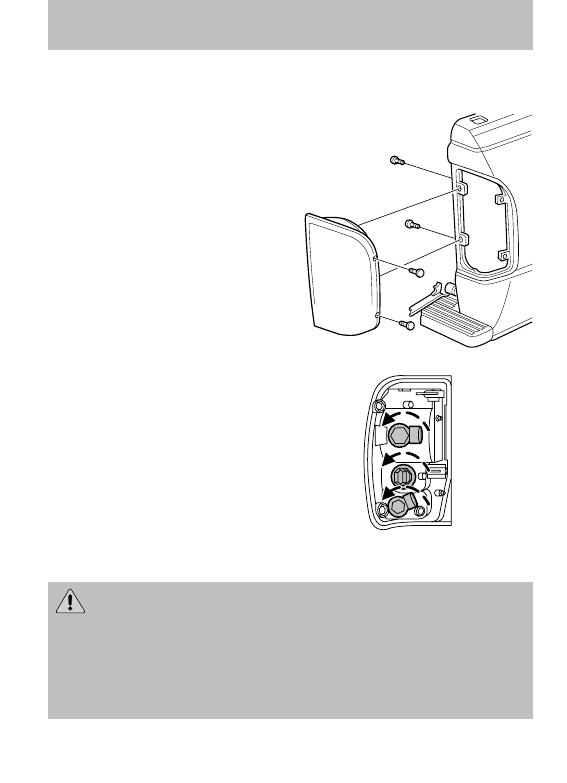

Replacing stop lamp/tail lamp/sidemarker lamp/turn lamp/backup
lamp bulbs

These bulbs are located in the same
portion of the tail lamp assembly,
one just below the other. Follow the
same steps to replace either bulb:

1. Open the tailgate to expose the

lamp assemblies.

2. Remove the four screws and the

lamp assembly from vehicle.

3. Rotate the bulb socket

counterclockwise and remove
from lamp assembly.

4. Carefully pull the bulb straight

out of the socket and push in
the new bulb.

5. Install the bulb socket in lamp

assembly by turning clockwise.

6. Install the lamp assembly and

secure with four screws.

Replacing fog lamp bulbs

WARNING:

Handling Halogen Bulbs: When a halogen bulb

breaks, it is dangerous. These bulbs contain pressurized gas. If

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

WARNING:

Children and Halogen Bulbs: Playing with a halogen

bulb is dangerous. Serious injuries could be caused by dropping

a halogen bulb or breaking in some other way. Always keep halogen
bulbs out of the reach of children.

NOTE

: If the bulb is accidentally touched, it should be cleaned with

rubbing alcohol before being used.

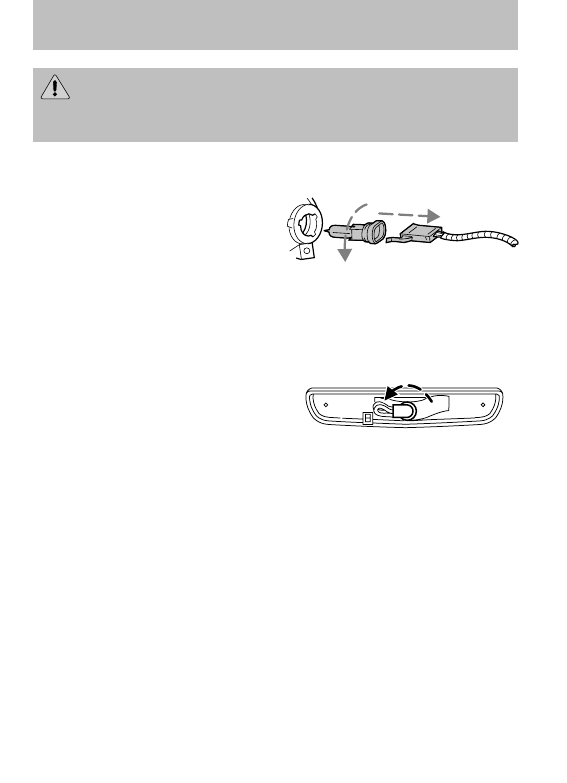

1. Remove the bulb socket from

the fog lamp by turning
counterclockwise.

2. Disconnect the electrical

connector from the fog lamp
bulb.

3. Connect the electrical connector to the new fog lamp bulb.

4. Install the bulb socket in the fog lamp turning clockwise.

Replacing high-mount brake lamp

To remove the brake lamp assembly:

1. Remove the two screws and

lamp assembly from vehicle.

2. Remove the bulb socket from

lamp assembly by rotating it counterclockwise.

3. Carefully pull bulb straight out of socket and push in the new bulb.

To install the brake lamp assembly:

1. Install the bulb socket into the lamp assembly by rotating clockwise.

2. Install the lamp assembly on the vehicle and secure with two screws.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

Replacing license plate lamp bulbs

The license plate bulbs are located
behind the rear bumper. To change
the license plate lamp bulbs:

1. Reach behind the rear bumper

to locate the bulb socket.

2. Twist the socket

counterclockwise and remove.

3. Pull out the old bulb from

socket and push in the new
bulb.

4. Install the bulb socket in lamp assembly by turning it clockwise.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Lights

Mazda B2300 Truck (2009 year). Instruction - part 3
