Mazda B2300 Truck (2009 year). Instruction

Next/previous directory:

In MP3 mode, press

to go to

the previous/next directory.

Flat file/directory mode:

In MP3 mode, use

to select

flat file mode or directory mode.

Normal / Track title/ File name:

Use

to scroll through MP3

display options (track #, normal music name or file name).

5. TUNE: Press to manually go

down/up (

) the radio

frequency and also to select
various settings in menu mode.

6. SHUFF (Shuffle): Press to

play the current CD/MP3 tracks
in random order. In MP3
directory mode, press to play the tracks within the current directory
in random order.

7. REPEAT: Press to repeat the

current CD/MP3 track. The
selection will repeat
continuously until deactivated. Press REPEAT again to deactivate.

8. FF (Fast forward): Press to

manually advance in a CD/MP3
track.

9. REW (Rewind): Press to

manually reverse in a CD/MP3
track.

10. Memory presets: To set a

station: Select frequency band
AM/FM; tune to a station, press
and hold a preset button until sound returns. To recall a previously
set station, press the desired memory preset button briefly. You can
save up to 18 stations, six in AM, six in FM1 and FM2.

In satellite radio mode (if equipped),

there are 18 available presets,

six each for SAT1, SAT2 and SAT3. To save satellite channels in your
memory presets, tune to the desired channel then press and hold a
preset control until sound returns.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

REW

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

11. SEEK/TRACK: Press to access

the previous/next (

)

strong station. In CD/MP3 mode,
press to advance to the
previous/next (

) track.

In satellite radio mode (if equipped),

press

SEEK

to seek

to the previous/next channel.
In CATEGORY MODE,

press

SEEK

to select a channel within

that category. Press

SEEK

to seek to the previous/next channel

in the selected category. Press and hold

SEEK

to fast seek

through the previous /next channels.
In TEXT MODE,

press

SEEK

to view the previous/additional

display text.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

12. TEXT/SCAN:In radio and CD

mode,

press for a brief

sampling of radio stations or CD
tracks. Press again to stop.

In MP3 mode,

Press and release to view the next 12 characters in the

MP3 music name/file name of the current MP3 track and directory.
Press and hold to hear a brief sampling of MP3 tracks.
In MP3 directory mode, press and hold to hear a brief sampling of all
tracks in the current directory. Press and hold again to stop.

In satellite radio mode (if equipped),

press and release to view the

Satellite text message.
Press and hold to hear a brief sampling of the next channels. Press and
hold again to stop.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

13. AM/FM: Press to select

AM/FM1/FM2 frequency band.

14. AUX: Press to access AUX

modes.
If equipped with Satellite
Radio, press AUX to cycle through SAT1, SAT2 SAT3
(Satellite Radio mode, if available) and LINE IN (Auxiliary
audio mode, if equipped).

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

15. ON/OFF/Volume: Press to turn

on/off. Turn to
increase/decrease volume.
If the volume is set above a
certain level and the ignition is
turned off, the volume will come
back on at a “nominal” listening level when the ignition switch is
turned back on.

16. CD: Press to enter CD/MP3

mode. If a CD is already present
in the system, the disc will
begin to play.

17. CD slot: Insert a CD label side

up.

Premium and Audiophile In-dash CD6/MP3 disc Satellite
Compatible audio systems (if equipped)

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

WARNING:

Driving while distracted can result in loss of vehicle

control, accident and injury. Mazda strongly recommends that

drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.

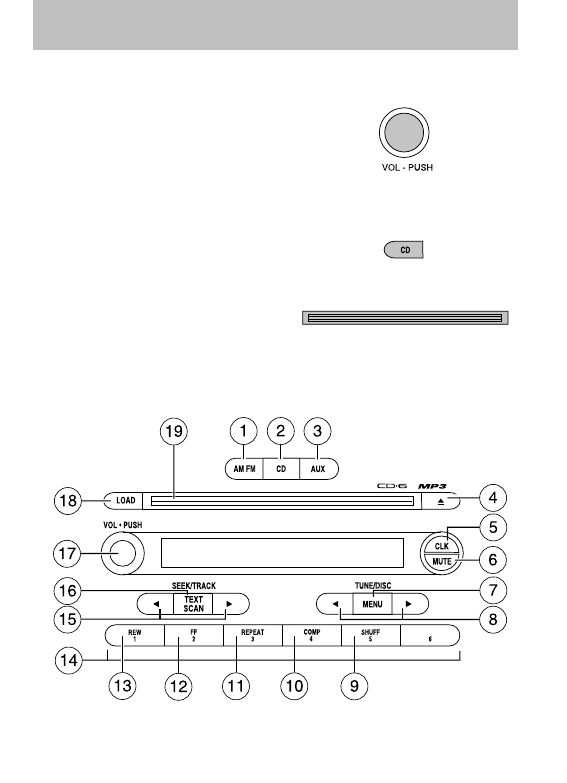

1. AM/FM: Press to select

AM/FM1/FM2 frequency bands.

2. CD: Press to enter CD/MP3

mode. If a CD is already in the
system, the disc will start
playing.

3. AUX: Press to access AUX

modes. To return to radio mode,
press AM/FM.
If equipped with Satellite
Radio, press AUX to cycle through SAT1, SAT2 SAT3
(Satellite Radio mode, if available) and LINE IN (Auxiliary
audio mode, if equipped).

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

4. EJ (CD eject): To eject an

individual CD, press the eject
control and select the correct
slot number by pressing the corresponding memory preset. Press
and hold to eject all loaded CDs.

5. CLK (Clock): Press CLK until

SELECT HOUR or SELECT
MINS is displayed. Press
MENU

to adjust the

hours/minutes. Press CLK to display the time when the ignition is
off.

6. MUTE: Press to mute the

playing media. Press again to
return to the playing media.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

7. MENU: Press MENU repeatedly

to toggle through the following
modes and use

to make

adjustment in those modes.

SATELLITE RADIO MENU (if
equipped):

Press MENU when

satellite radio mode is active to
access. Press SEEK

to enter

into the satellite radio menu. Press

to cycle through the

following options:
• CATEGORY: Press SEEK

or preset #6 to enter category mode.

Press

to scroll through the list of available SIRIUS

channel Categories (Pop, Rock, News, etc.) Press SEEK

or preset

#6 when the desired category appears in the display. After a category
is selected, press SEEK to search for that specific category of
channels only (i.e. ROCK). You may also select CATEGORY ALL to
seek all available SIRIUS categories and channels.

• SAVE SONG: Press SEEK

or preset #6 to save the currently

playing song in the system’s memory. (If you try to save something other
than a song, CANT SAVE will appear in the display.) When the chosen
song is playing on any satellite radio channel, the system will alert you
with an audible prompt. Press SEEK

or preset #6 while SONG

ALERT is in the display and the system will take you to the channel
playing the desired song. You can save up to 20 songs. If you attempt to
save a song when the system is full, the display will read REPLACE
SONG? Press SEEK

or preset #6 to access the saved songs and

press

to cycle through the saved songs. When the song

appears in the display that you would like to replace, press SEEK

preset #6. SONG REPLACED will appear in the display.

• DELETE SONG: Press SEEK

or preset #6 to delete a song from

the system’s memory. Press

to cycle through the saved

songs. When the song appears in the display that you would like to
delete, press SEEK

or preset #6. The song will appear in the

display for confirmation. Press SEEK

or preset #6 again and the

display will read SONG DELETED. If you do not want to delete the
currently listed song, press

to select either RETURN or

CANCEL.
Note:

If there are no songs presently saved, the display will read NO

SONGS.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

• DELETE ALL SONGS: Press SEEK

or preset #6 to delete all

songs from the system’s memory. The display will read ARE YOU
SURE ? Press SEEK

or preset #6 to confirm deletion of all saved

songs and the display will read ALL DELETED.
Note:

If there are no songs presently saved, the display will read NO

SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press SEEK

or preset

#6 to enable/disable the satellite alert status which alerts you when
your selected songs are playing on a satellite radio channel. (The
system default is disabled.) SONG ALERTS ENABLED/DISABLED will
appear in the display. The menu listing will display the opposite state.
For example, if you have chosen to enable the song alerts, the menu
listing will read DISABLE as the alerts are currently on, so your other
option is to turn them off.

Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.

AUTOSET:

Allows you to set the strongest local radio stations without

losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use

to set.

When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.

BASS:

Press

to decrease/increase the bass setting.

TREBLE:

Press

to decrease/increase the treble setting.

BALANCE:

Press

to adjust the audio between the left

and right speakers.

FADE:

Press

to adjust the audio between the front and

rear speakers.

Next/previous directory:

In MP3 mode, press MENU

to go to

the previous/next directory.

Flat file/directory mode:

In MP3 mode, press MENU to access this

feature. Use

to select flat file mode or directory mode.

Track #/ normal music name/file name:

Press MENU to access and

use

to scroll through MP3 display options (track #, normal

music name or file name).

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

8. TUNE/DISC: In radio mode,

press to manually go down/up
(

) the radio frequency,

or to access another CD/MP3.
Also use in menu mode to select various settings.

9. SHUFF (Shuffle): Press to

play the tracks on the current
CD in random order. In MP3
directory mode,

press to play the tracks within the current

directory in random order.

10. COMP (Compression): In

CD/MP3 modes, press to bring
loud and soft passages together
for a more consistent listening level.

11. REPEAT: Press to repeat the

current CD/MP3 track. The
selection will repeat
continuously until deactivated. Press REPEAT again to deactivate.

12. FF (Fast forward): Press to

manually advance in a CD/MP3
track.

13. REW (Rewind): Press to

manually reverse in a CD/MP3
track.

14. Memory presets: To set a

station: Select frequency band
AM/FM; tune to a station, press
and hold a preset button until sound returns. To select a preset
station, press the desired memory preset. You can save up to 18
stations, six in AM, six in FM1 and FM2.

In satellite radio mode (if equipped),

there are 18 available presets,

REW

REPEAT

SHUFF

COMP

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

15. SEEK/TRACK: In radio, CD

and MP3 flat file mode,

press

to access the

previous/next strong station or
track. In MP3 directory mode, press to select the next/previous
track in the current directory.

In satellite radio mode (if equipped),

press

SEEK

to seek

to the previous/next channel.
In CATEGORY MODE,

press

SEEK

to select a channel within

that category. Press and hold

SEEK

to fast seek through the

previous /next channels.
In TEXT MODE,

press

SEEK

to view the previous/additional

display text.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.

16. TEXT/SCAN: In radio and

CD mode,

press for a brief

sampling of radio stations or CD
tracks. Press and hold again to
stop.

In MP3 mode,

Press and release to view the next 12 characters in the

In satellite radio mode (if equipped),

press and release to view the

17. ON/OFF/Volume: Press to turn

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

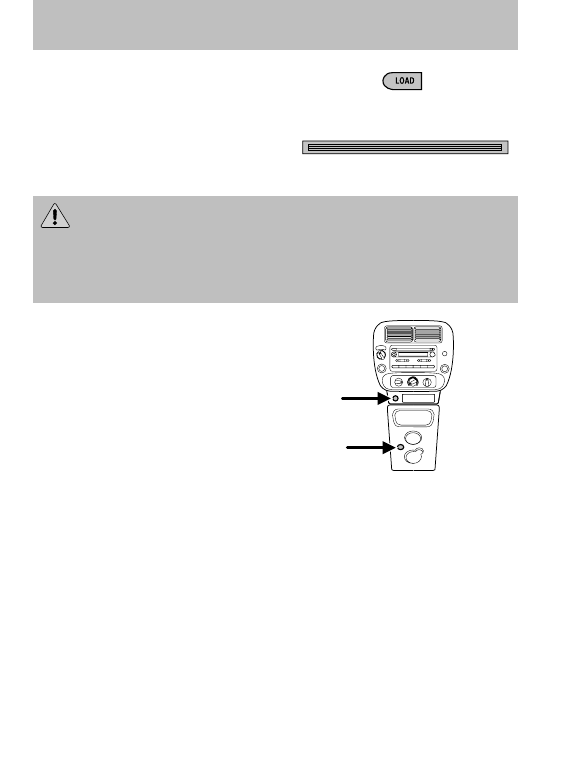

18. LOAD: Press to load a CD. To

load a CD disc to a specific slot,
press LOAD and select the slot number by pressing the memory
preset buttons. Press and hold LOAD to autoload up to six discs.

19. CD slot: Insert a CD, label

side up.

Auxiliary input jack (Line in)-(if equipped)

WARNING:

Driving while distracted can result in loss of vehicle

control, accident and injury. Mazda strongly recommends that

Your vehicle may be equipped with
an Auxiliary Input Jack (AIJ). The
Auxiliary Input Jack provides a way
to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music device to the audio system.

Required equipment:

1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)

connectors at each end

To play your portable music player using the auxiliary input jack:

1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully

charged and that the device is turned off.

3. Attach one end of the audio extension cable to the headphone

output of your player and the other end of the audio extension cable
to the AIJ in your vehicle.

4. Turn the radio on, using either a tuned FM station or a CD loaded

into the system. Adjust the volume to a comfortable listening level.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

5. Turn the portable music player on and adjust the volume to 1/2 the

volume.

6. Press AUX on the vehicle radio repeatedly until LINE IN appears in

the display.
You should hear audio from your portable music player although it
may be low.

7. Adjust the sound on your portable music player until it reaches the

level of the FM station or CD by switching back and forth between
the AUX and FM or CD controls.

Troubleshooting:

1. Do not connect the audio input jack to a line level output. Line level

outputs are intended for connection to a home stereo and are not
compatible with the AIJ. The AIJ will only work correctly with
devices that have a headphone output with a volume control.

2. Do not set the portable music player’s volume level higher than is

necessary to match the volume of the CD or FM radio in your audio
system as this will cause distortion and will reduce sound quality.
Many portable music players have different output levels, so not all
players should be set at the same levels. Some players will sound
best at full volume and others will need to be set at a lower volume.

3. If the music sounds distorted at lower listening levels, turn the

portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.

4. The portable music player must be controlled in the same manner

when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.

5. For safety reasons, connecting or adjusting the settings on your portable

music player should not be attempted while the vehicle is moving. Also,
the portable music player should be stored in a secure location, such as
the center console or the glove box, when the vehicle is in motion. The
audio extension cable must be long enough to allow the portable music
player to be safely stored while the vehicle is in motion.

GENERAL AUDIO INFORMATION

Radio frequencies:

AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:

AM: 530, 540–1700, 1710 kHz

FM: 87.7, 87.9–107.7, 107.9 MHz

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Radio reception factors:

There are three factors that can affect radio reception:
• Distance/strength: The further you travel from an FM station, the

weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences,

traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal

may overtake a weaker one and play while the weak station frequency
is displayed.

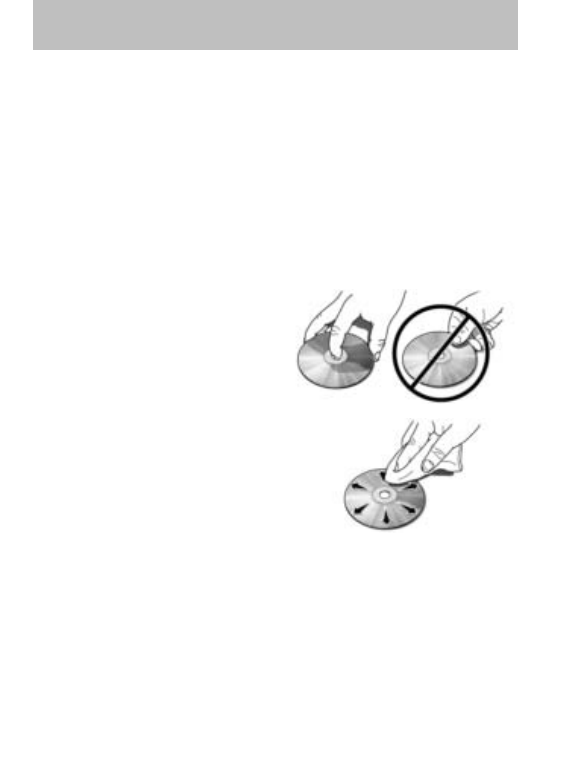

CD/CD player care

Do:
• Handle discs by their edges only.

(Never touch the playing
surface).

• Inspect discs before playing.
• Clean only with an approved CD

cleaner.

• Wipe discs from the center out.

Don’t:
• Expose discs to direct sunlight or heat sources for extended periods

of time.

• Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Mazda CD players.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

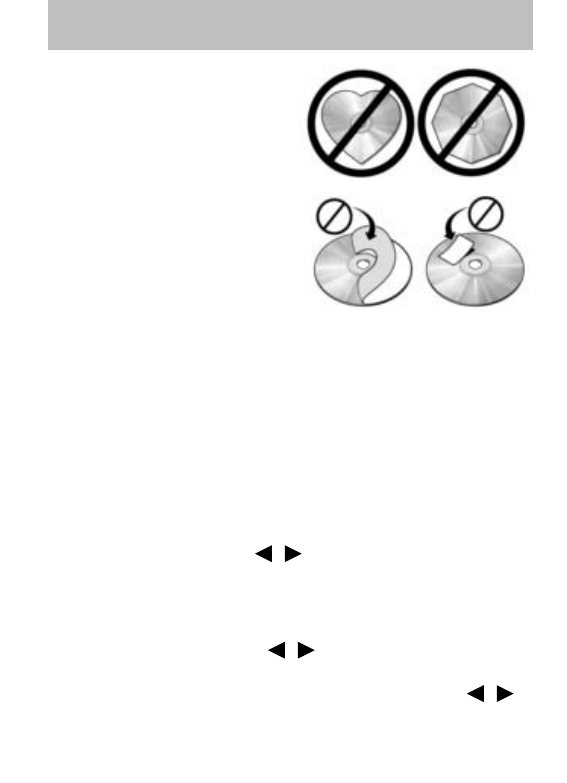

Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.

CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.

Audio system warranty and service

Refer to the Warranty Guide/Customer Information Guide for audio
system warranty information. If service is necessary, see your authorized
Mazda dealership.

Operating your audio system with MP3-formatted discs

Your MP3 system recognizes MP3 discs upon insertion and provides you
with two ways to listen to these discs:
• Flat file mode– This mode ignores any folders on the discs and plays

all MP3 files found in any folder on the disc exactly as if there were
no folders on the disc.

When in flat file mode press

to access the previous/next

track.

• Directory mode– This mode finds all of the folders on the disc and

then allows you to pick any folder on the disc and play only the MP3
files in that folder.

When in directory mode press

to access the previous/next

MP3 file in the current folder only.

To change directories (folders), press MENU and then press

to select the desired directory (folder).

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Changing between flat file mode and directory mode

Your radio MP3 system will default to directory mode when an MP3 disc
is first inserted. When the MP3 system is in directory mode, the DIR
icon will be illuminated on the radio display.
• To change from directory mode to flat file mode while playing an MP3

CD: Press MENU until the radio display reads Directory. Then
press

. The display will change from DIR to Flat File. The MP3

system is now in flat file mode.

• To change from flat file mode to directory mode while playing an MP3

CD: Press MENU until the radio display reads Flat File. Then
press

. The display will change from Flat File to DIR. The MP3

system is now in directory mode.

MP3 track and folder structure

Your MP3 system recognizes MP3 individual tracks and folder structure
as follows:
• There are two different modes for MP3 disc playback: MP3 directory

mode (system default) and MP3 flat file mode. For more information
on directory and flat file mode, refer to Sample MP3 structure
following.

• MP3 flat file mode ignores any folder structure on the MP3 disc. The

player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.
Note:

The maximum number of playable MP3 files may be less

depending on the structure of the CD and exact model of radio
present.

• MP3 directory mode represents a folder structure consisting of one

level of folders. The CD player numbers all MP3 tracks on the disc
(noted by the .mp3 file extension) and all folders containing MP3 files,
from F001 (folder) T001 (track) to F253 T255.

• Creating discs with only one level of folders will help with navigation

through the disc files.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Sample MP3 structure

If you are burning your own MP3
discs, it is important to understand
how the system will read the
structures you create. While various
files may be present, (files with
extensions other than mp3), only
files with the .mp3 extension will be
played. Other files will be ignored
by the system. This enables you to
use the same MP3 disc for a variety
of tasks on your work computer,
home computer and your in vehicle
system.

In flat file mode, the system will display and play the structure as if it
were only one level deep (all .mp3 files will be played, regardless of
being in a specific folder. In directory mode, the system will only play
the .mp3 files in the current folder.
Satellite radio information (if equipped)
Satellite radio channels:

SIRIUS broadcasts a variety of music, news,

sports, weather, traffic and entertainment satellite radio channels. For
more information and a complete list of SIRIUS satellite radio channels,
visit www.sirius.com in the United States, www.sirius-canada.ca in
Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio reception factors:

To receive the satellite signal, your

vehicle has been equipped with a satellite radio antenna located on the
roof of your vehicle. The vehicle roof provides the best location for an
unobstructed, open view of the sky, a requirement of a satellite radio
system. Like AM/FM, there are several factors that can affect satellite
radio reception performance:
• Antenna obstructions: For optimal reception performance, keep the

antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.

.mp3

.doc

.ppt

.xls

.mp3

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway

overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.

• Station overload: When you pass a ground based broadcast repeating

tower, a stronger signal may overtake a weaker one and result in an
audio mute.

Unlike AM/FM audible static, you will hear an audio mute when there is
a satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.

SIRIUS satellite radio service:

SIRIUS Satellite Radio is a subscription

based satellite radio service that broadcasts music, sports, news and
entertainment programming. A service fee is required in order to receive
SIRIUS service. Vehicles that are equipped with a factory installed
SIRIUS Satellite Radio system include:
• Hardware and limited subscription term, which begins on the date of

sale or lease of the vehicle.

• Use of online media player providing access to all SIRIUS music

channels over the internet using any computer connected to the
internet (U.S. customers only).

For information on extended subscription terms, contact SIRIUS at
1–888–539–7474.

Note:

SIRIUS reserves the unrestricted right to change, rearrange, add

or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you.
Mazda Motor Corporation shall not be responsible for any such
programming changes.

Satellite Radio Electronic Serial Number (ESN):

This 12–digit

Satellite Serial Number is needed to activate, modify or track your
satellite radio account. You will need this number when communicating
with SIRIUS. While in Satellite Radio mode, you can view this number on
the radio display by pressing AUX and Preset 1 control simultaneously.

2009 B-Series (mbs)
Owners Guide, 1st Printing
USA (fus)

Entertainment Systems

Radio Display

Condition

Action Required

ACQUIRING

Radio requires

more than two

seconds to produce

audio for the

selected channel.

No action required. This

message should disappear

shortly.

SAT FAULT

Internal module or

system failure

present.

If this message does not

clear within a short period of

time, or with an ignition key

cycle, your receiver may

have a fault. See your

authorized dealer for service.

INVALID CHNL

Channel no longer

available.

This previously available

channel is no longer

available. Tune to another

channel. If the channel was

one of your presets, you may

choose another channel for

that preset button.

UNSUBSCRIBED

Subscription not
available for this

channel.

Contact SIRIUS at

1–888–539–7474 to subscribe

to the channel or tune to

another channel.

NO TEXT

Artist information

not available.

Artist information not

available at this time on this

channel. The system is

working properly.

NO TEXT

Song title

information not

available.

Song title information not

available at this time on this

channel. The system is

working properly.

NO TEXT

Mazda B2300 Truck (2009 year). Instruction - part 2
