Mazda 6 Sports Sedan (2006 year). Instruction

Be
fo

U
s

iga
tion

Se
t U
p

M-T

ecess

ary

Rear

ito

Safety Information

■ Read this owner’s manual for your Navigation System carefully before using the system.

It contains instructions about how to use the system in a safe and effective manner.
Mazda assumes no responsibility for any problems resulting from failure to observe the instructions
given in this manual.

■ This manual uses pictographs to show you how to use the product safely and to alert you to potential

dangers resulting from improper connections and operation. The meanings of the pictographs are
explained below. It is important that you fully understand the pictographs and explanations in order to
use this manual and the system properly.

Warning

The presence of this Warning symbol in the text is intended to
alert you to the importance of heeding the operation
instructions. Failure to heed the instructions may result in
severe injury or death.

■

Do not keep your eyes fixed on the monitor screen or operate the system
while driving.

Do not change the settings and destination locations while driving. Minimize the time
spent on viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and can
cause accidents. Always stop the vehicle in a safe location and use the parking brake
before operating the system.

■

Always obey local traffic regulations.

Your guided route may include roads that are not open to vehicles or are closed due to
traffic regulations. Comply with the local traffic regulations and take another route.

■

Do not use the unit when it is out of order.

If the unit is out of order (no image, no sound) or in an abnormal state (has foreign matter
in it, is exposed to water, is smoking, or smells), then turn it off immediately and consult
with an Expert dealer, we recommend an Authorized Mazda Dealer. Using the unit in an
out-of-order condition may lead to accidents, fires, or electric shocks.

■

Use the proper power supply.

This product is designed for operation with a negative grounded 12 V DC battery system.

■

Do not disassemble.

Do not disassemble the product or attempt to repair it yourself. If the product needs to be
repaired, take it to an Expert dealer, we recommend an Authorized Mazda Dealer.

Warnings

Be
fo

U
s

ecess

ary

Rear

ito

Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired operation of the device.

Caution

The presence of this Caution symbol in the text is intended to
alert you to the importance of heeding the operation
instructions. Failure to heed the instructions may result in injury
or material damage.

■

Do not use the product where it is exposed to water, moisture, or dust.

Exposure to water, moisture, or dust may lead to smoke, fire, or other damage to the unit.
Make especially sure that the unit does not get wet in car washes or on rainy days.

■

Keep the voice guidance volume at an appropriate level.

Keep the volume level low enough to be aware of road and traffic conditions while driving.

■

Protect the Deck Mechanism.

Do not insert any foreign objects into the slot of this unit.

■

This navigation system is designed exclusively for use in automobiles.

This navigation system should only be installed in an automobile. Do not install it in a
ship, aircraft, or any other vehicles except an automobile. Do not use it detached from the
vehicle.

■

Do not insert or allow your hand or fingers to be caught in the unit.

To prevent injury, do not get your hand or fingers caught in moving parts or in the disc
slot. Especially watch out for infants.

Cautions

Be
fo

U
s

iga
tion

Se
t U
p

M-T

ecess

ary

Rear

ito

Introduction

■

Extremely low or high temperatures may interfere with normal operation

The inside of the vehicle can become very hot or cold when it is parked for extended
periods in direct sunlight or in cold places with the engine turned off. The navigation system
may not operate normally under such circumstances. Turn off the navigation system until
the inside of the vehicle has cooled down or warmed up. If the system does not operate
thereafter, consult an Authorized Dealer, we recommend an Authorized Mazda Dealer.

This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track
and display your vehicle’s current position, and to guide you from your starting point to your
destination along a calculated route.

* : GPS (Global Positioning System) is a position detecting system utilizing the signals from GPS satellites

deployed by the U.S. Defense Department.

Screens displayed in this manual may differ from those on the actual display.

Use This Product Safety

Navigation System

Screens

Be
fo

U
s

iga
tion

Se
t U
p

M-T

ecess

ary

Rear

ito

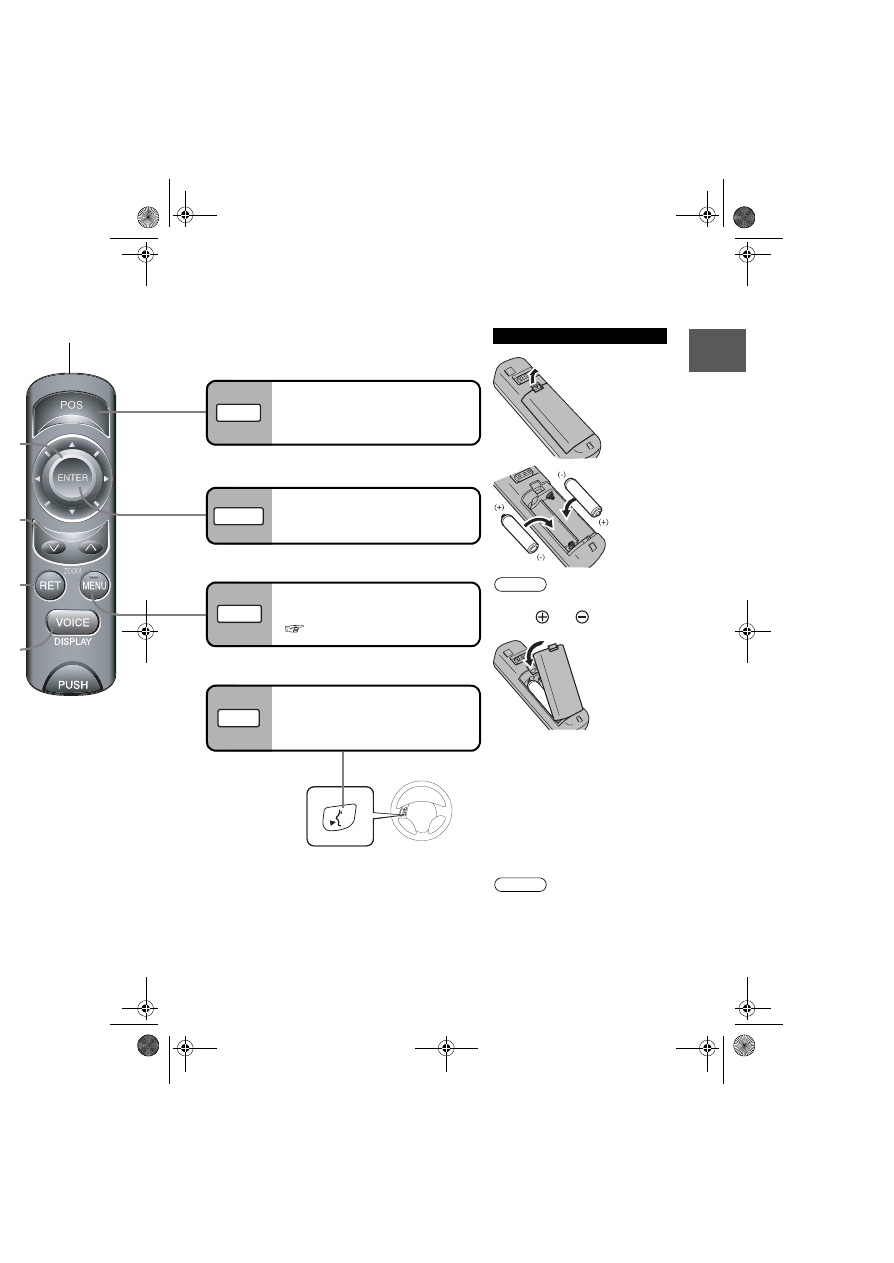

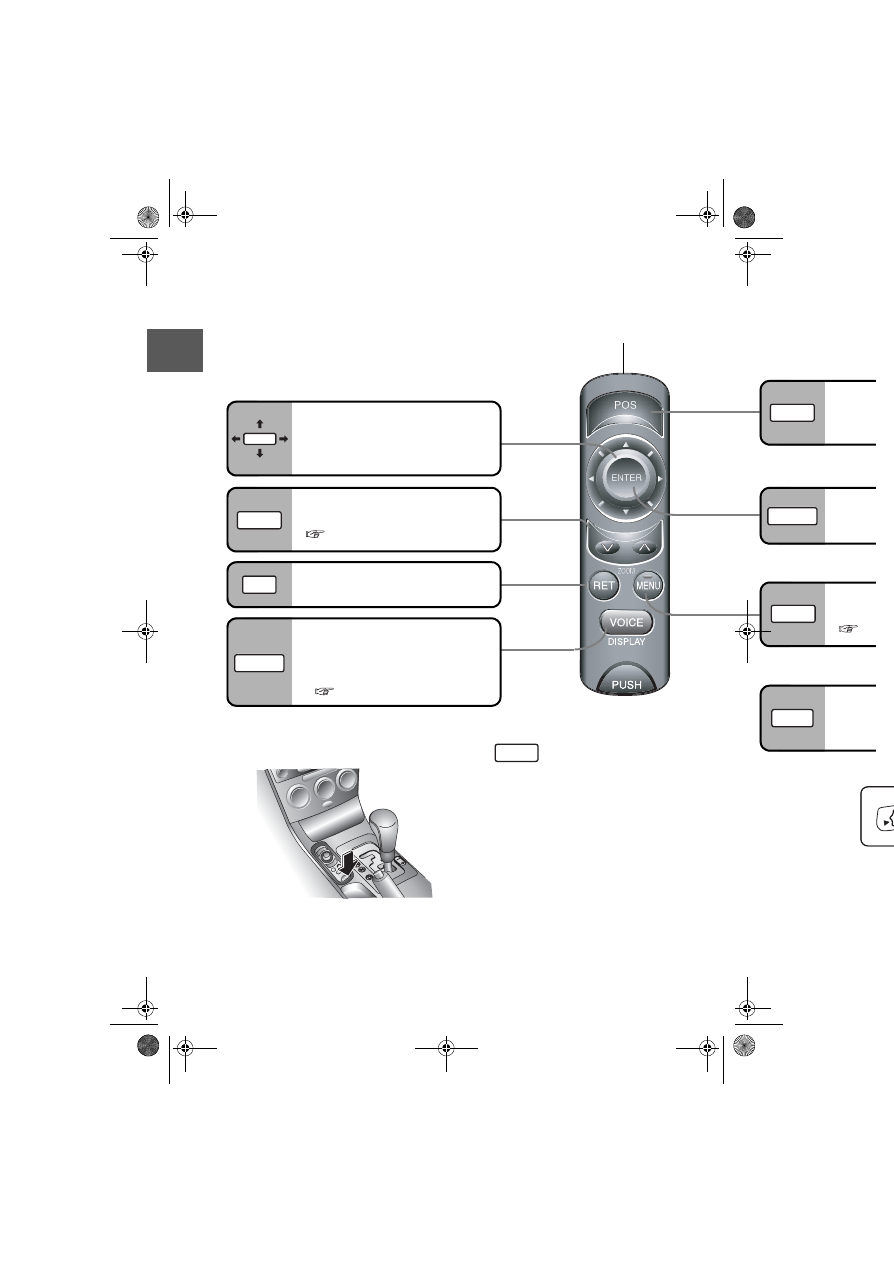

Names and Functions

●

To remove the remote control from the cradle press

●

When placing the remote control back in the cradle, press it until you hear it engage.

PUSH

Joystick

●

Selects items
by tilting it up, down, right, and left.

●

Scrolls map.

ZOOM key

Changes the map scale.

(

page 16)

RET key

Returns to the previous screen.

VOICE key

●

Initiates vocal guidance for route
manoeuvres.

●

Adjusts screen quality.
(

page 15)

POS (

Displays

ENTE

●

Execute

●

Display

MENU

Select a

(

pag

Infrared transmitter

VOICE

POS

ENTER

MENU

ENTER

ZOOM

RET

TALK

Use for s
recognit

TALK

Be
fo

U
s

ecess

ary

Rear

ito

u hear it engage.

Note

Match the polarity of the batteries
with the

and

marks in the

battery case.

●

Battery: Two AA batteries (R6PU)

●

Battery life: Approximately 5
months of normal use (when
using manganese batteries at
ambient temperatures)

●

Battery replacement: Replace
the batteries as soon as possible
when the infrared receiver does
not respond properly to remote
control operations, or when the
remote control does not work.

Note

Make sure that there is not any
pressure applied to any of the
remote control buttons when
placing the remote control in the
console box. Pressure on any of
the buttons will drain the batteries.

Battery Inserting

➀

Open the
battery
compartment
cover.

➁

Insert the
new
batteries.

➂

Close the
battery
compartment
cover.

POS (Position) key

Displays your current position.

ENTER key

●

Executes a selected item.

●

Displays pop up menu.

MENU key

Select a menu.

(

page 15)

nfrared transmitter

POS

ENTER

MENU

TALK Switch

Use for switching to voice
recognition or canceling.

TALK

Rout

res
s

Book

Ge
tt

tar
te

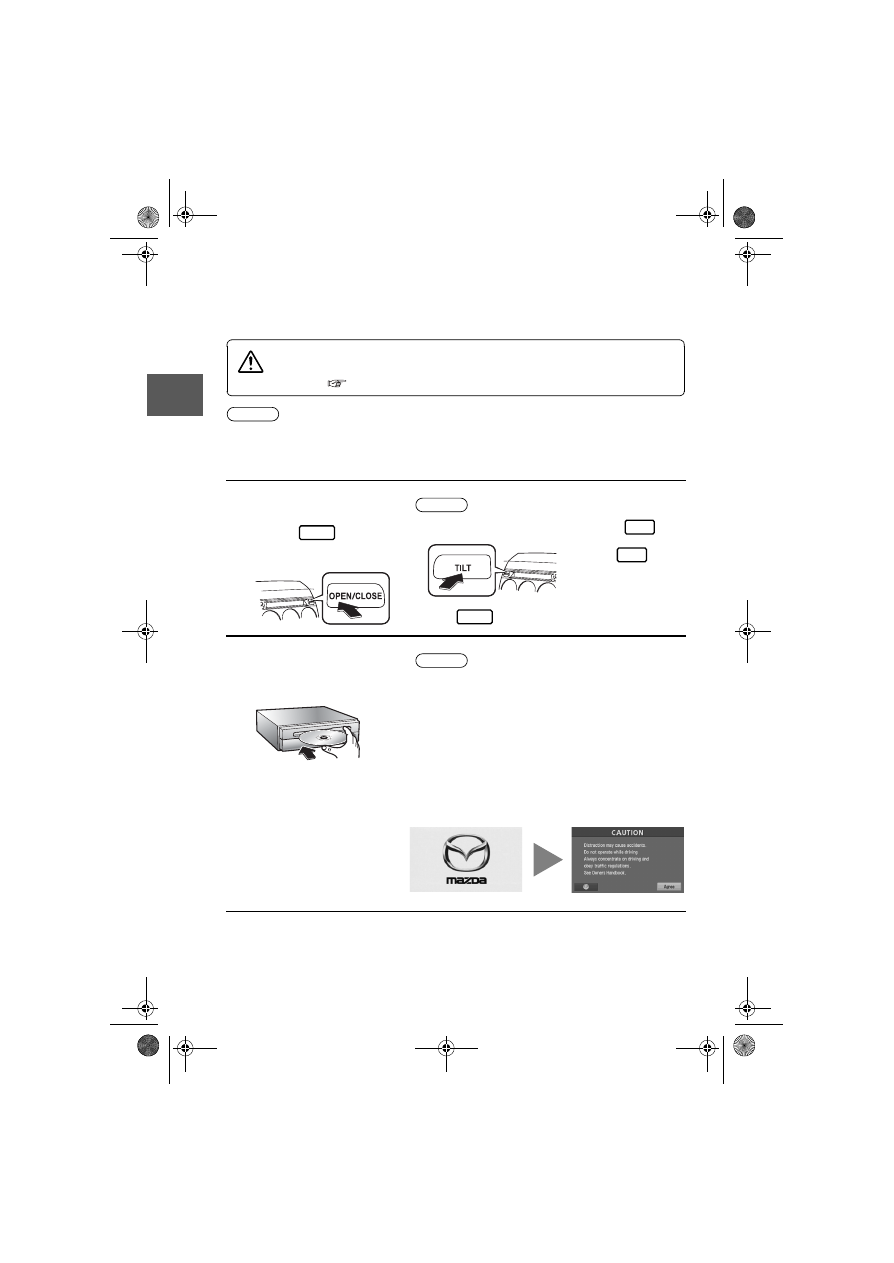

Activation

Insert the map disc into the unit to start the Mobile Navigation System.

Note

●

The map disc cannot be inserted or ejected while the ignition switch is in the OFF position.

●

Remember that the battery can run down if the ignition switch is kept in the ON or ACC
position for a long time while the engine not running.

■

Map Disc

●

Refer to “Handling and Care of Map Discs” to know how to handle a map
disc (

page 58).

Turn the ignition switch
to the ON position and

press

to open

the display.

Note

●

This display angle can be adjusted by pressing

When the

pressed, the display
angle changes in
stages.

●

Press

to close the display.

Insert the map disc
with the printed side
facing up.

Note

●

The main unit is located under the front passenger
seat.

●

Condensation may form on the optical lens or the
map disc inside the unit when the temperature in
the vehicle increases in a short time such as when
heating the car on a cold day. This condensation
may cause malfunctions. If so, unload the map disc
and do not operate the unit for approximately 1
hour. Wipe the condensation off the map disc with a
soft cloth.
If the unit does not operate correctly after 1 hour,
consult an Authorized Mazda Dealer.

Cautions

OPEN

TILT

OPEN

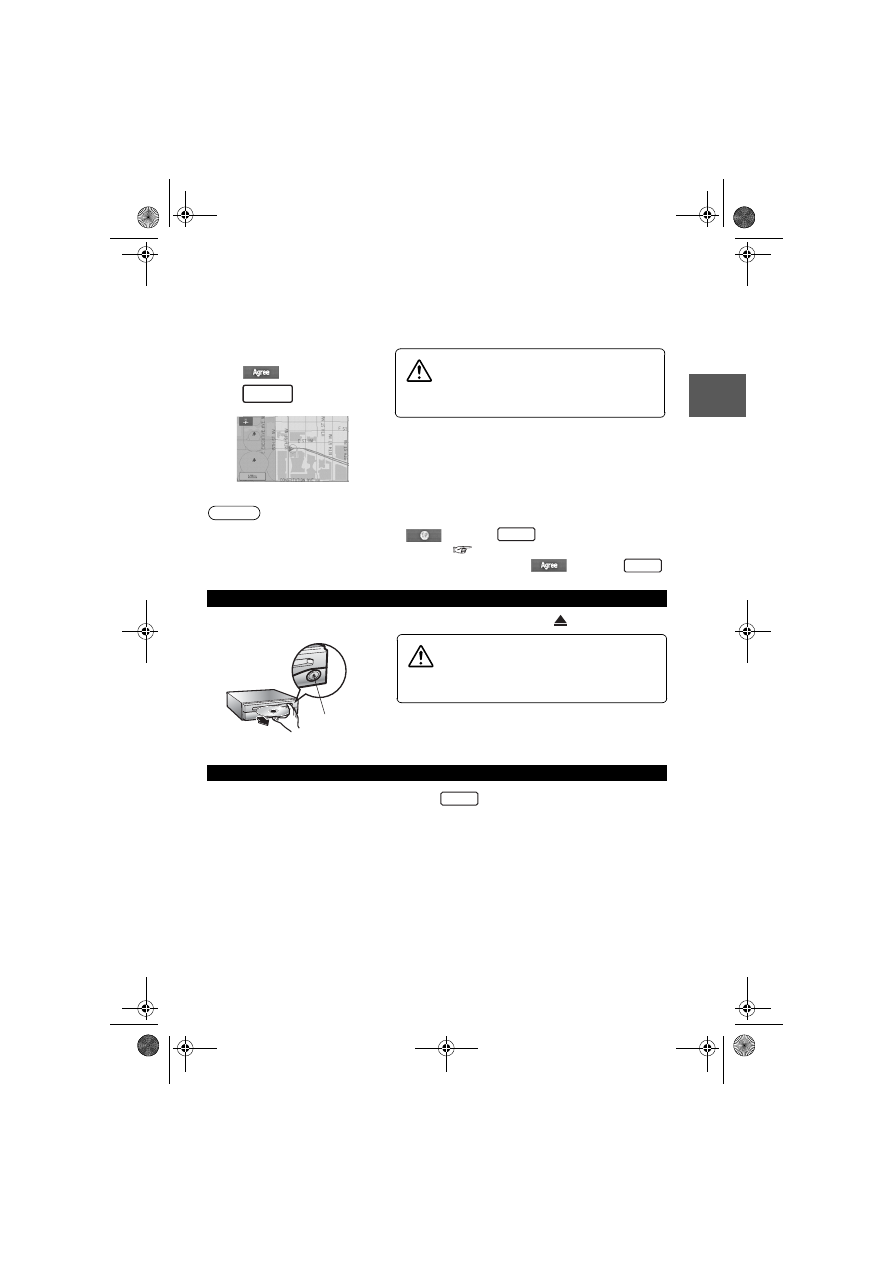

(CAUTION) screen

Ge
tt

tar
te

●

The Current Position screen appears.

Note

●

You can select the language by select

and press

. You can also change the

selected language using Language Selection. (

page 49)

●

The CAUTION screen remains on the display unless you select

and press

When the ignition switch is in the ACC position and press

(EJECT).

Select the buttons by using Joystick and press

Colors for unavailable buttons will be pale.

Read CAUTION
carefully, and select

and press

Removing the Map Disc

Buttons on the screen

ENTER

Most functions are inhibited while the
vehicle is in motion.
Please read the handbook for operation
instructions.
Always obey traffic regulations.

Caution

ENTER

Do not get your hand or fingers caught in
moving parts or in the disc slot. This can
cause injuries. Children are inquisitive, try
to install or remove the map disc without
infants looking on.

Caution

EJECT

ENTER

Rout

res
s

Book

Ge
tt

tar
te

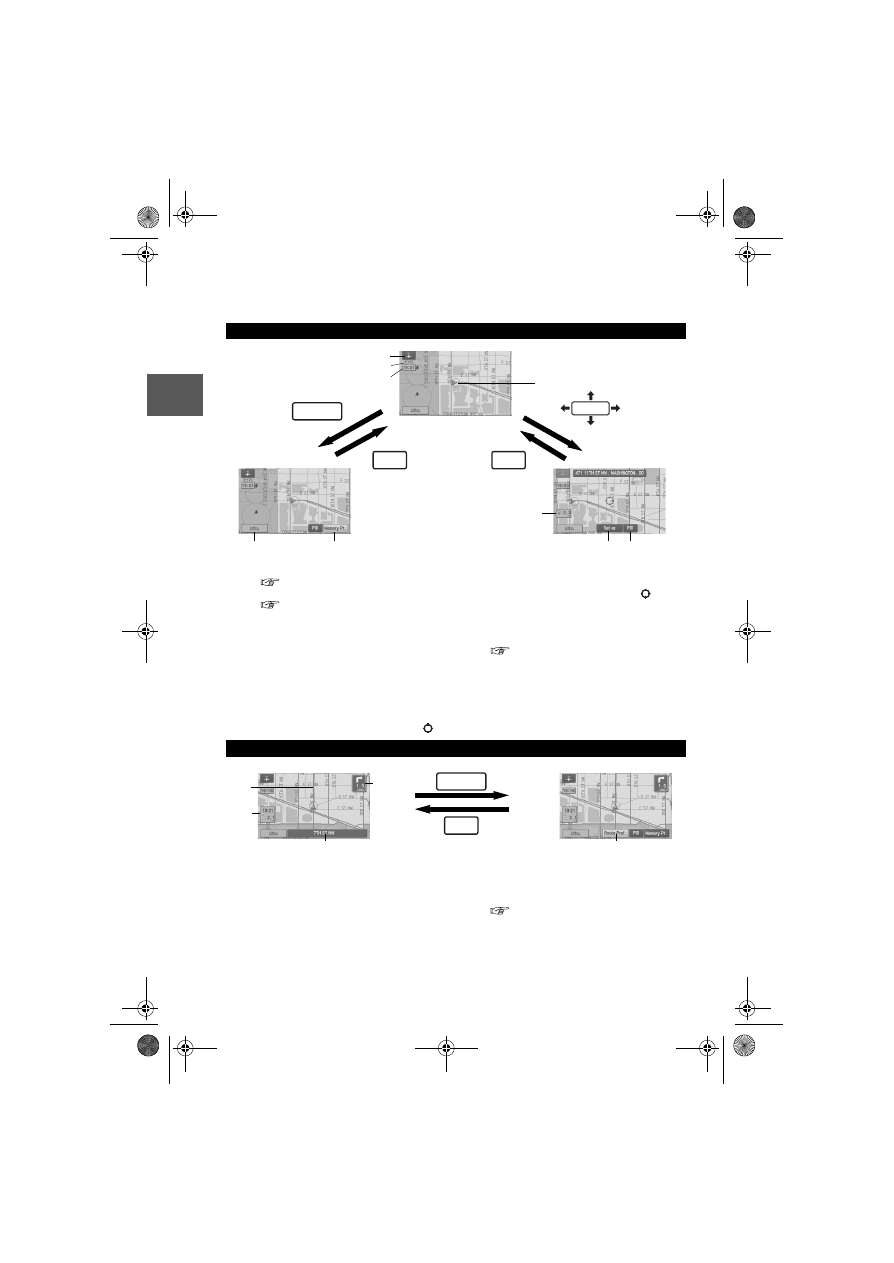

Screen Names and Functions

Screens Before Setting Route

(1) Map Orientation control

(

page 16)

(2) GPS (Global Positioning System) marker

(

page 52)

(3) Clock

Clock will be displayed when you set up
Clock on Navigation Set Up On.

(4) Vehicle marker

Shows the current position and
direction of your vehicle.

(5) Scale display

Displays the scale of the map.

(6) Distance from current position

Displays the distance from the current
position to the position pointed by

(7) Set Destination button

The destination, memory point or way point
will be set at the position pointed by

in the

scroll screen.

(8) Store Memory Point button

Stores markers on the map.

(9) POI (Point of Interest) Display button

(

page 26)

Screens During Route Guidance

(1) Distance and Time to Destination display

Displays the time* and distance to the
destination or way point.
Selecting this will display the next and
further information on the way point or
time and distance to the destination.
(* Either required time or estimated time
arrival)

(2) Route display

Shows the provided route as a thick
blue line.

(3) Turn Arrow display

Shows the direction to turn at the next
junction and the distance to the junction.

(4) Route Preferences button

(

page 30)

(5) Current Road Name

Shows the name of the road you are
currently driving on.

RET

ENTER

(6)

(7)

(9)

(4)

(3)

(1)
(2)

(8)

RET

(5)

Current position screen

Returns after a

few seconds.

ENTER

(4)

(3)

(1)

(2)

Returns after a

few seconds.

RET

(5)

Ge
tt

tar
te

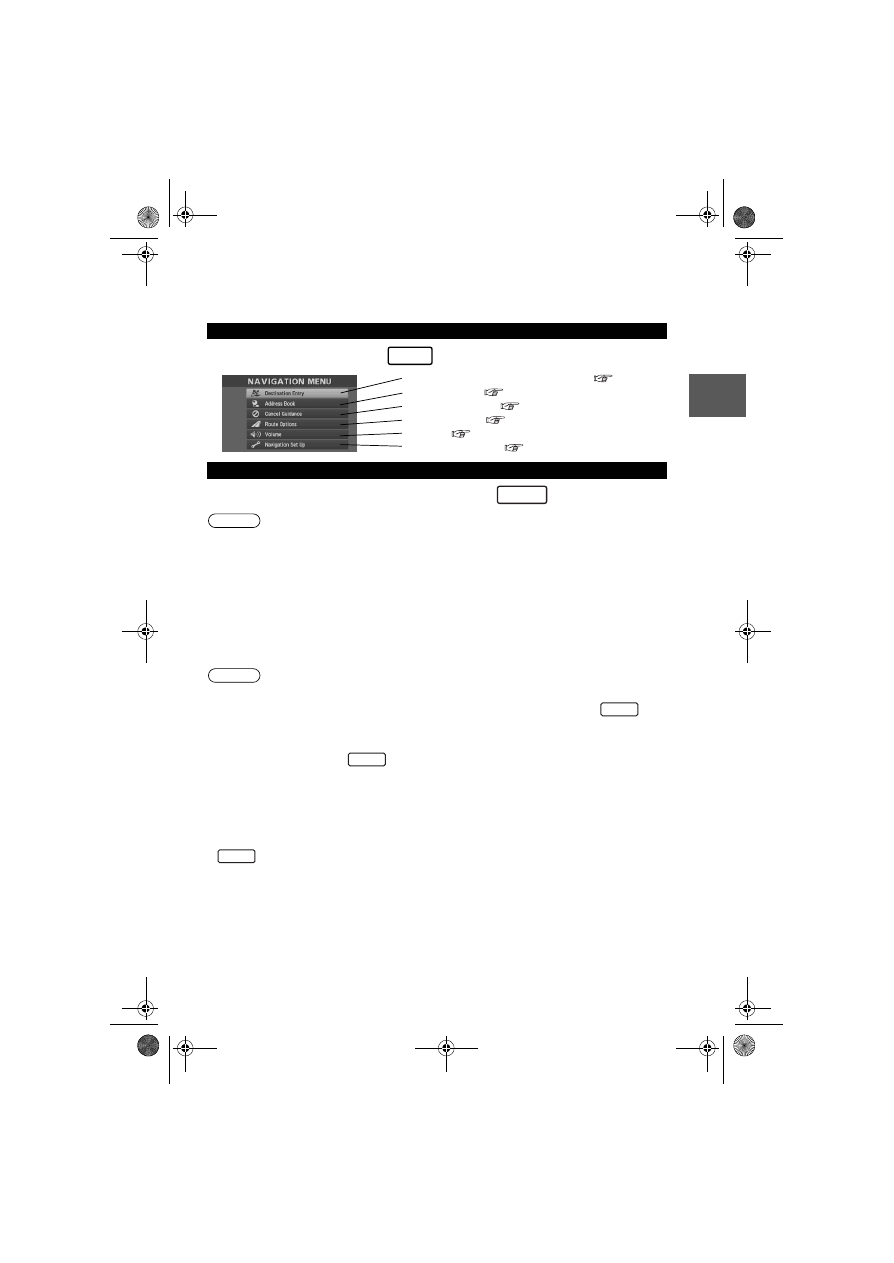

Menu appears when pressing

Display Menu screen will be shown when you press

(DISP) and hold.

Note

Display Menu screen will be disappeared when they have been unused during a few seconds.

■

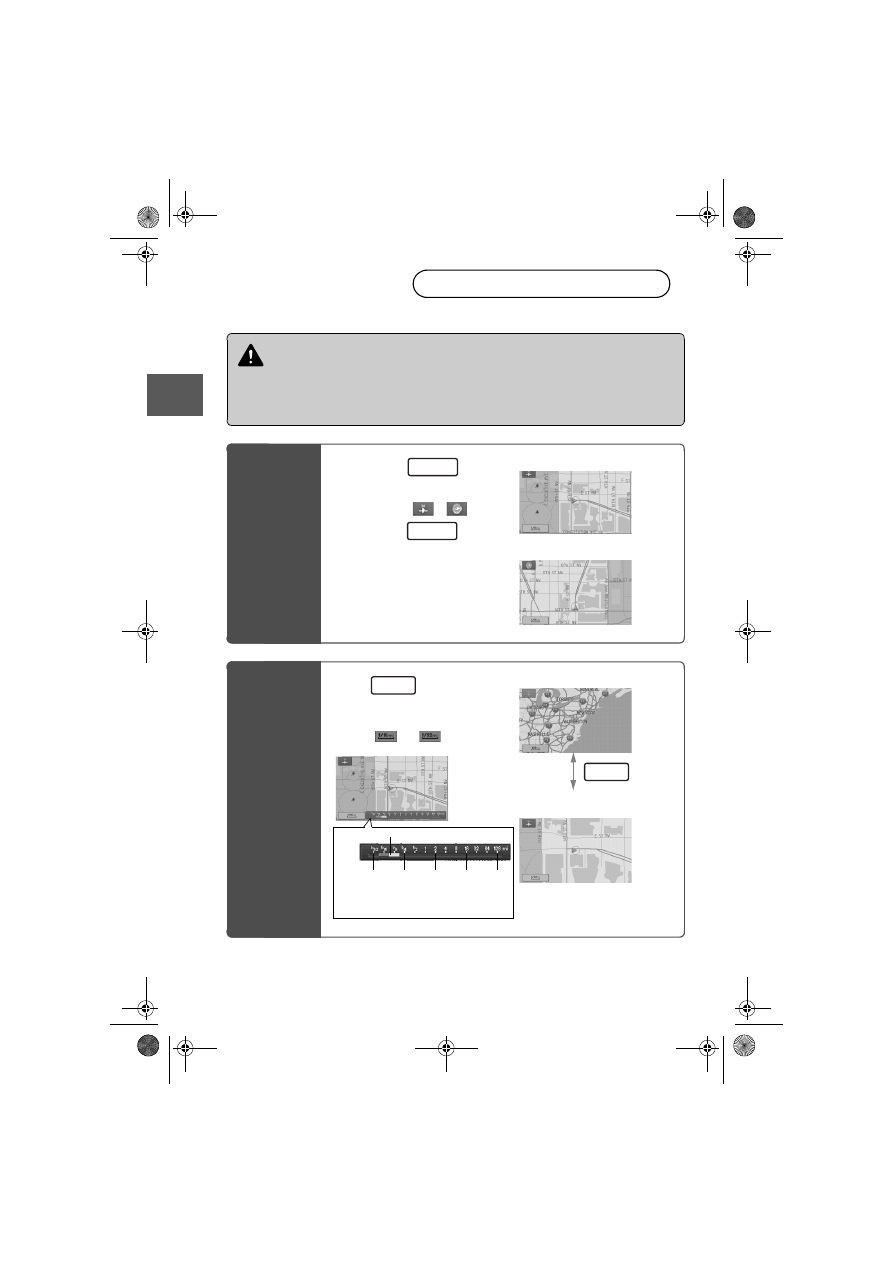

Adjusting the screen quality

●

Adjusts the screen brightness
Select "ADJ", and then "BRIGHT". The screen will brighten when scrolling to the right, or
darken when scrolling to the left.

●

Adjusts the screen contrast
Select "ADJ", and then "CONTRAST". The screen will lighten when scrolling to the right, or
deepen when scrolling to the left.

Note

• Adjust by scrolling the Joystick to the right and left.

• Restore the adjustment value to the default when selecting “RESET”, press

■

Clearing the screen

Select “DISP OFF”, press

and the screen will disappear.

The screen will appear again when pressing any buttons.

■

Daytime screen/Night screen

When the headlights are on, daytime mode can also be selected (if extra screen certain
nighttime conditions). This selection can only be done when the headlights are on. Press

to switch between day and night modes.

Menu

Screen adjustments and settings

MENU

Destination Entry and Route Search (

page 18)

Address Book (

page 34)

Cancel Guidance (

page 29)

Route Options (

page 30)

Volume (

page 40)

Navigation Set Up (

page 42)

VOICE

ENTER

Rout

res
s

Book

Ge
tt

tar
te

Screen change

■

Do not keep your eyes fixed on the monitor screen or operate the system
while driving

Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident. Always stop the vehicle in a safe location and use the parking brake
before operating the system.

Map
orientation

Map scale

Changing the Map Orientation/Scale

Warning

Press

Select ,

and

press

●

North Up: Geographic north is up.

●

Head Up: The direction you are

heading is up.

ENTER

●

The map can be displayed in
13 steps with scales from

●

ZOOM OUT: Enlarges the map.

●

ZOOM IN: Reduces the map.
(more detail.)

ZOOM

Position before change

Imperial
display

1/32 mi
(mile)

1/4 mi
(mile)

2 mi
(mile)

16 mi
(mile)

128 mi
(mile)

Metric
display

50 m

500 m

4 km

32 km

256 km

ZOOM

Be
fo

Us
e

tti
n

sta

Ro
uti
n

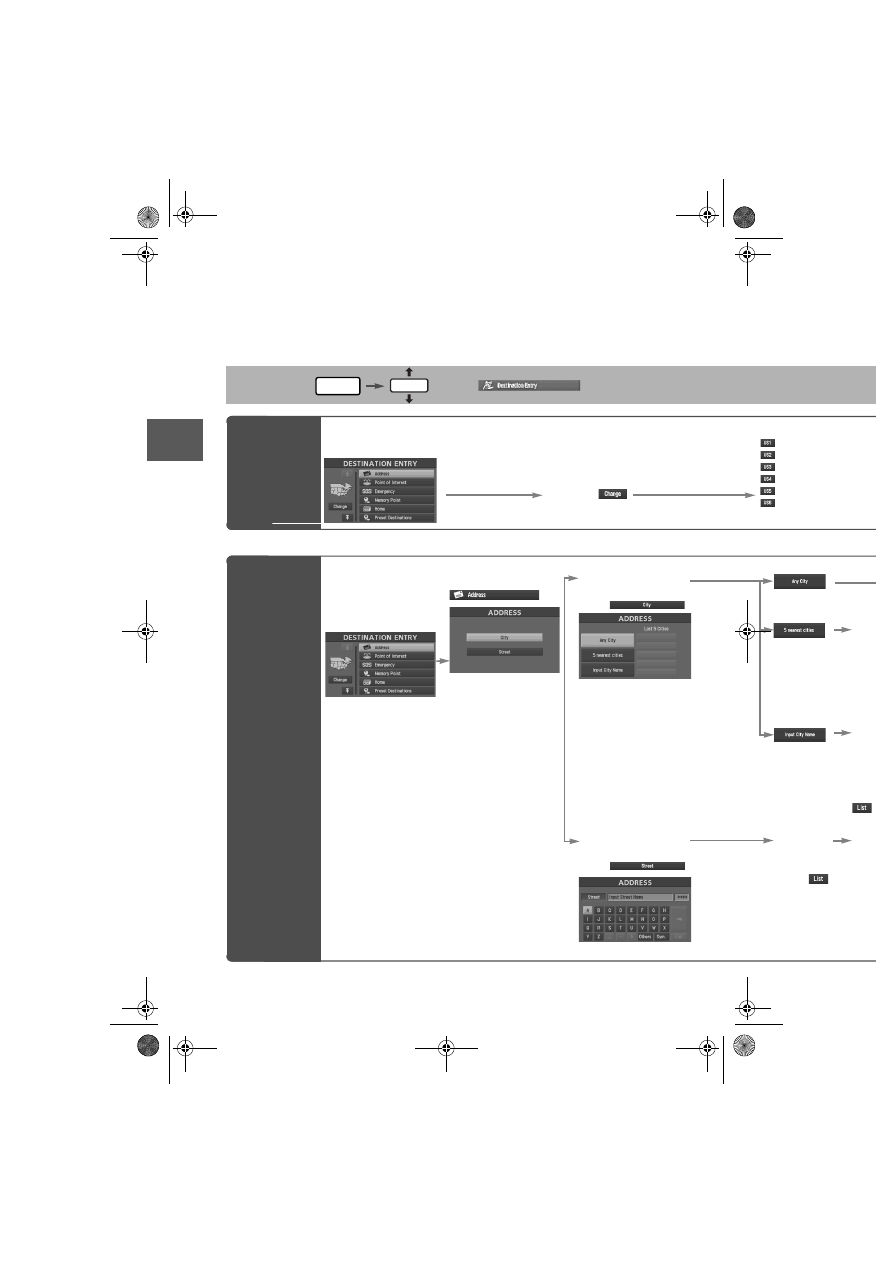

Destination Entry and Route Search

●

You can set the destination using various methods provided by the system.

Before Steps

select

Change
(Change
Search Area)

Address

MENU

ENTER

Open the [DESTINATION
ENTRY] Menu

Select

Select the desired Sea

: ID, OR, WA,
: CA, NV
: AZ, CO, MT, NM, UT, WY
: IA, KS, MN, MO, ND, NE,
: OK, TX
: IL, IN, KY, MI, OH, WI

Open the
[DESTINATION
ENTRY] Menu

Select

When narrowing
down to city name

Select

When narrowing
down to street name

Select

Enter the
street
name and
select

Cancel the
city selection.

Displays list of
5 city names
nearest the
current
position.

Displays the
city name
input screen.

Selec
stree
from

Selec
the
city
name
from
the
list

Enter
the
city
name
and
selec

Be
fo

Us
e

tti
n

sta

Ro
uti
n

●

For Character Entry, please refer to page 27.

●

Do not keep your eyes fixed on the monitor screen or operate the system while driving.
Do not change the settings and destination locations while driving. Minimize the time spent
viewing the monitor screen and listening to the voice guidance while driving. Operating the system
will distract the driver from looking ahead of the vehicle and may cause an accident. Always stop
the vehicle in a safe location before operating the system.

●

Route searches with the navigation system can include roads that you cannot drive on and roads that you
are prohibited from driving on due to traffic regulations. Please comply with the traffic regulations.

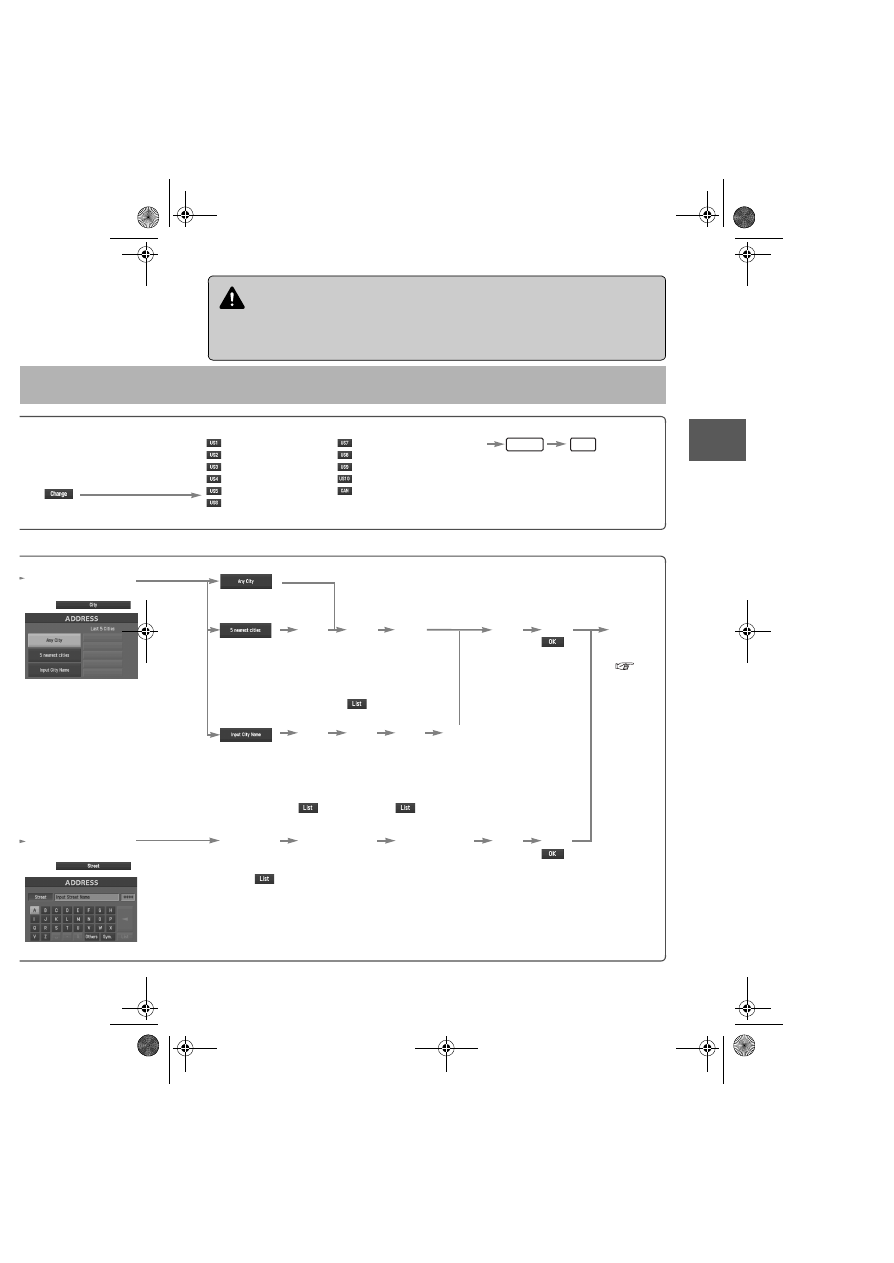

Warnings

ect

Select the desired Search Area

: ID, OR, WA,

: AR, AL, LA, MS, TN

: CA, NV

: CT, MA, ME, NH, NJ, NY, RI, VT

: AZ, CO, MT, NM, UT, WY

: DC, DE, MD, PA, VA, WV

: IA, KS, MN, MO, ND, NE, SD

: FL, GA, NC, SC

: OK, TX

: CANADA

: IL, IN, KY, MI, OH, WI

ENTER

RET

When narrowing
down to city name

Select

When narrowing
down to street name

Select

Enter the
street
name and
select

Cancel the
city selection.

Displays list of
5 city names
nearest the
current
position.

Displays the
city name
input screen.

Select the
street name
from the list

Select
the
city
name
from
the
list

Enter
the
city
name
and
select

Enter
the
street
name
and
select

Select
the
city
name
from
the
list

Select the city
name from the
list

Select
the
street
name
from
the
list

Enter
the
street
name
and
select

Select the
street name
from the list

Enter
the
house
no.

Select

Direct
destinati
on input
(
page 28)

Be
fo

Us
e

tti
n

sta

Ro
uti
n

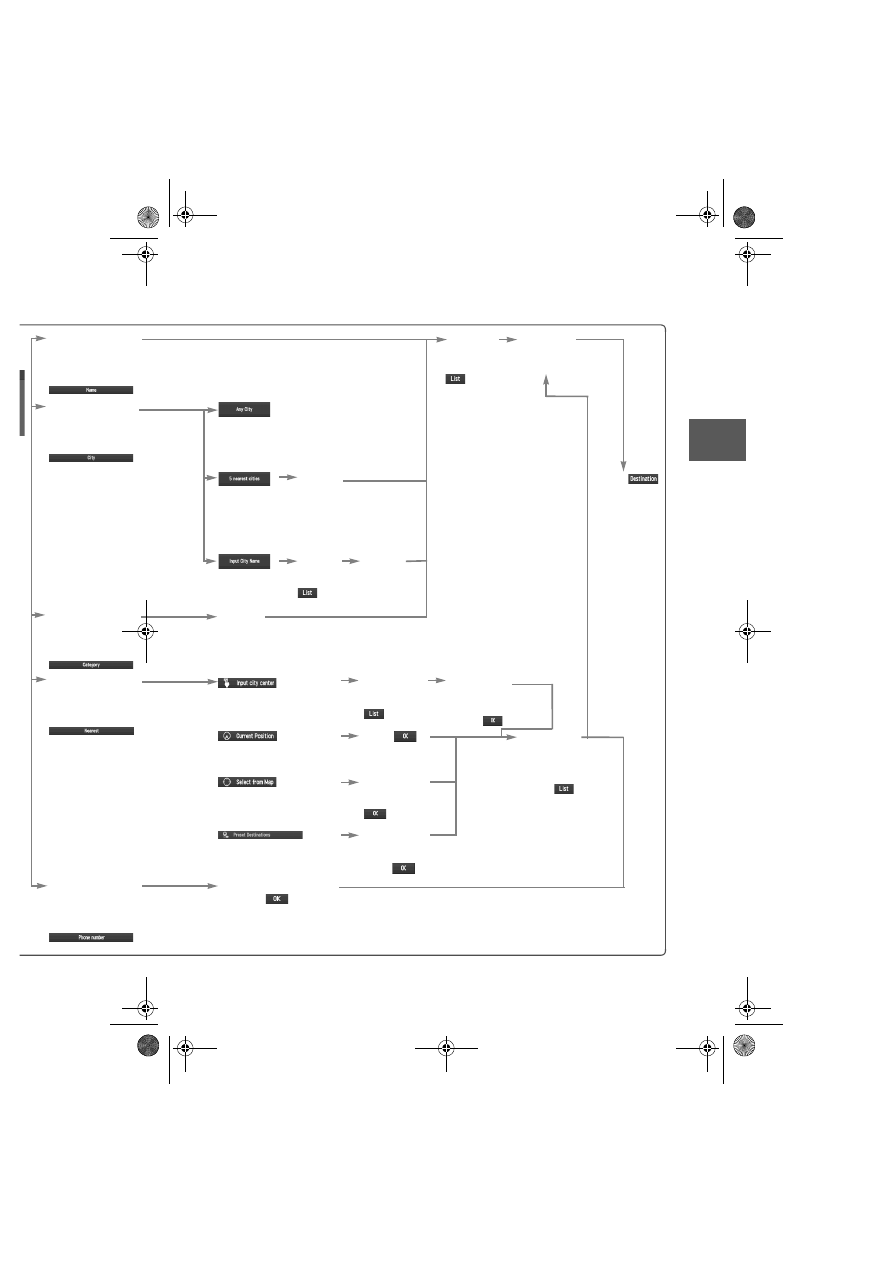

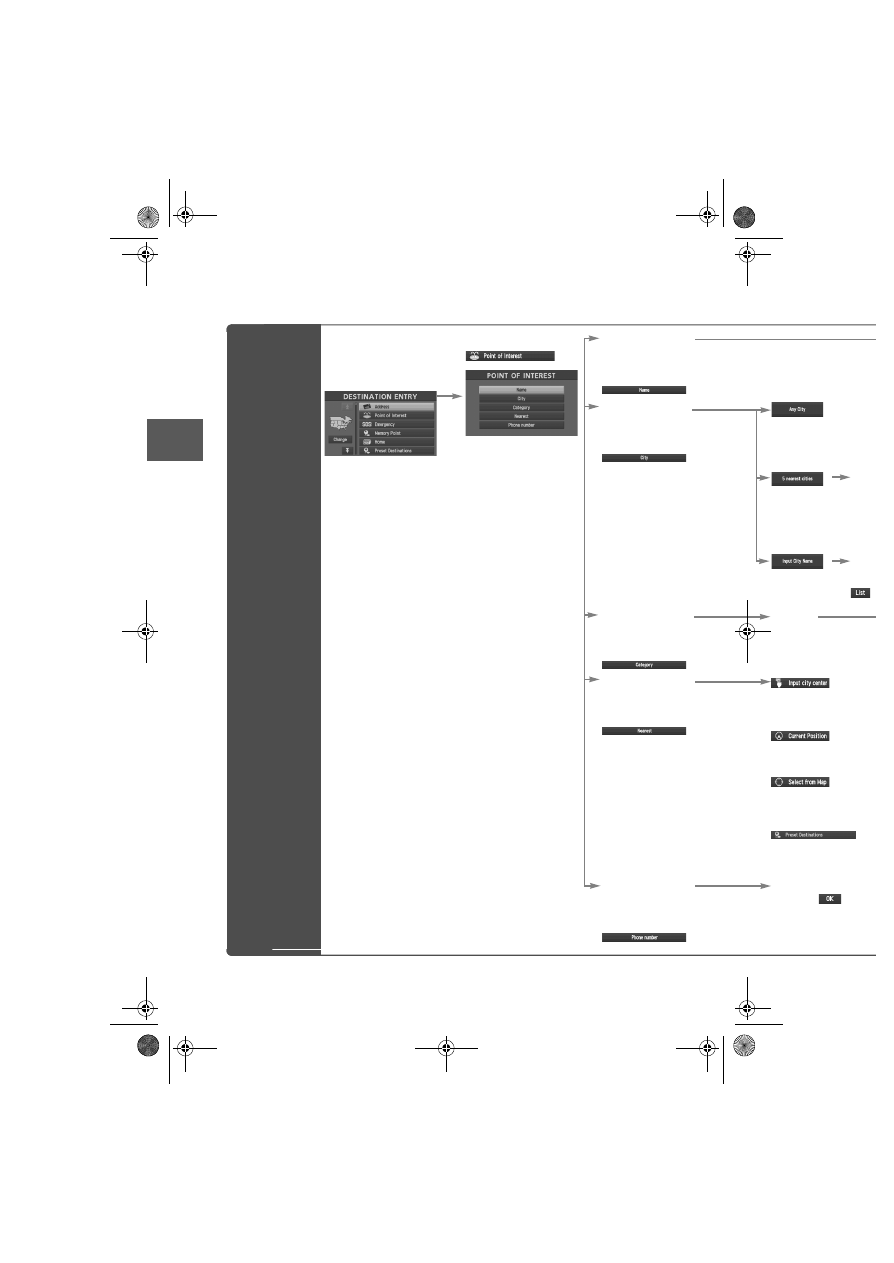

Destination Entry and Route Search

Point of
interest

Open the
[DESTINATION
ENTRY] Menu

Select

When entering
the destination
point directly

Select

When narrowing
down to category
name

Select

When narrowing
down to city
name

Select

When narrowing
down to the
nearest facility

Select

When narrowing
down to a phone
number

Select

Select the
category
name from
the list

Cancel the
city selection.

Displays list
of 5 city
names
nearest the
current
position.

Displays the
city name
input screen.

: Searche

for facilities close to the
nearest city hall.

: Searche

for facilities near the cur
position.

: Searches

facilities near the current
position.

Searches for facilities ne
the current destinations.

Select
city na
from t
list

Enter
city na
and se

Enter the phone number

and select

Be
fo

Us
e

tti
n

sta

Ro
uti
n

●

For Character Entry, please refer to page 27.

When entering
the destination
point directly

Select

When narrowing
down to category
name

Select

When narrowing
down to city
name

Select

When narrowing
down to the
nearest facility

Select

When narrowing
down to a phone
number

Select

Select the
category
name from
the list

Cancel the
city selection.

Displays list
of 5 city
names
nearest the
current
position.

Displays the
city name
input screen.

: Searches

for facilities close to the
nearest city hall.

: Searches

for facilities near the current
position.

: Searches for

facilities near the current
position.

Searches for facilities near
the current destinations.

Select the
city name
from the
list

Enter the
city name
and select

Select the
city name
from the
list

Enter the city
center name
and select

Select

Scroll the map
as necessary
and select

Enter the
POI name
and select

Select the
POI from
the list

Select

Select the
city center
name from
the list and
select

Select the
Category
name from
the list and
select

Select the
facility from
the list and

select

Enter the phone number

and select

Mazda 6 Sports Sedan (2006 year). Instruction - part 1
