If Trouble Arises

Flat Tyre

*Some models.

Jack

To remove the jack

(With spare tyre)

Saloon

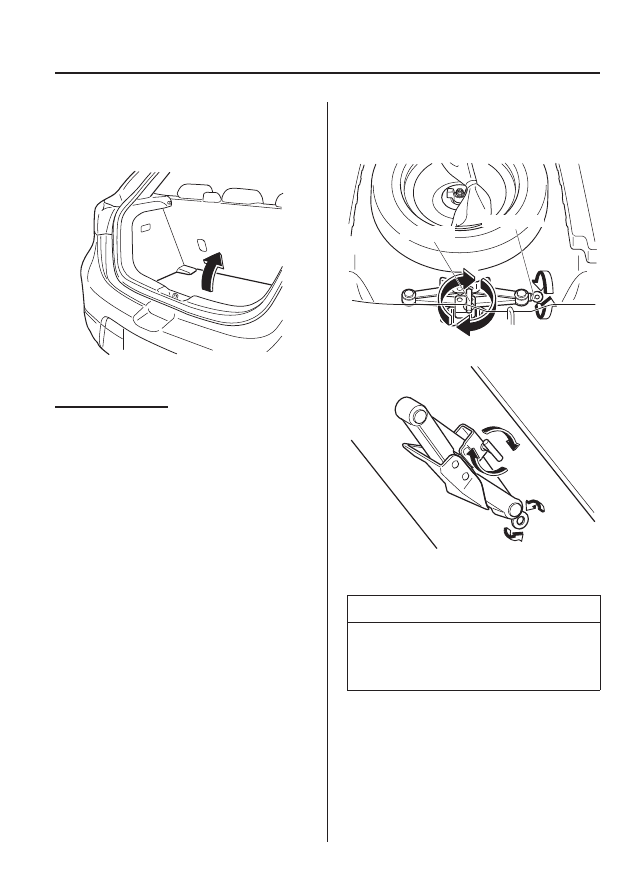

1.   Lift  the  boot  mat.
2.   Remove  the  boot  board.

3. Turn the wing bolt and jack screw

anticlockwise.

Wing bolt

Jack screw

Hatchback

1. Remove the cover.

Tabs

2. Turn the wing bolt and jack screw

anticlockwise.

7–7

If Trouble Arises

Flat Tyre

(Without spare tyre)

1. Lift the luggage compartment mat.

2. Remove the jack.

To secure the jack

(With spare tyre)

1. Insert the wing bolt into the jack with

the jack screw pointing to the right
(Saloon) or down (Hatchback) and turn
the wing bolt clockwise to temporarily
tighten it.

2. Turn the jack screw in the direction

shown in the

¿ gure.

Saloon

Wing bolt

Jack screw

Hatchback

3. Turn the wing bolt completely to secure

the jack.

NOTE

If the jack is not completely secured, it
could rattle while driving. Make sure the
jack screw is suf

¿ ciently tightened.

7–8

If Trouble Arises

Flat Tyre

*Some models.

4. Return the boot board to its original

position (Saloon), or insert the cover
tabs and install the cover (Hatchback).

NOTE

Verify that the cover is securely
installed.

(Without spare tyre)

Perform the removal procedure in reverse.

Maintenance

Always keep the jack clean.

Make sure the moving parts are kept

free from dirt or rust.

Make sure the screw thread is

adequately lubricated.

Spare Tyre

Your Mazda has a temporary spare tyre.
The temporary spare tyre is lighter and
smaller than a conventional tyre, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tyres should
NEVER be used for long drives or
extended periods.

WARNING

Do not install the temporary spare tyre
on the front wheels (driving wheels):
Driving with the temporary spare tyre
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tyre to the front wheel and install the
temporary spare tyre to the rear.

CAUTION

When using the temporary spare

tyre, driving stability may decrease
compared to when using only the
conventional tyre. Drive carefully.

To avoid damage to the temporary

spare tyre or to the vehicle, observe
the following precautions:

Do not exceed 80 km/h (50 mph).

Avoid driving over obstacles. Also,

do not drive through an automatic
car wash. This tyre's diameter is
smaller than a conventional tyre,
so the ground clearance is reduced.

Do not use a tyre chain on this tyre

because it will not

¿ t properly.

Do not use your temporary spare

tyre on any other vehicle, it has
been designed only for your
Mazda.

Use only one temporary spare tyre

on your vehicle at the same time.

7–9

If Trouble Arises

Flat Tyre

*Some models.

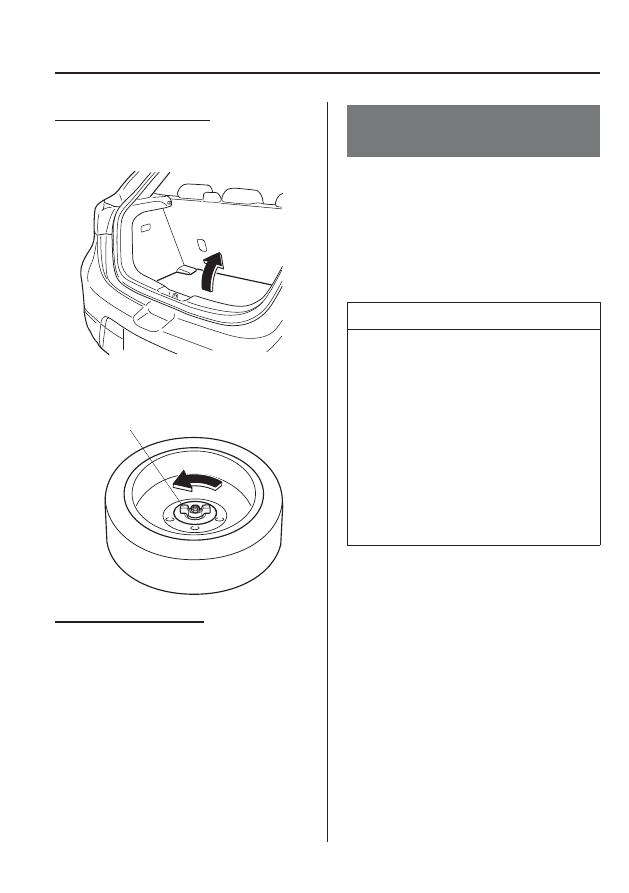

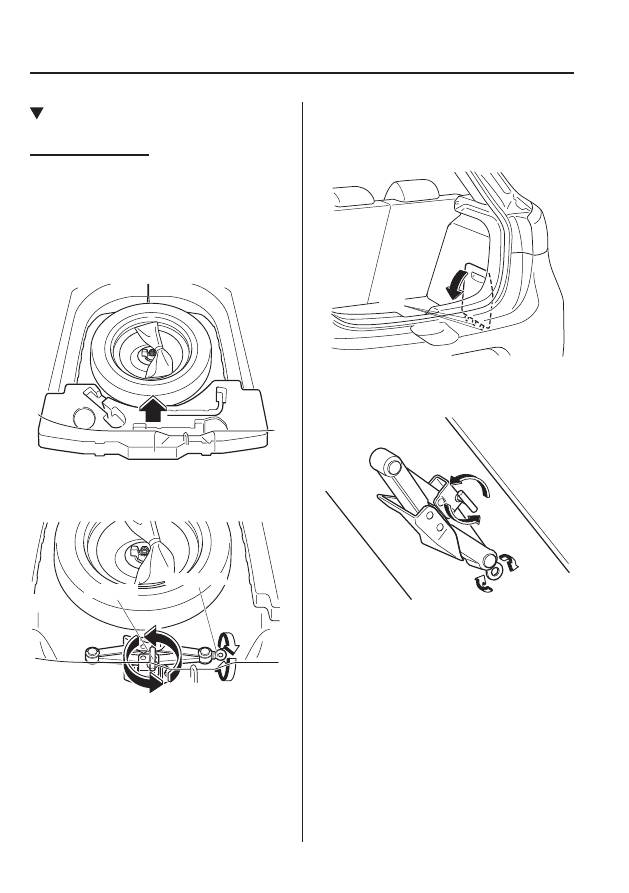

To remove the spare tyre

1. Lift the boot/luggage compartment mat.

2. Turn the spare tyre hold-down bolt

anticlockwise.

Spare tyre hold-down bolt

To secure the spare tyre

Store the spare tyre in the reverse order
of removal. After storing, verify that the
spare tyre is stored securely.

Emergency Flat Tyre
Repair Kit

The emergency

À at tyre repair kit included

with your Mazda is for a temporary repair
of a slightly damaged

À at tyre resulting

from running over nails or similar sharp
objects on the road surface.
Perform the emergency

À at tyre repair

without removing the nail or similar sharp
object which punctured the tyre.

NOTE

Your vehicle is not equipped with a
spare tyre. In the event of a

À at tyre,

use the emergency

À at tyre repair kit

to repair the tyre temporarily. When
doing the repair, refer to the instructions
included in the emergency

À at tyre

repair kit. If an emergency repair was
performed on a

À at tyre using the

emergency

À at tyre repair kit, have

an expert repairer, we recommend an
Authorised Mazda Repairer, repair or
replace the tyre as soon as possible.

7–10

If Trouble Arises

Flat Tyre

About the Emergency Flat Tyre

Repair Kit

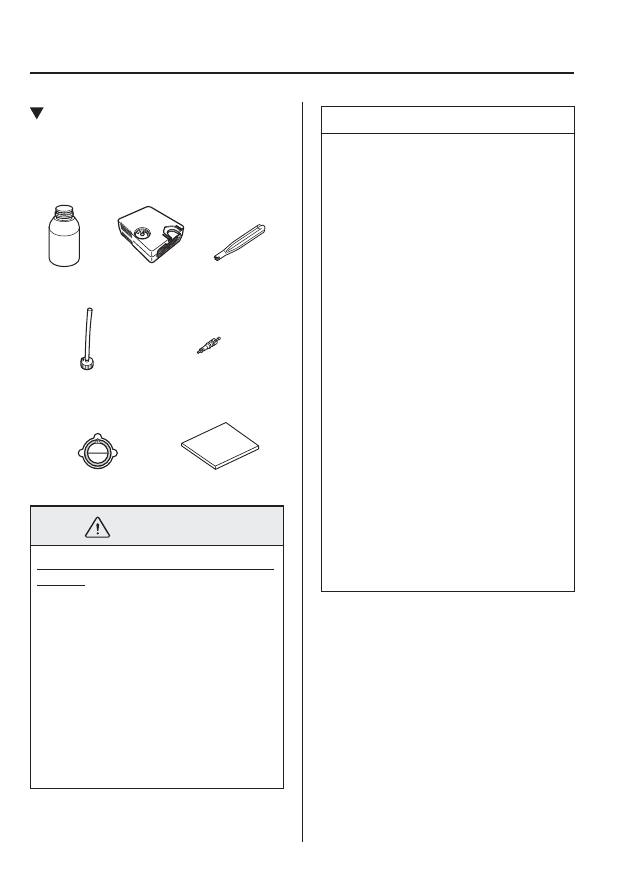

The emergency

À at tyre repair kit includes

the following items.

Tyre sealant

Injection hose

Compressor

Valve core tool

Spare valve core

Speed restriction sticker

Instructions

WARNING

Do not allow children to touch the tyre
sealant:

Ingestion of tyre sealant is

dangerous. In the event tyre sealant
is accidentally swallowed, drink
large amounts of water immediately
and seek medical assistance.

Tyre sealant that comes into contact

with the eyes and skin is dangerous.
If tyre sealant enters the eyes or
contacts the skin,

À ush immediately

with large amounts of water and
seek medical assistance.

NOTE

The tyre sealant cannot be reused.

Purchase new tyre sealant at an
Authorised Mazda Repairer.

The emergency

À at tyre repair kit

cannot be used in the following
cases.

Consult an expert repairer, we

recommend an Authorised Mazda
Repairer.

The period of effective use for

the tyre sealant has expired. (The
period of effectiveness is indicated
on the bottle label.)

The tear or puncture exceeds about

4 mm (0.16 in).

The damage has occurred to an

area of the tyre other than the
tread.

The vehicle has been driven with

nearly no air remaining in the tyre.

The tyre has come off the wheel

rim.

Damage to the wheel rim has

occurred.

The tyre has two or more

punctures.

7–11

If Trouble Arises

Flat Tyre

Using the Emergency Flat Tyre

Repair Kit

1. Park on a level surface off the right-of-

way and set the parking brake.

2. Put a vehicle with an automatic

transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.

3. Turn on the hazard warning

À asher.

4. Unload passengers and luggage, and

remove the emergency

À at tyre repair

kit.

5. Shake the tyre sealant well.

CAUTION

If the bottle is shaken after the injection
hose is screwed on, tyre sealant could
spray out from the injection hose. Tyre
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.

NOTE

The tyre sealant can be used at outside
temperatures down to -30 °C (-22 °F). In
extremely cold temperatures (0 °C
(32 °F) or below), the tyre sealant
hardens easily and injection of the
sealant will be dif

¿ cult. Warm the

sealant inside the vehicle before doing
the injection work.

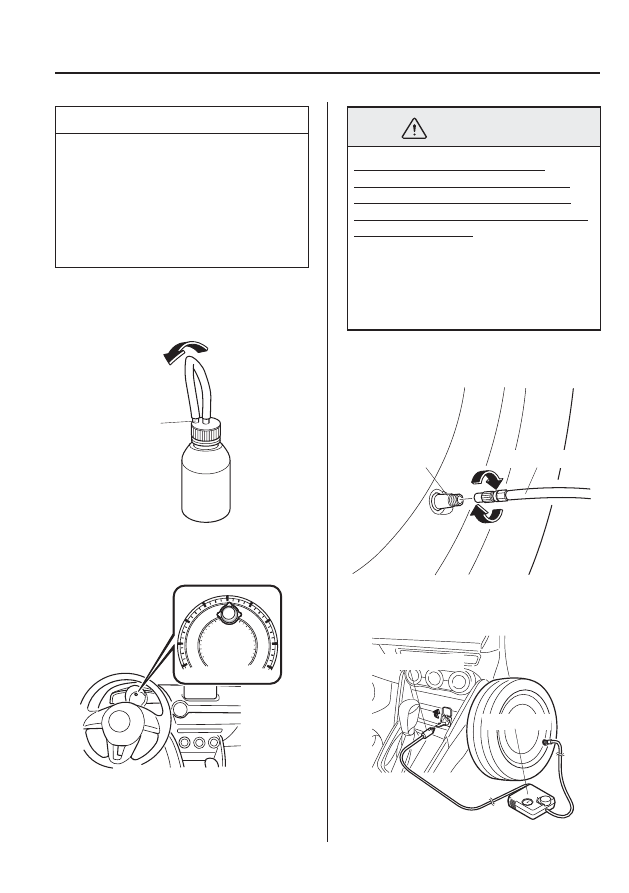

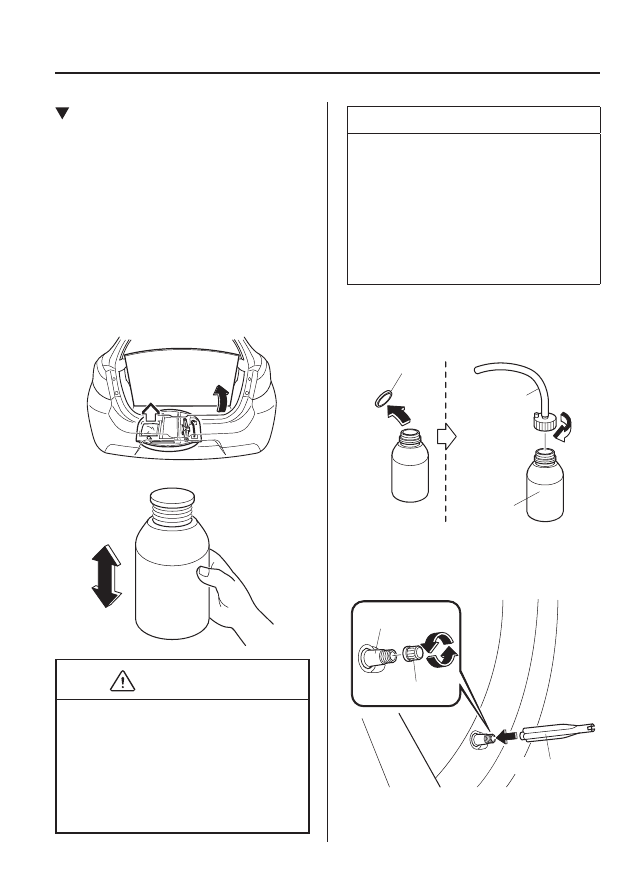

6. Remove the cap from the bottle. Screw

on the injection hose with the bottle's
inner cap left on to break the inner cap.

Cap

Injection hose

Tyre sealant

7. Remove the valve cap from the

À at

tyre. Press the back of a valve core tool
to the core of the tyre valve and bleed
all the remaining air.

Valve core tool

Valve

Valve cap

7–12

If Trouble Arises

Flat Tyre

CAUTION

If there is air remaining in the tyre when
the valve core is removed, the valve core
could

À y out. Remove the valve core

carefully.

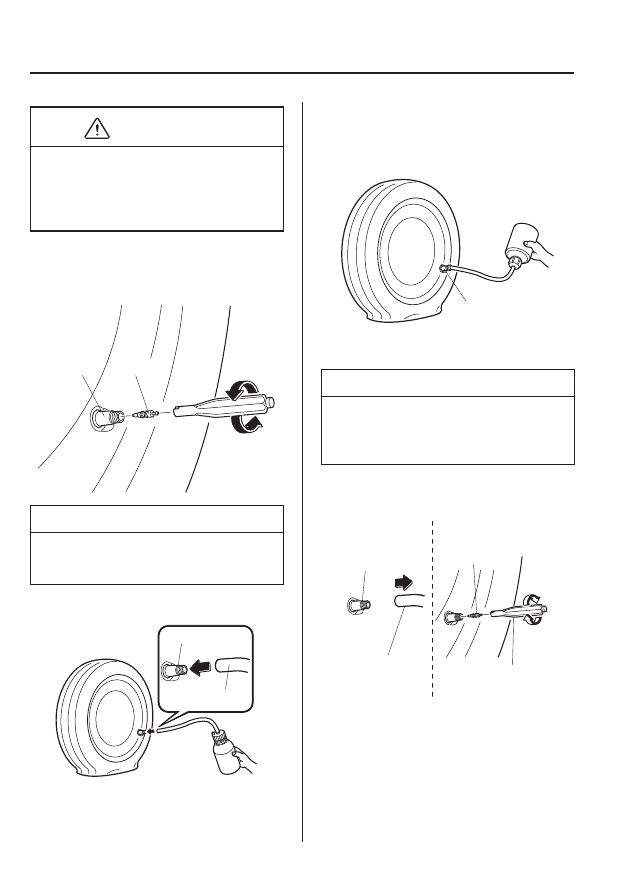

8. Turn the valve core anticlockwise with

the valve core tool and remove the
valve core.

Valve

Valve core

NOTE

Store the valve core in a place where it
will not get dirty.

9. Insert the injection hose into the valve.

Valve

Injection hose

10. Hold the bottom of the bottle upright,

squeeze the bottle with your hands, and
inject the entire amount of tyre sealant
into the tyre.

Valve

11. Pull out the injection hose from the

valve.

NOTE

The tyre sealant cannot be reused.
Purchase a new tyre sealant kit at an
Authorised Mazda Repairer.

12. Reinsert the valve core into the valve

and turn it clockwise to install it.

Injection hose

Valve core
tool

Valve

Valve core

7–13

If Trouble Arises

Flat Tyre

NOTE

Do not throw away the empty tyre
sealant bottle after use. Return the empty
tyre sealant bottle to an Authorised
Mazda Repairer when replacing the tyre.
The empty tyre sealant bottle will need
to be used to extract and dispose of the
used sealant from the tyre.

13. After that, install the injection hose to

the tab of the bottle to prevent leakage
of any remaining sealant.

Tab

14. Attach the vehicle speed restriction

sticker in a place where the driver can
easily see it.

WARNING

Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:
Attaching the vehicle speed restriction
sticker to the steering wheel pad is
dangerous. The sticker could interfere
with air bag in

À ation and cause serious

injury.

15. Install the compressor hose to the tyre

valve.

Valve

Compressor hose

16. Insert the compressor plug into the

interior accessory socket and switch the
ignition to ACC.

Compressor

Compressor plug

7–14

If Trouble Arises

Flat Tyre

CAUTION

Before pulling out the compressor

plug from the electrical socket, make
sure the compressor power switch is
off.

The compressor turns on and off with

the push-button switch.

17. Turn the compressor switch on and

À ate the tyre carefully to the correct

À ation pressure.

WARNING

Never operate the compressor above
300 kPa (3.1 kgf/cm

, 3 bar, 43.5 psi):

Operating the compressor above
300 kPa (3.1 kgf/cm

, 3 bar, 43.5 psi) is

dangerous. When the in

À ation pressure

rises above 300 kPa (3.1 kgf/cm

, 3 bar,

43.5 psi), heated air will be exhausted
from the back of the compressor and
you could be burned.

NOTE

Check the tyre in

À ation pressure

label (driver's door frame) for the
correct tyre in

À ation pressure.

Do not use the compressor for longer

than 10 minutes because using the
compressor for long periods could
damage it.

If the tyre does not in

À ate, repair

of the tyre may not be possible. If
the tyre does not reach the correct
in

À ation pressure within a 10-minute

period, it probably has received more
extensive damage.

When this happens, the emergency

À at tyre repair kit cannot be used
to repair the tyre. Contact an
expert repairer, we recommend an
Authorised Mazda Repairer.

If the tyre has been over-in

À ated,

loosen the screw cap on the
compressor and bleed some of the air
out.

18. When the tyre has been in

À ated to

the proper in

À ation pressure, turn the

compressor switch off and remove the
compressor hose from the tyre valve.

19. Install the tyre valve cap.

7–15

If Trouble Arises

Flat Tyre

20. Put the emergency

À at tyre repair kit

in the luggage compartment/boot and
continue driving.

CAUTION

Drive carefully to an expert repairer,

we recommend an Authorised Mazda
Repairer and keep the vehicle speed
below 80 km/h (50 mph).

If the vehicle is driven 80 km/h

(50 mph) or higher, the vehicle might
begin to vibrate.

NOTE

(With tyre pressure monitoring
system)
If the tyre is not properly in

À ated, the

tyre pressure monitoring system warning
light will illuminate.

21. After driving the vehicle for 10 minutes

or 5 km (3 miles), check the tyre
pressure with the tyre pressure gauge
equipped with the compressor. If the
tyre pressure has fallen below the
correct tyre pressure, in

À ate the tyre to

the correct pressure again following the
steps from number 16.

CAUTION

If the tyre in

À ation pressure falls

below 130 kPa (1.3 kgf/cm

or bar,

18.9 psi), repair cannot be done with
the repair kit. Park the vehicle on
a level surface off the right-of-way
and contact an expert repairer, we
recommend an Authorised Mazda
Repairer.

If the tyre in

À ation pressure

continues to remain low after
repeating steps 15 to 21, park
the vehicle on a level surface off
the right-of-way and contact an
expert repairer, we recommend an
Authorised Mazda Repairer.

NOTE

When checking the tyre in

À ation

pressure with the tyre pressure gauge
on the compressor unit, make sure the
compressor switch is turned off.

7–16

If Trouble Arises

Flat Tyre

22. If the tyre in

À ation pressure remains

stable, the tyre repair is complete.
Drive the vehicle with care to an expert
repairer, we recommend an Authorised
Mazda Repairer to have the tyre
replaced.

CAUTION

A tyre that has been temporarily

repaired with the tyre sealant cannot
be reused. Mazda recommends
replacing the tyre with a new one.

The wheel can be reused after any

sealant adhering to it is wiped off and
carefully inspected. However, replace
the tyre valve with a new one.

Inspecting the Emergency Flat

Tyre Repair Kit

Inspect the emergency

À at tyre repair kit at

regular intervals.

Check the tyre sealant period of

effective use.

Check the operation of the tyre

compressor.

NOTE

The tyre sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tyre
sealant replaced at an Authorised Mazda
Repairer before the period of effective
use has expired.

Changing a Flat Tyre
(With Spare Tyre)

NOTE

If the following occurs while driving, it
could indicate a

À at tyre.

Steering becomes dif

¿ cult.

The vehicle begins to vibrate

excessively.

The vehicle pulls in one direction.

If you have a

À at tyre, drive slowly to a

level spot that is well off the road and out
of the way of traf

¿ c to change the tyre.

Stopping in traf

¿ c or on the shoulder of a

busy road is dangerous.

WARNING

Be sure to follow the directions for
changing a tyre:
Changing a tyre is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.

Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.

7–17

If Trouble Arises

Flat Tyre

NOTE

Make sure the jack is well lubricated
before using it.

1. Park on a hard, level surface off the

right-of-way and

¿ rmly set the parking

brake.

2. Put a vehicle with an automatic

transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.

3. Turn on the hazard warning

À asher.

4. Have everyone get out of the vehicle

and away from the vehicle and traf

¿ c.

5. Remove the jack, tool, and spare tyre

(page 7-3 ).

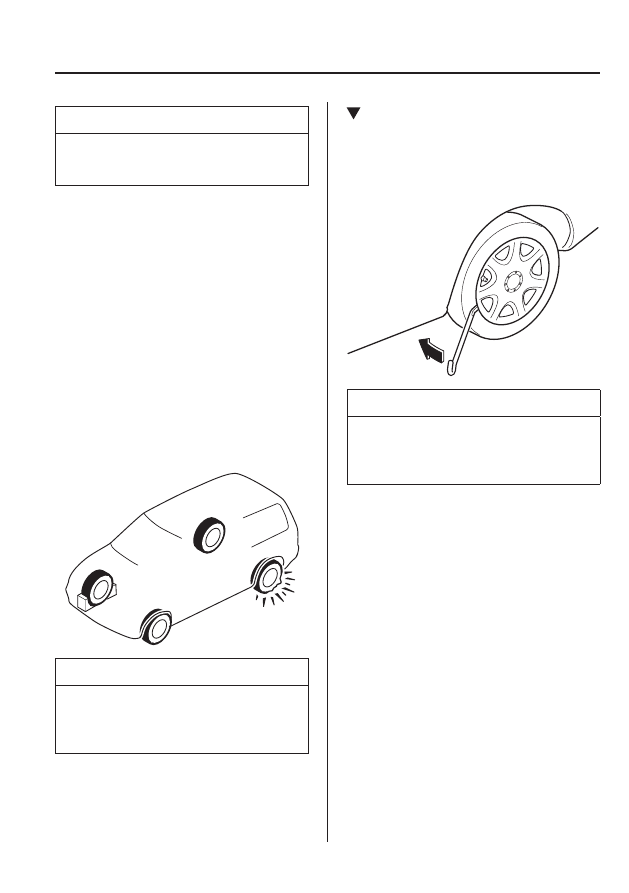

6. Block the wheel diagonally opposite

the

À at tyre. When blocking a wheel,

place a tyre block both in front and
behind the tyre.

NOTE

When blocking a tyre, use rocks or
wood blocks of suf

¿ cient size if possible

to hold the tyre in place.

Removing a Flat Tyre

1. If your vehicle is equipped with a

wheel cover, pry off the wheel cover
with the bevelled end of the jack lever.

NOTE

Force the end of the jack lever

¿ rmly

between wheel and cover, or removal
will be dif

¿ cult.

7–18

If Trouble Arises

Flat Tyre

CAUTION

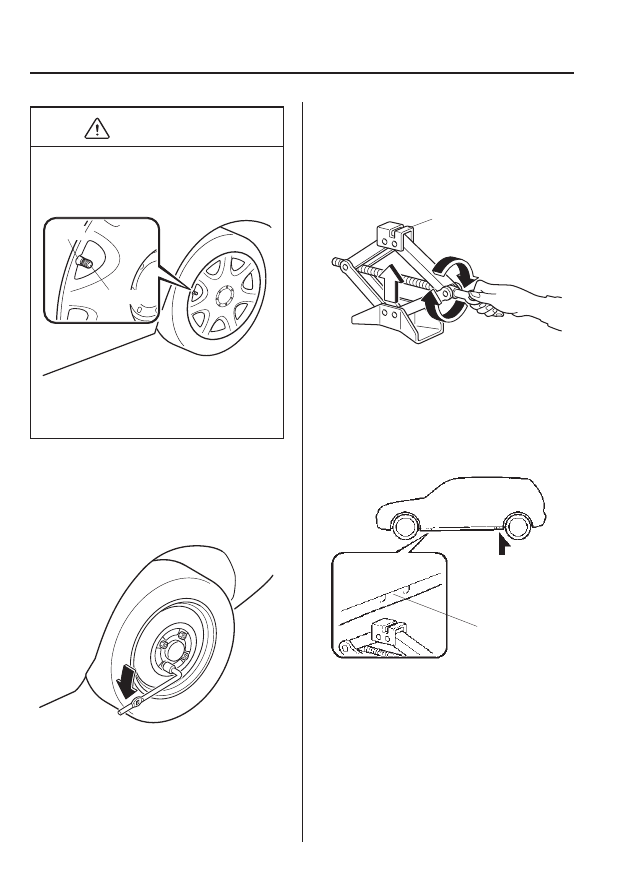

Align the notch on the wheel cover with
the valve stem when installing it.

Tyre valve

Notch

Damage could occur during installation
if the wheel cover is not properly
aligned.

2. Loosen the wheel nuts by turning them

anticlockwise one turn each, but do not
remove any wheel nuts until the tyre
has been raised off the ground.

3. Place the jack on the ground.

4. Turn the jack screw in the direction

shown in the

¿ gure and adjust the jack

head so that it is close to the jack-up
position.

Jack head

5. Place the jack under the jack-up

position closest to the tyre being
changed with the jack head squarely
under the jack-up point.

Jacking position

7–19

If Trouble Arises

Flat Tyre

6. Continue raising the jack head

gradually by rotating the screw with
your hand until the jack head is inserted
into the jack-up position.

Tyre blocks

Jacking position

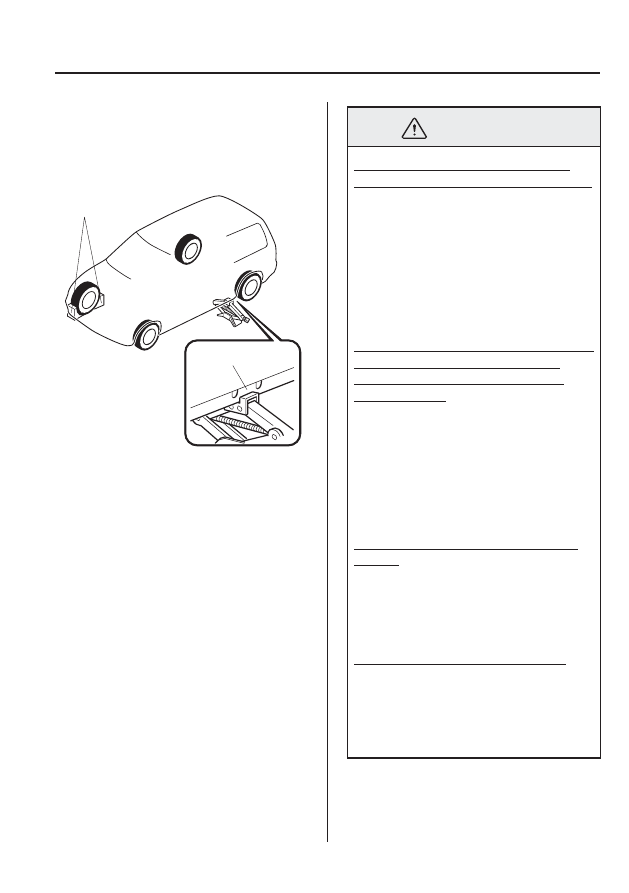

WARNING

Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle
in positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended in
this manual.

Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it could
deform the vehicle body or the vehicle
could fall off the jack resulting in an
accident.

Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.

Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The
jack could slip and someone could be
seriously injured by the jack or the
falling vehicle.

7–20

If Trouble Arises

Flat Tyre

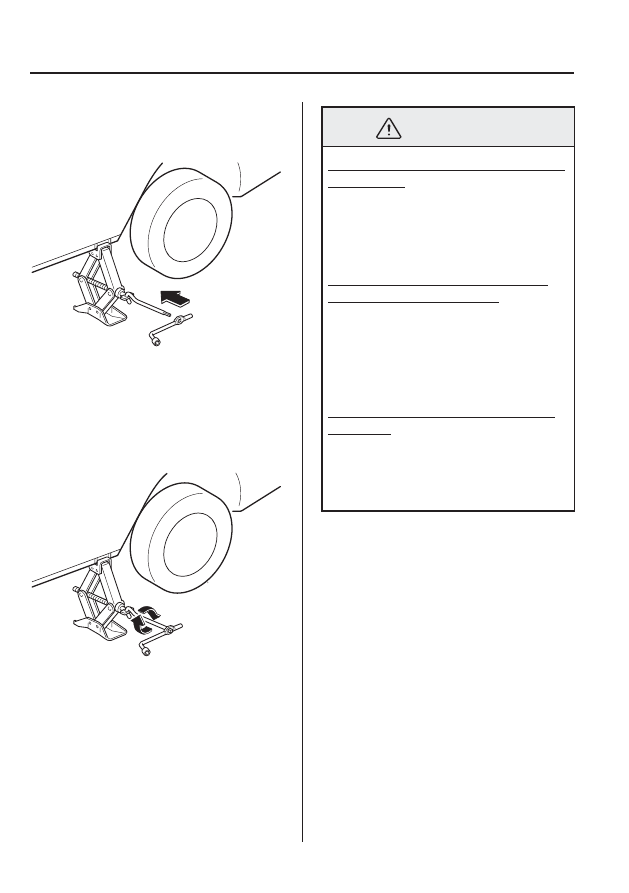

7. Insert the jack lever and attach the

wheel brace to tyre jack.

8. Turn the jack handle clockwise and

raise the vehicle high enough so that
the spare tyre can be installed. Before
removing the wheel nuts, make sure
your Mazda is

¿ rmly in position and

that it cannot slip or move.

WARNING

Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.

9. Remove the wheel nuts by turning

them anticlockwise; then remove the
wheel and centre cap.

7–21

If Trouble Arises

Flat Tyre

Mounting the Spare Tyre

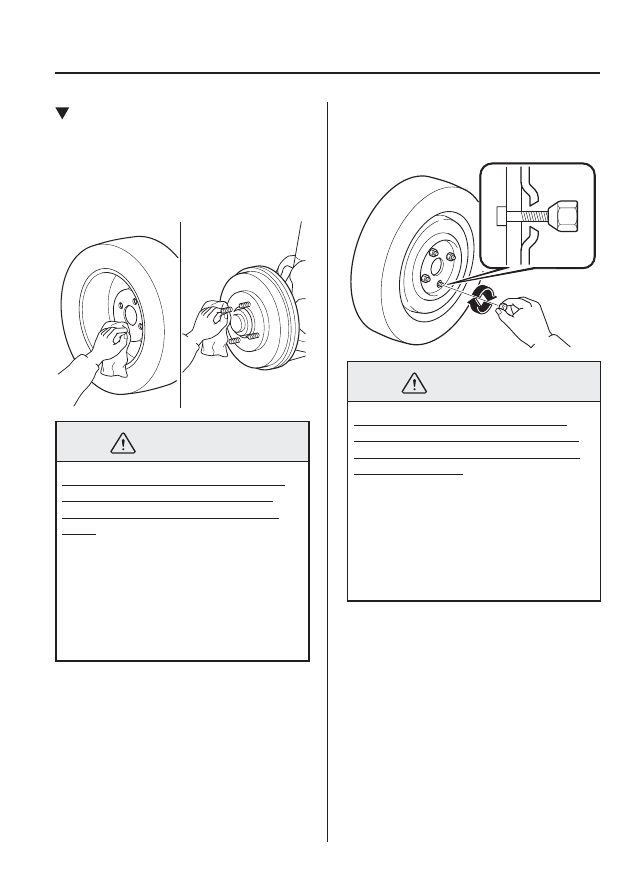

1. Remove dirt and grime from the

mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING

Make sure the mounting surfaces of
the wheel, hub and wheel nuts are
clean before changing or replacing
tyres:
When changing or replacing a tyre,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The wheel
nuts could loosen while driving and
cause the tyre to come off, resulting in
an accident.

2. Mount the spare tyre.

3. Install the wheel nuts with the bevelled

edge inward; tighten them by hand.

WARNING

Do not apply oil or grease to wheel
nuts and bolts and do not tighten the
wheel nuts beyond the recommended
tightening torque:
Applying oil or grease to wheel nuts
and bolts is dangerous. The wheel nuts
could loosen while driving and cause
the tyre to come off, resulting in an
accident. In addition, wheel nuts and
bolts could be damaged if tightened
more than necessary.

Mazda 2 (2017 year). Instruction - part 38
