Mazda 2 (2017 year). Instruction

4–42

When Driving

Instrument Cluster and Display

*Some models.

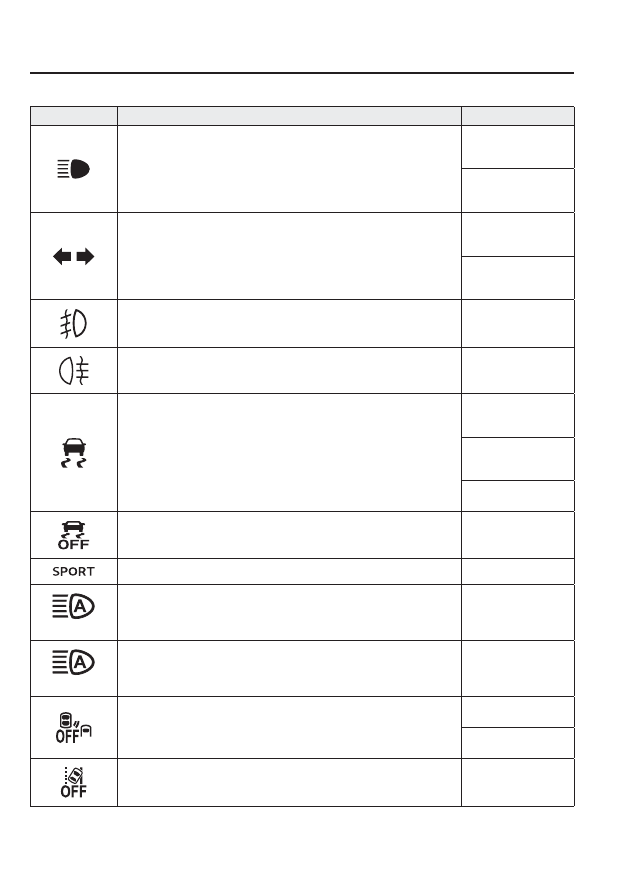

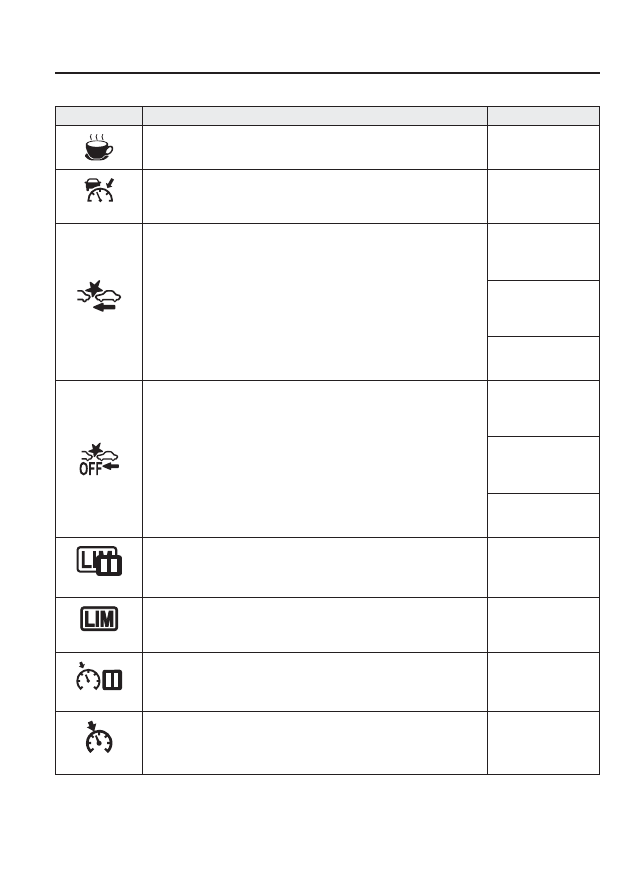

Signal

Indicator Lights

Page

Headlight High-Beam Indicator Light

Headlight High-Low

Beam

4-66

Flashing the

Headlights

4-66

Direction Indicator/Hazard Warning Indicator Lights

Turn and Lane-
Change Signals

4-71

Hazard Warning

Flasher

4-80

Front Fog Light Indicator Light

4-69

Rear Fog Light Indicator Light

4-70

TCS/DSC Indicator Light

Traction Control

System (TCS)

4-87

Dynamic Stability

Control (DSC)

4-88

Turns on

7-38

DSC OFF Indicator Light

4-89

Select Mode Indicator Light

4-100

(Green)

High Beam Control System (HBC) Indicator Light

4-106

(Green)

Adaptive LED Headlights (ALH) Indicator Light

4-110

Blind Spot Monitoring (BSM) OFF Indicator Light

Malfunction

7-38

Except malfunction

4-123

Lane Departure Warning System (LDWS) OFF Indicator Light

4-115

4–43

When Driving

Instrument Cluster and Display

*Some models.

Signal

Indicator Lights

Page

Driver Attention Alert (DAA) Indication

4-129

(Green)

Mazda Radar Cruise Control (MRCC) Indicator Light

4-139

(Red)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Indicator

Light

Smart City Brake

Support [Forward]

(SCBS F)

4-160

Smart City Brake

Support Reverse

(SCBS R)

4-165

Smart Brake Support

(SBS)

4-169

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF

Indicator Light

Smart City Brake

Support [Forward]

(SCBS F)

4-160

Smart City Brake

Support Reverse

(SCBS R)

4-166

Smart Brake Support

(SBS)

4-169

(White)

Adjustable Speed Limiter Main Indication

4-150

(White/Green)

Adjustable Speed Limiter Set Indication/Indicator Light

4-150

(White)

Cruise Main Indication

4-186

(White/Green)

Cruise Set Indication/Indicator Light

4-186

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or

when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.

4–44

When Driving

Instrument Cluster and Display

*Some models.

Wrench Indicator Light

  When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

  The wrench indicator light turns on
when the preset maintenance period
arrives. Verify the content and perform
maintenance.
  Refer to Maintenance Monitor on page
6-15 .

SKYACTIV-D 1.5

The wrench indicator light turns on under
the following conditions:

The engine oil has deteriorated.

The engine oil level is around the MIN

mark on the dipstick or it is less than the
MIN mark.

The engine oil level is around the X

mark on the dipstick or it exceeds the X
mark.

Check the engine oil. Refer to Inspecting
Engine Oil Level on page 6-28 .
Replace the engine oil if the wrench
indicator light does not turn off even
though the engine oil level is in the normal
range.

NOTE

Depending on the vehicle use

conditions, the wrench indicator light
may turn on for reasons other than
the preset maintenance period.

Whenever the engine oil is replaced,

a reset of the vehicle engine control
unit is necessary.

Your Authorised Mazda Repairer

will be able to reset the engine
control unit or see page 6-27 for
the Vehicle engine control unit reset
procedure.

Low Engine Coolant Temperature

Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suf

¿ ciently warmed

up, the temperature sensor could have a
malfunction. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer.

4–46

When Driving

Manual Transaxle Operation

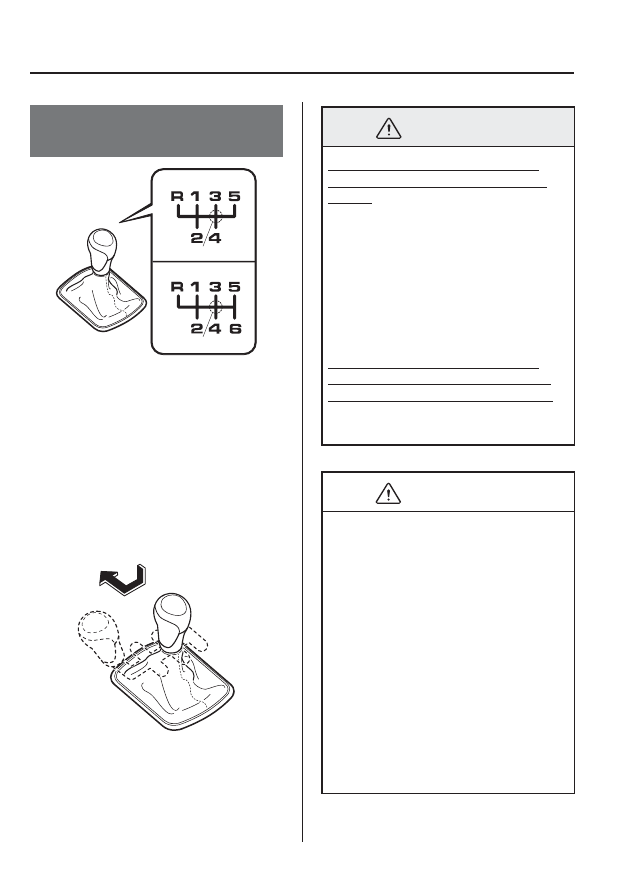

Manual Transaxle Shift
Pattern

5-speed transaxle

6-speed transaxle

Neutral position

  The vehicle is equipped with either a
5-speed or 6-speed transaxle. The shift
pattern for each is shown above.

  Depress the clutch pedal all the way down
while shifting; then release it slowly.

  Your vehicle is equipped with a device to
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift
to R.

WARNING

Do not use sudden engine braking
on slippery road surfaces or at high
speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tyre speed could
cause the tyres to skid. This could
lead to loss of vehicle control and an
accident.

Always leave the shift lever in 1 or
R position and set the parking brake
when leaving the vehicle unattended:
Otherwise the vehicle could move and
cause an accident.

CAUTION

Keep your foot off the clutch pedal

except when shifting gears. Also, do
not use the clutch to hold the vehicle
on an upgrade. Riding the clutch
will cause needless clutch wear and
damage.

Do not apply any excessive lateral

force to the shift lever when
changing from 5th to 4th gear. This
could lead to the accidental selection
of 2nd gear, which could result in
damage to the transaxle.

Make sure the vehicle comes to a

complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transaxle.

4–47

When Driving

Manual Transaxle Operation

NOTE

If shifting to R is dif

¿ cult, shift back

into neutral, release the clutch pedal,
and try again.

(With i-stop function)

If the engine has stopped due to

stalling, it can be restarted by
depressing the clutch pedal within 3
seconds of the engine stopping.

The engine cannot be restarted even

if the clutch pedal is depressed under
the following conditions:

The driver's door is open.

The driver's seat belt is unfastened.

The clutch pedal is not released

completely after the engine stalled.

The clutch pedal is depressed with

the engine not stopped completely.

(With parking sensor system)

When the shift lever is shifted to the

R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.

Refer to Parking Sensor System on

page 4-204 .

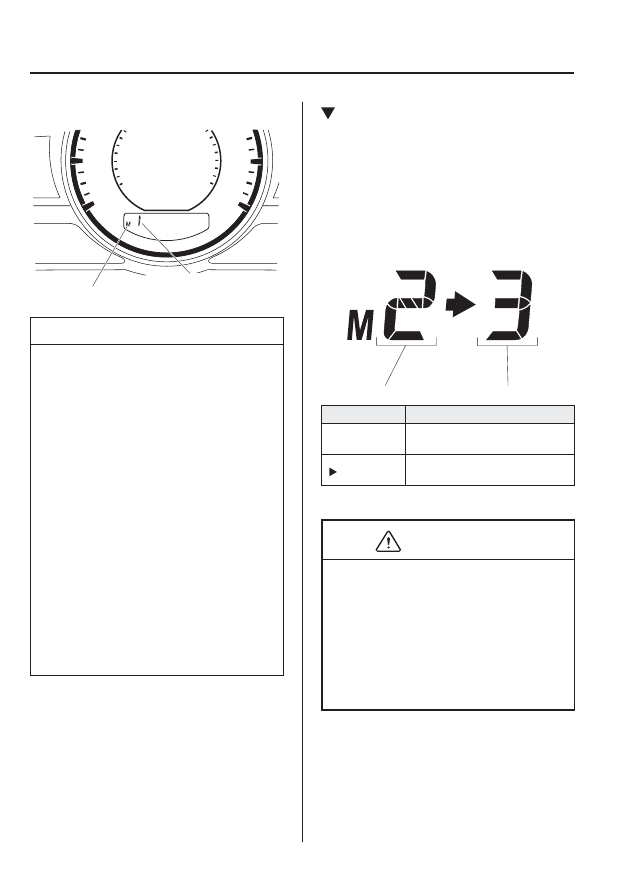

Gear Shift Indicator (GSI)

The Gear Shift Indicator (GSI) supports
you to obtain optimum fuel economy and
smooth driving. It displays the selected
gear position in the instrument cluster as
well as noti

¿ es the driver to change to the

most suitable gear position corresponding
to the actual driving condition.

Selected gear position

Suitable gear position

Indication

Condition

Numeral

The selected gear position is
displayed.

and numeral

Shift up or down to the indicated
gear position is recommended.

CAUTION

Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traf

¿ c conditions

have to be judged correctly by the driver
before shifting.

4–48

When Driving

Manual Transaxle Operation

NOTE

The Gear Shift Indicator (GSI) turns
off when the following operations are
performed.

The vehicle is stopped.

The vehicle is put in neutral.

The vehicle is driven in reverse.

The clutch is not fully engaged when

accelerating from a stop.

The clutch pedal remains depressed

for 2 seconds or longer while driving.

4–49

When Driving

Automatic Transaxle

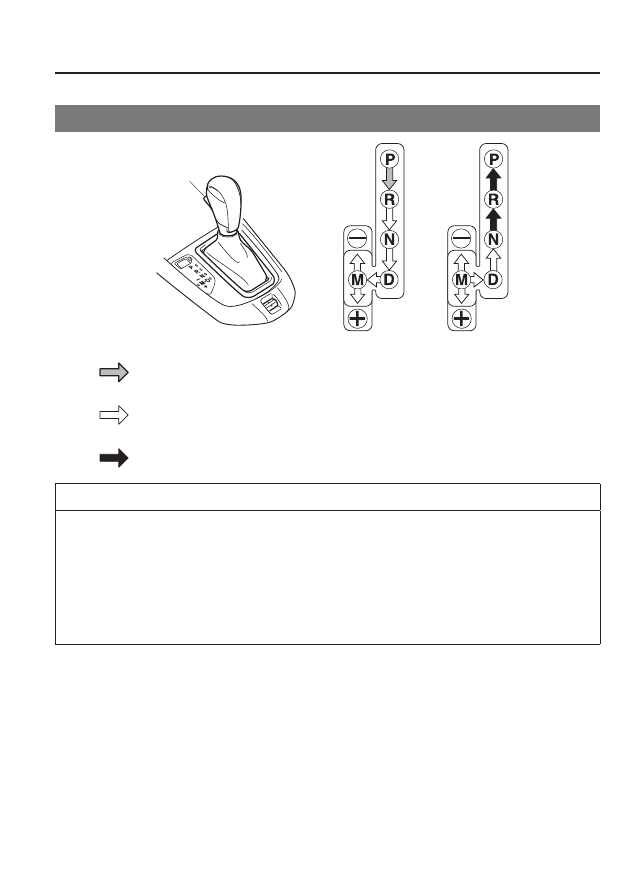

Automatic Transaxle Controls

Lock-release button

Indicates the selector lever can be shifted freely into any position.

Indicates that you must hold in the lock-release button to shift.

Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).

Various Lockouts:

NOTE

The Sport AT has an option that is not included in the traditional automatic transaxle that
gives the driver the option of selecting each gear instead of leaving it to the transaxle to
shift gears. Even if you intend to use the automatic transaxle functions as a traditional
automatic, you should also be aware that you can inadvertently shift into manual shift
mode and an inappropriate gear may be retained as the vehicle speed increases. If you
notice the engine speed going higher or hear the engine racing, con

¿ rm you have not

accidentally slipped into manual shift mode (page 4-53 ).

4–50

When Driving

Automatic Transaxle

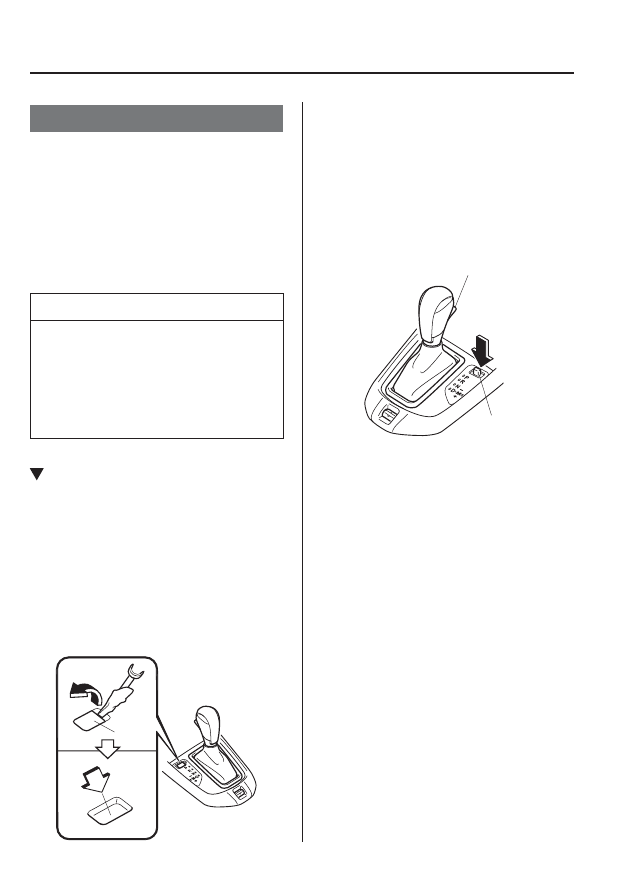

Shift-Lock System

The  shift-lock  system  prevents  shifting  out
of P unless the brake pedal is depressed.

  To shift from P:

   1.   Depress and hold the brake pedal.
2.   Start  the  engine.
   3.   Press and hold the lock-release button.
4.   Move  the  selector  lever.

NOTE

When the ignition is switched to

ACC or the ignition is switched off,
the selector lever cannot be shifted
from P.

The ignition cannot be switched to

OFF if the selector lever is not in P.

Shift-Lock Override

If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
Type A

1. Remove the shift-lock override cover

using a cloth-wrapped

À at head

screwdriver.

2. Insert a screwdriver and push it down.

Cover

3. Press and hold the lock-release button.
4. Move the selector lever.

Take the vehicle to an expert repairer, we
recommend an Authorised Mazda Repairer
to have the system checked.
Type B

1. Press the lock-release button with the

button pressed.

Lock-release button

button

2. Move the selector lever.

Take the vehicle to an expert repairer, we
recommend an Authorised Mazda Repairer
to have the system checked.

4–51

When Driving

Automatic Transaxle

Transaxle Ranges

The shift position indicator light in the

instrument cluster illuminates. Refer
to Warning/Indicator Lights on page
4-38 .

The selector lever must be in P or N to

operate the starter.

P (Park)

P locks the transaxle and prevents the front
wheels from rotating.

WARNING

Always set the selector lever to P and
set the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could
move and cause an accident.

CAUTION

Shifting into P, N or R while the

vehicle is moving can damage your
transaxle.

Shifting into a driving gear or reverse

when the engine is running faster
than idle can damage the transaxle.

R (Reverse)

In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-51 ).

NOTE

(With parking sensor system)
When the selector lever is shifted to the
R position with the ignition switched
ON, the parking sensor system is
activated and a beep sound is heard.
Refer to Parking Sensor System on page
4-204 .

N (Neutral)

In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.

WARNING

If the engine is running faster than
idle, do not shift from N or P into a
driving gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.

Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which could
lead to an accident or serious injury.

4–52

When Driving

Automatic Transaxle

CAUTION

Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.

NOTE

Apply the parking brake or depress the
brake pedal before moving the selector
lever from N to prevent the vehicle from
moving unexpectedly.

D (Drive)

D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 6-gear sequence.

M (Manual)

M is the manual shift mode position. Gears
can be shifted up or down by operating the
selector lever. Refer to Manual Shift Mode
on page 4-53 .

Shift Position Indication

The selector position is indicated when the
ignition is switched ON.

NOTE

If one of the following actions is
performed, the selector position is
displayed for 5 minutes even if the
ignition switch is in a position other than
ON.

The ignition is switched OFF.

The driver's door is opened.

Gear position indication

In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.

Active Adaptive Shift (AAS)

Active Adaptive Shift (AAS)
automatically controls the transaxle shift
points to best suit the road conditions
and driver input. This improves driving
feel. The transaxle may switch to AAS
mode when driving up and down slopes,
cornering, driving at high elevations,
or depressing the accelerator pedal
quickly while the selector lever is in the
D position. Depending on the road and
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position.

4–53

When Driving

Automatic Transaxle

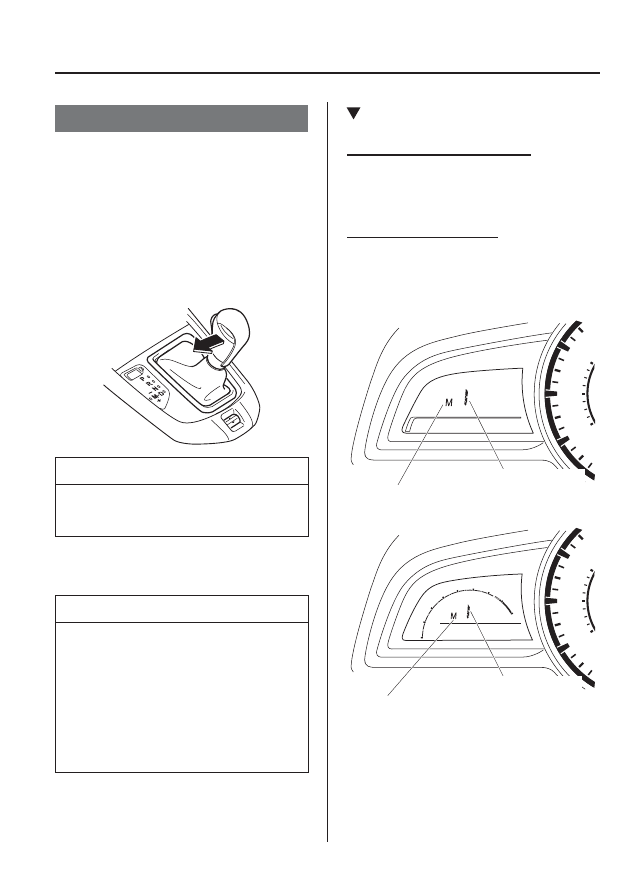

Manual Shift Mode

The  manual  shift  mode  gives  you  the  feel
of driving a manual transaxle vehicle by
allowing you to operate the selector lever
manually. This allows you to control
engine rpm and torque to the drive wheels
much like a manual transaxle when more
control is desired.
  To change to manual shift mode, shift the
lever from D to M.

NOTE

Changing to manual shift mode while
driving will not damage the transaxle.

To return to automatic shift mode, shift the
lever from M to D.

NOTE

If you change to manual shift mode

when the vehicle is stopped, the gear
will shift to M1.

If you change to manual shift mode

without depressing the accelerator
pedal when driving in D range, 5th
gear/6th gear, the gear will shift to
M4/M5.

Indicators

Manual shift mode indication

In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.

Gear position indication

    The numeral for the selected gear
illuminates.

   Type A

Manual shift mode indication

Gear position indication

Type B

Gear position indication

Manual shift mode indication

4–54

When Driving

Automatic Transaxle

Type C

Manual shift mode indication

Gear position indication

NOTE

If the gears cannot be shifted down

when driving at higher speeds, the
gear position indication will

À ash

twice to signal that the gears cannot
be shifted down (to protect the
transaxle).

If the automatic transaxle

À uid

(ATF) temperature becomes too
high, there is the possibility that the
transaxle will switch to automatic
shift mode, cancelling manual
shift mode and turning off the gear
position indication illumination.
This is a normal function to protect
the AT. After the ATF temperature
has decreased, the gear position
indication illumination turns back on
and driving in manual shift mode is
restored.

Gear Shift Indicator

The gear shift indicator supports you to
obtain optimum fuel economy and smooth
driving. It displays the selected gear
position in the instrument cluster as well
as noti

¿ es the driver to change to the most

suitable gear position corresponding to the
actual driving condition.

Selected gear position

Suitable gear position

Indication

Condition

Numeral

The selected gear position is
displayed.

and numeral

Shift up or down to the indicated
gear position is recommended.

CAUTION

¿ c conditions

have to be judged correctly by the driver
before shifting.

4–55

When Driving

Automatic Transaxle

*Some models.

NOTE

The gear shift indicator turns off when
the following operations are performed.

The vehicle is stopped.

Manual shift mode is cancelled.

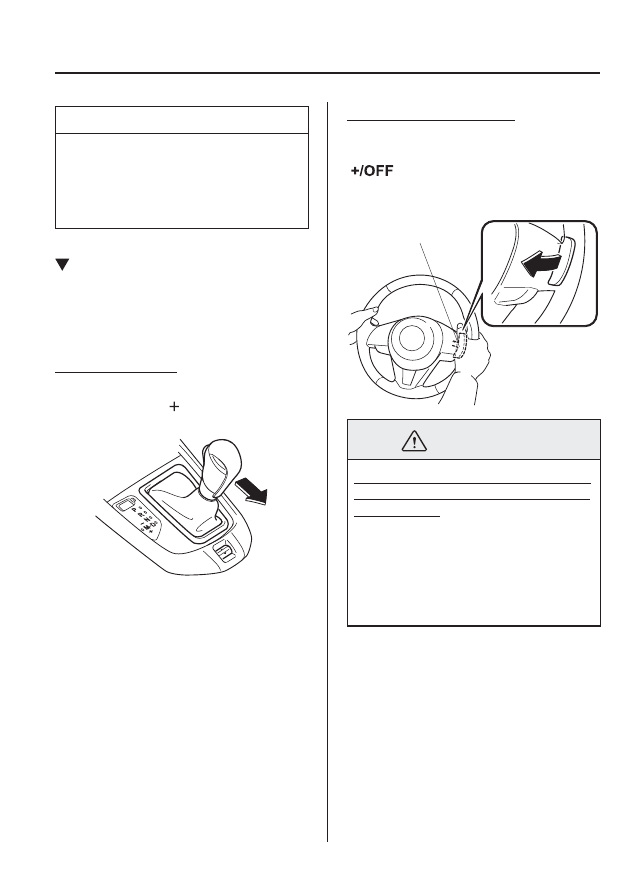

Manually Shifting Up

You can shift gears up by operating
the selector lever or the steering shift
switches

ĺ M2 ĺ M3 ĺ M4 ĺ M5 ĺ M6

Using selector lever

    To shift up to a higher gear, tap the
selector lever back      once.

Using steering shift switch

To shift up to a higher gear with the
steering shift switches, pull the UP switch
(

) toward you once with your

¿ ngers.

UP switch (+/OFF)

WARNING

Keep your hands on the steering wheel
rim when using

¿ ngers on the steering

shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be impacted
causing injury.

4–56

When Driving

Automatic Transaxle

*Some models.

NOTE

When driving slowly, the gears may

not shift up.

Do not drive the vehicle with the

tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode switches
to automatic shift mode while the
accelerator pedal is completely
depressed.

This function is cancelled while

the DSC is turned off. However,
if the vehicle is continuously
driven at a high rpm, the gears may
automatically shift up to protect the
engine.

The steering shift switch can be used

temporarily even if the selector lever
is in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (

)

is pulled rearward for a suf

¿ cient

amount of time.

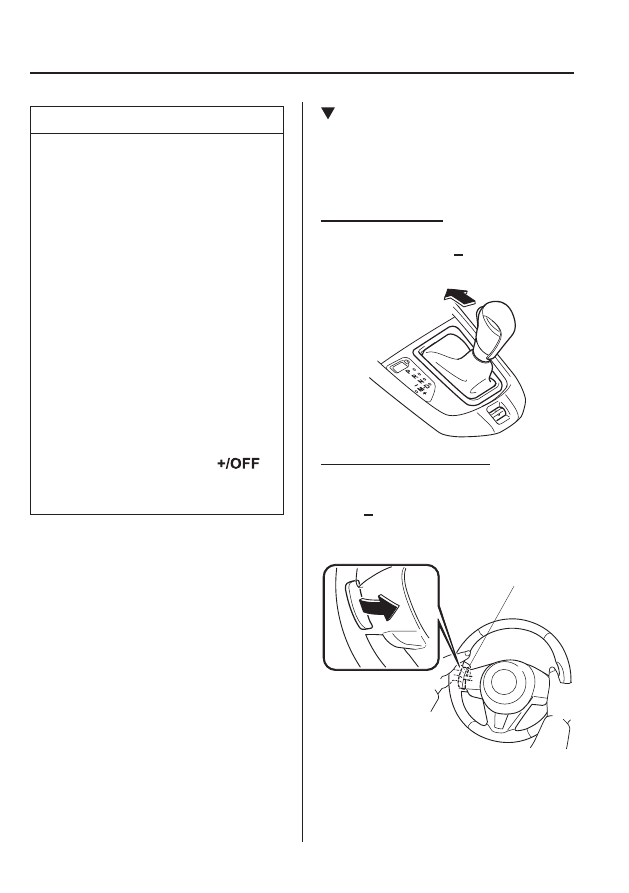

Manually Shifting Down

You can shift gears down by operating
the selector lever or the steering shift
switches

ĺ M5 ĺ M4 ĺ M3 ĺ M2ĺ M1

Using selector lever

    To shift down to a lower gear, tap the
selector lever forward      once.

Using steering shift switch

    To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch     toward you once with your
¿ ngers.

DOWN switch (-)

4–57

When Driving

Automatic Transaxle

WARNING

Do not use engine braking on slippery
road surfaces or at high speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while driving
at high speeds causes sudden engine
braking, which is dangerous. The
sudden change in tyre speed could
cause the tyres to skid. This could
lead to loss of vehicle control and an
accident.

Keep your hands on the steering wheel
rim when using

¿ ngers on the steering

NOTE

When driving at high speeds, the

gear may not shift down.

During deceleration, the gear may

automatically shift down depending
on vehicle speed.

When depressing the accelerator

fully, the transaxle will shift to a
lower gear, depending on vehicle
speed. However, the gears do not
kickdown while the DSC is turned
off.

Second Gear Fixed Mode

When the selector lever is moved back
while the vehicle speed is about 10 km/h
(6.2 mph) or less, the transaxle is set in the
second gear

¿ xed mode. The gear is ¿ xed

in second while in this mode for easier
acceleration from a stop and driving on
slippery roads such as snow-covered
roads.
If the selector lever is moved back or
forward while in the second gear

¿ xed

mode, the mode will be cancelled.

Mazda 2 (2017 year). Instruction - part 12
