Mazda 2 (2017 year). Instruction

4–26

When Driving

Instrument Cluster and Display

NOTE

When the ignition is switched to ACC
or off, the odometer or trip meters
cannot be displayed, however, pressing
the selector can inadvertently switch
the trip meters or reset them during an
approximate ten-minute period in the
following cases:

After the ignition is switched to off

from ON.

After the driver's door is opened.

Odometer

The odometer records the total distance
the vehicle has been driven.

Trip meter

    The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

  For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is

¿ lled.

The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption.

NOTE

(Vehicles with type B audio)

If the fuel economy data is reset

using the fuel economy monitor,
or trip A is reset using the trip
meter when the function which
synchronizes the fuel economy
monitor and the trip meter is on, the
fuel economy data and trip A are
reset simultaneously.

Refer to Fuel Economy Monitor on

page 4-93 .

Only the trip meters record tenths of

kilometres (miles).

The trip record will be erased when:

The power supply is interrupted

(blown fuse or the battery is
disconnected).

The vehicle is driven over

9999.9 km (mile).

4–27

When Driving

Instrument Cluster and Display

*Some models.

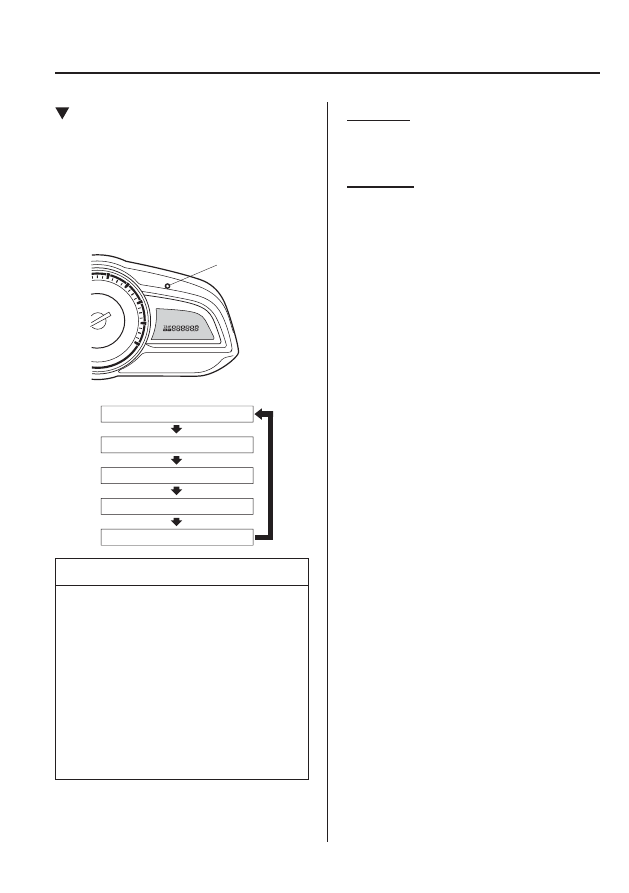

Odometer, Trip Meter, Trip

Computer and Trip Meter
Selector

The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them
is displayed. The selected mode will be
displayed.

Selector

Current fuel economy mode

Distance-to-empty mode

Trip meter B

Trip meter A

Odometer

NOTE

After the ignition is switched to off

from ON.

After the driver's door is opened.

Odometer

The odometer records the total distance
the vehicle has been driven.

Trip meter

The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.
For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is

¿ lled.

  When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
  When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
  The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by holding
the selector depressed for 1 second
or more. Use this meter to measure
trip distances and to compute fuel
consumption.

4–28

When Driving

Instrument Cluster and Display

NOTE

(Vehicles with type B audio)

If the fuel economy data is reset

Refer to Fuel Economy Monitor on

page 4-93 .

Only the trip meters record tenths of

kilometres (miles).

The trip record will be erased when:

The power supply is interrupted

(blown fuse or the battery is
disconnected).

The vehicle is driven over

9999.9 km (mile).

Trip Computer

The following information can be selected
by pressing the selector with the ignition
switched ON.

Approximate distance you can travel on

the available fuel

Current fuel economy

If you have any problems with your trip
computer, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.

Distance-to-empty mode

This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.

NOTE

Even though the distance-to-empty

display may indicate a suf

¿ cient

amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.

The display may not change unless

you add more than approximately
9 L (2.3 US gal, 1.9 Imp gal) of fuel.

The distance-to-empty is the

approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.

If there is no past fuel economy

information such as after

¿ rst

purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.

4–29

When Driving

Instrument Cluster and Display

*Some models.

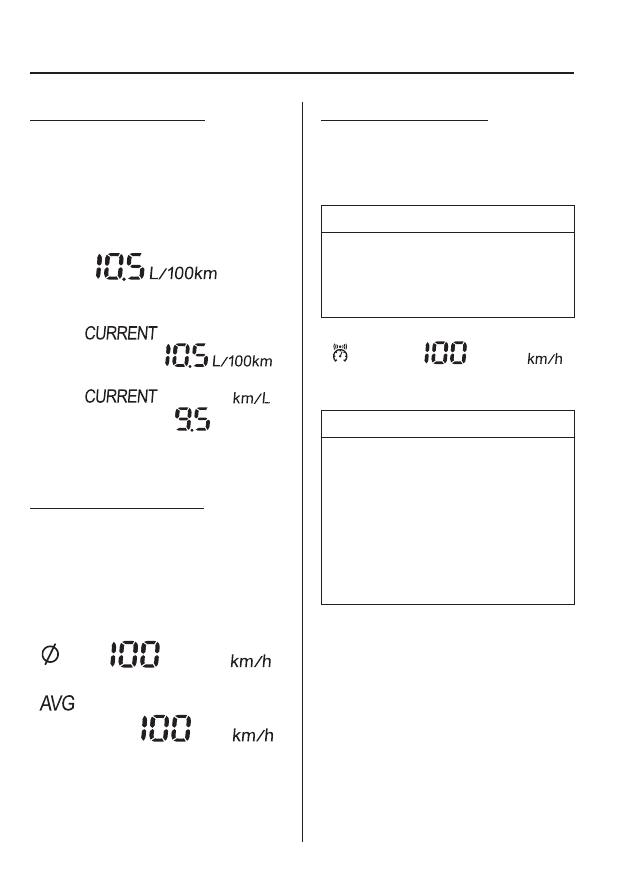

Current fuel economy mode

This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.
Current fuel economy will be calculated
and displayed every 2 seconds.

When you've slowed to about 5 km/h
(3 mph), - - - L/100 km (- - - mpg) will be
displayed.

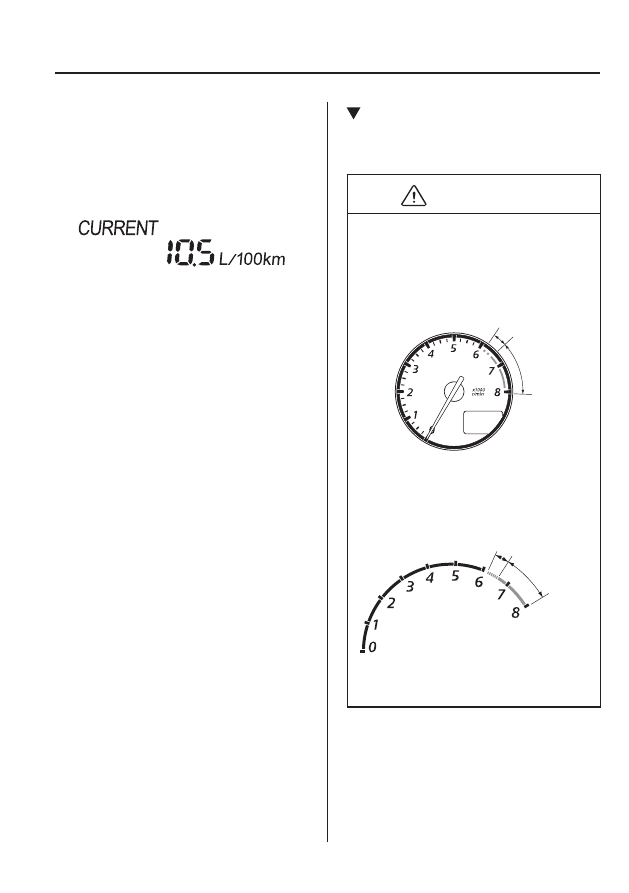

Tachometer

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Type A

The range varies depending on the type
of gauge.

Striped zone

Red zone

Type B

The range varies depending on the type
of gauge.

Striped zone

Red zone

4–30

When Driving

Instrument Cluster and Display

NOTE

When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

Fuel Gauge

The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full

1/4 Full

Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Lights on page 4-38 .

NOTE

After refuelling, it may require some

time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve
since the fuel moves in the tank.

The display indicating a quarter

or less remaining fuel has more
segments to show the remaining fuel
level in greater detail.

The direction of the arrow ( )

indicates that the fuel-

¿ ller À ap is on

the left side of the vehicle.

(SKYACTIV-D 1.5)
If inconsistency in engine performance
or stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.

Instrument Panel Illumination

When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.

NOTE

When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-61 .

4–31

When Driving

Instrument Cluster and Display

*Some models.

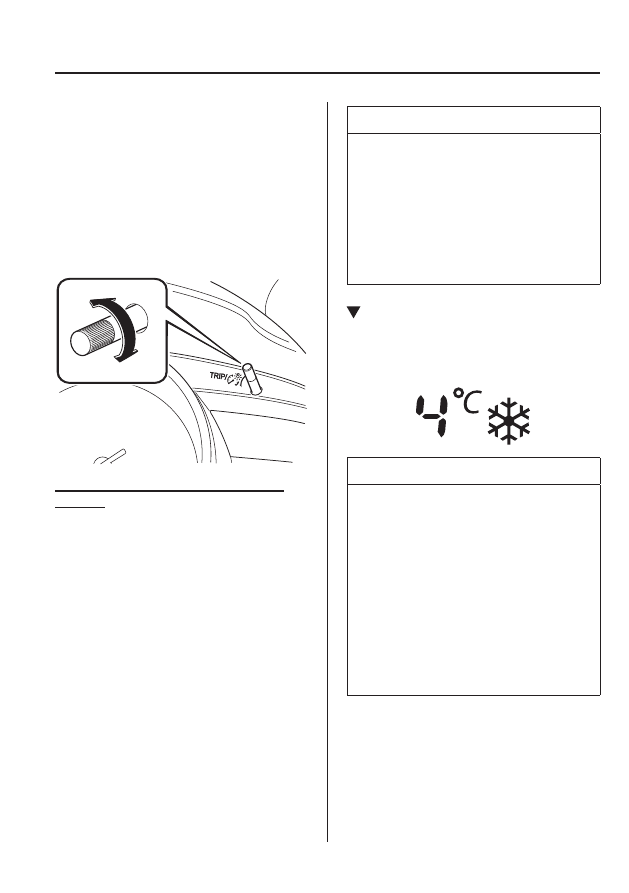

The brightness of the instrument cluster
and instrument panel illuminations can be
adjusted by rotating the knob.

The brightness decreases by rotating the

knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.

The brightness increases by rotating the

knob to the right.

Dim

Bright

Function for cancelling illumination
dimmer

The illumination dimmer can be
cancelled by rotating the instrument panel
illumination knob to the right until a beep
sound is heard while the instrument cluster
is dimmed with the ignition switched
ON. If the instrument cluster's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.

NOTE

When the illumination dimmer is

cancelled, the instrument cluster
cannot be dimmed even if the
position lights are turned on.

When the illumination dimmer is

cancelled, the screen in the centre
display switches to constant display
of the daytime screen.

Outside Temperature Display

When the ignition is switched ON, the
outside temperature is displayed.

NOTE

Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:

Signi

¿ cantly cold or hot

temperatures.

Sudden changes in outside

temperature.

The vehicle is parked.

The vehicle is driven at low speeds.

4–32

When Driving

Instrument Cluster and Display

*Some models.

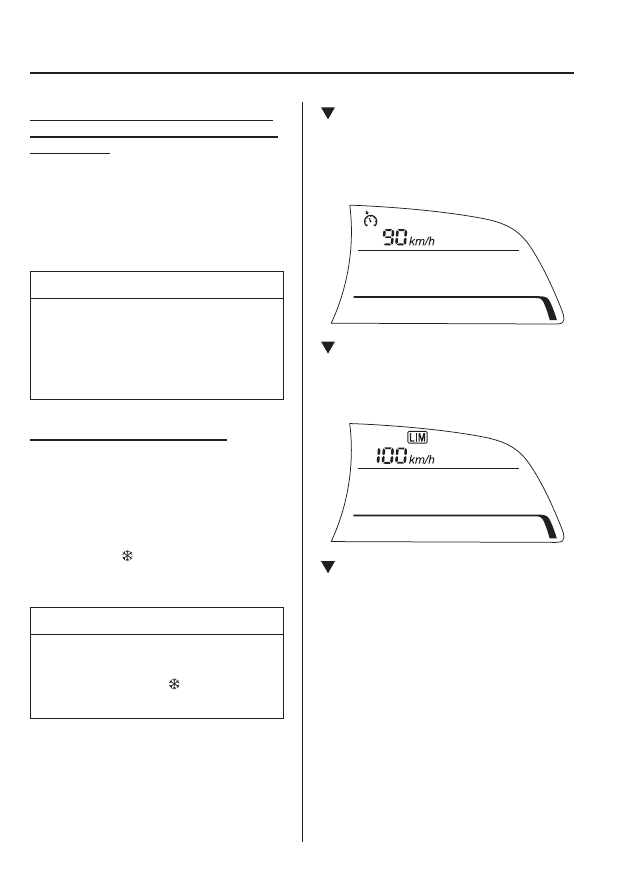

Changing the Temperature Unit of the
Outside Temperature Display (Vehicles
with Type B)

    The outside temperature unit can be
switched between Celsius and Fahrenheit.
  Settings can be changed by operating the
centre display screen.
  Refer to Personalisation Features on page
9-13 .

NOTE

When the temperature unit indicated
in the outside temperature display is
changed, the temperature unit indicated
in the engine coolant gauge display
changes in conjunction with it.

Outside Temperature Warning

When the outside temperature is low, the
indication

À ashes and a beep sound is

heard to warn the driver of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the mark

À ashes for about

ten seconds and a beep sound is heard
once.

NOTE

If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the mark
illuminates.

Cruise Control Set Vehicle Speed

Display

The vehicle speed preset using the cruise
control is displayed.

Adjustable Speed Limiter Display

The setting status of the adjustable speed
limiter is displayed.

Trip Computer and INFO Switch

The following information can be selected
by pressing the INFO switch with the
ignition switched ON.

Distance-to-empty mode

Average fuel economy mode

Current fuel economy mode

Average vehicle speed mode

Vehicle speed alarm mode

If you have any problems with your trip
computer, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.

4–33

When Driving

Instrument Cluster and Display

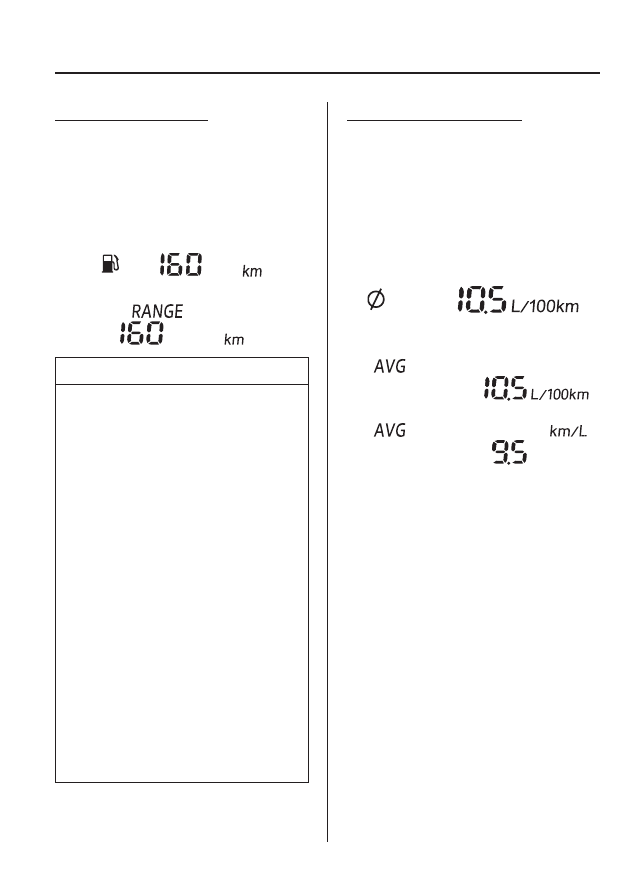

Distance-to-empty mode

This  mode  displays  the  approximate
distance you can travel on the remaining
fuel based on the fuel economy.

  The distance-to-empty will be calculated
and displayed every second.
   (European model)

(Except European model)

NOTE

Even though the distance-to-empty

display may indicate a suf

¿ cient

amount of remaining driving distance
before refuelling is required, refuel
as soon as possible if the fuel level
is very low or the low fuel warning
light illuminates.

The display may not change unless

you add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.

The distance-to-empty is the

approximate remaining distance
the vehicle can be driven until all
the graduation marks in the fuel
gauge (indicating the remaining fuel
supply) disappear.

If there is no past fuel economy

information such as after

¿ rst

purchasing your vehicle or the
information is deleted when the
battery leads are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.

Average fuel economy mode

This mode displays the average fuel
economy by calculating the total fuel
consumption and the total travelled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.
(European model)

(Except European model)

Type A

Type B

  To clear the data being displayed, press the
INFO  switch for more than 1.5 seconds.
After pressing the INFO  switch, - - -
L/100 km (- - - mpg) or - - - km/L will
be displayed for about 1 minute before
the fuel economy is recalculated and
displayed.

4–34

When Driving

Instrument Cluster and Display

*Some models.

Current fuel economy mode

    This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.

  Current fuel economy will be calculated
and displayed every 2 seconds.
   (European model)

(Except European model)

Type A

Type B

When you have slowed the vehicle to
about 5 km/h (3 mph), - - - L/100 km
(- - - mpg) or - - - km/L will be displayed.

Average vehicle speed mode

    This mode displays the average vehicle
speed by calculating the distance and the
time travelled since connecting the battery
or resetting the data.
  Average vehicle speed will be calculated
and displayed every 10 seconds.
   (European model)

(Except European model)

  To clear the data being displayed, press the
INFO  switch for more than 1.5 seconds.
After pressing the INFO  switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.

Vehicle speed alarm mode

In this mode, the current setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.

NOTE

The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.

The vehicle speed alarm can be set using
the centre display.

NOTE

Always set the vehicle speed

according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.

The vehicle speed alarm function can

be set between 30 and 250 km/h
(20 and 150 mph).

4–35

When Driving

Instrument Cluster and Display

*Some models.

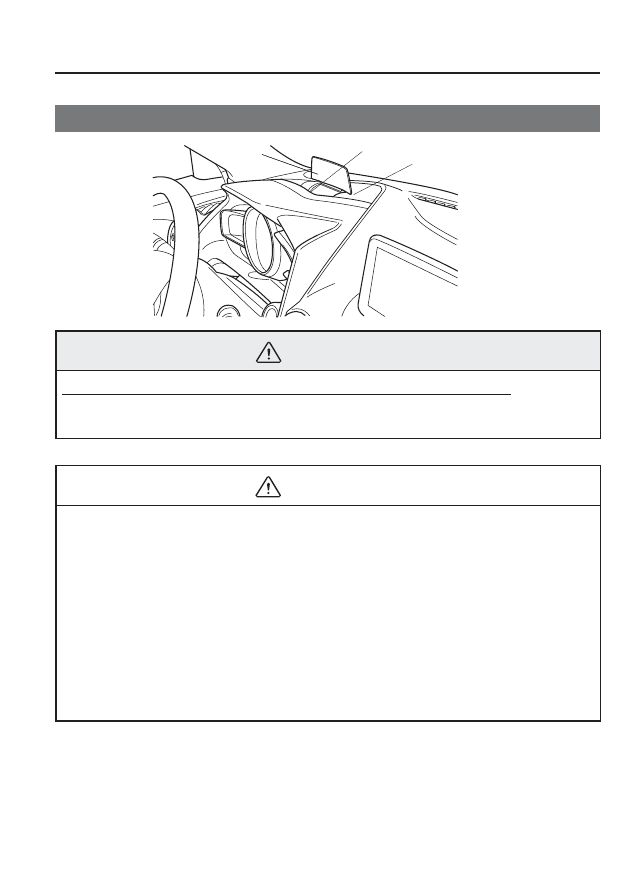

Active Driving Display

Optical receiver

Mirror

Combiner

WARNING

Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.

CAUTION

Do not try to adjust the angle or open/close the active driving display manually.

Fingerprints on the display will make it dif

¿ cult to view and using excessive force

when operating it could cause damage.

Do not place objects in the vicinity of the active driving display. The active driving

display may not operate or any interference with its operation could cause damage.

Do not place beverages near the active driving display. If water or other liquids are

splashed on the active driving display, it could cause damage.

Do not place objects above the active driving display or apply stickers to the dust-

proof sheet/optical receiver as they will cause interference.

A sensor is integrated to control the display's luminosity. If the optical receiver is

covered, the display's luminosity will lower making the display dif

¿ cult to view.

Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.

4–36

When Driving

Instrument Cluster and Display

NOTE

It may be dif

¿ cult to view the display when wearing polarized sunglasses. Take off

your polarized sunglasses or adjust the luminosity.

If the battery has been removed and re-installed or the battery voltage is low, the

adjusted position may deviate.

The display may be dif

¿ cult to view or temporarily affected by weather conditions

such as rain, snow, light, and temperature.

If the audio system is removed, the active driving display cannot be operated.

The active driving display indicates the following information:

Blind Spot Monitoring (BSM) Operation Conditions and Warnings

Refer to Blind Spot Monitoring (BSM) on page 4-117 .

Distance Recognition Support System (DRSS) Warnings

Refer to Distance Recognition Support System (DRSS) on page 4-124 .

Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings

Refer to Mazda Radar Cruise Control (MRCC) on page 4-135 .

Lane Departure Warning System (LDWS) Operation Conditions and Warnings

Refer to Lane Departure Warning System (LDWS) on page 4-111 .

Smart City Brake Support [Forward] (SCBS F) Warnings

Refer to Smart City Brake Support [Forward] (SCBS F) on page 4-155 .

Smart City Brake Support [Reverse] (SCBS R) Operation Conditions

Refer to Smart City Brake Support [Reverse] (SCBS R) on page 4-161 .

Smart Brake Support (SBS) Warnings

Refer to Smart Brake Support (SBS) on page 4-167 .

Adjustable Speed Limiter Operation Conditions and Warnings

Refer to Adjustable Speed Limiter on page 4-148 .

Driver Attention Alert (DAA) Warnings

Refer to Driver Attention Alert (DAA) on page 4-127 .

Cruise Control Operation Conditions

Refer to Cruise Control on page 4-184 .

Navigation Guidance (vehicles with navigation system)

Speed limit indicator (vehicles with navigation system)

Vehicle Speed

4–37

When Driving

Instrument Cluster and Display

Each setting/adjustment for the active driving display can be performed on the centre
display.

1. Select the

icon on the home screen and display the Settings screen.

2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.

Method for adjusting screen brightness (automatically/manually)

Screen brightness initial settings (automatic adjustment is selected)

Screen brightness adjustment (manual adjustment is selected)

Display position of active driving display (display height)

Active driving display angle adjustment (display angle correction)

Turn by turn (TBT) display/non-display (navigation guidance)

Street name display timing can be changed (navigation guidance)

Active driving display ON/OFF (indication)

Reset settings (reset)

NOTE

The street name may not be displayed depending on the market and region.

4–38

When Driving

Instrument Cluster and Display

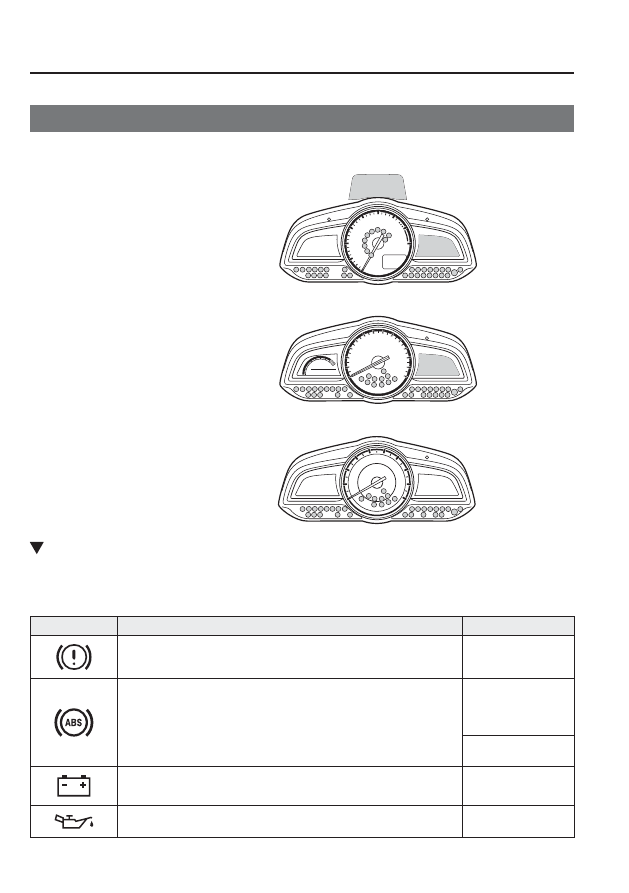

Warning/Indicator Lights

Instrument Cluster varies depending on model and speci

¿ cations.

Type A

Type B

Type C

(Digital Speed Meter Type)

(Analog Speed Meter Type (With Tachometer))

(Analog Speed Meter Type (Without Tachometer))

Instrument Cluster

Warning Lights

These lights turn on or

À ash to notify the user of the system operation status or a system

malfunction.

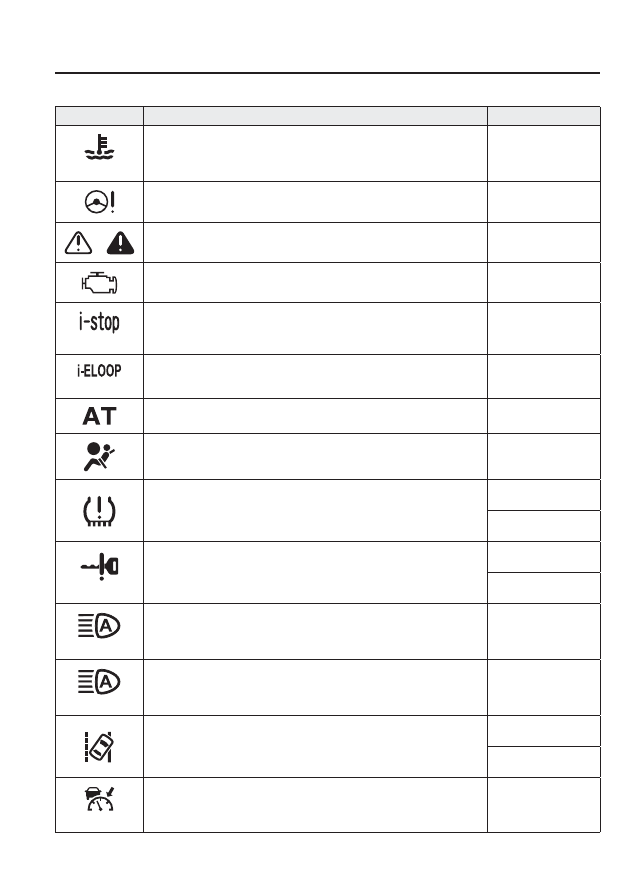

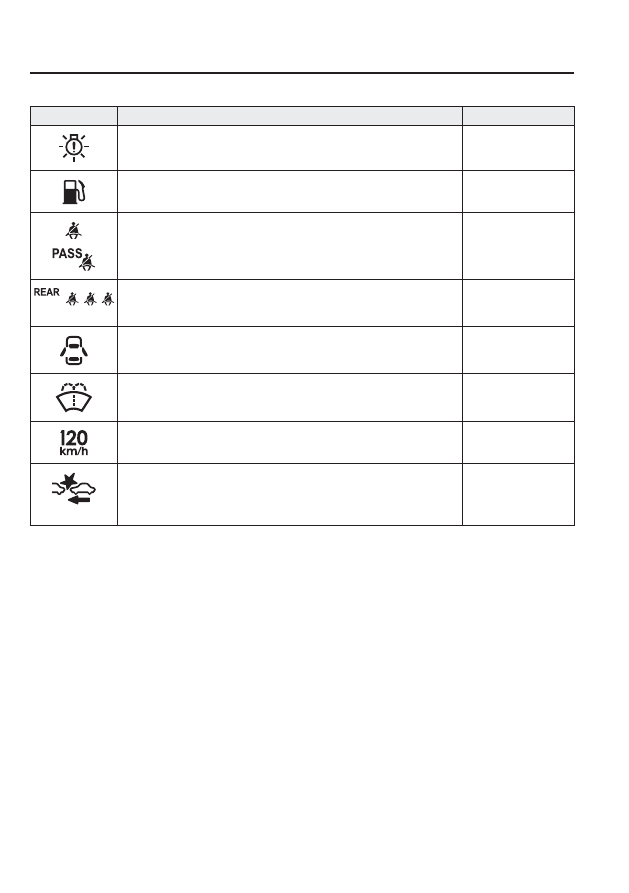

Signal

Warning

Page

Brake System Warning Light

*1*2

7-35

ABS Warning Light

Electronic Brake

Force Distribution

System Warning

7-35

ABS warning

7-38

Charging System Warning Light

7-35

Engine Oil Warning Light

7-35

4–39

When Driving

Instrument Cluster and Display

*Some models.

Signal

Warning

Page

(Red)

High Engine Coolant Temperature Warning Light

7-35

Power Steering Malfunction Warning Light

7-35

Master Warning Light

7-38

Check Engine Light

7-38

(Amber)

i-stop Warning Light

7-38

(Amber)

i-ELOOP Warning Light

7-38

Automatic Transaxle Warning Light

7-38

Air Bag/Seat Belt Pretensioner System Warning Light

7-38

Tyre Pressure Monitoring System Warning Light

Flashing

7-38

Turns on

7-43

(Red)

KEY Warning Light

Malfunction

7-38

Except malfunction

7-43

(Amber)

High Beam Control System (HBC) Warning Light

7-38

(Amber)

Adaptive LED Headlights (ALH) Warning Light

7-38

Lane Departure Warning System (LDWS) Warning Light

Flashing

4-115

Turns on

7-38

(Amber)

Mazda Radar Cruise Control (MRCC) Warning Light

7-38

4–40

When Driving

Instrument Cluster and Display

*Some models.

Signal

Warning

Page

LED Headlight Warning Light

7-38

Low Fuel Warning Light

7-43

Seat Belt Warning Light (Front seat)

7-43

(Red)

Seat Belt Warning Light (Rear seat)

7-43

Door-Ajar Warning Light

7-43

Low Washer Fluid Level Warning Light

7-43

120 km/h Warning Light

7-43

(Amber)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning

Light

7-43

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or

when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
expert repairer, we recommend an Authorised Mazda Repairer.

*2 The light turns on continuously when the parking brake is applied.

4–41

When Driving

Instrument Cluster and Display

*Some models.

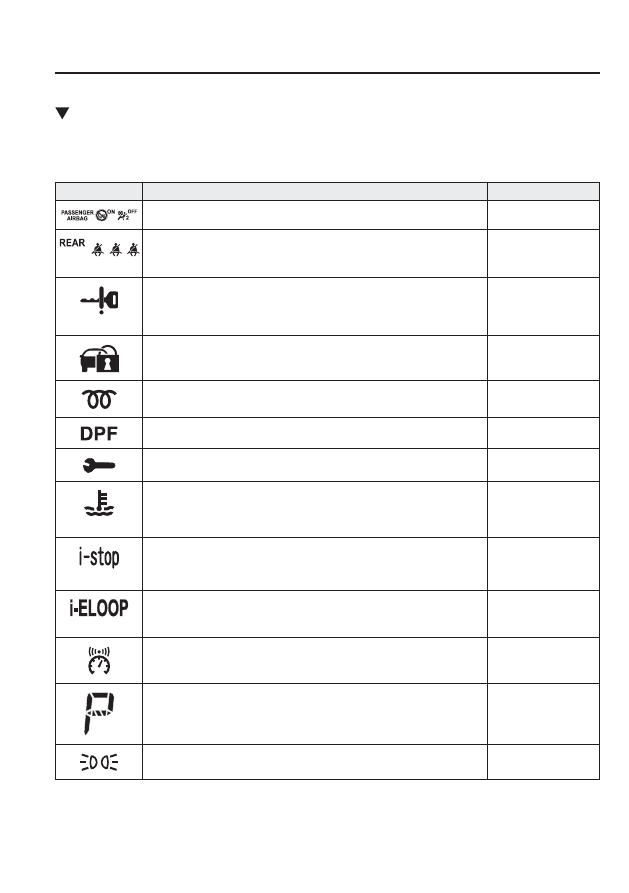

Indicator Lights

These lights turn on or

À ash to notify the user of the system operation status or a system

malfunction.

Signal

Indicator Lights

Page

Passenger Air Bag Deactivation Indicator Light

2-47

(Green)

Seat Belt Indicator Light (Rear seat)

2-18

(Green)

KEY Indicator Light

4-5

Security Indicator Light

3-43

Glow Indicator Light

4-45

Diesel Particulate Filter Indicator Light

4-194

Wrench Indicator Light

4-44

(Blue)

Low Engine Coolant Temperature Indicator Light

4-44

(Green)

i-stop Indicator Light

4-18

(Green)

i-ELOOP Indicator Light

4-92

Vehicle Speed Alarm Indication

4-32

Shift Position Indication

4-52

Lights-On Indicator Light

4-61

Mazda 2 (2017 year). Instruction - part 11
