Mazda 6. Manual - part 361





ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]

T–191

T

DTCs Reading Procedure

1. Connect SST (WDS or equivalent) to the vehicle

DLC-2 16-pin connector.

2. Retrieve DTC using SST (WDS or equivalent).

Clearing DTCs Procedure

1. After repairs have been made, perform the DTCs reading procedure.
2. Erase DTCs using SST (WDS or equivalent).
3. Ensure that the customer's concern has been resolved.

PID/Data Monitor and Record Procedure

1. Connect SST (WDS or equivalent) to the vehicle

DLC-2 16-pin connector.

2. Access and monitor PIDs using SST (WDS or

equivalent).

Active Command Mode Procedure

1. Connect SST (WDS or equivalent) to the vehicle

DLC-2 16-pin connector.

2. Turn the ignition switch to ON position.
3. Activate active command mode using SST (WDS

or equivalent).

End Of Sie

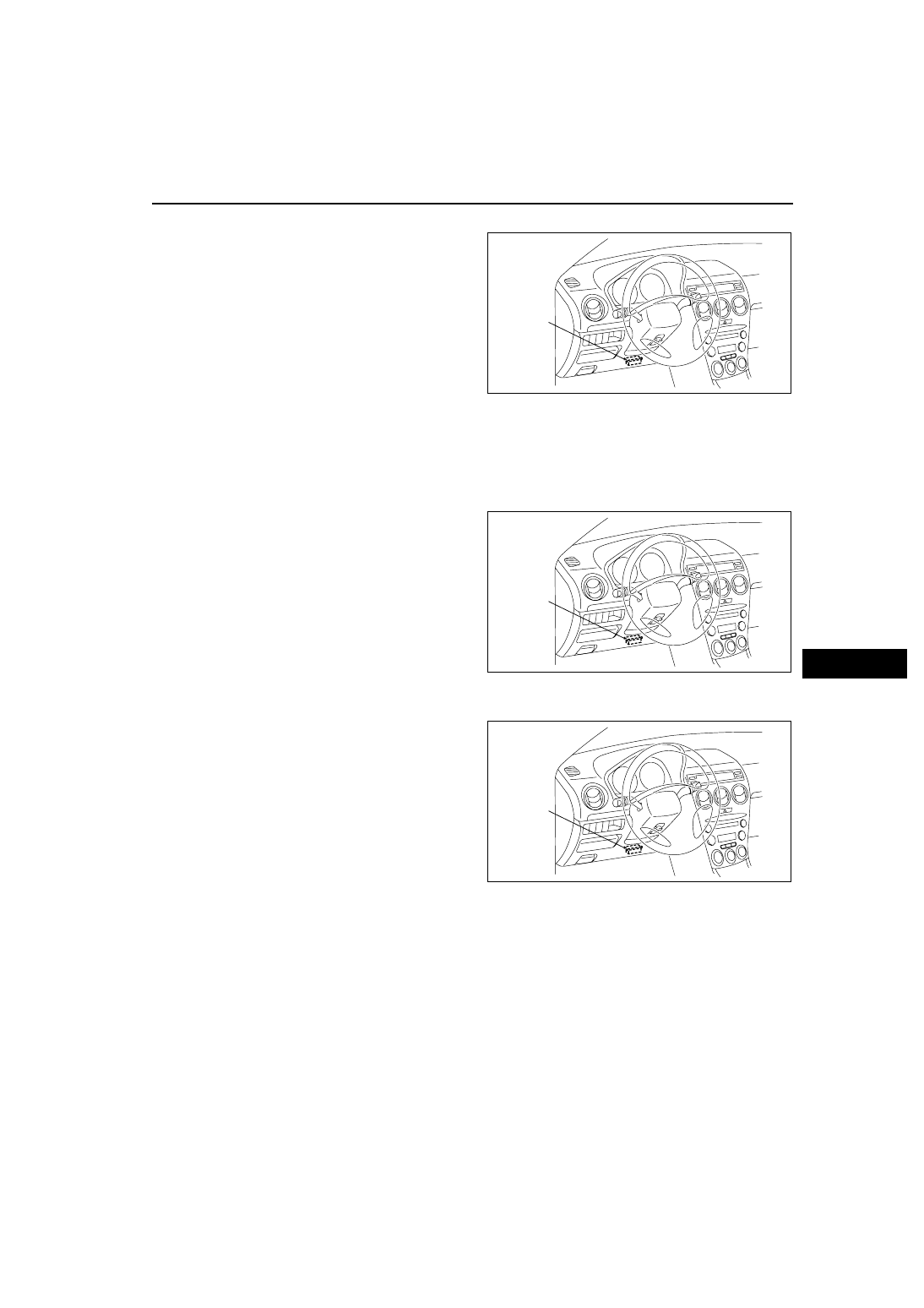

DLC-2

A6E3970W002

DLC-2

A6E3970W002

DLC-2

A6E3970W002

T–192

ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]

DTC TABLE

A6E817401046W02

• DTCs are common for present and past malfunction diagnosis.

Note

• When DTCs not shown in the DTC table are displayed, replace the SAS unit.

• If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is

turned to ON position, inspect and repair the air bag system warning light circuitry and then confirm that
the air bag system warning light is operational.

• The air bag system warning light will flash the DTC pattern for five cycles, and then will remain illuminated

until the ignition switch is turned to the LOCK position.

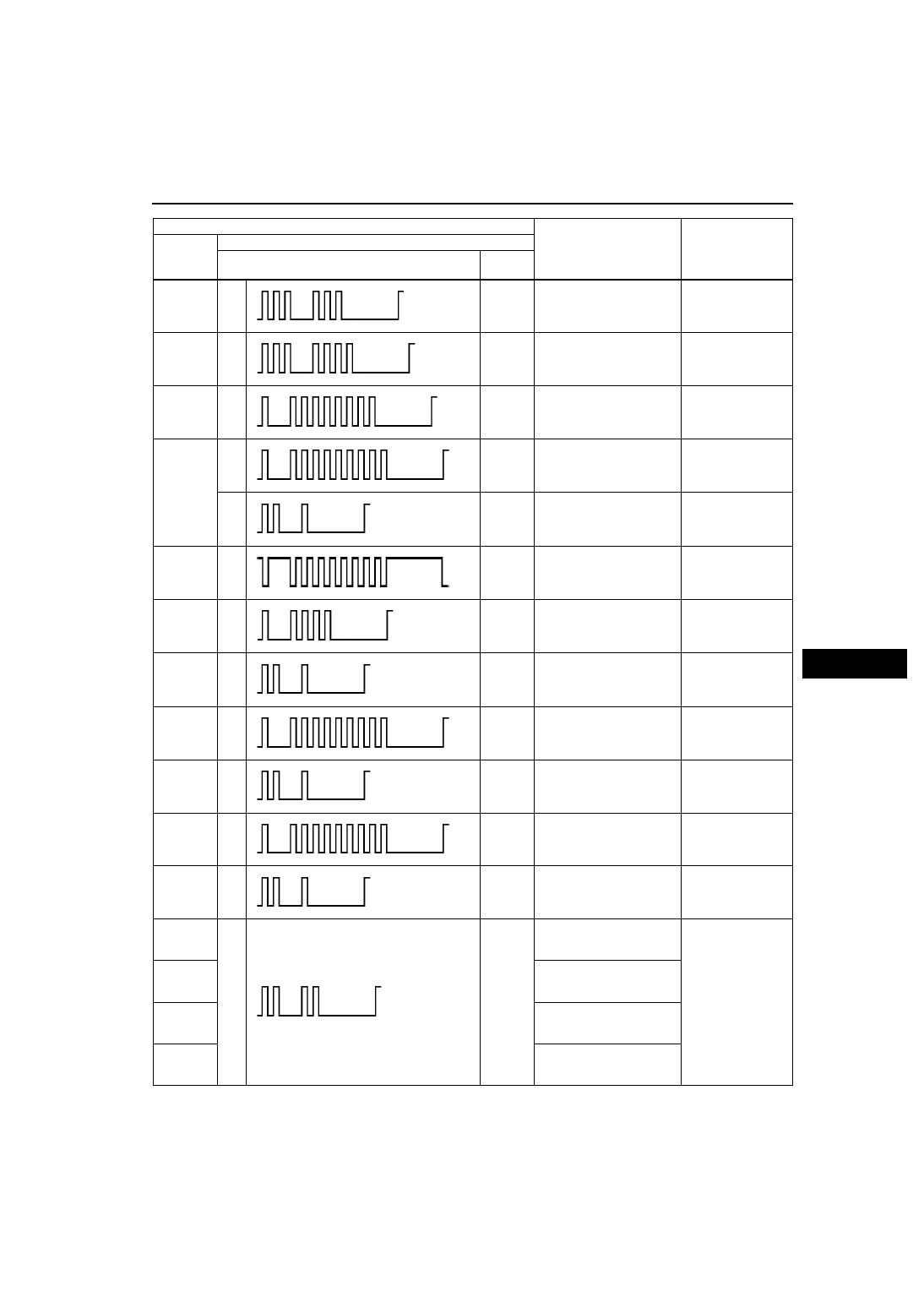

DTC

Malfunction location

Page

WDS or

equivalent

Air bag system warning light

Flashing pattern

Priority

ranking

B1231

13

3

SAS unit activation
(deployment) control freeze

(See

T–198 DTC

B1231

)

B1342

12

2

SAS unit

(See

T–198 DTC

B1342

)

—

Air bag system warning light is illuminated all
the time.

1

SAS unit (DTC 12 detection
circuit malfunction)

B1869

—

Air bag system warning light is illuminated all
the time.

1

Air bag system warning
light system circuit open

(See

T–198 DTC

B1869, B1870

)

—

Air bag system warning light is illuminated
does not illuminate.

—

Air bag system warning
light system circuit short to
ground

B1870

—

Air bag system warning light is illuminated all
the time.

1

Air bag system warning
light system circuit short to
power supply

B1871

47

19

Occupancy sensor system
(communication error)

(See

T–200 DTC

B1871

)

48

20

Occupancy sensor system
(sensor internal circuit
abnormal)

B1877

33

13

Driver-side pre-tensioner
seat belt system resistance
high

(See

T–202 DTC

B1877, B1878,
B1879, B1885

)

B1878

Driver-side pre-tensioner
seat belt system circuit
short to power supply

B1879

Driver-side pre-tensioner
seat belt system circuit
short to ground

B1881

34

12

Passenger-side pre-
tensioner seat belt system
resistance high

(See

T–203 DTC

B1881, B1882,
B1883, B1886

)

B1882

Passenger-side pre-
tensioner seat belt system
circuit short to power supply

B1883

Passenger-side pre-
tensioner seat belt system
short to ground

B1884

18

18

Passenger-side air bag cut-
off indicator light system
circuit open or short to
ground

(See

T–205 DTC

B1884, B1890

)

ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]

T–193

T

B1885

33

13

Driver-side pre-tensioner
seat belt system resistance
low

(See

T–202 DTC

B1877, B1878,
B1879, B1885

)

B1886

34

12

Passenger-side pre-
tensioner seat belt system
resistance low

(See

T–203 DTC

B1881, B1882,
B1883, B1886

)

B1890

18

18

Passenger-side air bag cut-
off indicator light system
circuit short to power supply

(See

T–205 DTC

B1884, B1890

)

B1913

19

11

Driver-side air bag module
(inflator No.1) system
circuit short to ground

(See

T–208 DTC

B1913, B1916,
B1932, B1934

)

21

10

Passenger-side air bag
module (inflator No.1)
system circuit short to
ground

(See

T–210 DTC

B1913, B1925,
B1933, B1935

)

B1916

19

11

Driver-side air bag module
(inflator No.1) system
circuit short to power supply

(See

T–208 DTC

B1913, B1916,
B1932, B1934

)

B1921

14

4

Deployment prohibited
because configuration is
not set

(See

T–211 DTC

B1921

)

B1925

21

10

Passenger-side air bag
module (inflator No.1)
system circuit short to
power supply

(See

T–210 DTC

B1913, B1925,
B1933, B1935

)

B1932

19

11

Driver-side air bag module
(inflator No.1) system
resistance high

(See

T–208 DTC

B1913, B1916,
B1932, B1934

)

B1933

21

10

Passenger-side air bag
module (inflator No.1)
system resistance high

(See

T–210 DTC

B1913, B1925,
B1933, B1935

)

B1934

19

11

Driver-side air bag module
(inflator No.1) system
resistance low

(See

T–208 DTC

B1913, B1916,
B1932, B1934

)

B1935

21

10

Passenger-side air bag
module (inflator No.1)
system resistance low

(See

T–210 DTC

B1913, B1925,
B1933, B1935

)

B1992

22

15

Driver-side side air bag
module system circuit short
to power supply

(See

T–212 DTC

B1992, B1993,
B1994, B1995

)

B1993

Driver-side side air bag
module system circuit short
to ground

B1994

Driver-side side air bag
module system resistance
high

B1995

Driver-side side air bag
module system resistance
low

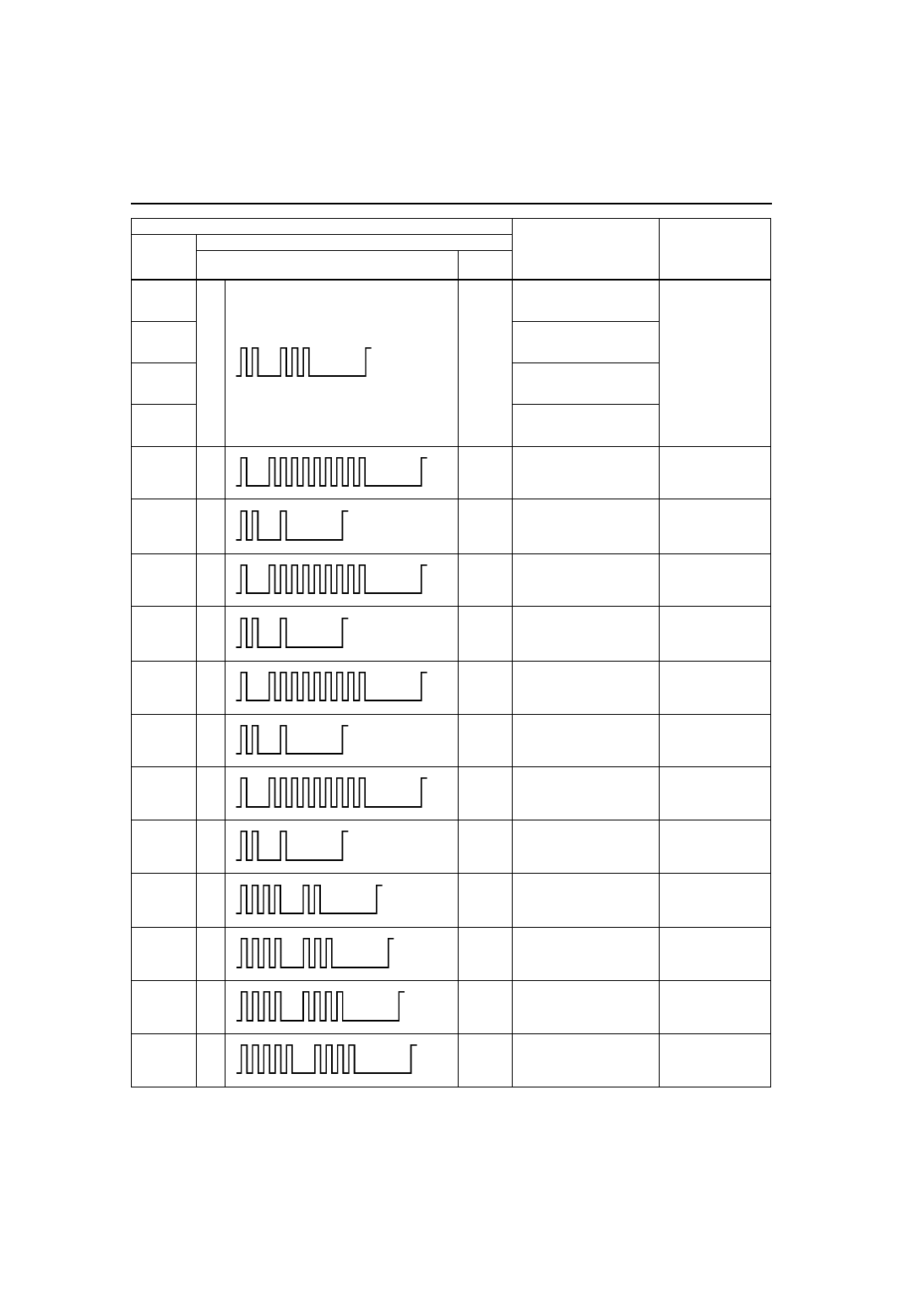

DTC

Malfunction location

Page

WDS or

equivalent

Air bag system warning light

Flashing pattern

Priority

ranking

T–194

ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]

B1996

23

14

Passenger-side side air
bag module system circuit
short to power supply

(See

T–213 DTC

B1996, B1997,
B1998, B1999

)

B1997

Passenger-side side air
bag module system circuit
short to ground

B1998

Passenger-side side air
bag module system
resistance high

B1999

Passenger-side side air
bag module system
resistance low

B2228

19

11

Driver-side air bag module
(inflator No.2) system
circuit short to ground

(See

T–215 DTC

B2228, B2230,
B2232, B2234

)

B2229

21

10

Passenger-side air bag
module (inflator No.2)
system circuit short to
ground

(See

T–217 DTC

B2229, B2231,
B2233, B2235

)

B2230

19

11

Driver-side air bag module
(inflator No.2) system
circuit short to power supply

(See

T–215 DTC

B2228, B2230,
B2232, B2234

)

B2231

21

10

Passenger-side air bag
module (inflator No.2)
system circuit short to
power supply

(See

T–217 DTC

B2229, B2231,
B2233, B2235

)

B2232

19

11

Driver-side air bag module
(inflator No.2) system
resistance high

(See

T–215 DTC

B2228, B2230,
B2232, B2234

)

B2233

21

10

Passenger-side air bag
module (inflator No.2)
system resistance high

(See

T–217 DTC

B2229, B2231,
B2233, B2235

)

B2234

19

11

Driver-side air bag module
(inflator No.2) system
resistance low

(See

T–215 DTC

B2228, B2230,
B2232, B2234

)

B2235

21

10

Passenger-side air bag
module (inflator No.2)
system resistance low

(See

T–217 DTC

B2229, B2231,
B2233, B2235

)

B2296

42

9

Crash zone sensor system
(communication error,
sensor internal circuit
abnormal)

(See

T–218 DTC

B2296

)

B2444

43

8

Driver-side side air bag
sensor system (sensor
internal circuit abnormal)

(See

T–220 DTC

B2444, U2017

)

B2445

44

7

Passenger-side side air
bag sensor system (sensor
internal circuit abnormal)

(See

T–222 DTC

B2445, U2018

)

B2477

54

5

Configuration error

(See

T–224 DTC

B2477

)

DTC

Malfunction location

Page

WDS or

equivalent

Air bag system warning light

Flashing pattern

Priority

ranking
