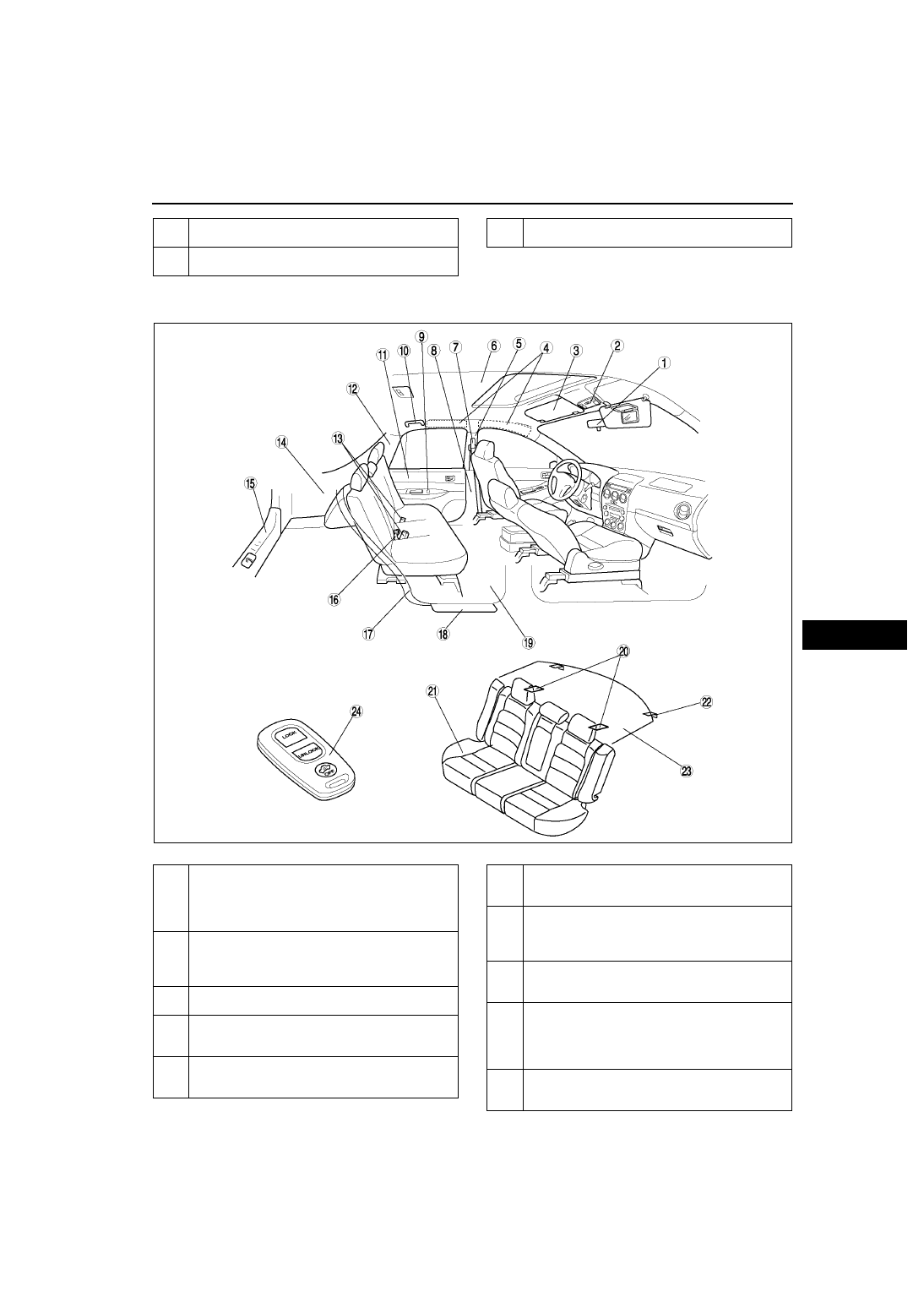

LOCATION INDEX

S–7

S

Rear

.

21

Recliner motor
(See

S–116 RECLINER MOTOR INSPECTION

)

22

Power seat switch
(See

S–115 POWER SEAT SWITCH INSPECTION

)

23

Seat warmer unit
(See

S–118 SEAT WARMER UNIT INSPECTION

)

A6E7700W004

1

Rearview mirror
(See

S–61 REARVIEW MIRROR REMOVAL

)

(See

S–61 REARVIEW MIRROR INSTALLATION

)

(See

S–61 BASE REMOVAL

)

(See

S–62 BASE INSTALLATION

)

2

Sunroof switch
(See

S–81 SUNROOF SWITCH REMOVAL/

INSTALLATION

)

(See

S–81 SUNROOF SWITCH INSPECTION

)

3

Sunvisor
(See

S–98 SUNVISOR REMOVAL/INSTALLATION

)

4

Shock absorbing pad
(See

S–97 SHOCK ABSORBING PAD REMOVAL/

INSTALLATION

)

5

B-pillar upper trim
(See

S–88 B-PILLAR UPPER TRIM REMOVAL/

INSTALLATION

)

6

Headliner
(See

S–96 HEADLINER REMOVAL/

INSTALLATION

)

7

Front seat belt
(See

S–100 FRONT SEAT BELT REMOVAL/

INSTALLATION

 )

(See

S–103 SEAT BELT INSPECTION

 )

8

B-pillar lower trim
(See

S–88 B-PILLAR LOWER TRIM REMOVAL/

INSTALLATION

)

9

Power window subswitch
(See

S–25 POWER WINDOW SWITCH REMOVAL/

INSTALLATION

)

(See

S–28 POWER WINDOW SUBSWITCH

INSPECTION

 )

10

Assist handle
(See

S–97 ASSIST HANDLE REMOVAL/

INSTALLATION

)

S–8

LOCATION INDEX

End Of Sie

11

Rear door trim
(See

S–90 REAR DOOR TRIM REMOVAL/

INSTALLATION

)

12

C-pillar trim
(See

S–89 C-PILLAR TRIM REMOVAL/

INSTALLATION

)

13

Rear buckle
(See

S–102 REAR BUCKLE REMOVAL/

INSTALLATION

)

14

Trunk side trim

(See

S–92 TRUNK SIDE TRIM REMOVAL/

INSTALLATION

)

Trunk side upper trim

(See

S–93 TRUNK SIDE UPPER TRIM

REMOVAL/INSTALLATION

)

15

Trunk end trim
(See

S–93 TRUNK END TRIM REMOVAL/

INSTALLATION

)

16

Rear center seat belt
(See

S–101 REAR CENTER SEAT BELT

REMOVAL/INSTALLATION

 )

(See

S–103 SEAT BELT INSPECTION

 )

17

Tire house trim
(See

S–91 TIRE HOUSE TRIM REMOVAL/

INSTALLATION

)

18

Rear scuff plate
(See

S–89 REAR SCUFF PLATE REMOVAL/

INSTALLATION

)

19

Front floor covering
(See

S–99 FRONT FLOOR COVERING REMOVAL/

INSTALLATION

)

20

Child restraint seat anchor
(See

S–104 CHILD RESTRAINT SEAT ANCHOR

REMOVAL/INSTALLATION

)

21

Rear seat
(See

S–110 REAR SEAT REMOVAL/

INSTALLATION

)

(See

S–112 REAR SEAT DISASSEMBLY/

ASSEMBLY

)

22

Remote handle lever
(See

S–114 REMOTE HANDLE LEVER REMOVAL/

INSTALLATION

)

23

Rear package trim
(See

S–92 REAR PACKAGE TRIM REMOVAL/

INSTALLATION

)

24

Transmitter
(See

S–37 TRANSMITTER BATTERY

REPLACEMENT

)

(See

S–38 TRANSMITTER BATTERY

INSPECTION

)

LOCATION INDEX

S–9

S

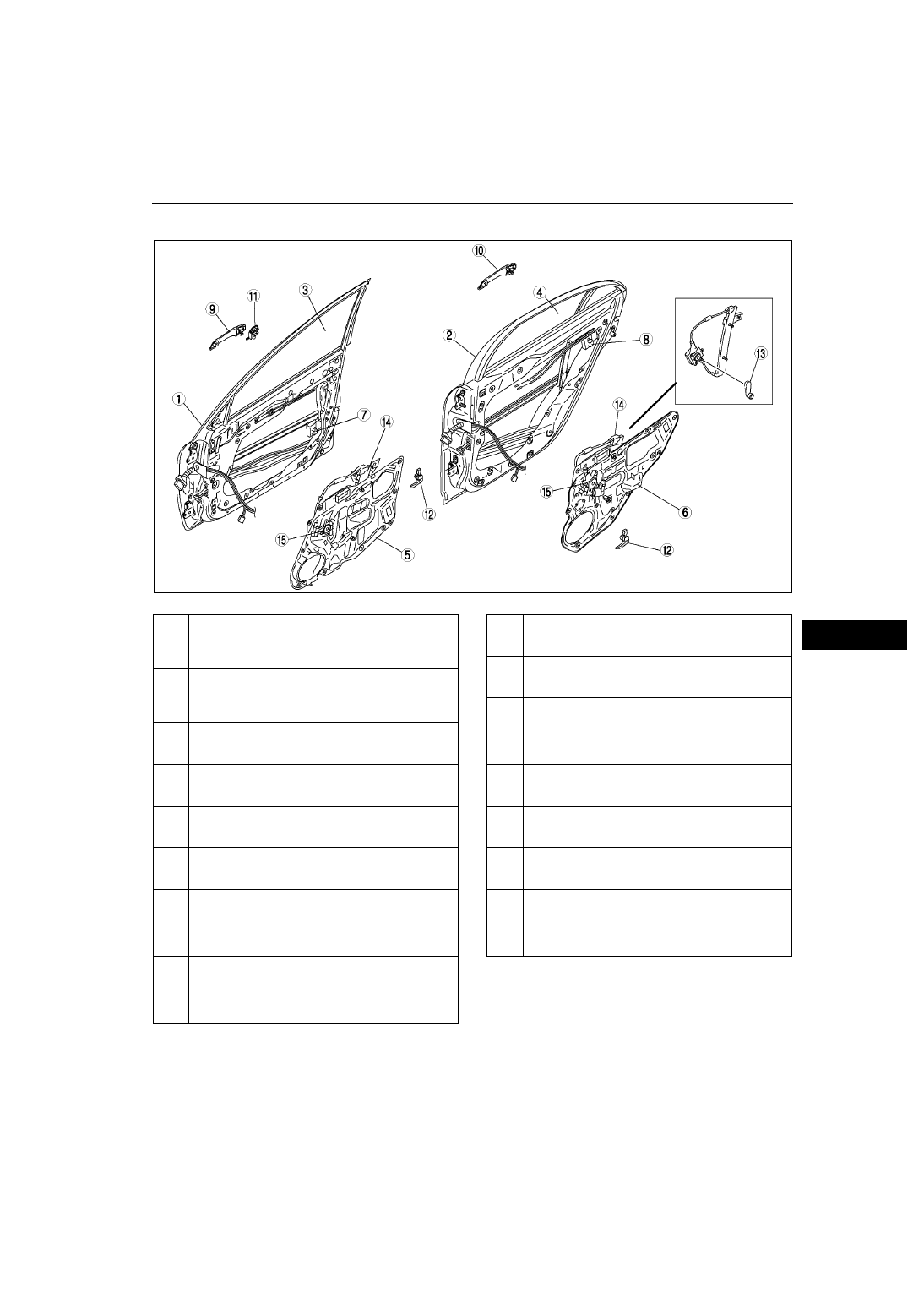

DOOR

A6E770001086W03

.

End Of Sie

A6E7700WH01

1

Front door
(See

S–15 FRONT DOOR REMOVAL/

INSTALLATION

)

(See

S–16 DOOR ADJUSTMENT

)

2

Rear door
(See

S–15 REAR DOOR REMOVAL/

INSTALLATION

)

(See

S–16 DOOR ADJUSTMENT

)

3

Front door glass
(See

S–16 FRONT DOOR GLASS REMOVAL/

INSTALLATION

)

4

Rear door glass
(See

S–17 REAR DOOR GLASS REMOVAL/

INSTALLATION

)

5

Front door unit
(See

S–18 FRONT DOOR UNIT REMOVAL/

INSTALLATION

)

6

Rear door unit
(See

S–18 REAR DOOR UNIT REMOVAL/

INSTALLATION

)

7

Front door latch and lock actuator
(See

S–19 FRONT DOOR LATCH AND LOCK

ACTUATOR REMOVAL/INSTALLATION

)

(See

S–30 FRONT DOOR LOCK ACTUATOR

INSPECTION

)

8

Rear door latch and lock actuator
(See

S–19 REAR DOOR LATCH AND LOCK

ACTUATOR REMOVAL/INSTALLATION

)

(See

S–32 REAR DOOR LOCK ACTUATOR

INSPECTION

)

9

Front outer handle
(See

S–21 FRONT OUTER HANDLE REMOVAL/

INSTALLATION

)

10

Rear outer handle
(See

S–21 FRONT OUTER HANDLE REMOVAL/

INSTALLATION

)

11

Front door key cylinder
(See

S–20 FRONT DOOR KEY CYLINDER

REMOVAL/INSTALLATION

)

(See

S–30 FRONT DOOR LOCK ACTUATOR

INSPECTION

)

12

Inner handle
(See

S–22 INNER HANDLE REMOVAL/

INSTALLATION

)

13

Regulator handle
(See

S–22 REGULATOR HANDLE REMOVAL

)

(See

S–22 REGULATOR HANDLE INSTALLATION

)

14

Power window regulator
(See

S–28 POWER WINDOW REGULATOR

REMOVAL/installation

)

15

Power window motor
(See

S–29 POWER WINDOW MOTOR REMOVAL/

INSTALLATION

)

(See

S–29 POWER WINDOW MOTOR

INSPECTION

)

S–10

BONNET

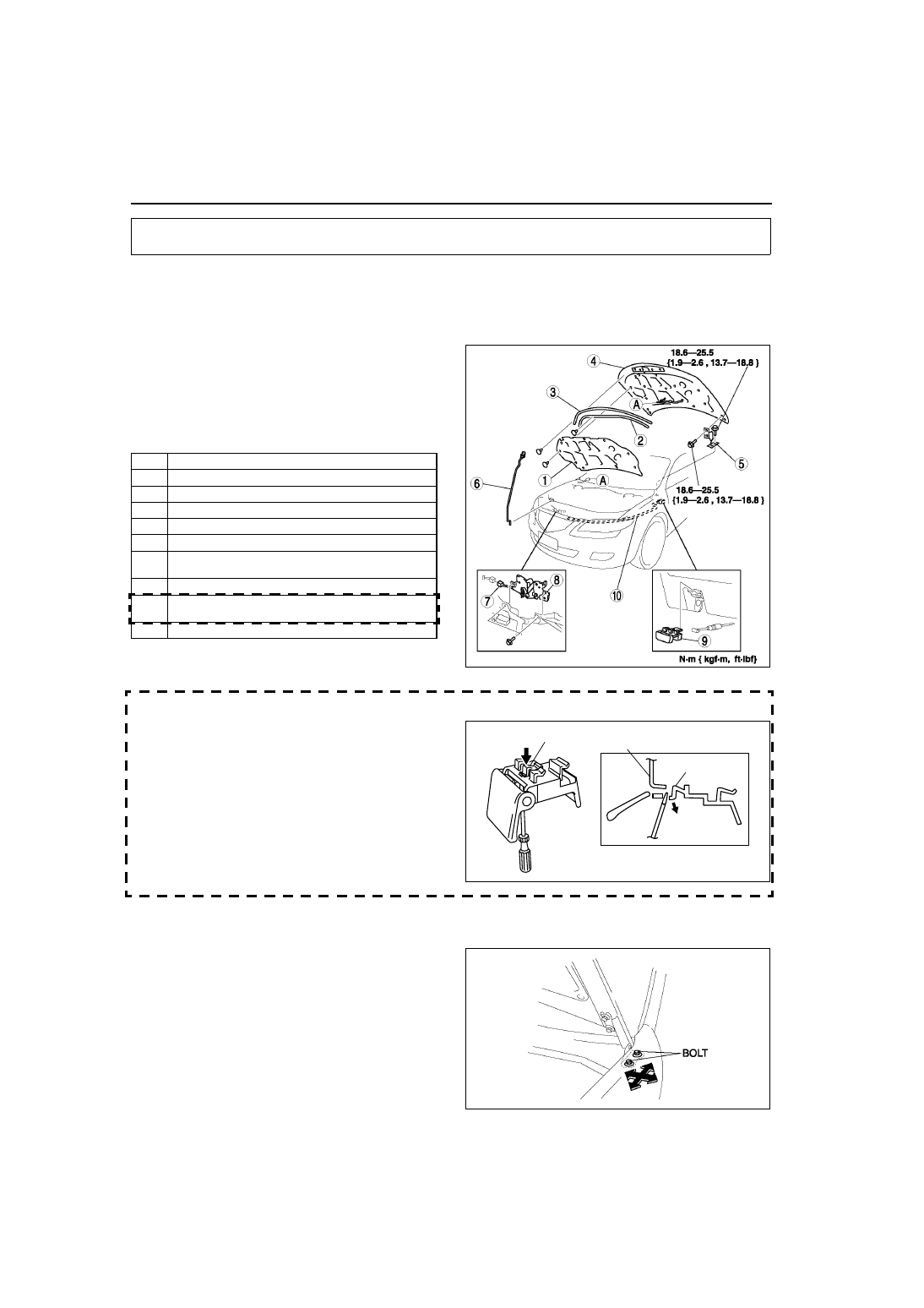

BONNET REMOVAL/INSTALLATION

A6E771001084W01

Warning

• Removing the bonnet without supporting can be dangerous. The bonnet may fall and injure you.

Always perform the following procedure with at least another person.

1. Disconnect the windshield washer hose.
2. To remove the bonnet hinge, remove the front

fender panel.

3. To remove the bonnet lock, remove the radiator

grille.

4. To remove the bonnet release cable, remove the

driver-side mud guard.

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
7. Adjust the bonnet. (See

S–10 BONNET

ADJUSTMENT

.)

Bonnet Release Lever Removal Note

1. Pull the lever.
2. While pushing the tab in the direction of the arrow

using a tape-wrapped, small flathead screwdriver,
disengage it from the dashboard.

Caution

• Remove the bonnet release lever while

taking care not to damage the bonnet
release cable with the flathead
screwdriver.

3. Under the condition in Step 2, pull the bonnet

release lever outward, then remove it from the
lower panel.

End Of Sie

BONNET ADJUSTMENT

A6E771001084W02

Gap Adjustment

1. Remove the front fender.
2. Loosen the bonnet hinge installation bolts and

reposition the bonnet.

3. Tighten the bolts.

BONNET

1

Bonnet insulator

2

Shroud seal weatherstrip

3

Parting seal weatherstrip

4

Bonnet

5

Bonnet hinge

6

Bonnet stay

7

Bonnet switch connector (With theft-deterrent
system)

8

Bonnet lock

9

Bonnet release lever
(See

S–10 Bonnet Release Lever Removal Note

)

10

Bonnet release cable

A6E7710W001

CROSS-SECTIONAL VIEW

LOWER PANEL

TAB

TAB

ADA7710W100

A6E7710W002
