REAR SUSPENSION
R–39
R

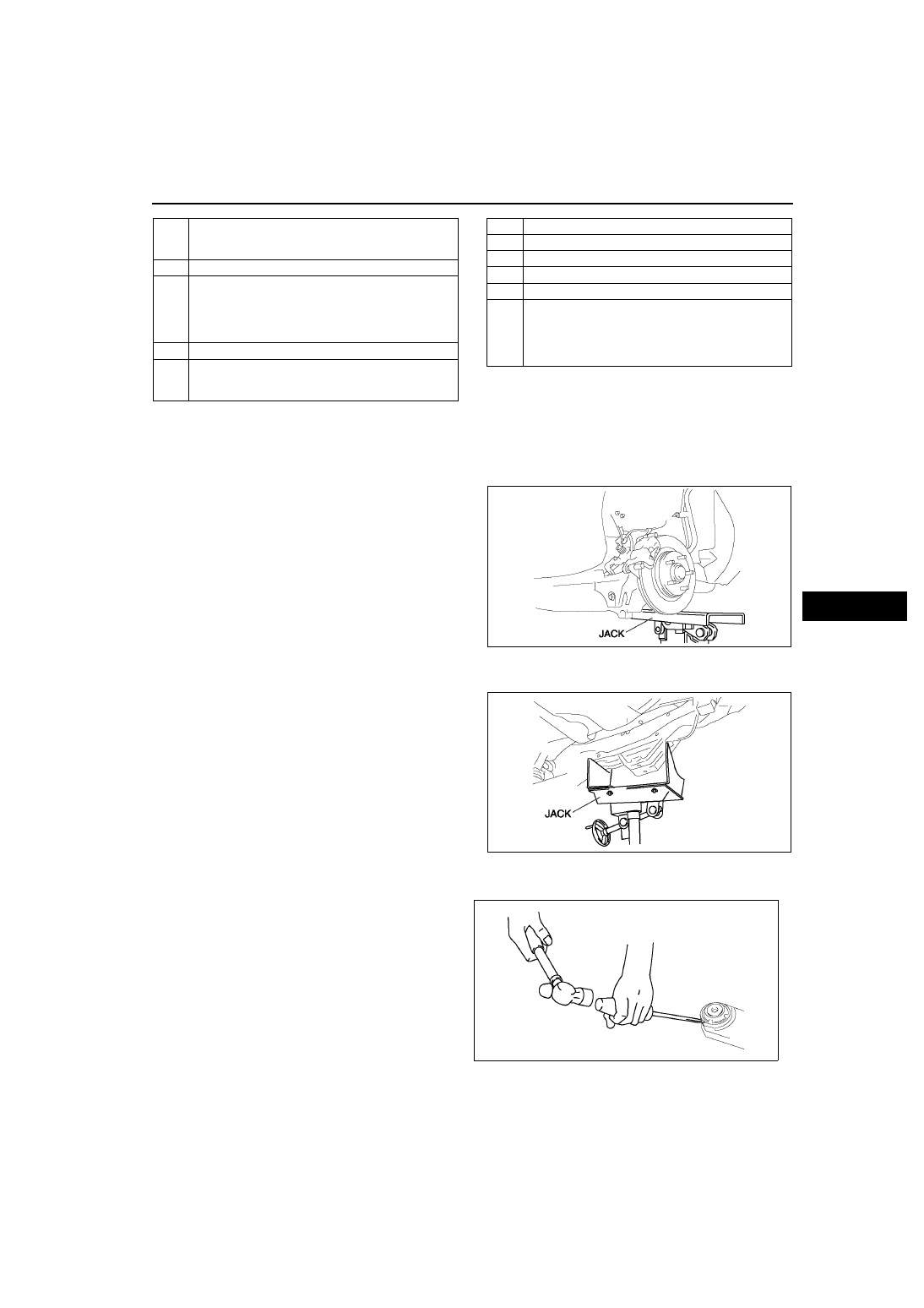

Caliper Component Removal Note
1. Remove the caliper, and suspend it aside with cable.
Bolt (Trailing Link Front Side) Removal Note
1. Support the trailing link with a jack.
2. Loosen the bolt (lateral link inner side).
Crossmember Component Removal Note
1. Support the crossmember component using a
jack and remove the nuts.
Warning
• Removing the crossmember is
dangerous. The crossmember
component could fall and cause serious
injury or death. Verify that the jack
securely supports the crossmember
component.
2. Remove the crossmember component.

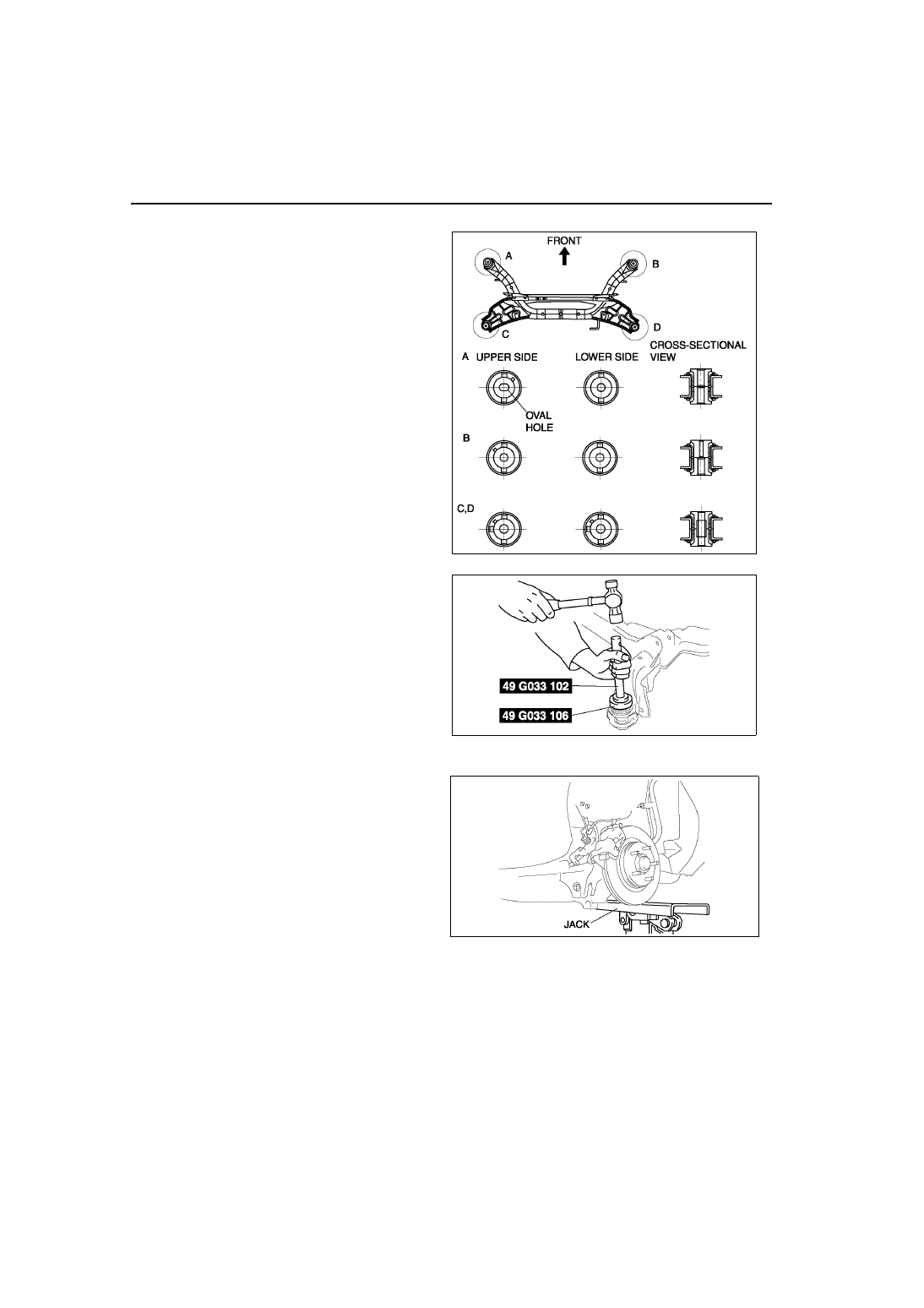

Rear Crossmember Bushing Removal Note
1. Remove the bushing using screw driver (-), being
care not to damage the rear crossmember.
8
9
Bolt (rear shock absorber lower side)
10
Bolt (trailing link front side)
(See
R–39 Bolt (Trailing Link Front Side) Removal
R–40 Bolt (Trailing Link Front Side) Installation
11
Nut (crossmember)
12
R–39 Crossmember Component Removal
13
Trailing link
14
Rear lateral link
15
Rear upper arm
16
Rear stabilizer
17
Rear crossmember
18
Rear crossmember Bushing
(See
R–39 Rear Crossmember Bushing Removal
)
(See
R–40 Rear Crossmember Bushing Installation
)
A6E7416W005
A6E7416W014
A6E7416W001
