D–10

OIL PUMP

OIL PUMP REMOVAL/INSTALLATION

A6E332214100W01

1. Disconnect the negative battery cable.
2. Drain the engine oil. (See

D–4 ENGINE OIL REPLACEMENT

.)

3. Remove the oil pan. (See

D–8 OIL PAN REMOVAL/INSTALLATION

.)

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Inspect the engine oil level. (See

D–4 ENGINE OIL INSPECTION

.)

7. Start the engine and inspect for oil leakage.

• If the oil leaks, specify the faulty part and repair or replace it.

8. Inspect the oil pressure. (See

D–3 OIL PRESSURE INSPECTION

.)

.

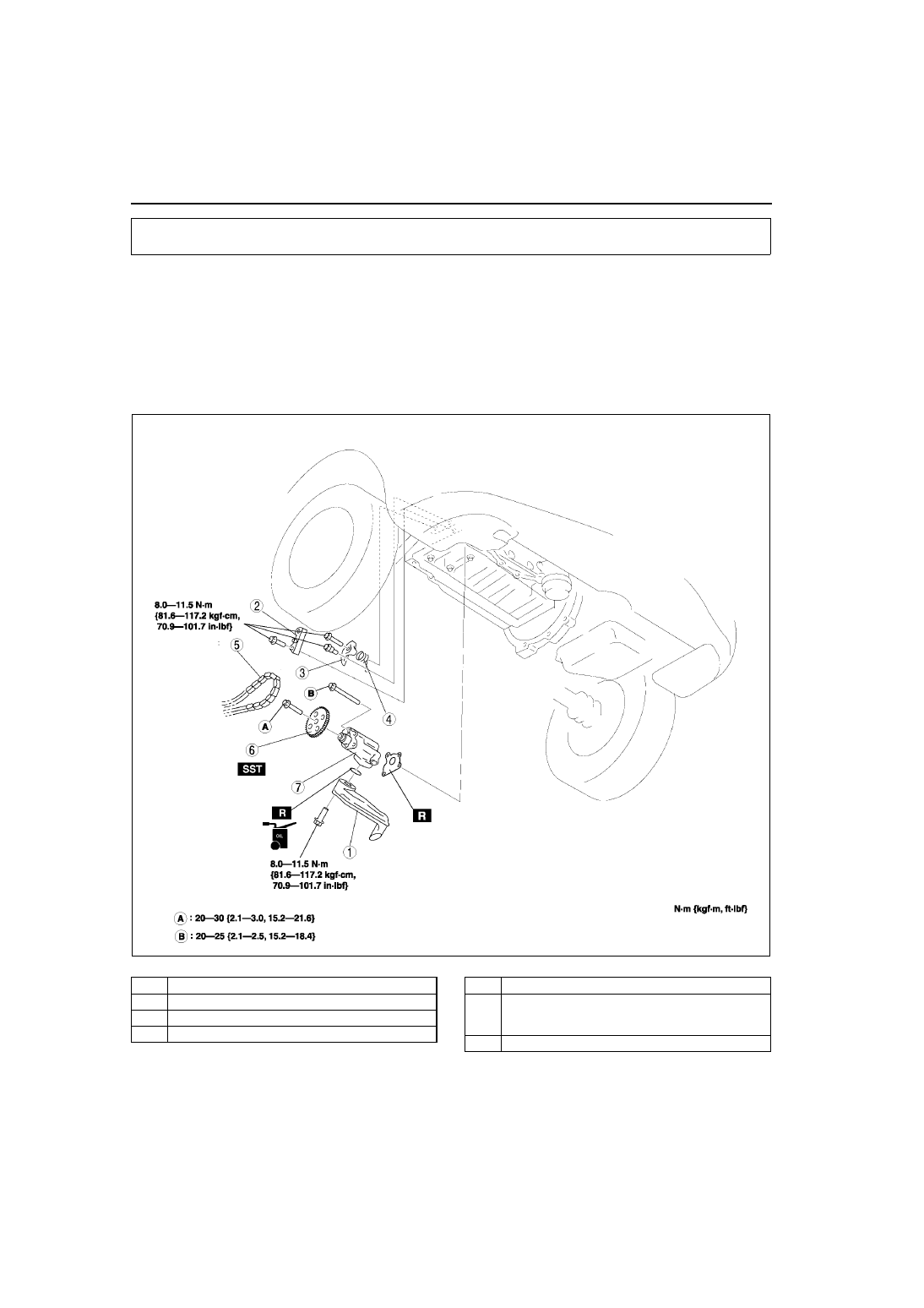

OIL PUMP

AME3322W001

1

Oil strainer

2

Oil pump chain guide

3

Oil pump chain tensioner

4

Oil pump chain tensioner spring

5

Oil pump chain

6

Oil pump sprocket
(See

D–11 Oil Pump Sprocket Removal / Installation

Note

)

7

Oil pump

OIL PUMP

D–11

D

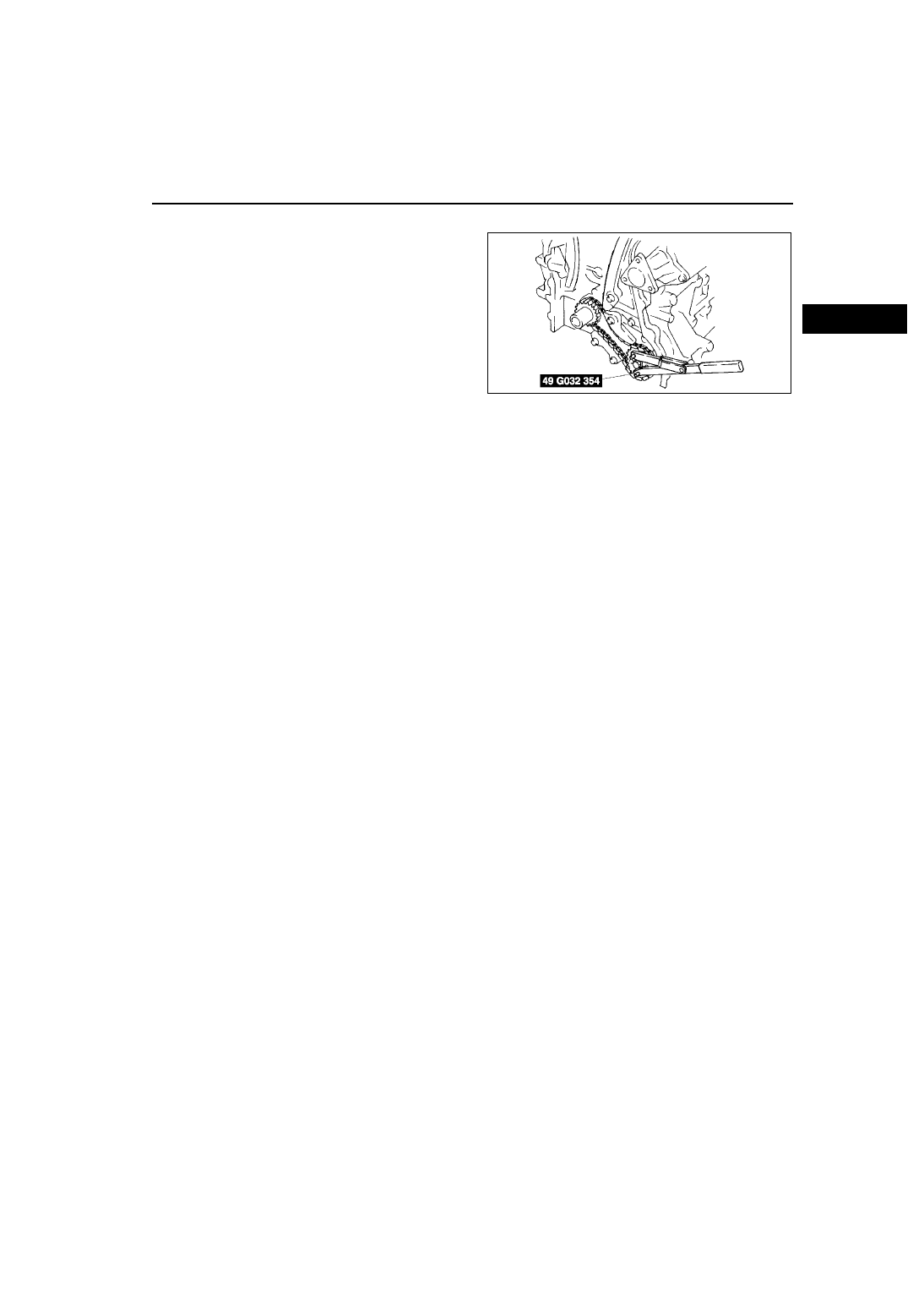

Oil Pump Sprocket Removal / Installation Note

1. Install the SST to the oil pump sprocket to stop

the oil pump from turn in.

End Of Sie

AME3322W002

E–1

E

E

COOLING SYSTEM

LOCATION INDEX ................................................. E-2

 LOCATION INDEX.............................................. E-2

COOLING SYSTEM SERVICE WARNINGS .......... E-3

COOLING SYSTEM SERVICE WARNINGS ....... E-3

ENGINE COOLANT................................................ E-3

ENGINE COOLANT LEVEL INSPECTION.......... E-3
ENGINE COOLANT

PROTECTION INSPECTION............................ E-3

ENGINE COOLANT REPLACEMENT ................. E-4
ENGINE COOLANT LEAKAGE INSPECTION .... E-4

RADIATOR CAP..................................................... E-5

RADIATOR CAP INSPECTION ........................... E-5

RADIATOR ............................................................. E-6

RADIATOR REMOVAL/INSTALLATION ............. E-6

THERMOSTAT ....................................................... E-7

THERMOSTAT REMOVAL/INSTALLATION ....... E-7
THERMOSTAT INSPECTION ............................. E-8

WATER PUMP........................................................ E-8

WATER PUMP REMOVAL/INSTALLATION........ E-8

FAN MOTOR .......................................................... E-9

COOLING FAN REMOVAL/INSTALLATION ....... E-9
COOLING FAN MOTOR REMOVAL/

INSTALLATION............................................... E-10

COOLING FAN MOTOR INSPECTION ............. E-11

E–2

LOCATION INDEX

 LOCATION INDEX

A6E360001002W01

.

End Of Sie

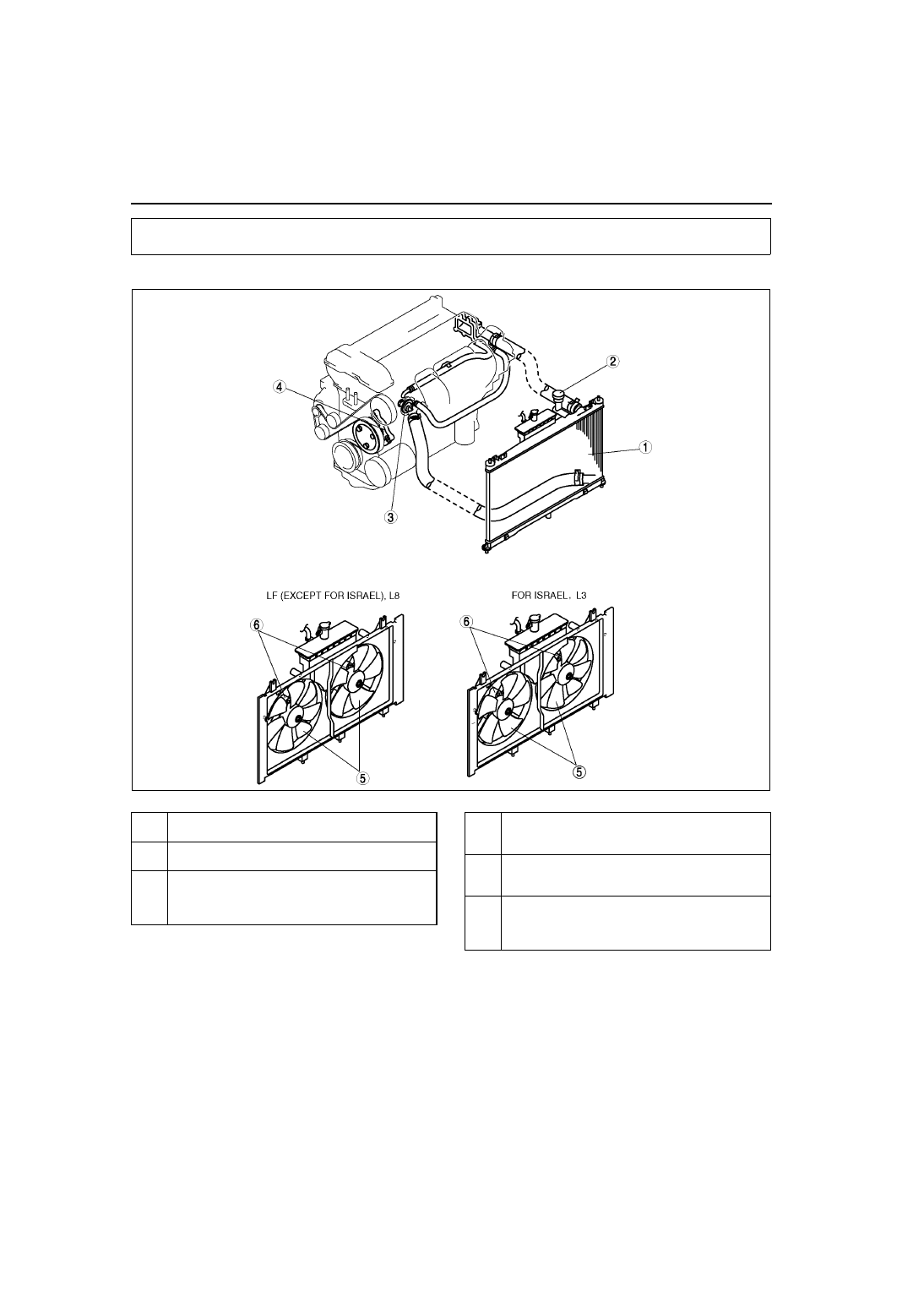

LOCATION INDEX

AME3602N001

1

Radiator
(See

E–6 RADIATOR REMOVAL/INSTALLATION

)

2

Radiator cap
(See

E–5 RADIATOR CAP INSPECTION

)

3

Thermostat
(See

E–7 THERMOSTAT REMOVAL/

INSTALLATION

)

(See

E–8 THERMOSTAT INSPECTION

)

4

Water pump
(See

E–8 WATER PUMP REMOVAL/

INSTALLATION

)

5

Cooling fan
(See

E–9 COOLING FAN REMOVAL/

INSTALLATION

)

6

Cooling fan motor
(See

E–10 COOLING FAN MOTOR REMOVAL/

INSTALLATION

)

(See

E–11 COOLING FAN MOTOR INSPECTION

)
