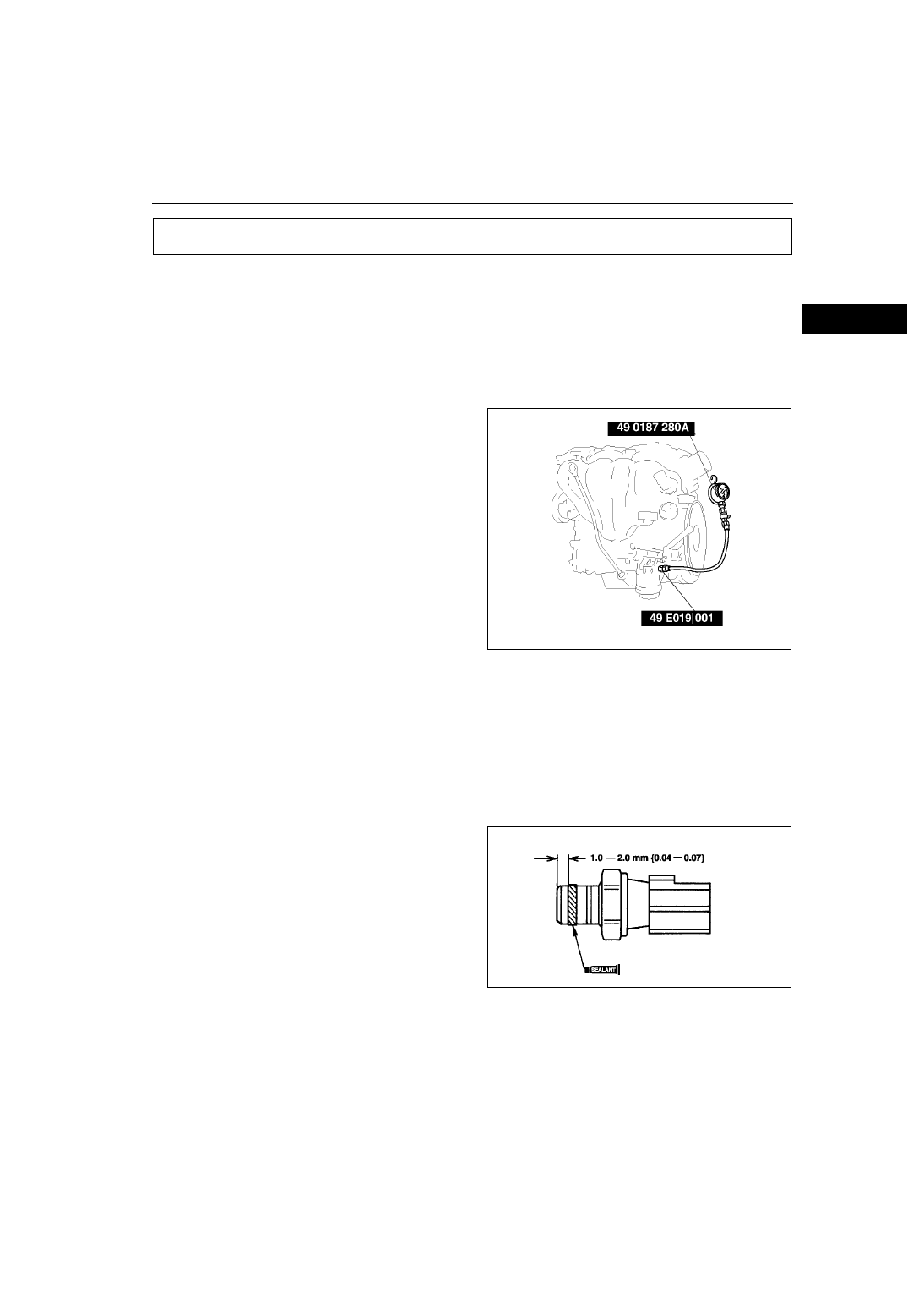

OIL PRESSURE INSPECTION

D–3

OIL PRESSURE INSPECTION

A6E331001003W01

Warning

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your

skin by washing with soap and water immediately after working with engine oil.

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil have cooled.

1. Remove the under cover.
2. Remove the oil pressure switch.
3. Screw the SST into the oil pressure switch

installation hole.

4. Warm up the engine to normal operating

temperature.

5. Run the engine at the specified speed, and note

the gauge readings.

• If the pressure is not as specified, inspect for

the cause and repair or replace as necessary.

Note

• The oil pressure can vary with oil viscosity

and temperature.

Oil pressure [Oil temperature: 100

°C{212°F}]:

L8, LF :

234—521 kPa {2.39—5.31 kgf/cm

,33.9—

75.5 psi} min. [ 3,000rpm]

L3 :

395—649 kPa {4.03—6.61 kgf/cm

, 57.3—

94.1 psi} min. [ 3,000rpm]

6. Stop the engine and wait until it is cool.
7. Remove the SST.

Caution

• Any sealant stuck at the end of the oil pressure switch can cause operation malfunction of the oil

pressure switch.
Be sure there is no sealant at the end of the oil pressure switch.

8. Apply silicone sealant to the oil pressure switch

threads as shown.

9. Install the oil pressure switch.

Tightening torque:

12—18 N·m {1.2—1.8 kgf·m, 9—13 ft·lbf}

10. Install the under cover.
11. Start the engine and inspect for oil leakage.

• If the oil leaks, specify the faulty part and

repair or replace it.

End Of Sie

OIL PRESSURE INSPECTION

AME3310W001

AME3310W002

D–4

ENGINE OIL

ENGINE OIL INSPECTION

A6E331214001W01

1. Position the vehicle on level ground.
2. Warm up the engine to normal operating temperature.
3. Stop the engine and wait for 5 min.
4. Remove the dipstick.
5. Verify that the oil level is between the F and L marks on the dipstick and check the engine oil condition.

• If the oil level is below the L mark, add the oil.

End Of Sie

ENGINE OIL REPLACEMENT

A6E331214001W02

Warning

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil has cooled.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall,

causing death or serious injury. Never work around or under a lifted vehicle if it is not securely
supported on safety stands.

• Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your

skin by washing with soap and water immediately after working with engine oil.

Caution

• In case you spill engine oil on the front pipe, wipe it off completely. If you fail to wipe the spilled

oil, it will produce a white smoke because of the heat.

1. Position the vehicle on level ground.
2. Remove the oil filler cap .
3. Remove the under cover.
4. Remove the oil pan drain plug.
5. Drain the engine oil into a container.

6. Install the oil pan drain plug.

• With washer

1. Install the oil pan drain plug with a new washer.

Tightening torque

30—41 N·m {3.1—4.1 kgf·m, 23—30 ft·lbf}

• Without washer

1. Inspect the seal rubber of the oil pan drain plug and make sure there are no cracks or damage.

— If necessary, replace the oil pan drain plug.

2. Clean the flange surface (seal rubber) on the oil pan drain plug, then install the oil pan drain plug.

Tightening torque

22—30 N·m {2.2—3.1 kgf·m, 16—22 ft·lbf}

Note

• The amount of residual oil in the engine can vary according to the replacement method, oil temperature, etc.

Verify the oil level after engine oil replacement.

7. Refill the engine with the specified type and amount of engine oil.

Oil capacity (Approximate quantity)

L {US qt, Imp qt}

: Always verify the oil level with the dipsticks since the engine oil capacity differs according to dipstick

specifications.

ENGINE OIL

Item

Engine

L3 *

Total (dry engine)

4.6 {4.8, 4.0}

Dipstick A: 4.2 {4.4, 3.7}
Dipstick B: 5.1 {5.4, 4.5}

Oil replacement

3.9 {4.0, 3.4}

3.9 {4.0, 3.0}

Dipstick A: 3.1 {3.3, 2.7}
Dipstick B: 4.0 {4.2, 3.5}

Oil and oil filter
replacement

4.3 {4.5, 3.8}

Dipstick A: 3.5 {3.7, 3.1}
Dipstick B: 4.4 {4.6, 3.9}

ENGINE OIL

D–5

Note

• The maintenance intervals on scheduled maintenance table (See

GI–33 SCHEDULED MAINTENANCE

TABLE

) can only be supported by the use of following oils.

Recommended engine oil

8. Refit the oil filler cap.
9. Start the engine and inspect for oil leakage.

• If the oil leaks, specify the faulty part and repair or replace it.

10. Inspect the oil level.

• If necessary, add oil. (See

D–4 ENGINE OIL INSPECTION

11. Install the under cover.

End Of Sie

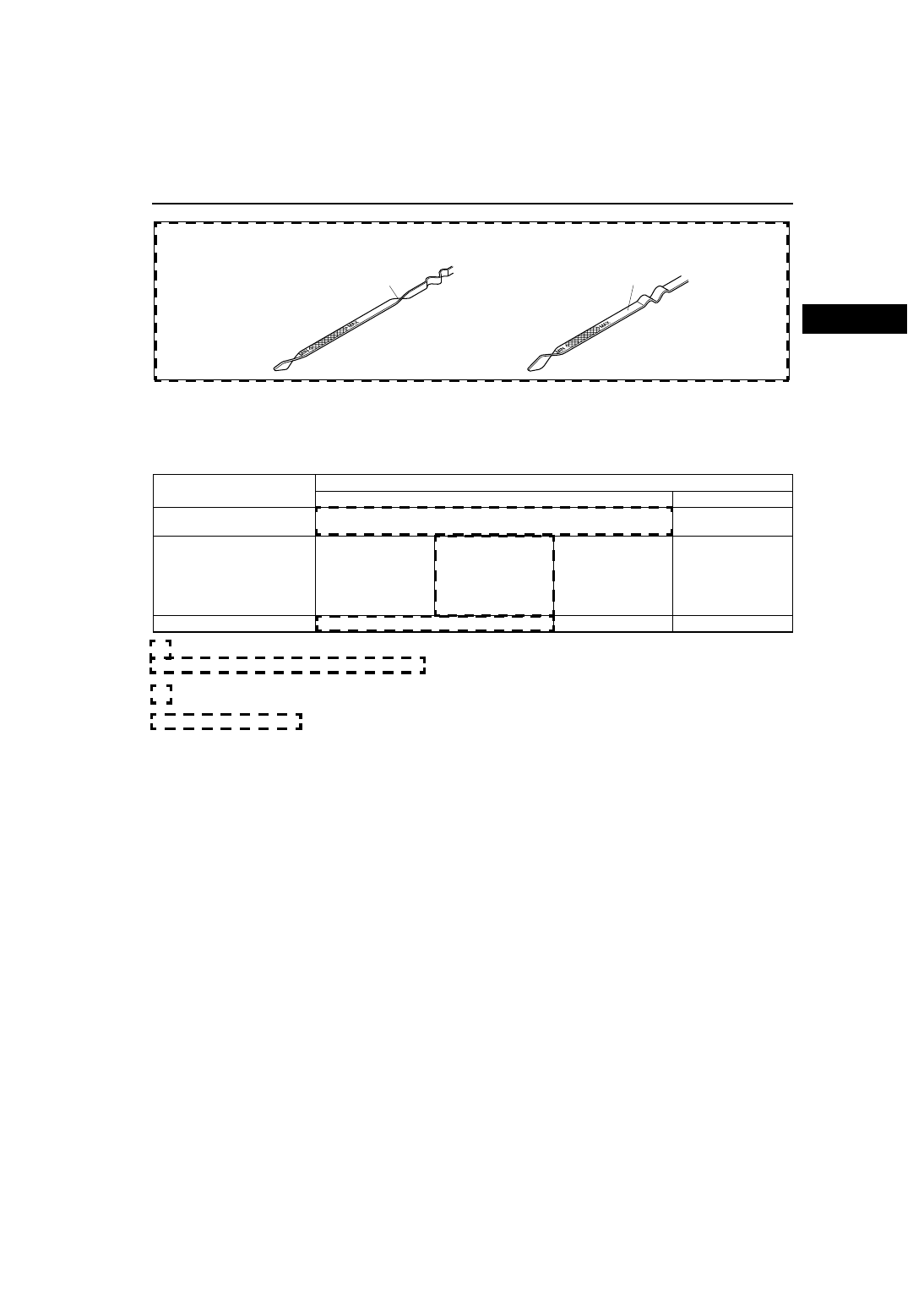

A6E0110W001

DIPSTICK A

DIPSTICK B

TWIST

NO TWIST

Item

Market

Europe

Except Europe

Grade

API SL

ACEA A3

API SG, SH, SJ, SL

ILSAC GF-2, GF-3

Viscosity (SAE)

5W-30

10W-40

5W-20

40, 30, 20,

20W-20, 10W-30,
10W-40, 10W-50,
20W-40, 15W-40,
20W-50, 15W-50,

5W-20, 5W-30

Remarks

Mazda genuine Dexelia oil e.g.

—

D–6

OIL FILTER

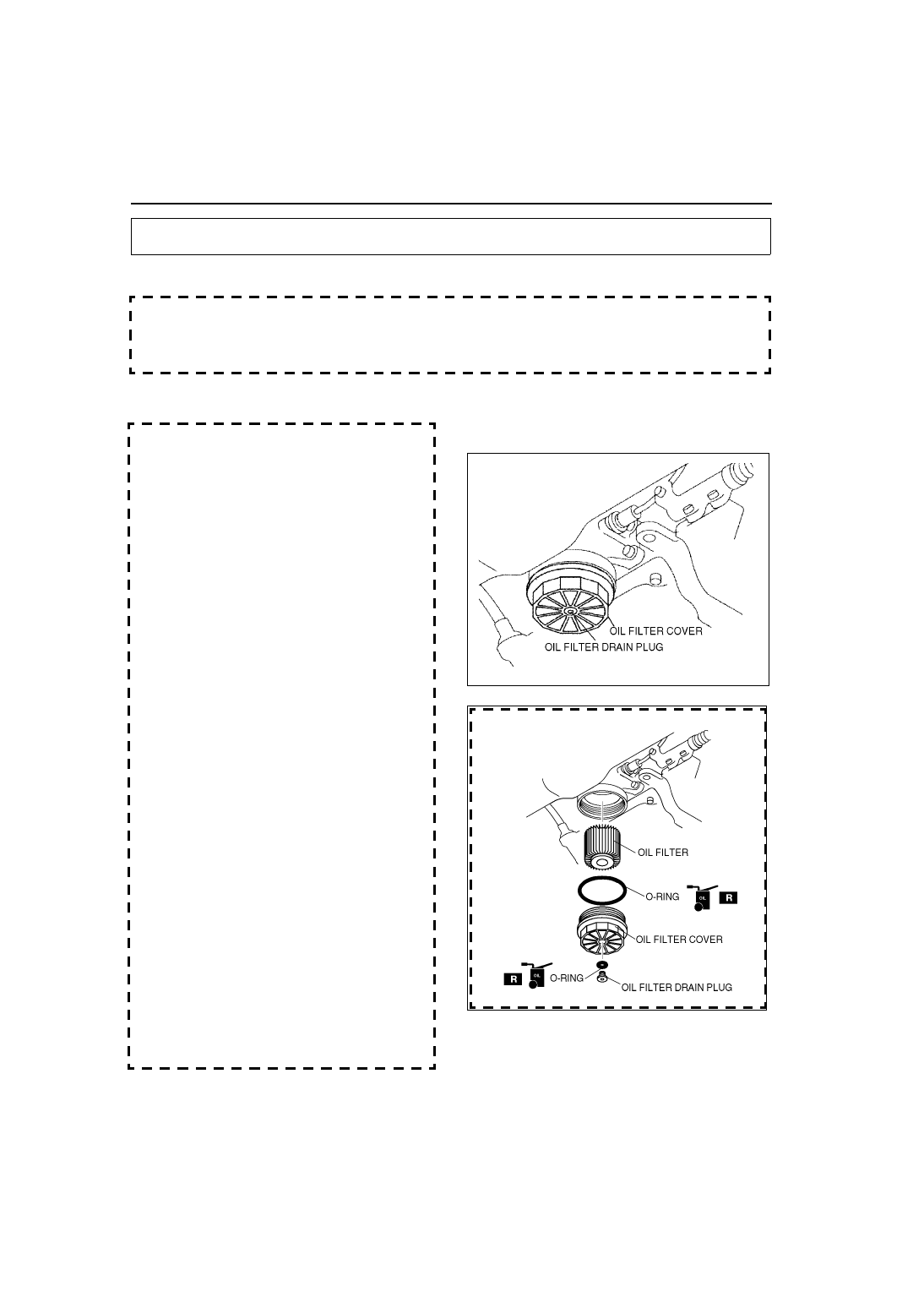

OIL FILTER REPLACEMENT

A6E331414300W01

Warning

• Continuous exposure with USED engine oil has caused skin cancer in laboratory mice. Protect

your skin by washing with soap and water immediately after this work.

• Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the

engine oil have cooled.

Caution

• To avoid damage to the oil filter, use only specified oil filter.

Cartridge Type

1. Remove the under cover.
2. Loosen the oil filter drain plug. (Do not remove.)
3. Loosen the filter cover for 1 turn using a

commercially available, cap-type oil filter wrench
(diameter- 74 mm {2.9 in}, 14 sided).

4. Remove the oil filter drain plug, and drain the

engine oil.

Note

• Oil could be easily drained when the air is in

the filter.

5. Loosen the oil filter cover for another 1 turn.

6. Remove the oil filter cover and the oil filter.
7. Use a clean rag to wipe off the mounting surface

on the oil filter adapter and the oil filter cover.

8. Apply clean oil to a new O-ring of the oil filter

cover.

9. Apply clean oil to a new O-ring of the oil filter

drain plug.

10. Install the oil filter, oil filter drain plug, and oil filter

cover.

11. Tighten the oil filter cover and the oil filter drain

plug.

Tightening torque

Oil filter cover: 30—35 N·m
{3.1—3.5 kgf·m, 22.2—25.8 ft·lbf}
Oil filter drain plug: 9—10 N·m
{91.8—101.9 kgf·cm, 79.6—88.4 in·lbf}

12. Remove the dipstick and verify that the oil level is

MIN and MAX marks on the dipstick.

• If the oil level is below the MIN mark, add oil.

13. Start the engine and inspect for oil leakage.
14. Inspect the oil level.

• If necessary, add oil. (See

D–4 ENGINE OIL

INSPECTION

15. Install the under cover.

End Of Sie

OIL FILTER

AME3314W001

AME3314W002
