T–24

EXTERIOR LIGHTING SYSTEM

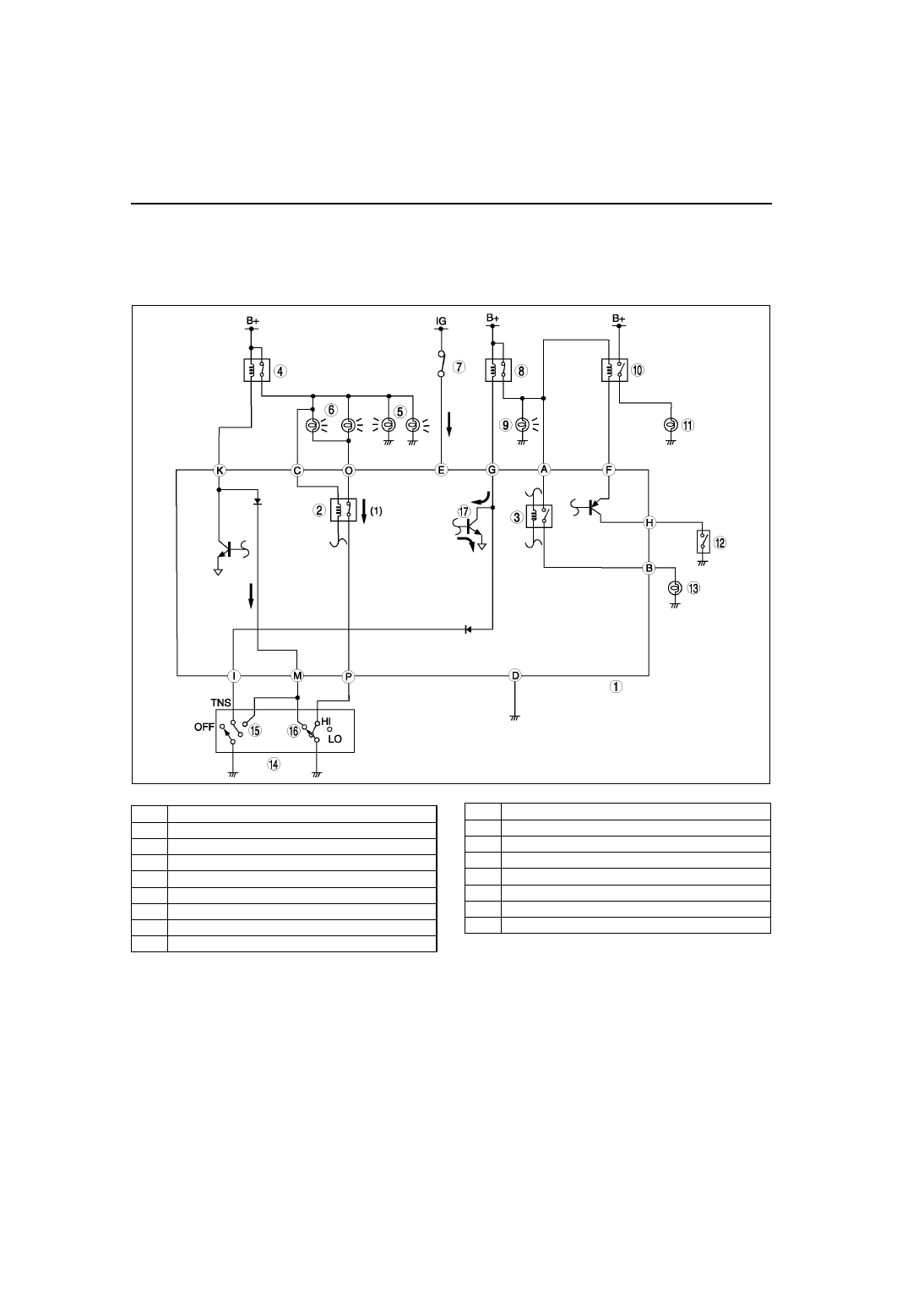

When the ignition switch is at ON and when the flash-to-pass is on:

1. When the headlight switch is turned to the flash-to-pass position, battery voltage from the headlight relay flows

from the headlight switch to the ground, and the headlight relay is turned on.

2. When the headlight relay and TNS relay are on, the headlights (low-beam), parking lights/taillights/license plate

light illuminate. Due to the flow of current (1) in relay A are turned on.

3. When relay A turns on, and the headlights (high-beam) illuminate.

End Of Sie

A6E8112T125

1

Running light unit

2

Relay  A

3

Relay  B

4

Headlight relay

5

Headlight (low-beam)

6

Headlight (high-beam)

7

Ignition switch

8

TNS  relay

9

Parking light/taillight/license plate light

10

Front fog light relay

11

Front fog light

12

Front and rear fog light switch

13

Illumination light

14

Headlight switch

15

Headlight

16

Flash-to-pass

17

Transistor 1

EXTERIOR LIGHTING SYSTEM

T–25

T

T

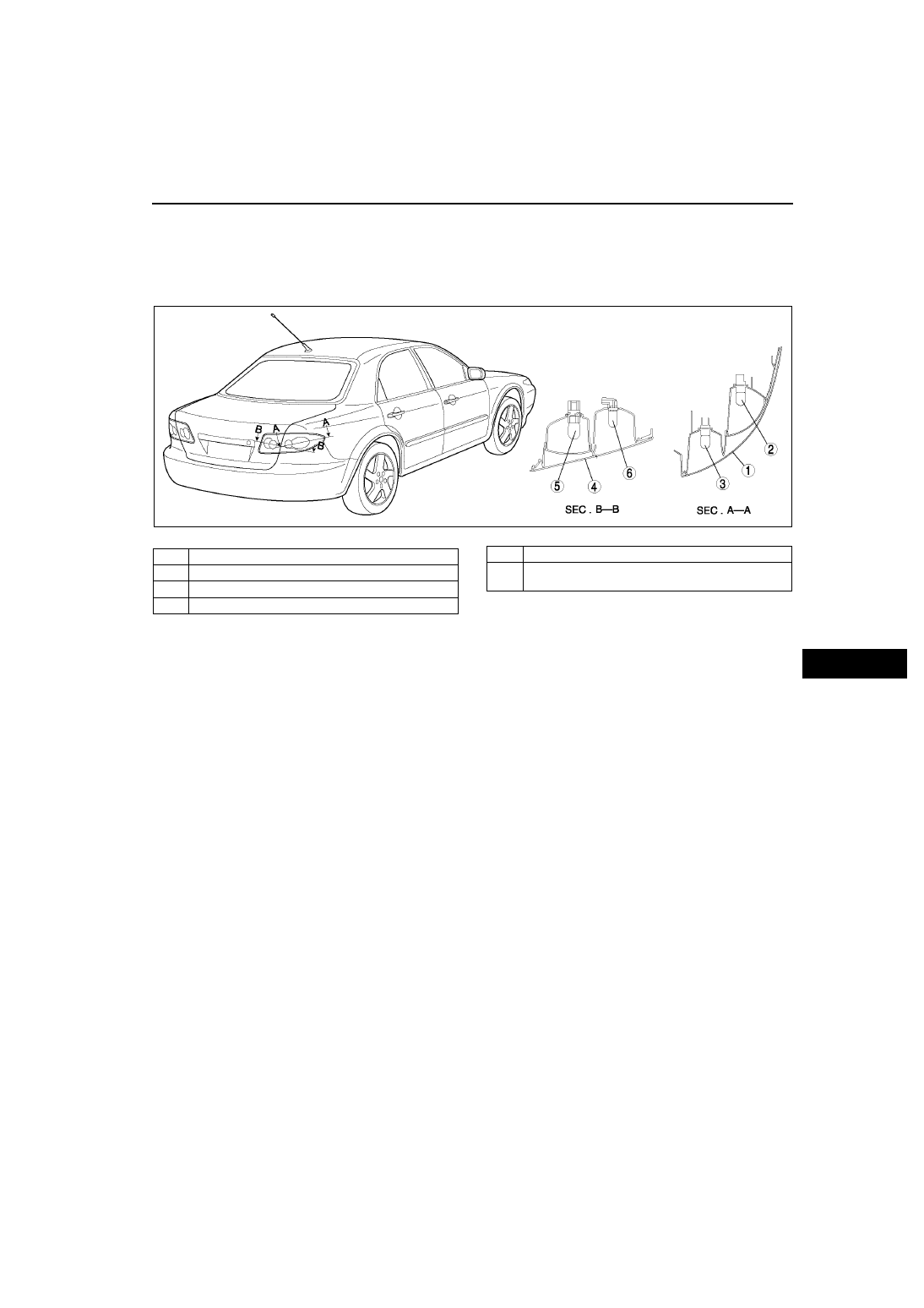

REAR COMBINATION LIGHT AND INBOARD COMBINATION LIGHT

A6E811201052T09

Outline

•

A step reflector that diffuses and reflects the light of the rear combination and inboard combination light bulbs,
has been adopted. A flat, uncut lens has been adopted to control illumination distribution.

•

A round reflector for the rear combination and inboard combination lights has been adopted to improve design.

Structural View

End Of Sie

A6E8112T103

1

Rear combination light

2

Brake light/taillight bulb

3

Rear turn light bulb

4

Inboard combination light

5

Back-up light bulb

6

Rear fog light bulb (R.H.D.: right side only, L.H.D.:
left side only)

T–26

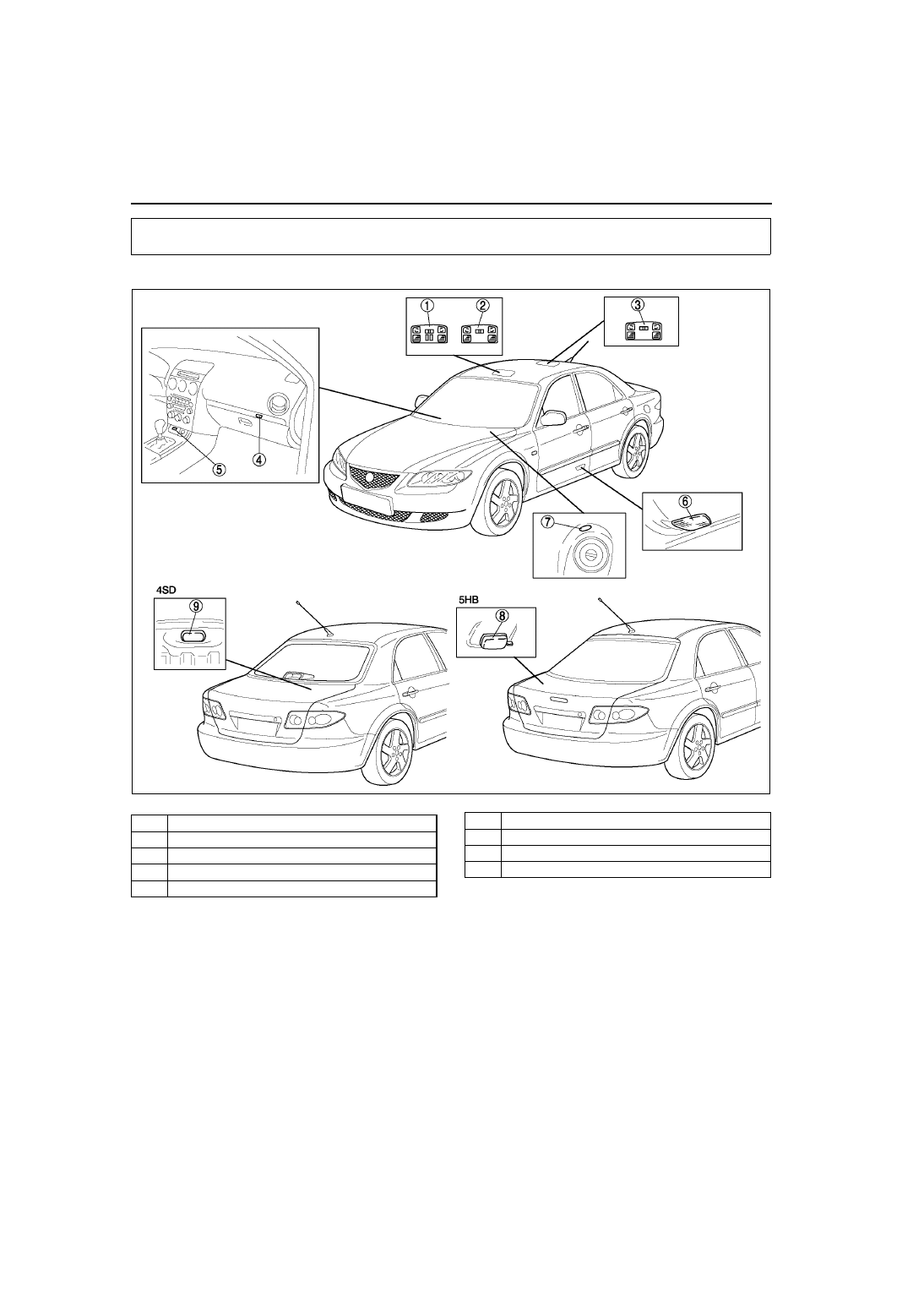

INTERIOR LIGHTING SYSTEM

STRUCTURAL VIEW

A6E811401052T01

End Of Sie

INTERIOR LIGHTING SYSTEM

A6E8114T101

1

Front map light (with sliding sunroof)

2

Front map light (without sliding sunroof)

3

Rear map light

4

Glove compartment light

5

Ashtray illmination light

6

Courtesy light

7

Ignition key illumination

8

Cargo compartment light

9

Trunk compartment light

INTERIOR LIGHTING SYSTEM

T–27

T

T

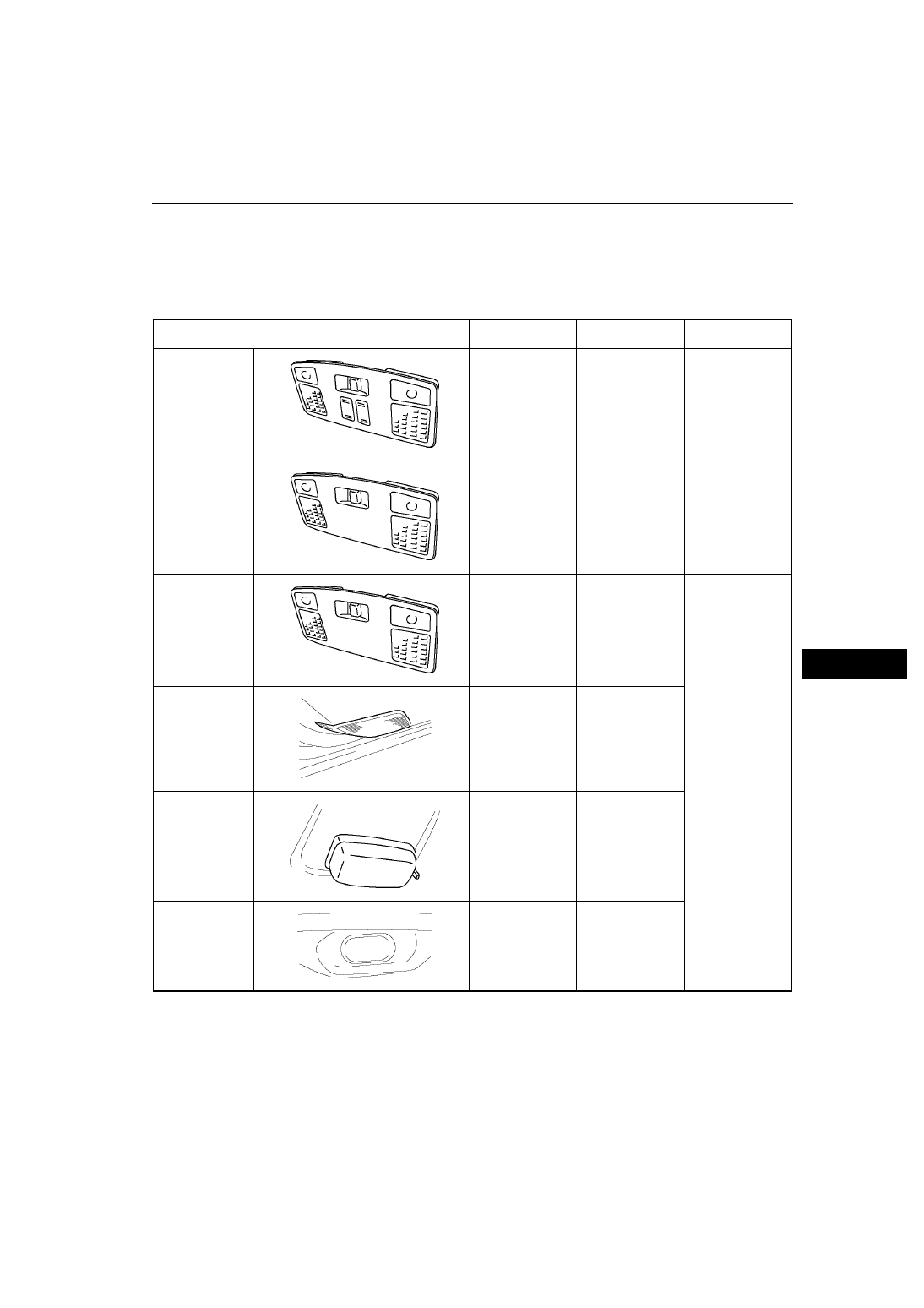

OUTLINE

A6E811401052T02

•

The interior lights are shown below.

•

The interior light control system turns on, turns off, or dims the interior light when the interior light switch is in
the DOOR position.

×

: Equipped

—: Not equipped

End Of Sie

Type

Installation

position

Interior light

control

Roof

Front map light

Front

×

Sunroof

Front map light

×

Normal roof

Rear map light

Rear

×

Both

Courtesy light

Door

×

Cargo
compartment light

Cargo room

—

Trunk
compartment light

Trunk room

—
