Lexus TX350 (2024 year). Manual in english

379

5-2. Using the air conditioning system and defogger

Interio

r fe

atures

■

Center display

Rear seats temperature control switch

Turn temperature control dial clockwise to increases the temperature and turn the dial
counterclockwise to decreases the temperature.

Air flow mode control switch
Close the rear air conditioning control screen
“Rear off” switch

Turn the rear seats fan off.

Adjust the rear seats fan speed setting
“Rear auto” switch

Set the rear seats automatic mode on/off.

■

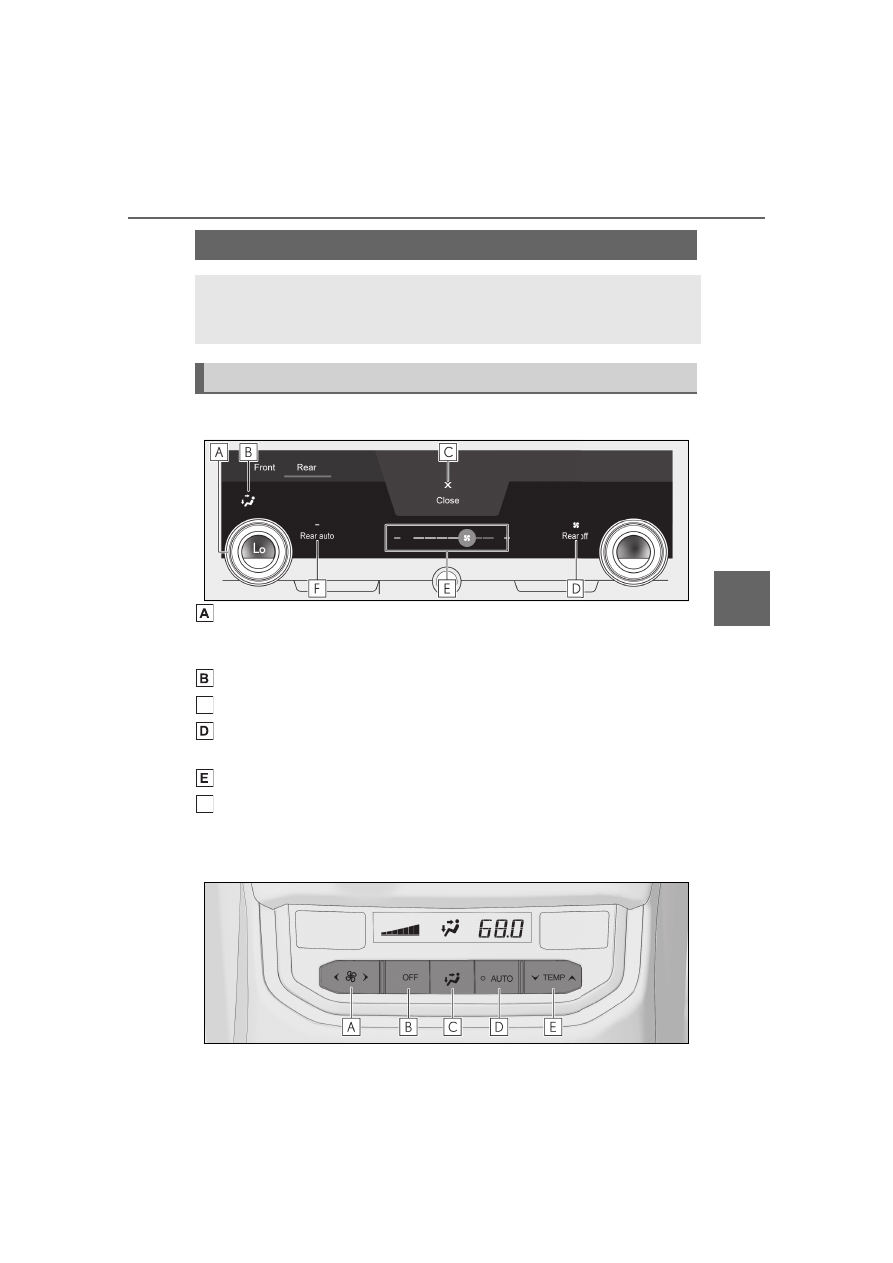

Rear air conditioning system control panel

Rear air conditioning system

The rear air conditioning system can be operated selecting option switch and
also selecting “Rear” switch on the center display and rear air conditioning
system control panel.

Rear air conditioning control operation

380

5-2. Using the air conditioning system and defogger

Adjust the rear seats fan speed setting

Press

to increase the fan speed and

to decrease the fan speed.

“OFF” switch

Pressing the “OFF” switch turns off the fan.

Air flow mode control switch
Automatic mode switch

When the function is on, the indicator illuminates on the control screen.

Adjust the rear seats temperature setting

Press

to increase the temperature and

to decrease the temperature.

The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:



When the “Sync” indicator is on:
Adjust the driver’s seat temperature.

Adjust the temperature setting of each
rear seat using the center display or rear
air conditioning system control panel.



Adjust the temperature setting of
rear seats using the rear air condi-
tioning system control panel.

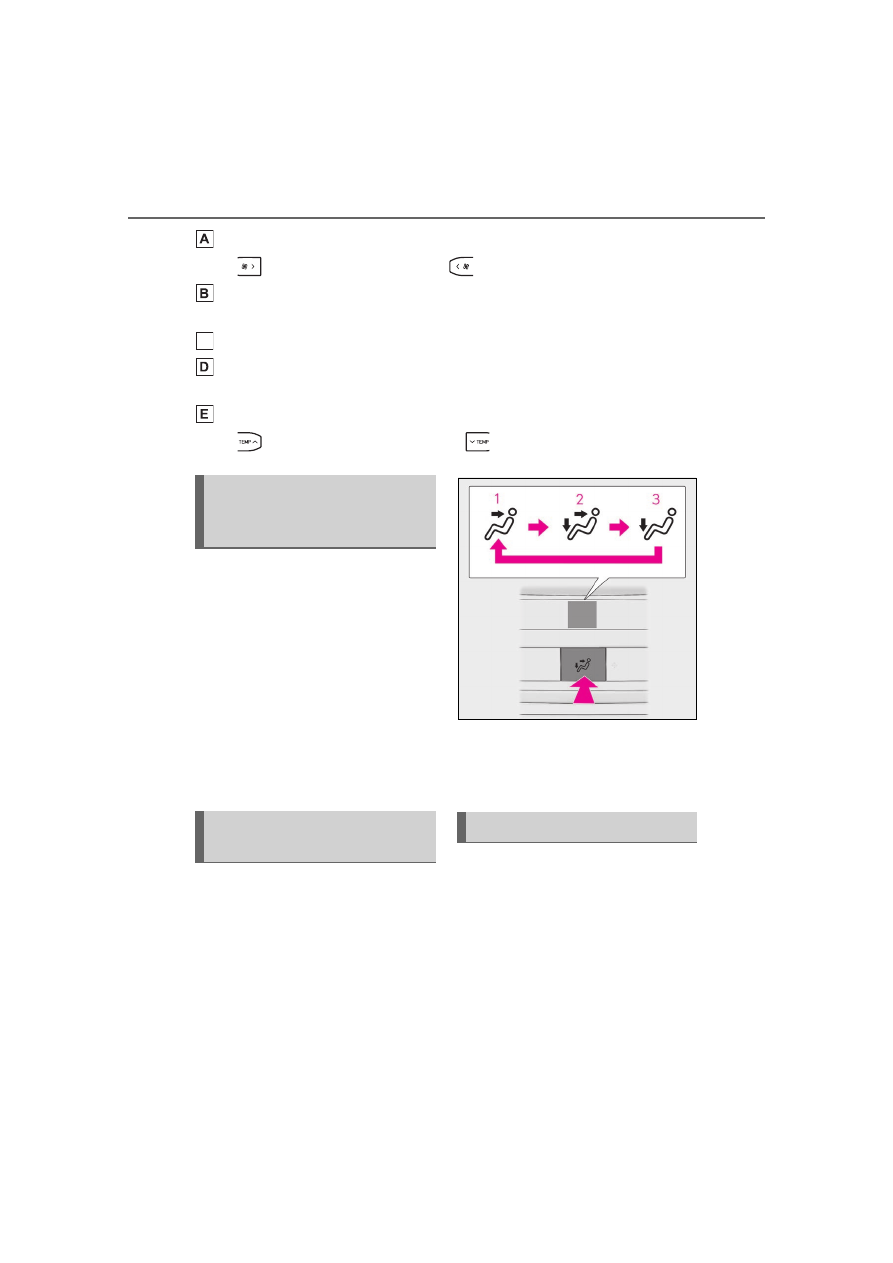

To change the airflow mode, press the
airflow mode control switch.

The air outlets used are switched each time
the switch is pressed.

Upper body

Upper body and feet

Feet

Press the automatic mode switch.

Adjust the temperature setting.

To stop the operation, press the
“OFF” switch.

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other

Adjusting the temperature set-
ting of the rear seats (Center dis-
play)

Change the airflow mode (Rear
air conditioning control panel)

Using automatic mode

381

5-2. Using the air conditioning system and defogger

rio

r f

than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed.

■

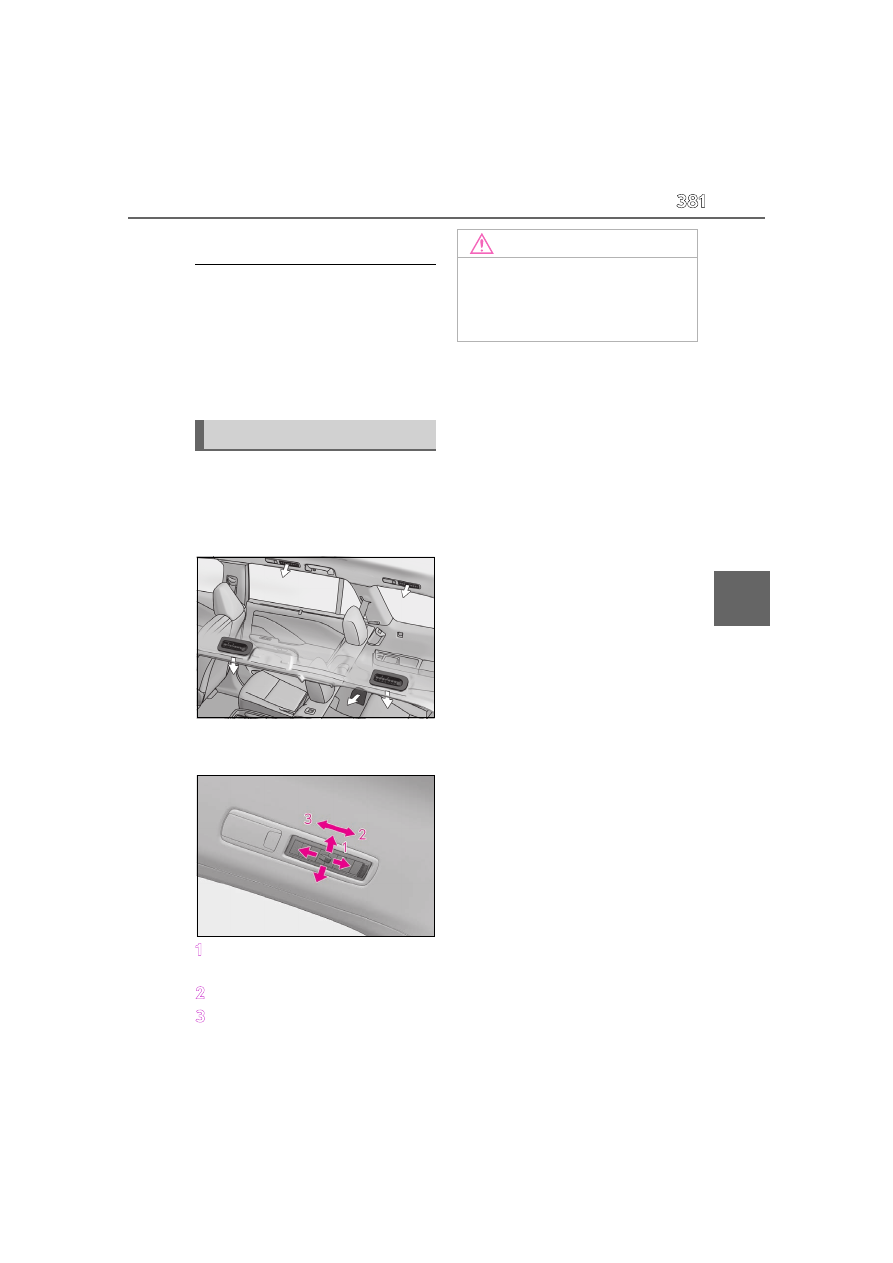

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

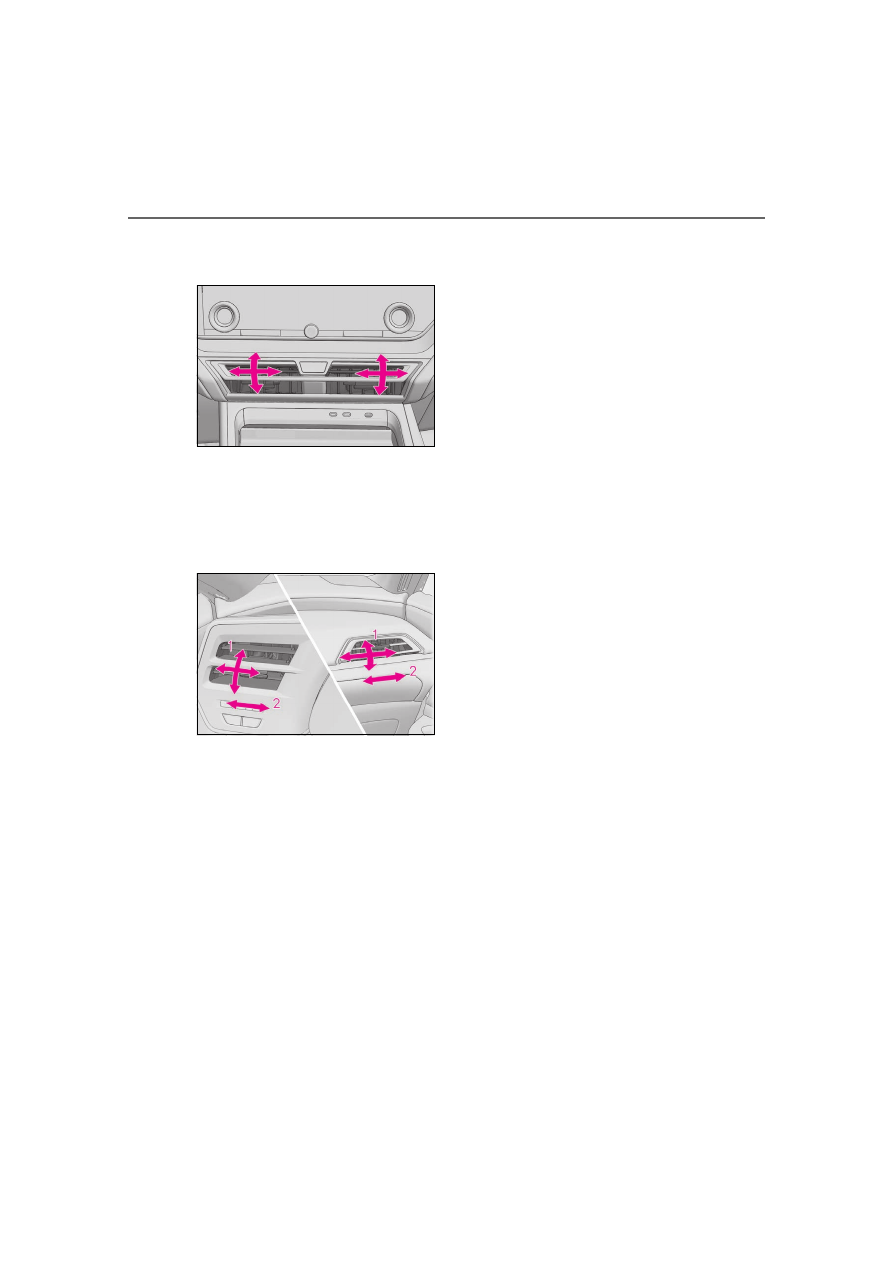

Adjusting the position of and open-
ing and closing the air outlets

Direct air flow to the left or right, up
or down

Close the vent

Open the vent

Air outlets

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

382

5-2. Using the air conditioning system and defogger

: If equipped

Select

on the center display.

Each time the switch is selected, the opera-
tion condition changes as follows.
AUTO



Hi (2 segments lit)



Lo (1 seg-

ment lit)



Off

The level indicator (red) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Operation condition

The engine switch is in ON.

■

Customization

The temperature setting of the heated

steering wheel can be set through “Vehicle

customize” on the center display. (



P.528)

■

Front seats

Select

on the center dis-

play.
Each time the switch is selected, the
operation condition changes as fol-
lows.
Auto



Hi (3 segments lit)



Mid (2

segments lit)



Lo (1 segment lit)



Off

The level indicator (red) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Second seats (If equipped)

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

Heated steering wheel

/seat

heaters/seat ventilators



Heated steering wheel

Warms up the grip of the steering
wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation using a fan
built into the seat

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

NOTICE

■

To prevent damage to the seat heat-

ers

Do not put heavy objects that have an

uneven surface on the seat and do not

stick sharp objects (needles, nails, etc.)

into the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Heated steering wheel

Seat heaters

383

5-2. Using the air conditioning system and defogger

rio

r f



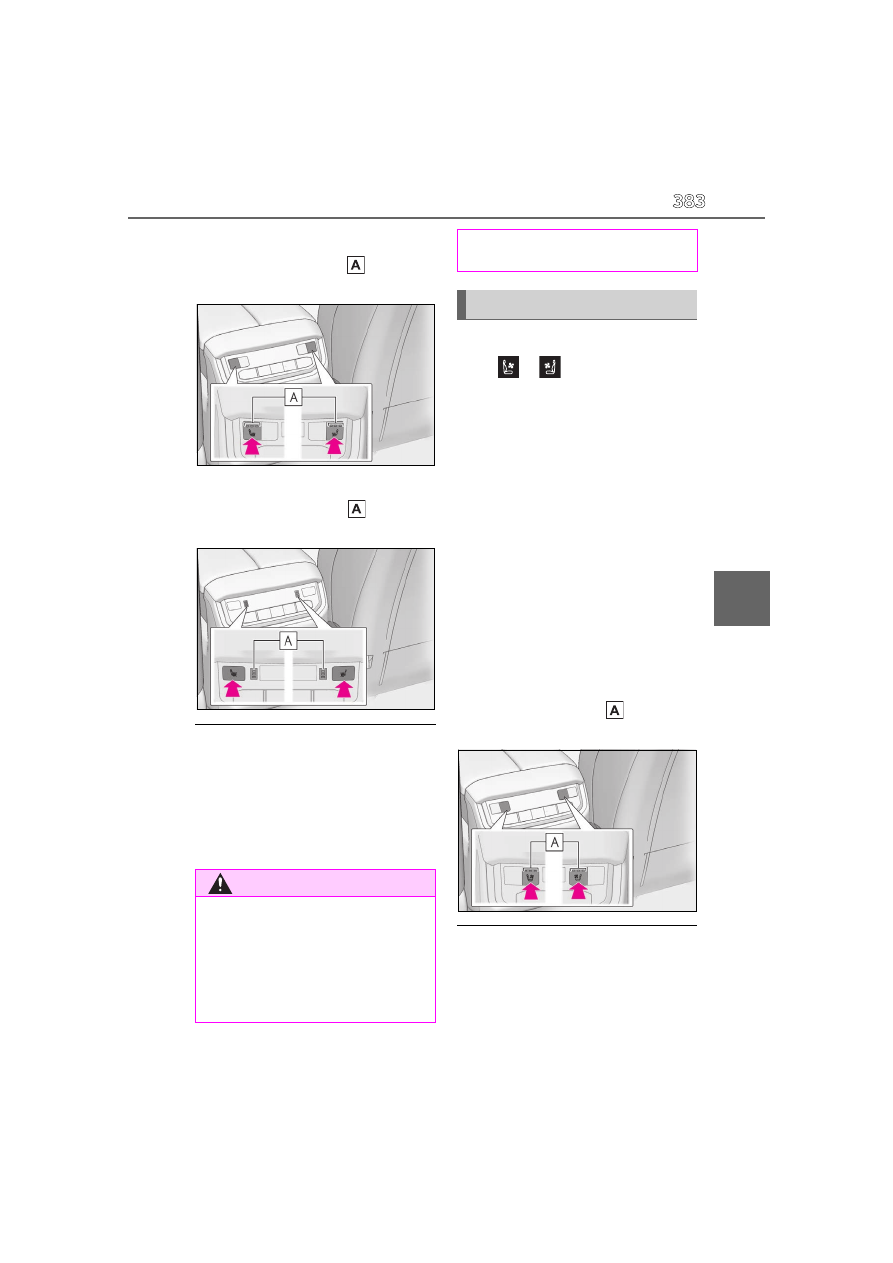

Vehicles with the seat ventilators

The level indicator (yellow)

lights up

during operation.



Vehicles without the seat ventilators

The level indicator (amber)

lights up

during operation.

■

Operation condition

The engine switch is in ON.

■

Customization

The temperature setting of the seat heaters

of the front seats can be set through “Vehi-

cle customize” on the center display.

(



P.528)

■

Front seats (If equipped)

Select

on the center display.

Each time the switch is selected, the
operation condition changes as fol-
lows.
AUTO



Hi (3 segments lit)



Mid (2

segments lit)



Lo (1 segment lit)



Off

The level indicator (blue) lights up during
operation. “AUTO” indicator lights up
during automatic operation.

■

Second seats (If equipped)

Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit)



Mid (2 segments

lit)



Lo (1 segment lit)



Off

The level indicator (green)

lights up

during operation.

■

Operation condition

The engine switch is in ON.

■

Customization

The temperature setting of the seat ventila-

tors of the front seats can be set through

“Vehicle customize” on the center display.

WARNING

■

To prevent overheating and minor

burn injuries

Observe the following precautions when

using the seat heaters.

●

Do not cover the seat with a blanket or

cushion when using the seat heater.

●

Do not use seat heater more than nec-

essary.

Seat ventilators

385

5-3. Using the interior lights

Interio

r fe

atures

5-3.Using the interior lights

Center console light

*1, 3

Front personal lights (



P.386)

Front interior lights (



P.386)

Shift lever light

Inside door handle lights

Inside handle lights

*1, 3

Rear personal lights (



P.386)

Door courtesy lights

Footwell lights

Outer foot lights

: The illumination color can also be changed.

Refer to the “MULTIMEDIA OWNER’S MANUAL” to change the settings.

: The illumination color can also be changed.

Refer to the “MULTIMEDIA OWNER’S MANUAL” to change the settings.

: If equipped

Interior lights list

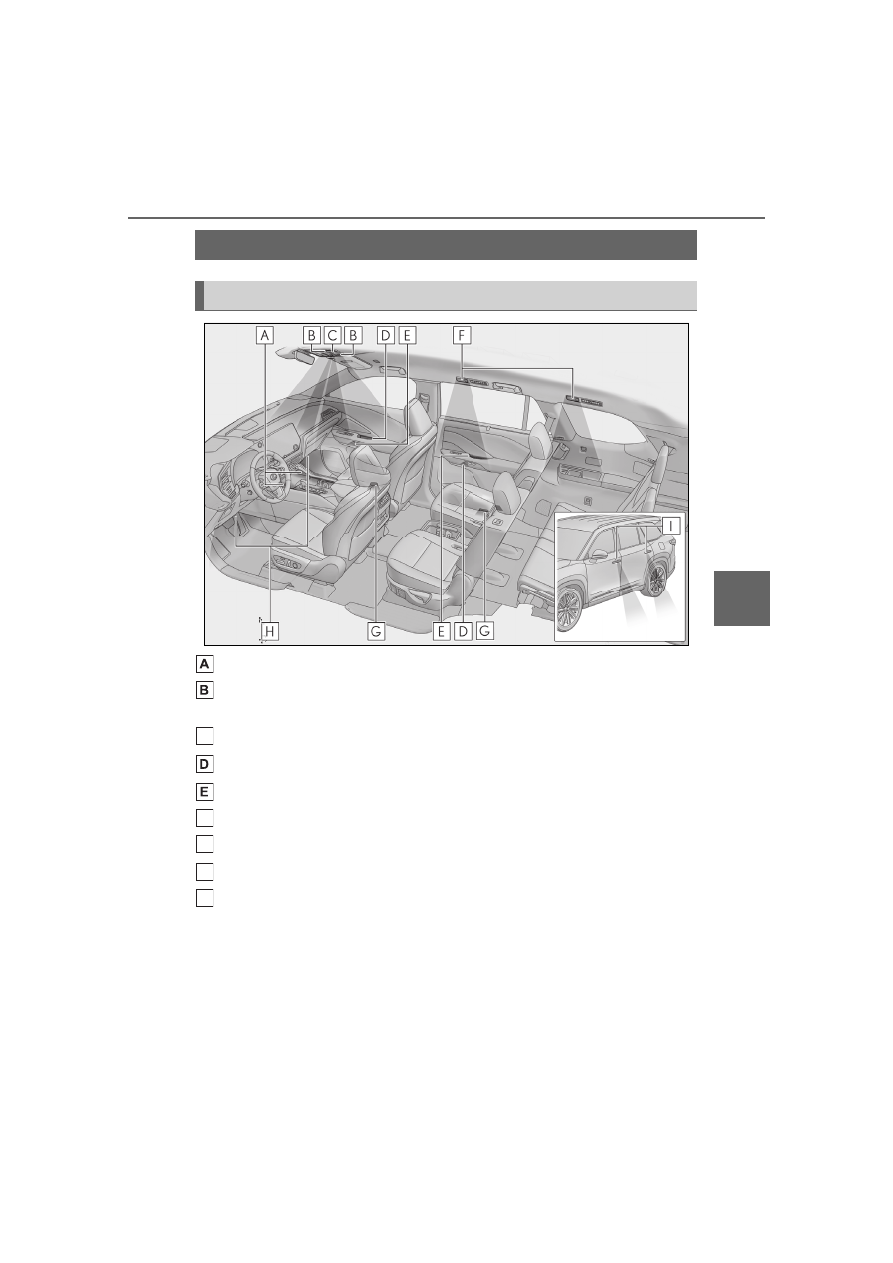

Location of the interior lights

386

5-3. Using the interior lights

■

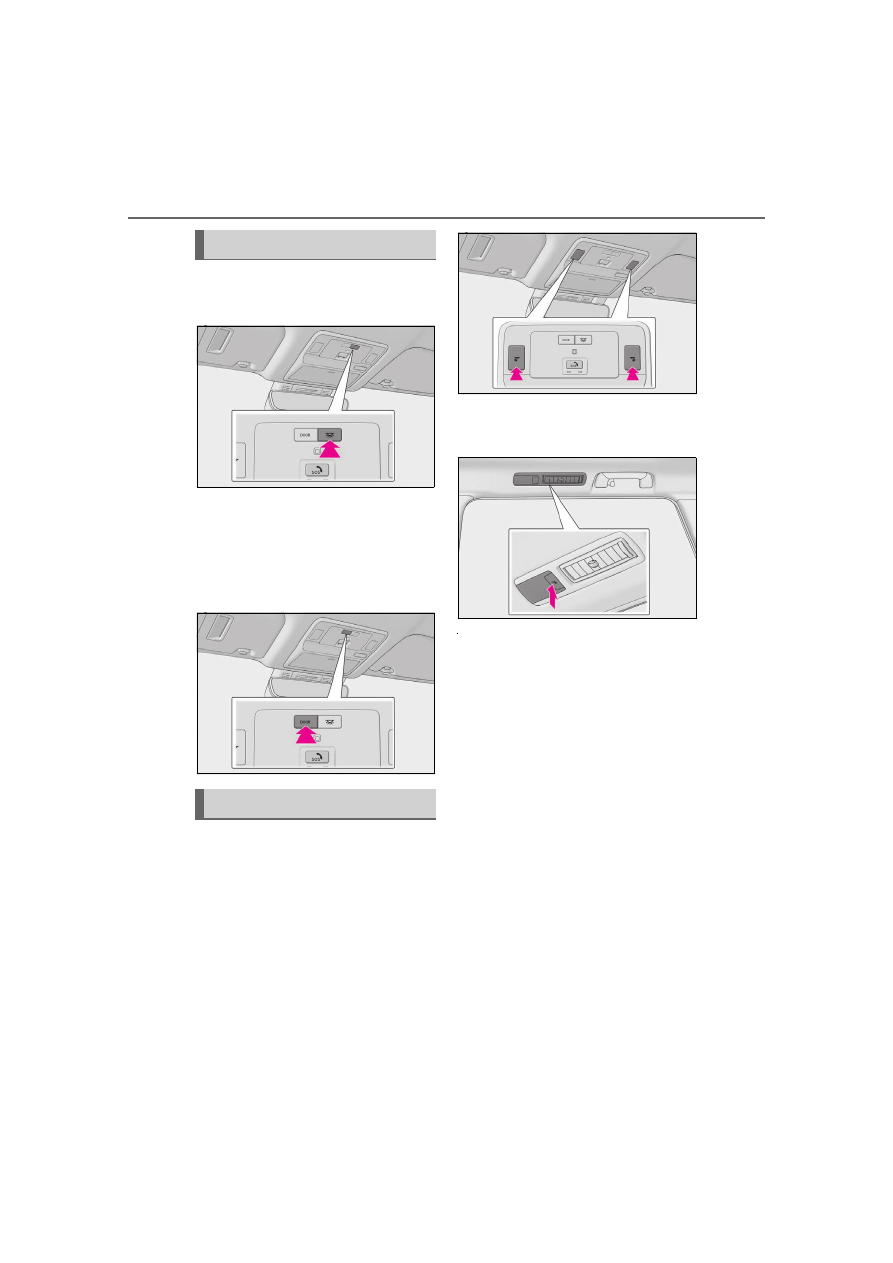

Turning the interior lights on/off

Press the interior light switch

■

Turning the door position on

Press the door-linked interior light
switch

The lights are turned on and off according
to whether the doors are opened/closed.

■

Front personal lights

Turns the lights on/off

■

Rear personal lights

Turns the lights on/off

■

Illuminated entry system

The lights automatically turn on/off accord-

ing to the engine switch mode, the pres-

ence of the electronic key, whether the

doors are locked/unlocked, and whether

the doors are opened/closed.

■

To prevent the battery from being dis-

charged

If the interior lights remain on when the

engine switch is turned off, the lights will go

off automatically after 20 minutes.

■

Automatic illumination of the interior

lights

If any of the SRS airbags deploy (inflate) or

in the event of a strong rear impact, the inte-

rior lights will turn on automatically.
The interior lights will turn off automatically

after approximately 20 minutes.
The interior lights can be turned off manu-

ally. However, in order to help prevent fur-

ther collisions, it is recommended that they

be left on until safety can be ensured.
(The interior lights may not turn on auto-

Operating the interior lights

Operating the personal lights

387

5-3. Using the interior lights

rio

r f

matically depending on the force of the

impact and conditions of the collision.)

■

Using the voice control system

: If equipped

The following operations can be performed

using the voice control system.

●

Turning interior light on/off

●

Changing color of each lights

For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

: If equipped

■

Customization

Some functions can be customized.

(



P.528)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is not run-

ning.

388

5-4. Using the storage features

5-4.Using the storage features

Cup holders (

Bottle holders (

Console box (

Auxiliary boxes (



P.391)

Glove box (



P.389)

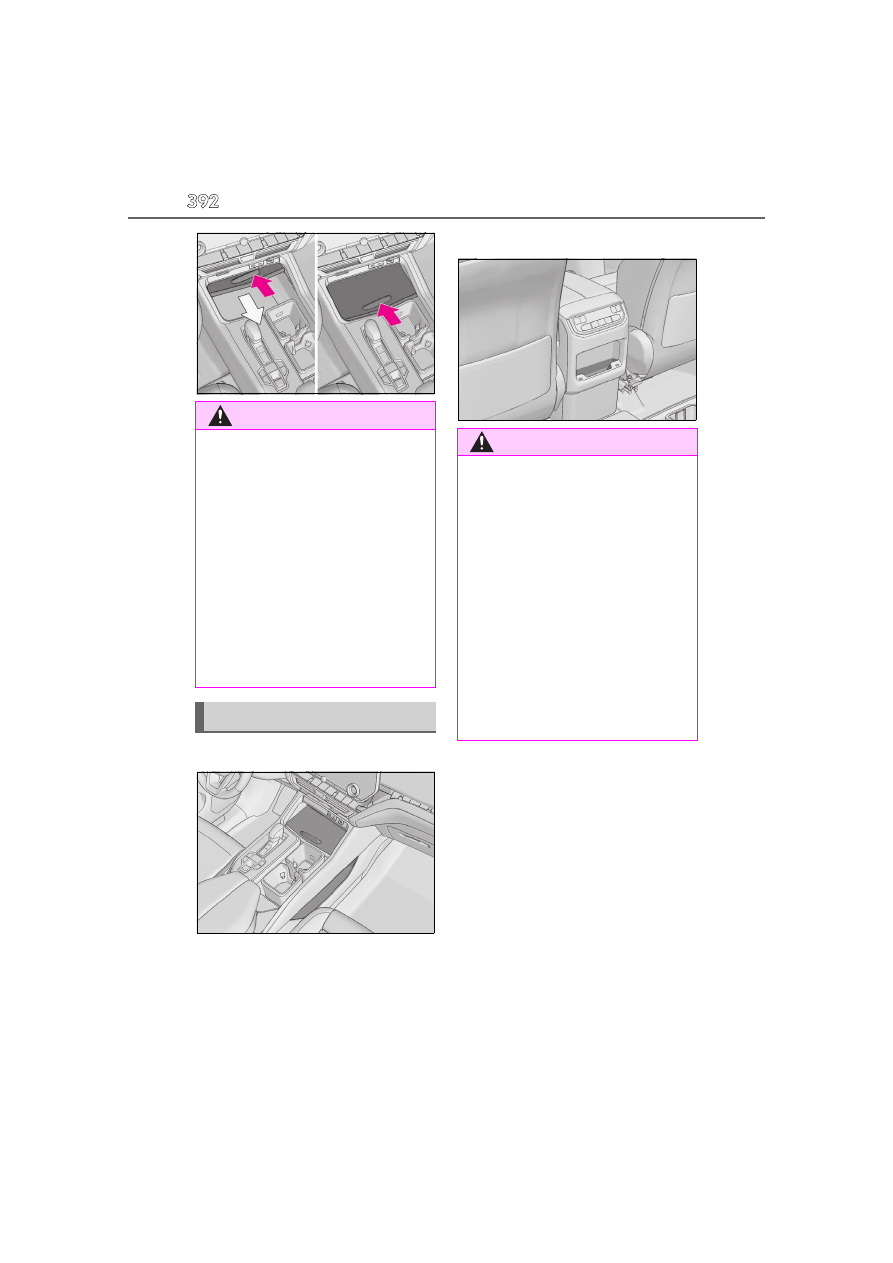

Open trays (



P.392)

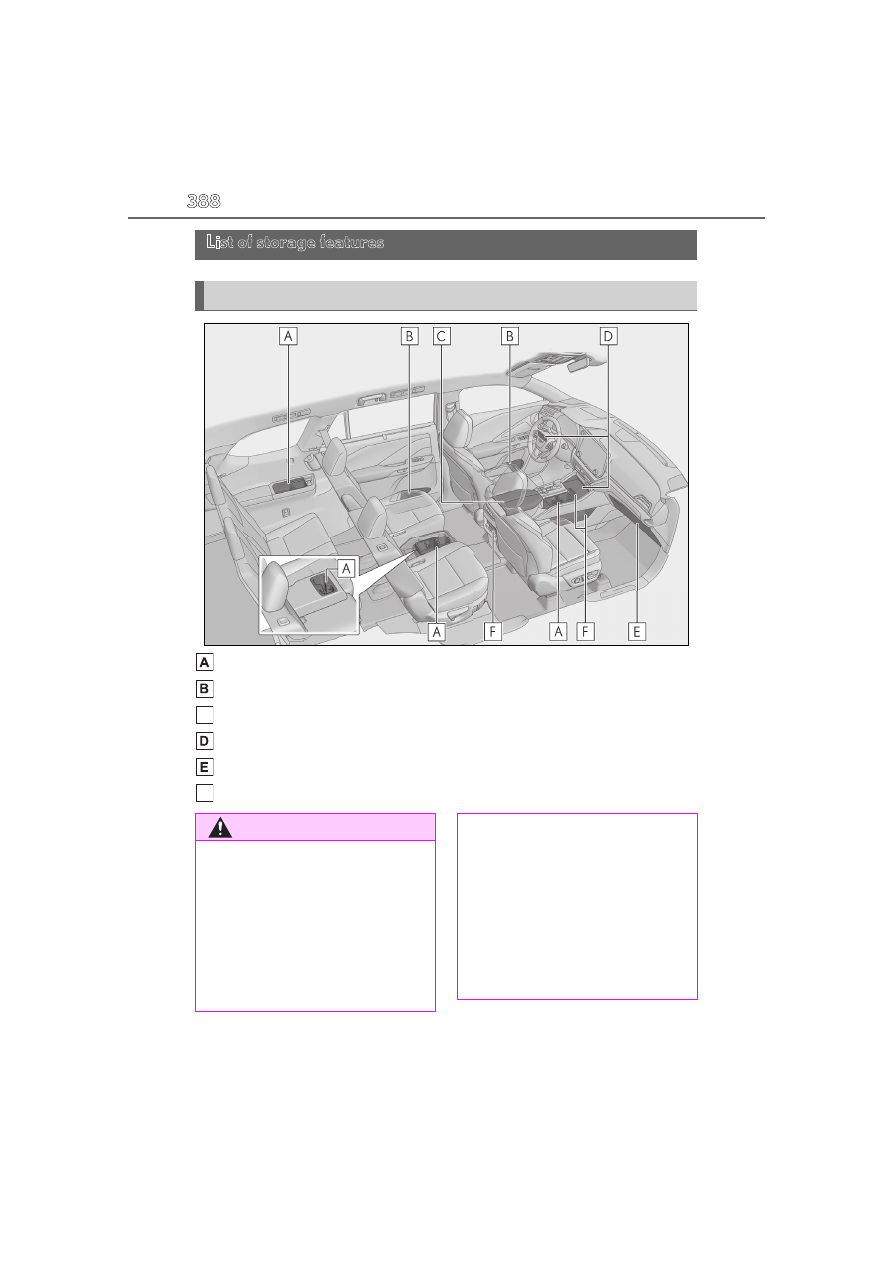

List of storage features

Location of the storage features

WARNING

■

Items that should not be left in the

storage spaces

Do not leave glasses, lighters or spray

cans in the storage spaces, as this may

cause the following when cabin tempera-

ture becomes high:

●

Glasses may be deformed by heat or

cracked if they come into contact with

other stored items.

●

Lighters or spray cans may explode. If

they come into contact with other

stored items, the lighter may catch fire

or the spray can may release gas,

causing a fire hazard.

■

When storage compartments are not

in use

When driving or when the storage com-

partments are not in use, keep the lids

closed.

389

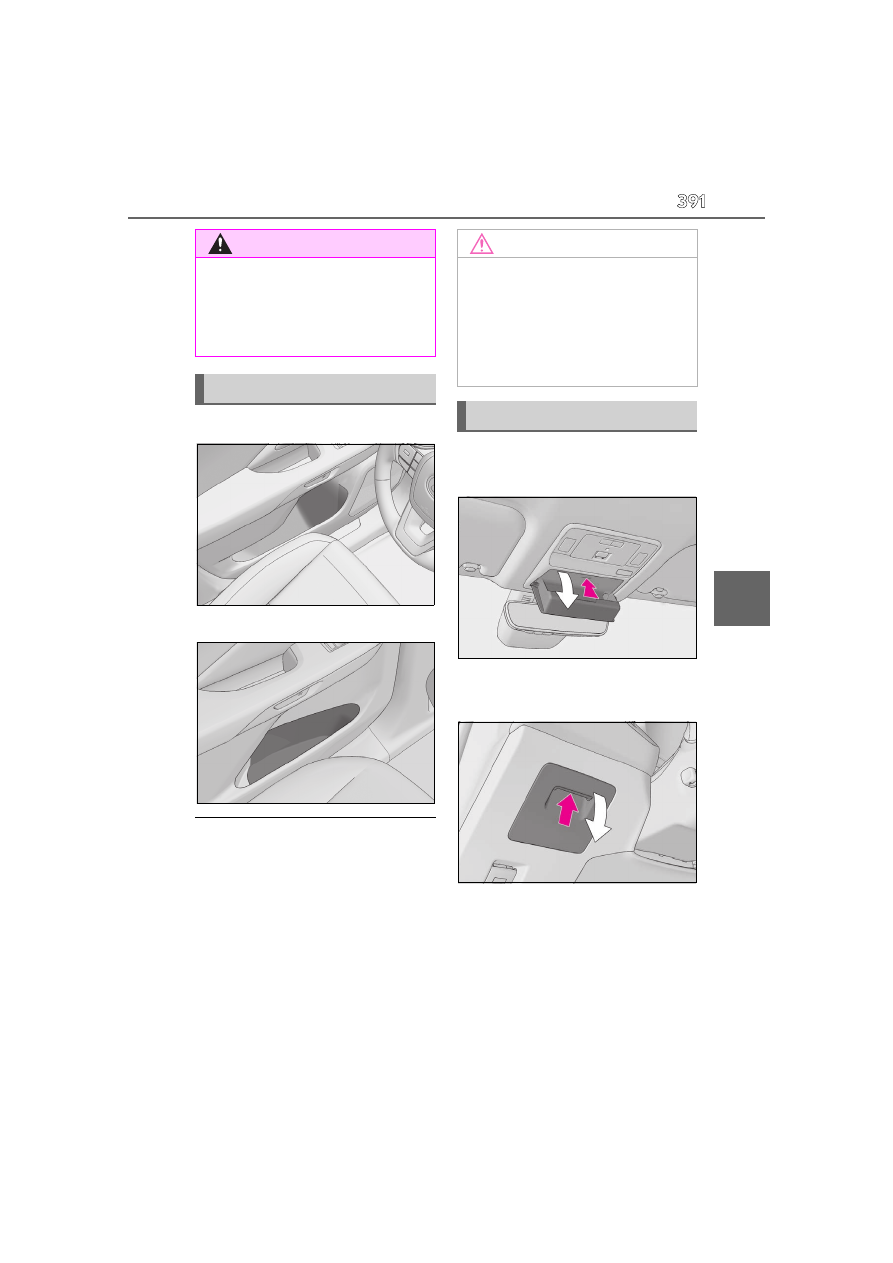

5-4. Using the storage features

rio

r f

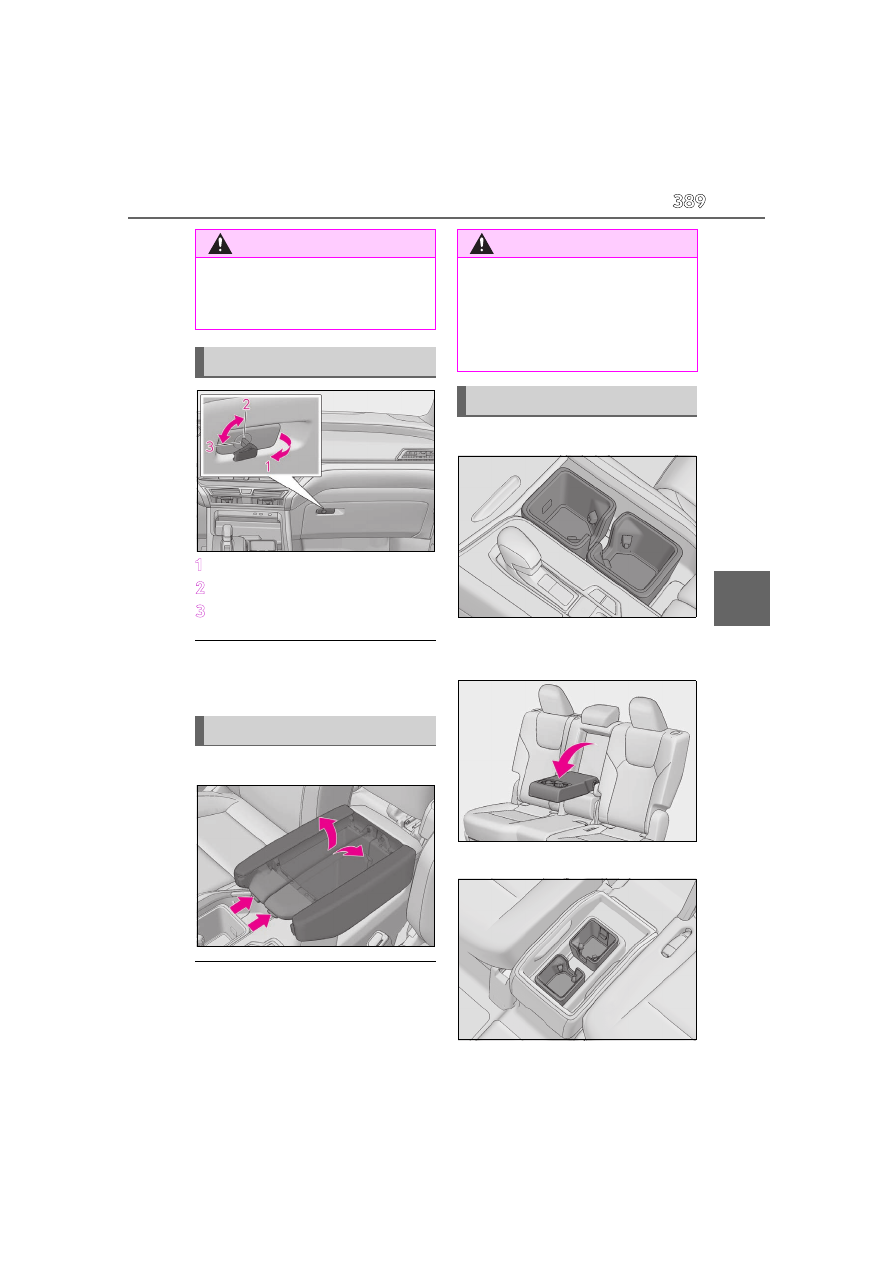

Open (pull the lever)

Lock with the mechanical key

Unlock with the mechanical key

■

Glove box light

The glove box light turns on when the tail

lights are on.

Press the button and open the lid.

■

Console box light

The console box light turns on when the tail

lights are on.



Front seats



Second seats (7-seat models)

Pull the armrest down.



Second seats (6-seat models)

WARNING

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by an open lid

or the items stored inside.

Glove box

Console box

WARNING

■

Caution while driving

Keep the console box closed.

In the event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the open

console box or the items stored inside.

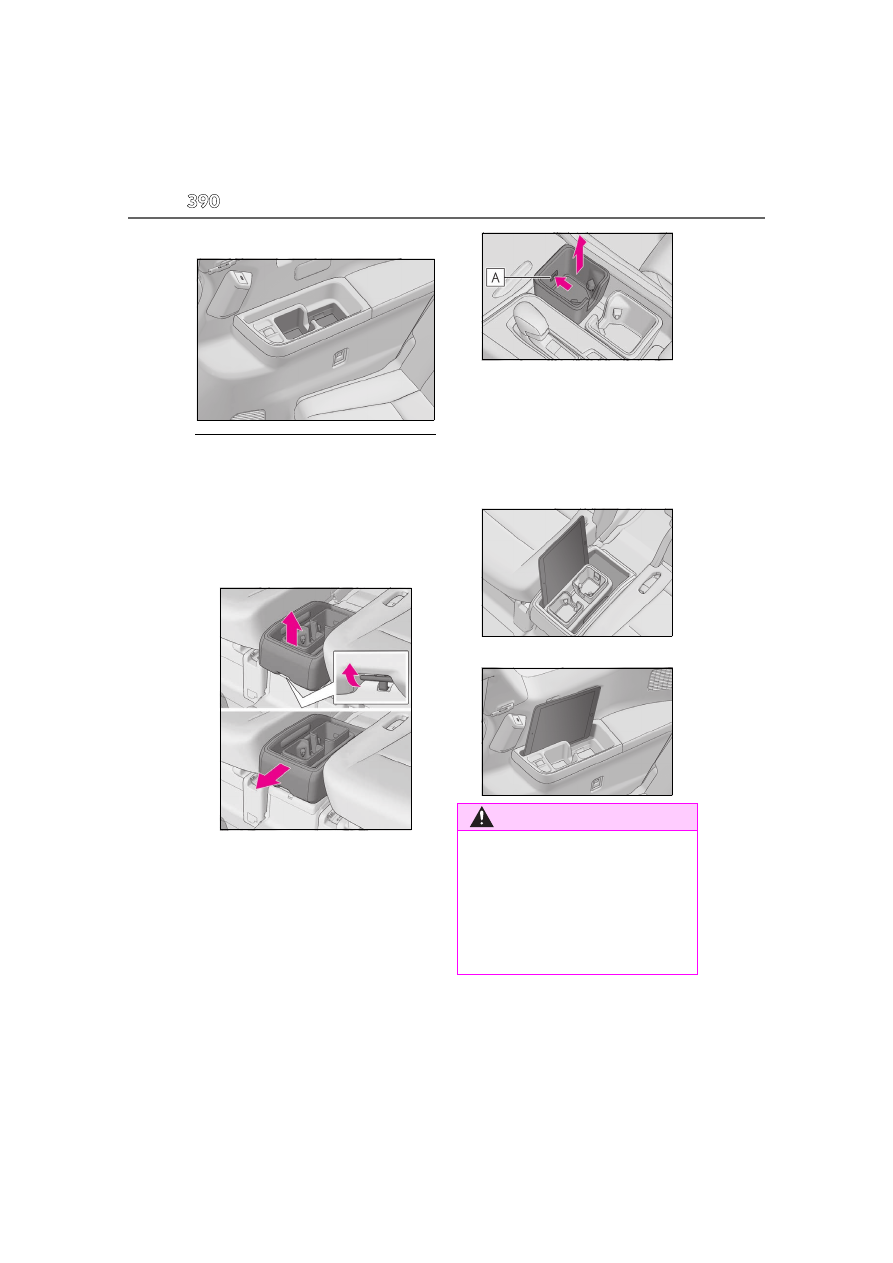

Cup holders

390

5-4. Using the storage features



Third seats

■

When the cup holders are not in use

(6-seat models)

Cup holder unit of the second seats can be

removed.
While lifting the tab, push up the front edge

of the cup holder unit then pull it forward.
After removing the cup holder unit, store it

in the exclusive bag attached.

■

Changing the position of the cup holder

Each of the first-row cup holders and the

second seat-row cup holders (6-seat mod-

els only) can be removed and installed.
Removed cup holders can be installed to

the third-row cup holder unit. Remaining

first-row/second row cup holder(s) can be

removed also or slid longitudinally to make

an open tray or trays.
To remove a cup holder, press the lock

release button A.

■

Tablet holders

Tablets can be stored in the following

places:
Depending on the situations, such as the
size or shape of a smartphone, it may not
be stored.

●

Second seat (6-seat models only)

●

Third seats

WARNING

■

Items unsuitable for the cup holder

Do not place anything other than cups,

aluminum cans, or water bottles in the

cup holders. Other items may be thrown

out of the holders in the event of an acci-

dent or sudden braking, possibly causing

injury. If possible, cover hot drinks to pre-

vent burns.

391

5-4. Using the storage features

rio

r f



Front seats



Second seats

■

Bottle holders

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending

on its size or shape.



Overhead

Push the lid.



Driver’s side instrument panel

Push the tab to open.



Instrument panel

Push the lid.
To close, press in and release the lid.

WARNING

■

Precautions when using a removable

cup holder

Before using the cup holder, make sure

that the cup holder/cup holder unit is

securely locked.

Bottle holders

NOTICE

■

Items unsuitable for the bottle hold-

ers

Do not place open bottle, glass or paper

cups containing liquid in the bottle hold-

ers. Otherwise, contained liquid may be

spilled. Glass cups may break if used in

the bottle holders.

Auxiliary boxes

392

5-4. Using the storage features



Instrument panel



On the rear console

WARNING

■

Items unsuitable for storing (Over-

head)

Do not store items heavier than 0.44 lb.

(200 g).

Doing so may cause the auxiliary box to

open and the items inside may fall out,

resulting in an accident.

■

Caution while driving

When driving or when the auxiliary box is

not in use, keep the lid closed. In the

event of sudden braking or sudden

swerving, an accident may occur due to

an occupant being struck by the items

stored inside.

Open trays

WARNING

■

Items unsuitable for the open tray

Observe the following precautions when

putting items in the open tray. Failure to

do so may cause items to be thrown out

of the tray in the event of sudden braking

or steering. In these cases, the items may

interfere with pedal operation or cause

driver distraction, resulting in an acci-

dent.

●

Do not store items in the tray that can

easily shift or roll out.

●

Do not stack items in the tray higher

than the tray’s edge.

●

Do not put items in the tray that may

protrude over the tray’s edge.

393

5-4. Using the storage features

rio

r f

Pull down the hook to use.

The cargo hooks are provided for securing
loose items.

To hang the cargo net, use the cargo
net hooks and cargo hooks.

■

Taking out the luggage cover unit

Fold down the third seats. (



P.130)

Open the center deck board
(



P.395) and take out the lug-

gage cover unit.

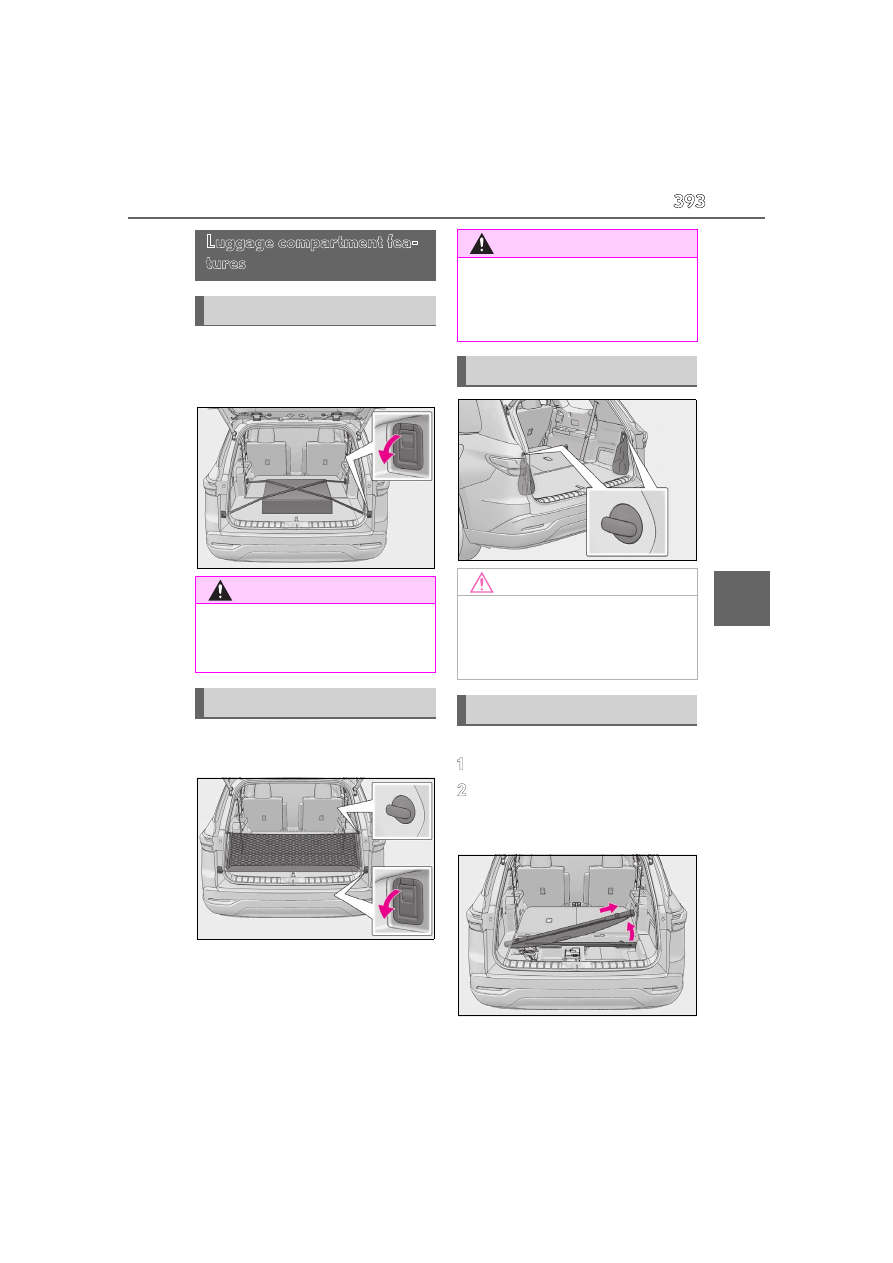

Luggage compartment fea-
tures

Cargo hooks

WARNING

■

When cargo hooks are not in use

To avoid injury, always return the hooks

to their stowed positions when not in use.

Cargo net hooks

WARNING

■

When the cargo net is not in use

To avoid injury, always return the cargo

hooks to their stowed positions when not

in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the grocery

bag hooks

Do not hang any object heavier than 6.6

lb. (3 kg) on the grocery bag hooks.

Luggage cover

394

5-4. Using the storage features

■

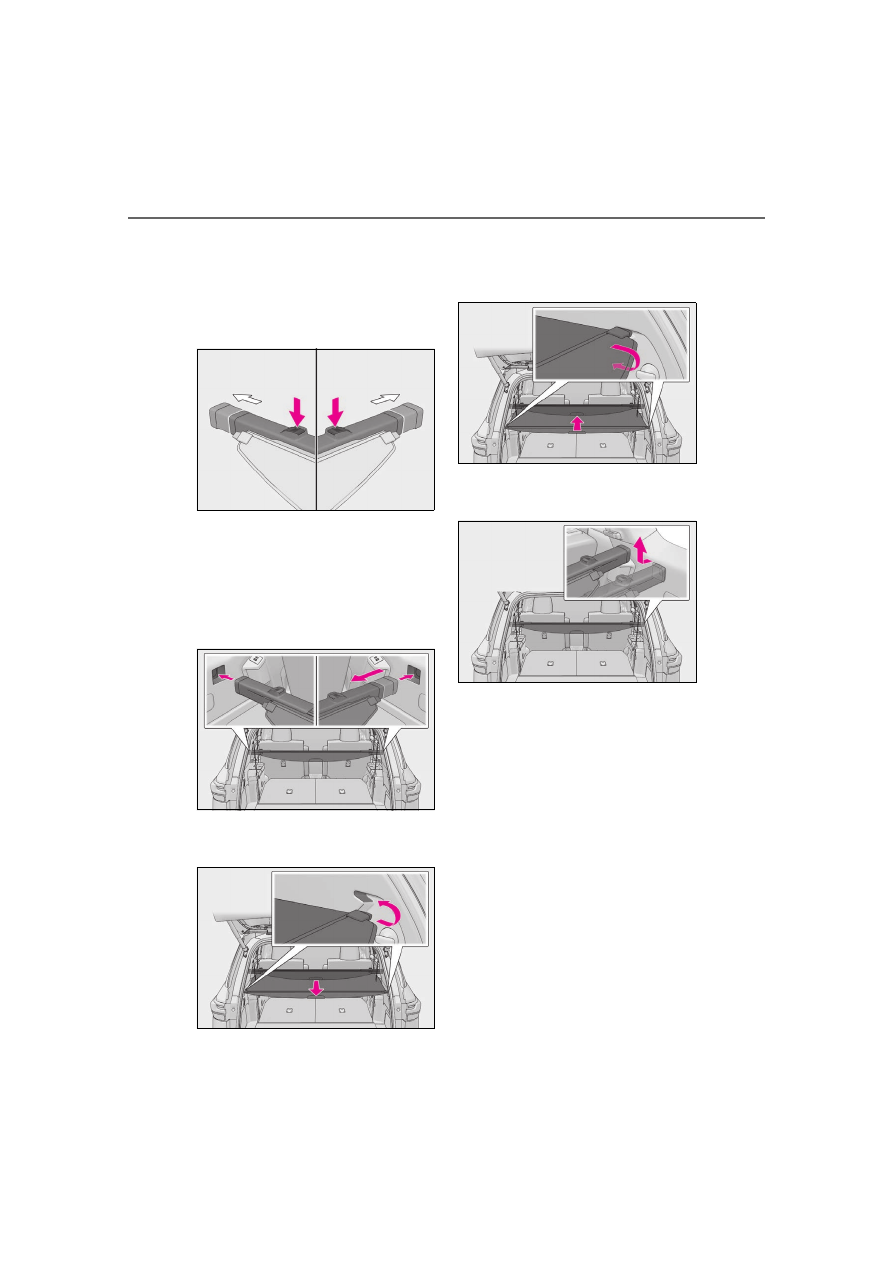

Installing the luggage cover

Fold down the third seats. (



P.130)

Press the lock release buttons to
extend the ends of the luggage
cover unit.

To install the luggage cover unit,
with the lock release buttons facing
upward, insert one end into the
recess, then compress the other
end and insert it into the other
recess.

Pull out the luggage cover and
hook it onto the anchors.

■

Removing the luggage cover

Release the cover from the left and
right anchors and allow it to retract.

Compress the end of the luggage
cover and lift the luggage cover up.

■

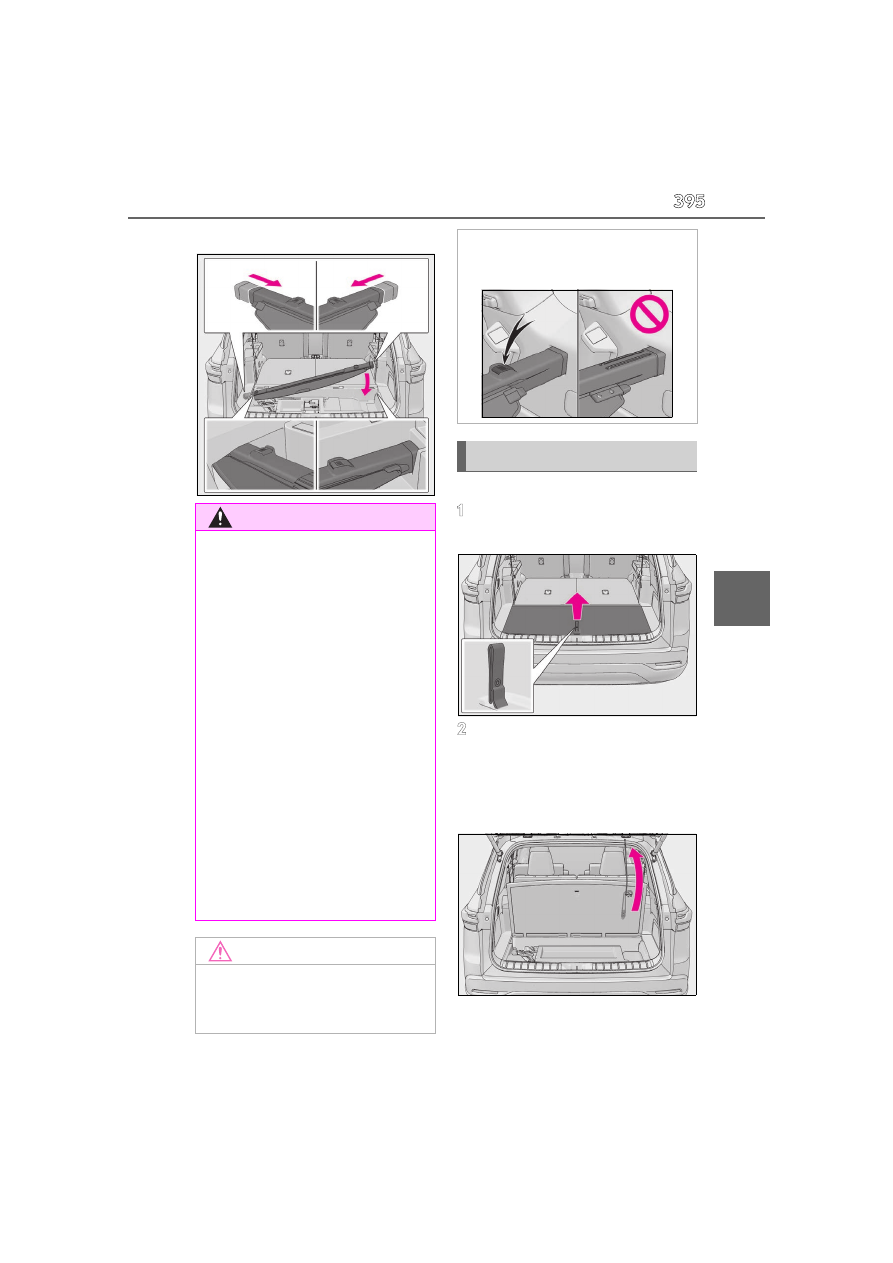

Stowing the luggage cover

Open the center deck board.
(



P.395)

To store the luggage cover unit,
compress both ends until they lock.

Store the unit with the lock release buttons

facing up and the cover portion facing the

395

5-4. Using the storage features

rio

r f

rear of the vehicle.

■

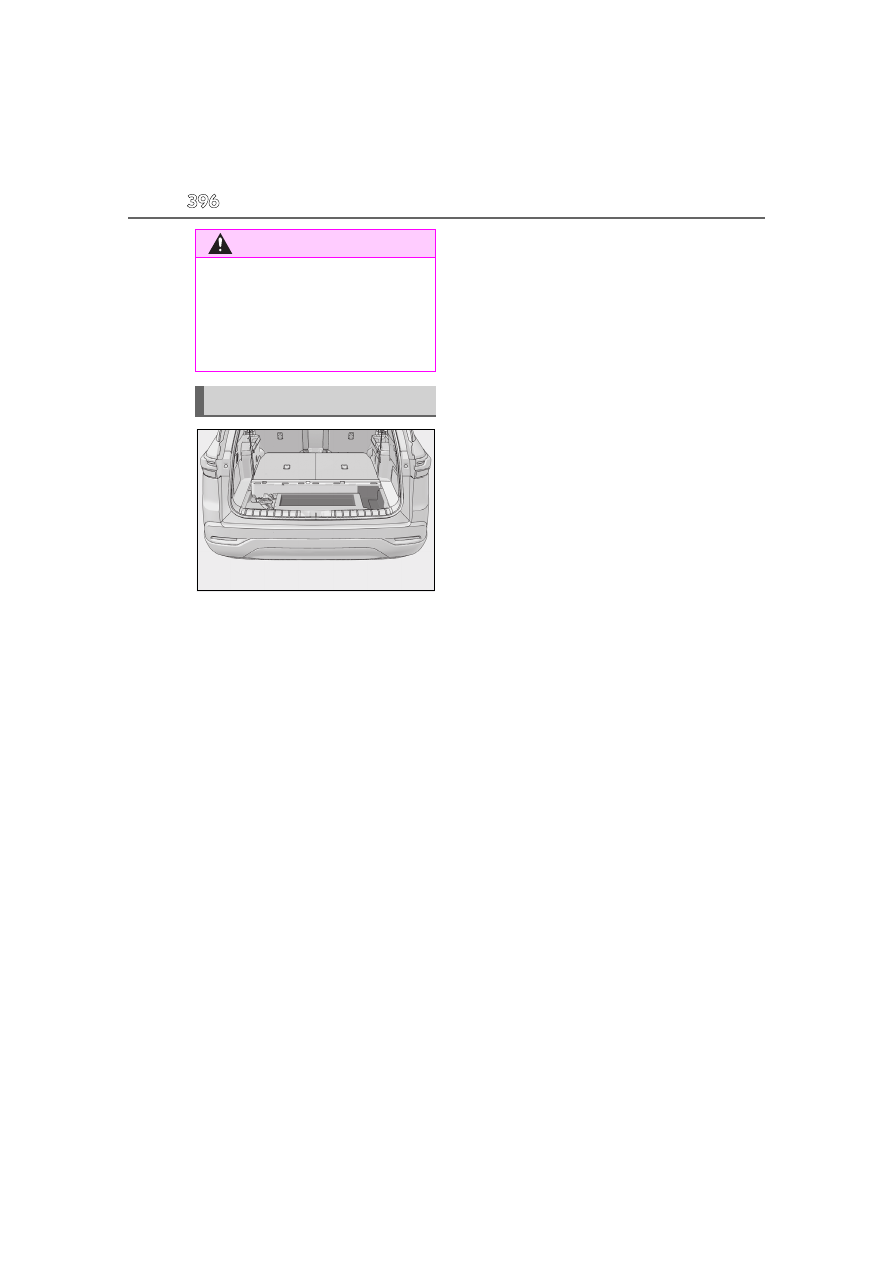

Opening the deck board

Pull the strap upwards to open the
center deck board.

Lift the center deck board, remove
the hook from the back of the cen-
ter deck board. Then hook it to the
upper edge of the back door open-
ing securely.

WARNING

■

Luggage cover

●

When installing/stowing the luggage

cover, make sure that the luggage

cover is securely installed/stowed. Fail-

ure to do so may result in serious injury

in the event of sudden braking or a col-

lision.

●

Do not place anything on the luggage

cover. In the event of sudden braking

or turning, the item may go flying and

strike an occupant. This could lead to

an unexpected accident, resulting in

death or serious injury.

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

●

Do not point the luggage cover unit at

your face or body, as doing so may

cause injuries if the cover ends extend

suddenly.

NOTICE

■

When using the luggage cover

●

Do not put heavy items on the luggage

cover.

●

Install the cover unit in the correct

direction so that the lock release but-

ton faces upward.

Deck board

397

5-5. Using the other interior features

rio

r f

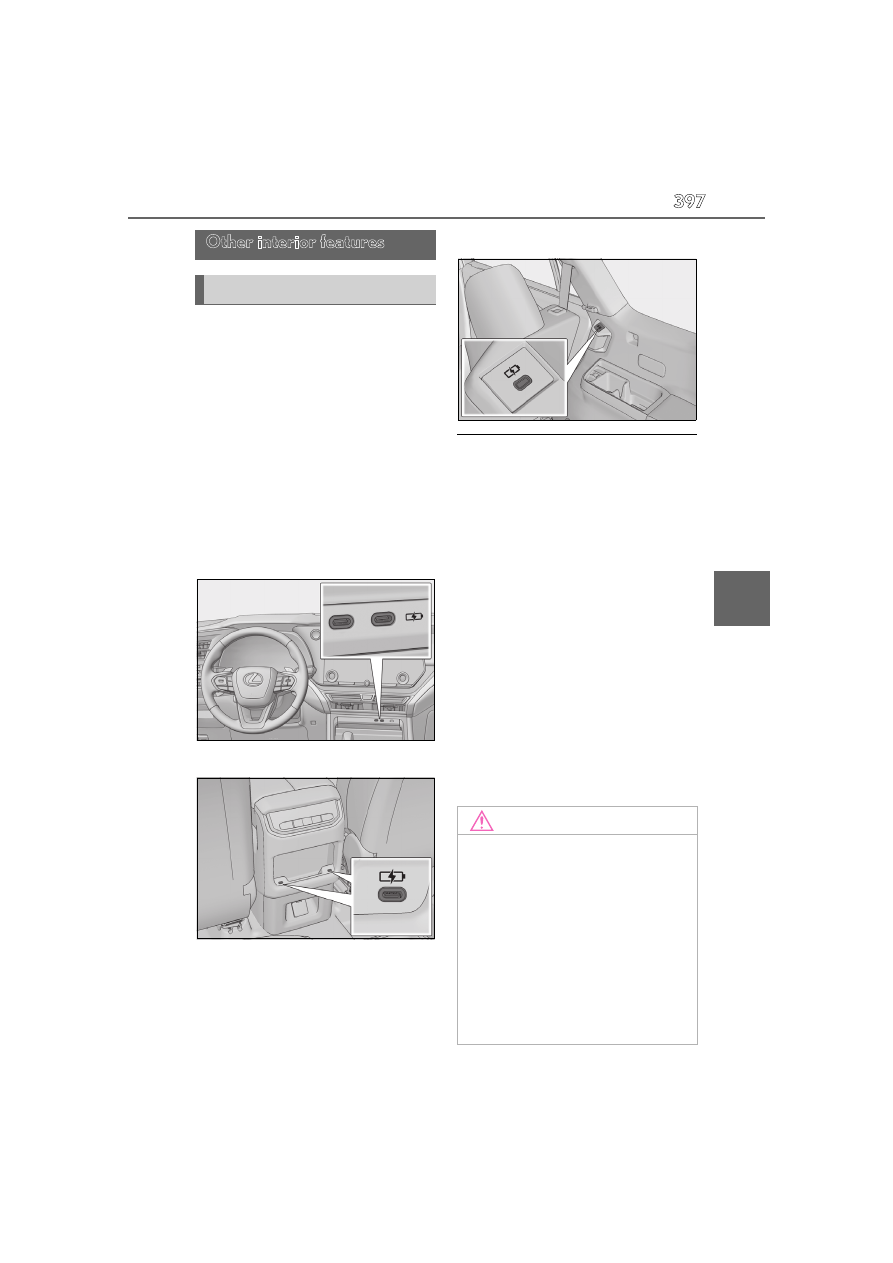

5-5.Using the other interior features

The USB charging ports are used to
supply 3 A of electricity at 5 V to
external devices.
The USB charging ports are for
charging only. They are not designed
for data transfer or other purposes.
Depending on the external device, it
may not charge properly. Refer to the
manual included with the device
before using a USB charging port.

■

Using the USB charging ports



On the instrument panel



Rear of console box



Third seats

■

The USB charging ports can be used

when

The engine switch is in ACC or ON.

■

Situations in which the USB charging

ports may not operate correctly

●

If a device which consumes more than 3

A at 5 V is connected

●

If a device designed to communicate with

a personal computer, such as a USB

memory device, is connected

●

If the connected external device is turned

off (depending on device)

●

If the temperature inside the vehicle is

high, such as after the vehicle has been

parked in the sun

■

About connected external devices

Depending on the connected external

device, charging may occasionally be sus-

pended and then start again. This is not a

malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the USB

charging ports

●

Do not insert foreign objects into the

ports.

●

Do not spill water or other liquids into

the ports.

●

Do not apply excessive force to or

impact the USB charging ports.

●

Do not disassemble or modify the USB

charging ports.

398

5-5. Using the other interior features

A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device is
compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The compatible portable devices can
be found on the following Wireless
Power Consortium website.
https://
www.wirelesspowerconsortium.com/
The wireless charger cannot be used
with a portable device that is larger
than the charging tray. Additionally,
depending on the portable device, the
wireless charger may not operate
properly. Refer to the operation man-
ual of the portable device.

■

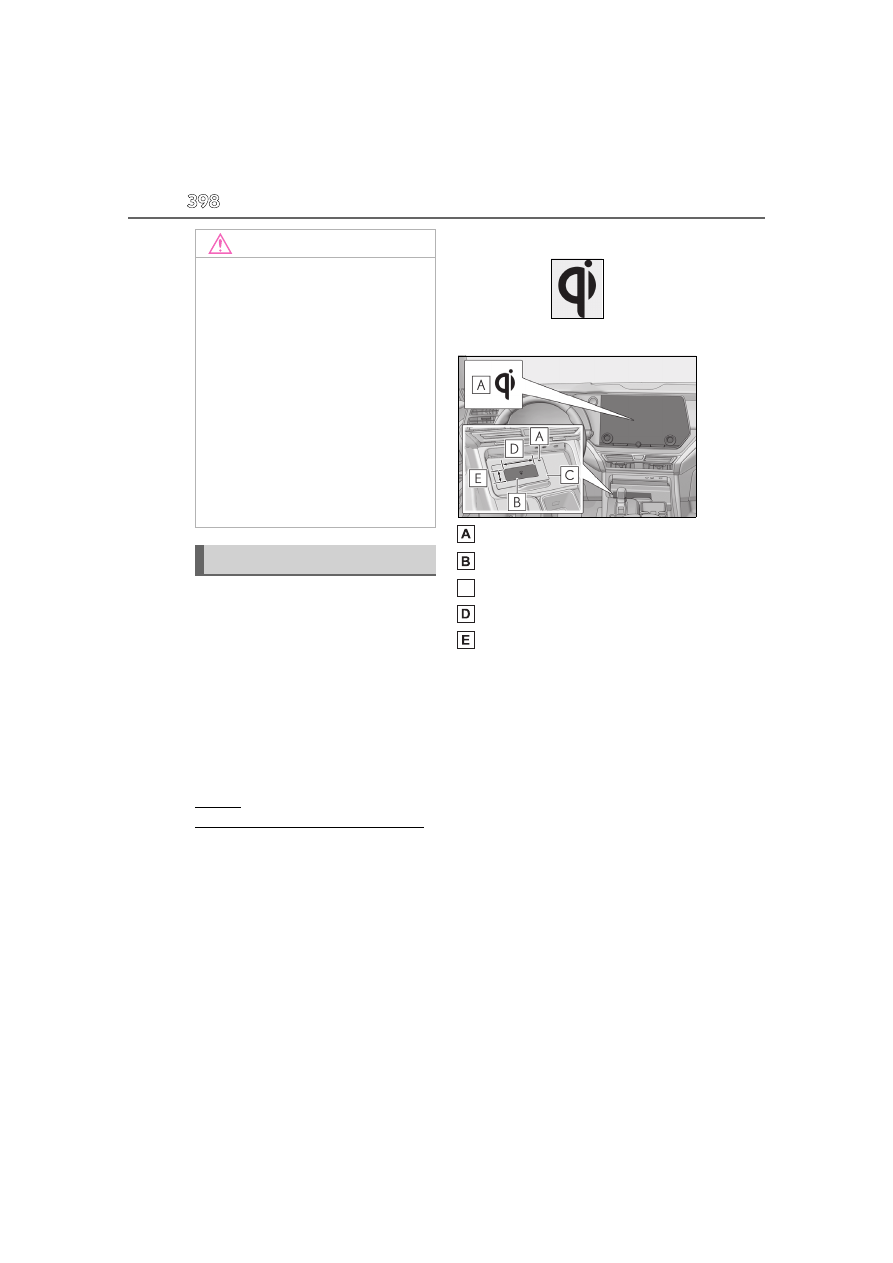

The “Qi” logo

The “Qi” logo is a trademark of the

Wireless Power Consortium.

■

Name for all parts

Operation indicator light

Charge area

Charging tray
Approximately 3.9 in. (10 cm)
Approximately 1.0 in. (2.5 cm)

: The charging coil in the wireless charger

can be moved within the charge area up
to the position of the charging coil inside
a portable device. Charging is possible if
the center of the coil of the portable
device is placed within the charge area.

Additionally, if 2 or more portable devices

are placed on the charging tray at the
same time, each charging coil may not
be detected correctly and charging may
not be possible.

■

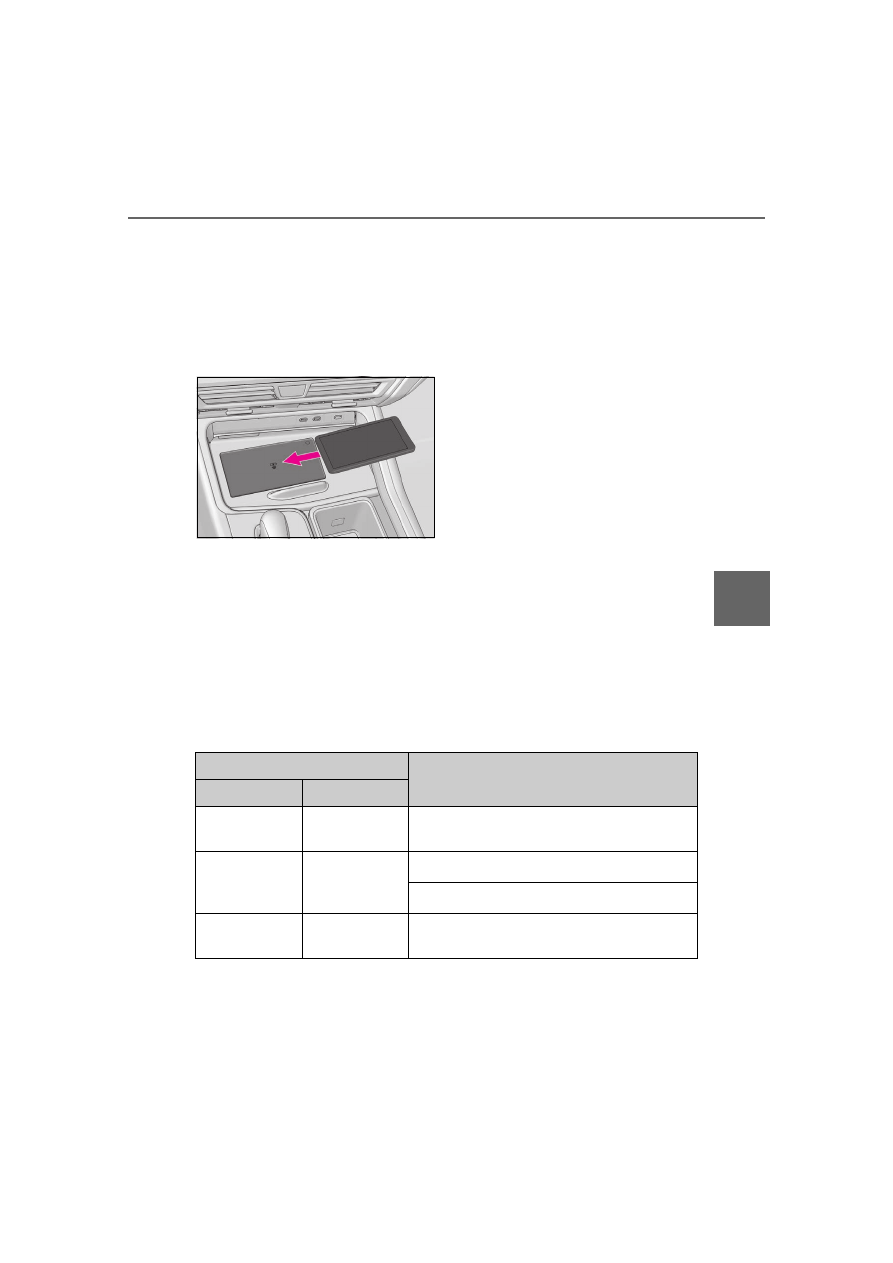

Using the wireless charger

Place the portable device on the wire-
less charger.

Place the charging side of the portable
device down with the center of the device
in the center of the charge area.
When charging, the operation indicator
light (orange) on the wireless charger

NOTICE

■

To prevent damage to external

devices

●

Do not leave external devices in the

vehicle. The temperature inside the

vehicle may become high, resulting in

damage to an external device.

●

Do not push down on or apply unnec-

essary force to an external device or

the cable of an external device while it

is connected.

■

To prevent battery discharge

Do not use the USB charging ports for a

long period of time with the engine

stopped.

Wireless charger

399

5-5. Using the other interior features

Interio

r fe

atures

comes on.
Refer to “Situations in which the function
may not operate normally” (



P.402)

when charging is not performed.
When charging is complete, the operation
indicator light (green) on the wireless char-
ger comes on.

■

Recharging function



If a certain amount of time has
elapsed since charging completed
and the portable device has not
been moved, the wireless charger
will restart charging.



If a portable device is moved signifi-
cantly within the charging area, the

charging coil may disconnect and
charging may temporarily be
stopped. However, if a charging coil
is detected within the charging area,
the charging coil inside the wireless
charger will move near the other
coil and charging will resume.

■

Rapid charging function



The following portable devices sup-
port rapid charging.

• Portable devices compliant with WPC

Ver1.3.2 and compatible with rapid
charging

• iPhone’s with an iOS version that sup-

ports 7.5 W charging (iPhone 8 and
later models)

• Portable devices compatible with Gal-

axy original rapid charging standard.



When a portable device that sup-
ports rapid charging is charged,
charging automatically switches to
the rapid charging function.

■

Operation indicator light status

: Charging power will not be output during standby. A metallic object will not be heated, if

it is placed on the wireless charger in this state.

: Depending on the portable device, there are cases where the operation indicator light

will continue being lit up orange even after the charging is complete.

Operation indicator light

Conditions

Charging tray

Center display

Turning off

Disappear

When the Multimedia power supply is off or ACC
OFF

Green (comes

on)

Gray

On Standby (charging possible state)

When charging is complete

Orange (comes

on)

Blue

Charging

400

5-5. Using the other interior features

■

The wireless charger is not working properly.

The followings are situations in which the wireless charger does not work properly
and how to deal with the possible causes.

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

Green (Flashing
repeatedly once

every second)

Disappear

Wireless charger and multimedia system communi-
cation failure



If the engine is running, stop and then restart
the engine.

If the engine switch is in ACC, start the engine.
(



P.182)

Orange (Flashing

repeatedly once

every second)

Gray

Vehicle to wireless charger communication failure



If the engine is running, stop and then restart
the engine.

If the engine switch is in ACC, start the engine.
(



P.182)

Green (comes

on)

Blue

AM radio stations are being automatically selected



Wait until the system has completed the auto-
matic selection of AM radio stations. In the
case that automatic selection cannot be com-
pleted, stop automatic selection.

The smart access system with push-button start is
detecting the key.



Wait until electronic key detection has com-
pleted.

401

5-5. Using the other interior features

Interio

r fe

atures

■

The wireless charger can be operated

when

The engine switch is in ACC or ON.

■

Portable devices that can be charged

●

Portable devices compatible with the Qi

wireless charging standard can be

charged by the wireless charger. How-

Green (comes

on)

Gray

Foreign substance detection:
A metallic foreign substance is in the charge area,
and so the abnormal heating prevention function of
the metallic foreign object operated



Remove the foreign substance from the charge
area.

Portable device misaligned/distanced from
charging surface:
The charging coil in the portable device moved out-
side of the charging area, or lens convex is large, or
case is thick so the abnormal heating prevention
function operated



Remove the portable device from the wireless
charger, after 5 seconds, then place the porta-
ble device so that it is near the center of the
wireless charger. Also, if a case or cover is
installed to the portable device, remove it.

Battery protection function of portable device:
Before full charging, battery protection function of
portable device operated



Confirm the setting of portable device.

Continued detection of an electronic key:
When a Multimedia function is used through vehi-
cle customization, the electronic key is continually
detected without being confirmed.



In this case, turn the engine switch ACC or ON
to confirm the key.

Orange (Repeat-

edly flashes 4

times continu-

ously)

Gray

Safety shutdown resulting when the temperature
within the wireless charger exceeded the set value



Stop charging, remove the portable device
from the wireless charger, wait for the tem-
perature to drop, and then start charging
again.

Operation indicator light

Suspected causes/Handling method

Charging tray

Center display

402

5-5. Using the other interior features

ever, compatibility with portable devices

that comply with Qi Ver. 1.0, 1.3.2 and

later versions is not guaranteed.

●

The wireless charger is designed to sup-

ply low power electricity (5 W or less) to

a cellular phone, smartphone, or other

portable device.

However, portable devices, such as the fol-

lowing, can be charged with more than 5

• 7.5 W charging compatible iPhones can

be charged at 7.5 W or less.

• Devices that comply with independent

Galaxy charging standards support 10 W

or less charging. Check the specifica-

tions of each portable device for the

charging electricity.

• Portable devices compliant with EPP out-

put as defined by WPC standard

Ver1.3.2. can be charged at 15 W or less.

■

Using the smart access system with

push-button start

During charging, when the smart access

system with push-button start searches for

an electronic key, charging may be tempo-

rarily suspended.

■

If a cover or accessory is attached to the

portable device

Do not charge a portable device if a cover

or accessory which is not Qi compatible is

attached. Depending on the type of cover

(including the certain genuine manufacture

parts) and/or accessory attached, it may not

be possible to charge the portable device. If

the portable device is placed on the

charging area and does not charge, remove

the cover and/or accessories.

■

AM radio cooperation function during

charging

●

During charging, if noise occurs when lis-

tening to the AM radio, the charging fre-

quency is automatically changed to

reduce the noise.

●

When automatically seeking AM radio

stations, charging will be suspended to

prevent charging noise from being

detected as a radio station. Charging will

resume automatically when seek tuning is

stopped.

■

Charging precautions

If the electronic key cannot be detected

within the vehicle interior, charging can not

be done. When the door is opened and

closed, charging may be temporarily sus-

pended.
While charging, the wireless charger and

the portable device will become warm. This

is not a malfunction. If a portable device

becomes warm while charging and

charging stops due to the protection func-

tion of the portable device, wait until the

portable device cools down and charge it

again.
Also, to decrease the temperature inside

the wireless charger, a fan may operate.

This does not indicate a malfunction.

■

Sound generated during operation

Operation sounds may be heard when the

engine switch is pressed to change to ACC

or ON, or when a portable device is being

detected. This does not indicate a malfunc-

tion.

■

Cleaning the wireless charger



P.419

■

Situations in which the wireless charger

may not operate correctly

In the following situations, the wireless char-

ger may not operate correctly:

●

When a portable device is fully charged

●

When a portable device is being charged

by a wired connection

●

When there is a foreign object between

the charging area and portable device

●

When the temperature of a portable

device becomes high while charging

●

When the temperature near the charging

tray is 95°F (35°C) or more due to being

in direct sunlight, etc.

●

When a portable device is placed with its

charging surface facing up

●

The small portable device such as fold-

able type is placed in an area misaligned

from the charge area

●

When a portable device is larger than the

charging tray

403

5-5. Using the other interior features

rio

r f

●

When the vehicle is near a TV tower,

electric power plant, fuel station, radio

station, large display, airport, or other

facility that generates strong radio waves

or electrical noise

●

The electronic key is not inside the vehi-

cle

●

When the any of the following objects are

between the charging surface of a porta-

ble device and the charging area:

• Thick cases or covers

• A case or cover attached with an uneven

or tilted surface, so that the charging side

is not flat

• Thick decorations

• Accessories, such as finger rings, straps,

etc.

●

When there is a gap between the

charging side of the portable device and

the charge area due to a protrusion such

as a camera on the charging side of the

portable device.

●

When the portable device is in contact

with, or is covered by any of the following

metallic objects:

• Cards covered with metal, such as alumi-

num foil

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Heat packs

• Recorded media such as CDs and DVDs

• Metallic decorations

• Metallic cases or covers

• Casing which has magnet in it on the

charging side of the portable device

●

When wireless keys (that emit radio

waves) other than those of your vehicle

are being used nearby

●

When 2 or more portable devices are

placed on the charging tray at the same

time

●

If a portable device built in S-pen (Galaxy

“Note” series etc.) used, a portable

device that inserted S-pen is placed on

the tray

In situations other than above, if the wire-
less charger does not operate properly or
the operation indicator light blinks continu-

ously, the wireless charger may be mal-
functioning.
Contact your Lexus dealer.

■

If the smartphone OS has been updated

If the smartphone OS has been updated to

a newer version, its charging specifications

may have changed significantly. For details,

check the information on the manufac-

turer’s website.

■

Trademark information

iPhone is a trademark of Apple Inc., regis-

tered in the U.S. and other countries.
Galaxy is a trademark or registered trade-

mark of Samsung Electronics Co.,Ltd.

WARNING

■

Caution while driving

When charging a portable device while

driving, for safety reasons, the driver

should not operate the portable device.

■

Precautions for when driving

Do not charge small, lightweight porta-

ble devices, such as wireless earbuds,

while driving. Lightweight devices may fly

off of the charging tray, possibly leading

to an accident.

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

Operations of the wireless charger may

have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in the possibil-

ity of fire, equipment failure or damage,

or burns due to heat.

404

5-5. Using the other interior features



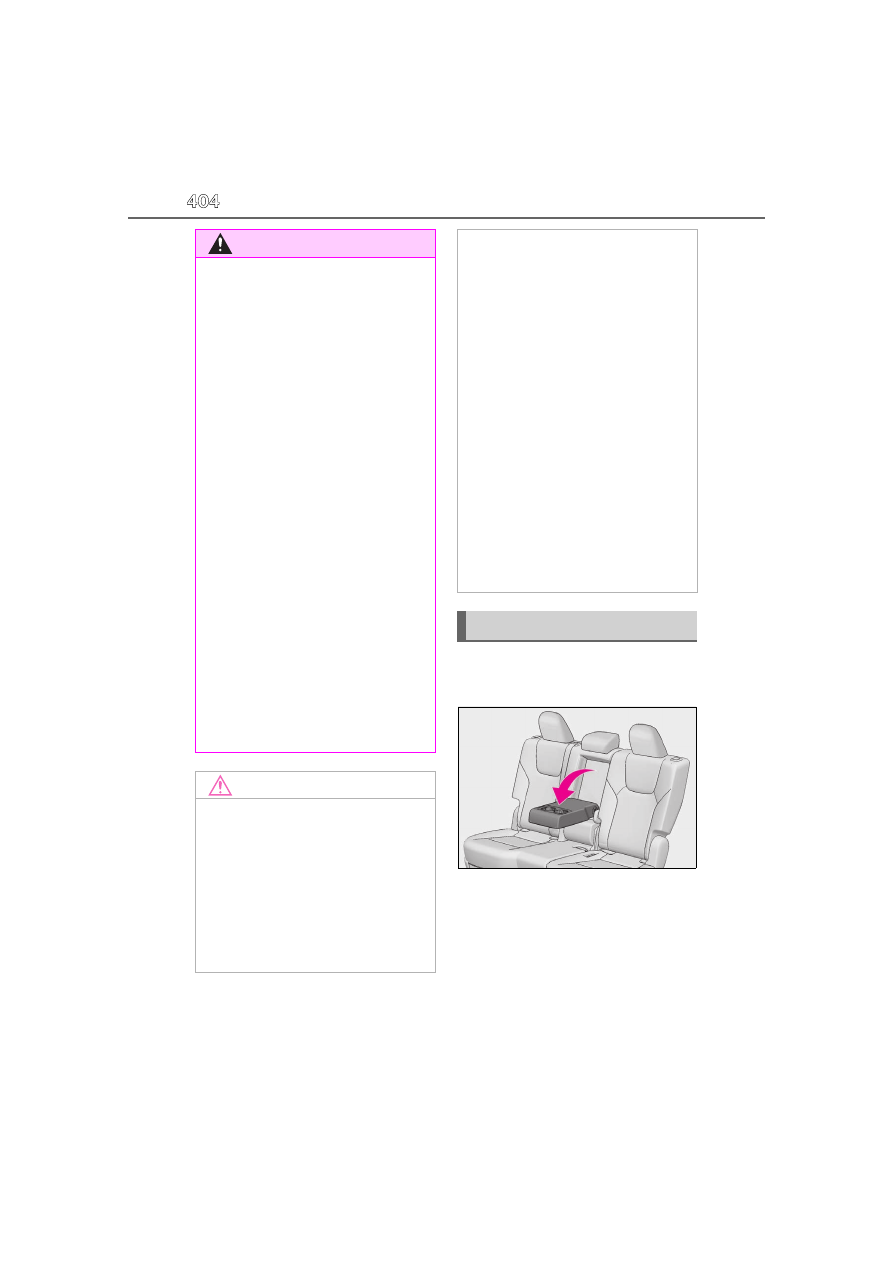

Second seats (7-seat models)

Pull the armrest down for use.



Second seats (6-seat models)

Pull the armrest down for use.
To adjust the armrest angle, raise the
armrest to the highest position and
then lower the armrest to the lowest
position.
Raise the armrest again to the desired

WARNING

●

Do not put any metallic objects

between the charging area and the

portable device while charging.

●

Do not attach metallic objects, such as

aluminum stickers, to the charging

area.

●

Do not charge portable devices with

aluminum stickers or other metallic

objects attached to the side which

touches the charging area.

●

Do not store items on the wireless

charger instead of in an auxiliary box.

●

Do not apply force or impact to the

wireless charger.

●

Do not disassemble, modify or remove

the wireless charger.

●

Do not attempt to charge portable

devices which are not compatible with

the Qi wireless charging standard.

●

Do not allow magnetic objects to

come near the wireless charger.

●

Do not perform charging if the

charging area is dirty.

●

Do not cover the wireless charger with

a cloth or other object while charging.

NOTICE

■

To prevent failure or damage to data

●

Do not place magnetic cards, such as a

credit card, or magnetic recording

media, close to the wireless charger

while charging. Otherwise, data may

be erased due to the influence of mag-

netism. Additionally, do not bring pre-

cision instruments such as wrist

watches, close to the wireless charger,

as such objects may malfunction.

●

Do not perform charging with a con-

tactless smart card, such as a transpor-

tation system IC card, between the

charging surface of a portable device

and the charging area. The IC chip in

the card may become extremely hot,

possibly damaging the portable device

or smart card.

Be extra careful to not charge a porta-

ble device with a case or cover which a

contactless smart card can be

inserted.

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high when parked

in the sun, and cause damage to the

device.

■

To prevent battery discharge

Do not use the wireless charger for a

long period of time with the engine

stopped.

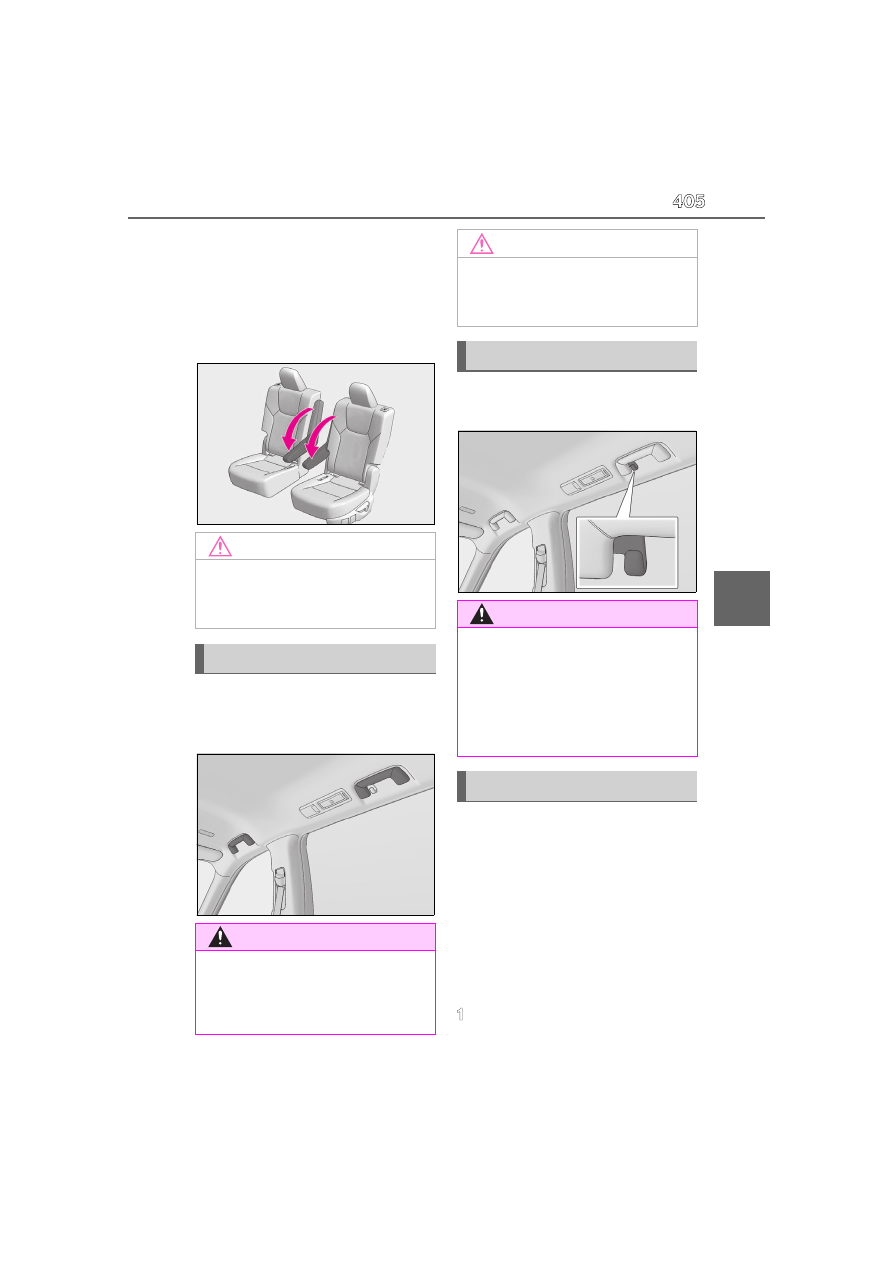

Armrests

405

5-5. Using the other interior features

rio

r f

position and the armrest will be locked
at that position.

When the armrest is locked, the armrest
cannot be lowered.
To lower the armrest, raise the armrest to
the highest position again.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

The coat hooks are provided with the
rear assist grips.

Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of all
the connected power outlets is less
than 120 W.



Instrument panel

Open the auxiliary box. (



P.391)

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Coat hooks

WARNING

■

Items that must not be hung on the

hook

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

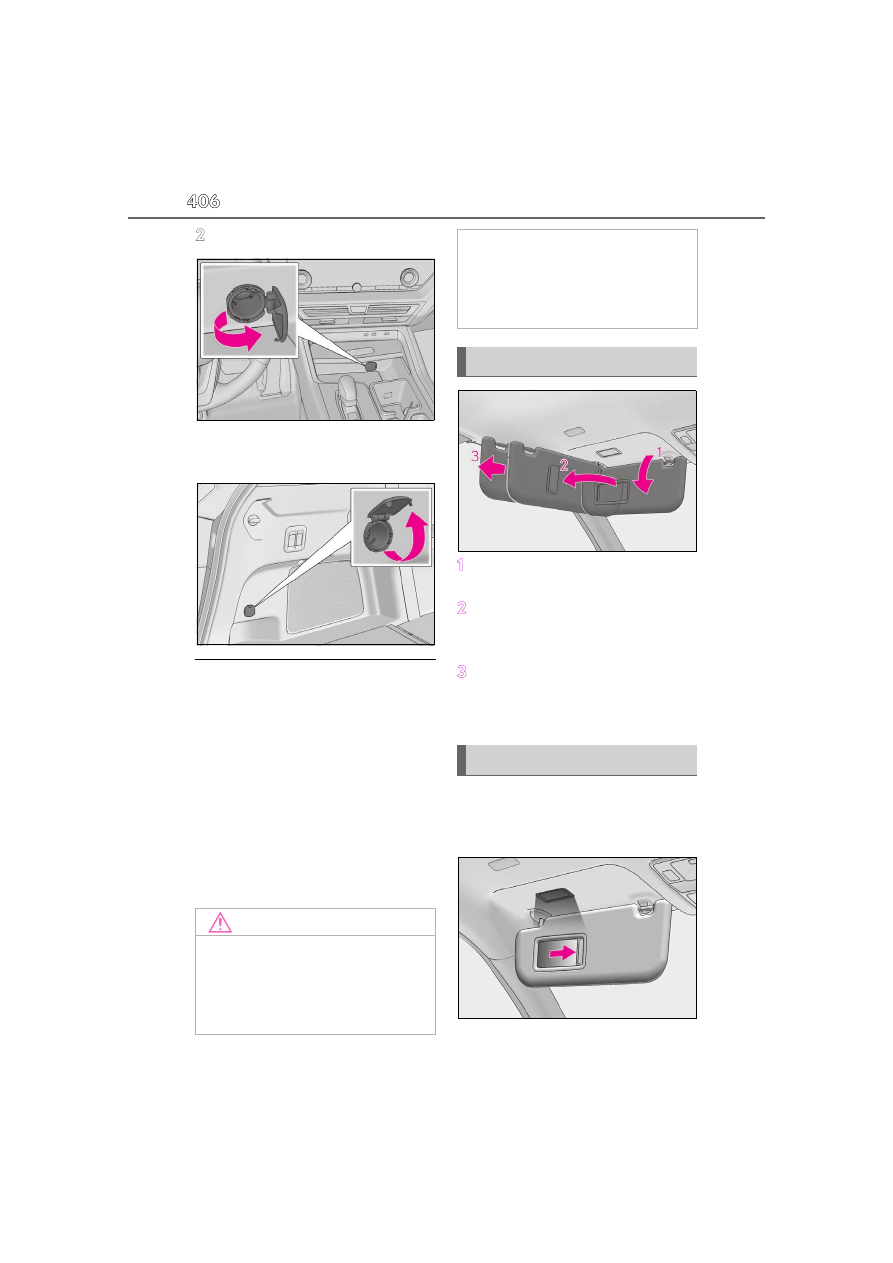

Power outlets (12 VDC)

406

5-5. Using the other interior features

Open the lid.



In the luggage compartment

Open the lid.

■

The power outlet can be used when

The engine switch is in ACC or ON.

■

Using the power outlet

When the engine restarts after having been

stopped by the Stop & Start system, the

power outlets may be temporarily unusable,

but this is not a malfunction.

■

When turning the engine switch off

Disconnect electrical devices with charging

functions, such as mobile battery packs.

If such devices are left connected, the

engine switch may not be turned off nor-

mally.

To set the visor in the forward posi-
tion, flip it down.

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

To use the side extender, place the
visor in the side position, then slide
it backward.

Slide the cover to open.

The light turns on when the cover is
opened.

NOTICE

■

To avoid damaging the power outlet

Close the power outlet lid when the

power outlet is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent the battery from being dis-

charged

Do not use the power outlet longer than

necessary when the engine is not run-

ning.

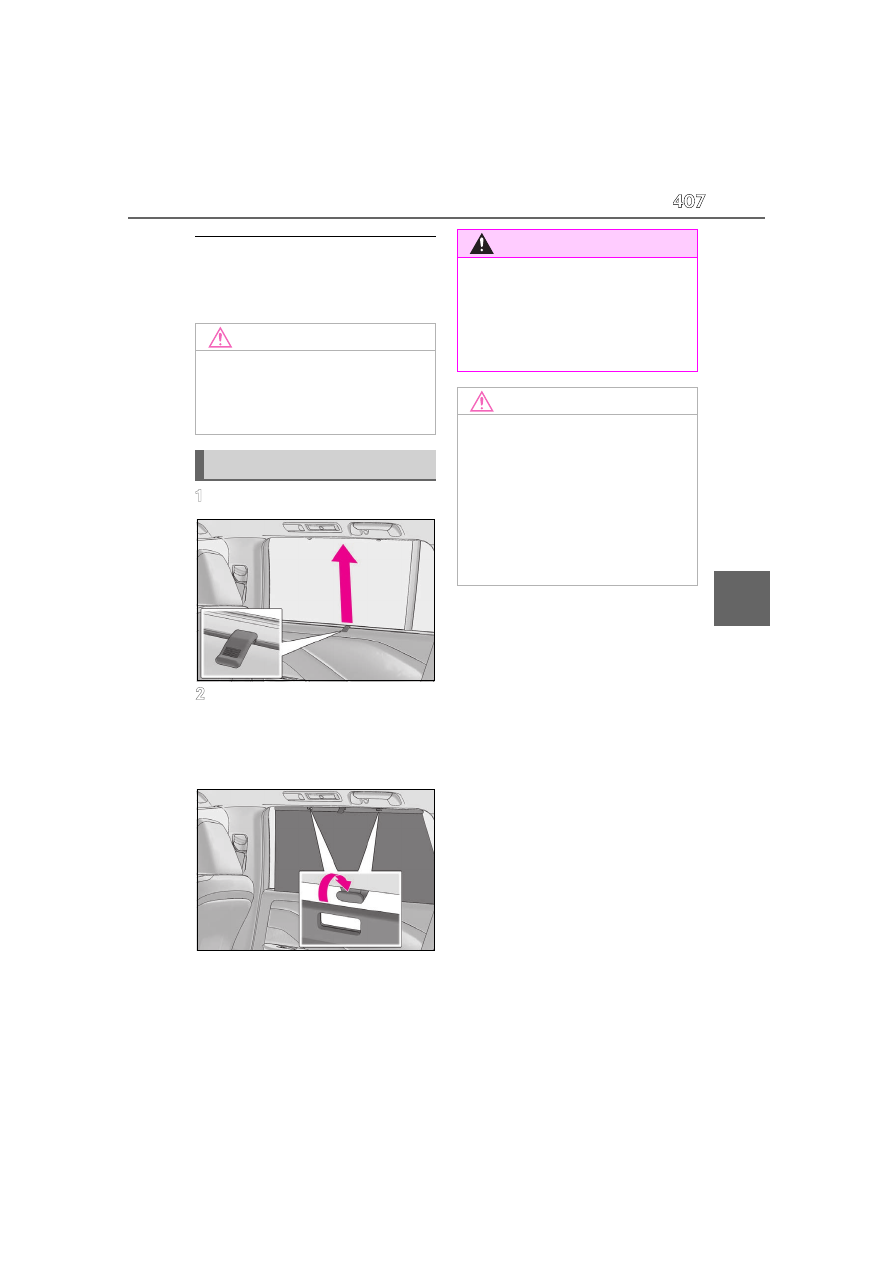

Sun visors

Vanity mirrors

407

5-5. Using the other interior features

rio

r f

■

To prevent battery discharge

If the vanity lights remain on when the

engine switch is turned off, the lights will go

off automatically after 20 minutes.

Pull the tab up.

Hook the sunshade on to the
anchors.

To lower the sunshade, pull the tab up

slightly to unhook the shade from the

anchors, and lower it slowly.

NOTICE

■

To prevent the battery from being dis-

charged

Do not leave the vanity lights on for

extended periods while the engine is off.

Rear door sunshades

WARNING

■

Closing the rear door sunshade

When a rear door sunshade is in use, do

not put fingers, etc. on the anchors or in

the groove of the rear door sunshade.

Otherwise, a finger, etc. may get caught,

possibly causing an injury.

NOTICE

■

To ensure normal operation of the

sunshades

●

Do not put anything in an area where it

may interfere with the operation of a

rear door sunshade.

●

To prevent damage to the rear door

sunshades, do not apply excessive

load or attach items to the rear door

sunshades.

408

5-5. Using the other interior features

■

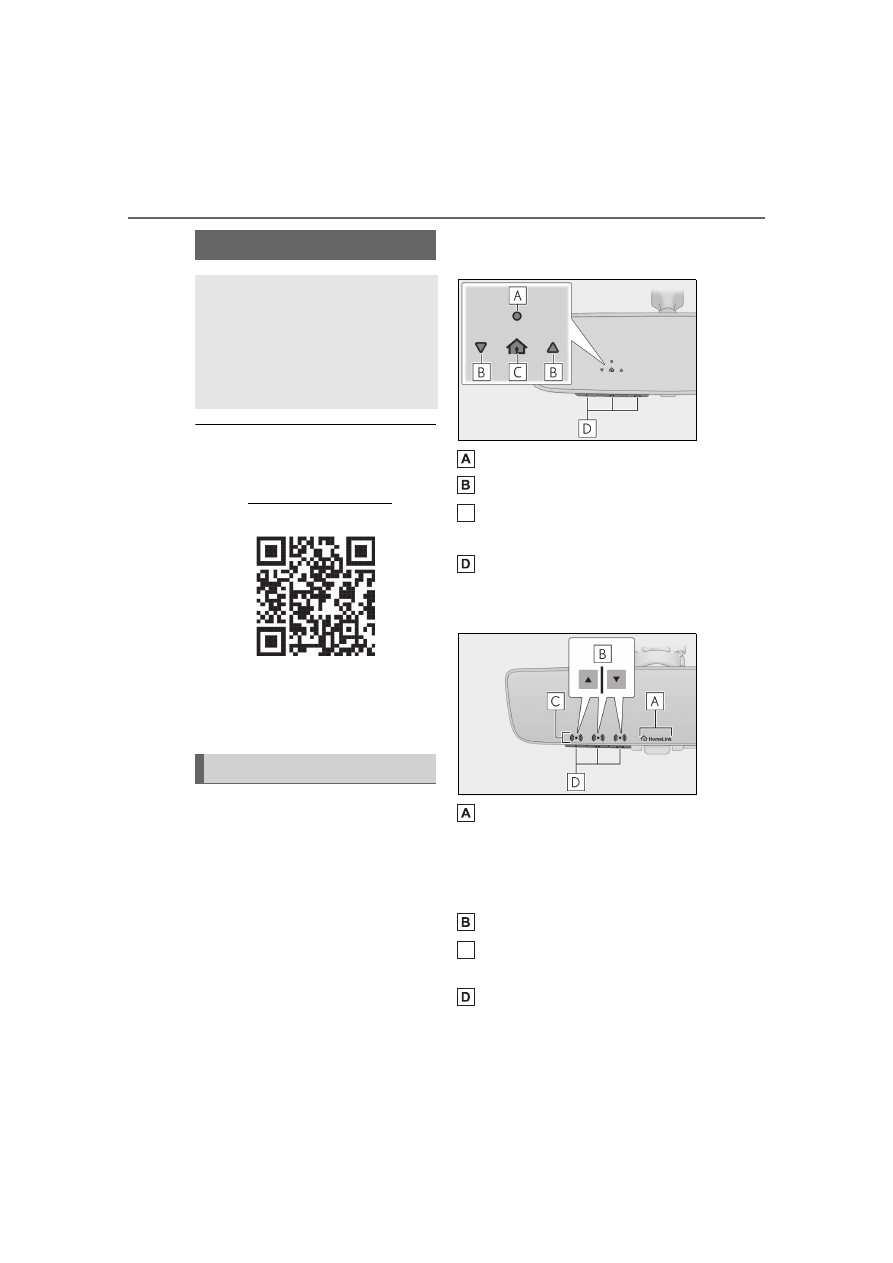

HomeLink

programming procedure

The programming procedures can also be

found at the following URL.
Website: www.homelink.com/lexus

For support, contact customer support at

the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.



Vehicles with auto anti-glare inside
rear view mirror

HomeLink

indicator light

Garage door operation indicators

HomeLink

icon

Illuminates while HomeLink

is operating.

Buttons



Vehicles with Digital Rearview Mir-
ror

HomeLink

logo

Appears while HomeLink

is operating.

When the menu button (



P.137) is

pressed, the logo disappears even while
the HomeLink

is operating.

Garage door operation indicators

HomeLink

indicator light

Illuminates above each button selected.

Buttons

Garage door opener

The garage door opener can be
programmed using the Home-
Link

to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

409

5-5. Using the other interior features

rio

r f

■

Codes stored in the HomeLink

mem-

ory

●

The registered codes are not erased even

if the battery cable is disconnected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

button that

already has a code registered to it, the

already registered code will not be

erased.

■

Before programming HomeLink



During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and

objects are clear of the garage door
or other devices to prevent injury or
other potential harm.



It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.



Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be performed

within 60 seconds, otherwise the
HomeLink

indicator light will stop

flashing and programming will not be
successfully completed.

Press and release the HomeLink

button you want to program and
check that the HomeLink

indica-

tor light flashes (orange).

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

buttons.

Keep the HomeLink

indicator light in

view while programming.

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.

This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

Never allow a child to operate or play
with the HomeLink

buttons.

Programming the HomeLink

Lexus TX350 (2024 year). Manual in english - page 12
