Lexus TX350 (2024 year). Manual in english

1-2. Child safety

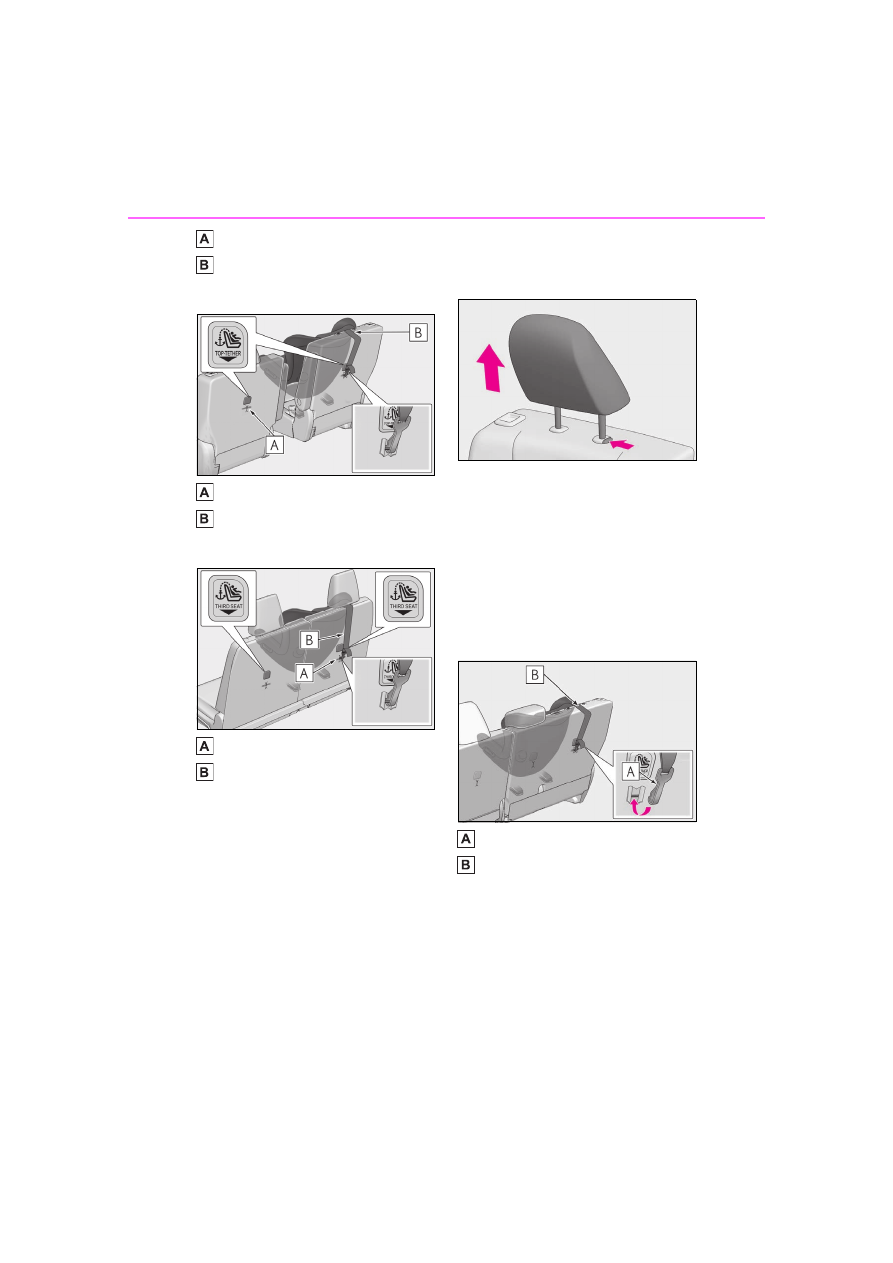

Anchor brackets
Top tether strap



Second seats (6-passenger models)

Anchor brackets
Top tether strap



Third seats

Anchor brackets
Top tether strap

■

Fixing the top tether strap to the
anchor bracket

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.

Remove the head restraint if it inter-
feres with your child restraint sys-
tem. (



P.133)

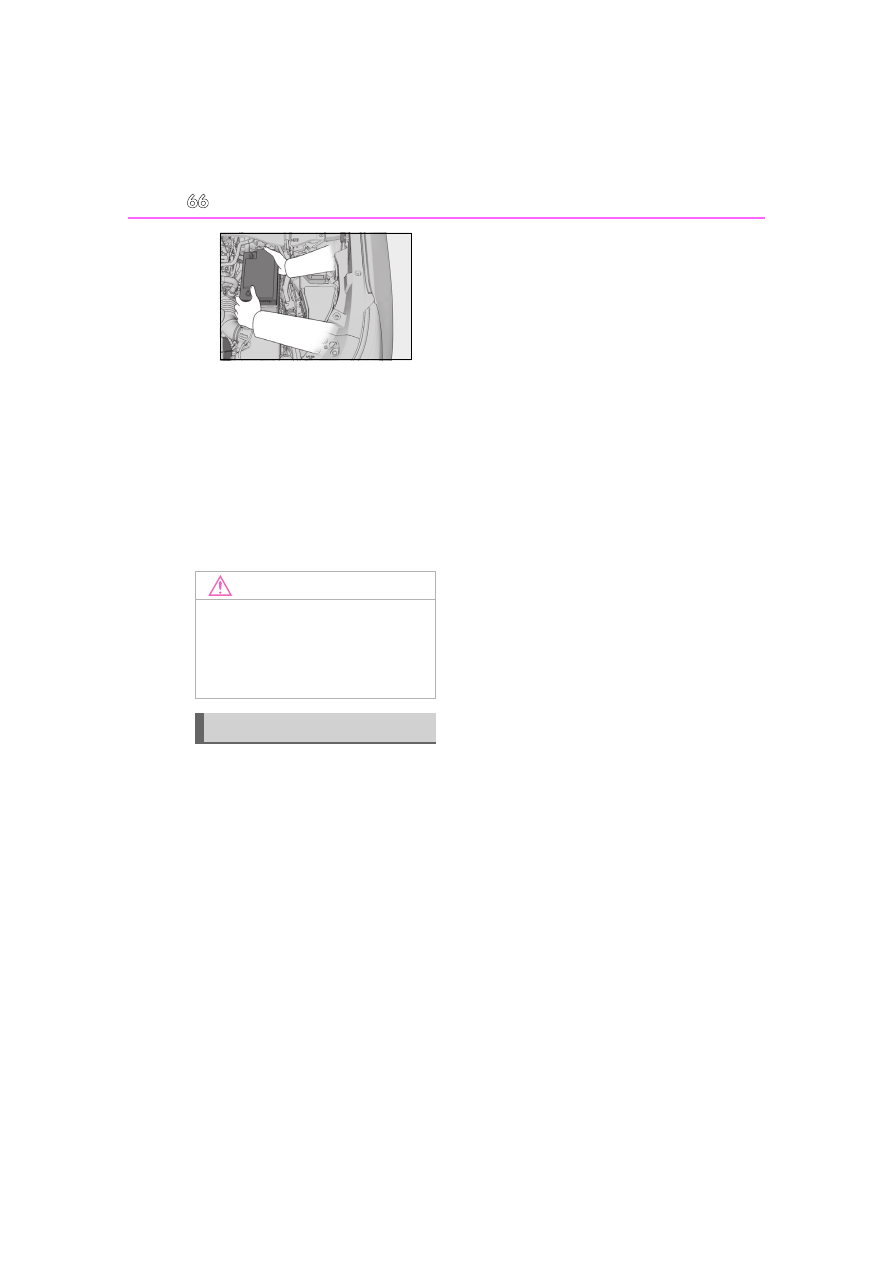

Latch the hook onto the anchor
bracket and tighten the top tether
strap.

Make sure the top tether strap is securely

latched. (



P.53)

When installing the child restraint system

with the head restraint being raised, be

sure to have the top tether strap pass

underneath the head restraint.



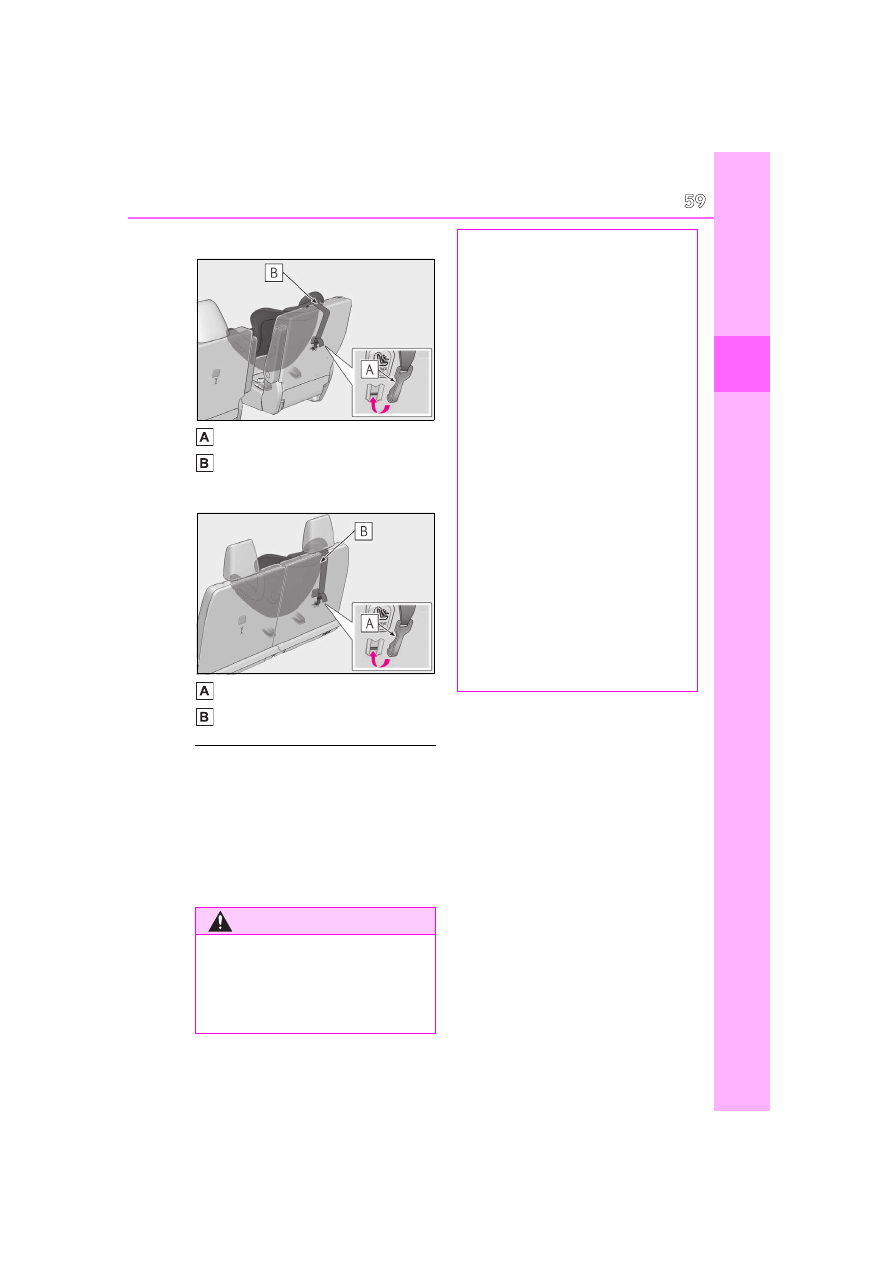

Second seats (7-passenger models)

Hook
Top tether strap

1-2. Child safety

For safety and security



Second seats (6-passenger models)

Hook
Top tether strap



Third seats

Hook
Top tether strap

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top strap to anything

other than the anchor bracket.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

When installing the child restraint sys-

tem with the head restraint being

raised, after the head restraint has

been raised and then the anchor

bracket has been fixed, do not lower

the head restraint.

●

When installing a child restraint system

in the second center seat (7-passenger

models), adjust both seat cushions to

the same position and align both seat-

backs at the same angle. The seat-

backs must be adjusted to the same

angle. Otherwise, the child restraint

system cannot be securely restrained

and this may cause death or serious

injuries in the event of sudden braking,

sudden swerving or an accident.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

1-3. Emergency assistance

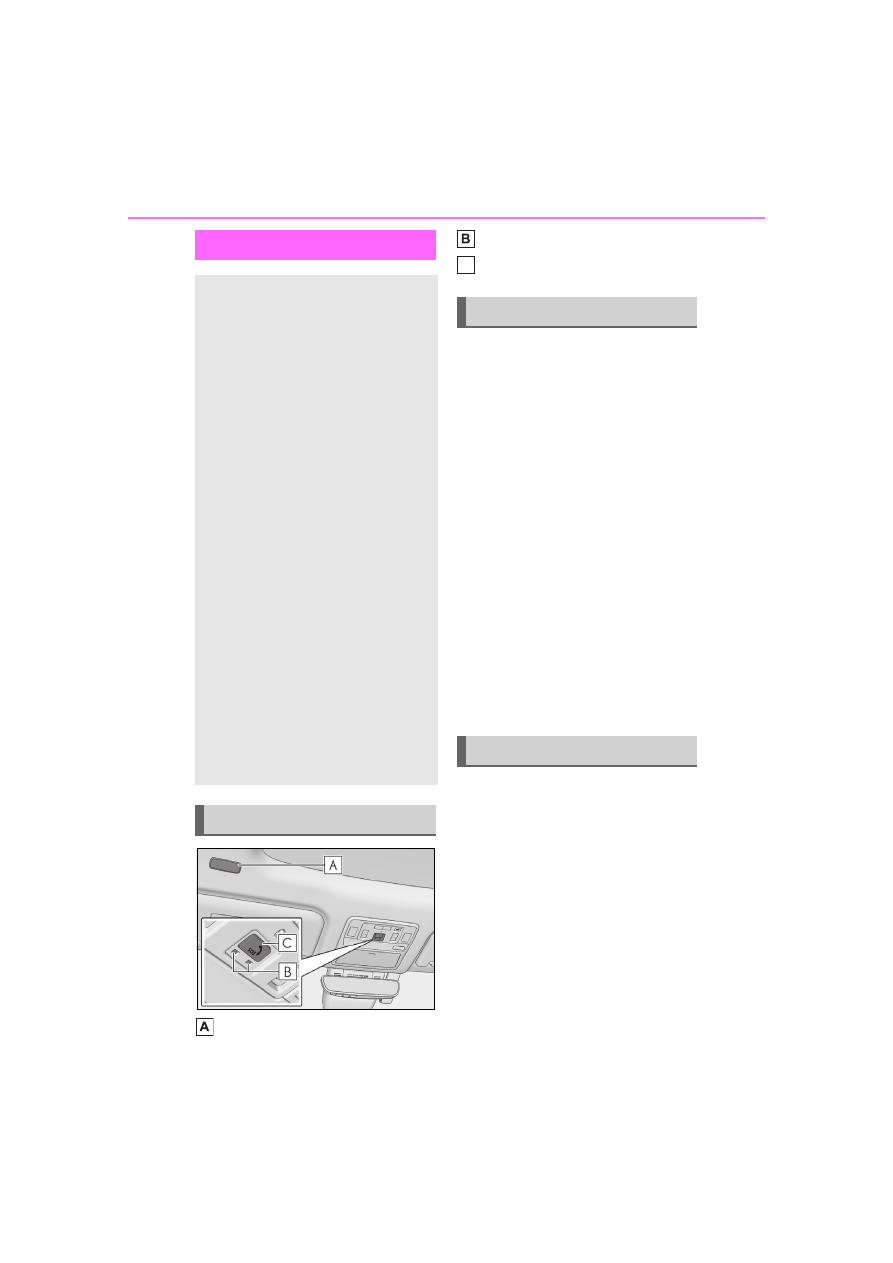

1-3.Emergency assistance

Microphone

LED light indicators
“SOS” button

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.
(



P.61)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.61)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.61)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.61)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States

1-800-25-LEXUS (1-800-255-3987)



Canada

Safety Connect

Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

Services

Subscription

1-3. Emergency assistance

For safety and security

1-800-26-LEXUS (1-800-265-3987)



Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

■

Free/Open Source Software Informa-

tion

This product contains Free/Open Source

Software (FOSS). The license information

and/or the source code of such FOSS can

be found at the following URL.
https://opensource.lge.com/osSch/

list?types=ALL&search=TL21BNU

When the engine switch is turned to
ON, the red indicator light comes on
for 2 seconds then turns off. Afterward,
the green indicator light comes on,
indicating that the service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the

Safety Connect LED light Indi-
cators

Safety Connect services

1-3. Emergency assistance

response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]

Safety information for Safety
Connect

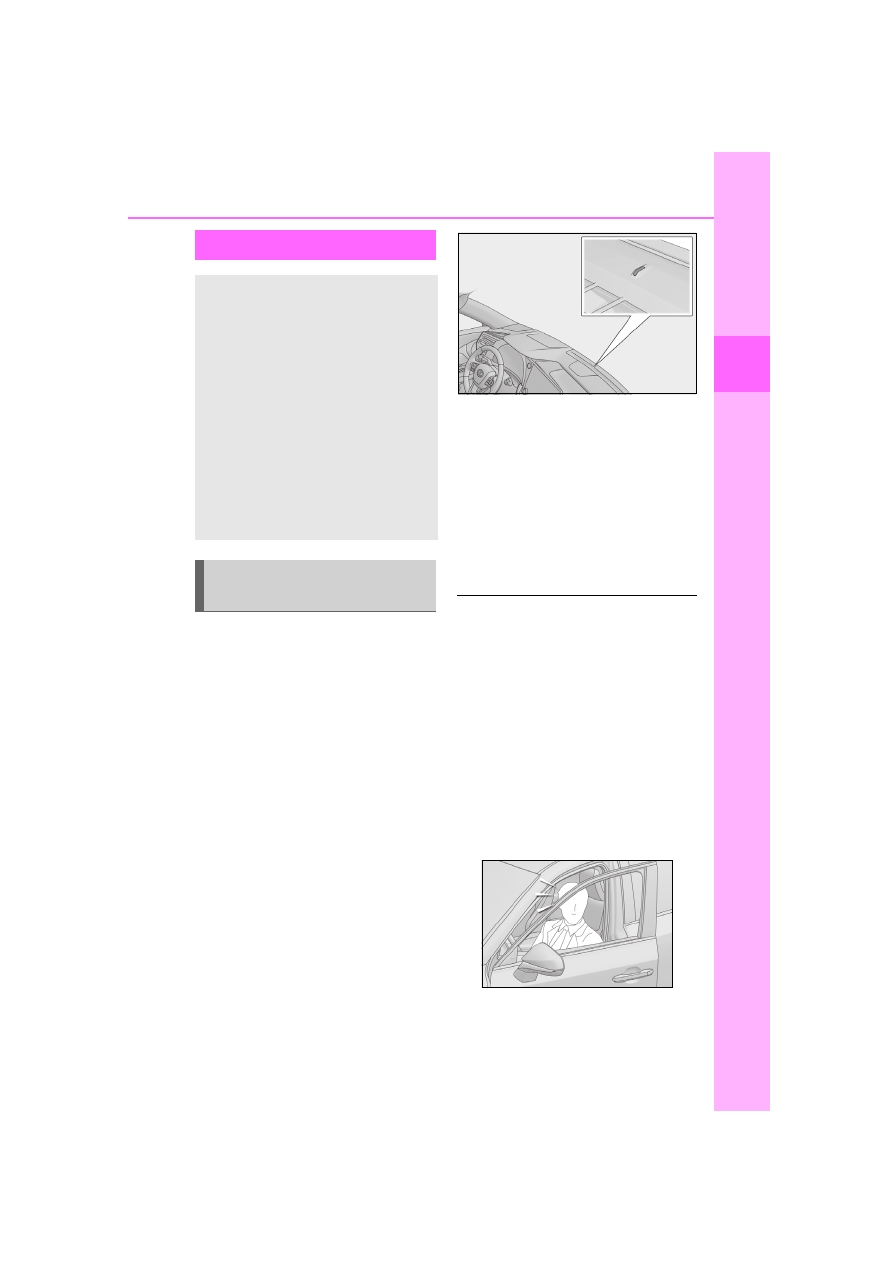

1-4. Theft deterrent system

1-4.Theft deterrent system

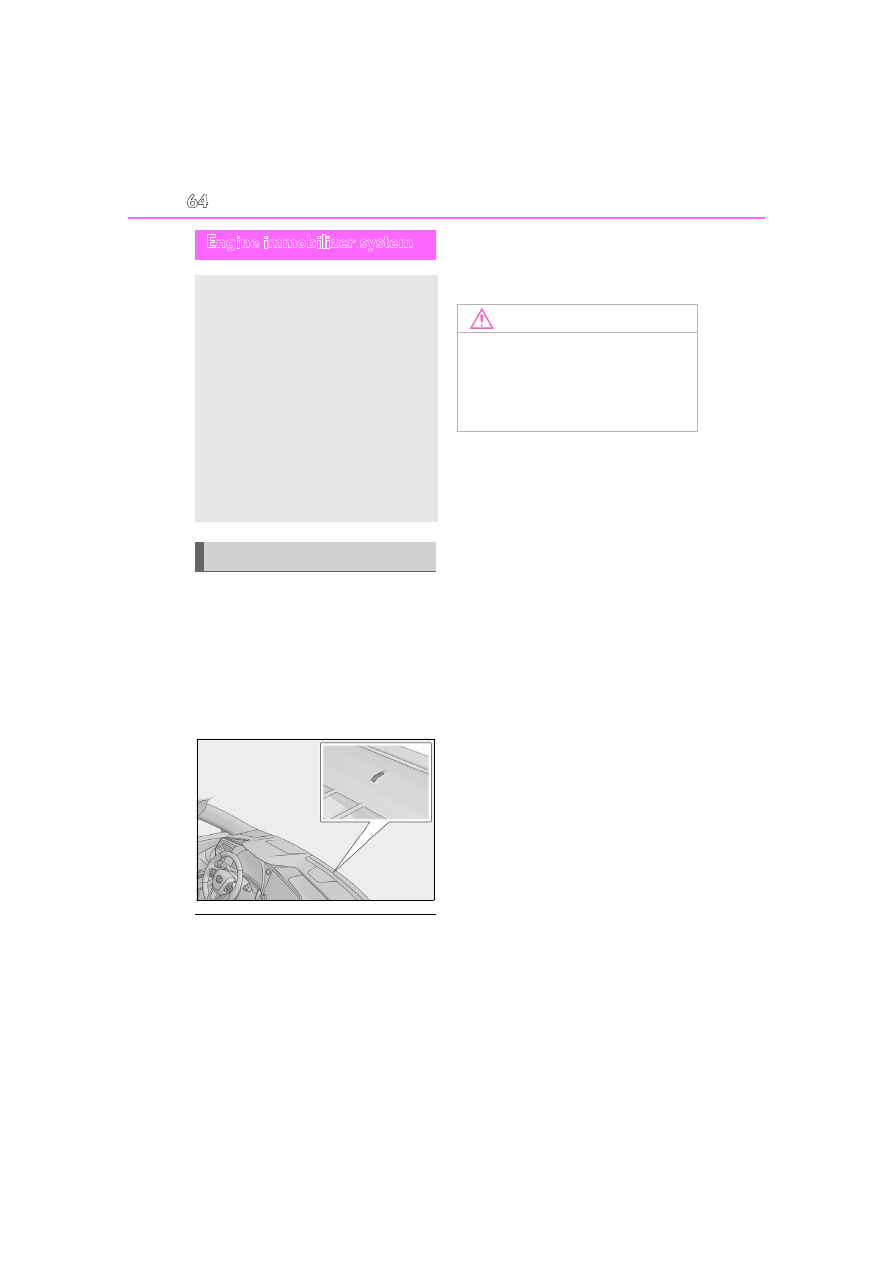

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

1-4. Theft deterrent system

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and panoramic moon
roof (if equipped) are closed before
the alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, back door and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Turn the engine switch to ACC or
ON, or start the engine. (The alarm
will be deactivated or stopped after
a few seconds.)

■

Setting the alarm

The alarm can be set if all the doors are

closed even with the hood open.

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

A person inside the vehicle opens a door,

the back door or hood, or unlocks the

vehicle.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.498)

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door or back door is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)



The hood is opened.

Setting/deactivating/stopping
the alarm system

1-4. Theft deterrent system

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

If a door is unlocked with the mechani-
cal key while the alarm is being set, the
pre-alarm will sound for 10 seconds.
If either the door is locked again or the
pre-alarm is stopped within those 10
seconds, an alarm will sound.
Do any of the following in order to
deactivate or stop the pre-alarm:



Close the doors, and lock all doors
by smart access system or wireless
remote control.



Turn the engine switch to ACC or
ON, or start the engine. (The alarm

will be deactivated or stopped after
a few seconds.)

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Pre-alarm

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

tems.

(U.S.A.)

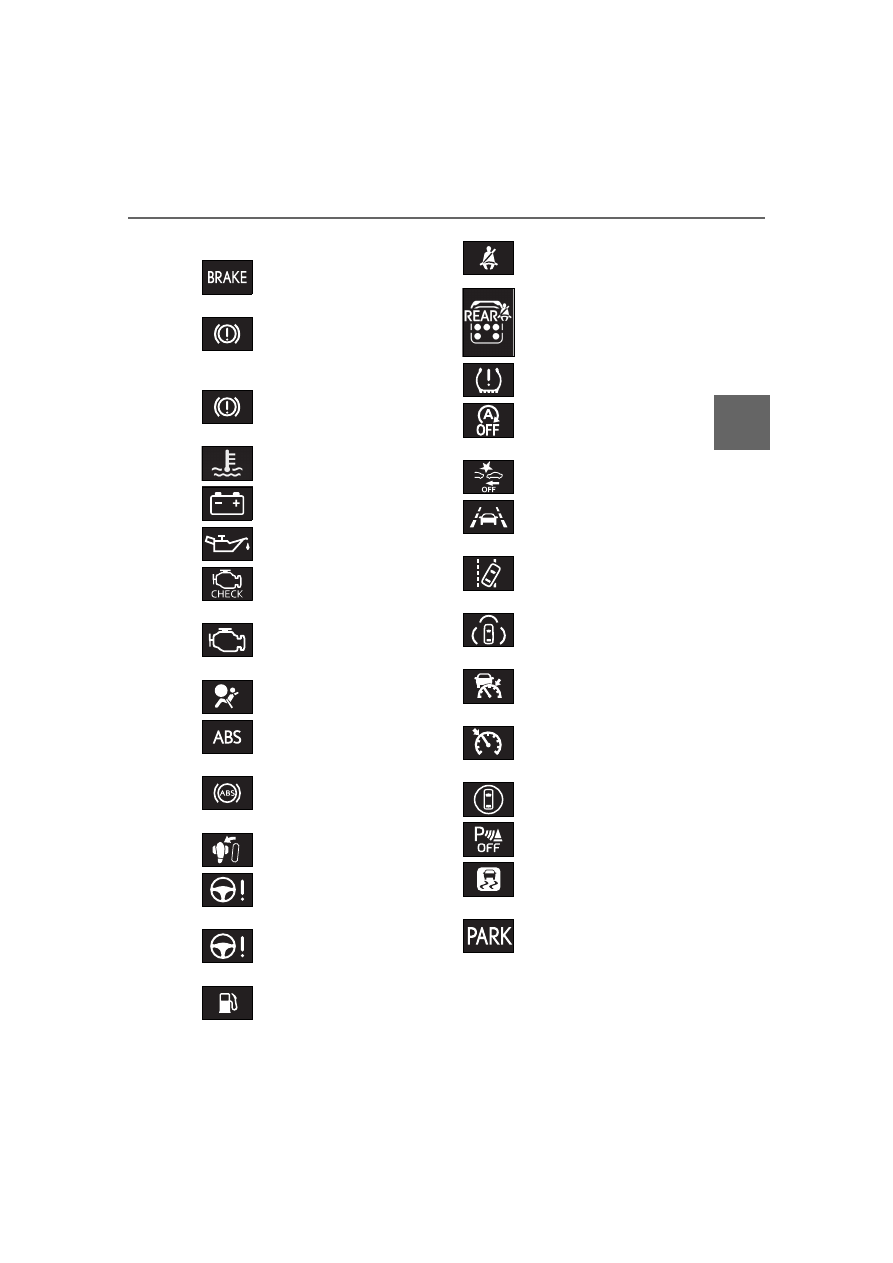

Brake system warning light

(



P.467)

(red)

(Canada)

Brake system warning light

(



P.467)

(yellow)

Brake system warning light

(



P.467)

High coolant temperature
warning light

(



P.467)

Charging system warning
light

(



P.468)

Low engine oil pressure warn-
ing light

(



P.468)

(U.S.A.)

Malfunction indicator lamp

(



P.468)

(Canada)

Malfunction indicator lamp

(



P.468)

SRS warning light

(



P.468)

(U.S.A.)

ABS warning light

(



P.469)

(Canada)

ABS warning light

(



P.469)

Inappropriate pedal operation
warning light

(



P.469)

(red)

Electric power steering system
warning light

(



P.469)

(yellow)

Electric power steering system
warning light

(



P.469)

Low fuel level warning light
(



P.469)

Driver’s and front passenger’s
seat belt reminder light
(



P.470)

Rear passengers’ seat belt
reminder light (



P.470)

Tire pressure warning light

(



P.471)

(flashes)

Stop & Start cancel indicator

(



P.471)

PCS warning light

(



P.471)

(yellow)

LTA indicator (



P.471)

(yellow)

LDA indicator (



P.472)

(yellow)

PDA indicator (



P.472)

(yellow)

Dynamic radar cruise control
indicator (



P.472)

(yellow)

Cruise control indicator
(



P.472)

Driving assist information indi-
cator

(



P.472)

Intuitive parking assist OFF indi-
cator

(if equipped) (



P.473)

(illuminates)

Slip indicator

(



P.473)

(flashes)

(U.S.A.)

Parking brake indicator
(



P.473)

2-1. Instrument cluster

: These lights come on when the engine

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.

: This light illuminates on the multi-infor-

mation display.

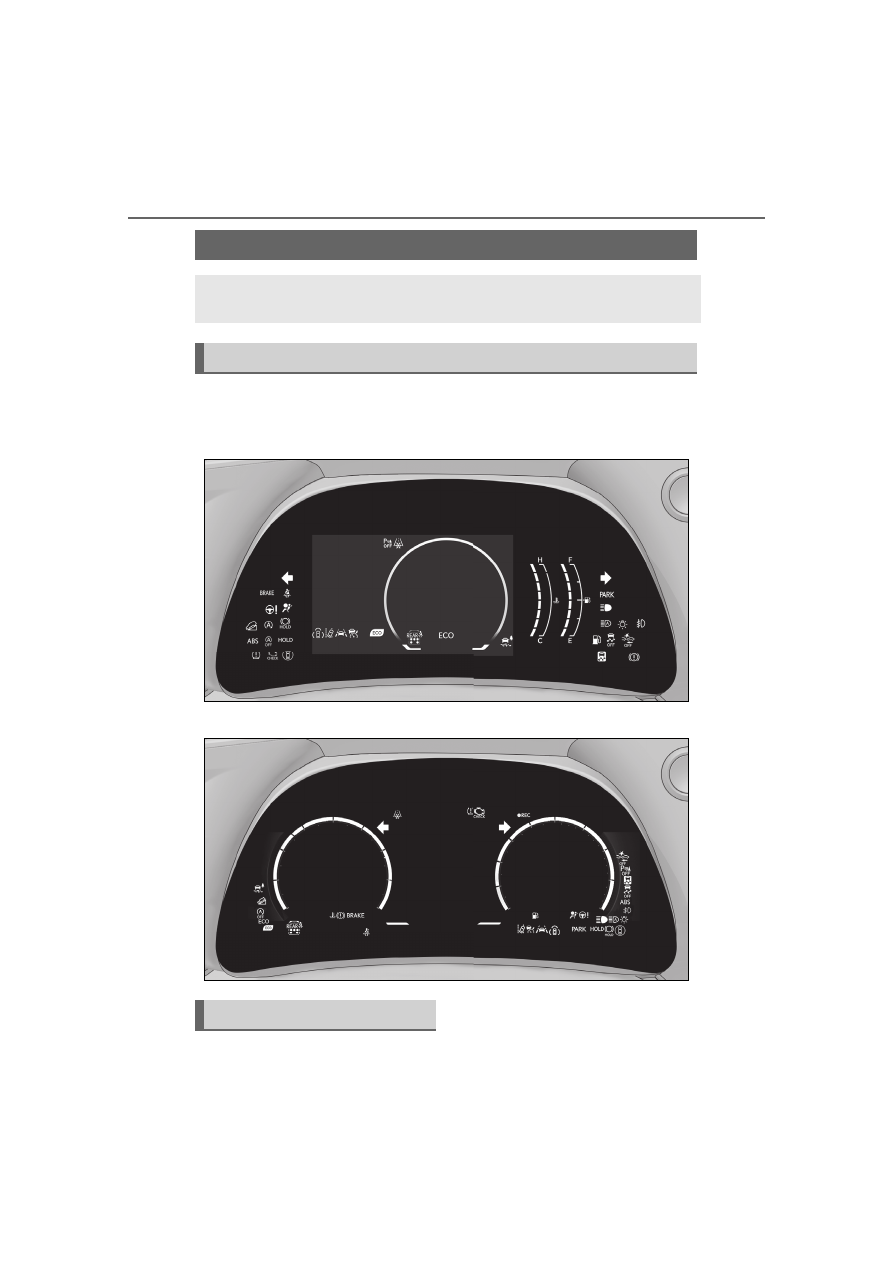

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

(Canada)

Parking brake indicator
(



P.473)

(flashes)

Brake hold operated indicator

(



P.474)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning lights not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

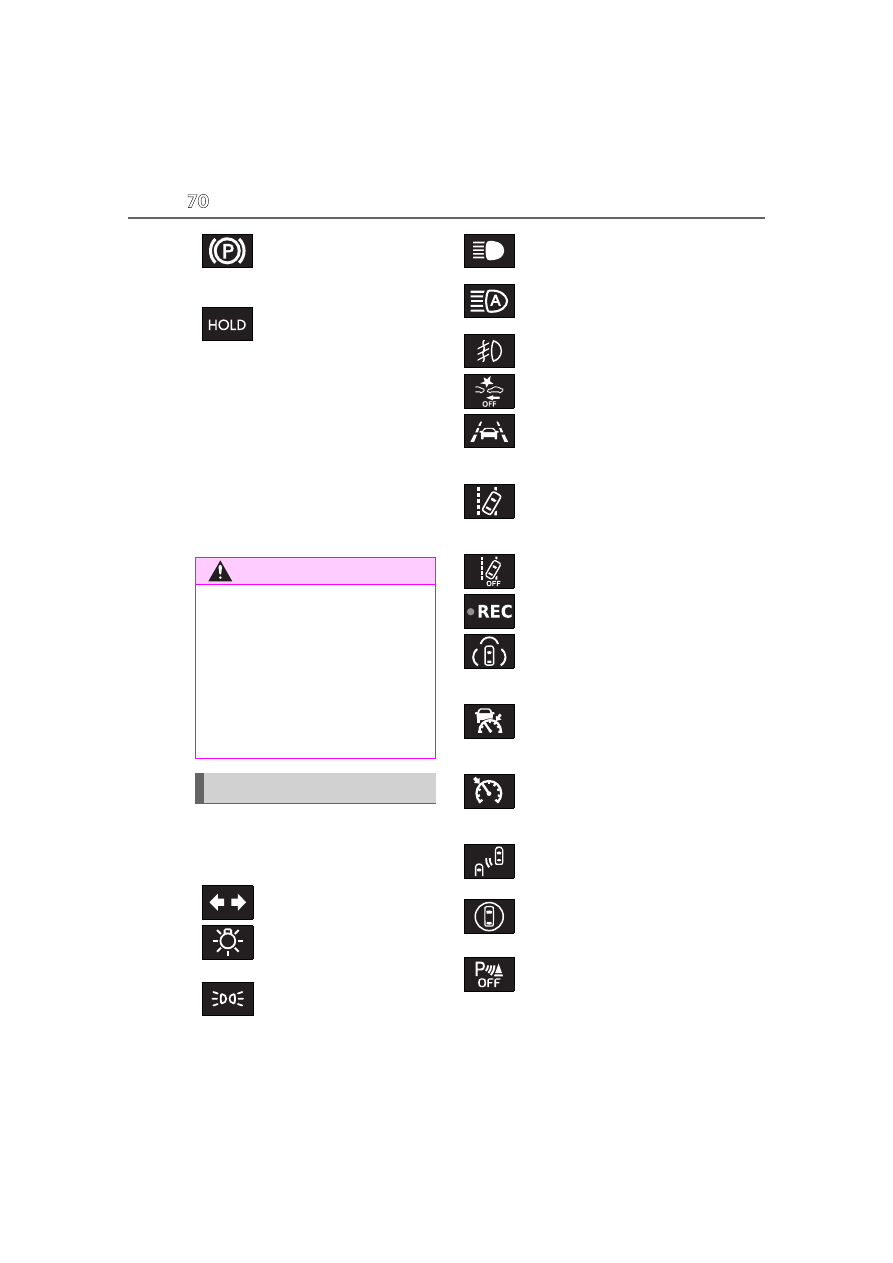

Indicators

Turn signal indicator (



P.192)

(U.S.A.)

Headlight indicator (



P.198)

(Canada)

Tail light indicator (



P.198)

Headlight high beam indicator
(



P.200)

AHS indicator (if equipped)
(



P.201)

AHB indicator (



P.204)

Fog light indicator (



P.207)

PCS warning light

*1, 2

(



P.236)

(green/whit

LTA indicator (



P.241)

(green/whit

LDA indicator (



P.248)

LDA OFF indicator

(if

equipped) (



P.248)

REC indicator (if equipped)
(



P.284)

(green/whit

PDA indicator (



P.254)

(green/whit

Dynamic radar cruise control
indicator (



P.264)

(green/whit

Cruise control indicator
(



P.273)

Outside rear view mirror indi-
cators

(



P.291, 296, 310)

Driving assist information indi-
cator

*1, 2

(



P.291, 296, 310,

319)
Intuitive parking assist OFF
indicator

*1, 2, 4

(if equipped)

(



P.301)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: These lights come on when the engine

: This light comes on when the system is

turned off.

: This light illuminates on the outside rear

view mirrors.

: Vehicles without center display: The

indicators turn off when the shift posi-
tion is changed to R regardless of
whether the intuitive parking assist
function is turned on or off.

: Vehicles without center display or rear

camera

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

: This light comes on when the stop lights

are illuminated by the operation of the
brake pedal or the driving assist system.

: This light illuminates on the front inte-

rior/personal lights.

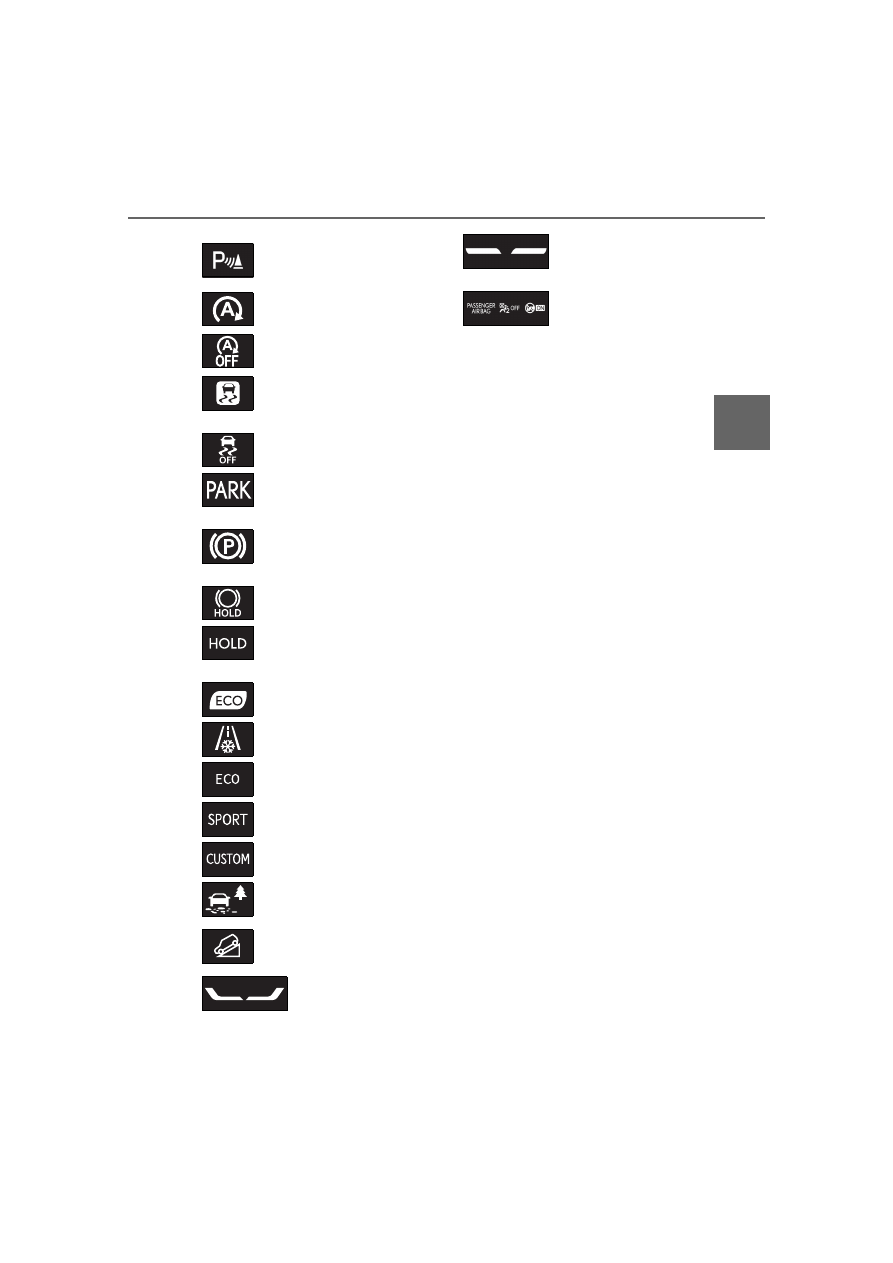

Intuitive parking assist detection
indicator

(if equipped)

(



P.300)

Stop & Start indicator

(



P.286)

Stop & Start cancel indicator

*1,

(



P.286)

(flashes)

Slip indicator

(



P.359)

VSC OFF indicator

*1, 2

(



P.359)

(U.S.A.)

Parking brake indicator
(



P.192)

(Canada)

Parking brake indicator
(



P.192)

Brake hold standby indicator

(



P.195)

(illuminates)

Brake hold operated indicator

(



P.195)

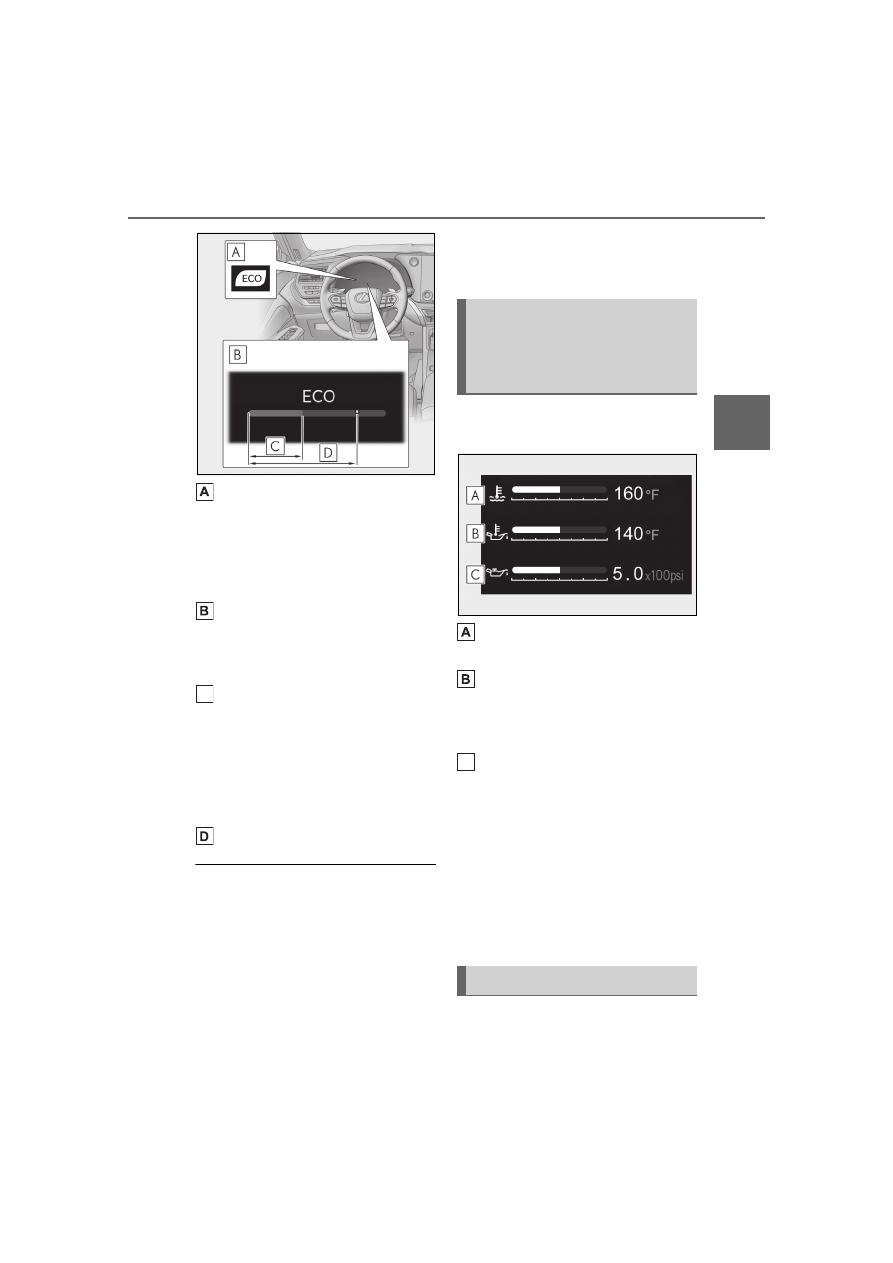

Eco Driving Indicator Light
(



P.86)

Low outside temperature indi-
cator

(



P.72)

Eco drive mode indicator
(



P.353)

Sport mode indicator
(



P.353)

Customize mode indicator
(



P.353)

Trail Mode indicator (if
equipped) (



P.355)

Downhill assist control system
indicator (if equipped)
(



P.356)

(7-inch display)

Stop light indicator

(12.3-inch display)

Stop light indicator

“AIR BAG ON/OFF”
indicator

(



P.39)

2-1. Instrument cluster

■

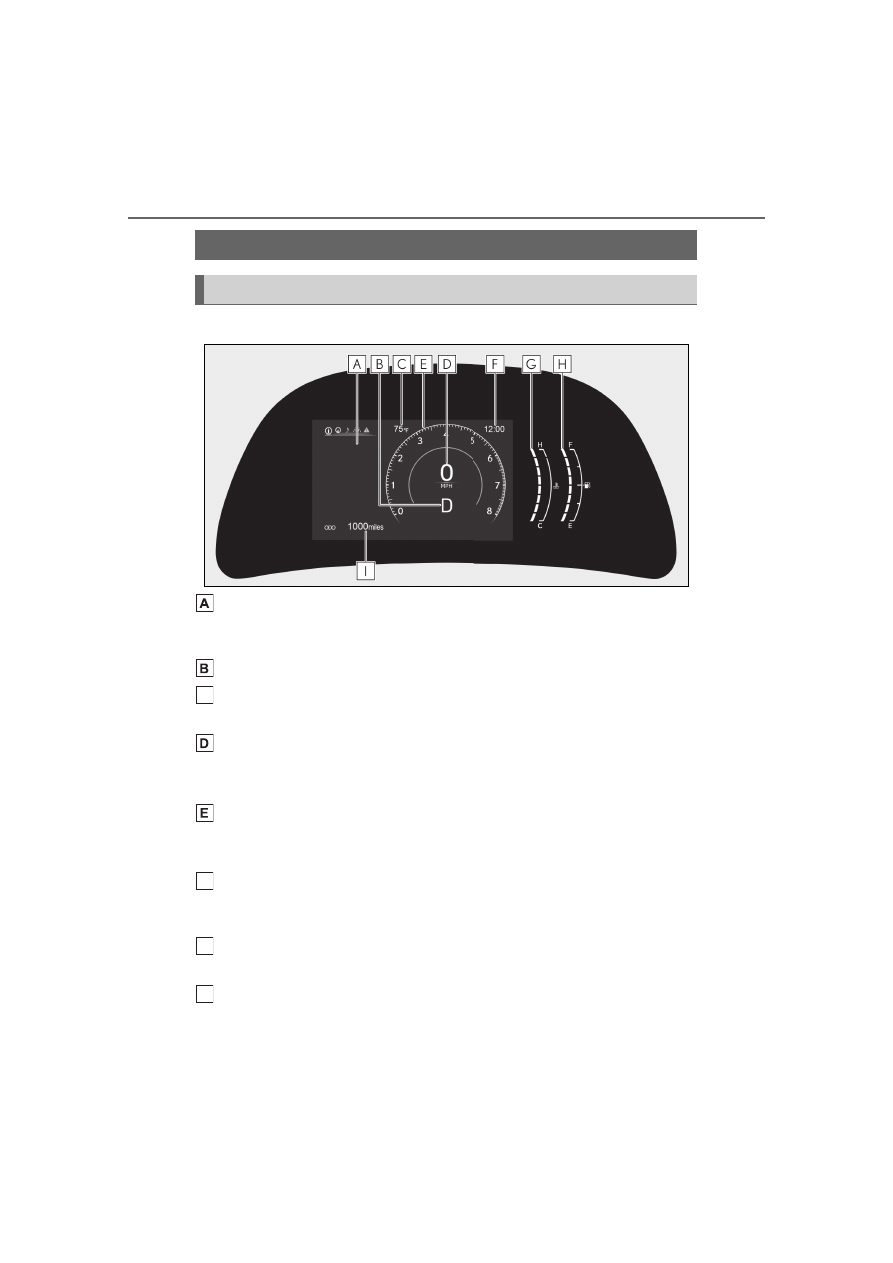

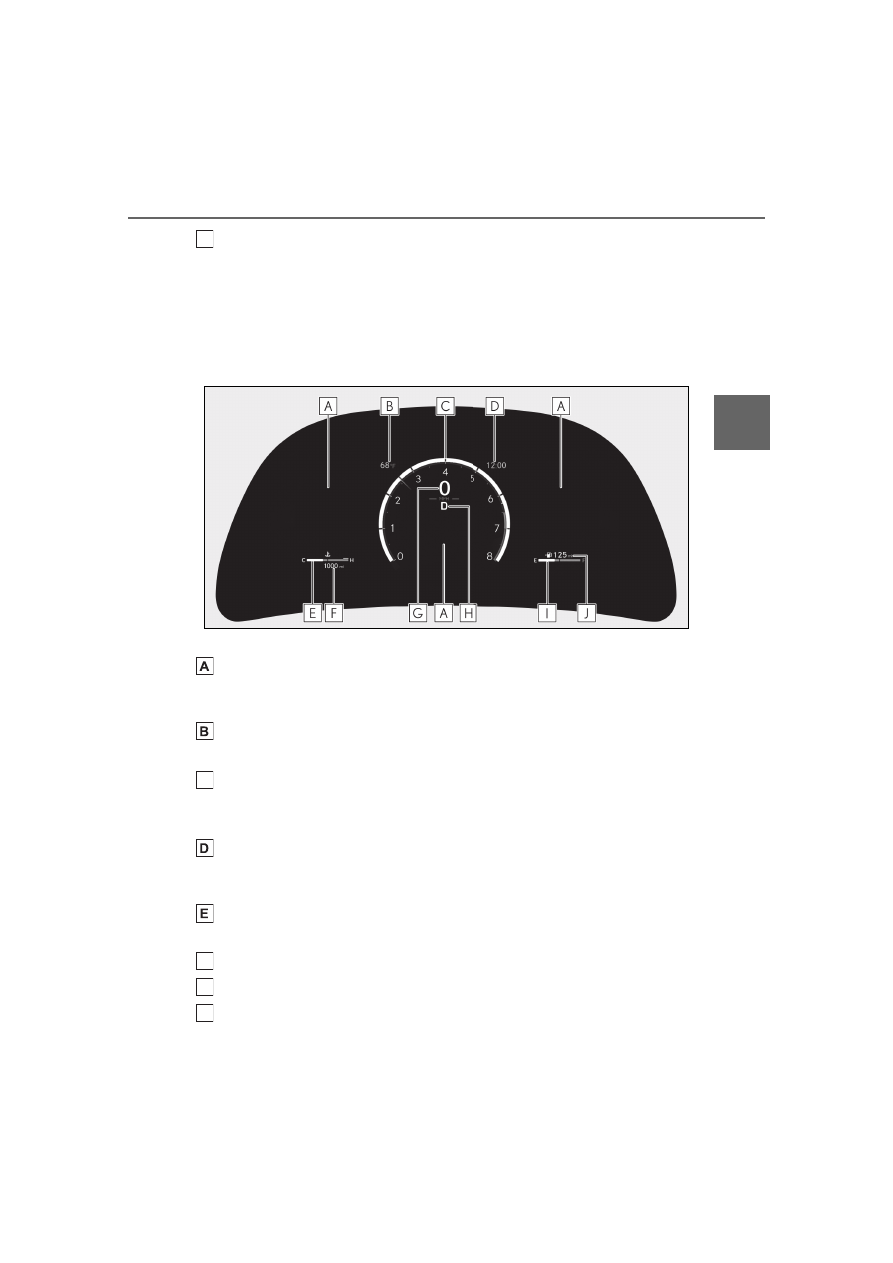

Locations of gauges and meters (7-inch display)

Multi-information display

Presents the driver with a variety of vehicle data (



P.78)

Displays warning messages if a malfunction occurs (



P.477)

Shift position and gear position indicator (



P.187)

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 141°F (60°C).

Digital speedometer

*1, 2

/Tachometer

Tachometer: Displays the engine speed in revolutions per minute.
Depending on the certain settings, the display will change.

Tachometer

*1, 3

/Analog speedometer

Tachometer: Displays the engine speed in revolutions per minute.
Depending on the certain settings, the display will change.

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Engine coolant temperature gauge

Displays the engine coolant temperature.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Gauges and meters

Meter display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Odometer and trip meter display (



P.76)

: Displayed when the meter display type setting is set to display type 1

: Displayed when the meter display type setting is set to display type 2

: Displayed when the meter display type setting is set to display type 3

■

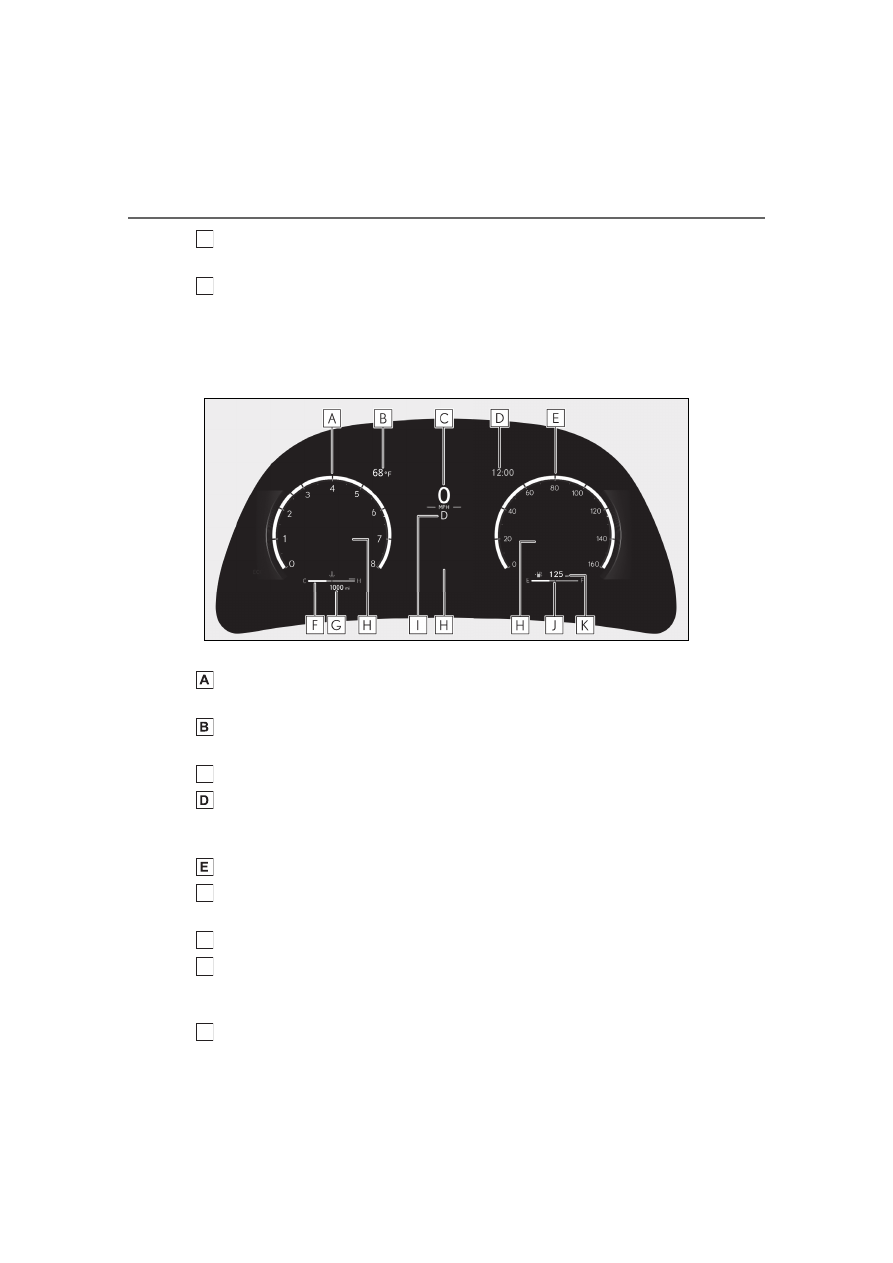

Locations of gauges and meters (12.3-inch display)



Type 1

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (



P.78)

Displays warning messages if a malfunction occurs (



P.477)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 141°F (60°C)

Analog speedometer/Tachometer

Tachometer: Displays the engine speed in revolutions per minute
This setting can be changed on the setting screen. (



P.78)

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.76)

Digital speedometer
Shift position and gear position indicator (



P.187)

2-1. Instrument cluster

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

: Depending on the item displayed on the multi-information display and the system opera-

tion state, meter will not be displayed.



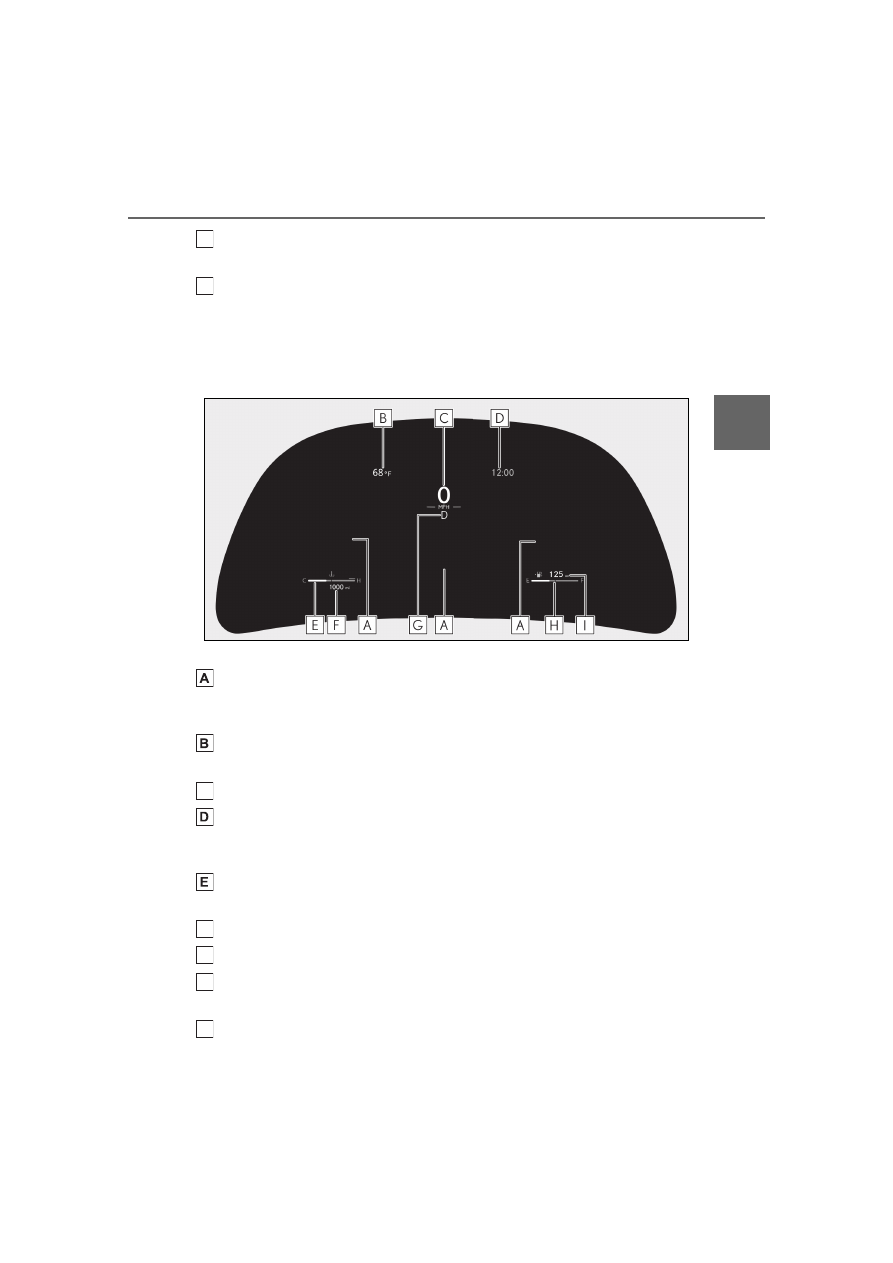

Type 2

The units used on the meters may differ depending on the target region.

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 141°F (60°C)

Digital speedometer
Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Analog speedometer

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.76)

Multi-information display

Presents the driver with a variety of vehicle data (



P.78)

Displays warning messages if a malfunction occurs (



P.477)

Shift position and gear position indicator (



P.187)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

Displays driving range with remaining fuel.

: Depending on the item displayed on the multi-information display and the system opera-

tion state, meter will not be displayed.



Type 3

The units used on the meters may differ depending on the target region.

Multi-information display

Presents the driver with a variety of vehicle data (



P.78)

Displays warning messages if a malfunction occurs (



P.477)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 141°F (60°C)

Digital speedometer
Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “MULTIMEDIA OWNER’S MANUAL”.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.76)

Shift position indicator and gear position indicator (



P.187)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Driving range

2-1. Instrument cluster

Displays driving range with remaining fuel.

■

The meters and display illuminate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Distance to empty (12.3-inch display)

●

This distance is computed based on your

average fuel consumption. As a result,

the actual distance that can be driven

may differ from that displayed.

●

When only a small amount of fuel is

added to the tank, the display may not be

updated. When refueling, turn the engine

switch off. If the vehicle is refueled with-

out turning the engine switch off, the dis-

play may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Free/Open Source Software Informa-

tion

This product contains Free/Open Source

Software (FOSS). The license information

and/or the source code of such FOSS can

be found at the following URL.
https://www.denso.com/global/en/

opensource/meter/toyota/

■

Customization

The gauges and meters can be customized.

(



P.528)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H); or “Engine Cool-

ant Temp High Stop in a Safe Place

See Owner’s Manual” is shown on the

multi-information display. In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.504)

Odometer and trip meter dis-
play

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

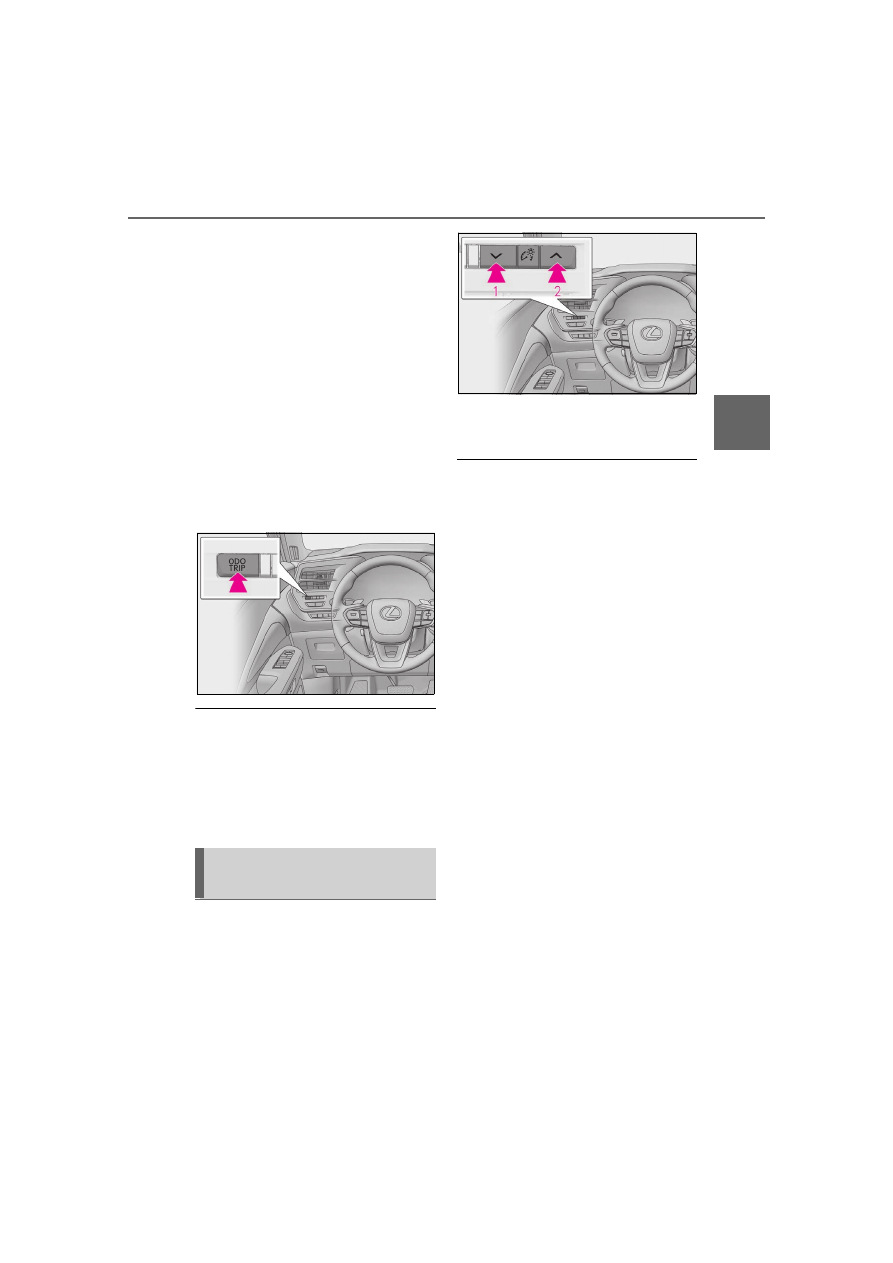

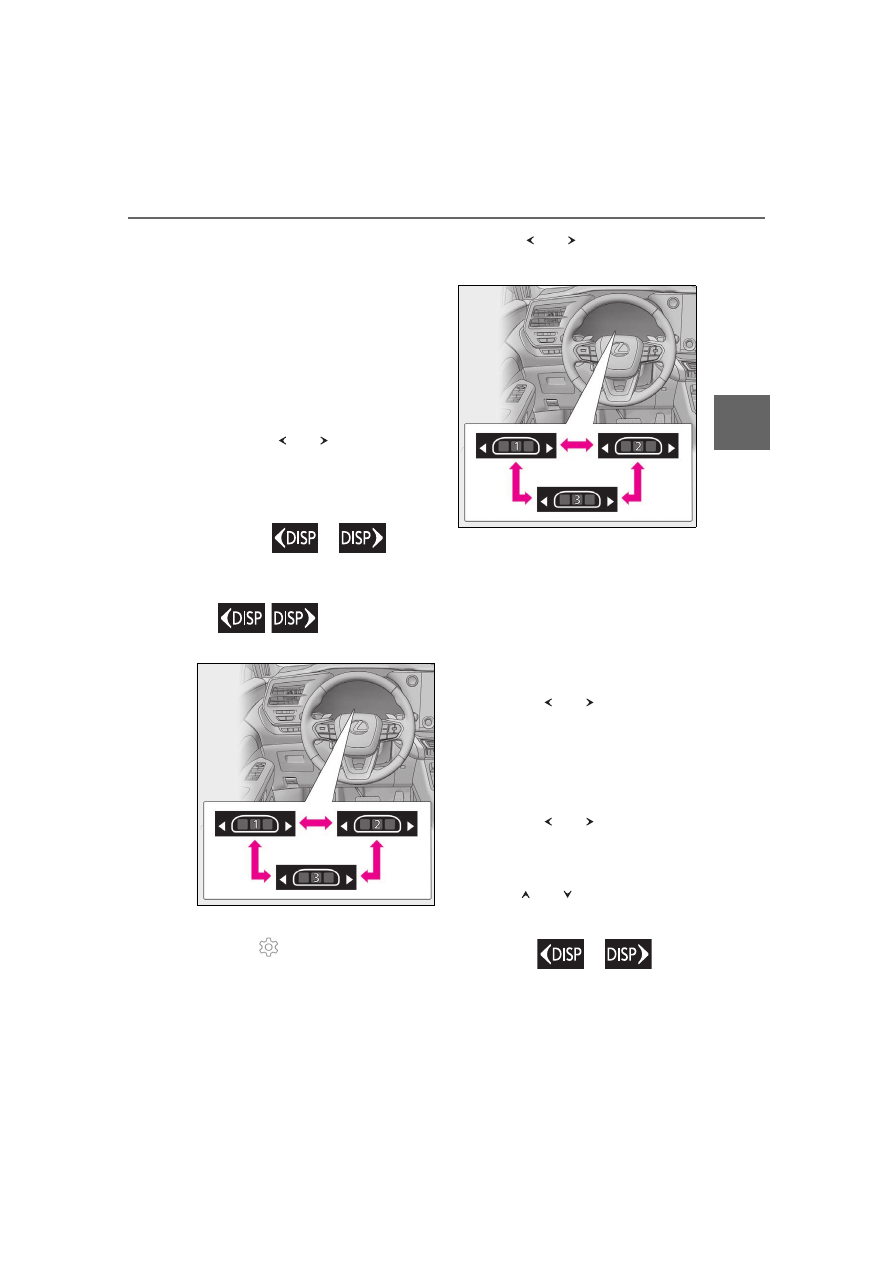

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Using the voice control system

: If equipped

Odometer and trip meter display can be

changed using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters is changed

between day mode and night mode.

●

Day mode: When the tail lights are off

●

Night mode: When the tail lights are on

and the surrounding area is dark

When the tail lights are on but the sur-

rounding area is bright, any adjustments

made to the meter brightness levels will be

applied to both modes at once.

Changing the instrument panel
light brightness

2-1. Instrument cluster

■

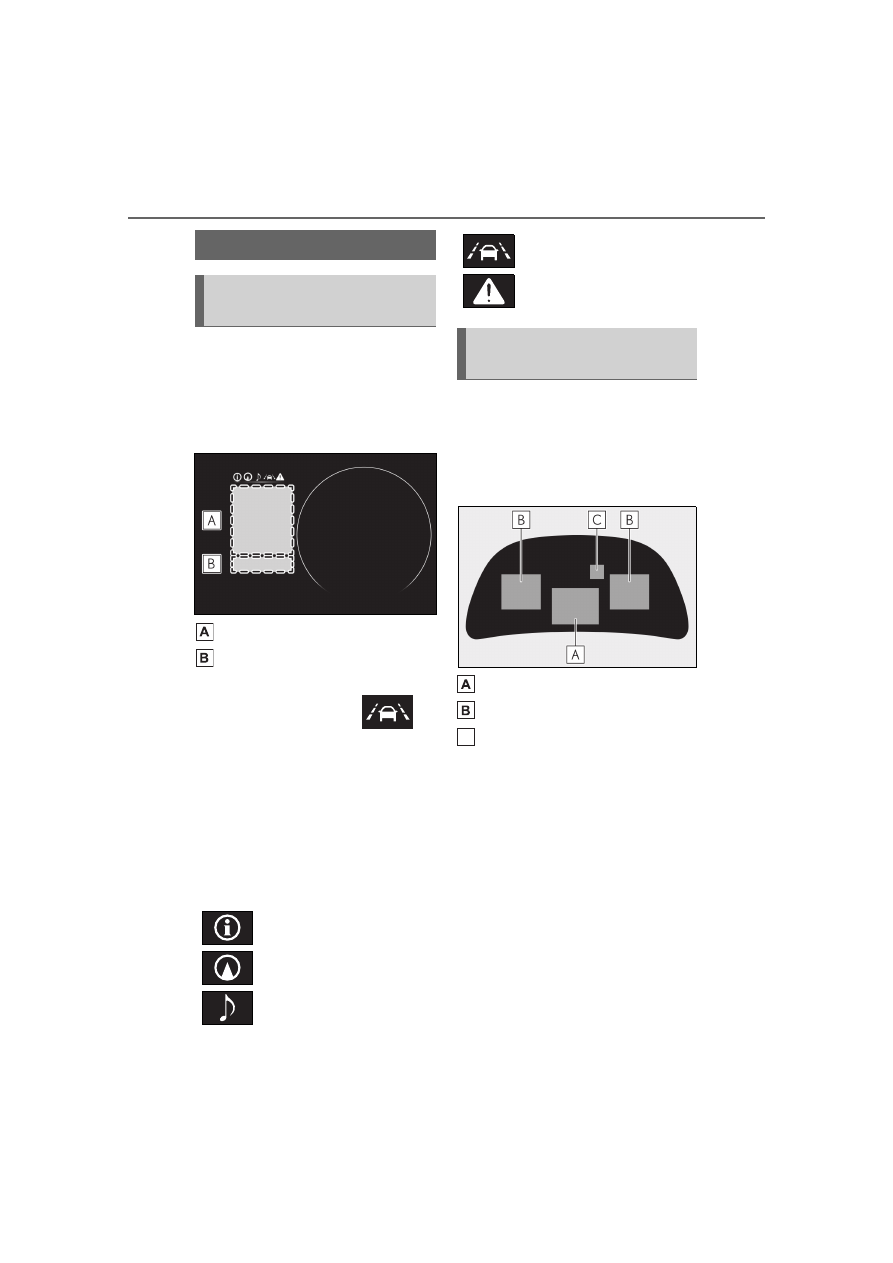

Display area

A variety of driving-related information
can be displayed. Depending on the
situation, warning or advice pop-up
displays will also be displayed.

Content display area
Driving support system informa-
tion display area

When a menu icon other than

selected, if the driving support system
operates, the system operating state will be
displayed.

■

Items displayed in the content dis-
play area

By selecting menu icons on the
multi-information display, the following
items can be displayed.

■

Display area

A variety of driving-related information
can be displayed. Depending on the
situation, warning or advice pop-up
displays will also be displayed.

Content display area (center)
Content display area (side)
Driving support system status dis-
play area

When driving support system information
is not displayed in the content display area,
if the driving support system operates, the
system operating state will be displayed.

: Depending on the settings and the sys-

tem operation state, the position dis-
played may change.

■

Items displayed in the content dis-
play area



Content display area (center)

• Driving support system information dis-

play (



P.90)

Multi-information display

Displayed contents summary
(7-inch display)

Driving information display
(



P.86)

Navigation system-linked dis-
play (



P.90)

Audio system-linked display
(



P.90)

Driving support system infor-
mation display (

Warning message (

Displayed contents summary
(12.3-inch display)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

• Navigation system-linked display

(

• Message (

• Blank



Content display area (side)

• Blank
• Fuel consumption (



P.86)

• Eco Driving Indicator (



P.86)

• Driving support system information dis-

play (



P.90)

• Navigation system-linked display

(



P.90)

• Audio system-linked display (



P.90)

• Drive information (



P.86)

• Engine coolant temperature

gauge/engine oil temperature
gauge/engine oil pressure gauge
(



P.87)

• Boost gauge (



P.87)

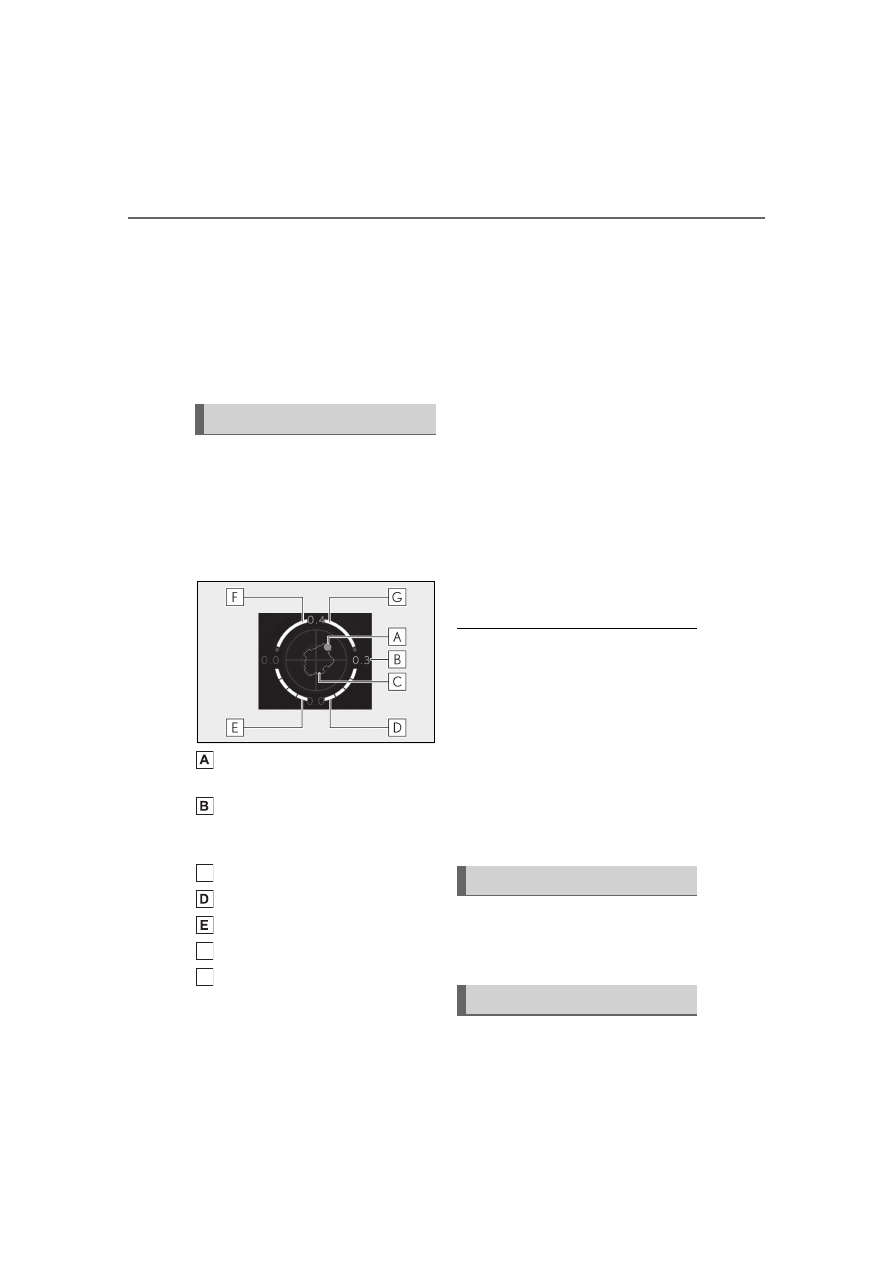

• G-force (



P.88)

• Gear Position (



P.88)

■

Liquid crystal display



P.76

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures



P.76

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

2-1. Instrument cluster

: If equipped

Can be changed the head-up display
type.
The content displayed will differ
according to the driving conditions and
display mode of the head-up display.
Depending on the situation, pop-up
displays will also be displayed.



Full

These images are examples only, and may
vary slightly from actual conditions.

Content display area

• Driving support system information dis-

play (



P.90)

• Tachometer
Displays the engine speed in revolutions
per minute
• Eco Driving Indicator (



P.86)

Driving support system informa-
tion display (



P.90)

Speedometer
Shift position and gear position
indicator (



P.186)

Speed limit/RSA (Road Sign
Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display

(



P.259)



Standard

These images are examples only, and may
vary slightly from actual conditions.

Driving support system informa-
tion display (



P.90)

Speedometer
Shift position and gear position
indicator (



P.186)

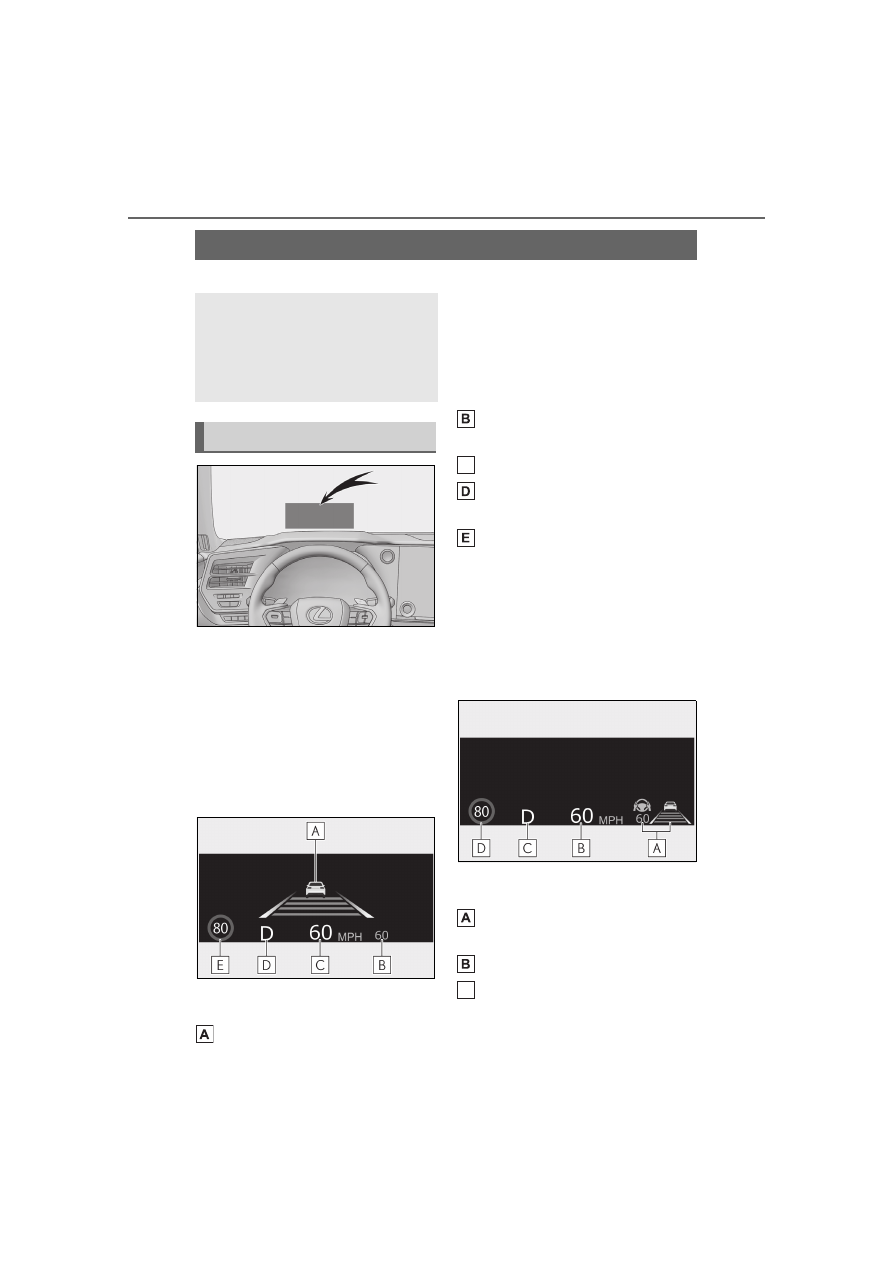

Head-up display

The head-up display projects a vari-
ety of driving-related information
and the operating state of the driv-
ing support systems on the wind-
shield.

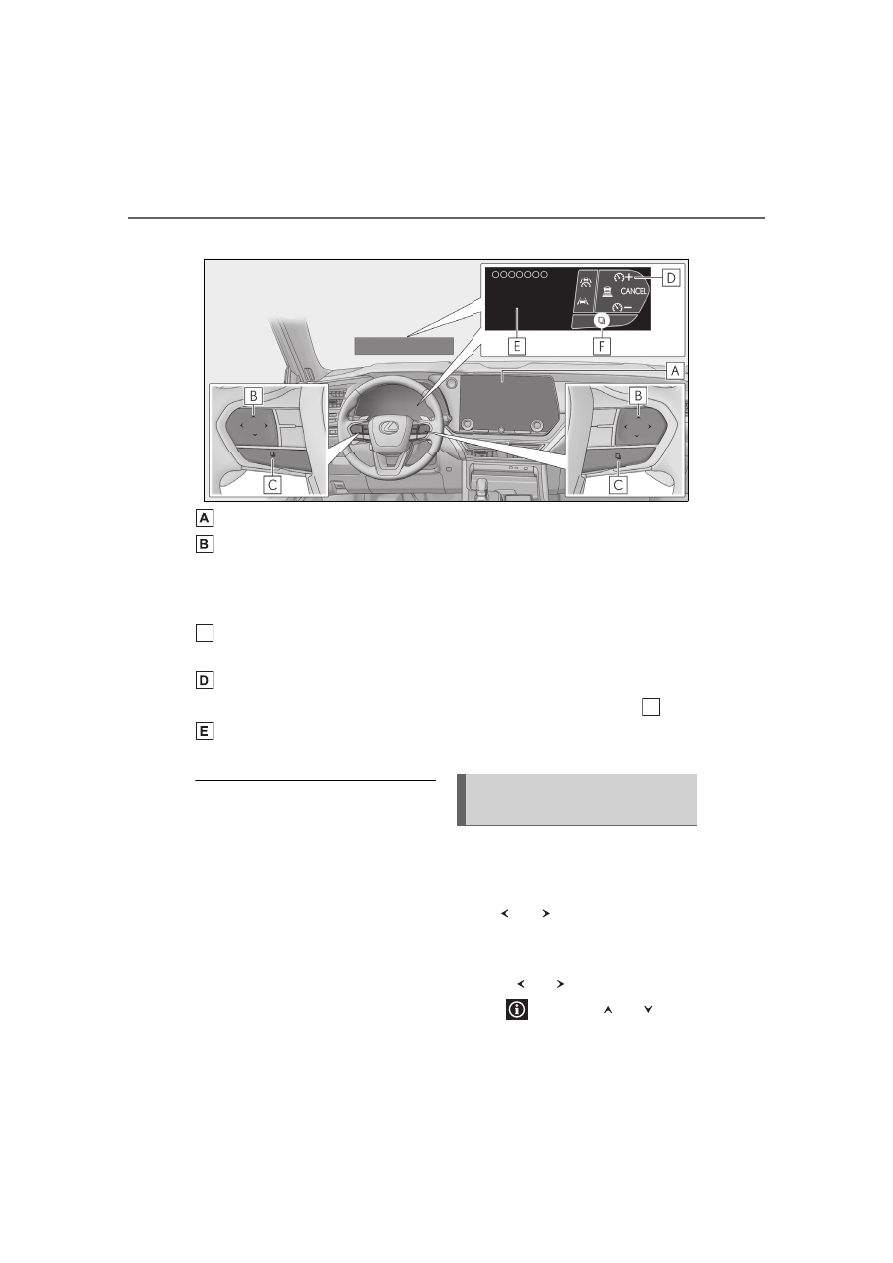

System components

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Speed limit/RSA (Road Sign
Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to

the navigation system) (U.S.A. only)

• RSA (Road Sign Assist) display

(



P.259)



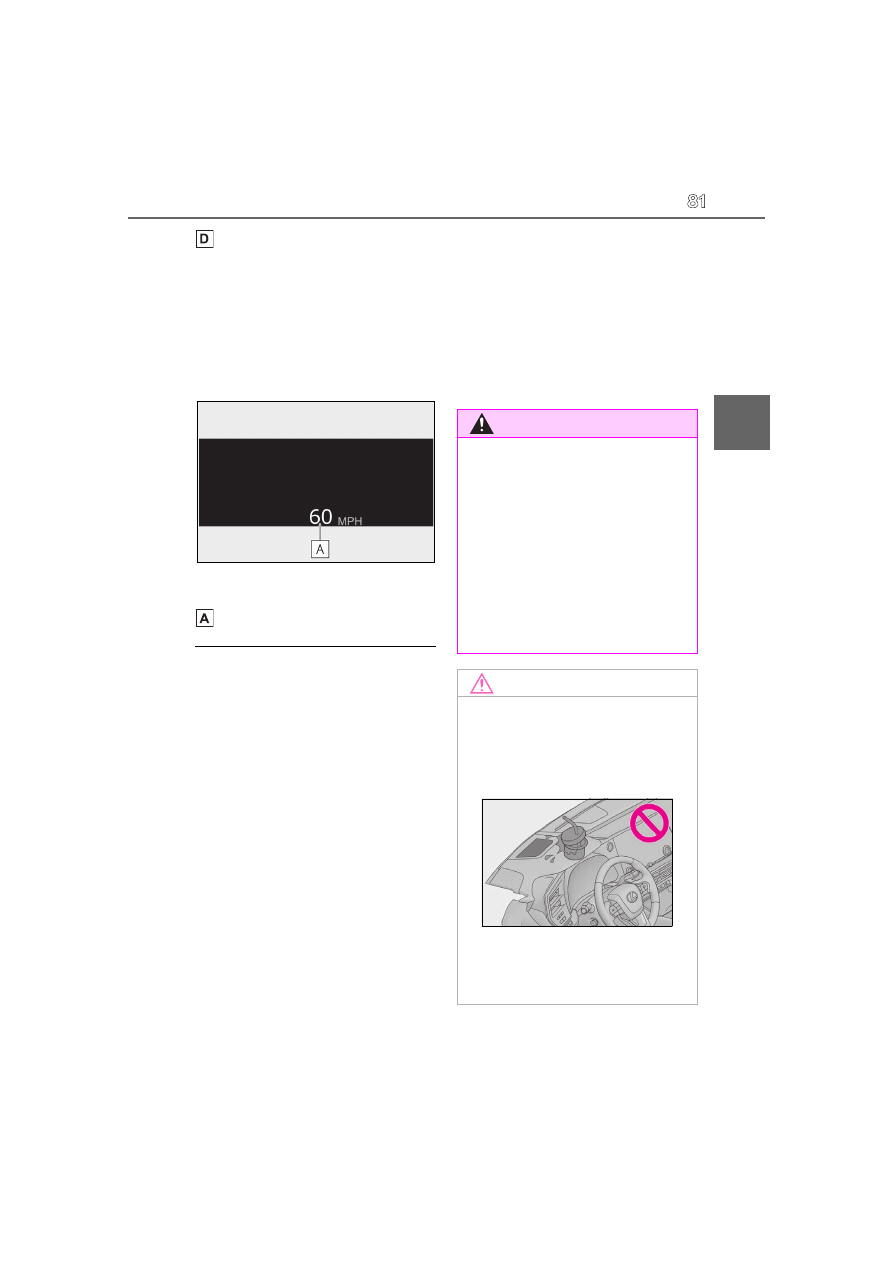

Minimum

These images are examples only, and may
vary slightly from actual conditions.

Speedometer

■

Head-up display will operate when

The engine switch is in ON.

■

Head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Eco Driving Indicator or tachometer is

displayed when

●

Eco Driving Indicator is displayed when

all of the following conditions are met:

• LTA (Lane Tracing Assist) is disabled.

(



P.239)

• LDA (Lane Departure Alert) is disabled.

(



P.248)

• The cruise control, selected by pressing

the driving assist mode select switch, is

canceled. (



P.274, 275)

• When Eco mode is selected.

• Full mode (



P.80) is selected as

head-up display type.

●

Tachometer is displayed when all of the

following conditions are met:

• LTA (Lane Tracing Assist) is disabled.

(



P.239)

• LDA (Lane Departure Alert) is disabled.

(



P.248)

• The cruise control, selected by pressing

the driving assist mode select switch, is

canceled. (



P.274, 275)

• When other than Eco mode is selected.

• Full mode (



P.80) is selected as

head-up display type.

WARNING

■

Before using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

2-1. Instrument cluster

Select

on the center display.

Select “Vehicle customize”.

Select “Head up display”.

The following settings for the head-up dis-

play can be changed.



Display on/off



Brightness



Display mode



Height



Angle

■

Changing settings with the steering

wheel switches

If any of the following items have been set as

as a favorite steering wheel switch function,

settings of the head-up display can be

changed using the steering wheel switches.

●

: Display on/off

●

: Display mode

●

: Height

●

: Brightness

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to ON.

■

Display brightness

In addition to the brightness setting, the

brightness of the display will change auto-

matically according to the ambient bright-

ness.

■

Head-up display automatic position

adjustment (vehicles with driving posi-

tion memory)

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

■

Using the voice control system

: If equipped

The head-up display can be enabled and

disabled using the voice control system.
For details, refer to the “MULTIMEDIA

OWNER’S MANUAL”

■

Customization

Some functions can be customized.

(



P.529)

NOTICE

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector. Doing so

could cause mechanical malfunctions.

Changing settings of the
head-up display

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while the changing

the settings of the head-up display.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



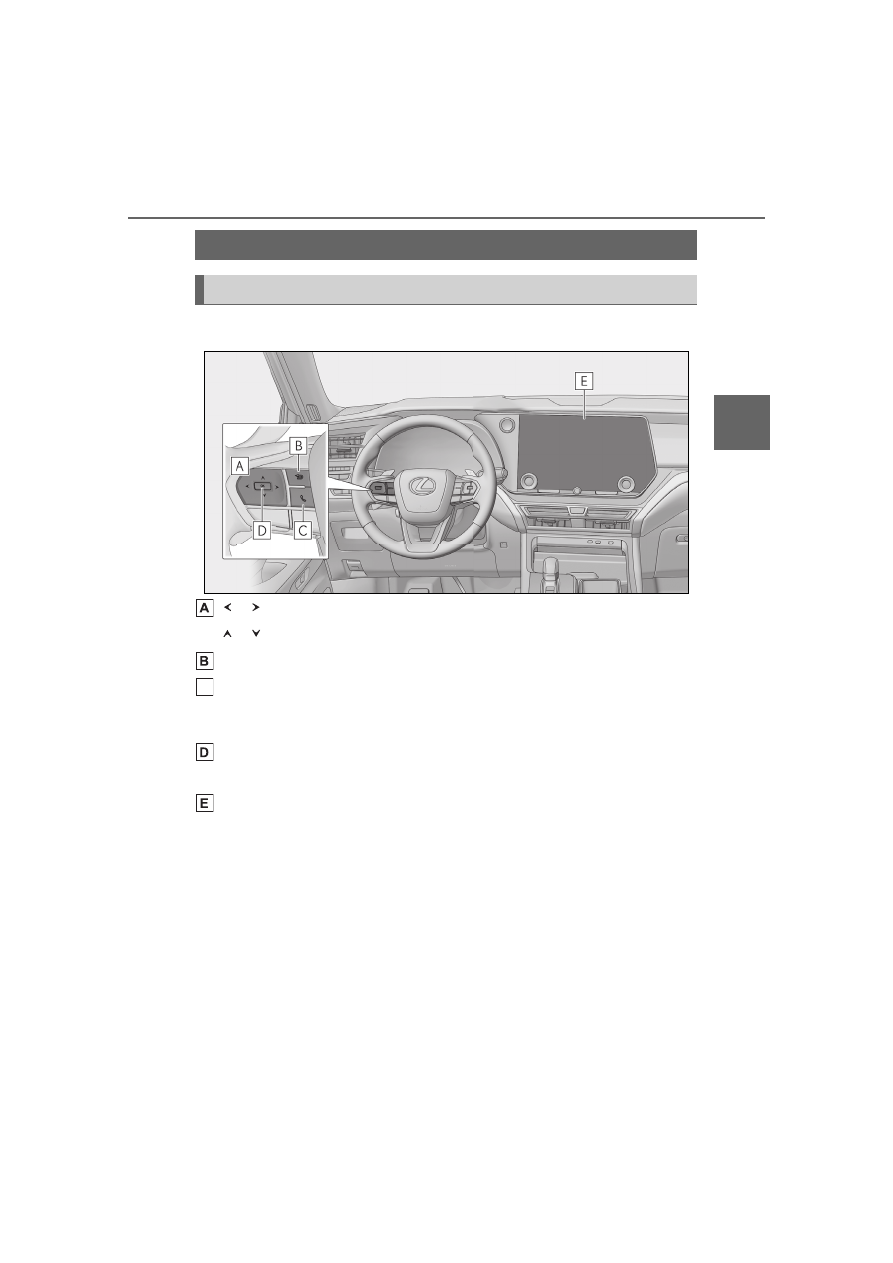

Vehicles without a head-up display

: Select menu icons

/Change the screen and move the cursor

: Change displayed content, scroll up/down the screen

Return to the previous screen
Start/receive call

Linked with the hands-free system, sending or receiving call is displayed. For details regard-
ing the hands-free system, refer to the “MULTIMEDIA OWNER’S MANUAL”.

Press: Enter/Set
Press and hold: Reset/Display customizable items, display the cursor

Center display

: 7-inch display

: 12.3-inch display

Displayed content

Components/Operations

2-1. Instrument cluster



Vehicles with a head-up display

Center display
Steering switch

The function of each switch differs depending on the conditions and settings.
When a switch is touched, the function of each switch is displayed.
Also, preferred functions for each switch can be set on the center display.

Switch function change switch

Each time this switch is pressed, the functions will change.

Switch icon display

The icon of each switch will be displayed. The touched switch will be highlighted. (

)

Switch function guide display

The function guide for the touched switch will be displayed.

■

If the steering wheel switches do not

respond when touched (vehicles with a

head-up display)

●

It is easier to make the steering wheel

switches respond by moving your thumb

while touching them.

●

If the surface of a steering wheel switch is

dirty, turn the engine switch off and then

clean the switches.

●

By turning winter glove mode on, the sen-

sitivity of the switch sensors can be

increased. (



P.529)

■

Switching the display of the
multi-information display (7-inch
display)

Press

of the meter control

switch.

To switching content of driving information,
press the

meter control switch

to select

. Then press

Changing the display of the
multi-information display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Changing meter pages (12.3-inch
display)

The meter page (comprised of 3 con-
tent areas) for the display of the
multi-information display can be
selected from 3 meter pages.



Setting on the multi-infromation dis-
play



Vehicles without a head-up display:
Press the

of meter con-

trol switch to change the meter
page.



Vehicles with a head-up display:

Press the

meter control switch to change the
meter page.

: If

is set as a favorite

steering wheel switch function.



Setting on the center display

Select

on the center display.

Select “Vehicle customize”.

Select “Meter”.

Select

of “Display

switching”.

■

Changing the items displayed on
each content area (12.3-inch dis-
play)

The item displayed on each content
area (left/center/right) can be changed
separately.



Vehicles without a head-up display

Press the

of meter con-

trol switch to select a page.

Press and hold “OK” to display the
cursor on the content display area
(center).

Press the

to move the

cursor and select the content dis-
play area.

Press

to select the item.



Vehicles with a head-up display

Press the

meter control switch to select a
page.

2-1. Instrument cluster

Press and hold

to display the cursor on the content
display area (center).

Press the

to move the

cursor and select the content dis-
play area.

Press

to select the item.

: If

is set as a favorite

steering wheel switch function.

Driving related information is dis-
played on the following displays.



Multi-information display



Head-up display (if equipped)



Center display

The items displayed will differ depend-
ing on the display.

The following items can be displayed
on the multi-information display.
Use the displayed values as a refer-
ence only.



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel consumption

: Average fuel economy can be reset on

the history screen of the center display.
(



P.89)

The following items can be displayed
on the multi-information display.



Average vehicle speed



Total driving time

The following items can be displayed
on the multi-information display.



Distance to empty

Displays the driving range with remaining
fuel.



Average fuel economy since start-
ing

Displays the average fuel consumption
since starting.

■

Distance to empty

●

This distance is computed based on your

average fuel consumption. As a result,

the actual distance that can be driven

may differ from that displayed.

●

When only a small amount of fuel is

added to the tank, the display may not be

updated. When refueling, turn the engine

switch off. If the vehicle is refueled with-

out turning the engine switch off, the dis-

play may not be updated.

Eco Driving Indicator can be displayed
on the multi-information display and
the head-up display (If equipped).
This illustration is for explanation only
and may differ depending on the speci-
fications of the vehicle.

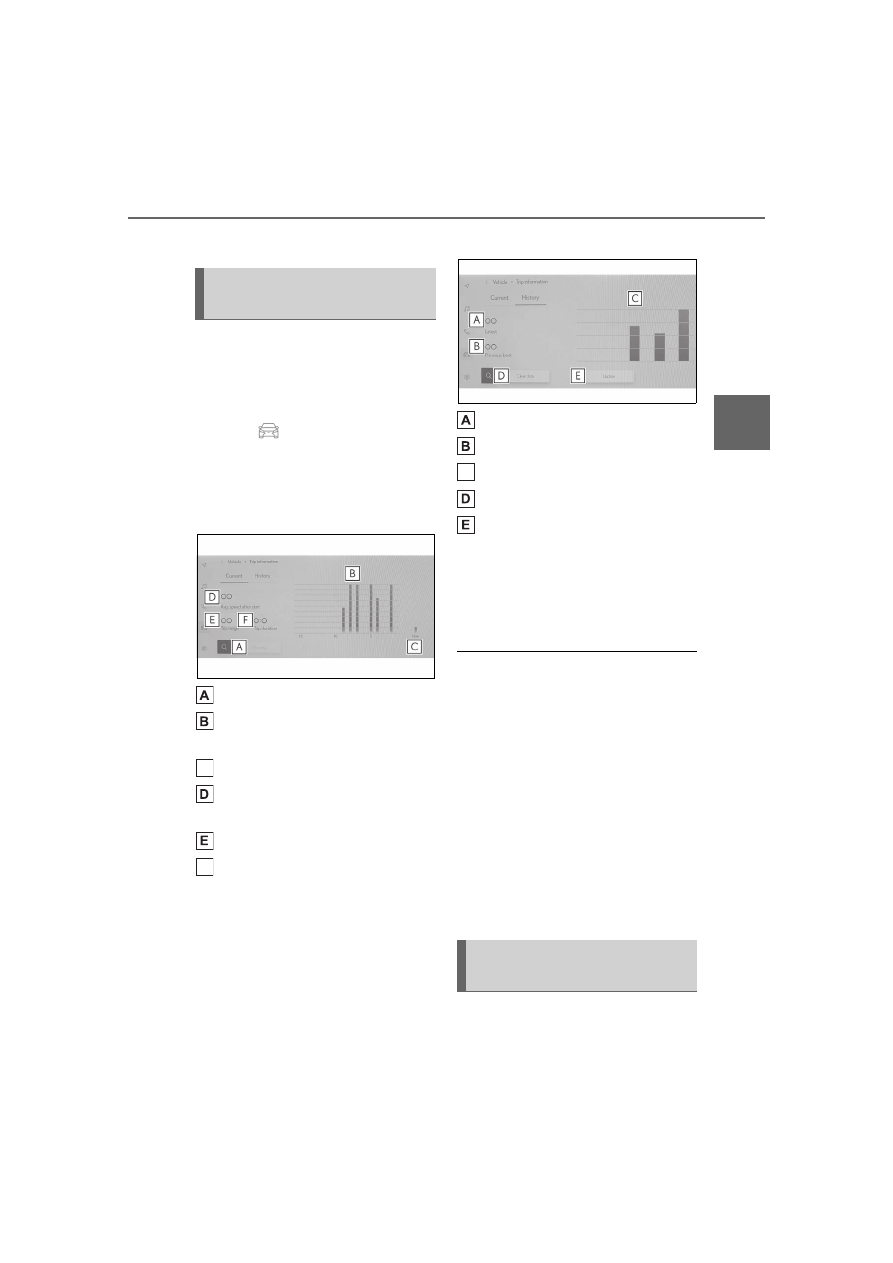

Display of driving information

Fuel consumption

Drive information

Distance to empty/average fuel
economy since starting (7-inch
display)

Eco Driving Indicator

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift position is in any position other

than D.

●

A paddle shift switch is operated.

●

The driving mode is set to sport mode.

●

The driving mode is set to custom mode

and the powertrain control is set to

power. (



P.540)

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

The following items can be displayed
on the multi-information display.

Engine coolant temperature gauge

Displays the engine coolant temperature.

Engine oil temperature gauge

Displays the engine oil temperature. The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (



P.483)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

Boost gauge can be displayed on the
multi-information display.

Engine coolant temperature
gauge/engine oil temperature
gauge/engine oil pressure gauge
(12.3-inch display)

Boost gauge

2-1. Instrument cluster

Displays the boost pressure. The dis-
play will change color if the specified
pressure is exceeded.

Displays lateral G-forces on the vehi-
cle on the multi-information display.
Displays around the periphery of the
G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
Accelerator pedal input
Brake fluid pressure
Left steering amount
Right steering amount

This display is intended for use as a guide-
line. Depending on factors such as the road

surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Resetting the record of maximum
G-forces

The display is reset each time the engine is
started.
Vehicles with a 12.3-inch display and with-
out a head-up display: Press and hold “OK”
of the meter control switch to reset the
record.



Peak hold function

7-inch display: If lateral G-forces of 0.5 G
or greater are generated, the G-force
value display will turn amber and be held
for 2 seconds.
12.3-inch display: If lateral G-forces of 0.5
G or greater are generated, the G-force
value display will be held for 2 seconds.

■

G-force display

●

The G-force values may not be zero even

when the vehicle is parked, such as when

it is parked on an incline.

●

Depending on the vehicle usage condi-

tions, the brake fluid pressure display may

not reach its maximum reading even

though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and

reconnected, the steering amount display

may be disabled temporarily. After driv-

ing the vehicle for a while, the display will

be enabled.

Displays the current shift range or gear
position when the shift position is in D
or M.

Displays no drive information contents

G-force

Gear Position

Blank (No items)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

on the multi-information display.

Fuel consumption information can be
displayed on the center display.

■

Displaying fuel consumption/his-
tory screen on the center display

Select

on the main menu.

Select “Trip information”.

Select “Current” or “History”.

■

Current fuel consumption screen

Resetting the history data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Trip range
Elapsed time since the engine was
started.

Use the displayed average fuel consump-
tion as a reference. The image is an exam-
ple only, and may vary slightly from actual
conditions.

■

History fuel consumption screen

Latest fuel consumption
Best recorded fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

Use the displayed average fuel consump-
tion as a reference. The image is an exam-
ple only, and may vary slightly from actual
conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

AWD operation status display can be
displayed on the center display.

Current fuel consumption/his-
tory screen

AWD operation status display
(AWD models)

Lexus TX350 (2024 year). Manual in english - page 2
