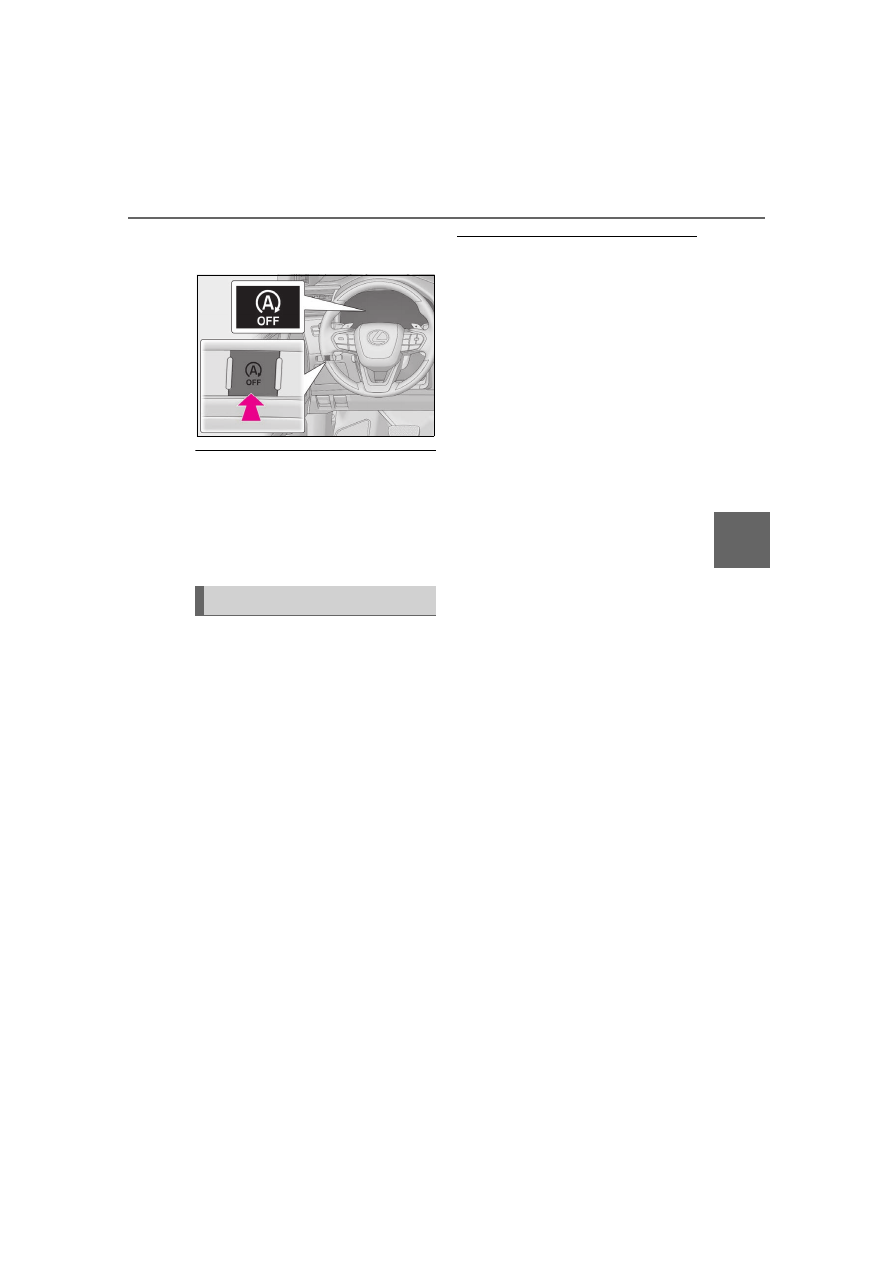

P.188)

●

When the engine is being restarted by

the Stop & Start system, the power out-

lets may be temporarily unusable, but this

does not indicate a malfunction.

●

Installation and removal of electrical

components and wireless devices may

affect the Stop & Start system. Contact

your Lexus dealer for details.

●

When stopping the vehicle for a longer

period of time, turn the engine switch off

to stop the engine completely.

●

When the engine is stopped by the Stop

& Start system, the steering wheel feel

heavy.

●

While driving in L4 mode, it is recom-

mended that the Stop & Start system be

canceled because the system may not

operate properly.

■

Operating conditions

●

The Stop & Start system is operational

when all of the following conditions are

met:

• The vehicle has been driven a certain

amount of time.

• The brake pedal is being depressed

firmly.

(Except when the vehicle is stopped by the
dynamic radar cruise control with full-
speed range when in vehicle-to-vehicle dis-
tance control mode)
• The D shift position is selected.

• The driver’s seat belt is fastened.

• The driver’s door is closed.

• The center differential is not locked.

• The Multi-terrain Select is not operated.

• The windshield defogger is off.

• The accelerator pedal is not being

depressed.

• The engine is adequately warmed up.

• The hood is closed. (

P.254)

Hill-start assist control

254

4-5. Using the driving support systems

●

In the following situations the engine may

not be stopped by the Stop & Start sys-

tem. This is not a malfunction of the Stop

& Start system.

• When the air conditioning system is

being used.

• When the battery is undergoing a peri-

odic recharge.

• When the battery is not sufficiently

charged, such as if the vehicle has been

parked for a long time and the battery

charge has decreased, the electric load is

large, the battery fluid temperature is

excessively low or the battery has deteri-
orated.

• When the elapsed time since the engine

was restarted is short.

• When the vehicle is stopped frequently,

such as when in a traffic jam.

• When the engine coolant temperature or

transmission fluid temperature is

extremely low or high.

• When the vehicle is stopped on a steep

incline.

• When the vehicle is being driven in a high

altitude area.

• When the battery fluid temperature is

extremely low or high.

• For a while after the battery terminals

have been disconnected and recon-

nected.

: The state that the engine is not stopped

may continue.

●

When the engine is stopped by the Stop

& Start system, the engine will be

restarted automatically if any of the fol-

lowing conditions are met:

(To enable the engine to be stopped by the
Stop & Start system again, drive the vehi-
cle.)
• The air conditioning system is being used.

• The windshield defogger is turned on.

• The shift lever is shifted from D or P.

• The shift lever is shifted from P. (When

the engine is stopped by the Stop & Start

system when the shift lever is in P.)

• The driver’s seat belt is unfastened.

• The driver’s door is opened.

• The center differential is locked.

• The Multi-terrain Select is operated.

• The Stop & Start cancel switch is pressed.

• The accelerator pedal is depressed.

• The vehicle starts to roll on an incline.

●

When the engine is stopped by the Stop

& Start system, the engine may restart

automatically in the following situations:

(To enable the engine to be stopped by

the Stop & Start system again, drive the

vehicle.)

• When the air conditioning system is

being used.

• When a switch of the air conditioning sys-

tem is operated (windshield defogger

switch, etc.).

• If the battery charge becomes low.

■

When the hood is opened

●

If the hood is opened while the engine is

stopped by the Stop & Start system, the

engine will stall and will not be able to be

restarted by the automatic engine start

function. In this case, restart the engine

using the normal engine starting proce-

dure. (

P.188)

●

If the hood is closed after the engine is

started with the hood open, the Stop &

Start system will not operate. Close the

hood, turn the engine switch off, wait 30

seconds or more, and then start the

engine.

■

Air conditioning system operation while

the engine is stopped by the Stop &

Start system

When the air conditioning is in automatic

mode and the engine is stopped by the Stop

& Start system, the fan may operate at a low

speed in order to prevent the temperature

in the cabin from increasing or decreasing

or may be stopped.
To prioritize air conditioning system perfor-

mance when the vehicle is stopped, disable

the Stop & Start system by pressing the

Stop & Start cancel switch.

●

If the windshield is fogged up

Turn the windshield defogger on.
(

P.388)

If the windshield fogs up frequently, press
the Stop & Start cancel switch to disable the
Stop & Start system.

●

If an odor is emitted from the air condi-

255

4-5. Using the driving support systems

Driving

tioning system

Press the Stop & Start cancel switch to
deactivate the Stop & Start system.

■

Changing the idling stop time with the

air conditioning system on

The length of time the Stop & Start system
will operate when the air conditioning sys-
tem is on can be changed in

of the

multi-information display (

P.82). (The

length of time the Stop & Start system will
operate when the air conditioning system is
off cannot be changed.)

■

Displaying the Stop & Start system sta-

tus

P.82

■

Multi-information display messages

If the following situations,

and a mes-

sage may be displayed on the multi-infor-
mation display.

●

When the engine cannot be stopped by

the Stop & Start system

“Press Brake More to Activate”

• The brake pedal is not sufficiently

depressed.



If the brake pedal is depressed further,

the system will operate.

“Non-dedicated Battery”

• A battery not designed for use with a

Stop & Start system may have been

installed.



Have the vehicle inspected by your

Lexus dealer.

“Battery Charging”

• The battery charge may be low.



Stopping of the engine is temporarily

prohibited to prioritize charging of the bat-
tery. After the engine runs for a certain
amount of time, the system will be enabled.
• A refresh charge may be occurring



After a refresh charge for up to an hour

completes, the system can be operated.
• If displayed continuously for a long time

(more than an hour)



The battery may be deteriorated. Con-

tact your Lexus dealer for details.

“Stop & Start System Unavailable”

• The Stop & Start system is temporarily

disabled.



Allow the engine to run for some time.

• The engine may have been started with

the hood open.



Close the hood, turn the engine switch

off, wait for 30 seconds or more, and then
start the engine.

“For Climate Control”

• The air conditioning system is being used

when the ambient temperature is high or

low.



If the difference between the set tem-

perature and cabin temperature becomes
small, the system will be enabled.
• The windshield defogger is on.

●

When the engine automatically restarts

while stopped by the Stop & Start system

“For Climate Control”

• The air conditioning system is being used.

• The windshield defogger has been

turned on.

“Battery Charging”

• The battery charge may be low.



The system will be enabled after the

engine runs to sufficiently charge the bat-
tery.

■

When the buzzer sounds

If the driver’s door is opened when the

engine is stopped by the Stop & Start sys-

tem and the shift lever is in D, a buzzer will

sound and the Stop & Start system indicator

will flash. To stop the buzzer, close the

driver’s door.

■

The Stop & Start system protection

function

●

When the volume of the audio system is

256

4-5. Using the driving support systems

excessively high, sound output from the

audio system may suddenly be cut off in

order to reduce battery consumption. To

prevent the audio system from being cut

off, keep the volume of audio system at a

moderate level. If the audio system has

been cut off, turn the engine switch off,

wait for 3 seconds or more and then turn

it to ACC or ON to re-enable the audio

system.

●

The audio system may not be activated if

the battery terminals are disconnected

and then reconnected. If this occurs, turn

the engine switch off and then repeat the

following operation twice to activate the

audio system normally.

• Turn the engine switch to ON and then to

off.

■

Replacing the battery

P.527

■

If the Stop & Start cancel indicator

flashes continuously

The system may be malfunctioning. Have

the vehicle inspected by your Lexus dealer.

■

If “Stop & Start System Malfunction

Visit Your Dealer” is displayed on the

multi-information display

The system may be malfunctioning. Have

the vehicle inspected by your Lexus dealer.

WARNING

■

When the Stop & Start system is

operating

Make sure to disable the Stop & Start

system while the vehicle is in a poorly

ventilated area.
If not disabled, the engine may be auto-

matically restarted unexpectedly, caus-

ing exhaust gases to collect and enter the

vehicle, possibly resulting in death or a

serious health hazard.

●

Do not leave the vehicle while the

engine is stopped by the Stop & Start

system (while the Stop & Start indica-

tor is on). An accident may occur due

to the automatic engine start function.

●

Depress the brake pedal and apply the

parking brake when necessary while

the engine is stopped by the Stop &

Start system (while the Stop & Start

indicator is on).

NOTICE

■

To ensure the system operates cor-

rectly

If any of the following situations occur,

the Stop & Start system may not operate

correctly. Have your vehicle inspected

by your Lexus dealer.

●

While the driver’s seat belt is fastened,

the driver’s and front passenger’s seat

belt reminder light flashes.

●

Even though the driver’s seat belt is

not fastened, the driver’s and front

passenger’s seat belt reminder light

does not illuminate.

●

Even though the driver’s door is

closed, the open door warning light is

illuminated or the interior light is illumi-

nated when the interior light switch is

in the door position.

●

Even though the driver’s door is open,

the open door warning light does not

illuminate or the interior light does not

illuminate when the interior light switch

is in the door position.

257

4-5. Using the driving support systems

Driving

Meter control switches

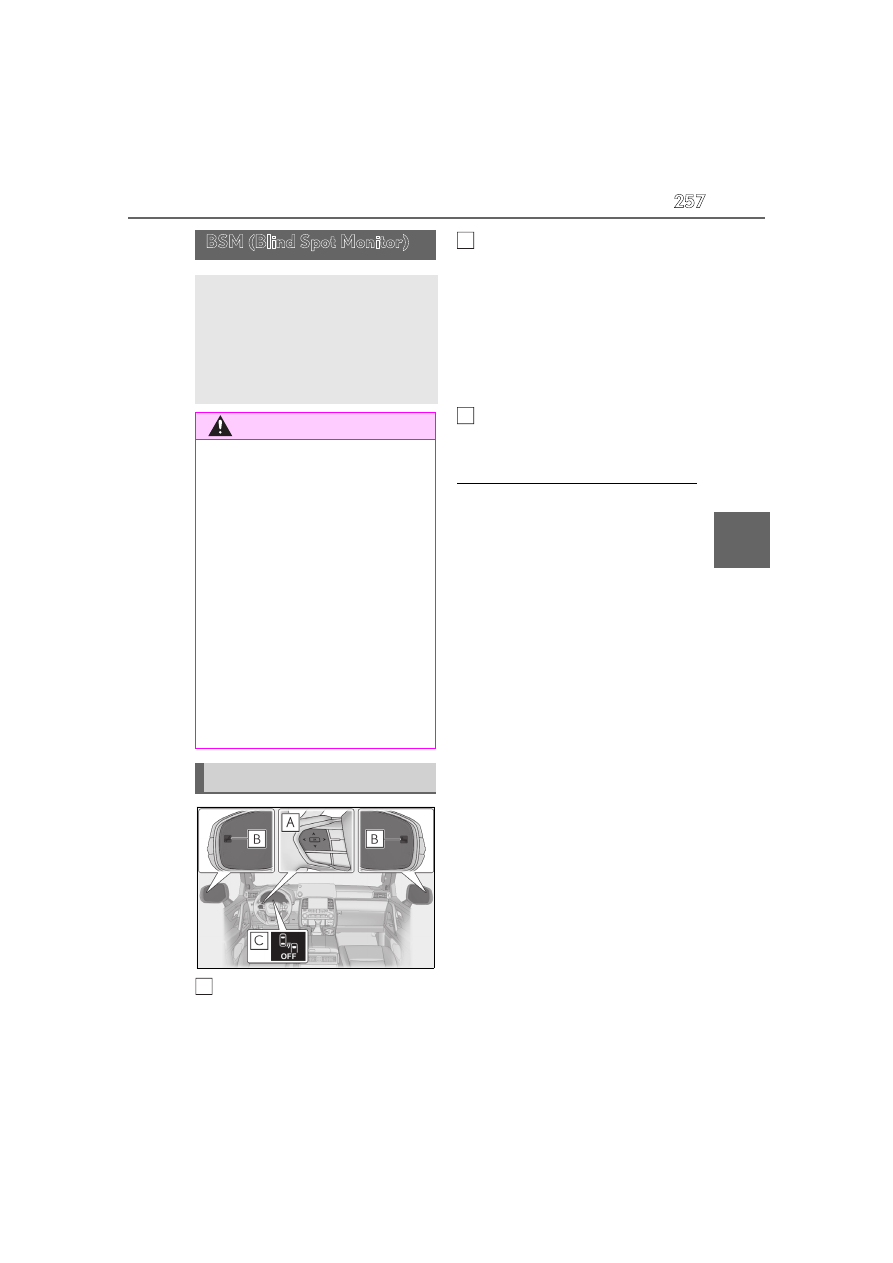

Turning the Blind Spot Monitor on/off.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator flashes.

BSM OFF indicator

Illuminates when the Blind Spot Monitor is
disabled.

■

Outside rear view mirror indicators visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

When “Blind Spot Monitor Unavailable

See Owner’s Manual” is shown on the

multi-information display

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors.

(

P.258)

The system should return to normal opera-

tion after removing the ice, snow, mud, etc.,

from the rear bumper. Additionally, the sen-

sors may not operate normally when driving

in extremely hot or cold environments.

■

When “Blind Spot Monitor Malfunction

Visit Your Dealer” is shown on the multi-

information display

There may be a sensor malfunction or mis-

aligned. Have the vehicle inspected at a

Lexus dealer.

■

Customization

Some functions can be customized. (Cus-

tomizable features:



P.561)

BSM (Blind Spot Monitor)

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

■

Cautions regarding the use of the

system

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.

The Blind Spot Monitor is a supplemen-

tary function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the Blind Spot Monitor. As

the function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s

own visual confirmation of safety is nec-

essary.

System components

258

4-5. Using the driving support systems

Use the meter control switches to turn
on/off the function. (

Press the meter control switch to
select .

Press the meter control switch to
select

and then press

When the BSM function is disabled, the

BSM OFF indicator illuminates. (Each time

the engine switch is turned to OFF then

changed to ON, the Blind Spot Monitor

will be enabled automatically.)

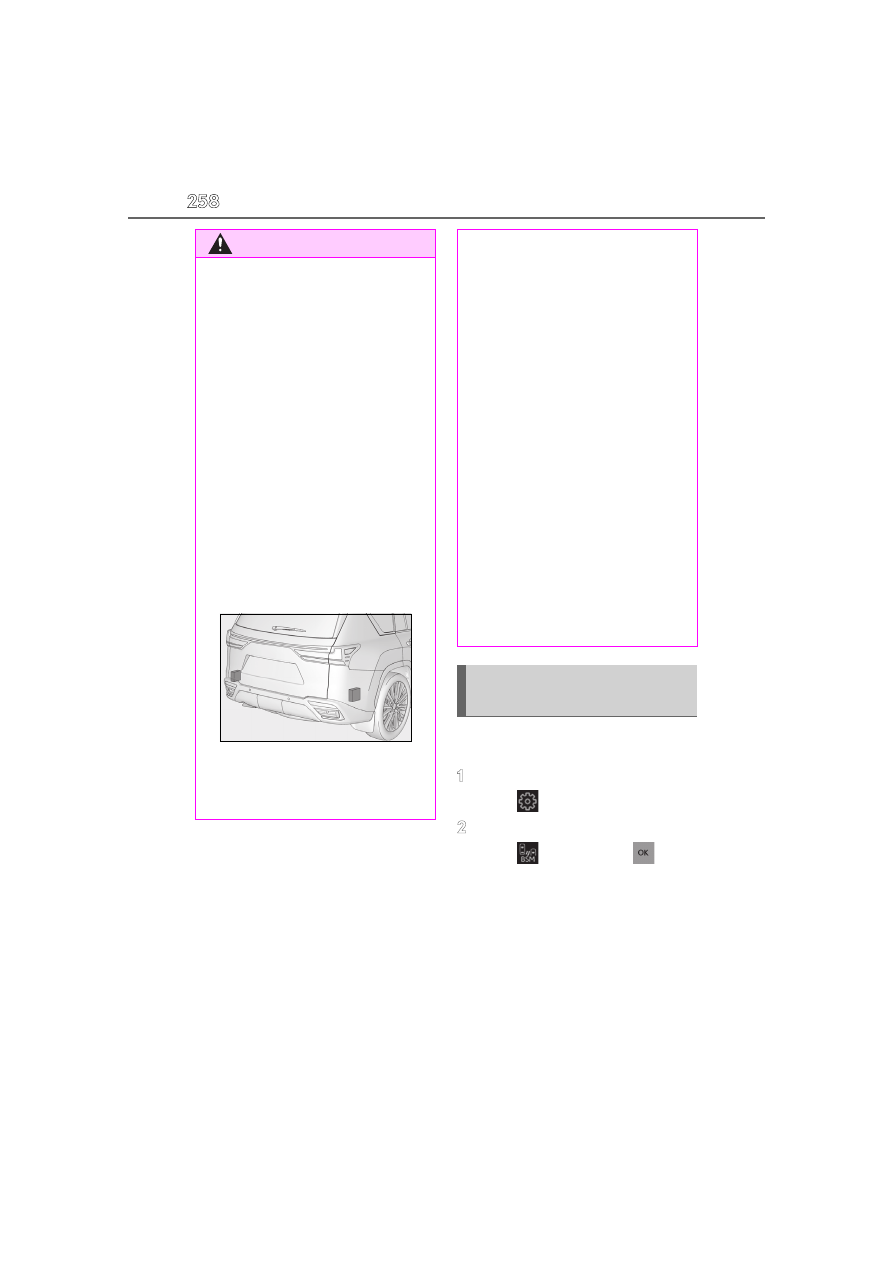

WARNING

■

To ensure the system can operate

properly

Blind Spot Monitor sensors are installed

inside the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can function correctly.

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(



P.257) will be displayed. In this sit-

uation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(



P.260) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by your Lexus dealer.

●

Do not attach accessories, stickers

(including transparent stickers), alumi-

num tape, etc. to a sensor or its sur-

rounding area on the rear bumper.

●

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

If a sensor or the rear bumper needs to

be removed/installed or replaced,

contact your Lexus dealer.

●

Do not paint the rear bumper any

color other than an official Lexus color.

Turning the Blind Spot Monitor
on/off

259

4-5. Using the driving support systems

Driving

■

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

Blind Spot Monitor operation

A
B
C
D

260

4-5. Using the driving support systems

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position other than R.

●

The vehicle speed is greater than

approximately 6 mph (10 km/h).

■

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in an adjacent

lane slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Conditions under which the system will

not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles

and/or objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

●

Following vehicles that are in the same
lane

●

Vehicles traveling 2 lanes away from
your vehicle

●

Vehicles which are being overtaken rap-

idly by your vehicle

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Conditions under which the system may

not function correctly

●

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc., is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the

vehicle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When towing a trailer

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

●

Instances of the Blind Spot Monitor

261

4-5. Using the driving support systems

Driving

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc., that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

■

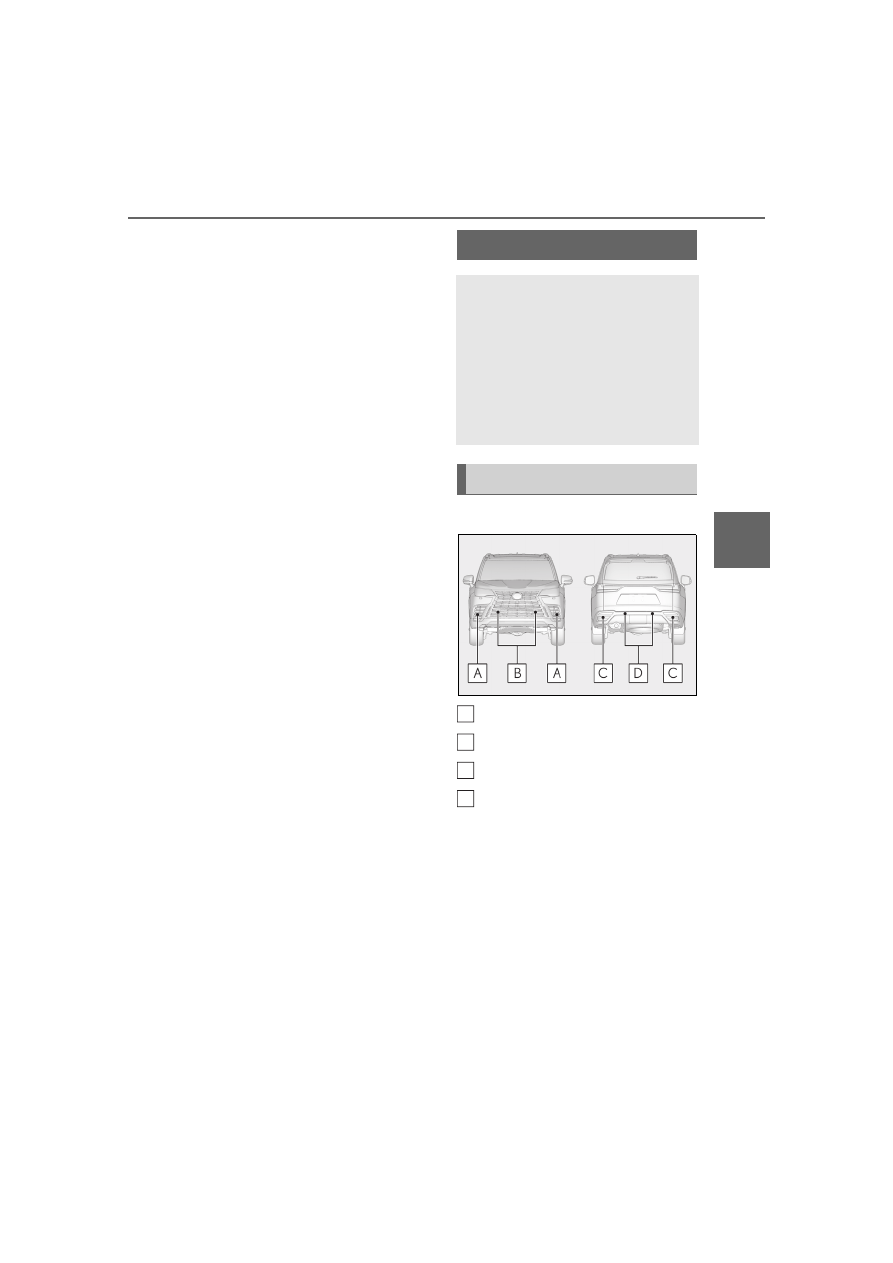

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

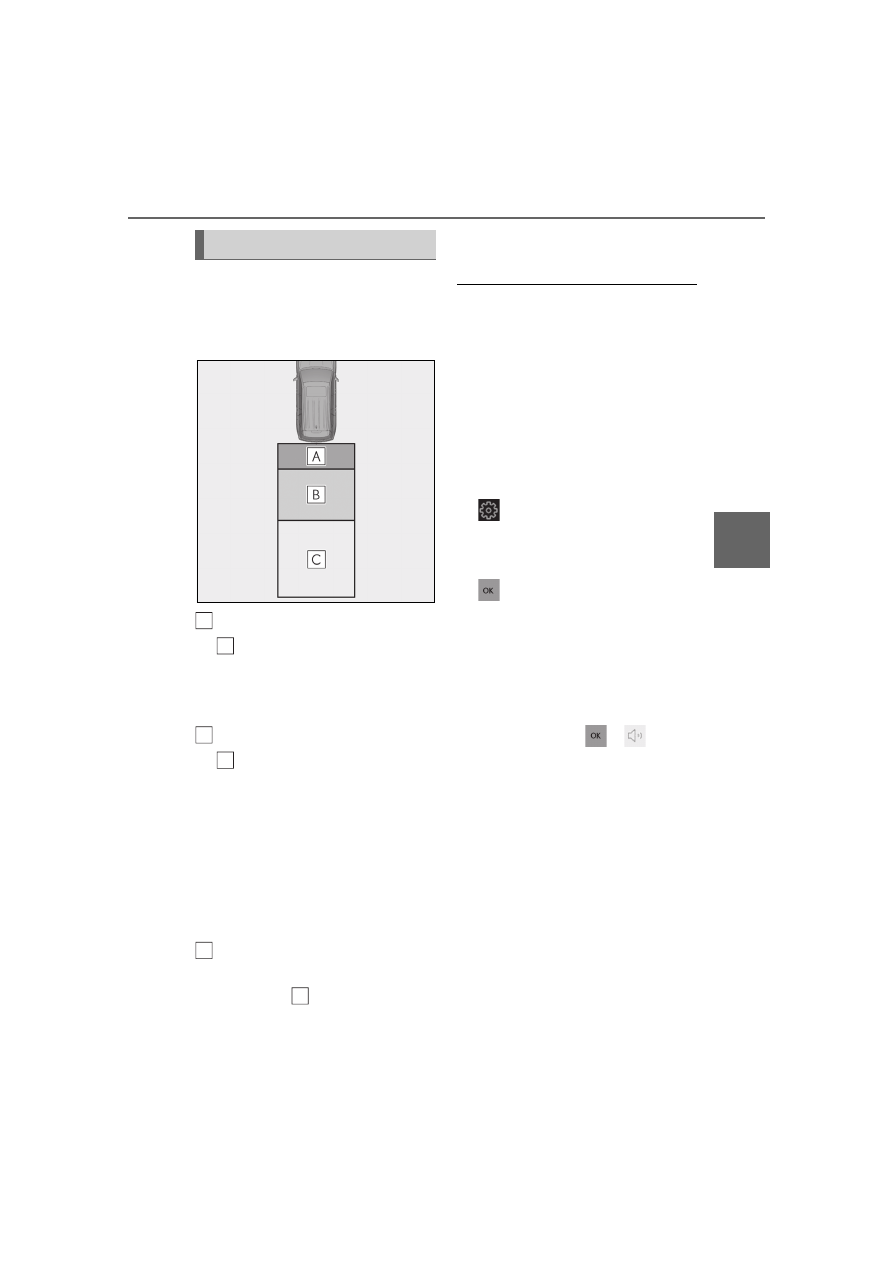

Display (Multimedia Display)

When the sensors detect an object,
such as a wall, a graphic is shown on
the Multimedia Display depending on
the position and distance to the object.
(As the distance to the object becomes
short, the distance segments may
blink.)
A simplified image is displayed on the
screen when an obstacle is detected

Intuitive parking assist

The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the Multi-
media Display and a buzzer. Always
check the surrounding area when
using this system.

System components

A
B
C
D

262

4-5. Using the driving support systems

while magnified display is shown.
(



P.287)

Use the meter control switches to turn
on/off the function. (



Press the meter control switch to
select .

Press the meter control switch to
select

and then press

When the intuitive parking assist function is
disabled, the intuitive parking assist OFF
indicator (



P.76) illuminates on the multi-

information display.

To re-enable the system, select

on the

multi-information display, select

and

turn it on.
If the system is disabled, it will remain off
even if the engine switch is turned to ON
after the engine switch has been turned off.

Turning intuitive parking assist
on/off

WARNING

■

Cautions regarding the use of the

system

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

■

To ensure the system can operate

properly

Observe the following precautions.
Failing to do so may result in the vehicle
being unable to be driven safely and pos-
sibly cause an accident.

●

Do not damage the sensors, and

always keep them clean.

●

Do not attach a sticker or install an

electronic component, such as a back-

lit license plate (especially fluorescent

type), fog lights, fender pole or wire-

less antenna near a radar sensor.

●

Do not subject the surrounding area of

the sensor to a strong impact. If sub-

jected to an impact, have the vehicle

inspected by your Lexus dealer. If the

front or rear bumper needs to be

removed/installed or replaced, con-

tact your Lexus dealer.

●

Do not modify, disassemble or paint

the sensors.

●

Do not attach a license plate cover.

●

Keep your tires properly inflated.

■

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

●

Failing to observe the warnings above.

●

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

●

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

263

4-5. Using the driving support systems

Driving

■

The system can be operated when

●

The engine switch is in ON.

●

Intuitive parking assist function is on.

●

The vehicle speed is less than about 6

mph (10 km/h).

●

The shift lever is in other than P.

■

If “Parking Assist Unavailable” is dis-

played on the multi-information display

●

A sensor may be covered with water

drops, ice, snow, dirt, etc. Remove the

water drops, ice, snow, dirt, etc., from the

sensor to return the system to normal.

Also, due to ice forming on a sensor at

low temperatures, a warning message

may be displayed or the sensor may not

be able to detect an object. Once the ice

melts, the system will return to normal.

If a warning message is displayed even if

the sensor is clean, there may be a sensor

malfunction. Have the vehicle inspected

by your Lexus dealer.

●

Water may be continuously flowing over

the sensor surface, such as in a heavy

rain. When the system determines that it

is normal, the system will return to nor-

mal.

■

Sensor detection information

●

The sensor’s detection areas are limited

to the areas around the vehicle’s front

and rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• Detection may be impossible if static

objects draw too close to the sensor.

• There will be a short delay between static

object detection and display (warning

buzzer sounds). Even at low speeds,

there is a possibility that the object will

come within 11.9 in. (30 cm) before the

display is shown and the warning buzzer

sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the sound of this

system due to the buzzers of other sys-

tems.

■

Objects which the system may not prop-

erly detect

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials that

absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

■

Situations in which the system may not

operate properly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

●

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

●

When a sensor or the area around a sen-

sor is extremely hot or cold.

WARNING

●

When using steam to clean the vehi-

cle, do not direct steam too close to

the sensors as doing so may cause a

sensor to malfunction.

264

4-5. Using the driving support systems

●

On an extremely bumpy road, on an

incline, on gravel, or on grass.

●

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle.

●

A sensor is coated with a sheet of spray

or heavy rain.

●

If objects draw too close to the sensor.

●

When a pedestrian is wearing clothing

that does not reflect ultrasonic waves (ex.

skirts with gathers or frills).

●

When objects that are not perpendicular

to the ground, not perpendicular to the

vehicle traveling direction, uneven, or

waving are in the detection range.

●

Strong wind is blowing.

●

When driving in inclement weather such

as fog, snow or a sandstorm.

●

When an object that cannot be detected

is between the vehicle and a detected

object.

●

If an object such as a vehicle, motorcycle,

bicycle or pedestrian cuts in front of the

vehicle or runs out from the side of the

vehicle.

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow.

●

If the front of the vehicle is raised or low-

ered due to the carried load.

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning.

●

When tire chains, a compact spare tire or

an emergency tire puncture repair kit are

used.

■

Situations in which the system may

operate even if there is no possibility of a

collision

In some situations, such as the following, the

system may operate even though there is

no possibility of a collision.

●

When driving on a narrow road

●

When driving toward a banner, flag, low-

hanging branch or boom barrier (such as

those used at railroad crossings, toll

gates and parking lots)

●

When there is a rut or hole in the surface

of the road

●

When driving on a metal cover (grating),

such as those used for drainage ditches

●

When driving up or down a steep slope

●

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road

●

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is coated with a sheet of spray

or heavy rain

●

When driving in inclement weather such

as fog, snow or a sandstorm

●

When strong winds are blowing

265

4-5. Using the driving support systems

Driving

●

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

The vehicle is approaching a tall or

curved curb

●

Driving close to columns (H-shaped steel

beams, etc.) in multi-story parking

garages, construction sites, etc.

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning

●

On an extremely bumpy road, on an

incline, on gravel, or on grass

●

When tire chains, a compact spare tire or

an emergency tire puncture repair kit are

used.

■

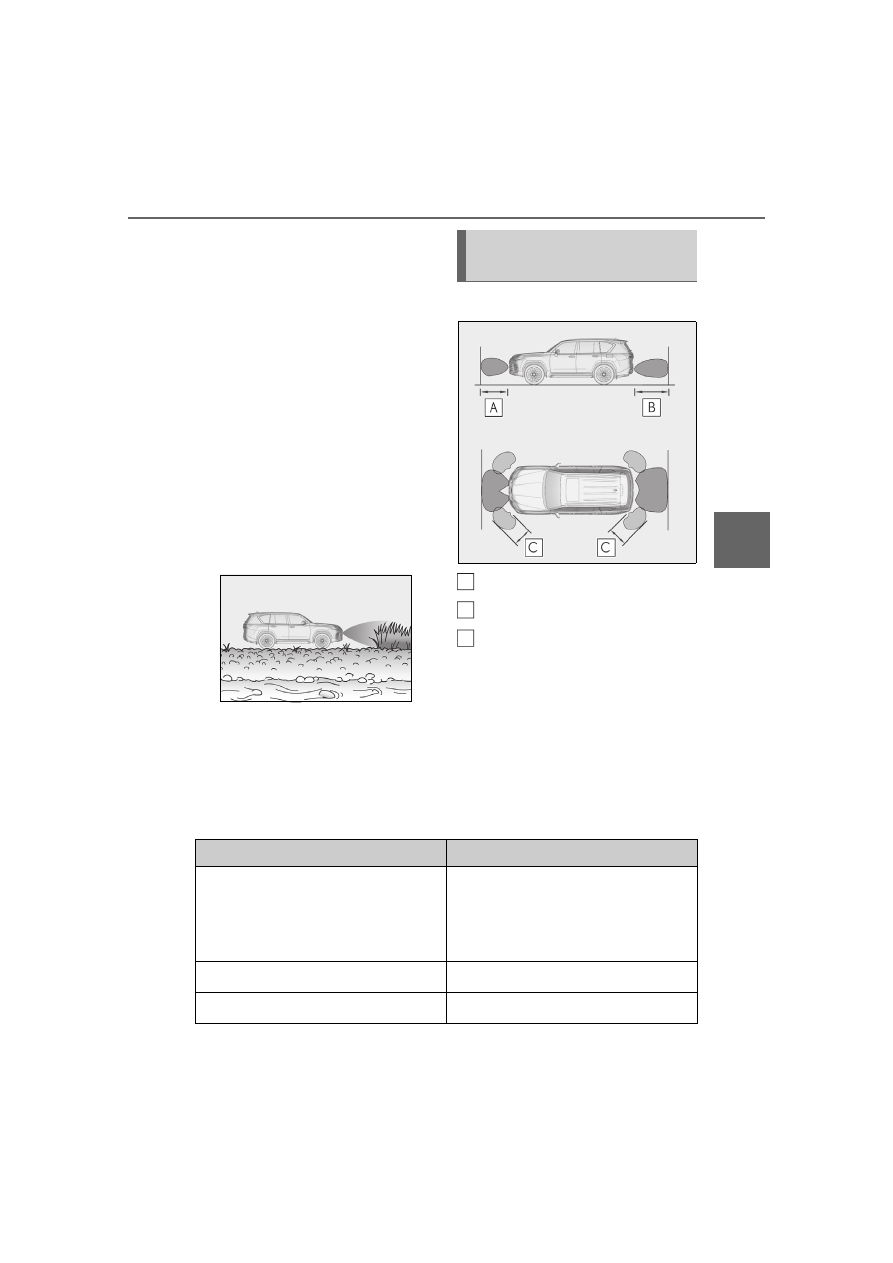

Detection range of the sensors

Approximately 3.3 ft. (100 cm)

Approximately 4.9 ft. (150 cm)

Approximately 2.0 ft. (60 cm)

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect objects that are
extremely close to the vehicle.
The range of the sensors may change
depending on the shape of the object,
etc.

■

The distance and buzzer

Sensor detection display, object
distance

A
B
C

Approximate distance to obstacle

Buzzer

Front sensor:
3.3 ft. to 2.0 ft. (100 cm to 60 cm)

Rear sensor:
4.9 ft. to 2.0 ft. (150 cm to 60 cm)

Slow

2.0 ft. to 1.5 ft. (60 cm to 45 cm)

Medium

1.5 ft. to 1.0 ft. (45 cm to 30 cm)

Fast

266

4-5. Using the driving support systems

: Automatic buzzer mute function is enabled. (

P.266)

■

Buzzer operation and distance to
an object

A buzzer sounds when the sensors are
operating.



The buzzer beeps faster as the vehi-
cle approaches an object.
When the vehicle comes within
approximately 1.0 ft. (30 cm) of the
object, the buzzer sounds continu-
ously.



When 2 or more sensors simultane-
ously detect a static object, the
buzzer sounds for the nearest
object.



Even when the sensors are operat-
ing, the buzzer will be muted in
some situations. (automatic buzzer
mute function)

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display.
Use the meter control switches to
change settings. (



Press the meter control switch to
select .

Press the meter control switch to
select “Vehicle Settings”.

Select “

Volume” and then press

Each time the switch is pressed, the vol-

ume level will change between 1, 2, and 3.

■

Muting a buzzer

A mute button will be displayed on the
multi-information display and Multime-
dia Display when an object is detected.
To mute the buzzer, press

The buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be muted simultaneously.
Mute will be canceled automatically in
the following situations:



When the shift lever is changed.



When the vehicle speed exceeds a
certain speed.



When there is a malfunction in a
sensor or the system is temporarily
unavailable.



When the operating function is dis-
abled manually.



When the engine switch is turned
off.

1.0 ft. to 0.5 ft. (30 cm to 15 cm)

Continuous

Less than 0.5 ft. (15 cm)

Approximate distance to obstacle

Buzzer

267

4-5. Using the driving support systems

Driving

Meter control switches

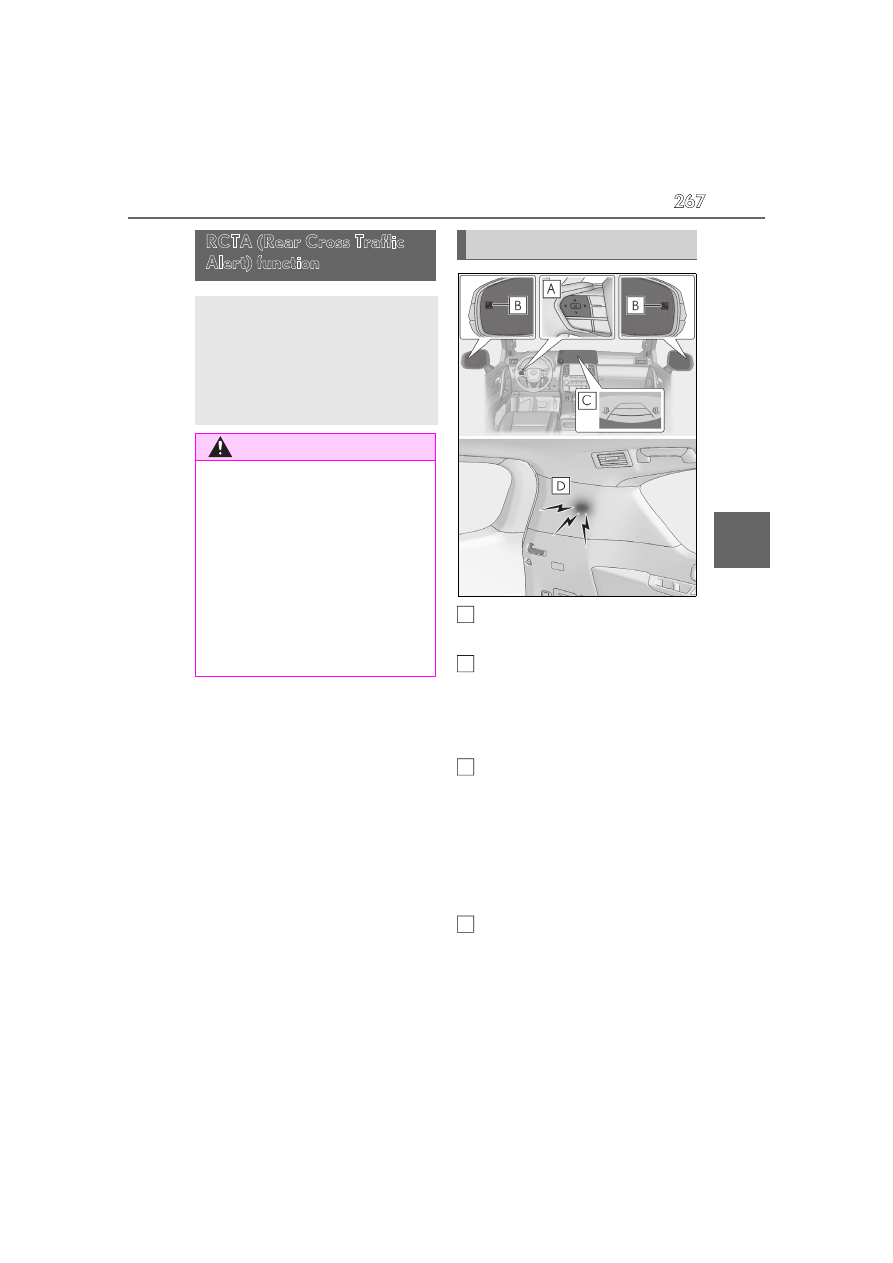

Turning the RCTA function on/off.

Outside rear view mirror indicators

When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

Multimedia Display

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (



P.268) for the detected

side will be displayed on the Multimedia
Display. This illustration shows an example
of a vehicle approaching from both sides of
the vehicle.

RCTA buzzer

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound.

RCTA (Rear Cross Traffic
Alert) function

The RCTA function uses the BSM
rear side radar sensors installed
behind the rear bumper. This func-
tion is intended to assist the driver
in checking areas that are not easily
visible when backing up.

WARNING

■

Cautions regarding the use of the

system

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely. (



P.257)

■

To ensure the system can operate

properly



System components

268

4-5. Using the driving support systems

Use the meter control switches to
enable/disable the RCTA function.
(



Press the meter control switch to
select .

Press the meter control switch to
select “RCTA” and then press

When the RCTA function is disabled, the

RCTA OFF indicator (



P.76) illumi-

nates. (Each time the engine switch is

turned to OFF then changed to ON, the

RCTA function will be enabled automati-

cally.)

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

■

When “Rear Cross Traffic Alert

Unavailable See Owner’s Manual” is

shown on the multi-information display

The sensor voltage has become abnormal,

or water, snow, mud, etc., may be built up in

the vicinity of the sensor area of the position

above the rear bumper. (



P.258)

Removing the water, snow, mud, etc., from

the vicinity of the sensor area should return

it to normal. Also, the sensor may not func-

tion normally when used in extremely hot or

cold weather.

■

When “Rear Cross Traffic Alert Mal-

function Visit Your Dealer” is shown on

the multi-information display

There may be a sensor malfunction or mis-

aligned. Have the vehicle inspected at your

Lexus dealer.

■

Radar sensors



■

Operation of the RCTA function

The RCTA function uses radar sensors
to detect vehicles approaching from
the right or left at the rear of the vehicle
and alerts the driver of the presence of
such vehicles by flashing the outside
rear view mirror indicators and sound-
ing a buzzer.

Approaching vehicles

Detection areas of approaching
vehicles

■

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Multimedia Display.



This illustration shows an example of
a vehicle approaching from both
sides of the vehicle

Turning the RCTA function
on/off

RCTA function

A
B

269

4-5. Using the driving support systems

Driving

■

RCTA function detection areas

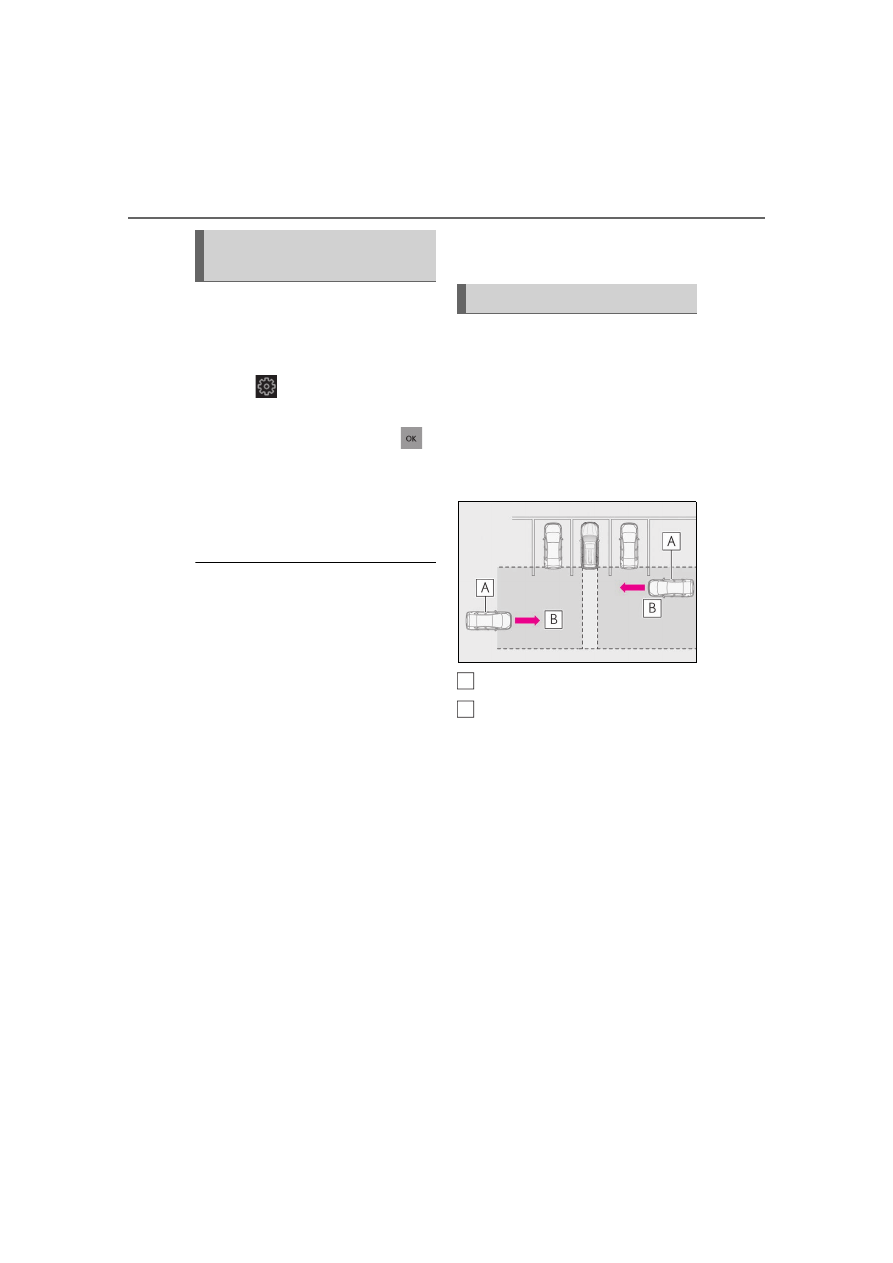

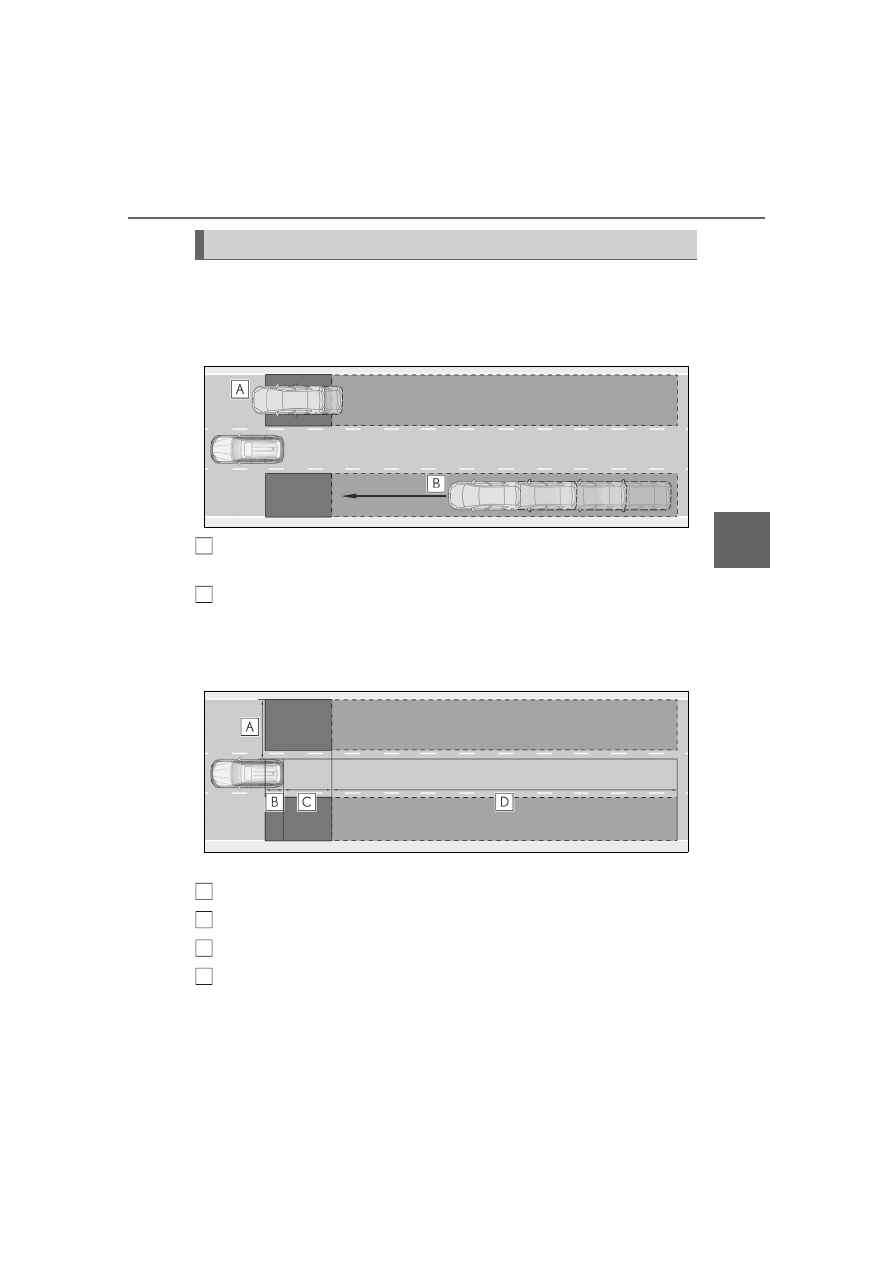

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

■

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

●

The engine switch is in ON.

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is less than approxi-

mately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8 km/h)

and 18 mph (28 km/h).

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display.
Use the meter control switches to change

settings. (

Press the meter control switch to select

“Vehicle Settings”.

Select “RCTA Volume” and then press

Each time the switch is pressed, the volume

level will change between 1, 2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed on the
multi-information display and Multimedia
Display when vehicles or objects are
detected. To mute the buzzer, press

The buzzers for the intuitive parking assist,
RCTA function and RCD function will be
muted simultaneously.
Mute will be canceled automatically in the
following situations:

●

When the shift lever is changed.

●

When the vehicle speed exceeds a cer-

tain speed.

●

When there is a malfunction in a sensor

or the system is temporarily unavailable.

●

When the operating function is disabled

manually.

●

When the engine switch is turned off.

■

Conditions under which the system will

not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles

and/or objects:

●

Vehicles approaching from directly

Approaching vehi-

cle speed

Approximate

alert distance

18 mph (28 km/h)

(fast)

65 ft. (20 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

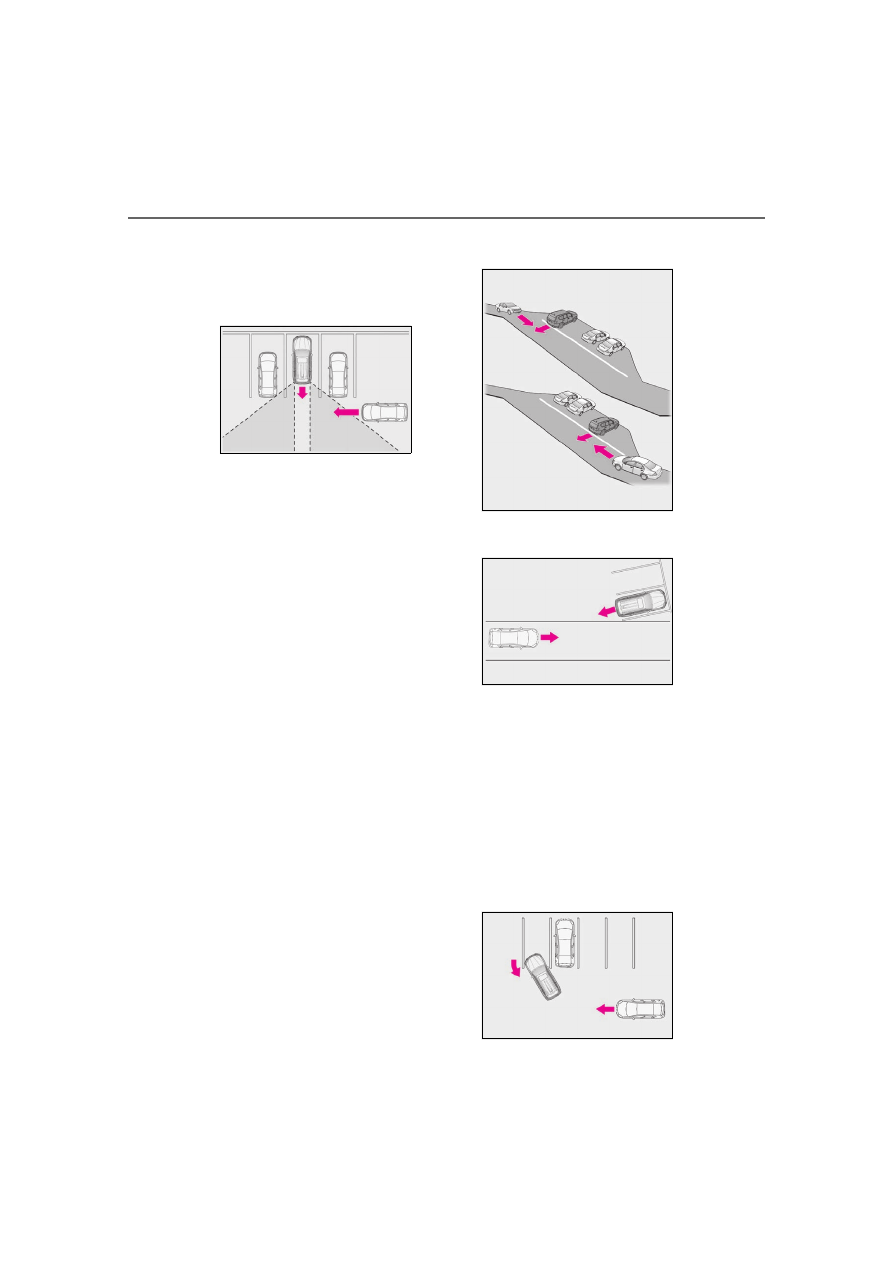

270

4-5. Using the driving support systems

behind

●

Vehicles backing up in a parking space

next to your vehicle

●

Vehicles that the sensors cannot detect

due to obstructions

●

Guardrails, walls, signs, parked vehicles

and similar stationary objects

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking

spaces next to your vehicle

●

The distance between the sensor and

approaching vehicle gets too close

: Depending on conditions, detection of a

vehicle and/or object may occur.

■

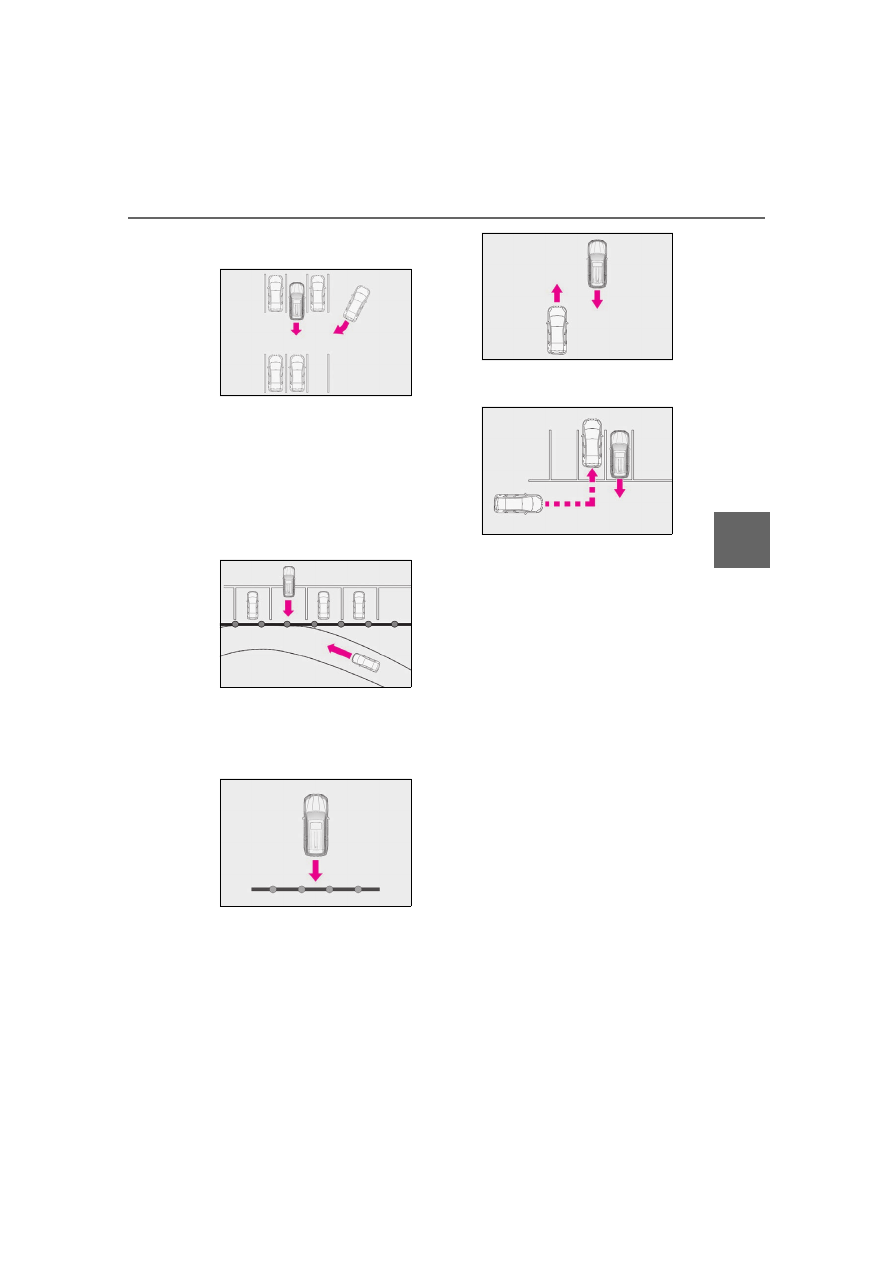

Situations in which the system may not

operate properly

The RCTA function may not detect vehicles

correctly in the following situations:

●

When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

●

When mud, snow, ice, a sticker, etc., is

covering the sensor or surrounding area

on the rear bumper

●

When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

●

When multiple vehicles are approaching

with only a small gap between each vehi-

cle

●

When a vehicle is approaching at high

speed

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When backing up on a slope with a sharp

change in grade

●

When backing out of a sharp angle park-

ing spot

●

When towing a trailer

●

When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

When turning while backing up

271

4-5. Using the driving support systems

Driving

●

When a vehicle turns into the detection

area

■

Situations in which the system may

operate even if there is no possibility of a

collision

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object may

increase in the following situations:

●

When the parking space faces a street

and vehicles are being driven on the

street

●

When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the side of your

vehicle

●

When a detected vehicle turns while

approaching the vehicle

●

When there are spinning objects near

your vehicle such as the fan of an air con-

ditioning unit

●

When water is splashed or sprayed

toward the rear bumper, such as from a

sprinkler

●

Moving objects (flags, exhaust fumes,

large rain droplets or snowflakes, rain

water on the road surface, etc.)

●

When the distance between your vehicle

and a guardrail, wall, etc., that enters the

detection area is short

●

Gratings and gutters

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

272

4-5. Using the driving support systems

Pedestrian detection icon

Displayed automatically when a pedestrian
is detected.

Use the meter control switches to
enable/disable the RCD function.
(

Press the meter control switch to
select .

Press the meter control switch to
select “RCD” and then press

When the RCD function is disabled, the

RCD OFF indicator (

P.76) illuminates.

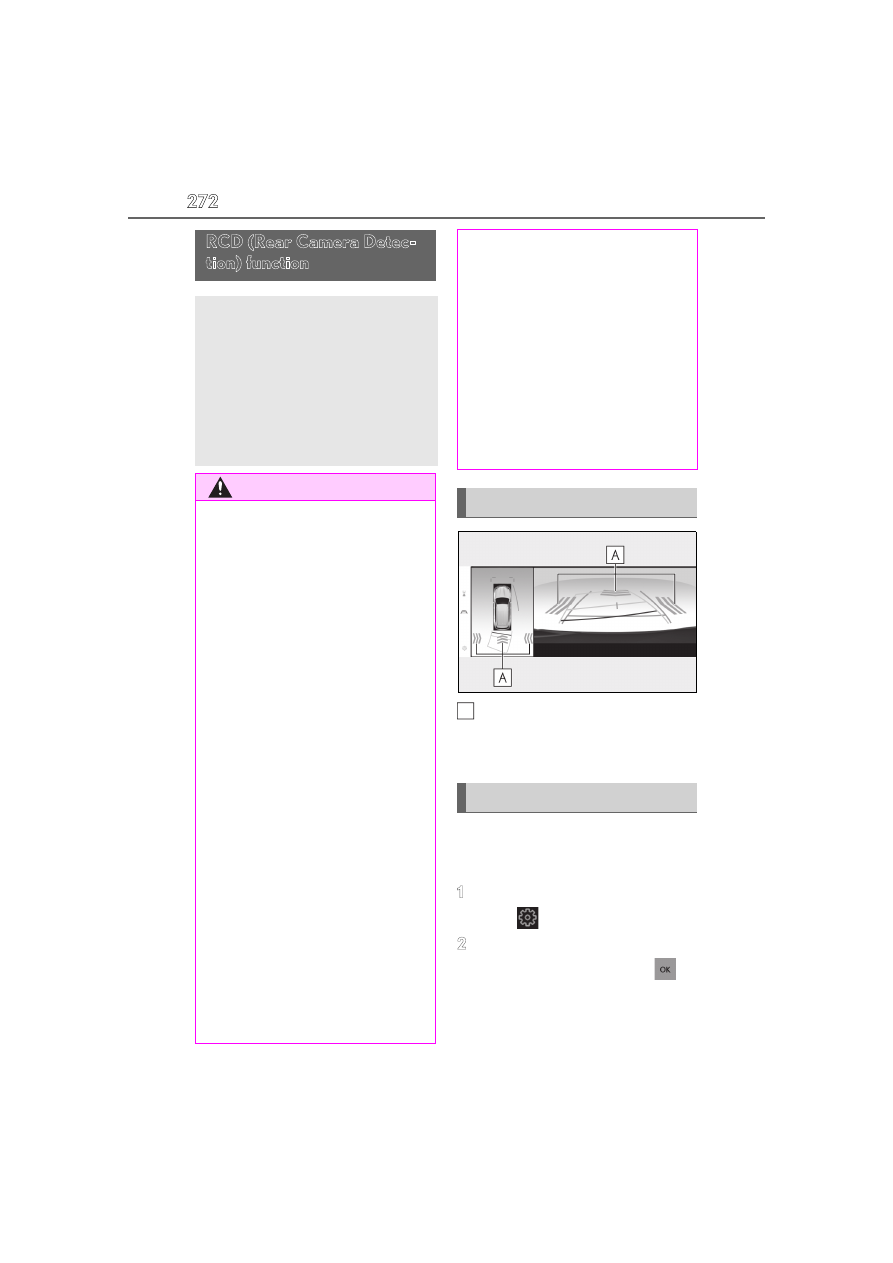

RCD (Rear Camera Detec-
tion) function

When the vehicle is backing up, the
rear camera detection function can
detect pedestrians in the detection
area behind the vehicle. If a pedes-
trian is detected, a buzzer will
sound and an icon will be displayed
on the Multimedia Display to
inform the driver of the pedestrian.

WARNING

■

Cautions regarding the use of the

system

The recognition and control capabilities

for this system are limited.
The driver should always drive safely by

always being responsible without over

relying on the system and have a under-

standing of the surrounding situations.

■

To ensure the system can operate

properly

Observe the following, otherwise there is

the danger that could lead to an acci-

dent.

●

Always clean the camera without

damaging it.

●

Do not install market electronic parts

(such as Illuminated license plate, fog

lamps, etc.) in the camera vicinity.

●

Do not subject the camera vicinity to

strong impacts. If the vicinity is sub-

jected to a strong impact, have the

vehicle inspected by your Lexus

dealer.

●

Do not disassemble, remodel or paint

the camera.

●

Do not attach accessories or stickers

to the camera.

●

Do not install market protection parts

(bumper trim, etc.) to the rear bumper.

●

Maintain suitable tire air pressure.

●

Make sure the back door is completely

closed.

■

RCD function is turned off

In the following situations the system

turns off. The RCD function may not

operate properly and thus there is the

danger that an accident may occur.

●

The contents mentioned above are not

observed.

●

Suspensions other than Lexus genu-

ine parts are installed.

Multimedia Display

Turning the RCD function on/off

273

4-5. Using the driving support systems

Driving

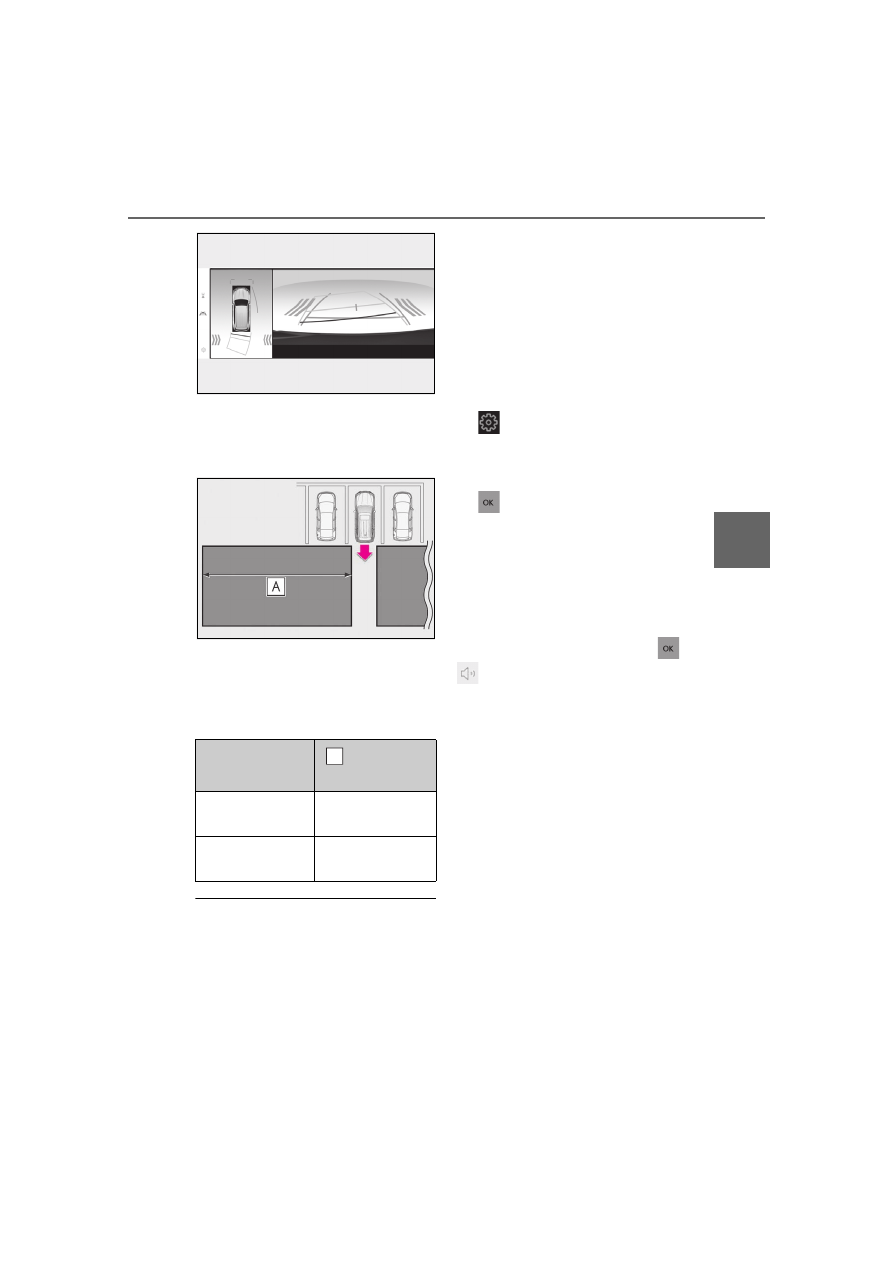

If the rear camera detection function
detects a pedestrian in the detection
area, the buzzer and pedestrian detec-
tion will operate as follows:

If a pedestrian is detected in area

Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks 3
times and then stays on

If a pedestrian is detected in area

Buzzer (When the vehicle is sta-
tionary): Sounds 3 times
Buzzer (When the vehicle is back-
ing up, when a pedestrian
approaches the rear of the vehicle):
Sounds repeatedly
Pedestrian detection icon: Blinks 3
times and then stays on

If the system determines that your
vehicle may collide with a pedes-
trian in area
Buzzer: Sounds repeatedly

Pedestrian detection icon: Blinks 3
times and then stays on

■

The rear camera detection function is

operational when

●

The engine switch is in ON.

●

RCD function is on.

●

The shift position is in R.

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display.
Use the meter control switches to change

settings. (

Press the meter control switch to select

“Vehicle Settings”.

Select “RCD Volume” and then press

Each time the switch is pressed, the volume

level will change between 1, 2, and 3.

■

Muting a buzzer

A mute button will be displayed on the
multi-information display and Multimedia
Display when an object is detected. To
mute the buzzer, press

The buzzers for the intuitive parking assist,
RCTA function and RCD function will be
muted simultaneously.
Mute will be canceled automatically in the

following situations:

●

When the shift lever is changed.

●

When the vehicle speed exceeds a cer-

tain speed.

●

When there is a malfunction in a sensor

or the system is temporarily unavailable.

●

When the operating function is disabled

manually.

●

When the engine switch is turned off.

When a pedestrian is detected

274

4-5. Using the driving support systems

■

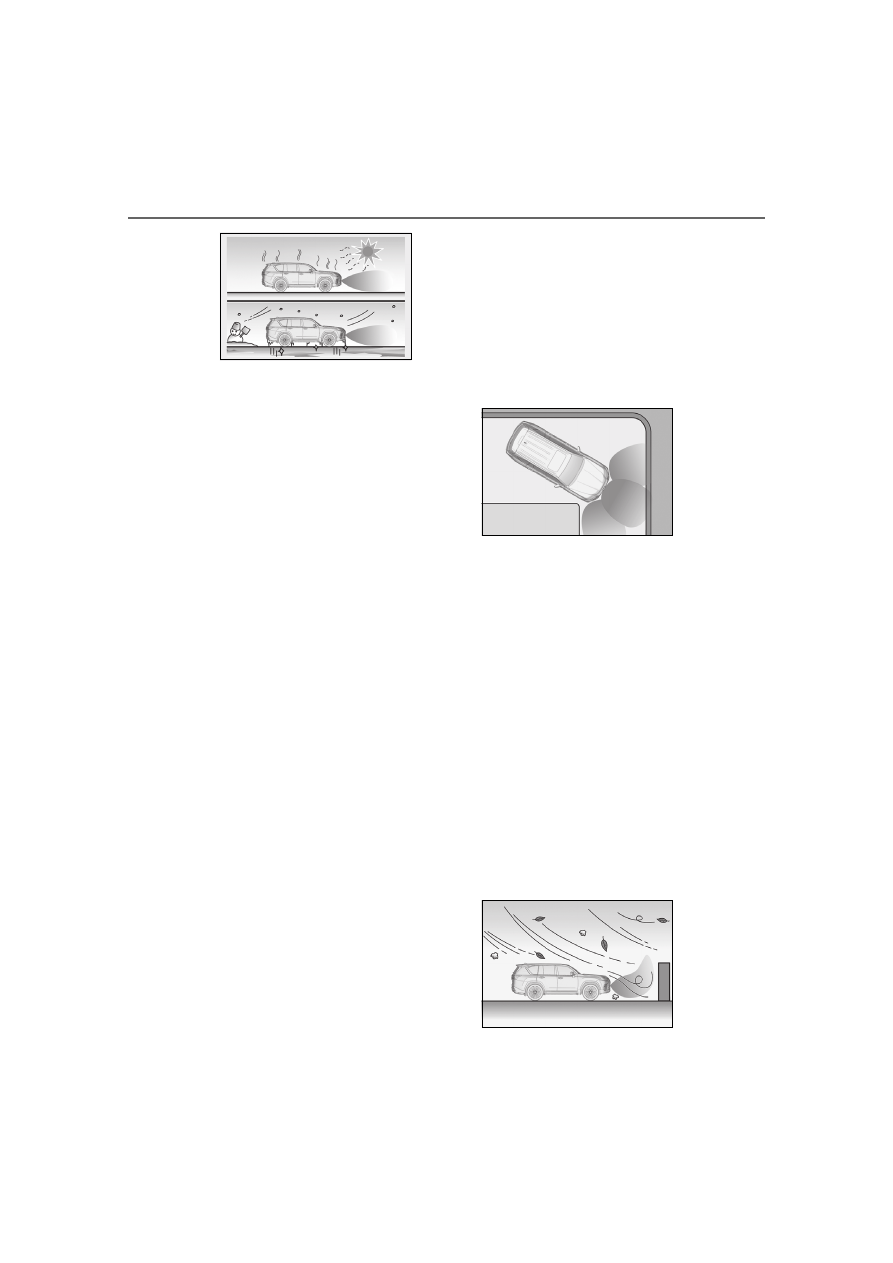

If “Rear Camera Detection Unavailable

Remove the Dirt of Rear Camera” is

displayed on the multi-information dis-

play

The rear camera lens may be dirty or cov-

ered with snow or ice. In such cases, if it is

removed from the rear camera lens, the

system should return to normal. (It may be

necessary to drive the vehicle for some time

before the system returns to normal.)

■

If “Rear Camera Detection Unavailable

See Owner’s Manual” is displayed on

the multi-information display

●

If this message is displayed after the bat-

tery has been disconnected and recon-

nected, fully turn the steering wheel to

the left and then the right on level ground.

●

If this message is displayed only when the

R shift position is selected, the rear cam-

era lens may be dirty. Clean the rear

camera lens.

■

Situations in which the system may not

operate properly

●

Some pedestrians, such as the following,

may not be detected by the rear camera

detection function, preventing the func-

tion from operating properly:

• Pedestrians who are bending forward or

squatting

• Pedestrians who are lying down

• Pedestrians who are running

• Pedestrians who suddenly enter the

detection area

• People riding a bicycle, skateboard, or

other light vehicle

• Pedestrians wearing oversized clothing

such as a rain coat, long skirt, etc., making

their silhouette obscure

• Pedestrians whose body is partially hid-

den by an object, such as a cart or

umbrella

• Pedestrians which are obscured by dark-

ness, such as at night

●

In some situations, such as the following,

pedestrians may not be detected by the

rear camera detection function, prevent-

ing the function from operating properly:

• When backing up in inclement weather

(rain, snow, fog, etc.)

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• When a very bright light, such as the sun,

or the headlights of another vehicle,

shines directly into the rear camera

• When backing up in a place where the

surrounding brightness changes sud-

denly, such as at the entrance or exit of a

garage or underground parking lot

• When backing up in a dim environment

such as during dusk or in an underground

parking lot

• When the camera position and direction

are deviated

• When a towing hook is attached

• When water droplets are flowing on the

camera lens

• When the vehicle height is extremely

changed (nose up, nose down)

• When tire chains or an emergency tire

puncture repair kit are used

■

Situations in which the system may

operate unexpectedly

●

Even though there are no pedestrians in

the detection area, some objects, such as

the following, may be detected, possibly

causing the rear camera detection func-

tion to operate.

• Three dimensional objects, such as a

pole, traffic cone, fence, or parked vehi-

cle

• Moving objects, such as a car or motor-

cycle

• Objects moving toward your vehicle

when backing up, such as flags or pud-

dles (or airborne matter, such as smoke,

steam, rain, or snow)

• Cobblestone or gravel roads, tram rails,

road repairs, white lines, pedestrian

crossings or fallen leaves on the road

• Metal covers (gratings), such as those

used for drainage ditches

• Objects reflected in a puddle or on a wet

road surface

• Shadows on the road

●

In some situations, such as the following,

the rear camera detection function may

operate even though there are no pedes-

trians in the detection area.

• When backing up toward the roadside or

a bump on the road

• When backing up toward an

incline/decline

• If the rear of the vehicle is raised or low-

ered due to the carried load

275

4-5. Using the driving support systems

Driving

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

• If the orientation of the rear camera has

been changed

• If a towing eyelet is installed to the rear of

the vehicle

• When water is flowing over the rear cam-

era lens

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• If there is a flashing light in the detection

area, such as the emergency flashers of

another vehicle

• When tire chains or an emergency tire

puncture repair kit are used

●

Situations in which the rear camera

detection function may be difficult to

notice

• The buzzer may be difficult to hear if the

surrounding area is noisy, the volume of

the audio system volume is high, the air

conditioning system is being used, etc.

• If the temperature in the cabin is

extremely high or low, the Multimedia

Display may not operate correctly.

■

Parking Support Brake function
(Static Objects Front and Rear of
the Vehicle)

P.280

■

Parking Support Brake function
(Moving Vehicles Rear of the
Vehicle)

P.283

■

Parking Support Brake function
(Pedestrians Rear of the Vehicle)

P.285

PKSB (Parking Support
Brake)

The Parking Support Brake system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object or
pedestrian is high, a warning oper-
ates to urge the driver to take eva-
sive action. If the system
determines that the possibility of a
collision with a detected object or
pedestrian is extremely high, the
brakes are automatically applied to
help avoid the collision or help
reduce the impact of the collision.

PKSB (Parking Support Brake)
system

276

4-5. Using the driving support systems

Use the meter control switches to turn
on/off the function. (

Press the meter control switch to
select .

Press the meter control switch to
select

and then press

When the Parking Support Brake is dis-

abled, the PKSB OFF indicator (



P.76)

illuminates.

WARNING

■

Cautions regarding the use of the

system

Do not overly rely on the system, as

doing so may lead to an accident.
Always drive while checking the safety of

the surroundings of the vehicle.
Depending on the vehicle and road con-

ditions, weather, etc., the system may not

operate.
The detection capabilities of sensors and

radars are limited. Always drive while

checking the safety of the surroundings

of the vehicle.

●

The driver is solely responsible for safe

driving. Always drive carefully, taking

care to observe your surroundings.

The Parking Support Brake system is

designed to provide support to lessen

the severity of collisions. However, it

may not operate in some situations.

●

The Parking Support Brake system is

not designed to stop the vehicle com-

pletely. Additionally, even if the system

has stopped the vehicle, it is necessary

to depress the brake pedal immedi-

ately as brake control will be canceled

after approximately 2 seconds.

●

It is extremely dangerous to check the

system operations by intentionally

driving the vehicle into the direction of

a wall, etc. Never attempt such actions.

■

When to disable the Parking Support

Brake

In the following situations, disable the

Parking Support Brake as the system

may operate even though there is no

possibility of a collision.

●

When inspecting the vehicle using a

chassis roller, chassis dynamo or free

roller

●

When loading the vehicle onto a boat,

truck or other transport vessel

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or

lowered due to the carried load

●

When equipment that may obstruct a

sensor is installed, such as a towing

eyelet, bumper protector (an addi-

tional trim strip, etc.), bicycle carrier,

or snow plow

●

When using automatic car washing

devices

●

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

●

When the vehicle is driven in a sporty

manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tire chains, a compact spare tire

or an emergency tire puncture repair

kit are used.

●

When your vehicle is towing a trailer

(with towing hitch) or during emer-

gency towing

Enabling/Disabling the Parking
Support Brake

277

4-5. Using the driving support systems

Driving

To re-enable the system, select

on the

multi-information display, select

and

turn it on.
If the system is disabled, it will remain off

even if the engine switch is turned to ON

after the engine switch has been turned off.

■

If the four-wheel drive control switch is

in L4

Parking Support Brake will be turned off

automatically.

If the engine output restriction control
or brake control operates, a buzzer will
sound and a message will be displayed
on the multi-information and head-up
display (if equipped), Multimedia Dis-
play, to alert the driver.

Depending on the situation, engine output
restriction control will operate to either
limit acceleration or restrict output as
much as possible.



Engine output restriction control is
operating (acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multimedia Display: No warning displayed
Multi-information display: “Object
Detected Acceleration Reduced”
Head-up display (if equipped): No warning
displayed
PKSB OFF indicator: Not illuminated
Buzzer: Does not sound



Engine output restriction control is
operating (output restricted as
much as possible)

The system has determined that stronger-
than-normal brake operation is necessary.
Multimedia Display: “BRAKE!”
Multi-information display and head-up dis-
play (if equipped): “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep



Brake control is operating

The system determined that emergency
braking is necessary.
Multimedia Display: “BRAKE!”
Multi-information display and head-up dis-
play (if equipped): “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep



Vehicle stopped by system opera-
tion

The vehicle has been stopped by brake
control operation.
Multimedia Display: “Press Brake Pedal”
Multi-information display and head-up dis-
play (if equipped): “Switch to Brake” (If the
accelerator pedal is not depressed, “Press
Brake Pedal” will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

If the Parking Support Brake deter-
mines that a collision with a detected
object is possible, the engine output
will be restricted to restrain any
increase in the vehicle speed. (Engine
output restriction control: See figure
2.)
Additionally, if the accelerator pedal
continues to be depressed, the brakes

Display and buzzer for engine
output restriction control and
brake control

System overview

278

4-5. Using the driving support systems

will be applied automatically to reduce
the vehicle speed. (Brake control: See
figure 3.)



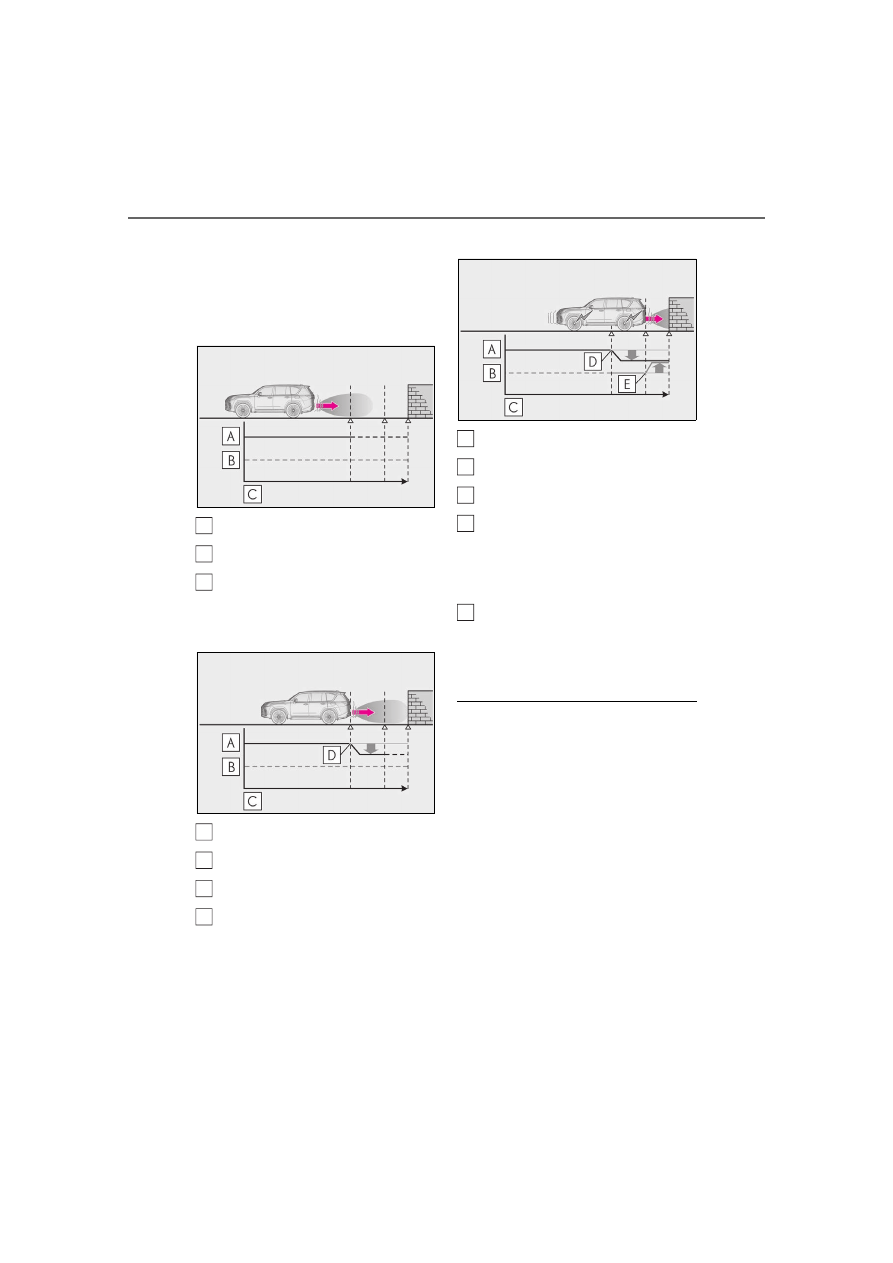

Figure 1: When the PKSB (Parking
Support Brake) is not operating

Engine output

Braking force

Time



Figure 2: When engine output
restriction control operates

Engine output

Braking force

Time

Engine output restriction control
begins operating (System deter-
mines that possibility of collision
with detected object is high)



Figure 3: When engine output
restriction control and brake control

operates

Engine output

Braking force

Time

Engine output restriction control
begins operating (System deter-
mines that possibility of collision
with detected object is high)

Brake control begins operating
(System determines that possibility
of collision with detected object is
extremely high)

■

If the Parking Support Brake has oper-

ated

If the vehicle is stopped due to operation of

the Parking Support Brake, the Parking

Support Brake will be disabled and the

PKSB OFF indicator will illuminate. If the

Parking Support Brake operates unneces-

sarily, brake control can be canceled by

depressing the brake pedal or waiting for

approximately 2 seconds for it to automati-

cally be canceled. Then, the vehicle can be

operated by depressing the accelerator

pedal.

■

Re-enabling the Parking Support Brake

To re-enable the Parking Support Brake

when it is disabled due to operation of the

Parking Support Brake, either enable the

system again (

P.276), or turn the engine

switch off and then back to ON.

Additionally, if any of the following condi-

tions are met, the system will be re-enabled

A
B
C

A
B
C
D

279

4-5. Using the driving support systems

Driving

automatically and the PKSB OFF indicator

will turn off:

●

The P shift position is selected

●

The object is no longer detected in the

traveling direction of the vehicle

●

The traveling direction of the vehicle
changes

: Except when the Parking Support Brake

function (Pedestrians Rear of the Vehi-
cle) operated.

■

If “Parking Support Brake Unavailable”

is displayed on the multi-information

display and the PKSB OFF indicator

comes on

If the vehicle is stopped due to operation of

the Parking Support Brake, the Parking

Support Brake will be disabled and the

PKSB OFF indicator will illuminate.

●

A sensor may be covered with water

drops, ice, snow, dirt, etc. Remove the

water drops, ice, snow, dirt, etc., from the

sensor to return the system to normal.

Also, due to ice forming on a sensor at

low temperatures, a warning message

may be displayed or the sensor may not

be able to detect an object. Once the ice

melts, the system will return to normal.

●

If this message is displayed only when the

R shift position is selected, the rear cam-

era lens may be dirty. Clean the camera

lens. If this message is displayed when the

shift position is any position other than R,

a sensor on the front or rear bumper may

be dirty. Clean the sensors and their sur-

rounding area on the bumpers.

●

If this message continues to be displayed

even after cleaning the sensor, or is dis-

played even though the sensor is clean,

have the vehicle inspected by your Lexus

dealer.

■

If a battery terminal has been discon-

nected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 22 mph (35 km/h) or more.

281

4-5. Using the driving support systems

Driving

■

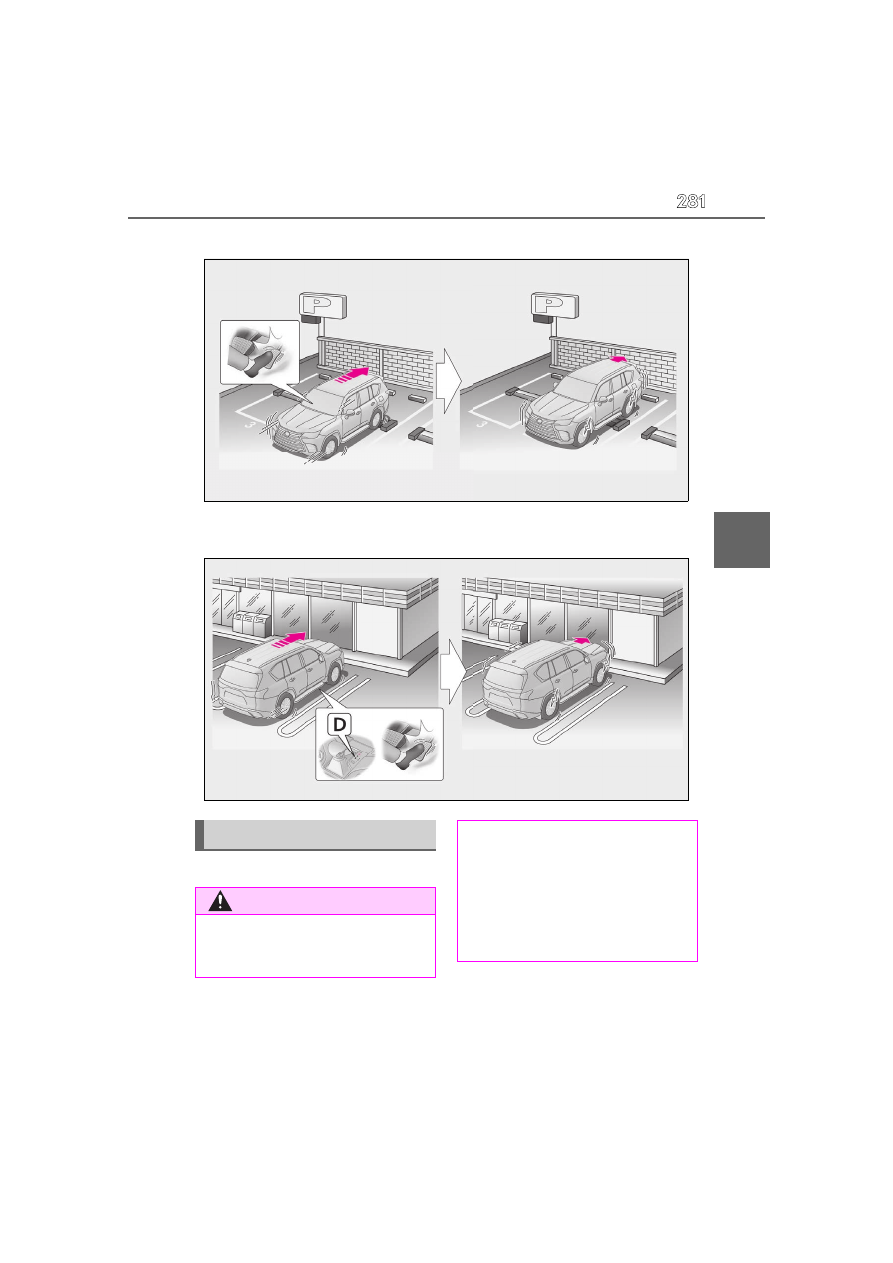

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to the wrong shift
position being selected



P.261

Types of sensors

WARNING

■

To ensure the system can operate

properly



P.262

■

If the Parking Support Brake function

(Static Objects Front and Rear of the

Vehicle) operates unnecessarily,

such as at a railroad crossing

P.278

■

Notes when washing the vehicle

P.262

282

4-5. Using the driving support systems

■

The Parking Support Brake function

(Static Objects Front and Rear of the

Vehicle) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated (



P.74,

76) and all of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 9

mph (15 km/h) or less.

• There is a static object in the traveling

direction of the vehicle and approxi-

mately 6 to 13 ft. (2 to 4 m) away.

• The Parking Support Brake determines

that a stronger-than-normal brake oper-

ation is necessary to avoid a collision.

●

Brake control

• Engine output restriction control is oper-

ating

• The Parking Support Brake determines

that an immediate brake operation is

necessary to avoid a collision.

■

The Parking Support Brake function

(Static Objects Front and Rear of the

Vehicle) will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Engine output restriction control

• The Parking Support Brake is disabled.

• The system determines that the collision

has become avoidable with normal brake

operation.

• The static object is no longer approxi-

mately 6 to 13 ft. (2 to 4 m) away from the

vehicle or in the traveling direction of the

vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is no longer approxi-

mately 6 to 13 ft. (2 to 4 m) away from the

vehicle or in the traveling direction of the

vehicle.

■

Detection range of the Parking Support

Brake function (Static Objects Front

and Rear of the Vehicle)

The detection range of the Parking Support

Brake function (Static Objects Front and

Rear of the Vehicle) differs from the detec-

tion range of the intuitive parking assist.

(

P.265) Therefore, even if the intuitive

parking assist detects an object and pro-

vides a warning, the Parking Support Brake

function (Static Objects Front and Rear of

the Vehicle) may not start operating.

■

Situations in which the system may not

operate properly



P.263

■

Situations in which the system may

operate even if there is no possibility of a

collision



P.264

283

4-5. Using the driving support systems

Driving

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal is not
depressed, or is depressed late



■

The Parking Support Brake function

(Moving Vehicles Rear of the Vehicle)

will operate when

The function will operate when the PKSB

OFF indicator is not illuminated (

76) and all of the following conditions are

P.74,

met:

●

Engine output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 9

mph (15 km/h) or less.

• Vehicles are approaching from the right

or left at the rear of the vehicle at a travel-

ing speed of approximately 5 mph (8

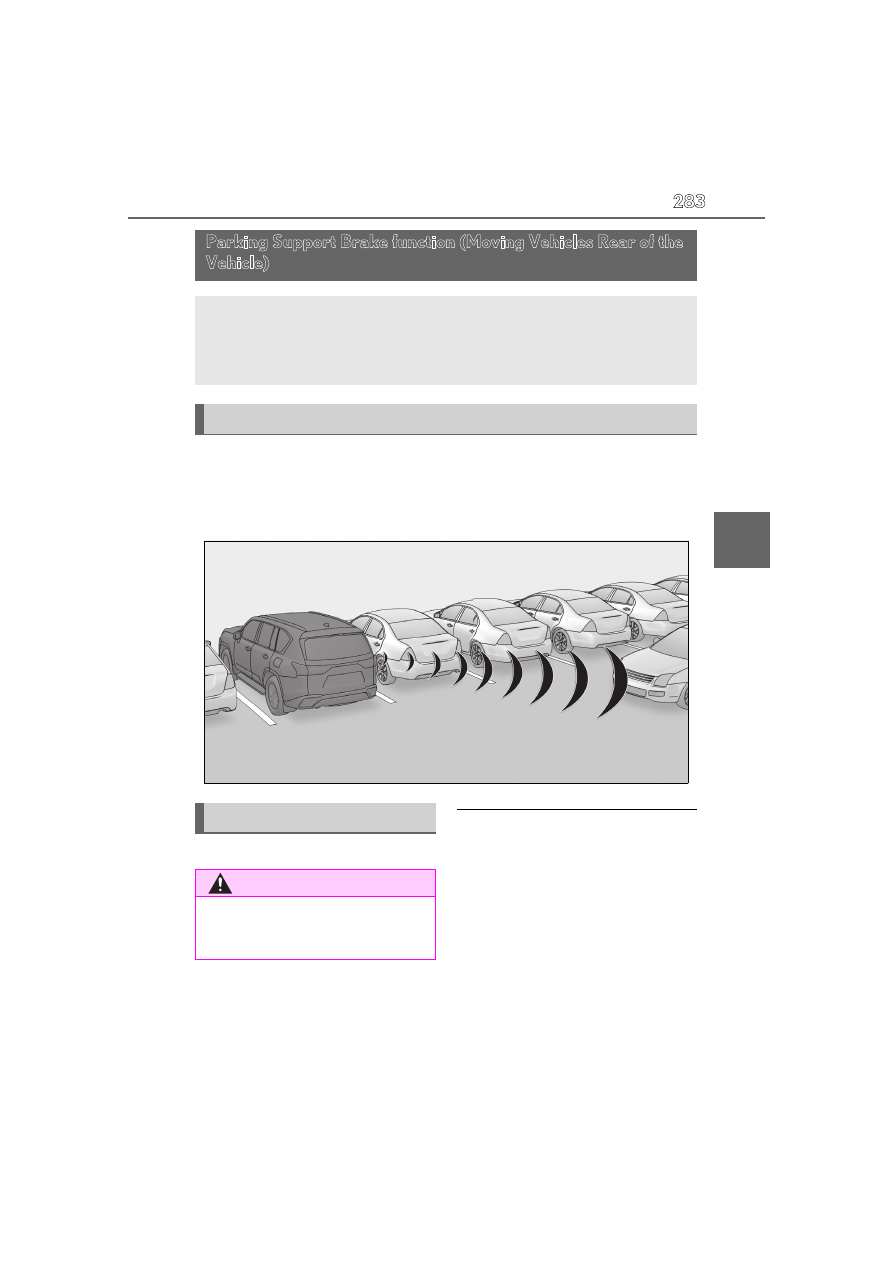

Parking Support Brake function (Moving Vehicles Rear of the
Vehicle)

If a rear radar sensor detects a vehicle approaching from the right or left at
the rear of the vehicle and the system determines that the possibility of a colli-
sion is high, this function will perform brake control to reduce the likelihood of
an impact with the approaching vehicle.

Examples of function operation

Types of sensors

WARNING

■

To ensure the system can operate

properly


