Lexus LX600 (2024 year). Manual in english

1-2. Child safety

restraint in the upper most position.
(



P.137)

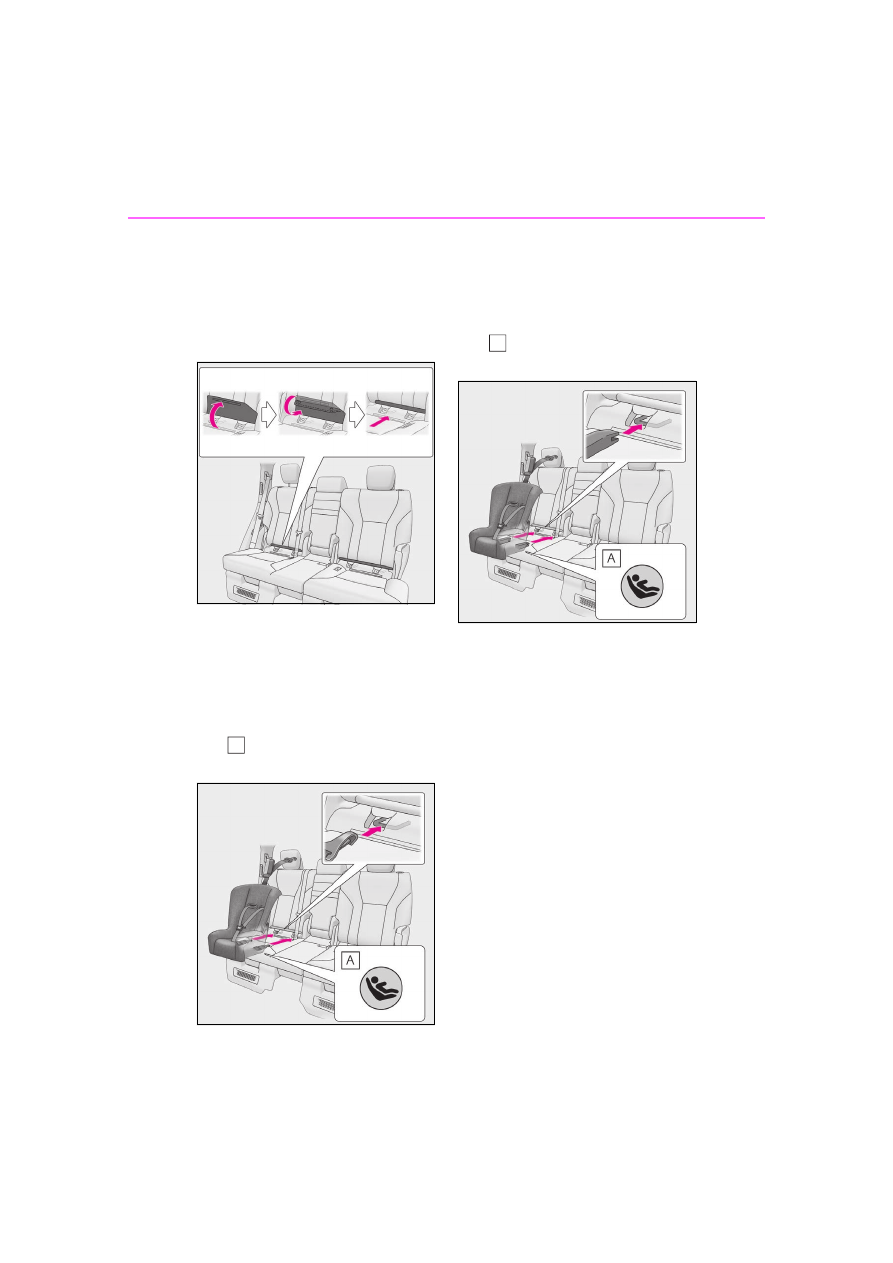

5-passenger and 7-passenger
models: Open the cover.

Put the cover between the seat cushion

and seatback.



With flexible lower attachments

Latch the hooks of the lower
attachments onto the LATCH
anchors.

For owners in Canada:

The symbol on a child restraint system indi-
cates

the presence of a lower connec-

tor system.



With rigid lower attachments

Latch the buckles onto the LATCH
anchors.

For owners in Canada:

The symbol on a child restraint system indi-
cates

the presence of a lower connec-

tor system.

If the child restraint has a top tether
strap, follow the child restraint
manufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (



P.61)

After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(



P.58)

■

When installing in the second cen-
ter seat (5-passenger and 7-pas-
senger models)

There are no LATCH anchors behind
the second center seat. However, the
inboard LATCH anchors of the sec-
ond outboard seats, which are 18.2 in.
(463 mm) apart, can be used if the
child restraint system manufacturer’s

1-2. Child safety

For safety and security

instructions permit use of those
anchors with the anchor spacing
stated.
Child restraint systems with rigid lower
attachments cannot be installed in the
second center seat. This type of child
restraint system can only be installed in
the second outboard seat.

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

■

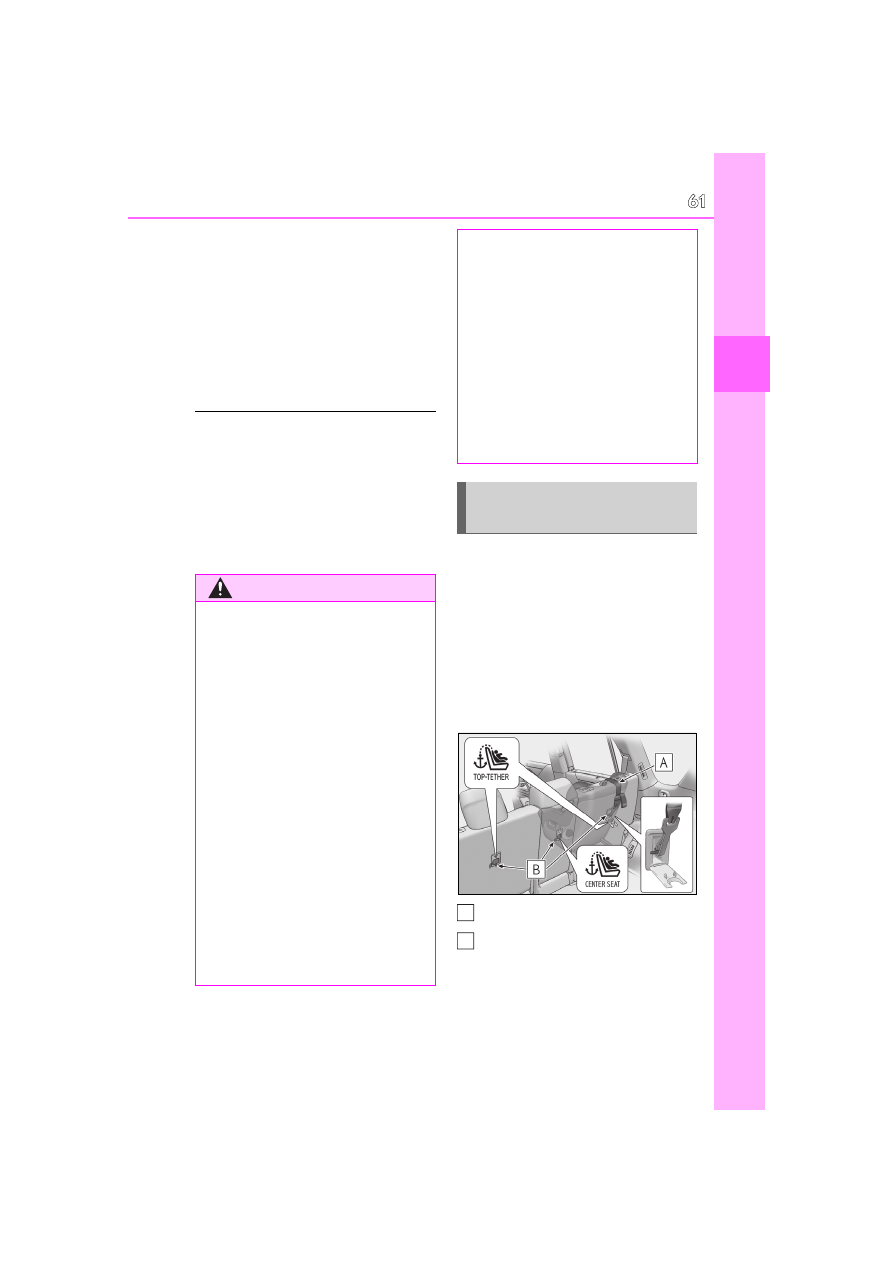

Anchor brackets (for top tether
strap)



5-passenger and 7-passenger
models

Anchor brackets are provided for each
second seat.
Use anchor brackets when fixing the
top tether strap.

Top tether strap

Anchor brackets



4-passenger models

Anchor brackets are provided for each
second seat.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

When using the LATCH anchors, be

sure that there are no foreign objects

around the anchors and that the seat

belt is not caught behind the child

restraint system.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

Never attach two child restraint sys-

tem attachments to the same anchor.

In a collision, one anchor may not be

strong enough to hold two child

restraint system attachments and may

break.

If the LATCH anchors are already in

use, use the seat belt to install a child

restraint system.

●

When securing some types of child

restraint systems in rear seats, it may

not be possible to properly use the

seat belts in positions next to the child

restraint without interfering with it or

affecting seat belt effectiveness. Be

sure your seat belt fits snugly across

your shoulder and low on your hips. If it

does not, or if it interferes with the

child restraint, move to a different

position. Failure to do so may result in

death or serious injury.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

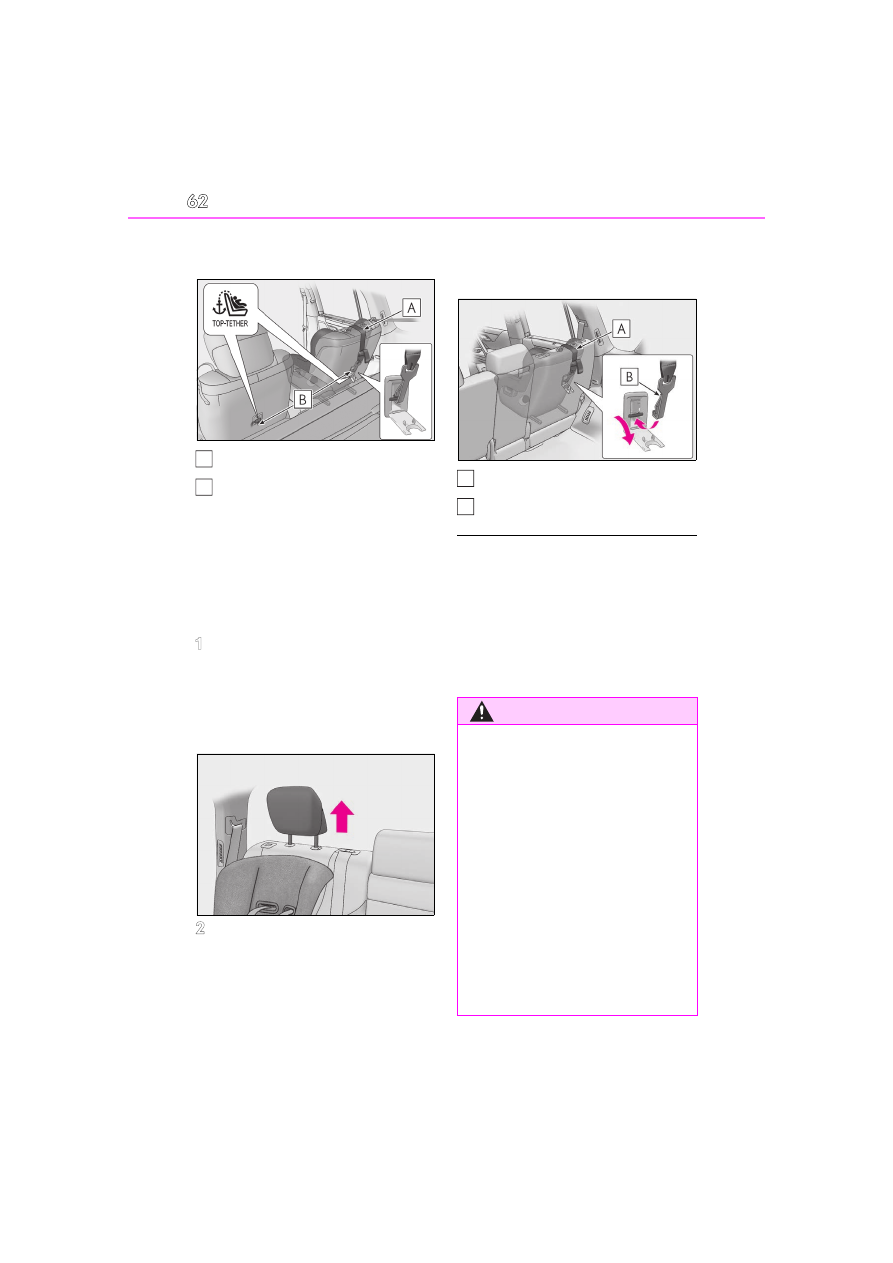

Using an anchor bracket (for top
tether strap)

1-2. Child safety

Use anchor brackets when fixing the
top tether strap.

Top tether strap

Anchor brackets

■

Fixing the top tether strap to the
anchor bracket

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.

Adjust the head restraint to the
upmost position.

If the head restraint interferes with the child

restraint system or top strap installation

and the head restraint can be removed,

remove the head restraint.

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.

Make sure the top tether strap is securely

latched. (



P.58)

When installing the child restraint system

with the head restraint being raised, be

sure to have the top strap pass underneath

the head restraint.

Top tether strap

Hook

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top tether strap to

anything other than the anchor

bracket.

●

After securing a child restraint system,

never adjust the seat.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

1-3. Safety Connect

1-3.Safety Connect

: If equipped

Microphone

“SOS” button

LED light indicators

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.
(



P.65)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.66)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.66)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.66)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
• The United States

1-800-25-LEXUS (1-800-255-3987)

• Canada

1-800-26-LEXUS (1-800-265-3987)

• Puerto Rico

Safety Connect

Safety Connect is a subscription-
based telematics service that uses
Global Positioning System (GPS)
data and embedded cellular tech-
nology to provide safety and secu-
rity features to subscribers. Safety
Connect is supported by Lexus’
designated response center, which
operates 24 hours per day, 7 days
per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Connected Services Terms
of Use, as in effect and amended
from time to time, a current copy of
which is available at Lexus.com. All
use of the Safety Connect service is
subject to such then-applicable
Terms and Conditions.

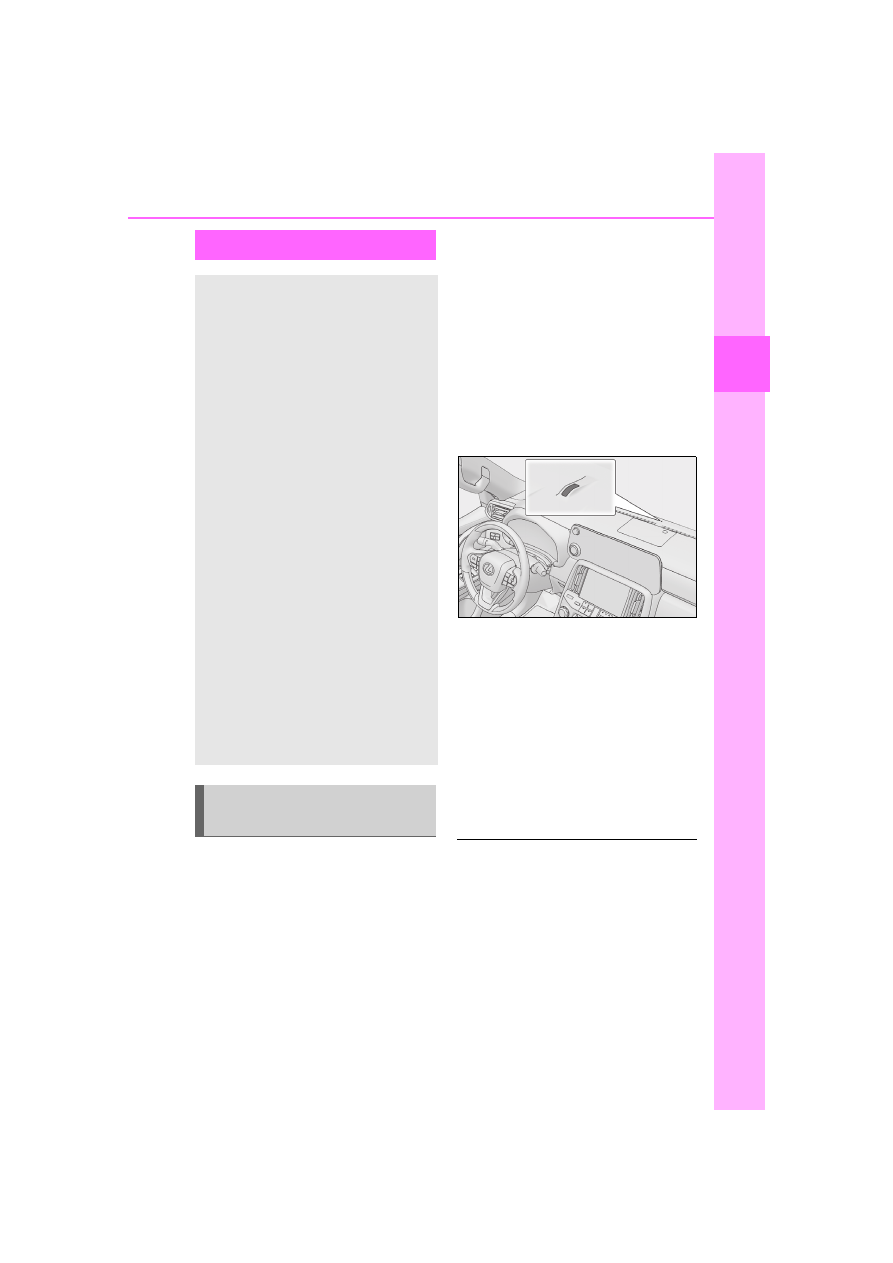

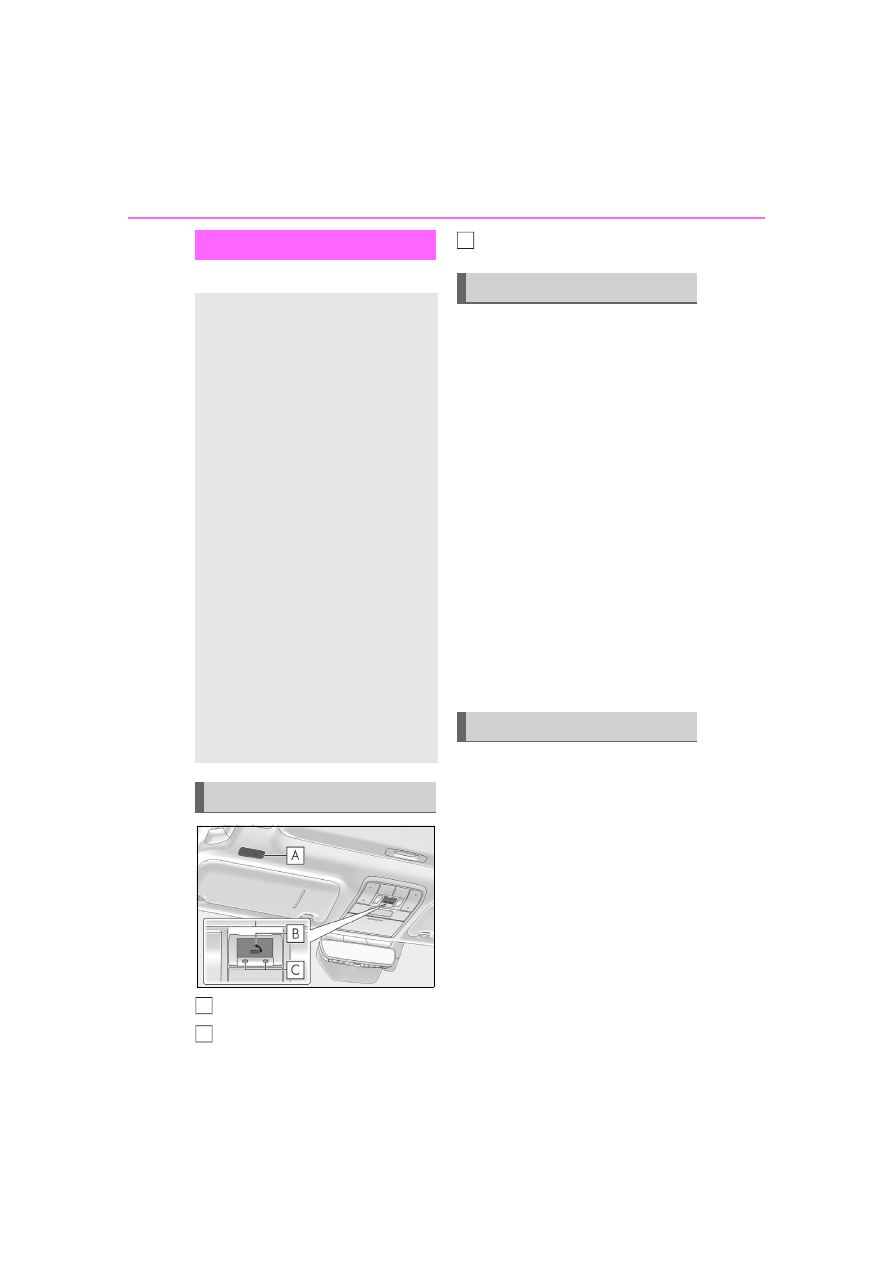

System components

A
B

Services

Subscription

1-3. Safety Connect

For safety and security

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicle’s
Bluetooth

technology will not be possi-

ble during Safety Connect.

●

Safety Connect is available beginning

Fall 2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
ON, the red indicator light comes on
for 2 seconds then turns off. Afterward,
the green indicator light comes on,
indicating that the service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding
agent receives the vehicle’s location
and attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services

Safety Connect LED light Indi-
cators

Safety Connect services

1-3. Safety Connect

provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS (1-800-255-
3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-
265-3987 in Canada, and follow the
prompts for Safety Connect to initiate
this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.

Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio
transmitter and receiver. It receives
and also sends out radio frequency
(RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Safety information for Safety
Connect

1-4. Theft deterrent system

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the key is in contact with a metallic

object

●

If the key is in close proximity to or touch-

ing a key to the security system (key with

a built-in transponder chip) of another

vehicle

Engine immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

1-4. Theft deterrent system

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof are
closed before the alarm is set.



No valuables or other personal
items are left in the vehicle.

■

Setting

Close the doors, hood, and lock all the
doors. The system will be set automati-
cally after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.
If all doors are closed with hood open,
alarm system can be set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarm.



Unlock the doors using the entry
function or wireless remote control.



Turn the engine switch to ACC or
ON, or start the engine. (The alarm
will be deactivated or stopped after
a few seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

The doors are unlocked using the

mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



A locked door is unlocked or
opened in any way other than
using the entry function or wire-
less remote control. (The doors
will lock again automatically.)



The hood is opened.



The intrusion sensor detects
something moving inside the
vehicle. (An intruder gets in the
vehicle.)



The tilt sensor detects a change of
vehicle inclination.



The quarter windows or rear win-
dow are broken.



The battery is disconnected.



The battery is reconnected.

Setting/canceling/stopping the
alarm system

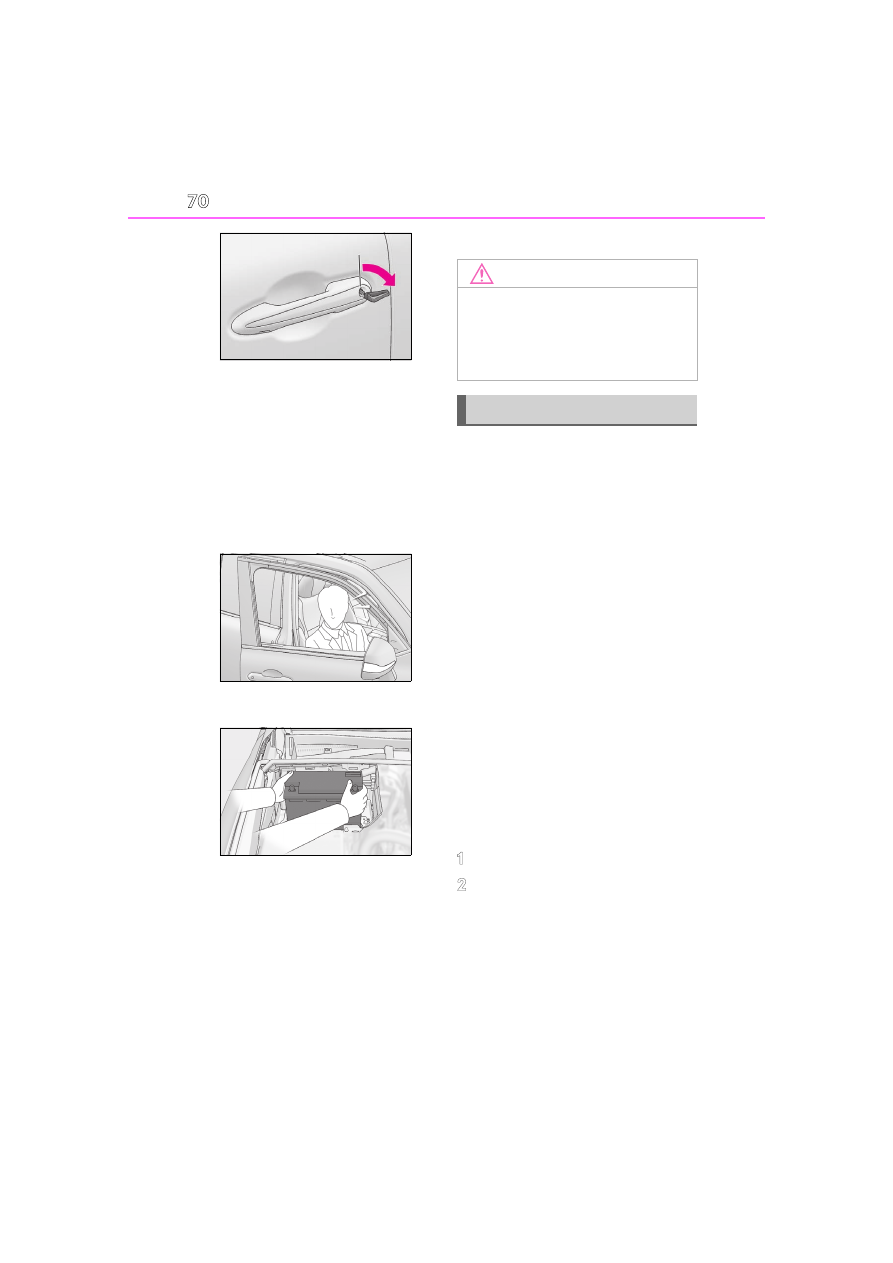

1-4. Theft deterrent system

If a door is unlocked using the mechanical
key while the alarm is set, a warning will
sound intermittently for approximately 10
seconds. If the alarm is not canceled or
stopped during this time, the warning pat-
tern changes and the warning sounds for a
certain period of time.

●

A person inside the vehicle opens a door

or hood, or unlocks the vehicle using an

inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.525)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery.

■

The intrusion sensor and tilt sensor
detection



The intrusion sensor detects an
intruder or movement in the vehicle.



The tilt sensor detects changes in
vehicle inclination, such as when the
vehicle is towed away.

This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.

■

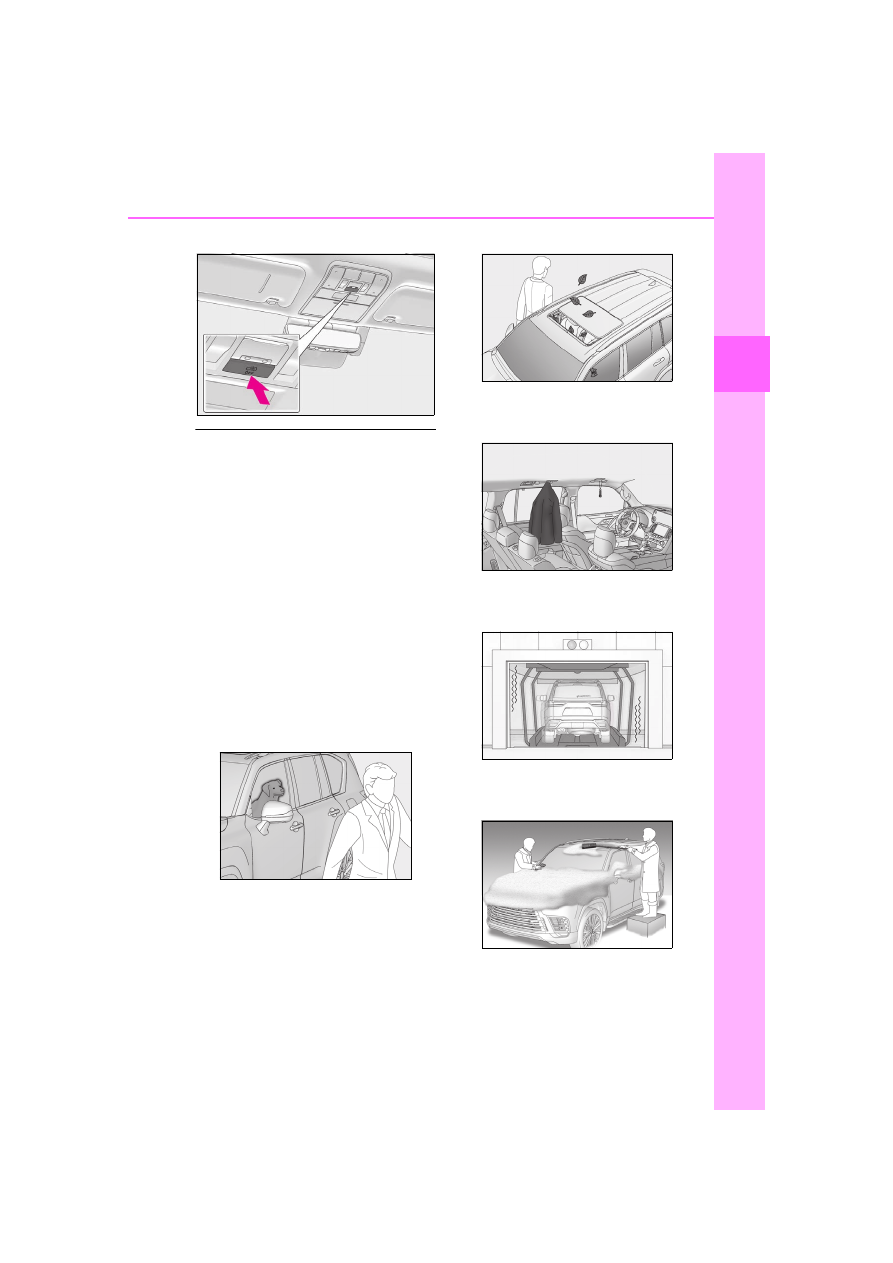

Canceling the intrusion sensor and
tilt sensor

If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt
sensor before setting the alarm, as they
will respond to movement inside the
vehicle.

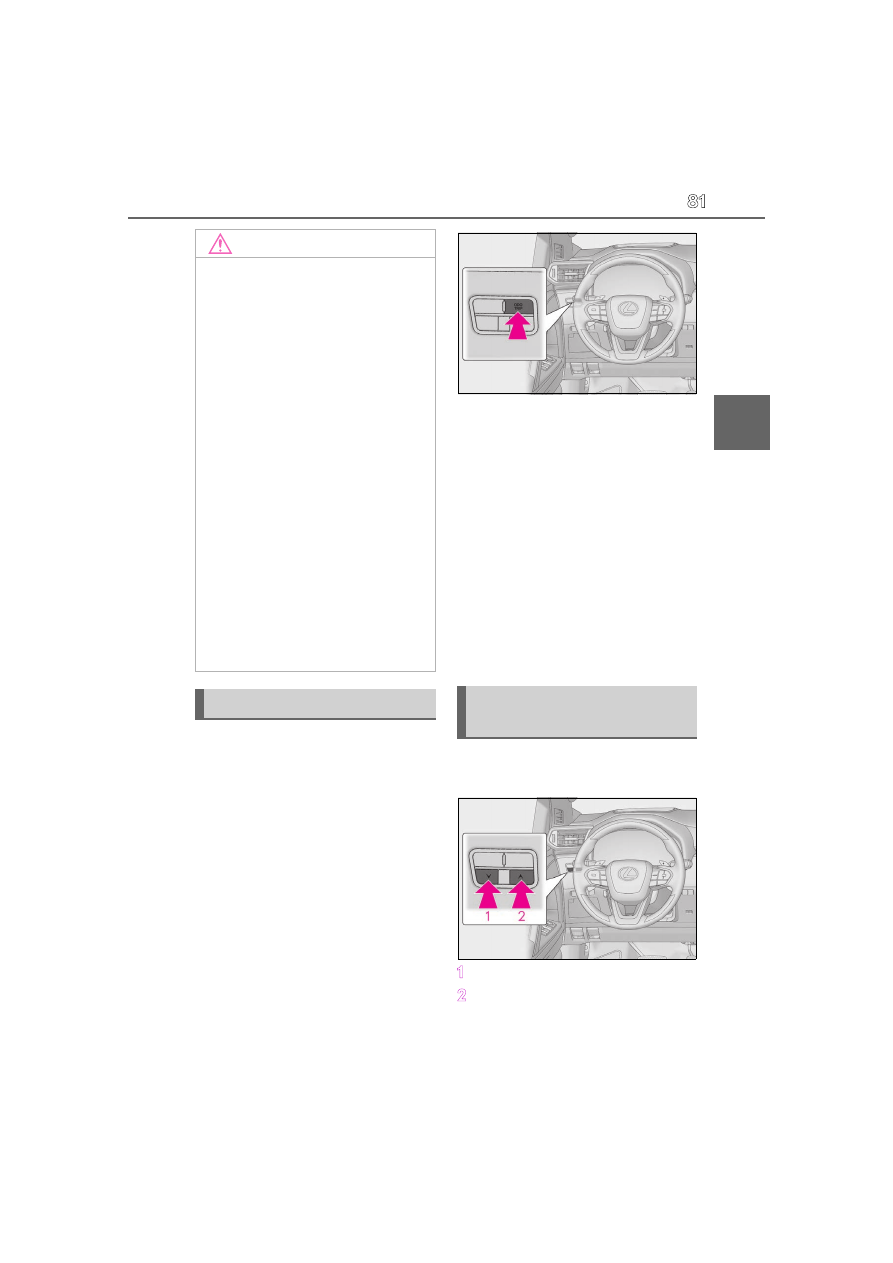

Turn the engine switch off.

Press the intrusion sensor and tilt
sensor cancel switch.

A message will be shown on the multi-

information display in the instrument clus-

ter.
The intrusion sensor and tilt sensor will

revert to on each time the engine switch is

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

Intrusion sensor and tilt sensor

1-4. Theft deterrent system

For safety and security

turned to ON.

■

Canceling and automatic re-enabling of

the intrusion sensor and tilt sensor

●

The alarm will still be set even when the

intrusion sensor and tilt sensor are can-

celed.

●

After the intrusion sensor and tilt sensor

are canceled, pressing the engine switch

or unlocking the doors using the entry

function or wireless remote control will

re-enable the intrusion sensor and tilt

sensor.

●

The intrusion sensor and tilt sensor will

automatically be re-enabled when the

alarm system is reactivated.

■

Intrusion sensor considerations

The sensor may trigger the alarm in the fol-

lowing situations:

●

People or pets are in the vehicle.

●

A window or the moon roof is open.

In this case, the sensor may detect the fol-
lowing:
• Wind or the movement of objects such as

leaves and insects inside the vehicle

• Ultrasonic waves emitted from devices

such as the intrusion sensors of other

vehicles

• The movement of people outside the

vehicle

●

Unstable items, such as dangling acces-

sories or clothes hanging on the coat

hooks, are in the vehicle.

●

The vehicle is parked in a place where

extreme vibrations or noises occur, such

as in a parking garage.

●

Ice or snow is removed from the vehicle,

causing the vehicle to receive repeated

impacts or vibrations.

●

The vehicle is inside an automatic or

high-pressure car wash.

●

The vehicle experiences impacts, such as

hail, lightning strikes, and other kinds of

repeated impacts or vibrations.

1-4. Theft deterrent system

■

Tilt sensor detection considerations

The sensor may trigger the alarm in the fol-

lowing situations:

●

The vehicle is transported by a ferry,

trailer, train, etc.

●

The vehicle is parked in a parking garage.

●

The vehicle is inside a car wash that

moves the vehicle.

●

Any of the tires loses air pressure.

●

The vehicle is jacked up.

●

An earthquake occurs or the road caves

in.

●

Cargo is loaded onto or unloaded from

the roof luggage carrier.

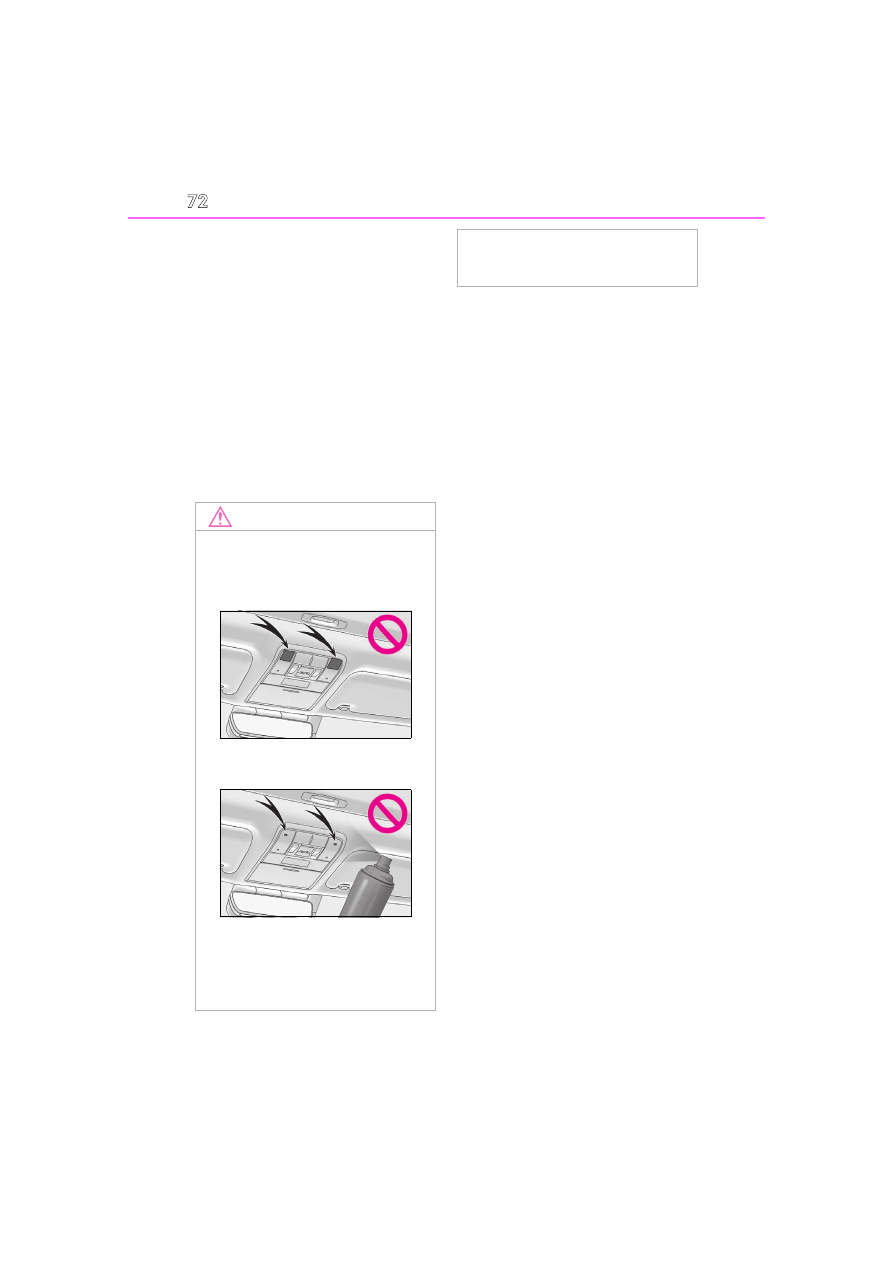

NOTICE

■

To ensure the intrusion sensor func-

tions correctly

●

To ensure that the sensors operate

properly, do not touch or cover them.

●

Do not spray air fresheners or other

products directly into the sensor holes.

●

Installing accessories other than genu-

ine Lexus parts or leaving objects

between the driver’s seat and front

passenger’s seat may reduce the

detection performance.

●

The intrusion sensor may be canceled

when the electronic key is near the

vehicle.

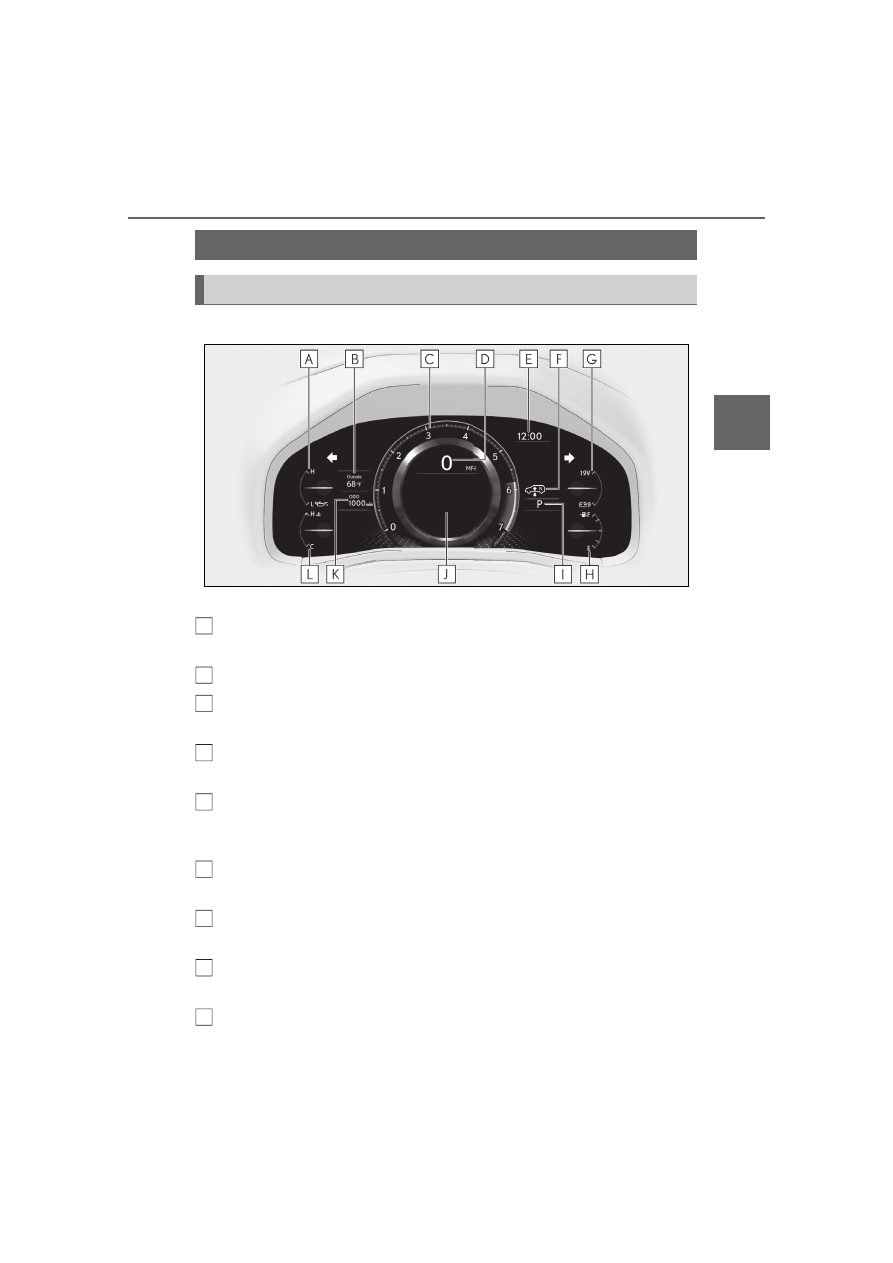

2-1. Instrument cluster

2-1.Instrument cluster

The image may differ from the actual condition.

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

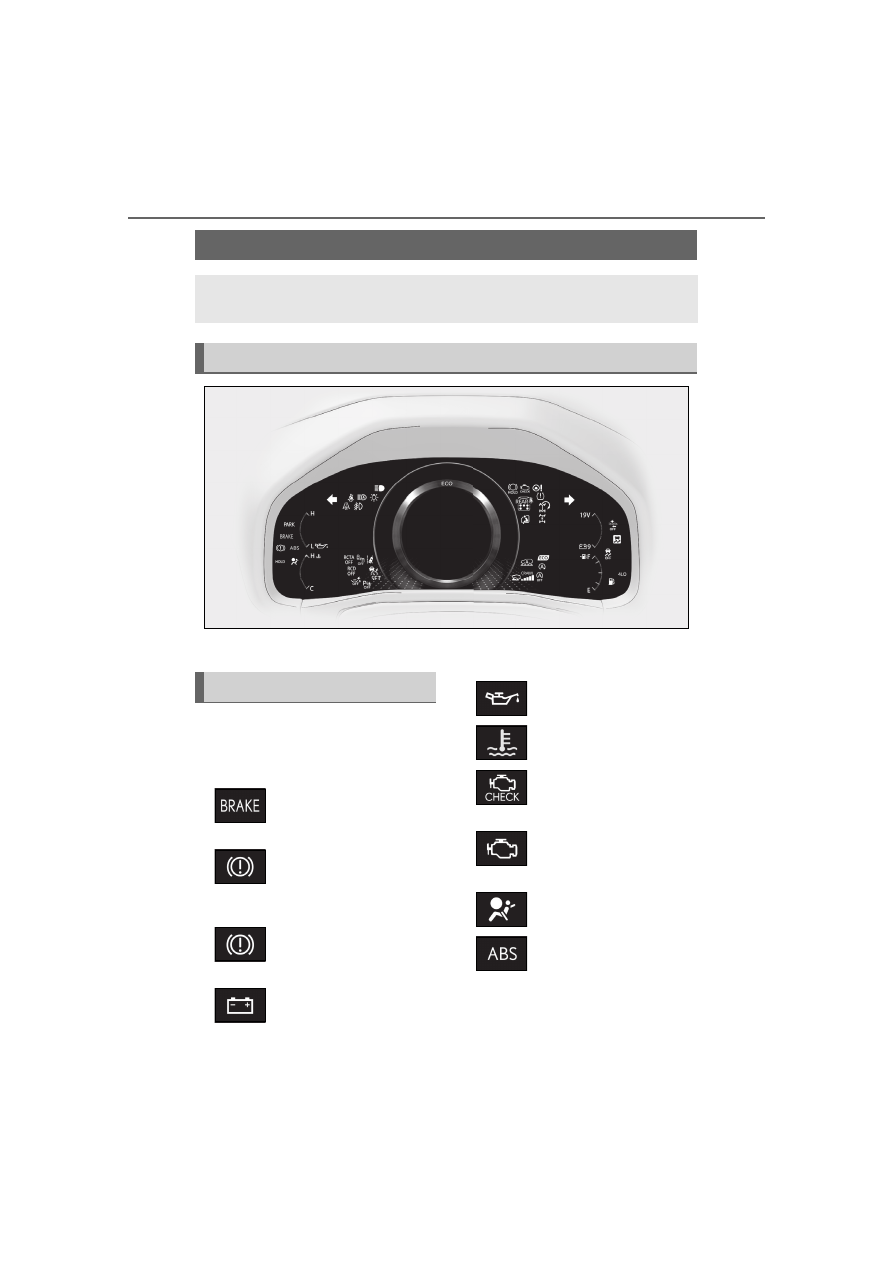

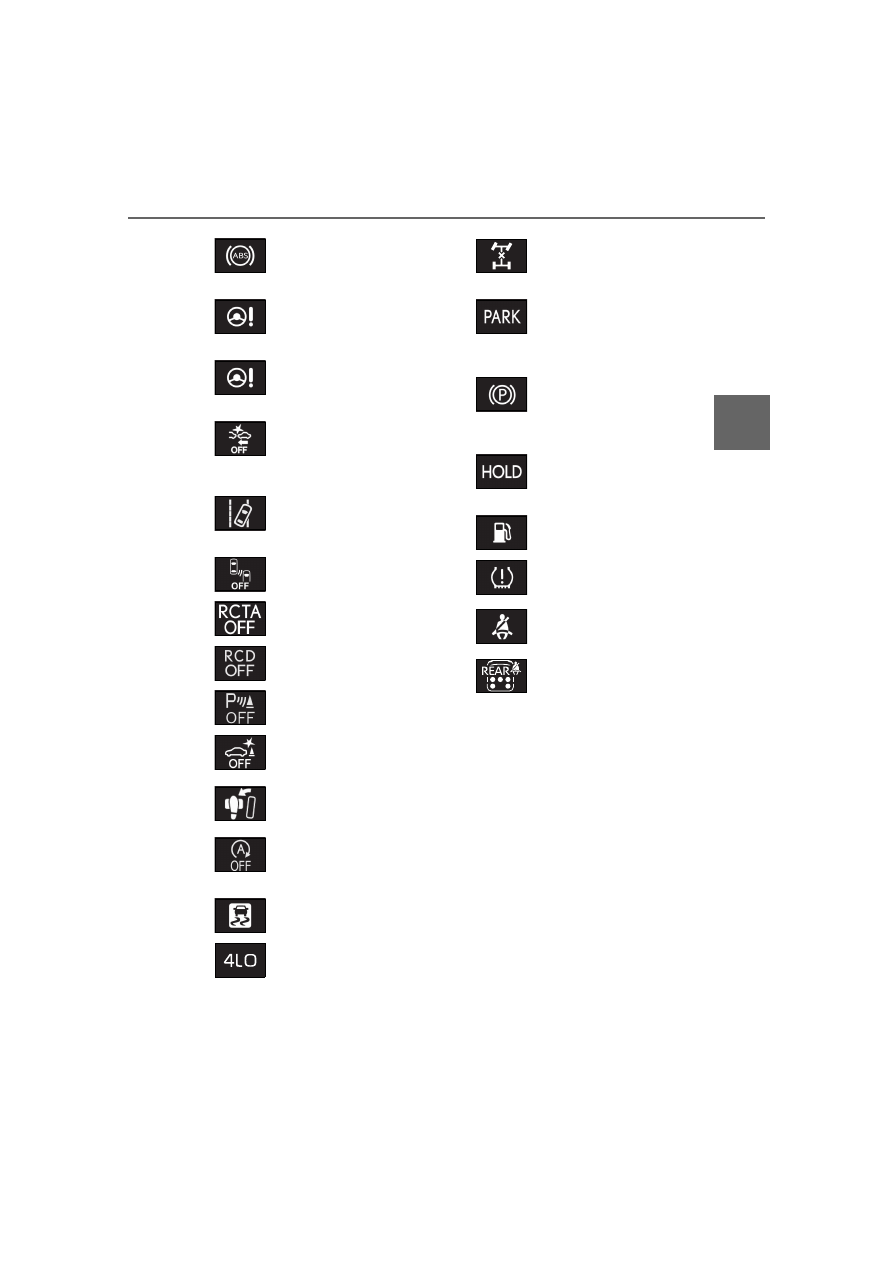

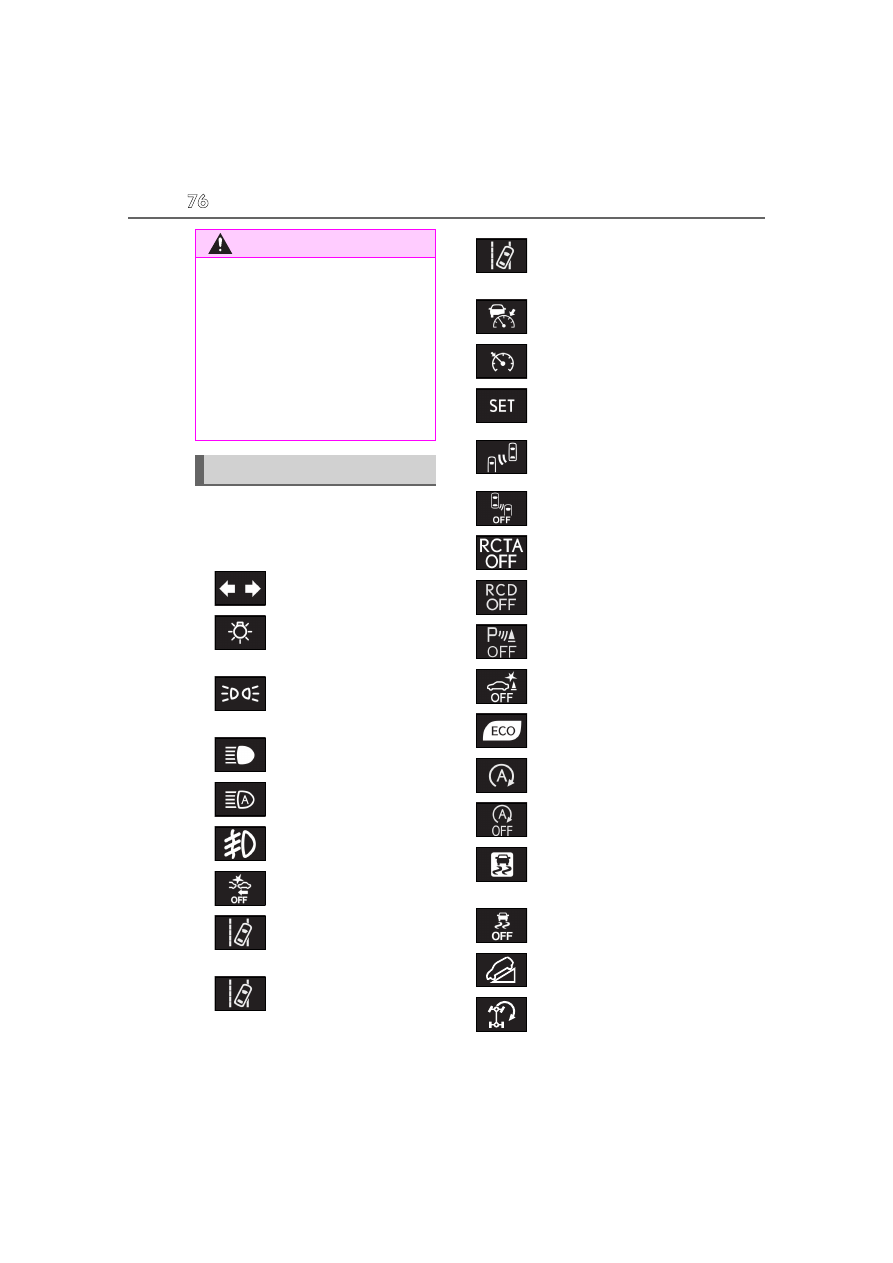

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear
view mirrors inform the driver of the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instrument cluster

Warning lights

(U.S.A.)

Brake system warning
light

(



P.496)

(Canada)

(Red)

Brake system warning
light

(



P.496)

(Yellow)

Brake system warning
light

(



P.496)

Charging system warning
light

(



P.496)

Low engine oil pressure
warning light

(



P.497)

High coolant temperature
warning light

(



P.497)

(U.S.A.)

Malfunction indicator
lamp

(



P.497)

(Canada)

Malfunction indicator
lamp

(



P.497)

SRS warning light

(



P.497)

(U.S.A.)

ABS warning light

(



P.498)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: These lights turn on when the engine

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the light does
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.

: This light illuminates on the multi-infor-

mation display with a message.

: Intuitive parking assist OFF indicator

turns on when the engine switch is
turned to ON while the intuitive parking
assist function is on. It will turn off after a
few seconds.

(Canada)

ABS warning light

(



P.498)

(Red)

Power steering system
warning light

(



P.498)

(Yellow)

Power steering system
warning light

(



P.498)

(Flashes or illumi-

nates)

PCS warning light

(



P.498)

(Orange)

LTA indicator (



P.499)

BSM OFF indicator

(



P.499)

RCTA OFF indicator

(



P.499)

RCD OFF indicator

(



P.499)

Intuitive parking assist OFF
indicator

(



P.500)

PKSB OFF indicator

(



P.500)

Inappropriate pedal opera-
tion warning light

(



P.500)

(Flashes)

Stop & Start cancel indica-
tor

(



P.501)

Slip indicator light

(



P.501)

(Flashes)

Low speed four-wheel
drive indicator (



P.501)

(Flashes)

Center differential lock
indicator (



P.501)

(Flashes)

(U.S.A.)

Parking brake indicator
(



P.502)

(Flashes)

(Canada)

Parking brake indicator
(



P.502)

(Flashes)

Brake hold operated indi-
cator

(



P.502)

Low fuel level warning light
(



P.502)

Tire pressure warning
light

(



P.502)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.503)

Rear passengers’ seat belt
reminder light (



P.503)

2-1. Instrument cluster

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not avail-

able to help protect you in an accident,

which could result in death or serious

injury. Have the vehicle inspected by

your Lexus dealer immediately if this

occurs.

Indicators

Turn signal indicator
(



P.196)

(U.S.A.)

Headlight indicator
(



P.202)

(Canada)

Tail light indicator
(



P.202)

Headlight high beam indi-
cator (



P.204, 207)

Automatic High Beam indi-
cator (



P.205)

Fog light indicator
(



P.208)

PCS warning light

*1, 2

(



P.222)

(White)

LTA indicator

(



P.234)

(Green)

LTA indicator

(



P.219,

234)

(Orange)

LTA indicator

(



P.234)

Dynamic radar cruise con-
trol indicator (



P.241)

Cruise control indicator
(



P.241)

Cruise control “SET” indi-
cator (



P.241)

BSM outside rear view mir-
ror indicators

*1, 4

(



P.257)

BSM OFF indicator

(



P.257)

RCTA OFF indicator

*1, 2

(



P.268)

RCD OFF indicator

(



P.272)

Intuitive parking assist OFF
indicator

*2, 5

(



P.262)

PKSB OFF indicator

*1, 2

(



P.276)

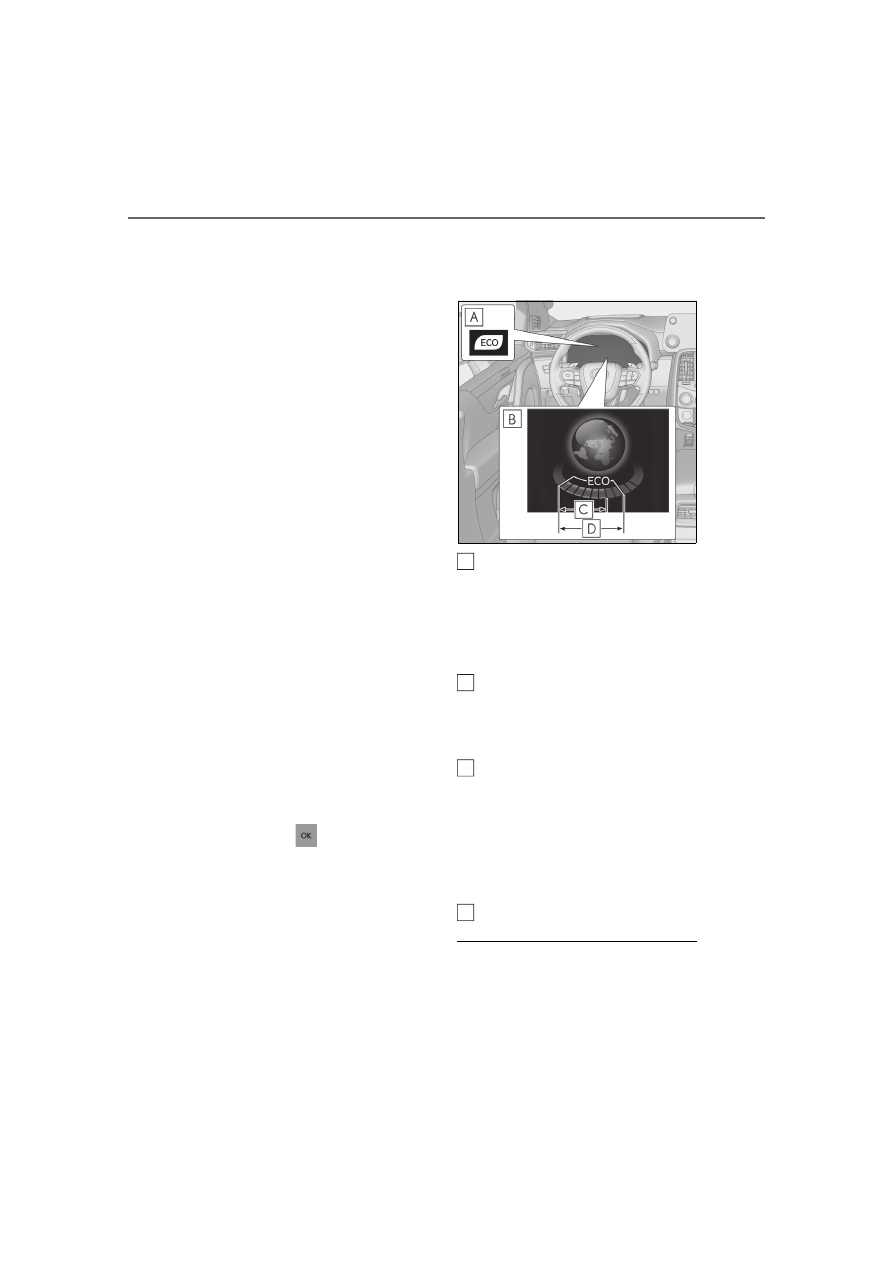

Eco Driving Indicator
Light

(



P.84)

Stop & Start indicator

(



P.252)

Stop & Start cancel indica-
tor

*1, 2

(



P.252)

(Flashes)

Slip indicator light

(



P.366)

VSC OFF indicator

*1, 2

(



P.366)

Downhill assist control sys-
tem indicator

(



P.363)

Turn Assist indicator
(



P.356)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: These lights turn on when the engine

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the lights do
not turn on, or turn off. Have the vehicle
inspected by your Lexus dealer.

: The light comes on when the system is

turned off.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light illuminates on the outside rear

view mirrors.

: Intuitive parking assist OFF indicator

turns on when the engine switch is
turned to ON while the intuitive parking
assist function is on. It will turn off after a
few seconds.

: This light illuminates on the overhead

console.

: This light illuminates on the multi-infor-

mation display with a message.

: When the outside temperature is

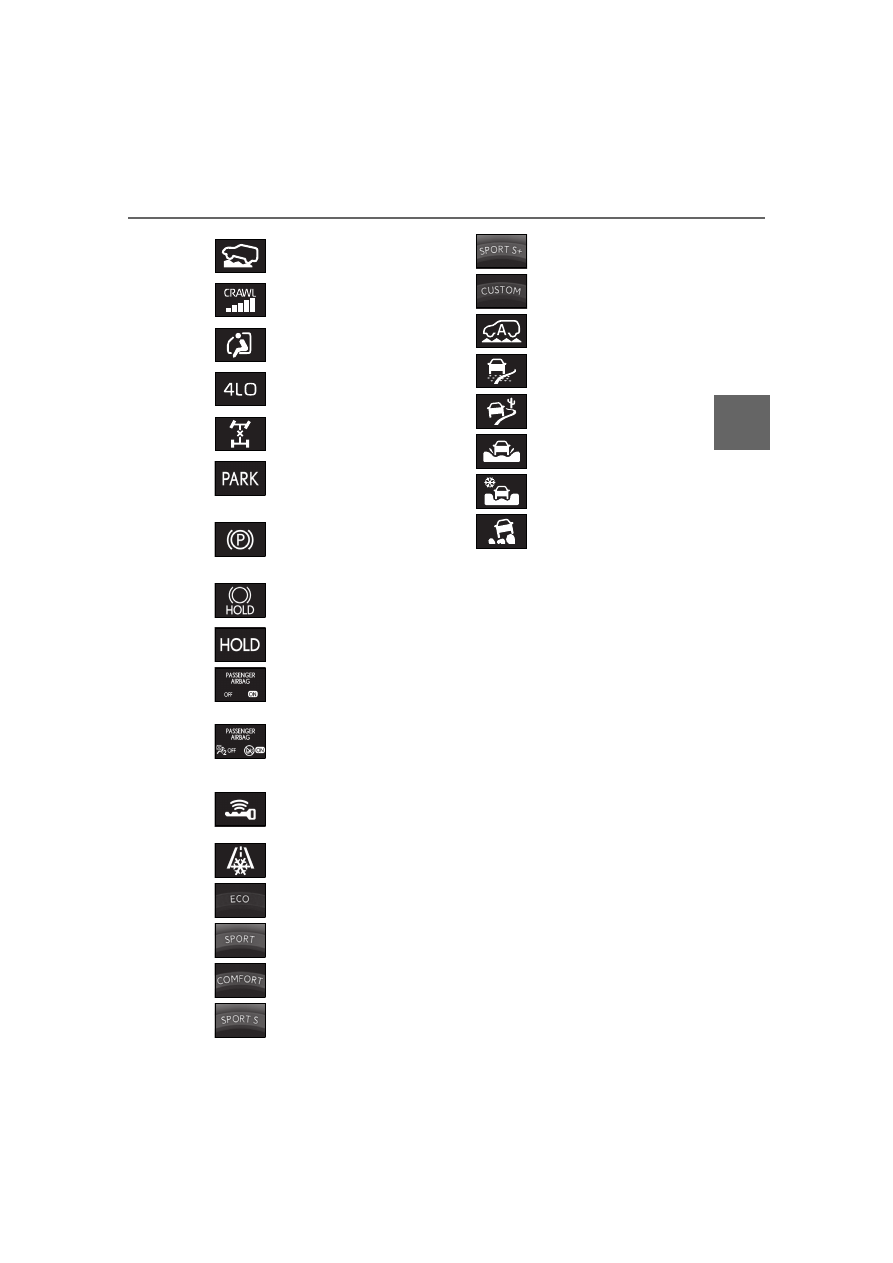

Crawl Control indicator

(



P.356)

Crawl Control mode dis-
play (



P.356)

Easy access mode indica-
tor

(



P.349)

Low speed four-wheel
drive indicator (



P.354)

Center differential lock
indicator (



P.354)

(U.S.A.)

Parking brake indicator
(



P.197)

(Canada)

Parking brake indicator
(



P.197)

Brake hold standby indica-
tor

(



P.200)

Brake hold operated indi-
cator

(



P.200)

(U.S.A.)

“AIR BAG ON/OFF” indi-
cator lights

*1, 6

(



P.46)

(Canada)

“AIR BAG ON/OFF” indi-
cator lights

*1, 6

(



P.46)

Smart access system with
push-button start indica-
tor

(



P.188)

Low outside temperature
indicator

(



P.80)

Eco drive mode indicator
(



P.344)

Sport mode indicator

(



P.344)

Comfort mode indica-
tor

*10

: (



P.344)

SPORT S mode indica-
tor

*10

: (



P.344)

SPORT S+ mode indica-
tor

*10

: (



P.344)

Custom mode indica-
tor

*10

: (



P.344)

AUTO mode indicator
(



P.360)

DIRT mode indicator
(



P.360)

SAND mode indicator
(

MUD mode indicator
(

DEEP SNOW mode indi-
cator (



P.360)

ROCK mode indicator
(



P.360)

2-1. Instrument cluster

approximately 37°F (3°C) or lower,
the indicator will flash for approximately
10 seconds, then stay on.

: Vehicles without Adaptive Variable

Suspension system

*10

: Vehicles with Adaptive Variable Sus-

pension system

■

BSM (Blind Spot Monitor) outside rear

view mirror indicators

In order to confirm operation, the BSM out-

side rear view mirror indicators illuminate in

the following situations:

●

When the engine switch is turned to ON
while the BSM function is enabled on

of the multi-information display.

●

When the BSM function is enabled on

of the multi-information display while

the engine switch is in ON.

If the system is functioning correctly, the

BSM outside rear view mirror indicators

will turn off after a few seconds.

If the BSM outside rear view mirror indica-

tors do not illuminate or do not turn off,

there may be a malfunction in the system.

If this occurs, have the vehicle inspected by

your Lexus dealer.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Engine oil pressure gauge

Displays the engine oil pressure

Outside temperature (



P.80)

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock

The GPS clock’s time is automatically adjusted by utilizing GPS time information. For
details, refer to the “MULTIMEDIA OWNER’S MANUAL”.

AHC display (if equipped)

Display the status of AHC (Active Height Control Suspension) (



P.346)

Voltmeter

Displays the charge state

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position and shift range/gear position

Gauges and meters

Meter display

B
C

2-1. Instrument cluster

Displays the selected shift position or selected shift range/gear position (



P.192)

Multi-information display

Presents the driver with a variety of driving-related data (



P.82)

Displays warning messages if a malfunction occurs (



P.506)

Odometer, trip meter and oil maintenance

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances independently.
Oil maintenance:
Displays the distance until the next engine oil change.

Engine coolant temperature gauge

Displays the engine coolant temperature

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change.

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

●

Displays the outside temperature within

the range of -40°F (-40°C) to 140°F

(60°C).

●

When the outside temperature is
approximately 37°F (3°C) or lower, the
indicator

will flash for approximately

10 seconds, then stay on.

■

Liquid crystal display



P.83

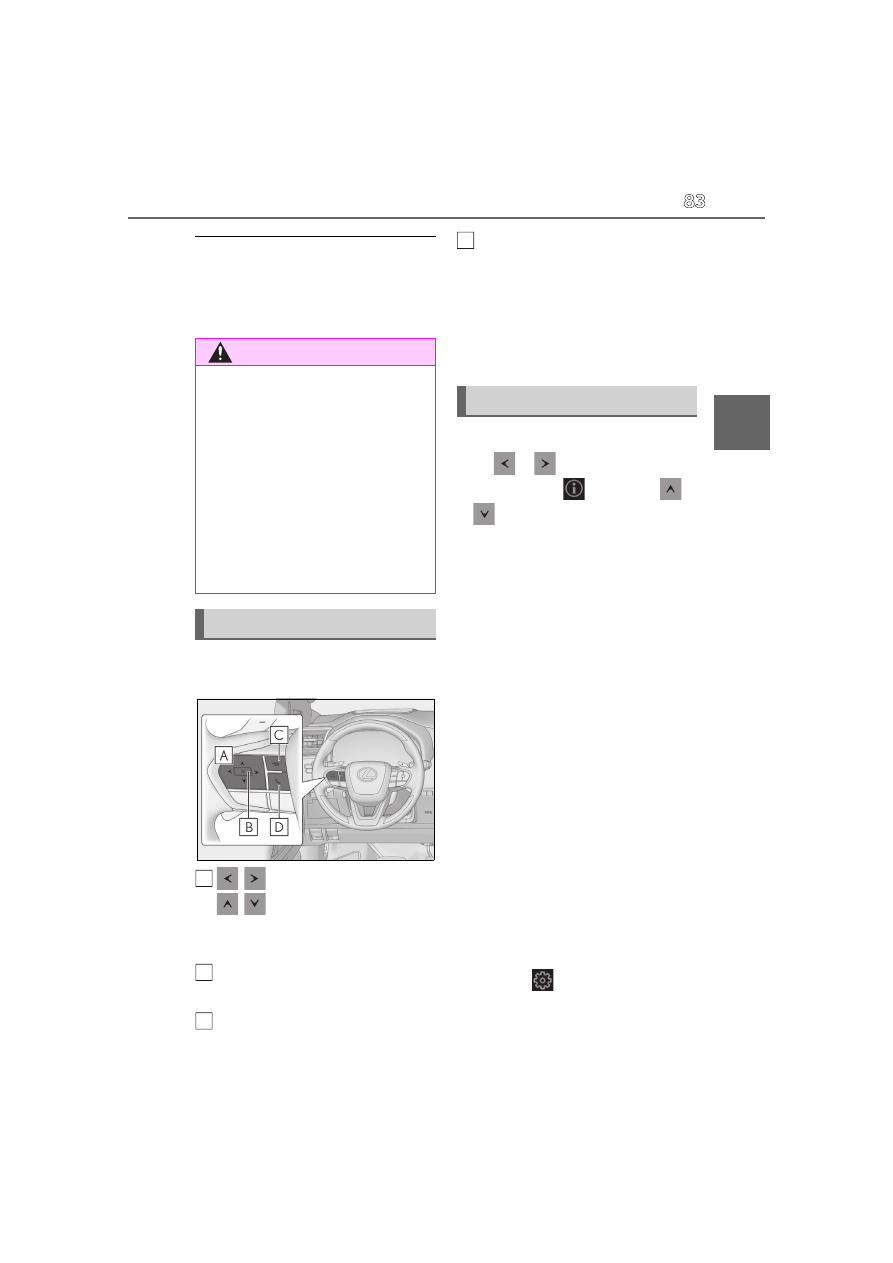

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the display monitor may

respond slowly, and display changes may

be delayed.
For example, there is a lag between the

driver’s shifting and the new gear num-

ber appearing on the display. This lag

could cause the driver to downshift

again, causing rapid and excessive

engine braking and possibly an accident

resulting in death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Switches the items of the odometer,
trip meter A, trip meter B and oil main-
tenance by pressing the “ODO TRIP”
switch.
When the trip meter is displayed,
pressing and holding the switch will
reset the trip meter.

■

Pop-up display

In some situations the following will be
temporarily displayed:



Stop & Start system operation time
(current) (



P.252)



Stop & Start system operating state
(



P.255)



Distance until next engine oil
change

When a warning message indicating that
oil maintenance should be performed soon
or is required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

NOTICE

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (“H”). In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.528)

■

Voltmeter

When the voltmeter indicates 19 V or

higher, or 9 V or lower while the engine

is running, there may be a battery or

charging system malfunction. Have the

vehicle inspected at your Lexus dealer.

■

Engine oil pressure gauge

When the value of the engine oil pres-

sure gauge drops while the engine is run-

ning, stop the vehicle in a safe place

immediately and check the amount of

engine oil. (



P.458)

When the oil pressure drops even

though the engine oil amount has not

decreased, or if the oil pressure does not

increase when engine oil is added, con-

tact your Lexus dealer, as there may be a

problem with the lubrication system.

Using the “ODO TRIP” switch

Changing the instrument panel
light brightness

2-1. Instrument cluster

■

Meter panel brightness adjustment

The meter panel brightness levels when the

surroundings are bright (daytime etc.) and

dark (nighttime etc.) can be adjusted indi-

vidually.

■

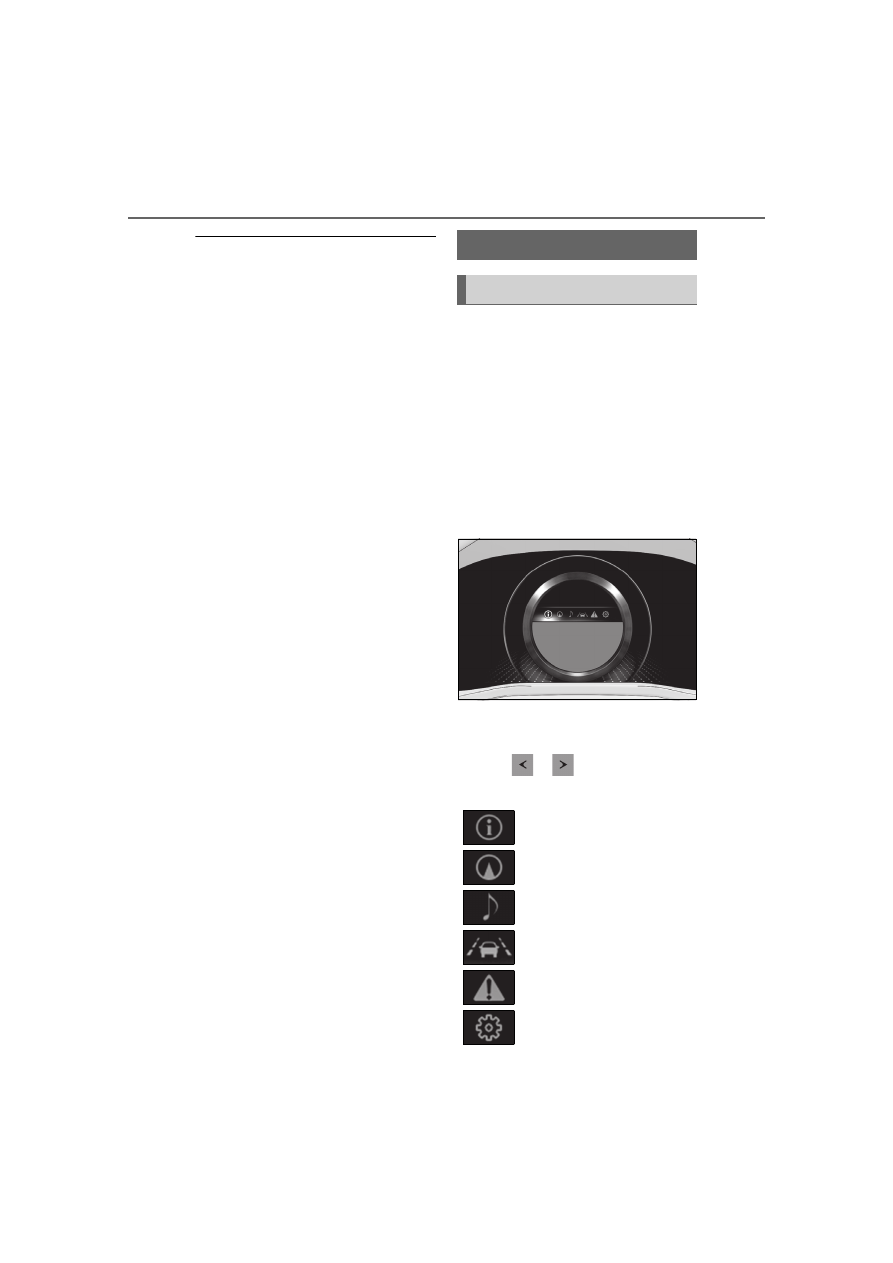

Display

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switch.

Multi-information display

Display and menu icons

Driving information display
(



P.83)

Navigation system-linked dis-
play (



P.85)

Audio system-linked display
(



P.85)

Driving support system infor-
mation display (



P.85)

Warning message display
(



P.506)

Settings display (



P.85)

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Return to the previous screen

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “MULTIMEDIA OWNER’S MAN-
UAL”.

■

Display items

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Eco Driving Indicator



Tire pressure (



P.467)



Display off

■

Drive information 1/Drive informa-
tion 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.85)



Current fuel consumption

Bar type: Displays instantaneous current

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

●

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

■

The information display at low tem-

peratures



P.80

Changing the meter display

Content of driving information

2-1. Instrument cluster

fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since engine start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start



Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter control

switch.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without

turning the engine switch off, the display
may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift position is in any position other

than D.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

●

A paddle shift switch is operated.

●

The driving mode is set to sport mode

(vehicles without Adaptive Variable Sus-

pension system) or SPORT S/SPORT S+

mode (vehicles with Adaptive Variable

Suspension system).

●

The driving mode is set to custom mode

(vehicles with Adaptive Variable Suspen-

sion system) and the powertrain control

is set to power. (



P.344)

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.229)



Dynamic radar cruise control with
full-speed range (



P.241)



RSA (Road Sign Assist) (if
equipped) (



P.238)

Vehicle settings and the content dis-
played on the screen can be changed
by using the meter control switches.

■

Setting procedure

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches, select the item, and
press .

Press

of the meter con-

trol switches, select the desired set-
ting, and press

After changing the settings, press

of the meter control switches.

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.83) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Pop-up display

Select to enable/disable pop-up displays

Navigation system-linked dis-
play

Audio system-linked display

Driving support system informa-
tion display

Settings display

2-1. Instrument cluster

for each relevant system.



Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.552

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,

use the meter control switches.

■

Suggestion to turn on the head-
lights

If the headlight switch is in other than

, and the vehicle speed is 3

mph (5 km/h) or higher for a certain
amount of time when the surroundings
are dark, a suggestion message will be
displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time after the engine switch
has been turned off, a suggestion mes-
sage will be displayed.

When the headlight switch is in

The message asking if you wish to turn
the headlights off is displayed. To turn
the headlights off, select “Yes”.

If the driver’s door is opened after the
engine switch is turned off, this suggestion
message will not be displayed.

■

Customization

Some functions can be customized. (Cus-

tomizable features:



P.552)

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure

that the engine is running while setting up

the display features.

Suggestion function

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Driving support system display area (



P.89)/Navigation system-linked dis-

play area

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Shift position/speed limit/RSA (Road Sign Assist) display area

Displays the following items:
• Shift position and shift range/gear position (



P.192)

• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P.238)

Speedometer

Eco Driving Indicator/Tachometer display area (



P.90)

■

Head-up display will operate when

The engine switch is in ON.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

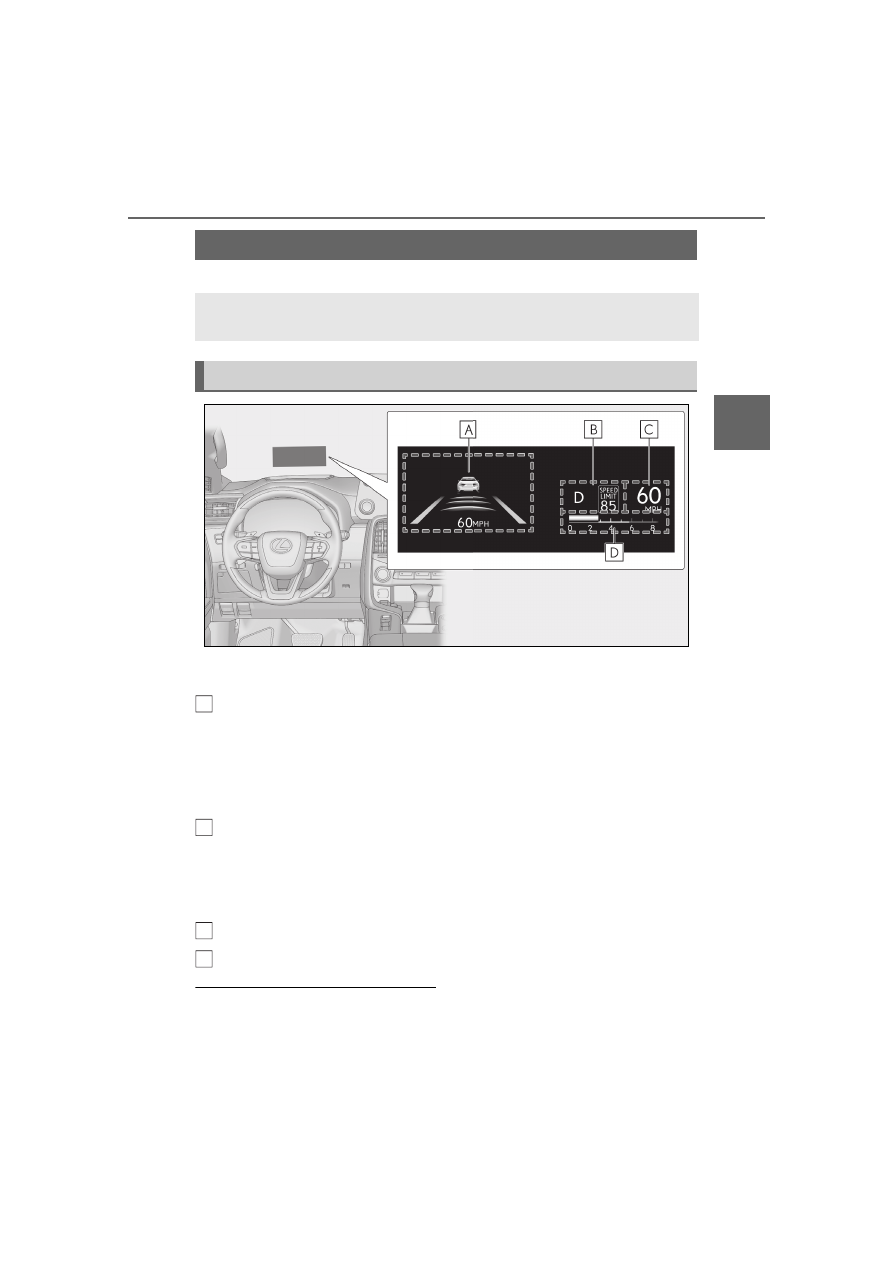

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

C
D

2-1. Instrument cluster

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

The following settings can be changed
on

of the multi-information display.

(



P.82)



Enabling/disabling the head-up dis-
play

Select to enable/disable the head-up dis-
play.



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Tachometer Settings

Select to display the following items:
• Blank
• Eco Driving Indicator
• Tachometer



Display content

Select to enable/disable the following
items:
• Navigation display

• Driving Assist display

• Compass
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to ON.

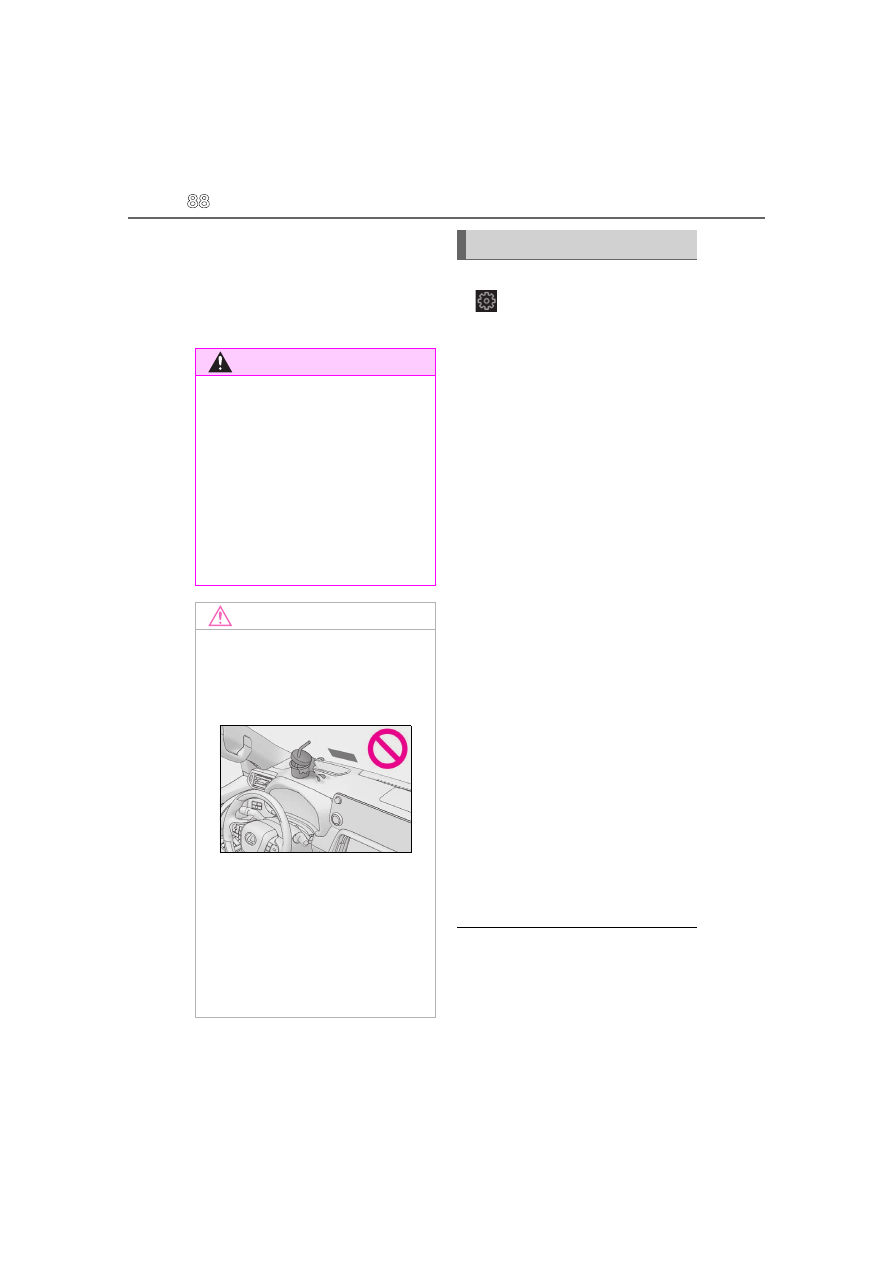

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted
according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.159)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist)
(



P.229)



Dynamic radar cruise control with

full-speed range (



P.241)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.219)



PKSB (Parking Support Brake)
(



P.275)



Brake Override System (



P.167)



Drive-Start Control (DSC)
(



P.171)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

Displays the following multi-information
display linked icons:

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.

: Information icon

Displayed when a suggestion / advice
pop-up display is displayed on the multi-
information display.

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure

that the engine is running while changing

the settings of the head-up display.

Driving support system display
area

Pop-up display

2-1. Instrument cluster

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Eco Driving Indicator

Eco Driving Indicator Zone Display

Eco driving ratio based on acceler-
ation

Zone of Eco driving

Displayed content is the same as that dis-

played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.84.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Eco Driving Indicator/Tachome-
ter display area

A
B

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

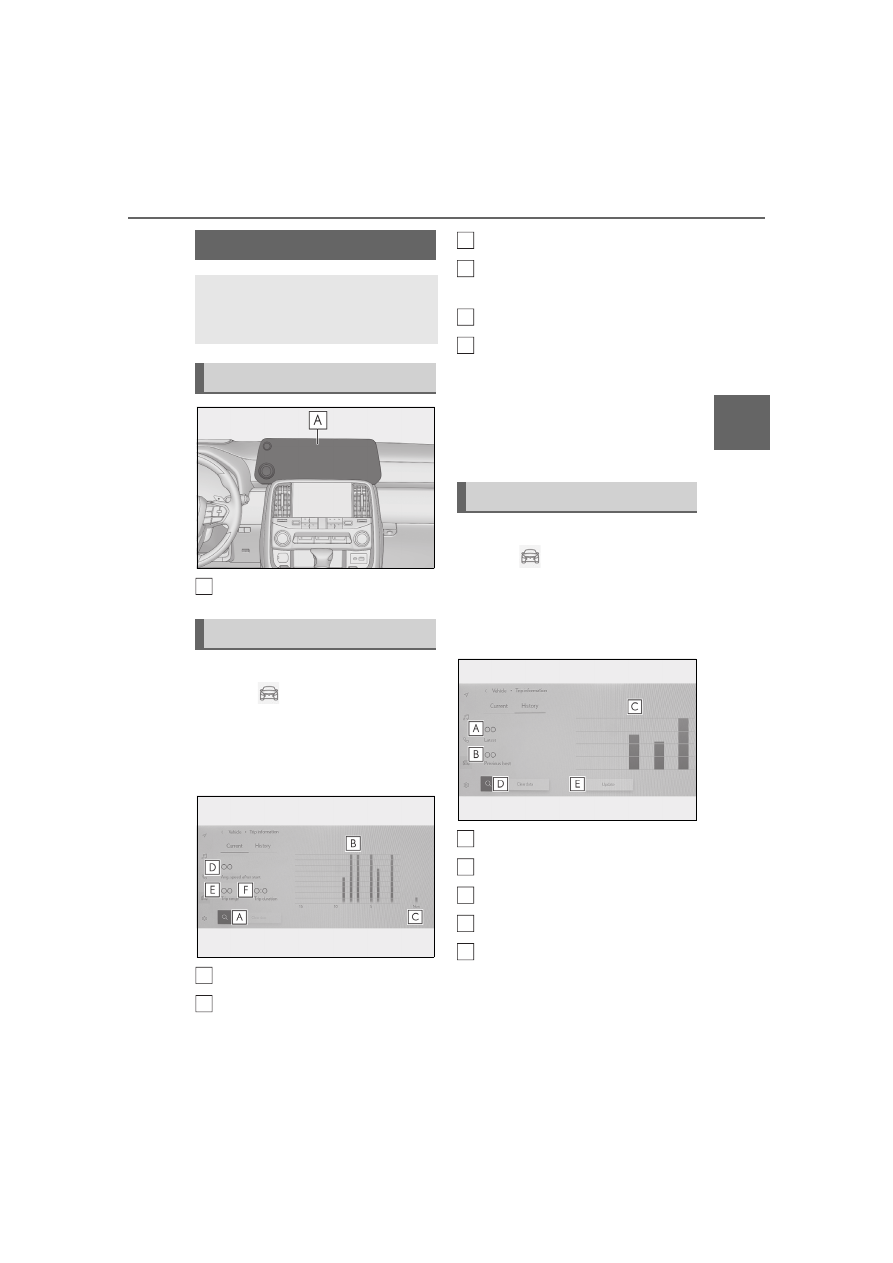

Multimedia Display

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “Current”.

■

Display

Resetting the history data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
engine was started.

Trip range

Elapsed time since the engine was
started.

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “History”.

■

Display

Latest fuel consumption

Best recorded fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

Use the displayed average fuel consump-
tion as a reference.

Fuel consumption screen

The fuel consumption information
can be displayed on the Multimedia
Display.

System components

Current screen

A
B

History screen

C
D

E
F

A
B
C
D

Lexus LX600 (2024 year). Manual in english - page 2
