7-2. Steps to take in an emergency

7

W

he

n t

ro

ub

le

 ar

ise

s

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the front wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

398

8-1. Specifications

8-1.Specifications

*

: Unladen  vehicle

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.

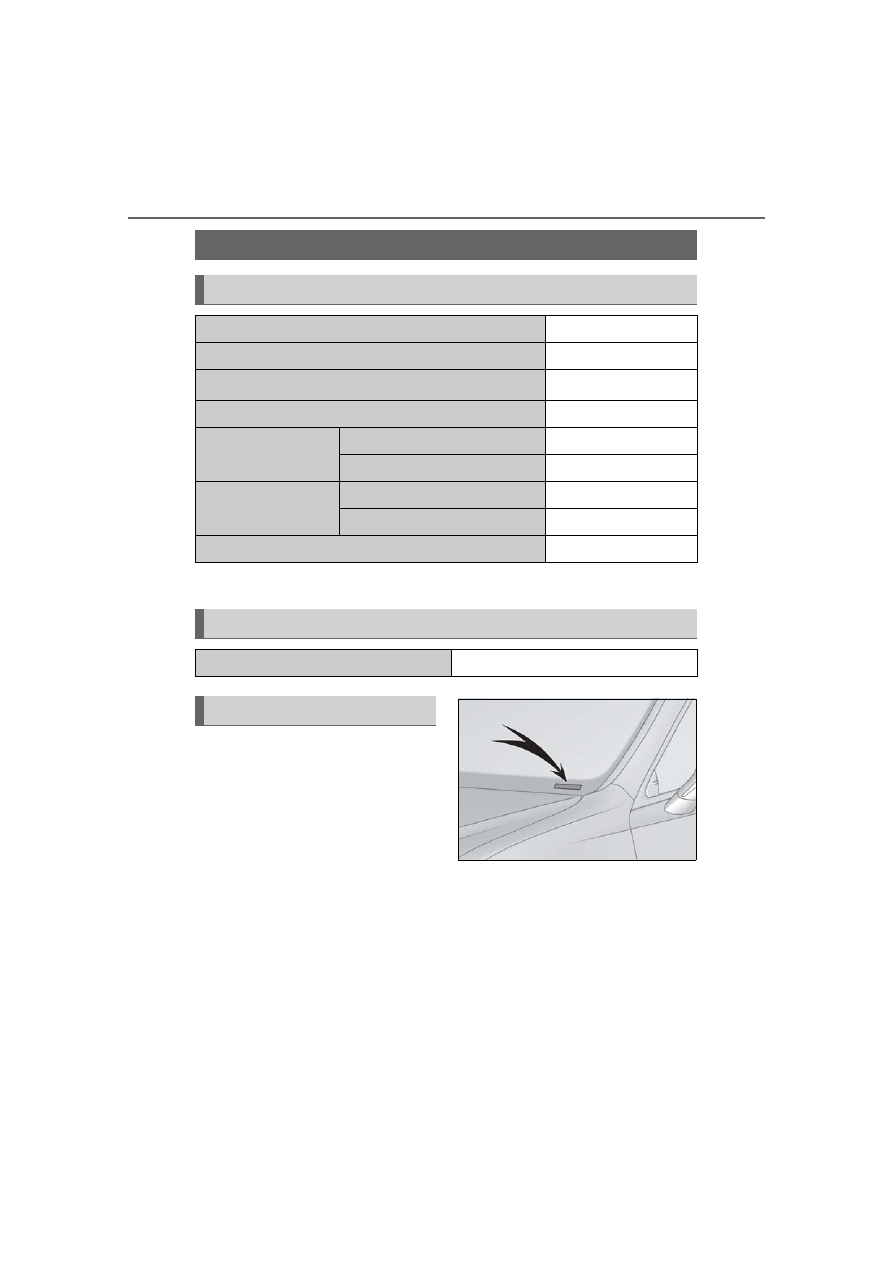

This number is on the top left of the
instrument panel.

This number is also on the Certification
Label.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

195.9 in. (4975 mm)

Overall width

73.4 in. (1865 mm)

Overall height

*

56.9 in. (1445 mm)

Wheelbase

113.0 in. (2870 mm)

Front tread

*

With 17-inch tires

63.0 in. (1599 mm)

With 18-inch tires/19-inch tires

62.6 in. (1589 mm)

Rear tread

*

With 17-inch tires

63.3 in. (1609 mm)

With 18-inch tires/19-inch tires

63.0 in. (1600 mm)

Vehicle capacity weight (Occupants + luggage)

905 lb. (410 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

399

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

■

Engine number

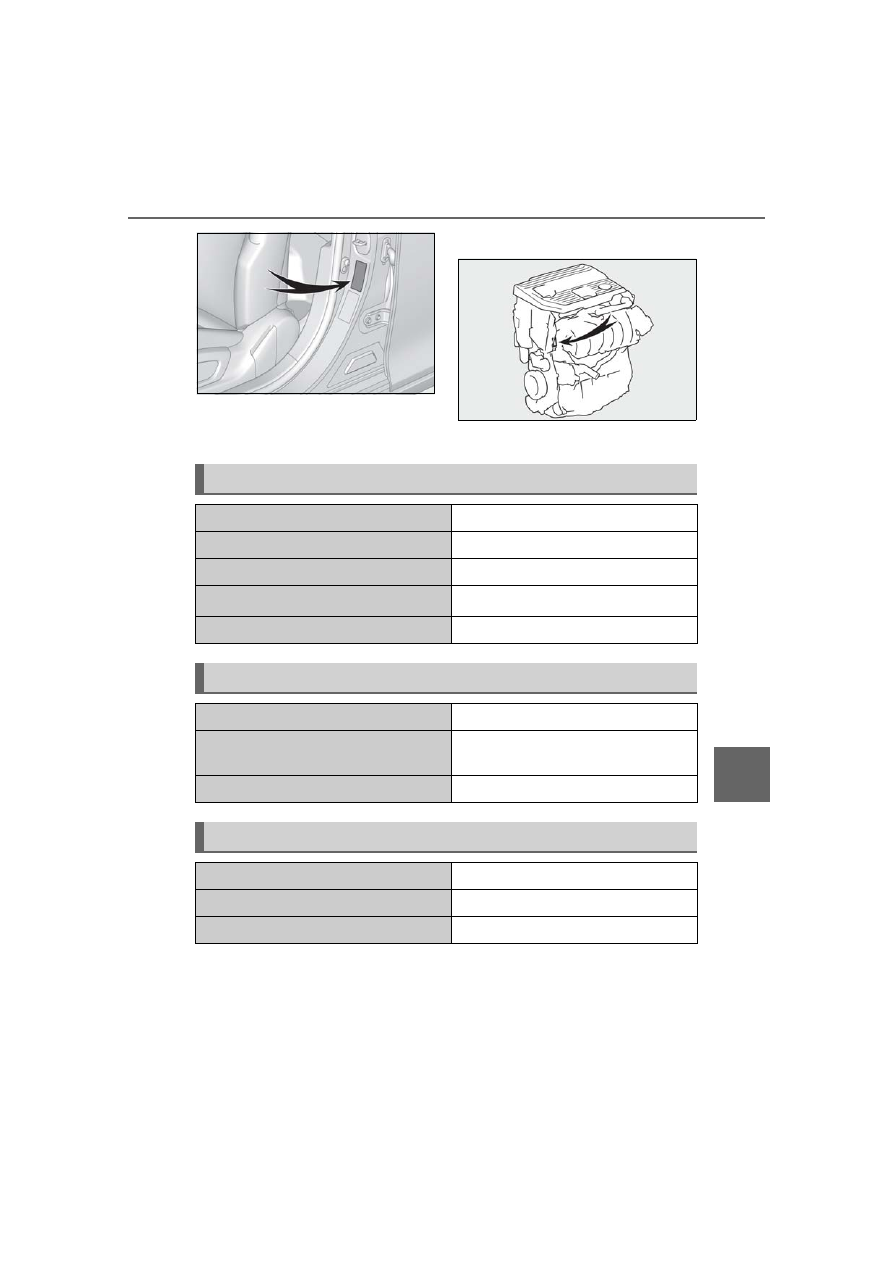

The engine number is located as

shown.

Engine

Model

2.5 L 4-cylinder (A25A-FXS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



 4.07 in. (87.5



 103.4 mm)

Displacement

151.8 cu.in. (2487 cm

3

)

Valve clearance (Engine cold)

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity (Reference)

13.0 gal. (49.3 L, 10.8 Imp.gal.)

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

88 kW

Maximum torque

149 ft•lbf (202 N•m, 20.6 kgf•m)

400

8-1. Specifications



Except for Canada



For Canada

■

Oil capacity (Drain and refill [Ref-
erence

*

])

*

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade:

ILSAC GF-6B multigrade engine oil
Recommended viscosity:
SAE 0W-16
SAE 0W-16 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at
the next oil change.

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

4.0 Ah

Quantity

70 cells

Nominal voltage

259 V

Type

Nickel-metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

34 modules

Nominal voltage

244.8 V

Lubrication system

With filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)

Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)

401

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

Outside temperature

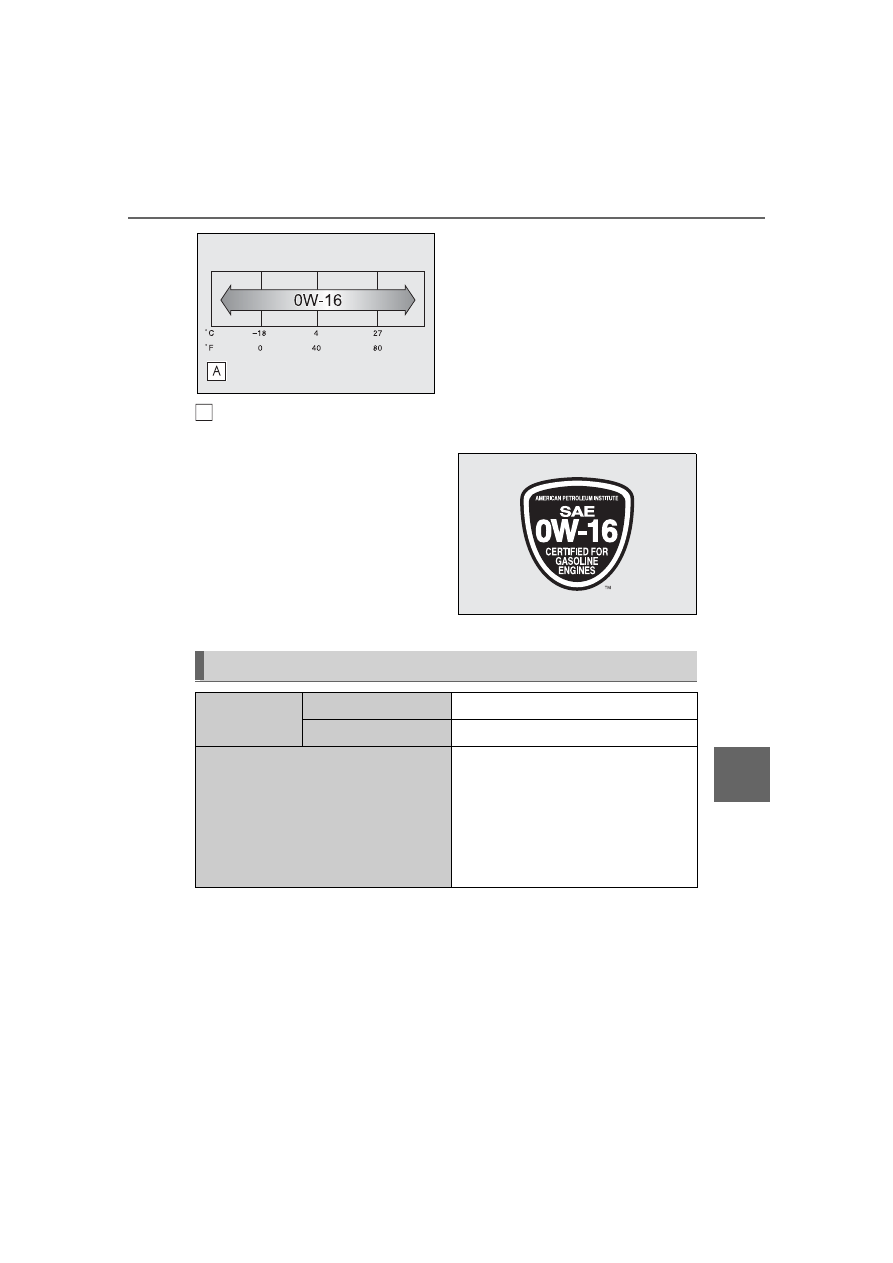

Oil viscosity (0W-16 is explained here
as an example):
• The 0W in 0W-16 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 16 in 0W-16 indicates the vis-

cosity characteristic of the oil when

the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
API registered mark is added to some
oil containers to help you select the oil
you should use.

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

A

Cooling system

Capacity

*

Gasoline engine

6.4 qt. (6.1 L, 5.4 Imp.qt.)

Power control unit

1.9 qt. (1.8 L, 1.6 Imp.qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology

Do not use plain water alone.

402

8-1. Specifications

■

Spark plug

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Ignition system

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)
If the voltage is lower than the standard
value, charge the battery.

Charging rates

5 A max.

Hybrid transmission

Fluid capacity

*

4.1 qt. (3.9 L, 3.4 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

*1

3.3 in. (85 mm) Min.

Pedal free play

0.04



 0.24 in. (1.0



 6.0 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

403

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

*1

: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N, 30.6 kgf)

while the hybrid system is operating.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the hybrid system is operating. (If the brake
system warning light is illuminated, refer to P.360.)

*2

: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If

the brake system warning light illuminates, refer to P.360.)



Type A

*1

: 100 mph (160 km/h) or less

*2

: More than 100 mph (160 km/h)

Parking brake indicator

*2

When pushing the parking brake switch for
1 to 2 seconds: comes on
When pulling the parking brake switch for 1
to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

215/55R17 94V, T155/70D17 110M
(spare)

Tire inflation pressure
(Recommended cold tire inflation pressure)

Front

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Rear

36 psi (250 kPa, 2.5 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

17 x 7 1/2J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

404

8-1. Specifications



Type B

*1

: 100 mph (160 km/h) or less

*2

: More than 100 mph (160 km/h)



Type C

*1

: 137 mph (220 km/h) or less

*2

: More than 137 mph (220 km/h)

Tire size

235/45R18 94V, T155/70D17 110M
(spare)

Tire inflation pressure
(Recommended cold tire inflation pressure)

Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Rear

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18 x 8J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/40R19 92V, T155/70D17 110M
(spare)

Tire inflation pressure
(Recommended cold tire inflation pressure)

Front

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Rear

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

*1

46 psi (320 kPa, 3.2 kgf/cm

2

 or bar)

*2

Spare

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

19 x 8J, 17 x 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

405

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

*

: The 28/8 W bulb is used. However, only the 28 W filament illuminates.

Light bulbs (vehicles with single-beam headlights)

Light bulbs

Bulb No.

W

Type

Front turn signal lights

7444NA

28/8

*

Wedge base

bulbs (amber)

Front side marker lights

W5W

5

Wedge base

bulbs (clear)

406

8-1. Specifications

■

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration

program.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gas-

oline and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.

Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30 (30% ethanol [

]), E50 (50%

ethanol [

]), E85 (85% ethanol [

])

(which are only some examples of fuel
containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

87.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

You must only use unleaded gaso-
line.

Select octane rating 87 (Research
Octane Number 91) or higher. Use
of unleaded gasoline with an octane
rating lower than 87 may result in
engine knocking. Persistent knock-
ing can lead to engine damage.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.

A

B

C

407

8-1. Specifications

8

V

eh

icle

 sp

ec

ific

atio

ns

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control

system to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine dam-

age and will void the vehicle warranty.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can

damage your vehicle’s paint.

408

8-1. Specifications



Full-size tire

Tire size (



P.410)

DOT and Tire Identification Number (TIN) (



P.410)

Location of treadwear indicators (



P.326)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.412)

Maximum cold tire inflation pressure (



P.412)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.327)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.

Tire information

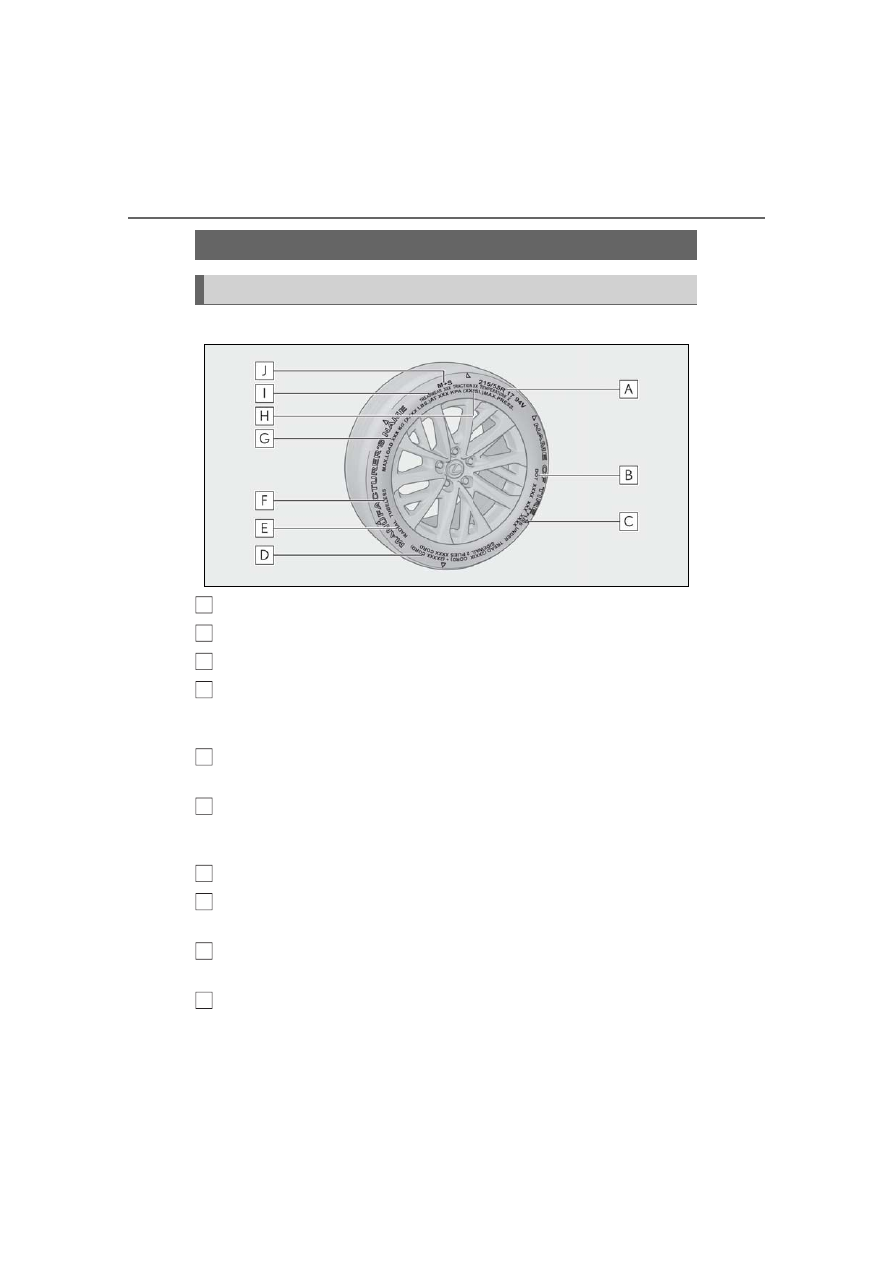

Typical tire symbols

A
B
C
D

E

F

G

H

I

J

409

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions



Compact spare tire

Tire size (



P.410)

DOT and Tire Identification Number (TIN) (



P.410)

Location of treadwear indicators (



P.326)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.412)

Maximum cold tire inflation pressure (



P.412)

This means the pressure to which a tire may be inflated.

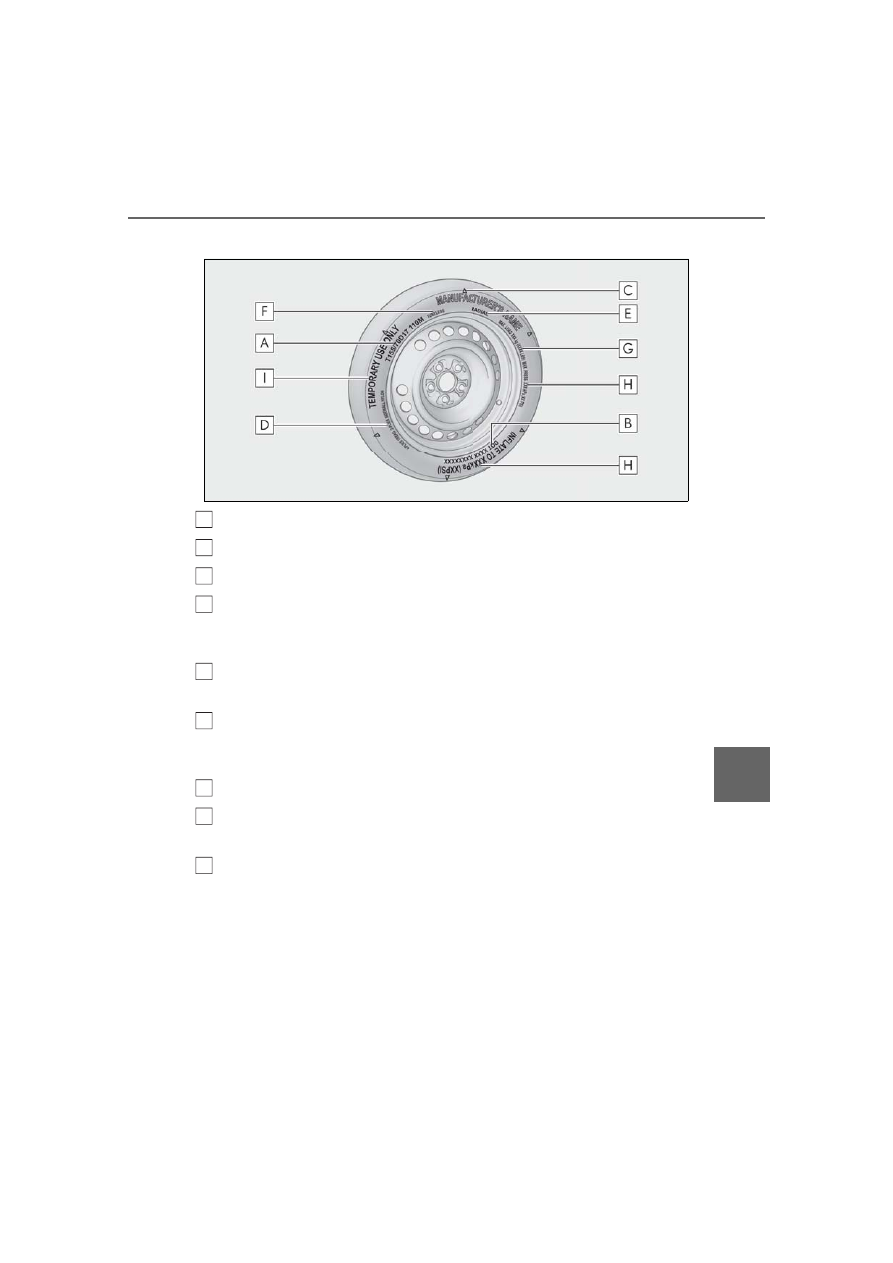

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded on
its sidewall. This tire is designed for temporary emergency use only.

A
B
C
D

E

F

G

H

I

410

8-1. Specifications



Type A

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Tire size code

Manufacturer’s optional tire type
code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The  DOT  symbol  certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Manufacturer’s code

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

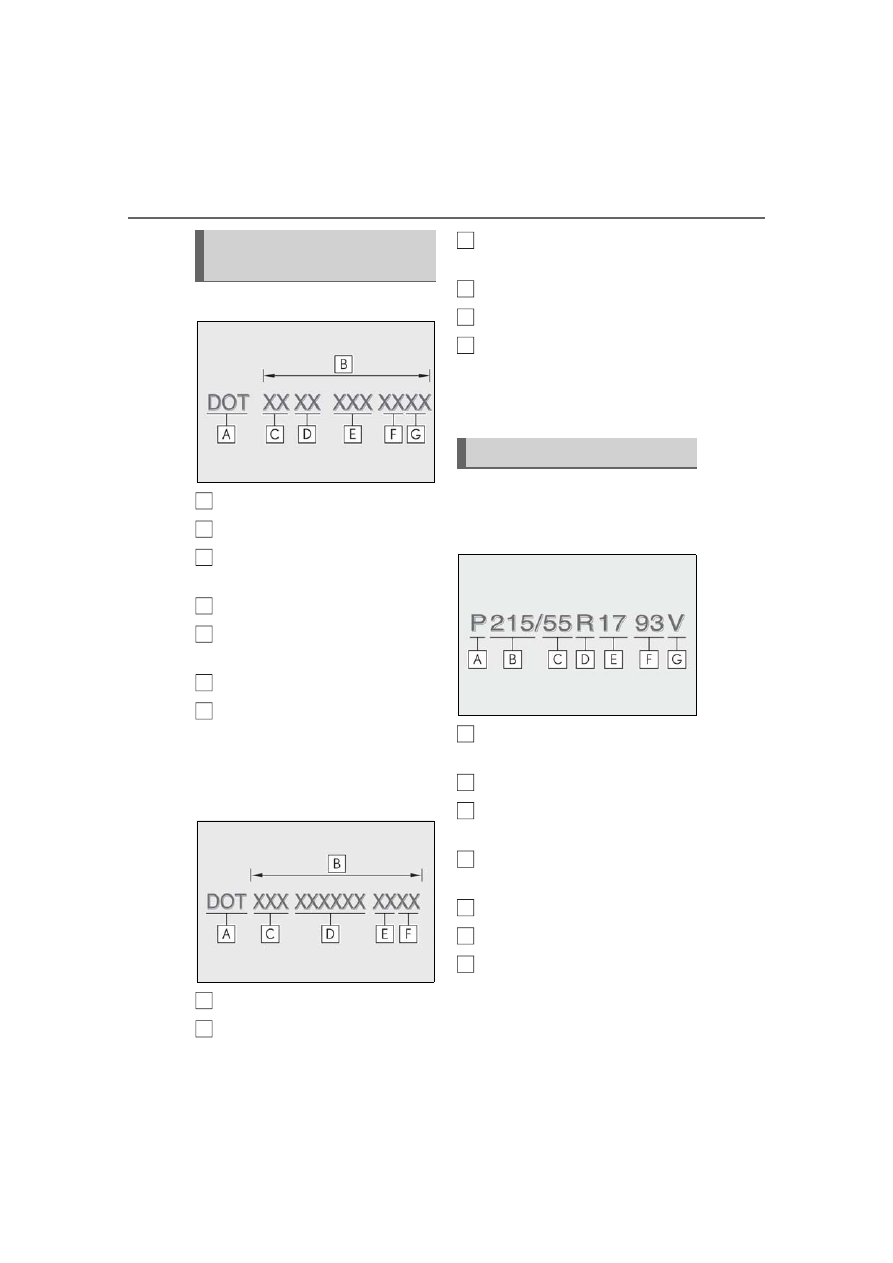

Typical tire size information

The illustration indicates typical tire
size.

Tire use (P = Passenger car, T =
Temporary use)

Section width (millimeters)

Aspect ratio (tire height to section
width)

Tire construction code (R = Radial,
D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one
letter)

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

D

E

F

G

A
B

Tire size

C

D

E
F

A

B
C

D

E
F

G

411

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

■

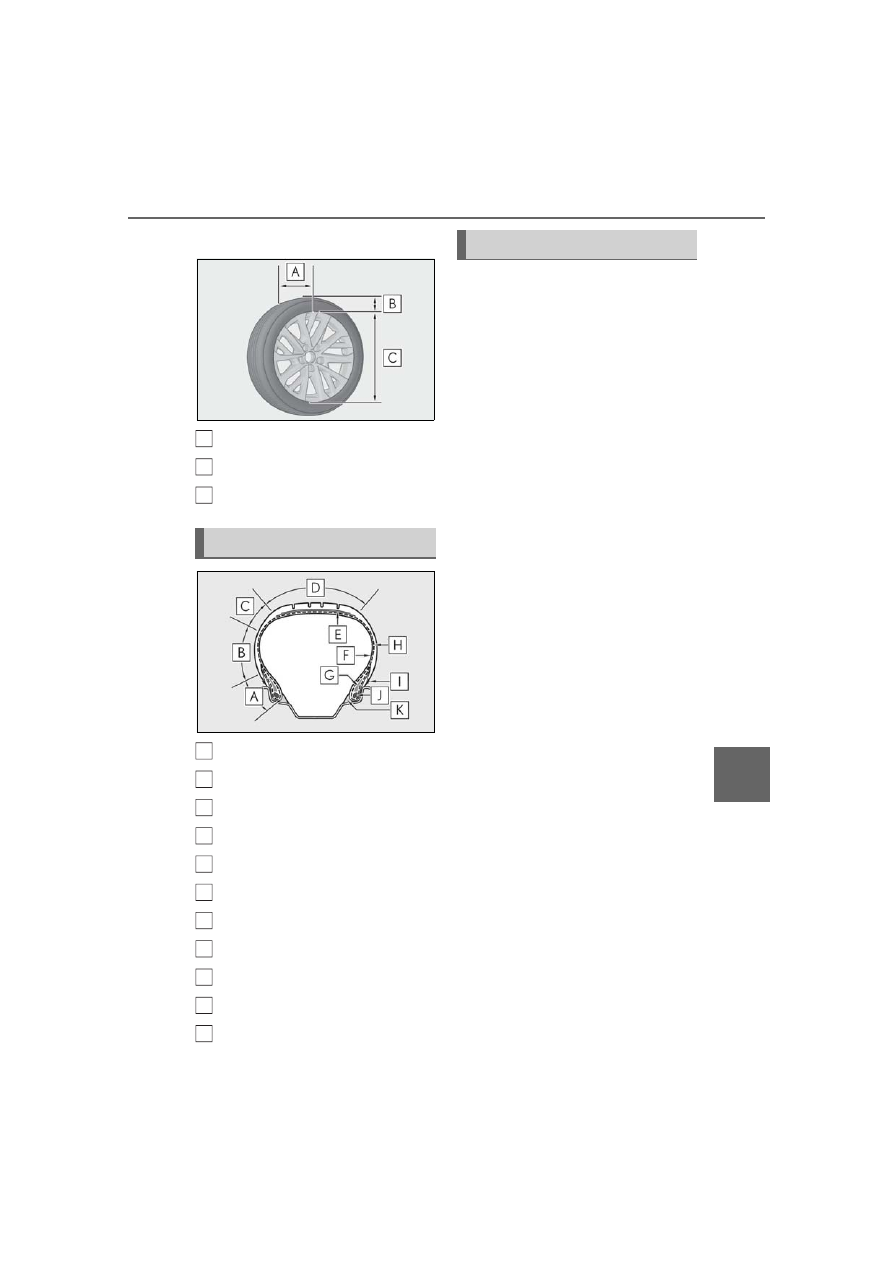

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements
in addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course.

For example, a tire graded 150 would
wear one and a half (1 - 1/2) times as well
on the government course as a tire graded
100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Tire section names

A
B
C

A
B
C
D

E
F

G

H

I

J

K

Uniform Tire Quality Grading

412

8-1. Specifications

■

Traction AA, A, B, C

The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.

A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.

■

Temperature A, B, C

The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat

when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, underinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation
pressure

Tire pressure when the vehicle has been parked for three hours or
more, or has not been driven more than 1 mile or 1.5 km under that
condition

Maximum inflation
pressure

The maximum cold inflated pressure to which a tire may be inflated,
shown on the sidewall of the tire

Recommended
inflation pressure

Cold tire inflation pressure recommended by a manufacturer

Accessory weight

The combined weight (in excess of those standard items which may
be replaced) of hybrid transmission, power steering, power brakes,
power windows, power seats, radio and heater, to the extent that
these items are available as factory-installed equipment (whether
installed or not)

Curb weight

The weight of a motor vehicle with standard equipment, including the
maximum capacity of fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional engine
