The vehicle identification number (VIN) is the legal identifier for your vehicle. This
is the primary identification number for your Lexus. It is used in registering the
ownership of your vehicle.

10-1. Specifications

740

●

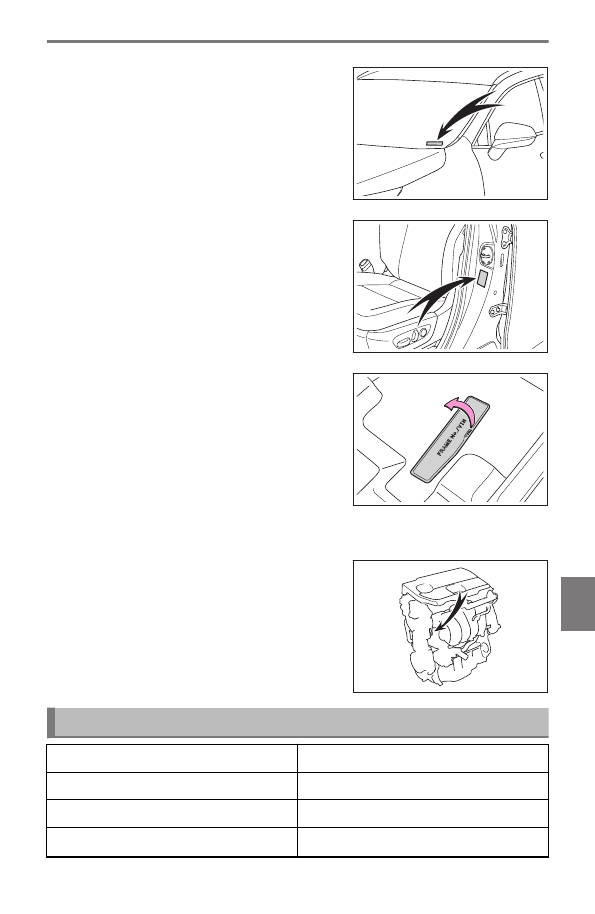

This number is stamped on the top left of the
instrument panel.

●

This number is also on the Certification Label.

●

This number is also stamped under the right-
hand front seat.

■

Engine number

Engine

Model

2.5 L 4-cylinder (A25A-FXS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44 × 4.07 in. (87.5 × 103.4 mm)

Displacement

151.8 cu. in. (2487 cm

)

10-1. Specifications

741

Vehicle specifications

Valve clearance (engine cold)

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or high-
er [recomended]
87 (Research Octane Number 91) or high-
er [minimum]

Fuel tank capacity (Reference)

14.5 gal. (55.0 L, 12.1 Imp. gal.)

Electric motor (traction motor)

▶

Front

Type

Permanent magnet synchronous motor

Maximum output

134 kW

Maximum torque

199.1 ft•lbf (270 N•m, 27.5 kgf•m)

▶

Rear (AWD models)

Type

Permanent magnet synchronous motor

Maximum output

40 kW

Maximum torque

89.2 ft•lbf (121 N•m, 12.3 kgf•m)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

51 Ah

Quantity

96 cells

Nominal voltage

355 V

Lubrication system

■

Oil capacity (Drain and refill) (Reference)

With filter

4.8 qt. (4.5 L, 4.0 Imp.qt.)

10-1. Specifications

742

Without filter

4.4 qt. (4.2 L, 3.7 Imp.qt.)

"Toyota Genuine Motor Oil" is used in your Lexus vehicle. Use Lexus approved
"Toyota Genuine Motor Oil" or equivalent to satisfy the following grade and
viscosity.

Oil grade: ILSAC GF-6B multigrade engine oil
Recommended viscosity: SAE 0W-16

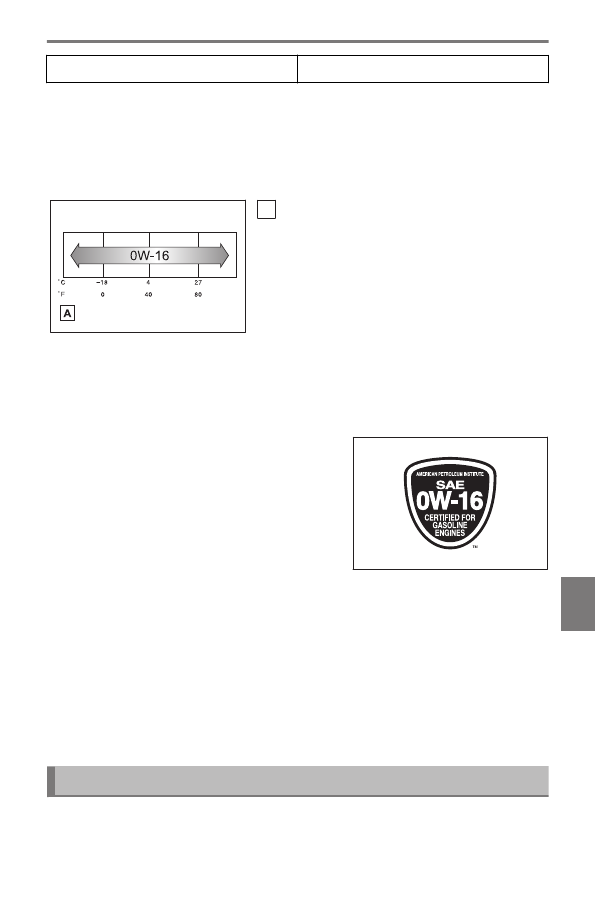

Outside temperature

SAE 0W-16 is the best choise for good fuel economy and good starting in cold
wheather. If SAE 0W-16 is not available, SAE 0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at the next oil change.

■

How to read oil container label

API registered mark is added to some oil con-
tainers to help you select the oil you should use.
Oil viscosity (0W-16 is explained here as an ex-
ample):

●

The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability.
Oils with a lower value before the W allow for easier starting of the engine in
cold weather.

●

The 16 in 0W-16 indicates the viscosity characteristic of the oil when the oil is at
high temperature.
An oil with a higher viscosity (one with a higher value) may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.

Cooling system

*1 :

The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and

check the oil level on the dipstick.

10-1. Specifications

743

Vehicle specifications

Capacity

(1)

Gasoline engine

8.7 qt. (8.2 L, 7.2 Imp.qt.)

Power control unit

2.1 qt. (2.0 L, 1.6 Imp.qt.)

Coolant type

Use either of the following:

●

"Toyota Super Long Life
Coolant"

●

Similar high-quality eth-
ylene glycol-based non-
silicate, non-amine, non-
nitrite, and non-borate
coolant with long-life hy-
brid organic acid tech-
nology

Do not use plain water
alone.

(1)

The coolant capacity is the quantity of reference. If replacement is necessary, contact

your Lexus dealer.

Ignition system (spark plug)

Make

DENSO FC16HR-Q8

Gap

0.03 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

■

12-volt battery

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)

■

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

10-1. Specifications

744

Hybrid transmission

Fluid capacity

(1)

4.7 qt. (4.4 L, 3.9 Imp.qt.)

Fluid type

"Toyota Genuine ATF WS"

(1)

The fluid capacity is the quantity of reference. If replacement is necessary, contact

your Lexus dealer.

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-
tion, or ultimately damage the transmission of your vehicle.

Rear differential (Rear electric motor)

Oil capacity

(1)

1.8 qt. (1.7 L, 1.5 Imp.qt.)

Oil type and viscosity

"Toyota Genuine ATF WS"

(1)

The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Lexus dealer.

NOTICE

■

Transmission fluid type

Using differential gear oil other than the specified oil may cause abnormal noise or
vibration, or damage the differential gear of your vehicle.

Brakes

Pedal clearance

(1)

5.0 in. (128 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Pedal free play

0.04 - 0.25 in. (1 - 6 mm)

Fluid type

●

FMVSS No. 116 DOT 3 or SAE J1703

●

FMVSS No. 116 DOT 4 or SAE J1704

(1)

Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.5 lbf)

while the hybrid system is operating.

10-1. Specifications

745

Vehicle specifications

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

▶

Type A

Tire size

235/60R18 103H

Tire inflation pressure (Recommended cold
tire inflation pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm

or bar)

to the front and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.

Wheel size

18 × 7 1/2 J

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

▶

Type B

Tire size

235/50R20 100V

Tire inflation pressure (Recommended cold
tire inflation pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

or bar)

Driving at high speeds (above 100 mph
[160 km/h]) (in countries where such
speeds are permitted by law)

Add 6 psi (40 kPa, 0.4 kgf/cm

or bar)

to the front and rear tires. Never exceed
the maximum cold tire inflation pressure
indicated on the tire sidewall.

Wheel size

20 × 7 1/2 J

Wheel bolt torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

10-1. Specifications

746

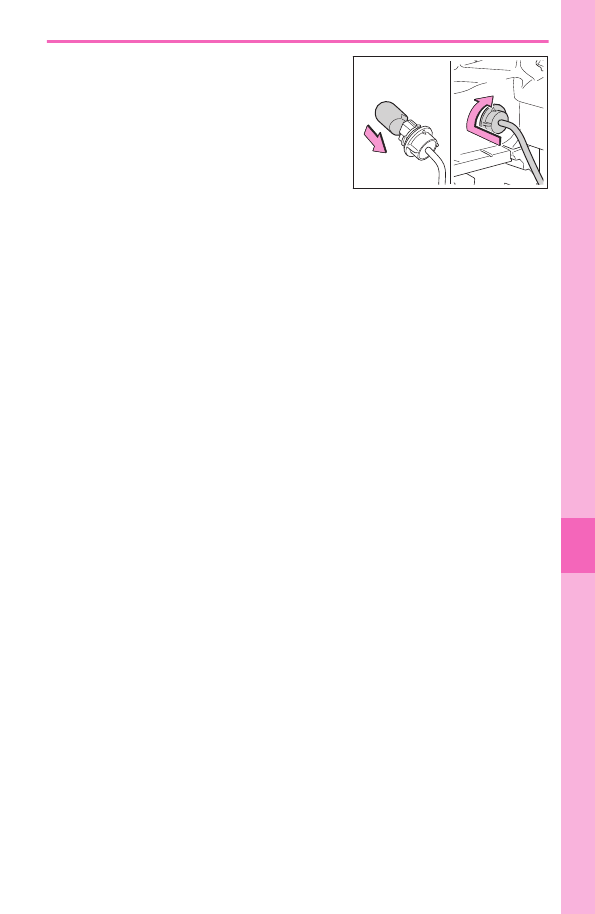

Light bulbs

Bulb No.

Type

Exterior

Front turn signal
lights (bulb
type)

WY21W

A: Wedge base bulbs (amber)

10-1. Specifications

747

Vehicle specifications

Fuel information

You must only use unleaded gasoline in your vehicle.
Recommended to use premium unleaded gasoline with octane rating of 91 (Re-
search OctaneNumber of 96) or higher for optimum engine performance. You
may use unleaded gasoline with octane rating as low as 87 (Research Octane
Number of 91). In this case, engine performance may be decreased.
Use of octane rating unleaded gasoline with an octane rating lower than 87 may
result in engine knocking. Persistent knocking can lead to engine damage.
At minimum, the gasoline you use should meet the specifications of ASTM D4814
in the U.S.A.

INFORMATION

■

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gasoline you are
using. If driveability problems persist, try changing the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA's lowest additives concentration program.

●

Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more infor-
mation on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline

Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use,
providing they meet other fuel requirements.
Lexus recommends these fuels, since the formulations allow for reduced vehicle emis-
sions.

10-1. Specifications

748

■

Non-recommendation of the use of blended gasoline

●

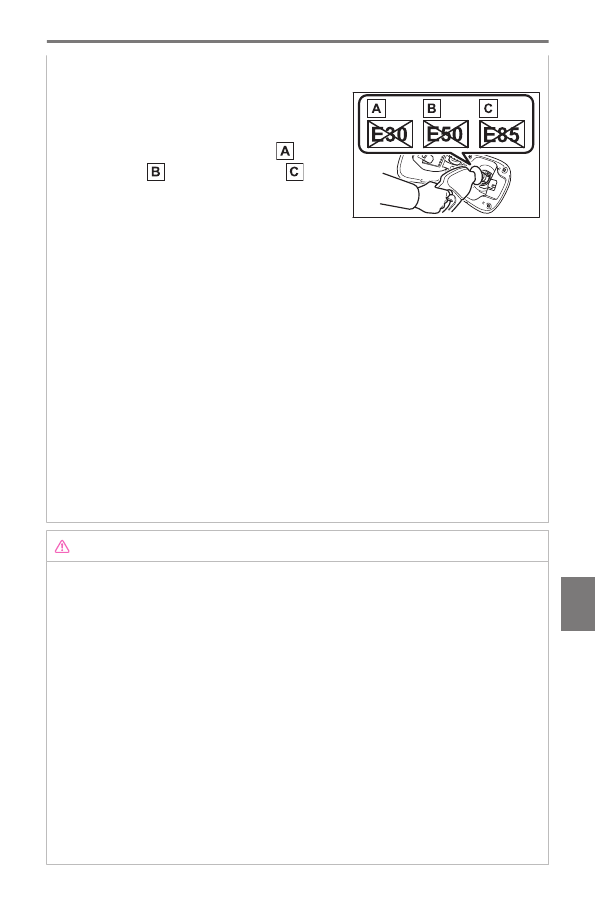

Use only gasoline containing up to 15% ethanol.
DO NOT use any flex-fuel or gasoline that could
contain more than 15% ethanol, including from
any pump labeled E30 (30% ethanol

), E50

(50% ethanol

), E85 (85% ethanol

)

(which are only some examples of fuel containing
more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure that it has an octane rating no lower than 87.

●

Lexus does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcyclopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle's three-way catalytic converters
causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.

●

Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encountered
after using a different type of fuel, discontinue the use of that type of fuel.

10-1. Specifications

749

Vehicle specifications

NOTICE

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle's paint.

10-1. Specifications

750

Tire information

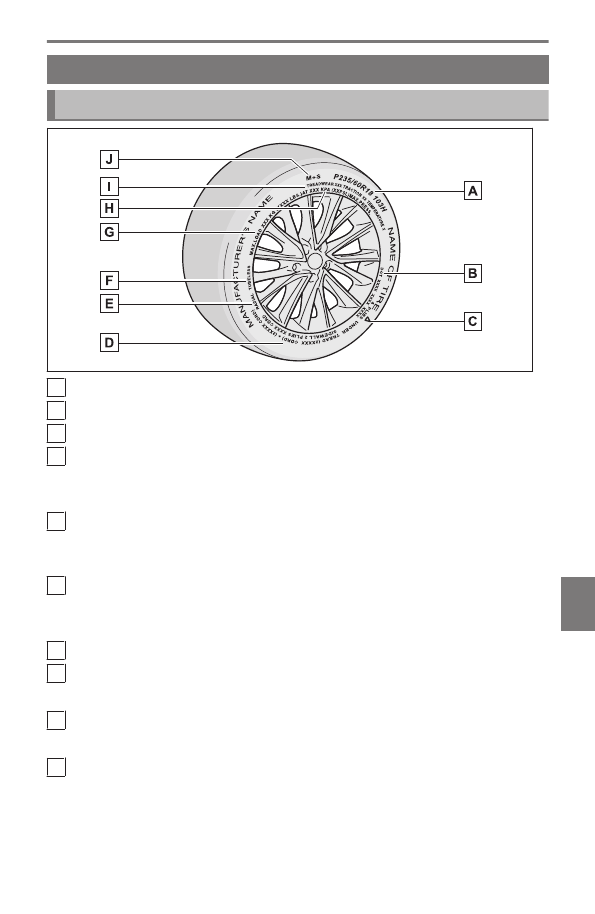

Typical tire symbols

Tire size

DOT and Tire Identification Number (TIN)

Location of treadwear indicators

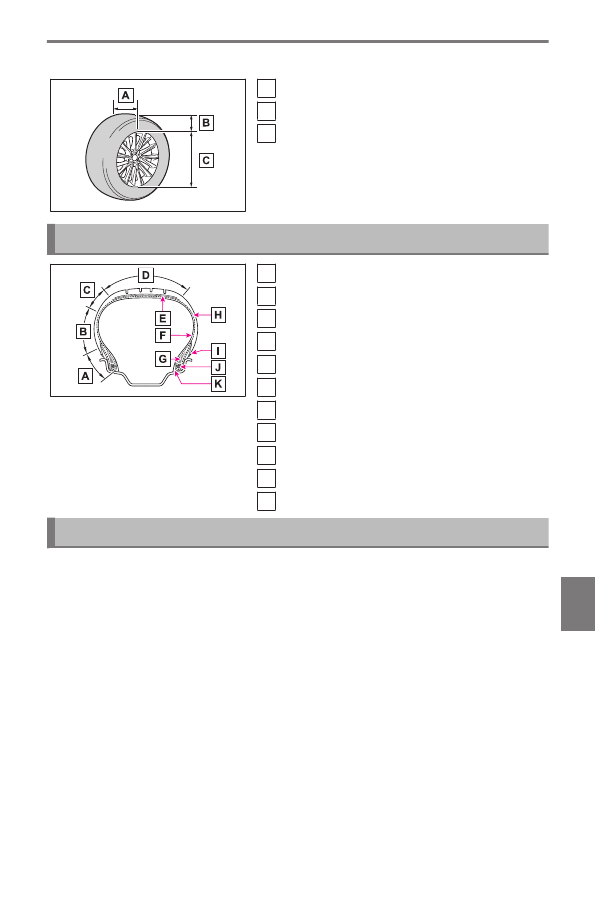

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the
plies in a tire.

Radial tires or bias-ply tires

A radial tire has [RADIAL] on the sidewall. A tire not marked [RADIAL] is a bias-ply
tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure

Maximum cold tire inflation pressure

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see

Uniform Tire Quality Grading(

→

P.753)

that follows.

Summer tires or all season tires

An all season tire has [M+S] on the sidewall. A tire not marked [M+S] is a summer tire.

10-1. Specifications

751

Vehicle specifications

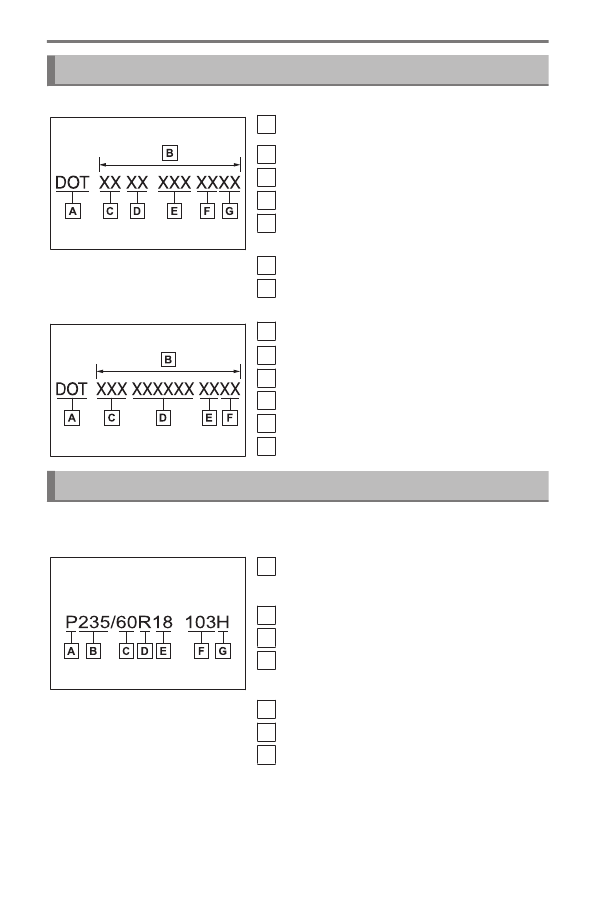

Typical DOT and Tire Identification Number (TIN)

▶

Type A

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer's identification mark

Tire size code

Manufacturer's optional tire type code (3 or
4 letters)

Manufacturing week

Manufacturing year

▶

Type B

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer's identification mark

Manufacturer's code

Manufacturing week

Manufacturing year

Tire size

■

Typical tire size information

The illustration indicates typical tire size.

Tire use
(P = Passenger car, T = Temporary use)

Section width (millimeters)

Aspect ratio (tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one letter)

*1 :

The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle

Safety Standards.

10-1. Specifications

752

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire section names

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

Uniform Tire Quality Grading

This information has been prepared in accordance with regulations issued by
the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehicles with
information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety Requirements in addi-
tion to these grades. Quality grades can be found where applicable on the tire
sidewall between tread shoulder and maximum section width.
For example: Treadwear 200 Traction AA Temperature A

10-1. Specifications

753

Vehicle specifications

Content .. 43 44 45 46 ..
