7-2. Steps to take in an emergency

7

W

he

n t

ro

ub

le

 a

ris

es

coolant is unavailable.

6

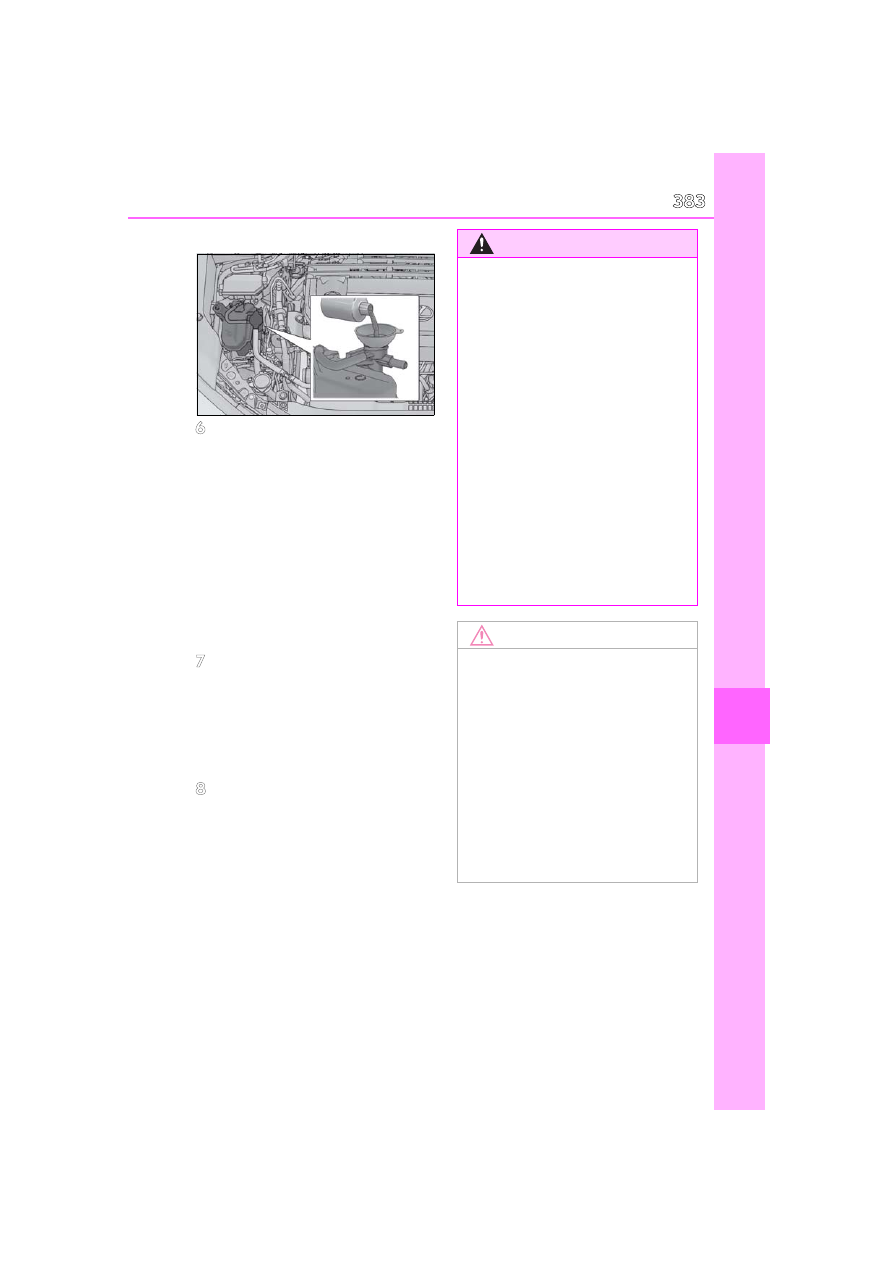

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

7

If the fan is not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.

8

WARNING

■

To prevent an accident or injury when

inspecting under the hood of your

vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

Do not loosen the coolant reservoir

cap while the engine and radiator are

hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling

system

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust,

etc.).

●

Do not use any coolant additive.

384

7-2. Steps to take in an emergency

1

Stop the engine. Shift the shift lever
to P and set the parking brake.

2

Remove the mud, snow or sand
from around the front wheels.

3

Place wood, stones or some other
material under the front wheels to
help provide traction.

4

Restart the engine.

5

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

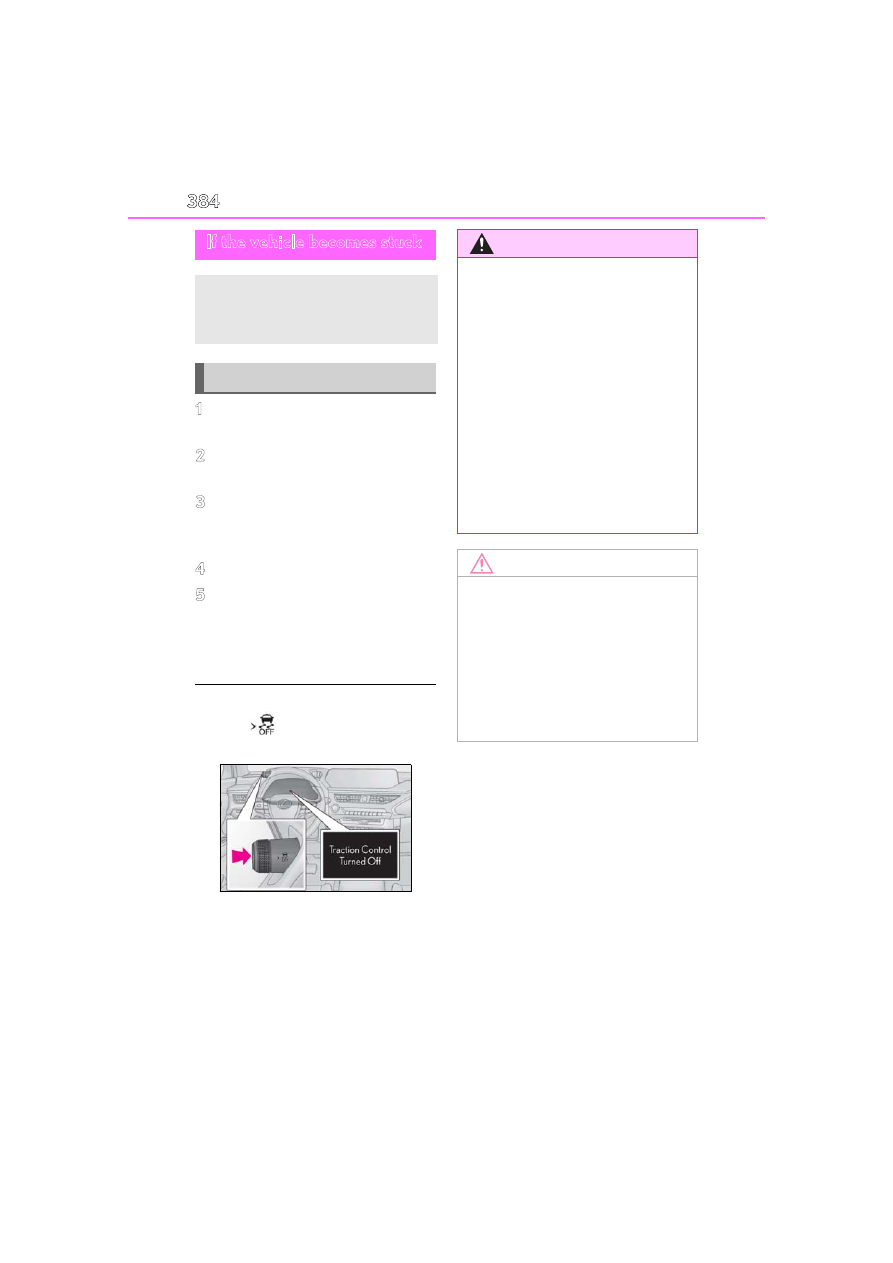

When it is difficult to free the vehicle

Press the

 switch to turn off TRAC.

(



P.241)

If the vehicle becomes stuck

Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damage to the transmission

and other components

●

Avoid spinning the tires and depress-

ing the accelerator pedal more than

necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

385

8

8

Vehi

cle

 spec

ifi

ca

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

386

Fuel information.........................

393

Tire information..........................

395

8-2. Customization

Customizable features............

404

8-3. Initialization

Items to initialize .........................

415

386

8-1. Specifications

8-1.Specifications

*1

: Unladen  vehicle

*2

: Vehicles without shark fin antenna

*3

: Vehicles with shark fin antenna

*4

: Vehicles with 215/60R17 tires

*5

: Vehicles with 225/50RF18 tires

■

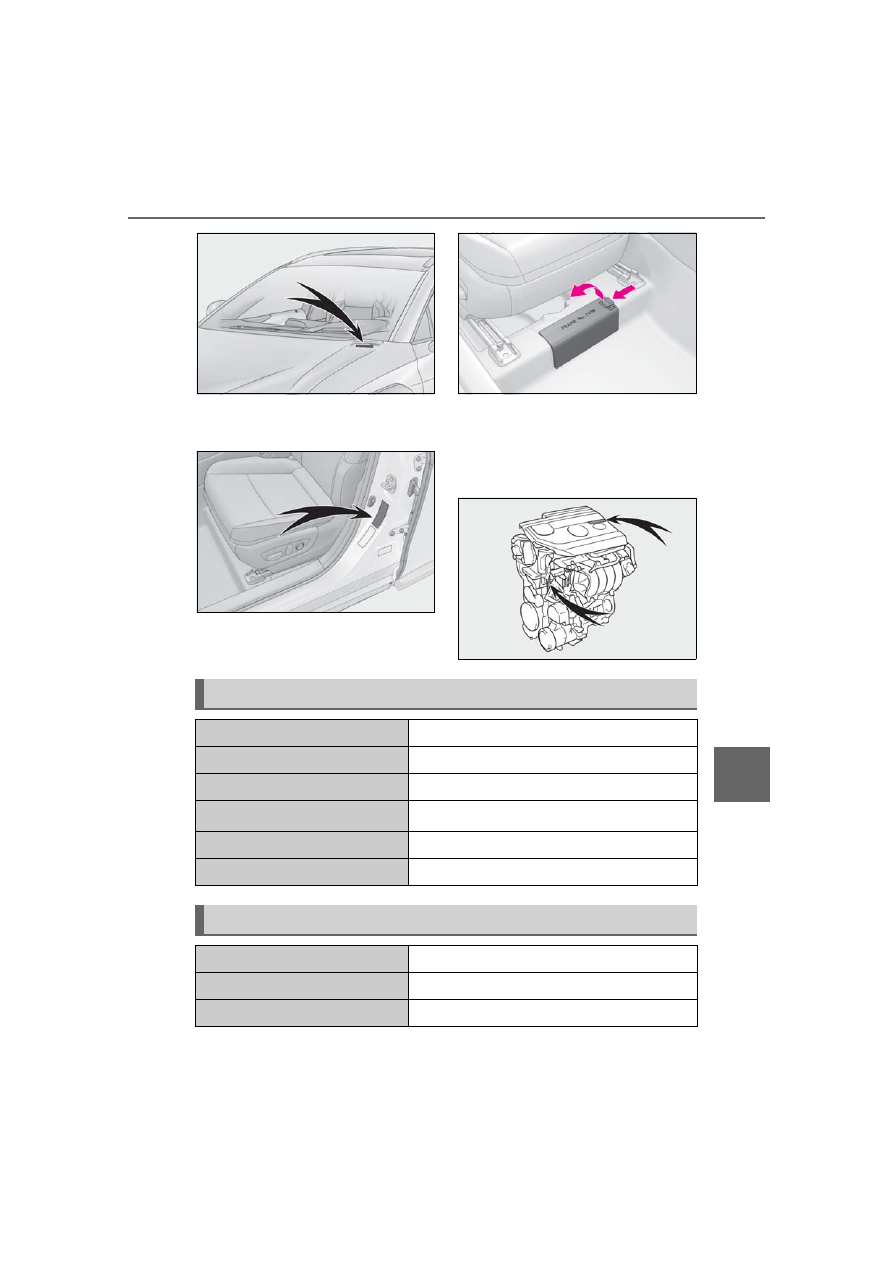

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.

This number is on the top left of the
instrument panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

177.0 in. (4495 mm)

Overall width

72.4 in. (1840 mm)

Overall height

*1

59.8 in. (1520 mm)

*2

60.6 in. (1540 mm)

*3

Wheelbase

103.9 in. (2640 mm)

Tread

Front

61.4 in. (1560 mm)

*4

61.0 in. (1550 mm)

*5

Rear

61.4 in. (1560 mm)

*4

61.0 in. (1550 mm)

*5

Vehicle capacity weight
(Occupants + luggage)

890 lb. (405 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

387

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

This number is also on the Certification
Label.

This number is also stamped under the
right-hand front seat.

■

Engine number

The engine number is stamped on the
engine block and engine cover as
shown.

Engine

Model

2.0 L 4-cylinder (M20A-FKS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



 3.84 in. (80.5



 97.6 mm)

Displacement

121.3 cu.in. (1987 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or higher

Fuel tank capacity (Reference)

12.4 gal. (47 L, 10.3 Imp.gal.)

388

8-1. Specifications

■

Oil capacity (Drain and refill [Ref-
erence

*

])

*

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.

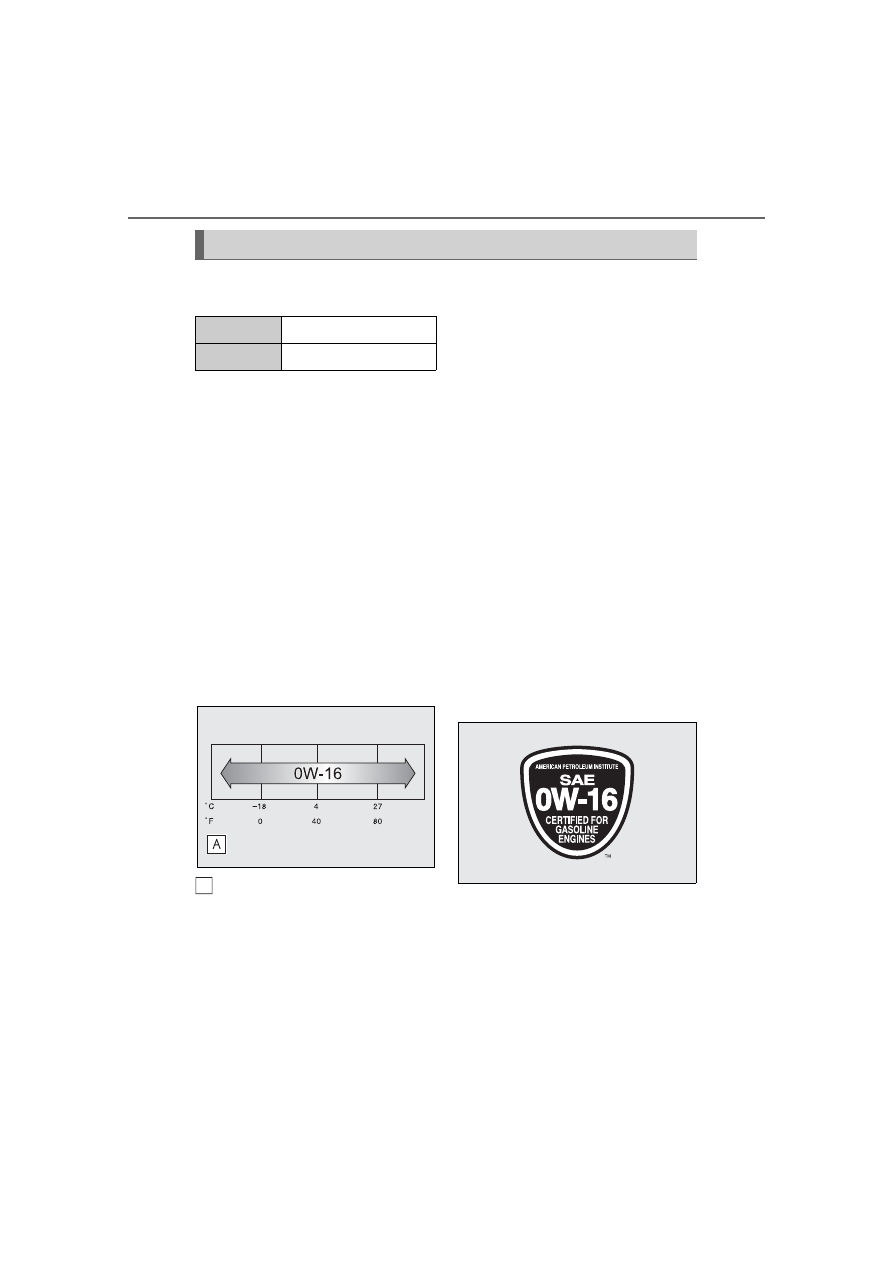

Oil grade:
ILSAC GF-6B multigrade engine oil
Recommended viscosity:
SAE 0W-16

Outside temperature

SAE 0W-16 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at

the next oil change.
Oil viscosity (0W-16 is explained here
as an example):
• The 0W in 0W-16 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 16 in 0W-16 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
API registered mark is added to some
oil containers to help you select the oil
you should use.

Lubrication system

With filter

4.9 qt. (4.6 L, 4.0 Imp.qt.)

Without filter 4.5 qt. (4.3 L, 3.8 Imp.qt.)

A

389

8-1. Specifications

8

V

eh

icle

 sp

ec

ific

atio

ns

*

: The coolant capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

■

Spark plug

■

Battery

Cooling system

Capacity

*

7.0 qt. (6.6 L, 5.8 Imp.qt.)

Coolant type

Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-

amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Make

DENSO FC20HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Open voltage at 68°F (20°C):

12.3 V or higher
If the voltage is lower than the standard value,
charge the battery.
(After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch
OFF, and turn the headlights off.)

Charging rates:
Quick charge
Slow charge

15 A max.
5 A max.

390

8-1. Specifications

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

*1

: Minimum pedal clearance when depressed with a force of 66 lbf (300N, 31.0 kgf)

while the engine is running.

*2

: Make sure to confirm that the brake system warning light (yellow) does not illuminate. (If

the brake system warning light illuminates, refer to P.356.)

CVT (Continuously Variable Transaxle)

Fluid capacity

*

9.0 qt. (8.5 L, 7.5 Imp.qt)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

CVT (Continuously Variable Transaxle) fluid type

Using CVT (Continuously Variable Transaxle) fluid other than the above type may cause

abnormal noise or vibration, or damage the CVT (Continuously Variable Transaxle) of

your vehicle.

Brakes

Pedal clearance

*1

3.98 in. (101 mm) Min.

Brake pad wear limit

0.04 in. (1.0 mm)

Pedal free play

0.04



 0.24 in. (1.0



 6.0 mm)

Parking brake indicator

*2

When pushing the parking brake switch for 1 to 4
seconds: comes on
When pulling the parking brake switch for 1 to 4
seconds: turns off

Fluid type

SAE J1703 or FMVSS No. 116 DOT 3
SAE J1704 or FMVSS No. 116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

391

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions



17-inch tires



18-inch tires



Compact spare tire (type A)

*

*

: If  equipped



Compact spare tire (type B)

*

*

: If  equipped

Tires and wheels

Tire size

215/60R17 96H

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Wheel size

17



 6 1/2 J

Wheel nut torque

76 ft• lbf (103 N• m, 10.5 kgf• m)

Tire size

225/50RF18 95V

Tire inflation pressure
(Recommended cold tire inflation
pressure)

Front: 33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Rear: 33 psi (230 kPa, 2.3 kgf/cm

2

 or bar)

Wheel size

18



 7 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

T145/90D16 106M

Spare tire inflation pressure
(Recommended cold tire inflation
pressure)

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

16



 4 T

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

T145/70D18 107M

Spare tire inflation pressure
(Recommended cold tire inflation
pressure)

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Wheel size

18



 4 T

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

392

8-1. Specifications

A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)

Light bulbs

Light bulbs

Bulb No.

W

Type

Exterior

Front turn signal lights (vehicles
with single-beam headlights)

WY21W

21

A

Interior

Vanity lights



8

B

393

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions

■

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration

program.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gas-

oline and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.

Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%

ethanol.

DO NOT use any flex-fuel or gasoline

that could contain more than 15% etha-

nol, including from any pump labeled
E30 (30% ethanol

), E50 (50% eth-

anol

), E85 (85% ethanol

)

(which are only some examples of fuel

containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

87.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

You must only use unleaded gaso-
line.
Select octane rating 87 (Research
Octane Number 91) or higher. Use
of unleaded gasoline with an octane
rating lower than 87 may result in
engine knocking. Persistent knock-
ing can lead to engine damage.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.

A

B

C

394

8-1. Specifications

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control sys-

tem to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine damage

and will void the vehicle warranty.

■

Fuel-related poor driveability

If poor driveability (poor hot starting,

vaporization, engine knocking, etc.) is

encountered after using a different type

of fuel, discontinue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can

damage your vehicle’s paint.

395

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions



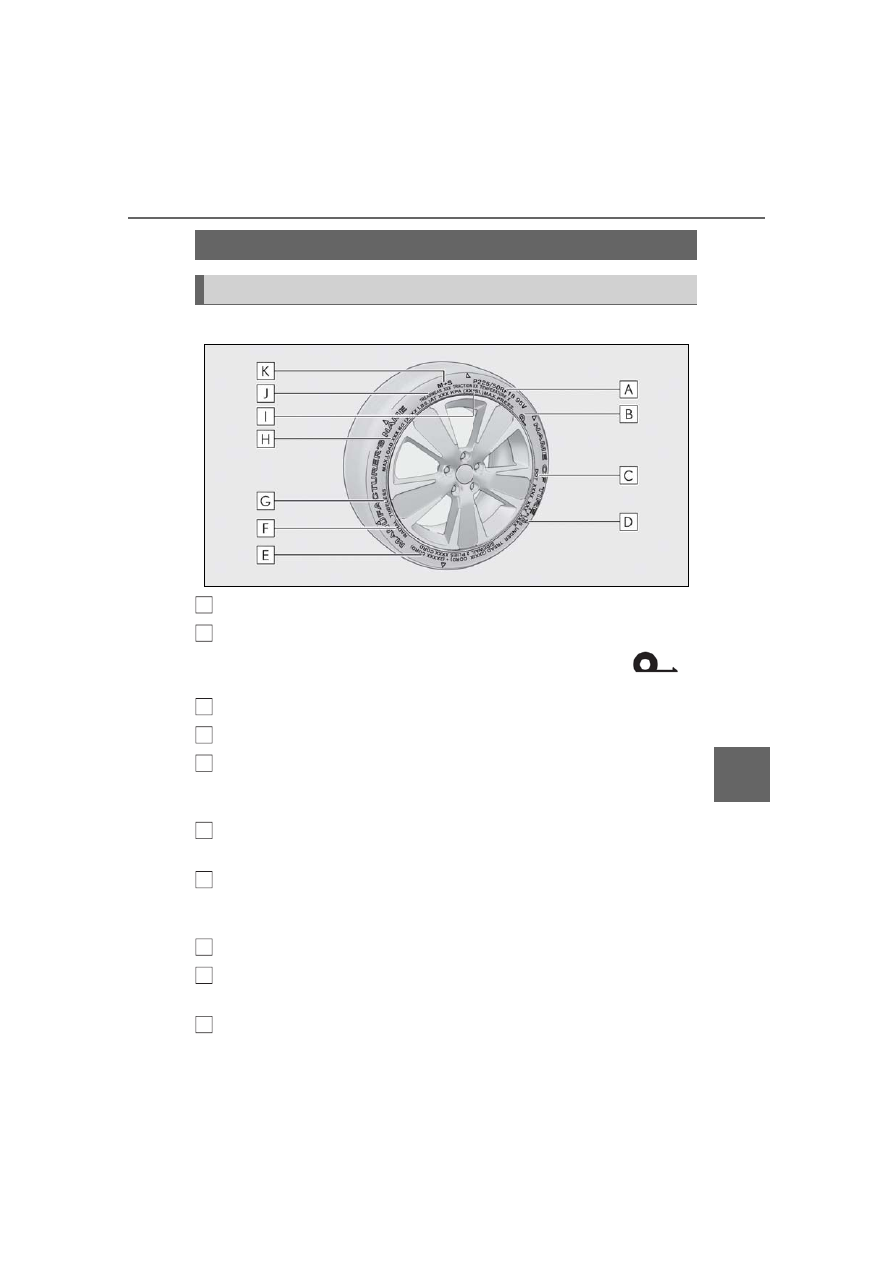

Run-flat tire or full-size tire

Tire size (



P.397)

Run-flat tire (RFT) or standard tire (



P.373)

This vehicle can be equipped with either run-flat tires (RFT) or standard tires. A



mark is molded on the sidewall of the run-flat tire.

DOT and Tire Identification Number (TIN) (



P.397)

Location of treadwear indicators (



P.324)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.399)

Maximum cold tire inflation pressure (



P.399)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

Tire information

Typical tire symbols

A
B

C
D

E

F

G

H

I

J

396

8-1. Specifications

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (



P.324)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.



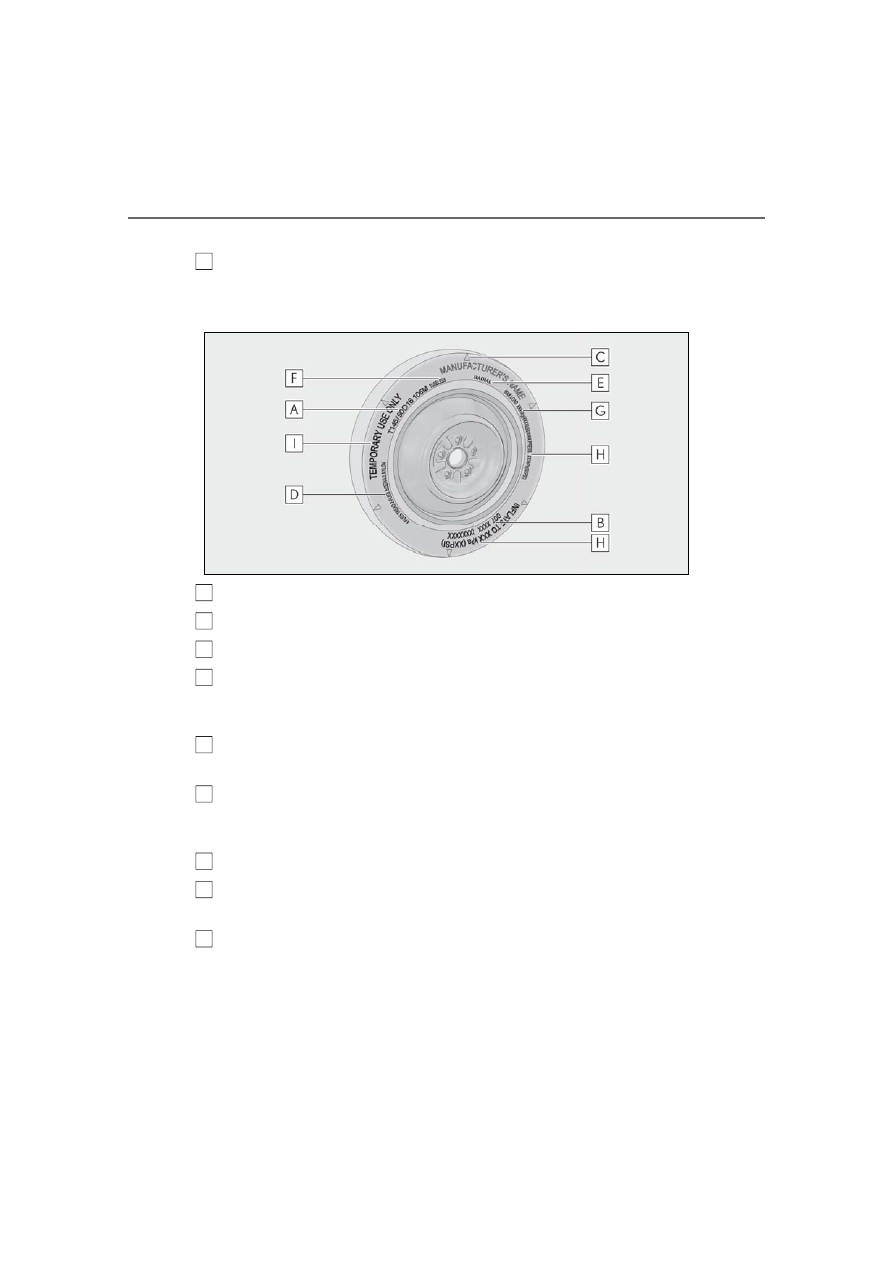

Compact spare tire

Tire size (



P.397)

DOT and Tire Identification Number (TIN) (



P.397)

Location of treadwear indicators (



P.324)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (



P.399)

Maximum cold tire inflation pressure (



P.399)

This means the pressure to which a tire may be inflated.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY” molded on
its sidewall. This tire is designed for temporary emergency use only.

K

A
B
C
D

E

F

G

H

I

397

8-1. Specifications

8

Vehi

cle

 spec

ifi

ca

tions



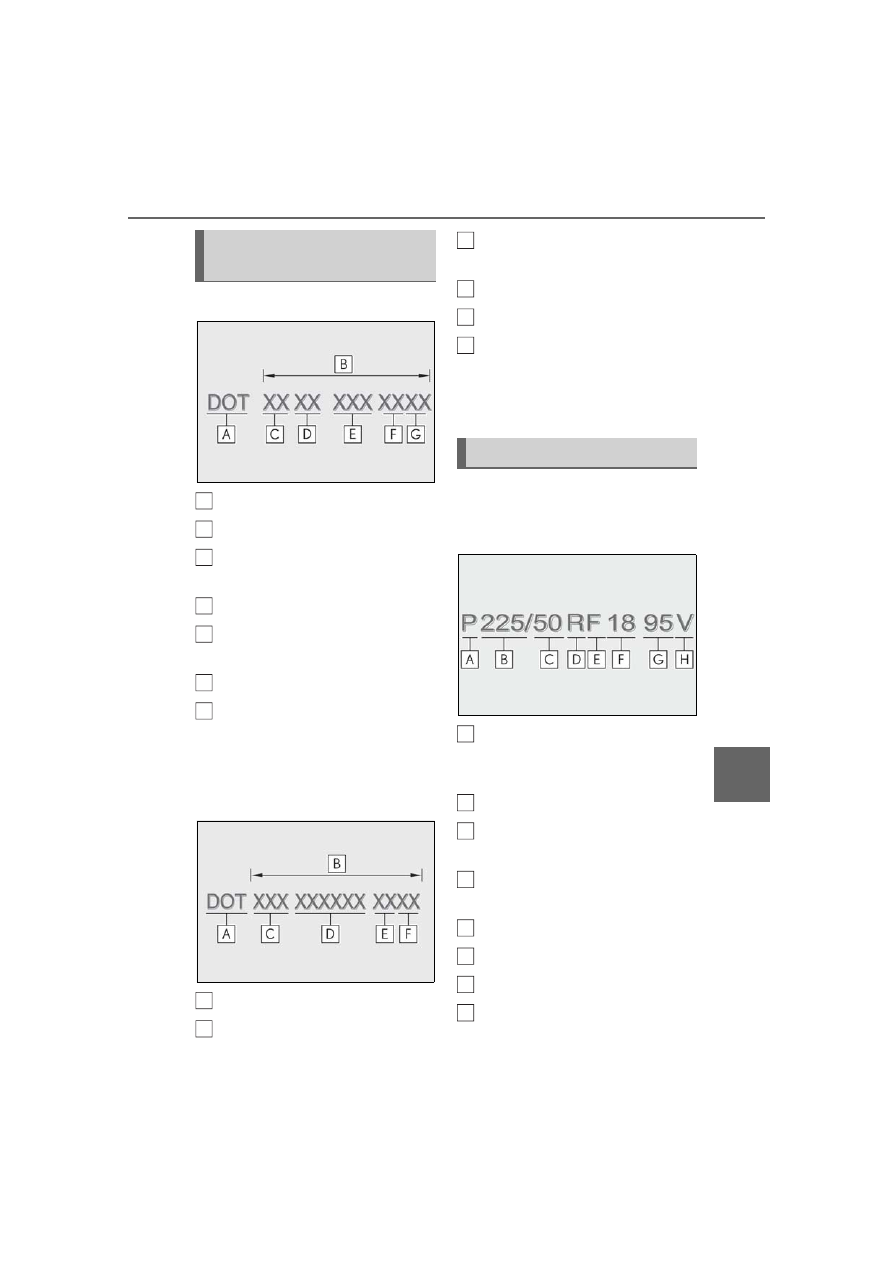

Type A

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Tire size code

Manufacturer’s optional tire type
code (3 or 4 letters)

Manufacturing week

Manufacturing year

*

: The  DOT  symbol  certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

*

Tire Identification Number (TIN)

Tire manufacturer’s identification
mark

Manufacturer’s code

Manufacturing week

Manufacturing year

*

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

Typical tire size information

The illustration indicates typical tire
size.

Tire use
(P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Run-flat tire code

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one
letter)

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

D

E

F

G

A
B

Tire size

C

D

E
F

A

B
C

D

E
F

G

H

398

8-1. Specifications

■

Tire dimensions

Section width

Tire height

Wheel diameter

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements
in addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course.

For example, a tire graded 150 would
wear one and a half (1 - 1/2) times as well
on the government course as a tire graded
100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

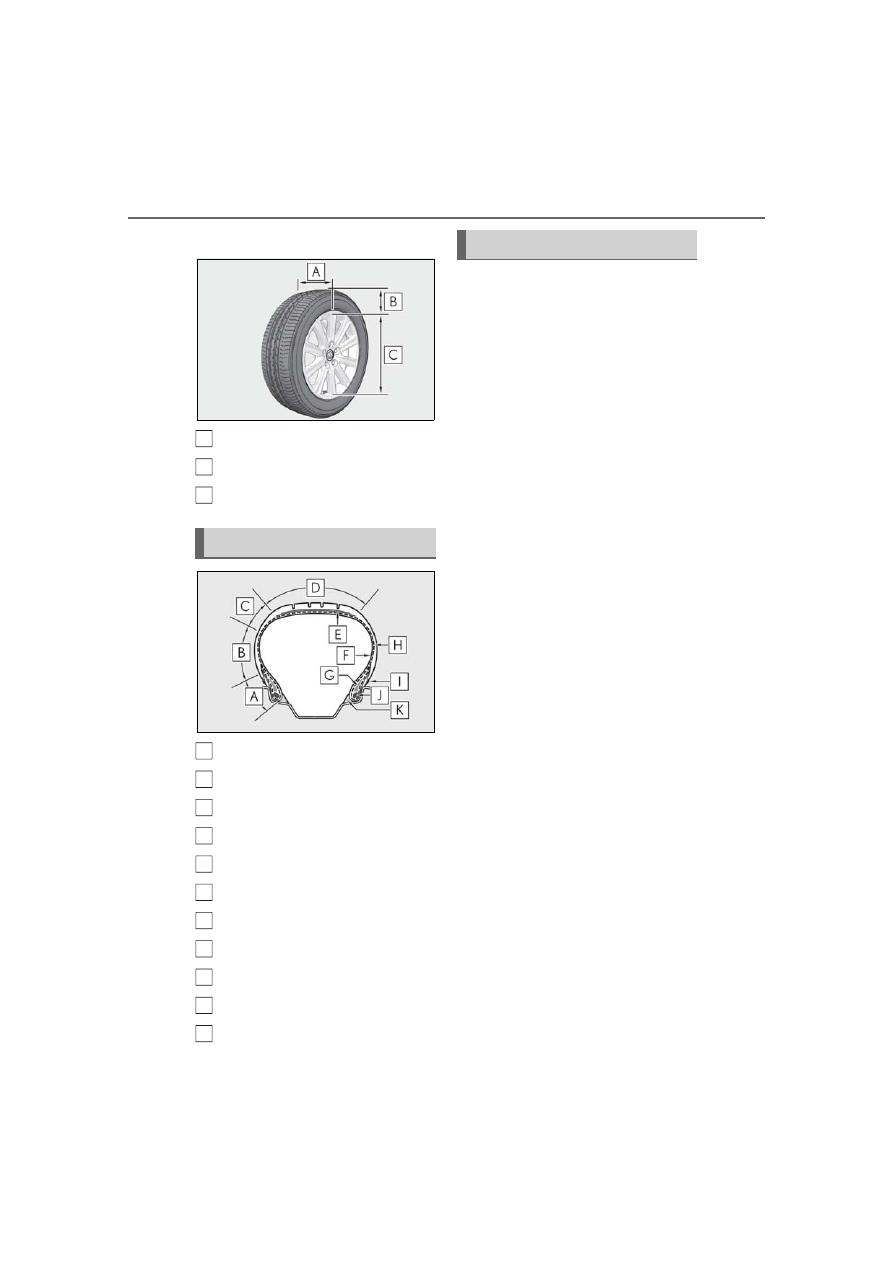

Tire section names

A
B
C

A
B
C
D

E
F

G

H

I

J

K

Uniform Tire Quality Grading
