Lexus UX200 (2022 year). Manual in english - page 15

251

Interio

r fe

atures

Interior features

5-1. Remote Touch

Remote Touch............................

252

5-2. Lexus Climate Concierge

Lexus Climate Concierge.....

257

5-3. Using the air conditioning system

and defogger

Automatic air conditioning system

........................................................

259

Heated steering wheel/seat heat-

ers/seat ventilators................

268

5-4. Using the interior lights

Interior lights list..........................

271

5-5. Using the storage features

List of storage features............

274

Luggage compartment features

........................................................

277

5-6. Using the other interior features

Other interior features ...........

282

Garage door opener...............

293

Compass.......................................

298

252

5-1. Remote Touch

5-1.Remote Touch

■

Switches

“MAP” button (10.3-inch display
model)

Press this button to display the vehicle’s
current position.

“MENU” button

Press this button to display the menu
screen.

Back button

Press this button to display the previous
screen.

Touchpad

Slide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected
function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, such as changing map

scalings and scrolling list screens.

Sub function button

When

is displayed on the screen, a

function screen assigned to the screen can
be displayed.

“HOME” button (7-inch display
model)

Press this button to display the home
screen.

■

Using the touchpad

Select: Touch the touchpad to
select the desired button on the
screen.

Enter: The buttons on the screen
can be selected by either depress-
ing or double tapping on the touch-
pad. Once a button has been
selected, the screen will change.

■

Touch operation

Operations are performed by touch-
ing the touchpad with your finger.



Trace

Trace the pad surface while maintaining
contact with the touch pad. Moving the
cursor and the pointer.

Remote Touch

The Remote Touch can be used to
operate Center Display. Owners of
models equipped with a navigation
system should refer to the “NAVI-
GATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

Remote Touch operation

253

5-1. Remote Touch

rio

r f



Double tap

Tap the touchpad twice, quickly. Select the
button on the screen.



Flick

Quick and long movement along the
touchpad with your finger. Move the list
screen.



Pinch in/Pinch out

Slide fingers toward each other or apart on
the touchpad. Change the scale of the
map.

■

Menu screen

Press the “MENU” button on the
Remote Touch to display the menu
screen.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle.

NOTICE

■

To prevent damage to the Remote

Touch

Observe the following precautions. Fail-

ure to do so may cause damage to the

Remote Touch.

●

Do not allow the Remote Touch to

come into contact with food, liquid,

stickers or lit cigarettes.

●

Do not subject the Remote Touch to

excessive pressure or strong impact.

●

Do not push the touchpad with a

strong force or use a sharp pointed

object to operate the pad.

Center Display overview

254

5-1. Remote Touch



10.3-inch display model



7-inch display model

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

: If equipped

: This function is not made available in

some countries or areas.

Switch

Function

Select to display the destination
screen.

*1, 2

Select to display the audio con-
trol screen.

Select to display the hands-free
operation screen.

Select to display the “Apps”
screen.

*1, 3

When an Apple Car-
Play/Android Auto connection is
established and this button dis-
plays “Apple CarPlay”/“Android
Auto”, select to display the home
screen of Apple Car-
Play/Android Auto.

*1, 3

Select to display the information
screen.

(



P.88)

Select to display the setup
screen.

Select to display the air condi-
tioning control screen.
(



P.262)

Select to adjust the contrast and
brightness of the screens, turn
the screen off, etc.

*1, 2

Switch

Function

255

5-1. Remote Touch

Interio

r fe

atures

■

Split-screen display (10.3-inch display model)

Different information can be displayed on the left and right of the screen. For
example, the air conditioning system screen can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen on
the left of the display is called the main display, and the small screen to the right is
called the side display.

■

Main display

For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

Side display (10.3-inch display
model)

The following functions can be dis-
played and operated on the side dis-
play.

Select

to display the desired

screen.

Navigation system

Audio

Vehicle information

Air conditioning system (



P.262)

Show/hide the side display.

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

■

Screen display during low temperatures

When the ambient temperature is

A
B
C
D

256

5-1. Remote Touch

extremely low, screen response may be

delayed even if the Remote Touch is oper-

ated.

257

5-2. Lexus Climate Concierge

Interio

r fe

atures

5-2.Lexus Climate Concierge

Select

The indicator on the Lexus Climate Con-
cierge control screen illuminates, and the
automatic air conditioning system, seat
heaters and ventilators, (if equipped), and
heated steering wheel (if equipped) oper-
ate in automatic mode.
If any of the system is operated manually,
the indicator turns off. However, all other
functions continue to operate in automatic
mode.

■

When using the Lexus Climate Con-

cierge

Lexus Climate Concierge can be operated

on the sub function menu or option control

screen. (



P.262)

■

Automatic air conditioning system
(



P.259)

The temperature can be adjusted inde-
pendently for the driver seat and pas-
senger seat.

■

Seat heaters and ventilators (if
equipped) (



P.268)

Heating or ventilation is automatically
selected according to the set tempera-
ture of the air conditioning system, the
outside temperature, etc.
The seat heater and ventilator of the
front passenger seat operate in auto-
matic mode if a passenger is detected.

■

Heated steering wheel (if
equipped) (



P.268)

Heated steering wheel operates auto-
matically according to the set tem-
perature of the air conditioning system,
the outside temperature, etc.

Lexus Climate Concierge

The seat heaters (if equipped), seat
ventilators (if equipped) and heated
steering wheel (if equipped) are
each automatically controlled
according to the set temperature of
the air conditioning system, the out-
side and cabin temperature, etc.
Lexus Climate Concierge allows a
comfortable condition to be main-
tained without adjusting each sys-
tem.
Press the “MENU” button on the
Remote Touch and select “Cli-
mate” to display the air condition-
ing control screen. Then, select

to display the Lexus Climate Con-
cierge control screen.

Turning on Lexus Climate Con-
cierge

Operation of each system

258

5-2. Lexus Climate Concierge

■

Seat heater/ventilator operation

When automatic mode is selected using the

seat heater/ventilator switch, passenger

detection is not performed.

259

5-3. Using the air conditioning system and defogger

Interio

r fe

atures

5-3.Using the air conditioning system and defogger

Left-hand side temperature control switch

Fan speed control switch

Automatic mode switch

Off switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers switch

Outside/recirculated air mode switch

Airflow mode control switch

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen. (



P.253)

10.3-inch display model: The air conditioning system can be displayed and
operated on the side display.

Air conditioning controls

A
B
C
D

E
F

260

5-3. Using the air conditioning system and defogger

Right-hand side temperature control switch

■

Adjusting the temperature setting

Operate the temperature control
switch upwards to increase the tem-
perature and downwards to decrease
the temperature.

■

Adjusting the fan speed setting

Operate the fan speed control switch
upwards to increase the fan speed and
downwards to decrease the fan speed.

Press the off switch to turn the fan off.

■

Change the airflow mode

Operate the airflow mode control
switch upwards or downwards.

The mode changes as follows each time
the switch is operated.

Air flows to the upper body.

Air flows to the upper body and
feet.

Air flows to the feet.

Air flows to the feet and the wind-
shield defogger operates.

■

Switching between outside air and
recirculated air modes

Press the outside/recirculated air
mode switch.

The mode switches between outside air
mode (the indicator is off) and recirculated
air mode (the indicator is on) each time the
switch is pressed.

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch.

Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch auto-
matically.)
To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press the
windshield defogger switch again when the
windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside
rear view mirror defoggers switch.

The defoggers will automatically turn off
after a period of time.

■

Windshield wiper de-icer (if
equipped)



P.264

A
B

C
D

261

5-3. Using the air conditioning system and defogger

Interio

r fe

atures

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically.

This may also reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the engine switch is

turned to ON.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up when the

humidity in the vehicle is high. Selecting

“A/C” will dehumidify the air from the

outlets and defog the windshield effec-

tively.

●

If you turn “A/C” off, the windows may

fog up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up by the

vehicle is still drawn into the vehicle after

closing the windows, it is recommended

that the air intake mode be set to outside air

mode and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air mode tem-

porarily is recommended in preventing

dirty air from entering the vehicle interior

and helping to cool the vehicle when the

outside air temperature is high.

●

Outside/recirculated air mode may

automatically switch depending on the

temperature setting or the inside tem-

perature.

■

Registering air conditioning settings to

electronic keys (vehicles with driving

position memory)

●

Unlocking the vehicle using an electronic

key and turning the engine switch to ON

will recall that key’s registered air condi-

tioning settings.

●

When the engine switch is turned off, the

current air conditioning settings will auto-

matically be registered to the electronic

key that was used to unlock the vehicle.

●

The system may not operate correctly if

more than one electronic key is in the

vicinity or if the smart access system with

push-button start is used to unlock a pas-

senger door.

●

The doors that can recall the air condi-

tioning setting when unlocked using the

smart access system with push-button
start can be changed.

For details, con-

tact your Lexus dealer.

: The doors that can recall the driving posi-

tion memory are changed at the same
time.

■

Operation of the air conditioning sys-

tem in Eco drive mode

●

In Eco drive mode, the air conditioning

system is controlled as follows to priori-

tize fuel efficiency

• Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

• Fan speed restricted when automatic

mode is selected

●

To improve air conditioning perfor-

mance, perform the following operations

• Turn off eco air conditioning mode

(



P.264)

• Adjust the fan speed

• Turn off Eco drive mode

■

When the outside temperature is low

The dehumidification function may not

operate even when “A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside

and outside the vehicle may enter into

and accumulate in the air conditioning

system. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring, the start timing of the blower may be

delayed for a short period of time imme-

262

5-3. Using the air conditioning system and defogger

diately after the air conditioning system is

started in automatic mode.

●

When parking, the system automatically

switches to outside air mode to encour-

age better air circulation throughout the

vehicle, helping to reduce odors that

occur when starting the vehicle.

■

Air conditioning filter



P.335

■

Air conditioning system refrigerant

●

A label regrading the refrigerant of the

air conditioning system is attached to the

hood at the location shown in the follow-

ing illustration.

●

The meaning of each symbol on the label

are as follows:

■

Customization

Settings (e.g. A/C automatic mode switch

operation) can be changed.

(Customizable features:



P.412)

■

Main control screen

Using the touchpad of the Remote
Touch, select the button on the screen.

can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air con-
ditioning system

Flammable refrigerant

WARNING

■

To prevent the windshield from fog-

ging up

Do not use the windshield defogger

switch during cool air operation in

extremely humid weather. The difference

between the temperature of the outside

air and that of the windshield can cause

the outer surface of the windshield to fog

up, blocking your vision.

■

When the outside rear view mirror

defoggers are operating

Do not touch the outside rear view mir-

ror surfaces, as they can become very

hot and burn you.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning system

on longer than necessary when the

engine is off.

■

When repairing/replacing parts of

the air conditioning system

Have repair/replacement performed by

your Lexus dealer. When a part of the air

conditioning system, such as the evapo-

rator, is to be replaced, it must be

replaced with a new one.

Air conditioning control screen

263

5-3. Using the air conditioning system and defogger

Interio

r fe

atures

desired item, slide your finger up or
down.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the air conditioning control

screen

: Display the heated steering

wheel/seat heater/seat ventilator control
screen (if equipped)

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left-hand side tempera-
ture setting

Adjust the fan speed setting

Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Adjust the right-hand side tem-
perature setting

Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(



P.257)

“AUTO”: Set automatic mode on/off
(



P.264)

“OFF”: Turn the fan off
“A/C”: Set cooling and dehumidification
function
“DUAL”: Adjust the temperature for driver
and front passenger seats separately
(“DUAL” mode) (



P.265)

: Set eco air conditioning mode

■

Option control screen

Select

on the sub menu to display

the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illu-
minates on the screen.

C
D

264

5-3. Using the air conditioning system and defogger

Set Lexus Climate Concierge
(



P.257)

Adjusting the temperature for
driver and front passenger seats
separately (“DUAL” mode)
(



P.265)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)

■

Side display (10.3-inch display
model)

Display the heated steering
wheel/seat heaters/seat ventilators
control screen (if equipped)
(



P.270)

Adjust the left-hand side tempera-
ture setting

Adjust the fan speed setting

Adjust the right-hand side tem-
perature setting

Set cooling and dehumidification

function on/off

Adjust the temperature for the
driver’s and front passenger’s seats
separately (“DUAL” mode)
(



P.265)

Select the air flow mode

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from

building up on the windshield and wiper

blades.
The windshield wiper de-icer will automati-

cally turn off after a period of time.

■

Eco air conditioning mode

When Eco drive mode is selected using the

driving mode select switch, eco air condi-

tioning mode turns on.
When a driving mode other than Eco drive

mode is selected, eco air conditioning

mode may turn off.

Press the automatic mode switch
or select “AUTO” on the sub func-
tion menu (



P.262).

Adjust the temperature setting.

To stop the operation, press the off
switch or select “Off” on the sub
function menu (



P.262).

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Using automatic mode

265

5-3. Using the air conditioning system and defogger

Interio

r fe

atures

automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically

according to the temperature setting and

the ambient conditions.

Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed or “AUTO” is selected.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

To turn on the “DUAL” mode, perform
any of the following procedures:



Select “DUAL” on the sub function
menu. (



P.262)



Select “DUAL” on the option con-
trol screen.



Adjust the front passenger’s side
temperature setting.

The indicator comes on when the “DUAL”
mode is on.

■

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

Adjusting the position of and open-
ing and closing the air outlets



Front

Direct air flow to the left or right, up or
down

Turn the knob to open or close the vent

Open the outlet

Close the outlet

Adjusting the temperature for
driver and front passenger seats
separately (“DUAL” mode)

Air outlet layout and operations

266

5-3. Using the air conditioning system and defogger



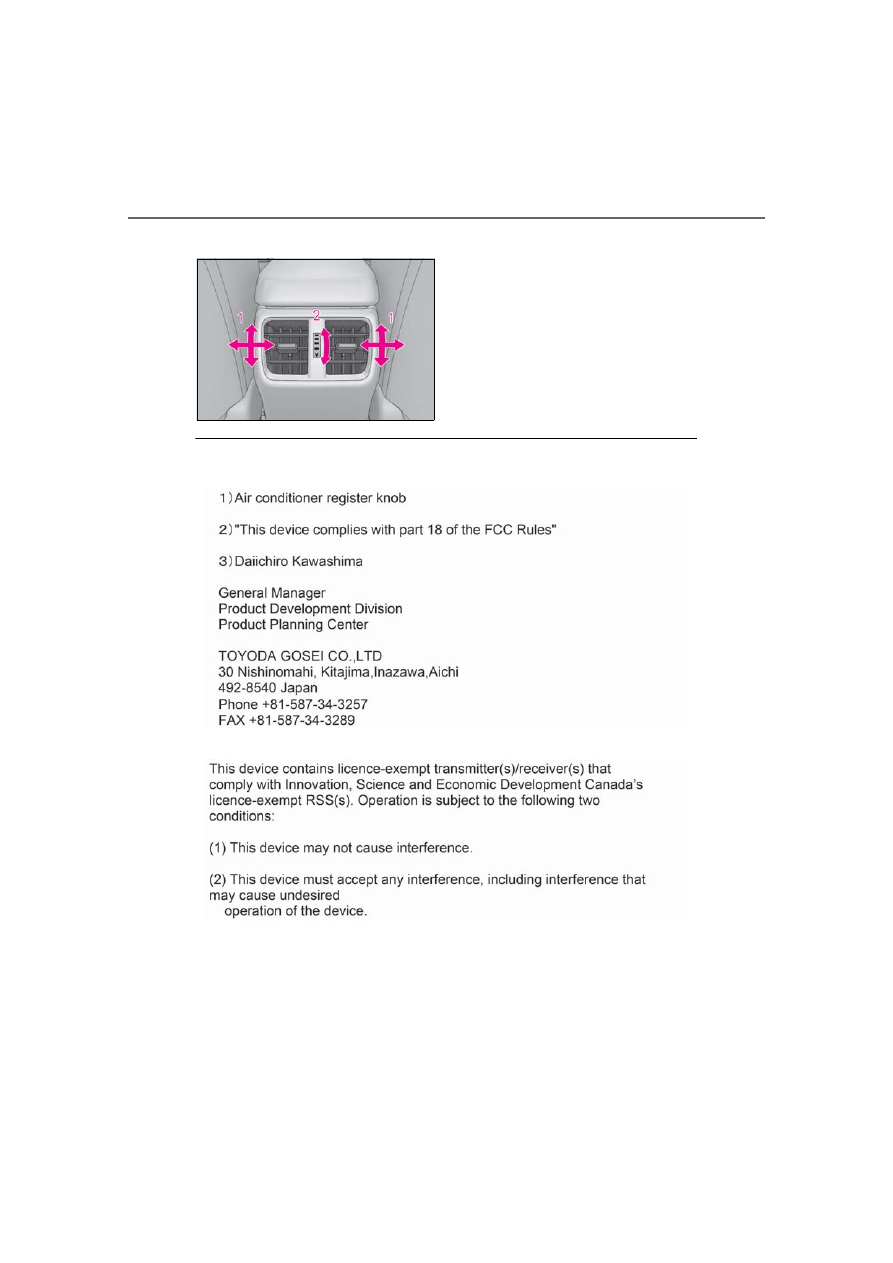

Rear

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

■

Certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

Content .. 13 14 15 16 ..
