4-5. Using the driving support systems

■

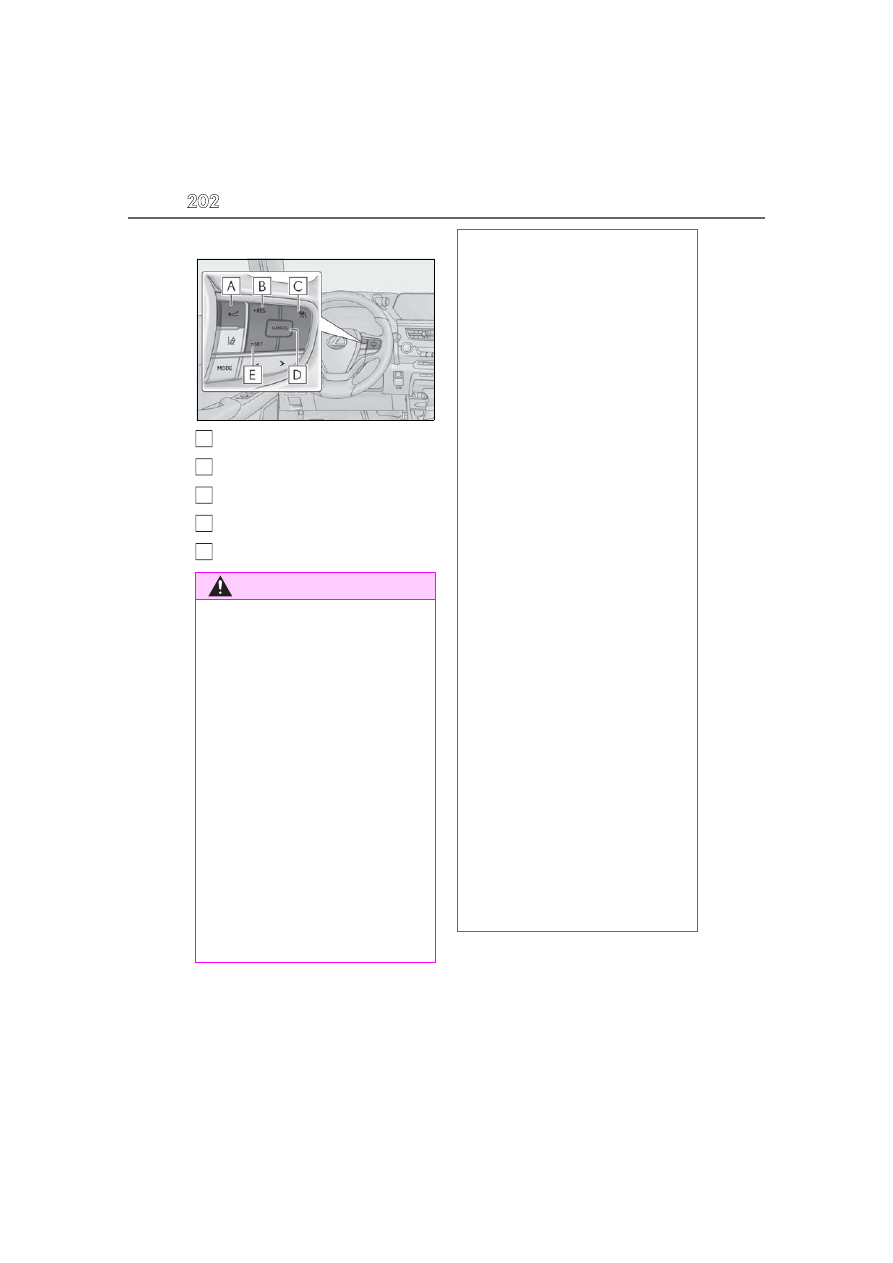

Operation switches

Vehicle-to-vehicle distance switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

WARNING

■

Before using dynamic radar cruise

control with full-speed range

●

Driving safely is the sole responsibility

of the driver. Do not rely solely on the

system, and drive safely by always pay-

ing careful attention to your surround-

ings.

●

The dynamic radar cruise control with

full-speed range provides driving

assistance to reduce the driver’s bur-

den. However, there are limitations to

the assistance provided.

Read the following conditions carefully.
Do not overly rely on this system and
always drive carefully.
• When the sensor may not be correctly

detecting the vehicle ahead:



P.209

• Conditions under which the vehicle-

to-vehicle distance control mode may

not function correctly:



P.210

●

Set the speed appropriately depend-

ing on the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for checking

the set speed.

●

Even when the system is functioning

normally, the condition of the preced-

ing vehicle as detected by the system

may differ from the condition

observed by the driver. Therefore, the

driver must always remain alert, assess

the danger of each situation and drive

safely. Relying solely on this system or

assuming the system ensures safety

while driving can lead to an accident,

resulting in death or serious injury.

●

Switch the dynamic radar cruise con-

trol with full-speed range setting to off,

using the cruise control main switch

when not in use.

■

Cautions regarding the driving assist

systems

Observe the following precautions, as

there are limitations to the assistance

provided by the system.

Failure to do so may cause an accident

resulting in death or serious injury.

●

Assisting the driver to measure follow-

ing distance

The dynamic radar cruise control with
full-speed range is only intended to help
the driver in determining the following
distance between the driver’s own vehi-
cle and a designated vehicle traveling
ahead. It is not a mechanism that allows
careless or inattentive driving, and it is
not a system that can assist the driver in
low-visibility conditions.
It is still necessary for driver to pay close
attention to the vehicle’s surroundings.

203

4-5. Using the driving support systems

Driving

WARNING

●

Assisting the driver to judge proper

following distance

The dynamic radar cruise control with
full-speed range determines whether the
following distance between the driver’s
own vehicle and a designated vehicle
traveling ahead is within a set range. It is
not capable of making any other type of
judgement. Therefore, it is absolutely
necessary for the driver to remain vigi-
lant and to determine whether or not
there is a possibility of danger in any
given situation.

●

Assisting the driver to operate the

vehicle

The dynamic radar cruise control with
full-speed range does not include func-
tions which will prevent or avoid colli-
sions with vehicles ahead of your vehicle.
Therefore, if there is ever any possibility
of danger, the driver must take immedi-
ate and direct control of the vehicle and
act appropriately in order to ensure the
safety of all involved.

■

Situations unsuitable for dynamic

radar cruise control with full-speed

range

Do not use dynamic radar cruise control

with full-speed range in any of the follow-

ing situations.

Doing so may result in inappropriate

speed control and could cause an acci-

dent resulting in death or serious injury.

●

Roads where there are pedestrians,

cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those cov-

ered with rain, ice or snow

●

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set

speed when driving down a steep hill.

●

At entrances to freeways and high-

ways

●

When weather conditions are bad

enough that they may prevent the sen-

sors from detecting correctly (fog,

snow, sandstorm, heavy rain, etc.)

●

When there is rain, snow, etc. on the

front surface of the radar or front cam-

era

●

In traffic conditions that require fre-

quent repeated acceleration and

deceleration

●

During emergency towing

●

When an approach warning buzzer is

heard often

204

4-5. Using the driving support systems

This mode employs a radar to detect the presence of vehicles up to approximately
328 ft. (100 m) ahead, determines the current vehicle-to-vehicle following dis-
tance, and operates to maintain a suitable following distance from the vehicle
ahead. The desired vehicle-to-vehicle distance can also be set by operating the
vehicle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may become shorter.

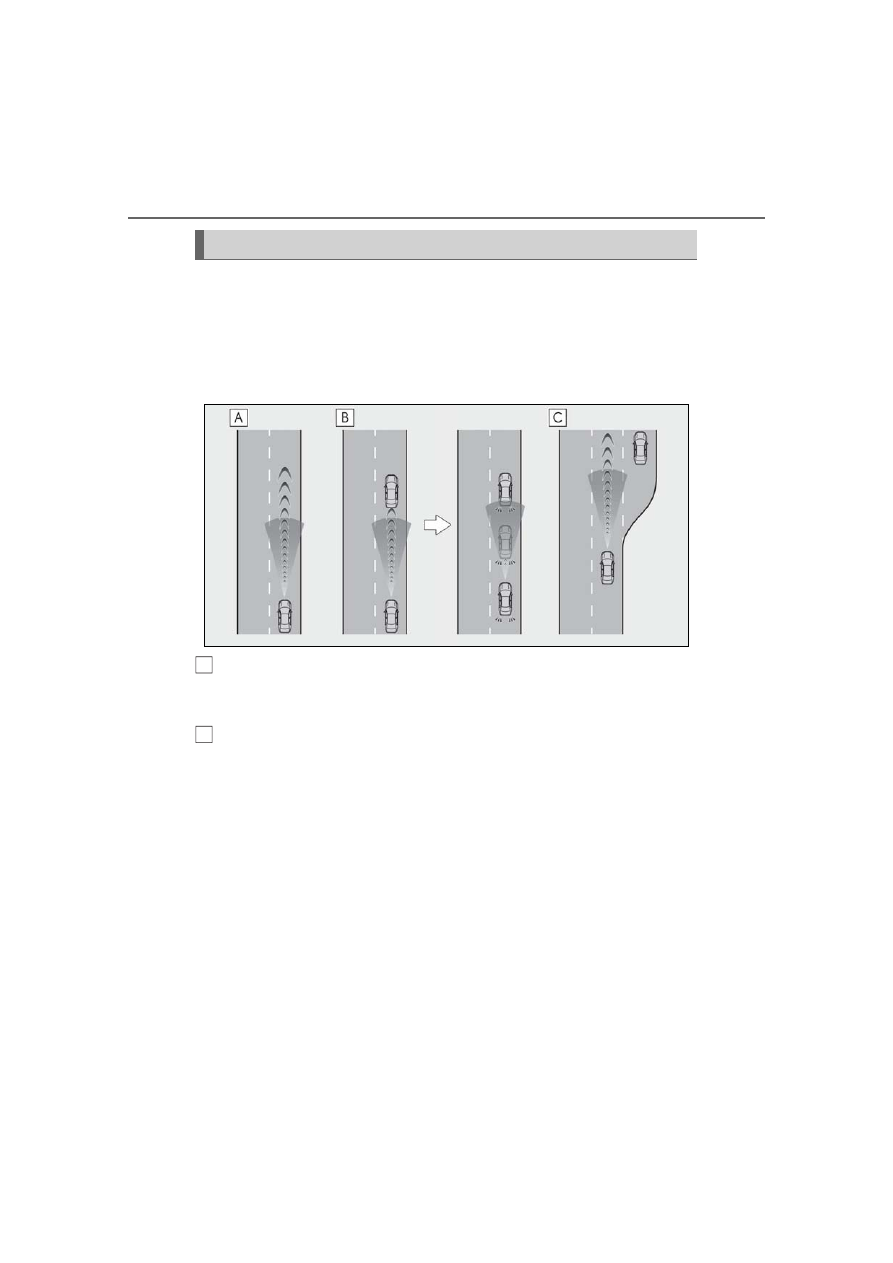

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates
your vehicle. When a greater reduction in vehicle speed is necessary, the system applies
the brakes (the stop lights will come on at this time). The system will respond to changes in
the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by
the driver. Approach warning warns you when the system cannot decelerate sufficiently to
prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is stopped by sys-
tem control). After the vehicle ahead starts off, pressing the “+RES” switch or depressing
the accelerator pedal (start-off operation) will resume follow-up cruising. If the start-off
operation is not performed, system control continues to keep your vehicle stopped.
When the turn signal lever is operated and your vehicle moves to an overtaking lane while
driving at 50 mph (80 km/h) or more, the vehicle will accelerate to help to overtake a
passing vehicle.
The system’s identification of what is an overtaking lane may be determined solely based on
the location of the steering wheel in the vehicle (left side driver position versus right side

Driving in vehicle-to-vehicle distance control mode

205

4-5. Using the driving support systems

Driving

driver position.) If the vehicle is driven to a region where the overtaking lane is on a differ-
ent side from where the vehicle is normally driven, the vehicle may accelerate when the
turn signal lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane is to the right but
then drives to a region where the overtaking lane is to the left, the vehicle may accelerate
when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed

The system accelerates until the set speed is reached. The system then returns to constant
speed cruising.

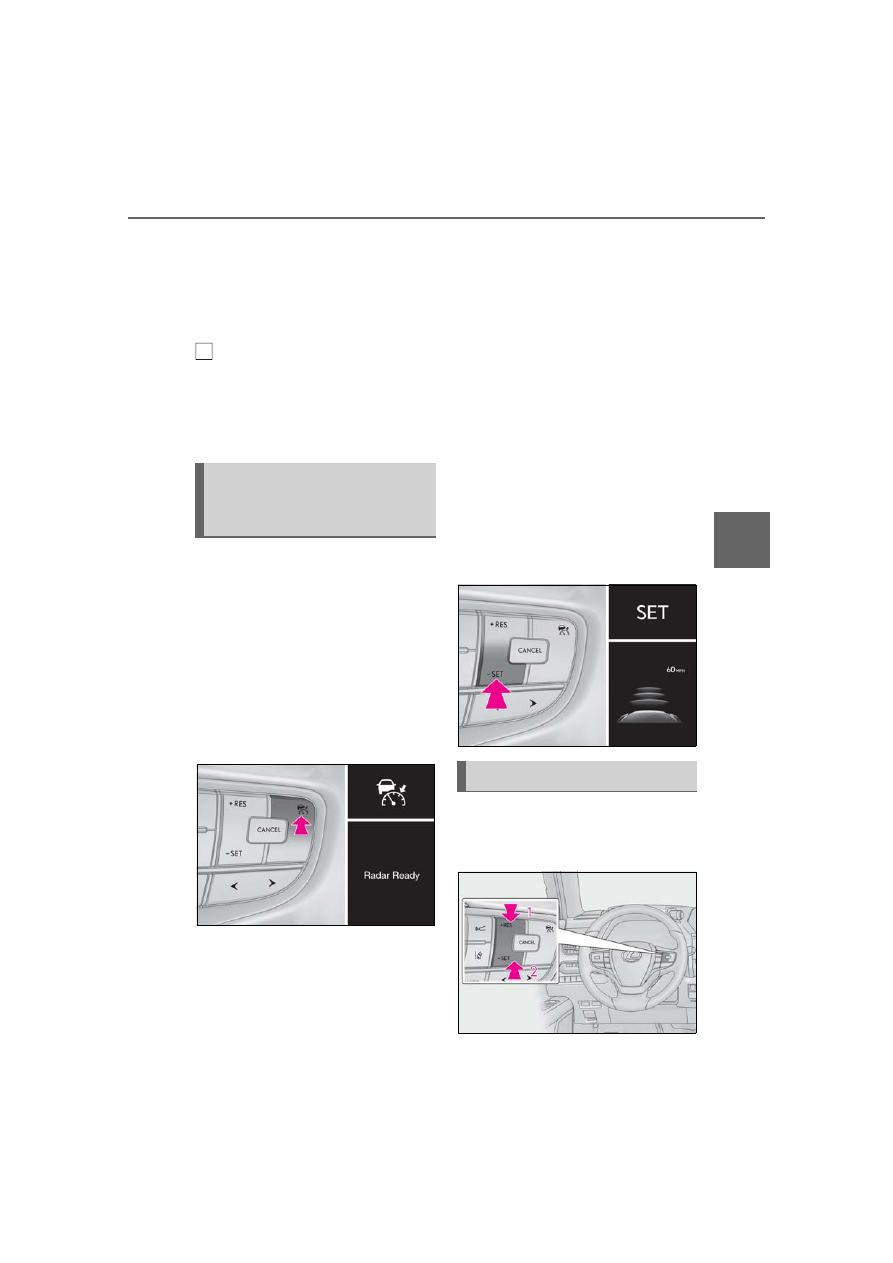

Press the cruise control main
switch to activate the cruise con-
trol.

Dynamic radar cruise control indicator will

come on and a message will be displayed

on the multi-information display. Press the

switch again to deactivate the cruise con-

trol.
If the cruise control main switch is pressed

and held for 1.5 seconds or more, the sys-

tem turns on in constant speed control

mode. (



P.208)

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])

and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.

To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is displayed.

Setting the vehicle speed (vehi-
cle-to-vehicle distance control
mode)

Adjusting the set speed

206

4-5. Using the driving support systems

Increases the speed (Except when
the vehicle has been stopped by
system control in vehicle-to-vehicle
distance control mode)

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and
release when the desired speed is
reached.
In the vehicle-to-vehicle distance con-
trol mode, the set speed will be
increased or decreased as follows:



For the U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

or 1

km/h (0.6mph)

each time the switch is

pressed
Large adjustment: Increases or decreases
in 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

increments for as long as the switch is held



Except for the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

or 1

km/h (0.6mph)

each time the switch is

pressed
Large adjustment: Increases or decreases
in 5 mph (8 km/h)

or 5 km/h (3.1 mph)

increments for as long as the switch is held

In the constant speed control mode
(



P.208), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

or 1

km/h (0.6 mph)

each time the switch is

pressed
Large adjustment: The speed will continue
to change while the switch is held.

: When the set speed is shown in “MPH”

: When the set speed is shown in “km/h”

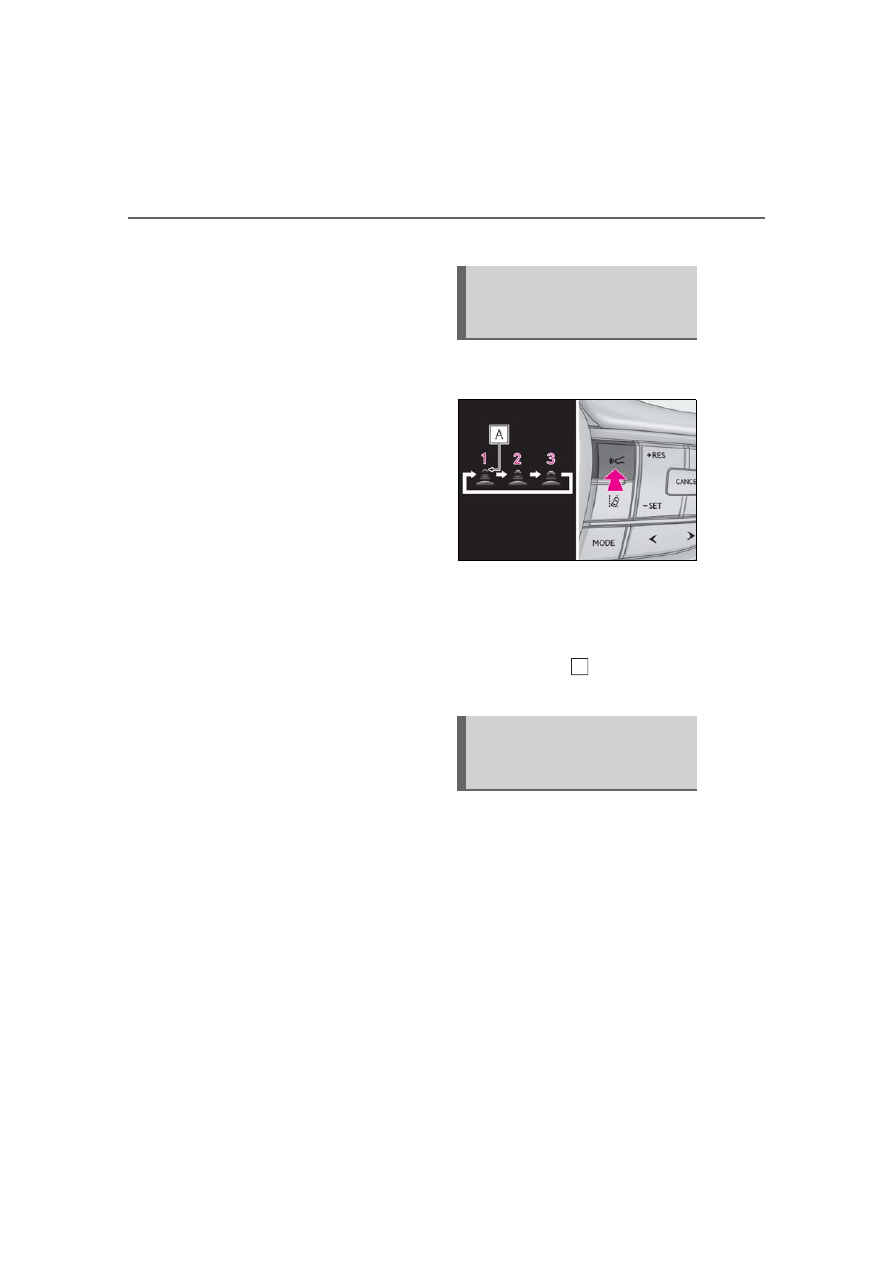

Pressing the switch changes the vehi-
cle-to-vehicle distance as follows:

Long

Medium

Short

If a vehicle is running ahead of you, the pre-
ceding vehicle mark

will also be dis-

played.

Select a distance from the table below.
Note that the distances shown corre-
spond to a vehicle speed of 50 mph
(80 km/h). Vehicle-to-vehicle dis-
tance increases/decreases in accor-
dance with vehicle speed. When the
vehicle is stopped by system control,
the vehicle stops at a certain vehicle-
to-vehicle distance depending on the
situation.

Changing the vehicle-to-vehicle
distance (vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle distance set-
tings (vehicle-to-vehicle dis-
tance control mode)

207

4-5. Using the driving support systems

Driving

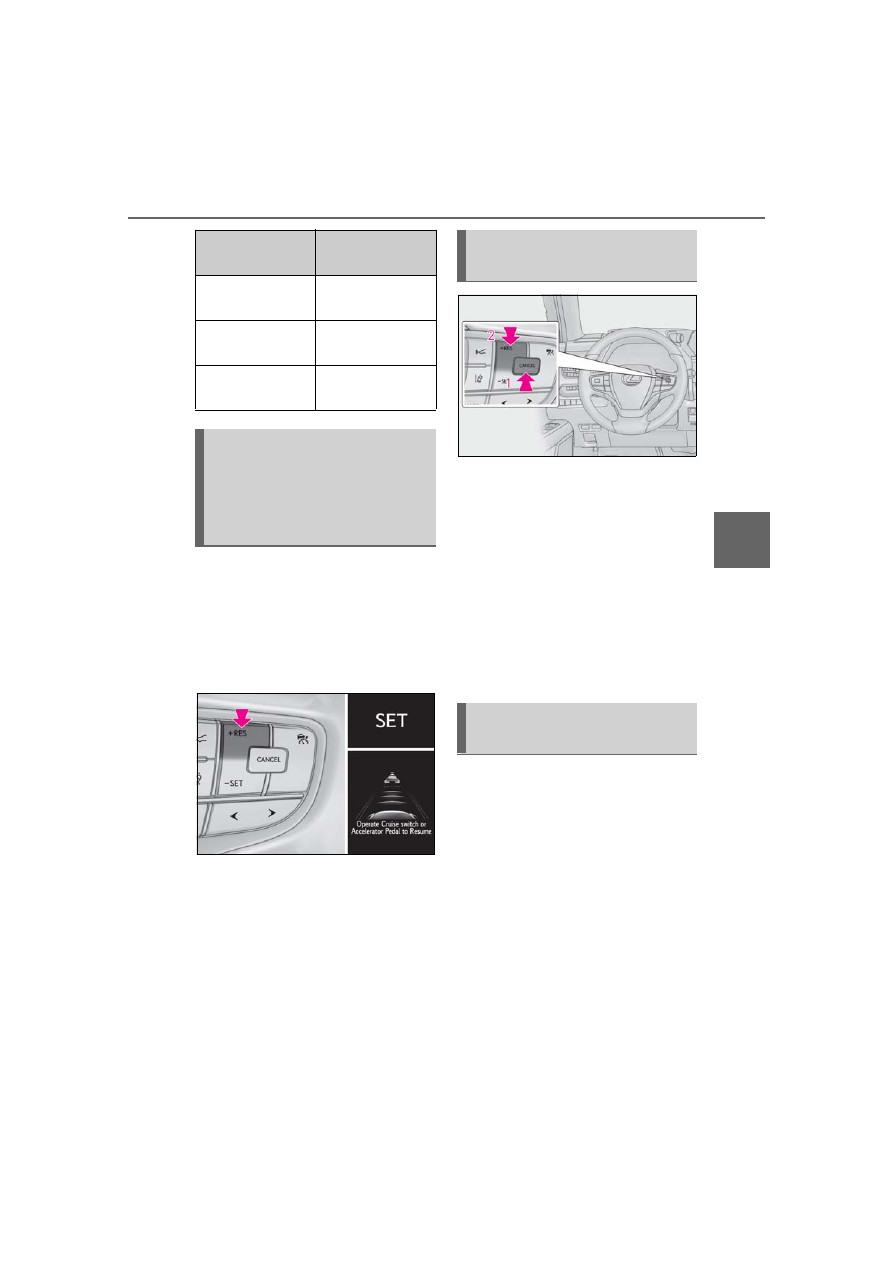

After the vehicle ahead of you starts
off, press the “+RES” switch.
Your vehicle will also resume follow-
up cruising if the accelerator pedal is
depressed after the vehicle ahead of
you starts off.

Pressing the cancel switch cancels
the speed control.

The speed control is also canceled when
the brake pedal is depressed.
(When the vehicle has been stopped by
system control, depressing the brake pedal
does not cancel the setting.)

Pressing the “+RES” switch
resumes the cruise control and
returns vehicle speed to the set
speed.

When your vehicle is too close to a
vehicle ahead, and sufficient automatic
deceleration via the cruise control is
not possible, the display will flash and
the buzzer will sound to alert the
driver. An example of this would be if
another driver cuts in front of you while
you are following a vehicle. Depress
the brake pedal to ensure an appropri-
ate vehicle-to-vehicle distance.

Distance options

Vehicle-to-vehicle

distance

Long

Approximately 160

ft. (50 m)

Medium

Approximately 130

ft. (40 m)

Short

Approximately 100

ft. (30 m)

Resuming follow-up cruising
when the vehicle has been
stopped by system control (vehi-
cle-to-vehicle distance control
mode)

Canceling and resuming the
speed control

Approach warning (vehicle-to-
vehicle distance control mode)

208

4-5. Using the driving support systems

■

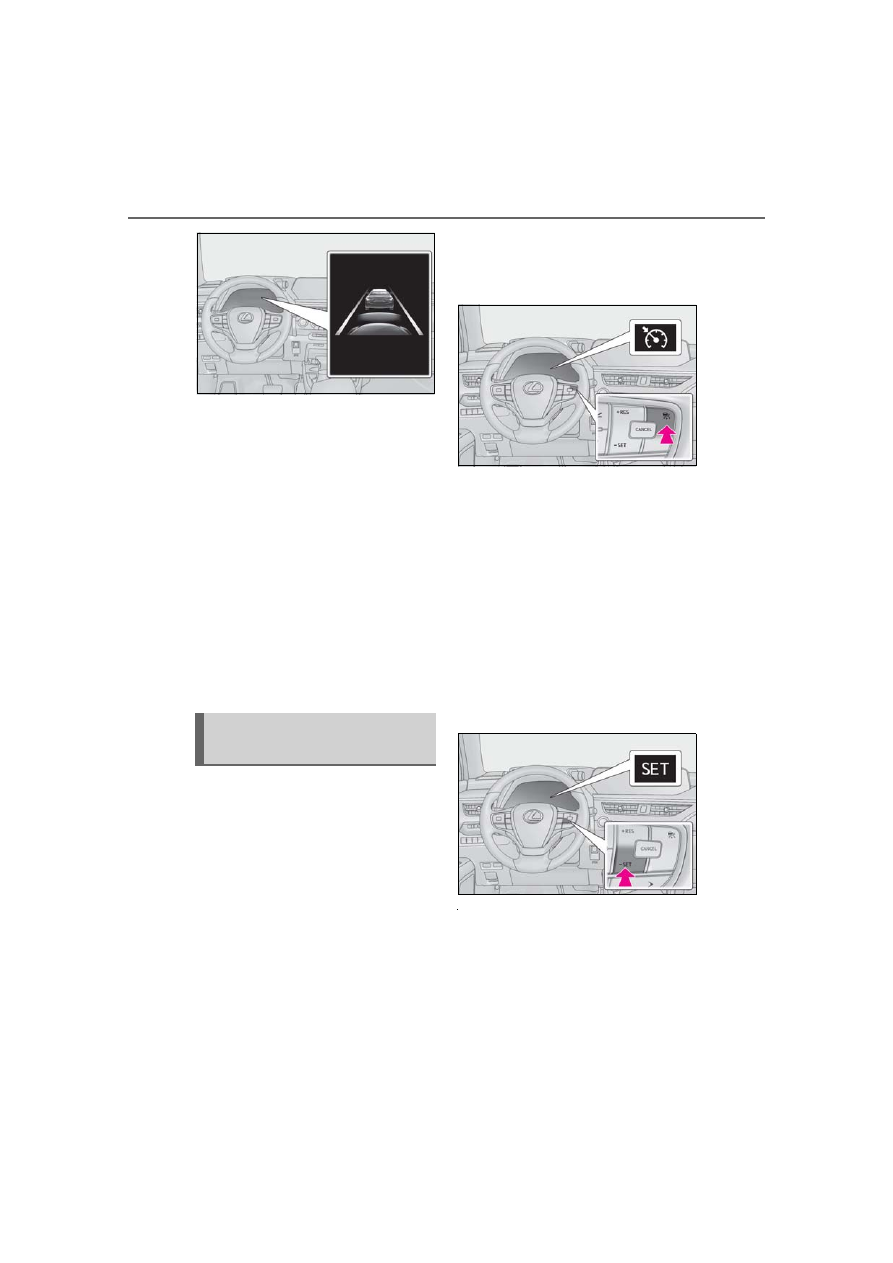

Warnings may not occur when

In the following instances, warnings
may not occur even when the vehicle-
to-vehicle distance is small.



When the speed of the preceding
vehicle matches or exceeds your
vehicle speed



When the preceding vehicle is trav-
eling at an extremely slow speed



Immediately after the cruise control
speed was set



When depressing the accelerator
pedal

When constant speed control mode is
selected, your vehicle will maintain a
set speed without controlling the vehi-
cle-to-vehicle distance. Select this
mode only when vehicle-to-vehicle
distance control mode does not func-
tion correctly due to a dirty radar, etc.

With the cruise control off, press
and hold the cruise control main
switch for 1.5 seconds or more.

Immediately after the switch is pressed, the

dynamic radar cruise control indicator will

come on. Afterwards, it switches to the

cruise control indicator.
Switching to constant speed control mode

is only possible when operating the switch

with the cruise control off.

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])
and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.
Adjusting the speed setting:



P.205

Canceling and resuming the speed setting:



P.207

■

Dynamic radar cruise control with full-

speed range can be set when

●

The shift lever is in D.

●

The desired set speed can be set when

the vehicle speed is approximately 20

mph (30 km/h) or more. (However,

when the vehicle speed is set while driv-

Selecting constant speed con-
trol mode

209

4-5. Using the driving support systems

Driving

ing at below approximately 20 mph [30

km/h], the set speed will be set to

approximately 20 mph [30 km/h].)

■

Accelerating after setting the vehicle

speed

The vehicle can accelerate by operating the

accelerator pedal. After accelerating, the

set speed resumes. However, during vehi-

cle-to-vehicle distance control mode, the

vehicle speed may decrease below the set

speed in order to maintain the distance to

the preceding vehicle.

■

When the vehicle stops while follow-up

cruising

●

Pressing the “+RES” switch while the

vehicle ahead stops will resume follow-

up cruising if the vehicle ahead starts off

within approximately 3 seconds after the

switch is pressed.

●

If the vehicle ahead starts off within 3 sec-

onds after your vehicle stops, follow-up

cruising will be resumed.

■

Automatic cancelation of vehicle-to-

vehicle distance control mode

Vehicle-to-vehicle distance control mode is

automatically canceled in the following situ-

ations.

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

The sensor cannot detect correctly

because it is covered in some way.

●

When the brake control or output

restriction control of a driving support

system operates.

(For example: Pre-Collision System, Drive-
Start Control)

●

The parking brake is operated.

●

The vehicle is stopped by system control

on a steep incline.

●

The following are detected when the

vehicle has been stopped by system con-

trol:

• The driver is not wearing a seat belt.

• The driver’s door is opened.

• The vehicle has been stopped for about 3

minutes

If vehicle-to-vehicle distance control mode

is automatically canceled for any reasons

other than the above, there may be a mal-

function in the system. Contact your Lexus

dealer.

■

Automatic cancelation of constant

speed control mode

Constant speed control mode is automati-

cally canceled in the following situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h) below

the set vehicle speed.

●

Actual vehicle speed falls below approxi-

mately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is

turned off.

●

When the brake control or output

restriction control of a driving support

system operates.

(For example: Pre-Collision System, Drive-
Start Control)
If constant speed control mode is automati-

cally canceled for any reasons other than

the above, there may be a malfunction in

the system. Contact your Lexus dealer.

■

Brake operation

A brake operation sound may be heard and

the brake pedal response may change, but

these are not malfunctions.

■

Warning messages and buzzers for

dynamic radar cruise control with full-

speed range

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution while driv-

ing. If a warning message is shown on the

multi-information display, read the message

and follow the instructions. (



P.181, 363)

■

When the sensor may not be correctly

detecting the vehicle ahead

In the case of the following and depending

on the conditions, operate the brake pedal

when deceleration of the system is insuffi-

210

4-5. Using the driving support systems

cient or operate the accelerator pedal

when acceleration is required.

As the sensor may not be able to correctly

detect these types of vehicles, the approach

warning (



P.207) may not be activated.

●

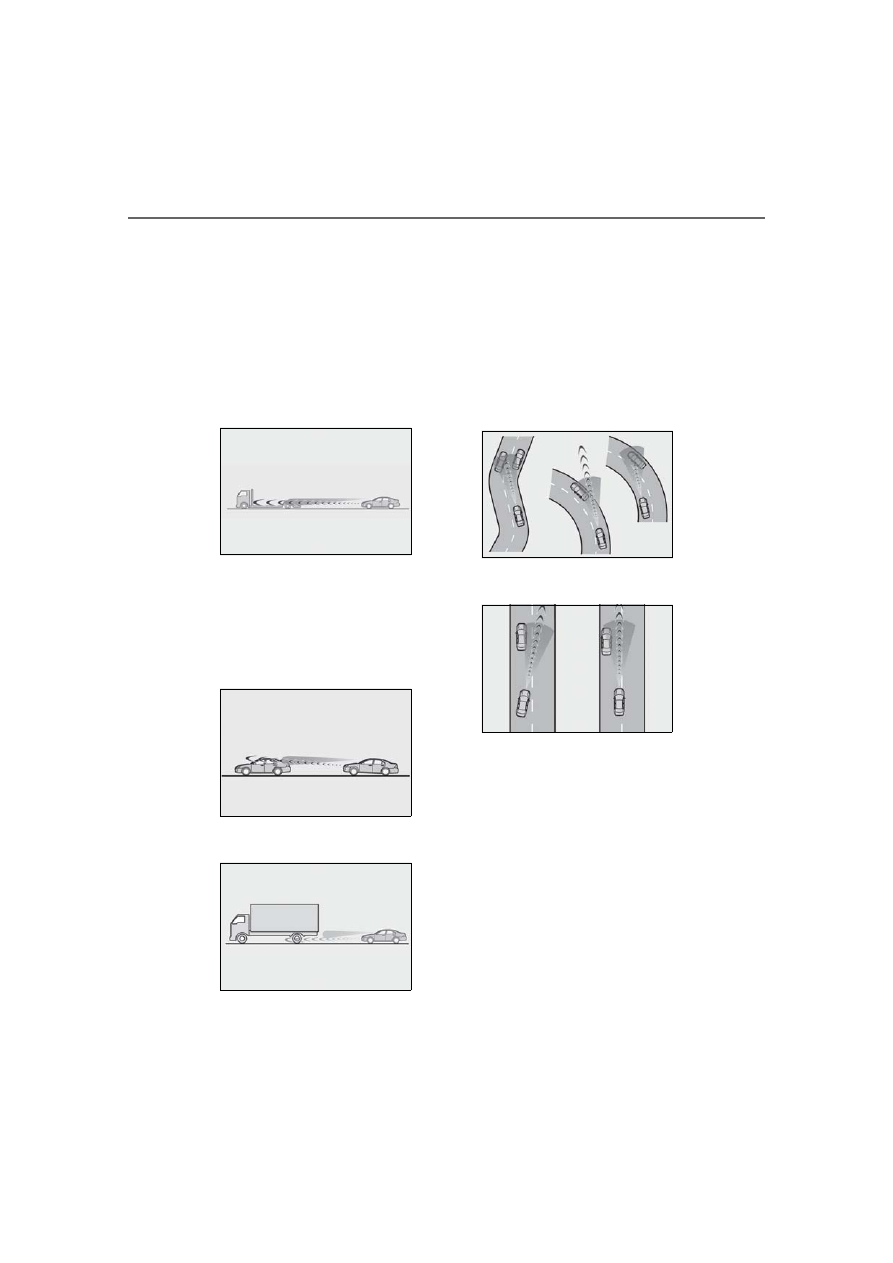

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same

lane

●

Vehicles with small rear ends (trailers

with no load on board, etc.)

●

Motorcycles traveling in the same lane

●

When water or snow thrown up by the

surrounding vehicles hinders the detect-

ing of the sensor

●

When your vehicle is pointing upwards

(caused by a heavy load in the luggage

compartment, etc.)

●

Preceding vehicle has an extremely high

ground clearance

■

Conditions under which the vehicle-to-

vehicle distance control mode may not

function correctly

In the case of the following conditions,

operate the brake pedal (or accelerator

pedal, depending on the situation) as nec-

essary.

As the sensor may not be able to correctly

detect vehicles ahead, the system may not

operate properly.

●

When the road curves or when the lanes

are narrow

●

When steering wheel operation or your

position in the lane is unstable

●

When the vehicle ahead of you deceler-

ates suddenly

●

When driving on a road surrounded by a

structure, such as in a tunnel or on a

bridge

●

While the vehicle speed is decreasing to

the set speed after the vehicle acceler-

ates by depressing the accelerator pedal

211

4-5. Using the driving support systems

Driving

: If equipped

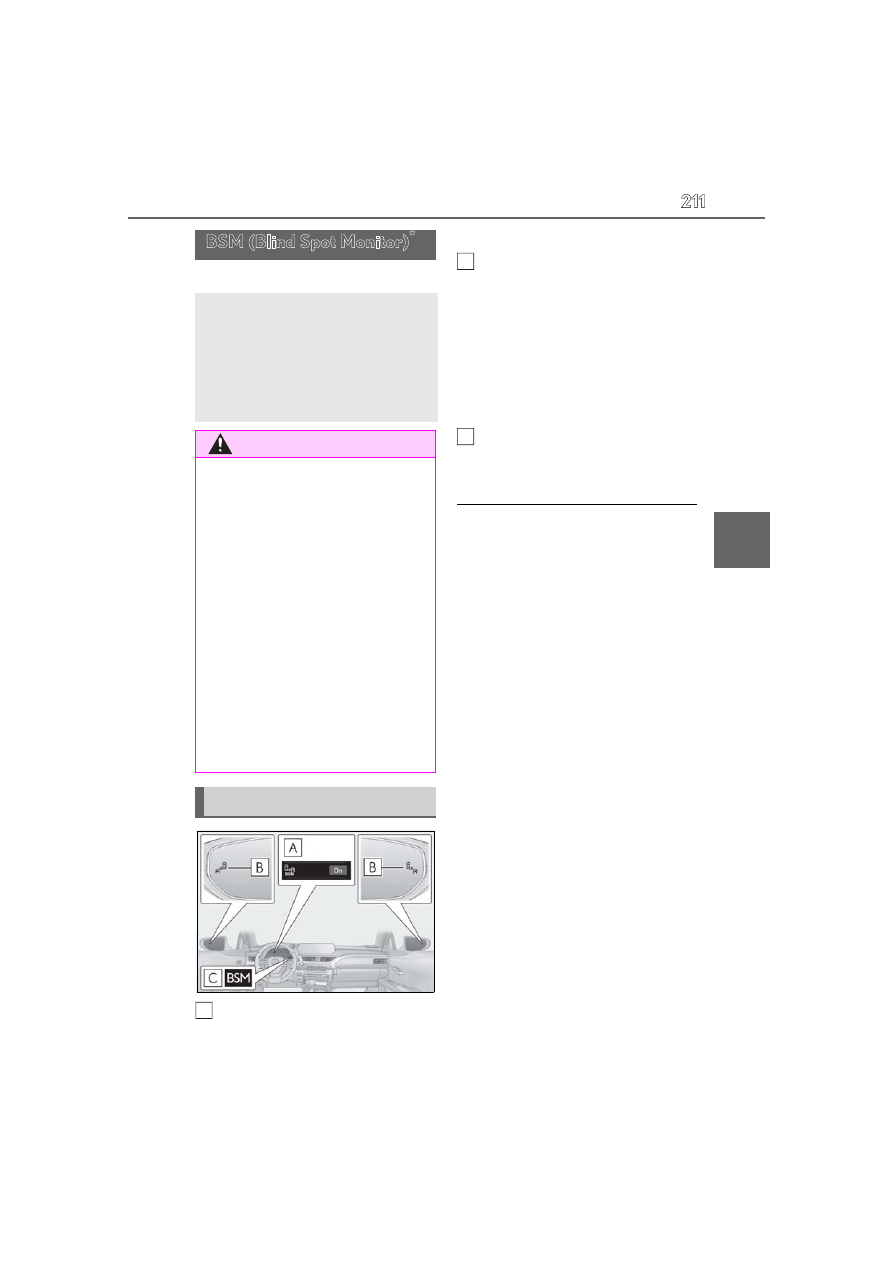

Multi-information display

The Blind Spot Monitor can be turned

on/off.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator flashes.

BSM indicator

Illuminates when the Blind Spot Monitor is
enabled

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors. (



P.213)

The system should return to normal opera-

tion after removing the ice, snow, mud, etc.

from the rear bumper. Additionally, the sen-

sors may not operate normally when driving

in extremely hot or cold environments.

■

Customization

Some functions can be customized.

(



P.411)

BSM (Blind Spot Monitor)

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

■

Cautions regarding the use of the

system

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The Blind Spot Monitor is a supplemen-

tary function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the Blind Spot Monitor. As

the function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s

own visual confirmation of safety is nec-

essary.

System components

213

4-5. Using the driving support systems

Driving

WARNING

■

To ensure the system can operate

properly

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can operate correctly.

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on the
rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message
(



P.211) will be displayed. In this situa-

tion, clear off the dirt or snow and drive
the vehicle with the operation conditions
of the BSM function (



P.215) satisfied

for approximately 10 minutes. If the
warning message does not disappear,
have the vehicle inspected by your Lexus
dealer.

●

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

214

4-5. Using the driving support systems

Use the meter control switches to turn
on/off the function (



P.77).

Press

to select

Press

to select

and

then press “OK”.

■

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

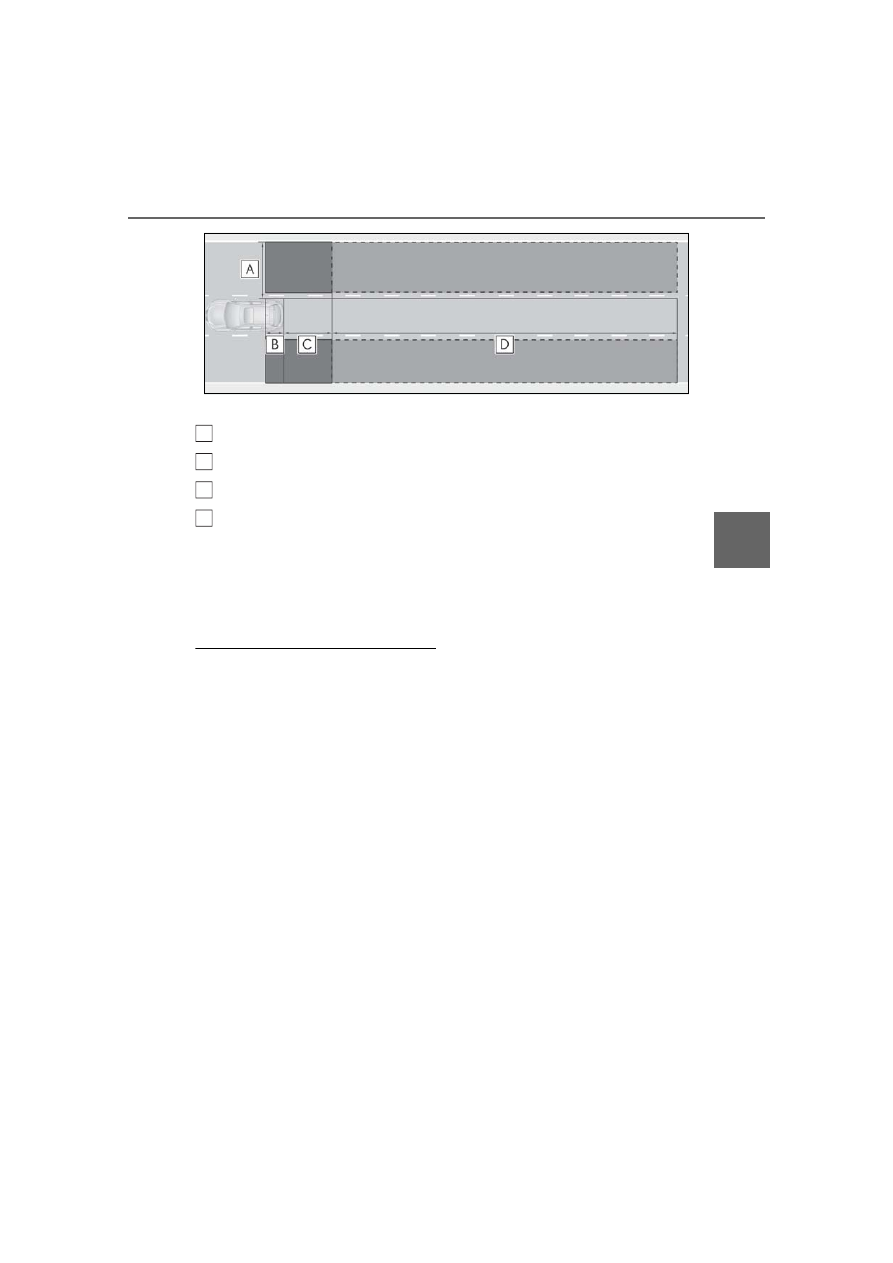

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

WARNING

●

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off posi-
tion, the system may malfunction and
vehicles may not be detected correctly.
In the following situations, have your
vehicle inspected by your Lexus dealer.
• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

Do not paint the rear bumper any

color other than an official Lexus color.

Turning the Blind Spot Monitor
on/off

Blind Spot Monitor operation

215

4-5. Using the driving support systems

Driving

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in adjacent lane

slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Conditions under which the system will

not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles

and/or objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

●

Following vehicles that are in the same
lane

●

Vehicles traveling 2 lanes away from
your vehicle

●

Vehicles which are being overtaken rap-
idly by your vehicle

: Depending on the conditions, detection

of a vehicle and/or object may occur.

A
B
C
D

216

4-5. Using the driving support systems

■

Conditions under which the system may

not function correctly

●

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the

vehicle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

●

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

217

4-5. Using the driving support systems

Driving

: If equipped

■

Intuitive parking assist



P.218

■

RCTA (Rear Cross Traffic Alert)
function (if equipped)



P.226

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the intuitive parking
assist and RCTA function will be
adjusted simultaneously.
Use the meter control switches to
change settings. (



P.77)

Press

to select

Press

to select “PKSA”

and then press “OK”.

Press

to select

and

then press “OK”.

Each time the switch is pressed, the vol-

ume level will change between 1, 2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed on the
multi-information display when an
object or pedestrian is detected. To
mute the buzzer, press “OK”.
The buzzers for the intuitive parking
assist and RCTA function will be muted
simultaneously.
Mute will be canceled automatically in
the following situations:



When the shift lever is changed.



When there is a malfunction in a
sensor or the system is temporarily
unavailable.



When the operating function is dis-
abled manually.



When the engine switch is turned
off.

PKSA (Parking Support
Alert)

The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object, such as
a wall is high, a warning operates to
urge the driver to take evasive
action.

PKSA (Parking Support Alert)
system

Setting the buzzer volume

218

4-5. Using the driving support systems

: If equipped

■

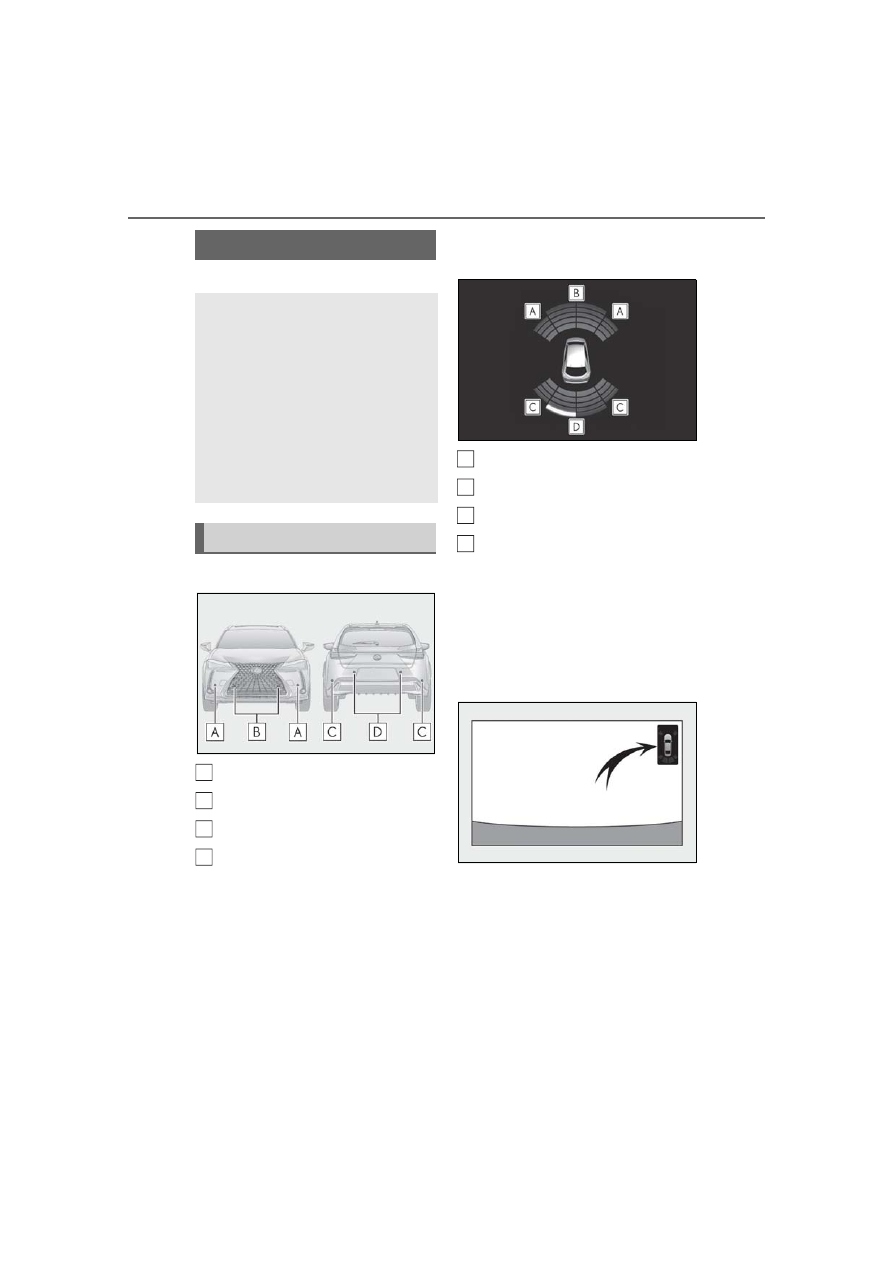

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display

When the sensors detect an object,
such as a wall, a graphic is shown on
the multi-information display, head-up
display (if equipped) and Center Dis-
play (vehicles with 10.3-inch display
model) depending on the position and
distance to the object.



Multi-information display and head-
up display

Front corner sensor detection

Front center sensor detection

Rear corner sensor detection

Rear center sensor detection



Center Display

A graphic is shown when the Lexus park-
ing assist monitor is displayed.
A simplified image is displayed on the
Center Display when an object is detected.
• When the shift lever is in R

• When the shift lever is in N, M or D

Intuitive parking assist

The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the multi-
information display, head-up dis-
play (if equipped), Center Display
and a buzzer. Always check the sur-
rounding area when using this sys-
tem.

System components

A
B
C
D

Content .. 10 11 12 13 ..
