Lexus RC300 (2022 year). Manual in english - page 4

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Darker
Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness.
At this time, any adjustments made to the

instrument panel brightness levels will be

applied to both settings at once.



Except F SPORT models



F SPORT models (main meter in
center position)



F SPORT models (main meter
moved to the right)

A
B

Multi-information display

The multi-information display pres-
ents the driver with a variety of
vehicle data.

Displays and menu icons

2-1. Instrument cluster

■

Menu icons

■

Liquid crystal display



P.70

The multi-information display is oper-
ated using the meter control switches.

Select an item/change pages
Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display
the first screen of the selected menu icon.



Except F SPORT models

Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.



F SPORT models

Move the main meter
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen (except F
SPORT models)

The displayed top screen can be

Drive information

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system informa-
tion

Warning message display

Settings display

WARNING

■

The multi-information display at low

temperatures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.
For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

Changing the meter display

A
B

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold

■

Content displayed as drive infor-
mation

Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
Items displayed can be switched by
pressing

of the meter con-

trol switches to select

and pressing

F SPORT models: When the main
meter is in the center position, only one
item will be displayed at a time.
F SPORT models: Some drive informa-
tion items can only be displayed when
the main meter is in the center position
or when it is moved to the right.



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

• After reset: Displays average fuel con-

sumption since display reset

*1, 2

• After start: Displays average fuel con-

sumption since engine start

• After refuel: Displays average fuel con-

sumption since refuel

*2, 3



Average vehicle speed

• After reset: Displays average vehicle

speed since display reset

• After start: Displays average vehicle

speed since engine start



Elapsed time

• After reset: Displays elapsed time since

the display was reset

• After start: Displays elapsed time since

engine start



Distance

• Driving range: Displays driving range

with remaining fuel

*3, 4

• After start: Displays drive distance since

vehicle start



Other

Blank: No item

: The function can be reset by pressing

the

of the meter control switches

for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.

: Use the displayed fuel consumption as a

reference.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

Drive information

2-1. Instrument cluster

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

Eco Driving Indicator will not operate
under the following conditions:



The shift lever is in any position
other than D.



A paddle shift switch is operated.



Neither normal mode nor Eco drive
mode is selected. (



P.196)



The vehicle speed is approximately
80 mph (130 km/h) or higher.

■

Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)

Boost gauge

Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.

Engine oil temperature gauge

Displays the engine oil temperature.The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (



P.293)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

G-force (if equipped)

Displays lateral G-forces on the vehi-
cle.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces

This display is intended for use as a
guideline. Depending on factors such
as the road surface condition, tem-
perature and vehicle speed, the display
may not show the actual condition of
the vehicle.



Resetting the record of maximum
G-forces

Press and hold

to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

Tire pressure



P.266

■

Vehicle sway warning

Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,

and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.

This display is a part of the LDA (Lane
Departure Alert with steering control) sys-
tem.The display is enabled when the oper-
ating conditions of the vehicle sway
warning are met. (



P.168)

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

Gear positions

Displays the current gear position
when the shift lever is in D or M.

■

Units (if equipped)

The units of measure used can be
changed while driving.

Unlike the units setting performed on

the units setting performed on

can be

changed while driving.

: For F SPORT models, this item is not

available when the main meter is in the
right-side position.

■

Blank (No items)

Displays no drive information contents.

■

Tire pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

“---” may be displayed if the tire position

information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

2-1. Instrument cluster

using a tire pressure gauge.

Select to display the following naviga-
tion system-linked information.



Route guidance



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the display using the
meter control switches.

Select to display the operational status
of the following systems:



LDA (Lane Departure Alert with
steering control) (



P.167)



Dynamic radar cruise control with
full-speed range (



P.174)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.301)

The settings of the following items can
be changed using the meter control
switches.
For functions that can be enabled or
disabled, the function switches

between on and off each time

pressed.

■

LDA (Lane Departure Alert

with steering control) (



P.167)

Select to set up the following items.



Steering Assist

Select to enable/disable steering wheel
assistance.



Alert

Select to set a vibrator or buzzer as the
notification method used to warn the
driver.



Sensitivity

Select to set the warning sensitivity.



Sway warning

Select to enable/disable the vehicle sway
warning.



Sway sensitivity

Select to set the vehicle sway warning sen-
sitivity.

■

PCS (Pre-Collision System)

(



P.160)

Select to set up the following items.



PCS

Select to enable/disable the pre-collision
system.



Warning sensitivity

Select to change the warning timing.

■

Clock (



P.66)

Select to switch between 12-hour dis-
play and 24-hour display.

■

Vehicle Settings



Scheduled Maintenance (



P.246)

Select to reset the message indicating

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system information

Warning message display

Settings display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

maintenance is required, after the required
maintenance is performed.



Oil maintenance (



P.258)

Select to reset the engine oil maintenance
information (message indicating mainte-
nance is required and distance until the
next oil change) after engine oil mainte-
nance is performed.

■

Meter settings



Language

Select to change the language on the dis-
play.



Units

Select to change the units of measure dis-
played.



Eco Driving Indicator Light

(



P.74)

Select to enable/disable the Eco Driving
Indicator Light.



Switch settings (except F

SPORT models)

Displays a procedure to register a desired
screen to

You can register 1 screen as a shortcut,
which can be displayed by pressing



Drive information screen (



P.73)

Select to choose between 2 items that will
be displayed on each drive information
screen (“Drive info 1”, “Drive Info 2” and
“Drive Info 3”) respectively.



Pop-up display (



P.69)

Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls

• Audio Feedback (F SPORT)
• Volume Feedback (F SPORT)
• Brightness adjustment



Color

Select to set the color of the cursor on the
multi-information display.



Rev indicator (F SPORT models)
(



P.68)

• Select to enable/disable the Rev indica-

tor.

• Select to set the desired engine speed at

which the Rev indicator will begin to be
displayed.



Rev peak (F SPORT models)
(



P.69)

Select to enable/disable the Rev peak.



Default setting

Select to reset the meter display settings to
the default setting.

■

Background color of the indicator/shift

position display area (except F SPORT

models)

The background color of the indicator/shift

position display area is changed according

to the driving mode as follows (



P.196):

●

Eco drive mode: Blue

●

Sport mode: Red

■

G-force display (if equipped)

The G-force values may not be zero even

when the vehicle is parked, such as when it

is parked on an incline.

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

2-1. Instrument cluster

Center Display
“MENU” button
Touchpad

■

Trip information

Press the “MENU” button on the
Remote Touch, then select

on the

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a 10.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

menu screen, and then select “ECO”.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

on the

menu screen, and then select “ECO”.
If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

A
B

C
D

A
B
C
D

2-1. Instrument cluster

Display the vehicle information on the
side display (



P.212), and then select

to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

Use the displayed average fuel consump-
tion as a reference.

■

History

Displays the average fuel consumption
and highest fuel consumption.

Use the displayed average fuel consump-
tion as a reference.

Using the side display (vehicles
with a 10.3-inch display)

fore
dri
ving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

Trunk..................................................

Smart access system with

push-button start.......................

3-3. Adjusting the seats

Front seats.......................................

Rear seats........................................

Power easy access system/driving

position memory/memory recall
function........................................

100

Head restraints............................

103

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

106

Inside rear view mirror.............

107

Outside rear view mirrors......

108

3-5. Opening, closing the windows

and moon roof

Power windows............................

110

Moon roof ......................................

112

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.93)

• Operating the wireless remote control

function (



P.84)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.93)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

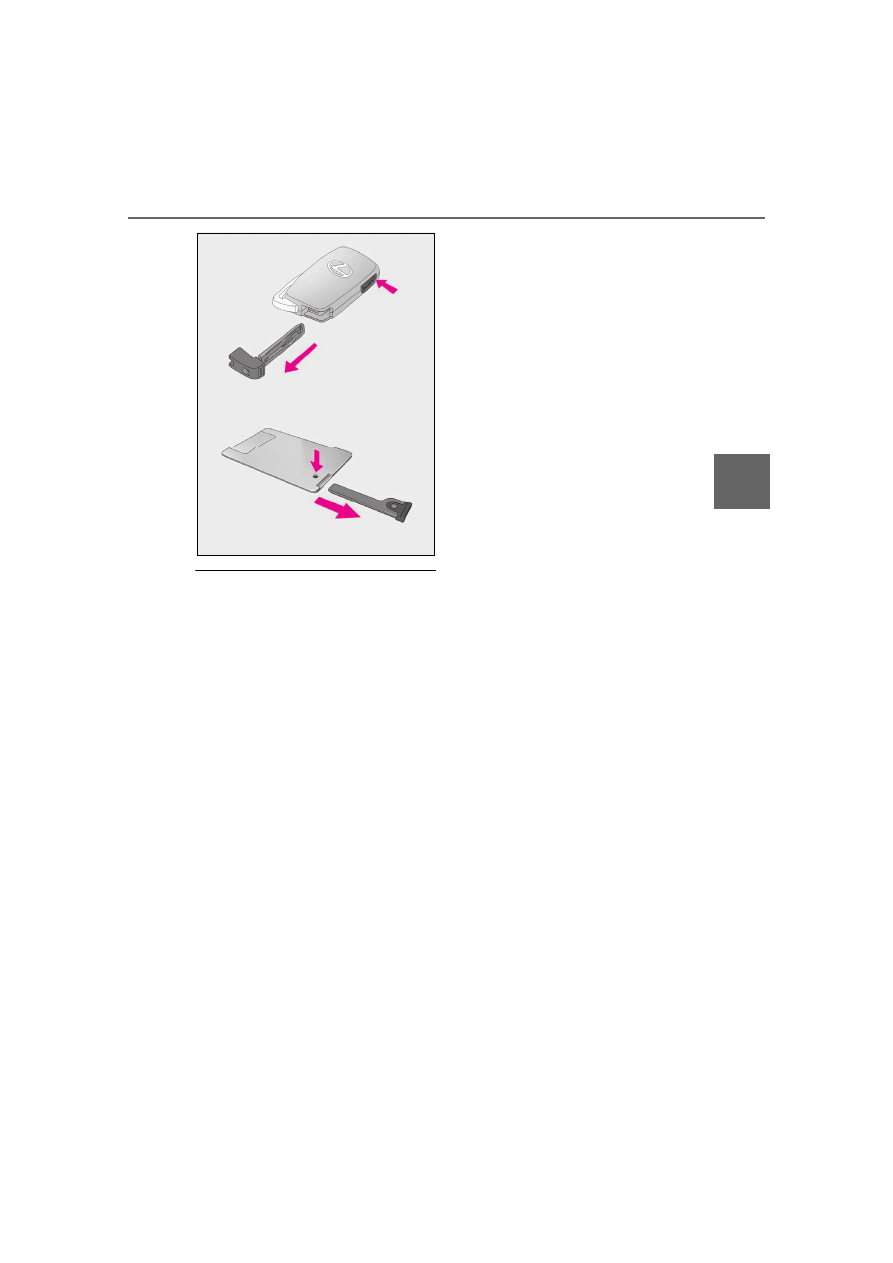

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

shown on the multi-information display

when the engine is stopped.

Keys

The keys

B
C
D

3-1. Key information

fore
dri
ving

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.275

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or
