1-2. LEXUS Enform

Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-

Safety Connect services

Safety information for Safety
Connect

55

1-2. LEXUS Enform

1

For safety and security

nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

56

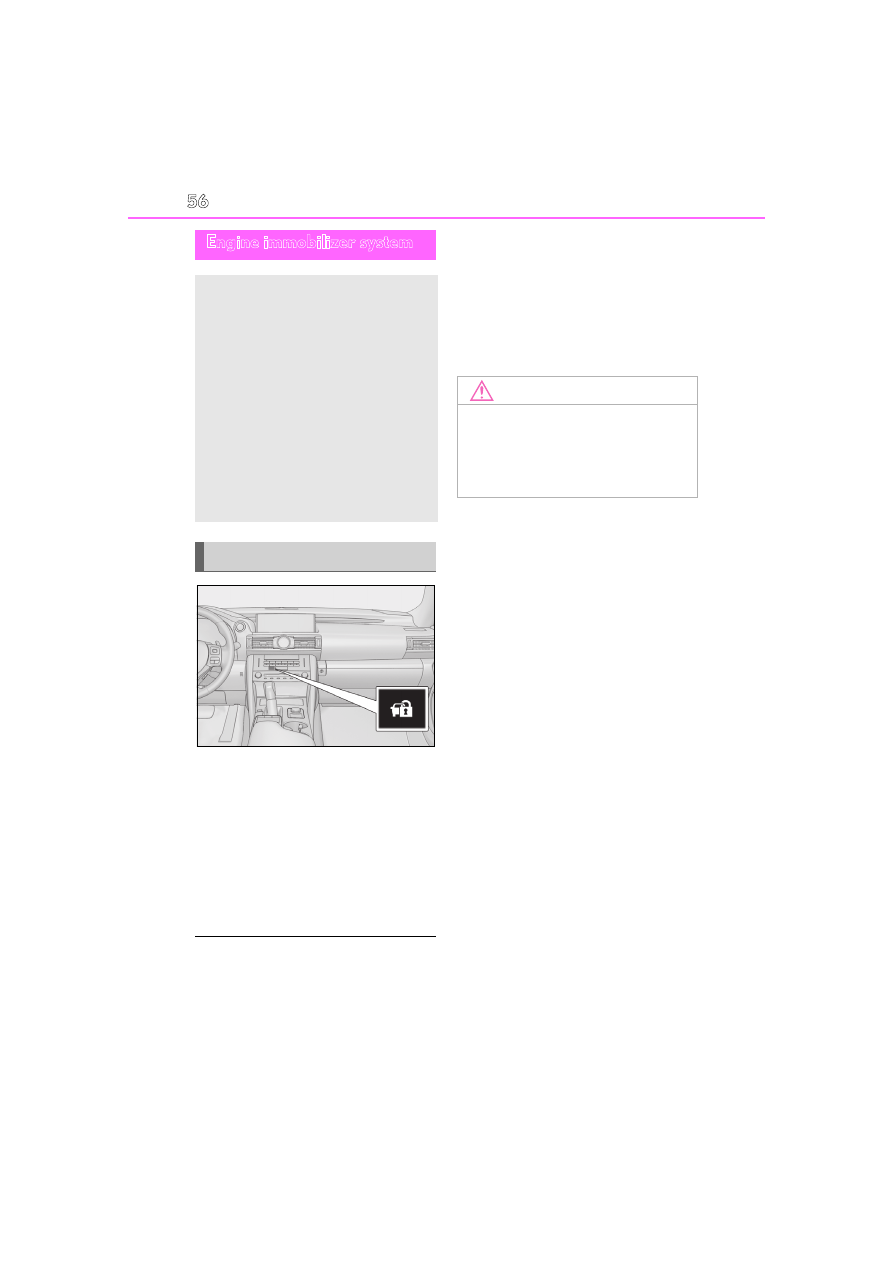

1-3. Theft deterrent system

1-3.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

57

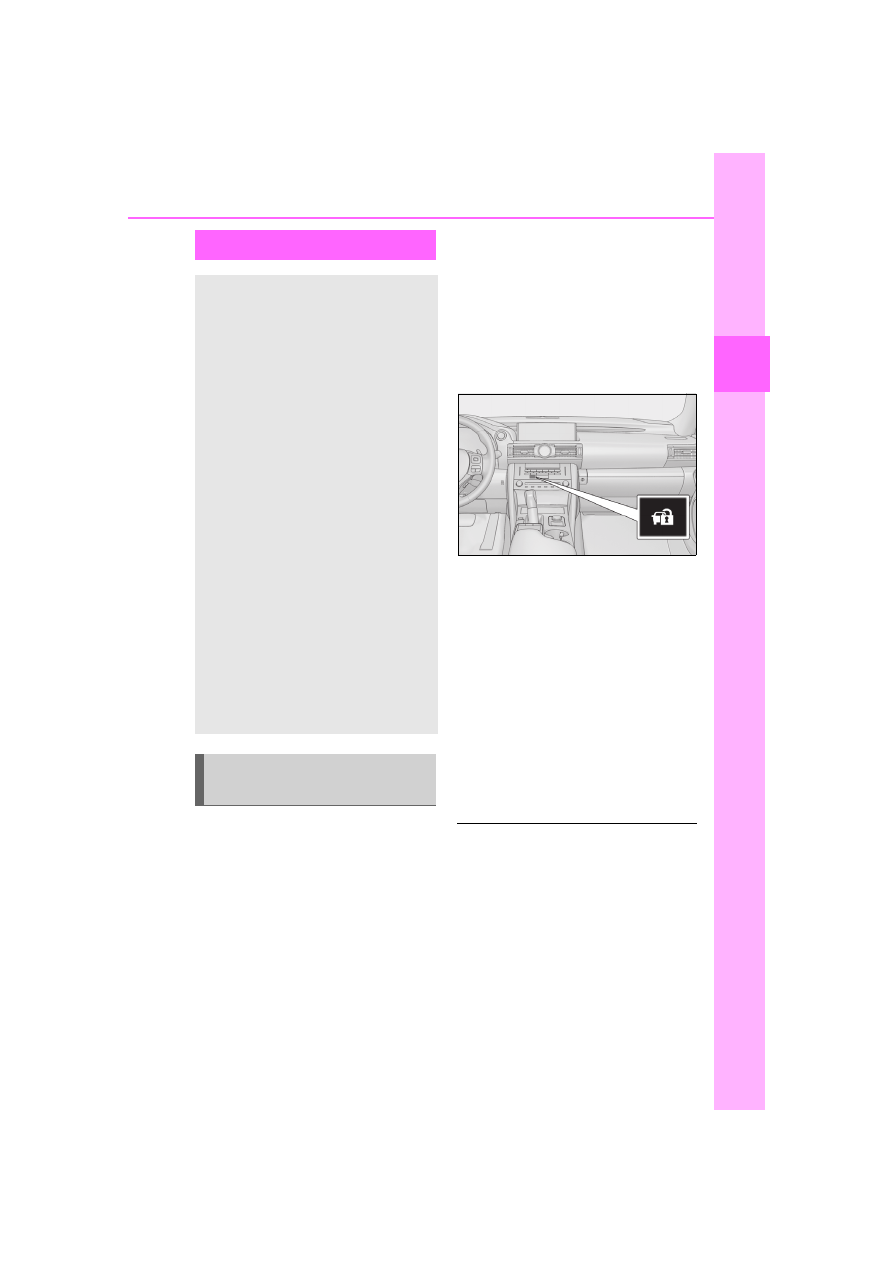

1-3. Theft deterrent system

1

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Open the trunk using the entry
function or wireless remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)



For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)



The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.



The hood is opened.

Setting/canceling/stopping the
alarm system

58

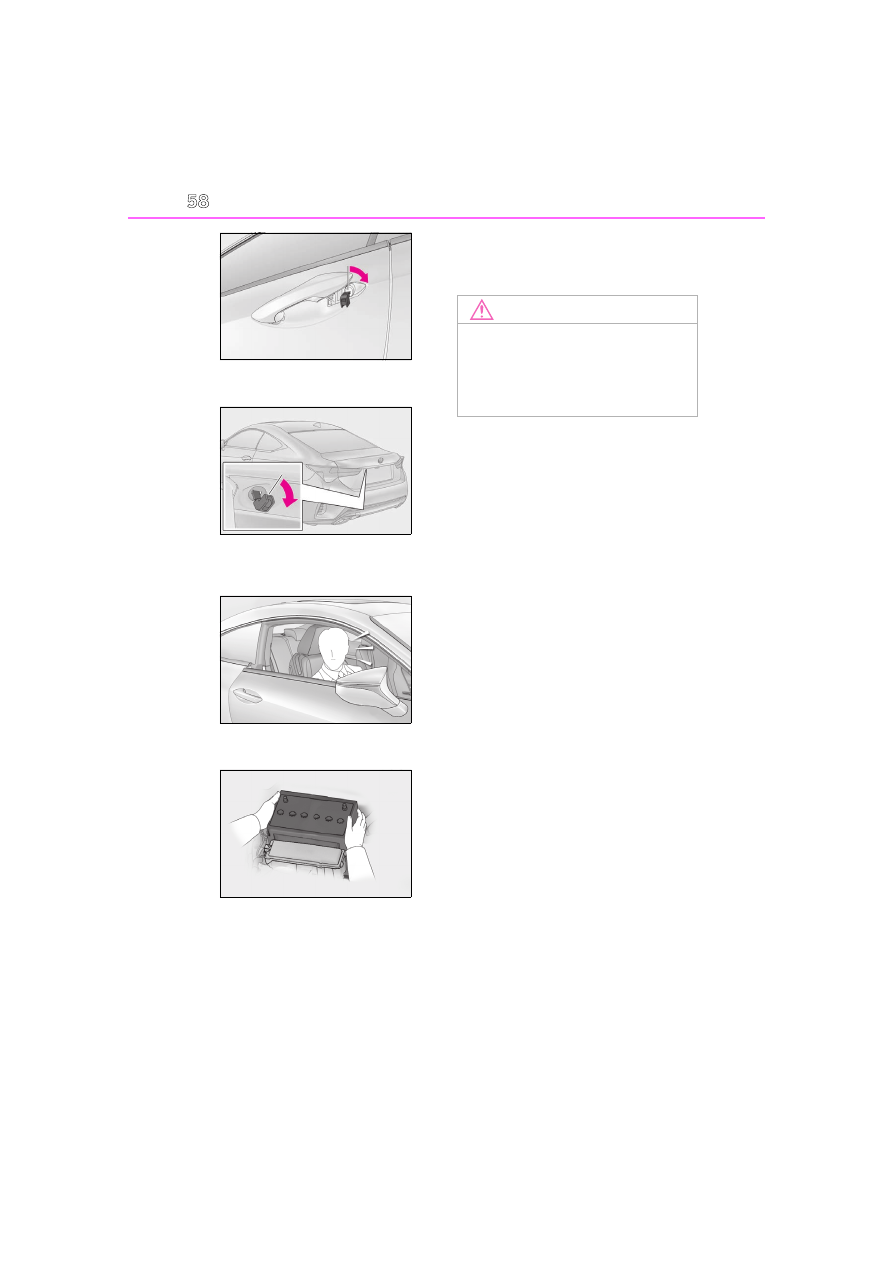

1-3. Theft deterrent system

●

The trunk is opened using the mechanical

key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using an inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.319)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

59

1-3. Theft deterrent system

1

For safety and security

Theft prevention labels
(U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

61

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

...........................................................

62

Gauges and meters ....................

66

Multi-information display............

71

Fuel consumption information

...........................................................

78

62

2-1. Instrument cluster

2-1.Instrument cluster

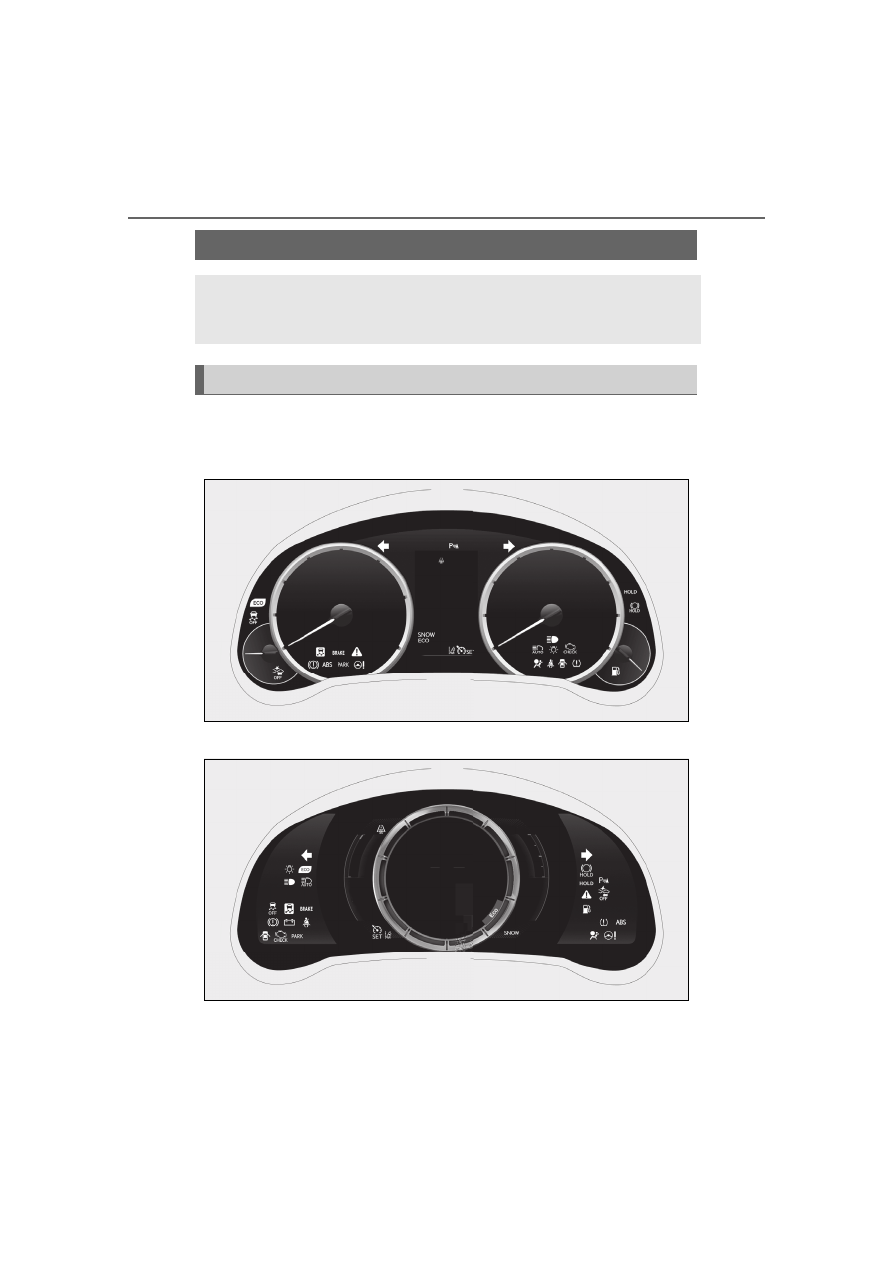

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.



Except F SPORT models



F SPORT models

The units used on the meters and some indicators may differ depending on the target
region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

63

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

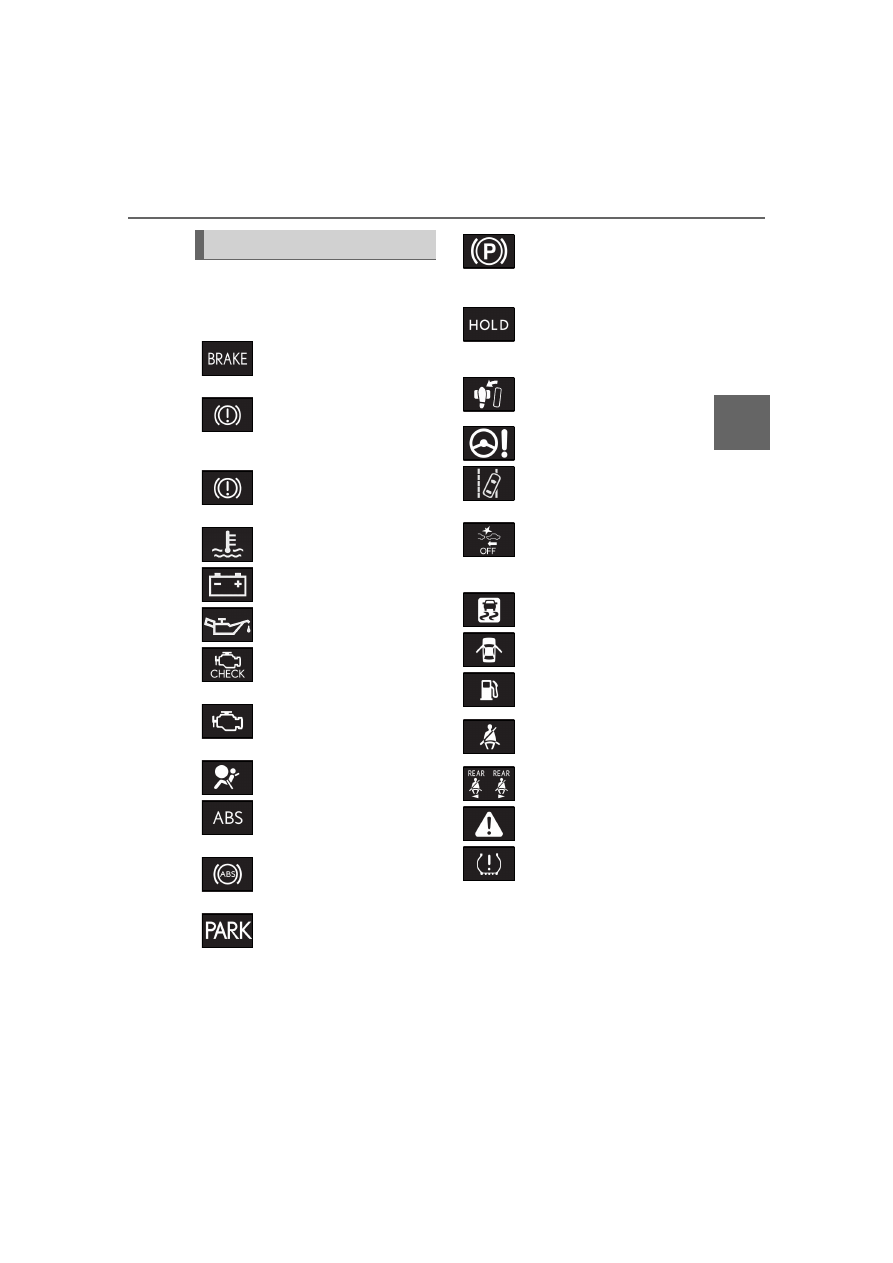

Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.293)

(red)

(Canada)

Brake system warning light

*1



(



P.293)

(yellow)

Brake system warning light

*1



(



P.293)

High coolant temperature
warning light

*2

 (



P.293)

Charging system warning
light

*3

 (



P.294)

Low engine oil pressure warn-
ing light

*2

 (



P.294)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.294)

(Canada)

Malfunction indicator lamp

*1



(



P.294)

SRS warning light

*1

 (



P.294)

(U.S.A.)

ABS warning light

*1

 (



P.295)

(Canada)

ABS warning light

*1

 (



P.295)

(flashes)

(U.S.A.)

Parking brake warning light
(



P.298)

(flashes)

(Canada)

Parking brake warning light
(



P.298)

(flashes)

Brake hold operated indicator

*1



(



P.293)

Brake Override System warn-
ing light/Drive-Start Control
warning light

*2

 (



P.295)

Electric power steering system
warning light

*1

 (



P.295)

(orange)

LDA (Lane Departure Alert)
indicator (



P.296)

(flashes or

illuminates)

PCS warning light

*1

 (



P.296)

Slip indicator

*1

 (



P.296)

Open door warning light
(



P.297)

Low fuel level warning light
(



P.297)

Driver’s and front passenger’s
seat belt reminder light
(



P.297)

Rear passenger’s seat belt
reminder lights

*4

 (



P.297)

Master warning light

*1



(



P.298)

Tire pressure warning light

*1



(



P.298)

64

2-1. Instrument cluster

your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: Except F SPORT models: This light illu-

minates on the multi-information dis-
play.
F SPORT models: This light illuminates
on the meter.

*4

: This light illuminates on the center

panel.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

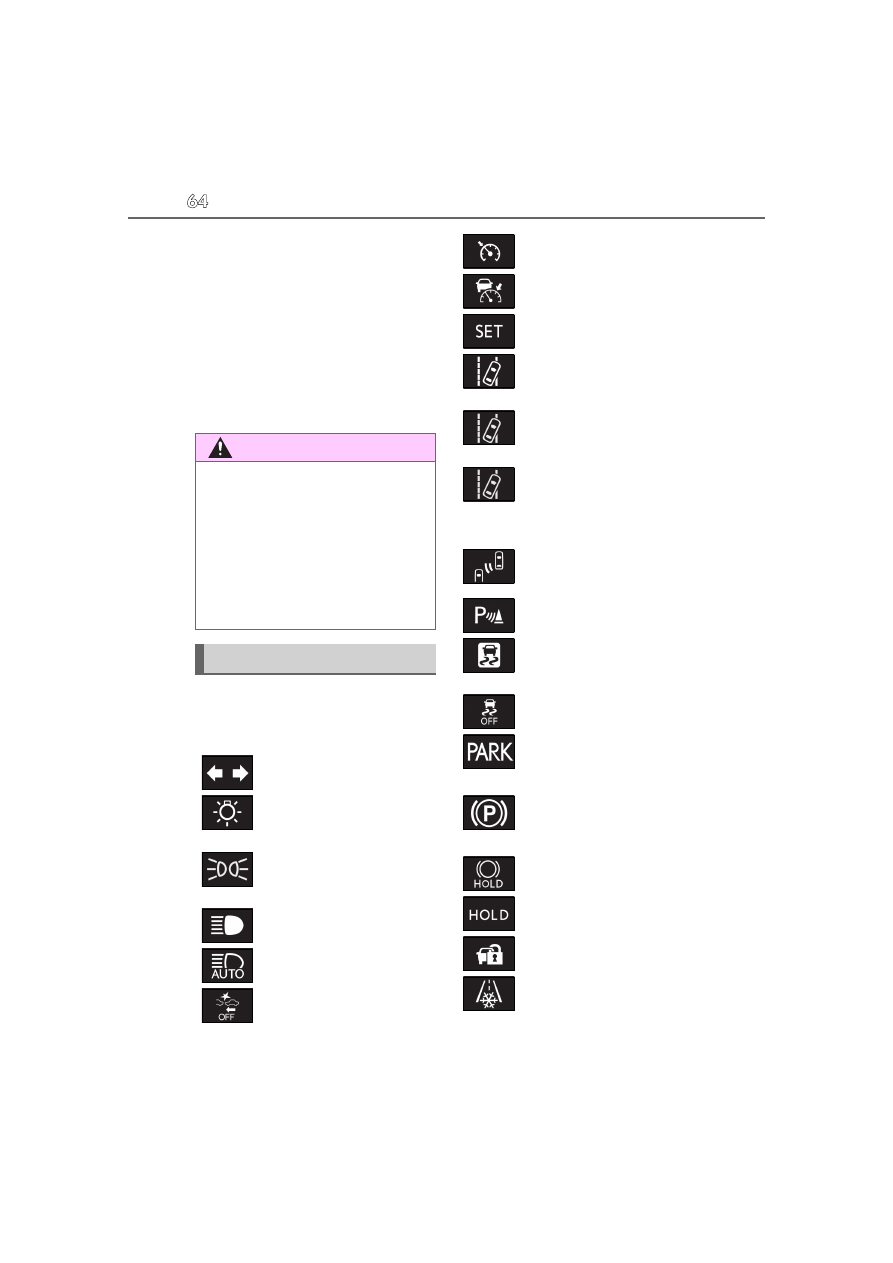

Indicators

Turn signal indicator (



P.134)

(U.S.A.)

Headlight indicator (



P.140)

(Canada)

Tail light indicator (



P.140)

Headlight high beam indicator
(



P.141)

Automatic High Beam indica-
tor

*1

 (



P.142)

PCS warning light

*1, 2

 (



P.162)

Cruise control indicator
(



P.180)

Dynamic radar cruise control
indicator (



P.174)

Cruise control “SET” indicator
(



P.174)

(white)

LDA (Lane Departure Alert)
indicator (



P.169)

(green)

LDA (Lane Departure Alert)
indicator (



P.169)

(orange)

(flashes)

LDA (Lane Departure Alert)
indicator (



P.169)

BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors

*3, 4

 (



P.189)

Intuitive parking assist indicator
(if equipped) (



P.183)

(flashes)

Slip indicator

*1

 (



P.199)

VSC OFF indicator

*1, 2



(



P.200)

(U.S.A.)

Parking brake indicator
(



P.135)

(Canada)

Parking brake indicator
(



P.135)

Brake hold standby indicator

*1



(



P.137)

Brake hold operated indicator

*1



(



P.137)

Security indicator

*5

 (



P.56,

57)
Low outside temperature indi-
cator

*6

 (



P.66)

65

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators



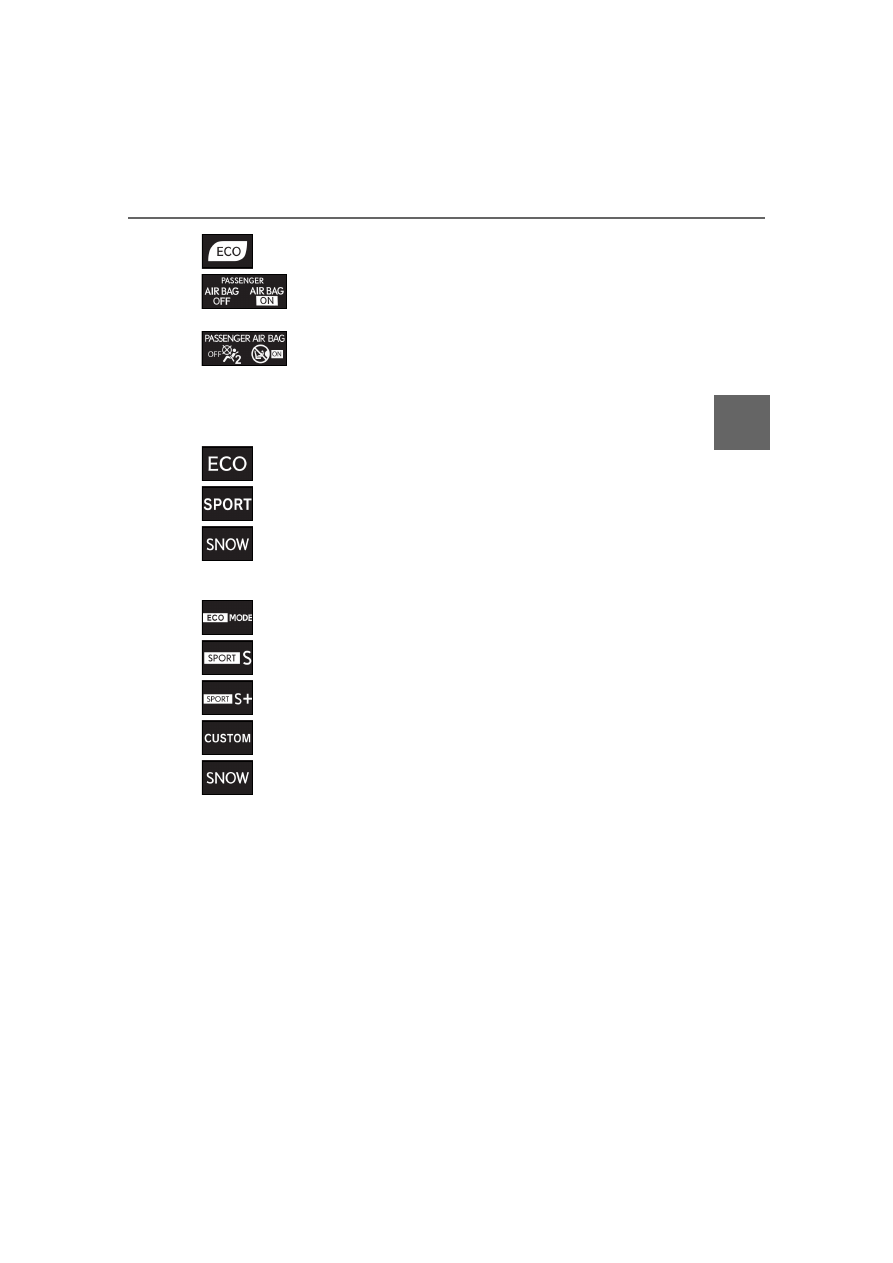

Drive mode indicators



Except F SPORT models



F SPORT models

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: The light comes on when the system is

turned off.

*3

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:

• When the engine switch is turned to

IGNITION ON mode while the
BSM main switch is turned on.

• When the BSM main switch is

turned on while the engine switch is
in IGNITION ON mode.

If the system is functioning correctly, the
BSM outside rear view mirror indicators
will turn off after a few seconds. If the BSM
outside rear view mirror indicators do not
illuminate or do not turn off, there may be a
malfunction in the system. If this occurs,
have the vehicle inspected by your Lexus
dealer.

*4

: This light illuminates on the outside rear

view mirrors.

*5

: This light illuminates on the center

panel.

*6

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

Eco Driving Indicator Light

*1



(



P.74)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 5

 (



P.36)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 5

 (



P.36)

Eco drive mode indicator
(



P.196)

“SPORT” indicator (



P.196)

Snow mode indicator (



P.131)

Eco drive mode indicator
(



P.196)

“SPORT S” indicator (



P.196)

“SPORT S+” indicator
(



P.196)

“CUSTOM” indicator (



P.196)

Snow mode indicator (



P.131)

66

2-1. Instrument cluster

■

Locations of gauges and meters (except F SPORT models)

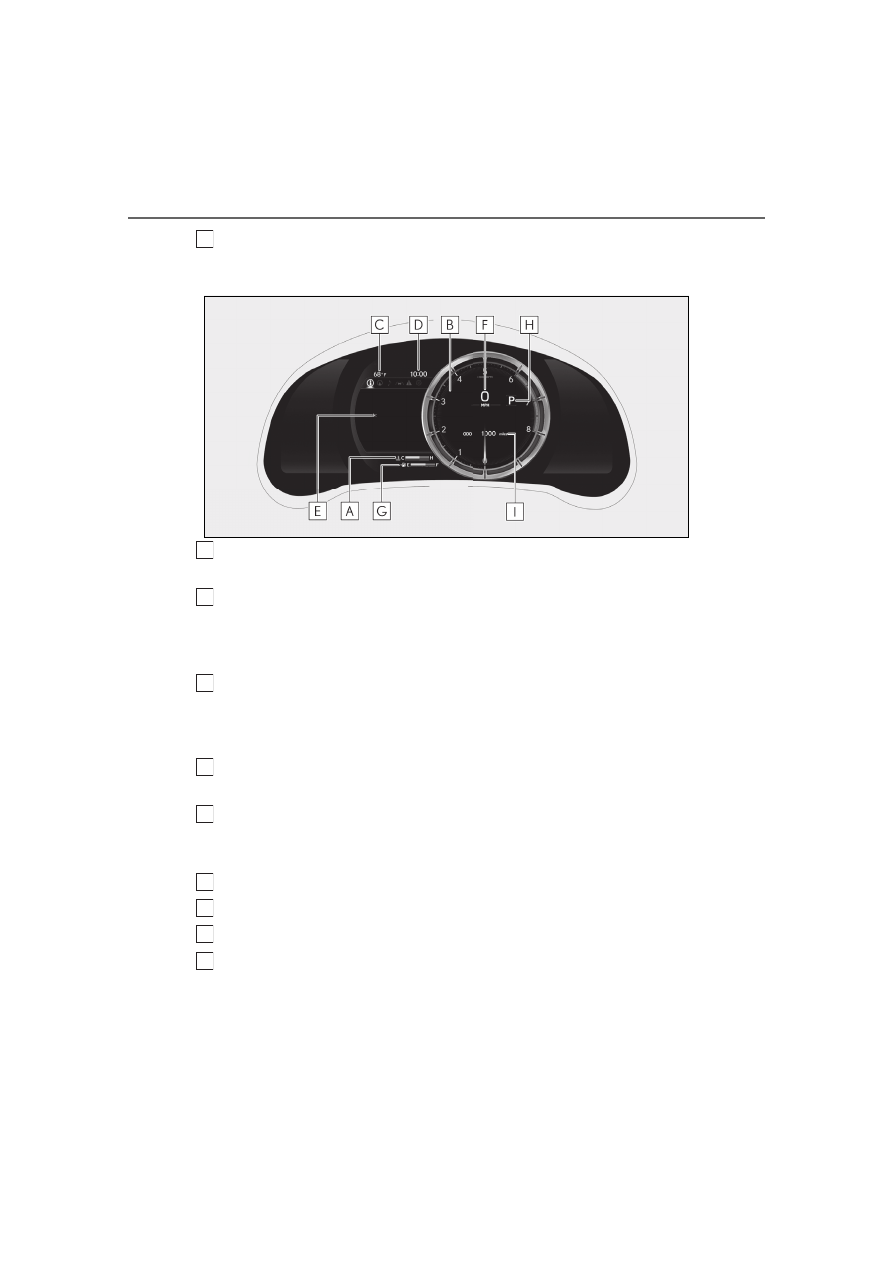

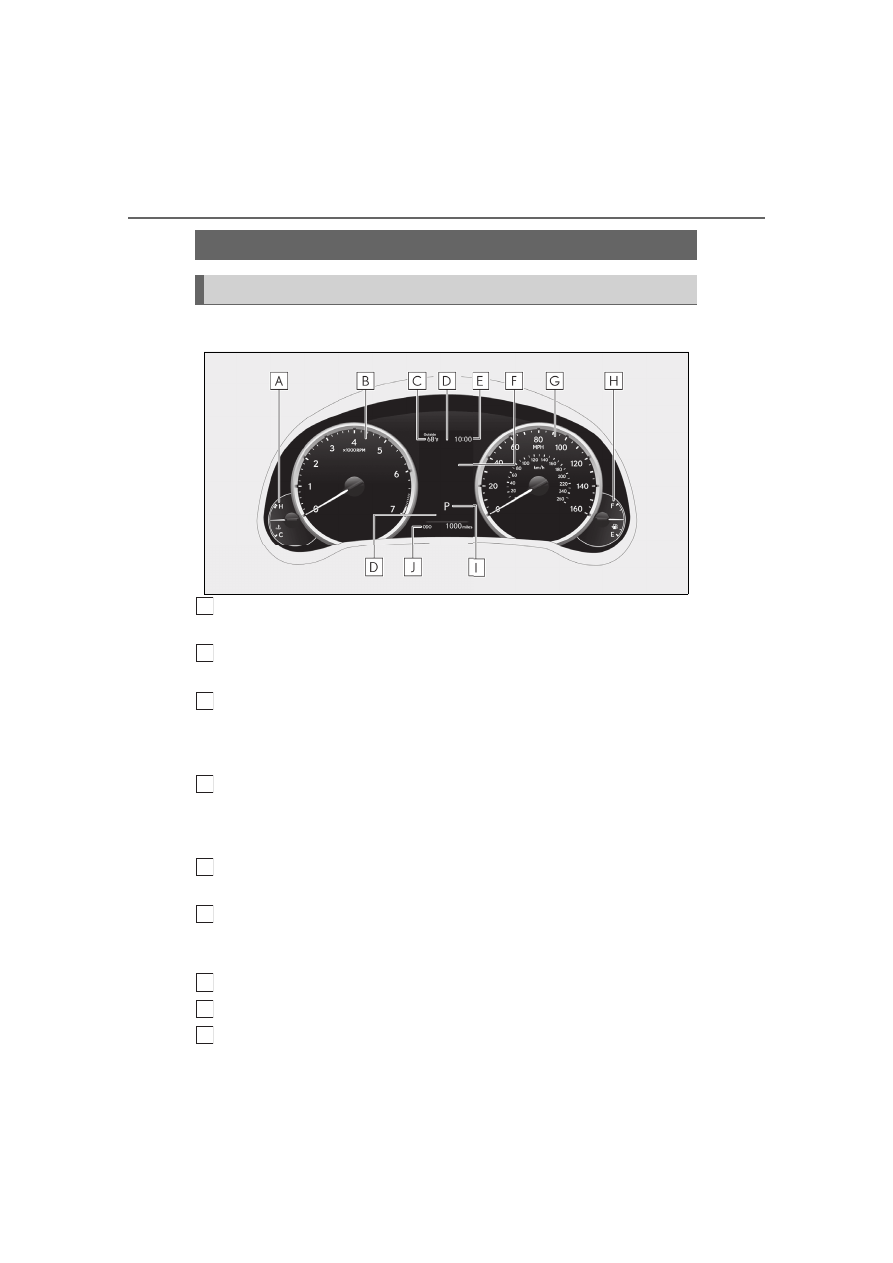

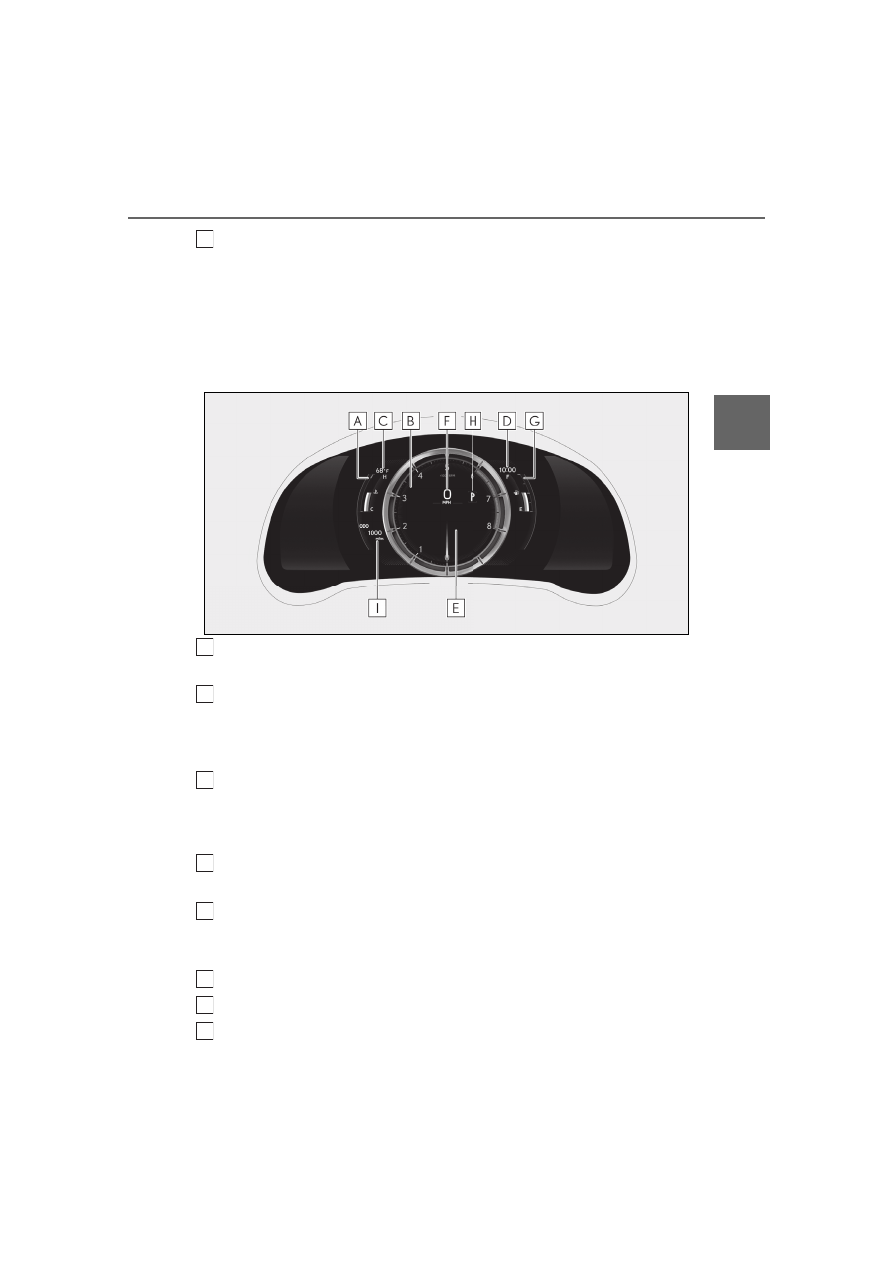

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Background color of drive mode

Background color changes according to the drive mode. (



P.196)

• Sport  mode:  Red
• Eco  mode:  Blue

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.228)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.301)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.129, 131)

Gauges and meters

Meter display

A

B

C

D

E

F

G

H

I

67

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Odometer and trip meter display (



P.70)

■

Locations of gauges and meters (F SPORT models)

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change.

The units used on the meters may differ depending on the target region.



Main meter in center position

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.228)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.301)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.129, 131)

J

A

B

C

D

E

F

G

H

68

2-1. Instrument cluster

Odometer and trip meter display (



P.70)



Main meter moved to the right

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.228)

Multi-information display

Presents the driver with a variety of vehicle data (



P.71)

Displays warning messages in case of a malfunction (



P.301)

Speedometer
Fuel gauge
Shift position/shift range/gear position (



P.129, 131)

Odometer and trip meter display (



P.70)

■

Rev indicator (F SPORT models)

When the engine speed reaches a set
speed, a ring-shaped indicator will be

displayed on the tachometer.

I

A

B

C

D

E

F

G

H

I

69

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

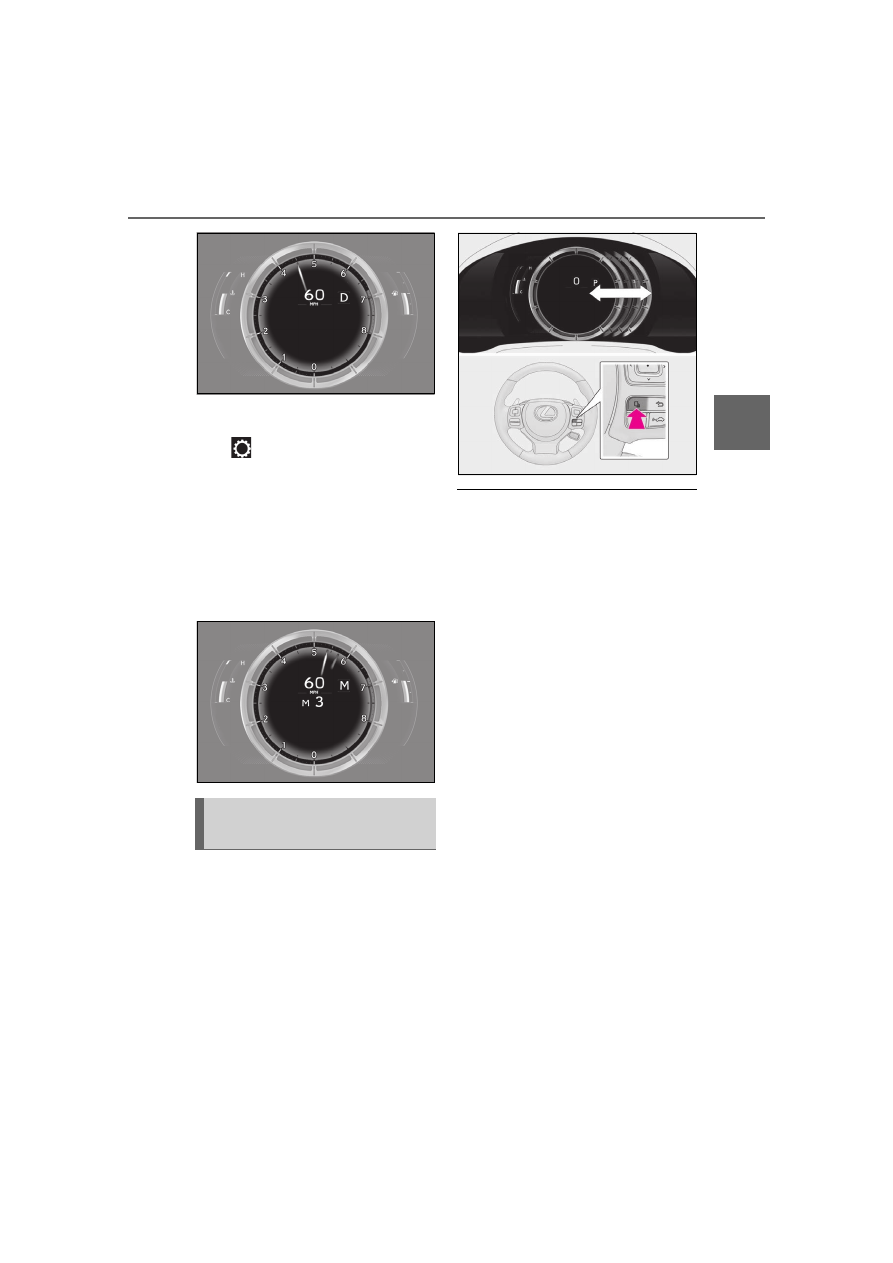

The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on

 of the multi-information display.

(



P.76)

■

Rev peak (F SPORT models)

The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 0.5 seconds.

Moves between center and right-side
positions.

■

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “_ _”or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

●

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display or the odome-

ter/trip meter screen (F SPORT models).

●

Some pop-up displays can be set on/off.

(



P.76)

■

Customization

The meter display can be customized on

the multi-information display. (



P.351)

Changing the main meter loca-
tion (F SPORT models)

70

2-1. Instrument cluster

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

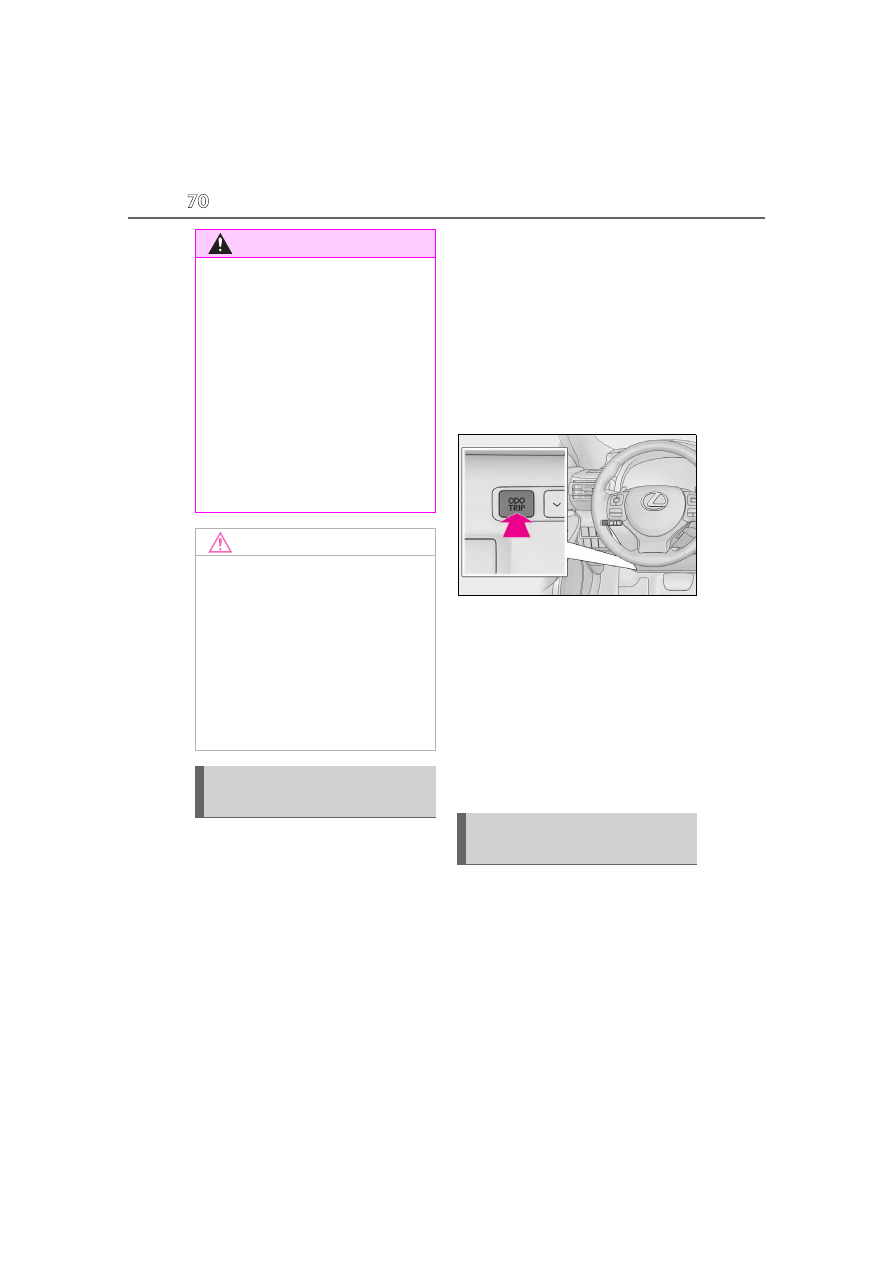

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

In some situations the following will be
temporarily displayed:



Distance until next engine oil
change

Distance until the next engine oil change
will displayed when a warning message
indicating that oil maintenance should be
performed soon or is required is displayed.

The brightness of the instrument panel
lights can be adjusted.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.320)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness
