Lexus RC F (2022 year). Manual in english - page 11





183

4-5. Using the driving support systems

4

Driving

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Following vehicles that are in the same
lane

*

Vehicles traveling 2 lanes away from your
vehicle

*

Vehicles which are being overtaken rap-
idly by your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the BSM func-

tion may not function correctly

The BSM function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When a bicycle carrier or other acces-

sory is installed to the rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the BSM main switch is

turned on

Instances of the BSM function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When a bicycle carrier or other acces-

sory is installed to the rear of the vehicle

Operation of the RCTA function

The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.

RCTA function

184

4-5. Using the driving support systems

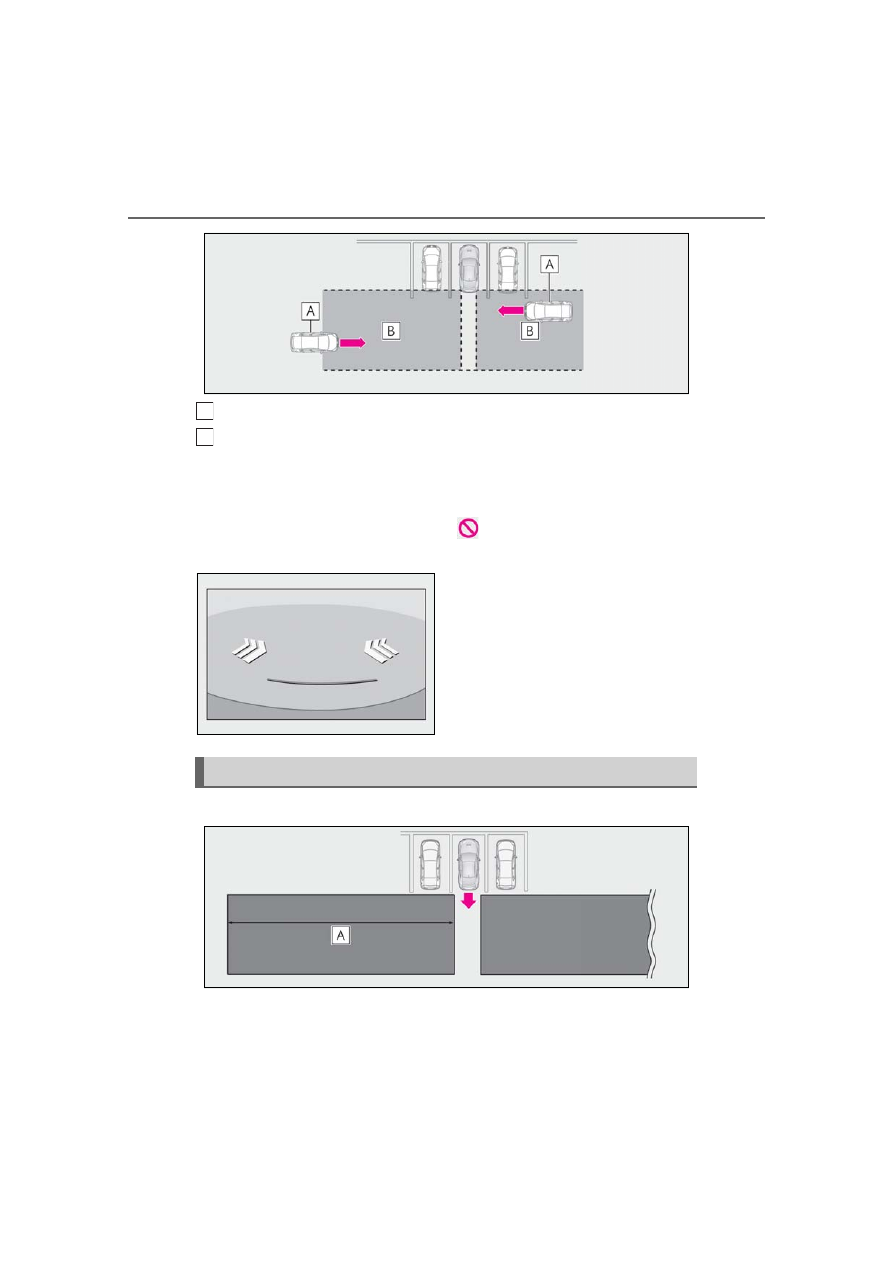

Approaching vehicles
Detection areas of approaching vehicles

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Center Display.

This illustration shows an example of a
vehicle approaching from both sides of the
vehicle.

: The RCTA function is malfunc-

tioning (

P.180)

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of faster vehicles approaching from farther away.
Example:

A
B

RCTA function detection areas

185

4-5. Using the driving support systems

4

Driving

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

The BSM main switch is on.

The shift lever is in R.

The vehicle speed is less than approxi-

mately 5 mph (8 km/h).

The approaching vehicle speed is

between approximately 5 mph (8 km/h)

and 18 mph (28 km/h).

Conditions under which the RCTA func-

tion will not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

Vehicles approaching from directly

behind

Vehicles backing up in a parking space

next to your vehicle

Vehicles that the sensors cannot detect

due to obstructions

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Small motorcycles, bicycles, pedestrians,
etc.

*

Vehicles moving away from your vehicle

Vehicles approaching from the parking
spaces next to your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the RCTA func-

tion may not function correctly

The RCTA function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When a vehicle is approaching at high

speed

• When backing up on a slope with a sharp

change in grade

• When backing out of a shallow angle

parking spot

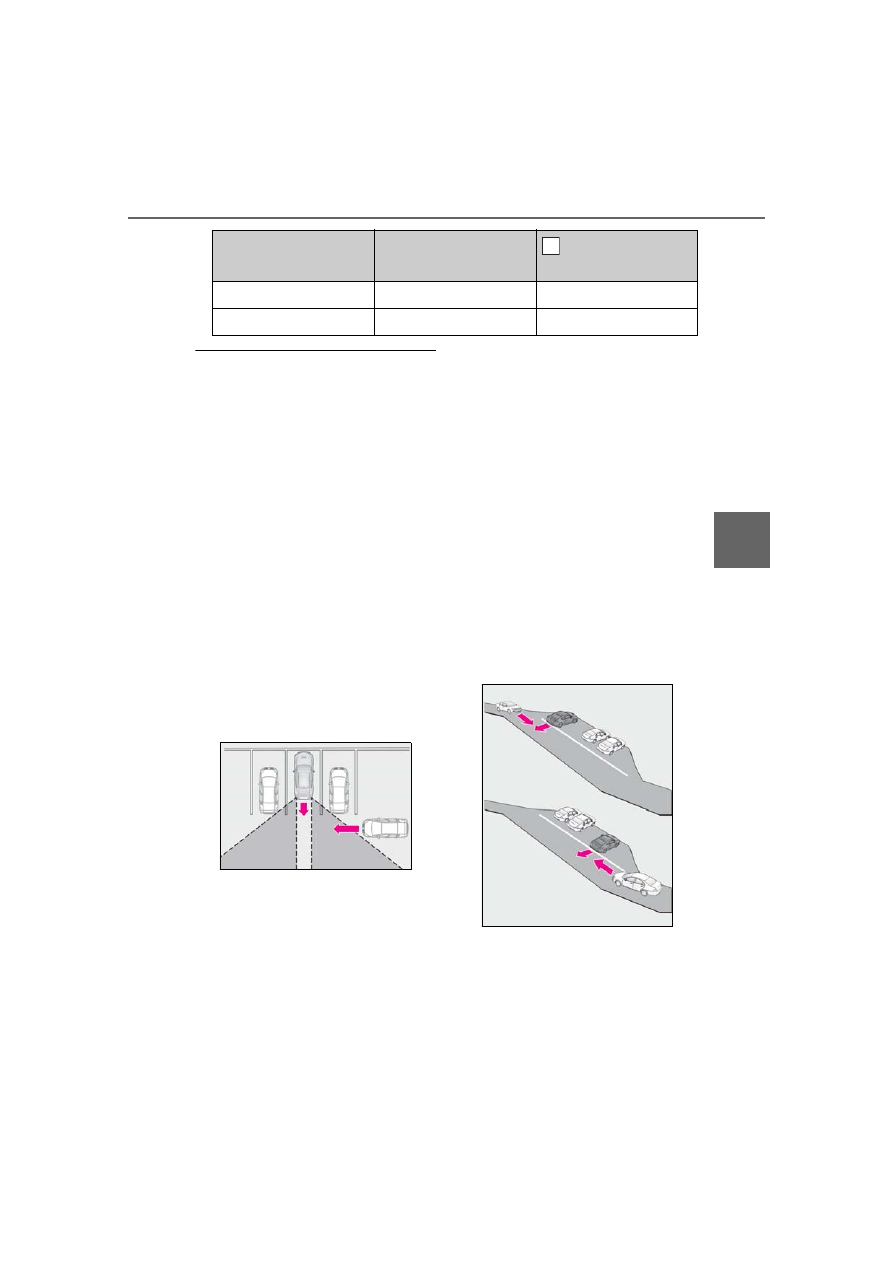

Approaching vehicle

Speed

 Approximate alert dis-

tance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

A

186

4-5. Using the driving support systems

• Immediately after the BSM main switch is

turned on

• Immediately after the engine is started

with the BSM main switch on

• When the sensors cannot detect a vehi-

cle due to obstructions

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

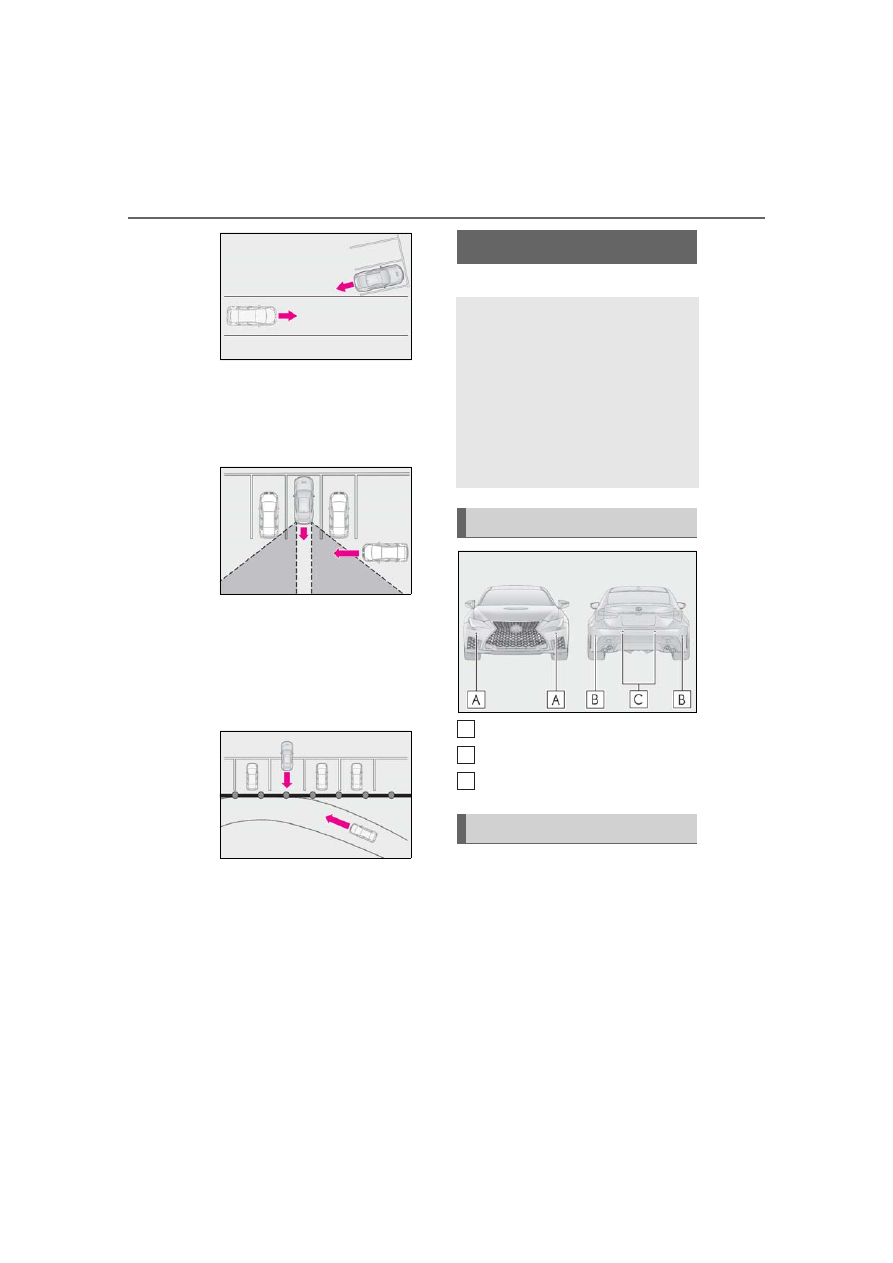

• When a vehicle passes by the side of your

vehicle

• When the parking space faces a street

and vehicles are being driven on the

street

• When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

*

: If equipped

Front corner sensors
Rear corner sensors
Rear center sensors

Turns the intuitive parking assist on/off

When on, the indicator light comes on to
inform the driver that the system is opera-
tional.

Intuitive parking assist

*

The distance from your vehicle to
nearby obstacles when parallel
parking or maneuvering into a
garage is measured by the sensors
and communicated via the
multi-information display, Center
Display and a buzzer. Always check
the surrounding area when using
this system.

Types of sensors

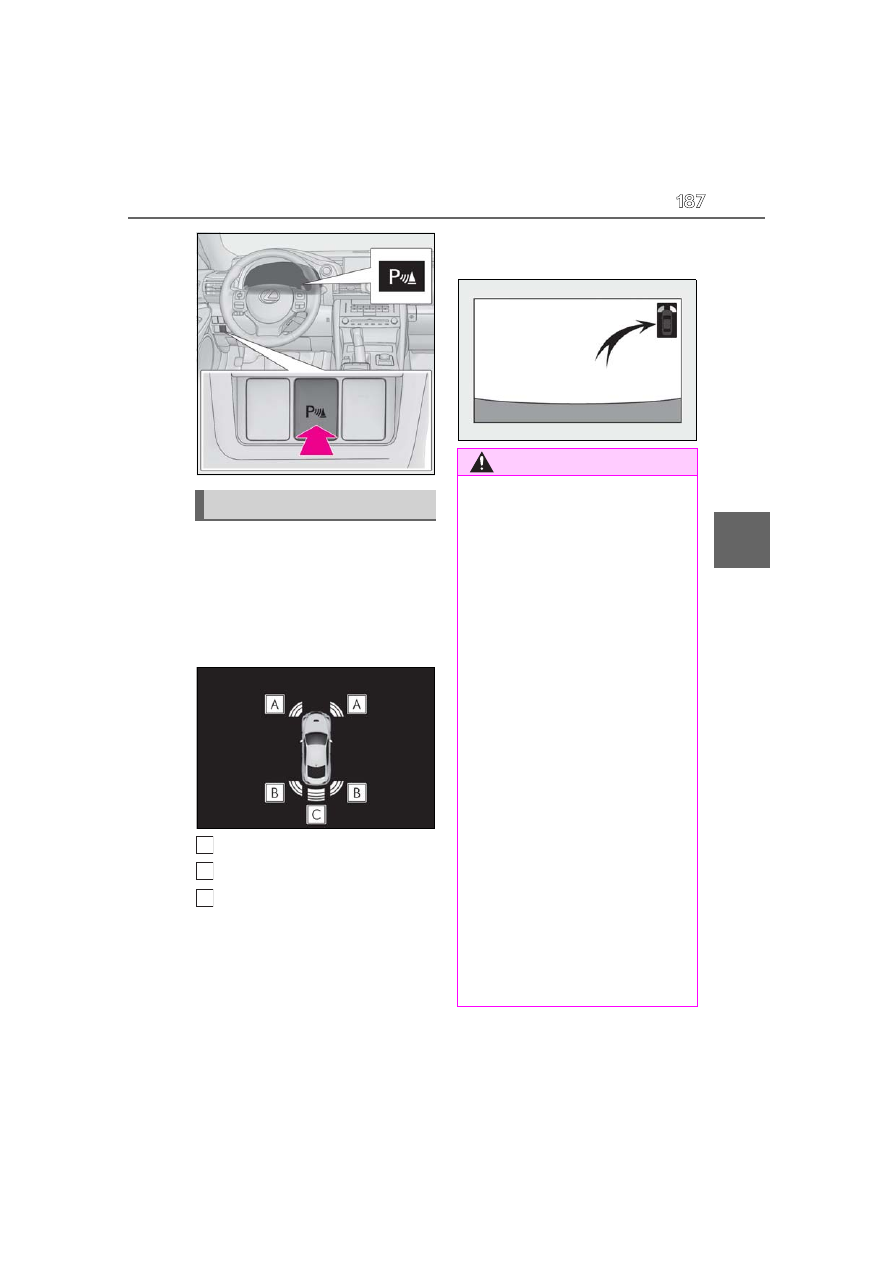

Intuitive parking assist switch

A
B
C

187

4-5. Using the driving support systems

4

Driving

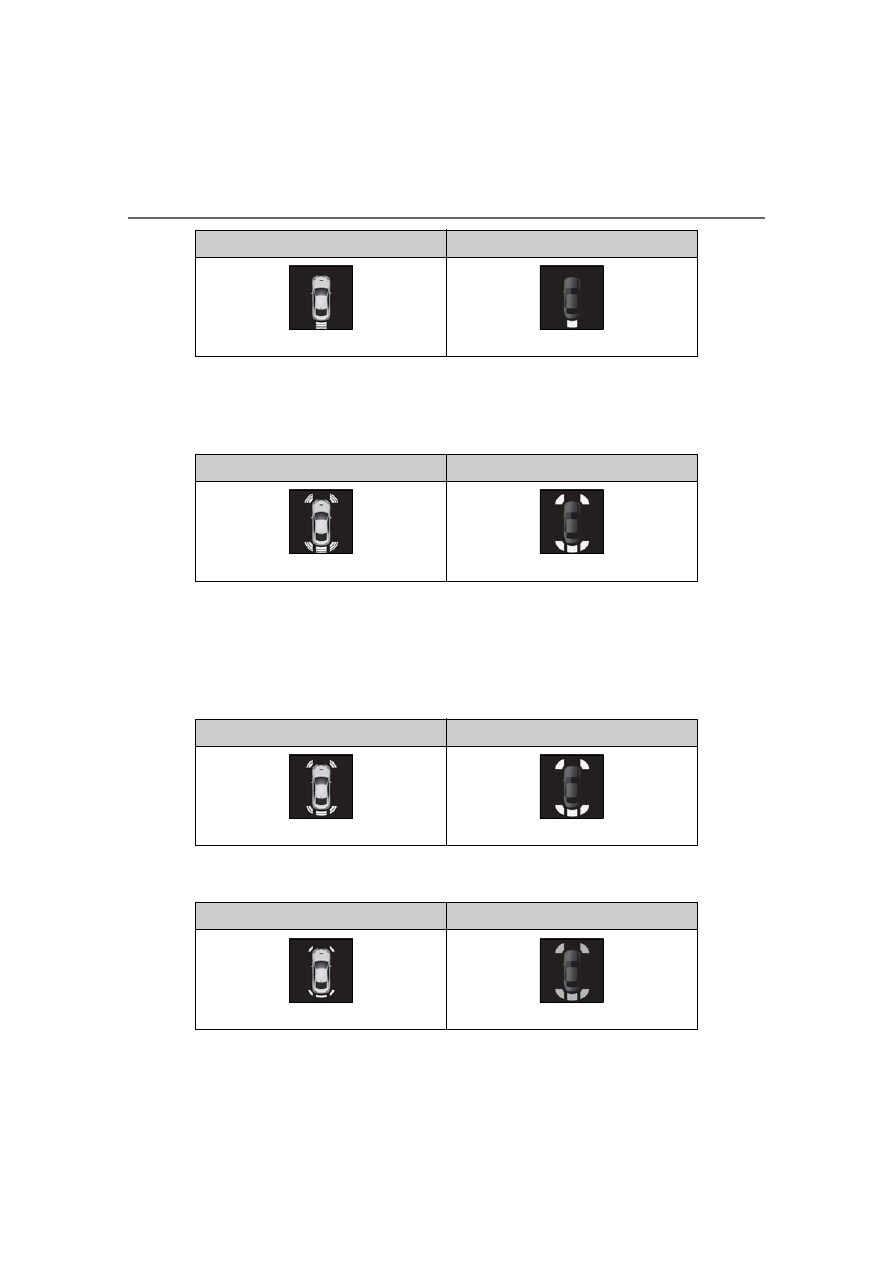

When the sensors detect an obstacle, a
graphic is shown on the multi-informa-
tion display and Center Display
depending on the position and dis-
tance to the obstacle.

Multi-information display

Front corner sensor detection
Rear corner sensor detection
Rear center sensor detection

Center Display

A graphic is shown when the Lexus
parking assist monitor is displayed
(insert display).
A simplified image is displayed on the

Center Display when an object is
detected.

Display

A

B

C

WARNING

When using the intuitive parking

assist

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

Do not use the sensor at speeds in

excess of 6 mph (10 km/h).

The sensor’s detection areas and reac-

tion times are limited. When moving

forward or reversing, check the areas

surrounding the vehicle (especially the

sides of the vehicle) for safety, and

drive slowly, using the brake to control

the vehicle’s speed.

Do not install accessories within the

sensor’s detection areas.

The area directly under the bumpers is

not detected.

Thin posts or objects lower than a sen-

sor may not be detected when

approached, even if they have been

detected once.

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

The vehicle is equipped with a fender

pole, wireless antenna or fog lights.

188

4-5. Using the driving support systems

The intuitive parking assist can be oper-

ated when

Front corner sensors:

• The engine switch is in IGNITION ON

mode.

• The shift lever is in a position other than P.

• The vehicle speed is less than about 6

mph (10 km/h).

(At any speed when the shift lever is in R)

Rear corner and rear center sensors:

• The engine switch is in IGNITION ON

mode.

• The shift lever is in R.

Muting the buzzer sound

To mute the buzzer sound:

The buzzer can be temporarily muted by

pressing “OK” of the meter control

switches while an obstacle detection dis-

play is shown on the multi-information dis-

play.

To cancel the mute:

Mute will be automatically canceled in the

following situations.

• When the shift lever

is changed (except

shifting from D to N, or N to D).

• When the vehicle speed has reached or

exceeded 6 mph (10 km/h) with the shift

lever in D.

• When the intuitive par

king assist is turned

off once and turned on again.

• When the engine switch is turned off

once and turned to IGNITION ON

mode again.

If “Clean Parking Assist Sensor” is dis-

played on the multi-information display

A sensor may be covered with ice, snow,

dirt, etc. Remove the ice, snow, dirt, etc.,

from the sensor to return the system to nor-

mal.
Also, due to ice forming on a sensor at low

temperatures, a warning message may be

displayed or the sensor may not be able to

detect an object. Once the ice melts, the

WARNING

The front or rear bumper or a sensor

receives a strong impact.

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

Towing eyelets are installed.

A backlit license plate is installed.

When using intuitive parking assist

In the following situations, the system

may not function correctly due to a sen-

sor malfunction, etc. Have the vehicle

checked by your Lexus dealer.

The intuitive parking assist operation

display flashes or shows continuously,

and a buzzer sounds when no objects

are detected.

If the area around a sensor collides

with something, or is subjected to

strong impact.

If the bumper or grille collides with

something.

If the display flashes or is displayed

continuously and a buzzer does not

sound, except when the mute function

has been turned on.

If a display error occurs, first check the

sensor.

If the error occurs even when there is

no ice, snow or mud on the sensor, it is

likely that the sensor is malfunctioning.

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

189

4-5. Using the driving support systems

4

Driving

system will return to normal.

Sensor detection information

The following situations may occur

during use.

• The sensors may be able to only detect

objects near the front and rear bumpers.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the buzzer if

buzzers for other systems are sounding.

Conditions under which the function

may not function correctly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

There is dirt, snow or ice on a sensor.

(Cleaning the sensors will resolve this

problem.)

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

A sensor is covered in any way.

When a sensor or the area around a sen-

sor is extremely hot or cold.

On an extremely bumpy road, on an

incline, on gravel, or on grass.

The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

There is another vehicle equipped with

parking assist sensors in the vicinity.

A sensor is coated with a sheet of spray

or heavy rain.

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road.

If the vehicle is significantly tilted.

The vehicle is approaching a tall or

curved curb.

If objects draw too close to the sensor.

Objects which may not be properly

detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

Wires, fences, ropes, etc.

Cotton, snow and other materials that

absorb sound waves

Sharply-angled objects

Low objects

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

Customization

Settings can be changed. (

P.364)

Multi-information display and Center Display

Sensors that detect an obstacle will illuminate continuously or blink.

Approximate distance to object: 4.9 ft. (150 cm) to 2.0 ft. (60 cm) (Rear center
sensor)

Sensor detection display, obstacle distance

190

4-5. Using the driving support systems

Approximate distance to object: 2.3 ft. (70 cm) to 1.6 ft. (50 cm) (Front corner
sensor)
Approximate distance to object: 2.0 ft. (60 cm) to 1.5 ft. (45 cm) (Rear corner
sensor, Rear center sensor)

Approximate distance to object: 1.6 ft. (50 cm) to 1.0 ft. (30 cm) (Front corner
sensor)
Approximate distance to object: 1.5 ft. (45 cm) to 1.0 ft. (30 cm) (Rear corner
sensor)
Approximate distance to object: 1.5 ft. (45 cm) to 1.1 ft. (35 cm) (Rear center
sensor)

Approximate distance to object: Less than 1.0 ft. (30 cm) (Corner sensor)
Approximate distance to object: Less than 1.1 ft. (35 cm) (Rear center sensor)

Multi-information display

Insert display (Center Display)

(continuous)

(blinking slowly)

Multi-information display

Insert display (Center Display)

(continuous)

(blinking)

Multi-information display

Insert display (Center Display)

(continuous)

(blinking rapidly)

Multi-information display

Insert display (Center Display)

(blinking)

(continuous)

191

4-5. Using the driving support systems

4

Driving

Buzzer operation and distance to
an obstacle

A buzzer sounds when the sensors are
operating.

The buzzer beeps faster as the vehi-
cle approaches an obstacle. When
the vehicle comes within the follow-
ing distance of the obstacle, the
buzzer sounds continuously:

• Corner sensors: Approximately 1.0 ft.

(30 cm)

• Rear center sensors: Approximately 1.1 ft.

(35 cm)

When 2 or more obstacles are
detected simultaneously, the buzzer
system responds to the nearest
obstacle. If one or both come within
the above distances, the beep will
repeat a long tone, followed by fast
beeps.

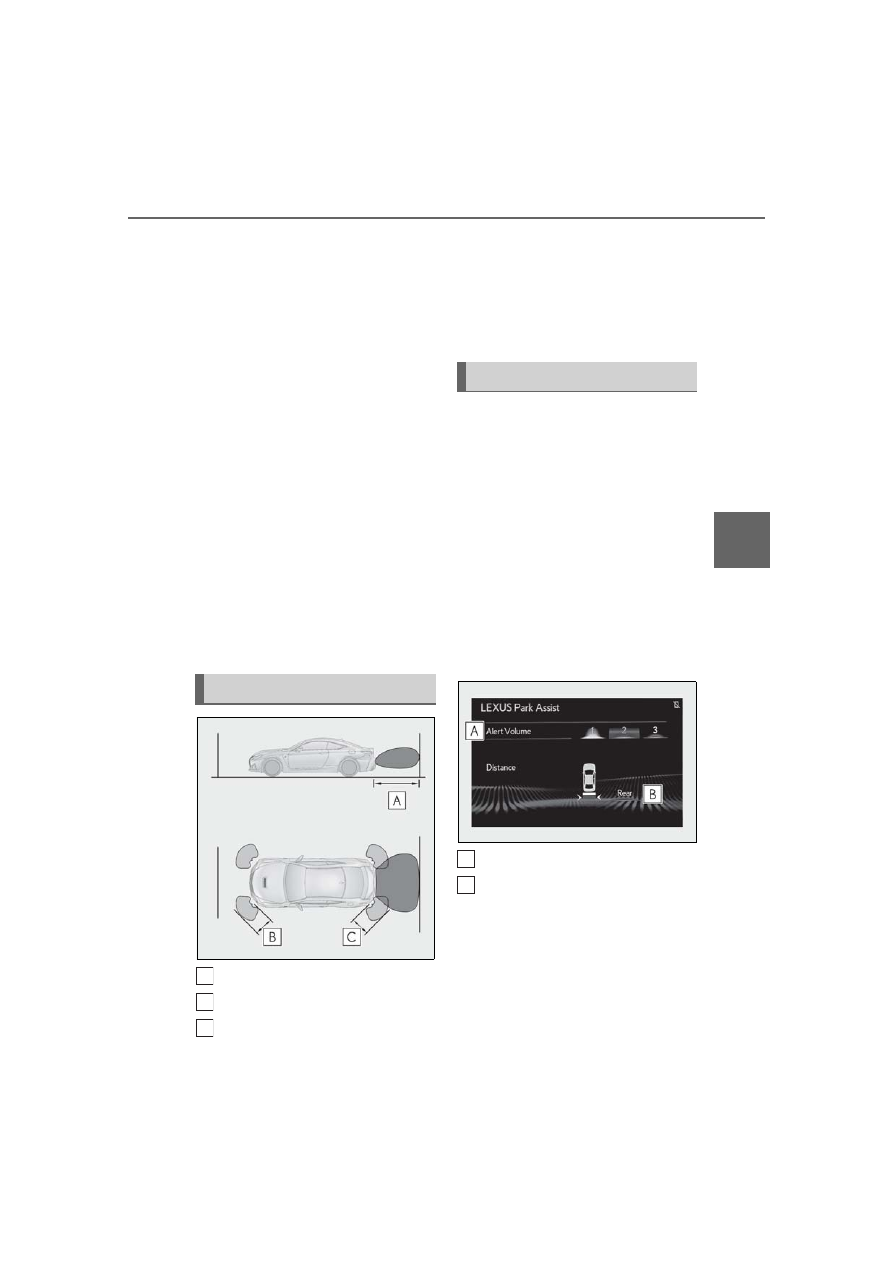

Approximately 4.9 ft. (150 cm)
Approximately 2.3 ft. (70 cm)
Approximately 2.0 ft. (60 cm)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect obstacles that are extremely close
to the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

You can change the warning beep vol-
ume and Center Display operating
conditions.

1

Press the “MENU” button on the
Remote Touch. (

P.206)

2

Select “Setup” on the “Menu”
screen.

3

Select “Vehicle” on the “Setup”
screen.

4

Select “LEXUS Park Assist” on the
vehicle settings screen.

5

Select the desired button.

The alert volume can be adjusted.
Rear center sensor display and
tone indication can be set.

Detection range of the sensors

A
B
C

Setting up intuitive parking assist

A
B

192

4-5. Using the driving support systems

1

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When custom mode is selected, the “CUS-
TOM” indicator will be illuminated.
When Eco drive mode or sport mode is
selected, pressing the switch changes the
driving mode to normal mode.
• Normal  mode
Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
• Custom  mode
Allows you to drive with the following func-
tions set to your preferred settings.
Custom mode settings can only be
changed on the drive mode customization
display of the Center Display. (

P.208)

2

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve fuel
economy through moderate throttle char-
acteristics and by controlling the operation
of the air conditioning system (heat-
ing/cooling).
When not in Eco drive mode, if the driving
mode select switch is turned to the left, the
Eco drive mode indicator will come on.

3

Sport mode

• SPORT  S  mode
Controls the transmission and engine to
provide quick, powerful acceleration. Also,
gear shift timing is controlled to suit sporty
driving, making this mode is suitable for
when agile driving response is desired,
such as when driving on roads with many
curves.
When not in SPORT S mode, if the driving
mode select switch is turned to the right,
the “SPORT S” indicator will come on.
• SPORT  S+  mode
Provides earlier downshift timing than
SPORT S mode in order to maintain a high
engine speed and provides faster gear
changes. This mode also changes the
steering feel, suspension control and
VDIM control, making it suitable for pow-
erful sporty driving.

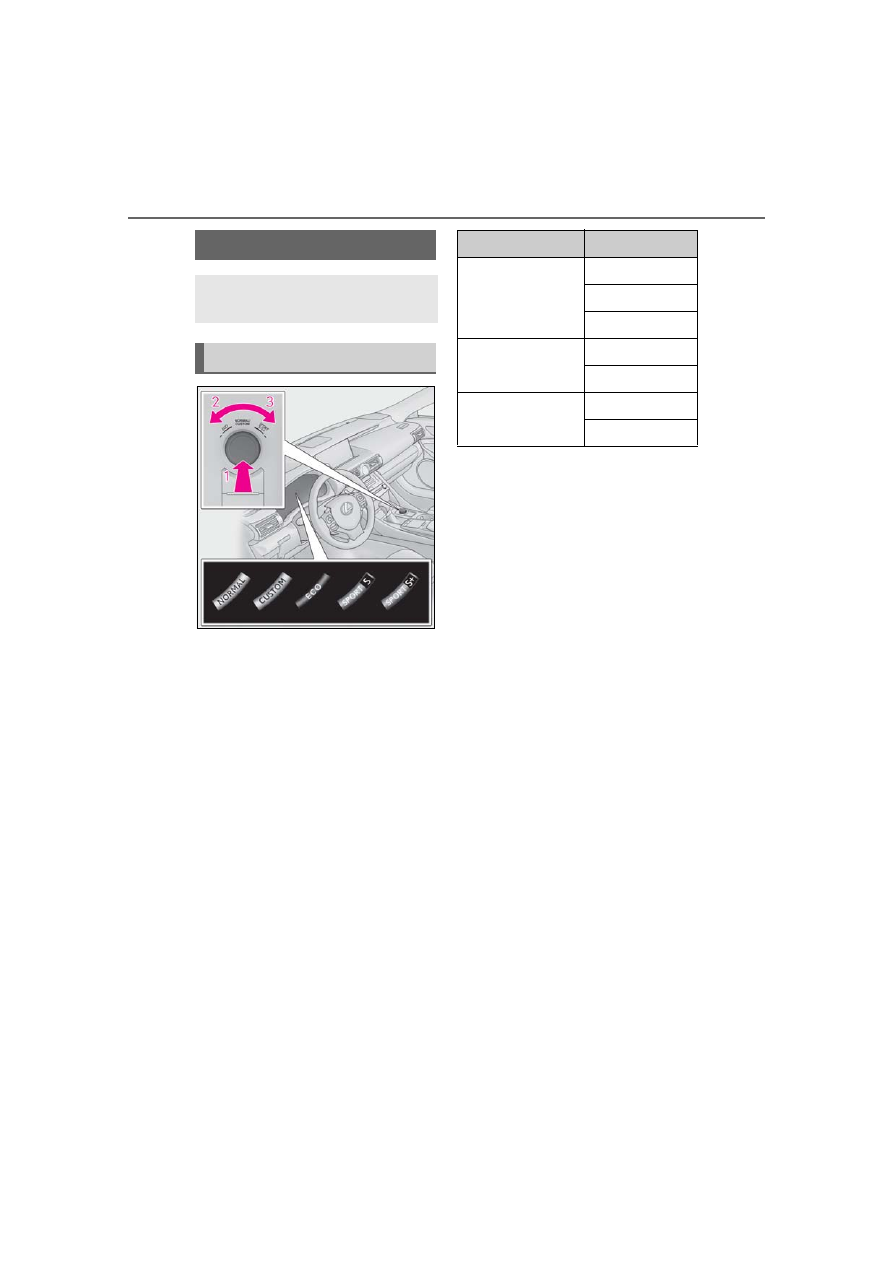

Driving mode select switch

The driving modes can be selected
to suit driving condition.

Selecting a drive mode

Function

Setting

Powertrain

Normal

Power

Eco

Chassis

Normal

Sport

Air conditioning sys-
tem

Normal

Eco

193

4-5. Using the driving support systems

4

Driving

When in SPORT S mode, if the driving
mode select switch is turned to the right,
the “SPORT S+” indicator will come on.

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency

(

P.211). To improve air conditioning per-

formance, adjust the fan speed or turn off

Eco drive mode.

Automatic deactivation of sport mode

and custom mode

If the engine switch is turned off after driv-

ing in sport mode or custom mode, the

drive mode will be changed to normal

mode.

Driving mode pop-up display (vehicles

with a 10.3-inch display)

When the driving mode is changed, the

selected driving mode will be temporarily

displayed on the side display. (

P.208)

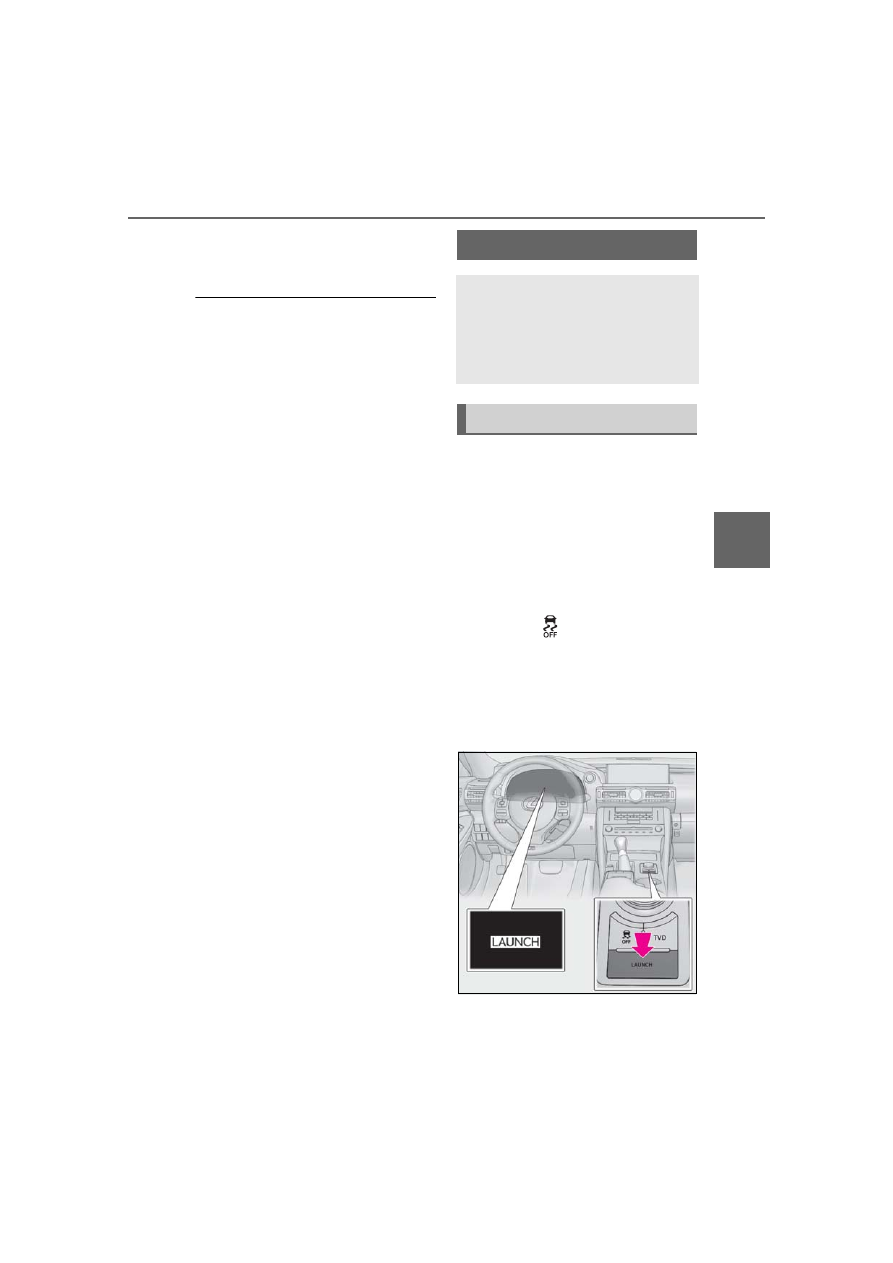

Operating launch control

1

Stop the vehicle.

2

Firmly and fully depress the brake
pedal with your left foot.

Continue depressing the brake pedal.

3

Shift the shift lever to D.

4

Select SPORT S+ mode.

5

Press the

 switch.

The “EXPERT” indicator will come on

together with the “TRAC OFF” and VSC

OFF indicators.

6

Press the “LAUNCH” switch.

The “LAUNCH” indicator will illuminate.

7

Firmly and fully depress the accel-
erator pedal.

Launch control

By controlling the engine torque,
this function restrains tire slippage,
providing optimal acceleration
when starting off. (Do not use this
function on public roads.)

Operating instruction

194

4-5. Using the driving support systems

The control standby state will be entered

and the engine speed will be automatically

maintained between 1500-2000 rpm.
If the “LAUNCH” indicator turns off,

release the accelerator pedal and perform

this procedure again from

6

.

8

Within 3 seconds of depressing the
accelerator pedal, release the
brake pedal to start off.

The “LAUNCH” indicator will turn off 3

seconds after the accelerator pedal is

depressed.
If the brake pedal is not released before the

“LAUNCH” indicator turns off, release the

accelerator pedal and perform this proce-

dure again from

6

.

After starting off, when the accelerator

pedal is released, launch control will stop

operating.

Canceling launch control

Perform any of the following:

Shift the shift lever to any position
other than D.

Operate the drive mode switch to
select any mode other than SPORT
S+ mode.

Press the

 switch.

Press the “LAUNCH” switch.

Operation condition

When all of the following conditions are

met, launch control can be enabled:

The engine and transmission are suffi-

ciently warmed up.

The engine, transmission, driving support

systems, etc. are not malfunctioning.

Launch control will not operate prop-

erly when

In the following situations, launch control

may not operate properly:

When the brake pedal is not firmly

depressed and the rear wheels slip.

When starting off on a road surface that

is wet with rain, standing water, etc.

When starting off on a slick road surface.

When the vehicle has not been properly

maintained (tires are worn out, tire pres-

sure is low, etc.).

WARNING

Launch control precautions

Observe the following precautions.

Failure to do so may result in death or

serious injury.

Do not use on public roads.

Use only when road and ambient con-

ditions are safe.

Before use, ensure that no people or

obstructions are nearby.

Proper use of launch control requires

an expert level of driving skill. When

using launch control, always check the

track conditions and surrounding area.

Do not start off with the rear wheels

spinning.

NOTICE

To avoid damage to the vehicle when

using launch control

As launch control applies a large load

on vehicle components, do not use it

excessively.

Always follow the correct operation

procedures as described in this man-

ual.

Only use launch control on dry, paved

roads, as slippery or loose road sur-

faces may cause damage to the vehi-

cle.

When using launch control repeatedly,

wait approximately 10 minutes

between each use.

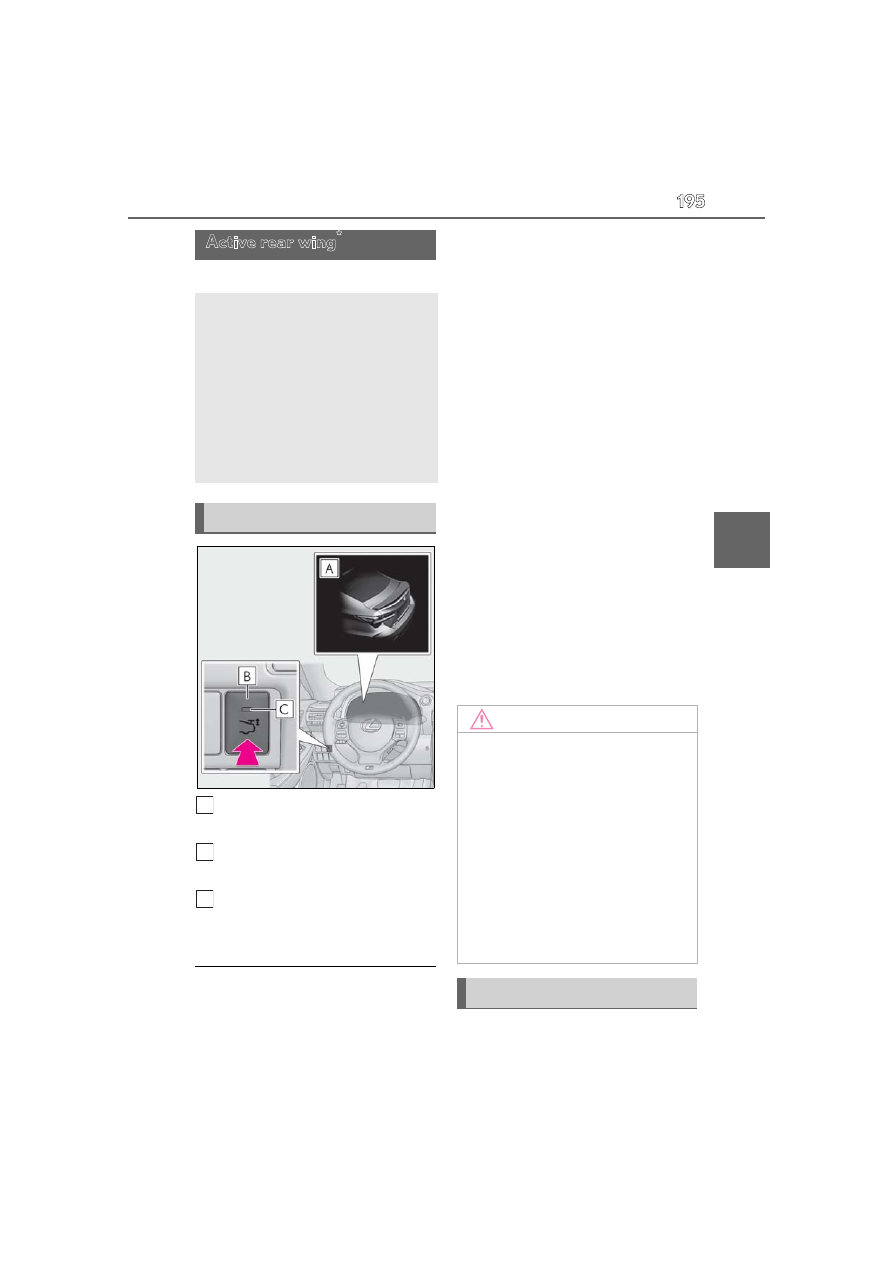

195

4-5. Using the driving support systems

4

Driving

*

: If equipped

Multi-information display (

P.73)

Displays the status of the active rear wing

Active rear wing switch

Operates the active rear wing manually

Indicator

Illuminates when the active rear wing is
raised and turns off when it is retracted

Operating conditions

The engine switch is in IGNITION ON

mode.

The trunk is closed.

The active rear wing has been activated

in a customized setting.

Conditions which stop the operation

In the following situations operation of the

active rear wing will stop:

The engine switch is turned off while the

active rear wing is operating.

The trunk is opened while the active rear

wing is operating.

The raising operation of the active rear

wing is interrupted by an object, etc.

The active rear wing is operated in an

unusual manner causing it to stop at an

irregular position.

In such cases, pressing the active rear wing

switch will fully raise the active rear wing.

Or, begin driving the vehicle and the active

rear wing will raise automatically when the

vehicle speed reaches 16 mph (25 km/h).

When there is a malfunction in the sys-

tem

A warning message will be displayed on the

multi-information display. (

P.309)

Customization

Some functions can be customized.

(

P.358)

The active rear wing will operate auto-

Active rear wing

*

The RC F is equipped with an active
rear wing that operates automati-
cally while the vehicle is being
driven. This active rear wing
enhances aerodynamic perfor-
mance, especially at high speeds,
contributing to a more stable ride.
The active rear wing can be con-
trolled using a switch.

System components

A

B

C

NOTICE

To prevent system damage

Do not apply pressure to the active

rear wing when pushing or pulling the

vehicle.

Do not lean on the active rear wing.

Do not attach any accessories or other

objects to the active rear wing.

Do not modify or disassemble the

active rear wing.

Do not subject the active rear wing to

severe impact.

Automatic operation

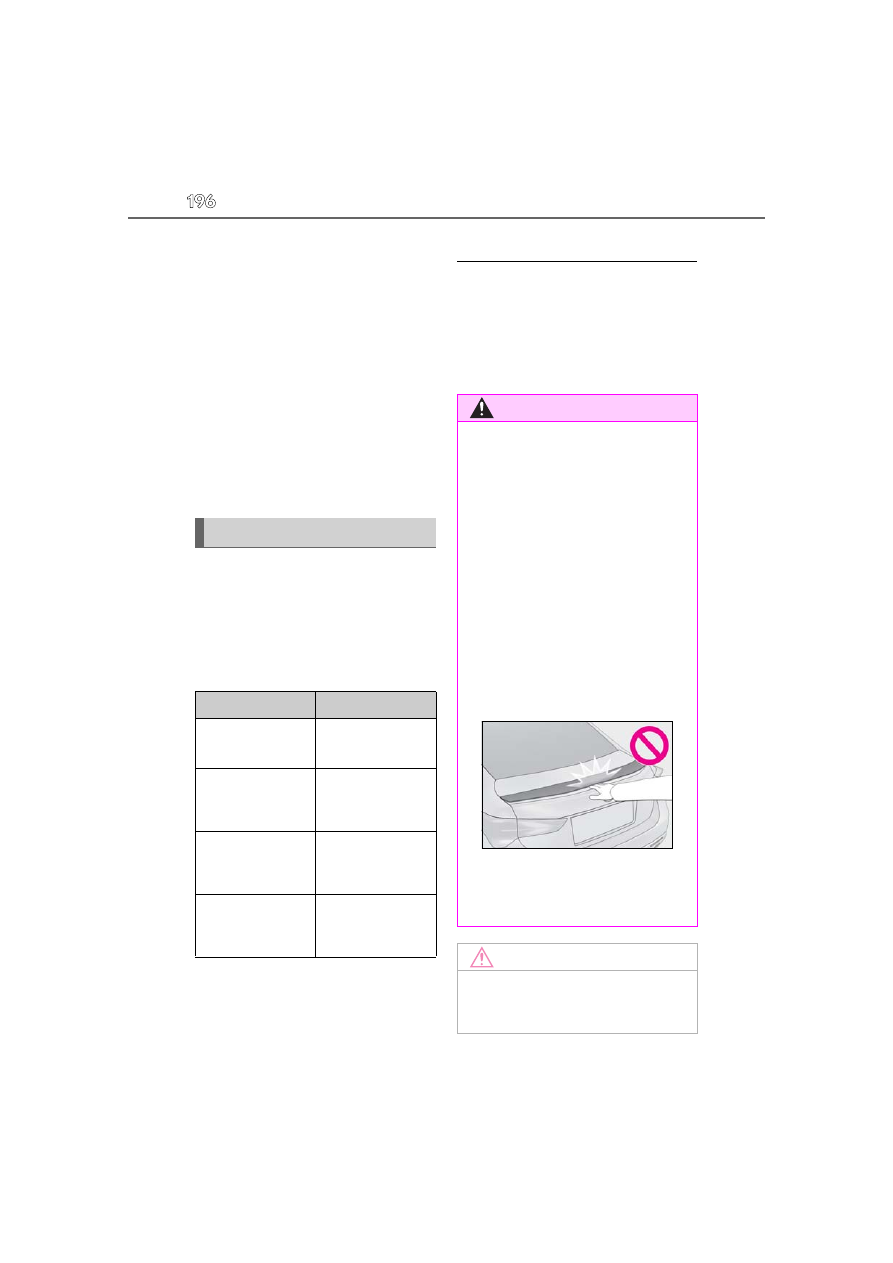

196

4-5. Using the driving support systems

matically at the following speeds
according to the selected driving
mode (

P.192). (Always observe the

legal speed limit when driving on pub-
lic roads.)

When other than Eco drive mode is
selected

Up: Approximately 50 mph (80 km/h)
Down: Approximately 25 mph (40 km/h)

When Eco drive mode is selected

Up: Approximately 80 mph (130 km/h)
Down: Approximately 25 mph (40 km/h)

Operate the active rear wing switch to
raise/retract the active rear wing man-
ually. (The active rear wing retracts
when it is raised and raises when
retracted.)

Operation by switch

*

: Press and hold the switch until the indi-

cator turns off. If the switch is released
while the active rear wing is moving, it
will return to the raised position auto-

matically.

Manual operation

Even if the active rear wing is changed to

manual operation using the active rear wing

switch, the setting will not be maintained.

Automatic operation will resume if the

engine switch is turned off or at certain

vehicle speeds.

Manual operation

Vehicle speed

Up/Down

0 mph (0 km/h)

(vehicle stopped)

Press/Press and

hold

*

Approximately 0 –

12 mph (0 – 20

km/h)

Operation not pos-

sible

Approximately 12 –

80 mph (20 – 130

km/h)

Press/Press

Approximately 80

mph (130 km/h) or

more

Operation not pos-

sible

WARNING

When manually operating the active

rear wing

Observe the following precautions

before operating the active rear wing.

Failure to do so may result in death or

serious injury.

Ensure that the surrounding area is

free of any objects that may come into

contact with or get caught on the

active rear wing.

If there are people near the active rear

wing, make sure that there is no possi-

bility of their clothing, personal

belongings or body parts getting

caught. Children especially should be

warned not to touch the active rear

wing while it is being operated.

If there is a risk that an object may

become caught on the active rear

wing during operation, stop operation

immediately.

NOTICE

To prevent battery discharge

Do not operate the active rear wing

repeatedly while the engine is turned off.

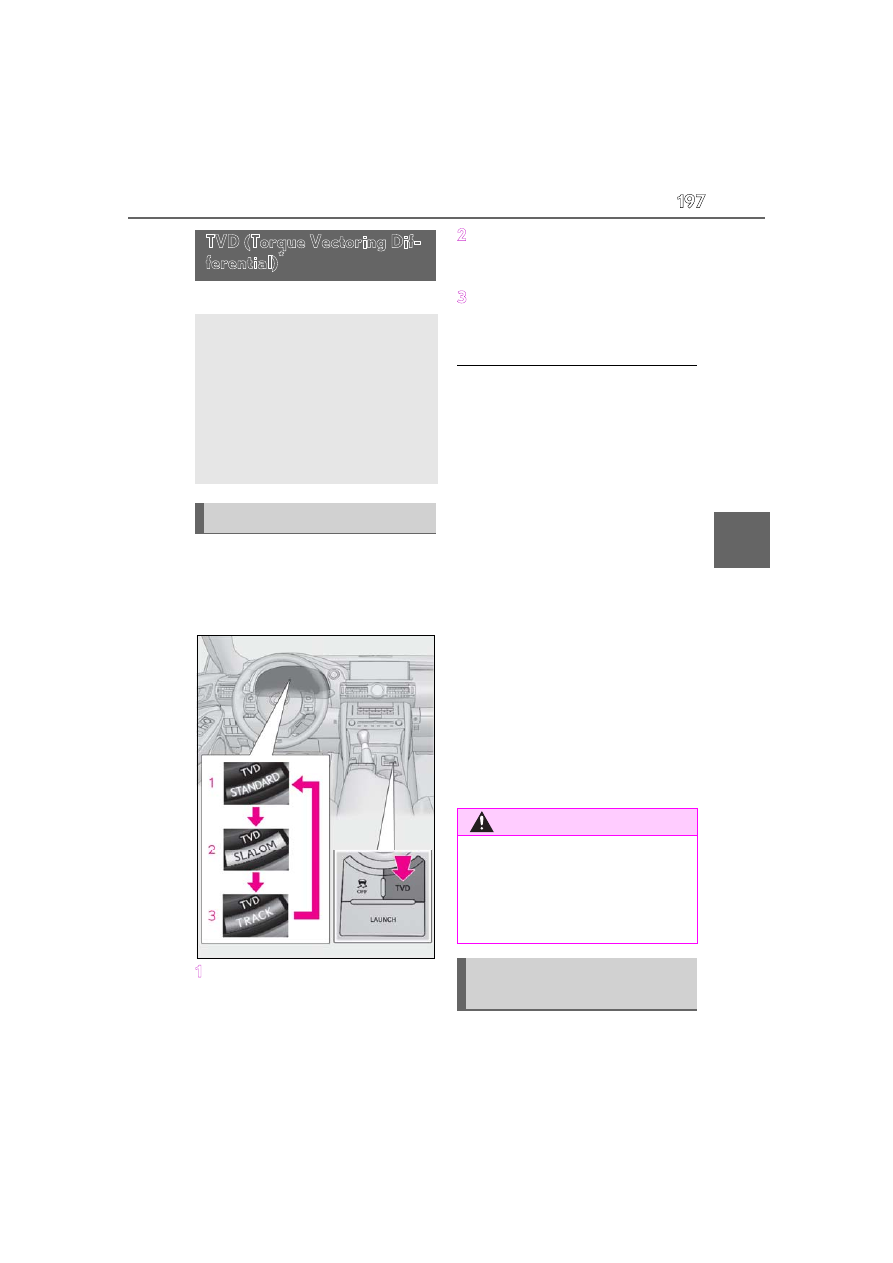

197

4-5. Using the driving support systems

4

Driving

*

: If equipped

Pressing the “TVD” switch changes the
TVD control mode.

The current TVD control mode will be dis-
played on the meters.

1

STANDARD mode

This is the default mode and provides an
optimum balance of driving agility and sta-
bility.

2

SLALOM mode

This mode emphasizes enhanced steering
response.

3

TRACK mode

This mode emphasizes stability for high
speed sporty driving.

Operating conditions

The engine switch is in IGNITION ON

mode.

Automatic cancelation of the selected

TVD control mode

SLALOM and TRACK mode are canceled

when the engine switch is turned off. When

the engine switch is turned to IGNITION

ON mode, the TVD system will be in

STANDARD mode.

Automatic disabling of the TVD system

If a malfunction is detected in the TVD sys-

tem, a warning message will be displayed

on the multi-information display (

P.309)

and the TVD system will be disabled auto-

matically. If the system is disabled, driving

force will not be distributed by the TVD but

through normal differential operation.

To protect the system

The TVD fluid temperature may become

excessively high when driving for a long

time under extremely high load conditions.

In this case, a warning message will be dis-

played on the multi-information display.

(

P.309)

The multi-information display shows

TVD (Torque Vectoring Dif-
ferential)

*

The TVD system distributes driving
force (torque) between the right
and left rear wheels automatically.
This system contributes to
enhanced steering response while
cornering and increased traction
when exiting a corner, providing an
agile driving experience.

Changing TVD control modes

WARNING

Cautions regarding the use of the sys-

tem

The driver is solely responsible for safe

driving. Do not overly rely on the TVD

system. Always drive safely, taking care

to observe your surroundings.

TVD control status on the
multi-information display

198

4-5. Using the driving support systems

the distribution of driving force
between the right and left rear wheels.
(

P.73)

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the
brakes are applied suddenly, or if the
brakes are applied while driving on a
slippery road surface

Brake assist

Generates an increased level of brak-
ing force after the brake pedal is
depressed when the system detects a
panic stop situation

VSC (Vehicle Stability Control)

Helps the driver to control skidding
when swerving suddenly or turning on
slippery road surfaces

Enhanced VSC (Enhanced Vehi-
cle Stability Control)

Provides cooperative control of the
ABS, TRAC, VSC and EPS.
Helps to maintain directional stability
when swerving on slippery road sur-
faces by controlling steering perfor-
mance.

Driving assist systems

To keep enhance driving safety and
performance, the following systems
operate automatically in response
to various driving situations. Be
aware, however, that these systems
are supplementary and should not
be relied upon too heavily when
operating the vehicle.

Summary of the driving assist
systems















Content      ..     9      10      11      12     ..
