54

1-3. LEXUS Enform

Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States
1-800-25-LEXUS
(1-800-255-3987)



Canada
1-800-26-LEXUS
(1-800-265-3987)



Puerto Rico
1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Blue-
tooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety

Safety Connect LED light Indi-
cators

55

1-3. LEXUS Enform

1

For safety and security

Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-

Safety Connect services

Safety information for Safety
Connect

56

1-3. LEXUS Enform

nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

57

1-4. Theft deterrent system

1

For safety and security

1-4.Theft deterrent system

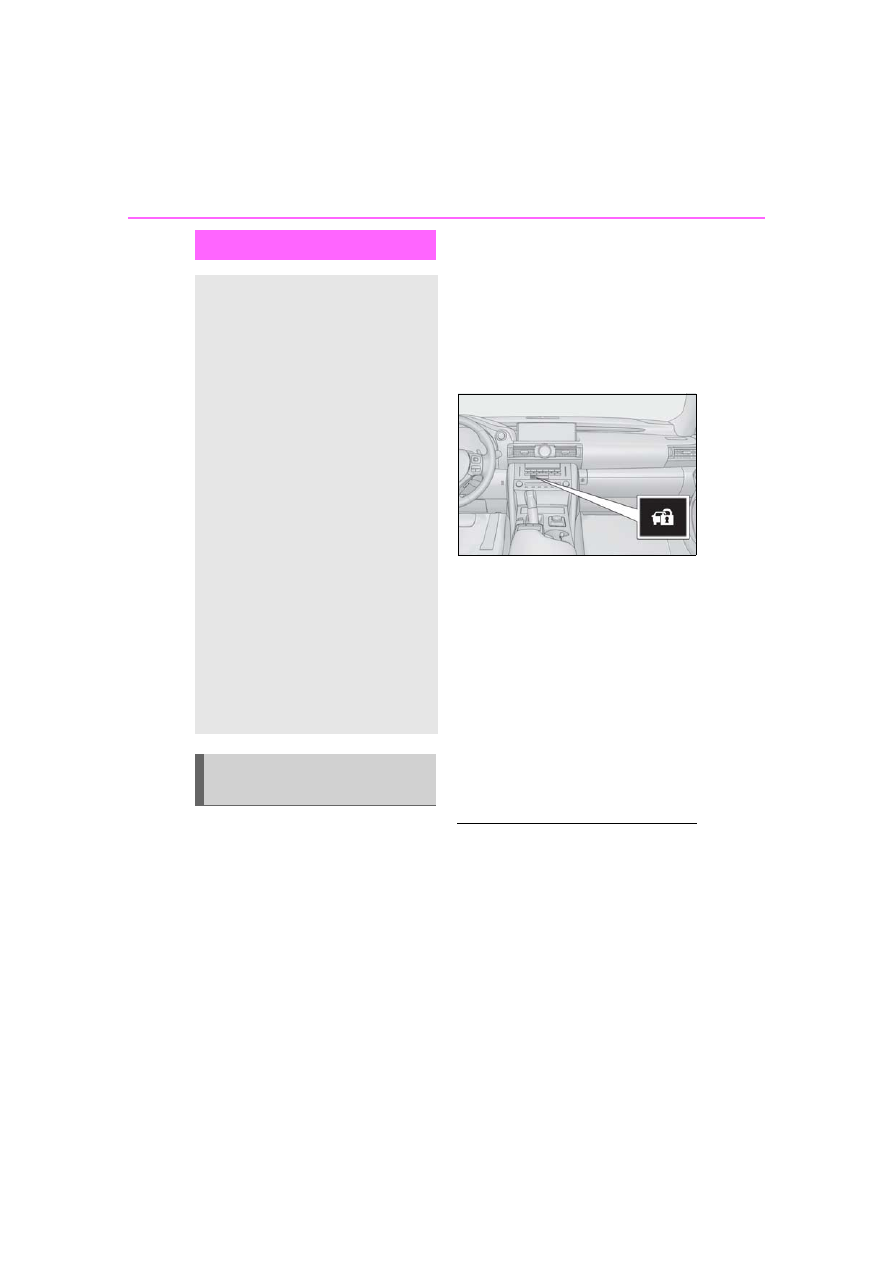

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

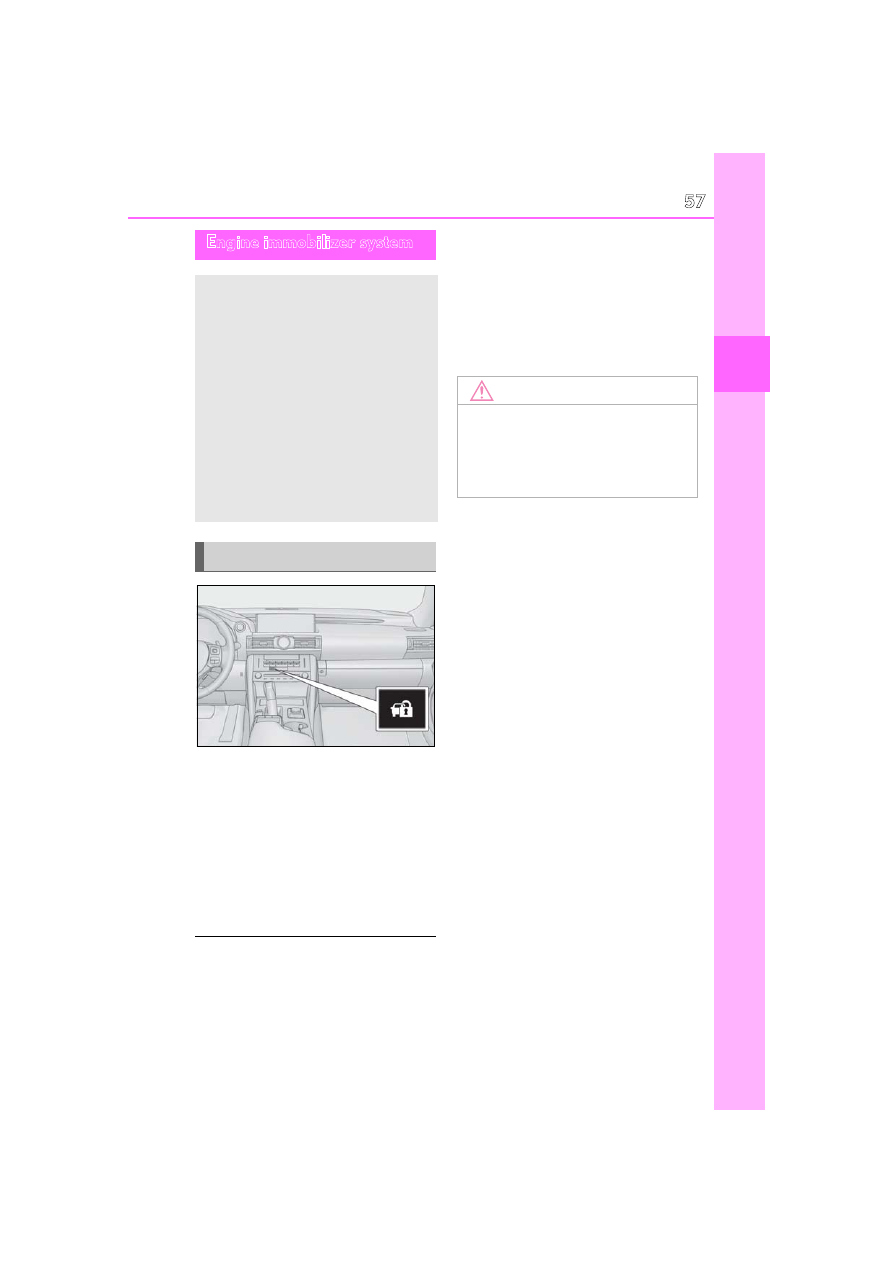

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

58

1-4. Theft deterrent system

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Open the trunk using the entry
function or wireless remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)



For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)



The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.



The hood is opened.

Setting/deactivating/stopping
the alarm system

59

1-4. Theft deterrent system

1

For safety and security

●

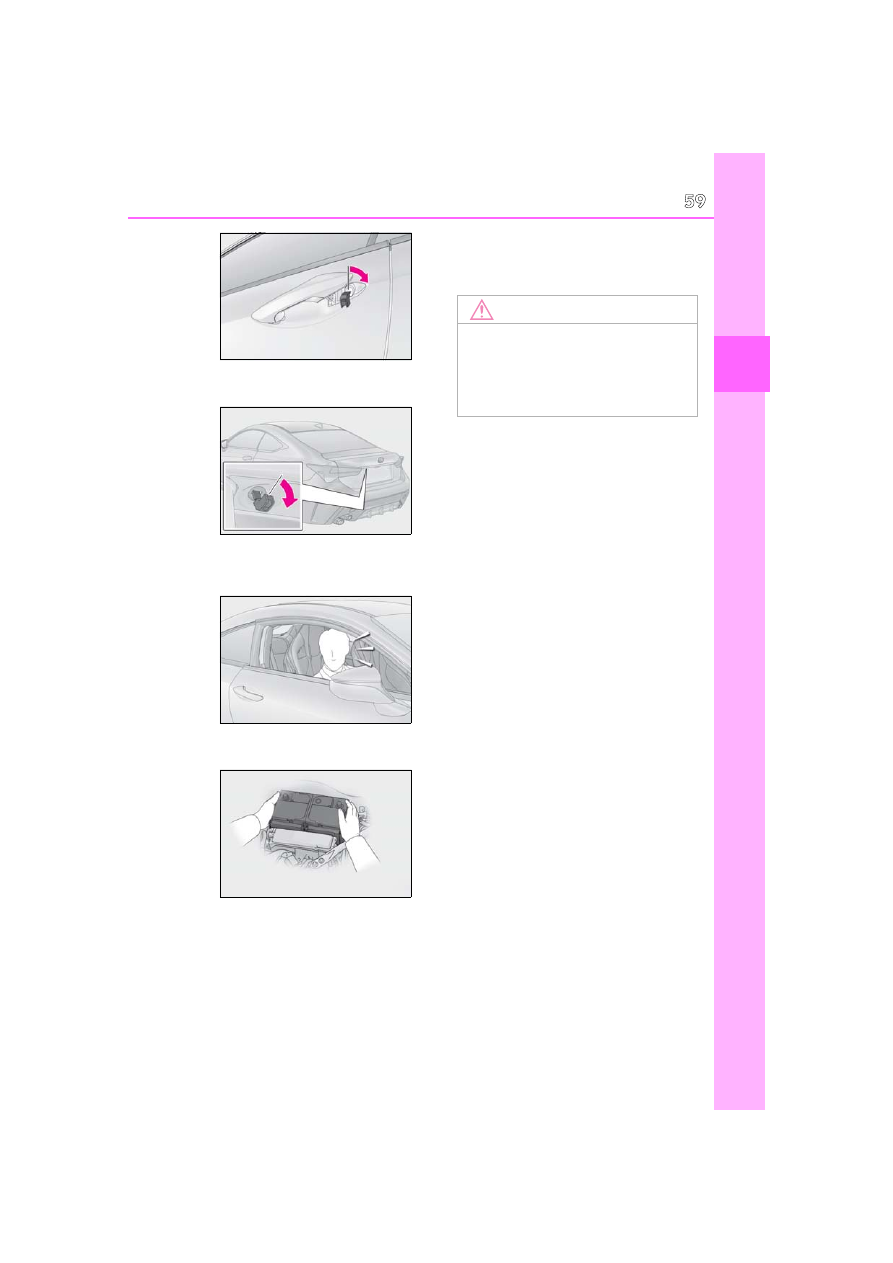

The trunk is opened using the mechanical

key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using an inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.334)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

60

1-4. Theft deterrent system

Theft prevention labels
(U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

61

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

...........................................................

62

Gauges and meters ....................

66

Multi-information display..........

73

Fuel consumption information

...........................................................

83

62

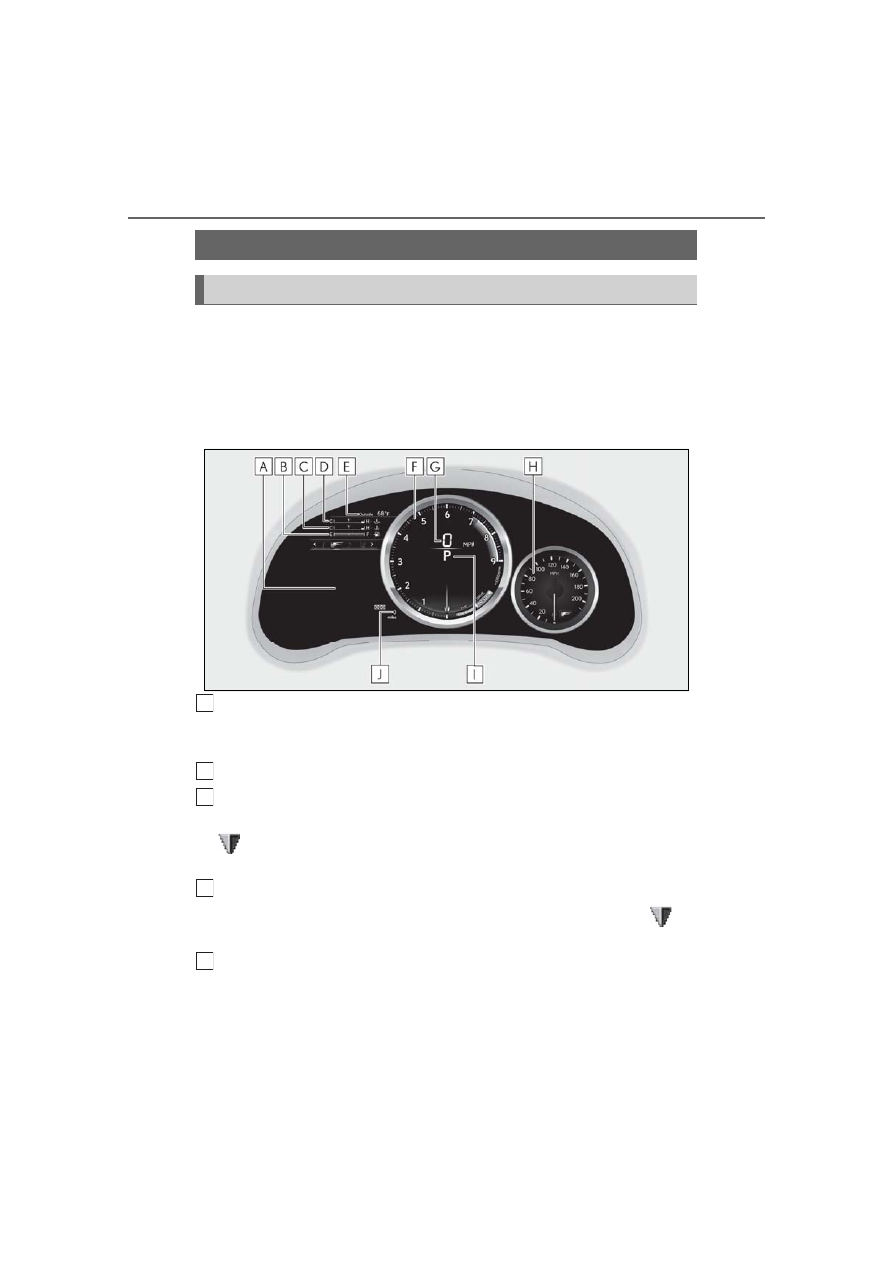

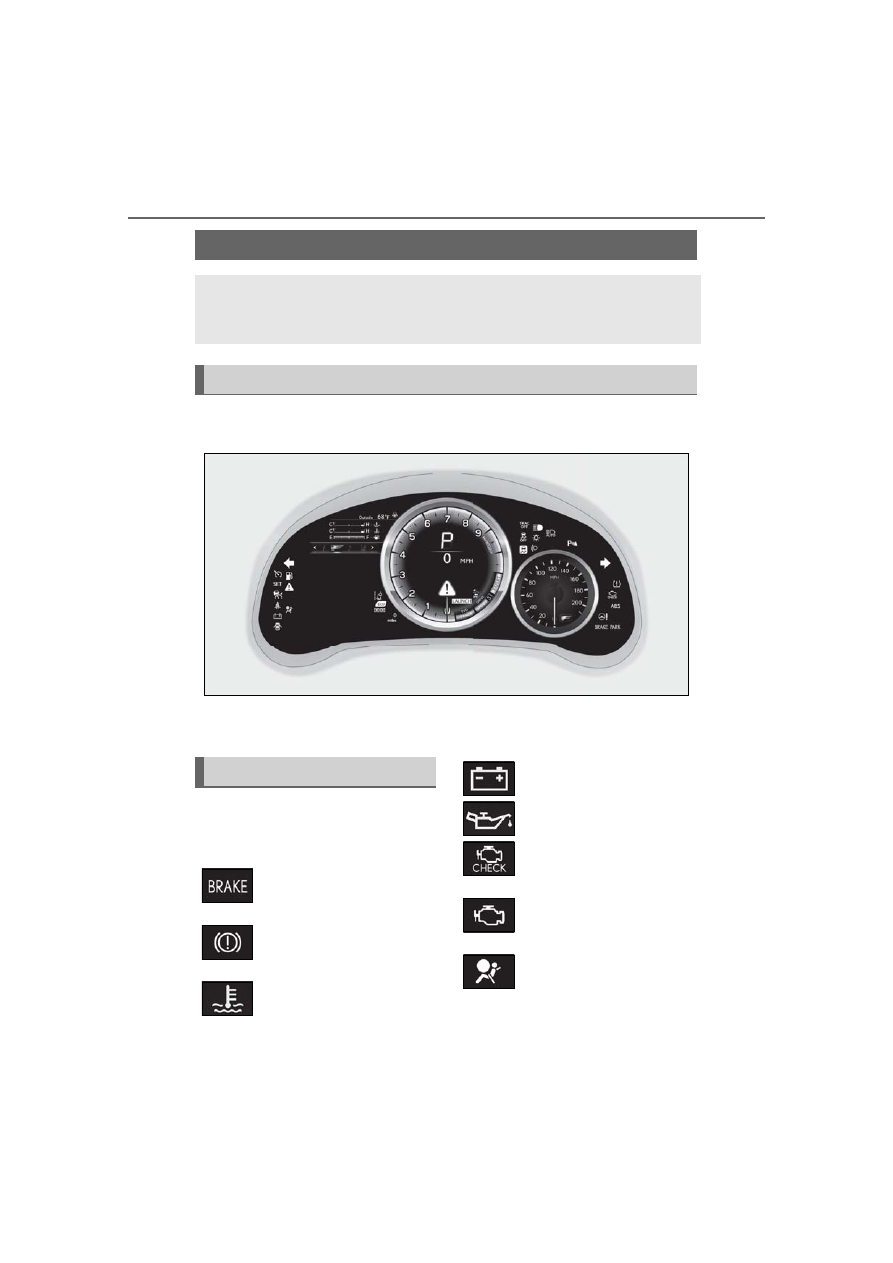

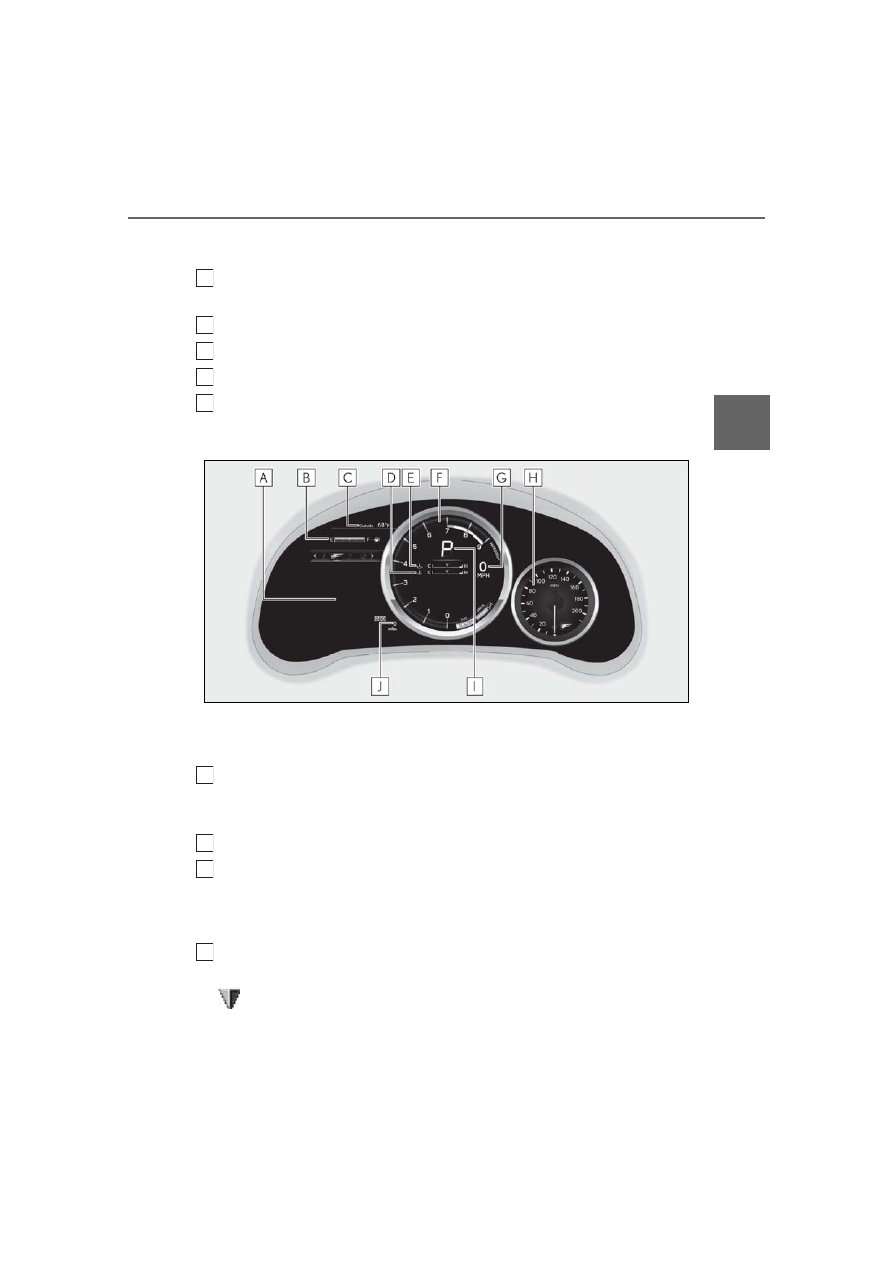

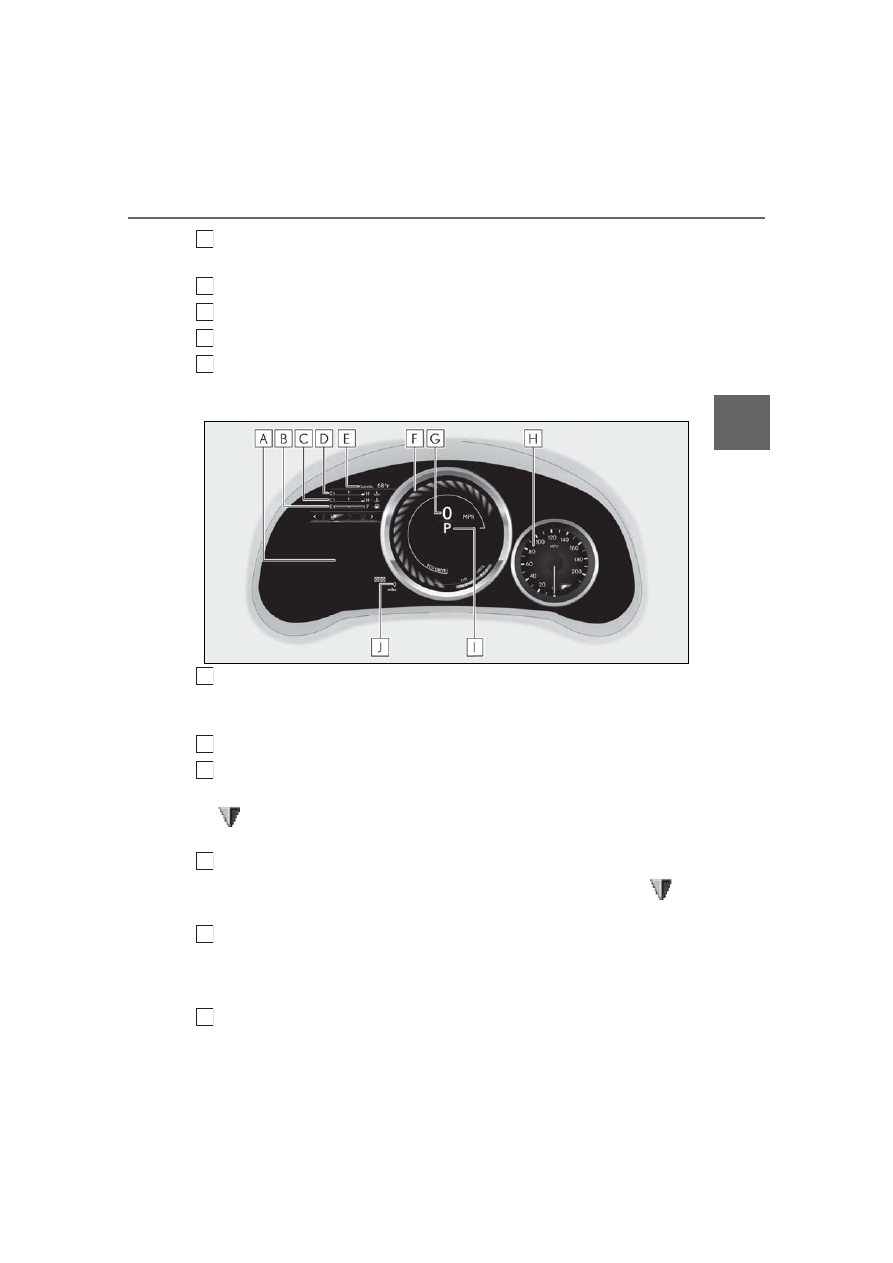

2-1. Instrument cluster

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

The units used on the meters and some indicators may differ depending on the target
region.

Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.300)

(Canada)

Brake system warning light

*1



(



P.300)

High coolant temperature
warning light

*2

 (



P.300)

Charging system warning
light

*1, 2

 (



P.300)

Low engine oil pressure warn-
ing light

*2

 (



P.301)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.301)

(Canada)

Malfunction indicator lamp

*1



(



P.301)

SRS warning light

*1

 (



P.301)

63

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: This light illuminates on the center

panel.

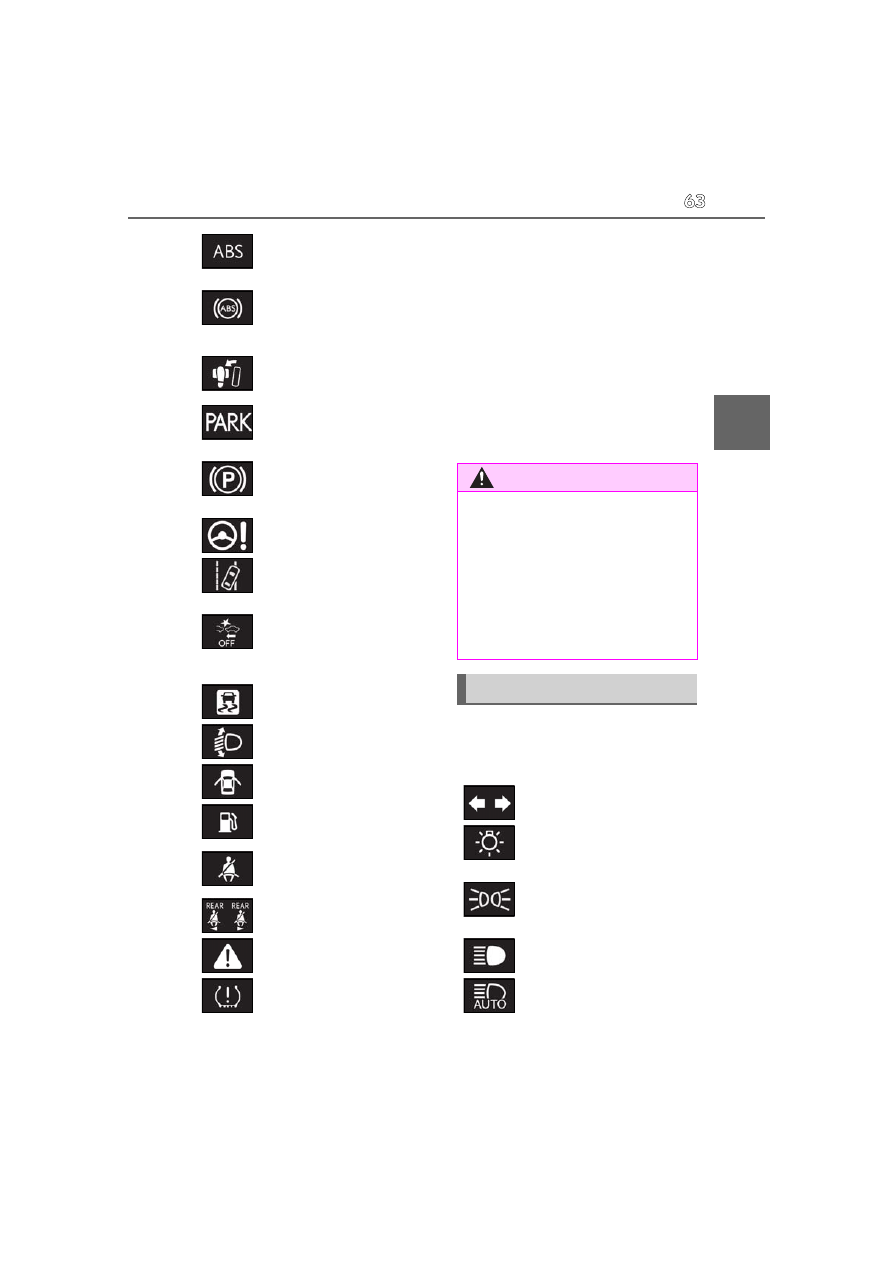

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(U.S.A.)

ABS warning light

*1

 (



P.301)

(Canada)

ABS warning light

*1

 (



P.301)

Brake Override System warn-
ing light/Drive-Start Control
warning light

*2

 (



P.302)

(U.S.A.)

Parking brake warning light
(



P.302)

(Canada)

Parking brake warning light
(



P.302)

Electric power steering system
warning light

*1

 (



P.302)

(orange)

LDA (Lane Departure Alert)
indicator (



P.303)

(flashes or

illuminates)

PCS warning light

*1

 (



P.303)

Slip indicator

*1

 (



P.303)

Automatic headlight leveling
system warning light (



P.304)

Open door warning light
(



P.304)

Low fuel level warning light
(



P.304)

Driver’s and front passenger’s
seat belt reminder light
(



P.304)

Rear passenger’s seat belt
reminder lights

*3

 (



P.305)

Master warning light

*1



(



P.305)

Tire pressure warning light

*1



(



P.305)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Indicators

Turn signal indicator (



P.136)

(U.S.A.)

Headlight indicator (



P.138)

(Canada)

Tail light indicator (



P.138)

Headlight high beam indicator
(



P.139)

Automatic High Beam indica-
tor

*1

 (



P.140)

64

2-1. Instrument cluster



Drive mode indicators



TVD (Torque Vectoring Differential)
control mode indicators

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: The light comes on when the system is

turned off.

*3

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:

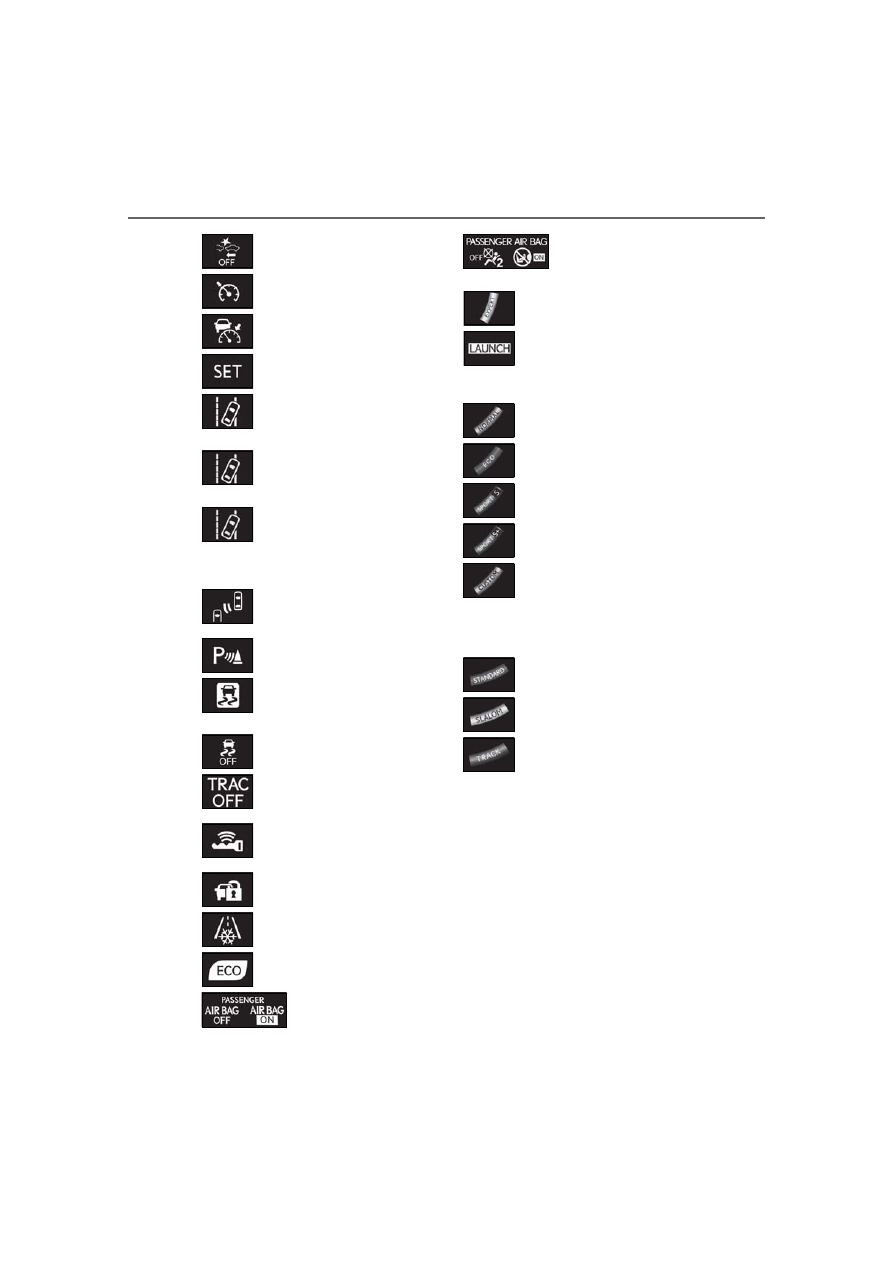

PCS warning light

*1, 2

 (



P.159)

Cruise control indicator
(



P.171)

Dynamic radar cruise control
indicator (



P.171)

Cruise control “SET” indicator
(



P.171)

(white)

LDA (Lane Departure Alert)
indicator (



P.166)

(green)

LDA (Lane Departure Alert)
indicator (



P.166)

(orange)

(flashes)

LDA (Lane Departure Alert)
indicator (



P.166)

BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors

*3, 4

 (



P.179)

Intuitive parking assist indicator
(if equipped) (



P.186)

(flashes)

Slip indicator

*1

 (



P.199)

VSC OFF indicator

*1, 2



(



P.200)

TRAC OFF indicator

*1, 2



(



P.200)

Smart access system with
push-button start indicator

*5



(



P.128)

Security indicator

*6

 (



P.57,

58)
Low outside temperature indi-
cator

*5, 7

 (



P.62)

Eco Driving Indicator Light

*1



(



P.76)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 6

 (



P.36)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 6

 (



P.36)

“EXPERT” indicator (



P.200)

“LAUNCH” indicator (



P.193)

“NORMAL” indicator (



P.192)

Eco drive mode indicator
(



P.192)

“SPORT S” indicator (



P.192)

“SPORT S+” indicator
(



P.192)

“COSTOM” indicator (



P.192)

“STANDARD” indicator (if
equipped) (



P.197)

“SLALOM” indicator (if
equipped) (



P.197)

“TRACK” indicator (if
equipped) (



P.197)

65

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

• When the engine switch is turned to

IGNITION ON mode while the
BSM main switch is turned on.

• When the BSM main switch is

turned on while the engine switch is
in IGNITION ON mode.

If the system is functioning correctly,
the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehi-
cle inspected by your Lexus dealer.

*4

: This light illuminates on the outside rear

view mirrors.

*5

: This light illuminates on the multi-infor-

mation display.

*6

: This light illuminates on the center

panel.

*7

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

66

2-1. Instrument cluster

■

Locations of gauges and meters

If the drive mode is changed, some of the meter displays and the gauge layout will
be changed.

The units used on the meters may differ depending on the target region.



Normal mode

Multi-information display

Presents the driver with a variety of vehicle data (



P.73)

Displays warning messages in case of a malfunction (



P.308)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Gauges and meters

Meter display

A

B
C

D

E

67

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Tachometer

Displays the engine speed in revolutions per minute

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.72)



Eco drive mode

Multi-information display

Presents the driver with a variety of vehicle data (



P.73)

Displays warning messages in case of a malfunction (



P.308)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Eco driving meter

F

G

H

I

J

A

B
C

D

E

F

68

2-1. Instrument cluster

Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guideline to show the eco-friendliness of your driving.

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.72)



SPORT S mode

The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be changed on the settings display of the multi-information display.

Multi-information display

Presents the driver with a variety of vehicle data (



P.73)

Displays warning messages in case of a malfunction (



P.308)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low

G

H

I

J

A

B
C

D

E

69

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Tachometer

Displays the engine speed in revolutions per minute

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.72)



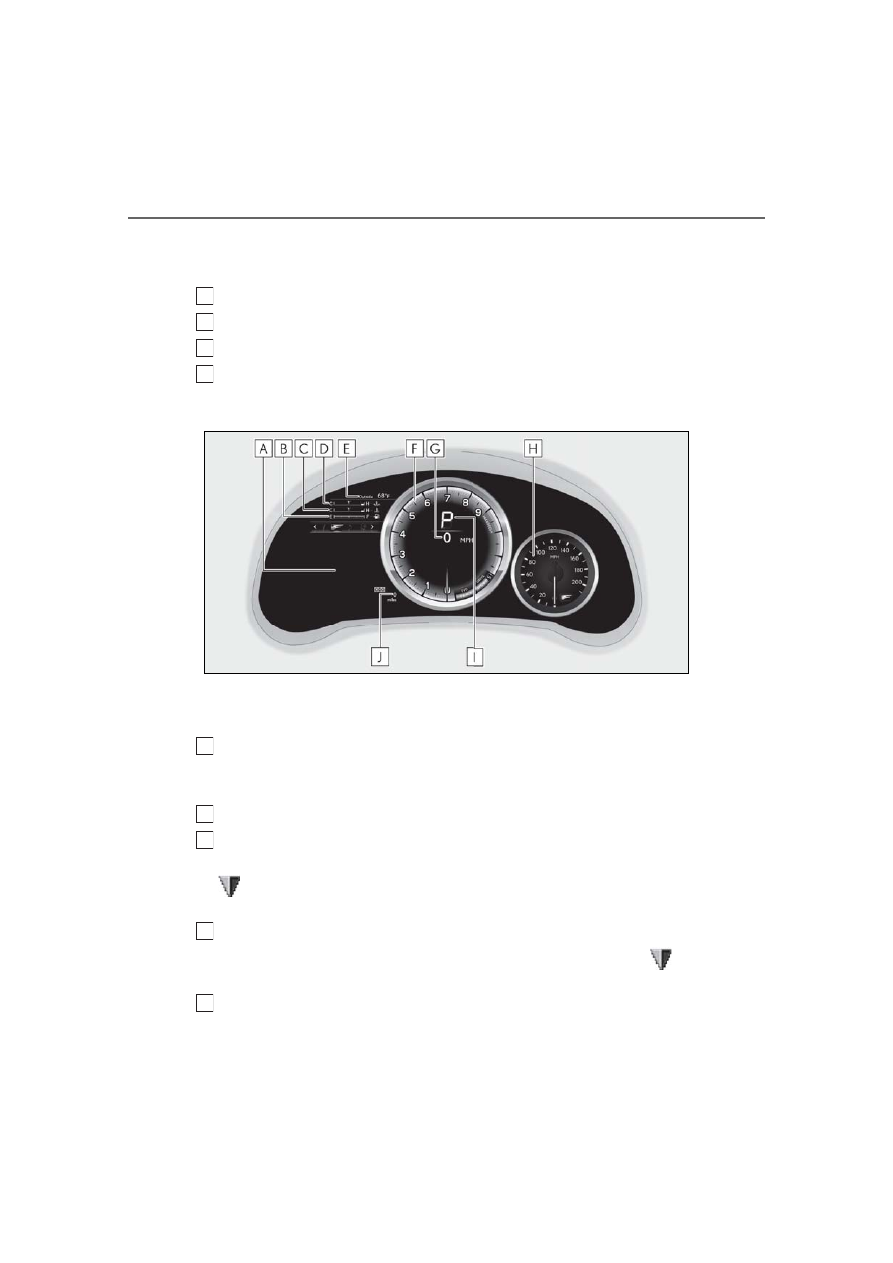

SPORT S+ mode

The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the settings display of the multi-information display.

Multi-information display

Presents the driver with a variety of vehicle data (



P.73)

Displays warning messages in case of a malfunction (



P.308)

Fuel gauge
Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

F

G

H

I

J

A

B
C

D
