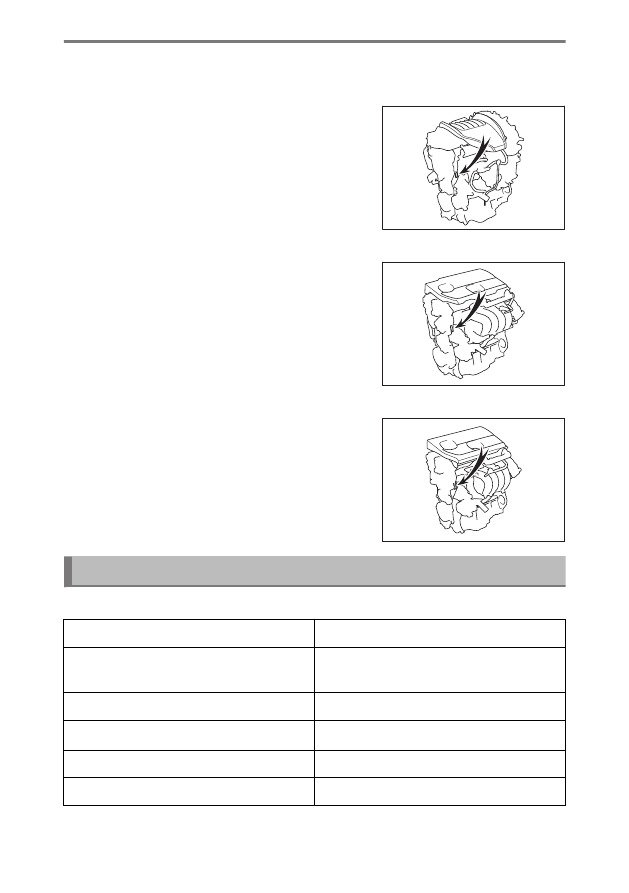

Engine number

Engine

▶

NX350

Model

T24A-FTS

Type

4-cylinder in line, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

87.5 × 99.5 mm (3.44 × 3.91 in.)

Displacement

2393 cm

(146.0 cu. in.)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

▶

NX350

▶

NX250

▶

NX200

10-1. Specifications

634

▶

NX250

Model

A25A-FKS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

87.5 × 103.4 mm (3.44 × 4.07 in.)

Displacement

2487 cm

(151.8 cu. in.)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

▶

NX200

Model

M20A-FKS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

80.5 × 97.6 mm (3.17 × 3.84 in)

Displacement

1987 cm

(121.3 cu. in.)

Valve clearance (engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area: Unleaded gasoline conforming to
European standard EN228 only
Except EU area: Unleaded gasoline only

Research Octane Number

NX350: 95 or higher
NX250/NX200: 91 or higher

10-1. Specifications

635

Vehicle specifications

Fuel tank capacity (Reference)

55.0 L (14.5 gal., 12.1 Imp. gal.)

Lubrication system (NX350)

■

Oil capacity (Drain and refill) (Reference)

With filter

5.3 L (5.6 qt., 4.6 Imp.qt.)

Without filter

5.0 L (5.3 qt., 4.4 Imp.qt.)

■

Engine oil selection

Gasoline Engine –
"Toyota Genuine Motor Oil" is used in your Lexus vehicle. Lexus recommends
the use of approved "Toyota Genuine Motor Oil". Another motor oil of matching
quality can also be used.

●

Oil grade:

0W-20 and 5W-30: API grade SM "Energy-Conserving", SN "Resource-
Conserving", SN PLUS "Resource-Conserving" or SP "Resource-Conserv-
ing"; or ILSAC GF-6A multigrade engine oil

●

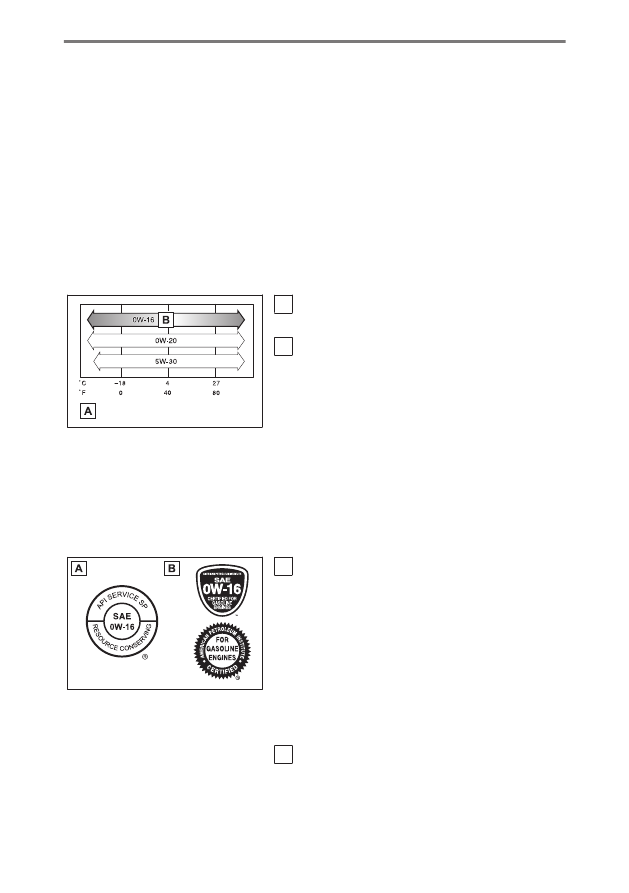

Recommended viscosity (SAE):

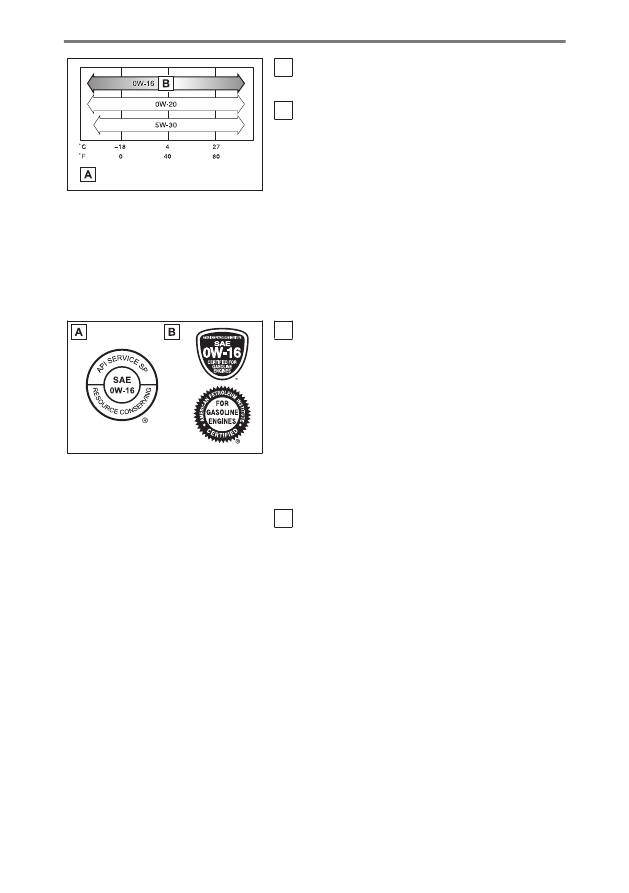

Temperature range anticipated before next
oil change

Preferred

SAE 0W-20 is filled into your Lexus vehicle at manufacturing, and the best choice
for good fuel economy and good starting in cold weather. If SAE 0W-20 oil is not
available, SAE 5W-30 oil may be used. However, it should be replced with SAE
0W-20 at the next oil change.

■

How to read oil container label

Either or both API registered marks are added to some oil containers to help you
select the ol you should use.

*1 :

The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level

on the dipstick.

10-1. Specifications

636

API Service Symbol:

Top portion: "API SERVICE SP" means
the oil quality designation by American
Petroleum Institute (API).
Center portion: "SAE 0W-20" means
the SAE viscosity grade.
Lower portion: "Resource-Conserving"
means that the oil has fuel-saving and
environmental protection capabilities.

ILSAC Certification Mark
The International Lubricant Specification
Advisory Committee (ILSAC) Certification
Mark is displayed on the front of the con-
tainer.

Oil viscosity (0W-20 is explained here as an example):

●

The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability.
Oils with a lower value before the W allow for easier starting of the engine in
cold weather.

●

The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is
at high temperature.
An oil with a higher viscosity (one with a higher value) may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.

Lubrication system (NX250)

■

Oil capacity (Drain and refill) (Reference)

With filter

4.5 L (4.8 qt., 4.0 Imp.qt.)

Without filter

4.2 L (4.4 qt., 3.7 Imp.qt.)

■

Engine oil selection

Gasoline Engine –

*2 :

The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level

on the dipstick.

10-1. Specifications

637

Vehicle specifications

"Toyota Genuine Motor Oil" is used in your Lexus vehicle. Lexus recommends
the use of approved "Toyota Genuine Motor Oil". Another motor oil of matching
quality can also be used.

●

Oil grade:

0W-16: API grade SN "Resource-Conserving", SN PLUS "Resource -Con-
serving" or SP "Resource-Conserving"; or ILSAC GF-6B multigrade en-
gine oil
0W-20 and 5W-30: API grade SM "Energy-Conserving", SN "Resource-
Conserving", SN PLUS "Resource-Conserving" or SP "Resource-Conserv-
ing"; or ILSAC GF-6A multigrade engine oil

●

Recommended viscosity (SAE):

Temperature range anticipated before next
oil change

Preferred

SAE 0W-16 is filled into your Lexus vehicle at
manufacturing, and the best choice for good fuel
economy and good starting in cold weather. If
SAE 0W-16 oil is not available, SAE 0W-20 oil

may be used. However, it should be replced with SAE 0W-16 at the next oil
change.

■

How to read oil container label

Either or both API registered marks are added to some oil containers to help you
select the ol you should use.

API Service Symbol:

Top portion: "API SERVICE SP" means
the oil quality designation by American
Petroleum Institute (API).
Center portion: "SAE 0W-16" means
the SAE viscosity grade.
Lower portion: "Resource-Conserving"
means that the oil has fuel-saving and
environmental protection capabilities.

ILSAC Certification Mark
The International Lubricant Specification
Advisory Committee (ILSAC) Certification
Mark is displayed on the front of the con-
tainer.

10-1. Specifications

638

Oil viscosity (0W-16 is explained here as an example):

●

The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability.
Oils with a lower value before the W allow for easier starting of the engine in
cold weather.

●

The 16 in 0W-16 indicates the viscosity characteristic of the oil when the oil is at
high temperature.
An oil with a higher viscosity (one with a higher value) may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.

Lubrication system (NX200)

■

Oil capacity (Drain and refill) (Reference)

With filter

4.3 L (4.5 qt., 3.8 Imp.qt.)

Without filter

3.9 L (4.1 qt., 3.4 Imp.qt.)

■

Engine oil selection

Gasoline Engine –
"Toyota Genuine Motor Oil" is used in your Lexus vehicle. Lexus recommends
the use of approved "Toyota Genuine Motor Oil". Another motor oil of matching
quality can also be used.

●

Oil grade:

●

Recommended viscosity (SAE):

*3 :

The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level

on the dipstick.

10-1. Specifications

639

Vehicle specifications

Temperature range anticipated before next
oil change

Preferred

SAE 0W-16 is filled into your Lexus vehicle at
manufacturing, and the best choice for good fuel
economy and good starting in cold weather. If
SAE 0W-16 oil is not available, SAE 0W-20 oil

may be used. However, it should be replced with SAE 0W-16 at the next oil
change.

■

How to read oil container label

Either or both API registered marks are added to some oil containers to help you
select the ol you should use.

API Service Symbol:

ILSAC Certification Mark
The International Lubricant Specification
Advisory Committee (ILSAC) Certification
Mark is displayed on the front of the con-
tainer.

Oil viscosity (0W-16 is explained here as an example):

●

The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability.
Oils with a lower value before the W allow for easier starting of the engine in
cold weather.

●

10-1. Specifications

640

Cooling system

Capacity

(1)

NX350

Gasoline engine:
8.7 L (9.2 qt., 7.7 Imp.qt.)
Intercooler:
2.7L (2.9 qt., 2.4 Imp.qt.)

NX250

7.0 L (7.4 qt., 6.2 Imp.qt.)

NX200

6.9 L (7.3 qt., 6.1 Imp.qt.)

Coolant type

Use either of the following:

●

"Toyota Super Long Life
Coolant"

●

Similar high-quality eth-
ylene glycol-based non-
silicate, non-amine, non-
nitrite, and non-borate
coolant with long-life hy-
brid organic acid tech-
nology

Do not use plain water
alone.

(1)

The coolant capacity is the quantity of reference. If replacement is necessary, contact

any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

Ignition system (spark plug)

Make

NX350:
NGK DILZKAR8E7H
NX250:
DENSO FC16HR-Q8
NX200:
DENSO FC20HR-Q8

10-1. Specifications

641

Vehicle specifications

Gap

NX350:
0.7 mm (0.03 in.)
NX250:
0.8 mm (0.03 in.)
NX200:
0.8 mm (0.03 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

■

Battery

Open voltage at 20°C (68°F):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Specific gravity reading at 20°C (68°F):

1.25 or more
If the specific gravity is lower than the
standard value, charge the battery.

■

Charging rates

Quick charge

15 A max.

Slow charge

5 A max.

Automatic transmission (NX350/NX250)

Fluid capacity

(1)

NX350:
7.1 L (7.5 qt., 6.2 Imp.qt.)
NX250:
7.3 L (7.7 qt., 6.4 Imp.qt.)

Fluid type

"Toyota Genuine ATF WS"

(1)

The fluid capacity is the quantity of reference. If replacement is necessary, contact any

authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

10-1. Specifications

642

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-
tion, or damage the transmission of your vehicle.

Multidrive (NX200)

Fluid capacity

(1)

8.7 L (9.2 qt., 7.7 Imp.qt.)

Fluid type

"Toyota Genuine CVT Fluid FE"

(1)

The fluid capacity is the quantity of reference. If replacement is necessary, contact any

authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.

NOTICE

■

Multidrive fluid type

Using Multidrive fluid other than the above type may cause abnormal noise or vibration,
or damage the Multidrive of your vehicle.

Transfer (AWD)

Oil capacity

(1)

0.45 L (0.48 qt., 0.40 Imp. qt.)

Oil type and viscosity

"Toyota Genuine Differential gear oil LT
75W-85 or equivalent"

(1)

The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

Your Lexus vehicle is filled with "Toyota Genuine Differential Gear Oil" at the
factory.
Use Lexus approved "Toyota Genuine Differential Gear Oil" or an equivalent of
matching quality to satisfy the above specification. Please contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer for further
details.

Rear differential (AWD)

Oil capacity

(1)

0.50 L (0.53 qt., 0.44 Imp. qt.)

10-1. Specifications

643

Vehicle specifications

Oil type and viscosity

"Toyota Genuine Differential gear oil LT
75W-85 or equivalent"

(1)

The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

Brakes

Pedal clearance

(1)

127 mm (5.0 in.)

Brake pad wear limit

1.0 mm (0.04 in.)

Pedal free play

1 - 6 mm (0.04 - 0.25 in.)

Fluid type

●

SAE J1703 or FMVSS No. 116 DOT 3

●

SAE J1704 or FMVSS No. 116 DOT 4

(1)

Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.5 lbf)

while the engine is running.

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

▶

18-inch tires

Tire size

235/60R18 103H

Tire inflation pressure (Recommended cold
tire inflation pressure)

Front: 230 kPa (2.3 kgf/cm

or bar, 33 psi)

Rear: 230 kPa (2.3 kgf/cm

or bar, 33 psi)

Wheel size

18 × 7 1/2 J

Wheel bolt torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

10-1. Specifications

644

▶

20-inch tires

Tire size

235/50R20 100V

Tire inflation pres-
sure (Recommend-
ed cold tire inflation
pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 160 km/h
(100 mph)

250 (2.5, 36)

160 km/h (100
mph) or less

230 (2.3, 33)

Wheel size

20 × 7 1/2 J

Wheel bolt torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

▶

Compact spare tire

Tire size

T165/90D18 107M (spare)

Tire inflation pressure (Recommended cold
tire inflation pressure)

420 kPa (4.2 kgf/cm

or bar, 60 psi)

Wheel size

18 × 4T

Wheel bolt torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

INFORMATION

■

When towing a trailer (vehicles with towing package)

Add 20.0 kPa (0.2 kgf/cm

or bar, 3 psi) to the recommended tire inflation pressure, and

drive at speeds below 100 km/h (62 mph).

■

When installing a compact spare tire (if equipped)

Do not tow if your vehicle has a compact spare tire installed.

Light bulbs

Type

Exterior

Front turn signal
lights (bulb type)

A: Wedge base bulbs (amber)

* :

If equipped

10-1. Specifications

645

Vehicle specifications

Fuel information

When you find these types of fuel label at the gas
station, use only the fuel with one of the following
labels.
NX350:
EU area: You must only use unleaded gasoline
conforming to European standard EN228.
Select unleaded gasoline with a Research Oc-
tane Number of 95 or higher for optimum engine performance.
Except EU area: You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95 or higher for
optimum engine performance.
NX250/NX200:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 91 or higher for
optimum engine performance.

INFORMATION

■

Use of ethanol blended gasoline in a gasoline engine

Lexus allows the use of ethanol blended gasoline where the ethanol content is up to 10%.
Make sure that the ethanol blended gasoline to be used has a Research Octane Number
that follows the above.

■

If your engine knocks

●

Consult any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.

●

You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be damaged.

●

Do not use gasoline with metallic additives, for example manganese, iron or lead,
otherwise it may cause damage on your engine or emission control system

●

Do not add aftermarket fuel additives which contain metallic additives.

10-1. Specifications

646

NOTICE

●

EU area: Bioethanol fuel sold under names such as [E50] or [E85] and fuel containing
a large amount of ethanol should not be used. The use of these fuels will damage the
vehicle's fuel system. In case of any doubt, ask any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
Except EU area: Bioethanol fuel sold under names such as [E50] or [E85] and
fuel containing a large amount of ethanol should not be used. Your vehicle can use
gasoline mixed with 10% max ethanol. The use of fuel with more than 10% ethanol
content (E10) will damage the vehicle's fuel system. You must ensure that refueling is
carried out only from a source where fuel specification and quality can be guaranteed.
In case of any doubt, ask any authorized Lexus retailer or Lexus authorized repairer, or
any reliable repairer.

●

Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or failure.

10-1. Specifications

647

Vehicle specifications

Customizable features

User customization function outline

Your vehicle includes a variety of electronic features that can be personalized to
suit your preferences. The settings of these features can be changed using the
center display or at any authorized Lexus retailer or Lexus authorized repairer, or
any reliable repairer.

WARNING

As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases, including harmful carbon monoxide (CO), may collect and enter the vehicle.
Possibly leading to death or a serious health hazard.

NOTICE

While performing customization, make sure that the engine is running, in order to
prevent the battery from becoming discharged.

10-2. Customizable features

648

Method to change settings

Changing using the center display

Stop the vehicle in a place where operations can be performed safely, engage the
parking brake, and change the shift position to P.

Select

on the center display.

Select [Vehicle customise] or [Driving assist].

Select the item to change the settings of from the list.

Various setting can be changed. Refer to the list of settings that can be changed for
details.

For functions that can be turned on/off, select

(ON)/

(OFF).

10-2. Customizable features

649

Vehicle specifications

Lexus NX (2022 year). Manual in english - page 39
