SERVICE INTERVAL: ODOMETER READING

MONTH

S

(Odometer reading
or months, whichever
comes first.)

x1000 km

10

2

0

3
0

4
0

5
0

6
0

70

8
0

x1000 miles

6 12 18 24

3
0

3
6

42

4

8

14

Brake pedal and parking
brake

(7)

I

I

I

I

I

I

I

I

6

15

Brake pads and discs

I

I

I

I

I

I

I

I

6

16

Brake fluid

I

I

I

R

I

I

I

R

I: 6

R:24

17

Brake pipes and hoses

I

I

I

I

12

18

Vacuum pump for brake boos-
ter

(8)

Inspect every 200000 km
(120000 miles)

-

19

Steering wheel, linkage and
steering gear box

I

I

I

I

12

20

Drive shaft boots

I

I

I

I

24

21

Suspension ball joints and dust
covers

I

I

I

I

12

22

Automatic transmission fluid
(including front differential)

I

I

24

23

Transfer oil

(9)

I

R

I

R

I: 12

R:48

24

Rear differential oil

(9)

I

R

I

R

I: 12

R:48

25

Propeller shaft

(9)

T

T

T

T

12

26

Front and rear suspension

I

I

I

I

12

27

Tires and inflation pressure

I

I

I

I

I

I

I

I

6

28

Lights, horns, wipers and wash-
ers

I

I

I

I

I

I

I

I

6

29

Air conditioner filter

R

R

R

R

R

R

R

R

12

(1)

Replace both the engine oil and oil filter, even when the maintenance reminder does

not appear, after 12 months have passed, or when driven over 10000 km (6000

8-3. Maintenance

474

miles) since the last oil change. This may cause the maintenance reminder appear

even when driven less than 10000 km (6000 miles).
Replace both engine oil and oil filter every 5000 km (3000 miles) or 6 months,

in which the vehicle is mainly driven in dirt or dusty roads, when the maintenance

reminder does not appear.

(2)

After 80000 km (48000 miles) or 48 months inspection, inspect every 20000 km

(12000 miles) or 12 months.

(3)

First replace at 160000 km (100000 miles), then replace every 80000 km

(50000 miles).

(4)

Including the filter in fuel tank.

(5)

Toyota genuine fuel injector cleaner or equivalent.

(6)

For Azerbaijan and Armenia only.

(7)

Parking brake inspection is not necessary.

(8)

Replace the vacuum pump vane and the vacuum pump vane caps with new ones and

never reuse the vacuum pump vane and the vacuum pump vane caps.

(9)

NX250/NX350 only



Additional maintenance schedule

Refer to the following table for normal maintenance schedule items requiring
more frequent service specific to the type of severe conditions. (For outline, see

→

 P.472

)

A-1: Operating on rough or muddy roads, or roads with melted snow or waterlogged
roads.

Inspection

(1)

 of brake pads and discs

Every 5000 km (3000 miles) or 3 months

Inspection

(1)

 of brake pipes and hoses

Every 10000 km (6000 miles) or 6
months

Inspection

(1)

 of suspension ball joints and

dust covers

Every 10000 km (6000 miles) or 6
months

Inspection

(1)

 of drive shaft boots

Every 10000 km (6000 miles) or 12
months

Tightening of bolts of propeller shaft

Every 10000 km (6000 miles) or 6
months

Inspection

(1)

 of steering wheel, linkage and

steering gear box

Every 5000 km (3000 miles) or 3 months

Inspection

(1)

 of front and rear suspension

Every 10000 km (6000 miles) or 6
months

8-3. Maintenance

475

8

Maintenance and car

e

A-1: Operating on rough or muddy roads, or roads with melted snow or waterlogged
roads.

Tightening of bolts and nuts on chassis and
body

(2)

Every 10000 km (6000 miles) or 6
months

(1)

Perform correction or replacement as necessary.

(2)

For seat mounting bolts, front and rear suspension member retaining bolts.



A-2: Operating on dusty roads. (Roads in areas where their pavement rate is low, or a
cloud of dust often arises and the air is dry.)

Inspection

(1)

 or replacement of air cleaner

filter

I: Every 2500 km (1500 miles) or 3
months
R: Every 40000 km (24000 miles) or 48
months

Inspection

(1)

 of brake pads and discs

Every 5000 km (3000 miles) or 3 months

Tightening of bolts of propeller shaft

Every 10000 km (6000 miles) or 6
months

(1)

Perform correction or replacement as necessary.



A-3. Operating on road which has road salt applied. (NX250/NX350 only)

Tightening of bolts of propeller shaft

Every 10000 km (6000 miles) or 6
months

B-1: Heavily loaded vehicle. (For example, using a car top carrier and so forth.)

Inspection

(1)

 of brake pads and discs

Every 5000 km (3000 miles) or 3 months

Inspection

(1)

 or replacement of Automatic

transmission fluid (including front differen-
tial)

I: Every 40000 km (24000 miles) or 24
months
R: Every 80000 km (48000 miles) or 48
months

Replacement of transfer oil (NX250/
NX350 only)

Every 20000 km (12000 miles) or 24
months

Replacement of rear differential oil
(NX250/NX350 only)

Every 20000 km (12000 miles) or 24
months

Tightening of bolts of propeller shaft

Every 10000 km (6000 miles) or 6
months

8-3. Maintenance

476

B-1: Heavily loaded vehicle. (For example, using a car top carrier and so forth.)

Inspection

(1)

 of front and rear suspension

Every 10000 km (6000 miles) or 6
months

Tightening of bolts and nuts on chassis and
body

(2)

Every 10000 km (6000 miles) or 6
months

(1)

Perform correction or replacement as necessary.

(2)

For seat mounting bolts, front and rear suspension member retaining bolts.



B-2: Extensive idling and/or low speed driving for a long distance such as police,
professional/private use like taxi or door-to-door delivery use.

Inspection

(1)

 of brake pads and discs

Every 5000 km (3000 miles) or 3 months

Inspection

(1)

 or replacement of Automatic

transmission fluid (including front differen-
tial)

I: Every 40000 km (24000 miles) or 24
months
R: Every 80000 km (48000 miles) or 48
months

(1)

Perform correction or replacement as necessary.



B-3: Continuous high speed driving (80% or more of maximum vehicle speed) for over 2
hours.

Inspection

(1)

 or replacement of Automatic

transmission fluid (including front differen-
tial)

I: Every 40000 km (24000 miles) or 24
months
R: Every 80000 km (48000 miles) or 48
months

Replacement of transfer oil (NX250/
NX350 only)

Every 20000 km (12000 miles) or 24
months

Replacement of rear differential oil
(NX250/NX350 only)

Every 20000 km (12000 miles) or 24
months

(1)

Perform correction or replacement as necessary.



8-3. Maintenance

477

8

Maintenance and car

e

Inspection of consumables

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the correct procedure as
given in the section for each part.

WARNING

The engine compartment contains many mechanisms and fluids that may move suddenly,
become hot, or become electrically charged. Observe the following precautions.

■

When working on the engine compartment

●

Keep hands, clothing and tools away from the moving fan and engine drive belt.

●

Be careful not to touch the engine, radiator, exhaust manifold, etc., right after driving
as they may be hot. Oil and other fluids may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel and
battery fumes are flammable.

●

Be extremely cautious when working on the battery. It contains poisonous and corro-
sive sulfuric acid.

●

Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately. If you still experience discomfort, consult a doctor.

■

When working near the electric cooling fan or radiator grille

Be sure the engine switch is OFF.
With the engine switch in ON, the electric cooling fan may automatically start to run if the
air conditioning is on or the coolant temperature is high.

■

Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc., from getting in
your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear due to dirt in
the air.

■

If the fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads wear or when
the fluid level in the accumulator is high.

8-4. Inspection of consumables

478

NOTICE

If the reservoir needs frequent refilling, it may indicate a serious problem.

Maintenance

Items which require maintenance and the necessary parts and tools to perform
maintenance on those items are as follows:

■

Battery condition

●

Warm water

●

Baking soda

●

Grease

●

Conventional wrench (for terminal clamp bolts)

●

Distilled water

■

Engine/intercooler coolant level

●

"Toyota Super Long Life Coolant" or a similar high quality ethylene glycol-based
non-silicate, non-amine, nonnitrite and non-borate coolant with long-life hybrid
organic acid technology
"Toyota Super Long Life Coolant" is pre-mixed with 50% coolant and 50%
deionized water.

●

Funnel (used only for adding coolant)

■

Engine oil level

●

"Toyota Genuine Motor Oil" or equivalent

●

Rag or paper towel

●

Funnel (used only for adding engine oil)

■

Fuses

Fuse with same amperage rating as original

■

Light bulbs

Bulb with same number and wattage rating as original

■

NX350: Radiator, condenser and intercooler radiator

-

■

NX200/NX250: Radiator and condenser

-

8-4. Inspection of consumables

479

8

Maintenance and car

e

■

Tire inflation pressure

●

Tire pressure gauge

●

Compressed air source

■

Washer fluid

●

Water or washer fluid containing antifreeze (for winter use)

●

Funnel (used only for adding water or washer fluid)

8-4. Inspection of consumables

480

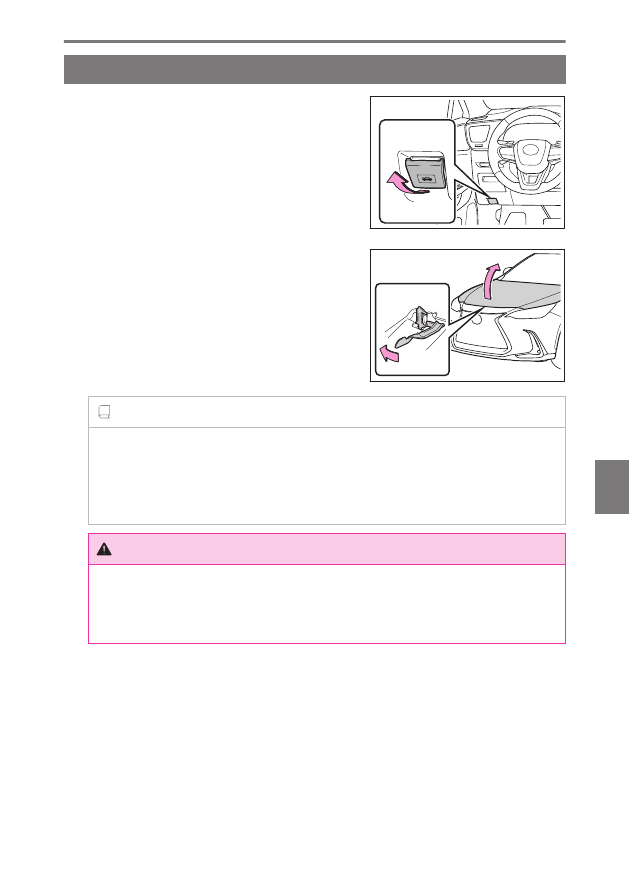

Opening the hood

1

Pull the hood lock release lever.

The hood will pop up slightly.

2

Push the auxiliary catch lever to the left and
lift the hood.

INFORMATION

■

Closing the hood

When closing the hood, make sure to release it from a slightly high position (approxi-
mately 20 cm) to close it.
If the hood is pushed by hand to close it, it may not lock on both sides.

WARNING

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, the hood may suddenly open while driving.

8-4. Inspection of consumables

481

8

Maintenance and car

e

Engine compartment

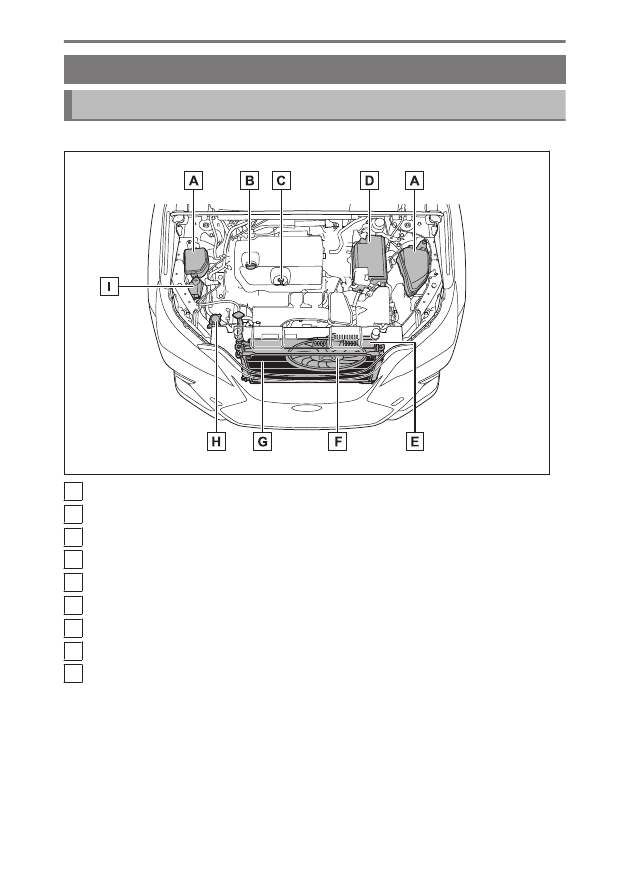

Engine compartment components

▶

NX200/NX250

A

Fuse boxes

→

 P.625

B

Engine oil filler cap

→

 P.486

C

Engine oil level dipstick

→

 P.484

D

Battery

→

 P.489

E

Radiator

→

 P.489

F

Electric cooling fan

G

Condenser

→

 P.489

H

Washer fluid tank

→

 P.494

I

Engine coolant reservoir

→

 P.487

8-4. Inspection of consumables

482

▶

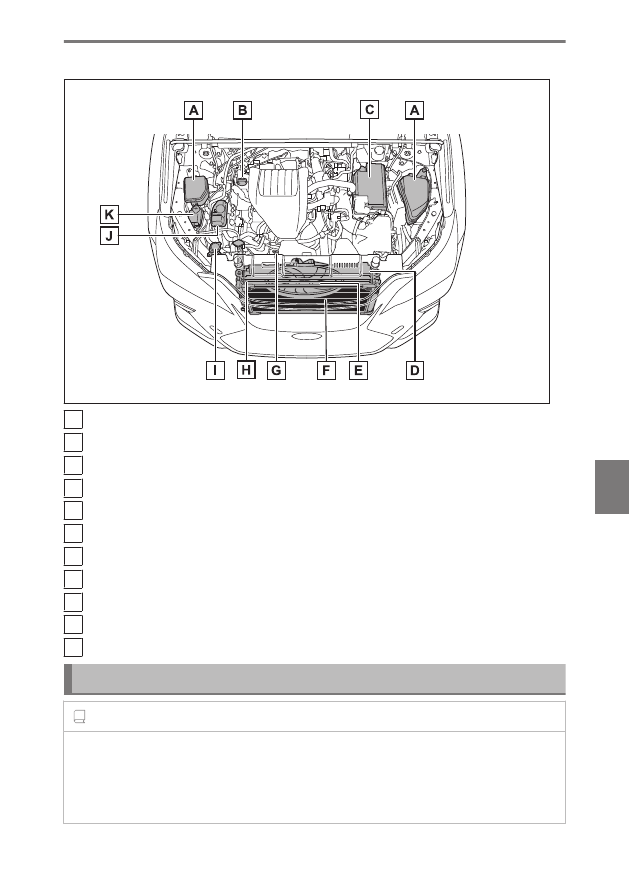

NX350

A

Fuse boxes

→

 P.625

B

Engine oil filler cap

→

 P.486

C

Battery

→

 P.489

D

Radiator

→

 P.489

E

Electric cooling fan

F

Condenser

→

 P.489

G

Engine oil level dipstick

→

 P.484

H

Intercooler radiator

→

 P.489

I

Washer fluid tank

→

 P.494

J

Intercooler coolant reservoir

→

 P.487

K

Engine coolant reservoir

→

 P.487

Checking and adding the engine oil

INFORMATION

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following situations,
oil consumption may increase, and engine oil may need to be added in between oil
maintenance intervals.

8-4. Inspection of consumables

483

8

Maintenance and car

e

●

When the engine is new, for example directly after purchasing the vehicle or after
replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, when towing (vehicles with
towing package only), or when driving while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently through
heavy traffic

WARNING

●

Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation and skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose
of used oil and filters in household trash, in sewers or onto the ground. Call any
authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer, service
station or auto parts store for information concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

When replacing the engine oil

When replacing the engine oil, observe the following precautions.

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

■

If oil is spilled on the engine cover

To prevent the engine cover from being damaged, remove any engine oil from the engine
cover as soon as possible using a neutral detergent. Do not use an organic solvent such
as brake cleaner.

Checking the engine oil

With the engine at operating temperature and turned off, check the oil level on the
dipstick.

8-4. Inspection of consumables

484

NOTICE

To prevent serious engine damage, check the oil level on a regular basis.

1

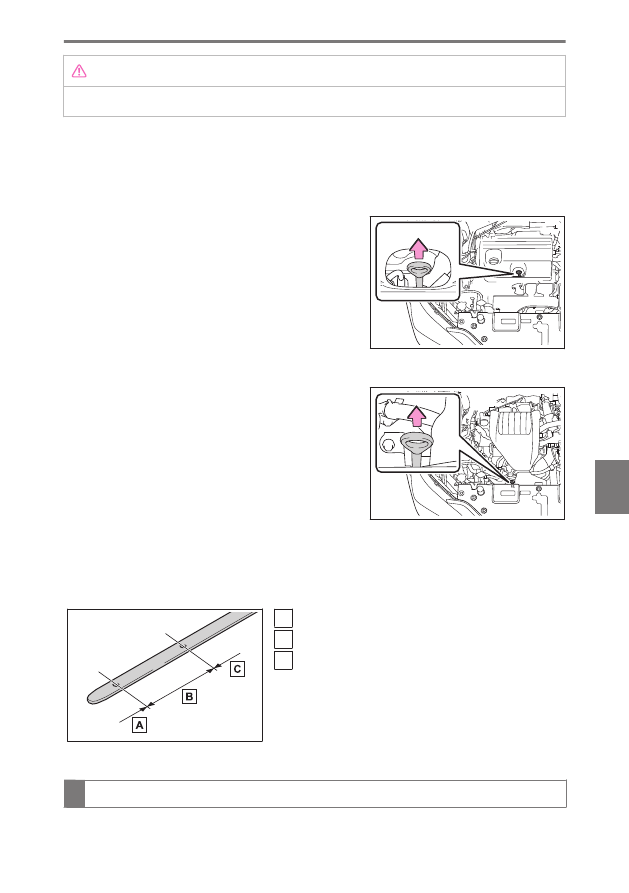

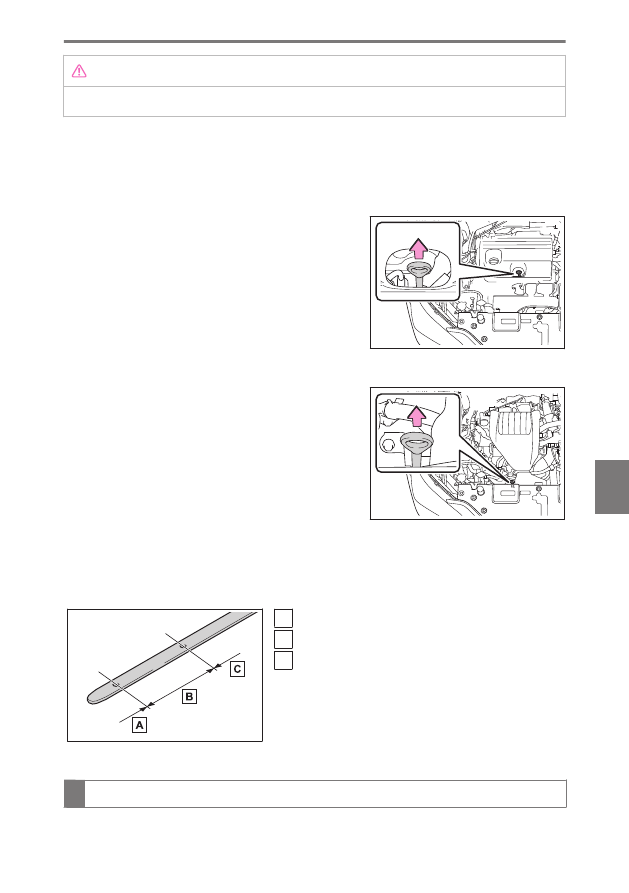

Park the vehicle on level ground. After warming up the engine and turning off
the engine, wait more than 5 minutes for the oil to drain back into the bottom
of the engine.

2

Holding a rag under the end, pull the dipstick
out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end, pull the dipstick out and check the oil level.



A

Low

B

Normal

C

Excessive

The shape of the dipstick may differ depending on
the type of vehicle or engine.

6

Wipe the dipstick and reinsert it fully.

Checking the oil type and preparing the items needed

Make sure to check the oil type and prepare the items needed before adding oil.

▶

NX200/NX250

▶

NX350

8-4. Inspection of consumables

485

8

Maintenance and car

e

●

Engine oil selection

●

Oil quantity (Low

→

 Full)

1.5 L (1.6 qt., 1.3 Imp.qt.)

●

Items
Clean funnel

 Related Links

Lubrication system (NX350)(P. 636)
Lubrication system (NX250)(P. 637)
Lubrication system (NX200)(P. 639)

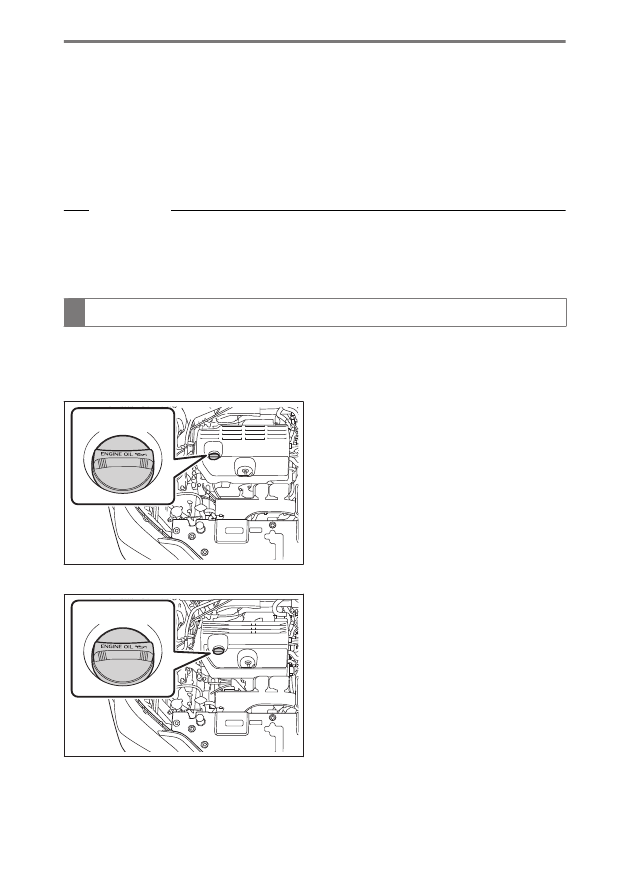

Adding engine oil

If the oil level is below or near the low level mark, add engine oil of the same type as
that already in the engine.

▶

NX250

▶

NX200

8-4. Inspection of consumables

486

▶

NX350

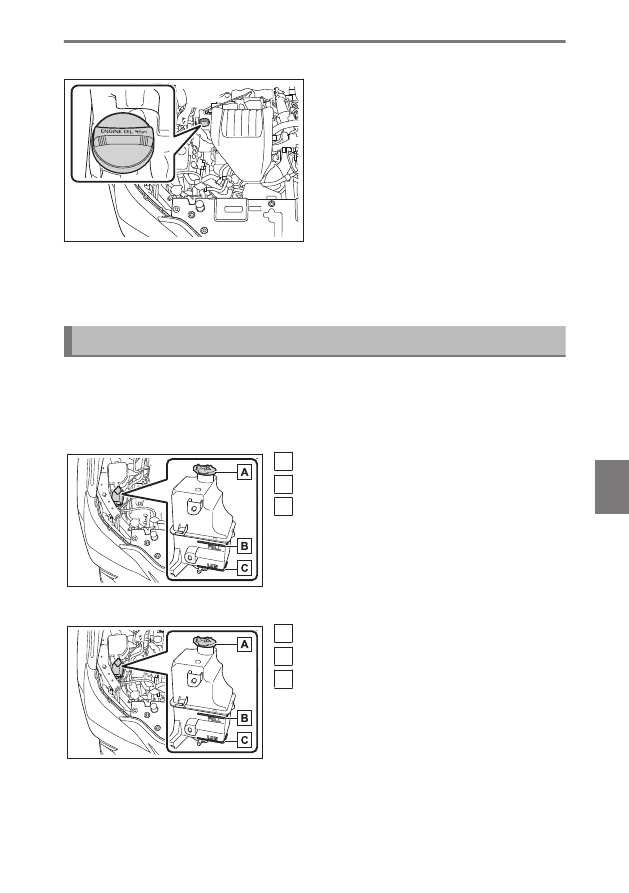

1

Remove the oil filler cap by turning it counterclockwise.

2

Add engine oil slowly, checking the dipstick.

3

Install the oil filler cap by turning it clockwise.

Checking the coolant

The coolant level is satisfactory if it is between the [FULL] and [LOW] lines on the
reservoir when the engine is cold.

■

Engine coolant reservoir



▶

NX200/NX250

A

Reservoir cap

B

[FULL] line

C

[LOW] line



▶

NX350

A

Reservoir cap

B

[FULL] line

C

[LOW] line

If the level is on or below the [LOW] line, add coolant up to the [FULL] line.

8-4. Inspection of consumables

487

8

Maintenance and car

e

■

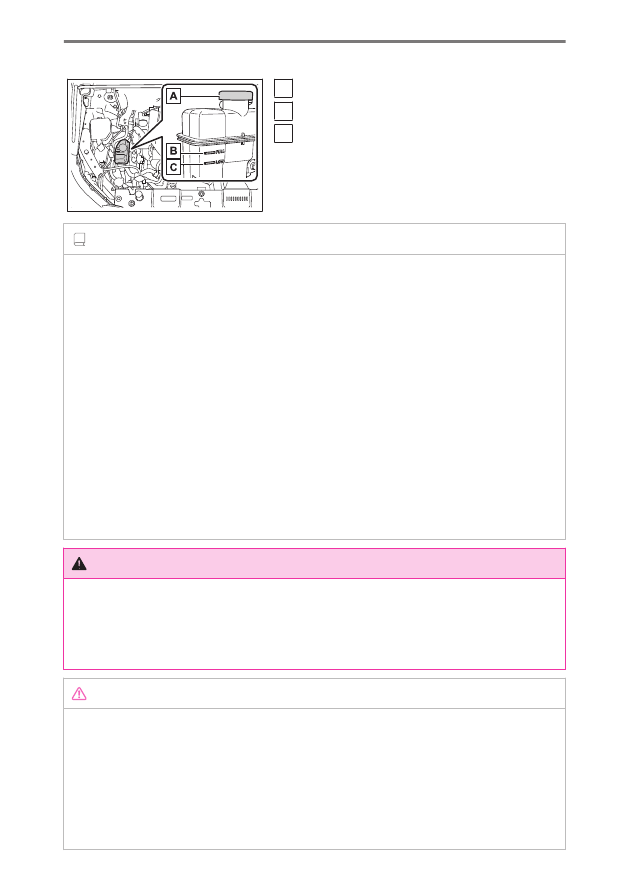

Intercooler coolant reservoir (NX350 only)



A

Reservoir cap

B

[FULL] line

C

[LOW] line

If the level is on or below the [LOW] line, add
coolant up to the [FULL] line.

INFORMATION

■

Coolant selection

Only use "Toyota Super Long Life Coolant" or a similar high quality ethylene glycol based
non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic
acid technology.
"Toyota Super Long Life Coolant" is a mixture of 50% coolant and 50% deionized water.
(Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Lexus retailer or Lexus author-
ized repairer, or any reliable repairer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir cap, drain cock and water
pump.
If you cannot find a leak, have any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer, test the cap and check for leaks in the cooling system.

WARNING

When the engine is hot, do not remove the engine coolant reservoir cap or intercooler
coolant reservoir cap (NX350 only).
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cooling.
Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

8-4. Inspection of consumables

488

Checking the radiator, condenser and intercooler radiator

*

Check the radiator, condenser and intercooler and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of their condition,
have your vehicle inspected by any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

WARNING

■

When the engine is hot

Do not touch the radiator, condenser or intercooler as they may be hot and cause serious
injuries, such as burns.

■

When the electric cooling fan are operating

Vehicles without smart entry & start system: Do not touch the engine compartment. The
electric cooling fan may keep rotating for about 3 minutes even after the engine switch
is OFF. With the engine switch in ON, the electric cooling fan may automatically start to
run if the air conditioning is on or the coolant temperature is high. Be sure the engine
switch is OFF when working near the electric cooling fan or radiator grille.
Vehicles with smart entry & start system: Do not touch the engine compartment. With
the engine switch in ON, the electric cooling fan may automatically start to run if the air
conditioning is on or the coolant temperature is high. Be sure the engine switch is OFF
when working near the electric cooling fan or radiator grille.

Battery

WARNING

■

Chemicals in the battery

Batteries contain poisonous and corrosive sulfuric acid and may produce hydrogen gas
which is flammable and explosive. To reduce the risk of death or serious injury, take the
following precautions while working on or near the battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

* :

If equipped

8-4. Inspection of consumables

489

8

Maintenance and car

e
