Lexus LX600 (2022 year). Manual in english - page 8

139

3-3. Adjusting the seats

fore
d

riv

■

Front seats (manual head
restraints) and outer second seats

Pull the head restraint up while press-
ing the lock release button

If the head restraint touches the ceiling,
making the removal difficult, change the
seat height or angle. (



P.121, 125, 134)

■

Second center seat (if equipped)

Pull the head restraint up while press-
ing the lock release button

If the head restraint touches the ceiling,
making the removal difficult, change the
seat angle. (



P.125)

■

Front seats (power head restraints)
and third seats (if equipped)

The head restraint cannot be removed.

■

Front seats (manual head
restraints) and outer second seats

Align the head restraint with the instal-
lation holes and push it down to the
lock position.

Press and hold the lock release button

when lowering the head restraint.

■

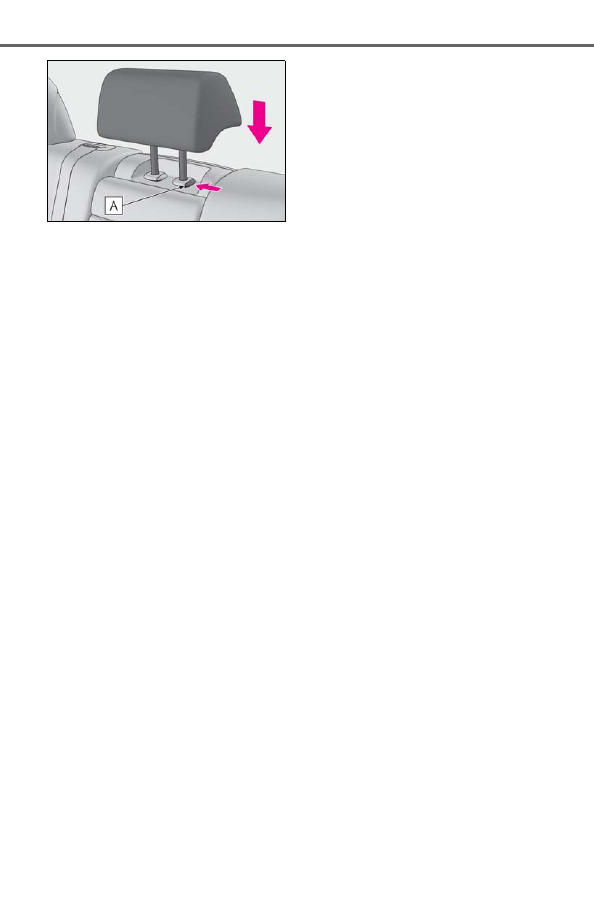

Second center seat (if equipped)

Align the head restraint with the instal-
lation holes and push it down to the
lock position.

Press and hold the lock release button

when lowering the head restraint.

Removing the head restraints

Installing the head restraints

140

3-3. Adjusting the seats

141

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

3-4.Adjusting the steering wheel and mirrors

Operating the switch moves the steer-
ing wheel in the following directions:

Down

Toward the driver

Away from the driver

■

Steering wheel can be adjusted when

The engine switch is in ACC or ON

: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regard-
less of engine switch mode.

■

Power easy access system

The steering wheel and driver’s seat move

in accordance with engine switch mode and

the driver’s seat belt condition. (



P.159)

■

Automatic adjustment of the steering

position

A desired steering position can be entered

to memory and recalled automatically by

the driving position memory system.

(



P.160)

When the engine switch is turned off,
the steering wheel returns to its stowed
position by moving up and away to
enable easier driver entry and exit.

Turning the engine switch to ACC or ON
will return the steering wheel to the origi-
nal position.

To sound the horn, press on or close to
the

mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel while

driving.
Doing so may cause the driver to mis-

handle the vehicle and cause an acci-

dent, resulting in death or serious injury.

Auto tilt away

Sounding the horn

142

3-4. Adjusting the steering wheel and mirrors

: If equipped

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view mir-
ror by moving it up and down.

Responding to the level of brightness
of the headlights of vehicles behind, the
reflected light is automatically
reduced.
Changing automatic anti-glare func-
tion mode ON/OFF

When the automatic anti-glare function is
in ON mode, the indicator

illuminates.

The function will be set to ON mode each
time the engine switch is turned to ON.
Pressing the button turns the function to
OFF mode. (The indicator

also turns

off.)

■

To prevent sensor error

To ensure that the sensors operate prop-

erly, do not touch or cover them.

Inside rear view mirror

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

Adjusting the height of rear view
mirror

WARNING

■

Caution while driving

Do not adjust the position of the mirror

while driving.

Doing so may lead to mishandling of the

vehicle and cause an accident, resulting

in death or serious injury.

Anti-glare function

143

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

: If equipped

Camera indicator

Indicates that the camera is operating nor-
mally.

Icon display area

Displays icons, adjusting gauge, etc.
(



P.145)

Select/adjust button

Press to change the setting of the item you
want to adjust.

Menu button

Press to display the icon display area and
select the item you want to adjust.

Lever

Operate to change between digital mirror
mode and optical mirror mode.

Operate the lever to change between
digital mirror mode and optical mirror
mode.

Digital Rear-view Mirror

The Digital Rear-view Mirror is a
system that uses the camera on the
rear of the vehicle and displays its
image on the display of the Digital
Rear-view Mirror.
The Digital Rear-view Mirror can
be changed between optical mirror
mode and digital mirror mode by
operating the lever.
The Digital Rear-view Mirror
allows the driver to see the rear
view despite obstructions, such as
the head restraints or luggage,
ensuring rear visibility. Also, the
rear seats are not displayed and pri-
vacy of the passengers is enhanced.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Before using the Digital Rear-view

Mirror

●

Make sure to adjust the mirror before

driving. (



P.144)

• Change to optical mirror mode and

adjust the position of the Digital Rear-

view Mirror so that the area behind

your vehicle can be viewed properly.

• Change to digital mirror mode and

adjust the display settings.

●

As the range of the image displayed by

the Digital Rear-view Mirror is differ-

ent from that of the optical mirror,

make sure to check this difference

before driving.

System components

Changing modes

144

3-4. Adjusting the steering wheel and mirrors

Digital mirror mode

Displays an image of the area behind the
vehicle.

will illuminate in this mode.

Optical mirror mode

Turns off the display of the Digital Rear-
view Mirror allows it to be used as an opti-
cal mirror.

■

Digital mirror mode operating condi-

tion

The engine switch is turned to ON.
When the engine switch is changed from

ON to OFF or ACC, the image will disap-

pear after several seconds.

■

When using the Digital Rear-view Mir-

ror in digital mirror mode

●

If it is difficult to see the displayed image

due to light reflected off the Digital Rear-

view Mirror, the camera being dirty or

covered with water droplets, dust, etc., or

if lights of a vehicle behind your vehicle or

the displayed image are bothering you,

change to optical mirror mode.

●

When the back door is open, the Digital

Rear-view Mirror image may not display

properly. Before driving, make sure the

back door is closed.

●

If the display is difficult to see due to

reflected light, close the sunshades for

the moon roof.

●

Any of the following conditions may

occur when driving in the dark, such as at

night. None of them indicates that a mal-

function has occurred.

• Colors of objects in the displayed image

may differ from their actual color.

• Depending on the height of the lights of

the vehicle behind, the area around the

vehicle may appear white and blurry.

• Automatic image adjustment for brighter

surrounding image may cause flickering.

If it is difficult to see the displayed image or

flickering bothers you, change to optical

mirror mode.

●

The Digital Rear-view Mirror may

become hot while it is in digital mirror

mode. This is not a malfunction.

●

Depending on your physical condition or

age, it may take longer than usual to

focus on the displayed image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the dis-

played image when the vehicle is being

driven, as doing so may cause motion

sickness.

■

When the system malfunctions

If the symbol shown in the illustration is dis-

played when using the Digital Rear-view

Mirror in digital mirror mode, the system

may be malfunctioning. The symbol will dis-

appear in a few seconds. Operate the lever,

change to optical mirror mode and have the

vehicle inspected by your Lexus dealer.

■

Adjusting the mirror height

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Change to optical mirror mode,
adjusting the height of the rear view
mirror by moving it up and down.

Adjusting the mirror

145

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

■

Display settings (digital mirror
mode)

Settings of the display in the digital mir-
ror mode, on/off operation of the auto-
matic anti-glare function, etc. can be
changed.

Press the menu button.

The icons will be displayed.

Press the menu button repeatedly
and select the item you want to
adjust.

Press

change the setting.

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

: This is a function for the optical mirror

mode, however, the setting can also be
changed while using the digital mirror
mode.

■

Enabling/disabling the automatic
anti-glare function (optical mirror
mode)

The automatic anti-glare function in the
optical mirror mode can be
enabled/disabled. The setting can be
changed in both the digital mirror
mode and the optical mirror mode.



When using the digital mirror mode



P.145

Icons

Settings

Select to adjust the brightness of
the display.

Select to adjust the area displayed
up/down.

Select to adjust the area displayed
to the left/right.

Select to adjust the angle of the
displayed image.

Select to zoom in/out the dis-
played image.

Select to enable/disable the auto-
matic anti-glare function.

Responding to the brightness of
the headlights of vehicles behind,
the reflected light is automatically
adjusted.
The automatic anti-glare function
is enabled each time the engine
switch is changed to ON.

Select to display

HomeLink

Training Tutorial to

assist customers to train their
garage door opener system.
(



P.433)

Select to change the language of
the Homelink

Training Tutorial.

Icons

Settings

146

3-4. Adjusting the steering wheel and mirrors



When using the optical mirror
mode

Press the menu button.

The icons will be displayed.

Press

enable (ON)/disable (OFF) the
automatic anti-glare function.

The icons will disappear if a button is
not operated for approximately 5 sec-
onds or more.

■

Adjusting the display (digital mirror

mode)

●

The icons will disappear if a button is not

operated for approximately 5 seconds or

more.

●

If the displayed image is adjusted, it may

appear distorted. This is not a malfunc-

tion.

●

If the brightness of the Digital Rear-view

Mirror is set too high, it may cause eye

strain. Adjust the Digital Rear-view Mir-

ror to an appropriate brightness. If your

eyes become tired, change to optical

mirror mode.

●

The brightness of the Digital Rear-view

Mirror will change automatically accord-

ing to the brightness of the area in front of

your vehicle.

■

To prevent the light sensors from mal-

functioning

To prevent the light sensors from malfunc-

tioning, do not touch or cover them.

WARNING

Observe the following precautions.
Failure to do so may result in death or

serious injury.

■

While driving

●

Do not adjust the position of the Digital

Rear-view Mirror or adjust the display

settings while driving.

Stop the vehicle and operate the Digi-

tal Rear-view Mirror control switches.

Failure to do so may cause a steering

wheel operation error, resulting in an

unexpected accident.

●

Always pay attention to the vehicle’s

surroundings.

The size of the vehicles and other

objects may look different when in dig-

ital mirror mode and optical mirror

mode.

When backing up, make sure to

directly check the safety of the area

around your vehicle, especially behind

the vehicle.

Additionally, if a vehicle approaches

from the rear in the dark, such as at

night, the surrounding area may

appear dim.

■

To prevent causes of fire

If the driver continues using the Digital

Rear-view Mirror while smoke or odor

comes from the mirror, it may result in

fire. Stop using the system immediately

and contact your Lexus dealer.

147

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

■

Cleaning the mirror surface

If the mirror surface is dirty, the image
on the display may be difficult to see.
Clean the mirror surface gently using a
soft dry cloth.

■

The camera

The camera for the Digital Rear-view Mir-

ror is located as shown.

If you notice any of the following symptoms, refer to the following table for the likely
cause and the solution.
If the symptom is not resolved by the solution, have the vehicle inspected by your
Lexus dealer.

Cleaning the Digital Rear-view
Mirror

NOTICE

■

To prevent the camera from malfunc-

tioning

●

Observe the following precautions,

otherwise the Digital Rear-view Mirror

may not operate properly.

• Do not strike or hit the camera or sub-

ject it to a strong impact, as the camera

installation position and angle may be

changed.

• Do not remove, disassemble or modify

the camera.

• Do not allow an organic solvent, car

wax, window cleaner or glass coating

to adhere to the camera. If this hap-

pens, wipe it off as soon as possible.

• When applying colored film (including

transparent film) to the rear window

glass, do not apply it to the area in front

of the camera.

If film is applied to the area in front of

the camera, the image from the cam-

era may not display properly.

●

Do not subject the camera to a strong

impact as this could cause a malfunc-

tion.

If this happens, have the vehicle

inspected by your Lexus dealer as

soon as possible.

If you notice any symptoms

148

3-4. Adjusting the steering wheel and mirrors

Symptom

Likely cause

Solution

The image is difficult to see.

The mirror surface is dirty.

Clean the mirror surface gen-
tly, using a soft dry cloth.

Sunlight or headlights are
shining directly into the Digi-
tal Rear-view Mirror.

Change to optical mirror
mode. (If the light is coming
through the moon roof, close
the sunshade.)

• The vehicle is in a dark

area.

• The vehicle is near a TV

tower, broadcasting sta-
tion, electric power plant,
or other location where
strong radio waves or elec-
trical noise may be present.

• The temperature around

the camera is extremely
high/low.

• The ambient temperature is

extremely low.

• It is raining or humid.
• Sunlight or headlights are

shining directly into the
camera lens.

• The vehicle is under fluo-

rescent lights, sodium
lights, mercury lights, etc.

• Exhaust gas is obstructing

the camera.

Change to optical mirror
mode.
(Change back to digital mir-
ror mode when the conditions
have improved.)

Foreign matters such as water
droplets or dust is on the
camera lens.

Have the vehicle inspected by
your Lexus dealer.

149

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

The image is difficult to see.

The luggage in the luggage
compartment is reflected off
the rear window glass and
obstructing the camera.

• Change to optical mirror

mode.

• Move the luggage to a

position where it does not
obstruct the camera or
cover it with a black cloth to
reduce the amount it is
reflected off the rear win-
dow glass.

The rear window glass is
fogged up.

Change to optical mirror
mode.
After defogging the rear win-
dow using the rear window
defogger (



P.388), use the

digital mirror mode again.

The outside of the rear win-
dow glass is dirty.

Use the rear window wiper to
remove dirt.

The inside of the rear window
glass is dirty.

Have the vehicle inspected by
your Lexus dealer.

The image is out of align-
ment.

The back door is not fully
closed.

Fully close the back door.

The camera or its surround-
ing area has received a strong
impact.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

The display is dim and

is displayed.

The system may be malfunc-
tioning.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.

goes off.

Symptom

Likely cause

Solution

150

3-4. Adjusting the steering wheel and mirrors

is displayed.

The Digital Rear-view Mirror
is extremely hot.
(The display will gradually
become more dim. If the tem-
perature continues to
increase, the Digital Rear-
view Mirror will turn off.)

Reducing the cabin tempera-
ture is recommended to
reduce the temperature of
the mirror.
(

will disappear when the

mirror becomes cool.)

does not disappear

even though the mirror is
cool, have the vehicle
inspected by your Lexus
dealer.

The lever cannot be oper-
ated properly.

The lever may be malfunc-
tioning.

Change to optical mirror
mode and have the vehicle
inspected by your Lexus
dealer.
(To change to optical mirror
mode, press and hold the
menu button for approxi-
mately 10 seconds.)

Symptom

Likely cause

Solution

151

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

■

Defogging the mirrors

The outside rear view mirrors can be

cleared using the mirror defoggers. Turn on

the rear window defogger to turn on the

outside rear view mirror defoggers.

(



P.388)

■

Auto anti-glare function

When the anti-glare inside rear view mirror

is set to auto mode, the outside rear view

mirrors will activate in conjunction with the

anti-glare inside rear view mirror to reduce

reflected light. (



P.142, 145)

To select a mirror to adjust, press
the switch.

The indicator comes on.

Left

Right

Pressing the same switch again will put the
switch in neutral.

To adjust the mirror, operate the
switch.

Right

Down

Left

■

Mirror angle can be adjusted when

The engine switch is in ACC or ON.

Outside rear view mirrors

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

WARNING

■

Important points while driving

Observe the following precautions while

driving.

Failing to do so may result in loss of con-

trol of the vehicle and cause an accident,

resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side

mirrors must be extended and prop-

erly adjusted before driving.

■

When the mirror defoggers are oper-

ating

Do not touch the rear view mirror sur-

faces, as they can become very hot and

burn you.

NOTICE

■

If ice should jam the mirror

Do not operate the control or scrape the

mirror face. Use a spray de-icer to free

the mirror.

Adjustment procedure

152

3-4. Adjusting the steering wheel and mirrors

■

Automatic adjustment of the mirror

angle

A desired mirror face angle can be entered

to memory and recalled automatically by

the driving position memory. (



P.160)

■

Using the switch

Press the switch to fold the mirrors.

Press it again to extend them to the original
position.

■

Setting automatic mode

Automatic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.

The indicator

will come on.

Pressing the switch once more will return
to manual mode.

■

Using automatic mode in cold weather

When automatic mode is used in cold

weather, the door mirror could freeze up

and automatic stowing and return may not

be possible. In this event, remove any ice

and snow from the door mirror, then either

operate the mirror using manual mode or

move the mirror by hand.

■

Customization

The automatic mirror folding and extending

operation can be changed. (Customizable

features:



P.558)

When either “L” or “R” of the mirror
select switch is selected, the outside
rear view mirrors will automatically
angle downwards when the vehicle is
reversing in order to give a better view
of the ground.
To disable this function, select neither
“L” nor “R”.

■

Adjusting the mirror angle when
the vehicle is reversing

With the shift lever in R, adjust the mir-
ror angle at a desired position. The
adjusted angle will be memorized and
the mirror will automatically tilt to the
memorized angle whenever the shift
lever is shifted to R from next time.

The memorized downward tilt position of
the mirror is linked to the normal position
(angle adjusted with the shift lever in other

Folding and extending the mir-
rors

WARNING

■

When a mirror is moving

To avoid personal injury and mirror mal-

function, be careful not to get your hand

caught by the moving mirror.

Linked mirror function when
reversing

153

3-4. Adjusting the steering wheel and mirrors

fore
d

riv

than R). Therefore, if the normal position is
changed after adjustment, the tilt position
will also change.
When the normal position is changed,
readjust the angle in reversing.

154

3-5. Opening, closing the windows and moon roof

3-5.Opening, closing the windows and moon roof

The power windows can be opened
and closed using the switches.
Operating the switch moves the win-
dows as follows:

Closing

One-touch closing

Opening

One-touch opening

: To stop the window partway, operate

the switch in the opposite direction.

■

The power windows can be operated

when

The engine switch is in ON.

■

Operating the power windows after

turning the engine off

The power windows can be operated for

approximately 45 seconds even after the

engine switch is turned to ACC or OFF.

They cannot, however, be operated once

either front door is opened.

■

Jam protection function

If an object becomes jammed between the

window and the window frame while the

window is closing, window movement is

stopped and the window is opened slightly.

■

Catch protection function

If an object becomes caught between the

door and window while the window is open-

ing, window movement is stopped.

■

When the window cannot be opened or

closed

When the jam protection function or catch

protection function operates unusually and

the side window cannot be opened and

closed, perform the following operations

with the power window switch of that door.

●

Stop the vehicle. With the engine switch

in ON, within 4 seconds of the jam pro-

tection function or catch protection func-

tion activating, continuously operate the

power window switch in the one-touch

closing direction or one-touch opening

direction so that the side window can be

opened and closed.

●

If the side window cannot be opened and

closed even when performing the above

operations, perform the following proce-

dure for function initialization.

Turn the engine switch to ON.

Pull and hold the power window switch

in the one-touch closing direction and

completely close the side window.

Release the power window switch for a

moment, resume pulling the switch in

the one-touch closing direction, and

hold it there for approximately 6 sec-

onds or more.

Press and hold the power window

switch in the one-touch opening direc-

tion. After the side window is com-

pletely opened, continue holding the

switch for an additional 1 second or

more.

Release the power window switch for a

moment, resume pushing the switch in

the one-touch opening direction, and

hold it there for approximately 4 sec-

onds or more.

Pull and hold the power window switch

in the one-touch closing direction

again. After the side window is com-

pletely closed, continue holding the

switch for a further 1 second or more.

If you release the switch while the window is

moving, start again from the beginning.

Power windows

Opening and closing the power
windows

Content .. 6 7 8 9 ..
