The Parking Support Brake can be
enabled/disabled on the multi-informa-
tion display. All of the Parking Support
Brake functions (static objects,
rear-crossing vehicles, and rear pedes-
trians) are enabled/disabled simultane-
ously.
Use the meter control switches to
enable/disable the parking support
brake. (



P.85)

Press

to select

Press

to select

and then press

When the Parking Support Brake is dis-

abled, the PKSB OFF indicator (



P.76)

illuminates.
To re-enable the system when it was dis-
abled, select

on the multi-information

display, select

and then On. If dis-

abled using this method, the system will not

be re-enabled by turning the power switch

off and then to ON mode.

WARNING

■

When to disable the Parking Support

Brake

In the following situations, disable the

Parking Support Brake as the system

may operate even though there is no

possibility of a collision.

●

When inspecting the vehicle using a

chassis roller, chassis dynamo or free

roller

●

When loading the vehicle onto a boat,

truck or other transport vessel

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or

lowered due to the carried load

●

When equipment that may obstruct a

sensor is installed, such as a towing

eyelet, bumper protector (an addi-

tional trim strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car washing

devices

●

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

●

When the vehicle is driven in a sporty

manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact spare tire

or an emergency tire puncture repair

kit is used

NOTICE

■

If “Parking Support Brake Unavail-

able” is displayed on the multi-infor-

mation display

If this message is displayed immediately

after the power switch is changed to ON

mode, operate the vehicle carefully, pay-

ing attention to your surroundings. It may

be necessary to drive the vehicle for a

certain amount of time before the system

returns to normal. (If the system is not

return to normal after driving for a while,

clean the rear camera lens.)

Enabling/Disabling the Parking
Support Brake

301

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

If the hybrid system output restriction
control or brake control operates, a
buzzer will sound and a message will
be displayed on the Center Display
and multi-information display, to alert
the driver.

Depending on the situation, hybrid system
output restriction control will operate to
either limit acceleration or restrict output
as much as possible.
On vehicles with a head-up display, the
head-up display will display the same mes-
sage as the multi-information display.



Hybrid system output restriction
control is operating (acceleration
restriction)

Acceleration greater than a certain
amount is restricted by the system.
Center Display: No warning displayed
Multi-information display: “Object
Detected Acceleration Reduced”
PKSB OFF indicator: Not illuminated
Buzzer: Does not sound



Hybrid system output restriction
control is operating (output
restricted as much as possible)

The system has determined that stron-
ger-than-normal brake operation is neces-
sary.
Center Display: “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep



Brake control is operating

The system determined that emergency
braking is necessary.
Center Display: “BRAKE!”
Multi-information display: “BRAKE!”
PKSB OFF indicator: Not illuminated
Buzzer: Short beep



Vehicle stopped by system opera-
tion

The vehicle has been stopped by brake
control operation.
Center Display: “Press Brake Pedal”
Multi-information display: “Switch to
Brake” (If the accelerator pedal is not
depressed, “Press Brake Pedal” will be dis-
played.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

If the Parking Support Brake deter-
mines that a collision with a detected
object or pedestrian is possible, the
hybrid system output will be restricted
to restrain any increase in the vehicle
speed. (Hybrid system output restric-
tion control: See figure 2.)
Additionally, if the accelerator pedal
continues to be depressed, the brakes
will be applied automatically to reduce
the vehicle speed. (Brake control: See
figure 3.)



Figure 1 When the PKSB (Parking
Support Brake) is disabled

Displays and buzzers for hybrid
system output restriction con-
trol and brake control

System overview

302

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

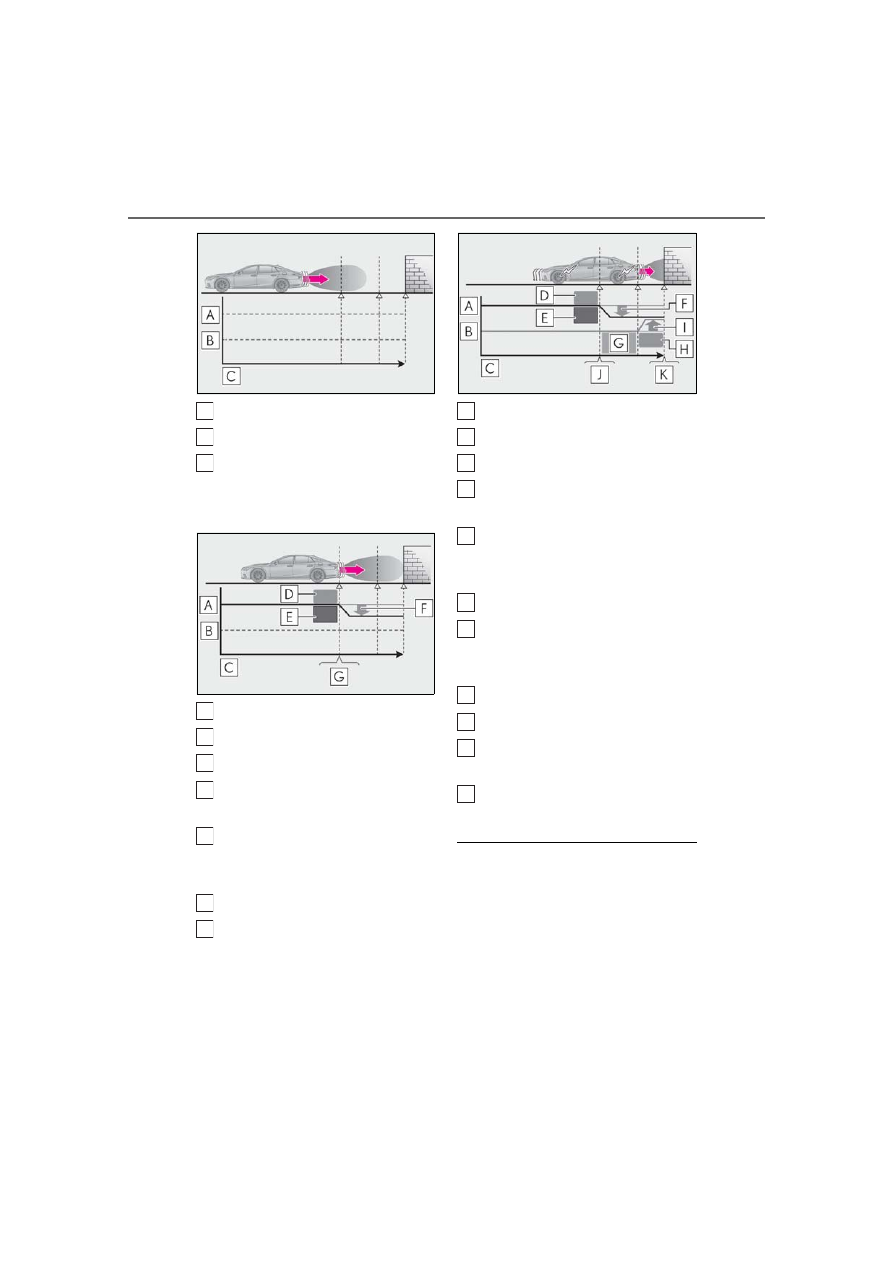

Hybrid system output
Braking force
Time



Figure 2 When hybrid system out-
put restriction control operates



Figure 3 When brake control oper-
ates

Hybrid system output
Braking force
Time
Hybrid system output restriction
control begins operating
System determines that possibility
of collision with detected object is
high
Hybrid system output reduced
System determines that possibility
of collision with detected object is
extremely high
Brake control begins operating
Brake control strength increased
Example: Multi-information display:
“BRAKE!”
Example: Multi-information display:
“Switch to Brake”

■

If the Parking Support Brake has oper-

ated

If the vehicle is stopped due to operation of

the Parking Support Brake, the Parking

Support Brake will be disabled and the

PKSB OFF indicator will illuminate. If the

Parking Support Brake operates unneces-

sarily, brake control can be canceled by

depressing the brake pedal or waiting for

approximately 2 seconds for it to automati-

cally be canceled. Then, the vehicle can be

operated by depressing the accelerator

A
B
C

A
B
C
D

303

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

pedal.

■

Re-enabling the Parking Support Brake

To re-enable the Parking Support Brake

when it has been disabled due to operation

of the Parking Support Brake, either enable

the system again (



P.301), or turn the

power switch off and then back to ON

mode.
Additionally, if any of the following condi-

tions are met, the system will be re-enabled

automatically and the PKSB OFF indicator

will turn off:

●

The P shift position is selected

●

The object is no longer detected in the

traveling direction of the vehicle

●

The traveling direction of the vehicle
changes

: Except when the Parking Support Brake

function (rear pedestrians) operated.

■

If “Parking Support Brake Unavailable”

is displayed on the multi-information

display

●

If this message is displayed only when the

R shift position is selected, the rear cam-

era lens may be dirty. Clean the camera

lens. If this message is displayed when the

shift position is any position other than R,

a sensor on the front or rear bumper may

be dirty. Clean the sensors and their sur-

rounding area on the bumpers.

●

Initialization may not have been per-

formed after a 12-volt battery terminal

was disconnected and reconnected. Ini-

tialize the system. (



P.304)

If this message continues to be displayed

even after initialization, have the vehicle

inspected by your Lexus dealer.

■

If “Parking Support Brake Unavailable”

and “Parking Assist Unavailable” are

displayed on the multi-information dis-

play

Water may be continuously flowing over the

sensor surface, such as in a heavy rain.

When the system determines that it is nor-

mal, the system will return to normal.

■

If “Parking Support Brake Unavailable”

and “Clean Parking Assist Sensor” are

displayed on the multi-information dis-

play

●

A sensor may be covered with water

drops, ice, snow, dirt, etc. Remove the

water drops, ice, snow, dirt, etc., from the

sensor to return the system to normal. If

this message continues to be displayed

even after cleaning the sensor, or is dis-

played even though the sensor is clean,

have the vehicle inspected by your Lexus

dealer.

●

A sensor may be frozen. Once the ice

melts, the system will return to normal.

■

If a 12-volt battery terminal has been

disconnected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 22 mph (35 km/h) or more.

Additionally, for vehicles with the Parking

Support Brake function, turn the steering

wheel fully to the left and right with the vehi-

cle stopped.

304

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

This function will operate in situations
such as the following if an object is
detected in the traveling direction of
the vehicle.



When traveling at a low speed and
the brake pedal is not depressed, or
is depressed late



When the accelerator pedal is
depressed excessively



When the vehicle moves in the unin-
tended direction due to the wrong
shift position being selected

Parking Support Brake func-
tion (static objects)

If the sensors detect a static object,
such as a wall, in the travelling
direction of the vehicle and the sys-
tem determines that a collision may
occur due to the vehicle suddenly
moving forward due to an acciden-
tal accelerator pedal operation, the
vehicle moving the unintended
direction due to the wrong shift
position being selected, or while
parking or traveling at low speeds,
the system will operate to lessen
the impact with the detected static
object and reduce the resulting
damage.

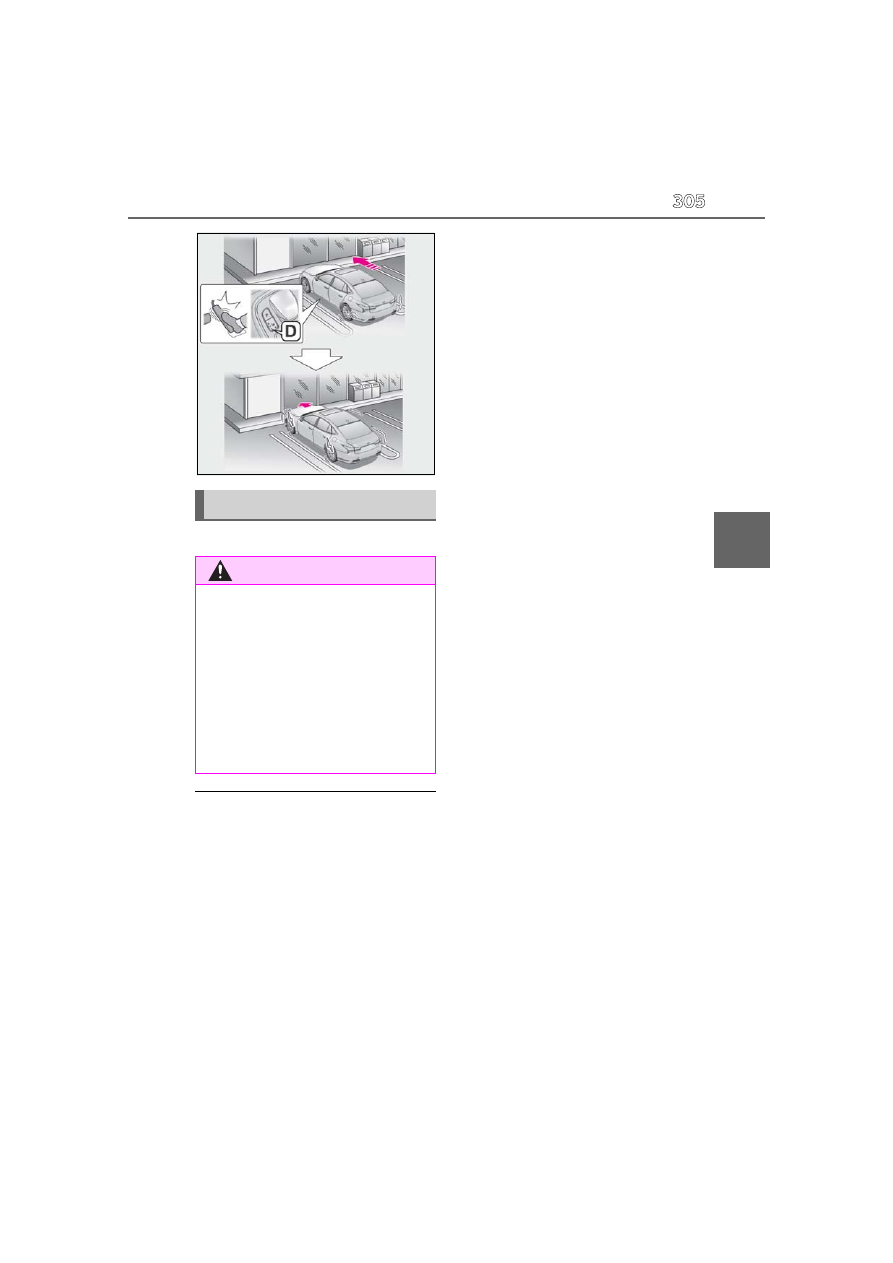

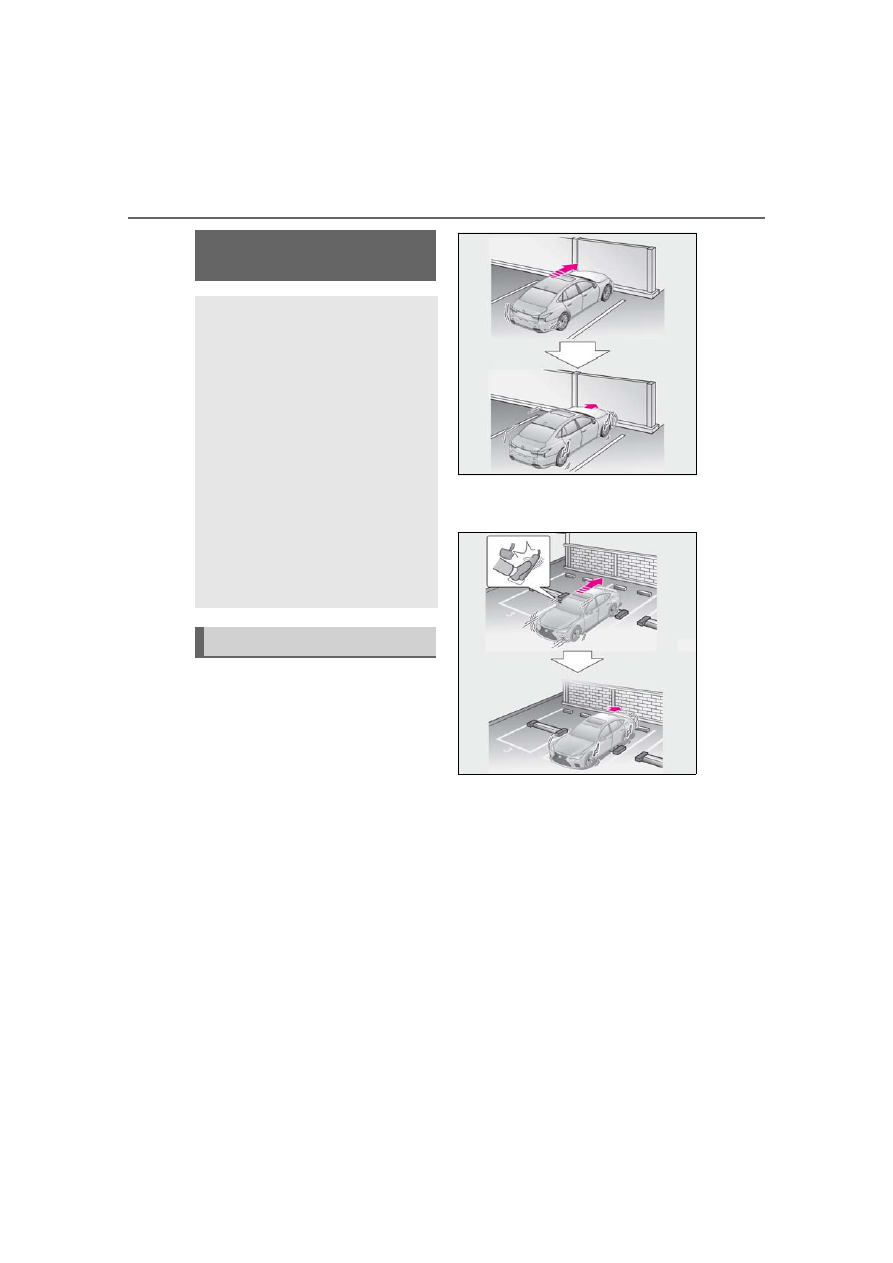

Examples of function operation

305

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving



P.284

■

The Parking Support Brake function

(static object) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated (



P.78)

and all of the following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 9

mph (15 km/h) or less.

• There is a static ob

ject in the traveling

direction of the vehicle and approxi-

mately 6 to 13 ft. (2 to 4 m) away.

• The Parking Support Brake determines

that a stronger-than-normal brake opera-

tion is necessary to avoid a collision.

●

Brake control

• Hybrid system output

restriction control

is operating.

• The Parking Support Brake determines

that an immediate brake operation is nec-

essary to avoid a collision.

■

The Parking Support Brake function

(static objects) will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The system determines that the collision

has become avoidable with normal brake

operation.

• The static object is

no longer approxi-

mately 6 to 13 ft. (2 to 4 m) away from the

vehicle or in the traveling direction of the

vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is

no longer approxi-

mately 6 to 13 ft. (2 to 4 m) away from the

vehicle or in the traveling direction of the

vehicle.

■

Detection range of the Parking Support

Brake function (static objects)

The detection range of the Parking Support

Brake function (static objects) differs from

the detection range of the intuitive parking

assist. (



P.289) Therefore, even if the intu-

itive parking assist detects an object and

provides a warning, the Parking Support

Brake function (static objects) may not start

operating.

■

Situations in which the system may not

operate properly



P.286

■

Situations in which the system may

operate even if there is no possibility of a

collision



P.287

Types of sensors

WARNING

■

To ensure the system can operate

properly



P.285

■

If the Parking Support Brake function

(static objects) operates unnecessar-

ily, such as at a railroad crossing



P.303

■

Notes when washing the vehicle



P.286

306

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

This function will operate in situations
such as the following if a vehicle is
detected in the traveling direction of
the vehicle.



When reversing, a vehicle is
approaching and the brake pedal is
not depressed, or is depressed late



P.278

■

The Parking Support Brake function

(rear-crossing vehicles) will operate

when

The function will operate when the PKSB

OFF indicator is not illuminated (



P.78)

and all of the following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is approximately 9

mph (15 km/h) or less.

• Vehicles which are ap

proaching from the

right or left at the rear of the vehicle at a

traveling speed of approximately 5 mph

(8 km/h) or more.

• The shift position is in R.

• The Parking Support Brake determines

that a stronger than normal brake opera-

tion is necessary to avoid a collision with

an approaching vehicle.

●

Brake control

• Hybrid system output

restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with an

approaching vehicle.

■

The Parking Support Brake function

(rear-crossing vehicles) will stop operat-

ing when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

■

Detection area of the Parking Support

Brake function (rear-crossing vehicles)

The detection area of the Parking Support

Parking Support Brake func-
tion (rear-crossing vehicles)

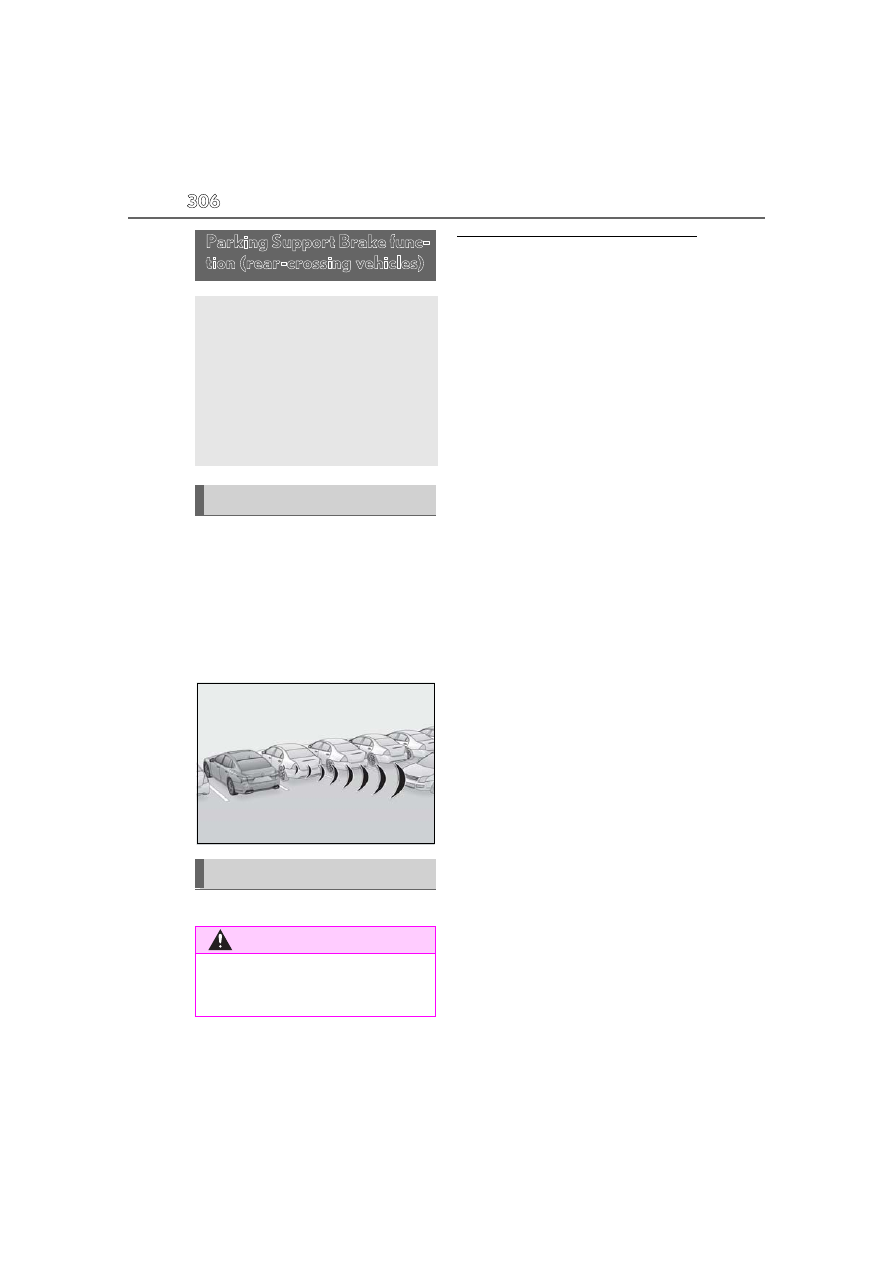

If a rear radar sensor detects a vehi-
cle approaching from the right or
left at the rear of the vehicle and the
system determines that the possi-
bility of a collision is high, this func-
tion will perform brake control to
reduce the likelihood of an impact
with the approaching vehicle.

Examples of function operation

Types of sensors

WARNING

■

To ensure the system can operate

properly



P.278

307

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

Brake function (rear-crossing vehicles) dif-

fers from the detection area of the RCTA

function (



P.294). Therefore, even if the

RCTA function detects a vehicle and pro-

vides an alert, the Parking Support Brake

function (rear-crossing vehicles) may not

start operating.

■

Situations in which the system may not

operate properly



P.295

■

Situations in which the system may

operate even if there is no possibility of a

collision



P.296

When a pedestrian is detected behind
the vehicle while backing up, the brake
pedal is not depressed or is depressed
late.

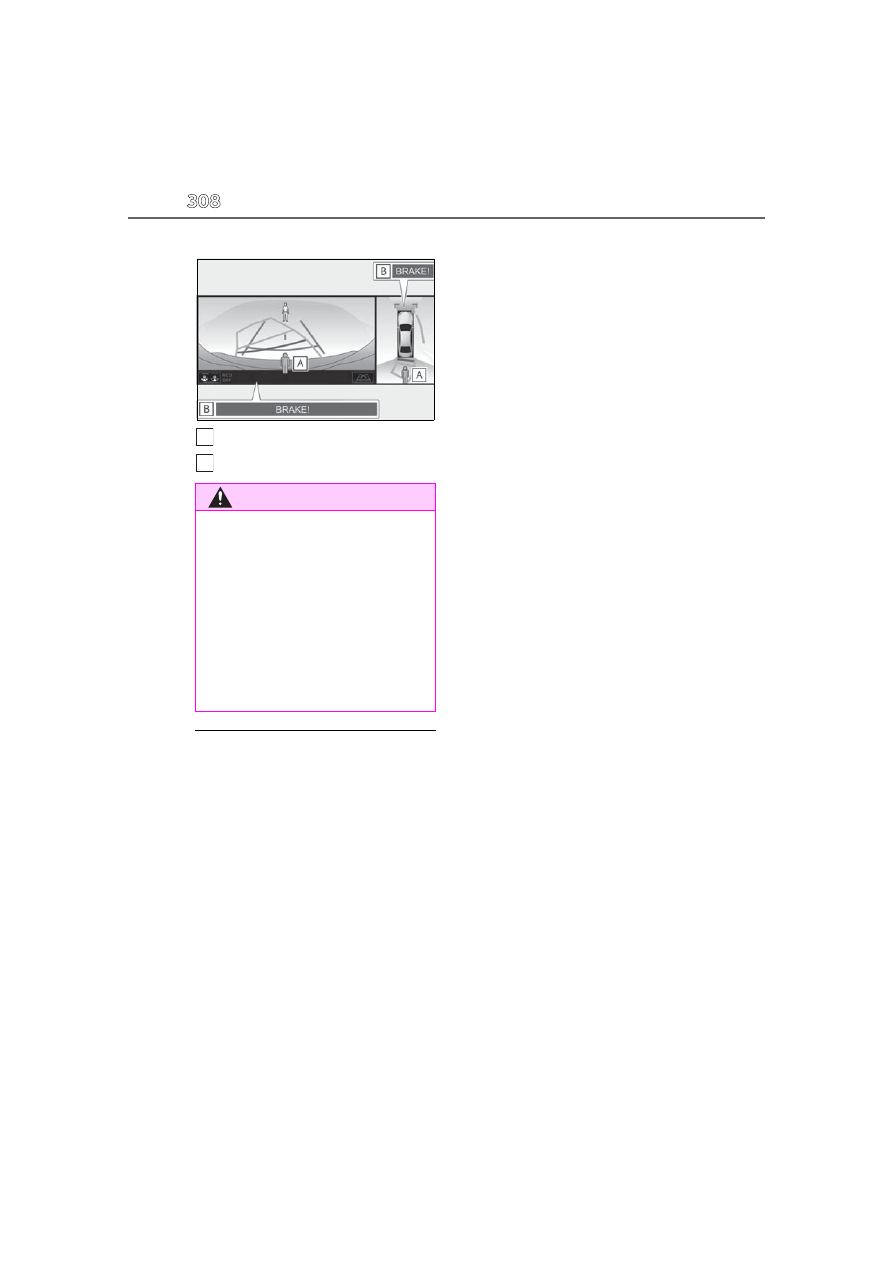

Displays a message to urge the driver
to take evasive action when a pedes-
trian is detected in the detection area
behind the vehicle. (A message will
also be displayed on the multi-informa-
tion display and head-up display [if

Parking Support Brake func-
tion (rear pedestrians)

If the rear camera sensor detects a
pedestrian behind the vehicle while
backing up and the system deter-
mines that the possibility of collid-
ing with the detected pedestrian is
high, a buzzer will sound. If the sys-
tem determines that the possibility
of colliding with the detected
pedestrian is extremely high, the
brakes will be applied automatically
to help reduce the impact of the
collision.

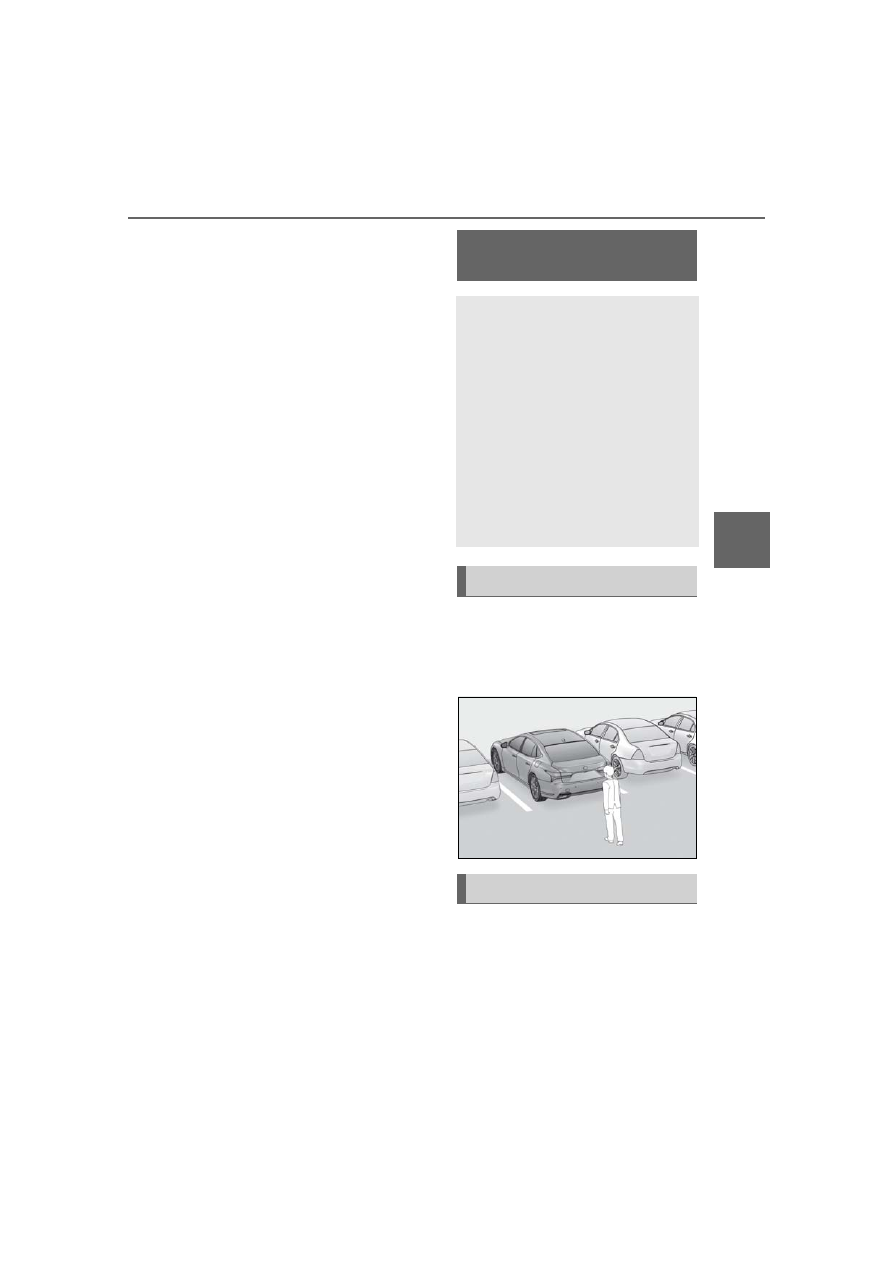

Examples of system operation

Center Display

308

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

equipped].)

Pedestrian detection icon
Brake reminder

■

Parking Support Brake function (rear

pedestrians) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated (



P.78)

and all of the following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is 9 mph (15 km/h) or

less.

• The shift position is in R.

• The rear camera sensor detects a pedes-

trian behind the vehicle while backing up

and the system determines that the possi-

bility of colliding with the detected

pedestrian is high.

●

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with a

pedestrians.

■

The Parking Support Brake function

(rear pedestrians) will stop operating

when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• The pedestrian is no longer detected

behind your vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The pedestrian is no longer detected

behind your vehicle.

■

Re-enabling the Parking Support Brake

function (rear pedestrians)



P.304

■

Detection area of the Parking Support

Brake function (rear pedestrians)

The detection area of the Parking Support

Brake function (rear pedestrians) differs

from the detection area of the RCD func-

tion (



P.298). Therefore, even if the RCD

function detects a pedestrian and provides

an alert, the Parking Support Brake function

(rear pedestrians) may not start operating.

■

Situations in which the system may not

operate properly



P.298

■

Situations in which the system may

operate unexpectedly



P.299

WARNING

■

If the Parking Support Brake function

(rear pedestrians) operates unneces-

sarily

Depress the brake pedal immediately

after the Parking Support Brake function

(rear pedestrians) operates. (Operation

of the function is canceled by depressing

the brake pedal.)

■

Correct use of the Parking Support

Brake function (rear pedestrians)



P.297

309

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

: If equipped

The Advanced Park is a system which
assists in backing into or parallel park-
ing in a spot selected on the Center
Display, or departing from a parking
space, by delivering operation guid-
ance through displays, and buzzer
operation, and changing the shift posi-
tion, operating the steering wheel,
accelerator pedal, and brake pedal.
Additionally, the panoramic view moni-
tor

can display the area in front,

behind, and from above the vehicle,
helping confirm the condition of the
area around the vehicle.

Depending on the condition of the road
surface or the vehicle, the distance
between the vehicle and a parking space,
etc., it may not be possible to assist in park-
ing in the target space.

: For details on the panoramic view moni-

tor refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

■

Perpendicular parking function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in
the parking space. (



P.317)

■

Parallel parking function

Assistance is provided from the posi-
tion the vehicle is stopped near the tar-
get parking space until the vehicle is in
the parking space. (



P.319)

■

Parallel parking departure func-
tion

Assistance is provided from the parked
position until the vehicle is in a position
where you can easily depart from the
parking space. (



P.322)

■

Memory function

Assistance is provided until the vehicle
is guided into a previously registered
parking space. (



P.324)

Lexus Teammate Advanced
Park

Description of functions

Functions

WARNING

■

Cautions regarding the use of the sys-

tem

The recognition and control capabilities

for this system are limited. Do not overly

rely on this system. The driver is always

responsible for paying attention to the

vehicle’ surroundings and driving safely.

●

As with a normal vehicle, take care to

observe your surroundings while the

vehicle is moving.

●

Always pay attention to the vehicle’s

surroundings while the system is oper-

ating.

●

When parking, make sure that the

vehicle can be parked in the target

parking space before beginning oper-

ation.

310

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

WARNING

●

The Advanced Park is a system which

provides assistance in parking in a set

parking space. Depending on the con-

dition of the road surface or the vehi-

cle, the distance between the vehicle

and a parking space, etc., it may not be

possible to detect a parking space or

the system may not be able to provide

assistance to the point the vehicle is

fully parked.

●

The Advanced Park is a system which

supports the driver when parking and

leaving a parking space. While check-

ing the safety of the area around the

vehicle, make sure to depress the

brake pedal as necessary to slow or

stop the vehicle.

●

This system will guide the vehicle to

appropriate positions for changing the

direction of travel, however, if you feel

that the vehicle is approaching too

close to an adjacent parked vehicle at

any time, depress the brake pedal and

change the shift position. However, if

this is performed, the number of times

the vehicle changes direction may

increase, and the vehicle may be

parked at an angle.

●

As following objects may not be

detected, make sure to check the

safety of the area around your vehicle

and depress the brake pedal to stop

the vehicle if it may collide with an

object.

• Thin objects such as wire, fences, rope,

etc.

• Cotton, snow and other materials that

absorb sound waves

• Sharply-angled objects

• Low objects (curb stones, parking

blocks, etc.)

• Tall objects with upper sections that

protrude outward

●

Even if there is an object in the target

parking space, it may not be detected

and assistance may be performed.

●

While the system is operating, if it is

likely that your vehicle will collide with

a nearby vehicle, parking block, object,

or person, depress the brake pedal to

stop the vehicle and press the

Advanced Park main switch to disable

the system.

●

Never use only the Center Display to

view the area behind the vehicle. The

image displayed may differ than the

actual situation. Using only the screen

when backing up may lead to an acci-

dent, such as a collision with another

vehicle. When backing up, make sure

to look directly or use the mirrors to

check the safety of the area around

your vehicle, especially behind the

vehicle.

●

When the ambient temperature is

extremely low, the screen may appear

dark or the displayed image may

become unclear. Also, as moving

objects may appear distorted or may

not be able to be seen on the screen,

make sure to directly check the safety

of the area around your vehicle.

●

As the steering wheel will turn while

this system is operating, pay attention

to the following.

• Be careful so that a necktie, scarf, or

arm does not get caught. Keep your

upper body away from the steering

wheel. Also, keep children away from

the steering wheel.

• Long fingernails may be caught and

when the steering wheel is rotating,

leading to injury.

• In an emergency, depress the brake

pedal to stop the vehicle, and then

press the Advanced Park main switch

to disable the system.

●

Do not allow anyone to put their hands

outside of a window while this system is

operating.

311

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

Cameras and sensors are used to
detect parked vehicles, making it eas-
ier to identify parking spaces.



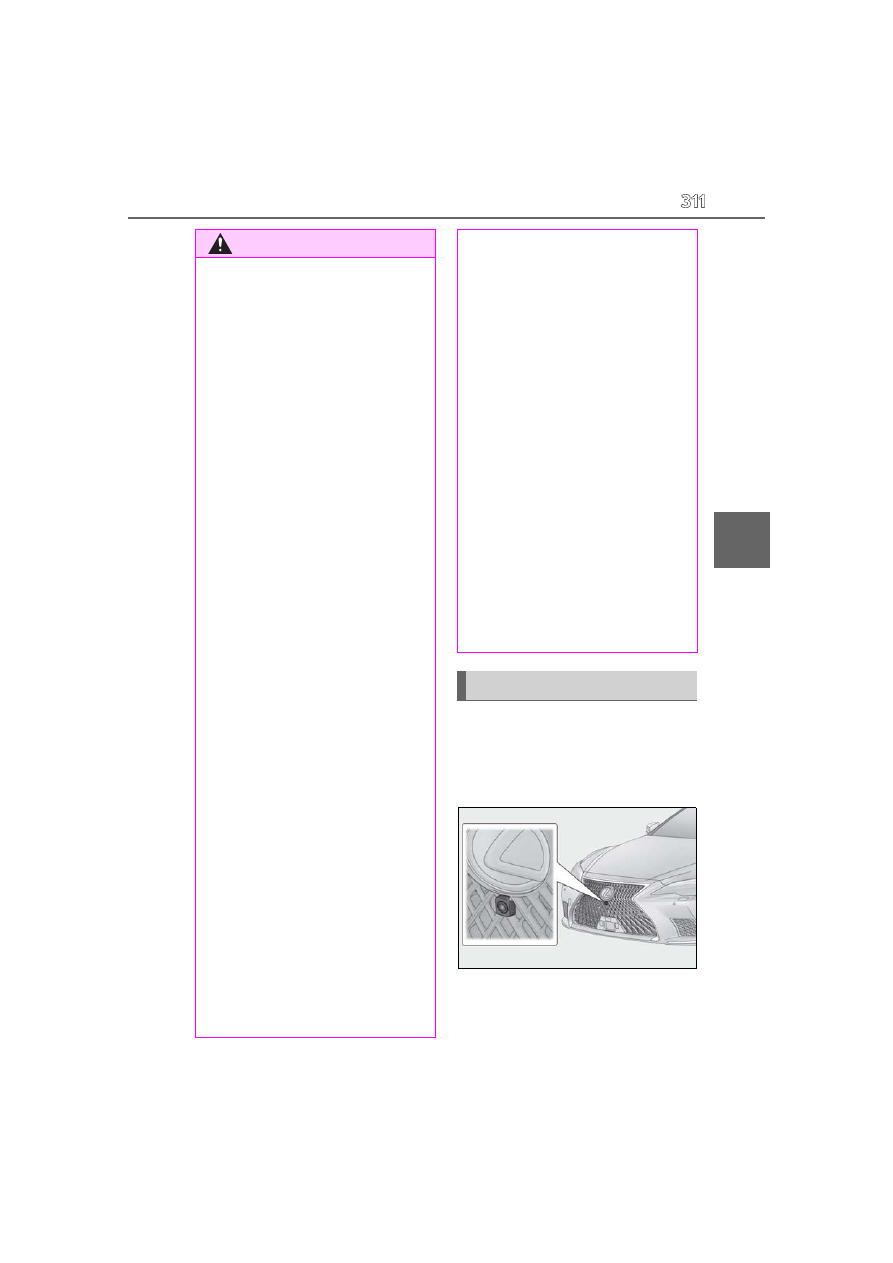

Front camera

WARNING

■

To ensure correct operation of the

system

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly leading to an accident.

●

Do not use this system in situations

such as the following:

• When in areas other than common

parking spaces

• When the surface of the parking space

is sand or gravel and is not clearly

defined with parking space lines

• When the parking space is not level,

such as when on a slope or has differ-

ences in height

• Mechanical parking system

• Parking lot with a device which raises

to contact the bottom of the vehicle

• When the road surface is frozen, slick,

or covered with snow

• When it is extremely hot and the

asphalt is melting

• When there is an obje

ct in front of the

vehicle

• When there is an object between your

vehicle and the target parking spot or

within the target parking spot (within

the displayed blue box)

• When there is a gutter between your

vehicle and the target parking space

or within the target parking spot

(within the displayed blue box)

• When there is a hole

or gutter in the

departure direction

• When in high pedestrian or vehicle

traffic areas

• When the parking space is in a loca-

tion that is difficult to park in (too nar-

row for your vehicle, etc.)

• When images are unclear due to dirt

or snow attached to the camera lens,

light being shined into the camera or

shadows

• When the doors are not completely

closed

• When the trunk is not completely

closed

●

In situations such as the following, it

may not be possible for the system to

provide assistance to the selected

parking spot:

• When a pedestrian or passing vehicle

is detected during assistance

• When something is incorrectly

detected as a parking line (light, reflec-

tions from a building, difference in

height on the parking surface, a gutter,

painted road lines, redrawn lines, etc.)

If the vehicle deviates greatly from the set

parking space in any situation other than

the above, have the vehicle inspected by

your Lexus dealer.

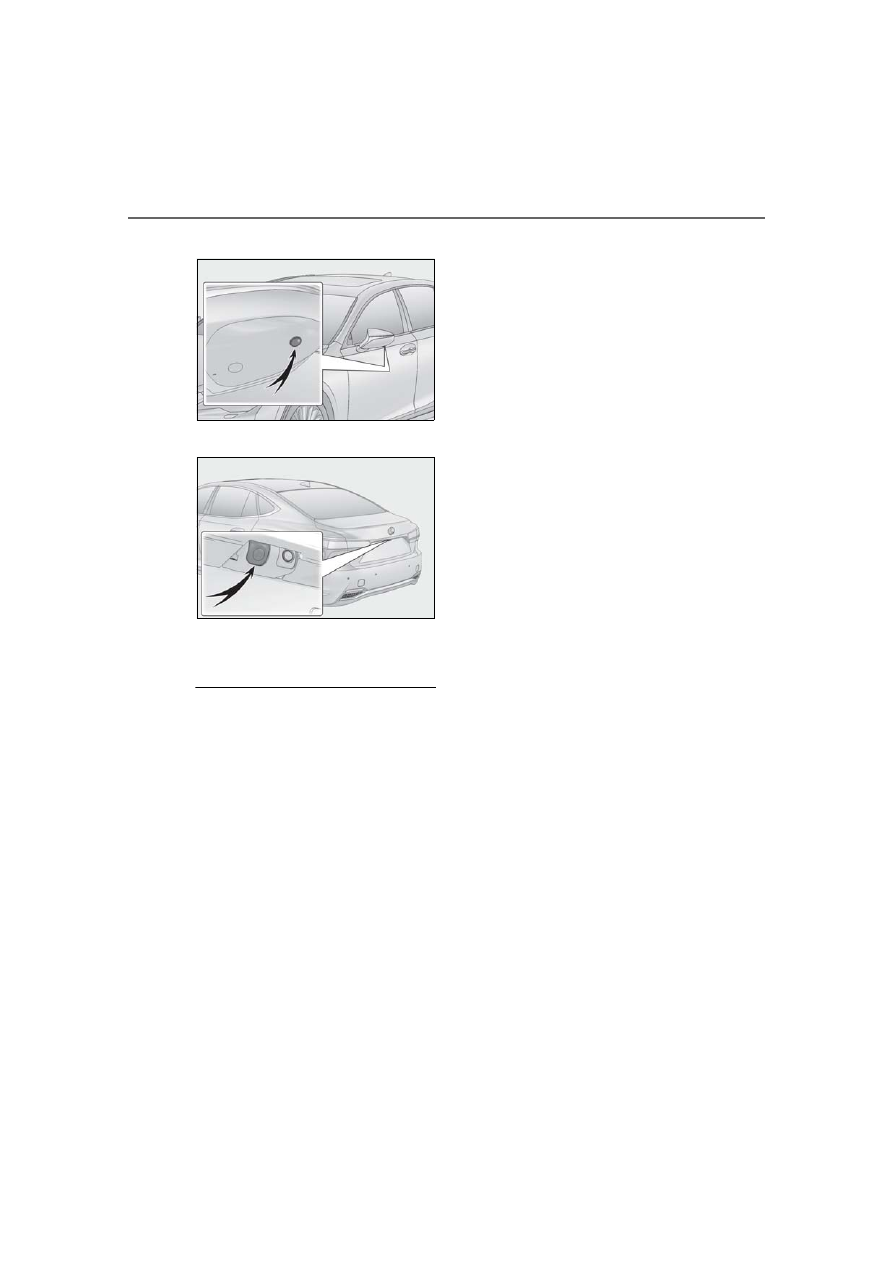

Sensors used by Advanced Park

312

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual



Side cameras



Rear camera



Sensors



P.284

■

Camera images

As special cameras are used, the colors in

displayed images may differ from the actual

color.

■

Precautions for use

For details on the following, refer to “Pan-

oramic view monitor (Vehicles equipped

with Lexus Teammate Advanced Park)” of

“Peripheral monitoring system” in the

“NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

●

Displayable range of the screens

●

Cameras

●

Differences between displayed images

and the actual road

●

Differences between displayed images

and the actual objects

■

Detection range of the sensors

●

If a parked vehicle is behind the target

parking space and the distance between

it and the vehicle becomes far, it may no

longer be able to be detected. Depend-

ing on shape or condition of a parked

vehicle, the detection range may become

short or the vehicle may not be detected.

●

Objects other than parked vehicles, such

as columns, walls, etc., may not be

detected. Also, if they are detected, they

may cause the target parking space to be

misaligned.

■

Situations in which white parking space

lines may not be recognized properly

●

In situations such as the following, park-

ing space lines on the road surface may

not be detected:

• When the parking space does not use

white lines (parking space boundaries

are marked with rope, blocks, etc.)

• When the parking space lines are faded

or dirty, making them unclear

• When the road surface is bright, such as

concrete, and the contrast between it and

the white parking space lines is small

• When the parking space lines are any

color other than yellow or white

• When the area surrounding the parking

space is dark, such as at night, in an

underground parking lot, parking garage,

etc.

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the sun is shining directly into a

camera, such as in the early morning or

evening

• When the parking space is covered with

snow or de-icing agent

• When there marks from repairs or other

marks on the road surface, or there is a

traffic bollard, or other object on the road

surface

• When the color or brightness of the road

surface is uneven

• When a camera has been splashed by

hot or cold water and the lens has fogged

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

• When a camera lens is dirty or covered

with water droplets

313

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

●

In situations such as the following, the tar-

get parking space may not be recognized

correctly:

• When there marks from repairs or other

marks on the road surface, or there is a

parking block, traffic bollard, or other

object on the road surface

• When it is raining or has rained and the

road surface is wet and reflective or there

are puddles

• When the area around the vehicle is dark

or backlit

• When the color or brightness of the road

surface is uneven

• When the parking space is on a slope

• When there are diagonal lines (access

aisle) near the parking space

• When the appearance of the parking

space is affected by the shadow of a

parked vehicle (such as shadows from the

grille, side step, etc.)

• When accessories which obstruct the

view of the camera are installed

• When the parking space lines are faded

or dirty, making them unclear

• When the appearance of the parking

space is affected by the shadow of the

vehicle or trees

■

Sensor detection information



P.286

■

Objects which the sensor may not be

properly detected



P.286

■

Situations in which the sensor may not

operate properly



P.286

■

Situations in which parking assitance

may not operate even if there is no pos-

sibility of a collision



P.287

Press the Advanced Park main switch.

If the switch is pressed while assistance is
being performed, the assistance will be
canceled.

WARNING

■

Precautions for the cameras and sen-

sors

●

Due to the characteristics of the cam-

era lens, the position of and distance to

people and objects displayed on the

screen may differ from the actual situa-

tion. For details, refer to “Panoramic

view monitor (Vehicles equipped with

Lexus Teammate Advanced Park)” of

“Peripheral monitoring system” in the

“NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

●

Make sure to observe the precautions

for using the intuitive parking assist

(



P.285), otherwise a sensor may

not operate correctly, possibly leading

to an accident.

●

In situations such as the following, the

sensors may not operate correctly,

possibly leading to an accident. Pro-

ceed carefully.

• When there is a parked vehicle next to

the target parking space, if the dis-

played target parking space is far from

the actual target parking space, a sen-

sor may be misaligned. Have the vehi-

cle inspected by your Lexus dealer.

• Do not install any accessories near the

detection area of the sensors.

Turning the Advanced Park
on/off

314

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

Operating conditions

Assistance will begin when all of the follow-

ing conditions are met:

●

The brake pedal is depressed

●

The vehicle is stopped

●

The driver’s seat belt is fastened

●

The steering wheel is not being operated

●

The accelerator pedal is not depressed

●

All of the doors and the trunk are closed

●

The outside rear view mirrors are not

folded

●

The parking brake is not engaged

●

The dynamic radar cruise control with

full-speed range are not operating

●

ABS, VSC, TRAC, PCS and PKSB are

not operating

●

The vehicle is not on a steep slope

●

The VSC and TRAC are not turned off

If assistance cannot be started, check the

message displayed on the Center Display

(



P.330)

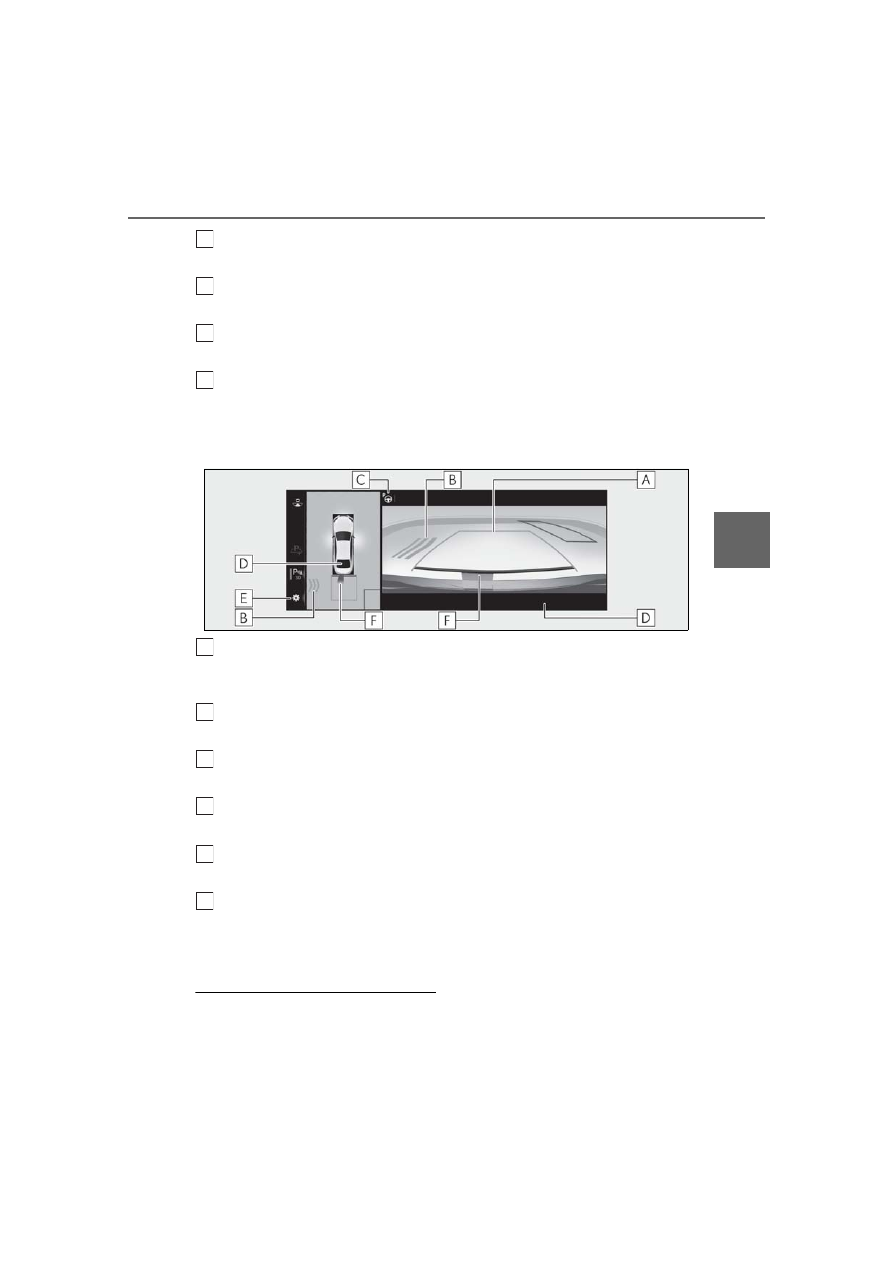

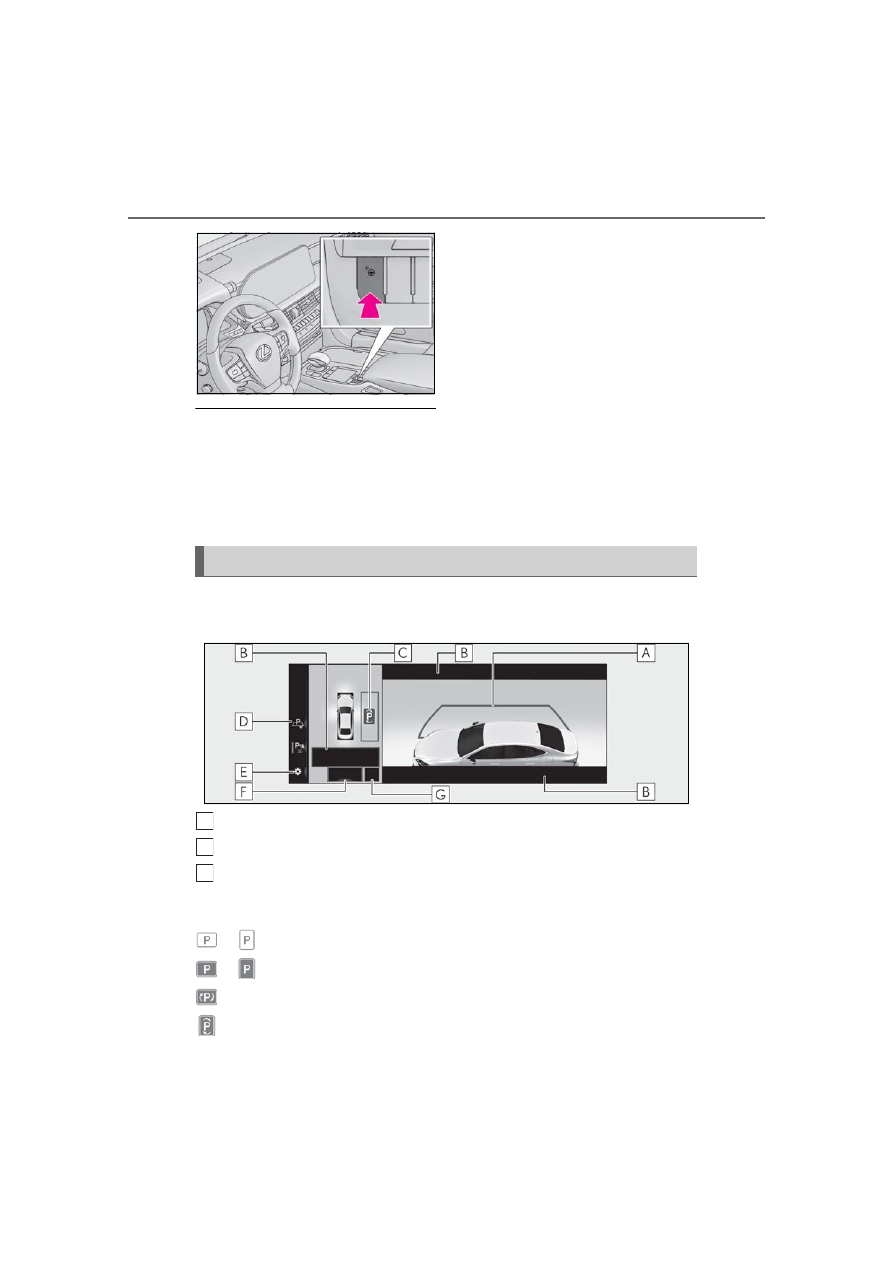

Guidance screens are displayed on the Center Display.



Guidance screen (When assistance starts)

Target parking space box (blue)
Advice display
Parking type change button

If multiple switches are displayed, depending on the condition of the switch its function dif-
fers as follows.

: Change the target to another parking space.

: Select the current target parking space.

: Select to change to the parallel parking function

: Select to change to the perpendicular parking function

Guidance screens

A
B
C

315

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

Registration button

Select to begin registering a parking space.

Customize setting button

Select to display the Advanced Park setting screen. (



P.329)

“Start” button

Select to start parking assistance.

“MODE” button

Select to change between the memory function and the perpendicular parking function
and parallel parking function. (



P.326)



Guidance screen (When reversing)

Guide lines (yellow and red)

Display points from the center of the edge of the front or rear bumper to the target stop-
ping position (yellow)* and approximately 1 ft. (0.3 m) (red) from the vehicle.

RCTA (Rear Cross Traffic Alert)/RCTA icon



P.294

Operation icon

Displayed when the Advanced Park is operating.

Brake control operation display

“BRAKE!” is displayed.

Customize setting button

Select to display the Advanced Park setting screen. (



P.329)

Intuitive parking assist display
