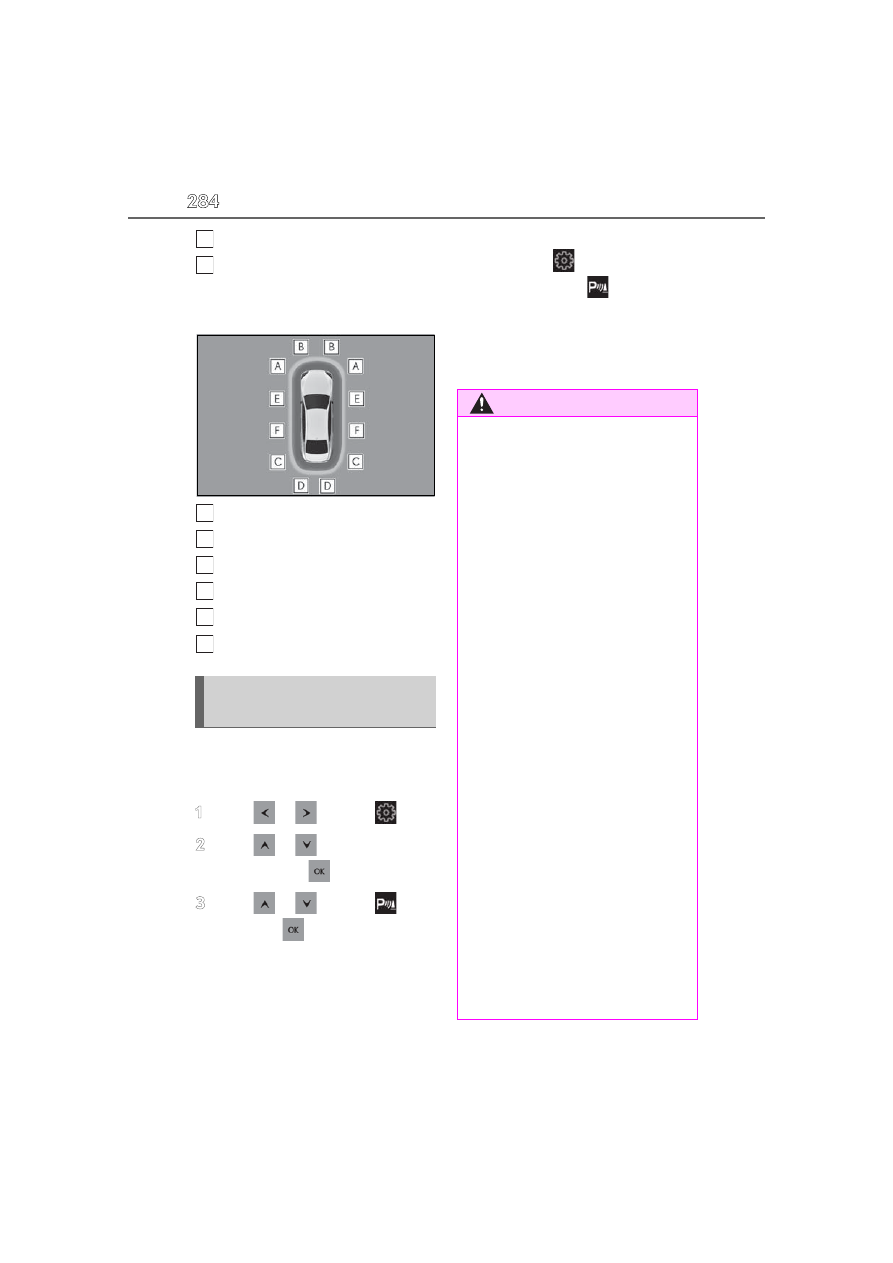

Rear corner sensor detection
Rear center sensor detection



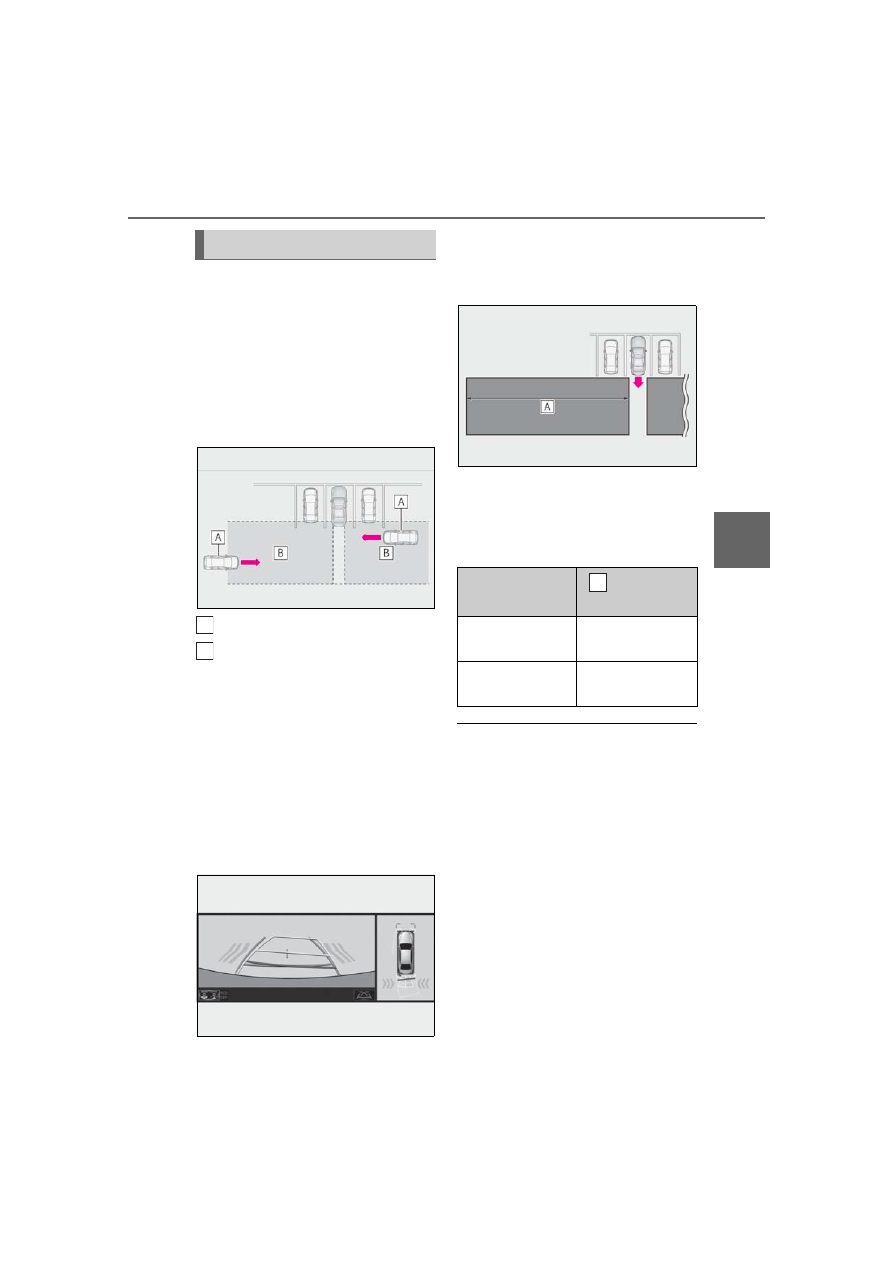

Center Display (vehicles with
Advanced Park)

Front corner sensor detection
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
Front side sensor detection
Rear side sensor detection

Use the meter control switches to
enable/disable the intuitive parking
assist. (



P.85)

Press

to select

Press

to select “PKSA”

and then press

Press

to select

and

then press

When the intuitive parking assist func-
tion is disabled, the intuitive parking
assist OFF indicator (



P.76) illumi-

nates.

To re-enable the system when it was
disabled, select

on the multi-infor-

mation display, select

and then On.

If disabled using this method, the sys-
tem will not be re-enabled by turning
the power switch off and then to ON
mode.

Turning intuitive parking assist
on/off

WARNING

■

Cautions regarding the use of the sys-

tem

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’ surroundings and driving

safely.

■

To ensure the system can operate

properly

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not damage the sensors, and

always keep them clean.

●

Do not attach a sticker or install an

electronic component, such as a back-

lit license plate (especially fluorescent

type), fog lights, fender pole or wire-

less antenna near a radar sensor.

●

Do not subject the surrounding area of

the sensor to a strong impact. If sub-

jected to an impact, have the vehicle

inspected by your Lexas dealer. If the

front or rear bumper needs to be

removed/installed or replaced, con-

tact your Lexas dealer.

●

Do not modify, disassemble or paint

the sensors.

●

Do not attach a license plate cover.

●

Keep your tires properly inflated.

285

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

■

The system can be operated when

●

The power switch is in ON mode.

●

Intuitive parking assist function is on.

●

The vehicle speed is less than about 6

mph (10 km/h).

●

A shift position other than P is selected.

■

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (



P.283)

■

If “Clean Parking Assist Sensor” is dis-

played on the multi-information display

A sensor may be covered with water drops,

ice, snow, dirt, etc. Remove the water drops,

ice, snow, dirt, etc., from the sensor to return

the system to normal.
If a sensor is dirty, the position of the dirty

sensor will be shown on the display.
Due to ice forming on a sensor at low tem-

peratures, a warning message may be dis-

played or the sensor may not be able to

detect an object. Once the ice melts, the

system will return to normal.

■

If “Parking Assist Unavailable” is dis-

played on the multi-information display

Water may be continuously flowing over the

sensor surface, such as in a heavy rain.

When the system determines that it is nor-

mal, the system will return to normal.

■

Sensor detection information

●

The following situations may occur

during use.

• The sensors may be able to only detect

objects near the front and rear bumpers.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the buzzer if

buzzers for other systems are sounding.

■

Objects which the system may not be

properly detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials that

absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

■

Situations in which the system may not

operate properly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

WARNING

■

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

●

Failing to observe the warnings above.

●

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

●

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

●

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

286

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

ticular instances where this may occur are

listed below.

●

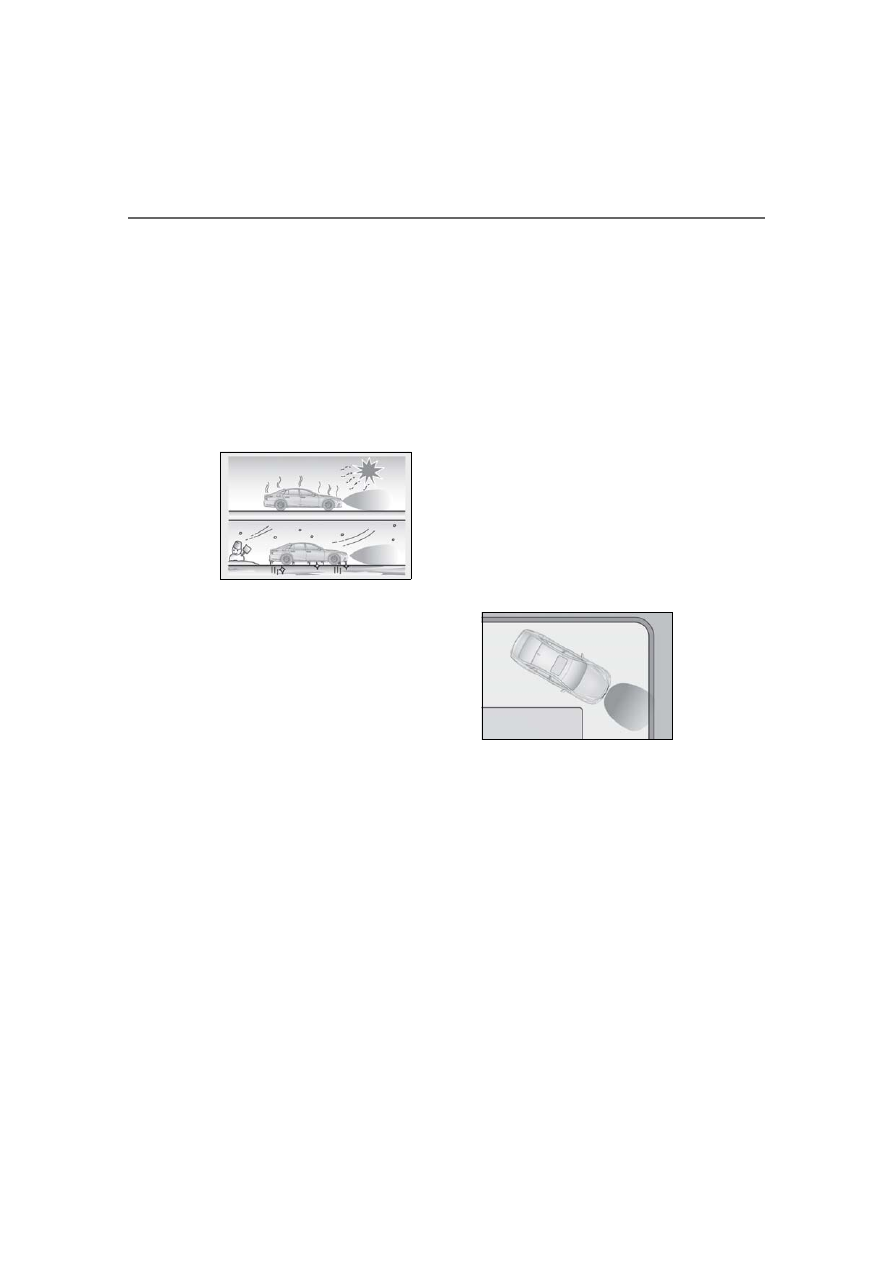

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

●

When a sensor or the area around a sen-

sor is extremely hot or cold.

●

On an extremely bumpy road, on an

incline, on gravel, or on grass.

●

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

●

A sensor is coated with a sheet of spray

or heavy rain.

●

If objects draw too close to the sensor.

●

When a pedestrian is wearing clothing

that does not reflect ultrasonic waves (ex.

skirts with gathers or frills).

●

When objects that are not perpendicular

to the ground, not perpendicular to the

vehicle traveling direction, uneven, or

waving are in the detection range.

●

Strong wind is blowing

●

When driving in inclement weather such

as fog, snow or a sandstorm

●

When an object that cannot be detected

is between the vehicle and a detected

object

●

If an object such as a vehicle, motorcycle,

bicycle or pedestrian cuts in front of the

vehicle or runs out from the side of the

vehicle

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning

●

When a tire chains, compact spare tire or

an emergency tire puncture repair kit is

used

■

Situations in which the system may

operate even if there is no possibility of a

collision

In some situations, such as the following, the

system may operate even though there is no

possibility of a collision.

●

When driving on a narrow road

●

When driving toward a banner, flag,

low-hanging branch or boom barrier

(such as those used at railroad crossings,

toll gates and parking lots)

●

When there is a rut or hole in the surface

of the road

●

When driving on a metal cover (grating),

such as those used for drainage ditches

●

When driving up or down a steep slope

●

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road

●

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is coated with a sheet of spray

or heavy rain

287

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

●

When driving in inclement weather such

as fog, snow or a sandstorm

●

When strong winds are blowing

●

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

If the orientation of a sensor has been

changed due to a collision or other

impact

●

The vehicle is approaching a tall or

curved curb

●

Driving close to columns (H-shaped steel

beams, etc.) in multi-story parking

garages, construction sites, etc.

●

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning

●

On an extremely bumpy road, on an

incline, on gravel, or on grass

●

When a tire chains, compact spare tire or

an emergency tire puncture repair kit is

used

■

If a 12-volt battery terminal has been

disconnected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 22 mph (35 km/h) or more.

Additionally, for vehicles with the Parking

Support Brake function, turn the steering

wheel fully to the left and right with the vehi-

cle stopped.

■

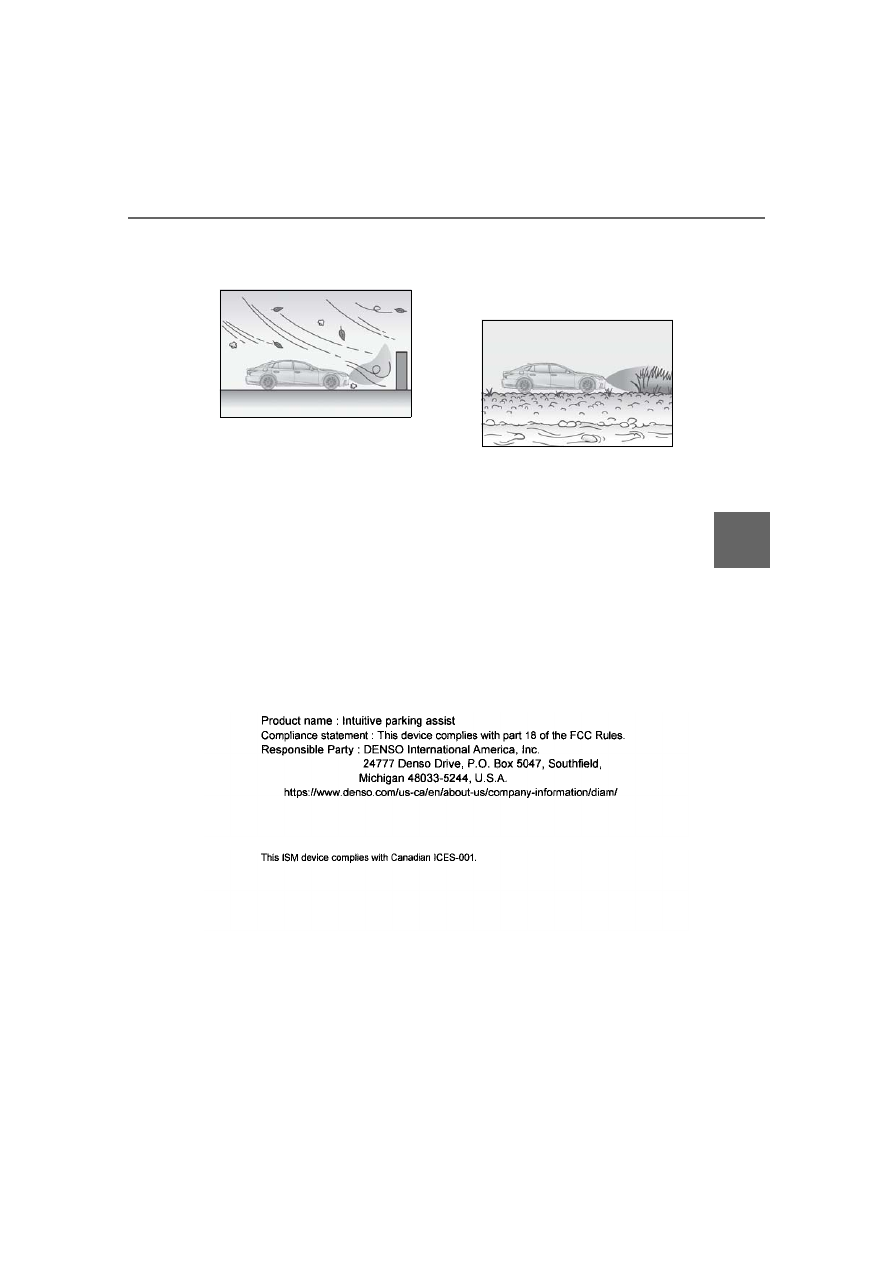

Certification

288

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

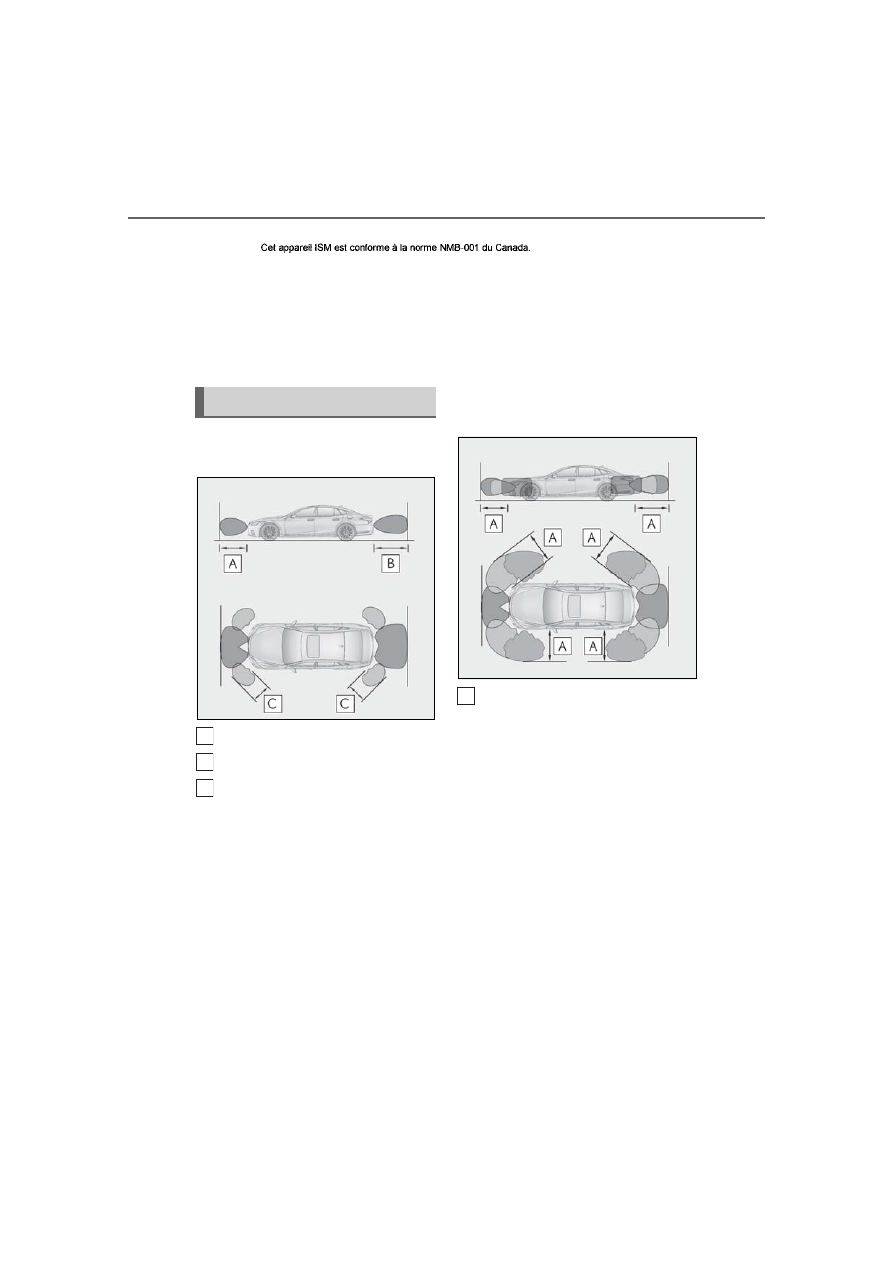

Detection range of the sensors
(vehicles without Advanced Park)

Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect objects that are extremely close to
the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

■

Detection range of the sensors
(vehicles with Advanced Park)

Approximately 6.6 ft. (200 cm)

■

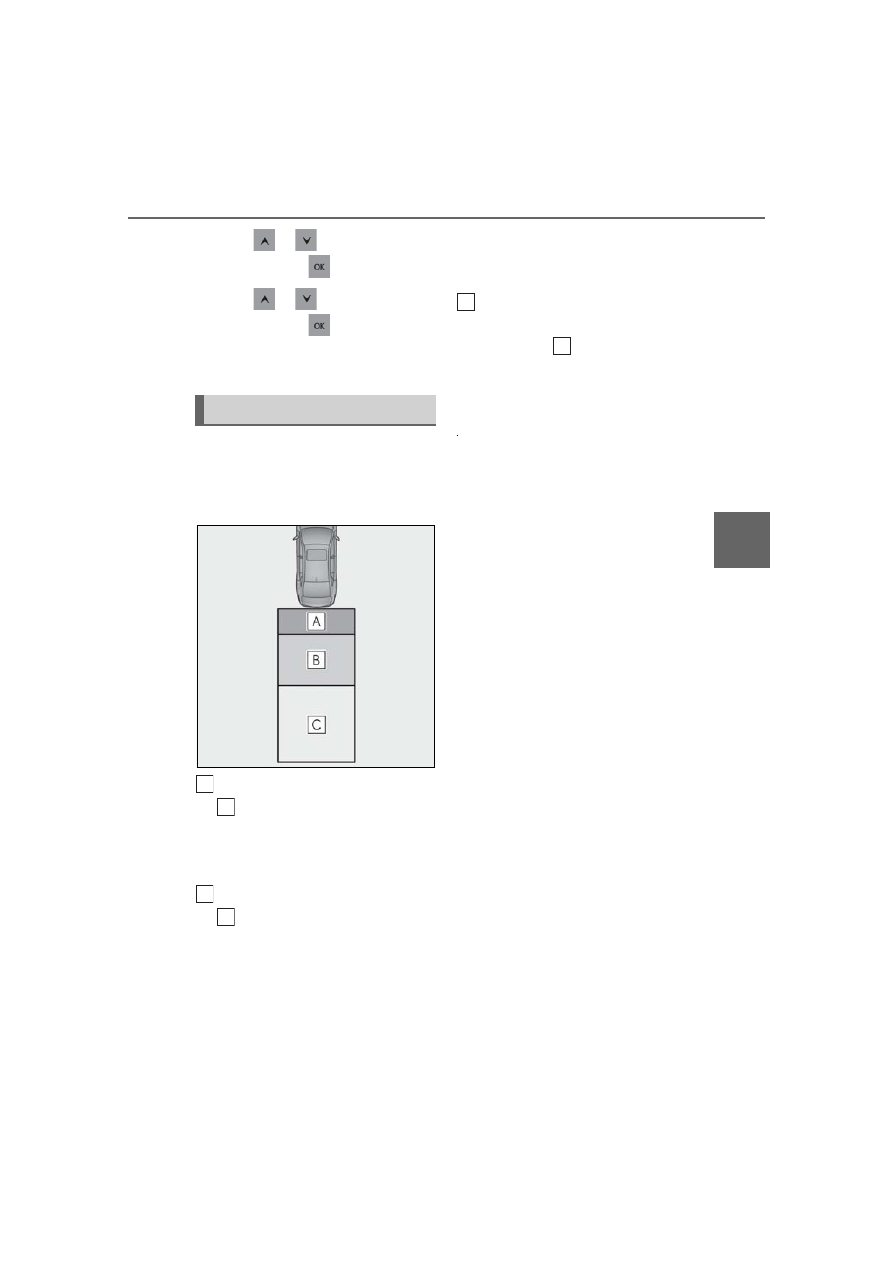

Buzzer operation and approximate
distance to object (vehicles with-
out Advanced Park)

A buzzer sounds when the sensors are
operating. When 2 or more objects are
detected simultaneously, the buzzer
sounds for the nearest object.



Buzzer: Sounds intermittently

Front center sensor: Approximately 3.3 ft.

System detection range

A
B
C

289

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

(100 cm) to 2.0 ft. (60 cm)
Rear center sensor: Approximately 4.9 ft.
(150 cm) to 2.0 ft. (60 cm)



Buzzer: Sounds in short intervals

Approximately 2.0 ft. (60 cm) to 1.5 ft. (45
cm)



Buzzer: Sounds in extremely short
intervals

Approximately 1.5 ft. (45 cm) to 1.0 ft. (30
cm)



Buzzer: Sounds continuously

Less than approximately 1.0 ft. (30 cm)

: The buzzer beeps faster as the vehicle

approaches an object.
Automatic buzzer mute function: After a
buzzer begins sounding, if the distance
between the vehicle and the detected
object does not become shorter, the
buzzer will be muted automatically.

■

Buzzer operation and approximate
distance to object (vehicles with
Advanced Park)

A buzzer sounds when the sensors are
operating. When 2 or more objects are
detected simultaneously, the buzzer
sounds for the nearest object.



Buzzer: Does not sound (Display
only

)

Front center sensor: Approximately 6.6 ft.
(200 cm) to 3.3 ft. (100 cm)
Rear center sensor: Approximately 6.6 ft.
(200 cm) to 4.9 ft. (150 cm)
Side sensor: Approximately 6.6 ft. (200
cm) to 4.1 ft. (125 cm)
Corner sensor: Approximately 6.6 ft. (200
cm) to 2.0 ft. (60 cm)



Buzzer: Sounds intermittently

Front center sensor: Approximately 3.3 ft.
(100 cm) to 2.0 ft. (60 cm)
Rear center sensor: Approximately 4.9 ft.
(150 cm) to 2.0 ft. (60 cm)
Side sensor: Approximately 4.1 ft. (125 cm)
to 2.0 ft. (60 cm)



Buzzer: Sounds in short intervals

Approximately 2.0 ft. (60 cm) to 1.5 ft. (45
cm)



Buzzer: Sounds in extremely short
intervals

Approximately 1.5 ft. (45 cm) to 1.0 ft. (30
cm)



Buzzer: Sounds continuously

Less than approximately 1.0 ft. (30 cm)

: When panoramic view monitor screen

is displayed.

: The buzzer beeps faster as the vehicle

approaches an object.
Automatic buzzer mute function: After
a buzzer begins sounding, if the dis-
tance between the vehicle and the
detected object does not become
shorter, the buzzer will be muted auto-
matically.

The object warning function informs
the driver of the existence of objects
along the side of the vehicle, using a
display and buzzer, if the objects are
within the estimated path of the vehicle.

Object warning function (vehi-
cles with Advanced Park)

290

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Object
Calculated vehicle route

When the vehicle is moving, the side sensors or side cameras can detect objects.
While the vehicle is moving, if a detected object can no longer be detected by the
side sensors or side cameras, the location of the object relative to the vehicle is
estimated. If the object is determined to be in the estimated path of the vehicle, the
object warning function will operate.

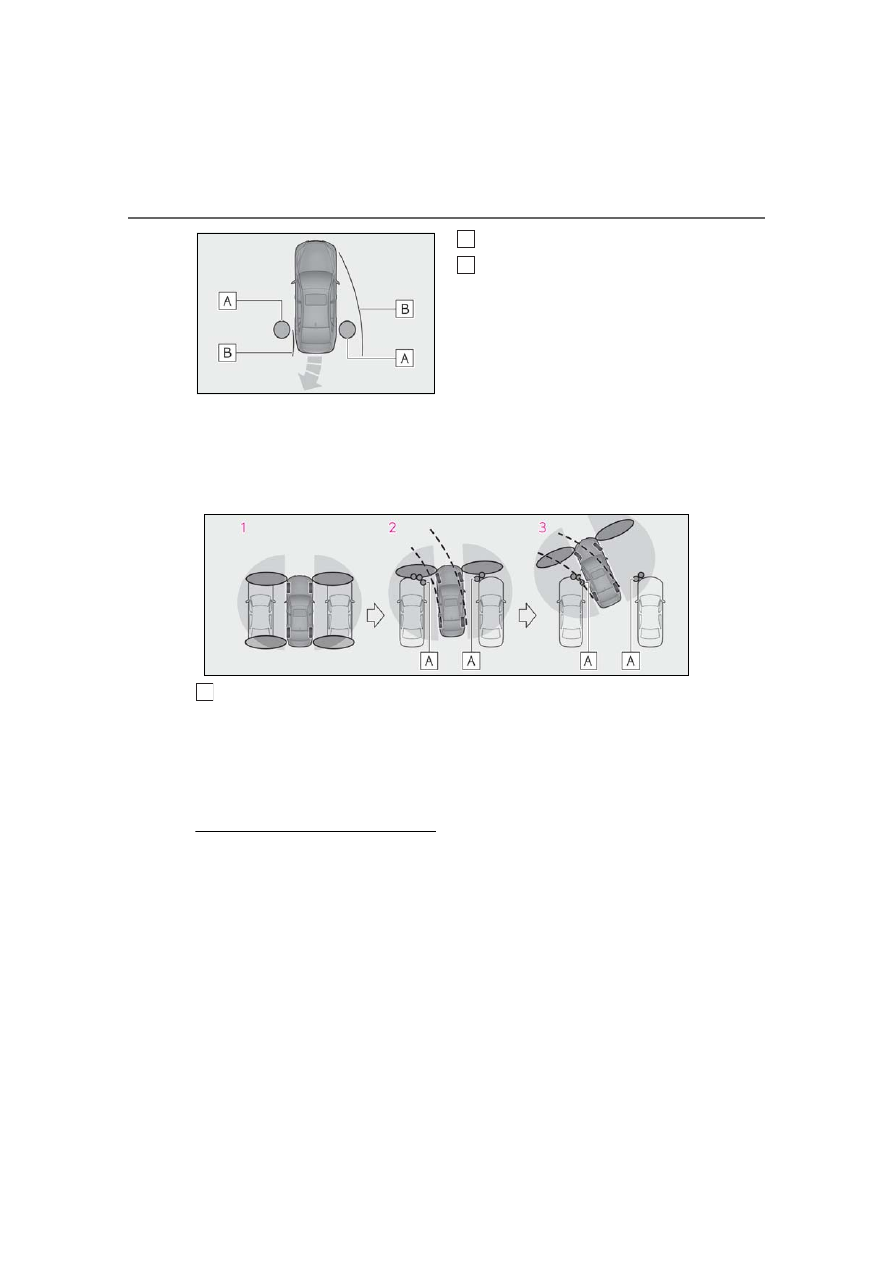

Object detected by side sensors or side cameras

The vehicle is stopped and objects along the sides of the vehicle are not
detected.

Objects are detected as the vehicle is moving.

Even though the objects are outside of the detection area of the side sensors or
side cameras, a warning is displayed and a buzzer sounds.

■

Object warning function operating con-

ditions

●

The Advanced Park is operating.

●

The R shift position is selected.

●

After the D shift position has been

selected, the vehicle has moved 23.0 ft.
(7 m) or less

●

Camera switch has been pressed and the

panoramic view monitor screen is dis-

played.

●

An object is detected by a side sensor or

side camera.

: If the shift position was changed from N

to D, the function will not operate.

■

Detection of objects along the sides of

the vehicle

●

Objects along the sides of the vehicle are

not instantaneously detected. The loca-

tion of objects in relation to the vehicle is

estimated after they are first detected by

the front or rear side sensors, or side

cameras. Therefore, after the power

switch is changed to ON mode, even if an

object is along the side of the vehicle, it

A
B

291

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

may not be detected until the vehicle has

been driven a small amount and the side

sensors or side cameras completely scan

the areas along the sides of the vehicle.

●

If a vehicle, person, animal, etc. is

detected by a side sensor or side camera,

but then leaves the detection area of the

side sensor or side camera, the system

will assume the object has not moved.

■

Side cameras



P.312

WARNING

■

Object warning function

In situations such as the following, the

function may not operate correctly, pos-

sibly leading to an accident. Proceed

carefully.

●

When starting off shortly after the

power switch is turned to ON mode

and a small vehicle or other object

which cannot be detected by a front

side sensor is next to the vehicle.

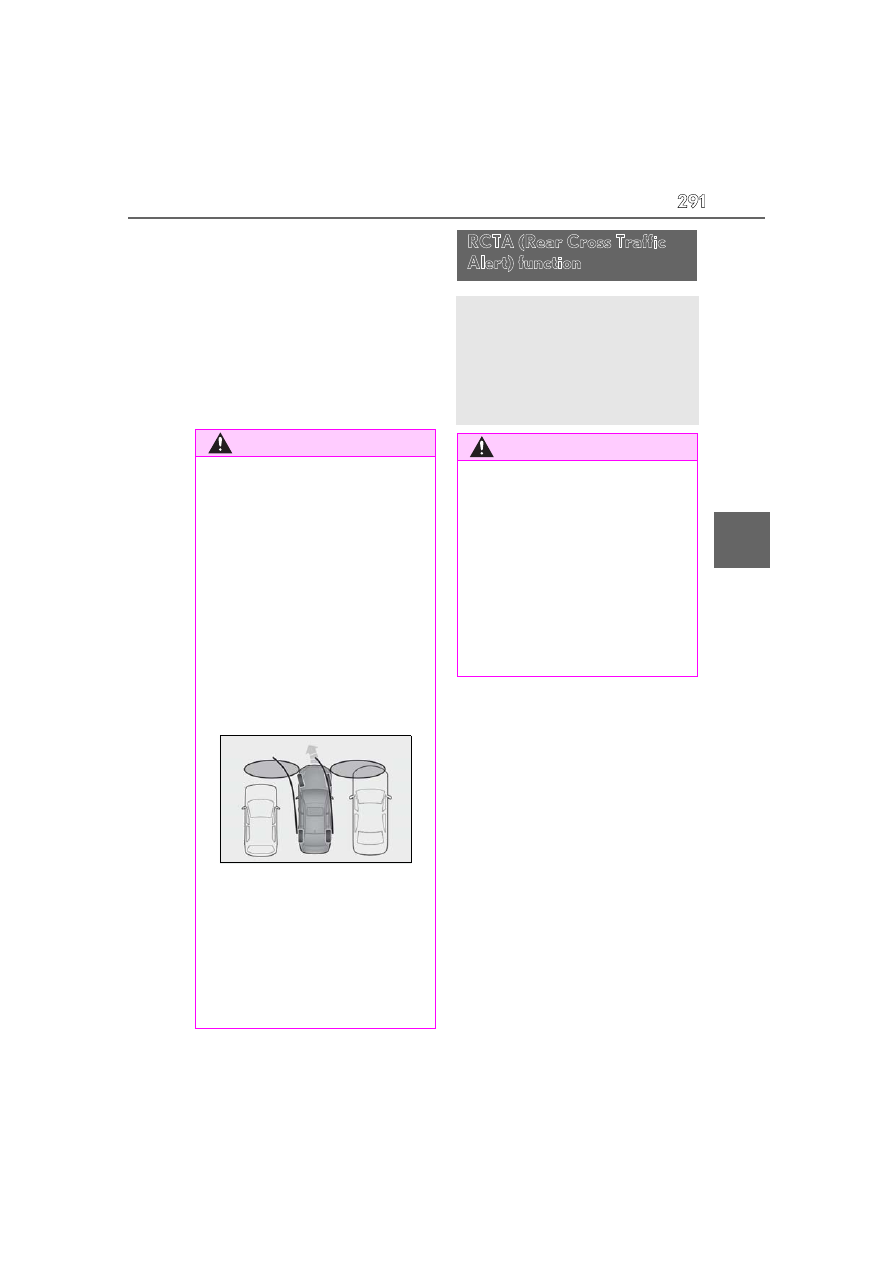

In the situation shown in the following
illustration, even if the vehicle starts off, as
the vehicle on the left will not be
detected and the object warning function
will not operate.

●

When an object or person is in a posi-

tion which cannot be detected by the

side sensors or side cameras.

●

When, after the side sensors or side

cameras have completed scanning the

areas along the sides of the vehicle, a

vehicle, person, or other object

approaches the side of the vehicle and

cannot be detected.

RCTA (Rear Cross Traffic
Alert) function

The RCTA function uses the BSM
rear side radar sensors installed
behind the rear bumper. This func-
tion is intended to assist the driver
in checking areas that are not easily
visible when backing up.

WARNING

■

Cautions regarding the use of the sys-

tem

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely. (



P.278)

■

To ensure the system can operate

properly



P.278

292

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Meter control switches

Turning the RCTA function on/off.
When the RCTA function is disabled, the
RCTA OFF indicator illuminates.

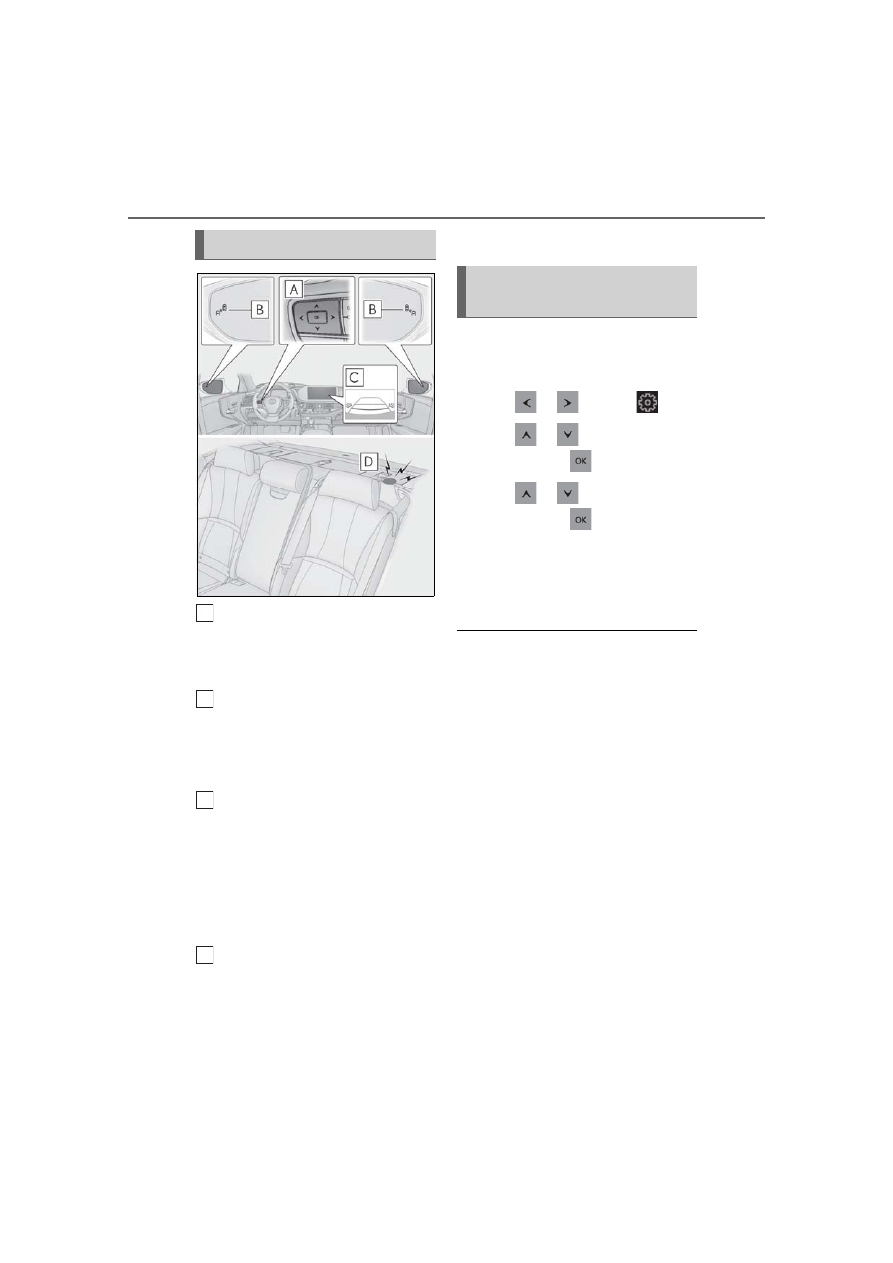

Outside rear view mirror indicators

When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

Center Display

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (



P.294) for the detected

side will be displayed on the Center Dis-
play. This illustration shows an example of a
vehicle approaching from both sides of the
vehicle.

RCTA buzzer

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds
for approximately 1 second immediately

after the RCTA function is turned on.

Use the meter control switches to
enable/disable the RCTA function.
(



P.85)

Press

to select

Press

to select “PKSA”

and then press

Press

to select “RCTA”

and then press

When the RCTA function is disabled, the

RCTA OFF indicator (



P.76) illuminates.

(Each time the power switch is turned off

then changed to ON mode, the RCTA

function will be enabled automatically.)

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

■

When “RCTA Not Available” is shown

on the multi-information display

Water, snow, mud, etc., may be attached to

the rear bumper around the sensors.

(



P.279) Removing the water, snow, mud,

etc., from the attached to the rear bumper

around the sensors to normal.
Additionally, the function may not function

normally when used in extremely hot or

cold environments.

■

Rear side radar sensors



P.279

System components

Turning the RCTA function
on/off

293

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

■

Operation of the RCTA function

The RCTA function uses rear side
radar sensors to detect vehicles
approaching from the right or left at
the rear of the vehicle and alerts the
driver of the presence of such vehicles
by flashing the outside rear view mirror
indicators and sounding a buzzer.

Approaching vehicles
Detection areas of approaching
vehicles

■

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Center Display.



Example (Panoramic view monitor):
Vehicles are approaching from both
sides of the vehicle

■

RCTA function detection areas

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

■

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

●

The power switch is in ON mode.

●

The RCTA function is on.

●

The shift position is in R.

●

The vehicle speed is approximately 9

mph (15 km/h) or less.

●

The approaching vehicle speed is

between approximately 5 mph (8 km/h)

and 35 mph (56 km/h).

■

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (



P.283)

RCTA function

A
B

Approaching vehi-

cle speed

Approximate

alert distance

35 mph (56 km/h)

(fast)

131 ft. (40 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

294

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

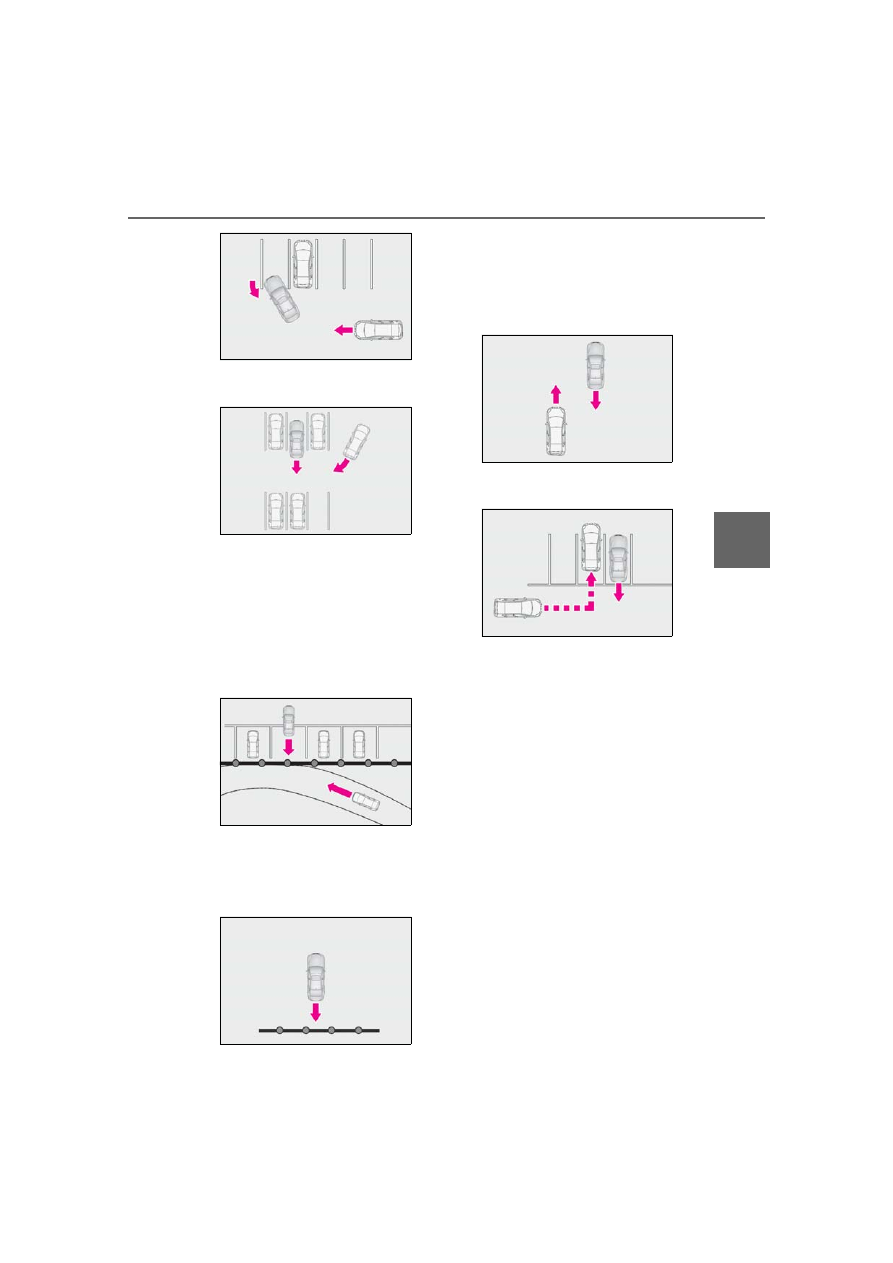

Conditions under which the system will

not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking space

next to your vehicle

●

Vehicles that the sensors cannot detect

due to obstructions

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking
spaces next to your vehicle

●

The distance between the sensor and

approaching vehicle gets too close

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Situations in which the system may not

operate properly

The RCTA function may not detect vehicles

correctly in the following situations:

●

When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

●

When mud, snow, ice, a sticker, etc.,is

covering the sensor or surrounding area

on the position above the rear bumper

●

When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

●

When multiple vehicles are approaching

with only a small gap between each vehi-

cle

●

When a vehicle is approaching at high

speed

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When backing up on a slope with a sharp

change in grade

●

When backing out of a sharp angle park-

ing spot

●

When towing a trailer

●

When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

When turning while backing up

295

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

●

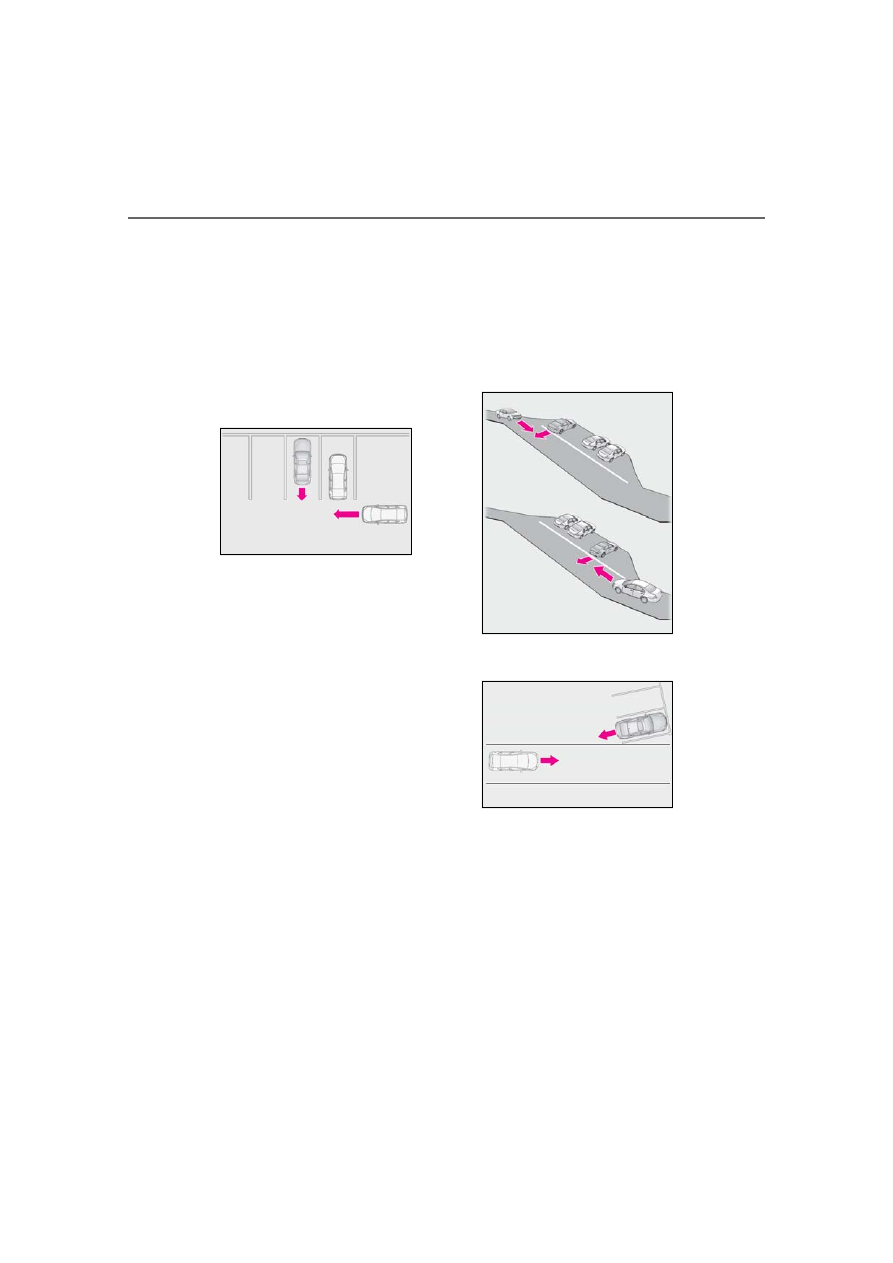

When a vehicle turns into the detection

area

■

Situations in which the system may

operate even if there is no possibility of a

collision

Instances of the RCTA function unneces-

sary detecting a vehicle and/or object may

increase in the following situations:

●

When the parking space faces a street

and vehicles are being driven on the

street

●

When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

When a vehicle passes by the side of your

vehicle

●

When a detected vehicle turns while

approaching the vehicle

●

When there are spinning objects near

your vehicle such as the fan of an air con-

ditioning unit

●

When water is splashed or sprayed

toward the rear bumper, such as from a

sprinkler

●

Moving objects (flags, exhaust fumes,

large rain droplets or snowflakes, rain

water on the road surface, etc.)

●

When the distance between your vehicle

and a guardrail, wall, etc., that enters the

detection area is short

●

Gratings and gutters

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

296

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Pedestrian detection icon

Displayed automatically when a pedestrian
is detected.

RCD OFF icon

When the RCD function is disabled, the
RCD OFF icon illuminates. (Each time the
power switch is turned off then changed to
ON mode, the RCD function will be
enabled automatically.)

Use the meter control switches to
enable/disable the RCD function.
(



P.85)

Press

to select

RCD (Rear Camera Detec-
tion) function

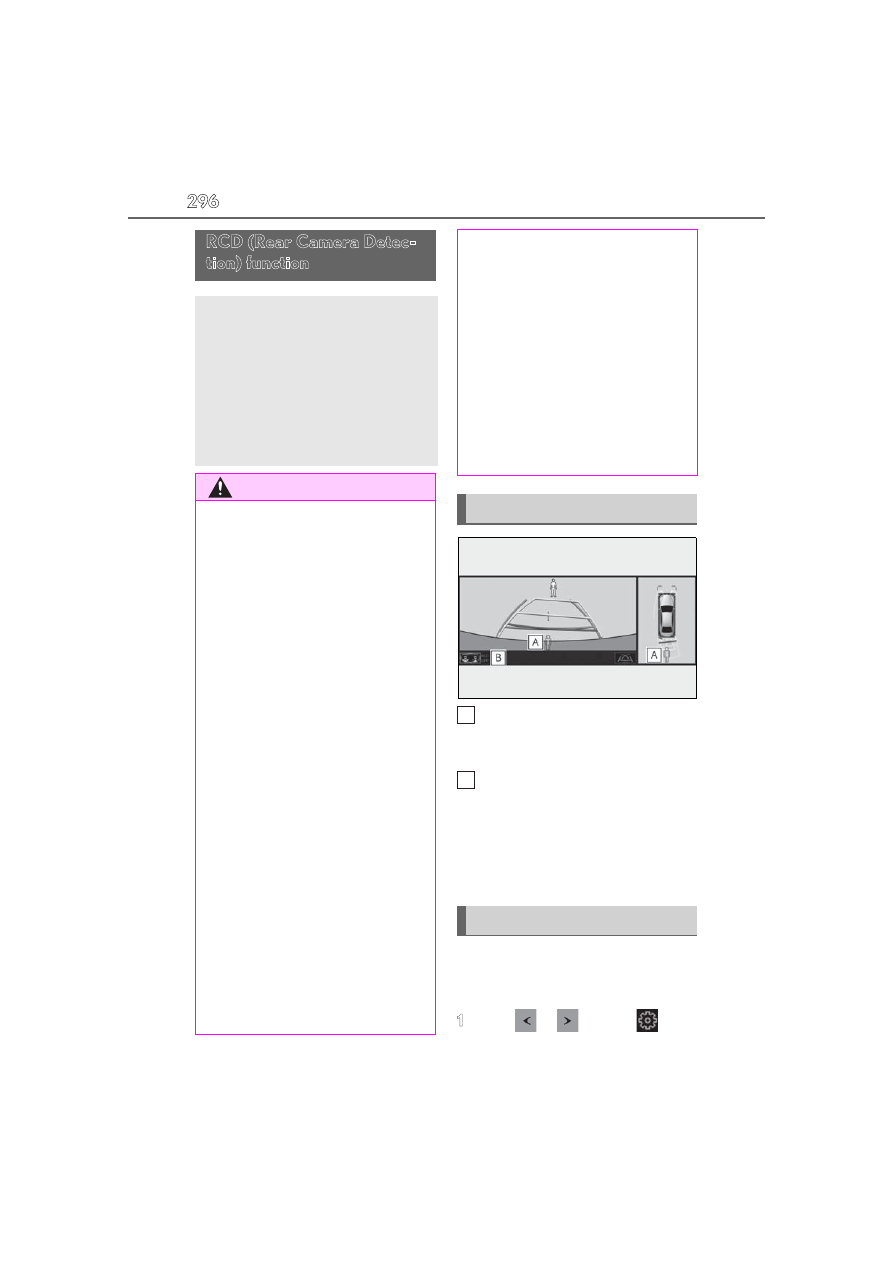

When the vehicle is backing up, the
rear camera detection function can
detect pedestrians in the detection
area behind the vehicle. If a pedes-
trian is detected, a buzzer will
sound and an icon will be displayed
on the Center Display to inform the
driver of the pedestrian.

WARNING

■

Cautions regarding the use of the sys-

tem

The recognition and control capabilities

for this system are limited.
The driver should always drive safely by

always being responsible without over

relying on the system and have a under-

standing of the surrounding situations.

■

To ensure the system can operate

properly

Observe the following, otherwise there is

the danger that could lead to an acci-

dent.

●

Always clean the camera with damag-

ing it.

●

Do not install market electronic parts

(such as Illuminated license plate, fog

lamps, etc.) in the camera vicinity.

●

Do not subject the camera vicinity to

strong impacts. If the vicinity is sub-

jected to a strong impact, have the

vehicle inspected at your Lexas dealer.

●

Do not disassemble, remodel or paint

the camera.

●

Do not attach accessories or stickers

to the camera.

●

Do not install market protection parts

(bumper trim, etc.) to the rear bumper.

●

Maintain suitable tire air pressure.

●

Make sure the trunk and back doors

are completely closed.

■

RCD function is turned off

In the following situations the system

turns off. The RCD function may not

operate properly and thus there is the

danger that an accident may occur.

●

The contents mentioned above are not

observed.

●

Suspensions other than Lexas genuine

parts are installed.

Center Display

Turning the RCD function on/off

297

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

Press

to select “PKSA”

and then press

Press

to select “RCD”

and then press

When the RCD function is disabled, the

RCD OFF indicator (



P.76) illuminates.

If the rear camera detection function
detects a pedestrian in the detection
area, the buzzer and pedestrian detec-
tion will operate as follows:

If a pedestrian is detected in area

Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks 3
times and then stays on
If a pedestrian is detected in area

Buzzer (When the vehicle is sta-
tionary): Sounds 3 times
Buzzer (When the vehicle is back-
ing up, when a pedestrian
approaches the rear of the vehicle):

Sounds repeatedly
Pedestrian detection icon: Blinks 3
times and then stays on
If the system determines that your
vehicle may collide with a pedes-
trian in area
Buzzer: Sounds repeatedly
Pedestrian detection icon: Blinks 3
times and then stays on

■

The rear camera detection function is

operational when

●

The power switch is in ON mode.

●

RCD function is on.

●

The shift position is in R.

■

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (



P.283)

■

If “Rear Camera Detection Unavailable

Remove the Dirt of Rear Camera” is dis-

played on the multi-information display

A rear camera lens may be dirty or covered

with snow or ice. In such cases, if it is

removed from the rear camera lens, the sys-

tem should return to normal. (It may be nec-

essary to drive the vehicle for some time

before the system returns to normal.)

■

If “Rear Camera Detection Unavail-

able” is displayed on the multi-informa-

tion display

●

If this message is displayed after the

12-volt battery has been disconnected

and reconnected, fully turn the steering

wheel to the left and then the right on

level ground.

●

If this message is displayed only when the

R shift position is selected, the rear cam-

era lens may be dirty. Clean the rear

camera lens.

■

Situations in which the system may not

operate properly

●

Some pedestrians, such as the following,

may not be detected by the rear camera

detection function, preventing the func-

tion from operating properly:

When a pedestrian is detected

298

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

• Pedestrians who are bending forward or

squatting

• Pedestrians who are lying down

• Pedestrians who are running

• Pedestrians who suddenly enter the

detection area

• People riding a bicycle, skateboard, or

other light vehicle

• Pedestrians wearing oversized clothing

such as a rain coat, long skirt, etc., making

their silhouette obscure

• Pedestrians whose body is partially hid-

den by an object, such as a cart or

umbrella

• Pedestrians which are obscured by dark-

ness, such as at night

●

In some situations, such as the following,

pedestrians may not be detected by the

rear camera detection function, prevent-

ing the function from operating properly:

• When backing up in inclement weather

(rain, snow, fog, etc.)

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• When a very bright light, such as the sun,

or the headlights of another vehicle,

shines directly into the rear camera

• When backing up in a place where the

surrounding brightness changes sud-

denly, such as at the entrance or exit of a

garage or underground parking lot

• When backing up in a dim environment

such as during dusk or in an underground

parking lot

• When the camera position and direction

are deviated

• When a towing hook is attached

• When water droplets are flowing on the

camera lens

• When the vehicle height is extremely

changed (nose up, nose down)

• When tire chains or an emergency tire

puncture repair kit is used

■

Situations in which the system may

operate unexpectedly

●

Even though there are no pedestrians in

the detection area, some objects, such as

the following, may be detected, possibly

causing the rear camera detection func-

tion to operate.

• Three dimensional objects, such as a

pole, traffic cone, fence, or parked vehi-

cle

• Moving objects, such as a car or motor-

cycle

• Objects moving toward your vehicle

when backing up, such as flags or pud-

dles (or airborne matter, such as smoke,

steam, rain, or snow)

• Cobblestone or gravel roads, tram rails,

road repairs, white lines, pedestrian

crossings or fallen leaves on the road

• Metal covers (gratings), such as those

used for drainage ditches

• Objects reflected in a puddle or on a wet

road surface

• Shadows on the road

●

In some situations, such as the following,

the rear camera detection function may

operate even though there are no pedes-

trians in the detection area.

• When backing up toward the roadside or

a bump on the road

• When backing up toward an

incline/decline

• If the rear of the vehicle is raised or low-

ered due to the carried load

• If the orientation of the rear camera has

been changed

• If a towing eyelet is installed to the rear of

the vehicle

• When water is flowing over the rear cam-

era lens

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• If there is a flashing light in the detection

area, such as the emergency flashers of

another vehicle

• When a tire chains or an emergency tire

puncture repair kit is used

●

Situations in which the rear camera

detection function may be difficult to

notice

• If buzzer may be difficult to hear if the

surrounding area is noisy, the volume of

the audio system volume is high, the air

conditioning system is being used, etc.

• If the temperature in the cabin is

extremely high or low, the audio system

screen may not operate correctly.

299

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Driving

■

Parking Support Brake function
(static objects)

Ultrasonic sensors are used to detect
static objects, such as a wall, in the
detection area when driving at a low
speed or backing up. (



P.305)

■

Parking Support Brake function
(rear-crossing vehicles)

Rear radar sensors are used to detect
approaching vehicles in the detection
area behind the vehicle when backing
up. (



P.307)

■

Parking Support Brake function
(rear pedestrians)

A rear camera sensor is used to detect

pedestrians in the detection area
behind the vehicle when backing up.
(



P.308)

PKSB (Parking Support
Brake)

The Parking Support Brake system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that a collision with a
detected object or pedestrian is
high, a warning operates to urge
the driver to take evasive action. If
the system determines that the pos-
sibility of a collision with a detected
object or pedestrian is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.

PKSB (Parking Support Brake)
system

WARNING

■

Cautions regarding the use of the sys-

tem

Do not overly rely on the system, as

doing so may lead to an accident. Always

drive while checking the safety of the sur-

roundings of the vehicle.
Depending on the vehicle and road con-

ditions, weather, etc., the system may not

operate.
The detection capabilities of sensors,

radars and camera are limited. Always

drive while checking the safety of the sur-

roundings of the vehicle.

●

Do not attempt to test the operation of

this system by driving the vehicle

toward another vehicle, a person or

detected object, as it may not operate

properly, possibly leading to an acci-

dent.

●

The driver is solely responsible for safe

driving. Always drive carefully, taking

care to observe your surroundings.

The Parking Support Brake system is

designed to provide support to lessen

the severity of collisions. However, it

may not operate in some situations.

●

The Parking Support Brake system is

not designed to stop the vehicle com-

pletely. Additionally, even if the system

has stopped the vehicle, it is necessary

to depress the brake pedal immedi-

ately as brake control will be canceled

after approximately 2 seconds.

●

It is extremely dangerous to check the

system operations by intentionally

driving the vehicle into the direction of

a wall, etc. Never attempt such actions.

Lexus LS500h (2022 year). Manual in english - page 17
