459

7-2. Steps to take in an emergency

When trouble

ises



LS500



LS350

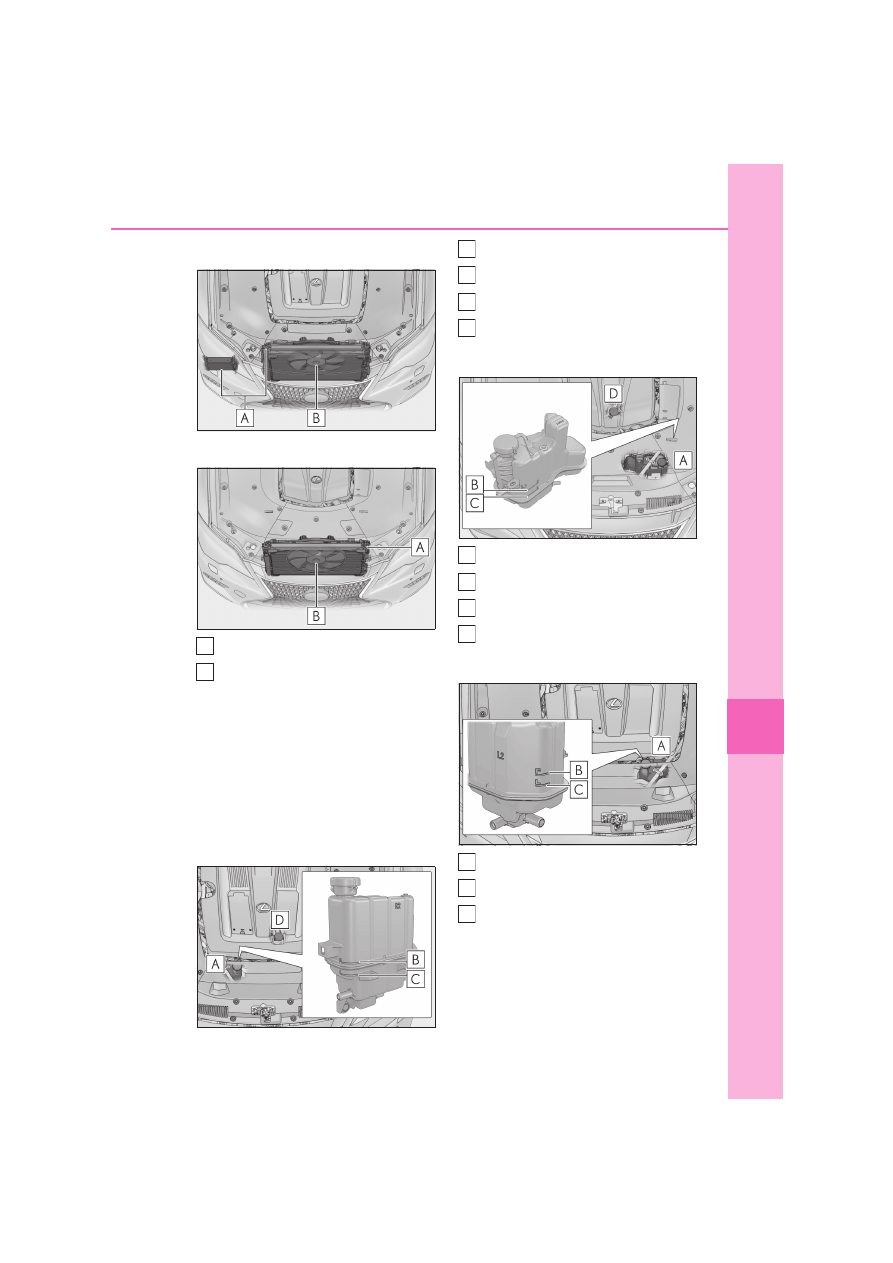

Radiators
Cooling fan

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any relia-
ble repairer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.



Engine (LS500)

Reservoir
“F” line
“L” line
Coolant inlet cap



Engine (LS350)

Reservoir
“F” line
“L” line
Coolant inlet cap



Intercooler (LS500)

Reservoir
“F” line
“L” line

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.



Engine (LS500)



P.461

A
B

A
B
C
D

A
B
C

460

7-2. Steps to take in an emergency



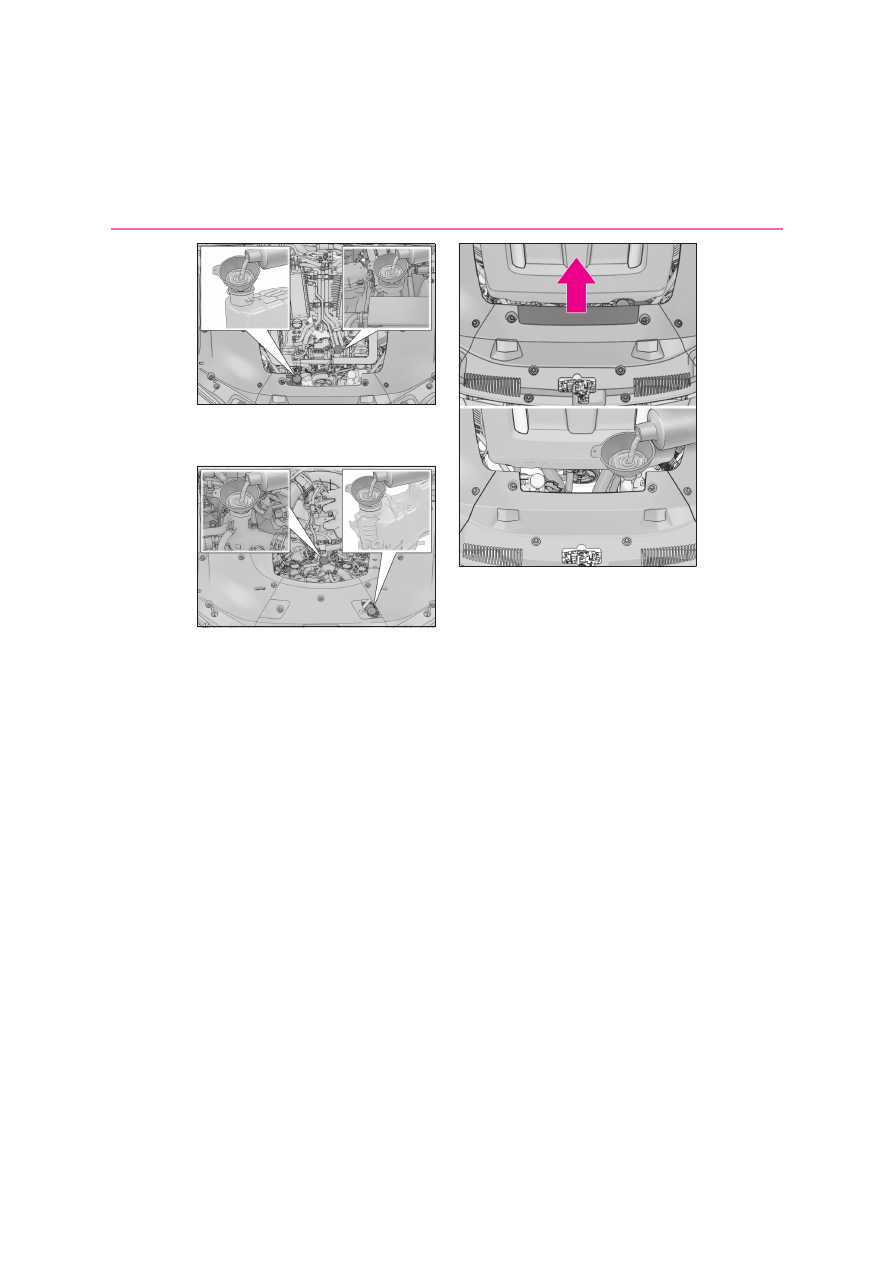

Engine (LS350)



P.461



Intercooler (LS500)

Remove the engine compartment cover
and add coolant.

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the engine immediately and
contact any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the
nearest any authorized Lexus
retailer or Lexus authorized
repairer, or any reliable repairer.

461

7-2. Steps to take in an emergency

When trouble

ises

■

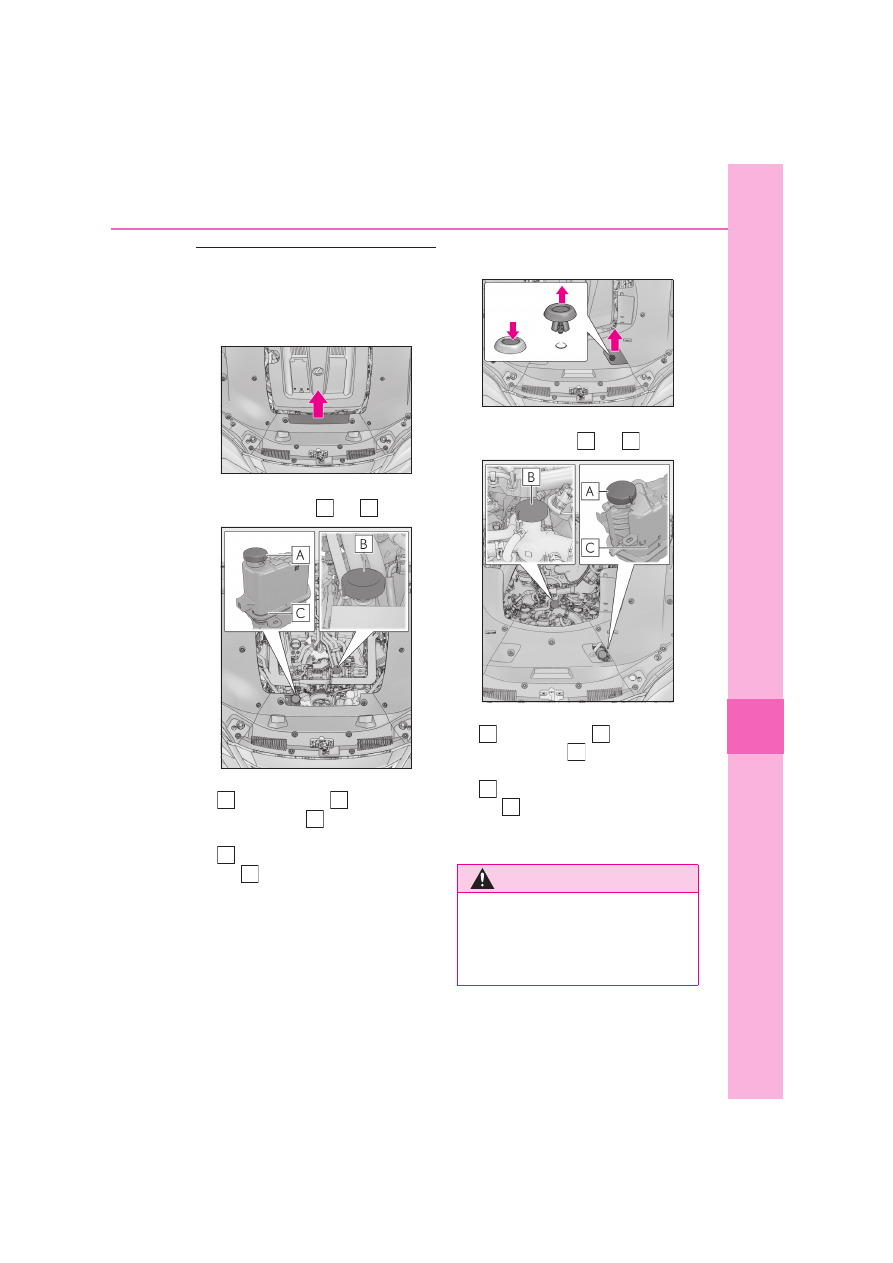

When adding engine coolant (LS500)

Add coolant in accordance with the follow-

ing procedure.

Remove the engine compartment

cover.

Remove the engine cover. (



P.394)

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

Install the engine compartment cover

and engine cover. (



P.395)

■

When adding engine coolant (LS350)

Add coolant in accordance with the follow-

ing procedure.

Remove the engine compartment

cover.

Remove the engine cover. (



P.394)

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

Install the engine compartment cover

and engine cover. (



P.395)

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

462

7-2. Steps to take in an emergency

Stop the engine. Set the parking
brake and shift the shift position to
P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

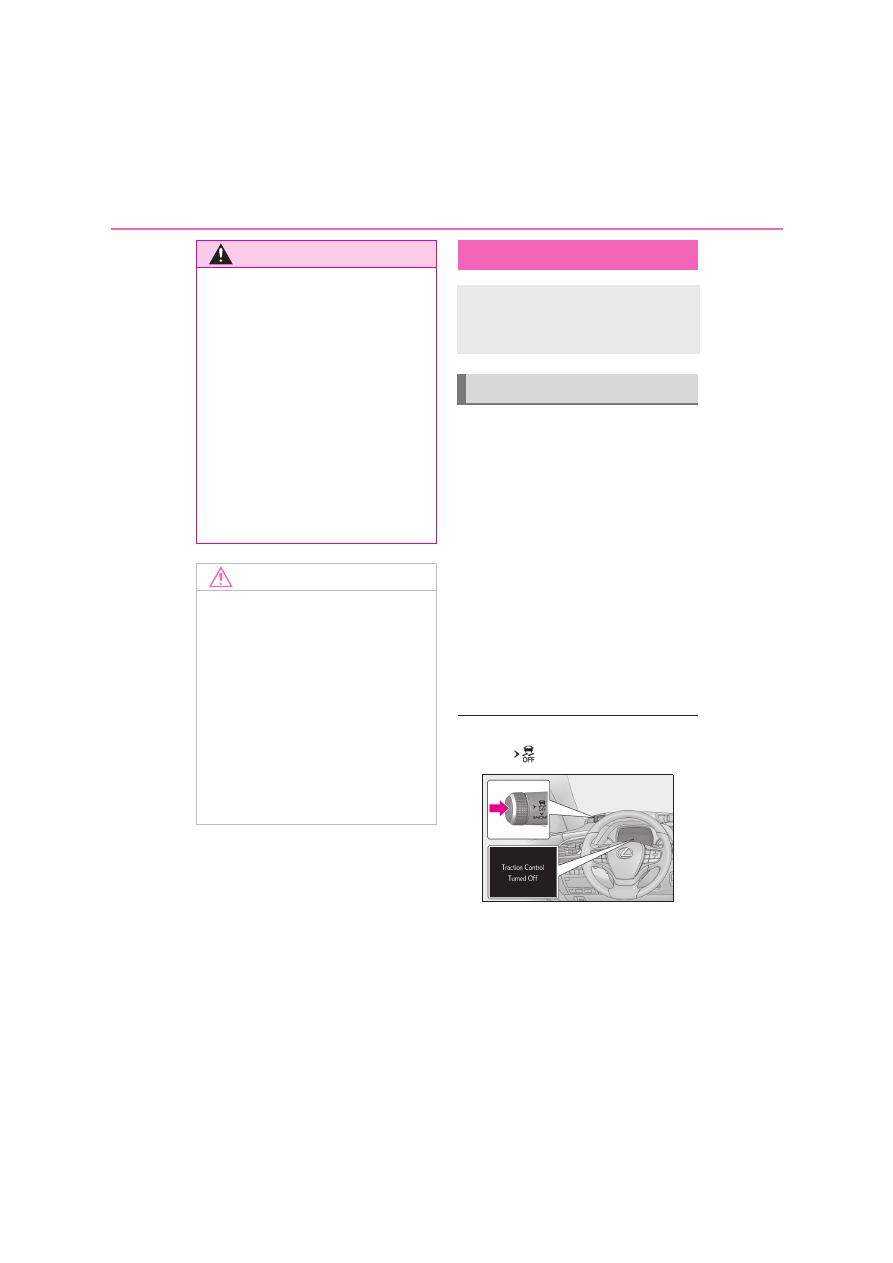

When it is difficult to free the vehicle

Press the

switch to turn off TRC.

WARNING

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan and belts.

Failure to do so may cause the hands

or clothing to be caught, resulting in

serious injury.

●

Do not loosen the coolant inlet cap,

the engine coolant reservoir cap or the

intercooler coolant reservoir cap while

the engine and radiator are hot.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

463

7-2. Steps to take in an emergency

When trouble

ises

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

465

Vehi

cle

ifica

tio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

466

Fuel information.........................

475

8-2. Customization

Customizable features ...........

476

8-3. Initialization

Items to initialize ........................

492

466

8-1. Specifications

8-1.Specifications



Dimensions



Weights

: Unladen vehicles

: Without electronically modulated air suspension

: With electronically modulated air suspension

: Except F SPORT models

: F SPORT models

: LS500

: LS350

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

5235 mm (206.1 in.)

Overall width

1900 mm (74.8 in.)

Overall height

2WD models

1460 mm (57.5 in.)

1450 mm (57.1 in.)

AWD models

1470 mm (57.9 in.)

1460 mm (57.5 in.)

Wheelbase

3125 mm (123.0 in.)

Tread

Front

2WD models

1630 mm (64.2 in.)

AWD models

1630 mm (64.2 in.)

1635 mm (64.4 in.)

Rear

1635 mm (64.4 in.)

1615 mm (63.6 in.)

Gross vehicle mass

2760 kg (6085 lb.)

2585 kg (5699 lb.)

Maximum permissible axle capac-
ity

Front

1420 kg (3131 lb.)

Rear

1550 kg (3417 lb.)

467

8-1. Specifications

Vehi

cle

ifica

tio

■

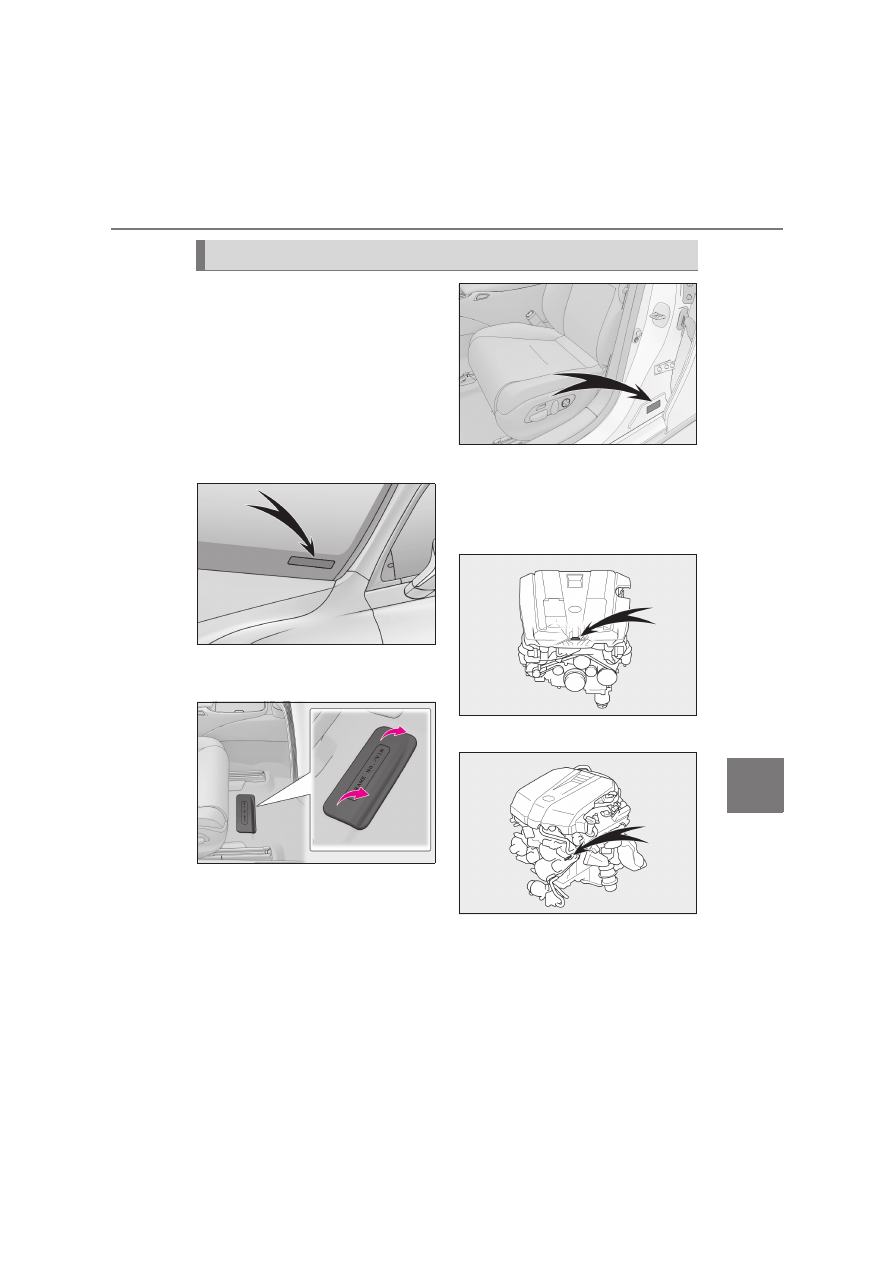

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also stamped under the
right-hand front seat.

This number is also on the manufac-
turer’s label.

■

Engine number

The engine number is stamped on the
engine block as shown.



LS500



LS350

Vehicle identification

468

8-1. Specifications



LS500



LS350

Engine

Model

V35A-FTS

Type

6-cylinder V type, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

85.5



100.0 mm (3.37



3.94 in.)

Displacement

3445 cm

(210.2 cu. in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Model

8GR-FKS

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

94.0



83.0 mm (3.70



3.27 in.)

Displacement

3456 cm

(210.9 cu. in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

When you find these types of fuel label at the
gas station, use only the fuel with one of the
following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only

469

8-1. Specifications

Vehi

cle

ifica

tio

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
0W-20 and 5W-30:
API grade SM “Energy-Conserving”,
SN “Resource-Conserving”, SN PLUS
“Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC
GF-6A multigrade engine oil

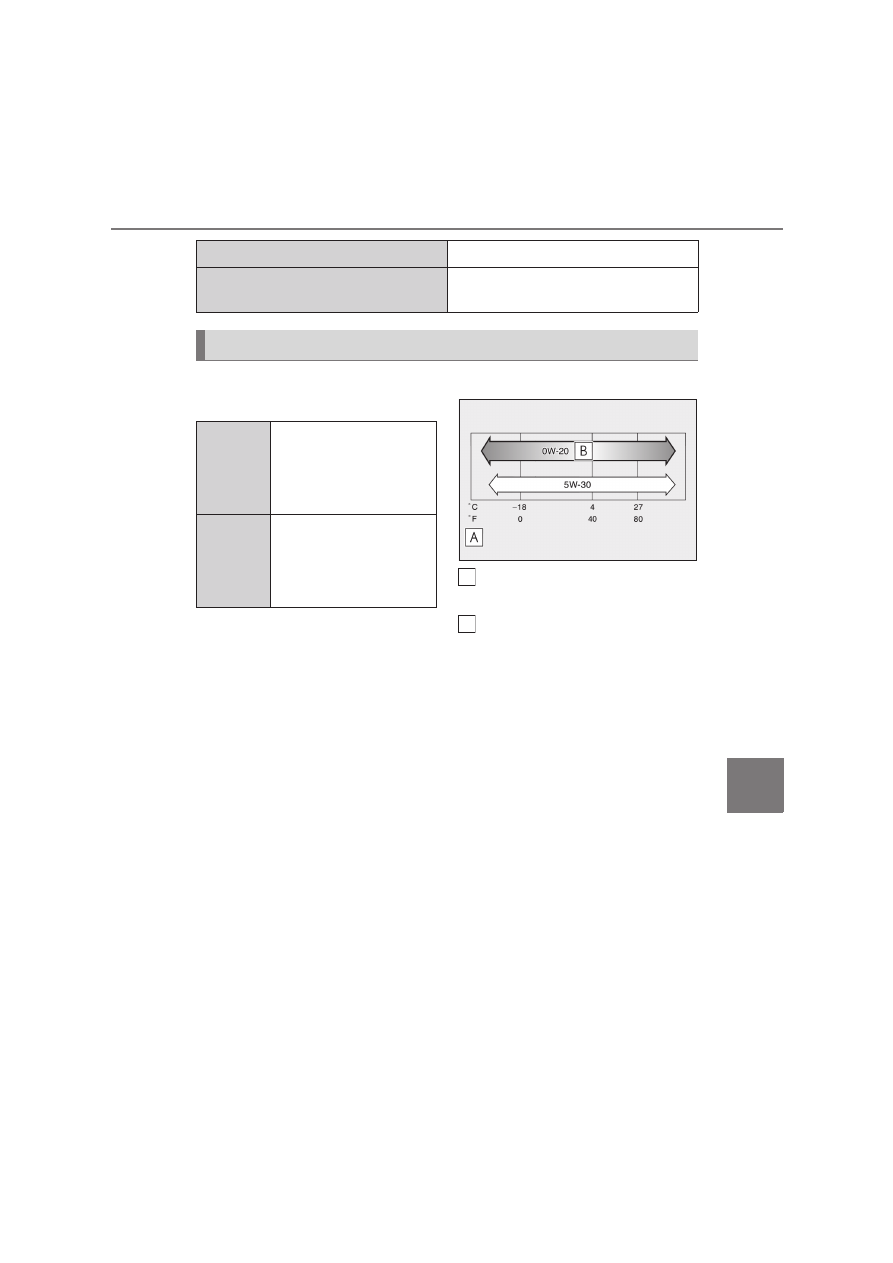

Recommended viscosity (SAE):

Temperature range anticipated
before next oil change
Preferred

SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather. If SAE
0W-20 oil is not available, SAE
5W-30 oil may be used. However, it
should be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil

Research Octane Number

95 or higher

Fuel tank capacity
(Reference)

82.0 L (21.7 gal., 18.0 Imp. gal.)

Lubrication system

With filter



LS500

7.1 L (7.5 qt., 6.2 Imp. qt.)



LS350

5.8 L (6.1 qt., 5.1 Imp. qt.)

Without fil-
ter



LS500

6.6 L (7.0 qt., 5.8 Imp. qt.)



LS350

5.5 L (5.8 qt., 4.8 Imp. qt.)

470

8-1. Specifications

with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

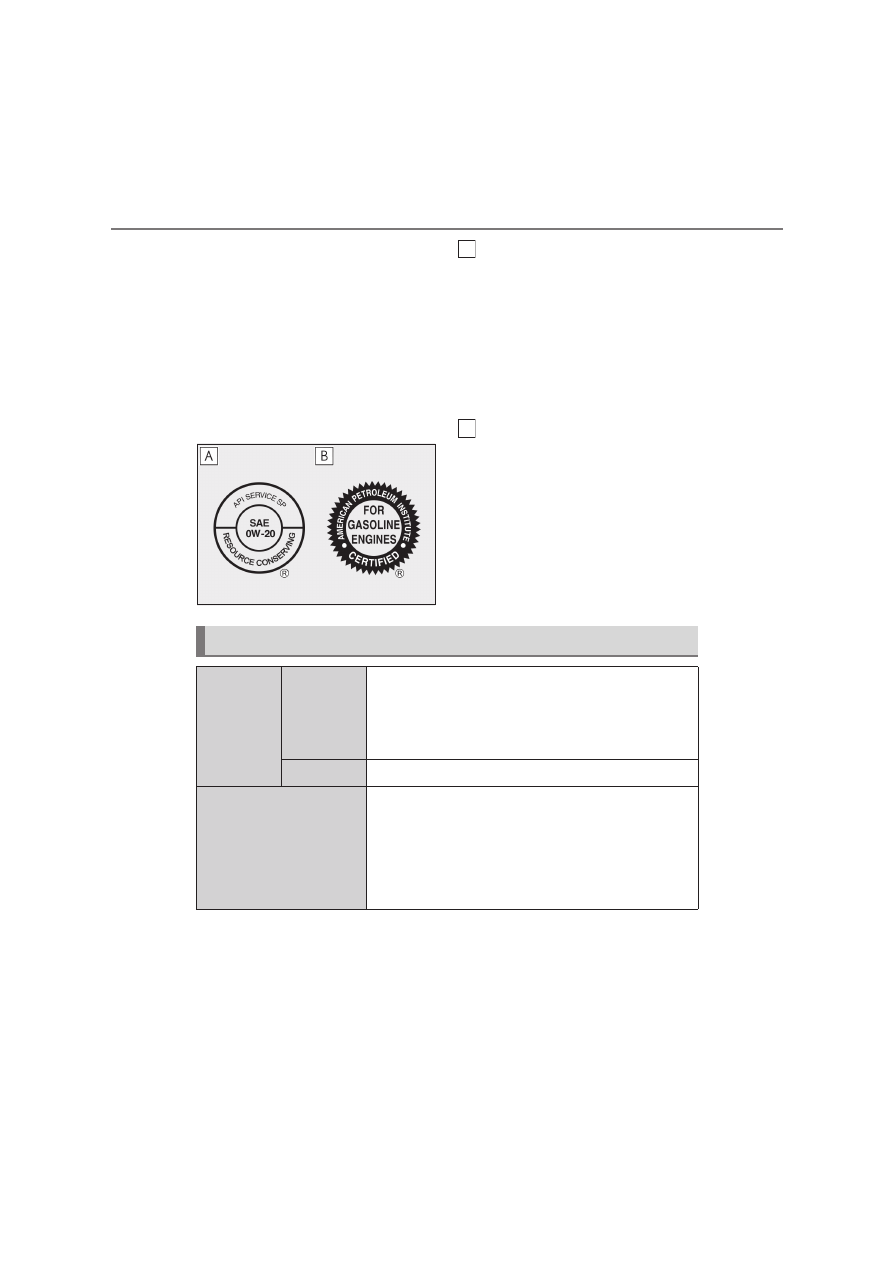

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.

Cooling system

Capacity
(Reference)

LS500



Engine

10.5 L (11.1 qt., 9.2 Imp. qt.)



Intercooler

4.3 L (4.5 qt., 3.8 Imp. qt.)

LS350

11.0 L (11.6 qt., 9.7 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

471

8-1. Specifications

Vehi

cle

ifica

tio

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Ignition system (spark plug)

LS500

LS350

Make

DENSO EC22HPR-D7

DENSO FK20HBR8

Gap

0.7 mm (0.028 in.)

0.8 mm (0.031 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Open voltage at 20°C (68°F):

12.3 V or higher
(Turn the engine switch off and turn on the head-
lights for 20 to 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission

Fluid capacity

LS500

8.9 L (9.4 qt., 7.8 Imp. qt.)

LS350

8.8 L (9.3 qt., 7.7 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

472

8-1. Specifications

: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus

approved Toyota genuine gear oil or an equivalent of matching quality to satisfy the
above specification. Please contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer for further details.

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer for further details.

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Transfer (AWD models)

Oil capacity

0.70 L (0.74 qt., 0.62 Imp. qt.)

Oil type and viscosity

Toyota Genuine Transfer gear oil LL 80 or equivalent

Front differential (AWD models)

Oil capacity

0.65 L (0.69 qt., 0.57 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Rear differential

Oil capacity

1.35 L (1.42 qt., 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Brakes

Pedal clearance

121 mm (4.8 in.) Min.

122 mm (4.8 in.) Min.

Pedal free play



6 mm (0.04



0.24 in.)

Brake pad wear limit

1 mm (0.04 in.)

473

8-1. Specifications

Vehi

cle

ifica

tio

: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf) while

the engine is running.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the engine is running. (If the brake system
warning light is illuminated, refer to P.435.)

: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the

brake warning light illuminates, refer to P.435.)

: Vehicles without Lexus Safety System + A

: Vehicles with Lexus Safety System + A



19-inch tires

Parking brake indicator

When pushing the parking brake switch for 1 to 2
seconds: comes on
When pulling the parking brake switch for 1 to 2
seconds: turns off

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 30 mm (1.2 in.)

Tires and wheels

Tire size

245/50R19 101W

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 190 km/h

(118 mph)

310 (3.1, 45)

190 km/h (118 mph)

or less

250 (2.5, 36)

Wheel size



Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

474

8-1. Specifications



20-inch tires (type A)



20-inch tires (type B)

Tire size

245/45R20 99Y

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 220 km/h

(137 mph)

310 (3.1, 45)

220 km/h (137 mph)

or less

250 (2.5, 36)

Wheel size



8 1/2J

Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

Tire size

Front tires: 245/45RF20 99Y

Rear tires: 275/40RF20 102Y

Tire inflation pressure
(Recommended cold
tire inflation pressure)

Vehicle speed

Front wheel

kPa (kgf/cm

or bar,

psi)

Rear wheel

kPa (kgf/cm

or bar,

psi)

More than 220 km/h

(137 mph)

310 (3.1, 45)

220 km/h (137 mph)

or less

250 (2.5, 36)

Wheel size

Front wheels: 20



8 1/2J

Rear wheels: 20



9 1/2J

Wheel nut torque

140 N•m (14.3 kgf•m, 103 ft•lbf)

475

8-1. Specifications

Vehi

cle

ifica

tio

■

Use of ethanol blended gasoline in a

gasoline engine

Lexus allows the use of ethanol blended

gasoline where the ethanol content is up to

10%. Make sure that the ethanol blended

gasoline to be used has a Research Octane

Number that follows the above.

■

If your engine knocks

●

Consult any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

driving uphill. This is normal and there is

no need for concern.

Fuel information

When you find these types of fuel
label at the gas station, use only the
fuel with one of the following labels.

EU area:
You must only use unleaded gaso-
line conforming to European stand-
ard EN228.
Select premium unleaded gasoline
with a Research Octane Number of
95 or higher for optimum engine
performance.

Except EU area:
You must only use unleaded gaso-
line.
Select premium unleaded gasoline
with a Research Octane Number of
95 or higher for optimum engine
performance.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use gasoline with metallic addi-

tives, for example manganese, iron or

lead, otherwise it may cause damage

on your engine or emission control

system.

●

Do not add aftermarket fuel additives

which contain metallic additives.

●

EU area: Bioethanol fuel sold under

names such as “E50” or “E85” and

fuel containing a large amount of etha-

nol should not be used. The use of

these fuels will damage the vehicle’s

fuel system. In case of any doubt, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

●

Except EU area: Bioethanol fuel sold

under names such as “E50” or “E85”

and fuel containing a large amount of

ethanol should not be used. Your vehi-

cle can use gasoline mixed with 10%

max ethanol. The use of fuel with more

than 10% ethanol content (E10) will

damage the vehicle’s fuel system. You

must ensure that refueling is carried

out only from a source where fuel

specification and quality can be guar-

anteed. In case of any doubt, ask any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

●

Do not use the methanol blended gas-

oline such as M15, M85, M100.

The use of gasoline containing metha-

nol may cause engine damage or fail-

ure.

Content .. 26 27 28 29 ..
